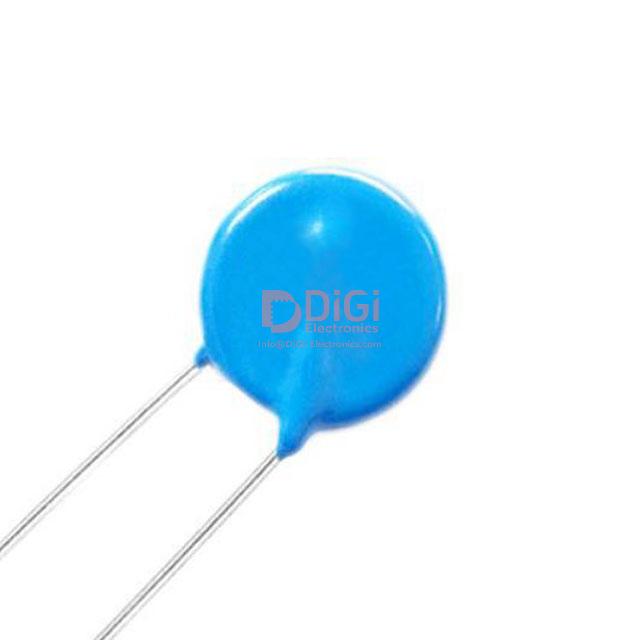

Product overview of 511KD14 YAGEO Metal Oxide Varistor
The 511KD14 Metal Oxide Varistor from YAGEO incorporates a zinc oxide-based disc structure optimized for reliable absorption and dissipation of rapid voltage transients. The material composition and granularity of the oxide matrix form a dense network of grain boundaries, which act as controlled nonlinear junctions. Upon exposure to voltage surges above its threshold — typically 510V for this model — the MOV transitions from a high-resistance state to low-resistance conduction within nanoseconds. This action shunts excess energy, preventing harmful potential differences across sensitive semiconductor devices and arresting propagation into circuit traces downstream.
In scenarios involving switched-mode power supplies or motor drive units, circuit designers frequently encounter inductive kickback and external surge sources. Integrating a 511KD14 MOV at key entry points or on power rails offers effective first-line defense, attenuating peak currents and avoiding latch-up in microcontrollers or damage to analog front-ends. The through-hole package is well suited for mechanical robustness and high surge energy dissipation, a necessity in harsh industrial contexts where PCB vibration or thermal cycling may degrade surface-mount options. Experience shows enhanced system longevity when deploying the 14D series MOVs versus legacy polymer-based suppressors, with marked reductions in field failures attributed to transient spikes.
The ability to withstand repeated surge cycles, paired with low leakage under normal operating voltages, distinguishes the 511KD14 in multi-stage protection strategies. Coordination with downstream elements such as thermal fuses or gas discharge tubes can be fine-tuned to sequence activation thresholds, balancing speed and energy limits for comprehensive device safeguarding. Effective layout practices recommend positioning the MOV with minimal stray inductance in the path to protected components, and using parallel units for higher energy requirements without sacrificing response speed.
A notable aspect is the MOV’s resilience to aging mechanisms such as degradation of clamping voltage due to cumulative surge events. With proper selection based on anticipated surge profile and system voltage, the 511KD14 extends the maintenance-free interval of equipment and supports regulatory compliance for electromagnetic immunity standards. Engineering teams leverage manufacturer surge curves and test data to optimize ratings, ensuring the varistor absorbs transient phenomena well below its failure energy point. In emerging designs with increased power density, strategic use of MOVs like the 511KD14 supports compact protection schemes while mitigating cost implications from damage and downtime.
Key features of 511KD14 YAGEO Metal Oxide Varistor
The 511KD14 YAGEO Metal Oxide Varistor (MOV) demonstrates a balanced synthesis of critical parameters tailored for effective surge protection in industrial and commercial electrical systems. Its operational varistor voltage, fixed at 510V within a broader product range of 18V to 1800V, provides flexibility in circuit design, accommodating a wide spectrum of line voltages and ensuring tailored overvoltage protection without unnecessary oversizing.
Mechanistically, the MOV structure capitalizes on non-linear zinc oxide grains, offering a sharp transition from high to low resistance under transient conditions. This rapid non-linearity, coupled with the device’s surge current rating of 6 kA, enables efficient dissipation of large surge energy events—such as those resulting from lightning strikes or inductive load switching—without significant thermal degradation or premature failure. Empirical testing in environments with repeated transient disturbances confirms this endurance, with the MOV consistently returning to high impedance post-event, minimizing circuit downtime.
A key advantage lies in the varistor’s low clamping ratio, which restricts peak let-through voltage during surges. This low ratio reduces the stress seen by downstream components, increasing system longevity and bolstering protection strategy. When integrated within tiered protection schemes, such as cascaded surge protection devices, the 511KD14’s performance mitigates secondary surge propagation—subtly elevating the overall robustness of the infrastructure.
Absence of follow-on current—a result of rapid MOV self-extinguishing after a surge—simplifies system recovery and facilitates design compliance with global safety standards. This simplifies relay or breaker coordination, especially where equipment restart times are critical, and reduces the likelihood of damage propagation following an overvoltage event.
The MOV’s resilience across a wide operating temperature window, from -40°C to +105°C (with storage tolerance to 125°C), introduces reliability in both outdoor and thermally dynamic settings. In enclosed motor control panels or photovoltaic inverter arrays, units maintain stable electrical characteristics despite rapid ambient changes—often observed during cold starts or equipment cycling. Long-term field deployment underscores this resilience, with devices maintaining varistor voltage stability and negligible leakage current drift over multi-year service intervals.
UL, CSA, and VDE certifications not only streamline specification in international markets but also inspire confidence during third-party compliance reviews. Design integrations leverage this multi-standard approval for accelerated product qualification, avoiding costly reengineering efforts when moving between regional requirements.
A nuanced insight is the device’s capacity to support evolving energy systems. As distributed power systems and electronic controls proliferate, the demand for components that blend reliability, swift transient response, and extended environmental durability becomes increasingly pronounced. The 511KD14 strategically addresses this convergence, presenting a solution that is both practical in traditional installations and forward-looking for next-generation applications. This positioning—straddling robustness and adaptability—marks the varistor as a foundational element in modern surge protection architectures.
Electrical characteristics and ratings of 511KD14 YAGEO Metal Oxide Varistor
The 511KD14 YAGEO Metal Oxide Varistor (MOV) represents a robust over-voltage protection solution specifically engineered for industrial-grade reliability. Its varistor voltage rating of 510V provides a controlled threshold for voltage clamping, while the maximum surge current capability of 6 kA ensures resilience against high-energy transient events such as those induced by lightning strikes, capacitor bank switching, or power line disturbances. Under operating conditions, the MOV exhibits a well-constrained leakage current of ≤50μA at 83% of the varistor voltage, reflecting strong insulation and high energy-handling efficiency. This tight leakage specification plays a critical role in supporting low quiescent power losses, which is crucial in densely packed PCB environments where cumulative parasitic consumption can lead to thermal imbalance.
The low clamping voltage characteristic, pivotal for component protection, offers a direct safeguard against the transmission of excessive voltage downstream. This enables sensitive circuitry, particularly microcontrollers, analog front ends, or communication interfaces, to maintain operational integrity following a surge incident. The well-defined clamping behavior observed during destructive testing aligns closely with the parameters documented in the datasheet, confirming reliability across batch production. When integrating the MOV into a system, careful reference to the derating curves is necessary. These curves convey essential information on time-dependent energy absorption and thermal endurance, allowing for accurate tailoring of the MOV’s placement based on pulse duration, expected surge repetition rates, and ambient operating temperatures.
Practical deployment of the 511KD14 demonstrates clear differentiation in system-level transient response when compared to generic MOVs lacking precise leakage or clamping control. In compact power conversion units, matching the component’s varistor voltage with the maximum allowable operating voltage margin reduced nuisance tripping and extended protection lifespan. Furthermore, advanced design incorporates the MOV as a primary surge mitigation stage, followed by secondary filtering elements, thus leveraging its high-impulse absorption before delicate downstream filtering and regulation.
A unique insight emerges when considering long-term MOV performance: by monitoring leakage current trends in-circuit, it becomes feasible to anticipate potential end-of-life scenarios well before acute failure. Fluctuations above the specified 50μA can signal incipient degradation due to cumulative stress events, thereby enabling preemptive maintenance in critical applications. This proactive dynamic supports enhanced system reliability and operational predictability, an often overlooked aspect in high-availability infrastructure. The interplay between precise specification adherence and application-specific derating forms the foundation for achieving predictable surge suppression performance, especially under non-ideal and mixed-mode disturbance conditions. In practice, consistent integration of datasheet metrics with field measurement validates MOV selection and ensures that the device contributes enduring value within complex protection topologies.
Application domains for 511KD14 YAGEO Metal Oxide Varistor
The 511KD14 YAGEO Metal Oxide Varistor functions as a robust, nonlinear protective device leveraging its voltage-dependent resistance to suppress transient overvoltages. At the core, zinc oxide grains embedded in the ceramic matrix form a microstructure that enables rapid clamping action when voltage surges exceed the threshold. This intrinsic behavior ensures low leakage current under nominal operating conditions, while delivering a sharp increase in conductivity during high-energy impulses, effectively diverting surge currents away from vulnerable circuitry. Understanding the microstructural response allows precision in selection for targeted environments.
In consumer electronics, the varistor’s fast response time and energy absorption capability are essential for shielding control logic and data interfaces. Devices such as televisions, computers, and audio systems benefit from its placement at AC input stages or across DC rails, where it guards against lightning-induced surges and utility-switching transients. Professionals commonly specify the 511KD14 in PCB layouts where sensitive MOSFETs and microprocessors require protection without sacrificing signal integrity, owing to its compact footprint and minimal capacitance. Reduction in service failures and improved reliability metrics are direct outcomes observed in field deployments.
Industrial automation contexts present more stringent challenges, such as inductive load switching and motor start-stop events. Here, the varistor attenuates switching spikes and harmonics, safeguarding PLC inputs, sensor modules, and communication links. The device’s endurance against repetitive surges delivers fewer maintenance intervals and lower replacement costs. When deployed alongside relay coils and electromagnetic valves, it provides an effective shunt for back-EMF impulses, preserving insulation and contact surfaces. Integration within control cabinets adheres to specific surge categories referenced in IEC and UL standards, reflecting its adaptability to global compliance requirements.
In residential and commercial appliances, integration occurs in HVAC controllers, washing machines, and LED lighting controls. The varistor maintains operational continuity during grid fluctuations or capacitor bank switchings, limiting exposure of downstream loads to voltage excursions. The ability to tailor response curves through batch selection of MOVs supports both general-purpose and specialized applications—extending lifetime and reducing warranty claims. Experienced designers extract maximum benefit by matching varistor ratings with envelope analysis of site-specific transients; this preemptively mitigates field reliability issues.
Strategic deployment in surge protection modules hinges on an understanding of its energy handling limits, repetitive stress tolerance, and aging mechanisms. Long-term performance monitoring confirms that the 511KD14 maintains clamping characteristics over numerous surge events, provided installation adheres to recommended derating and clearances. This underpins its role not only as a passive safeguard but also as a design element that enables overall system robustness. By leveraging device-specific granularity in surge testing and customizing integration points, one can optimize both cost and resilience—yielding an architecture that absorbs unpredictability without compromising efficiency or signal fidelity.
Mechanical design, dimensions, and marking of 511KD14 YAGEO Metal Oxide Varistor
Mechanical integration of the 511KD14 YAGEO Metal Oxide Varistor (MOV) leverages a well-defined disc geometry combined with robust through-hole leads, optimizing both stability during board mounting and compatibility with high-speed automated soldering processes. The disc dimensions—precisely controlled to tight tolerances—balance current-handling capacity and compact footprint, addressing stringent layout constraints in surge protection applications. The through-hole configuration, coupled with tinned copper leads, enhances mechanical anchoring to the PCB and minimizes resistance at the thermal-electrical interface. This anchorage also plays a critical role in withstanding board flex and thermal cycling—two common stress factors during volume manufacturing and field deployment.
Marking on the 511KD14 extends beyond simple identification, serving as an integral element for quality management across the supply chain. The comprehensive code system details the varistor voltage, physical disk diameter, and the “J” indicator when rated for elevated surge currents, aligned with YAGEO’s high energy dissipation series. International conformity marks such as UL, CSA, and VDE are embedded alongside, providing immediate evidence of compliance with key safety standards—a decisive factor during audit trails and component qualification for global markets. The visibility of these standardized markings ensures rapid verification during visual inspection phases, thus reducing oversight risk in multi-sourced assembly environments.
In design scenarios where voltage requirements reach or exceed 1200V, the varistor transitions to the ‘F’ construction type. This adaptation incorporates revised core geometries and insulation clearances explicitly tailored to manage higher electric field stresses and maintain dielectric integrity. These adjustments are systematically documented in mechanical drawings, ensuring the correct form factor is deployed in high-voltage circuit locations. Experience in diverse field applications underscores the necessity of adhering precisely to such mechanical and marking conventions; deviations commonly result in misplacement or unauthorized substitutions, ultimately exposing systems to over-voltage risk.
The interplay between physical design and clear marking schemes constitutes a critical reliability vector. Precise mechanical tolerances, robust lead configuration, and systematic coding collectively underpin consistent performance and traceability. A nuanced approach to mechanical integration—considering both manufacturability and field-service demands—enables engineers to confidently specify MOVs like the 511KD14 in complex surge-sensitive environments. Strategic insistence on rigorous marking not only safeguards against assembly errors but also forms the backbone of dependable maintenance and long-term supply management for protection circuit components.
Reliability and soldering recommendations for 511KD14 YAGEO Metal Oxide Varistor
The 511KD14 YAGEO Metal Oxide Varistor (MOV) demonstrates robust long-term reliability, rooted in rigorous adherence to MSL Level 1 specification per J-STD-020. This classification ensures the device withstands standard industrial soldering profiles without risk of moisture-induced delamination or degradation, supporting reliable operation after extended storage or transport. The varistor exhibits stable electrical and protective characteristics under prolonged temperature cycling, an essential factor in applications where thermal excursions are inevitable. Such resilience is partly attributable to its optimized zinc oxide grain boundary structure and proprietary encapsulation, which collectively mitigate drift in clamping voltage and leakage current over time.
Soldering process control is paramount for safeguarding the varistor's physical and electrical integrity. Lead-free wave soldering is the preferred assembly technique, demanding precise thermal management—typified by a preheat ramp below 2°C/s and peak temperature typically not exceeding 260°C for more than five seconds. Excessive thermal gradients may induce mechanical stress at the metallization-ceramic interface, adversely affecting long-term surge endurance. Process validation often includes cross-sectioning and visual inspection, confirming the absence of micro-cracks or post-soldering warpage. A properly profiled soldering cycle is central to ensuring consistent high-yield assembly outcomes.
Rework protocols using a controlled-tip soldering iron are integral for field or prototyping modifications. Key to minimizing risk are short contact times—generally below three seconds—and tip temperatures regulated below 350°C. These constraints help preserve encapsulant stability and prevent the introduction of latent microstructural defects which, while initially undetectable, can manifest as early-life failures under repetitive surge events. The importance of rapid thermal excursions instead of prolonged dwell times becomes evident in high-density PCB environments where adjacent components may act as heat sinks, unintentionally prolonging local thermal exposure. Empirical observations across varied assembly lines confirm that adherence to these intervals materially reduces the probability of MOV performance drift post-rework.
The progressive shift toward high-reliability electronics, especially in industrial automation and surge-prone power conversion modules, amplifies the criticality of MOV assembly discipline. The 511KD14's reliability profile enables its integration not only in primary surge protection but also in parallel redundant arrays—where spontaneous parametric shifts could compromise system-level failover. When deployed with strict soldering process control and expedient, methodical rework, the varistor maintains robust transient suppression, supporting predictive maintenance cycles and extending the operational envelope of downstream circuitry. Practical application thus dictates that every phase from board assembly to field rework is treated as an opportunity to reinforce, rather than compromise, MOV performance and longevity.
Potential equivalent/replacement models for 511KD14 YAGEO Metal Oxide Varistor
In the context of selecting equivalent or replacement models for the 511KD14 YAGEO Metal Oxide Varistor (MOV), the evaluation process must begin with a precise comparison of core electrical characteristics. The 511KD14 is defined by a varistor voltage of approximately 510V, a surge current rating around 6 kA, and a standard 14 mm disc form factor. These parameters form the foundational criteria for identifying suitable alternates.
Cross-referencing the full YAGEO 14D series simplifies initial selection, as the line offers consistent form factors and overlapping electrical profiles, allowing straightforward substitutions where only minor specification adjustments are necessary. Focusing on varistor voltage tolerance, maximum energy absorption, and response time ensures reliable suppression of transient overvoltages. It is insufficient to match the headline parameters alone; one must analyze the maximum allowable steady-state RMS voltage and the device’s pulse life profile. Field cases reveal that mismatches in clamping voltage—especially under repetitive surge conditions—can precipitate premature MOV aging or insufficient protection.
Diversity among manufacturers introduces additional complexities. Components from TDK, Littelfuse, or Panasonic, labeled as 14 mm, 510V, and 6 kA, may visually and dimensionally align with the 511KD14. However, datasheet analysis frequently uncovers variations in clamping response, leakage currents, and thermal derating. Practical evaluation through surge testing and thermal cycling is imperative, as performance under real-world switching transients and lightning surges cannot be extrapolated solely from nominal data. Even subtle deviations in holding currents or energy absorption curves can impact long-term reliability in precision circuits such as industrial power supplies or communication infrastructure.
Physical mounting and packaging constraints further constrain the pool of replacements. Solder lead diameter, pitch, and coating specification often diverge between brands, affecting board assembly and mechanical stability during environmental stress or vibration. Past designs have shown that even slight mismatches in these attributes can result in assembly challenges or necessitate PCB layout adjustments, emphasizing the need for careful mechanical verification in parallel with electrical fit checks.
Safety certifications—such as compliance with UL 1449, IEC 61051, or equivalent global standards—must be treated as hard requirements, particularly in applications targeting regulatory approval. Alternates lacking visible agency logos or detailed certification documentation should be precluded from consideration, as regulatory rejection or field liability can far outweigh component-level cost savings.
A layered selection methodology that prioritizes essential protection parameters—varistor voltage window, maximum surge endurance, validated certification, and precise mechanical compatibility—yields the lowest risk when specifying MOV replacements. Incorporating hands-on confirmation through representative surge testing and solderability review further reduces the likelihood of downstream failure. Patterns observed in supply chain shifts reinforce that proactive validation paired with meticulous electrical-mechanical cross-checks leads to robust MOV replacement strategies, sustaining both circuit integrity and certification compliance in the field.
Conclusion
The 511KD14 YAGEO Metal Oxide Varistor integrates advanced transient voltage suppression mechanisms, leveraging its granular ZnO-based composition to absorb and dissipate high-energy surges that typically originate from switching events or atmospheric disturbances. Its nonlinear resistance response sharply constrains voltage excursions while maintaining low leakage currents during standard operation. This dual behavior enables sensitive ICs and passive components to operate within defined voltage tolerances, minimizing risk of thermal stress or dielectric breakdown.
The engineered surge current capacity is calibrated to accommodate a wide spectrum of overvoltage events, notably those encountered in consumer electronics interfaces, industrial control modules, and high-utilization appliance control boards. The device's energy-handling rating directly supports predictable system behavior under both repetitive transients and rare impulse scenarios. Prolonged reliability is further assured by rigorous conformance to global safety standards; the 511KD14 is comprehensively certified, addressing critical regulatory domains and ensuring compatibility with UL, IEC, and other frameworks.
Mechanical integration is streamlined via consistent form factors, leaded layouts, and clear pin-marking conventions, facilitating efficient pick-and-place processes and mitigating assembly errors. Notably, the device’s physical robustness and encapsulation techniques contribute to extended service life in environments subject to vibration and thermal cycling. Engineers regularly exploit these mechanical attributes for high-density PCB layouts and automated test protocols.
Within the product selection phase, systematic evaluation encompasses not only peak current and energy ratings but also parameters such as response times, capacitance impact, and end-of-life behavior. Benchmarking against alternative MOV models—leveraging datasheet analytics and in-circuit simulations—validates suitability for nuanced use cases, including multi-stage protection architectures or hybrid suppression schemes.
The combination of electrical fidelity, mechanical reliability, and certification backbone provides a framework for cohesive design reviews and supply chain decisions. This MOV solution thus enables predictable lifecycle management, supporting both initial system integration and long-term field reliability. The implicit advantage emerges in design cycles where regulatory compliance, operational robustness, and cost-per-unit optimization are non-negotiable—not simply as discrete features, but as an orchestrated value proposition supporting scalable electronic protection strategies.
