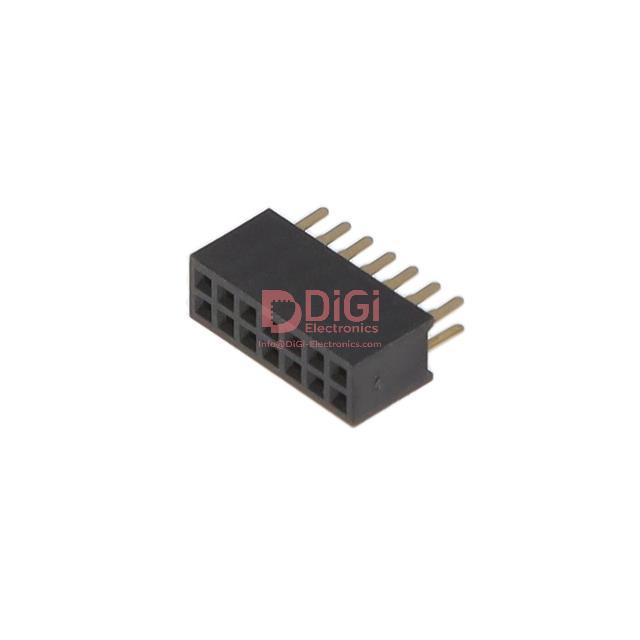

Product overview of WR-PHD 62201421821
The WR-PHD 62201421821 is a dual socket header from Würth Elektronik engineered for robust interconnect solutions, particularly within general-purpose electronics. Featuring a compact 1.27 mm pitch and a 14-position receptacle, the component caters to dense PCB layouts where board space optimization is paramount. The through-hole mounting format facilitates mechanical retention, ensuring stable connections and alignment during assembly. This mounting approach also supports a broad range of PCB thicknesses, enhancing design flexibility during layout.
At the material level, gold-plated contacts are employed. This choice significantly mitigates issues of oxidation and long-term degradation, resulting in improved contact stability and reduced electrical resistance at the mating interface. Gold’s inertness also diminishes the unpredictability introduced by environmental exposure—especially relevant in settings with elevated humidity or particulate presence. These properties translate directly to consistent signal transmission and minimized connection-related failure rates across extended service intervals, particularly in low-power and signal routing contexts. Notably, the component’s current rating and insulation performance align with usage scenarios that prioritize reliability over maximum load bearing, such as data lines or low-voltage control circuits.
Designing with the WR-PHD 62201421821 often revolves around balancing the demand for minimized footprint against constraints imposed by manufacturability and serviceability. The 1.27 mm pitch is dense enough for compact systems, yet large enough to permit straightforward soldering and inspection—a practical threshold for many high-density digital applications in consumer and industrial control hardware. Integrating the header into prototyping and production assemblies reveals its compatibility with automated insertion processes and selective soldering, streamlining workflow while maintaining interconnect quality. In contrast, solder joint integrity can degrade if thermal profiles are not properly tuned for gold-over-nickel finishes, underscoring the need for tightly managed reflow or wave soldering parameters.
While the WR-PHD series eschews critical use in high-reliability sectors such as defense, aviation, or implantable medical devices, its engineering targets the broad domain of standard electronics. Applications expand across controllers, instrumentation, communication modules, and peripheral cards, where signal integrity, ease of assembly, and moderate lifecycle performance collectively outweigh the need for extreme environmental or redundancy-driven certifications. In practice, the tradeoff between component cost and connection confidence points to this header as a go-to solution for iterative or mid-volume product releases, where reliability margins are balanced by project economics and field service expectations.
A key insight emerges when evaluating interconnect architecture resilience within PCB stackups. Choosing a pitch like 1.27 mm in conjunction with gold-plated contacts reduces susceptibility to bridging and alignment errors—the most common failure modes during manual and automated assembly—while also granting designers an accessible migration path when transitioning from prototyping to volume production. For designs incorporating repeated mating cycles or potential exposure to non-ideal handling environments, the WR-PHD 62201421821’s durability profile supports sufficient longevity without incurring the cost burden of high-specification connectors.
In essence, the WR-PHD 62201421821 header exemplifies a balance between engineering efficiency, cost-effectiveness, and electrical performance. Its specification aligns seamlessly with the realities of mainstream electronics manufacturing, offering an optimized interconnect platform for a diverse array of board-level designs.
Mechanical and dimensional characteristics of WR-PHD 62201421821
The mechanical and dimensional profile of the WR-PHD 62201421821 connector is defined by precise geometry and robust construction, both of which are critical to system-level integration. Featuring a 1.27mm pitch with 14 socket positions, this component aligns with high-density PCB requirements, enabling aggressive miniaturization without compromising connection integrity. Pitch uniformity influences signal routing and electromagnetic compatibility; the dense configuration supports signal integrity by reducing stub length, minimizing parasitic capacitance, and facilitating controlled impedance in high-speed layouts.
Through-hole mounting in this context offers a compelling advantage over surface-mount alternatives, especially when vibration resistance, drop performance, or mechanical longevity are priorities. The mechanical retention provided by press-fit or soldered pins in plated through-holes significantly reduces the likelihood of solder joint fatigue or connector disengagement under dynamic loads or thermal cycling. This is particularly evident in industrial control modules and transit equipment, where repeated insertion/extraction cycles and harsh operational environments are the norm. Rigid anchoring via through-hole termination can also simplify manual or semi-automated inspection processes, as dimensional stability makes visual and mechanical checks more reliable.
Precise adherence to manufacturer-specified hole patterns, with layout tolerances controlled to ±0.05mm, is paramount. These parameters ensure repeatable mating force, uniform pin alignment, and consistent insertion depth during automated assembly. Failure to observe dimensional specifications leads to cumulative misalignments, which may propagate mechanical stress across multiple pins, increasing the risk of intermittent contact or early-life failures. Practical experience shows that strict compliance with PCB tolerancing—leveraging high-resolution drilling and optical alignment—is essential for production-level yield and post-assembly quality. Tight mechanical tolerance across mass production batches also facilitates automated optical inspection and in-circuit test performance, contributing to lower field return rates.
Insightful design practice includes anticipating dimensional stack-up within overall connector arrays and accounting for board flex under loading. By integrating mechanical simulation during prototyping and validating assembly tooling against real-world tolerances, the risk of latent failures is minimized. This approach supports seamless migration from low-volume prototyping to scalable manufacturing, reinforcing both mechanical integrity and electrical reliability in service. The WR-PHD 62201421821 thus exemplifies the synergy between precise mechanical engineering and reliable electronic system design.
Material properties and compatibility in WR-PHD 62201421821 applications
Material properties and compatibility form the foundation for reliable performance and longevity in WR-PHD 62201421821 connector applications. The initial consideration centers on electrical characteristics, where conductivity, thermal stability, and surface integrity converge to determine signal quality and efficiency. Gold plating on contact surfaces serves as a critical enhancement, driven by its exceptional resistance to oxidation and its ability to minimize contact resistance, even under repeated mating cycles or adverse environmental conditions. This choice is not arbitrary; gold’s inert nature precludes the growth of insulating oxide layers that commonly degrade performance in less resilient metals, ensuring consistent low-resistance pathways throughout the connector’s service life.
Environmental robustness is equally influenced by material engineering. Exposure to fluctuating humidity, aggressive atmospheric contaminants, and temperature extremes necessitates a materials system that resists both chemical attack and mechanical fatigue. The WR-PHD 62201421821 leverages engineered polymers for insulation and mechanical structure, selected for their dimensional stability and dielectric properties. These selections prevent issues such as swelling, microcracking, or current leakage under stress, which are frequently observed in less rigorous assemblies after extended field use or rapid assembly line cycling.
Compatibility with assembly processes reflects a convergence of mechanical precision and chemical inertness. Components are manufactured and dimensional tolerances tightly controlled to enable seamless interfacing with Würth Elektronik tools and accessories. The mechanical geometry and surface finish both facilitate swift, error-free assembly, and also guarantee secure retention—minimizing insertion force without compromising contact reliability. In poorly matched systems, engineers often encounter inconsistent mating forces, surface wear, or even premature failure due to misalignment or suboptimal contact pressure. These pitfalls are circumvented by maintaining system-level compatibility, substantially reducing rework and field failures.
Practical deployment in high-volume production environments validates these design choices, with connectors demonstrating remarkable resilience to soldering heat and cleaning agents commonly used in modern PCB assembly lines. A notable insight derived from operational data is that maintaining strict adherence to series-compatible accessories is not merely a convenience but a functional necessity. Even marginal deviations—using third-party housings or non-standard tooling—can compromise contact alignment or disrupt the precisely engineered interface chemistry, leading to drift in performance metrics over time.
Embedded within these practices is the core viewpoint that optimal connector performance is a function of both intrinsic material excellence and systemic integration. The system’s reliability does not arise from any single feature but from careful orchestration of material science, mechanical design, and application-aware compatibility. This holistic approach ultimately streamlines approval cycles, reduces warranty claims, and provides a robust foundation for the evolving demands of electronics manufacturing.
Electrical properties and operating context for WR-PHD 62201421821
Electrical properties govern the operational integrity of the WR-PHD 62201421821 connector series, shaping the feasible design envelope for signal transmission in standard electronic assemblies. Central to its reliability is the interplay between insulation resistance, contact resistance, and current-carrying capacity, each parameter directly influencing both transient and steady-state performance. Within moderate-density PCB layouts, this connector maintains stable signal fidelity under nominal current loads, provided that specified voltage and current ratings are not exceeded. The absence of advanced safety margins precludes its use in life-support, aerospace, or similarly critical pathways, where redundant fault tolerance and predictable failure modes are essential.
Thermal constraints function as decisive boundaries for application. Efficient management of temperature rise—stemming from dissipated electrical power and environmental heat—is vital to suppress drift in contact resistance and to prevent premature degradation of insulating materials. Experience indicates that connectors operating near their upper rating thresholds often manifest minor but cumulative contact wear, potentiated by cycles of thermal expansion and contraction. Careful attention to both ambient temperature and localized heat sources within enclosures can mitigate such risks, promoting longevity even in densely packed subassemblies.
Mechanical design complements electrical capability, with contact geometry and plating choice mediating insertion force, corrosion resistance, and throughput longevity. When deploying the WR-PHD 62201421821, design discipline suggests conservative derating—operating below absolute maximums—to accommodate field variance and enhance predictability. In practical scenarios, integrating these connectors within harnesses or backplane applications necessitates precise mating alignments and robust strain relief to ensure persistent electrical continuity. A subtle insight emerges: optimal performance is attained not through maximized ratings, but through harmonized use, where connector selection is grounded in system-level trade-offs between density, ease of assembly, and maintainability.
The WR-PHD 62201421821 exemplifies a connector best suited for non-critical subsystems, such as general signal routing and low-to-medium power tasks within consumer electronics, test equipment, and industrial control assemblies. In these domains, adherence to recommended operational limits, attention to board layout thermodynamics, and judicious mechanical integration collectively underpin reliable and predictable performance over the connector’s operational lifespan.
Handling, soldering, cleaning, and storage guidelines for WR-PHD 62201421821
Handling, soldering, cleaning, and storage of WR-PHD 62201421821 require disciplined adherence to engineered protocols to ensure functional robustness and long-term reliability. The material science underlying this connector imparts sensitivity to environmental and process fluctuations, mandating that handling stages minimize contamination and electrostatic discharge. Direct contact with conductive areas, particularly the connector pins, should be reduced during assembly to prevent microabrasions or unintentional introduction of oils and particulates. Use of antistatic gloves and controlled workstations represents best practice.
Soldering quality establishes the electrical and mechanical integrity of the interface. The process must precisely conform to thermal profiles defined in EN61760-1:2006, as the connector geometry and substrate interactions are validated for those parameters. Deviation—even within seemingly minor temperature dwell times or ramp rates—increases the potential for damage such as pin warpage, solder bridging, or incomplete wetting. Infrared and vapor phase soldering processes, while occasionally deployed for high-throughput needs, should undergo qualification runs using representative assemblies prior to widespread adoption. In production lines, monitoring thermal data and employing real-time feedback loops supports profile conformance and minimizes non-recoverable process-induced defects.
Aggressive PCB cleaning approaches can undermine reliability by inducing mechanical stress or chemical attack at the polymer-metal interface. Solvent choice is critical—alcohol-based solutions and mild aqueous detergents have demonstrated compatibility, whereas strong alkalis or halogenated agents exhibit a degradation effect on insulation resistance and terminations. Avoiding abrasive tools—such as mechanical brushes—protects pin coplanarity and reduces the latent risk of fracture propagation. Ultrasonic cleaning, while effective for flux removal, demands verification to ensure vibration frequencies do not resonate with connector assemblies, which could otherwise initiate microcracking.
Post-assembly processes such as potting and conformal coating introduce further dimensional and material compatibility considerations. Encapsulation compounds, when improperly matched, may shrink or expand during polymerization, exerting force on the connector shell or housing. To mitigate this, low-shrinkage formulations and stress-relief filleting are advisable. Inspection routines—visual and, when available, non-destructive imaging—should be applied post-curing to validate that mechanical stresses remain within the tolerances specified by the component datasheet.
Storage prolongs shelf-life only when environmental parameters are rigorously controlled. The original packaging offers protection against atmospheric contaminants, but additional safeguards—including humidity-controlled cabinets and temperature stabilization below 30°C—further preserve plating condition and wettability of the solder surfaces. Exposure to UV or direct sunlight initiates polymer degradation, a process that can become apparent only after several months but will manifest as embrittlement or color change. Rotating stock, strictly observing first-in-first-out principles, and performing periodic solderability testing support the assurance of long-term fitness for use.
System-level success with WR-PHD 62201421821 emerges from the orchestration of these micro-level practices into a process-centric assembly architecture. Real-world data indicates that process deviations, even when isolated, compound across batch-level scales to create pronounced variability in performance metrics such as insertion/extraction cycles, insulation resistance, and thermal stability. Integrating closed-loop monitoring and rigorous supply chain traceability establishes a control environment conducive to defect minimization and performance optimization. The intersection of material design, process discipline, and ongoing feedback represents the foundational axis for embedding this class of connector into high-reliability electronic assemblies.
Design resources and modelling tools for WR-PHD 62201421821
Design resources and modelling tools for WR-PHD 62201421821 represent a critical interface between device specifications and system integration within modern PCB design workflows. Würth Elektronik ensures extensive interoperability by publishing precisely engineered 3D models and footprints, optimized for seamless incorporation with leading ECAD environments, including Altium, CADENCE, and Eagle, as well as cross-platform standards such as IGES and STEP. These assets provide geometrically accurate representations of the connector’s envelope, pin arrangement, and mounting features, supporting both schematic capture and layout definition.
Effective utilization of these CAD models drives immediate technical advantages throughout the design process. At the initial placement stage, real-time collision detection becomes possible, enabling early identification and resolution of clearance issues in dense assemblies. Complex stackups and multilayer routing strategies benefit from reliable component outlines that correctly interact with mechanical constraints, minimizing rework associated with physical mismatches. Precise footprints directly inform solder pad configuration and via escape planning, which leads to more predictable assembly outcomes and enhanced signal integrity by reducing unforeseen parasitic effects.
In collaborative design scenarios, standardized model formats grant teams the agility to transfer project data across disparate toolchains with minimal conversion overhead. This mitigates the risk of misalignment between electrical and mechanical domains, which can otherwise propagate expensive errors into prototype and production phases. The capacity to virtually manipulate and visualize WR-PHD 62201421821 within a full-system context underpins rapid design iterations, facilitating robust Design for Manufacturability (DFM) assessments and cost-effective BOM optimizations.
From practical experience, incorporating advanced supplier-provided models ensures workflow consistency, particularly in projects subject to stringent quality controls or regulatory review. Early engagement with validated component geometry supports proactive thermal management and mechanical stress analysis, which are essential when the physical connector interfaces with high-density or high-reliability circuits. Additionally, leveraging these resources cultivates a design culture where every element is traceable, reproducible, and optimized from inception—setting a foundation for scalable, risk-mitigated product development.
A core insight emerges: the adoption of Würth Elektronik’s accurate, interoperable modelling toolsets is not merely a convenience, but a strategic requirement for engineers targeting efficient, error-resistant PCB design. These digital resources anchor the transition from conceptual engineering to physical realization, reinforcing confidence in spatial compatibility, process repeatability, and manufacturability of WR-PHD 62201421821, while progressively accelerating innovation cycles across electronic applications.
Potential equivalent/replacement models for WR-PHD 62201421821
Effectively identifying equivalent or drop-in replacement models for WR-PHD 62201421821 demands a structured approach grounded in strict parameter matching. Initiating the evaluation, the essential focus falls on ensuring mechanical footprint compatibility, precisely maintaining the dual-row 1.27mm pitch and identical overall dimensions. Interface geometry—including post length, insulator profile, and row spacing—must align exactly, thereby supporting seamless PCB integration and sustaining automated assembly yield in high-density layouts.
Pin count and configuration represent a further critical axis. Drop-in interchanges mandate consistent pin numbering and exact spatial arrangement to avoid signal rerouting or design requalification. Subtle variations in pin mapping, sometimes present even within the same series or between revisions, can trigger cascading electrical and layout changes that ripple through the manufacturing process.
Surface plating and base metal characteristics introduce a complex layer of specification alignment. Gold-plated contacts remain a frequent necessity in harsh or high-reliability environments, where oxidation resistance and minimal contact resistance drive longevity and signal clarity. However, gold thickness (typically expressed in microinches), underplating material, and possible presence of nickel diffusion barriers must be scrutinized. Field observations underscore that misalignment in these attributes can escalate insertion wear or trigger unforeseen signal degradation, especially in low-level analog or high-frequency digital contexts.
Exploring the Würth Elektronik WR-PHD portfolio reveals several near-analogues, sometimes differing only in mounting style—surface-mount versus through-hole—or in slightly upgraded insulator plastics for advanced temperature or chemical resistance. Applications in modular instrumentation or datacom backplanes reveal that even minor retention feature differences or offset standoffs can impact both assembly fixturing and vibration resistance. Matching the exact mating connector, guided by both part number cross-reference and hands-on mockup assemblies, remains decisive for long-term reliability.
From a procurement and lifecycle management perspective, validated alternates empower agile response to component shortages or end-of-life scenarios. Direct engagement with authorized distributors and technical representatives often accelerates candidate model vetting, an approach reinforced by correlation of datasheet parameters and extracting anecdotal track records from existing design-in deployments.
In summary, disciplined, multi-dimensional evaluation—detailing pinout, material stackup, mounting method, and mechanical interface—enables identification of true WR-PHD 62201421821 equivalents. Tactical cross-verification using test jigs and prototype assemblies uncovers edge-case incompatibilities, ensuring robust drop-in performance across both new projects and field retrofit scenarios. A systematic methodology, combined with ongoing supplier dialogue, forms the backbone of effective connector management within evolving electronic architectures.
Safety, reliability, and compliance information for WR-PHD 62201421821
Safety, reliability, and compliance considerations for the WR-PHD 62201421821 hinge on adherence to both international standards and precise application guidelines. At the core, the component undergoes certification processes aligning with rigorous global product reliability benchmarks. This foundational compliance ensures electrical and mechanical characteristics remain consistent within prescribed tolerances, establishing a dependable baseline for integration into mainstream industrial and commercial systems.
Layered beneath these standards, functional safety depends on constrained application scopes. The product documentation explicitly restricts deployment in regulated, mission-critical environments such as military, nuclear, medical life-support, or other fields where fault tolerance is non-negotiable—unless comprehensive safety case documentation, tailored contractual agreements, and further reliability assessments are conducted. This constraint reflects practical realities of failure mode analysis, derating practices, and environmental stress factors which may not be fully addressed within standard product variants.
In engineering practice, the responsibility for matching part specifications to circuit and system requirements falls directly to design teams. Misalignment between product limitations and end-use operational profiles undermines stability not only during field operation but also at the qualification and validation stages. Engineering workflows benefit from integrating risk analysis steps—such as FMEA and redundancy planning—early in the design cycle to identify any gaps between component performance and system safety requirements. Disregarding explicit warnings about application boundaries or ignoring specified derating and margin recommendations voids manufacturer warranties, transferring downstream liability and potential product failure costs onto the integrator.
Critical review of warranty terms reveals a clear allocation of risk. The coverage contemplates normal usage patterns and conformance to reference designs, but does not extend to unauthorized scenarios or deviations from technical advisories. This alignment between warranty scope and application boundaries is not a limitation, but rather a rational framework for managing risk in complex systems. Engineering strategies leveraging cross-validation of multiple sources, and the systematic verification of compliance with regulatory standards, further minimize exposure and streamline product approval processes.
Ultimately, the interplay between compliance, technical constraint, and application responsibility necessitates a deliberate, methodical approach to component selection and qualification. Proactively aligning procurement choices with required reliability categories and regulatory contexts streamlines downstream certification and reduces overall system development risk. Deploying WR-PHD 62201421821 within its specified perimeter, while layering supplementary assurance protocols where higher criticality is anticipated, optimizes both safety profiles and project outcomes.
Conclusion
The WR-PHD 62201421821 connector exemplifies an optimized balance between miniaturization and mechanical robustness, rooted in the precise engineering of its housing geometry and contact system. The dual-row, 2.00mm pitch header leverages high-temperature thermoplastics and corrosion-resistant copper alloy contacts, ensuring enduring dimensional stability and signal integrity. These materials allow for compatibility with standard soldering profiles such as reflow, while also withstanding repeated mating cycles without significant mechanical degradation.
At the integration level, adherence to Würth Elektronik’s explicit footprint recommendations avoids solder misalignment and reduces the risk of cold joints or lift-off, especially under automated placement. Careful attention to coplanarity during SMT processing is critical; it avoids stress fractures—an often-overlooked concern with compact headers on densely populated PCBs, where mechanical tolerance stacking can amplify minor inconsistencies. Selective support of the connector during wave or hand soldering operations is effective in mitigating PCB pad lifting, a common cause of early board failures.
In practical deployment, pre-qualification of the 62201421821 in environments subject to vibration or thermal cycling often reveals the importance of anchoring schemes. Retention enhancements such as board locks or additional solder tabs translate to higher assembly yields and field reliability. Moreover, signal integrity simulations—including crosstalk and impedance discontinuity analysis—demonstrate that the connector’s contact geometry remains suitable for low-to-moderate speed digital interfaces. Deployments in safety- or EMI-sensitive systems, however, can expose susceptibility to conducted transients unless additional shielding or PCB-level filtering is implemented.
From a supply chain perspective, the WR-PHD 62201421821’s ubiquity across distributors streamlines procurement for volume production, and its compliance with RoHS and lead-free directives simplifies bill of materials management and international regulatory audits. Integration experience indicates lower rework rates and improved first-pass yields when the recommended mating connector is sourced from the same series, minimizing dimensional mismatch risk.
A subtle yet critical insight: connector selection should be system-driven rather than catalog-driven. While the 62201421821 provides a high level of baseline reliability, incorporating application-specific derating for current, operating temperature, and mechanical load significantly extends end-product service life. Early validation—through HALT, automated visual inspections, and test-point accessibility around the connector—further enhances robustness in mass production scenarios.
Through these layered considerations, the WR-PHD 62201421821 enables designers to strike an optimal trade-off between miniaturization, reliability, and long-term maintainability. The connector’s engineering-friendly compatibility and consistent supply chain profile make it a prudent default choice for a broad range of embedded and industrial electronics applications, provided that integration protocols are rigorously maintained and contextual tailoring remains an integral part of the engineering process.
