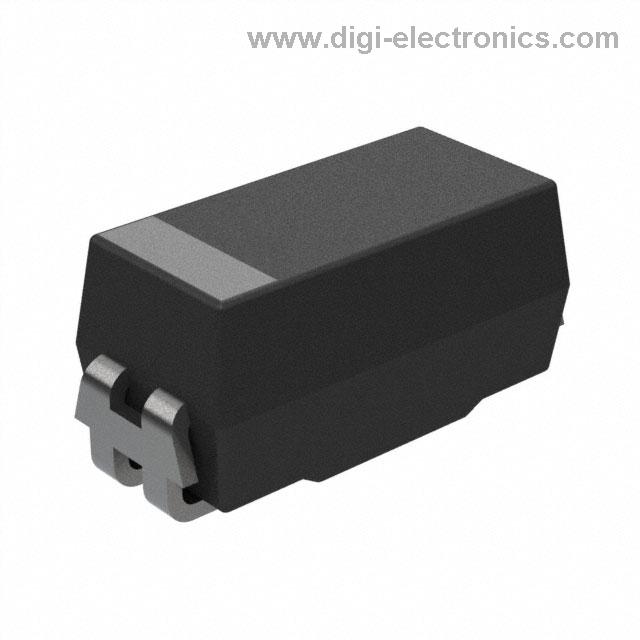

Product Overview of Vishay Sprague TMCMA0J107MTRF
The Vishay Sprague TMCMA0J107MTRF, structured as a surface-mount molded tantalum capacitor, embodies a targeted solution for electronic designs prioritizing both miniaturization and electrical consistency. Central to its construction is a solid tantalum core paired with a manganese dioxide solid electrolyte. This design approach is particularly effective in mitigating catastrophic failure modes, such as dielectric breakdown or short-circuiting, due to the self-healing properties of manganese dioxide when exposed to excessive current surges or transient voltages. The chosen capacitor chemistry simultaneously ensures a low equivalent series resistance (ESR), facilitating rapid charge/discharge cycles and optimizing ripple current handling—critical parameters when integrating capacitors into power delivery rails or noise-sensitive analog domains.
The device’s capacitance rating of 100 μF at 6.3 VDC, with a tolerance of ±20%, addresses scenarios that demand substantial bulk charge storage within space-constrained layouts. Its compact 1206 case format (3.2 mm × 1.6 mm) directly supports aggressive printed circuit board (PCB) density strategies, meeting the scaling imperatives common in consumer AV subsystems, portable instrumentation, and network infrastructure nodes. This form factor, paired with matte tin terminations, harmonizes with reflow soldering profiles and automated pick-and-place lines, benefiting production yield and enabling streamlined supply chain logistics. Notably, the robust surface finish reduces solderability defects such as fillet lifting or cold joints, which are endemic to high-throughput electronics manufacture.
Compliance with EIA-717 standards signifies extended endurance metrics and electrical reliability beyond baseline grades. Rated at Moisture Sensitivity Level 1, the component demonstrates exceptional resistance to humidity-driven degradation, alleviating long-term concerns regarding leakage current, parameter drift, or premature wear-out in operating environments subject to thermal cycling or atmospheric variations. Indirect experience with similar devices shows that stable ESR and minimal capacitance drift under operational stress can be critical for maintaining downstream voltage regulation performance and audio signal fidelity, without necessitating frequent recalibration or costly redesigns.
One essential perspective, often understated, is the capacitor’s role in circuit-level reliability engineering. The consistent mechanical robustness of molded tantalum units frequently translates to lower field failure rates, particularly when exposed to repetitive pulsed loads or solder rework processes. When selecting capacitors for deployment in noise-critical signal-path applications, the intrinsic low ESL and tightly controlled manufacturing tolerances of the TMCMA0J107MTRF offer measurable improvements in frequency-domain response and EMI suppression, which can be substantively leveraged in compact, high-density board architectures. In aggregate, such careful component selection represents not only specification adherence but also strategic risk mitigation, elevating overall system dependability and operational lifespan.
Key Electrical and Mechanical Characteristics of TMCMA0J107MTRF
Key electrical and mechanical properties of the TMCMA0J107MTRF play a critical role in circuit optimization, particularly for applications demanding stability across broad environmental conditions. The operational temperature bandwidth, extending from –55 °C to +125 °C, enables robust system integration in automotive, industrial automation, and aerospace platforms. Notably, when exceeding 85 °C, adhering to recommended voltage derating curves becomes essential; failure to implement sufficient derating amidst elevated temperatures can accelerate dielectric degradation, compromise reliability, and undermine long-term performance.
The device’s ESR, maintained at approximately 1.8 milliohms at 100 kHz, confers substantial improvements in ripple current management, directly influencing thermal performance and power conversion efficiency. Low ESR characteristics minimize internal heating under high-frequency switching, decreasing the likelihood of thermal runaway when densely populating power delivery circuits. In practice, leveraging capacitors with this ESR profile permits aggressive downsizing of filter networks while meeting stringent EMI and voltage ripple constraints, a pivotal requirement in advanced switching regulator designs.
Capacitance offerings, ranging from 0.47 μF to 470 μF, provide designers with granular selection capability for energy buffering, transient suppression, and charge storage needs. Choosing the appropriate value requires careful estimation of inrush currents, charge/discharge rates, and transient stability mandates unique to each application. The specified ±20% capacitance tolerance for TMCMA0J107MTRF reflects a design compromise between cost-efficiency and component precision. For non-critical timing or filtering circuits, this tolerance range is optimal; however, precision analog domains may necessitate tighter tolerances, available elsewhere in the product lineup, preserving signal fidelity and response accuracy.
Mechanical dimensions are engineered for system miniaturization and routing flexibility. The 1206 form factor (3.2 mm × 1.6 mm) allows close component placement, maximizing board density without sacrificing manufacturability or thermal dissipation capacity. Strategic placement of such compact capacitors in high-speed signal paths not only minimizes loop inductance but also guards against parasitic coupling, which is increasingly important in next-generation multi-layer PCB designs. Empirical assembly data suggests that this package maintains consistent solder joint integrity under thermal cycling, provided reflow parameters are tightly controlled.
The effective deployment of capacitors like the TMCMA0J107MTRF lies in harmonizing its electrical properties with system-level constraints. Integrating thermal management best practices—such as isolating heat sources, optimizing trace width, and enforcing voltage derating—maximizes the longevity and reliability of the device within high-performance architectures. Moreover, its ESR and compact size facilitate modular design, enabling designers to scale power architectures seamlessly while maintaining noise resilience. Judicious selection and placement ultimately translate into lower overall system cost and increased functional density. In rapidly evolving electronics ecosystems, components that strike this balance form the backbone of scalable, robust, and efficient hardware platforms.
Fundamentals of Tantalum Capacitor Technology and Advantages
Tantalum capacitor technology capitalizes on the unique characteristics of tantalum pentoxide as a dielectric medium. The high dielectric constant of tantalum pentoxide (~26) directly translates into notable volumetric efficiency, enabling substantial capacitance in miniature footprints. This property is especially significant when board real estate is at a premium and circuit density cannot be compromised. The electrochemical oxidation process employed to create the tantalum pentoxide layer results in an exceptionally thin, uniform, and stable dielectric film. This uniformity not only suppresses localized field enhancements but also enhances dielectric strength, supporting higher working voltages and reducing the risk of catastrophic failure.
The internal architecture of the solid tantalum capacitor further differentiates its performance profile. The tantalum anode is combined with a cathode constructed from solid manganese dioxide, which serves both as an efficient electronic conductor and as an inherently non-leaking, stable electrolyte. This all-solid-state configuration addresses multiple long-standing concerns of older wet electrolyte capacitor types, including electrolyte drying, evaporation, and leakage, which typically degrade performance and reliability over time. By eliminating such failure modes, tantalum capacitors present a robust solution for critical applications, particularly where unattended, long-term operation is expected.
Thermal stability remains a defining advantage. The solid manganese dioxide cathode maintains electrical characteristics consistently across a wide temperature envelope, typically exhibiting minimal capacitance drift and low equivalent series resistance (ESR) even under thermal cycling. This reliability becomes especially advantageous in applications exposed to frequent temperature fluctuations, such as engine control modules, powertrain electronics, and telecommunication base stations. In environments subject to vibration or rapid thermal gradients, the mechanically stable structure of solid tantalum capacitors often demonstrates lower failure rates and longer operational lifespans compared with liquid electrolyte counterparts.
Practically, integration of tantalum capacitors often results in simplified derating strategies and streamlined qualification procedures, due to their predictable performance and failure modes. Automated assembly processes benefit from their tolerance to reflow soldering profiles, reducing incidence of shipment failures caused by thermal stress during board assembly. This reliability is further reinforced by empirical evidence highlighting their superior endurance in accelerated aging and high-humidity operational profiles.
Among the layered insights, it is notable that although tantalum capacitors provide high capacitance density and reliability, their use is optimized within specifically engineered protection schemes. They are sensitive to surge currents and board-level transients, necessitating careful attention to power sequencing and inrush limitation in high-stress designs. In response to these challenges, tailored circuit architectures—such as series resistors or soft-start controllers—are commonly employed to harness their benefits while mitigating potential weaknesses.
The distinctive mechanism of solid-state electrolyte and the electrochemically formed oxide yield a capacitor variant that serves densification, reliability, and thermal consistency needs in numerous modern systems. While not universally applicable, due to limitations in surge tolerance and cost, the targeted deployment of tantalum capacitors continues to broaden as designers implement robust circuit safeguards and leverage their enduring volumetric and stability advantages.
Solid Electrolyte Construction in Vishay Sprague TMCMA0J107MTRF
Solid electrolyte capacitors, such as the Vishay Sprague TMCMA0J107MTRF, are engineered for both reliability and high performance through a layered materials system. At the heart of this capacitor, a sintered tantalum pellet acts as the anode and porous substrate, its morphology precisely controlled to balance surface area and mechanical integrity. The solid electrolyte is developed by impregnating this pellet with manganous nitrate, which undergoes a thermal oxidation process to form manganese dioxide. This conversion is critical—the resulting MnO₂ not only serves as a stable solid electrolyte but also provides self-healing capabilities, isolating localized faults by re-oxidizing at defect sites. This mechanism underpins the device’s inherently low failure rate and stability under voltage stress.
Following the formation of the manganese dioxide layer, the construction sequence incorporates a finely deposited graphite layer. Graphite acts as an intermediary, its high conductivity mitigating contact resistance between the semiconductive MnO₂ and the metallic silver overlay. The silver layer, in turn, is crucial for ensuring a uniform, low-resistance termination interface, directly influencing equivalent series resistance (ESR) and high-frequency response. The synergy of these layers produces a continuous and reliable current path, minimizing losses and enhancing pulse handling capabilities.
Mechanical robustness and environmental protection are delivered via epoxy encapsulation. The epoxy not only isolates sensitive internal structures from contaminants such as moisture and corrosive agents but also absorbs mechanical shocks and vibrations commonly encountered during both SMT processing and operational life. This encapsulation is specifically selected to withstand thermal cycling and reflow soldering environments, preserving device integrity in advanced assembly lines.
Terminations are plated with 100% matte tin, optimizing wetting behavior and mitigating the risk of whisker growth—a nuanced but essential aspect for long-term field reliability in high-density electronics. This plating facilitates consistent solder joint formation during surface-mount assembly while reducing localized thermal gradients and mechanical distortion. In high-volume production, this has been observed to translate into measurably higher process yields.
The TMCMA0J107MTRF’s construction achieves a confluence of electrical stability—high insulation resistance and low leakage current—with mechanical endurance, making it especially well-suited for applications demanding longevity and consistency, such as medical electronics, aerospace assemblies, and precision instrumentation. The robust self-healing feature of the manganese dioxide layer, coupled with precise control over encapsulation and terminations, ultimately supports tighter parameter tolerance and diminishes risk in mission-critical applications.
The integrated approach embodied in this device’s construction—namely the interplay between electrolyte chemistry, conductive path engineering, and encapsulation technology—provides a pathway to advance both operational reliability and manufacturability, offering a template for optimized solid-state capacitor design in modern electronic systems.
Thermal and Reliability Considerations for TMCMA0J107MTRF
Thermal and reliability engineering for the TMCMA0J107MTRF requires thorough evaluation of both intrinsic material characteristics and deployment conditions. Qualification to EIA-717 and Moisture Sensitivity Level 1 certification underscores strong resistance to environmental stressors such as humidity and process-induced moisture exposure. This baseline robustness supports high confidence in storage, handling, and assembly, with minimal risk of latent failures attributable to moisture ingress.
The device’s operational envelope spans –55 °C to +125 °C. However, thermal stress above 85 °C mandates systematic voltage derating to mitigate dielectric fatigue mechanisms. Voltage derating curves, based on empirical ageing models, indicate that excess electrical stress at elevated temperatures accelerates oxide degradation, leading to increased leakage current and early end-of-life. Integrated into derating practice is the recognition that conservative margining—operating at 50–70% of voltage rating when ambient temperatures exceed 85 °C—significantly improves operational lifespan and cumulative field performance.
Power dissipation, predominantly from AC ripple current, is a primary thermal hazard in surface-mount tantalum capacitors. Ripple-induced I²R losses generate localized heating, especially in designs constrained by compact PCB layouts or with limited copper area beneath the device. Effective thermal engineering leverages increased copper plane area and optimized via placement to diffuse heat away from the capacitor body. For assemblies operating near the high end of the temperature spectrum or under continuous high-ripple conditions, adopting multi-layer board structures and maximizing thermal vias yields measurable improvements in steady-state component temperature, thereby decreasing the incidence of thermally-induced parametric drift.
Equivalent Series Resistance (ESR) is a key parameter influencing both ripple current handling and self-heating effects. The allowable RMS ripple current (IRMS) and peak ripple voltage (VRMS) should be calculated as functions of ESR and application-driven power dissipation, following IRMS = √(P/ESR) and VRMS = IRMS × ESR, where P represents maximum permitted power loss, usually determined by the capacitor’s maximum ΔT rating. Practical implementation often includes in-circuit temperature monitoring during design validation to confirm modeled thermal profiles, ensuring the assumed board-level heat dissipation matches real-world conditions.
In high-frequency, high-reliability domains—such as telecommunication base stations or avionics—minor deviations in predicted self-heating can result in disproportionate reliability losses. Direct field data strongly suggest that underestimating local board temperatures or overloading ESR specifications consistently lead to early onset of failure modes. Therefore, pre-emptive alignment between capacitor specification, application power profile, PCB thermal path, and expected environmental extremes constitutes a best practice. Experience shows that integrating real-time temperature and current monitoring at the system level allows dynamic derating and adaptive power limiting, substantially mitigating risk in mission-critical or long-life designs.
A nuanced perspective highlights the importance of system-level thinking; individual capacitor ratings must be contextualized within the aggregate thermal landscape and dynamic ripple profiles of the full assembly. While robust qualification data guarantees a strong starting point, the intersection of electrical, thermal, and physical board design ultimately determines in-situ reliability. When thermal management, derating strategy, and ESR matching are holistically addressed, the TMCMA0J107MTRF demonstrates consistent, high-reliability operation in diverse and demanding scenarios.
Recommended Mounting and Handling Practices for TMCMA0J107MTRF
Optimal mounting and handling of the TMCMA0J107MTRF capacitor hinge on precise control over mechanical and chemical stress factors throughout assembly. The device’s multilayer ceramic structure exhibits inherent vulnerability to point loading, particularly during pick-and-place operations. Engineering best practice dictates that tooling diameters exceed 1.5 mm, distributing pressure over a wider area while restricting the force to no more than 4.9 N for durations under five seconds. Exceeding these tolerances imparts micro-cracks at the electrode interfaces or solder terminations, often manifesting later as reliability failures under thermal cycling or vibrational stress. These controls mitigate the latent risks of stress-induced dielectric breakdown.
Attention to flux chemistry is equally instrumental. Low-chlorine, low-amine formulations minimize ionic contamination, reducing susceptibility to corrosion and leakage currents after reflow. Residual fluxes may foster dendritic growth or degrade capacitance uniformity, especially in humid conditions or in high-density layouts. Solvent selection and cleaning protocols require meticulous optimization: HCFC225 and isopropyl alcohol, when applied at temperatures beneath 50 °C, effectively dissolve organic residues without subjecting terminal metallization to undue thermal or chemical attack. Tight regulation of immersion times and ultrasonic energy, based on empirical calibration for board design, precludes mechanical stress at the capacitor terminations and avoids solvent ingress through microcracks.
The TMCMA0J107MTRF’s standardized reflow compatibility, conforming to JEDEC J-STD-020 profiles, streamlines integration into automated SMT workflows, accommodating lead-free solder alloys and variable thermal ramp rates. Direct experience confirms that aligning reflow schedules to defined peak temperature and soak parameters consistently delivers robust solder joint formation and preserves ceramic integrity, even as board-level mass and thermal inertia fluctuate. Synchronizing these settings with component thermal limits is central to sustaining high assembly yield and long-term device reliability.
These practices coalesce to reinforce the balance between manufacturing efficiency and component lifetime performance. Deliberate, data-driven constraints on mechanical force, flux composition, and cleaning regimens establish repeatable safeguards for high-value assemblies. Adhering to these layered controls is the lever for translating component-level robustness into system-wide reliability, especially under the demands of miniaturized, densely routed electronics platforms. Strategic emphasis on mounting and handling precision transforms latent design attributes into tangible application stability and operational predictability.
Application Guidelines and Electrical Usage Parameters
Application of the TMCMA0J107MTRF requires rigorous management of electrical stresses, with voltage and current parameters modulated to safeguard device integrity and prolong service life. Fundamental to this process is the precise calculation of ripple current, using IRMS = √(P/RESR), where P represents real-time power dissipation at 25 °C and RESR signifies the effective series resistance under operational frequency. This approach ensures thermal management aligns with device constraints, systematically reducing the probability of thermally induced ESR escalation and related performance degradation.
Ripple voltage evaluation proceeds along interconnected metrics, with VRMS calculations integrating the total device impedance spectrum at the intended switching or operating frequency. The boundary condition—DC working voltage plus maximum peak ripple voltage—must be stringently kept beneath the rated threshold to preclude dielectric puncture. This mechanical-electrical interplay is often overlooked in fast-paced prototype environments, leading to premature breakdown under cyclical load transients. Field deployable designs benefit from early characterization of voltage headroom through exhaustive sweep tests, establishing conservative safety margins and facilitating stable operation under dynamic supply variance.
Reverse voltage resilience presents an intrinsic limit: at 25 °C, applied reverse voltage may not exceed the lower of 10% rated voltage or 1 V, and at 85 °C, constraints tighten further to 5% or 0.5 V. Even transient excursions outside these bounds can precipitate irreversible degradation in dielectric structure, a risk accentuated during cold-start or reverse polarity scenarios in system bring-up. Implementation of diode clamps or intelligent switching logic near the capacitor bank is a pragmatic measure, effectively mitigating potential excursion events encountered during user error or environmental perturbation.
Temperature-dependent derating emerges as a critical calibration step, reflected through context-driven coefficients that mathematically adjust permissible power dissipation above reference temperature. This adjustment reconciles material property variations, primarily the reduction in capacitance and ESR stability with rising thermal input. Practical engineering practice leverages predictive modelling, combining thermal simulation and real-world heat map profiling to determine the operational envelope at installation sites—the delta between datasheet ratings and field reality becomes actionable information for lifecycle management.
Such disciplined adherence to usage guidelines not only forestalls common field failure modes—such as excessive leakage current or dielectric breakdown—but also realizes system-level reliability improvements. Embedding these requirements into automated design-checking flows fortifies procurement and engineering review cycles against margin erosion. Furthermore, iterative circuit validation with calibrated equipment creates a feedback loop, confirming real-world compliance with parameter boundaries and enabling rapid root-cause identification. The nuanced balance between conservative design, thorough testing, and strategic configuration sets the foundation for robust, high-performance deployments across diverse electronic architectures.
Potential Equivalent and Replacement Models for TMCMA0J107MTRF
When identifying equivalent and alternative models for the TMCMA0J107MTRF, a disciplined approach based on critical electrical and mechanical parameters streamlines component selection. Key requirements include matching the 1206 (3216 metric) package, 100 μF nominal capacitance, 6.3 V rated voltage, and maintaining a similar or superior ESR value to minimize impedance and signal degradation in high-frequency environments. Direct substitutes with a ±20% tolerance ensure drop-in compatibility; however, capacitors featuring tighter tolerances, such as ±10%, can be leveraged when design objectives demand heightened stability or reduced susceptibility to parameter drift, particularly in precision analog or timing circuits.
Attention to qualification standards, such as EIA-717, verifies suitability for demanding application classes, including high-reliability industrial and telecommunications infrastructure where extended moisture resistance and consistent reflow solderability are necessary. Moisture sensitivity levels (MSL) of the replacement part must at least match that of the original to preserve process robustness, especially when exposed to multiple reflow cycles during SMT assembly. Evaluating mounting and lead-free compatibility from manufacturer datasheets prevents latent failures due to mechanical or thermal mismatch, especially in densely populated PCBs where pad dimensions and land patterns remain fixed.
Low ESR values directly affect ripple current handling and self-heating behavior, dimensions critical in power conditioning, DC-DC converter outputs, or bulk energy storage across logic rails, where tolerance for voltage transients is minimal. Ripple current rating and thermal performance curves must be scrutinized for the target application environment, especially if end-use products are intended to operate in elevated ambient temperatures or with aggressive current profiles. Margins in voltage ratings should also be assessed—selecting substitutes with slightly higher voltage ratings can serve as a risk mitigation strategy in circuits subject to voltage overshoot or harsh operating conditions, enhancing long-term reliability.
Exploration of replacement options typically centers on catalogues from widely recognized suppliers. The Vishay TMCM and Polytech series often deliver pin-for-pin alternatives, but competitive offerings from established brands like Kemet, AVX, or Panasonic exhibit cross-reference parts with equal form-factor and electrical performance. Careful cross-examination ensures regulatory compliance and procurement continuity. Subtle variances in leakage current or surge robustness sometimes occur between vendors; therefore, small-scale bench testing or simulation can reveal nuanced behaviors influencing EMI filtering or decoupling effectiveness.
Informed selection goes beyond datasheet metrics—long-term system durability relies on harmonizing capacitor characteristics with real-life board assembly conditions and lifecycle profiles. Strategic consideration of these multi-dimensional aspects streamlines platform upgrades and sustains supply-chain resilience in environments sensitive to active component obsolescence. By embedding these layered evaluations into the selection workflow, robust equivalency is achieved, mitigating downstream layout changes and qualification burdens.
Conclusion
The Vishay Sprague TMCMA0J107MTRF represents an integration of advanced solid tantalum capacitor technology with engineering-oriented design priorities. At its foundation, the device leverages a manganese dioxide solid electrolyte system, which provides intrinsic self-healing capability and low leakage current. The material’s high dielectric constant, paired with precision-formed tantalum anode structures, facilitates consistent capacitance stability across a broad operating range, sharply reducing parametric drift even under extended bias periods or aggressive pulse cycles.
The 1206 surface-mount package delivers superior volumetric efficiency, enabling circuit density improvements and streamlined PCB layouts without sacrificing electrical integrity. Epoxy molding produces a hermetic barrier that resists environmental ingress, mitigating moisture or ionic contamination. This construction detail significantly augments operational life expectancy—an asset when used in industrial automation nodes, measurement instrumentation, or ruggedized control units. The heat mitigation and thermal tolerance profile, defined by conservative derating curves, supports reliable function in applications with cyclic temperature excursions or high ambient stress, addressing a leading root cause of solid tantalum wear-out.
From an assembly standpoint, the TMCMA0J107MTRF’s lead geometry, reflow compatibility, and pick-and-place readiness align with lean production lines and minimize placement errors. Attention to recommended solder profiles and pad designs is critical, particularly to avoid thermal shocks that might induce latent cracking or board delamination. In practice, observing IPC-A-610 Class 2 or 3 mounting standards prevents premature field failures and secures design compliance for safety-critical deployments.
Ripple current handling is another core aspect, influenced by both the capacitor’s ESR and thermal mass. Accurate derating—often 50–70% below maximum ratings at elevated frequencies—extends device service life while ensuring stable filtering in switch-mode supplies or noise-sensitive analog front-ends. Working closely with manufacturer-provided impedance-fault graphs allows design teams to model heating and ESR rise in context, preempting power dissipation limits during transient loading.
Component selection processes benefit from cross-referencing datasheets and qualification records across alternative Vishay series or equivalent products by other manufacturers. Structured comparison must account for both headline specifications and nuanced details such as surge voltage distribution, process qualification pedigree, and long-term vendor availability. This approach robustly shields against supply chain disruptions and ensures ongoing lifecycle support for platforms destined for mid- to long-term field service.
Integrating this capacitor into real-world assemblies often reveals critical lessons on footprint conservatism and the necessity of factoring for both operational derating and long-term drift. Designers accustomed to maximizing capacitance within tight spaces frequently recalibrate target values and tolerances after prototyping runs, steering toward empirically-derived performance envelopes rather than relying solely on nominal ratings. Strategic stock planning, coupled with routine early-lifecycle X-ray and microsectioning validation, builds trust in the reliability envelope of the specified part.
Modern electronic systems demand not just performance but also supply resiliency and low lifecycle risk. The TMCMA0J107MTRF, through its robust engineering fundamentals and mature manufacturing pathway, supports these dual imperatives for a diverse range of assemblies. Its characteristics align especially well with applications requiring stable, long-duration capacitance under space and thermal constraints, setting clear benchmarks for practical deployment among solid tantalum alternatives.
