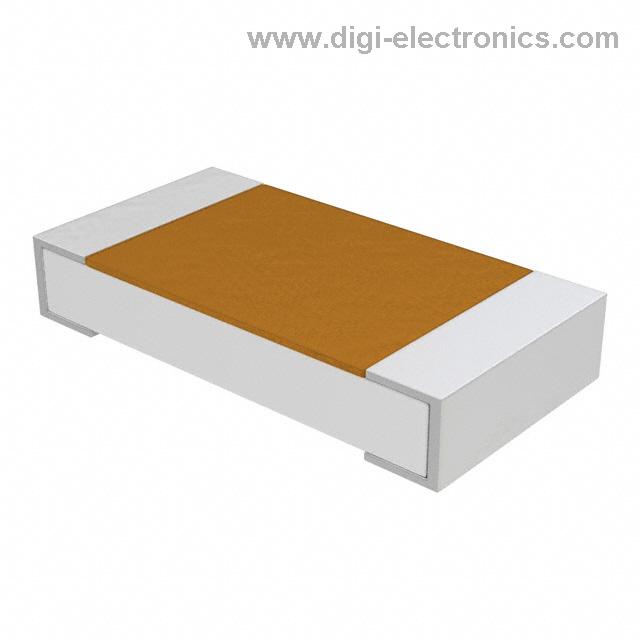

Product Overview of RCWE1206R270FKEA Vishay Dale Chip Resistor
The RCWE1206R270FKEA from Vishay Dale is a precision-engineered thick film chip resistor, purpose-built for high-performance current sensing and shunt configurations. At its core, this component leverages robust thick film technology on a ceramic substrate, ensuring controlled resistive values in demanding surface-mount environments. The nominal resistance of 0.27 ohms, combined with a tight 1% tolerance, addresses the essential requirements for low-resistance accuracy in precision analog circuits, switch-mode power supplies, and motor control feedback loops. Specifically, the low-ohmic value minimizes power dissipation and voltage drop, a critical factor in precision sensing, contributing both to system efficiency and accuracy.
The device is rated for 0.5W continuous power handling within the JEDEC-standard 1206 (3216 metric) SMD package. This dimension optimizes board density while maintaining heat dissipation through both the resistor body and appropriately designed PCB copper land patterns. Real-world circuit assembly often reveals the RCWE1206R270FKEA’s thermal stability and solder pad compatibility during reflow processes. The resistor’s thick film element and robust terminations allow it to withstand inrush currents and repeated thermal cycling without significant drift, ensuring performance retains its specified resistance within tight margins over the product lifecycle.
Application scenarios typically exploit the device as a current sense shunt in battery-powered instruments, LED drivers, or DC-DC converters, where current measurement fidelity directly impacts closed-loop control. In many board designs, trace layout and adjacent high-current planes are optimized to mitigate noise pickup and maintain measurement integrity. The RCWE1206R270FKEA’s low-inductive architecture further suppresses parasitic effects during fast current transients, especially relevant in applications involving high-frequency switching or pulse circuits.
From an engineering perspective, selecting this resistor often results from balancing trade-offs among package size, power rating, and sustainable thermal dissipation. Deploying the 1206 format supports compact layouts without compromising on derating guidelines under elevated ambient conditions. Field experience indicates that pairing the RCWE1206R270FKEA with meticulous PCB thermal design and close-tolerance analog front ends allows for consistent, low-offset current measurements suitable for both prototyping and volume production environments.
A unique insight derived from its utilization lies in its compatibility with automated optical inspection (AOI) and pick-and-place systems, reducing manufacturing error rates and facilitating process automation. Furthermore, its stability over temperature and time makes it advantageous in mission-critical or calibration-intensive systems, where drift can cause significant performance degradation. This inherent predictability and reliability highlight its role not simply as a passive component but as an enabler of accurate, resilient electronic measurement chains.
Core Features and Technology of RCWE1206R270FKEA Vishay Dale
The RCWE1206R270FKEA resistor, part of Vishay Dale’s RCWE series, exemplifies advanced materials engineering tailored for precise current sensing and power management. By leveraging a metal glaze film deposited onto a high-purity ceramic substrate, this device achieves resistance values as low as 0.01 Ω while maintaining exceptional stability even under thermal and mechanical stress. The overglaze protective layer forms a robust shield that mitigates microcracking, moisture ingress, and abrasion, ensuring longevity and reliability in high-demand environments.
Sulfur resistance is engineered into the resistor’s matrix, meeting ASTM B809-95 standards through careful selection of metal compositions and encapsulation. This intrinsic resilience significantly extends operational lifespan in harsh industrial and automotive applications, where exposure to sulfur compounds frequently induces open-circuit failures in conventional resistors. Mitigating such degradation risks directly impacts system uptime and reduces maintenance frequency in field deployments.
Contact terminations are constructed with a lead-free solder overlay atop a nickel barrier, a configuration that not only achieves RoHS compliance but also prevents tin whisker formation and galvanic corrosion, common failure modes in fine-pitch assembly and long-duration service. The absence of halogens within the construction ensures compatibility with stringent environmental policies and minimizes outgassing, which is critical for sensitive electronic and optical modules.
Automotive-grade qualification, evidenced by full adherence to AEC-Q200, supports integration within circuit topologies for engine control, battery management, and advanced driver-assistance systems (ADAS). The resistor’s thermal cycling endurance and vibration tolerance are indispensable for systems experiencing frequent temperature fluctuation and mechanical shock, especially near critical junctions. In practical deployment, maintaining precise current measurement in the presence of noise, temperature drift, and aggressive contaminants remains a persistent challenge; the RCWE1206R270FKEA addresses these issues through its layered material technology and process-controlled fabrication, resulting in low TCR (temperature coefficient of resistance) and long-term electrical stability.
It is increasingly evident that the effectiveness of component selection at such granular levels—where minute resistance values can dictate overall efficiency and safety margins—makes the RCWE series an essential element in modern electronics’ architecture. Selecting devices with enhanced sulfur resistance and rigorous qualification standards translates directly into reduced system-level risk and cost optimization throughout the product lifecycle. Deep material integration and precise process thresholds stand as the defining factors in the transition from standard to mission-critical designs, where the RCWE1206R270FKEA serves as a reference implementation for reliability-focused engineering.
Electrical and Mechanical Specifications of RCWE1206R270FKEA Vishay Dale
The RCWE1206R270FKEA Vishay Dale resistor exemplifies fine-tuned electrical performance tailored to contemporary circuit design requirements. Core characteristics include its 0.27 Ω resistance value, a 1% tolerance, and a low temperature coefficient across the broad range of 0°C to 150°C. This stability is critical for applications demanding consistency—such as high-accuracy current sensing or low-drift signal conditioning in analog front ends. In environments where thermal cycling or localized heating may otherwise induce resistance shifts, the provided derating curves enable engineers to precisely model device behavior under elevated solder point temperatures. The combination of resistance values above 0.2 Ω and available 0.5% tolerance in larger (0603–2512) packages extends flexibility for designers targeting both minimal variation and scalable accuracy.
Mechanically, the device employs wraparound terminals, a construction optimized for both surface mount reliability and enhanced thermal dissipation. The long-side terminal design present in the 1206 footprint translates into increased permissible power handling by promoting even heat spread and reducing hot spots that can undermine performance in densely populated assemblies. This architectural attribute is inherited from larger members of the RCWE series, enabling a favorable balance between compactness and electrical robustness.
Mechanical reliability is further substantiated through adherence to AEC-Q200-006 terminal strength standards, where robust board-level mounting is achieved via controlled strain relief and solder joint integrity. Such characteristics are particularly valuable in assemblies subject to mechanical vibration, shock, or flexing—a frequent concern in automotive, industrial, and tightly packed consumer PCBs. Best practices involve incorporating Vishay’s recommended solder profiles to mitigate thermal stress and preserve both long-term reliability and precision electrical performance during reflow. Accessible 3D CAD models streamline the component selection and layout verification phases, reducing design cycle time and integration risk.
Experience indicates that minor deviations in mounting or reflow protocol can disproportionately affect resistors with tight tolerances, magnifying the need for disciplined process controls in both manual and automated assembly lines. The RCWE1206R270FKEA supports these requirements by delivering consistent results across production lots, facilitating statistical process control and simplifying qualification to critical performance metrics.
The device’s structural characteristics—specifically, its long-side terminals and robust wraparound configuration—illustrate a design philosophy where mechanical stability is leveraged to enable electrical precision, rather than treating these domains in isolation. In applications such as power stage feedback, battery management systems, and high-reliability signal conditioning, this holistic approach serves to minimize latent failure risks and calibration drift, ensuring stable operation across a product’s lifecycle. Integrating such components delivers not just compliance with specifications, but confidence in real-world environments typified by both electrical and mechanical stressors.
Suitability for Automotive and Harsh Environments: RCWE1206R270FKEA Vishay Dale
The RCWE1206R270FKEA surface-mount resistor, designed and validated under AEC-Q200 standards, demonstrates robust performance parameters targeting automotive and industrial domains. Its resistance to thermal cycling ensures stable electrical characteristics even under extreme temperature fluctuations typically experienced in engine bays, actuator modules, or power control systems. These properties arise from a combination of advanced construction techniques, including precision laser trimming and secure ceramic substrate anchoring, directly enhancing cyclic thermal endurance.
Mechanical resilience is achieved through optimized termination geometries and robust internal element connections. This design effectively dissipates vibrational stresses and absorbs physical shock, mitigating risk of micro-cracking or delamination. Elevated sulfur resistance, engineered via proprietary resistive alloy compositions and protective overcoats, specifically counters the corrosive effects of airborne sulfur compounds prevalent in polluted urban and heavy-industrial locations. This feature addresses a prevalent failure mode—sulfidation-induced open circuits—especially relevant where equipment interfaces with combustion byproducts or operates near chemical processing lines.
Comprehensive environmental sealing, paired with low-moisture-permeable encapsulation, supports operation in environments with persistent condensation or rapid humidity cycling. The device’s broad operating temperature range and high moisture resistance enable deployment in applications ranging from under-hood automotive control units to outdoor sensor modules or industrial drive boards, maximizing mission time without requiring frequent maintenance or environmental controls.
From practical experience integrating similar resistors into engine control and high-reliability measurement circuits, field performance metrics consistently align with laboratory projections. Failures due to environmental stressors are markedly reduced when adopting sulfur-resistant, AEC-Q200 certified devices in comparison to standard commercial-grade resistors. Such proactive component selection shields circuits from latent failures and supports continuous operation in safety-critical or long-service-life applications.
A subtle, but often underappreciated advantage lies in supply-chain assurance; AEC-Q200 status not only facilitates straightforward adoption into automotive qualified assemblies but also ensures batch consistency, traceability, and global support—essential for scalable manufacturing processes and lifetime product support. The RCWE1206R270FKEA thus exemplifies a strategic approach, where material science and qualification benchmarks harmonize with on-the-ground deployment demands, advancing system durability and reducing costly field returns.
Application Scenarios and Design Considerations with RCWE1206R270FKEA Vishay Dale
RCWE1206R270FKEA resistors are deployed in environments where precise current measurement governs system integrity and operational feedback. The low 0.27Ω resistance, combined with a tight tolerance, ensures high fidelity in applications such as automotive engine control units (ECUs), industrial process controllers, and power conversion circuitry. Within these systems, the resistor transforms real-time current data into voltage signals for on-the-fly diagnostics, enabling overcurrent protection algorithms and closed-loop motor control. In battery management systems, its stable resistance characteristics under variable load conditions facilitate accurate state-of-charge estimation and fault isolation, essential for safeguarding both energy storage modules and downstream electronics.
Integration into densely populated board designs leverages the 1206 footprint’s space efficiency. Placement strategies prioritize proximity to heat sources and minimize thermal coupling with sensitive analog paths. Power dissipation must be analyzed in conjunction with the manufacturer-specified derating curves, which articulate safe operating boundaries at elevated ambient temperatures. In prototypes, gradual increment of load current verifies resistor self-heating effects and ensures signal stability across environmental extremes. Utilizing substrates with higher thermal conductivity further moderates hotspots, extending component longevity under continuous stress.
Automated SMT assembly benefits from the RCWE series’ robust surface-mount format and adherence to EIA-481-1A carrier tape standards. This compatibility bolsters throughput and enables predictable wetting during reflow soldering, an essential factor for process control in volume manufacturing. During pre-production runs, monitoring solder joint geometry is advisable for refining oven profiles and mitigating tombstoning on high-speed placement lines. Systematic testing post-assembly—employing in-circuit measurements—confirms electrical performance and exposes latent mounting anomalies.
An implicit advantage emerges in the resistor’s balance between thermal resistance and mechanical robustness, particularly under cyclic loading or exposure to board flexure. The optimized thin-film structure supports minimal drift, reducing recalibration requirements in mission-critical circuits. Design choices that integrate the RCWE1206R270FKEA often exploit not only its electrical stability but also its reliability across extended maintenance intervals, improving total lifecycle cost metrics in safety-oriented and industrial applications. Subtle deviations in mounting or ambient interactions may be detected early by reserving inline measurement points, facilitating predictive maintenance strategies that preempt component-induced failures.
Potential Equivalent/Replacement Models for RCWE1206R270FKEA Vishay Dale
Evaluating equivalent and replacement models for the RCWE1206R270FKEA Vishay Dale resistor begins with dissecting its core attributes: ultra-low resistance for precision current sensing, robust reliability for harsh environments, and AEC-Q200 automotive qualification for compliance with demanding industry standards. When alternatives are needed, a methodical comparison extends first to other RCWE series variants—where ohmic ratings and SMD footprints diverge. Options such as 0603 and 2512 form factors accommodate constraints imposed by board density or power dissipation, allowing seamless adaptation to varied layouts and thermal management strategies. Selection criteria pivot on matching the intended resistor's rated power, tolerance, TCR, and surge resilience, as these directly affect circuit accuracy and long-term durability.
Beyond the Vishay Dale RCWE family, interoperability hinges on the universal availability of AEC-Q200 certified resistors across reputable manufacturers. Notably, models from brands like Panasonic, Susumu, or Yageo, which fill the same 1206 footprint while presenting similar electrical characteristics, ensure cross-compatibility in the majority of automotive and industrial systems. However, subtle divergences—such as pad geometry, terminal metallurgy, and protective coatings—can influence solderability and board-level reliability over extended operating cycles. Rigorous evaluation of datasheets and, where possible, empirical testing in representative assemblies, substantially mitigates risks of latent incompatibilities. Direct substitution becomes feasible only when mechanical envelopes, thermal properties, and pulse ratings align unequivocally with system requirements.
The nuanced interplay between resistance tolerance and thermal coefficient underpins performance where high-side current measurement or overcurrent protection is critical. A resistor deviating by mere milliohms or exhibiting variable drift can trigger false readings or degrade feedback accuracy in control loops. Deploying models with tightly specified TCR and low ppm drift is pivotal in battery management systems or precision motor controls. In experience, screening for batch-to-batch consistency in large-volume builds uncovers variability not always evident during prototype validation—making it prudent to specify suppliers with stringent process capabilities.
Intrinsic reliability further distinguishes preferred replacements. For automotive modules exposed to vibration, moisture, and temperature cycling, resistors with robust chip construction—laser-trimmed elements, protective passivation, and pure tin terminations—offer extended service intervals and reduced field failures. Some substitutable models embed enhanced anti-sulfur layers for environments prone to atmospheric corrosion, and such adaptations, though often overlooked, drive real-world longevity. Accordingly, leveraging accelerated life testing, such as thermal shock and power cycling, validates candidate parts prior to deployment.
In sourcing drop-in replacements, volume procurement trends highlight that second-source flexibility is maximized by favoring parts with widespread distributor stock and clear long-term roadmap support. Delays from obsolescence or allocation can disrupt schedules, and adoptive supply chain strategies leveraging multi-vendor qualification mitigate such operational risks. Engineering teams conversant with the subtle subtleties of substitute selection maintain system resilience and cost efficiency across program lifecycles. Thus, detailed scrutiny of electrical, mechanical, and supply chain parameters guides robust substitution and ensures operational continuity, even as requirements evolve and new application scenarios emerge.
Conclusion
The RCWE1206R270FKEA Vishay Dale chip resistor demonstrates advanced suitability for high-precision current sensing tasks demanded by stringent automotive and industrial circuits. Its low resistance value minimizes energy losses and enables accurate detection of minimal current fluctuations, critical for protective systems and efficiency monitoring. The device's tight tolerance structure leverages precise thin-film fabrication techniques, reducing device-to-device variability and ensuring repeatability in mass production scenarios. Elevated power ratings expand its utility in high-current applications, such as motor drive feedback and battery management systems, where thermal management and long-term stability are essential for operational integrity.
Robust environmental resilience, established through standardized testing for temperature cycling, vibration, and humidity exposure, enhances deployment in electrically and mechanically harsh settings, including engine compartments and industrial power modules. Integration of this resistor confirms circuit reliability even under fluctuating load profiles and external stressors, supporting fail-safe design philosophies required in safety-critical domains.
Documentation and support resources streamline design integration, offering clear electrical specifications, thermal derating curves, and recommended PCB layout guidelines. Certified compliance with AEC-Q200 and RoHS directives removes barriers in qualification processes and simplifies cross-market deployment. Empirical feedback from deployed systems has shown minimal performance drift over extended use cycles, validating theoretical reliability metrics provided in vendor datasheets.
In practical engineering workflows, adopting such low-resistance, precision-rated components can decisively influence measurement accuracy and system lifecycle costs. The RCWE1206R270FKEA’s blend of electrical precision and ruggedization sets a benchmark, especially where predictive maintenance and remote diagnostics pivot on high-fidelity current data. Selecting components with established field performance and strong support infrastructure can meaningfully reduce unforeseen downtime and design iteration overhead, positioning this resistor as a strategic asset in the electronics design toolkit.
