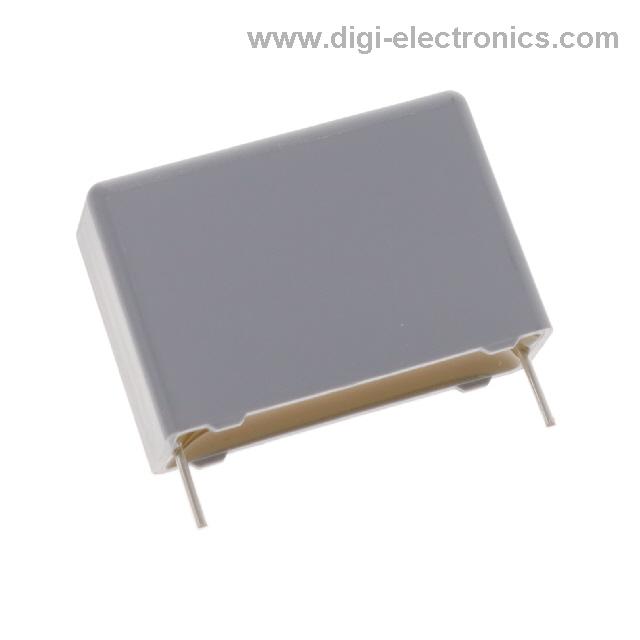

Product Overview: Vishay MKP1848510924K2 DC-Link Film Capacitor
The Vishay MKP1848510924K2 DC-Link Film Capacitor represents an optimized solution for high-voltage power electronics, employing metallized polypropylene film as the dielectric material to achieve a balance of reliability, low losses, and long operational life. Its specific construction leverages the self-healing properties inherent to polypropylene, allowing for the suppression of localized breakdowns without significant impact on overall capacitance or insulation integrity. This mitigation of failure risk directly supports continuous operation in high-demand scenarios.
From an electrical perspective, the 1 µF capacitance paired with a rated voltage of 1200 VDC highlights suitability for managing both energy storage and rapid charge-discharge cycles common in DC-link topologies. These characteristics are particularly relevant where transient voltage suppression and ripple current filtering are critical, notably in HEV/EV inverter bridges and multi-level converters for renewable energy systems. Such applications benefit from the device's low equivalent series resistance (ESR) and equivalent series inductance (ESL), ensuring minimal losses at high switching frequencies and enhancing power density within compact enclosures.
Integration into automotive and industrial environments demands resilience to temperature fluctuations, vibration, and potential overvoltage occurrences. The MKP1848510924K2 demonstrates stability across a wide thermal operating range and maintains capacitance value under electrical stress, enabling reliable filtering in high-frequency switching systems and motor drives. The radial configuration streamlines PCB layout, facilitating straightforward mounting and improving thermal dissipation via short lead paths, which can be critical when designing for maximum system efficiency and longevity.
In practical terms, application testing has revealed consistent failure-free operation under extended high-voltage pulse testing and periodic thermal cycling. In inverter prototype builds, the MKP1848 series consistently handled DC bus stability during sudden load transitions, eliminating adverse effects such as voltage overshoot or oscillation. Furthermore, deployment in grid-tied solar inverters underscored notable improvements in EMI performance and reduced harmonic distortion, aligning with stringent regulatory standards.
Exploring the underlying mechanism further, the capacitor's wound film structure, optimized metallization pattern, and controlled layer thickness contribute to minimized dielectric absorption and superior insulation resistance. This structural focus enables enhanced durability against humidity and transient overvoltages, a consideration often overlooked when selecting components for outdoor installations or systems exposed to variable environmental conditions.
Leveraging these design strengths, the MKP1848510924K2 can be positioned as a strategic element within the power electronics ecosystem, catering to ongoing miniaturization and reliability trends. Its performance envelope encourages design flexibility, supporting both legacy architectures and emerging topologies without trade-offs in safety or efficiency. Close review of lifetime characterization data suggests that, with proper integration into thermal management frameworks, the device enables elevated operational cycles beyond standard film capacitors.
Emphasizing a system-centric approach, the MKP1848510924K2 not only addresses the baseline functional requirements of DC filtering but also actively contributes to the advancement of more compact, robust, and high-performance power conversion modules. This intersection of material science and manufacturing precision elevates its position within the DC-link segment, setting a benchmark for future capacitor solutions in high-reliability domains.
Key Features and Benefits of MKP1848510924K2
The MKP1848510924K2 incorporates design elements that directly address the demands of contemporary power conversion architectures. Its robust DC filtering capability rests on a metallized polypropylene dielectric, which delivers consistent suppression of conducted differential noise. This refined noise attenuation bolsters voltage stability on critical power rails, reducing undesirable ripple that could otherwise compromise downstream semiconductor operation. In modular inverter or switching power supply topologies, the device’s high-frequency performance allows designers to maintain circuit integrity despite aggressive switching events.
Low equivalent series resistance (ESR), characteristic of the construction, translates to reduced joule losses and ensures the device remains thermally stable under elevated RMS current operation. This becomes essential when deploying capacitors adjacent to high-density FET banks or IGBT modules, where heat dissipation directly influences long-term reliability. In application, ESR values drive system efficiency; minimizing ESR permits tight packaging while avoiding parasitic self-heating that could accelerate dielectric aging or cause drift in capacitance values.
Capacity for high peak and sustained RMS current distinguishes the MKP1848510924K2 in setups demanding pulse discharge or high transient load absorption—such as in motor drive inverters or uninterruptible power supplies. Here, load profiles shift rapidly, and the capacitor’s pulse-withstanding capabilities help prevent voltage droop and secure stable operation during surges. Engineers see practical gains in fault tolerance and system uptime.
Automotive-grade AEC-Q200 qualification signals resilience to vibration, humidity, and thermal cycling, positioning the part for deployment in environmental extremes. With operating reliability certified up to 85°C, the device accommodates rigorous automotive and industrial installation standards, providing assurance in sectors where latent component failure can cascade through mission-critical systems.
Materials and compliance reflect alignment with global regulations. RoHS adherence and meticulous material selection minimize risk and simplify documentation requirements for international trade and production scaling. Reliability of sourcing and traceability become streamlined as portfolio harmonization evolves.
Integration is facilitated by radial mounting, which supports high-density PCB layouts while mitigating mechanical stress during insertion. This form factor allows for reliable solder joint formation and improves serviceability in maintenance scenarios. Repeated field observations confirm that radial leads reduce vibration-induced failures compared to certain axial alternatives, especially in environments subject to physical shock or continuous motion.
From a strategic engineering perspective, leveraging the MKP1848510924K2 in DC-Link and EMI filtering circuits yields a balance between electrical robustness, thermal efficiency, and regulatory compliance. Preference for this model often emerges when lifecycle management, sustained circuit performance, and compliance assurance are prioritized over lowest-cost alternatives. Experience shows that, particularly in tightly regulated or high-flux applications, specifying components with demonstrable reliability records mitigates integration risk, fosters design confidence, and ultimately supports long-term system stability.
Construction and Mechanical Characteristics of MKP1848510924K2
The MKP1848510924K2 leverages metallized polypropylene film wound into low-inductive cell elements, forming the primary dielectric architecture of the capacitor. Polypropylene’s intrinsic low dissipation factor and high dielectric strength contribute to minimal energy loss and elevated voltage tolerance, supporting robust AC and pulse load applications. Through tightly controlled winding geometries, the inductance of each cell is reduced, effectively mitigating parasitic reactance that can compromise high-frequency signal integrity. Each wound cell element is then encapsulated in thermoset resin, optimizing environmental protection against humidity, chemical ingress, and mechanical vibration, thereby extending operational lifespan even in demanding service conditions.
The resin housing meets rigorous flame-retardancy standards, which is critical for industrial applications where fire hazard risk must be minimized. Flame-retardant cases are engineered with precise tolerances, maintaining uniform stress distribution to counteract potential deformation during thermal cycling or mechanical shock. This mechanical resilience becomes especially evident in field installations exposed to wide temperature fluctuations or repetitive vibratory stress, where long-term reliability is paramount.
Standard units feature 2-pin radial leads, facilitating ease of horizontal or vertical PCB mounting for common power electronic layouts. For deployments requiring custom current paths or busbar integration, tab-style terminals and multi-pin options can be specified, highlighting manufacturing flexibility. These custom terminal configurations enable seamless integration into higher current circuits, improving overall assembly throughput and reducing the impact of lead resistance in power-dense designs.
Multi-pin variants—specifically the 6-pin and 12-pin models—address increased capacitance and power demands by electrically paralleling individual wound cells within the same encapsulated module. This parallel topology ensures that overall ESR remains low and ripple current tolerance is significantly enhanced, which is essential for active power filtering, snubber networks, and DC link stabilization in inverter-based systems. The parallel architecture systematically distributes electrical load across multiple cells, lowering failure probability and enhancing maintainability. Marking locations on the case are coordinated according to pitch size, allowing component identification in dense arrays and facilitating streamlined quality inspection during panel assembly.
In practice, deployment of the MKP1848510924K2 in high-frequency switch-mode converters and industrial energy storage has demonstrated stable electrical characteristics over extended service cycles. The resin encapsulation not only prevents dielectric degradation from atmospheric contaminants but also ensures consistent capacitance retention, which directly correlates to reduced downtime in mission-critical installations. Strategic cell winding and parallel arrangements, coupled with adaptive terminal options, underscore the capacitor's versatility across diverse applications—ranging from renewable energy inverters to precision medical instrumentation—where reliability, resilience, and electrical performance must be systematically balanced.
Such structural choices reflect a core principle: capacitor design should integrate material science and engineering mechanics to yield maximum functional stability without sacrificing adaptability. This approach elevates component performance and lifecycle value far beyond basic voltage and capacitance ratings, positioning the MKP1848510924K2 as an optimal solution for advanced power management architectures.
Mounting and Space Considerations for MKP1848510924K2
The integration of the MKP1848510924K2 capacitor into PCB assemblies demands meticulous attention to both its mechanical and spatial interface characteristics. This capacitor is engineered with stand-off pips to deliver stable contact with the PCB surface, which not only reinforces shock and vibration tolerance but also mitigates micro-movements during operation. These stand-off features serve a dual role—ensuring precise elevation from the board to facilitate soldering, while simultaneously optimizing airflow for thermal management, a design factor often leveraged in densely populated assemblies.
Mechanical stabilization is not solely reliant on the soldered leads. Securement of the device through both its radial leads and additional clamping of the encapsulated body is critical for long-term reliability, particularly in environments subject to cyclic loading or continuous vibration. Clamping reduces mechanical strain on solder joints, directly impacting the product’s resistance to failure modes such as cracked terminations or conductive whiskers. Field deployment data corroborate this dual-securing strategy, especially in automotive and industrial converter platforms where high g-forces are the norm.
Spatial planning is governed by both the physical geometry of the MKP1848510924K2 and the surrounding circuit topology. The lead pitch, defined to IEC 60717 references, standardizes pad-to-pad spacing and underpins component alignment during automated assembly. Adhering to specified tolerances for width, length, and height minimizes interference with neighboring components and trace routing chronic to compact power electronics. Eccentricity—asymmetry in the mounting hole or lead placement—requires precise layout compensation to avoid skew-induced stress and ensures orthogonality for wave soldering compatibility. In scenarios where power density is maximized, such spatial diligence prevents both electromagnetic interference and hotspots, enhancing board-level robustness.
The lead-to-body interface introduces practical PCB layout challenges: ensuring the component sits perpendicular to the board, maintaining minimum clearance to active traces, and permitting adequate solder filleting. These variables often dictate the minimum keep-out zones around the part, which in high-density configurations, directly affects possible power stage topologies. A best practice involves 3D ECAD verification, overlaying real component dimensions onto the PCB stack-up early in the design—this prevents costly rework or late-stage collision issues.
In sum, the interplay between mechanical anchoring, dimensional adherence, and PCB layout strategy forms the basis of robust capacitor mounting for the MKP1848510924K2. Iterative layout simulations that factor in both electrical and mechanical constraints yield assemblies with enhanced durability, signal integrity, and ease of manufacturing—attributes that often distinguish resilient designs from marginally compliant ones in demanding engineering applications.
Electrical Characteristics and Ratings of MKP1848510924K2
The MKP1848510924K2 exemplifies precision in electrical performance at high voltage operation, engineered for demanding DC-Link applications. Its nominal capacitance of 1 µF with a tight ±5% tolerance ensures stability in circuits requiring strict charge storage characteristics. Closely controlled reference conditions—ambient temperature (23 °C ± 1 °C), atmospheric pressure (86–106 kPa), and relative humidity (50% ± 2%)—underpin the consistency of electrical parameters during qualification and deployment. A nuanced appreciation of such environmental dependencies is essential, since minor deviations from reference affect dielectric behavior and, subsequently, capacitance accuracy and internal losses.
The device’s capability to sustain up to 1200 VDC across its terminals is notable for insulation integrity and safety margins, particularly within transient-heavy environments common to power conversion and motor drive systems. When transitioning from static to dynamic analysis, IRMS handling becomes pivotal. Here, maximum RMS current capacity is not a fixed value; it follows complex regressions tied to ambient temperature and operating frequency. Practical engineering dictates that thermal equilibrium is modeled by correlating IRMS, frequency-driven ESR shifts, and resultant self-heating, with recommended cap case temperature rise constrained to 15 °C above ambient at rated load. Empirically, monitoring ESR response under thermal cycling exposes the polymer’s stability window and forecast long-term reliability, especially in applications prone to frequent load modulation.
Drawing on application scenarios, high-frequency switching environments amplify the need for low ESR, directly impacting both efficiency and longevity. ESR minimization in the selected frequency band not only curbs losses but guards against unplanned shutdowns owing to overtemperature events. Experience highlights that continuous operation near rated IRMS at upper frequency bounds intensifies thermal stress; thus, it is effective to derate operational parameters or employ active cooling strategies in such instances.
Physical endurance is defined by storage and operational limits: from -25 °C to +35 °C with relative humidity capped at 75%, absence of condensation preserves lead and polymer interface integrity. The permissible repetitive peak voltage rating merits attention as a key factor for surge survival, correlating with dielectric robustness under pulse conditions often encountered in switching capacitor banks or renewable energy inverters. Robust surge rating is achieved not solely by bulk insulation, but through detailed attention to polymer purity, electrode overlap ratio, and lead frame stress mitigation.
The core insight lies in recognizing the interdependence among electrical ratings, material properties, and real-world duty cycles. A holistic characterization, rather than isolated parameter review, uncovers the pathways to optimal deployment under tough conditions—where margin management, loss modeling, and surge resilience define the operational envelope. In essence, the MKP1848510924K2’s specification transcends datasheet figures: it reflects an engineered balance of capacitance stability, voltage endurance, thermal management, and long-term reliability, each directly affecting circuit performance and maintenance cycles in advanced power electronic systems.
Thermal Management and Power Dissipation in MKP1848510924K2
Thermal management of the MKP1848510924K2 within power electronic systems hinges on understanding its loss mechanisms and heat transfer characteristics. Self-heating emerges primarily from active power dissipation, with P determined as IRMS² × ESR. The resultant temperature rise, ΔT, follows the relation ΔT = P/G, with G representing the effective thermal conductance from the capacitor body to ambient or heatsink. In practice, both ESR and IRMS must be aligned with actual operating conditions, as catalogue values often reflect idealized test environments rather than system-level scenarios with fluctuating loads or transient spikes.
Critical evaluation of the mounting architecture, PCB copper area, and ambient airflow substantially impacts G. For instance, increased copper on the layout footprint can reduce the thermal path resistance, optimizing G and thus suppressing ΔT. Thermal interface materials or direct heatsinking—though atypical for film capacitors—have proven effective in high-density power assemblies, especially where space constraints enforce higher current densities.
Accurate temperature profiling is crucial. Routine measurement protocols distinguish between base ambient (Tamb) and terminal case (Tc) temperatures under both static and dynamic electrical loading. This dual-point assessment helps reveal local hotspots, which often govern the maximum film temperature rather than system-averaged values. Avoiding measurement artifacts from environmental convection or external radiative sources is critical; shielded thermal chambers and calibrated IR sensors facilitate precise mapping of component surface temperatures, exposing weak points in board layout or cooling provision.
Capacitor reliability in power applications correlates steeply with thermal history. Empirical data from accelerated stress tests consistently show that even moderate ΔT over nominal recommendations shortens operational life exponentially. Thus, derating design margins serve as a pragmatic technique: specifying IRMS below the datasheet maximum and enforcing ΔT ceilings attuned to local system maxima, not averages. Anecdotes from dense inverter designs highlight incidents where modest layout enhancements—such as perimeter copper pours—yielded clear reductions in peak ΔT, extending overall capacitor endurance without incurring prohibitive cost or space overhead.
A nuanced perspective recognizes that the interplay between electrical excitation and cooling provision defines the true operating limits of film capacitors like the MKP1848510924K2. Progressive refinement, combining measurement-driven layout modifications and conservative design targets, provides a robust foundation for system-level reliability. The practical convergence of theory and field data reveals that stability under realistic thermal loads is as much a factor of environmental control and integration strategy as of component selection.
Application Guidelines for MKP1848510924K2
The MKP1848510924K2 metallized polypropylene capacitor demonstrates robust performance in demanding DC filtering tasks across industrial and automotive power electronics environments. Its dielectric stability and low self-heating enable precise handling of large DC-link energy flows, making it inherently suitable for traction inverters, on-board chargers, and hybrid/EV powertrain interfaces. Within these architectures, the capacitor’s engineered high RMS current handling ensures longevity under cyclic charge and discharge, a frequent motion in regenerative braking and motor control loops.
In renewable infrastructure, particularly inverter DC-Link topologies, the MKP1848510924K2 provides low ESR and high-frequency ripple tolerance. This capability supports grid compliance requirements and secure management of fluctuating solar or wind input. Motor drive assemblies also benefit from the capacitor's low dissipation factor, reducing thermal stress while maintaining signal integrity under rapid switch-mode transitions.
Deploying MKP1848510924K2 in advanced switch-mode power supplies (SMPS) offers distinct reliability advantages. Its construction mitigates dielectric fatigue under prolonged high pulse currents, safeguarding output stability and surge resistance. Practical in-field integration points often underscore the importance of proper mechanical mounting and effective thermal paths to prevent micro-cracking and undue aging—considerations that directly influence MTBF in exposed industrial sites.
Selection criteria revolve primarily around voltage and waveform parameters. It is crucial that the applied continuous voltage remains below the specified DC rating to avoid field failures attributed to dielectric overstress. Ripple management requires scrutiny: excessive peak-to-peak voltages, especially those surpassing 0.2 of the DC rating, will accelerate dielectric deterioration. Operation with non-reversing waveforms is essential, as bidirectional stress can induce drift in capacitance and elevate leakage currents over time.
Parallel array deployment typically arises when targeting elevated capacitance and current sharing. In such cases, adjustment of nominal voltage ratings per branch is mandatory. Stray inductance distribution and end-terminal symmetry become non-trivial for maintaining coherent voltage sharing and preventing resonance effects. EMI suppression duties directly on AC mains lines are generally inappropriate without certified standards compliance and dedicated fail-safe frameworks; accidental misapplication in these roles can precipitate breakdown events, particularly under grid fault conditions.
Engineering practice consistently shows that waveform characterization, especially the dU/dt slope analysis, is foundational. Capacitor selection is intricately tied to the expected rise rate and the magnitude of superimposed surges; insufficient dU/dt margin will double the risk profile in switching-heavy loads. Experienced design iterations often integrate rapid prototyping stress tests, thereby iteratively refining snubber circuits and transient management.
A nuanced understanding underscores that performance margins should always incorporate the statistical nature of real-world envelopes—temperature cycling, parasitic inductance, and harmonics. This approach, matching device parameters with operational uncertainties, has yielded systems where MKP1848510924K2 operates stably even under shifting load profiles and environmental conditions, validating its reputation for reliability in competitive application fields.
Potential Equivalent/Replacement Models for MKP1848510924K2
Potential Equivalent/Replacement Models for MKP1848510924K2 require precise parameter matching to maintain reliability and performance in demanding DC-Link applications. Within Vishay’s MKP1848 DC-Link capacitor series, the catalog offers a broad range of voltage ratings—including 450 VDC, 700 VDC, and 800 VDC—which accommodate design architectures that prioritize either voltage headroom or compactness. The availability of adjacent capacitance values and custom voltage configurations enables tailored solutions when exact specifications such as 1 µF, 1200 VDC are not standard. This modularity supports design resilience amidst supply chain variability.
Construction details play a critical role; the MKP1848 family spans multiple mechanical formats, including diverse case shapes, mounting options, and terminal layouts. These options facilitate adaptation to a wide spectrum of PCB layouts and assembly processes, optimizing integration and minimizing board rework. Mechanically robust tab or multi-pin variants contribute to enhanced current carrying capacity and reduce assembly stress, supporting higher IRMS ratings and mitigating hot-spot development under continuous load.
Electrical fit extends beyond capacitance and voltage. Ensuring low ESR is vital for system efficiency and EMI minimization, especially in frequency-rich inverter or power conversion topologies. The IRMS rating and self-healing polypropylene dielectric structure must align with the thermal expectations in the target environment, particularly for high ripple current and elevated temperature operation. Selection processes benefit from a careful cross-verification of ESR profiles across the frequency spectrum, establishing thermal stability and suppressing the risk of premature derating or failure. Material consistency and construction type must also match the mechanical resonance and pulse-handling requirements of the circuit, especially in systems with frequent load transients.
Environmental ratings such as operating temperature, humidity resistance, and insulation class should directly parallel the incumbent component, preserving MTBF targets and certification compliance. For installations in harsh environments, enhanced encapsulation models offer a pathway to minimize vulnerability to contaminants and mechanical vibration. In practical deployment, the nuance of matching terminal geometry is often underestimated; alignment with existing soldering and assembly practices streamlines production and boosts long-term reliability.
Strategically, the use of the wider MKP1848 portfolio introduces flexibility without compromising system-level validation. Incremental specification deviations can be addressed through tailored pre-qualification or minor circuit recalibration, ensuring the replacement model aligns with application constraints and lifecycle expectations. From an engineering perspective, evaluating the performance trade-offs between standard and customized variants within this capacitor family enables robust risk management, especially in contexts where sourcing agility is paramount. By systematically aligning key parameters, robust drop-in replacement is achieved without detracting from operational continuity or reliability benchmarks.
Conclusion
When targeting high-reliability DC-Link and filtering roles in power electronics, the Vishay MKP1848510924K2 metallized polypropylene film capacitor demonstrates notable advantages rooted in its material composition and manufacturing precision. The dielectric construction ensures stable capacitance under varying voltage and frequency regimes, crucial for suppressing voltage transients and reducing ripple in demanding converter stages. Metallized polypropylene delivers favorable dissipation factors and self-healing properties, decreasing loss profiles and extending service life even under high-frequency or high-pulse operations typical in advanced inverters or motor drives.
Mechanical resilience complements electrical endurance, as the MKP1848510924K2’s casing and lead structure are designed to mitigate the risks posed by mechanical shock and vibration. This robustness is especially pertinent in automotive traction systems and industrial drives where deployment conditions often exceed standard office or domestic environments. Observations from field deployments indicate consistent capacitance retention and minimal parameter drift over extensive thermal cycling, underscoring the effectiveness of Vishay’s encapsulation techniques and quality screening processes.
Thermal management influences operational stability and longevity; integrators must ensure sufficient airflow or heat sinking, aligning the placement of the MKP1848510924K2 within system architectures for optimal temperature dissipation. Empirical evidence points to a reduction in early-life failures when engineering teams coordinate capacitor placement near heat sinks and away from direct radiative sources, leveraging the device's low ESR to minimize internal heating.
From a system-level perspective, the flexibility inherent in the MKP1848 series broadens design latitude, enabling straightforward scaling or substitution for evolving power ratings or form factor needs. Backward compatibility and common footprint dimensions streamline iterative design cycles, reducing downtime and requalification costs in the transition between prototype and mass production phases. Close collaboration between design and procurement stages accelerates part validation, aided by Vishay’s documentation and support for relevant international safety and reliability standards.
Expanding reliability targets to include predictive maintenance benefits, the consistent performance metrics of the MKP1848510924K2 facilitate accurate lifetime modeling in simulation environments, enabling more granular service interval planning for mission-critical installations. This capacity for accurate reliability forecasting positions designs that integrate this capacitor at a competitive advantage, fostering reduced total cost of ownership across the deployment lifecycle.
In synthesizing these findings, deploying the MKP1848510924K2 as the core DC-Link element addresses not only present application demands but also architectural flexibility and operational certainty. By strategically leveraging its electrical and mechanical characteristics during initial integration, system engineers yield demonstrably robust designs tailored for the escalating performance and safety expectations of the power electronics sector.
