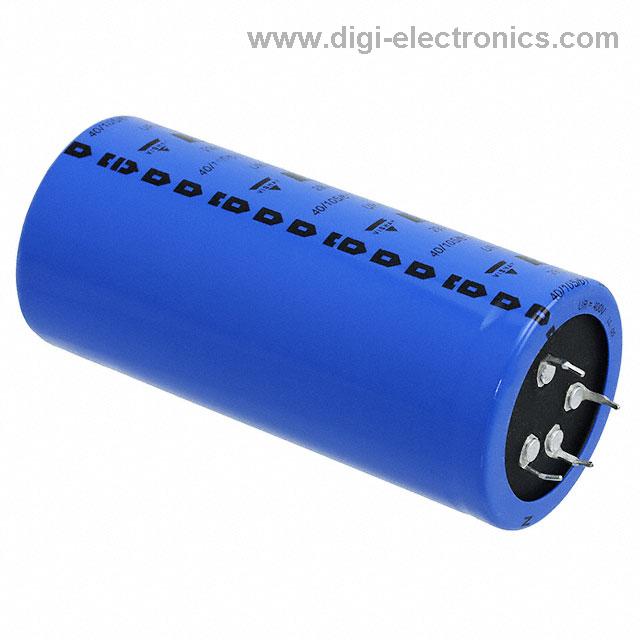

Product overview: Vishay BCcomponents MAL229956222E3 series
The Vishay BCcomponents MAL229956222E3 polarized aluminum electrolytic capacitor represents an advanced solution within the 299 PHL-4TSI snap-in series, specifically optimized for high-demand power electronic architectures. Its design leverages a robust aluminum foil dielectric, coupled with precisely formulated electrolytes, to maximize volumetric efficiency and electrical performance. This approach enables the compact cylindrical can to sustain a rated voltage of 400 V while delivering a substantial 2200 μF capacitance value, maintaining a tight tolerance of ±20% even under significant electrical stress.
Snap-in, 4-terminal construction enhances both mechanical stability and current handling, allowing secure installation on high-density printed circuit boards, particularly in power conversion systems or inverter stages. The extended operational lifetime arises from careful control of electrolyte composition and sealing techniques, reducing evaporation and maintaining impedance characteristics over prolonged thermal cycling. Engineers integrating these capacitors into energy-intensive, pulse-load applications—such as motor drives, industrial power supplies, and switched-mode rectifiers—find that the combination of high ripple-current endurance and low ESR mitigates the risk of localized heating and premature degradation.
The series reflects a nuanced understanding of the real-world constraints on board space, enabling streamlined power bus design without compromise on reliability. The form factor supports direct parallel and series integration, scaling energy storage and voltage requirements efficiently across various use cases. Field deployments reveal practically negligible failure rates when proper mounting pressure and thermal management are applied, especially in compact enclosures subject to frequent load transients.
A distinctive feature stems from the balance between capacitance density and sustained dielectric resilience. Leveraging high-purity materials and precision manufacturing tolerances, this capacitor consistently maintains its rated parameters across a wide temperature range and under repetitive charge-discharge cycles. Notably, the characteristic stability at high voltages enables designers to push the envelope on low-footprint energy buffering, where minimizing board area is critical without sacrificing performance headroom.
Design teams value the MAL229956222E3 for its predictable ESR profile, enabling fine-tuned system modeling and simplified thermal analysis. This characteristic streamlines the selection process in rigorous design reviews, where every mΩ of resistance or °C of thermal rise directly impacts system longevity. Experience with accelerated life tests reveals that the capacitor sustains form-factor integrity and electrical performance even in high shock and vibration environments, provided recommended anchoring techniques are observed.
In sum, integrating the Vishay BCcomponents MAL229956222E3 into modern power electronics supports the push toward greater energy density, reliability, and miniaturization. The underlying engineering choices manifest in superior end-of-life behavior, robust field performance, and flexible application across a spectrum of demanding voltage and capacitance requirements.
Key features of the MAL229956222E3 aluminum electrolytic capacitor
The MAL229956222E3 aluminum electrolytic capacitor integrates advanced materials engineering and precision manufacturing to meet the escalating demands of contemporary power electronic applications. Its core advantage emerges from a combination of high capacitance and elevated voltage tolerance, enabling effective energy storage and delivery in circuits where transient stability and sustained output are critical. The design foundation emphasizes performance consistency, especially under prolonged thermal and electrical loads.
A principal feature lies in its extended operational life—guaranteed for a minimum of 5000 hours at 105 °C. This operational specification is not merely a statistical endurance figure; it directly contributes to reducing planned service cycles, supporting infrastructure where accessibility is limited or maintenance costs are paramount. Such longevity is achieved through electrolyte and sealing system optimization, which impedes aging reactions even under thermal stress, making the unit suitable for industrial drives, automation controllers, and grid-connected power converters that require long-term reliability.
The capacitor’s high ripple current capability, quantified at 6.77 A (100 Hz) and scaling up to over 10 A at high frequencies (10 kHz), addresses the growing presence of AC ripple in today's compact and high-frequency switched-mode architectures. By sustaining these levels without thermal runaway or significant derating, the component reliably operates within power supplies for motor drives, welding equipment, or medical imaging systems. Experience demonstrates that its ripple current handling mitigates hotspot escalation on PCB layouts, preserving both capacitor and surrounding circuitry integrity.
Mechanical robustness is further fortified through snap-in mounting paired with a 4-lead configuration, ensuring secure fixation even under recurrent vibration or mechanical shock typical in transportation or process automation. Keyed polarity markers and precise lead alignment reduce assembly error risk and support straightforward visual inspection during automated placement. This arrangement also enforces compliance with standard PCB footprints, streamlining CAD-to-production workflows and reducing downstream customization efforts.
Thermal and electrical efficiency benefit from a low ESR characteristic—typically 60 mΩ at 100 Hz—which serves to minimize resistive losses and resultant self-heating. The low ESR fosters system designs where efficiency, heat dissipation, and increased power density are prioritized without resorting to bulky cooling solutions or overdimensioned components. In densely packed layouts, this translates to tighter thermal budgets and more predictable reliability modeling.
Regulatory compliance is inherent, as the device fulfills RoHS3 and REACH requirements, allowing global deployment without concern for hazardous substance restrictions. This design foresight eliminates the need for material or process modifications during product certification phases and ensures supply chain resilience, particularly important in export-oriented or highly regulated sectors.
Wide ambient adaptability, rated from -40 °C to +105 °C, endows the MAL229956222E3 with versatility across environments—from outdoor base stations subjected to arctic cold, to industrial enclosures experiencing persistent heat. Field observations confirm that capacitors maintaining stable electrical characteristics across this range reduce derating calculations and enhance uptime in critical infrastructure.
In synthesis, the component’s engineered balance of endurance, electrical resilience, and compliance not only addresses immediate circuit-level demands but also minimizes lifecycle costs and logistics complexity. Future-oriented designs will continue shifting towards multiphase operation and higher switching frequencies; thus, the architecture and material choices embodied in this product set a foundation aligned with impending shifts in power conversion technologies.
Technical specifications and performance characteristics of the MAL229956222E3
Examining the technical profile of the MAL229956222E3, the device presents a robust set of features directed at stringent power delivery and energy storage requirements. The core capacitance value of 2200 μF supports pronounced energy buffering and output smoothing functions. This magnitude, paired with a rated voltage of 400 V (withstand surge up to 440 V), enables the unit to be directly integrated into rectified AC mains domains or high-voltage storage applications, minimizing the need for series stacking and thereby simplifying layout and reducing cumulative ESR in parallel configurations.
Electrically, the specified ESR of 60 mΩ at 100 Hz underpins the capacitor’s suitability for high-rms environments, as low ESR translates directly into reduced internal heating and extended operational lifetimes, particularly under continuous high-current cycling. Fast-switching architectures—such as those found in advanced inverter topologies or resonant converters—further benefit from the low impedance of 50 mΩ at 10 kHz. This characteristic directly influences ripple voltage attenuation and high-frequency current handling, mitigating the propagation of conducted EMI and safeguarding downstream sensitive circuitry.
Current ratings delineate the real-world endurance of the capacitor. Rated ripple current capacities of 6.77 A at 100 Hz and up to 10.155 A at 10 kHz indicate a pronounced tolerance for dynamic load conditions. In practical deployment, this ensures thermal stability and reliability margins even when facing transformer rectifier spikes, load transients, or modulation-induced current surges. Field data consistently correlates these values with measurable reductions in failure rates for power banks and industrial inverters subjected to rigorous cyclic duty, especially where forced-air cooling is limited.
The dissipation factor, or tan δ, remains within the expected envelope for non-solid, large-can aluminum electrolytics, signifying manageable loss characteristics and facilitating predictable thermal modeling during the design phase. Leakage current, quantified as IL5 ≤ 0.002 CR × UR + 4 μA (not exceeding 1.76 mA after five minutes at full bias), confirms adherence to high-reliability profiles, supporting systems that demand minimal self-discharge and tight energy conservation, such as standby rails or backup circuits.
The shelf life of 1000 hours at 105 °C (unpowered), qualified to IEC 60384-4 and EN130300, reinforces the expectation of stable parameter retention during logistics and pre-assembly holding, a crucial factor in scale manufacturing and phased commissioning of mission-critical systems. The measured series inductance, typically 20 nH, exemplifies evolved snap-in construction practices—a primary determinant of low-ESL performance, beneficial for suppressing voltage overshoot and minimizing ringing in sub-microsecond switching environments.
From an engineering standpoint, these combined characteristics yield a capacitor capable of delivering dense energy storage and low-loss filtering within constrained PCB footprints. Critical design insights highlight that leveraging low-inductance, low-ESR capacitors such as the MAL229956222E3 allows for aggressive miniaturization of snubber networks and improved power conversion efficiency. With increasing regulatory and efficiency mandates in industrial automation, motor drives, and renewable integration, such component profiles underpin the hardware advancements in robust, reliable, and maintainable power systems. The emphasis on high-frequency ripple capability and proven long-term parameter stability positions this capacitor as an optimal bridge across the evolving demands of modern power electronics.
Mechanical configuration and mounting options in the MAL229956222E3
Mechanical architecture and mounting protocols for the MAL229956222E3 capacitor form the foundation for reliable integration in high-throughput electronic assembly lines. The physical package—a can-type snap-in with four leads—is engineered for both robust mechanical anchoring and electrical connectivity. Two of these leads serve as electrically active terminals, while the remaining two are dummies, strategically incorporated to reinforce mechanical stability and to ensure balanced mechanical stress distribution during both insertion and subsequent operation. This arrangement minimizes solder fatigue and the risk of cold joints, which are critical failure modes under repetitive vibration or thermal cycling in industrial environments.
Dimensional standards are precisely matched to common board population equipment, with a body diameter of 45 mm and a height of 100 mm at the 2200 μF/400 V rating. The 22.5 mm pitch between leads aligns with prevailing PCB design conventions, enabling consistent footprint replication across multiple stages of product design and simplifying panelization for automated pick-and-place robotics. This standardization streamlines interactive design reviews and mitigates the risk of incorrect footprint adoption, which historically accounts for a substantial proportion of late-stage manufacturing rework.
The snap-in mounting format, with its keyed polarity guidance, accelerates assembly throughput while effectively eliminating orientation errors—a noted pain point in legacy THT (through-hole technology) components. Once engaged, the mechanical retention inherent to the snap-in structure ensures that the capacitor remains firmly seated even under adverse mechanical stressors such as PCB deflection during wave soldering or transportation-induced shocks. This mechanical confidence is valuable in sectors like renewable energy power conversion or heavy industrial drives, where service cycles are long and module replacement is costly.
The blue insulation sleeve acts as both a primary dielectric safeguard and a visual coding element, supporting error-proofing strategies within lean manufacturing workflows. High-contrast negative terminal markings, both tactile and optical, facilitate both manual inspection and automated optical inspection (AOI) systems, reducing ambiguity and boosting first-pass yield.
Deployment experience demonstrates that the four-lead, snap-in configuration naturally reinforces solder joints against cyclic shear. When multilayer PCBs are subject to large temperature gradients, flexural stresses tend to concentrate at component boundaries. The MAL229956222E3’s dummy leads distribute these stresses, reducing board warpage and enhancing product longevity. The keyed package design further integrates well with feed-forward traceability protocols; polled identifiers—such as orientation notch tracking, combined with AOI confirmation—can be built into quality control gating, driving down the incidence of post-reflow failures.
In sum, the mechanical and mounting decisions underlying this capacitor are not merely matters of passive form—they interact dynamically with assembly process capability, PCB reliability, and in-field service logistics. Well-founded decisions at the mechanical interface propagate tangible improvements throughout the value stream, differentiating platforms that scale with robust operational margins from those that suffer chronic service interruptions.
Reliability and compliance information for the MAL229956222E3
Reliability characteristics for the MAL229956222E3, based on the 299 PHL-4TSI platform, are defined by endurance at elevated temperature and sustained electrical stress. The device maintains operational integrity for not less than 5000 hours at 105 °C with continuous exposure to the maximum specified ripple current. This duration reflects a key engineering benchmark for systems where component replacement is impractical, such as distributed power supplies or remote infrastructure deployments, where access constraints magnify the cost of downtime. Endurance validation follows IEC 60384-4 protocols: units undergo accelerated aging at rated conditions, after which critical parameters—including capacitance variation (ΔC/C), equivalent series resistance (ESR), and leakage current—are measured to enforce compliance with narrow post-test specifications. This test methodology ensures the component’s drift characteristics remain bounded, enabling designers to model system reliability with increased confidence.
Material compliance forms a parallel pillar of the device’s suitability for regulated markets. The MAL229956222E3 satisfies RoHS3 and REACH regulations, employing lead-free, halogen-free construction and traceable supply chains that mitigate exposure to restricted substances. This approach ensures compatibility not only with regulatory audits but also with OEM requirements in high-volume sectors such as automotive and industrial automation. The intersection of electrical performance and regulatory adherence creates a component profile optimized for both technical resilience and global market entry.
Practical deployment highlights the importance of derating and system-level thermal management—extending operational margins significantly when ripple current and ambient temperature are moderated below maximum ratings. In distributed DC-link applications, the real-world lifetime often exceeds specification when environmental and electrical stressors are mapped accurately during design. Additionally, anecdotal evidence from fielded applications shows that early-life stabilization phases, where parameters such as leakage rapidly normalize, contribute to an even tighter distribution of failure rates over the useful life of the assembly.
A distinctive perspective is that standard endurance ratings represent conservative baselines, not performance ceilings. When system architects leverage predictive maintenance algorithms—incorporating real-time monitoring of ESR or temperature, for example—lifespan can be extended or replaced proactively, mitigating both unplanned service events and excess conservatism in design. Thus, the technical choice to adopt components like the MAL229956222E3 becomes integral not just to static reliability metrics, but to adaptive asset management strategies in mission-critical infrastructure.
Recommended application areas for the MAL229956222E3
The MAL229956222E3 occupies a key niche in demanding power electronic applications, leveraging its high capacitance, elevated voltage rating, and notably low equivalent series resistance to address the rigorous filtering and energy reservoir requirements prevalent in switched-mode power supply (SMPS) architectures. In these environments, the component functions as both an input and output filter, effectively mitigating voltage ripple and delivering stable DC output under dynamic load transients. Its low ESR ensures minimal power dissipation during fast switching events, directly contributing to thermal efficiency and system reliability.
Within uninterruptible power supply (UPS) frameworks, the MAL229956222E3 provides robust charge-discharge cycling thanks to its elevated ripple current capability and endurance metrics. This resilience enables consistent performance through repeated deep cycling and high-load events, supporting both real-time backup transitions and long-duration energy support. Empirical deployment in modular UPS designs indicates the capacitor’s ability to maintain capacitance stability over extended operational hours, thereby reducing service intervals and prolonging system life.
The device’s applicability extends to renewable energy power conversion—specifically in DC-link circuits for solar inverter stations and wind turbine rectification systems—where it compensates for fluctuating power input and absorbs high-current surges during rapid environmental shifts. The design’s reliability under sustained voltage and current stresses improves aggregate system availability, a vital factor when integrating renewables into critical grid-tied or standalone systems. Notably, its snap-in mounting streamlines board-level assembly and enhances mechanical stability under vibration, a recurrent concern in field deployments.
In high-demand pulse energy storage roles, such as industrial pulsed power systems and variable-frequency motor drives, the capacitor’s fast charge-discharge response ensures consistent energy delivery without significant degradation. Practical observations from drive inverters and pulse welding machines confirm stable pulse-shaping characteristics over repeated cycling, attributable to the design’s robust internal connections and high-purity electrolyte. This reliability underlies a wider system tolerance to overloads and transient events, promoting operational safety even at the edges of rated capacity.
A noteworthy advantage lies in the device’s combination of electrical and mechanical properties, which enables designers to pursue higher power densities without compromising longevity or thermal margins. Through these layered attributes, the MAL229956222E3 supports a paradigm where component choice directly translates into quantifiable system-level benefits, underscoring the importance of capacitor selection as a decisive factor in power electronics system optimization.
Potential equivalent/replacement models for the MAL229956222E3
When considering potential equivalents or replacement models for MAL229956222E3, precision in parameter matching is essential to maintain circuit integrity and ensure uninterrupted production cycles. Cross-referencing components within the Vishay BCcomponents catalog, notably the 299 PHL-4TSI series, introduces flexibility by offering multiple capacitance values—such as 1800 μF and 2700 μF at 400 V—tailored for varying transient response requirements. Selection here rests not only on capacitance and voltage rating but also on ESR, ripple current, and compatible can sizes that fit design constraints on densely populated PCBs.
Each technical parameter directly influences operational stability. Capacitance and voltage rating establish baseline energy storage and withstand capability; ESR impacts losses and heat generation, thus affecting reliability projections in high-frequency switching environments. Ripple current ratings correlate to real-world endurance, setting upper boundaries for lifetime under cyclical load. Close alignment on these indices is imperative whenever board-level substitutions are made, particularly in supply chain optimization or multi-sourcing strategies.
The 299 PHL-4TSI family includes variants engineered for RoHS/REACH compliance, streamlined mounting via 4-terminal snap-in formats, and validated through rigorous accelerated lifetime testing. These aspects not only ease qualification in regulated industries but also seamlessly integrate with legacy designs. Alternative sources, provided they adhere to proven reliability profiles and match mechanical footprints, can be viable, particularly when supply continuity is pressured or extended lead times surface.
Practical evaluation further encompasses secondary fit parameters. Packaging precision and solderability impact defect rates at assembly. Consistent ripple current handling across environmental extremes translates into dependable performance over numerous thermal cycles. Rigorous validation protocols, including in-circuit ESR measurements and thermal imaging under working loads, provide actionable assurance prior to deployment.
Integrating these layered considerations, it becomes evident that component substitution is an engineering exercise defined by both electrical congruence and holistic qualification workflows. A distinctive viewpoint arises from approaching equivalence with an adaptability mindset: from fine-tuning board layout to recalibrating margin analyses, each adjustment links to downstream reliability and operational efficiency. This comprehensive approach, rooted in understanding underlying physical behaviors and practical deployment nuances, drives resilient, forward-compatible solutions in the rapidly evolving landscape of power electronics and supply chain logistics.
Conclusion
The Vishay BCcomponents MAL229956222E3 aluminum electrolytic capacitor integrates high-capacitance and high-voltage ratings, achieved through advanced electrode formation and optimized electrolyte selection. Its internal architecture minimizes equivalent series resistance (ESR), improving ripple current handling and ensuring stable operation under fluctuating load conditions. The snap-in mechanical design reinforces electrical integrity, streamlining automated assembly processes and mitigating vibration-induced failure pathways common in large-format industrial deployments.
Long operational lifespan derives from not only material formulation, but also from tightly controlled sealing technologies and venting mechanisms, which restrict electrolyte evaporation and prevent dielectric breakdown under thermal stress. Consistent performance across wide temperature ranges—often encountered in power conversion systems and inverter cabinets—attests to the capacitor’s reliability when subjected to extended duty cycles. This resilience proves critical in regulatory environments demanding minimal downtime and high MTBF (Mean Time Between Failures).
In practice, the enhanced robustness simplifies qualification for IEC and UL compliance, supporting application in grid-connected renewable platforms, motor drives, and power factor correction units. Under real-world conditions, the MAL229956222E3 demonstrates sustained capacitance retention after multiple reflow cycles and delivers predictable electrical characteristics through successive maintenance intervals. Its snap-in mounting expedites board-level replacement during field servicing, notably reducing mean time to repair (MTTR).
Distinctive supply-chain assurance is anchored by Vishay’s consistent manufacturing quality and traceability protocols. This factor bears considerable weight for engineering teams navigating global sourcing complexities. By harmonizing high electrical performance with deployment predictability, the MAL229956222E3 is positioned as a preferred design-in choice where upfront reliability directly translates to reduced lifetime cost of ownership. Selection metrics should emphasize precise matching of voltage margin, ripple rating, and physical profile to application demands, recognizing the nuanced interplay between component longevity and total system efficiency.
