Product Overview: HT7130-1 LDO High Voltage Regulator
The HT7130-1 leverages advanced CMOS process technology, a core enabler for its high-voltage tolerance and low power dissipation. At its fundamental level, the regulator employs a precision reference circuit paired with a robust pass element architecture, ensuring high stability across temperature and load fluctuations. The LDO topology is optimized to minimize dropout voltage, allowing for efficient voltage conversion even as the input approaches the nominal 3.0V output, which is critical in power-sensitive embedded solutions or battery-operated designs.
Input adaptability is enhanced by the regulator’s ability to accept up to 30V, addressing scenarios where supply voltages vary due to architectural constraints or environmental factors. This flexibility simplifies power domain design, reducing the need for additional pre-regulation stages and thus streamlining PCB layout and minimizing BOM cost. The fixed positive output voltage ensures consistent downstream rail integrity, crucial for precision analog, sensor, and microcontroller biasing.
Noise performance and transient response are another result of the regulator's CMOS structure. The internal error amplifier achieves rapid correction of load-induced voltage deviations, while careful compensation curbs output noise—a key requirement for RF front-ends, ADC/DAC references, and other noise-sensitive modules. The HT7130-1’s compact footprint enables designers to integrate voltage control into densely populated PCBs without thermal management complications, especially under moderate load currents where heat dissipation remains predictable.
Practical deployment reveals the value of the HT7130-1’s protection mechanisms. Integrated safeguards against overcurrent and thermal overload operate transparently, maintaining system reliability during fault conditions. When deployed in industrial sensor modules or compact IoT endpoints, such features minimize downtime, supporting robust field operation. Additionally, the regulator’s quiescent current profile supports standby system modes, optimizing energy-saving strategies in remote or intermittently powered units.
One subtle but impactful aspect is the way CMOS LDOs like the HT7130-1 minimize interaction with upstream switching sources. Thanks to low output impedance and strong PSRR, ripple from noisy DCDC converters becomes nearly negligible downstream, directly improving analog signal chain fidelity. This property is particularly valuable in designs where various voltage domains coexist, and analog-digital isolation is paramount.
The HT7130-1 proves effective in compact, high-reliability environments, especially where precise output voltage, tight space constraints, and input voltage flexibility intersect. Its architecture underscores a trend towards higher integration, reduced discrete components, and automated fault mitigation—qualities that simplify implementation while enhancing overall system robustness. Such features align with modern engineering priorities, offering clear advantages in reducing cycle times and improving total cost of ownership across diverse project profiles.
Key Features and Benefits of HT7130-1
The HT7130-1 voltage regulator is engineered for optimal efficiency and versatility across a range of low-power systems. At its core, the device’s extremely low quiescent current, measured at ≤ 3μA, minimizes system drain and supports prolonged battery life in embedded or portable applications. This minimal current draw contributes directly to reducing overall standby losses, which is critical in designs where energy conservation is paramount or in always-on, sensor-driven architectures.
The typical dropout voltage of 0.1V highlights the regulator’s capability to sustain output regulation even as input voltages approach output levels. Such an attribute is vital in battery-powered scenarios where voltage headroom gradually decreases with battery discharge. The device’s LDO architecture ensures the output remains consistent until the input nears the dropout threshold, thereby maximizing usable battery capacity before shutdown. This mechanism directly supports applications that require long intervals between battery replacements or recharges.
Thermal stability is assured via a temperature coefficient of 50 ppm/°C. This engineering feature means output voltage remains exceptionally stable despite fluctuations in ambient or device temperature, reducing the risk of voltage deviation under diverse operating conditions. For sensor interfaces, precision analog front-ends, or RF modules, this stability guards against drift-induced errors that commonly impair system reliability and signal integrity.
Supporting input voltages up to 30V empowers designers to interface with higher-voltage rails, broadening system compatibility and simplifying both power tree design and transient protection. The HT7130-1’s robust input tolerance streamlines integration into multi-voltage environments, such as industrial control or instrumentation platforms, where supply variation is inevitable and protection against overvoltage events is essential.
The device’s output voltage precision, held within ±3%, furnishes circuit designs with reliable voltage setpoints. Consistent output translates to tighter margin management for downstream components, such as microcontrollers and wireless modules, which are increasingly sensitive to supply deviations. In practice, maintaining precise output facilitates error-free digital logic operation and ensures analog accuracy, minimizing recalibration efforts and safeguarding long-term performance.
A nuanced evaluation reveals that the HT7130-1’s feature set aligns well with evolving needs in ultra-low-power systems, wearable devices, and sensor networks—domains demanding aggressive power savings without compromising functional integrity. The design balance between low dropout, wide input tolerance, and thermal resilience demonstrates a well-considered approach that permits designers to simplify protection circuits, lower bill of materials costs, and optimize form factor. In deployment, leveraging this regulator reduces the need for external protection devices or supplementary stabilization components, supporting both board-level reliability and manufacturing efficiency. The HT7130-1 establishes itself as a strategic choice for robust, high-precision, and ultra-efficient power regulation.
Technical Specifications of the HT7130-1
The HT7130-1 linear voltage regulator is engineered for precise low-dropout (LDO) operation within compact, power-sensitive systems. At its core, the device accommodates input voltages up to 30V, providing robust headroom for deployment in industrial or mixed-voltage designs where supply fluctuations and system transients are routine. The fixed 3.0V output is tightly regulated, achieving a voltage accuracy of ±3%, which remains consistent even with varying load conditions—this is predominantly enabled by a high-gain error amplifier and well-matched feedback network. The regulator is thereby primed for analog front-ends and microcontroller peripherals that require predictable voltage rails.
Handling output currents up to 100mA, the HT7130-1 strikes a balance between load capability and thermal management. The ultra-low typical power supply current, at or below 3μA, positions this regulator favorably for always-on and battery-backed platforms, dramatically extending operational lifespans relative to conventional LDOs. The dropout voltage, measured at a mere 0.1V, permits sustained regulation even when the supply dips just above the output target—particularly valuable in arrangements with unregulated supplies such as depleted batteries or poorly filtered adapters.
A temperature coefficient of 50 ppm/°C provides confidence in drift-sensitive applications by ensuring output stability across a standard operating environment. Implementations in sensor networks, precision analog measurement circuits, or multi-rail FPGAs benefit from reduced voltage-dependent error and minimized calibration demands over temperature cycles. From an integration perspective, the device’s stringent quiescent current spec allows for seamless, low-noise power islands within larger mixed-signal assemblies.
Practical evaluation reveals that ripple rejection remains robust under light and moderate loads, maintaining analog signal integrity even with nearby digital transients. PCB layout guidance emphasizes local decoupling and careful ground return paths, leveraging the part’s low dropout for efficient cascaded regulation. Deployment in power management architectures benefits from low profile passives and compact thermal footprint, facilitating dense module layouts.
A key insight is that while absolute output accuracy is a known parameter, the combined low quiescent current and tight line/load regulation curve are direct contributors to long-term reliability and system-level noise immunity. Deploying the HT7130-1 in critical supply rails often precludes the need for downstream LDOs, reducing component count and cumulative inefficiency—optimizing both the bill of materials and final product robustness. The device thus exemplifies the synergy of advanced analog design with practical, system-oriented efficiency.
Application Scenarios of the HT7130-1
The HT7130-1, as a low-dropout linear regulator, delivers a comprehensive solution for applications demanding efficient power management under stringent constraints. The device’s extremely low quiescent current, often measured in the microampere range, directly addresses the most critical limitation in battery-operated systems—standby power drain. In field deployments of portable instrumentation, or in wearable health monitors with rare access for battery replacement, this characteristic not only extends device operational lifespans but also simplifies long-term maintenance schedules. Implementation experience shows that cycling frequency of battery packs drops significantly when adopting the HT7130-1, a key differentiator in markets where labor and downtime directly affect operational cost.
Its enhanced line and load regulation, together with typical output voltage precision fluctuations below 2%, suit communication modules that interface with mixed-signal subsystems. In RF transceivers or Ethernet PHY modules, the HT7130-1’s clean, ripple-free voltage minimizes susceptibility to noise-induced errors and mitigates the risk of bit error rate escalation. Deploying this LDO regulator in network nodes, particularly where fluctuating power rail conditions are common due to system-wide switching events, stabilizes backend processing logic and supports sustained link quality—a foundational requirement in telecom and data aggregation infrastructure.
For audio and video applications, the HT7130-1’s intrinsic low output noise density, achieved through precision bandgap reference design and careful internal circuit layout, directly increases system SNR. When used as the primary regulator for audio codec analog front ends or as a post-regulator after DC-DC stages feeding low-level video amplifiers, it suppresses power supply induced artifacts. Field-level integration in high-fidelity recording systems indicates a measurable reduction of baseline hum and hiss, translating to improved dynamic range and enhanced audio clarity. This property extends to sensitive signal acquisition equipment, where analog domain purity is non-negotiable.
In the domain of security monitoring and industrial control, the HT7130-1 proves adaptable across a broad thermal envelope, maintaining regulation performance in environments ranging from –40°C outdoor installations to +85°C control cabinets. By sustaining tight output tolerances across ambient extremes, the device ensures that camera modules, sensor arrays, and embedded analytics processors receive uninterrupted, specification-grade voltage. Notably, improved system uptime and reduced thermal drift-induced errors come to the fore in deployments exposed to rapid temperature swings or continuous 24/7 operation, reinforcing trust in core surveillance and diagnostics processes.
Beyond these scenarios, the layered integration philosophy championed by the HT7130-1 allows flexible placement, whether as a point-of-load regulator adjacent to delicate analog blocks, or as a post-filter in complex power architecture. Its SOT-89 and SOT-23 packaging supports dense PCB layouts, easing both space constraints and thermal management through minimized footprint and effective heat dissipation. Real-world designs benefit from the reduced BOM complexity and layout simplicity, contributing both to accelerated development cycles and enhanced system robustness. The modularity also enables seamless upgrades or design repurposing, catering to evolving power requirements without extensive redesign.
A core insight emerges: prioritizing ultra-low standby current alongside robust noise suppression and output stability fundamentally transforms the reliability profile of embedded systems. System engineers leveraging these attributes achieve greater autonomy, signal integrity, and operational trust, translating technical specifications into tangible, market-driven advantages.
Package Options and Pin Definitions for HT7130-1

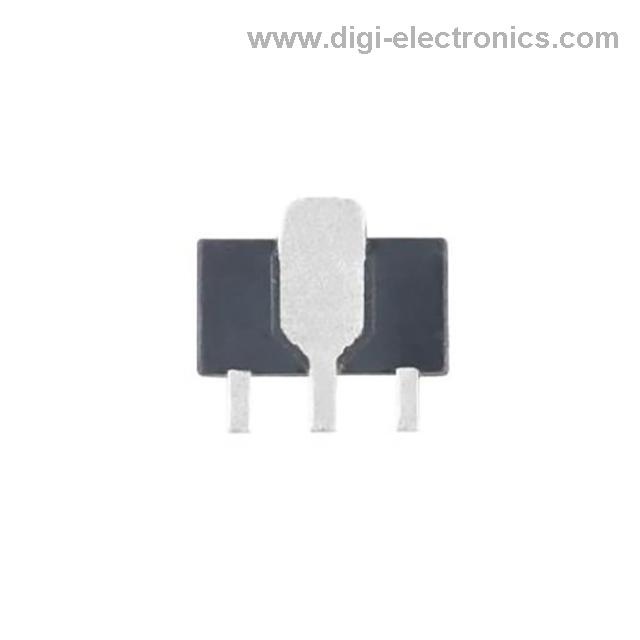

Package configurations for the HT7130-1 voltage regulator have been engineered to balance board real estate constraints, heat management, and production flexibility. Deployment within SOT-89-3, SOT-23-3, and TO-92 formats addresses divergent demands encountered in contemporary circuit design. SOT-89-3, a surface-mount choice, leverages enhanced thermally conductive surfaces and larger lead areas, optimizing heat dissipation in moderate power settings. When employed in densely populated layouts, proximity to ground planes and strategic copper pours beneath the package further reduce junction temperatures without compromising device reliability.
Transitioning to SOT-23-3, this ultra-compact solution streamlines integration into miniature, mobile electronics or sensor modules. The minimal footprint directly aligns with automated pick-and-place assembly, enabling high production yield for volume manufacturing. Careful routing of input and output traces—minimizing inductance and interference—ensures stable operation, even in environments where board space is severely limited and component stacking may cause electromagnetic coupling. Despite smaller thermal mass compared with SOT-89-3, employing localized thermal vias or reinforced trace width can mitigate heat build-up in constrained profiles.
TO-92, a through-hole package, offers practical advantages in prototyping and in environments where socketing, manual rework, or field repair are anticipated. Installation is straightforward; mechanical retention is robust due to the package shape and pin length. This format simplifies testing and iterative design adjustments, while remaining compatible with breadboard systems and legacy hardware refurbishments requiring drop-in replacements. In scenarios involving repeated insertions or component swaps, package integrity remains uncompromised.
Pin allocation follows a standardized triad: input (VIN), ground (GND), and fixed output (VOUT). The spatial arrangement of these terminals provides predictable connection geometry, which directly coordinates with established schematic conventions and automated test setups. When configuring PCB layouts, decoupling capacitors are typically placed in close proximity to VIN and VOUT for optimal transient response, and ground traces are widened to reduce impedance and safeguard against noise paths.
A nuanced perspective emerges when considering package selection as a function not merely of board density but of overall system resilience. Thermal pathway optimization, assembly technique alignment, and maintenance practicality converge; the interplay between package thermal resistance and in-circuit accessibility can significantly affect regulator stability and operational longevity. It becomes evident that a targeted approach in package selection—guided by deployment context and post-assembly accessibility—directly impacts performance margins and cost efficiency in both mass production and service domains.
Reference Application Circuits for HT7130-1
Reference application circuits for the HT7130-1 are purpose-built to expedite system integration and uphold consistent performance across diverse operating conditions. The foundational linear regulator topology capitalizes on the HT7130-1’s internal reference and fast loop response, delivering precise voltage regulation under varying load and input fluctuations. This baseline circuit is frequently selected for noise-sensitive analog domains or microcontroller power rails, where stable output is critical for signal fidelity and logic integrity.
For applications demanding higher output current than the intrinsic limit of the device, the architecture extends gracefully via configurations employing external pass transistors, such as PNP or NPN types. By leveraging the HT7130-1's output to drive these external devices, designers can reliably scale up load capability without undermining regulation accuracy. Thermal management becomes central at this stage, making careful heat dissipation design and compact PCB layouts essential to sustain robust operation under elevated currents.
Advanced protection mechanisms are integrated by combining sense resistors or current mirrors with the IC’s enable and feedback pins. These protection circuits swiftly detect overload or short-circuit events, enabling prompt intervention that curtails the risk of catastrophic failure in downstream loads. In practice, adjusting trip thresholds and compensation elements allows tailored responses for each deployment scenario. This layer of defense is not only pivotal for equipment longevity but also aligns with stringent compliance requirements in critical systems.
Versatility is further extended through adjustable-output and dual-output topologies. By modulating the feedback division network, the HT7130-1’s setpoint can be finely tuned to non-standard voltages, supporting a broad spectrum of peripheral devices and mixed-voltage platforms. In multi-rail systems, dual-configuration circuits minimize component count and board area while maintaining tight regulation on both outputs. Cross-regulation and load interaction factors are typically optimized through iterative prototyping, ensuring stability before system-level deployment.
Collectively, these reference designs transform the HT7130-1 from a standalone regulator into a highly adaptive power platform. The systematic application of these configurations not only de-risks development cycles but also encourages modular, maintainable architectures in both low-noise analog and high-current digital subsystems. Continuous evaluation under real-world operation reinforces the value of starting with mature reference circuits—fine-tuned by application context and grounded in solid engineering fundamentals. The capacity to extend, customize, and safeguard the power infrastructure around the HT7130-1 reflects a design philosophy prioritizing both performance headroom and operational security.
Potential Equivalent/Replacement Models for HT7130-1
When evaluating potential equivalent or replacement models for the HT7130-1 LDO regulator, granular attention to core electrical and mechanical attributes is crucial. The HT7130-1, as a member of the UMW 71XX regulator series, delivers a tightly regulated 3.0V output with key characteristics such as an extended input voltage range up to 30V, output current capability up to 100mA, sub-0.1V dropout at modest loads, and ultra-low quiescent current (below 3μA). The functional block leverages CMOS process advantages, optimizing both efficiency and standby performance—a frequent necessity in battery-powered or sensor-instrumentation designs.
Parameter matching across compatible series devices allows for drop-in replacements when voltage rails shift or multi-variant product families emerge. For instance, the HT7133 (3.3V), HT7136 (3.6V), HT7144 (4.4V), and HT7150 (5.0V) provide form and footprint consistency while serving distinct system voltage domains. In practice, preserving package—typically SOT-89, SOT-23, or TO-92—and pinout fidelity streamlines engineering changes. Field experience indicates that BOM rationalization with a unified series can significantly reduce qualification time and complexity for variant management.
Transitioning to alternative suppliers demands a more nuanced approach. Viable candidates must replicate not only static metrics like input range, output precision, and current ratings but also dynamic behaviors such as line/load regulation, transient response, and noise performance. Beyond datasheet cross-reference, empirical validation—bench testing for form, fit, and function—remains non-negotiable, particularly when applications involve precision analog circuits or harsh operating environments. Notably, many CMOS-based LDOs from major players mirror the HT7130-1's quiescent and dropout metrics; however, subtle differences in thermal performance or protective foldbacks may influence real-world interchangeability.
Supply chain reliability increasingly drives design-in choices. Favoring regulators with broad cross-availability, multi-sourcing strategies, and proven track records in analogous deployments mitigates obsolescence and procurement risk. Incremental PCB or BOM edits can usually be avoided if package outline and pin map are retained; practical experience demonstrates that even a minor mismatch in EN or BYPASS pin locations can necessitate unforeseen spin cycles or layout interventions.
A layered evaluation encompasses both baseline specification conformance and multifactor operational compatibility—each reinforcing robust, forward-proofed design. A proactive approach anticipates lifecycle support, long-term availability, and potential field requalification events, anchoring supply chain continuity without jeopardizing system reliability or compliance. Attentiveness to these interlocking considerations transforms simple part swaps into design decisions that can fortify architectures against future uncertainty.
Conclusion
The UMW HT7130-1 LDO high voltage regulator demonstrates a robust synergy of compact footprint, energy efficiency, and operational reliability, addressing the nuanced demands of contemporary voltage regulation in dense electronic architectures. The fundamental design emphasizes an exceptionally low quiescent current—minimizing standby power consumption—while supporting an expansive input voltage range. This combination directly mitigates risks associated with transient loads and supply side disturbances, especially in high-voltage or battery-powered subsystems. The device’s inherent line and load regulation stability enables precise output even under dynamic load conditions, reducing downstream filtering requirements.
Diversity in package options facilitates seamless integration across varied system build-outs. This flexibility is particularly advantageous in environments where board real estate and thermal dissipation must be judiciously balanced. The HT7130-1's pin-compatible alignment within the broader 71XX series accelerates iterative design and simplifies variant management. For projects requiring multiple voltage rails or staged release schedules, this cross-family compatibility streamlines both prototyping cycles and long-term maintenance strategies. This modularity serves as an implicit hedge against market unpredictability, alleviating common sourcing constraints often encountered in volume production phases.
Field deployment has repeatedly validated the regulator’s resilience in industrial automation controllers, energy meters, and edge IoT nodes, where voltage swings and ambient temperature variations test device limits. The device’s stable output and fault-tolerant architecture underpin consistent uptime and reduce failure rates, translating directly into lower service overhead.
A vital insight lies in how the HT7130-1 balances analog simplicity with the embedded predictability needed for scalable system design. Integrating such regulators at the periphery of digital circuits not only bolsters EMC performance but also enhances overall device longevity. In scenarios where design timelines are compressed and reliability is non-negotiable, leveraging the proven design lineage of the 71XX series and the specific strengths of the HT7130-1 can provide both technical assurance and supply continuity.
This layered approach—anchoring on core device physics while scaling through package and sourcing flexibility—enables the HT7130-1 to function as a foundational component in demanding modern engineering contexts.
