MSP430F5528IZQER

Texas Instruments MSP430F5528IZQER Product Overview

Texas Instruments MSP430F5528IZQER belongs to the MSP430F5xx mixed-signal microcontroller family and targets designs that must balance energy efficiency, signal acquisition, and system connectivity within a compact embedded platform. At its core is the MSP430 CPUXV2, a 16-bit RISC architecture optimized for low-power control tasks rather than raw compute throughput. That distinction matters in practice. This device is not intended to compete with high-clock 32-bit MCUs in algorithm-heavy workloads. Its value comes from doing common embedded jobs with very low energy cost, predictable behavior, and a peripheral set that reduces external component count.

The device integrates 128KB of Flash and 10KB of RAM, with operation up to 25MHz. This memory and clock profile is well matched to moderately complex firmware stacks that include sensor management, communication handling, USB device functions, calibration tables, and power-state orchestration. In many real designs, 128KB Flash is enough to support a structured application with a bootloader, protocol layer, and measurement logic, provided the codebase is disciplined. The 10KB RAM budget is more constrained, so buffer planning becomes important when USB, ADC sampling, and communication stacks coexist. The part rewards firmware architectures that avoid oversized queues and instead rely on event-driven scheduling and tight state machines.

A major differentiator of the MSP430F5528IZQER is its low-power design model. The MSP430 family has long been selected not simply because its active current is low, but because its transitions between active and sleep states are efficient and easy to exploit. Fast wake-up is often more valuable than a marginal reduction in active current, because many battery-powered systems spend most of their lifetime in short bursts of work separated by long idle intervals. In sensor nodes, handheld instruments, and logging devices, the practical power budget is shaped by duty cycle, peripheral wake events, and firmware discipline more than by headline current numbers alone. This device fits well when the system can remain dormant for long periods, wake quickly to sample, process, transmit, and then return to sleep with minimal overhead.

The 1.8V to 3.6V supply range broadens battery options and simplifies power-tree decisions. It supports direct operation from common low-voltage rails and aligns well with single-cell or regulated battery-powered systems. From an engineering standpoint, this range also helps when mixed-voltage subsystems are present, especially in portable designs where sensor front ends, memory devices, and communication interfaces may not all share the same nominal voltage. A useful consequence is reduced pressure on level shifting and less complexity in low-power regulator selection, though rail sequencing and USB power-domain behavior still need careful review in host-connected designs.

USB 2.0 full-speed integration is one of the strongest reasons to choose this device over simpler low-power MCUs. Native USB support eliminates the need for an external USB-UART bridge or companion controller in many products, saving both board area and quiescent power. More importantly, it enables the MCU to participate directly in device enumeration, class implementation, and data exchange. This is especially relevant in portable instruments, data loggers, and sensor modules that need straightforward connection to PCs or embedded hosts. In practice, integrated USB shifts complexity from hardware into firmware, which is usually the better trade if the software team can manage descriptors, endpoint allocation, and suspend-resume behavior cleanly. For compact products, that trade is often decisive.

The integrated 12-bit ADC extends the part’s role beyond control and communication into direct measurement. A 12-bit converter is not a precision instrumentation ADC, but it is entirely adequate for many embedded sensing tasks such as voltage monitoring, temperature estimation, current measurement through conditioned front ends, and general analog sensor capture. The real system-level result depends less on nominal converter resolution and more on reference stability, input source impedance, analog layout, grounding strategy, and sampling cadence. In boards with dense digital activity, especially around USB traffic, ADC performance can degrade if analog and digital return paths are treated casually. This device is best used in designs where the analog front end is considered part of the architecture rather than an afterthought attached to spare pins.

The combination of analog integration and communication support makes the MSP430F5528IZQER well suited to layered embedded systems. At the bottom layer, it can acquire and condition local signals through ADC resources and GPIO-connected sensors. At the control layer, it can manage timing, power states, local decision logic, and fault detection. At the interface layer, it can expose data through USB or other serial peripherals to upstream equipment. This layered fit is one of the device’s quiet strengths. It can operate as a self-contained endpoint that senses, processes, timestamps, and exports data without requiring a second processor for connectivity.

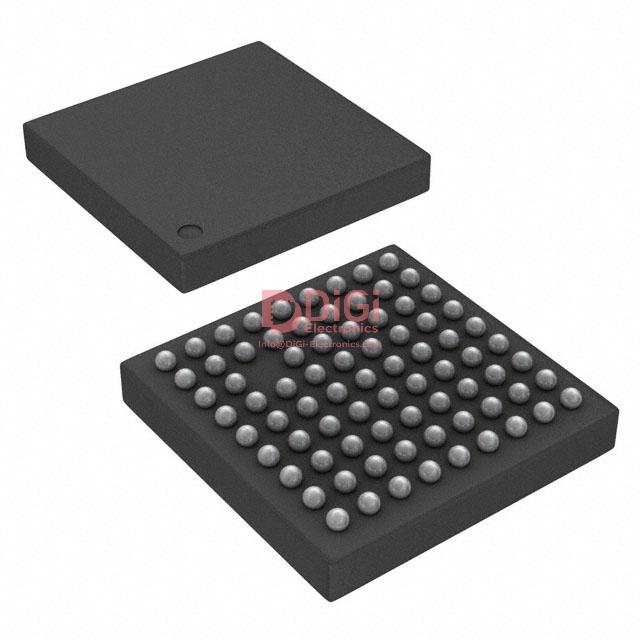

The 80-ball MicroStar Junior BGA package in a 5mm × 5mm footprint is significant for dense designs. It allows substantial functionality in a very small area, which is valuable in portable instruments and space-constrained sensor assemblies. The tradeoff is manufacturing and debug complexity. BGA packages impose tighter PCB stack-up discipline, routing constraints, and inspection requirements than leaded packages. Escape routing, via strategy, solder joint reliability, and rework limitations all become part of the design equation. For low-volume prototypes, this package can slow iteration if the board house or assembly flow is not already comfortable with fine-pitch BGA work. In higher-volume products, however, the area savings and integration density can justify the packaging choice easily. Package selection here is not just mechanical; it affects bring-up speed, test strategy, and cost of learning during early revisions.

The specified ambient operating range of -40°C to 85°C makes the device viable for industrial and field-deployed equipment that must tolerate wide environmental variation without requiring an automotive-grade component. That said, temperature range on the datasheet should be treated as a starting point rather than a guarantee of application-level stability. ADC references, oscillators, USB timing margins, sensor characteristics, and battery behavior all interact with temperature. In practice, systems using this MCU in measurement-heavy roles benefit from calibration policies that account for drift across temperature and supply conditions. Even a modest calibration routine stored in Flash can significantly improve field accuracy.

From an application perspective, the MSP430F5528IZQER is particularly effective in portable measurement instruments, sensor hubs, data recorders, and USB-enabled edge devices. In a battery-operated logger, for example, the MCU can remain in a low-power state while a timer or external interrupt defines acquisition intervals, wake to collect analog samples, perform basic filtering or threshold logic, store the result, and expose the dataset over USB when connected to a host. In a sensor-interface product, it can bridge low-speed analog sensing to a USB-based configuration or data retrieval interface without requiring multiple controllers. In these cases, the device’s strength is not any single block in isolation, but the fact that low-power operation, ADC capability, and USB are available on one MCU with a mature embedded ecosystem.

One important practical observation is that this class of device performs best when the design team respects power-state architecture from the beginning. If USB firmware, sensor polling, and debug instrumentation are all implemented in a continuously active loop, much of the MSP430 advantage disappears. The part shows its real value when clocks, peripherals, and memory activity are turned on only when needed, and when analog sampling is scheduled to avoid digital noise windows. In compact data-acquisition systems, aligning ADC conversions away from communication bursts can improve repeatability with no BOM penalty. Small scheduling decisions often matter more than component changes.

Another point worth noting is that the MSP430F5528IZQER occupies a useful middle ground between very small ultra-low-power controllers and larger USB-capable MCUs with more aggressive performance targets. That middle ground is technically relevant. Many embedded products do not need a 32-bit core, high-speed graphics, or large protocol stacks. They need reliable sensing, deterministic control, modest memory, direct host connectivity, and strong battery behavior. Overdesigning these systems with a heavier MCU often increases firmware complexity, idle power, and cost without improving product value. This device aligns well with applications where efficiency is defined at the system level, not by benchmark speed.

For engineers screening candidates, the main appeal of the MSP430F5528IZQER is its integration balance. It offers enough Flash for structured embedded firmware, enough RAM for disciplined buffering and protocol handling, a low-power architecture that supports aggressive sleep strategies, a 12-bit ADC for embedded measurement, and native USB for direct host interaction. Those features are assembled in a compact package and backed by a supply and temperature range appropriate for portable and industrial-style designs. When the product goal is to capture real-world signals, preserve battery life, and maintain a clean connection to external systems, this MCU remains a strong and technically coherent choice.

Texas Instruments MSP430F5528IZQER Positioning Within the MSP430F55xx Family

Texas Instruments MSP430F5528IZQER sits in a very specific and practical position inside the MSP430F55xx family. It is not simply a lower-pin variant of a broader platform. It represents a balance point where USB-enabled mixed-signal capability, low-power control, and moderate external connectivity are combined in a package that fits many embedded designs without pushing the system into unnecessary size or complexity.

The MSP430F55xx family is built around TI’s low-power 16-bit MSP430 architecture, but the portfolio is intentionally segmented along three main axes: pin count, memory and resource scaling, and peripheral density. That segmentation matters because, in this family, the selection process is rarely driven by core performance alone. Most devices in the series are chosen based on how efficiently they map peripheral functions and signal routing to a real board-level design. In practice, the right device is often the one that avoids both overprovisioning and late-stage pin multiplexing conflicts.

Within that family structure, MSP430F5528IZQER belongs to the MSP430F552x subgroup. This subgroup is one of the more capable branches in the F55xx line because it combines low-power operation with native USB 2.0 support and an integrated PHY. That immediately places it above simpler control-oriented MSP430 variants that require external interface devices for USB connectivity. For systems such as USB sensors, measurement nodes, configuration tools, lightweight data loggers, or low-power HID-class products, this integration removes a meaningful amount of schematic and layout overhead.

Its peripheral set is strong enough to support fairly sophisticated embedded behavior. The device includes four 16-bit timers, which gives flexibility for PWM generation, capture/compare timing, event scheduling, and protocol assistance without overloading firmware timing loops. The 12-bit ADC provides the analog front end needed for measurement and monitoring tasks, and in this class of microcontroller that ADC is often the real functional anchor of the application. Two USCIs extend communication options across standard serial interfaces, allowing the device to bridge local peripherals while still maintaining USB as an external host connection. DMA support helps reduce CPU intervention during data movement, which is especially useful when USB transactions, ADC sampling, and serial communication must coexist under a low-power budget. The hardware multiplier improves efficiency in digital signal conditioning, calibration routines, and fixed-point control loops. The RTC with alarm capability adds another layer of autonomy for duty-cycled systems that spend most of their life asleep and wake only on schedule or threshold-driven events.

The distinguishing feature of MSP430F5528IZQER, relative to nearby family members, is its 47 I/O pin offering. That detail sounds simple, but it is usually the factor that defines whether the part is a strong fit or a compromise. A device such as MSP430F5529 provides 63 I/O pins while retaining a similar class of peripherals. Functionally, the two can look close on a datasheet, but in actual design work the difference in available pins changes routing freedom, peripheral overlap tolerance, and expansion headroom. Once USB, clocks, analog channels, debug access, and communication interfaces are assigned, usable GPIO margin can shrink faster than expected. That is why the MSP430F5528IZQER should be viewed as a pin-optimized member of the high-capability USB-enabled subgroup, not merely as a reduced version of the 5529.

This positioning makes the part attractive when the design requires the MSP430F552x feature set but does not need the wider external interface envelope of the highest-I/O variants. If the application needs USB, mixed-signal acquisition, multiple timers, and low-power scheduling, but the external system only exposes a moderate number of digital controls, status lines, and analog inputs, the MSP430F5528IZQER often lands in the efficient middle ground. It preserves the architectural and peripheral benefits of the subgroup while reducing package and board burden. That can simplify PCB escape routing, reduce layer pressure, and make power distribution cleaner, especially in compact layouts where USB and analog performance must coexist.

A useful way to evaluate this device is to start from resource coupling rather than from the feature checklist. In embedded systems, pins are not independent from peripherals. ADC channels consume package resources. Timer outputs compete with GPIO flexibility. USB pins are fixed and non-negotiable. Serial interfaces may share alternate functions with ports needed elsewhere. The practical question is not whether the chip has enough peripherals on paper, but whether those peripherals can all be used simultaneously in the intended pin map. The MSP430F5528IZQER is strongest in designs where the peripheral mix is rich but the concurrency of externally exposed signals is moderate.

That distinction shows up clearly in several application patterns. In a USB-connected sensing module, the device can handle host communication, periodic sampling, local timestamping, and low-power standby very effectively, while 47 I/O pins are usually more than sufficient. In a portable instrument with a few analog channels, a display interface, buttons, and a UART-linked submodule, the part often fits comfortably if signal planning is done early. In contrast, in systems that begin with moderate I/O needs but later grow to include parallel displays, dense keypad matrices, multiple interrupt-rich peripherals, or broad expansion headers, the 47-pin ceiling can become the first hard limit well before compute or memory resources are exhausted.

This is where device selection often goes wrong. Early architecture reviews tend to focus on CPU, flash, RAM, and headline peripherals. Pin budget is sometimes treated as a packaging detail and deferred until layout. In the MSP430F55xx family, that is a mistake. The smarter approach is to treat pin count as a first-class architectural constraint. If the design is already near the edge on GPIO allocation during the concept phase, the MSP430F5528IZQER is unlikely to create a stable long-term platform, even if the initial prototype works. If, however, the system has a clean and disciplined interface definition, the device can deliver nearly all of the practical value of the larger subgroup members with less physical overhead.

From a sourcing and lifecycle perspective, the part also occupies a useful middle position. Components in this class are often selected not only for immediate fit but also for migration flexibility within the same family. Because MSP430F5528IZQER is part of the MSP430F552x subgroup, teams can often preserve firmware structure and much of the peripheral model while moving upward to a higher-I/O relative if the product later expands. That kind of migration path lowers redesign risk. It also supports staged product development, where an initial design targets a compact pin budget and a derivative model later scales outward without leaving the family.

Another practical advantage of this device class is that its integrated feature balance tends to reduce external glue logic. When USB, timing, RTC, ADC, DMA, and serial interfaces all exist on-chip, the board can stay cleaner and firmware can coordinate these blocks more deterministically. That said, integration only pays off if the design uses those blocks with intent. A common pattern in low-power embedded work is to let DMA and timers carry repetitive movement and scheduling tasks while the core remains in low-power modes as much as possible. On MSP430 parts, that design style usually produces a better result than treating the CPU as the center of every transaction. The MSP430F5528IZQER is well aligned with that event-driven approach.

In selection terms, the device is best understood as a compact, USB-capable, mixed-signal controller for designs that need strong peripheral breadth but not maximum pin exposure. Choose it when the application is constrained more by energy efficiency, interface integration, and board compactness than by raw external connectivity. Move to a higher-I/O MSP430F552x member when pin multiplexing begins to erode design margin, testability, or future feature growth. That boundary is often reached sooner than expected, so the best results come from evaluating the real signal map early, not just the peripheral table.

Texas Instruments MSP430F5528IZQER Core Architecture and Memory Resources

Texas Instruments MSP430F5528IZQER is built around the MSP430 CPUXV2, a 16-bit RISC core optimized for high code density, deterministic control flow, and very low energy per useful operation. That combination is the reason this device remains effective in mixed-function embedded designs where sensing, communication, and low-duty-cycle control must coexist on a limited power budget. Rather than chasing raw clock speed, the architecture is tuned to complete common embedded tasks with fewer instructions, less memory traffic, and shorter active-time windows. In practice, that often matters more than peak computational throughput, because many systems spend most of their lifetime waking briefly, moving data, making a control decision, and returning to a low-power state.

The CPUXV2 uses a 16-register architecture with orthogonal instruction behavior that keeps data movement and arithmetic relatively efficient compared with more fragmented 8-bit designs. The constant generator mechanism is especially useful in reducing instruction overhead for common immediate values, which improves both execution efficiency and code size. That design choice is easy to overlook, but it has real system-level impact. In firmware that repeatedly updates counters, manipulates flags, services communication state machines, or processes measurement windows, a small reduction in instruction count translates directly into lower active current and tighter timing margins. On MSP430 devices, power efficiency is not only a function of low standby current; it is also strongly tied to how fast the core can finish routine work and gate itself back down.

At the architectural level, the MSP430F5528IZQER sits in an important middle ground. It is substantially more capable than minimal sensor-node controllers, yet still simpler and more predictable than larger 32-bit MCUs that bring higher software overhead. This makes it well suited to applications where firmware complexity is growing due to protocol stacks, calibration logic, USB interaction, or data framing, but where the design still benefits from a compact and power-aware execution model. That balance is often more valuable than headline specifications. A controller with moderate speed, efficient memory use, and stable peripheral servicing behavior is frequently easier to integrate into real products than a faster device with a larger software and power-management burden.

The device supports system operation up to 25 MHz, providing enough computational headroom for embedded workloads beyond basic supervisory control. This clock range is practical for USB-related tasks, protocol translation, local buffering, measurement scheduling, and moderate real-time acquisition. It is not positioned as a digital signal processor, but it handles structured control and data movement very well. For many embedded pipelines, the bottleneck is not arithmetic intensity; it is event coordination across peripherals, memory, and communication channels. In that context, 25 MHz on an efficient 16-bit core is often sufficient, especially when the firmware is organized to let peripherals absorb repetitive work.

That last point is important in system design. On this class of MCU, good performance comes less from brute-force clocking and more from partitioning. When timers trigger ADC sampling, DMA-like data movement paths reduce software intervention, and communication peripherals handle framing autonomously, the CPU only needs to manage exceptions, state transitions, and higher-level decisions. This is where the MSP430 architecture is at its best. If the design forces the core to poll aggressively, copy bytes excessively, or maintain oversized software layers, the apparent clock budget disappears quickly. If the firmware is structured around interrupt discipline and peripheral-driven flow, the same device feels significantly larger than its raw frequency suggests.

Memory resources are a major strength of the MSP430F5528IZQER. The integration of 128 KB of Flash and 10 KB of RAM gives the device meaningful room for feature growth while staying within a compact MCU category. This memory profile is particularly relevant because many modern low-power designs are no longer small in software terms. Even when the control problem is simple, the surrounding infrastructure is not. USB support, communication middleware, calibration tables, update hooks, diagnostics, and manufacturing test features all consume program space long before application logic becomes complex. In that environment, 128 KB of Flash is not excess margin; it is often what allows a product to remain maintainable after multiple revisions.

Flash capacity also changes how the firmware can be architected. With tighter memory, developers tend to compress functionality into monolithic control paths, remove diagnostics, and hard-code variant behavior. With 128 KB available, it becomes more practical to separate communication layers from application services, preserve field diagnostics, include recovery routines, and maintain cleaner abstraction boundaries. That leads to firmware that is easier to test and safer to modify. In production systems, maintainability is often a hidden memory requirement. Space reserved for version metadata, calibration history, error logging, or fallback code can prevent costly service issues later.

The 10 KB RAM allocation is equally significant, especially in designs involving USB or multi-interface buffering. RAM pressure in such systems rarely comes only from variable storage. It grows from endpoint buffers, protocol state machines, temporary conversion space, stack depth under interrupt nesting, and sample queues used to bridge timing mismatches between acquisition and communication. A design may appear lightweight on paper, but once packet buffering and asynchronous event handling are introduced, RAM becomes the first real constraint. On this device, 10 KB is enough to support serious embedded communication patterns, provided the memory map is planned intentionally.

Experience with similar USB-enabled embedded designs shows that RAM problems usually emerge gradually rather than catastrophically. Early prototypes often function correctly because traffic is light, interrupt timing is ideal, and debug builds alter memory layout. Later, once worst-case endpoint activity, sensor bursts, and background maintenance tasks overlap, buffer starvation and stack collisions begin to surface. The practical lesson is to treat RAM as a dynamic timing resource, not just a capacity number. On MSP430F5528IZQER, careful allocation of endpoint memory, explicit limits on queue depth, and conservative stack budgeting are more valuable than relying on nominal free space reported during simple tests.

The device documentation notes support for serial onboard programming without requiring an external programming voltage. This has direct manufacturing and lifecycle benefits. It simplifies fixture design, reduces programming-path complexity, and makes in-system updates easier to support. In low-to-medium-volume production, these details affect throughput more than expected. A device that can be programmed and verified with fewer electrical constraints reduces process friction and lowers the chance of marginal programming setups during board bring-up. It also improves field serviceability when firmware updates must be applied through already-available interfaces.

The inclusion of a bootloader, along with JTAG and Spy-Bi-Wire support, strengthens the device from both development and deployment perspectives. During engineering bring-up, robust debug access shortens the path from hardware validation to stable firmware. During production, the same access mechanisms support boundary-level verification, calibration programming, and failure analysis. In deployed equipment, the presence of a bootloader enables controlled update strategies that are much easier to justify in products expected to remain in service for years. This is especially relevant in systems with USB connectivity, where firmware updates can become a realistic maintenance feature rather than a bench-only operation.

From an application standpoint, the MSP430F5528IZQER is well matched to devices that must aggregate several moderate-complexity functions into one controller. A common example is a measurement node that samples analog signals, performs scaling or calibration, packages results, and exposes them over USB or another host-facing interface. Another is a protocol bridge that translates between low-speed industrial or sensor-side links and a USB-connected supervisory system. In these cases, the MCU is not doing heavy numerical processing. It is coordinating data flow, preserving timing integrity, and maintaining a dependable software structure under strict power and memory constraints. That is precisely where this device’s architecture and memory resources align.

A useful way to think about the MSP430F5528IZQER is that its value comes from composability. The CPU is efficient enough to manage layered firmware without wasting energy on overhead. The Flash is large enough to hold real product software rather than only a narrow task loop. The RAM is sufficient for buffered communication and staged acquisition if handled with discipline. The programming and debug infrastructure supports the full product lifecycle, from board test through field updates. None of these properties is individually extreme, but together they create a controller that is easier to turn into a robust system.

For engineering teams, the most effective use of this device usually comes from respecting its intended operating model. Keep the core focused on control decisions and protocol supervision. Push repetitive timing and transfer work into peripherals whenever possible. Budget Flash not only for the present feature set but also for diagnostics and update resilience. Treat RAM as a live systems resource shaped by concurrency, not as a leftover pool. When used this way, the MSP430F5528IZQER delivers a level of architectural efficiency that is often underestimated by teams accustomed to selecting MCUs mainly by clock rate or word size. In many embedded products, efficient structure outperforms nominal abundance.

Texas Instruments MSP430F5528IZQER Power Characteristics and Low-Power Operating Strategy

Texas Instruments MSP430F5528IZQER is built around a power architecture that favors long idle residency, short active bursts, and deterministic wake-up behavior. That design choice is more important than the headline current numbers alone. In most embedded systems, battery life is not dominated by peak current during computation but by the cumulative effect of standby leakage, wake-up overhead, clock stabilization time, and the number of unnecessary transitions between energy states. The MSP430F5528IZQER is effective because its low-power modes, clock system, voltage regulation scheme, and memory retention model work together rather than as isolated features.

The device operates from 1.8V to 3.6V and integrates an internal LDO with programmable regulated core voltage. This is a practical advantage in mixed-performance designs because the core can be supplied at a level matched to frequency demand instead of forcing a fixed worst-case operating point. In engineering terms, this reduces avoidable dynamic and static power inside the digital domain while preserving peripheral compatibility across the wider supply range. The integrated supply supervision, voltage monitoring, and brownout handling also matter beyond fault protection. In battery-powered nodes, supply ramps are often slow, noisy, or load-dependent. A clean power-fail detection path prevents corrupted state transitions, incomplete Flash operations, and undefined peripheral behavior during collapse or recovery.

The current consumption data reflects the intended duty-cycled usage model. In active mode at 8MHz and 3.0V, the device typically consumes 290μA/MHz during Flash execution and 150μA/MHz during RAM execution. That difference is not a small footnote. It directly exposes one of the most useful optimization levers on this family: code placement. Flash access costs more energy than RAM execution because of the memory read path and timing requirements. For code sections that run frequently or in tight loops, relocating critical routines to RAM can materially reduce charge per task, not just instantaneous current. This is especially useful for signal conditioning, protocol timing loops, ADC post-processing, and burst calculations that repeat thousands of times over the life of the product.

The low-power states are where the device becomes strategically valuable. In LPM3, typical current is 1.9μA at 2.2V or 2.1μA at 3.0V with the RTC using a crystal, watchdog, supply supervisor, and full RAM retention still enabled. With the low-power oscillator, counter, watchdog, and supervisor active, the typical current can reach 1.4μA at 3.0V. In LPM4, typical current is 1.1μA at 3.0V with full RAM retention and fast wake-up. In LPM4.5, shutdown current falls to 0.18μA typical at 3.0V. These numbers define several distinct operating philosophies. LPM3 is the practical always-on sleep state for time-aware systems. LPM4 is better when timekeeping can be externalized or wake events are fully asynchronous. LPM4.5 is the storage or transport state, where persistence of RAM is sacrificed for near-minimum drain.

A useful way to interpret these modes is by looking at retained system context. Full RAM retention changes software architecture because it allows the firmware to suspend rather than reboot. State machines, sampled baselines, protocol sequence numbers, calibration data, and pending event flags can remain in memory without reconstruction. This reduces wake-up work and lowers average energy per transaction. In contrast, LPM4.5 behaves more like a controlled power collapse. It is ideal only when the system can tolerate restart semantics or reconstruct state from nonvolatile storage. In field designs, selecting too-deep a sleep mode often backfires because the extra wake-up work, peripheral reinitialization, and state restoration consume more energy than the leakage saved.

The clock system is central to making the low-power strategy effective. A low-power MCU does not simply need low standby current; it needs clocks that can be partially disabled, selectively retained, and restarted with predictable latency. On the MSP430F5528IZQER, the optimal pattern is usually to keep only the timing source required for the next event and shut down every other clock domain. If the system needs RTC-grade interval control, a crystal-backed path in LPM3 is usually justified. If timing tolerance is loose, the low-power oscillator path can save both bill-of-material cost and board complexity. The right decision depends less on nominal current figures and more on how much timing drift the application can absorb before it starts increasing radio airtime, sampling error, or synchronization overhead.

For battery-driven data loggers, remote sensors, and maintenance-light metering nodes, the active current number should be converted into charge per useful operation. That metric is more actionable than current per MHz. A design that wakes every second to sample, filter, timestamp, and store one record may spend more energy in startup and peripheral settle time than in computation itself. In those cases, reducing wake frequency often yields more benefit than reducing CPU cycles. Conversely, when a wake event must process a dense burst of work, it is often better to run fast, finish early, and return to sleep rather than stretching execution at a lower clock. The MSP430F5528IZQER supports this strategy well because its active current remains moderate while its standby current is very low. The energy minimum is often found not at the lowest possible frequency, but at the shortest complete active interval consistent with stable peripheral operation.

USB-enabled products introduce a different power profile. An environmental logger with occasional USB connectivity is a strong match for this device, but the system should be partitioned into disconnected power contexts. During autonomous operation, the USB subsystem should remain fully quiescent, with sensing, RTC scheduling, and memory updates isolated to the minimum set of active blocks. When attached to a host, the firmware can shift into a higher-power interactive mode with full clock availability and communication servicing. This split-mode behavior is where the MSP430F5528IZQER is particularly effective: it can remain deeply idle for most of its lifetime and expose richer functionality only during externally powered sessions. In practice, that architecture often extends service life more than any micro-optimization in the main acquisition loop.

The supply supervision and brownout features deserve closer attention in low-power strategy because they affect reliability and therefore usable energy, not just electrical safety. In battery systems near end-of-life, the supply may dip briefly under pulsed loads such as sensor excitation, memory writes, or interface activity. Without disciplined voltage monitoring, the firmware may continue operating in a marginal region, creating silent data corruption or partial transactions that trigger costly retries. A robust design uses the supervisor not merely to reset on failure, but to shape behavior proactively: delay high-load tasks under low voltage, commit critical metadata before risky operations, and bias the scheduler toward retention-friendly sleep states when energy reserve is uncertain. That approach extracts more usable battery capacity than a simplistic run-until-reset strategy.

From a firmware perspective, low power on this device is best treated as a scheduling problem rather than a mode-selection problem. The common mistake is to focus on entering the deepest low-power mode available, while leaving periodic firmware activity fragmented across too many wake events. Better results come from batching work. Read multiple sensors in one wake window. Process and compress data before returning to sleep. Align noncritical housekeeping with mandatory wake events. Avoid polling loops entirely. Let timer, RTC, ADC, and communication interrupts drive execution. This reduces transition count, oscillator restart overhead, and cacheless instruction fetch energy. On MSP430-class systems, these second-order effects are often large enough to dominate theoretical savings from a deeper sleep mode.

Memory behavior also influences power more than is often assumed. Since RAM execution is significantly more efficient than Flash execution at 8MHz and 3.0V, it is worth identifying the routines with the highest cumulative runtime rather than the largest code size. Small, hot functions moved into RAM can produce disproportionate benefit. The same logic applies to data handling. Frequent writes to nonvolatile memory should be rate-limited, aggregated, or deferred unless persistence is immediately necessary. In logger designs, buffering several measurements in RAM and committing them in a single write window often lowers average energy while also reducing wear stress.

Board-level implementation can easily erase the advantages of the MCU if leakage paths are not controlled. Pull networks sized for logic convenience, level shifters left biased in idle, sensor rails that remain powered between measurements, or a noisy crystal layout that increases startup instability can all dominate the microamp budget. In systems targeting LPM3 or LPM4 figures in the low single-digit microamp range, every external component must be reviewed under the same operating assumptions as the MCU. The practical target is not just a low-MCU-current design but a low-state-current platform. The difference is substantial. Many nominally low-power products fail because the processor sleeps correctly while the rest of the board does not.

A strong operating strategy for the MSP430F5528IZQER usually takes the following form in real deployments. Use LPM3 as the default long-duration standby when timekeeping or scheduled wake-up is required. Use LPM4 for event-driven systems that can turn off more of the clock tree without losing needed context. Reserve LPM4.5 for shipping mode, long-term storage, or extreme idle intervals where restart cost is acceptable. Execute high-duty routines from RAM when repetition justifies relocation. Run active code in dense bursts, then return quickly to sleep. Gate every peripheral aggressively, especially analog front ends and communication blocks. Use voltage supervision as a policy input, not just as a recovery mechanism. That combination aligns well with the actual device architecture and usually produces better field performance than selecting the lowest-current mode on paper.

What makes the MSP430F5528IZQER effective is not simply that it can reach 0.18μA in shutdown or around 2μA with RTC-class standby support. Its real value is that it provides a graded set of energy states with enough retained context and voltage-awareness to let the firmware make economically sound transitions. For systems that spend most of their lifetime sleeping and wake only for sensing, logging, or communication, that granularity is often the difference between theoretical low power and repeatable low-energy operation in shipped hardware.

Texas Instruments MSP430F5528IZQER Clock System and Wake-Up Behavior

Texas Instruments MSP430F5528IZQER uses a clock system that is clearly built around one central embedded design tradeoff: minimize energy during idle intervals without making the transition back to useful computation expensive. Its clock architecture is not just a list of oscillator options. It is a control framework that lets the device shift between accuracy, startup latency, power draw, and peripheral timing requirements with relatively fine granularity.

At the center of this framework is the Unified Clock System, which distributes clock sources to MCLK, SMCLK, and ACLK while coordinating with the frequency-locked loop. This matters because low-power behavior in a microcontroller is rarely determined by sleep current alone. In deployed designs, overall energy often depends more on how efficiently the device enters sleep, how long it can stay there, and how quickly it resumes deterministic execution. The MSP430F5528IZQER is strong in this respect because its digitally controlled oscillator can return the device to active operation in about 3.5 microseconds typical. That short wake interval directly improves duty-cycled efficiency, especially in systems that sample sensors briefly, process a small amount of data, and return to sleep hundreds or thousands of times per second.

The oscillator options are arranged to cover very different design intents. VLO provides a very-low-power internal source suitable for coarse timing where frequency accuracy is secondary. It is useful for watchdog-style wake intervals, low-priority housekeeping, and battery-biased designs that need to eliminate external timing components. REFO offers a more stable trimmed low-frequency reference and is often the better internal choice when a design needs more predictable low-frequency timing without adding a crystal. XT1 supports a 32 kHz watch crystal for precise real-time scheduling and timekeeping. XT2 extends the system into high-frequency crystal operation up to 32 MHz, which becomes important when tighter timing margins, higher processing throughput, or communication subsystems require a cleaner and more accurate source. For USB, the availability of high-frequency clocking resources plus the integrated USB PLL is especially relevant because USB timing tolerance is far stricter than what low-power internal oscillators can typically sustain.

What makes this clock system practically useful is not simply the presence of these sources, but the way they support staged optimization. An engineer can begin with internal oscillators to minimize BOM cost and board complexity, then move to XT1 or XT2 only when measurement accuracy, communication timing, or compliance requirements justify it. That scaling path is valuable because many embedded products evolve from proof-of-concept firmware into tighter production targets, and a clock architecture that supports both ends of that path reduces redesign friction.

The frequency-locked loop plays a key role in stabilizing higher-frequency operation. Rather than treating the DCO as a fixed-speed block, the device can continuously align it against a reference source. In practice, this enables a useful split: low-frequency references provide long-term timing stability, while the DCO supplies fast active-mode clocking when computation is needed. This is one of the more effective patterns in low-power MCU design because it decouples active performance from always-on power cost. ACLK can remain tied to an efficient low-frequency source for time base functions, while MCLK and SMCLK are driven higher only when code execution or peripherals demand it.

This layered clocking model becomes especially important when examining wake-up behavior. A short wake-up number only has system value if the software architecture can exploit it. On MSP430F5528IZQER, that usually means designing firmware around short active bursts, avoiding unnecessary oscillator switching inside critical paths, and assigning each peripheral the lowest acceptable clock domain. For example, periodic sensing applications often perform best when ACLK is sourced from XT1 or REFO for stable scheduling, the CPU wakes on a timer event, briefly enables faster DCO-driven execution for filtering or packet formatting, then shuts back down before clock settling overhead dominates the cycle. In these cases, the 3.5 microsecond typical wake characteristic is not just a datasheet convenience. It materially shifts the break-even point where sleeping becomes worthwhile.

This is where many low-power evaluations go wrong. Static current numbers are easy to compare, but they do not capture transition energy, oscillator startup penalties, or firmware scheduling efficiency. In applications such as metering, portable instrumentation, environmental logging, and low-duty-cycle wireless edge nodes, average power is often governed by how often the MCU can remain completely inactive while still meeting deadlines. A device with modestly better sleep current but slower wake-up can lose its advantage once repeated transition overhead is included. MSP430F5528IZQER is better understood as a part optimized for energy-per-task, not just current-per-state.

The external crystal options also deserve more nuanced treatment. XT1 with a 32 kHz watch crystal is the preferred choice when time drift affects product behavior in visible ways, such as timestamp integrity, scheduled sampling windows, or synchronized communication intervals. Internal sources can be sufficient for many control applications, but over long intervals their tolerance and environmental sensitivity can accumulate into meaningful timing error. In contrast, XT2 is less about standby timing and more about deterministic high-speed operation. It becomes relevant when protocol generation, precise baud-rate derivation, or USB support impose clock quality constraints that internal low-power sources cannot meet. Using XT2 only when required is often the right energy decision, since external high-frequency oscillators and related clock trees increase both active power and startup management complexity.

From a board-level perspective, oscillator selection also affects bring-up risk. Internal clocks simplify early development because they remove crystal load-capacitance tuning, startup qualification, and layout sensitivity. That can shorten the first hardware spin. But once a design moves into systems with long unattended runtime or strict timing interfaces, the benefits of a crystal-backed reference often outweigh the extra components. In practice, issues such as intermittent communication timing margins or slowly drifting wake schedules are often traced back to clock-source assumptions made too early in development. The MSP430F5528IZQER gives enough flexibility to correct those assumptions without abandoning the platform.

The device is particularly well suited to aggressive duty-cycling strategies. This includes applications where most of the wall-clock time is spent in low-power modes and only narrow execution windows are needed for conversion, control updates, packet handling, or USB-related bursts. Fast DCO wake-up supports this model because it reduces the dead time between interrupt arrival and useful code execution. That directly improves responsiveness in event-driven systems and lowers the energy cost of periodic tasks. In designs with narrow timing budgets, this also gives more room for application processing inside a fixed wake window, which can reduce pressure to keep the system clocked continuously.

A useful way to think about the MSP430F5528IZQER clock system is as a tunable pipeline from time reference to computational throughput. VLO and REFO sit at the low-cost, low-energy end. XT1 adds precision for long-term scheduling. XT2 and the USB PLL extend the device into interface-driven and performance-driven territory. The DCO and FLL bridge these layers so the MCU can transition quickly between them. That combination is why the part remains attractive for designs that must balance battery life, timing quality, and occasional high-performance bursts rather than optimize only one of those dimensions.

For selection work, the key takeaway is that MSP430F5528IZQER should be evaluated in the context of workload shape. If the application sleeps deeply, wakes briefly, and depends on a clean separation between low-frequency scheduling and high-frequency execution, its clock system is unusually effective. If the application instead runs continuously at high speed, the low-power wake advantage becomes less important and the clock decision shifts toward throughput and timing accuracy requirements. In other words, the real strength of this device is not simply that it supports low power and multiple oscillators. It is that the clock architecture lets those features cooperate in a way that makes aggressive duty cycling both practical and efficient.

Texas Instruments MSP430F5528IZQER Integrated USB and Serial Connectivity Capabilities

Texas Instruments MSP430F5528IZQER stands out primarily because its connectivity is not an afterthought layered onto a low-power MCU, but a tightly integrated subsystem that supports direct system-level design choices. The device combines full-speed USB, multiple serial interfaces, and flexible protocol mapping in a way that is especially useful when a product must operate as both a controller and a communication endpoint. In practice, this shifts the design center from interface accommodation to application behavior. The MCU can spend less board area and fewer external components on connectivity support, leaving more margin for sensing, power management, and product-specific analog or digital functions.

At the lowest level, the USB block is the most strategically important part of that integration. MSP430F5528IZQER includes a full-speed USB PHY, an internal USB PLL, integrated 3.3 V and 1.8 V USB power support, and eight input plus eight output endpoints. This matters because a USB implementation is rarely limited by protocol logic alone. The physical layer, clock generation, and supply-domain handling usually determine how much external circuitry is required and how much validation effort will be needed. By internalizing these functions, the device removes several common failure points seen in compact USB-enabled products, especially where layout density, power sequencing, and interface signal integrity interact.

The integrated PHY allows direct attachment to a USB host without an external transceiver. That reduces BOM count, but the more meaningful advantage is architectural simplification. Fewer support devices mean fewer supply rails to coordinate, fewer high-speed traces to route between chips, and fewer opportunities for startup timing issues. In small-form-factor products, these reductions often matter more than the raw component savings. Once USB is routed directly from the MCU, the board becomes easier to partition, EMI control is more predictable, and enclosure constraints become less restrictive. This is particularly beneficial in portable instruments and logger-class devices where the connector location is mechanically fixed early in the design.

The internal USB power system is another detail with outsized practical impact. USB interfaces often introduce mixed-voltage design complications, especially when the core logic, analog front end, and external peripherals do not all share the same operating domain. Integrating 3.3 V and 1.8 V USB-related power handling reduces the need for external regulation and level-management glue around the USB path. In real products, this tends to shorten bring-up time because the USB block behaves more like a native MCU peripheral than a partially external subsystem. It also improves repeatability across production variants, since fewer analog support parts are involved in meeting interface requirements.

The endpoint configuration, with eight IN and eight OUT endpoints, provides enough room for more than simple enumeration and data transfer. It supports composite USB device strategies where control, streaming, status reporting, and vendor-specific channels can coexist cleanly. That creates room for firmware architectures that separate command traffic from bulk data movement instead of multiplexing everything through a narrow interface model. In measurement or acquisition systems, this can make host communication more deterministic. One endpoint can carry configuration transactions, another can stream sampled data, while additional endpoints handle diagnostics, firmware update traffic, or event reporting. This structure reduces protocol friction on the host side and often leads to cleaner software partitioning across the whole system.

The serial interfaces extend that same flexibility into the embedded side of the design. MSP430F5528IZQER provides two USCI_A modules and two USCI_B modules. USCI_A0 and USCI_A1 support enhanced UART, automatic baud-rate detection, IrDA encoding and decoding, and synchronous SPI. USCI_B0 and USCI_B1 support I2C and synchronous SPI. This arrangement is not merely a checklist of protocols. It gives the device the ability to map different classes of peripherals onto dedicated hardware paths without forcing excessive timesharing. That distinction becomes important as the firmware evolves. A design that starts with one sensor bus and one debug UART often grows into a system with display control, external conversion, field-service access, and host connectivity all operating at once.

UART support with automatic baud-rate detection is especially useful in products expected to interface with variable external controllers, service tools, or legacy modules. It reduces friction during commissioning and lowers sensitivity to mismatched serial configurations. In field-connected systems, that can prevent a class of integration problems that are trivial at the protocol level but costly during deployment. IrDA support, while more specialized, still has value in equipment designed for optical isolation or short-range legacy maintenance channels. The inclusion of synchronous SPI within USCI_A modules also gives more routing freedom when SPI demand exceeds what a single peripheral block would normally support.

The two USCI_B modules supporting I2C and SPI are well matched to mixed-peripheral systems. I2C is commonly assigned to low-pin-count sensors, EEPROMs, configuration devices, and environmental monitors. SPI is typically reserved for higher-throughput or timing-sensitive components such as displays, data converters, radio front-end companions, or external memory. Having multiple hardware-capable serial engines reduces the need for software-emulated buses, which is a significant quality improvement rather than a mere convenience. Bit-banged protocols may appear acceptable during prototyping, but they often become timing liabilities once low-power states, interrupts, USB servicing, and real data throughput begin to overlap.

This is where the communication mix becomes more than the sum of its parts. The MCU can sit between a USB host and several peripheral domains while preserving a relatively clean firmware model. A practical design pattern is to use USB as the upstream management and data export channel, I2C for low-speed sensor aggregation, SPI for deterministic transfers to converters or displays, and UART for manufacturing, diagnostics, or external subsystem coordination. In that role, MSP430F5528IZQER behaves like a compact protocol concentrator. That is a useful architectural position because many embedded products are no longer defined only by local control. They are defined by how efficiently they bridge physical signals, local peripherals, and host-side software.

For measurement instruments, this combination is particularly effective. A sensor or analog acquisition chain can feed data through SPI-connected converters, housekeeping sensors can remain on I2C, and the host PC can receive data over USB without a separate bridge controller. The advantage is not only reduced part count. Latency paths become easier to reason about because data does not have to cross multiple protocol translation devices before reaching the host. The firmware owns the full path from acquisition to transfer, which simplifies buffering strategies and error handling. In portable loggers, the same architecture supports local storage or control while exposing a direct USB device interface for extraction, calibration, or firmware updates.

USB accessory designs also benefit from this integration. Many accessory-class products need to appear simple externally while maintaining several internal control domains. The MCU can enumerate as a custom or standard USB device, manage local peripherals over I2C or SPI, and still preserve a UART channel for test access. This is one of the quieter strengths of the part. It supports clean separation between production diagnostics and runtime functionality without forcing external multiplexers or dedicated interface controllers. That often pays back during manufacturing test, where a stable service path can coexist with application firmware instead of requiring a different hardware build.

From a procurement and lifecycle perspective, consolidating communication functions into a single MCU has clear advantages. Fewer bridge ICs reduce sourcing dependencies and qualification effort. The more important point, however, is that system behavior becomes less fragmented across vendors and driver models. When USB, I2C, SPI, and UART are anchored in one controller, validation focuses on firmware and board design rather than on inter-device compatibility edges. This tends to reduce integration drift over product revisions. It also makes cost optimization easier, because redesign pressure is concentrated in one programmable platform rather than distributed across several specialized interface parts.

There is also a design-discipline benefit in choosing this level of integration. When an MCU already provides strong native connectivity, it becomes easier to enforce a more coherent internal architecture. Peripheral buses can be assigned by bandwidth class and timing criticality rather than by the accidental availability of external bridge chips. USB can be reserved for explicit host interaction instead of serving as a workaround for missing serial capacity. That usually leads to cleaner fault isolation. If communication errors appear, the boundary between firmware issues, board-level issues, and protocol misuse is easier to identify because the system is not stitched together from loosely coupled interface devices.

A practical implementation detail worth noting is that integrated connectivity does not remove the need for careful planning. USB still demands disciplined clocking, layout, and power-state management. I2C still depends on correct pull-up sizing and bus capacitance control. SPI still needs explicit consideration of chip-select timing, trace length, and peripheral startup behavior. The benefit of MSP430F5528IZQER is that these concerns remain inside a unified hardware and firmware environment. That makes optimization more systematic. Timing interactions can be profiled at the MCU boundary, low-power transitions can be coordinated with active interfaces, and protocol servicing can be scheduled with a clearer understanding of system-level constraints.

Seen from that perspective, the communication capability of Texas Instruments MSP430F5528IZQER is not just a feature list. It is a foundation for MCU-centric embedded architectures where one device can acquire data, manage peripherals, expose a USB interface, and maintain service access without auxiliary communication silicon. That combination is highly effective in compact products where board space, power budget, and interface diversity all compete for the same design margin. The part is strongest when used not simply as a low-power controller with USB added, but as a deliberately connected embedded node that bridges local hardware and external systems with minimal architectural overhead.

Texas Instruments MSP430F5528IZQER Analog and Mixed-Signal Functions

Texas Instruments MSP430F5528IZQER belongs to the MSP430F552x family and integrates a compact but capable analog and mixed-signal subsystem around low-power embedded control. Its main analog resource is the ADC12_A, a 12-bit successive-approximation converter rated up to 200 ksps. The block-level implementation combines the converter core with an internal reference generator, sample-and-hold circuitry, and autoscan support, giving the device enough analog flexibility for data acquisition, threshold monitoring, and low-duty-cycle sensing without forcing external analog support in many designs.

At the center of the mixed-signal path is the ADC12_A architecture. The 12-bit resolution is not only a numeric specification; it defines the practical tradeoff between signal fidelity, conversion time, and energy per sample. In this device, the converter exposes 12 input channels, including 10 external analog inputs and 2 internal channels. That arrangement is especially useful in embedded measurement nodes where multiple sensors, supply monitoring, and internal health checks must coexist on a small pin budget. The autoscan capability matters because it reduces firmware overhead when sampling several channels in sequence. Instead of manually reconfiguring each conversion step, the hardware can move through a channel set predictably, which improves timing consistency and lowers active CPU time.

The internal sample-and-hold stage is equally important in real designs. It isolates the converter from the source during acquisition and allows charge to settle before conversion begins. This sounds routine, but it directly affects measurement accuracy when the signal source has finite impedance. A common issue in compact sensor designs is to route high-impedance outputs directly into the ADC and then observe unstable codes or channel-to-channel interaction during scan sequences. In practice, this usually points to insufficient acquisition time or inadequate buffering rather than an ADC defect. On the MSP430F5528IZQER, correct sample timing and source impedance management often determine whether the full 12-bit range is usable or only nominally available.

The internal reference circuit expands the usefulness of the ADC beyond simple ratiometric measurements. A stable internal reference allows repeatable conversions even when the supply rail is noisy or battery voltage is drifting. This is particularly valuable in battery-powered instrumentation, where supply variation is normal rather than exceptional. The internal reference also simplifies board design by removing an external precision reference in applications where moderate absolute accuracy is acceptable. That said, the best results usually come from treating the internal reference as an analog resource that needs settling time and noise-aware layout discipline. Fast firmware startup followed immediately by high-precision conversion often produces avoidable error. A short stabilization interval usually pays back more than post-processing attempts to fix a noisy baseline.

Comparator_B adds another layer to the mixed-signal capability. While the ADC handles quantified measurement, the comparator handles immediate analog decisions. This distinction is fundamental in low-power systems. Many sensing products do not need continuous numeric conversion; they need a fast answer to whether a signal crossed a threshold. Comparator_B can provide that answer with much lower latency and often lower energy than repeatedly waking the ADC and CPU. In threshold-detection products, this enables a two-stage strategy: let the comparator monitor continuously or intermittently, then wake the rest of the system only when the analog condition is meaningful. This pattern is often more efficient than polling with the ADC, especially when target events are rare.

The interaction between the ADC, reference block, and comparator makes the device more useful than the individual specifications suggest. In simpler mixed-signal systems, these blocks can replace a separate analog front end entirely. A sensor node may use the comparator as an always-alert guard, the ADC as a precision sampler after event detection, and the internal reference as the common accuracy anchor for both measurement and decision thresholds. This integrated approach reduces component count, board area, leakage paths, and startup dependencies. It also tends to improve system robustness because fewer external analog nodes are exposed to routing noise and assembly variation.

For battery-powered instrumentation, the MSP430F5528IZQER is particularly well positioned when analog requirements are moderate, distributed across several channels, and tightly coupled to power management. A handheld sensor recorder is a representative example. The ADC can periodically sample sensor outputs, battery voltage, and perhaps an internal temperature-related channel, while the internal reference keeps conversions consistent across battery discharge. Comparator_B can monitor for a trigger condition such as a pressure excursion, light threshold, or analog fault level, allowing the CPU to remain in a low-power state until a real event occurs. This architecture works well because measurement, qualification, and control are not treated as separate board-level domains; they are orchestrated inside the MCU with minimal transfer overhead.

In practice, the strongest designs with this device usually respect one principle: integrated analog does not remove analog discipline. The converter and comparator are convenient, but they still respond to source impedance, reference noise, digital switching activity, and grounding quality. Layout decisions such as keeping analog return paths short, isolating noisy clock traces from sensitive inputs, and placing decoupling close to the reference supply pins often have more impact than firmware-level averaging. It is also wise to schedule conversions away from heavy bus activity or fast GPIO transitions when chasing low-noise results. On devices in this class, timing cleanliness can be as important as schematic correctness.

Another practical point is that the ADC12_A should be viewed as a system measurement engine, not just a peripheral. Its value increases when firmware, sensor interface, and power-state control are designed together. For example, burst sampling followed by local filtering is often more energy-efficient than continuous low-rate conversion. Likewise, using the comparator to prequalify a signal before ADC capture avoids spending conversion energy on uninteresting data. This kind of partitioning is where the MSP430F5528IZQER becomes most effective: not in high-end precision acquisition, but in intelligent low-power measurement systems where analog insight and control policy must be tightly integrated.

Texas Instruments MSP430F5528IZQER is therefore best suited to designs that need embedded analog capability without the cost, area, and power burden of a larger external signal chain. Its ADC12_A, internal reference, and Comparator_B form a coherent mixed-signal toolkit for sensing, event detection, and low-power instrumentation. When the design budget favors integration and careful analog management over raw sampling performance, this device offers a notably balanced solution.

Texas Instruments MSP430F5528IZQER Timing, Control, and Data-Handling Peripherals

Texas Instruments MSP430F5528IZQER integrates a timing and control subsystem that is notably stronger than what is typically expected from a low-power 16-bit MCU. Its value is not just the raw count of peripherals, but how those peripherals can be partitioned into independent timing domains, data paths, and supervision functions without forcing excessive firmware arbitration. That distinction matters in embedded designs where control loops, communication stacks, sensing intervals, and safety monitoring must all coexist with predictable latency.

At the center of this capability is a set of four 16-bit timer modules: Timer_A0 with five capture/compare registers, Timer_A1 with three, Timer_A2 with three, and Timer_B0 with seven capture/compare shadow registers. This distribution gives the device unusual flexibility for separating time-sensitive functions. A practical design pattern is to dedicate one timer to system scheduling, another to PWM generation, a third to input capture or pulse measurement, and reserve the fourth for protocol timing or event timestamping. That approach avoids the common failure mode where unrelated firmware features become coupled because they share a single timer base.

The distinction between Timer_A and Timer_B is also important at the implementation level. Timer_A modules are well suited for general-purpose interval timing, capture, and PWM tasks. Timer_B, with its larger number of compare channels and shadow-register capability, is better aligned with applications that need denser multi-channel waveform generation or cleaner register update behavior. In closed-loop actuation or multi-output drive schemes, shadowed compare updates reduce transient timing artifacts when duty-cycle changes occur near active timer edges. This is one of those details that tends to matter only after the first real hardware integration, when output jitter or pulse distortion appears under dynamic load updates.

For PWM generation, the timer fabric supports both simple fixed-frequency outputs and more structured multi-channel drive schemes. In motor control, valve actuation, LED dimming, or power-stage modulation, independent compare registers let each output track its own duty cycle while sharing a common timer period. The real advantage is not merely channel count. It is phase coherence. Outputs generated from the same timer remain inherently aligned to one time base, which simplifies downstream filtering, current measurement synchronization, and EMI control. When multiple actuators or switching edges must be coordinated, shared timing ancestry is often more valuable than raw CPU speed.

For input capture and event timing, the MSP430F5528IZQER can timestamp asynchronous external edges with hardware precision instead of software-polled approximation. That matters in pulse-width measurement, frequency estimation, tachometer sensing, wake-up edge characterization, and communication decoding. Firmware that relies on GPIO interrupts plus software reads often works in light-load conditions but degrades once USB, ADC servicing, or background computation increases interrupt latency. Hardware capture isolates measurement fidelity from much of that software variability. In practice, this leads to more stable control feedback and cleaner protocol recovery, especially when the system enters mixed workloads.

The availability of several timer blocks also improves architectural cleanliness. One timer can run continuously from a stable clock source for absolute timestamping, while another can be clocked or divided differently for low-frequency periodic scheduling. A third may operate in a mode tuned for edge capture from a sensor interface. This separation allows each timing domain to reflect the needs of its function rather than forcing the entire system into one compromise prescaler and interrupt cadence. In engineering terms, the device supports temporal decoupling at the hardware level, and that typically produces more maintainable firmware.

The internal 3-channel DMA complements the timer subsystem by moving data without consuming CPU cycles for every transfer. On MSP430-class devices, DMA is often the dividing line between a design that merely works and one that remains power-efficient and timing-stable under sustained throughput. In USB and ADC-driven applications, data frequently arrives in bursts or at regular sampling intervals. If every sample or packet fragment requires immediate ISR-driven copy operations, the processor becomes a traffic manager rather than a control engine. DMA removes much of that friction by transferring data directly between peripherals and memory, or across memory regions, with hardware-triggered execution.

In ADC-centric systems, DMA is especially effective when paired with timer-triggered sampling. The timer establishes a deterministic sample interval, the ADC performs conversion, and DMA deposits results into a circular or linear buffer. The CPU can then process blocks of data instead of servicing every individual sample event. This shift from sample-by-sample interrupt handling to block-oriented processing reduces interrupt pressure, improves energy behavior, and usually produces cleaner signal-processing pipelines. It also makes filtering, calibration, and threshold analysis easier to schedule because data arrives in coherent chunks.

In USB applications, DMA can help smooth endpoint servicing by reducing memory-copy overhead and minimizing the chance that firmware timing fluctuations disrupt traffic handling. The benefit is not only throughput. It is latency containment. When data-movement work is offloaded, the CPU retains more deterministic availability for state machines, application protocol handling, and exception paths. In mixed-function devices that combine USB with local sensing or control, this becomes a significant advantage because communication activity no longer dominates execution time as aggressively.

The hardware multiplier further strengthens the device for embedded signal conditioning and runtime compensation tasks. Support for 32-bit operations is useful in fixed-point arithmetic, where scaling, offset compensation, digital filtering, and sensor linearization frequently exceed 16-bit intermediate ranges. Without a hardware multiplier, these operations can consume disproportionate instruction bandwidth and increase both latency and energy use. With dedicated multiplication support, the MCU handles common numeric kernels more efficiently, making it practical to maintain higher algorithmic quality even on a low-power platform.

This is particularly relevant in systems that combine measurement and control. Sensor calibration often requires gain and offset correction. Filtering may require multiply-accumulate style operations. Control loops may need proportional scaling, feedforward terms, or conversion between engineering units and actuator command ranges. A hardware multiplier does not turn the MSP430F5528IZQER into a DSP, but it removes a common bottleneck that otherwise pressures developers to simplify algorithms too early. In many embedded products, performance loss comes less from clock speed limits than from abandoning mathematically sound processing because the arithmetic path is too expensive. This device reduces that pressure.

The support peripherals complete the picture by adding supervision and integrity features that are often underestimated during early architecture work. The RTC with alarm capability provides a persistent low-power time base for scheduled wake-up, maintenance intervals, timestamp frameworks, and time-aware application behavior. This enables a clean distinction between high-frequency operational timing handled by the general-purpose timers and long-duration scheduling handled by the RTC. That separation is useful in battery-powered devices where most of the system sleeps between activity windows.

CRC16 hardware improves data integrity checking for communication payloads, configuration blocks, and nonvolatile data validation. In systems that store calibration constants, operating parameters, or state snapshots, CRC verification provides a low-cost mechanism for detecting corruption before invalid data propagates into control behavior. It is also useful in firmware update and packet-framing contexts, where software-only CRC generation may otherwise consume unnecessary cycles. Hardware support encourages broader use of integrity checks because the cost of adding them drops.

The watchdog timer remains essential for runtime recovery, but its real value emerges when it is treated as a liveness contract rather than a periodic reset obstacle. A robust design does not simply refresh the watchdog in a central loop. It ties watchdog servicing to verified progress across critical tasks such as communication advancement, control-loop completion, or DMA-buffer turnover. On the MSP430F5528IZQER, this style of supervision fits well because the peripheral set allows critical subsystems to operate with some independence. If one path stalls while others continue, a well-structured watchdog policy can still detect the fault.

Power-on reset and brownout detect/reset round out system resilience. Brownout events are especially important in USB-powered, battery-backed, or actuator-heavy systems where supply integrity may dip during startup or transient load conditions. Silent execution under marginal voltage is often more dangerous than a hard reset because it can corrupt state, timing, or memory contents in ways that are difficult to reproduce. Hardware voltage supervision reduces that risk and simplifies recovery strategy.

Viewed as a whole, the MSP430F5528IZQER is well suited to embedded systems that need deterministic timing, background data movement, and moderate computational acceleration without moving to a larger or more power-intensive architecture. The timer topology supports clean task separation. DMA enables efficient streaming and burst handling. The multiplier sustains fixed-point processing quality. The RTC, CRC, watchdog, and reset circuitry provide the supervision layer needed for field reliability.

A useful way to approach this device is to treat its peripherals as a small hardware pipeline rather than as isolated blocks. A timer triggers acquisition. DMA transfers data. The multiplier supports numeric conditioning. CRC verifies stored or transmitted content. The watchdog confirms the whole chain continues making progress. When designed this way, the firmware becomes less interrupt-reactive and more event-structured. That usually leads to lower power, better timing determinism, and fewer integration surprises. On this MCU, the strongest designs are typically the ones that let the peripherals do most of the repetitive work and reserve the CPU for orchestration, policy, and exception handling.

Texas Instruments MSP430F5528IZQER I/O Resources, Package Form Factor, and Device Integration Considerations

Texas Instruments MSP430F5528IZQER sits in a useful middle ground within the MSP430F552x family: small enough to support dense layouts, but still equipped with enough external connectivity for many embedded control and interface tasks. Its 47 available I/O pins position it below the larger family members in raw pin count, yet that number is often sufficient when the system architecture is disciplined and peripheral multiplexing is planned early. In practice, this device fits well in products that need several communication channels, moderate sensor connectivity, timing and control outputs, and a manageable debug path, without incurring the cost, area, and routing complexity of a larger package.

The main engineering tradeoff starts with I/O budgeting. A 47-pin I/O envelope sounds straightforward, but on MSP430 devices the real constraint is rarely the absolute number alone. The more important question is how those pins overlap across peripheral functions. UART, SPI, I2C, timer channels, crystal pins, USB-related signals in family variants, interrupt-capable GPIO, and test access can all compete for the same ports. That means pin planning should not be treated as a late-stage schematic task. It should begin with a function-to-port map that identifies fixed assignments, optional assignments, boot and debug constraints, and any startup-state sensitivities. Designs that skip this step often discover too late that a nominally available GPIO is already tied up by a timer output or programming interface requirement.

For medium-complexity systems, 47 I/Os is usually enough if external interfaces are selected carefully. Parallel buses should be avoided unless they provide a clear system-level gain. Serializing low-bandwidth peripherals, using GPIO expanders where latency is not critical, and grouping LEDs, keys, or control lines through matrix or shift-register structures can preserve valuable MCU pins for functions that truly require direct timing ownership. This is often the difference between a clean single-chip implementation and an unnecessary migration to a larger variant. In compact MSP430 designs, pin efficiency is a first-class design parameter, not a secondary optimization.

The 80-ball MicroStar Junior BGA package with a 5 mm × 5 mm body is one of the defining characteristics of the MSP430F5528IZQER. Electrically, the small package helps reduce interconnect length and supports compact placement near sensors, memory, or power stages. Mechanically, it enables high component density in products where enclosure dimensions are tightly constrained. However, these advantages come with a clear manufacturing threshold. Fine-pitch BGA assembly is not just a footprint choice; it is a process choice that affects PCB stack-up, pad geometry, stencil design, via strategy, inspection approach, and rework expectations.

Escape routing deserves particular attention. A 5 mm × 5 mm BGA can be routable on standard multilayer boards, but success depends heavily on pitch, trace-width capability, via diameter, solder mask control, and whether dog-bone fanout or via-in-pad techniques are acceptable within cost targets. On paper, the package may fit the board outline comfortably, yet routing congestion can migrate into adjacent layers and consume more area than a slightly larger leaded package would have required. That is why package selection should be evaluated at the system layout level rather than by body size alone. The effective footprint includes not only the package outline, but also the escape region, decoupling capacitor placement, test access allowances, and return-current continuity.

Power integrity and local decoupling become more sensitive in a small BGA implementation. With tight pin fields and limited edge access, decoupling capacitors must be placed with discipline to keep loop inductance low. This is especially relevant when fast digital interfaces or clock transitions coexist with low-power operating modes, because poor local bypassing can quietly degrade both EMC behavior and measurement stability. In MSP430 platforms, low average current can create a false sense of immunity to layout weaknesses. In reality, transient current paths still matter, and compact packages tend to expose poor placement decisions more quickly than larger leaded options.

The availability of other package forms in the MSP430F5528 family, including VQFN, DSBGA, and nFBGA variants, adds an important layer of integration flexibility. This matters less as a marketing checkbox and more as a practical migration path across product phases. Early prototypes may benefit from a package that is easier to assemble or probe, while production hardware may shift toward a denser package once the design is stable and factory capability is confirmed. Keeping the same functional device family while changing package style can reduce firmware disruption and preserve peripheral behavior, although pin mapping and board-level characteristics still need a careful review. This type of internal package flexibility is often underestimated until a project hits a mechanical or manufacturability constraint late in development.

Debug and programming support through JTAG and Spy-Bi-Wire is another strong integration point. These interfaces affect far more than lab bring-up. They shape fixture design, production throughput, field serviceability, and fault isolation strategy. A full JTAG path can be valuable during initial validation because it offers broad visibility and control, while Spy-Bi-Wire can reduce pin overhead in constrained designs. The right choice depends on whether the priority is deep debug access, connector simplicity, or programming efficiency at scale. In many boards, preserving only the minimum test header signals looks attractive during layout, but that decision can become expensive if firmware recovery, boundary access, or late-stage fault diagnosis is needed after the product is assembled.

A practical pattern is to design for richer debug access than the first revision appears to need, then collapse to a leaner production interface only after validation risk has dropped. This approach costs little in the prototype stage and usually shortens board bring-up. It also helps when power sequencing, clock startup, or port initialization issues interact with programmable device states in ways that are difficult to reproduce externally. On MSP430 systems, a small amount of reserved access can save disproportionate effort when investigating intermittent startup behavior or firmware-image edge cases.

From a system integration perspective, the MSP430F5528IZQER is best viewed as a device that rewards early cross-domain planning. Pin count, package density, assembly capability, and debug architecture are tightly coupled. If the design starts from the firmware feature list alone, the board may become unnecessarily fragile. If it starts from manufacturing constraints alone, the selected package may limit useful debug or expansion options. The strongest implementations usually emerge when I/O allocation, PCB technology limits, test strategy, and enclosure geometry are resolved together at the beginning rather than negotiated separately later.

The device is therefore well suited to compact embedded products that need efficient control and interface capability without moving into a high-pin-count MCU class. Its 47 I/O resources are adequate for many systems when multiplexing is intentional and peripheral ownership is mapped early. Its 80-ball MicroStar Junior BGA supports aggressive miniaturization, provided the PCB process is truly matched to the package. Its JTAG and Spy-Bi-Wire support give the platform a solid path for programming, validation, and lifecycle maintenance. The key is not to treat these features as isolated specifications. Their value emerges when they are aligned as part of a single integration strategy spanning schematic capture, layout, assembly, debug, and long-term product support.

Texas Instruments MSP430F5528IZQER Typical Application Fit and Engineering Use Cases

Texas Instruments MSP430F5528IZQER fits best in embedded systems that need three things at the same time: low average power, mixed-signal integration, and direct USB connectivity. Its documented use in analog and digital sensor systems, data loggers, and USB-connected instruments is not just a marketing classification. It follows directly from the device architecture. The part combines a 25 MHz MSP430 core, 128 KB Flash, SRAM, a 12-bit ADC, comparators, timers, DMA, multiple serial interfaces, RTC capability, and integrated USB. That combination places it in a practical middle zone between very small sensing controllers and larger application-oriented MCUs. It is especially effective where power budget, board area, and firmware determinism matter more than raw compute throughput.

At the architectural level, the device is built for event-driven operation rather than continuous high-duty execution. That is the main reason it works well in measurement and logging systems. The MSP430 family is optimized around short active bursts followed by aggressive idle periods. In real designs, this matters more than peak frequency. A sensor platform that wakes, stabilizes references, samples, processes a few values, commits data, and returns to sleep often achieves better battery life from disciplined peripheral scheduling than from any single low-power specification in the datasheet. MSP430F5528IZQER supports that style well because the timers, RTC, DMA, ADC, and communication blocks can offload much of the routine traffic from the CPU. The result is lower firmware overhead, tighter timing behavior, and fewer unnecessary wakeups.

In battery-powered data loggers, this device is a particularly natural fit. The RTC can define the measurement cadence, from sub-second periodic sampling to sparse long-interval archival logging. On each wake event, the firmware can sequence analog front-end enable, sensor settling delay, ADC conversion, range checks, timestamp generation, and local storage. Because the ADC is integrated, there is no need to route data through an external conversion chain unless higher resolution or specialized front-end characteristics are required. For many environmental, industrial, and portable instrumentation tasks, the internal 12-bit ADC is sufficient when paired with careful reference management, input filtering, and calibration. In practice, measurement quality in these systems is often limited less by nominal ADC resolution and more by board-level noise, source impedance, reference drift, and poor sampling timing. The MCU gives enough control to manage these factors properly.

The logging path is also well aligned with the available memory and interfaces. Internal Flash and SRAM are enough for acquisition firmware, buffering, metadata, and moderate local record handling, while SPI can be used to extend storage into serial Flash, FRAM, or SD media. A useful design pattern is to keep a compact circular RAM buffer for recent measurements, then commit blocks to nonvolatile memory in larger transactions. That reduces write overhead and smooths current consumption. In field-deployed loggers, this buffering approach often improves both energy efficiency and storage integrity, especially when supply conditions are unstable or battery replacement is delayed. If USB is available later for servicing or readout, the device can present the logged content directly to a host without an external bridge, which simplifies both hardware and production test.

For analog and digital sensor aggregation, the MSP430F5528IZQER provides a balanced interface set. Its USCIs support I2C, SPI, and UART-style communication, which covers the majority of sensor and peripheral protocols in low-to-mid complexity embedded systems. This makes it suitable as a digital sensor hub that polls or schedules multiple devices, performs lightweight compensation, and forwards the processed data upstream. DMA becomes important here. Without DMA, a sensor hub can spend too much time moving bytes rather than managing the system. With DMA handling repetitive transfers, the CPU can remain focused on state transitions, protocol framing, and quality checks. This distinction becomes visible when multiple sensors run at different rates. A clean design lets timers trigger periodic collection, DMA handle data movement, and firmware only intervene at synchronization points or exception cases. That structure scales better and is easier to validate.

The 25 MHz CPU is not intended for heavy signal processing, but it is more than adequate for control-oriented computation, digital filtering of moderate complexity, fixed-point calibration, and protocol handling. The hardware multiplier helps in exactly the kind of arithmetic that appears in sensor linearization and unit conversion. This is one of the reasons the part remains efficient in measurement systems: the compute resources are well matched to the workload. A common mistake is to select a much larger MCU for simple acquisition and formatting tasks, then pay a penalty in active power, software complexity, and bring-up time. MSP430F5528IZQER avoids that overdesign in cases where deterministic acquisition, not application-layer compute density, is the true system requirement.

USB integration is one of the strongest differentiators of this device. In portable instruments and serviceable sensing equipment, the integrated USB PHY and endpoint support remove the need for a separate USB interface IC. That reduces component count, routing complexity, and failure surfaces. It also shortens the path between captured data and host access. The practical value is not only lower BOM cost. It also improves system cohesion. A single MCU owns measurement timing, buffering, and host transfer, so the firmware can coordinate these functions without an inter-chip protocol boundary. Designs built this way are usually easier to power sequence, easier to debug, and less sensitive to corner cases during cable attach and detach events.

Portable USB instruments are therefore another strong use case. The MCU can acquire analog inputs, evaluate thresholds with the comparator, generate timing references with internal timers, perform scaling or simple calculations with the multiplier, and expose results over USB to a PC application. This architecture works well for handheld testers, calibration accessories, low-channel-count acquisition units, and maintenance tools. It is especially efficient when the device spends most of its life disconnected or idle, then becomes fully interactive when plugged into a host. The transition from low-power autonomous operation to USB-attached operation is something this class of MCU handles gracefully if the firmware is partitioned correctly. A useful implementation strategy is to separate the measurement scheduler from the transport layer entirely, so USB enumeration and host transactions do not disturb sampling determinism.

From an engineering perspective, the best applications for MSP430F5528IZQER are those that exploit peripheral cooperation rather than treating the MCU as a simple sequential processor. The part delivers the most value when timers trigger acquisition, DMA moves data, the ADC samples under controlled timing, communication peripherals collect distributed sensor data, and the CPU only executes short decision-oriented routines. This is where its low-power design and peripheral mix become system-level advantages. If used as a continuously active general-purpose controller with little peripheral offload, much of its architectural benefit is lost.

There are also practical constraints that shape where it fits well. For high-resolution instrumentation, the internal ADC may need external support. For complex USB classes, large protocol stacks, or advanced cryptography, Flash and RAM margins should be checked early. For systems with many high-rate sensors, bus loading and interrupt structure need careful planning. These are not weaknesses so much as boundary conditions. The device performs best when the design objective is disciplined mixed-signal control with moderate data throughput and efficient host connectivity. It is less compelling when the application is compute-heavy or demands very large memory headroom.

A recurring lesson in designs around this MCU is that power performance depends strongly on firmware architecture. Poorly grouped wake events, frequent small memory writes, unnecessary polling, and unmanaged analog settling time can erase much of the expected battery-life advantage. Conversely, when sampling is batch-oriented, communication is bursty, and the CPU sleeps between hardware-driven events, the part behaves exactly as intended. That is why it remains a strong choice for long-life sensor nodes, serviceable data loggers, and compact USB measurement devices. Its application fit is not defined by any single peripheral, but by how coherently the peripheral set supports low-duty-cycle, mixed-signal, host-connected embedded systems.

Texas Instruments MSP430F5528IZQER Development Ecosystem and Design Support

Texas Instruments supports the MSP430F5528IZQER through a development ecosystem that is broader than the device datasheet suggests. For practical design work, the value is not only in the MCU itself, but in the alignment between evaluation hardware, software collateral, debug tooling, and family-level documentation. That alignment is what reduces uncertainty during early architecture decisions and later during board bring-up, peripheral tuning, and low-power validation.

The MSP430F5528IZQER belongs to the MSP430F55xx family, so its effective support model should be viewed at three levels. The first level is device-specific material such as the datasheet, pin mapping, electrical limits, package details, and feature list. The second level is family-level reference material, especially the MSP430F5xx and MSP430F6xx Family User’s Guide, which explains module behavior in far greater depth than a summary datasheet can. The third level is the implementation ecosystem: LaunchPad and target boards, example projects, peripheral libraries, and IDE integration. In practice, robust development depends on all three levels being used together rather than in isolation.

On the hardware side, TI references several boards that map well to different stages of evaluation. The MSP-EXP430F5529LP LaunchPad is typically the lowest-friction entry point. It is useful for first power-on experiments, clock configuration checks, GPIO exercises, USB evaluation, and quick validation of toolchain setup. It is not a full substitute for a custom board, but it removes several early variables at once: power conditioning, basic programming connectivity, and a known-good reference layout for common functions. That matters because many early issues attributed to firmware are actually rooted in clocking, reset behavior, or supply integrity, and a proven platform helps isolate those factors quickly.

The MSP-EXP430F5529 experimenter’s board serves a different role. It is more suitable when the goal shifts from simple demonstration to broader peripheral exploration and system interaction. In engineering terms, this type of board is valuable because it exposes more of the device’s practical integration surface. It allows faster investigation of interface behavior under realistic use, especially when multiple subsystems must coexist. That includes checking interrupt interactions, DMA-driven transfers, communication timing margins, and the effect of low-power transitions on active peripherals. These are areas where bench validation usually uncovers edge cases that are invisible in isolated code snippets.

The MSP-TS430PN80USB 80-pin target development board and the MSP-TS430RGC64USB 64-pin target development board are more directly relevant when package-specific validation matters. For a device such as MSP430F5528IZQER, package and pinout decisions can influence not only PCB routing but also peripheral availability, signal grouping, and test access strategy. Target boards are useful because they narrow the gap between abstract software testing and device-specific implementation. They are especially helpful when verifying alternate pin functions, timing on external buses, ADC input behavior under real loading, or the interaction between debug access and application circuitry. In many projects, this is the stage where assumptions made during schematic capture get corrected before they become layout or manufacturing costs.

Software support is equally important. TI’s MSP430Ware code examples provide a practical starting layer, but their value is highest when treated as reference implementations rather than production-ready architecture. They show peripheral initialization order, register usage patterns, interrupt structure, and expected operating sequences. For MSP430 devices, initialization order often matters more than new users expect. Clock system setup, power domain behavior, USB startup sequencing, and interrupt enable timing can all affect whether a subsystem appears stable or intermittent. The examples reduce this ambiguity by showing known-good paths through the configuration space.

Code Composer Studio integration strengthens that software layer because it combines project management, compiler support, debugger access, and device awareness in one environment. This is not just a convenience feature. It shortens the feedback loop between code edits and hardware observation. For low-power MCUs, that loop is critical. Problems frequently appear only when stepping beyond nominal functionality into timing-sensitive and energy-sensitive behavior: entering and exiting low-power modes, preserving state across interrupts, handling oscillator fault conditions, or recovering from communication stalls without wasting current. A mature IDE with proper device support makes these conditions easier to reproduce and inspect.

The MSP430F5xx and MSP430F6xx Family User’s Guide deserves special emphasis because it is often the document that determines whether a design team can move from “it runs” to “it is engineered correctly.” Datasheets describe capabilities. Family user guides explain mechanisms. That distinction matters when configuring clocks, timers, DMA, USB, ADC blocks, watchdog behavior, or power management. For example, understanding a peripheral’s register map is only the starting point. The more important detail is how that peripheral behaves during state transitions, what dependencies exist between control bits, what timing assumptions are implicit, and what side effects occur when modules are reconfigured on the fly. Those details are often documented only at the family-guide level.

A common pattern in MSP430 development is that early success comes easily, but robust operation requires more disciplined reading of the family collateral. UART output may work immediately, yet clock drift under low-power transitions may later destabilize communications. ADC conversions may appear correct at first, but sampling quality may degrade once source impedance, reference startup time, or interrupt latency changes. USB may enumerate, but intermittent failures can still emerge from startup race conditions, oscillator readiness, or power-sequencing assumptions. The ecosystem is valuable because it gives multiple paths to diagnose these problems: reference code, reference hardware, debugger support, and detailed module documentation.

For engineers evaluating the MSP430F5528IZQER, the main ecosystem advantage is risk compression. It reduces bring-up time because a known-good hardware baseline is available. It accelerates peripheral validation because code examples expose the expected configuration pattern. It lowers documentation risk because family-level guides fill in the operational details missing from product summaries. It also improves schedule predictability. In schedule-sensitive programs, the largest delays rarely come from writing nominal firmware. They come from chasing interactions between clocking, interrupts, low-power modes, and peripheral state machines. A mature ecosystem shortens that debug cycle significantly.

Another practical advantage is design reuse. Since the MSP430F5528IZQER sits within a broader family, engineers can often transfer understanding, code structure, and validation strategy across nearby devices with limited rework. This is especially useful when the project evolves after initial estimation, such as when memory needs grow, pin count changes, or package constraints shift late in the design. An ecosystem built around family continuity creates flexibility that is not obvious in a device selection table but becomes valuable once requirements start moving.

There is also a strategic point worth noting. Development ecosystems are often evaluated by counting boards, libraries, and examples, but the more meaningful metric is whether they help convert peripheral features into predictable system behavior. TI’s support around the MSP430F5528IZQER is strong because it does more than showcase features. It gives a structured path from initial evaluation to implementation detail. That path starts with reference hardware, moves through working software examples, and ultimately depends on the family user guide to resolve edge-case behavior. When those layers are used together, adoption friction falls, debug efficiency improves, and the device becomes much easier to integrate into a disciplined embedded design flow.

Potential Equivalent/Replacement Models for Texas Instruments MSP430F5528IZQER

Potential equivalent or replacement options for Texas Instruments MSP430F5528IZQER should be evaluated in a strict order: silicon identity first, package compatibility second, peripheral equivalence third, and lifecycle risk throughout. That sequence matters. In embedded redesign work, the fastest migration is rarely the part with the closest marketing description; it is the part that preserves firmware assumptions, pin behavior, clock topology, and supply-domain behavior with the fewest board-level changes.

The MSP430F5528IZQER belongs to the MSP430F55xx family, so the most reliable replacement path starts inside that family. These devices share the same 16-bit MSP430 core, a similar low-power operating model, comparable clocking concepts, USB integration strategy, DMA structure, timer resources, USCI communication blocks, and hardware multiplier capability. That common architectural base reduces migration effort because system firmware often depends not only on named peripherals, but also on interrupt structure, register organization, timing behavior, and low-power state transitions. When those elements remain stable, validation effort drops sharply.

The closest replacements are the same MSP430F5528 device offered in different package variants, specifically MSP430F5528IRGC, MSP430F5528IYFF, and MSP430F5528IZXH. These are not functional substitutes in the abstract; they are effectively the same silicon deployed through different mechanical and assembly options. That distinction is important. If the original design constraint is component availability, reel format, footprint style, board density, or manufacturing preference, these variants usually provide the least disruptive path. Firmware portability is essentially preserved because the device-level feature set remains the same. Electrical behavior also remains aligned at the silicon level, although package-induced differences such as thermal profile, escape routing complexity, and assembly yield still need review.

In practice, package migration is often underestimated. A nominally equivalent die in a different package can still force changes in PCB layer count, fan-out strategy, test access, and rework difficulty. Fine-pitch or high-pin-density packages may improve sourcing flexibility but create new constraints in low-cost manufacturing flows. For that reason, a package-alternative decision should not be treated as a procurement-only substitution. It should be checked against pad geometry, trace breakout, decoupling placement, USB differential routing quality, and any analog front-end proximity effects if the ADC is in use.

If the replacement analysis moves beyond package and into adjacent family members, MSP430F5529 is one of the strongest candidates. It offers the same general peripheral class while increasing available I/O, documented as 63 I/O pins versus 47 on MSP430F5528. This makes it a practical migration option when the original design has become pin-constrained or when a redesign is already planned and additional external interfaces are expected. Within the same architectural family, that extra I/O can simplify system partitioning by reducing the need for GPIO expanders, external multiplexing, or shared-function compromises. In many board revisions, that translates into lower firmware complexity and cleaner timing margins at the system level.

However, higher I/O count should not be interpreted as automatic drop-in compatibility. Additional pins usually imply a different package footprint and often a different pin map. Existing peripheral assignments, ADC channel mapping, timer outputs, and communication port placement may shift. That can affect both schematic reuse and firmware assumptions, especially in designs where ports are manipulated directly at the register level for latency-sensitive tasks. A replacement that is architecturally close can still trigger significant board and software work if the original implementation is tightly coupled to specific port groups or alternate pin functions.

The broader MSP430F552x family, including MSP430F5527, MSP430F5526, MSP430F5525, MSP430F5524, MSP430F5522, and MSP430F5521, should be considered when the replacement objective includes optimization rather than strict replication. These parts sit within the same family grouping and are relevant when the design space is defined by a tradeoff among flash and RAM capacity, I/O count, package style, and peripheral density. This is often the right level of analysis when a product is already entering a board respin due to obsolescence. At that point, selecting a merely equivalent device can miss an opportunity to remove latent bottlenecks, while selecting a larger device without discipline can add unnecessary cost and supply exposure.

A useful engineering approach is to classify requirements into four buckets: non-negotiable peripherals, firmware-coupled resources, board-coupled pins, and scalable attributes. Non-negotiable peripherals include USB support, ADC12_A presence, DMA availability, timer count, and communication interfaces. Firmware-coupled resources include interrupt vector usage, memory headroom, and low-power wake behavior. Board-coupled pins include crystal connections, USB pins, analog inputs, and any pins tied to external timing or safety logic. Scalable attributes include excess GPIO, memory margin, and package convenience. This separation prevents overfitting the selection process to a datasheet checklist while ignoring what actually drives redesign cost.

The MSP430F551x subgroup, including MSP430F5519, MSP430F5517, MSP430F5515, MSP430F5514, and MSP430F5513, deserves attention only under a narrower set of conditions. These devices still provide integrated USB support, timers, USCIs, hardware multiplier, DMA, and RTC resources, so on paper they appear close to the MSP430F5528IZQER. The critical limitation is that the MSP430F551x line does not include the ADC12_A function present in the MSP430F552x family. That single omission changes the replacement calculus completely. If the original design uses internal analog acquisition for sensors, battery monitoring, calibration loops, current measurement, or threshold tracking, then MSP430F551x is not a practical substitute unless the analog path is redesigned around an external ADC or removed entirely.

That difference illustrates a broader point: peripheral absence matters more than peripheral count. A device with more memory or similar communication blocks is still a poor replacement if it breaks a single high-coupling subsystem. ADC removal is especially disruptive because it affects hardware, firmware, calibration procedure, timing budget, and often EMC behavior. An external ADC can recover functionality, but it also adds BOM cost, board area, noise sensitivity, interface latency, and software overhead. In low-power mixed-signal designs, that trade is usually unattractive unless the redesign already includes a significant analog architecture change.

Lifecycle status adds another layer that should be treated as a first-class design parameter, not a procurement footnote. The available documentation identifies MSP430F5528IZQER as obsolete and indicates that ZQE package orderable part numbers had moved to Last Time Buy status. That means the replacement exercise should not stop at identifying a technically acceptable part. It should also examine whether the candidate itself sits on stable lifecycle ground, whether multiple package or distributor channels exist, and whether future sourcing can survive normal lead-time volatility. A replacement that is electrically ideal but commercially fragile only delays the next redesign.

For that reason, package-compatible and family-compatible alternatives should be screened first, but screened against a structured matrix rather than informal similarity. The first gate is exact silicon equivalence under a different package code. The second gate is same-family migration with preserved core peripheral set, especially USB and ADC12_A. The third gate is whether pin count expansion or reduction affects system architecture. The fourth gate is firmware portability, including startup code, linker layout, interrupt mappings, peripheral initialization sequences, and low-power mode behavior. The final gate is supply continuity. In actual migration programs, failures usually occur in the fourth and fifth gates, not the first two.

Firmware portability deserves special emphasis because it is often assumed rather than verified. Within the MSP430F55xx family, source-level reuse can be high, but project-level reuse depends on how the original codebase was written. If the software uses TI driver libraries or an abstraction layer, migration is usually straightforward. If it writes directly to registers, assumes fixed port placement, or encodes package-specific pin mappings in multiple modules, even a same-family move can create subtle defects. USB descriptors, clock initialization, ADC channel selection, and DMA trigger sources are common places where “almost compatible” devices consume disproportionate debug time.

Board-level validation should also reflect the mixed-signal nature of the F552x line. When ADC12_A is used, replacement evaluation should include analog pin assignment, reference stability, grounding strategy, and any changes in package-induced coupling. USB-capable MSP430 designs also benefit from checking crystal startup margin, VBUS sensing implementation, differential pair continuity, and ESD network interaction after any package or family migration. These are not edge concerns. They are recurring sources of post-substitution failures in otherwise correct schematic translations.

A pragmatic selection hierarchy emerges from the available information. If the goal is minimum redesign, choose another MSP430F5528 package variant first: MSP430F5528IRGC, MSP430F5528IYFF, or MSP430F5528IZXH. If the design needs more I/O and a board update is acceptable, MSP430F5529 is the most natural upward migration inside the same family. If memory, package, or cost needs shift while preserving analog and USB capability, evaluate the remaining MSP430F552x members. Only consider MSP430F551x devices if ADC12_A is definitively unnecessary across all operating modes, including service, calibration, and future feature expansion.

The most robust replacement strategy is to treat MSP430F5528IZQER not as an isolated part number, but as a point inside an architectural envelope defined by USB, ADC12_A, low-power control, and MSP430F55xx firmware conventions. Once that envelope is made explicit, replacement decisions become far more predictable. It also becomes easier to avoid a common mistake in obsolescence response: selecting a part that is nominally close yet misaligned with the design’s real coupling points. In this case, the best replacements are the ones that preserve analog capability, USB integration, and firmware structure together, not just the ones that share a family prefix.

Conclusion

Texas Instruments MSP430F5528IZQER sits in a particularly useful class of microcontrollers: devices that bridge ultra-low-power embedded control and moderate system integration without forcing a move into a heavier 32-bit platform. It combines a 16-bit MSP430 core running up to 25 MHz with 128 KB of Flash, 10 KB of RAM, full-speed USB, a 12-bit ADC, multiple communication interfaces, DMA, RTC support, and several timer resources. That combination makes it more than a simple controller for housekeeping tasks. It is better understood as a compact mixed-signal control node designed for systems that must sense, process, communicate, and sleep efficiently.

The architectural value of the MSP430F5528IZQER comes from balance rather than raw peak performance. Many embedded designs do not fail because the processor is too slow. They fail because the system budget is consumed by interface glue, power overhead, firmware complexity, or board area. This device addresses those constraints directly. Its peripheral mix reduces the need for external support ICs, while its low-power operating model allows firmware to spend most of its lifetime in sleep states and wake only for deterministic work. In measurement equipment, portable instruments, and USB-connected sensing modules, that design philosophy usually matters more than instruction throughput alone.

At the core level, the MSP430 architecture remains effective because it is predictable. The 16-bit CPU is straightforward to model in timing-sensitive applications, and that matters in systems that combine periodic sampling, communication servicing, and aggressive power-state transitions. When firmware is built around short active windows and long idle intervals, deterministic wakeup and interrupt response often deliver more practical value than a nominally faster core that incurs greater energy and software overhead. This is one of the reasons the MSP430F55xx family has remained relevant in embedded instrumentation for so long: its efficiency is systemic, not just electrical.

Memory sizing is another area where this device lands in a pragmatic middle ground. With 128 KB of Flash, it can support a USB stack, application logic, calibration data, and bootloader functionality without immediately pushing the design into memory pressure. The 10 KB RAM is not generous by modern standards, but it is usually sufficient if buffers are designed carefully and DMA is used intelligently. In USB-enabled data acquisition designs, RAM limits tend to appear first in endpoint buffering, sample staging, and protocol handling. In practice, this means firmware should be structured around streaming and state machines rather than large in-memory processing blocks. The device rewards disciplined embedded design. It is less suitable for applications that assume abundant RAM for abstraction-heavy frameworks or large packet aggregation.

USB integration is one of the defining advantages of the MSP430F5528IZQER. Full-speed USB with integrated PHY and power support significantly simplifies the implementation of PC-connected instruments, configuration tools, firmware update paths, and low-bandwidth measurement devices. This is not merely a convenience feature. In many embedded products, USB is the difference between a self-contained subsystem and a maintainable field device. Native USB reduces BOM count, shortens signal paths, and avoids the power and software penalties of an external bridge. It also creates a cleaner route for manufacturing test, calibration, logging, and service access.

That said, USB capability should be evaluated in system terms rather than as a checkbox feature. The challenging part is rarely enabling enumeration. The difficult part is maintaining stable behavior across suspend, resume, bus-powered conditions, host variability, and concurrent sampling loads. Devices in this class perform best when USB traffic is treated as a scheduled subsystem rather than an always-on software burden. A robust design typically uses DMA, interrupt partitioning, and timer-driven acquisition so that communication does not destabilize measurement timing. This is especially important in mixed-signal systems, where USB activity can inject both processing jitter and electrical noise if power domains and conversion windows are not handled carefully.

The mixed-signal resources are well matched to sensor and measurement applications. The integrated 12-bit ADC provides enough resolution for a broad range of industrial and portable acquisition tasks, especially where the true performance limit is sensor quality, analog front-end design, reference stability, or noise floor rather than nominal converter bit depth. In practical systems, an average 12-bit converter with a disciplined analog layout often outperforms a theoretically higher-resolution path compromised by poor grounding, unstable references, or digital interference. The MSP430F5528IZQER gives designers the core ingredients for competent embedded measurement, but extracting strong results still depends on sampling strategy, reference management, and board-level isolation.

This is where the timer and DMA subsystems become more important than they may first appear. Four 16-bit timers provide the scheduling backbone for sampling intervals, pulse generation, capture tasks, watchdog-like supervision, and low-jitter event control. DMA reduces CPU intervention during repetitive data movement, which improves both power efficiency and timing consistency. In data logger and metering designs, a common pattern is to let a timer trigger ADC activity, transfer results via DMA, and wake the CPU only when a buffer threshold or decision point is reached. That pattern is usually more effective than continuous firmware polling. It lowers energy use, reduces software complexity in the time-critical path, and improves repeatability.

The device’s serial interfaces further reinforce its role as a compact integration point. Multiple communication channels allow the MCU to serve as a protocol bridge between sensors, local peripherals, and a host interface. That is useful in real systems where one channel is rarely enough. A design may need SPI for a precision sensor, I2C for configuration peripherals, UART for diagnostics, and USB for host access. The MSP430F5528IZQER can support that kind of topology without excessive external logic, provided the firmware architecture is disciplined. Interface coexistence becomes manageable when the design is built around interrupt prioritization, bounded transaction sizes, and low-power aware task scheduling.

Low-power behavior remains the central reason to choose this device. The MSP430 family is not simply low power in a static datasheet sense; it is optimized for energy-aware duty cycling. The real advantage appears in applications that spend most of their time waiting for an event, a timer tick, a threshold crossing, or a host request. Portable data loggers, battery-powered environmental sensors, and maintenance tools fit this pattern well. The MCU can remain in a low-power mode while RTC, timers, or communication wake sources remain active, then return to sleep quickly after completing useful work. The energy benefit is largest when firmware avoids background churn. A design that wakes often for nonessential housekeeping can easily undermine the platform’s strongest feature.

This leads to a broader selection insight: the MSP430F5528IZQER is best when the application’s intelligence is event-driven rather than compute-heavy. If the workload consists of frequent filtering, protocol translation, periodic acquisition, modest local decision logic, and occasional host interaction, the device is very well positioned. If the design roadmap points toward graphics, networking stacks with large memory footprints, complex DSP pipelines, or secure over-the-air frameworks, the platform will likely feel constrained. Choosing it well means respecting its operating envelope. Within that envelope, it is efficient and elegant. Outside it, development effort rises quickly.

For embedded measurement systems, the device is especially attractive because it supports coherent partitioning between analog acquisition, timing control, and connectivity. A portable instrument can sample a sensor with timer-controlled precision, buffer values through DMA, timestamp them with RTC context, and export data over USB with minimal external silicon. That level of integration shortens board design and can improve reliability by reducing inter-device dependencies. In practice, fewer chips often means fewer subtle failure modes during power sequencing, lower standby current surprises, and less validation effort around interface corner cases.

In USB-enabled instruments, the MSP430F5528IZQER also offers a practical path for firmware maintenance. Field updates, calibration record access, and production-line programming can all be integrated into a single cable interface. This tends to simplify service models and fixture design. A recurring lesson in such products is that maintainability often becomes as important as primary function after deployment begins. Devices with native USB usually age better in operational environments because they are easier to inspect, reconfigure, and recover without specialized hardware.

Package and lifecycle status, however, deserve equal attention. The provided material identifies the MSP430F5528IZQER as an obsolete or late-life package variant. That shifts the evaluation from pure technical fit to program risk management. In other words, the silicon capabilities may still be appropriate, but procurement resilience becomes part of the engineering decision. Package-specific obsolescence can affect assembly strategy, qualification continuity, and second-source timing within the same family. For new designs, it is rarely enough to confirm functional suitability. It is necessary to verify active package availability, pin-compatible alternatives, software portability across adjacent MSP430F55xx variants, and long-term sourcing visibility.

A disciplined approach is to treat this part as a family reference point rather than an isolated SKU. The stronger decision process starts with the required USB support, memory headroom, analog channel count, timer usage, and package constraints, then maps those needs to currently supported members of the MSP430F55xx line or to neighboring TI families if lifecycle certainty is more important than direct continuity. This reduces redesign risk later. It also avoids the common mistake of optimizing the schematic around a specific obsolete orderable code when a near-equivalent active variant could preserve the architecture with fewer supply-chain complications.

From an engineering perspective, the MSP430F5528IZQER remains a technically credible MCU because its integration is purposeful. The USB block is not incidental. The ADC and timers are not decorative. The DMA and low-power modes are not secondary features. Together, they form a device that is most effective in systems where energy, timing, connectivity, and board compactness must all be solved at once. That is why it continues to stand out in portable instrumentation, acquisition nodes, sensor gateways, and service-connected embedded tools.

Its limitations are equally instructive. The RAM budget demands careful firmware design. USB introduces power and timing discipline requirements. Mixed-signal performance depends heavily on board execution. Lifecycle status may override technical preference. None of these are disqualifying. They simply define the real engineering boundary conditions. In many cases, that boundary is exactly where the MSP430F5528IZQER performs best: applications that need more than a minimal MCU, but not the cost, power, or complexity footprint of a larger processing platform.

Viewed in that context, Texas Instruments MSP430F5528IZQER remains a strong representative of the MSP430F55xx family architecture. It is a compact, low-power, USB-capable mixed-signal controller with a peripheral set that aligns well with practical embedded measurement and control problems. For designs operating within its memory and performance envelope, it offers a clean and efficient platform. For new programs, the technical merits should be weighed alongside package lifecycle and sourcing continuity, with family-level migration planning treated as part of the initial design, not as a late procurement reaction.
