LMX2592RHAT

Texas Instruments LMX2592 product overview and positioning

Texas Instruments LMX2592 is positioned as a wideband, integrated PLL synthesizer for RF and microwave systems that cannot tolerate weak spectral performance or cumbersome multi-device LO chains. It combines a high-frequency PLL, an integrated VCO, and flexible output routing in a single device, covering roughly 20 MHz to 9.8 GHz from a 3.3 V supply. That combination is not just a feature list advantage. It directly addresses a recurring design constraint in modern platforms: board area, power-domain simplicity, and phase-noise performance must now be balanced in the same design envelope rather than optimized independently.

At a product level, the LMX2592 sits in the class of synthesizers intended for serious signal-generation tasks rather than basic clock expansion. Its role is strongest where the generated frequency is not merely present, but performance-defining. In test instrumentation, the LO often sets the lower bound on system dynamic range. In radar and defense transceivers, close-in phase noise and spur behavior directly affect detection sensitivity and Doppler fidelity. In high-speed data-converter clocking, jitter from the synthesizer translates into SNR degradation at the converter input, especially as input frequency rises. In microwave backhaul and satellite communication links, wide tuning range and clean spectrum simplify multi-band support while protecting modulation quality. The LMX2592 is therefore best understood as a frequency-generation core for systems where clock integrity propagates into end-level performance metrics.

Its integrated VCO is one of the central reasons for its positioning. In many RF designs, an external VCO can provide good performance, but it introduces matching effort, routing sensitivity, additional power filtering, and often more design iteration than initially expected. By integrating the VCO, TI reduces uncertainty in the highest-frequency portion of the loop. This has practical value beyond BOM reduction. It shortens RF trace exposure, limits parasitic interaction between PLL and VCO domains, and makes repeatability across layout revisions easier to maintain. In dense assemblies, especially where multiple synthesizers or converters share limited area, that level of integration often determines whether the clock tree remains manageable.

The frequency coverage from tens of megahertz up to 9.8 GHz gives the device broad utility across direct LO generation, IF-to-RF translation chains, and converter clock generation. In many architectures, that range avoids the need for an extra upconversion stage or a separate microwave oscillator. This matters because every removed stage reduces insertion loss, power consumption, calibration burden, and spur opportunities. When a single synthesizer can directly generate both converter clocks and microwave local oscillators across different product variants, the design platform becomes easier to scale. That is a major but often understated advantage in product families that target multiple frequency plans.

The fractional-N and integer-N modes make the LMX2592 suitable for two different optimization strategies. Integer-N operation remains valuable when the cleanest possible spectral output is required at frequencies that align well with the reference plan. Fractional-N operation becomes important when channel spacing, agile retuning, or fine frequency resolution is needed. The practical distinction is not just theoretical. Fractional operation introduces quantization-related spurs and loop tradeoffs that need active management through register configuration, loop bandwidth selection, and reference planning. A well-selected integer boundary can materially improve spectral cleanliness, but forcing integer operation everywhere often overconstrains the architecture. The LMX2592 is useful because it allows that trade to be made per use case rather than per device family.

Its dual differential outputs expand its value beyond single-path LO generation. These outputs can support parallel destinations such as I/Q signal paths, a converter and a mixer, or a primary LO plus a monitoring path. Differential signaling at these frequencies is not merely a convenience. It improves immunity to common-mode coupling, supports better interface control into downstream RF or clock ICs, and generally reduces sensitivity to local ground noise. In practice, the availability of dual outputs can remove the need for a separate splitter or buffer stage, which helps preserve output power and avoid another source of additive jitter or mismatch.

Programmable phase adjustment is another feature that becomes more important as system sophistication increases. In simple designs it may appear secondary, but in phased arrays, coherent sampling systems, and multichannel converter platforms, deterministic phase control is often fundamental. Relative phase alignment between channels affects beam steering accuracy, channel-to-channel calibration effort, and coherent processing gain. The presence of programmable phase control in the synthesizer reduces dependence on external delay trimming or awkward PCB compensation methods. It also provides a cleaner path to digital calibration workflows, where frequency and phase can be adjusted under software control rather than frozen into hardware.

Programmable charge pump current and output power level reflect the fact that high-performance synthesizer design is always partly analog, even when controlled through registers. Charge pump current influences loop gain and therefore loop bandwidth, lock behavior, and spur response. Output power adjustment helps optimize the interface to mixers, amplifiers, or clock receivers without excessive compression or underdrive. These controls are especially valuable during bring-up. Designs that look stable in simulation often need loop retuning once real reference noise, supply ripple, and board parasitics appear. Having enough programmability inside the synthesizer reduces the number of times the surrounding hardware must be reworked.

From a loop-design perspective, the LMX2592 should be treated as a system element, not a drop-in oscillator. Its final phase-noise performance depends on the reference source, loop filter implementation, power supply cleanliness, and output loading. A common mistake is to evaluate a synthesizer purely by its headline phase-noise numbers while underestimating the reference path. If the reference oscillator is noisy, poorly isolated, or routed carelessly, the PLL will faithfully transfer that weakness into the generated output over part of the loop bandwidth. Likewise, a poorly placed loop filter or insufficiently quiet analog supply can elevate spurs and degrade lock consistency. In practice, clean implementation around the device often determines whether its datasheet-level capability is approached or missed by a wide margin.

The device is particularly compelling in high-speed ADC and DAC clocking. At multi-gigasample rates, clock jitter directly limits achievable SNR according to input signal frequency. This shifts the clock source from a support component to a front-end performance driver. A synthesizer such as the LMX2592 becomes attractive when one design must support multiple converter rates, JESD-related clock plans, or synchronized sampling domains without proliferating separate oscillators. The integrated approach helps consolidate frequency planning, and the wide tuning range provides room for clock experimentation during system optimization. In lab development, this flexibility often shortens the path to a stable sampling plan because frequency relationships can be tested and refined without replacing hardware.

In microwave LO generation, the LMX2592 is strongest where agility and integration matter more than absolute architectural separation of PLL and VCO. For heterodyne radios, signal analyzers, or agile transceivers, rapid retuning across wide bands is often more important than building a highly customized discrete LO chain. Here the device offers a balanced solution: broad coverage, strong configurability, and reduced implementation friction. It is not merely replacing several components; it is also simplifying validation, because fewer high-frequency interfaces need to be characterized across temperature, process variation, and assembly tolerance.

There is also a practical systems-level benefit in using a device of this class: it supports architectural convergence. A single synthesizer family can often serve RF LO generation, converter clocking, and coherent multi-channel synchronization roles in the same platform. That reduces software fragmentation, inventory complexity, and validation effort. In engineering terms, this is frequently more valuable than a marginal improvement in one isolated specification. A synthesizer that is slightly less specialized but materially easier to integrate across multiple subsystems often produces the better product-level result.

For engineers comparing alternatives, the LMX2592 should be viewed less as a generic wideband synthesizer and more as an integration-focused performance part. Its value comes from how effectively it compresses the traditional PLL-VCO-output-chain problem into a controlled, programmable device while preserving the tuning range and spectral quality needed in demanding RF systems. It is most attractive when the design requires a clean, flexible frequency source that can move between precision clocking and microwave LO duties without forcing a major architecture change. In that sense, its market positioning is clear: it is aimed at designs where frequency generation is not auxiliary infrastructure, but a central determinant of system capability.

Texas Instruments LMX2592 frequency generation architecture and operating concept

Texas Instruments LMX2592 is built around a wideband PLL synthesizer architecture that prioritizes frequency-planning freedom, low-noise signal generation, and practical integration efficiency. At its core, the device combines a high-frequency integrated VCO with a configurable reference conditioning path, a phase-frequency detector and charge pump loop, and a programmable feedback chain that supports both integer-N and fractional-N synthesis. This combination allows the device to span very high output frequencies while still maintaining fine frequency resolution and broad compatibility with real system reference sources.

The signal path starts at the differential reference input, which supports input frequencies up to 1.4 GHz. That ceiling is important because it reduces the burden on external reference conditioning in systems already operating with high-performance clocks. Instead of forcing the designer to heavily preprocess the reference off-chip, the LMX2592 can absorb a relatively fast reference directly, then reshape it internally using an optional doubler, pre-divider, multiplier, and post-divider resources. These blocks are not just convenience features. They are the main tools used to place the phase detector frequency into a range that balances loop bandwidth, in-band phase noise, fractional behavior, and divider constraints.

This reference-path flexibility is one of the strongest practical aspects of the device. In many synthesizers, frequency planning becomes difficult because the ideal output frequency, the available system reference, and the preferred phase detector frequency do not align cleanly. The LMX2592 gives enough internal arithmetic freedom to resolve many of those conflicts without external clock translation stages. In practice, this often shortens the clock-tree design and reduces the number of active devices contributing additive jitter.

After reference conditioning, the PLL compares the processed reference with the divided VCO feedback at the phase detector. The charge pump then converts phase error into current pulses that drive the external loop filter, which in turn controls the integrated VCO tuning voltage. This is standard PLL behavior, but the implementation details matter. The achievable performance depends strongly on how the phase detector frequency is selected and how the loop filter is tuned around it. The datasheet allows phase detector frequencies up to 200 MHz in general operation and up to 400 MHz in integer-N mode. Higher phase detector frequency is usually desirable because it reduces the required N division ratio for a given output frequency. A lower N value generally improves in-band phase noise and allows wider loop bandwidths, provided the rest of the loop remains stable.

That benefit is not free. Raising the phase detector frequency also tightens requirements on reference purity, loop filter design, and digital boundary conditions inside the synthesizer. A common design mistake is to push the phase detector frequency to the highest possible value simply because the device allows it. In many cases, the better result comes from choosing a phase detector frequency that is high enough to reduce divider noise but not so high that reference spurs, lock transients, or loop peaking become harder to manage. For this device, frequency planning should be treated as a noise-allocation exercise, not just a divider arithmetic problem.

The feedback path includes the prescaler, N divider, and sigma-delta modulator. These blocks determine whether the device operates in integer-N or fractional-N mode. In integer-N mode, the division ratio is an integer, so the output frequency is locked to an exact integer multiple of the phase detector frequency. This mode is often preferred when spur cleanliness is the highest priority, especially in receiver local oscillators where deterministic fractional spurs can fold into sensitive bands. Integer-N mode also enables the highest allowed phase detector frequencies, which can further improve in-band noise. The tradeoff is frequency granularity. Output step size becomes tied directly to the phase detector frequency and any output division that follows, so channel spacing may be too coarse for some applications.

Fractional-N mode removes that limitation by allowing the effective division ratio to include a fractional component. In the LMX2592, the 32-bit fractional divider provides extremely fine frequency resolution. This matters in several real design contexts: aligning an LO to nonstandard raster spacing, matching an exact converter sample clock, generating coherent offsets for multichannel systems, or sweeping frequencies with sub-kilohertz precision over a very wide RF range. A 32-bit modulus is large enough that frequency quantization error becomes negligible in most system-level budgets. The more significant concern shifts from resolution to spectral purity.

That shift is where the sigma-delta modulator becomes central. It shapes the quantization error introduced by fractional division so that much of the error energy moves away from low offset frequencies. This improves average frequency accuracy while helping maintain useful close-in phase noise. However, sigma-delta shaping does not eliminate spurs by itself. Fractional spurs can still appear because of periodicities, nonlinearities, charge pump mismatch, loop interactions, and coupling into sensitive analog nodes. In practice, fractional mode performance is best when the frequency plan avoids simple low-order fractional relationships and when loop bandwidth is selected with awareness of where the modulator noise and spur energy are likely to land. A configuration that looks mathematically valid can still produce disappointing spectral results if those secondary mechanisms are ignored.

The integrated VCO forms the high-frequency generation engine. Integrating the VCO reduces layout sensitivity, eliminates the interface losses and tuning complexity of a discrete VCO solution, and gives the synthesizer tighter internal coordination between tuning ranges, calibration logic, and feedback operation. This integration is especially valuable in compact microwave and instrumentation platforms where board area, routing parasitics, and repeatability matter. A discrete VCO can still offer advantages in extreme phase-noise optimization, but the integrated approach in the LMX2592 is a strong system-level trade when size, design time, and tuning coverage are considered together.

VCO calibration and band selection are implicit but important parts of operation. Wideband integrated VCOs typically rely on internal calibration routines to place the oscillator into the proper tuning region before the analog loop fine-tunes it. That means lock behavior is not only a loop-filter question but also a calibration-management question. During frequency hops, especially across large tuning spans, total settling time includes digital calibration overhead in addition to analog loop settling. This distinction matters in agile systems. When evaluating hop speed, it is not enough to measure final frequency error after lock. It is more useful to observe how often the device changes VCO band, how repeatable calibration timing is, and whether the requested frequency sequence can be organized to stay within favorable tuning regions.

Downstream from the VCO, the architecture includes an optional doubler and a channel divider. These blocks significantly extend usable output coverage. The doubler enables generation of frequencies above the native VCO range, while the channel divider translates the high-frequency core into lower-frequency outputs without requiring a separate clock-generation device. This approach is more powerful than it first appears. It allows one low-noise high-frequency source to serve multiple system roles: RF LO generation, ADC or DAC clocking, intermediate synchronization references, or coherent divided timing outputs.

The output structure is intentionally asymmetric. One output can be programmed from the VCO or doubler, while the second can be sourced from the channel divider. That asymmetry is useful in mixed-frequency subsystems where one path needs the highest available RF frequency and the other needs a lower related clock derived from the same synthesis core. For example, one output can feed a mixer LO while the other provides a divided clock for a converter, digital timing device, or synchronization chain. Because both outputs trace back to the same internal frequency generation engine, they preserve deterministic frequency relationship even when their absolute frequencies differ. This simplifies coherence planning across signal chains.

There is also a subtle architectural benefit here. When a system requires both a high-frequency LO and a related lower-frequency timing signal, generating both from the same synthesizer often produces cleaner system behavior than using two separate clock sources that must later be aligned. The shared origin reduces long-term drift between domains and avoids the need for external synchronization loops. The result is often more stable calibration behavior at the system level, especially in phased-array, test-and-measurement, and data-converter platforms.

From an application perspective, the LMX2592 fits best where output agility, high frequency coverage, and flexible reference translation are all required at once. It is well suited for microwave local oscillators, clocking trees for high-speed converters, tunable instrumentation sources, and multi-rate signal-generation systems. The architecture is particularly effective when the available reference is fixed but the output plan is not. In those cases, the internal reference manipulation blocks become the key enablers for achieving an acceptable compromise among phase detector frequency, output resolution, spur profile, and lock dynamics.

Practical use tends to revolve around three engineering decisions. The first is choosing integer-N or fractional-N mode based on spectral constraints rather than convenience. If the target frequencies can be met with integer boundaries, that path is often worth prioritizing for cleaner spectral behavior. The second is selecting the phase detector frequency deliberately, with attention to reference quality and loop implementation, not just to divider minimization. The third is deciding how to use the output asymmetry so that the higher-purity path is reserved for the most sensitive node in the system. This last point is often overlooked. Not every output role should be treated as interchangeable just because both originate from the same chip.

A useful way to think about the LMX2592 is as a frequency-planning engine wrapped around a high-frequency oscillator, rather than as a simple programmable clock source. Its value is not only that it can generate a wide range of frequencies, but that it provides enough internal structure to shape how those frequencies are derived. That distinction is what makes it effective in demanding RF and mixed-signal systems. The architecture gives the designer multiple degrees of freedom, but the best results come when those degrees of freedom are used to manage noise, spur energy, settling behavior, and output-role allocation as one connected problem rather than as separate register settings.

Texas Instruments LMX2592 key performance specifications for system evaluation

For system-level evaluation, the Texas Instruments LMX2592 should be assessed first through the parameters that determine architectural fit, loop behavior, and RF interface margin. Its value is not only in wideband synthesis, but in how much frequency coverage, detector flexibility, and output drive can be consolidated into one device without forcing major compromises elsewhere in the chain.

The most visible specification is the output frequency range of 20 MHz to 9800 MHz. In practical design terms, this is broad enough to let one synthesizer span low-frequency clock generation, high-IF translation, RF local oscillator generation, and a large part of microwave upconversion schemes. That range can reduce BOM fragmentation across platforms that otherwise would require separate narrowband PLL/VCO solutions. The engineering advantage is less about the absolute number and more about frequency-plan freedom. A wide-range synthesizer gives more options for placing IF, avoiding image conflicts, and selecting divider ratios that preserve phase noise performance where it matters most.

That said, frequency range alone is a weak selection criterion unless it is tied back to usable performance across the range. In many designs, operation near the upper end of a synthesizer’s span changes output power, spur behavior, and loop constraints. A part that reaches nearly 10 GHz is valuable, but the more important question is whether it can do so while preserving enough margin for the intended mixer, converter clock, or distribution network. In real evaluations, the best results come from checking not just frequency coverage, but also whether the required operating points sit in “comfortable” regions of the device rather than at the edge of multiple limits at once.

The supply requirement is straightforward: 3.15 V to 3.45 V, with nominal 3.3 V operation. Typical current is 250 mA under a 6 GHz, single-output, 0 dBm condition, and powerdown current is 3.7 mA. These numbers matter beyond simple power budgeting. At 3.3 V and 250 mA, the device dissipates enough power that PCB thermal behavior and supply cleanliness become relevant to phase noise and spur performance. A synthesizer in this class is sensitive to supply impedance, regulator noise, and return-current layout. Designs that treat the supply as a generic digital 3.3 V rail often leave measurable performance on the table. A low-noise rail, short decoupling paths, and controlled grounding usually produce more benefit than attempting late-stage spur cleanup elsewhere in the system.

The reference input structure strongly affects integration flexibility. The LMX2592 accepts a 5 MHz to 1400 MHz reference, using a differential AC-coupled input with 0.2 Vppd to 2 Vppd input amplitude. This is a useful range because it supports both relatively low-frequency crystal-disciplined references and much higher-frequency reference sources distributed in more complex clock trees. The broad reference capability can simplify synchronization strategies in systems where one master source must feed converters, JESD clock devices, and RF synthesizers together.

The integrated input multiplier, which accepts 40 MHz to 70 MHz and generates 180 MHz to 250 MHz internally, deserves more attention than it usually gets in quick comparisons. It is not just a convenience feature. It provides another degree of freedom for achieving a higher phase detector frequency while retaining a common low-frequency system reference. In PLL design, higher phase detector frequency often helps reduce in-band noise and improve settling behavior, provided the loop is designed correctly. In practice, this multiplier can help maintain a cleaner fractional or integer relationship without forcing a redesign of the master clock architecture. The tradeoff, as always, is that each added processing stage must be considered for its own noise contribution, so it should be used deliberately rather than by default.

The phase detector frequency range is 5 MHz to 200 MHz, with an extended operating range of 0.25 MHz to 400 MHz under specified conditions. This is one of the more system-critical specifications because phase detector frequency is directly tied to PLL comparison rate, loop bandwidth options, integer boundary planning, and spur distribution. A synthesizer with this level of detector flexibility can be optimized for very different goals: narrowband low-noise LO generation, fast-settling frequency-agile systems, or moderate-bandwidth clock synthesis where lock speed is important. The programmable charge pump current from 0 to 12 mA complements this by allowing practical loop filter tuning over a broad operating space.

This combination of detector frequency range and charge pump programmability is where the device becomes more than a wideband signal source. It becomes a loop-design platform. With the right loop filter, an engineer can trade lock time against reference spur suppression, or widen bandwidth to suppress VCO noise closer to the carrier while controlling peaking and stability. In lab work, many “PLL problems” initially blamed on the synthesizer turn out to be loop bandwidth mismatches, poor passive tolerance choices, or unrealistic assumptions about the reference source. The LMX2592 gives enough adjustment range that a well-structured loop can usually be found, but it also means poor default settings can hide the device’s real performance.

Output power is another parameter that should be interpreted at interface level, not just datasheet level. The typical high output power is specified as 8 dBm at 3 GHz, single-ended, with 50 ohm pullup and maximum output power setting. This is enough in many cases to drive mixers, buffer amplifiers, or short interconnect paths directly. It can remove an external gain stage, which helps phase noise and spurious performance by avoiding another active contributor. Still, output power should not be judged only by whether the number looks adequate on paper. Frequency-dependent rolloff, board loss, balun loss if differential conversion is needed, and required drive level at the next stage all affect whether the direct-drive assumption holds.

A common integration mistake is to size the downstream RF path based on nominal output power only, then discover that the true margin disappears after filtering, switching, or routing loss is included. In cleaner implementations, at least 2 to 4 dB of interface headroom is preserved at the target frequency so that process spread, temperature shift, and calibration variation do not move the system into a marginal drive condition. For this class of synthesizer, direct drive is often viable, but only when the entire signal path is treated as part of the output power budget.

Calibration time is especially important in systems with channel switching, burst transmission, or agile test instrumentation. The typical VCO calibration time is 590 µs, with 800 µs maximum under the stated 100 MHz reference and 7 GHz output condition. The device also supports a fast calibration mode below 25 µs for applications that require rapid frequency transitions. This is a major distinction because it separates static frequency synthesis use cases from dynamic retuning use cases. In a fixed-frequency LO chain, sub-millisecond calibration is usually acceptable. In hopping systems or fast-sweep instruments, it may be the dominant timing constraint unless fast calibration is enabled and validated under the real operating plan.

Fast calibration should be considered a system feature, not a standalone device feature. Its actual usefulness depends on channel spacing, temperature drift, calibration reuse strategy, and the tolerated risk of frequency error during aggressive switching. In practice, fast-cal modes are most effective when the frequency plan is well bounded and the operating environment is controlled. If the design expects large excursions across band, rapid thermal movement, or repeated startup into unknown conditions, the nominal fast-cal number should be verified carefully rather than assumed. The practical lesson is simple: lock-time claims should always be measured at the exact frequencies and transition patterns the product will use.

When selecting the LMX2592, the strongest specifications are not independent bullet points but interacting constraints. The output range defines what can be synthesized. The reference range and multiplier define how flexibly the device fits into a larger timing architecture. The phase detector and charge pump settings define how effectively the loop can be tuned for noise, spur, and settling objectives. The output power defines whether external buffering is necessary. The calibration behavior defines whether the part can support static, semi-static, or fully agile operation.

Viewed this way, the LMX2592 is best suited for designs that need one synthesizer to serve multiple RF roles without giving up control over loop dynamics. Its specification set suggests a device optimized for architectural flexibility rather than one single extreme metric. That is often the more useful kind of performance. In modern RF systems, the component that reduces constraints across the whole signal chain usually creates more value than the one that leads only one datasheet table.

Texas Instruments LMX2592 noise, jitter, and spur-control advantages

Texas Instruments LMX2592 stands out primarily because its noise performance is strong across the parameters that matter most in real synthesizer designs, not just in isolated headline numbers. The device combines a low VCO phase-noise profile, very low normalized PLL noise, low flicker contribution, and practical spur-mitigation features in a way that maps well to demanding clock-generation and RF local-oscillator roles. For systems that must preserve converter SNR, maintain receiver sensitivity, or support dense spectral planning, this combination is often more important than output frequency range alone.

At the VCO level, Texas Instruments specifies phase noise of -134.5 dBc/Hz at 1 MHz offset for a 6 GHz output. That number is meaningful because it reflects the open-loop noise behavior of the oscillator core, which typically dominates farther from the carrier where loop suppression is no longer effective. The normalized PLL noise floor of -231 dBc/Hz and normalized PLL flicker noise of -126 dBc/Hz indicate that the synthesizer path itself adds very little excess noise when the loop is properly designed. In practice, this matters because total phase noise in a PLL is not determined by one source. It is the composite result of reference noise, phase detector and charge pump noise, loop filter shaping, divider contribution, and VCO noise. A device with a low internal floor gives the designer more room to optimize loop bandwidth without immediately hitting a synthesizer-imposed limit.

The 49 fs RMS jitter specification, integrated from 12 kHz to 20 MHz at 6 GHz, is especially relevant for converter clocking. In high-speed ADC and DAC systems, aperture uncertainty caused by clock jitter directly degrades achievable SNR, particularly as input frequency rises. This is why low integrated jitter is not just a clock quality metric; it is a signal-chain performance metric. In instrumentation, radar timing chains, and wideband sampling systems, tens of femtoseconds can separate a clock source that is merely acceptable from one that preserves the effective resolution of the downstream device. A useful way to view the LMX2592 is that it reduces the extent to which the synthesizer becomes the limiting factor in the clock tree. That does not eliminate the need for careful reference selection and power filtering, but it shifts the design challenge away from the synthesizer core and toward system-level execution.

The open-loop phase-noise data gives a more complete picture of where the device fits. At 6 GHz output, typical phase noise is listed as -112.6 dBc/Hz at 100 kHz offset, -134.2 dBc/Hz at 1 MHz, -152.6 dBc/Hz at 10 MHz, and -156.2 dBc/Hz at 100 MHz. At 9.8 GHz, the corresponding values are -108.2 dBc/Hz, -129.1 dBc/Hz, -140.5 dBc/Hz, and -141.1 dBc/Hz. The degradation at higher output frequency is expected because oscillator sensitivity, multiplication effects, and device operating conditions generally push phase-noise performance downward as frequency increases. What matters is that these numbers remain useful enough to support realistic mask analysis. In receiver designs, close-in noise can translate to reciprocal mixing penalties when strong adjacent interferers are present. In transmitter or LO-chain applications, the same offset-noise data helps predict whether the synthesizer will meet spectral emission masks after frequency planning and filtering. A practical reading of these figures is that the 6 GHz region is where the part shows particularly attractive noise efficiency, while operation near the upper end of range should be evaluated with tighter attention to offset-dependent budgets.

Spur behavior is often the real differentiator between a synthesizer that looks good in the lab and one that survives in a product. The LMX2592 addresses this with dedicated spur-reduction techniques and a programmable low-noise multiplier that can help mitigate integer boundary spurs. This is highly relevant in fractional-N operation, where output frequencies close to integer boundaries often exhibit elevated fractional artifacts due to quantization patterns, loop interaction, and internal modulation products. In many systems, spurs are not merely cosmetic. They can fold into converter passbands, create false tones in test equipment, or violate blocking requirements in radios. The practical value of programmable spur control is that it allows recovery when the channel plan is constrained by external standards or fixed IF relationships. Rather than forcing a large architectural change, the device offers local tuning knobs that can often move a problematic tone below the system threshold.

That said, spur control in a fractional-N synthesizer is rarely solved by a single register setting. The most effective results usually come from coordinating several factors: phase detector frequency, loop bandwidth, output divider choice, reference cleanliness, and power-supply isolation. A recurring design pattern is that aggressive optimization for lock time or frequency resolution can unintentionally expose spur mechanisms that were previously hidden. The LMX2592 gives enough flexibility to balance these tradeoffs, but it rewards disciplined setup. In practice, it is often more efficient to start with a spur-aware frequency plan than to treat spurs only as a post-layout debug issue. This is one of the stronger reasons the device is attractive in advanced RF and converter systems: it supports correction, but it also enables prevention.

Programmable phase adjustment adds another layer of system utility. In fractional-N mode, output phase can be adjusted with 32-bit resolution. This is not just a convenience feature. It supports deterministic alignment across multiple clock or LO paths, which is increasingly important in phased arrays, synchronized data acquisition, coherent sampling, and multi-channel instrumentation. Fine phase control allows timing relationships to be established digitally rather than by trimming transmission-line lengths or adding analog phase-shift elements. That tends to improve repeatability across temperature and manufacturing spread. In multi-device systems, this capability can simplify calibration flows because coarse physical matching can be complemented by fine electronic phase correction. The broader significance is that the synthesizer becomes part of the timing-control architecture, not only a frequency source.

The harmonic data is also useful when viewed from a system-integration perspective. Typical second-order harmonic distortion of -27 dBc and third-order harmonic distortion of -25 dBc at the stated 5 GHz output condition provide a first estimate of how much cleanup the following stage or output network must perform. The listed -26 dBc figure under the 8 GHz doubler-enabled condition is equally important because doubler operation often introduces stronger unwanted content and can change filtering priorities. These numbers indicate that while the LMX2592 offers strong spectral purity for a wideband synthesizer, it should not be treated as a filterless source in distortion-sensitive environments. Board-level filters, resonant cleanup structures, or selective amplifier choices may still be required, especially when driving mixers, samplers, or test ports with strict harmonic limits. In compact modules, leaving harmonic cleanup to the final integration stage usually creates avoidable coupling problems. It is more effective to absorb those requirements early in the RF chain definition.

From an engineering standpoint, the most compelling aspect of the LMX2592 is not any single specification. It is the balance between low broadband noise, low integrated jitter, practical spur-management tools, and fine phase programmability. Many synthesizers perform well in one domain but force compromises in another. This part is attractive because it reduces the frequency with which those compromises become system-limiting. It fits especially well where the LO or clock must serve more than one role at once: low noise for dynamic range, low spurs for spectral cleanliness, and deterministic phase behavior for synchronization.

In application terms, that makes it well suited to high-speed ADC and DAC clocking, microwave LO generation, precision test instrumentation, phased-array subsystems, and multi-channel coherent platforms. In converter clocking, the low jitter supports preservation of ENOB at high analog input frequencies. In receiver chains, the phase-noise profile helps reduce close-in desensitization and reciprocal mixing. In agile RF sources, fractional spur controls are valuable when channel spacing and regulatory masks leave little margin. In synchronized architectures, the programmable phase feature can replace more fragile alignment methods and shorten calibration time.

The deeper takeaway is that the LMX2592 should be evaluated as a controllable spectral engine rather than simply a frequency synthesizer. Its low-noise baseline gives room for aggressive performance targets. Its spur-management features make difficult channel plans more survivable. Its phase-resolution capability supports architectures that depend on repeatable timing relationships. When those attributes are matched with a clean reference, a well-chosen loop filter, disciplined supply decoupling, and output filtering sized for the actual harmonic environment, the device can deliver performance that is not only numerically strong on paper but robust in deployed hardware.

Texas Instruments LMX2592 output structure and signal-format flexibility

The LMX2592 is more than a wideband PLL/VCO synthesizer with two clock outputs. Its output stage is designed as a configurable distribution point between the internal frequency-generation path and the rest of the system. That matters because, in many clocking architectures, the limiting factor is not the synthesizer core itself but how cleanly its outputs can be adapted to different receivers, board topologies, and bias environments. The device addresses this by combining dual differential outputs, multiple supported logic formats, and independent output-path selection.

The two output ports, RFoutA and RFoutB, are presented as differential pairs RFoutAP/RFoutAM and RFoutBP/RFoutBM. At first glance this looks like a standard dual-output arrangement, but the useful detail is that the outputs are not just duplicated copies with fixed behavior. They can be assigned to different internal signal sources, muted independently, and adapted to several electrical interface styles including CMOS, HCSL, LVDS, and LVPECL, as summarized in the product information. This gives the device unusual flexibility in mixed-clock systems where one branch may feed a high-speed converter, another may feed an FPGA reference input, and each destination may expect a different signaling convention.

At the electrical level, the output stage depends on external pullup components for correct biasing. The datasheet recommendation is to use either a 50 Ω resistor or an inductor placed very close to the output pins. That recommendation should not be treated as a peripheral implementation note. It is part of the output architecture. The choice between resistor pullup and inductor pullup affects voltage headroom, power dissipation, broadband loading, harmonic content, and phase-noise transfer at the interface. A resistor provides a simple and predictable broadband load, which is often the safer option during bring-up or when output frequency spans a wide range. An inductor can reduce DC current consumption and improve swing under some conditions, but only if its impedance profile remains well behaved across the operating band. In practice, the inductor choice becomes increasingly sensitive as output frequency rises, because self-resonance and parasitic capacitance can distort the intended bias network and degrade edge fidelity or spectral purity.

This is one of the places where board-level execution directly shapes measured performance. If the pullup element is placed too far from the output pins, the intervening trace inductance adds an uncontrolled component to the bias and return path. The result is often not a catastrophic failure but a quieter form of degradation: reduced amplitude consistency, more pronounced output mismatch between channels, and avoidable spurious structure in the spectrum. On dense RF boards, moving the pullup network just a few millimeters closer to the package can produce a cleaner output than changing multiple register settings. The output stage is therefore best understood as a co-design problem between silicon configuration and PCB implementation.

The supported signaling formats expand the device’s usefulness because they let the same synthesizer sit in clock trees with different receiver ecosystems. CMOS compatibility is helpful where a single-ended clock is acceptable and interface simplicity matters more than maximum common-mode noise rejection. HCSL is valuable in PCIe-adjacent or high-speed digital timing environments where current-steering style clock reception is expected. LVDS provides low swing, strong common-mode noise tolerance, and efficient differential signaling for moderate-to-high-speed clock transport. LVPECL remains attractive when larger swing and established high-frequency clock distribution practices are needed. The practical significance is not just protocol matching. Different standards imply different termination styles, common-mode requirements, and sensitivity to routing asymmetry, so having one synthesizer support several of them reduces the need for active translation stages that can add jitter, power, and layout complexity.

The ability to operate outputs as single-ended signals adds another layer of integration flexibility. This mode is often useful when the receiving device accepts only one clock pin, when routing constraints prevent a clean differential pair, or when one branch must be probed or conditioned with simpler downstream circuitry. The trade-off is straightforward: single-ended use generally gives up some of the inherent immunity and balance advantages of differential signaling. It can also change apparent swing and spectral cleanliness depending on how the unused side is terminated. Proper termination of the unused leg is essential. Leaving the complementary output inadequately defined can disturb the output stage bias and create asymmetry that appears as degraded rise/fall behavior or extra spurious content. In designs where single-ended operation is required, it is usually worth validating not only output power but also close-in phase noise and receiver margin, because these secondary effects are where an otherwise acceptable configuration can become fragile.

Independent muting of each output is a small feature with outsized system value. In multi-stage RF and mixed-signal platforms, unused clocks are not neutral. They can leak into adjacent paths, modulate converters, excite mixer spurs, or complicate startup sequencing. Being able to silence RFoutA and RFoutB individually allows the synthesizer to participate more cleanly in state-based system control. During calibration, one output can be disabled while another remains active. During power-on sequencing, a sensitive downstream stage can be isolated until supplies and references settle. In multi-band radios or instrumentation platforms, independent muting also makes it easier to reuse a common synthesizer resource without forcing every connected subsystem to absorb unwanted clock energy.

A particularly strong architectural feature of the LMX2592 is that the two outputs can be driven from different internal signal paths. One output can source from the VCO or doubler, while the other can source from the channel divider. This makes the device function not only as a frequency synthesizer but also as a compact clock-domain splitter. The VCO/doubler path is suited to applications that need the highest available frequency and the lowest division-related transformation of the source spectrum. The channel-divider path is useful when a lower-frequency derivative of the same synthesized source is needed for logic, synchronization, or secondary conversion stages. This split-path capability is often more valuable than simply having two equal outputs, because many systems need frequency coherence across domains rather than identical frequency copies.

A converter clock tree illustrates the advantage clearly. RFoutA can be assigned to a high-frequency ADC or DAC sampling clock taken directly from the VCO or doubler path, preserving access to the upper end of the device’s output range. RFoutB can simultaneously provide a divided clock to an FPGA fabric, JESD-related timing block, or lower-speed synchronization device. Because both outputs originate from the same synthesizer, frequency relationships remain deterministic. That simplifies timing closure and reduces the number of independent clock sources that must be managed across the board. It also helps contain additive jitter by removing external fanout or translation stages that would otherwise be required to generate related clocks.

There is also a subtler benefit in using the two output paths for different roles: it can reduce clock-tree friction during system partitioning. In many designs, one clock must optimize for absolute signal integrity while another mainly needs correct frequency and robust receiver compatibility. The LMX2592 lets those two objectives coexist. The direct or doubled path can be reserved for the performance-critical destination, while the divided path serves the more tolerant endpoint. This separation aligns well with real board-level priorities, where not every consumer of a clock justifies the same routing effort or spectral budget.

From an implementation standpoint, output-format flexibility should be treated as an aid to optimization, not merely as a compatibility checklist. A common mistake is to choose the output standard solely based on receiver support and then assume the rest of the interface will be forgiving. In practice, the best-performing format is often the one that minimizes adaptation hardware and preserves a clean return-current structure on the PCB. If a target receiver already supports a differential standard compatible with the LMX2592 output network, direct connection with properly designed pullups and termination will usually outperform a translated solution, even if the translated solution appears more convenient at the schematic level. Every extra translator, AC-coupling network, or mismatch in common-mode expectations creates another opportunity for jitter growth or deterministic distortion.

For that reason, output selection should be evaluated together with three physical questions: where the bias current returns, how the pair is terminated at the receiver, and whether the differential geometry can be maintained from source to load. These factors often dominate the difference between a clean, repeatable clock and one that works only under relaxed lab conditions. Experience with wideband synthesizer outputs repeatedly shows that the nominal logic standard is only part of the story. The real performance boundary is usually set by the continuity between the LMX2592 output stage, its external pullup network, and the first effective termination point in the channel.

In that context, the LMX2592 output structure is best viewed as a configurable interface layer tightly coupled to the synthesizer core. Its dual differential outputs, independent muting, support for multiple logic styles, single-ended option, and ability to map different internal sources onto different ports allow one device to cover several clock-distribution roles at once. That combination reduces external conversion hardware, improves coherence between clock domains, and gives the designer more control over where performance is preserved and where convenience is acceptable. For systems that span RF synthesis, high-speed conversion, and digital timing, this output architecture is one of the device’s most practical strengths.

Texas Instruments LMX2592 reference input path and frequency-planning considerations

Texas Instruments LMX2592 reference-input planning is not a preliminary checklist item. It is one of the dominant factors that determines whether the synthesizer behaves like a clean RF clock source or merely reaches the nominal output frequency. The reference path defines the phase detector operating point, constrains the valid divider combinations, and strongly shapes in-band phase noise, fractional spur behavior, and lock dynamics. A workable frequency plan therefore starts at OSCinP/OSCinM and proceeds inward through the full reference-processing chain, rather than starting from the VCO output and working backward only at the arithmetic level.

The LMX2592 accepts a differential reference at OSCinP and OSCinM. Both inputs require AC coupling because the device provides its own internal biasing. In practice, 0.1 µF series capacitors on each leg are the standard starting point. That recommendation is simple, but the underlying reason matters: the reference receiver is designed to establish its own common-mode condition, so any attempt to DC-couple an external source can shift bias points, reduce input margin, or produce unpredictable sensitivity across temperature and source variations. The input is high impedance, which eases interfacing to a range of source networks, but high impedance should not be mistaken for immunity to poor signal integrity. The reference edge quality, amplitude balance, common-mode behavior, and residual broadband noise all propagate into the phase detector and then into the synthesizer output.

The 1.4 GHz maximum reference-input frequency gives the device unusual flexibility at the front end. In some architectures, this permits direct injection of a relatively high-frequency system reference without an external limiter, prescaler, or conditioning PLL. That can simplify the clock tree, but only when the source itself is spectrally clean and the distribution path is well controlled. A direct high-frequency reference often reduces the number of active components, yet it can also expose the synthesizer more directly to upstream clock-distribution noise, crosstalk, or duty-cycle distortion. The cleaner architecture on paper is not always the cleaner architecture on the bench.

Inside the reference path, the LMX2592 provides several levers: a doubler, a pre-R divider, a multiplier, and a post-R divider. These blocks are not merely conveniences for making equations close. They allow deliberate control of the phase frequency detector rate, which is the key internal frequency around which loop design, modulator behavior, and calibration assumptions are organized. A strong implementation usually treats these blocks as a constrained optimization set. The objective is not simply to maximize PFD frequency, although high PFD often helps. The objective is to select a detector rate and mode of operation that produce the best composite result across noise, spur profile, channel resolution, and settling requirements.

The doubler can be useful when a clean lower-frequency reference is available and the system benefits from raising the effective detector drive without changing the external source. However, doubling is only attractive when the source has sufficiently low harmonic distortion and enough margin at the input. Any weakness in the original waveform tends to become more visible after internal frequency translation. The same principle applies to the multiplier, but more strongly. The multiplier can transform a modest external reference into a more favorable internal comparison frequency, and this is often the block that makes an otherwise awkward plan possible. According to the device limits, the multiplier input must be between 40 MHz and 70 MHz, and its output must fall between 180 MHz and 250 MHz. Those limits are not arbitrary bookkeeping. They reflect where the internal circuitry is characterized to preserve robust operation and predictable spectral performance.

That multiplier range creates an important practical planning boundary. If the available system reference is outside 40 MHz to 70 MHz, the design must use the surrounding dividers and doubler carefully to bring the multiplier input into a legal and useful region. This is where frequency planning becomes more than a spreadsheet exercise. A mathematically valid chain can still be operationally poor if it forces a low PFD, pushes fractional activity into an unfavorable pattern, or creates an output channel spacing that does not align cleanly with system requirements. In many designs, the best result comes from a plan that is slightly less elegant numerically but keeps the PFD high enough for loop responsiveness while avoiding aggressive internal transformations that raise spur risk.

The phase detector frequency is the central design variable. Higher PFD values generally help reduce normalized in-band noise and enable wider loop bandwidth, which can improve lock time and suppress VCO noise more effectively inside the loop. But this benefit is not free. As PFD rises, divider choices become more restrictive, integer boundaries shift, and the synthesizer may be pushed toward modes that complicate channel granularity or calibration behavior. Conversely, a low PFD makes frequency resolution easier and can simplify certain fractional plans, but it usually worsens in-band noise and slows settling unless the loop is tuned very carefully. A common implementation mistake is to preserve a familiar low reference rate from older synthesizer designs even though the LMX2592 can support much more aggressive detector frequencies. That usually leaves measurable performance on the table.

The datasheet’s special conditions for low and high PFD frequencies should be treated as design constraints, not footnotes. For PFD values below 5 MHz, the device requires specific register conditions. That alone signals that operation in this region is outside the nominal sweet spot and may need more careful validation. Low PFD operation often appears attractive during early planning because it makes divider arithmetic convenient. On hardware, it tends to increase sensitivity to loop-filter tolerances, raises in-band phase noise, and can leave the part looking artificially “stable” while actually settling too slowly for the application. This becomes visible when stepping frequencies across a profile rather than measuring only one static output.

At the other end, PFD frequencies above 200 MHz also require specific conditions. Operation must be in integer mode, with defined settings for PFD_CTL and FCAL_HPFD_ADJ. These restrictions matter because very high detector rates can otherwise be assumed to be universally beneficial. They are not. Once the plan enters this region, channel spacing flexibility is reduced because integer mode forces output synthesis to align with the reference grid more rigidly. That can be ideal in fixed-channel generation, narrowband hopping on an aligned raster, or low-noise LO generation where fractional spurs are unacceptable. It becomes problematic in designs that need arbitrary frequency placement or fine frequency trimming. In other words, the >200 MHz region is powerful, but only for the right class of synthesis problem.

A useful way to think about the reference path is as a mechanism that converts the external reference into the internal timing granularity of the PLL. Every divider or multiplier in front of the PFD changes that granularity. Once seen this way, several implementation choices become easier to judge. If the application needs extremely fine frequency resolution, some reduction in detector frequency may be justified, but only after confirming the noise and lock-time penalty is acceptable. If the application needs low close-in phase noise and fast settling, preserving a high PFD usually dominates, and channel planning must adapt around that decision. If the application is highly sensitive to fractional spurs, an integer-mode plan or a fractional denominator strategy aligned with the system raster may outperform a nominally more flexible setup.

The quality of the reference source remains foundational. The LMX2592 cannot remove close-in noise present on the applied reference. Inside the loop bandwidth, the output tracks the reference path noise floor scaled by the multiplication ratio. This means that a poor reference often remains hidden during initial bring-up because the synthesizer still locks and produces the expected frequency. The weakness appears later in EVM degradation, reciprocal mixing, degraded ADC aperture quality, or unexplained sidebands near carriers. In bench work, one recurring pattern is that replacing the reference source with a lower-noise lab generator improves output behavior far more than changing divider settings. That observation usually indicates that the frequency plan was acceptable, but the reference-distribution implementation was not.

Differential drive quality also matters more than the simplified connection diagram may suggest. Even though the input is forgiving, balanced routing and controlled return paths reduce mode conversion and susceptibility to coupled interference. If a single-ended source must be used, the conversion network should be chosen with attention to amplitude symmetry and edge fidelity, not only impedance transformation. The device may still lock with a loosely implemented single-ended-to-differential interface, but phase-noise skirts and spur content often reveal the cost. Short reference traces, quiet supply domains around the source path, and isolation from digital aggressors tend to produce improvements that are larger than expected from their apparent simplicity.

The multiplier deserves extra caution during evaluation. It is tempting to use it whenever a lower-frequency reference does not naturally support a preferred detector frequency. Sometimes that is the right answer. But internal multiplication can trade one problem for another: it may ease loop design while adding spectral complexity that is difficult to separate from fractional spurs in measurement. When characterizing the device, it is often useful to compare two plans: one using the multiplier and another using a cleaner external reference or a different divider structure. If both produce the same nominal output, the comparative phase-noise and spur results reveal whether the convenience of internal multiplication is worth the penalty. This comparison often exposes the hidden cost of forcing the reference plan to fit a system clock that was never intended for RF synthesis use.

Frequency planning should therefore proceed in layers. First, determine whether the system truly requires arbitrary frequency resolution, raster-aligned channels, or fixed-frequency generation. Second, define the acceptable trade among in-band noise, lock time, and spur performance. Third, choose the highest practical PFD that does not violate mode restrictions or channel-spacing needs. Fourth, use the doubler, multiplier, and R dividers only as needed to land in a robust operating region, rather than enabling them by default. Finally, validate the result in measurement conditions that resemble the actual application, including frequency hops, modulated states, and nearby aggressor activity. A plan that looks optimal in a static register calculation can fail once the synthesizer is asked to move, reacquire, or coexist with realistic board-level interference.

For LMX2592 specifically, successful implementation usually comes from resisting the urge to over-optimize one metric in isolation. Maximizing PFD, minimizing divider values, or forcing integer mode are each reasonable tactics, but none is universally correct. The strongest solutions treat the reference path as the first stage of noise shaping and timing quantization inside the synthesizer. Once that perspective is adopted, the role of OSCinP/OSCinM, the AC-coupling requirement, the legal multiplier window, and the special PFD register constraints all fit into a coherent design logic. The device can often generate the requested output frequency through multiple legal configurations, but only a subset of those configurations will deliver a clean spectrum, predictable calibration behavior, and settling performance that survives real system conditions.

Texas Instruments LMX2592 control interface, programmability, and calibration behavior

Texas Instruments LMX2592 is not just a wideband PLL/VCO synthesizer with good phase-noise performance; its control interface, register flexibility, and calibration behavior define how usable it is in real systems. In many designs, these three aspects determine whether the part integrates cleanly into a clock tree, a fast-tuning LO chain, or a multi-band RF platform without excessive firmware complexity.

The device uses an SPI or uWire-compatible 4-wire serial interface built around CSB, SCK, SDI, and SDO/LD. At the electrical level, support for 1.8 V to 3.3 V CMOS logic is more important than it first appears. It allows direct attachment to modern FPGAs, low-power MCUs, and mixed-voltage timing controllers without level translation in many cases. That reduces both BOM count and interface risk, especially in dense RF boards where each added digital component can inject unwanted switching noise into sensitive analog sections. In practice, this logic-range flexibility often simplifies board partitioning because the synthesizer can sit close to the RF path while still being driven by whichever digital domain already exists in the platform.

The serial timing capability is unusually strong for this class of synthesizer. With SPI write rates up to 75 MHz and read rates up to 50 MHz, the LMX2592 supports short programming windows during startup and reasonably fast retuning sequences during operation. This matters because modern synthesizers rarely operate as static parts. They are reconfigured during bring-up, profile changes, channel switching, phase alignment, and fault recovery. A slow register interface can turn an otherwise capable RF device into a system bottleneck. Here, the LMX2592 avoids that issue. The interface bandwidth is high enough that software and FPGA control schemes can treat the device as responsive rather than sluggish, provided register sequencing is designed properly.

That qualification is important. In practice, interface speed alone does not define tuning responsiveness. The limiting factor is usually the full control transaction: register preparation, bus arbitration, write ordering, device synchronization, and then the analog calibration and locking process. A 75 MHz write clock is valuable, but the real engineering gain comes when firmware is organized so that only frequency-dependent registers are rewritten during a retune event. Systems that rewrite a full register image on every hop often waste most of the available serial bandwidth. A lean delta-update strategy usually delivers noticeably better deterministic behavior.

Programmability is one of the strongest reasons to choose the LMX2592. The device exposes control over output power, charge pump current, phase adjustment, divider settings, and output routing. These are not isolated convenience features; together they form a system-level adaptation layer. Output power control helps absorb variation in downstream mixer drive requirements, trace loss, splitter loss, or buffer gain. Charge pump programmability is directly tied to loop dynamics, lock time, and spur tradeoffs. Divider flexibility affects achievable frequency plans, phase-detector operating points, and reference-path strategy. Output routing options help when one design needs multiple local-oscillator distribution schemes across variants of the same hardware platform.

This is where the part becomes economically attractive beyond pure RF performance. One synthesizer can often cover several product SKUs with different output frequencies, reference sources, or timing plans. That reduces qualification churn and shortens redesign cycles. More subtly, it also improves manufacturing consistency. When multiple variants share one synthesizer family, the validation effort around startup behavior, lock detection, register loading order, and calibration corner cases can be reused. In complex RF programs, that reuse is often worth as much as a few dB of performance margin.

The charge pump setting deserves particular attention because it sits at the boundary between digital configurability and analog loop behavior. Increasing charge pump current can support faster settling in some loop filter configurations, but it can also shift spur behavior or make the loop less forgiving if the filter was not optimized for the selected operating point. The register field looks simple, but its effect is system-wide. A common implementation pattern is to begin with a stable nominal loop design, then empirically trim charge pump settings while observing lock time, in-band noise, and integer-boundary or fractional spur behavior across the actual frequency plan. The most robust configuration is rarely the one that optimizes a single laboratory point.

Programmable phase adjustment extends the device’s usefulness in coherent and multi-channel systems. In architectures using multiple synthesizers, phase alignment is not only about initial lock but about repeatability after reprogramming, power cycling, or mode transitions. Fine phase control helps close that gap. It supports beamforming front ends, phase-coherent instrumentation, and synchronized transceiver chains where static phase offsets must be compensated without extra analog hardware. The practical value is greatest when phase correction is incorporated into a calibration workflow rather than treated as a one-time setup action. Systems drift, routing differs between boards, and downstream components introduce offsets that are easier to remove digitally through synthesizer programmability than by forcing tighter hardware tolerances everywhere else.

Calibration behavior is where the LMX2592 becomes especially interesting for agile frequency generation. Typical VCO calibration time is 590 µs, with a specified maximum of 800 µs under stated conditions. For many fixed-frequency or slowly switching applications, that is entirely acceptable. Initialization delays in the sub-millisecond range are usually insignificant compared with broader system startup overhead. In agile systems, however, VCO calibration time can dominate frequency transition latency. For channelized radios, sweep generators, or radar subsystems, this delay directly affects usable hop rate, dwell efficiency, and synchronization timing.

The fast calibration mode, specified at less than 25 µs, changes the design space substantially. It enables use cases where frequency updates must occur on a much shorter time scale. But fast calibration should not be viewed as a universal replacement for normal calibration. Its effectiveness depends on how the frequency plan moves through the VCO operating range and how much margin the design maintains under voltage, temperature, and process variation. Fast methods are usually most reliable when the frequency movement stays within well-characterized regions and the surrounding loop conditions are controlled. For wide excursions or corner operation, conservative calibration often remains the safer choice.

A useful design approach is to classify retunes into tiers. Large-band changes can invoke full calibration, while short hops within a validated operating region can use fast calibration. This hybrid strategy balances reliability and speed. It also fits well with real operating profiles, since many systems do not hop randomly across the entire tuning range; they move within bounded sub-bands for long periods. Treating all retunes identically often leaves performance on the table.

The specified 125°C allowable VCO drift without recalibration is a strong robustness signal. It indicates that after initial calibration, the device is designed to remain locked over substantial temperature variation, within recommended operating limits. This matters in platforms where the thermal environment is not static: outdoor microwave links, compact sealed radios, phased-array modules with self-heating, or defense electronics exposed to rapid ambient shifts. In these cases, the burden of constant recalibration can be costly. It consumes control bandwidth, creates temporary frequency unavailability, and can disturb synchronization timing across a larger subsystem.

Still, it is worth treating this drift tolerance as a holdover capability, not as permission to ignore thermal management. Lock retention and optimal spectral purity are not identical goals. A synthesizer may remain locked across temperature change while still showing measurable movement in phase-noise profile, spur distribution, or output amplitude conditions due to the wider signal chain. In tightly constrained systems, it is often better to use the drift specification as a reliability margin and still schedule recalibration at controlled times, such as idle intervals or known mode boundaries. That preserves deterministic behavior without overusing recalibration.

The SDO/LD multifunction pin also plays a practical role in control architecture. Having readback or lock-detect functionality available on the serial interface simplifies fault handling and commissioning. During development, register readback is valuable for confirming that the intended image was loaded, especially when debugging shared SPI buses or startup race conditions. In deployed systems, lock-detect behavior can be tied into supervisory logic so the synthesizer becomes part of a broader health-monitoring framework. This is often more effective than assuming configuration success after write completion. Digital confirmation plus analog lock indication gives a better picture of actual state.

From a board-level perspective, the control pins should be treated as part of the RF integrity problem, not just as generic digital I/O. Fast SPI edges near a high-performance synthesizer can couple into supplies or reference paths if return currents are poorly managed. Short routing, solid grounding, controlled edge rates where possible, and separation from the cleanest analog nodes usually pay off. This is one of those cases where a device can meet all datasheet conditions yet still underperform in implementation because the digital interface was laid out as an afterthought.

Overall, the LMX2592 control and calibration architecture reflects a device intended for serious system integration rather than simple bench-top frequency generation. The high-speed serial interface reduces programming overhead. The broad programmability allows one hardware platform to cover multiple RF roles. The calibration options support both stable operation and fast retuning strategies. The temperature-drift tolerance adds operational resilience. The most effective use of the device comes from treating these features as a coordinated control system: optimize register sequencing, align calibration mode with hop behavior, use programmability to absorb platform variation, and reserve thermal and lock margin instead of spending it all upfront. That is where the part moves from being merely feature-rich to genuinely design-efficient.

Texas Instruments LMX2592 package, pin functions, and PCB implementation priorities

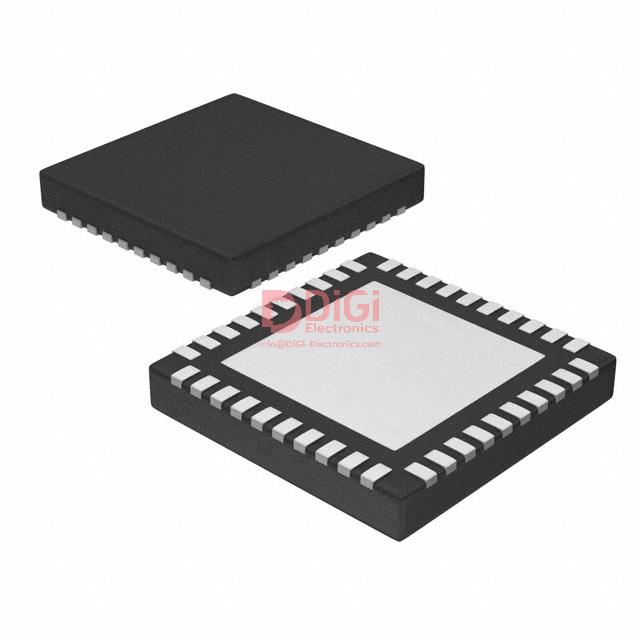

Texas Instruments LMX2592 uses a 40-pin VQFN package in a 6.00 mm × 6.00 mm body with an exposed thermal pad. This package choice is not just a mechanical detail. It directly shapes RF layout quality, grounding strategy, thermal behavior, and the achievable phase-noise floor. The form factor is compact enough for dense synthesizer modules, yet it still exposes enough pins to separate noisy and sensitive functions: supplies, RF outputs, control interface, reference input, loop-related nodes, and multiple internal bias or regulator bypass points. That separation is one of the main reasons the device can deliver strong RF performance, but only if the PCB implementation respects the partitioning implied by the pinout.

At board level, the package should be treated as a mixed-signal RF component rather than a generic digital IC. The exposed pad must be tied into a low-impedance ground region with multiple vias directly beneath or immediately adjacent to the pad. This reduces both thermal resistance and ground inductance. In PLLs with integrated VCOs, ground inductance is often an invisible limiter of performance. It couples digital return currents into analog sections, perturbs internal bias nodes, and raises close-in spurs in ways that are difficult to debug after assembly. A solid local ground island under the device, stitched aggressively into the main ground plane, usually pays back more than cosmetic routing cleanup elsewhere.

Among all pins, Vtune deserves the highest isolation priority. This is the VCO tuning control node, and it sits at the center of frequency control sensitivity. Any ripple, crosstalk, or injected switching energy at Vtune is translated into FM modulation of the oscillator. The resulting degradation may appear as elevated phase noise, reference sidebands, fractional spurs, or broadband spectral roughness depending on the disturbance spectrum and loop settings. The datasheet recommendation to place a 3.3 nF or larger capacitor from Vtune to VCO ground is therefore fundamental, not secondary. The capacitor should be physically close to the pin, connected with short traces, and returned into the quietest available ground point associated with the VCO region.

In practice, Vtune routing should be short, narrow only when necessary, and completely separated from fast digital lines such as SPI clock, chip-enable transitions, or nearby clock fanout traces. Routing Vtune across a split in the reference plane or along the edge of a switching regulator current loop is especially damaging. Even when a design appears functionally correct, this kind of coupling often shows up later as spur sensitivity that varies with register writes, power state transitions, or neighboring subsystem activity. A useful implementation habit is to define an exclusion zone around Vtune on inner and outer layers, keeping clocks and digital control lines out of that region unless there is no alternative.

CPout is the charge pump output and the electrical starting point of the loop filter. Its placement relationship with the first loop-filter capacitor is one of the highest-impact details in the entire synthesizer layout. The reason is straightforward: any parasitic inductance or resistance between CPout and the first capacitor changes the effective loop filter seen by the PLL. That alters loop bandwidth, damping, stability margin, and the transfer of charge-pump noise into the VCO control path. The datasheet instruction to place the first loop-filter capacitor close to CPout should therefore be interpreted literally. The current pulses from the charge pump are narrow and rich in high-frequency content, so even a short trace can introduce enough parasitic impedance to distort loop dynamics.

A clean implementation places the first capacitor immediately at CPout, followed by the remaining loop-filter network in compact sequence, with an uninterrupted ground reference beneath. If an active loop filter or long interconnect to an external VCO control section is used elsewhere in the chain, the compactness requirement near CPout still holds. A frequent failure mode in first-pass layouts is to optimize for schematic neatness rather than for current-loop compactness. The board then locks correctly but shows unexpected settling behavior, peaking, or a spur profile that does not match simulation. When that happens, the physical loop filter is often more responsible than the nominal component values.

The RF output pins deserve equal attention because their behavior depends strongly on local bias and launch geometry. The outputs require the prescribed pullup elements, typically resistors or inductors depending on the intended operating mode and output network. These components should be placed close to the output pins to minimize series parasitics and to preserve the intended output swing. In RF synthesizers, a few extra tenths of a nanohenry between the output pin and its bias element can visibly affect return loss, harmonic content, and usable frequency range, especially as the operating frequency rises. Close placement also improves consistency between channels in designs using both outputs.

The output traces themselves should be treated as controlled-impedance RF interconnects from the first millimeter onward. If matching networks, DC blocks, attenuators, or filters are required, they should be placed in a sequence that preserves a clean launch from the package. It is often better to spend layout effort on a symmetrical, low-discontinuity output path than to rely on post-layout tuning through passive-value changes. In compact modules, one recurring issue is that output bias parts are placed conveniently near a shared supply rail instead of near the pins. The design still oscillates and produces power, but amplitude flatness and spur behavior degrade in ways that are difficult to attribute unless the launch region is examined carefully.

The reference-input pins, OSCinP and OSCinM, are high-impedance differential inputs and require AC-coupling capacitors. Their sensitivity is different from Vtune but just as important. The reference signal is the timing baseline of the entire synthesizer. Any noise, imbalance, or coupling introduced here is multiplied through the PLL mechanisms and often reappears as close-in phase noise or discrete spurs. Balanced routing is therefore more than good style. It preserves common-mode rejection, minimizes differential skew, and reduces conversion of external interference into timing jitter. Where possible, the two traces should be length-matched, referenced to a continuous ground plane, and kept away from output traces and digital buses.

If the incoming reference is single-ended and converted to the differential input structure through an external network, that transition deserves extra care. The AC-coupling capacitors should be placed near the device pins, and the return environment around the pair should remain symmetric. Uneven pad geometries, unequal via usage, or routing one side around an obstacle while the other remains direct can all introduce enough imbalance to matter, especially in low-jitter clocking systems. The impact is often subtle: lock is maintained, frequency accuracy looks fine, but the phase-noise floor or reference spur level misses the expected target by several dB.

One of the more easily underestimated aspects of the LMX2592 pinout is the presence of several internal bias and regulator-related nodes that require dedicated bypass capacitors: VbiasVARAC, VbiasVCO, VbiasVCO2, VrefVCO, VrefVCO2, VregIN, and VregVCO. These pins expose internal analog support rails and bias references that stabilize the integrated VCO and surrounding circuitry. The datasheet capacitor values, such as 10 µF or 1 µF depending on the node, should be followed closely. These capacitors are part of the device’s analog environment. They are not merely supply decouplers in the conventional digital sense.

This distinction matters in implementation. A standard digital decoupling mindset often places bypass capacitors according to rail grouping or assembly convenience. For these internal nodes, that approach is usually insufficient. Each capacitor should be placed as close as possible to its associated pin, with a short return path to the local ground. Shared via paths and long detours to a capacitor bank reduce the effectiveness of the bypassing and increase coupling between internal sections that were intentionally separated in the package. The device may still function, but integrated VCO noise, repeatability across temperature, or susceptibility to digital activity can worsen. These effects are rarely dramatic enough to trigger immediate failure, which is exactly why they are often missed until a stricter phase-noise or spur mask is applied.

Power-distribution strategy around the package should reflect functional hierarchy. Noisy digital supply ingress should be filtered before it reaches the synthesizer region. Local high-frequency decoupling should sit at the supply pins, while the internal bias and regulator nodes should receive their specified capacitors with minimal trace length. If the board uses switching regulators, their inductor fields and hot-loop areas should be kept away from the LMX2592, particularly from Vtune, the reference path, and the internal VCO-related bypass nodes. In compact systems, physical distance alone is not always available, so current-loop orientation and shielding through ground stitching become more important than raw separation.

The package pin functions also suggest a practical routing order. First, establish the exposed-pad grounding and via structure. Second, place all mandatory bypass capacitors for internal nodes exactly where the pinout wants them, not where the rest of the board would prefer them. Third, place the loop-filter components anchored at CPout and Vtune. Fourth, route the reference input as a protected pair. Fifth, build the RF output launches and their pullup networks. Only after these analog-critical paths are fixed should the digital control signals and less sensitive supplies be woven through the remaining area. This ordering tends to produce a better result than starting from SPI connectivity or connector alignment, because it locks in the analog constraints before routing flexibility is consumed.

A useful mental model is to classify the pins into three sensitivity classes. Vtune, CPout, OSCinP/OSCinM, and the VCO-related bias/reference nodes belong to the highest-sensitivity class and should define the quiet zone around the device. RF outputs form the second class, where impedance and launch quality dominate. Digital control and enable pins form the third class, where correct function matters but electrical cleanliness is comparatively easier to achieve. Designs that respect this hierarchy usually converge faster in bring-up and require fewer compensating changes in firmware, shielding, or external filtering.

In dense RF boards, the most expensive mistakes around this device are usually not schematic errors. They are small layout decisions that look harmless individually: moving a bypass capacitor by a few millimeters, sharing a ground via between two sensitive nodes, slipping a digital trace through the loop-filter area, or placing output pullups where routing is convenient rather than electrically local. The LMX2592 package gives enough pin-level access to support excellent performance, but it also assumes the board will preserve the intended segregation between control, bias, loop, reference, and RF paths. When that segregation is maintained, the package works as an efficient RF platform. When it is blurred, the penalty appears first in spectral purity long before basic functionality breaks.

Texas Instruments LMX2592 power, thermal, and operating-environment limits

Texas Instruments LMX2592 operates from a nominal 3.3 V rail, with a recommended supply range of 3.15 V to 3.45 V across an ambient temperature span of -40°C to 85°C. Junction temperature is rated up to 125°C. This combination places the device comfortably in commercial, industrial, communications, and many ruggedized RF platforms, but the practical implication is more specific: electrical compliance alone is not enough. For a wideband synthesizer with low-noise ambitions, voltage margin, thermal headroom, and layout quality directly shape phase-noise consistency, spur behavior, and long-term frequency stability.

The absolute maximum supply voltage is 3.6 V, and the storage temperature range is -65°C to 150°C. These values define survivability boundaries, not functional targets. In board-level design, this distinction matters because transient overshoot on a lightly loaded 3.3 V rail can reach unsafe territory even when the nominal regulator output appears correct. Startup sequencing, hot-plug events, DC/DC converter ringing, and long supply traces with poor damping are common sources of brief but meaningful stress. A robust implementation therefore treats supply regulation as a dynamic problem rather than a static voltage setting. Tight regulator tolerance, low output noise, controlled startup behavior, and local high-frequency decoupling are basic requirements if the device is expected to deliver repeatable RF performance instead of merely surviving power-up.

The thermal parameters of the 40-pin VQFN package explain why PCB construction is inseparable from electrical behavior. A junction-to-ambient thermal resistance of 30.5°C/W indicates that package temperature rise can become significant when airflow is limited or when the part is embedded in a dense RF enclosure. The junction-to-case bottom thermal resistance of 0.9°C/W shows that most of the heat removal path is intended to flow through the exposed pad into the board. In practice, this means the PCB is the heat sink. A poorly stitched paddle, insufficient copper under the pad, sparse via arrays, or thermal isolation caused by over-partitioned ground regions will elevate junction temperature much faster than the package data alone might suggest.

That thermal path has direct RF consequences. Frequency synthesizers are sensitive to internal bias shifts, VCO gain variation, and loop-behavior drift as silicon temperature changes. Even when operation remains inside rated limits, elevated junction temperature can shift calibration behavior and reduce performance margin. In enclosed modules, the more difficult failures are often not catastrophic. Instead, they appear as subtle degradation: lock reliability near temperature corners, increased close-in noise under high internal activity, or more variation between nominally identical builds. Designs that look acceptable on a bench at room temperature often reveal these weaknesses only after a few hours in a sealed chassis or during temperature sweeps with neighboring RF power stages active.

For that reason, thermal design should start from the silicon outward. The exposed pad should connect to a low-impedance ground plane with a dense via field into inner and bottom copper. That copper should spread heat laterally rather than bottleneck it into a narrow island. If the board is partitioned into analog, digital, and RF grounds, those partitions must not interrupt the physical heat path or create unintended return-current detours beneath the package. In mixed-signal RF layouts, excessive conceptual purity in ground partitioning often causes worse results than a well-managed continuous ground reference. The LMX2592 benefits more from a coherent return structure and efficient heat extraction than from aggressive segmentation that increases impedance.

Operating-environment limits of -40°C to 85°C ambient and 125°C junction are broad enough for many systems, but actual usable margin depends strongly on local self-heating and nearby heat sources. In a lab environment with open airflow, thermal rise may look modest. In a compact radio card mounted beside converters, FPGAs, or PAs, the local board temperature can already be elevated before the synthesizer dissipates any of its own power. A useful design habit is to treat ambient temperature not as room air, but as the temperature of the copper neighborhood around the device. That interpretation is usually much closer to what the silicon experiences.

The ESD ratings—±2500 V HBM, ±750 V CDM, and ±250 V MM—are respectable for a high-frequency integrated circuit, but they should not be misread as system-level robustness. These ratings reflect standardized device-level handling tolerance. They do not eliminate the need for controlled assembly flow, grounded tooling, proper packaging, and careful treatment of exposed RF nodes. Charged-device events are especially relevant in automated manufacturing because grounded contact to a charged package can produce fast discharge currents that exceed what field handling assumptions would suggest. RF assemblies also tend to include connectors, shields, and semi-floating metal structures that can create discharge paths not obvious in the schematic. For this class of part, disciplined ESD control remains a low-cost way to avoid intermittent behavior that can otherwise be mistaken for marginal loop design or supply instability.

Power integrity deserves to be viewed as a performance architecture, not only a reliability measure. The LMX2592 can only translate its internal low-noise design into useful output quality when the supply network presents low impedance across a broad frequency range. Broadband decoupling, short current loops, and regulator selection with low noise and good transient response are central. If a switching pre-regulator is used for efficiency, it should be isolated from the synthesizer rail with enough attenuation to suppress both switching ripple and burst-mode artifacts. It is common to see acceptable DC rail measurements while residual high-frequency energy still couples into the device and elevates spurs. That mismatch between oscilloscope confidence and RF outcome is one of the more persistent traps in synthesizer design.

Layout is the bridge between the data sheet limits and actual instrument-grade behavior. The device should sit on an uninterrupted reference plane, with decoupling capacitors placed according to current return geometry rather than visual neatness. The exposed pad connection should be electrically and thermally solid. Sensitive loop-filter and reference paths should be short, shielded by ground where practical, and kept away from high-edge-rate digital lines. Supply routing should avoid shared impedance with noisy subsystems. In several board revisions of similar PLL/VCO designs, the largest improvement often comes not from changing the active circuitry, but from reducing parasitic coupling through better current return control and more effective thermal grounding under the package.

A useful way to evaluate design margin is to combine electrical, thermal, and environmental stress instead of validating each in isolation. Check supply overshoot during startup and shutdown. Measure local package or nearby copper temperature in the final enclosure, not only on an open bench. Observe lock behavior and spur profile at both temperature extremes while neighboring subsystems are active. This approach usually reveals whether the design is merely within limits or genuinely robust. For the LMX2592, that distinction is important because the part can meet its operating ratings while still falling short of its low-noise potential if supply cleanliness, grounding continuity, and thermal spreading were treated as secondary details.

In short, the published limits define where the device can operate safely, but the real design challenge is preserving RF quality while staying inside those boundaries with margin. For the LMX2592, clean 3.3 V delivery, controlled transients, low-impedance grounding, and an efficient thermal path through the VQFN exposed pad are not auxiliary concerns. They are part of the signal chain.

Texas Instruments LMX2592 application fit in test, radar, backhaul, converter clocking, and satellite systems

Texas Instruments positions the LMX2592 for test and measurement, radar and defense, microwave backhaul, high-speed data-converter clocking, and satellite communications. That mapping is technically well aligned with the device architecture. The value of the LMX2592 is not just that it covers 20 MHz to 9.8 GHz. Its real advantage is that it concentrates several difficult RF tasks into one synthesizer platform: wideband frequency generation, low phase-noise operation, flexible output routing, and practical programmability for multi-role signal-chain designs. In systems where frequency agility, clock purity, and integration level all matter at once, that combination is unusually useful.

At the device level, the application fit starts with the phase-locked loop and VCO integration strategy. A synthesizer that spans this much frequency range without forcing a heavily segmented external LO chain reduces both architectural friction and calibration overhead. In practice, every added mixer, multiplier, switched filter, or external VCO tends to introduce new spurious paths, new sensitivity to layout, and more production spread. The LMX2592 helps compress that complexity. That matters less in block-diagram discussions than in deployed hardware, where the real challenge is often not generating a frequency once, but generating it repeatedly across temperature, supply variation, and manufacturing tolerance while keeping phase noise and spur behavior inside budget.

For test and measurement equipment, that behavior is especially important. Instruments often need one synthesizer to serve multiple roles: a swept source during one mode, a local oscillator in another path, and a precision clock source elsewhere in the same chassis. The 20 MHz to 9.8 GHz tuning span gives the LMX2592 strong coverage for RF signal generation and internal frequency planning, but the more important point is spectral consistency across that range. In bench instruments, poor close-in phase noise shows up quickly in reciprocal mixing limits, dynamic range degradation, and measurement uncertainty around narrowband signals. A synthesizer with low noise and broad programmability allows designers to build instruments that maintain usable performance across many measurement modes without resorting to separate narrow-purpose LO sections. That tends to simplify firmware control, reduce alignment burden, and make multi-model platform reuse more realistic.

The same characteristics map naturally into radar and defense systems, but the priorities shift. Here, low phase noise is tied directly to detection quality, coherent processing gain, and the ability to preserve weak returns near stronger interferers or clutter. Frequency planning flexibility is also critical because many radar architectures operate across multiple bands, use agile waveform plans, or require carefully managed LO offsets to avoid internal interference products. In these systems, fast calibration is not just a convenience feature. It affects startup timing, retune efficiency, and sometimes mission-mode responsiveness. A synthesizer that locks predictably and supports agile frequency changes can fit more cleanly into pulsed, FMCW, or multi-mode radar timing frameworks. In practical implementations, the system benefit is often seen in easier phase alignment across channels and fewer corner-case behaviors during retune sequences. Those are the kinds of details that separate a device that looks strong on paper from one that integrates cleanly into coherent RF platforms.

Microwave backhaul is a different but equally logical fit. Backhaul radios demand clean microwave-frequency generation in a compact, manufacturable form factor. The LMX2592 is attractive here because it can reduce the need for a more fragmented frequency-generation chain. Fewer external RF building blocks usually means lower BOM count, less interstage matching effort, and tighter production repeatability. In high-volume radio designs, repeatability often becomes more valuable than peak lab performance. A synthesizer that behaves consistently across boards can reduce factory tuning effort and minimize unit-to-unit spectral variation. That has downstream impact on EVM, carrier stability, and spectral mask compliance. It also improves the odds that one layout and one software control framework can be reused across several channel plans or regional frequency allocations with only modest adaptation.

For high-speed data converters, the LMX2592 fits because converter performance is often clock-limited before it is converter-limited. The cited 49 fs RMS jitter at 6 GHz is relevant because aperture uncertainty directly translates into SNR degradation, especially as input frequencies rise. In converter systems, the synthesizer is not merely a timing source. It effectively sets the ceiling for achievable ENOB in wideband sampling conditions. A low-jitter source with flexible differential outputs is therefore useful in ADC and DAC platforms, JESD-based data acquisition systems, phased-array digitizers, and RF sampling radios. From an implementation standpoint, the key is that clock purity must survive the full path, not just exist at the synthesizer output. Output format selection, routing symmetry, power-supply isolation, and reference cleanliness all matter. Devices like the LMX2592 are most effective when treated as part of a clock network rather than as an isolated component. That system view usually prevents the common mistake of specifying an excellent synthesizer and then losing its advantage through poor reference distribution or noisy board partitioning.

Satellite communications also align well with the device’s strengths. Satcom hardware often requires broad frequency coverage, stable local oscillators, and flexible clock distribution across upconversion, downconversion, modem timing, and synchronization paths. Dual outputs are particularly useful because they allow one synthesizer to support multiple related functions with controlled phase and frequency relationships. In compact transceiver modules or shared-frequency-generation backplanes, that can simplify routing and reduce dependency on separate LO sources. The broad tuning range also supports multi-band designs and eases migration across payload variants or regional operating plans. In satellite systems, where reliability and deterministic behavior matter as much as raw RF performance, an integrated synthesizer with strong programmability can reduce design branching and make the frequency plan more maintainable over the product lifecycle.

The common engineering thread across these use cases is not simply “wide range plus low noise.” It is the reduction of frequency-generation entropy at the system level. The LMX2592 is valuable when a design would otherwise need multiple oscillators, multipliers, and switching networks to cover the same mission space. By collapsing that sprawl into a single programmable source, the device helps control phase-noise accumulation, layout sensitivity, software complexity, and production variability. That is often where the true return appears. The headline specifications enable the design win, but the integration efficiency is what keeps the platform practical after schematic capture.

A few implementation patterns are worth noting because they tend to determine whether the device reaches its expected performance. First, the reference path deserves the same discipline as the RF output path. A low-noise synthesizer cannot compensate for a polluted reference. Second, loop bandwidth selection should be tied to the actual use case rather than chosen generically. A clocking application for data converters may prioritize integrated jitter, while a radar LO may care more about close-in phase noise and settling behavior. Third, output routing and supply partitioning should be handled as RF design tasks, not digital housekeeping. It is common to see strong synthesizer performance degraded by shared return currents, poor isolation around the output network, or casual treatment of supply filtering. In well-executed designs, these details often decide whether measured results match simulation and datasheet expectations.

Another subtle but important point is that wideband synthesizers are most powerful when the surrounding architecture is designed to exploit programmability rather than merely tolerate it. The LMX2592 gives designers room to consolidate platforms, support multiple operating profiles, and adjust frequency plans in software instead of hardware. That flexibility is especially valuable in instruments, radios, and defense systems that evolve over time. A fixed-frequency mindset tends to underuse what the part offers. A configurable architecture, by contrast, can turn the synthesizer into a reusable infrastructure block across product families.

Taken together, the LMX2592 is best applied in systems that need one frequency-generation device to do several hard things at once: cover a broad span, maintain spectral cleanliness, support agile or multi-role operation, and reduce dependence on a heavily partitioned external RF chain. That is why it fits naturally in test equipment, radar, microwave links, converter clock trees, and satellite subsystems. In each case, the device is not just filling a frequency slot. It is simplifying the architecture while preserving the signal integrity that those systems depend on.

Texas Instruments LMX2592 Potential Equivalent/Replacement Models

Based on the available technical documentation alone, no explicit equivalent or drop-in replacement is identified for the Texas Instruments LMX2592. That absence is important. In practice, it means the device should not be treated as interchangeable by default, even when another PLL or synthesizer appears close on headline frequency range or package style. For this class of high-performance wideband RF synthesizer, equivalence is determined by system behavior, not by a short parameter match.

The LMX2592 sits in a demanding category of integrated frequency synthesis devices where several functions are tightly coupled: PLL architecture, integrated VCO behavior, loop dynamics, divider structure, output stage design, calibration flow, and digital control sequencing. A valid replacement must therefore be evaluated from the inside out. The first layer is synthesis capability. The documented output range of 20 MHz to 9.8 GHz is already broad enough to eliminate many nominally similar parts that only operate efficiently over narrower VCO regions or depend on external multiplication chains. The integrated VCO architecture further narrows the field, because it affects phase-noise shape, lock behavior, startup repeatability, and board-level complexity.

The next layer is modulation and frequency planning flexibility. The LMX2592 supports both fractional-N and integer-N operation, with a phase detector frequency up to 200 MHz, extending to 400 MHz in integer-N mode. These values are not secondary details. They directly influence achievable channel spacing, in-band phase noise, spur distribution, loop bandwidth choices, and lock time. In many RF designs, especially those supporting multiple local oscillator plans or agile retuning, the practical usability of a synthesizer is defined less by its maximum output frequency than by how cleanly it can generate the specific frequencies the signal chain requires. A candidate replacement with lower phase detector capability may force a different reference architecture, a different loop filter, or degraded spur performance even if its top-line RF range looks acceptable.

Output architecture must also be checked carefully. The LMX2592 provides dual differential outputs, which often serve more than one purpose: driving parallel signal paths, feeding mixers and converters with controlled symmetry, or supporting split-frequency distribution schemes. A replacement that offers only single-ended outputs, reduced output power control, or different output common-mode behavior can create hidden redesign work. That redesign may show up in matching networks, baluns, DC blocking strategy, or isolation performance between downstream stages. In dense RF layouts, these changes can cascade into measurable degradation in crosstalk or reference spur coupling.

Noise performance is one of the strongest filters in any replacement search. The documented 49 fs RMS jitter at 6 GHz and normalized PLL noise floor of -231 dBc/Hz place the LMX2592 in a performance region where many general-purpose wideband synthesizers no longer qualify. This matters because close-in phase noise, broadband noise floor, and integrated jitter affect different applications in different ways. For high-speed data converter clocking, integrated jitter may dominate SNR and ENOB outcomes. For LO generation in superheterodyne or direct-conversion architectures, close-in phase noise and fractional spur behavior often set reciprocal mixing limits and blocker tolerance. For microwave test or instrumentation platforms, far-out noise and repeatable calibration behavior may be equally important. A replacement part that is “close enough” on one noise metric can still fail the actual use case because noise is not a single-number property.

Supply and packaging data are equally relevant, though they are often underestimated early in sourcing discussions. The LMX2592 operates from a single 3.3 V supply and is packaged in a 40-pin 6 mm × 6 mm VQFN. On paper, this seems straightforward. In implementation, however, supply partitioning, analog and digital rail sensitivity, thermal pad grounding, and exposed-pad current return paths can affect PLL stability and output purity. A package-compatible part is not necessarily layout-compatible. Pin functions, quiet-ground expectations, charge pump routing sensitivity, and VCO supply decoupling priorities vary significantly across vendors and product families. Even small pinout differences can force a board spin if the original layout was optimized around loop filter placement and output symmetry.

For that reason, replacement assessment should be structured as a qualification flow rather than a catalog comparison. Start with frequency synthesis coverage, including all required output frequencies, reference options, divider modes, and channel step requirements. Then verify noise-related metrics across the intended loop bandwidth, not only at a single spot frequency. After that, inspect output-stage compatibility, calibration behavior, lock detect signaling, SPI register model, and startup sequencing. Finally, check implementation dependencies such as external loop filter values, passive tolerances, reference sensitivity, and PCB pin mapping. In most cases, if more than one of these layers changes at once, the effort shifts from replacement into partial redesign.

In sourcing work, one recurring issue is the temptation to rank candidates by frequency range first and by jitter second. That usually produces misleading results. A more reliable method is to begin with the system error budget. If the synthesizer is clocking a high-speed ADC, map allowable integrated jitter backward from converter performance targets. If it is generating an LO, derive acceptable phase-noise masks from reciprocal mixing and EVM requirements. Once those limits are clear, many apparently viable substitutes fall away quickly. This approach saves time because it uses system constraints rather than marketing categories to drive selection.

Another practical point is calibration timing. Devices in this performance class often differ in how they handle VCO calibration, autoselect routines, frequency hopping, and relock after reference disturbances. In bench evaluation, two parts can both achieve target frequency and phase noise, yet behave very differently during power-up, profile switching, or temperature drift. That difference matters in radar, test equipment, synchronized multichannel systems, and any design where deterministic retune behavior is part of the product requirement. A replacement should therefore be measured not only in steady-state operation but also across dynamic operating sequences.

Control interface compatibility also deserves more attention than it usually receives. Even when SPI is used in both devices, register maps, initialization order, default states, ramping features, and status monitoring can differ enough to affect firmware architecture. If the original design relies on a carefully tuned register sequence for lock speed, spur suppression, or output synchronization, a nominal replacement may require significant firmware rework and new validation. In mixed hardware-software schedules, this effort is often comparable to moderate PCB redesign.

From a risk perspective, the safest interpretation of the documentation is clear: there is no source-backed direct replacement list for the Texas Instruments LMX2592. Any candidate substitute must be treated as a new engineering qualification target. The comparison must cover at least these documented characteristics: 20 MHz to 9.8 GHz output range, integrated VCO architecture, fractional-N and integer-N support, phase detector operation up to 200 MHz and up to 400 MHz in integer-N mode, dual differential outputs, 49 fs RMS jitter at 6 GHz, -231 dBc/Hz normalized PLL noise floor, single 3.3 V supply operation, and 40-pin 6 mm × 6 mm VQFN packaging.

A sound replacement decision should therefore answer four questions in order. Can the alternative generate every required frequency with the necessary step size and reference plan. Can it match the system’s phase-noise, spur, and jitter budget under the intended loop settings. Can it fit the existing electrical, firmware, and PCB environment without introducing hidden redesign cost. Can it maintain equivalent behavior during startup, calibration, retuning, and temperature variation. If any answer is uncertain, the part is not yet a replacement. It is only a candidate for full validation against the original LMX2592 design intent.

conclusion

Texas Instruments’ LMX2592 is a highly integrated wideband RF synthesizer built for designs that need low-noise frequency generation across a very large tuning span without relying on multiple discrete RF stages. It combines an integrated VCO, fractional-N and integer-N PLL operation, dual differential outputs, and strong phase-noise behavior in a single 3.3 V device. That integration is not just a packaging convenience. It changes the system architecture by reducing interface uncertainty between external VCOs, loop components, and output distribution stages. In practice, that usually translates into shorter design cycles, more predictable performance, and fewer hidden noise sources.

Its 20 MHz to 9.8 GHz frequency coverage makes it useful across RF transceivers, microwave local oscillators, test equipment, radar subsystems, high-speed data converter clocks, and multi-band instrumentation. This span allows one device family to serve several frequency-plan roles, which is often more valuable than the headline tuning range alone. A single synthesizer that can support IF generation, LO generation, and converter clocking simplifies qualification and inventory while preserving flexibility during late-stage architecture changes.

At the core of the LMX2592 is a PLL+VCO architecture optimized for broadband synthesis with good spectral purity. The integrated VCO eliminates a major source of implementation variability that typically appears when external tank design, biasing, and board parasitics interact. That matters because synthesizer performance is rarely limited by one specification in isolation. Phase noise, spurious content, lock behavior, output power consistency, and tuning stability are strongly coupled. A highly integrated device reduces those degrees of freedom and makes the overall RF chain easier to control.

The support for both fractional-N and integer-N modes is one of the device’s most important architectural advantages. Integer-N operation is usually preferred when the absolute lowest in-band spurious response is the priority and channel spacing permits coarse step selection. Fractional-N operation becomes valuable when frequency planning is constrained by tight spacing, coherent sampling requirements, or complex LO translation schemes. In real designs, this flexibility often determines whether a clean frequency plan is even possible. It allows the synthesizer to adapt to converter sample rates, reference clocks, and intermediate frequencies without forcing large compromises elsewhere in the signal chain.

The practical tradeoff is well known: fractional-N mode increases tuning granularity but can introduce fractional spurs and shaped noise if divider settings, loop bandwidth, and reference relationships are not chosen carefully. The strongest implementations treat frequency planning as a system problem rather than a register-programming task. Reference frequency, channel step, PFD frequency, and loop bandwidth should be selected together. A design that looks acceptable from a lock-time perspective can still fail spectral masks because of deterministic spur placement. In many high-performance designs, moving a reference frequency slightly or changing a divider ratio produces a larger improvement than adding more filtering later.

Phase noise and jitter performance are central reasons to choose the LMX2592. For RF transmit and receive chains, lower phase noise improves adjacent-channel behavior, demodulation margin, and overall spectral cleanliness. For converter clocking, low integrated jitter directly affects SNR, especially as input frequency rises. This is where the synthesizer must be evaluated in the context of the full clock path. The device may have excellent intrinsic performance, but the realized result still depends on reference oscillator noise, power supply cleanliness, loop filter implementation, and output interface integrity. A low-noise synthesizer driven by a poor reference simply reproduces that limitation with precision.

The reference path deserves more attention than it often receives. In broadband synthesizer designs, the reference source is effectively the foundation of the phase-noise floor inside the loop bandwidth. A clean OCXO, TCXO, or disciplined reference can unlock the device’s real capability, while a mediocre source constrains performance regardless of register optimization. Experience with wideband clock trees shows that designers often focus first on the VCO side because it feels more “RF-critical,” but many disappointing phase-noise plots trace back to reference contamination, coupling into the PFD path, or insufficient isolation around the reference input network.

Dual differential outputs add another layer of system value. They allow the LMX2592 to feed multiple destinations, support parallel clocking or LO paths, and reduce the need for external splitters or buffer stages. That can improve BOM efficiency, but the larger benefit is architectural flexibility. One output can serve a mixer LO while the other feeds a sampling clock, or both can be assigned to different subsystems during bring-up and characterization. Differential signaling also helps with common-mode noise rejection and EMI control when routed properly, though those gains depend heavily on layout symmetry, return-current continuity, and output termination discipline.

Output-routing flexibility matters most in mixed-signal systems where RF and digital domains coexist closely. The synthesizer often sits near data converters, FPGAs, mixers, and gain stages, all of which inject switching noise and create coupling paths. A device with configurable outputs allows cleaner partitioning of signal distribution. In practice, clean routing frequently matters as much as nominal output power. A slightly lower swing delivered over a controlled differential path usually outperforms a stronger output that crosses noisy regions or drives a mismatched interface.

Loop filter design remains one of the defining factors in whether the LMX2592 performs like a premium synthesizer or just a convenient one. The loop filter sets the compromise between lock time, in-band phase noise, VCO noise suppression, and reference spur behavior. A wider loop can improve settling and suppress VCO noise over a larger offset range, but it can also pass more reference-related artifacts and become more sensitive to charge-pump noise and board contamination. A narrower loop can reduce some spur issues, but may worsen far-out noise integration or slow frequency hopping. The best loop is not the mathematically cleanest one in simulation; it is the one tuned for the real reference, real PCB parasitics, and real settling requirements of the target instrument or radio.

Vtune cleanliness is especially important in integrated-VCO synthesizers and is often underestimated during early layout. The tuning node behaves like an analog control surface with direct influence on close-in noise and spur visibility. Any coupling from digital lines, supply ripple, or nearby fast edges can modulate the VCO and appear as unwanted spectral content. Careful isolation of the Vtune routing, short and guarded traces, low-leakage passive selection, and disciplined grounding make a measurable difference. This is one of those areas where textbook schematic correctness is not enough. Good bench results usually come from treating Vtune as a precision analog node, not just another net.

Power supply and bypassing strategy also deserve disciplined execution. The LMX2592 integrates substantial RF functionality, but integration does not make it immune to supply-induced degradation. Broadband decoupling near each relevant pin, controlled impedance in high-frequency return paths, and separation between noisy digital rails and sensitive analog domains are all necessary. Ferrite isolation can help in some topologies, but only when its impedance profile aligns with the actual noise spectrum. Overusing ferrites without verifying resonance behavior can create new problems rather than solve existing ones. A compact, low-inductance decoupling network usually provides better results than an elaborate but poorly placed one.

Output biasing and interface matching should be treated as part of the synthesizer design, not an afterthought at the receiving device. Differential RF outputs interact with baluns, AC-coupling capacitors, transmission lines, and input structures of downstream ICs. Small mismatches can degrade power transfer and introduce asymmetry that raises even-order distortion or worsens spur visibility. In converter-clocking applications, preserving edge integrity and minimizing deterministic distortion can be more important than maximizing swing. In LO-driving applications, stable amplitude and predictable spectral purity usually matter more than raw output power.

From a product-selection perspective, the strongest case for the LMX2592 is the combination of wide frequency coverage, strong spectral performance, and flexible frequency planning in a single platform. That combination is especially attractive in programs where requirements are still moving, where one hardware design may need to support several bands, or where multiple product variants are expected. Choosing a synthesizer with this range can reduce redesign risk because the device can absorb frequency-plan changes that would otherwise force a new LO chain.

From a sourcing and platform-management perspective, the device has value because it consolidates several RF building blocks into one qualified component. That reduces vendor count, simplifies inventory strategy, and can lower integration risk across product lines. The more subtle advantage is engineering reuse. Once a team has a validated loop filter approach, reference architecture, layout discipline, and programming profile around a device like this, that knowledge compounds across designs. Reuse of proven implementation patterns often yields more schedule value than incremental savings from a lower-cost but less capable alternative.

The device is particularly compelling in demanding clock-generation tasks where converter performance is sensitive to jitter and where frequency agility must coexist with clean spectral output. It also fits well in microwave LO generation where broad coverage and good phase noise reduce the need for separate synthesizer paths. In both cases, the practical success condition is the same: the surrounding implementation must respect the analog nature of the synthesizer. Clean references, disciplined loop-filter design, careful supply treatment, controlled output routing, and protection of sensitive nodes are what allow the integrated architecture to deliver its intended performance.

A useful way to view the LMX2592 is not simply as a wideband PLL, but as a system-level frequency foundation. Its integration reduces architectural friction, but it does not eliminate RF responsibility. The most successful designs use that integration to simplify the signal chain while investing effort where it still matters most: reference integrity, noise-aware layout, and frequency-plan discipline. When those pieces are handled correctly, the LMX2592 becomes a technically strong and scalable solution for advanced frequency synthesis and precision clock generation across a wide range of RF and mixed-signal applications.
