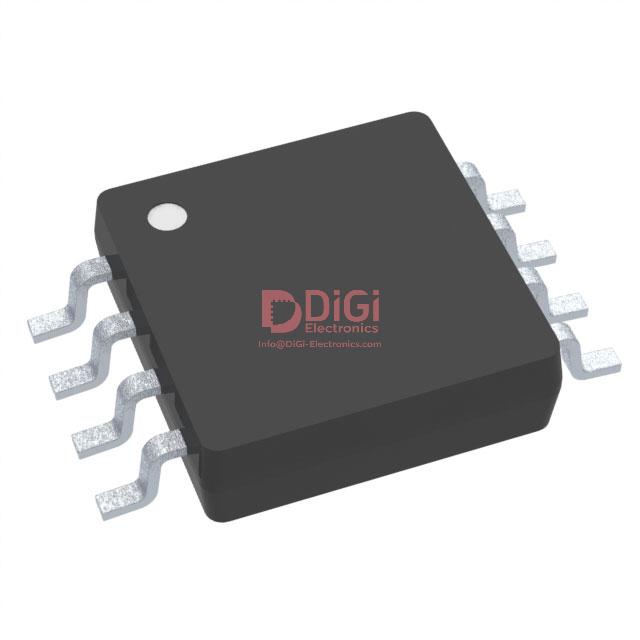

Product Overview: LMV358MMX Texas Instruments Dual General Purpose Operational Amplifier
The LMV358MMX is a dual operational amplifier engineered by Texas Instruments to address evolving requirements in low-voltage analog signal processing. Its architecture leverages a complementary MOS process, enabling rail-to-rail output operation while maintaining low quiescent current, typically below 1 mA per channel. This combination is central to energy-efficient designs where battery life and thermal considerations dictate device selection. The input common-mode voltage range extends down to ground with minimal offset, supporting single-supply operation across 2.7 V to 5.5 V rails—critical in battery-powered and logic-level interfacing environments.
Within this device, each amplifier exhibits a typical gain bandwidth product of 1 MHz and a slew rate of 0.6 V/µs. These parameters enforce a balance between power consumption and dynamic response, ensuring predictable behavior in filter topologies, buffering stages, and signal conditioning chains. The high input impedance—consistent with FET input stages—eliminates excessive loading on sensor or source circuits, which is essential when handling high-impedance signals in portable measurement equipment. Output drives are robust, approaching both rails while maintaining linearity until close to the supply extremes; this trains well for maximizing signal swing in low-headroom applications, making the part particularly effective in ADC front-ends, low-side current sensing, and audio preprocessing.
The 8-VSSOP encapsulation offers a footprint suitable for precision layouts and high-density PCBs. The form factor supports cost-sensitive, space-constrained designs encountered in sensor nodes, wearables, data loggers, and distributed industrial control units. The package choice also aligns with contemporary mass manufacturing processes that emphasize automated pick-and-place throughput and reliability under harsh handling.
From a practical circuit design perspective, the LMV358MMX’s input and output characteristics simplify analog front-end development by eliminating the need for signal level-shifting or bootstrap biasing, streamlining PCB routing and firmware calibration complexity. The input bias and offset currents are controlled tightly enough to allow integration with single-ended or differential signal flows, including thermistors, strain gauges, and piezoresistive transducers—particularly relevant in precision metrology subsystems.
In system-level deployments, the device’s insensitivity to common EMI and its tolerance of supply and ground transients demonstrate resilience when cohabiting densely populated mixed-signal boards. Internal ESD protection mechanisms and input overvoltage handling reduce failure rates during assembly and field operation, attributes highly valued in scalable industrial and automotive modules.
The LMV358MMX reveals a design philosophy prioritizing the intersection of efficiency, ruggedness, and simplicity. Current analog system trends favor operational amplifiers that address not only static specification tables but also dynamic interactions with digital control loops, sensor fusion logic, and rapid start-stop cycles. The LMV358MMX, therefore, represents an optimal blend for designers who must reconcile legacy analog requirements with the compactness and power discipline intrinsic to modern embedded architectures.
Key Electrical and Functional Characteristics of LMV358MMX
The LMV358MMX represents a class of low-voltage, general-purpose operational amplifiers engineered to maximize performance under stringent power and signal integrity constraints. Its architecture centers on minimizing supply current, consuming only 210 μA per amplifier. This characteristic facilitates ultra-low power consumption, an essential trait for compact battery-operated systems where energy availability directly constrains system longevity. Designers consistently leverage this efficiency in scenarios such as portable medical sensors, remote IoT endpoints, and instrumentation modules where thermal management and battery size are tightly controlled inputs.
Examining the operational envelope, the LMV358MMX employs a rail-to-rail output topology. This design strategy increases the dynamic output swing, granting practitioners maximal headroom even when operating at supply voltages approaching ground-referenced levels. Its input common-mode voltage range extends to ground, a crucial feature for single-supply applications. This allows for direct sensing of zero-volt levels without level-shifting or auxiliary bias circuits, streamlining signal acquisition in environments like microcontroller-based systems and sensor front-ends.
Signal processing capabilities are shaped by a gain-bandwidth product of 1 MHz and a slew rate of 1 V/μs. These parameters enable precise tracking of moderate-speed analog signals, rendering the LMV358MMX well-suited for active filtering, buffering, and analog data conditioning tasks. Experience shows that input signals up to several tens of kHz, common in sensor instrumentation and audio preprocessing, are accurately amplified without excessive phase shift or bandwidth limitations. The absence of output crossover distortion further protects against nonlinear artifacts in low-amplitude regions, a benefit that surfaces prominently in low-level signal amplification—such as piezo transducer outputs—where subtle non-idealities otherwise propagate downstream.
Robustness under capacitive loading supports direct interfacing with PCB traces or cabling presenting up to 200 pF capacitance, while unity gain stability is maintained without oscillation. This trait simplifies board layout constraints and reduces the need for compensation networks, which introduces practical reliability for rapidly iterated prototype and production environments. Operation across an extended temperature span—–40°C to +125°C—also positions the LMV358MMX favorably for deployment in industrial and automotive segments where ambient conditions fluctuate.
A consistent design insight is that amplifiers at the intersection of low-voltage, high-efficiency, and wide input/output range, like the LMV358MMX, unlock topological simplicity and functional robustness in distributed sensing and control architectures. The convergence of rail-to-rail swing, ground-sensing, and low quiescent supply harmonizes analog and mixed-signal subsystem design, shrinking bill-of-materials and reducing integration risk. Long-term experience demonstrates that component selection along these axes leads not only to leaner hardware but also improved system observability and reduced calibration overhead—a tangible and often under-recognized advantage in multi-cycle product development.
Pin Configuration, Package Options, and Environmental Compliance for LMV358MMX
Pin configuration and package considerations for the LMV358MMX play an essential role in optimizing high-density printed circuit board layouts. With its 8-VSSOP (DGK) package, the device achieves minimal footprint while maintaining necessary signal integrity and mechanical robustness. This arrangement reduces trace inductance and crosstalk, facilitating precision analog performance in space-limited designs. Engineers can leverage the clear pinout to streamline routing, minimizing parasitic coupling and facilitating efficient power distribution, especially where separate analog and digital domains interact.
The LMV358 family extends flexibility through supplementary package types such as SOIC, TSSOP, and SC70—each tailored for different assembly constraints and thermal dissipation needs. Selection depends on criteria including reflow capability, board-level stress tolerance, and system-level miniaturization. For instance, VSSOP suits ultra-compact sensor modules or portable medical devices, while the larger SOIC may be preferred in prototyping or where hand-soldering is necessary.
Environmental compliance is integral to the device’s lifecycle management. Adherence to RoHS standards assures the absence of hazardous substances, supporting safe end-product deployment across regulated markets. Manufacturing practices conform to green requirements, ensuring traceability and facilitating certification processes in global supply chains. In practice, seamless transition to lead-free reflow profiles—aided by robust JEDEC/IPC-compliant mechanical design—enables reliable automated assembly without yield compromises.
Careful interpretation of datasheet mechanical footprints and pin assignments underpins rapid schematic capture and layout validation. Early risk assessments frequently focus on package-induced thermal behavior and solder joint reliability, guiding choices for reflow parameters and paste selection. Automated optical inspection and X-ray analysis verify compliance with IPC-A-610 standards, strengthening production confidence.
Across escalating demands for device miniaturization and compliance-driven manufacturing, the LMV358MMX exemplifies a balanced approach: tightly integrated packaging solutions, stringent environmental protocols, and well-defined mechanical compatibility. In modular analog systems, such thoughtful configuration supports scalability, long-term reliability, and accelerated design cycles.
Distinctive Benefits and Application Scenarios of LMV358MMX
The LMV358MMX op amp embodies a blend of characteristics designed for compact, low-power circuit architectures. Operating efficiently at low supply voltages and housed in an ultra-small package, this device aligns precisely with modern demands for minimal footprint and extended battery life. Its ability to be placed immediately adjacent to sensitive analog nodes is vital; this strategic physical proximity substantially reduces parasitic trace capacitance and loop area, significantly mitigating the risks of external electromagnetic interference and high-frequency noise ingress within analog front-ends. These attributes translate directly into tangible improvements in sensor signal fidelity and analog measurement reliability, especially as system layouts shrink and component density rises.
From a signal-chain design perspective, the rail-to-rail output stage eliminates constraints on dynamic range. Engineers can exploit the full input-to-output swing even as supply rails approach logic-level voltages—a necessity where energy harvesters or depleted batteries sustain operation. This architectural choice not only increases usable signal margin but also permits a broader tolerance for transient load conditions often encountered in portable and wearable electronics. When coupled with precision ADCs, these features streamline direct interfacing, minimizing peripheral conditioning stages and easing PCB layout complexities.
Robustness underpins its value in industrial domains. The wide ambient temperature range, extending from sub-zero to high-heat environments, ensures consistent functionality in factory automation, process control modules, or field instrumentation. Immunity to crossover distortion, a byproduct of the advanced output topology, preserves signal linearity during rapid swings near the rails—a recurring requirement where accurate analog representation is critical. This characteristic eliminates common artifacts in digitization, which, if unchecked, could propagate substantial errors downstream in measurement systems.
The device’s integrated architecture further reduces reliance on external compensation networks or output-correction components. Streamlining both design phase and procurement, this integration decreases design-in uncertainty and total BOM complexity, a consideration often underappreciated in high-mix, low-volume production. Through iterative prototyping, it becomes apparent that the LMV358MMX’s consistent AC and DC characteristics simplify loop stability analysis, supporting both unity-gain buffer and moderate-gain configurations without intricate compensation.
In sum, leveraging the LMV358MMX in systems requiring both precision and power-conscious operation delivers a measurable edge. Combining low-voltage efficiency, area savings, noise resilience, and linear output response across challenging environments, this amplifier emerges as the preferred choice for progressively interconnected sensing, edge computation, and robust industrial signal paths.
Technical Considerations and Best Practices for LMV358MMX Circuit Design
The LMV358MMX operational amplifier integrates specialized characteristics that address typical system constraints while enabling precise analog processing under compact form factors. Signal integrity hinges on a nuanced understanding of output stage dynamics, particularly regarding capacitive loading. The unity-gain configuration supports direct connection to loads up to 200 pF without oscillatory artifacts; exceeding this value calls for resistive isolation—series resistors ranging from 10 to 100 Ω situated between the op amp output and capacitive load minimize phase degradation and ensure loop stability. Custom compensation techniques, such as tailored feedback capacitors or local RC networks, further extend bandwidth and phase robustness in challenging environments, especially in sensor interface modules where unpredictable parasitic capacitance emerges.
Accurate input performance is constrained by the device’s bias current behavior, typically 15 nA at standard 5 V rails. DC offset drift stemming from bias current interacting with input resistances becomes non-negligible in high-impedance sensor circuits. The offset can be suppressed by methodically matching resistor values on each input pathway, effectively canceling differential bias-related offset. Differential and instrumentation topologies benefit from tight resistor tolerances and, where appropriate, insertion of guard tracks to shunt leakage currents away from critical nodes.
Ground-sensing input architectures distinguish the LMV358MMX in mixed-signal or unipolar supply systems where dynamic range and common-mode versatility are vital. The capacity to sense voltages marginally below ground simplifies feedback control in single-supply applications and improves compatibility with low-side current shunts or zero-referenced sensing elements. Direct interfacing with ground-referenced sensors streamlines bias routing and suppresses ground loop interference, contributing to resilient sensor transducer modules.
The mechanical profile of the LMV358MMX, particularly in miniature SOT23 or SC70 packages, supports strategic PCB placement adjacent to input connectors. Proximity placement decreases routing inductance and capacitive pickup, substantially improving high-frequency immunity to electromagnetic disturbance. Direct-to-source mounting is particularly advantageous when integrating with RF or precision measurement subsystems, where signal-to-noise ratio is a design-limiting factor. Overlapping local ground planes and minimizing loop areas further reinforce EMI resilience and reduce susceptibility to radiated or conducted noise.
Output short-circuit scenarios must be evaluated in context: although the device demonstrates internal tolerance to temporary faults, repeated or continuous shorts to supply rails or ground promote thermal stress and long-term reliability degradation. Incorporating series limiting resistors, judicious current monitoring, or active fault isolation circuits—such as solid-state switches or resettable fuses—enhances robustness in industrial or automotive domains, where power irregularities and connector mishandling are common. Device protection strategies balance system-level safeguarding without excessive degradation of I/O drive capability.
Operational excellence with the LMV358MMX is achieved by embedding these layered technical approaches within the board-level architecture. Experience demonstrates the importance of simulation validation against worst-case capacitive and resistive loading, especially when downstream loads are unpredictable or subject to field modifications. By proactively addressing coupling, bias, and fault vectors during schematic capture and physical layout, deployed systems exhibit minimal parametric drift and elevated durability across diverse application scenarios, including precision instrumentation, sensor signal conditioning, and portable measurement equipment. A holistic approach—where physical, electrical, and thermal factors are collectively optimized—yield circuits that consistently meet high-performance thresholds with reliable operational longevity.
Application Examples Utilizing LMV358MMX in Real-World Circuits
The LMV358MMX, a dual-channel, low-voltage operational amplifier, demonstrates notable versatility in analog circuit design due to its combination of low input offset voltage, high common-mode rejection ratio (CMRR), and rail-to-rail output swing. Each application area leverages specific device characteristics, enabling reliable solutions across diverse engineering challenges.
Active filter topology benefits extensively from the LMV358MMX’s bandwidth and precision. For low-pass and high-pass filters, its low input bias current and minimal distortion support clean signal paths in audio applications or sensor pre-processing. Fine-tuning cutoff frequencies through calculated resistor-capacitor (RC) selections—such as employing 10 kΩ resistors with 1 nF capacitors for a 16 kHz cutoff—highlights the balance between bandwidth and noise performance when using this amplifier. Integrating feedback capacitors in second-order Sallen-Key configurations further mitigates peaking and enhances roll-off accuracy without introducing instability.
Instrumentation circuits, where signal fidelity and noise immunity are critical, exploit the device’s high CMRR and low offset voltage. The three-op-amp differential amplifier arrangement can achieve sub-millivolt-level offset errors, pivotal for bridge sensor readouts or low-level thermocouple interfaces. Matching input and feedback resistor networks—typically utilizing 0.1% tolerance resistors—ensures that the LMV358MMX’s inherent precision is not compromised by board-level parasitics or component mismatch, reinforcing stable long-term measurements without frequent recalibration.
Pulse generation, oscillation, and comparator functions drive timing and control in embedded systems. The LMV358MMX’s fast slew rate and rail-to-rail output range allow for well-defined pulse edges and robust hysteresis implementation, supporting oscillators with stable duty cycles up to hundreds of kilohertz. In practical oscillator circuits, a feedback resistor of 100 kΩ and a timing capacitor of 1 µF yield time constants ideal for signal sequencing or LED flasher circuits. Additionally, comparator operation gains resilience against supply disturbance by exploiting the amplifier's low supply current draw and wide input common-mode range, especially valuable in battery-powered designs.
As the core of current source and sink circuits, the LMV358MMX enables tightly regulated current flow for LED drivers or sensor excitation. Implementations such as the Howland current pump showcase the amplifier’s output linearity when driving loads over long wiring runs or variable impedance sensors. Precision setting resistors and careful layout practices—isolating the output node—reduce leakage paths and maintain microampere-level stability in compact PCB designs.
When integrated into pre-driver and amplification stages of power circuits, the amplifier provides stable bias voltages and interfaces gracefully between low-level control logic and higher-power transistors. Here, the device’s low drift and wide operating voltage range improve cascade amplifier designs, ensuring gain stability over temperature and supply fluctuations. Locating the LMV358MMX immediately upstream of voltage reference circuits can minimize output noise and improve the power supply rejection ratio of analog front-ends, allowing for high-accuracy analog-to-digital converter (ADC) interfacing.
Across these scenarios, optimizing the LMV358MMX within the signal chain depends on deliberate resistor-capacitor choices, meticulous PCB layout, and thermal management. Observing best practices—such as minimizing trace inductance, shielding inputs against external interference, and providing robust ground paths—directly translates to improved circuit robustness and repeatability. Direct experience demonstrates that utilizing the device’s rail-to-rail output and low quiescent current in power-constrained environments often defers the need for complex voltage translation or auxiliary buffering, streamlining overall system architecture. Implicit in these designs is the insight that the LMV358MMX fills an essential role at the intersection of precision, efficiency, and integration, making it a preferred choice for compact, high-performance analog applications.
Power Supply and PCB Layout Recommendations for LMV358MMX
Power integrity forms the basis for reliable LMV358MMX op amp performance, necessitating meticulous attention to supply decoupling and board layout. Effective noise suppression begins with deploying low-ESR 0.1-μF ceramic capacitors directly adjacent to the device’s supply pins. Proximity here minimizes loop area and maximizes filtering efficiency, mitigating high-frequency transients that propagate through supply rails. When multi-layer boards integrate analog and digital domains, partitioning ground planes restricts digital switching noise from coupling into sensitive analog nodes. Continuity between these planes should be restricted to strategically-located star points or via controlled impedance connections to contain return currents and prevent ground loops.
Critical signal integrity hinges on trace routing discipline. Signal traces connecting high-impedance analog inputs benefit from isolation through guard rings tied to ground, serving as electrostatic shields and curtailing leakage currents. Routing should actively avoid parallel adjacency to supply or output traces, reducing capacitive and inductive crosstalk paths. Orthogonal trace crossings further suppress unwanted coupling, a refined technique in mixed-signal environments. Acute awareness of current return paths refines trace layout, especially beneath active components, optimizing signal integrity with controlled impedance lines on defined ground reference planes.
Precise adherence to recommended mechanical footprints, as documented in the LMV358MMX datasheet, ensures compatibility with pick-and-place systems and reflow soldering processes. Uniform pad geometries expedite high-yield assembly and rework. Cross-referencing reference designs quickly validates netlist-to-layout fidelity and simplifies model-based simulation prior to fabrication.
In practice, robust supply decoupling coupled with layered ground management has demonstrated marked reductions in idle channel noise and susceptibility to electromagnetic disturbances, even within dense mixed-domain board architectures. Layering design modifications—such as optimizing decoupling capacitor selections for frequency response and routing critical analog signals away from noisy digital regions—streamlines debug cycles and elevates functional stability. System-level EMC performance enhances when these layout fundamentals, supported by empirical tuning and iterative prototyping, are rigorously applied across the signal chain.
Potential Equivalent/Replacement Models for LMV358MMX
When evaluating potential alternatives to the LMV358MMX for analog signal conditioning or active filtering tasks, focus first centers on pin-to-pin compatible options within the same CMOS amplifier family. The LMV3xx-N lineup addresses this need well. The LMV321-N, as a single-channel variant, serves scenarios demanding minimal board space or requiring independent signal processing paths. Its electrical specifications align closely with the dual-channel LMV358MMX, offering seamless integration during design revisions or multi-sourcing efforts. In high-density applications, the LMV324-N consolidates four operational amplifiers, supporting designs where multiple amplification stages must coexist with tight PCB constraints and consistent biasing environments.
Reliability and compliance stand out in sectors such as automotive and industrial control where rigorous qualification is essential. Here, the Q1-suffixed derivatives (e.g., LMV358-N-Q1) meet AEC-Q100 standards, reinforcing system-level robustness. Integrating these qualified parts directly into safety-critical modules ensures minimal validation effort while supporting regulatory conformance, especially as supply chain volatility increases the value of cross-vendor interchangeability.
Design trade-offs often hinge on supply voltage requirements and rail-to-rail characteristics. While the LMV358MMX operates up to 5.5 V and offers input/output swings near ground, legacy alternatives like the LM358 or LM324 extend headroom up to 32 V. This facilitates their use in mixed-voltage systems or legacy upgrades where higher supply rails predominate. However, the difference in output swing—often not fully reaching the rails—may necessitate careful system-level simulation to verify signal integrity under dynamic loading, particularly with low-level analog front ends. Selecting these parts warrants consideration of mandatory derating and guard bands for long-term reliability in harsh environments.
Signal chain architects benefit from mapping the interaction among voltage range, package footprint, and environment-specific certifications early in the selection phase. For example, in precision sensor applications subject to significant common-mode variations, the choice between true rail-to-rail amplifiers and those with limited swing can materially influence noise margins and overall system precision. Empirical iteration reveals that substituting within the LMV3xx-N family typically minimizes requalification time, with board layout and power management systems requiring only benign tweaks, not wholesale redesign. Comparative bench validation also underscores that slew rate and bandwidth differ subtly between the CMOS and bipolar families, potentially impacting fast transient response in feedback-intensive loops.
A layered component selection methodology consistently outperforms ad-hoc replacement strategies. Establishing a precedence of electrical compatibility, followed by mechanical fit, and culminating with compliance alignment, smooths the integration path and reduces lifecycle risks. Expanding the candidate pool with a matrix of certified alternatives and legacy high-voltage parts not only future-proofs the design, but also cushions against foreseeable procurement disruptions, which have become a defining challenge in modern manufacturing ecosystems.
Conclusion
Low-voltage analog circuit design frequently demands operational amplifiers exhibiting a blend of energy efficiency, output stability, and integration simplicity. The LMV358MMX from Texas Instruments addresses these demands through a dual-channel topology and rail-to-rail output architecture, directly supporting wide dynamic range signal operations even within constrained supply voltages down to 2.7V. This structural choice is critical for applications requiring full utilization of available voltage swing, thereby maximizing analog signal fidelity in both battery-powered devices and industrial control systems.
Key mechanisms underpinning the LMV358MMX’s performance include its inherently low quiescent current consumption, which helps extend operational lifetimes in energy-sensitive systems. The amplifier’s internal compensation network and input stage biasing contribute to a high common-mode rejection ratio and reduce noise propagation, crucial when maintaining accuracy in mixed-signal environments or low-level sensor interfacing. By employing a CMOS process, the LMV358MMX achieves favorable input bias characteristics, limiting offset drift and supporting stable operation despite temperature fluctuations—a distinct advantage for embedded sensor front-ends or long-term monitoring platforms.
Practically, the miniature MSOP-8 packaging streamlines integration on dense PCBs, allowing developers to minimize footprint without sacrificing channel count, reducing assembly complexity in wearables or automation nodes. Its broad temperature range and robust ESD immunity further expand deployment options in harsh operational contexts, exemplified by reliable performance during repeatedly cycled factory test procedures or mobile equipment calibration routines. Maintaining signal purity in the presence of switching regulators and digital transients is facilitated by reinforced power supply rejection, observed in experimental setups with mixed analog-digital boards where the LMV358MMX preserves low distortion and accurate response during rapid transients.
Viable alternative selections—such as the LM358 or TLV2372—offer similar functions but often trade off output swing or package size, making the LMV358MMX uniquely advantageous when complete analog signal range within constrained form factors is necessary. The amplifier’s ability to simultaneously deliver low noise and efficiency enables solution architectures favoring both battery conservation and measurement reproducibility, a pairing especially valued in modern telemetry nodes or edge AI analog preprocessing stages.
Careful circuit layout practices, such as star grounding and supply decoupling, further optimize the LMV358MMX’s noise floor in practice. Empirical tuning of gain stages has shown predictable frequency response and stable closed-loop bandwidth, supporting rapid prototyping cycles and reliable translation to mass production. The ability to sustain stable gain under varied capacitive loading indicates suitability for sensor multiplexing strategies and scalable analog front-end designs.
The LMV358MMX demonstrates particular synergy when constrained by regulatory power budgets or when miniaturization pressures dictate stringent board layouts. Its feature set enables compact, cost-efficient system design without compromise in precision. When selecting this device, a holistic appraisal of application-side requirements and environmental stressors confirms its readiness for next-generation analog platforms.
