LMP90100MH/NOPB

Texas Instruments LMP90100 Product Overview and Positioning Within the LMP90xxx Family

Texas Instruments LMP90100 is a precision, low-power, 24-bit sensor analog front end positioned at the top end of the LMP90xxx family for applications that need direct sensor interfacing, sustained accuracy, and high integration. The broader family targets industrial sensing tasks such as RTD measurement, pressure transmitters, strain and bridge sensors, and general process control. Within that range, LMP90100 stands out as the most functionally complete variant in the documented set, combining a flexible input structure, matched excitation resources, signal conditioning, diagnostics, and communication integrity features in a single device. Its positioning is not just about channel count. It is defined by how much analog precision infrastructure it moves on-chip.

At the architectural level, the device is built for low-level sensor signals that cannot tolerate a fragmented signal chain. The front end integrates a fully differential, high-impedance analog multiplexer, a low-noise programmable gain amplifier, a high-resolution ADC path, programmable excitation current sources, diagnostic functions, and SPI with CRC protection. This matters because precision measurement errors are usually cumulative rather than singular. Offset, gain drift, reference error, leakage, routing asymmetry, EMI susceptibility, and software misconfiguration each contribute a small penalty. A highly integrated AFE like the LMP90100 reduces the number of external interfaces where these penalties are introduced, which often improves real system accuracy more than a nominal resolution increase would.

The input structure is one of the first differentiators. The LMP90100 supports 4 differential or 7 single-ended inputs, giving enough flexibility to handle mixed sensor populations inside one platform. In practical industrial nodes, this is useful when one board must support both resistive temperature channels and lower-bandwidth voltage-output sensors without a redesign of the analog chain. The differential capability is particularly relevant for environments with long sensor leads, common-mode interference, or ground potential variation. Differential acquisition does not remove system-level grounding problems, but it gives the measurement path a much stronger starting point.

The dual matched programmable excitation current sources push the device further into direct sensor interface territory. This is especially important for resistive sensors such as RTDs, where measurement quality depends not only on ADC resolution but on how cleanly and consistently the sensor is excited. Matched current sources simplify ratiometric and lead-compensation strategies and reduce reliance on tightly selected external current-generation circuits. In bridge-oriented designs, the same resources can support biasing and characterization workflows that would otherwise require added analog support circuitry. In practice, matched on-chip excitation is often more valuable than it first appears, because it reduces thermal mismatch and layout sensitivity between discrete current-source paths.

One of the defining capabilities of the LMP90100 is true continuous background calibration. This is not a cosmetic feature. It directly addresses a persistent problem in precision systems: the analog path changes over time, temperature, and operating conditions, even when the sensor itself is stable. Many devices offer calibration, but only in modes that interrupt conversion, reduce throughput, or constrain gain and data-rate settings. The LMP90100 is notable because its background calibration operates across all gains and output data rates without breaking the signal path. For closed-loop control, thermal monitoring, and long-duration process instrumentation, that behavior has clear system value. Measurement continuity is preserved while internal error terms are being corrected. That is a stronger proposition than periodic foreground recalibration, which can create data gaps exactly where stability is most important.

This continuous calibration capability should be viewed as a system-level reliability mechanism rather than a simple accuracy feature. In fielded designs, absolute error often drifts gradually and escapes attention because the deviation per hour or per degree is small. A device that compensates internally, continuously, and transparently changes the maintenance profile of the measurement chain. It reduces the need to trade uptime for recalibration cycles and makes performance more predictable across enclosure heating, startup transients, and ambient variation. In many industrial installations, that predictability is more useful than best-case bench precision.

The programmable gain amplifier extends the usable dynamic range for low-amplitude sensors while keeping the front end adaptable to multiple sensor classes. RTDs, bridge sensors, and pressure elements often produce signals that are small in amplitude but vary greatly in source impedance and common-mode behavior. A low-noise PGA helps scale those signals into the converter range without requiring an external instrumentation stage. This has two benefits. It reduces board area and BOM, and it keeps gain-setting inside the same calibrated signal path as the ADC. When gain is implemented externally, the noise, drift, and offset budget becomes distributed across more components and more thermal gradients, which makes the overall chain harder to stabilize.

The analog multiplexer also deserves attention beyond its channel-count role. A fully differential, high-impedance mux is critical when the system must switch among sensors without imposing excessive loading or introducing asymmetrical errors. In precision multiplexed measurement, channel-to-channel behavior is often limited less by converter resolution than by settling behavior, leakage, source impedance interaction, and memory effects from the previous channel. The integrated mux in the LMP90100 helps consolidate these effects into a characterized front-end path. That does not eliminate the need for timing discipline, but it simplifies it. Designs with mixed high-impedance and low-impedance sensors still need careful scan scheduling and settling verification, yet they benefit from having the mux and gain path designed as part of one analog system rather than assembled from loosely matched external parts.

The built-in sensor diagnostics improve deployability in industrial conditions where wiring faults are common and costly. Open-sensor conditions, lead issues, and abnormal analog behavior do not always fail in obvious ways. Often they appear first as plausible but wrong values. Integrated diagnostics help detect those cases earlier and more deterministically. This becomes especially valuable in remote systems, safety-related monitoring, or any installation where sensor service time dominates component cost. The real value of diagnostics is not only fault detection but fault classification. A measurement platform that can distinguish between process change and signal-path failure reduces unnecessary maintenance actions and shortens root-cause analysis.

SPI communication with CRC error detection strengthens the digital boundary of the device. In industrial electronics, analog integrity often receives most of the design effort, yet communication robustness is what determines whether that integrity survives into software. CRC on SPI is particularly relevant in noisy environments, across isolation barriers, or in systems with long internal traces and multiple switching domains nearby. It adds a lightweight but effective layer of confidence to configuration writes and measurement reads. Experience with mixed-signal systems shows that intermittent digital corruption is one of the more difficult failure modes to reproduce. Features like CRC do not eliminate signal integrity work, but they sharply reduce silent faults and simplify debugging.

The GPIO resources are a smaller feature on paper but often useful in compact embedded designs. They allow coordination of sensor power, mux control, status signaling, or low-complexity supervisory tasks without introducing another companion device. In isolated transmitters or space-constrained modules, this can simplify routing and reduce component interactions around the sensitive analog region. Small integration features of this kind tend to matter late in development, when board area, isolation spacing, and connector assignments become fixed and every external control line carries a cost.

From an application perspective, the LMP90100 fits best where precision and channel flexibility need to coexist with low power and compact implementation. RTD modules are a strong match because the device combines high resolution, matched excitation, differential measurement capability, and continuous calibration. Bridge-based pressure and strain interfaces also align well, especially where the signal chain must remain compact and stable over temperature. In process-control transmitters, its feature set supports designs that must operate continuously for long periods while preserving measurement trustworthiness under varying ambient conditions. It is also a good candidate for sensor hubs that multiplex several precision inputs into one acquisition engine, provided the channel timing is designed carefully.

A practical design pattern is to use the LMP90100 not merely as an ADC replacement but as the analog center of the measurement subsystem. That approach changes schematic priorities. Instead of adding external trimming, gain correction, and sensor bias support early, it is often better to first map the sensor set onto the device’s native capabilities, then add only what the error budget proves necessary. This usually leads to a cleaner architecture. In precision systems, every external analog “improvement” should justify the drift, noise, and layout complexity it introduces. Devices like the LMP90100 are most effective when their internal precision infrastructure is allowed to do most of the work.

There is also an important engineering tradeoff in multiplexed precision systems that this device helps manage but does not remove: throughput versus settling confidence. With multiple sensors on one AFE, the temptation is to maximize channel count and scan speed simultaneously. In practice, the more robust strategy is to allocate timing based on source impedance, gain setting, digital filter behavior, and required fault coverage, then let the channel plan follow the physics. The LMP90100 provides the right building blocks for that strategy because calibration, gain, excitation, and muxing are already coordinated within one device. That makes performance more repeatable and easier to validate across operating corners.

Within the LMP90xxx family, the LMP90100 is therefore best understood as the variant for designs that need the fewest compromises at the analog interface. It offers broader input flexibility, integrated matched excitation, uninterrupted background calibration, and the surrounding support features required for industrial-grade measurement channels. Its value is not only in feature accumulation but in how those features reinforce one another. The result is a front end that is well suited to precision sensor systems where long-term stability, wiring realism, board-level simplicity, and measurement continuity matter as much as raw converter resolution.

Texas Instruments LMP90100 Core Architecture and Measurement Signal Chain

Texas Instruments LMP90100 is built around a 24-bit low-power sigma-delta conversion path intended for precision sensor acquisition rather than generic high-speed sampling. That distinction matters. In this class of analog front end, the objective is not only nominal resolution, but stable extraction of low-amplitude, low-bandwidth sensor information in the presence of source impedance variation, multiplexing artifacts, mains interference, and thermal drift. The LMP90100 addresses this by combining a high-resolution sigma-delta ADC, a low-noise programmable gain amplifier, a fully differential high-impedance input multiplexer, and a channel engine that allows per-channel configuration of gain and output data rate.

The sigma-delta ADC is the core mechanism that defines the measurement behavior. Instead of resolving the input directly in one step, it oversamples the signal and pushes quantization noise out of band, after which digital filtering recovers the low-frequency content with high effective resolution. This is especially well matched to industrial and instrumentation sensors whose information bandwidth is often only a few hertz to a few tens of hertz. In practice, the usefulness of a 24-bit converter is never determined by code width alone. What matters is how much noise remains after front-end amplification, multiplexing, reference behavior, and digital filtering are considered together. In the LMP90100, the architecture is clearly optimized for this low-bandwidth precision regime, where repeatability and noise shaping are more valuable than raw sample rate.

Ahead of the converter, the integrated low-noise PGA provides gain settings from 1x to 128x. This is not simply a convenience block. It is central to how the device extracts usable resolution from small sensor signals. Many resistive bridges, thermocouples, and low-level differential transducers produce outputs that occupy only a small fraction of the ADC input range. If those signals are digitized without gain, the system effectively wastes dynamic range and exposes the measurement more strongly to downstream noise and offset. By scaling the signal close to the converter’s optimal range, the PGA improves signal utilization and often simplifies board-level analog design. The practical constraint, however, is that gain must be selected with fault margin in mind. A channel that operates cleanly at 128x under nominal conditions may clip during startup transients, open-sensor events, or common-mode excursions. In robust designs, gain is chosen not from ideal sensor amplitude alone but from worst-case sensor behavior, reference tolerance, and environmental drift.

The fully differential high-impedance analog multiplexer is another architectural feature with more significance than its short description suggests. High input impedance reduces loading on the connected sensor, which is essential when the source is weak, high resistance, or remote. Differential routing improves immunity to ground shifts and common-mode pickup, both of which are common in mixed-signal and distributed sensing systems. In multiplexed measurement chains, this input structure also helps preserve channel fidelity when different sensor classes share the same converter. A resistive temperature detector, a bridge sensor, and a low-level voltage input rarely present the same source impedance or settling behavior. A front end with inadequate input characteristics tends to make these channels interact indirectly through charge injection, leakage, or settling residue. The LMP90100’s high-impedance differential MUX is designed to reduce exactly these effects.

The per-channel configurability is one of the stronger architectural decisions in this device. Independent gain and output data rate selection, combined with an automatic channel sequencer, allow the measurement chain to be shaped around the physics of each sensor rather than forcing all channels into a single operating point. That approach is more valuable than it first appears. In a realistic design, an RTD channel benefits from low bandwidth, aggressive noise filtering, and moderate gain stability. A thermocouple channel may require high gain, careful offset management, and slower update rates to maximize effective resolution. Another channel used for a supervisory voltage or process threshold may prefer a faster response with less filtering latency. The LMP90100 supports this channel-by-channel specialization directly, which reduces firmware complexity and avoids the common compromise of tuning the entire acquisition system around the most demanding channel.

The automatic channel sequencer contributes not only convenience but determinism. In multi-sensor systems, measurement quality is influenced by timing regularity, settling after MUX transitions, and the consistency of digital filtering conditions from one scan to the next. A hardware-driven sequence is usually more repeatable than ad hoc firmware polling, particularly in low-power systems where the host processor may sleep between events. This kind of determinism becomes important when diagnostics, averaging windows, or calibration routines assume stable inter-channel timing. It also reduces the risk that firmware jitter is misinterpreted as sensor instability.

The specified output data rates, approximately 1.6775 SPS to 214.65 SPS across eight settings, define the throughput-noise trade space. Lower data rates in a sigma-delta architecture generally provide better noise suppression because more oversampling and filtering are applied before each output code is reported. Higher data rates reduce latency and improve responsiveness, but noise increases and interference rejection may weaken depending on the selected filter behavior. Single-cycle settling is especially important here. In multiplexed systems, a converter without fast settling may require several conversion periods after each channel switch before data is valid, which sharply reduces usable throughput and complicates scan scheduling. Single-cycle settling means the first conversion after a channel or configuration change can be considered valid much sooner, making per-channel optimization practical rather than theoretical.

For designers dealing with line-powered environments, the output-rate selection also affects rejection of 50 Hz and 60 Hz interference. Precision low-level measurements often fail not because the ADC lacks nominal resolution, but because the selected data rate and filtering do not align with the spectral content of the interference environment. In field deployments, this becomes visible as a slowly moving code pattern that disappears in the lab but reappears when cabling is extended or grounding changes. A careful selection of data rate, wiring topology, and averaging strategy usually matters more than pushing for the highest advertised resolution. The LMP90100 gives enough flexibility to make these tradeoffs intentionally.

From a signal-chain perspective, the device is best understood as a configurable precision acquisition platform. The sensor drives a differential high-impedance input stage. The selected channel is routed through the MUX. The PGA scales the signal to match converter range. The sigma-delta modulator oversamples the conditioned signal. Digital filtering then reconstructs the low-frequency component while suppressing out-of-band quantization noise and part of the environmental interference. Finally, the channel sequencer and per-channel configuration layer determine how this path is reused across multiple sensors with different electrical behaviors. When viewed this way, the LMP90100 is less a standalone ADC and more an integrated measurement pipeline optimized for slow, precise, heterogeneous sensing.

This architecture is particularly effective in systems that combine multiple low-bandwidth sensors under strict power and board-area limits. Industrial temperature monitoring is a natural fit, especially when several RTDs or thermocouples must be scanned with different gains and update intervals. Process instrumentation, battery-powered data loggers, environmental monitors, and distributed sensor nodes also benefit from the same structure. The device allows one conversion engine to service channels with very different amplitude and bandwidth requirements, which can eliminate external gain stages and reduce analog routing complexity. That said, integration does not remove the need for disciplined front-end design. Reference quality, input filtering, sensor excitation stability, and PCB leakage still set the real performance ceiling.

In practical layouts, a few issues usually dominate results. The first is source settling after channel switching. Even with single-cycle settling, large differences in source impedance between channels can expose board parasitics and input filter interactions. Keeping the RC network at each input consistent, or at least predictable, usually improves scan-to-scan stability. The second is gain planning. High PGA settings are useful, but they magnify not only the desired signal but also offset, thermoelectric effects at connectors, and EMI coupled into long sensor leads. The third is reference strategy. A high-resolution ADC can only be as stable as its reference path, and in ratiometric measurements the excitation and reference architecture should be chosen together rather than independently. The most reliable implementations treat the ADC, sensor drive, and reference network as one closed measurement system.

A useful way to think about the LMP90100 is that its main value lies in controlled flexibility. Many mixed-sensor designs fail when flexibility is added only at the firmware layer while the analog path remains fixed. This device takes the more effective approach: it makes the analog gain, sampling rate, and channel sequencing adaptable at the hardware level. That reduces compromise between channels and helps preserve precision where it is actually needed. In precision measurement systems, architecture usually matters more than headline resolution, and the LMP90100 reflects that principle well.

Texas Instruments LMP90100 Input, Reference, and Excitation Resources

Texas Instruments LMP90100 integrates signal input routing, reference management, and sensor excitation resources in a way that materially reduces front-end complexity for precision measurement systems. This matters less as a feature checklist item and more as an architectural advantage. In many mixed-sensor designs, the analog challenge is not only ADC resolution, but also how cleanly the system handles channel multiplexing, reference tracking, and excitation delivery without introducing avoidable error terms. The LMP90100 addresses these points inside one measurement device, which makes it especially effective in compact industrial instruments, multichannel temperature modules, and resistive sensor interfaces.

At the input level, the device supports 4 differential channels or 7 single-ended channels. That flexibility is useful because it maps well to the way real systems are partitioned. Differential mode is usually the right choice for low-level sensors, bridge outputs, and electrically noisy environments where common-mode rejection is part of the error-control strategy. Single-ended mode is often enough for slower housekeeping signals, bias monitoring, or voltage outputs already referenced to a local analog ground. Having both options in the same front end allows channel allocation based on signal physics rather than forcing a uniform interface across all sensors.

In practice, this input structure is particularly valuable when one instrument has to combine unlike measurements. A process node may need two RTDs, one pressure bridge, and several local analog status points. Without an integrated multichannel front end, that usually leads to multiple signal-conditioning blocks, separate references, and more board-level routing sensitivity. The LMP90100 reduces this fragmentation. The gain is not just lower component count. It also improves repeatability across channels because the same analog core processes multiple measurements under one timing and calibration framework.

The reference subsystem is one of the more strategically important parts of the device. LMP90100 provides two independent sets of external reference voltage pins, which enables multiple ratiometric measurement configurations. This is more significant than it first appears. In precision resistive sensing, absolute accuracy often depends less on the nominal precision of a standalone voltage reference and more on whether the ADC reference tracks the same excitation path that defines the sensor output. If the sensor signal and ADC reference move together, many supply and drift effects collapse into a ratio, which is exactly where robust measurement systems gain stability.

This is why the dual-reference arrangement is so useful for RTDs, load cells, bridge sensors, and other resistive structures. A designer can assign one reference domain to one sensor group and another reference domain to a different excitation or measurement class. That makes it easier to separate channels with different full-scale behaviors or different ratiometric requirements without external analog switching networks around the reference pins. In denser systems, that separation can simplify calibration strategy as well. It becomes possible to preserve one reference path for thermometric channels and another for bridge-based channels, reducing coupling between subsystems that otherwise would compete for the same metrology baseline.

The reference input range extends from 0.5 V to VA in differential mode. This wide range gives good freedom in selecting external reference networks and excitation-derived reference voltages. However, the electrical details matter. The specified reference input impedance is 10 MΩ, with reference input current of ±2 μA under stated conditions. Those numbers are high enough for many practical references, but they are not infinite, and that distinction becomes important in high-accuracy designs. If the reference is generated through large-value resistor networks, remote sensing lines, or weakly buffered dividers, input bias current can create offset shifts that are small in voltage terms yet still visible at high gain or over temperature. A low-noise, low-drift buffer or a stiffer reference source is often the safer design choice when chasing stable low-level measurements.

A common design mistake is to focus heavily on ADC resolution while underestimating reference path impedance and routing symmetry. In this class of front end, reference integrity is often the dominant factor once the sensor and gain configuration are reasonably chosen. Long traces, thermal gradients across reference resistors, and shared return currents can produce errors that look like unexplained gain drift. Keeping the reference loop compact and Kelvin-aware usually yields more benefit than adding nominally better passive components without improving layout structure.

The integrated excitation current sources are another major differentiator. LMP90100 and LMP90098 include two matched programmable current sources from 100 μA to 1000 μA. For resistive sensing, this is a strong feature because it moves excitation generation into the same device that performs the conversion. That reduces dependence on external current-source circuits, minimizes interstage mismatch, and makes the measurement chain easier to model. It also helps ensure that excitation behavior is controlled in a repeatable way across channels and across production units.

For RTD measurement, matched current sources are especially useful because they support predictable excitation while enabling wiring topologies that compensate for lead resistance or measurement asymmetry. In 3-wire or 4-wire RTD systems, current matching directly affects how well lead-induced error terms cancel. If the currents are generated by separate external circuits, even small mismatch can leak into the final temperature result as a residual offset that varies with cable resistance. Integrating matched sources does not remove the need for calibration, but it tightens the starting point and usually makes the compensation behavior cleaner.

For bridge and other resistive sensors, the current sources can also reduce the amount of dedicated excitation circuitry. That does not mean they replace every external source requirement. It means the front end can cover a wider set of moderate-power sensing cases without extra precision analog blocks. In low-power instrumentation, this is often the better trade. A slightly simpler excitation scheme with good internal matching and ratiometric reference handling can outperform a more elaborate external arrangement that looks stronger on paper but is harder to route, stabilize, and calibrate.

The excitation current source accuracy depends on supply conditions. At VA = VREF = 3 V, the typical tolerance is 2.5%, with a maximum range of -7% to 7%. At VA = VREF = 5 V, performance improves substantially to 0.2% typical, with a maximum range of -3.5% to 3.5%. This supply dependence should influence system planning. If the application relies on absolute current accuracy, 5 V operation is clearly more favorable. If the measurement is strongly ratiometric and the current source is mainly part of a ratio-preserving excitation scheme, the looser absolute tolerance at 3 V may still be acceptable, provided the rest of the signal chain is arranged to cancel excitation variation.

That distinction is important in real designs. Absolute current-source tolerance matters when the sensor transfer function depends directly on excitation magnitude and the ADC reference does not fully track it. It matters less when the same excitation-derived quantity also defines the reference seen by the converter. In other words, whether 2.5% is problematic depends less on the datasheet number alone and more on whether the architecture converts that error into gain error or cancels it through ratiometric measurement. This is one of the recurring themes in precision front-end design: error terms should be classified by whether the system preserves them, attenuates them, or mathematically rejects them.

Output compliance extends to VA - 0.8 V, and current-source regulation is specified as 0.07 %/V at VA = 5.0 V over the 100 μA to 1000 μA range. Compliance is often overlooked during early schematic work, then becomes a source of unexpected saturation during bring-up. The current source can only regulate correctly if enough voltage headroom remains across the excitation path. With higher-value RTDs, bridge arms, protection resistors, analog switches, or fault-detection elements in series, that headroom can disappear faster than expected. A design may appear valid from a nominal resistance calculation but fail at temperature extremes, where sensor resistance rises and supply margin shrinks. Checking worst-case compliance early avoids a class of intermittent field issues that are difficult to diagnose after the board is built.

The regulation figure of 0.07 %/V also deserves practical interpretation. It means excitation current is not fully immune to analog supply movement. In systems with noisy or weakly regulated analog rails, supply variation can modulate sensor excitation and appear as low-frequency gain drift unless the measurement is arranged ratiometrically. This again reinforces the value of the dual-reference capability. The current-source block and the reference structure are not isolated features; they are most effective when used together as one measurement architecture.

From an application standpoint, the strongest use cases for LMP90100 are multichannel precision nodes where several resistive or low-level analog sensors must be measured with minimal external analog infrastructure. RTD modules are a natural fit because the integrated current sources reduce excitation design effort, while differential inputs and flexible references support stable low-level conversion. Bridge-based pressure or force sensing also fits well, particularly where board space and channel density matter. Mixed-signal industrial transmitters can benefit too, since the same device can service precision sensor channels and lower-priority monitor signals without forcing a separate front-end chain for each signal class.

A good implementation strategy is to treat the device not as a generic ADC with extra pins, but as a configurable metrology subsystem. Inputs, references, and current sources should be assigned together, based on the error budget of each sensor type. High-sensitivity channels should get the cleanest differential routing and the most tightly coupled reference-excitation relationship. Lower-priority single-ended channels can then use the remaining input capacity without disturbing the core precision path. That approach usually leads to cleaner calibration, fewer unexplained interactions, and a more predictable production outcome.

Overall, the LMP90100 stands out because it integrates the three resources that precision resistive and low-level sensor systems repeatedly need: flexible analog inputs, multiple external reference paths, and matched programmable excitation currents. The real advantage is not convenience alone. It is the ability to build a measurement chain in which routing, reference tracking, and excitation behavior are aligned from the start. When that alignment is done well, accuracy improves not by one dramatic specification, but by the quiet removal of several smaller error mechanisms that otherwise accumulate across the front end.

Texas Instruments LMP90100 Calibration and Diagnostic Features for Long-Term Accuracy

Texas Instruments positions the LMP90100 as a precision measurement front end for systems where error stability matters more than headline resolution. In industrial instrumentation, the limiting factor is rarely the nominal bit count of the ADC alone. The real constraint is how measurement error evolves after installation, across thermal cycles, component aging, sensor replacement, wiring stress, and continuous uptime. The LMP90100 addresses that operating reality by combining conversion, calibration, and diagnostics into a single measurement subsystem rather than treating them as separate design tasks.

At the core of its value is true continuous background calibration. This matters because many precision data acquisition paths degrade gradually in ways that are not visible in short bench tests. Offset shifts with temperature gradients. Gain error changes with front-end drift. Internal references and analog blocks age at different rates. In a conventional architecture, calibration is often periodic and disruptive: conversions stop, a calibration sequence runs, and then measurement resumes. That model works in lab equipment but becomes less attractive in process control, transmitter loops, and remote monitoring nodes where uninterrupted data flow is expected.

The LMP90100 takes a different approach by calibrating continuously in the background across all gains and output data rates. The practical implication is not just convenience. It changes the error budget structure of the system. Instead of allocating large margins for time-varying offset and gain drift, the design can rely more heavily on the converter’s ongoing correction behavior. This reduces the need to overcompensate elsewhere in the analog chain. In well-partitioned designs, that often translates into simpler calibration workflows, fewer field recalibration events, and more stable reported values over the life of the equipment.

The most important engineering point is that background calibration only creates real value if it is transparent to the measurement path. If calibration introduces dead time, latency spikes, or throughput loss, it becomes a system-level tradeoff. The LMP90100 documentation specifically emphasizes that calibration occurs without interrupting conversions and without speed or power penalties. That claim is significant because it means the feature is not merely a maintenance aid; it is part of normal operation. In control-oriented systems, this distinction is critical. A clean continuous data stream is often more valuable than a slightly lower static error measured under ideal conditions.

This also affects thermal behavior in a useful way. Temperature-induced error does not appear as a one-time shift; it is a moving target driven by ambient changes, self-heating, enclosure thermal lag, and sensor excitation conditions. Continuous calibration is therefore more aligned with how industrial equipment actually behaves in the field. A converter that corrects while operating under changing conditions is generally more relevant than one that achieves excellent trimmed performance only at startup or at a single calibration point.

The device’s in-place system calibration adds another layer of usefulness. Expected value programming allows calibration to be performed in the actual assembled system against known conditions rather than depending only on device-level factory trim. That distinction is easy to underestimate. Once the ADC is integrated into the instrument, total system error is shaped by much more than the converter itself: sensor tolerances, reference routing, PCB leakage, input protection networks, connector resistance, EMI filtering, and amplifier offsets all contribute. Calibrating at the system level captures these effects in the final transfer function.

This is particularly effective in fixed-installation equipment such as pressure transmitters, temperature transmitters, weigh modules, and multi-channel process monitors. During manufacturing, a known electrical or sensor-equivalent condition can be applied, and the LMP90100 can align the measured output to the expected value seen by the complete signal chain. In practice, this tends to reduce the gap between bench characterization and deployed behavior. It also helps standardize production because the calibration target is tied to actual instrument behavior rather than idealized component specifications.

A useful way to think about this feature is that it shifts calibration from component correction to measurement context correction. That is a better fit for industrial electronics, where the installation environment and assembled signal path often dominate residual error. Designs that rely only on isolated ADC calibration may still drift into unacceptable system-level deviation because the surrounding analog path was never included in the correction loop. The LMP90100 makes it easier to close that gap.

The diagnostic engine is equally important for long-term accuracy because a measurement that looks plausible but is physically invalid is often more dangerous than a hard fault. The LMP90100 supports continuous background diagnostics that detect open-circuit inputs, short-circuit conditions, and out-of-range sensor signals without requiring constant supervisory intervention. This directly improves fault visibility at the edge of the system, where many failures first appear as subtle analog abnormalities rather than digital exceptions.

Open-circuit detection is especially relevant for resistive sensors, bridge interfaces, and remotely wired transducers. In field wiring, intermittent connections often occur before complete failure. A cleanly designed diagnostic path can expose these conditions early, preventing the control system from accepting drifting or floating input values as legitimate process data. Short-circuit detection serves a similar purpose on the opposite side of the fault spectrum, identifying cases where the sensor path collapses electrically and the reported value no longer reflects the physical variable. Out-of-range detection closes the loop by flagging behavior that may be electrically valid yet operationally impossible or outside expected sensor limits.

From a firmware perspective, integrated diagnostics simplify the supervisory stack. If the measurement IC already classifies core analog fault modes, the host controller can move up one level and focus on fault policy rather than low-level signal interpretation. That usually leads to cleaner software partitioning. The converter handles immediate analog health checks, while the application layer decides whether to alarm, ignore, retry, latch the fault, or transition the system into a safe operating mode. This separation is often preferable to implementing custom fault inference entirely in firmware, where edge cases and timing interactions can become difficult to validate.

There is also a practical maintenance benefit. In remote or sealed installations, service events are expensive, and ambiguous faults are costly. A channel that reports both a measurement and its own health state is far easier to manage than one that provides only raw conversion data. In many deployed systems, the real savings come not from improved nominal accuracy but from faster root-cause isolation when the reading becomes questionable. Built-in diagnostics shorten that path.

These capabilities collectively make the LMP90100 less like a standalone high-resolution ADC and more like an embedded instrumentation block. That distinction matters when defining system architecture. If the converter can continuously suppress offset and gain drift, support final in-system calibration, and detect primary analog fault conditions, then several external burdens become lighter. The analog front end can be designed with better overall balance rather than excessive compensation for every possible drift mechanism. Production calibration can be tied more closely to final instrument behavior. Firmware can be simplified because measurement integrity checks are available at the source.

One useful design pattern is to treat the LMP90100 as the boundary between analog uncertainty and digital trust. Signals entering the device still require careful sensor interface design, grounding discipline, reference hygiene, and protection against transients. But once inside, the device contributes active correction and health monitoring instead of acting as a passive sampler. That architectural role is often more valuable than raw resolution because it improves confidence in the data over the full operating life of the instrument.

In practice, the strongest benefit appears in systems that remain powered for long periods and experience environmental variation. Short benchtop tests often fail to reveal the full value of background calibration and diagnostics because the setup is too stable and the observation window is too short. Their advantage becomes more obvious in chambers, on factory floors, or in outdoor cabinets where thermal movement, wiring stress, and sensor aging are unavoidable. Under those conditions, devices that maintain accuracy while continuously checking input validity tend to outperform nominally similar converters that depend on static calibration assumptions.

The LMP90100 therefore stands out not because it merely converts with high precision, but because it actively manages the two problems that dominate real measurement systems: slow error accumulation and silent fault propagation. That combination is what gives it long-term practical value in industrial designs where the reading must remain both accurate and believable long after the initial calibration label is applied.

Texas Instruments LMP90100 Key Electrical and Conversion Performance

Texas Instruments positions the LMP90100 as a 24-bit sigma-delta analog front end, but the nominal converter width is only the starting point. In precision measurement design, the deciding factors are effective resolution under realistic bandwidth conditions, residual offset after calibration, drift across temperature, gain stability, and rejection of supply and environmental interference. Viewed through that lens, the LMP90100 is clearly optimized for low-level sensor acquisition where the signal of interest is often measured in microvolts to millivolts and where static accuracy is less important than repeatable, stable, low-noise conversion over time.

The most useful performance indicators are its effective number of bits and noise-free resolution. The device is specified for up to 21.5 bits ENOB and 19 bits noise-free resolution. That distinction matters. ENOB reflects the converter’s practical dynamic performance after noise and nonidealities are included, while noise-free resolution is a stricter indicator for threshold-like measurements where output code flicker must be minimized. In instrumentation channels, this difference usually determines whether firmware can rely on a single conversion or must average multiple samples to produce a stable engineering value. A 24-bit label can appear impressive in isolation, but 21.5 effective bits is the more honest representation of what the system can extract from a low-frequency sensor signal.

The listed total input-referred noise of less than 10 μV rms further reinforces that positioning. For bridge sensors, thermocouples, RTDs with low excitation voltages, and shunt-based current measurements, this noise floor sets the lower bound on usable signal swing before digital filtering and averaging are required. In practice, the converter’s internal programmability and gain options make this noise figure more meaningful than the raw ADC resolution, because the front-end gain determines how effectively the sensor span occupies the converter input range. That is why gain-dependent offset data in the specification is especially revealing: the architecture is designed to reward proper signal scaling.

Offset performance is one of the strongest indicators that the LMP90100 is intended for precision sensing rather than general data acquisition. At 3 V supply, 214.65 SPS, with calibration enabled, buffer enabled, and gain set to 1, the typical offset error is 1.22 μV, with a maximum of 9.52 μV. Under nearly the same conditions but at gain 128, the typical offset error drops to 0.00838 μV, with a maximum of 0.70 μV. At 5 V supply, gain 1 gives 1.79 μV typical and 8.25 μV maximum, while gain 128 yields 0.0112 μV typical and 0.63 μV maximum. These numbers show more than simple offset reduction. They show that the signal chain behaves best when the analog front end is configured so that the sensor uses as much internal gain as possible without sacrificing headroom. That is a recurring pattern in precision ADC design: resolution is rarely recovered downstream if analog scaling is left too conservative upstream.

This behavior has direct design implications. For a low-output bridge or thermopile, operating at higher PGA gain can materially improve the ratio between signal amplitude and residual offset. For larger input signals, the gain must be reduced, but the penalty is a more visible zero-scale error contribution. In board-level systems, that often changes the calibration strategy. A channel running at gain 128 may need only occasional field recalibration if ambient conditions are controlled, whereas a gain-1 channel tied to a higher-level sensor or muxed input can benefit from more frequent offset refresh, especially after thermal transitions or startup. This is one of the areas where the LMP90100 rewards a system designer who treats calibration as part of normal runtime behavior rather than a one-time production step.

Temperature drift is another area where the device shows strong precision intent. With calibration enabled, offset drift can be as low as 3 nV/°C for gains 1 to 8, 0.4 nV/°C at gain 16, and 0.125 nV/°C at gain 128. Gain drift is specified at 0.5 ppm/°C at 214.65 SPS with calibration on. These are not just attractive datasheet values. They indicate that the converter can preserve low-frequency measurement integrity across slow thermal changes without requiring aggressive compensation in the host processor. In long-cycle industrial systems, the dominant error source often shifts from instantaneous conversion noise to drift accumulated over hours, days, or seasonal ambient swings. A converter with low drift reduces the burden on both system calibration tables and enclosure-level thermal management.

This matters especially in designs that multiplex several slow-moving sensor channels into a single precision front end. In that scenario, the ADC is not only measuring the sensor but also repeatedly recovering from channel switching, common-mode changes, and local thermal gradients near the PCB. Low offset drift and low gain drift improve the repeatability of that recovery. Experience with precision multiplexed systems shows that a converter may look excellent in single-channel lab evaluation yet degrade noticeably once neighboring channels carry different source impedances or excitation states. The LMP90100’s drift and rejection figures suggest it was built with that more difficult environment in mind.

Line-frequency rejection is another practical strength. The device supports simultaneous 50 Hz and 60 Hz rejection at output data rates up to 13.42 SPS. For industrial and building automation sensing, this is often more valuable than raw throughput. Many precision sensor signals change slowly, but they are measured in electrically noisy installations with long cable runs, shared grounds, relay switching, and mains-coupled interference. A converter that can suppress both utility frequencies without relying entirely on external analog filtering simplifies front-end design and reduces sensitivity to installation quality. The tradeoff is throughput: achieving strong notch behavior requires lower output data rates. That is usually acceptable for temperature, pressure, load, chemical sensing, and process monitoring, but less attractive for fast control loops or transient capture.

The specified rejection metrics support that interpretation. Common-mode rejection reaches up to 120 dB, reference common-mode rejection is 101 dB, power-supply rejection is up to 115 dB, normal-mode rejection is 78 dB, and crosstalk performance reaches 143 dB under defined conditions. These are system-level enablers, not just isolated analog metrics. High CMRR helps when sensor grounds are imperfect or when cable pickup drives both inputs together. Strong PSRR reduces the need for extreme regulator cleanliness, though it does not eliminate the need for disciplined decoupling and layout. Reference common-mode rejection is particularly relevant in ratiometric and low-drift reference networks, where subtle movement in reference biasing can otherwise leak into the result. Crosstalk performance becomes important when multiple high-impedance channels share the same converter infrastructure. In densely integrated sensing nodes, crosstalk is often underestimated until one channel’s excitation state begins to bias another channel’s reading in a repeatable but confusing way.

Linearity and gain accuracy complete the picture. A typical gain error of 7 ppm and maximum INL of ±15 ppm of full-scale range place the converter comfortably in the precision measurement category. For low-bandwidth instrumentation, INL and gain error often matter less than noise and drift in the short term, but they become increasingly important once the system is calibrated and averaged. After enough digital filtering, random noise falls and deterministic errors remain. That is the point where ppm-level nonlinearity starts to set the floor for absolute accuracy across the span. In applications such as weighing, low-pressure sensing, and thermal process control, this determines whether a simple two-point calibration is sufficient or whether multi-point correction is justified.

A useful way to think about the LMP90100 is as a converter whose value emerges when the entire signal chain is aligned with its strengths. It is not a universal high-resolution ADC for any waveform. It is most effective when paired with slow, low-level, high-value measurements where the system benefits from high internal gain, calibration-enabled operation, narrow bandwidth, and strong interference rejection. If the application instead requires wide bandwidth, fast settling after mux changes, or broad-spectrum signal capture, then many of its best characteristics become less relevant than throughput and latency.

In practical implementation, several design patterns tend to extract the best performance. Keep sensor source impedance balanced where possible so that common-mode rejection remains meaningful in the real board environment, not just in the datasheet test setup. Use the highest safe gain that preserves sensor and fault headroom, because this usually improves effective use of the converter’s low-noise region. Treat calibration registers and calibration timing as active design parameters. In precision systems, the difference between acceptable and excellent performance often comes from when calibration is triggered relative to power-up, channel switching, and thermal stabilization. Also, avoid assuming that strong PSRR alone can overcome poor reference routing. For microvolt-class measurement, reference cleanliness and return-current control still dominate many unexplained error cases.

Taken together, the LMP90100 specifications point to a converter built for microvolt-level integrity, stable long-term behavior, and resilience against industrial interference. Its real strengths are not captured by the 24-bit headline. They are expressed in how effectively it suppresses drift, how well it maintains accuracy at high gain, and how reliably it rejects the unwanted signals that dominate low-level measurement systems. That combination makes it particularly well suited to precision sensor interfaces where measurement credibility depends less on raw code width and more on whether the same physical input produces the same trusted result across time, temperature, and installation conditions.

Texas Instruments LMP90100 Power, Supply, and Operating Conditions

Texas Instruments LMP90100 uses a split-supply architecture that is particularly useful in mixed-domain measurement systems. The analog supply, VA, spans 2.85 V to 5.5 V. The digital I/O supply, VIO, spans 2.7 V to 5.5 V. This separation is more than a convenience feature. It allows the analog front end to run from a supply selected for sensor dynamic range and analog headroom, while the interface side can match the host controller voltage directly. In practice, this avoids unnecessary level shifting in many 3.3 V MCU designs and also makes it easier to pair the device with legacy 5 V transmitter loops or industrial backplanes.

From an engineering perspective, the split rails also help contain digital interference. When analog and digital domains share one poorly managed rail, interface switching currents can modulate the measurement baseline through supply impedance and ground return coupling. With the LMP90100, the supply partition gives the board designer a cleaner starting point, but it does not eliminate the need for careful layout. Decoupling still matters. Short return paths, local high-frequency bypassing, and separation of analog and digital current loops remain essential if the target is stable low-level sensor acquisition rather than merely functional communication.

The input range is set by a simple but important relationship: full-scale input is ±VREF/PGA. This formula drives much of the front-end design strategy. The reference voltage can be selected from 0.5 V up to VA, and the programmable gain amplifier scales that reference-defined span into an effective input window. As a result, reference selection and PGA setting cannot be treated independently. They jointly determine how much of the ADC range is actually used by the sensor signal, and therefore how much effective resolution is preserved after noise, offset, and drift are considered.

This point becomes especially important with low-level sensors such as bridge outputs, RTD measurement circuits, or thermocouple front ends. If VREF is chosen too high and gain too low, only a small fraction of the converter range is used, and the quantization plus front-end noise floor consumes a larger portion of the signal. If gain is pushed too aggressively, normal transients, sensor overrange, startup imbalance, or fault conditions can drive the modulator into saturation. A robust design typically leaves some margin around the expected peak signal instead of targeting theoretical full-scale utilization. In fielded systems, this margin often prevents intermittent clipping caused by temperature drift, sensor tolerance spread, or calibration residuals.

Reference design deserves the same attention as sensor design. Since the input span tracks VREF directly, any noise or drift on the reference effectively appears as conversion uncertainty. For precision channels, the reference source should be treated as part of the signal chain rather than as a support block. A low-noise reference, clean routing, and controlled thermal environment usually deliver more benefit than simply increasing gain. A common design mistake is to optimize the sensor interface while feeding the ADC from a reference node that shares current spikes with other circuitry. The resulting measurement instability is often misattributed to the sensor or the PGA setting.

The operating temperature range of -40°C to 125°C positions the LMP90100 well for industrial instrumentation, process transmitters, and outdoor sensing nodes. This range is not only about device survival. It indicates that the part is intended for environments where ambient temperature, enclosure heating, and local self-heating all interact. In these applications, measurement accuracy is influenced not just by the ADC core, but by the thermal behavior of the entire signal path: sensors, references, input protection networks, and PCB leakage paths. At higher temperatures, bias currents, resistor drift, and insulation degradation become more visible. That means a design that looks stable on the bench at room temperature can show systematic error growth in a sealed enclosure exposed to solar loading or process heat.

A practical way to read the temperature specification is to treat it as an electrical operating window, not an automatic accuracy guarantee across all surrounding components. For example, if the LMP90100 is used in a 4–20 mA transmitter with remote installation, the local board temperature may sit tens of degrees above ambient because of regulator dissipation and loop compliance voltage. In that condition, reference drift and front-end resistor tempco often dominate before the ADC itself becomes the limiting factor. Designs intended for high-temperature operation usually benefit from thermal symmetry around sensitive analog nodes and from keeping heat-generating components away from the reference and sensor-conditioning path.

Current consumption varies strongly with operating mode, clock source, data rate, gain, and buffer configuration. This dependency is a key part of system optimization. Under low-rate conditions with external clock and buffer disabled, analog supply current can be as low as 400 μA typical at 3 V and 464 μA typical at 5 V. Under higher-speed conditions with internal clock and buffer enabled, current rises substantially, reaching examples such as 1547 μA typical at 3 V and 1760 μA typical at 5 V. These numbers show that power is not fixed by the silicon alone. It is strongly shaped by configuration choices.

That spread is valuable because the LMP90100 is often used in systems with competing priorities. One design may target long battery life and sample only slowly changing process variables. Another may need faster updates for control loops, fault detection, or multiplexed channel scanning. The device allows movement along that tradeoff curve, but the most efficient operating point is usually application-specific. High data rate is not always equivalent to better system performance. In noisy industrial environments, pushing update rate without matching the digital filtering strategy can simply increase bandwidth to unwanted interference. In many cases, a lower conversion rate paired with better analog hygiene and a cleaner reference yields more actionable measurement quality than a faster but noisier acquisition path.

Clock source selection also has second-order effects. An external clock can help align conversion timing with a broader system schedule and may lower current in some conditions. It can also make EMI behavior more predictable if the system already manages a global timing architecture. The internal clock simplifies implementation, but in precision layouts, the simplicity benefit should be weighed against noise coupling and power profile requirements. The right choice depends less on the datasheet headline and more on whether the converter sits in an isolated low-bandwidth sensor node or beside a dense digital subsystem.

The buffer state is another subtle design lever. Enabling internal buffering may simplify interfacing for sources that cannot comfortably drive the ADC input structure, especially when source impedance is not very low or when channel multiplexing is involved. The cost is increased current and potentially different noise behavior. Buffer-off operation can reduce power, but it expects the upstream network to settle cleanly and present the required drive characteristics. This is one of those areas where bench behavior with a lab source can differ from installed behavior with long sensor leads, EMI filters, and protection elements in place. If the signal source includes RC filtering, cable resistance, or sensor impedance variation across temperature, validating settling and conversion repeatability in the final network is more informative than relying on nominal source models.

The low-power modes are well suited for duty-cycled instrumentation. In standby mode with internal clock, current drops to 3 μA typical at 3 V and 5 μA typical at 5 V. In power-down mode, it falls further to 2.6 μA typical at 3 V and 4.6 μA typical at 5 V. For remote nodes, energy harvesting systems, and battery-backed transmitters, these modes can reduce average power by orders of magnitude when active measurement time is short relative to the sleep interval.

The practical value of these modes depends on the full wake-measure-sleep sequence, not just the static sleep current. Average current is shaped by startup latency, reference settling, sensor excitation stabilization, digital communication overhead, and any calibration cycle that must run after wake-up. In low-duty-cycle systems, these transients often dominate the power budget more than expected. A design that enters the deepest sleep state too aggressively can save microamps statically while losing efficiency through repeated wake overhead. Standby is often the better system-level choice when wake frequency is high and analog state retention reduces resettling time. Power-down becomes more attractive when inactive intervals are long enough to amortize reinitialization cost.

A useful design approach is to treat the LMP90100 operating modes as part of a measurement scheduler rather than as isolated register settings. For example, in a remote pressure or temperature node, conversions can be grouped into bursts, local filtering can be completed while the analog blocks remain active, and only then can the device transition into its lowest-power state. This usually produces a better energy-per-valid-sample ratio than waking the converter for every single reading. It also reduces repeated analog settling events, which tend to be a hidden source of both power loss and measurement inconsistency.

In system terms, the LMP90100 offers flexibility across three tightly linked axes: supply partitioning, input-range programmability, and operating-power scalability. The strongest designs take advantage of all three together. VA is chosen for analog headroom and reference strategy. VIO is matched to the controller domain to simplify integration. VREF and PGA are selected from expected sensor amplitude plus fault and drift margins, not from nominal values alone. Data rate, clock source, and buffer mode are then set according to required bandwidth and energy budget, not by default maximum performance. That layered approach generally produces a front end that is easier to calibrate, more tolerant of environmental variation, and more predictable once it leaves the bench and enters real installations.

Texas Instruments LMP90100 Digital Interface, GPIO, and System Connectivity

Texas Instruments positions the LMP90100 as more than a precision analog front end with an SPI port. Its digital interface, GPIO resources, and conversion orchestration features are clearly designed to reduce system friction around the ADC core. In practice, these functions matter because precision measurement performance is often limited less by nominal converter resolution and more by how cleanly data moves through the system, how efficiently channels are serviced, and how much auxiliary logic is required around the signal chain.

The device communicates through an SPI-compatible serial interface that supports both 4-wire and 3-wire operation. That flexibility is useful at the board level because it allows the interface to be matched to pin budget, isolation topology, and controller capability. In 4-wire mode, separate data input and output paths simplify timing analysis and reduce ambiguity during readback. In 3-wire mode, the shared data line can save routing and isolator channels, which is often valuable in compact sensor modules or galvanically isolated measurement nodes. The tradeoff is that bus ownership and turnaround timing become more important, especially when the interface is pushed near its practical speed limits or routed through digital isolators with asymmetric propagation delay.

A key strength of the LMP90100 serial link is support for CRC-based data-link error detection. This feature is not just a protocol convenience. In industrial installations, long traces, shared grounds, relay transients, motor drives, and isolation components can all introduce intermittent bit errors that are difficult to reproduce in bench conditions. CRC provides a low-cost mechanism to distinguish a valid measurement from a corrupted transfer. That distinction is critical when the ADC is embedded in a control loop or safety-relevant monitoring path. A repeated conversion with verified integrity is usually preferable to accepting a plausible but wrong code. In systems crossing an isolation barrier, CRC also helps separate analog-domain issues from digital transport faults during debugging, which shortens root-cause isolation significantly.

The physical serial signals are CSB, SCLK, SDI, and SDO/DRDYB. These are conventional on the surface, but the multiplexing of output and status onto SDO/DRDYB adds useful system behavior. The pin can present serial data during bus transactions and act as a data-ready indicator outside of them. This reduces the number of dedicated status lines required from the converter to the host. For low-power microcontrollers or interrupt-driven firmware, this arrangement can eliminate inefficient polling loops. The host can remain idle until conversion completion is asserted, then wake and retrieve the result with deterministic timing. That is a small architectural feature, but in multichannel low-bandwidth measurement systems it often has a measurable effect on firmware simplicity and energy budget.

The D6/DRDYB pin extends that same idea by offering either GPIO functionality or a dedicated data-ready output. This is a practical design choice because data-ready signaling is not uniformly important across applications. In some systems, a clean interrupt source is essential, particularly when conversion intervals are long and firmware latency must be minimized. In others, an extra general-purpose pin is more valuable than a second ready signal. The option to repurpose the pin allows the interface to be tuned for either deterministic acquisition or broader control-plane utility without external glue logic.

The seven GPIO pins are especially relevant in embedded instrumentation designs where digital support functions accumulate quickly. Status LEDs, mode straps, button inputs, alarm outputs, sensor-enable lines, and simple multiplexing controls can consume microcontroller pins faster than expected. Integrating seven GPIOs into the measurement IC can reduce component count and simplify partitioning, particularly when the LMP90100 sits near the analog domain while the main controller is placed elsewhere or across an isolation barrier. In those cases, keeping low-speed indicator and control signals local to the converter side can avoid burning extra isolator channels or adding a standalone I/O expander. The benefit is not only BOM reduction. It also shortens routing, reduces interface software, and limits the number of independently powered devices that must start up in the correct sequence.

That GPIO capability is most effective when used for low-bandwidth supervisory tasks rather than trying to turn the converter into a full system controller. LEDs, user switches, hardware state indication, sensor presence signals, and static configuration lines are a good fit. Time-critical waveform generation or high-frequency handshake logic is not. A useful design pattern is to reserve the LMP90100 GPIOs for functions that directly support the measurement path, such as excitation enable, fault indication, calibration-state signaling, or local maintenance inputs. This keeps the digital behavior tightly coupled to the measurement subsystem and avoids unnecessary firmware entanglement.

From a system-connectivity perspective, the combination of SPI, CRC, multiplexed ready signaling, and GPIO creates a strong fit for isolated industrial sensing modules. A common implementation strategy is to place the LMP90100 and sensor interface on the field side, then bridge SPI through digital isolation to a host processor. In that arrangement, 3-wire mode can reduce isolator channel count, while CRC compensates for the increased sensitivity of the transport path to timing distortion and common-mode noise. If extra local indicators or control inputs are needed on the field side, the integrated GPIOs can absorb them without requiring another isolated peripheral. This is one of those architectural details that does not stand out in a feature list but often decides whether a design remains compact and maintainable after the first board revision.

The automatic channel sequencer addresses a different source of system inefficiency: firmware-managed conversion orchestration. In a multichannel precision acquisition system, manually selecting each input, starting conversion, waiting for completion, reading data, and advancing to the next channel creates repeated control traffic and interrupt overhead. The sequencer allows the host to configure a channel list and let the device step through selected inputs autonomously. That lowers software complexity and improves temporal consistency across scan cycles. The reduction in firmware intervention is particularly useful when the host processor also manages communications, control tasks, or UI logic and cannot afford to service the ADC at every micro-event.

There is also a measurement-quality angle to the channel sequencer. When channel scanning is handled consistently in hardware, inter-channel timing becomes more deterministic. That matters when reconstructing slow process variables, correlating multiple sensor channels, or applying digital filtering with assumptions about sample spacing. Firmware-driven scans often look equivalent at a high level, but under load they can develop jitter due to interrupt latency, RTOS scheduling, or communication bursts. Hardware sequencing reduces that variability. For systems performing periodic temperature, pressure, bridge, or current measurements, the result is often a cleaner software model of the data stream and fewer corner cases in timestamp handling.

Even with a hardware sequencer, channel planning still matters. Channels with different source impedances, settling requirements, or sensor excitation schemes should be ordered carefully. It is usually better to group channels with similar analog behavior and avoid scan patterns that force repeated large input transitions unless the settling budget is well understood. This is where digital features and analog performance intersect. A sequencer can reduce overhead, but it will not correct poor channel ordering or insufficient settling time. The most robust implementations treat the scan list as part of the analog design, not just a firmware convenience.

Another practical point is the interaction between data-ready signaling and the sequencer. When the LMP90100 advances through channels automatically, DRDY-based interrupt handling becomes more attractive than fixed-delay polling. Polling tends to encode assumptions about conversion completion that may hold on the bench but become fragile once filters, clock tolerances, or firmware load change. Using the ready signal as the primary synchronization source makes the acquisition path more resilient. It also simplifies future firmware maintenance because timing dependencies are expressed through hardware events instead of hard-coded wait margins.

The digital feature set of the LMP90100 suggests a broader design philosophy: precision converters should not be evaluated only by ADC specifications. Interface resilience, event signaling, local I/O integration, and autonomous sequencing often deliver more real system value than a small improvement in headline resolution or noise figures. In many deployed instruments, the dominant engineering effort lies in making the measurement chain dependable under electrical stress, software load, and physical wiring constraints. The LMP90100 addresses that reality well. Its SPI options help fit diverse topologies, CRC raises communication trustworthiness, dual-use ready pins support efficient acquisition, GPIOs absorb peripheral control tasks, and the channel sequencer cuts repetitive firmware work while improving timing regularity.

For designs that must balance precision, isolation, pin count, and firmware economy, these capabilities are not secondary. They shape the overall architecture. The most effective use of the device comes from treating its digital interface and connectivity features as part of the measurement strategy from the beginning, rather than as post-selection conveniences added after the analog path is defined.

Texas Instruments LMP90100 Package, Pin Functions, and Hardware Integration Considerations

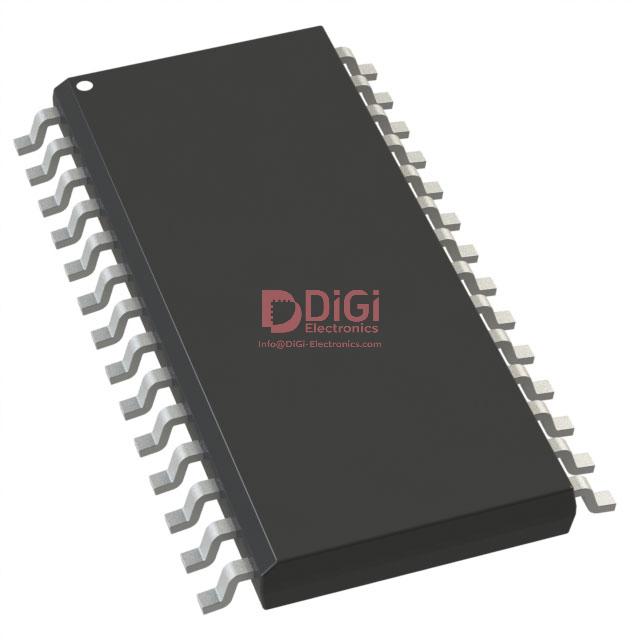

Texas Instruments LMP90100 is packaged in a 28-pin HTSSOP with an exposed pad, using a 9.70 mm × 4.40 mm body. This is a practical package choice for precision industrial acquisition hardware. It is compact enough for multi-channel measurement boards, yet still provides routing room for guarded analog traces, reference paths, SPI lines, and supply decoupling. In mixed-signal layouts, this balance matters more than the raw package outline suggests. A device with integrated front-end, excitation, reference options, and digital control can easily create congestion around the package if pin access is too tight. The HTSSOP format avoids much of that pressure.

The pin set reflects the LMP90100’s role as a configurable low-level signal acquisition device rather than a simple ADC. It separates analog supply VA from digital supply VIO, which is important for systems that run the sensor front end at one voltage domain and the digital controller at another. That split is not just for convenience. It is one of the main mechanisms for reducing digital interference in precision measurements while preserving interface compatibility with a lower-voltage MCU or isolation boundary. In practice, this partition becomes much more valuable when SPI edges are fast or when GPIO activity is frequent near conversion windows.

The analog input structure includes multiple VIN channels, two reference input pairs, and current excitation outputs IB1 and IB2. This arrangement supports a wide range of sensor interfaces, including resistive bridges, RTDs, thermistors, and differential low-level voltage sources. A useful detail is that VIN6 and VIN7 can be reassigned as VREFP2 and VREFN2. That reuse increases flexibility, but it also imposes a design tradeoff. Every multifunction pin saves package area and expands configuration space, yet it also raises the cost of poor planning at schematic stage. If the reference strategy is likely to evolve during bring-up, these shared pins should be treated as first-class resources early, not as spare analog inputs.

The dual reference input capability is especially relevant in systems that must support different sensor classes on the same platform. One reference path can be optimized for one measurement mode while the second supports another sensor topology or calibration regime. This is often more useful than it appears on first reading. In a modular measurement design, separating references can simplify firmware sequencing, reduce analog switching overhead, and improve repeatability when the signal chain changes operating mode. It also provides a cleaner route for ratiometric measurements, where reference stability relative to the sensor excitation matters more than absolute voltage accuracy.

The excitation current outputs IB1 and IB2 are a strong integration feature. They allow direct biasing of resistive sensors without requiring a separate current source IC in many designs. That reduces BOM count and often shortens sensitive analog loops. The real benefit, however, is not only component reduction. It is correlation. When excitation and conversion live in the same device ecosystem, error budgeting becomes more deterministic. Board-level parasitics still matter, but fewer inter-device interfaces usually means fewer uncontrolled variables. For RTD and resistance measurement applications, this can materially simplify calibration and fault analysis.

Clocking is handled through XIN/CLK and XOUT, allowing either a crystal connection or an externally driven clock. This is a useful system-level option. A local crystal can isolate the converter timing from the rest of the board and reduce dependence on upstream clock distribution quality. An external shared clock, on the other hand, can simplify synchronization across multiple acquisition devices or align conversion timing with a broader system schedule. The better choice depends less on nominal frequency accuracy and more on noise architecture. If a board already contains a noisy digital clock tree, importing that activity directly into a precision analog device is often a hidden cost. In quieter systems, a shared clock can be a clean and efficient solution.

Power-domain treatment deserves careful attention. VA and VIO can each go up to 6.0 V in the absolute maximum sense, but that number should be treated strictly as a survivability limit, not an operating target. Precision analog performance depends more on supply cleanliness, local decoupling, and return-current control than on absolute supply headroom. For this class of device, the difference between a functional design and a stable one is often decided by how the supplies behave during SPI traffic, sensor transients, and startup sequencing. Short return paths, dedicated analog decoupling near VA, and controlled digital edge rates on VIO-connected interfaces generally produce more measurable benefit than aggressive filtering added later in debug.

Input and reference voltage limits relative to GND and VA are equally important. The documentation notes that if an input exceeds the supply rails, the current at that pin must be limited to 5 mA. That statement should not be read as permission for routine overvoltage operation. It is a protection boundary. Once an input crosses the rails, internal protection structures may conduct, and the resulting current can disturb nearby channels, references, or substrate behavior even if the device is not permanently damaged. In multi-channel precision systems, this kind of event often appears first as unexplained offset shifts or settling anomalies rather than as an obvious failure. The safest design approach is to prevent rail overruns under all expected operating and fault conditions, then use series resistance and clamp strategy only as a secondary containment layer.

The package-level input current constraint is another detail with practical consequences. Limiting current on one overstressed pin is not enough if multiple pins can exceed the rails simultaneously. Aggregate injection matters because internal current paths share physical structures. In field-connected industrial designs, this becomes relevant during hot-plug events, sensor miswiring, open-ground cases, or transient common-mode surges. A robust front end should therefore be evaluated as a fault matrix rather than as isolated channels. It is common for a design to pass single-pin stress review and still fail system-level abuse scenarios because several inputs move out of range together.

Layout strategy should follow the device architecture. Keep reference traces short, symmetrical, and isolated from SPI and clock routing. Treat excitation outputs and their return paths as precision analog resources rather than ordinary bias lines. If the design uses ratiometric sensing, route excitation and reference in a way that preserves tracking through the same thermal and parasitic environment. Place VA decoupling close to the supply pins with a low-inductance path to ground. Keep VIO decoupling local as well, but avoid forcing digital return currents through sensitive analog ground regions. The best mixed-signal layouts are usually not those with the most aggressive partition line, but those with the most predictable current paths.

The shared use of VIN6 and VIN7 as a second reference pair deserves extra care in PCB planning. If these pins are used as VREFP2 and VREFN2, they should be routed and guarded with reference-grade discipline, not with generic analog-input assumptions. Reference nodes set the measurement scale, so noise or leakage here directly modulates every affected conversion. In dense layouts, it is easy to give all attention to low-level sensor inputs while underestimating reference integrity. In practice, reference routing quality often determines whether the converter reaches its expected repeatability.

Clock routing also benefits from restraint. Whether using a crystal or an external source, keep the clock network compact and separated from high-impedance analog nodes. A crystal loop should be physically tight. An external clock trace should avoid passing near VIN or reference paths. If conversions appear noisier only when the digital subsystem becomes active, the cause is often not the SPI protocol itself but indirect coupling from clock harmonics into the analog front end. Small geometry changes in routing can produce larger gains than adding shielding components after the fact.

The exposed thermal pad can be left floating according to the documentation, and the specified junction-to-ambient thermal resistance is 41°C/W for the 28-pin package. Electrically, floating the pad is acceptable per the device guidance. Mechanically and thermally, however, the pad still deserves attention in assembly and board design. A clean solder interface improves package stability and helps maintain predictable thermal behavior across operating conditions. Even when power dissipation is modest, temperature gradients can influence offset and drift in precision analog systems. It is easy to view thermal design as secondary for low-power converters, but stable thermal conditions often translate directly into more stable measurements.

From an integration perspective, the LMP90100 should be treated as a configurable measurement subsystem, not merely as a pin-compatible ADC in a small package. Its package and pinout support flexible sensor interfacing, but that flexibility only delivers value when the board is architected around reference integrity, fault containment, excitation routing, and clock discipline. Designs that respect those mechanisms tend to achieve predictable bring-up and cleaner calibration behavior. Designs that focus only on nominal pin function often remain functional, yet spend much longer in debug chasing issues that originate in shared references, injection current, or mixed-signal coupling.

Texas Instruments LMP90100 Typical Application Scenarios in Industrial Sensing

Texas Instruments LMP90100 is positioned for industrial sensing systems that need more than raw resolution. Its value comes from how the analog front end, excitation resources, channel configurability, and diagnostics are combined into a measurement path that is easier to stabilize over temperature, over time, and across field wiring variations. In practice, this matters most in systems where sensor signals are small, cable runs are imperfect, and maintenance cost is driven more by false confidence than by obvious failure.

At the device level, the LMP90100 is built around a 24-bit sigma-delta ADC, a programmable gain stage, input multiplexing, matched excitation current sources, and integrated fault detection. That combination is especially effective in industrial environments because precision sensing rarely fails at a single block. Error usually accumulates across sensor excitation, front-end gain, reference stability, PCB leakage, EMI pickup, and firmware assumptions. A highly integrated AFE reduces the number of analog boundaries where these errors can enter. It also makes calibration strategy more coherent, since gain, conversion timing, diagnostics, and reference behavior are coordinated inside one device rather than spread across several loosely coupled components.

RTD temperature measurement is one of the most natural application scenarios. RTDs produce a resistance change rather than a voltage output, so the signal chain must first generate a stable excitation current and then measure a small differential voltage accurately. The matched current sources in the LMP90100 simplify this directly. They allow the RTD and reference resistor to be driven in a way that supports ratiometric measurement, which is often more important than absolute current-source accuracy. When both the sensor voltage and the reference path are tied to the same excitation conditions, drift in the excitation source contributes far less to final error. This is a practical advantage in industrial thermal monitoring, where ambient changes, self-heating constraints, and long cable resistance can otherwise complicate the error budget.

The 24-bit sigma-delta architecture is also well aligned with RTD behavior. Temperature changes are generally slow, so the system can trade bandwidth for noise performance by operating at lower output data rates. That allows fine discrimination of small resistance changes without requiring excessive external filtering. The PGA then lifts the low-level RTD signal into a range better matched to the ADC input span. In deployed systems, this reduces pressure on board-level analog design. The signal no longer depends as heavily on a separate low-offset instrumentation amplifier placed close to the input connector, which is often where contamination, moisture, and grounding mistakes start to distort performance.

A subtle but important point in RTD systems is that the best architecture is not always the one with the highest nominal resolution. It is the one that holds its calibration shape under real operating conditions. The LMP90100 supports this more effectively because excitation, gain, conversion, and diagnostics can be managed as one measurement framework. In cabinet-level designs, that often leads to better long-term consistency than a discrete chain with individually strong components but weaker system coupling.

Pressure transmitters and strain-gauge interfaces are another strong fit. These sensors typically produce millivolt-level bridge outputs, and the useful signal rides on top of common-mode voltage, cable-induced disturbances, and supply-related artifacts. That makes low noise, high gain accuracy, and good common-mode rejection essential. The LMP90100 addresses this by combining a high-resolution converter with gain programmability and a front-end structure suited to differential bridge measurement. For bridge sensors, front-end noise density and gain stability directly affect not just static accuracy but also zero-point behavior and repeatability after thermal cycling.

In many pressure and load measurement systems, the hard problem is not obtaining a clean reading on the bench. It is preserving that reading after warm-up, after the sensor cable has been rerouted near a motor drive, or after the bridge has aged slightly and shifted its balance point. Integrated AFEs help because they reduce inter-device offset interactions and simplify grounding strategy. Fewer analog interfaces usually mean fewer hidden return paths and fewer opportunities for parasitic thermocouples, connector stress, or reference routing errors to create low-frequency drift. This is one reason integrated precision AFEs often outperform more visibly sophisticated discrete architectures once installed in real enclosures.

The LMP90100 is also well suited to industrial process-control nodes with multiple analog inputs and mixed channel behavior. In these systems, sensors rarely share the same timing or noise requirements. A temperature channel may benefit from low output data rate and aggressive noise filtering, while a pressure or flow-related channel may require faster updates to support control-loop responsiveness. Independent gain and output data rate selection per channel gives the designer a way to optimize each signal path instead of forcing all sensors into one compromise setting. This matters in smart transmitters, remote I/O modules, and sensor concentrators where board area and power budget limit the use of multiple dedicated converters.

That channel-level configurability becomes more useful when considered from a firmware and maintenance perspective. A mixed sensing node can schedule slow precision conversions for high-stability variables, then switch to faster channels when transient behavior matters. This is not just a convenience feature. It changes how the system budget is allocated. Conversion bandwidth, digital filtering latency, and noise floor can be distributed according to process value rather than hardware limitations. In practice, this often produces a cleaner architecture than placing a “universal” ADC behind an external analog multiplexing network and trying to recover performance through software correction.

Diagnostics are one of the most industrially relevant features of the device. Open-sensor detection, short detection, and out-of-range checks are not secondary functions. They are part of measurement integrity. In field systems, a failed reading is often less dangerous than a believable but corrupted one. Wiring degradation, intermittent terminal contact, moisture ingress, and connector oxidation can all distort sensor signals before they fully disconnect. Integrated diagnostics allow the measurement chain to classify these conditions early and report them in a structured way. That improves maintenance quality and reduces the chance that control software will act on invalid data that still appears numerically plausible.

This is particularly valuable in distributed sensing installations. A channel may pass bench calibration but later develop borderline cable faults that only appear under vibration or temperature swing. When diagnostics are embedded close to the measurement front end, the system can detect anomalies before they propagate upward as process deviations. That tends to be more effective than relying only on high-level plausibility checks in the controller, since those checks often cannot distinguish between an actual process event and a front-end failure mode.

From a design standpoint, the LMP90100 is most compelling when the goal is to build a stable measurement subsystem rather than just digitize an analog voltage. It is well matched to architectures where the sensor, excitation, ADC, and fault logic should behave as a coordinated measurement instrument. RTDs, bridge sensors, and multi-channel industrial input modules all fit this model. The common thread is not simply precision. It is the need to maintain precision while simplifying analog design, supporting flexible channel behavior, and exposing fault conditions before they become silent errors. In that sense, the device is less a generic converter and more a control point for measurement quality across the full sensing chain.

Texas Instruments LMP90100 Selection Considerations for Engineers and Procurement Teams

Texas Instruments LMP90100 should be assessed as a precision sensor acquisition subsystem, not merely as a 24-bit data converter. That distinction matters because the device’s real value is created by functional integration around the conversion core: programmable gain, input multiplexing, matched excitation resources, dual-reference support, diagnostics, and background calibration. In practical designs, these blocks often determine total measurement accuracy, board area, fault coverage, and firmware complexity more than nominal ADC resolution does.

For engineering selection, the first question is not “Do we need 24 bits?” but “What sensor chain are we trying to close?” In many industrial measurement paths, effective performance is limited by excitation drift, front-end offset, channel routing errors, reference instability, and field fault conditions long before raw converter quantization becomes the bottleneck. The LMP90100 is attractive when those non-idealities must be controlled inside a compact architecture. It reduces the number of external precision analog components, and that usually improves repeatability by shortening sensitive analog paths and reducing inter-component mismatch.

Its integrated PGA is especially useful when the input signal span varies across sensor types or across operating conditions. RTDs, bridge sensors, and low-level differential sources rarely land in a converter’s optimal full-scale range without gain staging. An external amplifier can solve that problem, but it adds offset, drift, layout sensitivity, and component-selection overhead. The internal gain path is not simply a convenience feature; it is part of a more coherent signal chain where gain, calibration, and conversion are managed within one architecture. That tends to simplify error budgeting, particularly in multi-channel systems where consistency between channels matters as much as absolute performance.

The multiplexing capability expands that advantage. In systems that aggregate several slow-moving process variables, the device can consolidate multiple differential inputs without the cost and routing burden of separate converter channels. That said, multiplexing is only beneficial when channel update rate, settling time, and source impedance are evaluated together. A frequent design mistake is to count channels first and analyze acquisition behavior later. With precision front ends, channel-to-channel settling after gain changes, sensor switching, or excitation changes can dominate throughput. The LMP90100 fits best where signals are relatively low bandwidth and measurement integrity is more important than simultaneous sampling.

Integrated current sources are one of the strongest indicators that this part is a good fit. For RTD measurement in particular, precision excitation is not a peripheral issue; it is part of the measurement itself. Using on-chip current sources can materially reduce BOM count and improve implementation density, but the real system benefit comes from architectural alignment. Excitation, reference strategy, and ADC transfer behavior can be designed together instead of being assembled from loosely matched parts. This often leads to cleaner ratiometric measurement schemes and fewer board-level thermal mismatch problems. In practice, that can remove a surprising amount of calibration effort during bring-up.

Dual-reference support adds another layer of flexibility. It allows designers to separate use cases that benefit from different reference domains, such as one path optimized for precision ratio measurements and another for absolute voltage sensing or diagnostics. This is easy to underestimate at the selection stage, yet it becomes valuable when the platform evolves and the original sensor mix expands. Devices that look slightly oversized early in a program often prove efficient later because they absorb requirement drift without a board respin.

Diagnostics and continuous background calibration are equally important selection drivers. In industrial systems, precision without observability is fragile. Offset drift, reference anomalies, open-sensor conditions, and subtle degradation mechanisms can convert a nominally high-resolution design into a maintenance problem. The LMP90100’s diagnostic and calibration features support more stable long-term deployment, especially in transmitters, process controllers, and remote instrumentation expected to operate across temperature and over long service intervals. This is where integrated analog front ends often outperform discrete chains in total ownership cost, even if the converter-alone comparison looks less dramatic on paper.

The strongest application fit is therefore in designs that need precision while also wanting to suppress external analog complexity. Multi-channel RTD interfaces, industrial temperature transmitters, low-speed process monitoring modules, and control-system input cards are natural examples. In these systems, the device can reduce amplifier count, simplify reference routing, and improve fault handling. It is less compelling in architectures that require high throughput, simultaneous sampling, very low standby current, or only a single straightforward analog input with no need for excitation or diagnostics. In those cases, a simpler ADC or a lower-feature family variant may produce a better cost-performance balance.

For procurement and platform planning, the LMP90xxx family structure deserves close attention. The family is useful not just because it offers pin- or function-adjacent options, but because it enables controlled feature scaling within a common architectural model. That can simplify qualification, firmware reuse, and second-wave product differentiation. A high-feature variant can anchor the initial development platform, while lower-resource derivatives can be deployed into cost-optimized SKUs once channel count, excitation needs, and diagnostic coverage are better understood. This is often more efficient than building separate analog architectures for each product tier.

Variant selection should be tied directly to the sensor map and fault model. If the design does not require integrated current excitation, excess channel count, or specific diagnostic features, choosing a smaller family member can reduce cost and possibly simplify sourcing. However, over-optimizing to the minimum feature set can create hidden risk. A small change in sensor configuration, regulatory diagnostics, or field calibration strategy can quickly erase the savings if the original selection leaves no architectural headroom. In mixed industrial portfolios, a modest amount of front-end overcapacity is often a rational trade, not waste.

Supply voltage range and operating environment also deserve more than a checklist review. Support for analog supply operation up to 5.5 V and industrial temperature performance up to 125°C broadens compatibility with transmitter loops, controller backplanes, and harsh-environment sensor modules. The higher supply range can improve interface flexibility with legacy analog domains and certain sensor excitation schemes. The temperature rating matters not only for survivability but also for maintaining measurement predictability when electronics are mounted near heat-generating power stages, enclosed in sealed field housings, or exposed to large ambient swings. In these conditions, integrated calibration support becomes more than a nice feature; it becomes part of how the accuracy target is realistically maintained.

Power consumption still needs careful interpretation. It is easy to see an integrated front end and assume total system power will automatically fall because external parts disappear. That is not always true. The right comparison is at the measurement-cycle level, not only at the IC data-sheet level. In remote nodes, duty cycle, warm-up time, sensor excitation duration, and required recalibration intervals all influence average energy use. If the node wakes infrequently and measures slowly changing variables, the front-end operating mode should be matched to that usage pattern. If continuous monitoring is required, then quiescent current and excitation overhead become more visible. Good selection work usually models a complete acquisition sequence rather than comparing static current numbers in isolation.

From an implementation perspective, the LMP90100 tends to reward disciplined analog layout and firmware sequencing. Integrated features reduce component count, but they do not eliminate precision design practices. Reference routing, ground partitioning, sensor return management, and thermal symmetry still affect real performance. The same applies to firmware: channel scheduling, gain changes, calibration timing, and fault polling should be designed as part of one measurement framework. Projects that treat the device as a “drop-in high-resolution ADC” often underuse its strengths. Projects that treat it as a configurable measurement engine usually extract much more value from it.

A useful way to view this device is as a boundary optimizer between analog hardware and embedded control. It shifts several precision-critical functions into a controlled silicon environment, where matching and calibration are easier to manage than with a scattered discrete chain. That does not make it universally better than simpler converters. It makes it especially effective when the system problem is not just digitizing a signal, but building a robust and maintainable sensor interface with traceable behavior over time, temperature, and product variants. In that design space, Texas Instruments LMP90100 is often selected less for its headline resolution and more for its ability to compress analog complexity without giving up measurement discipline.

Texas Instruments LMP90100 Potential Equivalent/Replacement Models

Texas Instruments LMP90100 does not have a broad set of direct pin-for-pin substitutes outside its immediate product family in the provided material. The nearest replacement candidates are the LMP90099, LMP90098, and LMP90097, all from the same LMP90xxx precision analog front-end platform. That matters because replacement risk in this class of device is usually driven less by nominal ADC resolution and more by the surrounding measurement architecture: input mux topology, programmable gain behavior, excitation capability, sensor bias strategy, digital interface consistency, and error-calibration flow. In that context, the family relationship is the strongest indicator of practical compatibility.

The LMP90100 sits at the top of the listed variants because it combines the highest input flexibility in this subset with integrated matched excitation current sources. Its configuration supports 4 differential or 7 single-ended inputs, which is especially useful in multiplexed sensor systems where several resistive or low-level analog channels are aggregated into one precision measurement chain. The integrated excitation sources are not a minor convenience feature. In RTD, bridge, and other resistive-sensor designs, they directly affect BOM count, routing symmetry, thermal tracking, and error stability across temperature. Once that capability is removed, the replacement problem shifts from a simple device swap to a partial signal-chain redesign.

The LMP90099 is the closest structural alternative when channel count must remain unchanged. It preserves the same 4 differential or 7 single-ended input arrangement, so the analog input mapping and mux usage model can stay largely intact. From a system integration perspective, that is often the most valuable form of equivalence because it minimizes firmware changes related to channel scheduling, scan sequencing, and calibration table structure. The key difference is the absence of matched excitation current sources. If the original LMP90100 design uses those internal sources for RTD excitation, sensor linearization support, or ratiometric measurement setup, then migration to LMP90099 requires external current generation. That change is technically feasible, but it introduces secondary effects: current-source accuracy, drift, compliance headroom, startup settling, and PCB thermal gradients now move outside the IC boundary and into the board-level design.

In practice, that externalization tends to be manageable only when the sensing architecture already includes discrete precision references or current drivers, or when the sensor type does not need active excitation at all. Voltage-output transducers, conditioned bridge modules, and buffered analog sensors often fit this case. For these applications, LMP90099 can function as a very reasonable substitute because the loss of internal excitation has limited impact on the rest of the chain. For resistance-based sensors, however, the substitution is closer to an architectural branch than a drop-in replacement.

The LMP90098 is the better match when excitation current sources are required but full channel count is not. It retains the integrated excitation capability while reducing the input matrix to 2 differential or 4 single-ended channels. This makes it attractive in designs where the original LMP90100 was selected for family consistency rather than because all channels were populated. A common pattern in instrumentation boards is to standardize on the largest variant early in development, then discover that the production unit only needs one or two RTDs and perhaps a reference measurement path. In those cases, LMP90098 can preserve the key metrology behavior while lowering unused input overhead.

That said, reduced channel count is not just a quantity change. It affects how the full measurement schedule is partitioned. If the original design relied on spare channels for reference resistor measurement, cold-junction compensation, sensor redundancy, or in-field diagnostics, those hidden uses may be harder to retain on LMP90098. The practical lesson is that channel-count evaluation should include not only active sensors but also every support measurement that contributes to calibration closure and fault detection. In precision systems, those support channels often carry more long-term value than they appear to during initial schematic review.

The LMP90097 is the most reduced option among the listed family members. It provides 2 differential or 4 single-ended inputs and removes the excitation current sources. Functionally, it is the leanest variant and best suited for simpler sensing nodes where the measurement chain is already externally conditioned or where the sensor interface is passive from the AFE perspective. It can be a sensible replacement only when both dimensions of the original LMP90100 capability—higher channel count and integrated excitation—are nonessential. This tends to occur in cost-sensitive designs with a narrow sensor set, fixed operating conditions, and limited multiplexing needs.

From an engineering standpoint, LMP90097 is less a direct replacement and more a platform-compatible downsizing path. It preserves the family’s measurement philosophy and likely reduces migration effort at the register and interface level compared with changing to a different product line. But if the original design exploited LMP90100 for system consolidation, moving to LMP90097 may shift complexity into external analog circuitry, board routing, or firmware compensation. In other words, device cost can decrease while system cost quietly rises. That tradeoff is easy to underestimate if the evaluation is done only at the component level.

A useful way to compare these parts is to separate the decision into two axes: channel topology and excitation ownership. Channel topology determines how many sensors, references, and diagnostics can coexist within one AFE. Excitation ownership determines whether the precision current-generation problem is solved inside the IC or pushed into the surrounding circuitry. Under that framework, LMP90099 preserves topology but drops excitation, LMP90098 preserves excitation but reduces topology, and LMP90097 reduces both. This makes the replacement choice less ambiguous:

If the design needs the same number of inputs and does not depend on internal excitation, LMP90099 is the closest substitute.

If the design needs internal excitation but can tolerate fewer channels, LMP90098 is the closest substitute.

If the design can accept fewer channels and has no need for internal excitation, LMP90097 is the lightest family-compatible option.

The most important practical insight is that “closest replacement” in precision AFEs should be judged by measurement behavior, not by family naming alone. For the LMP90100, the integrated matched current sources are likely the feature that most strongly shapes the surrounding analog design. If they were central to the original error budget, replacing the part with a no-excitation variant will almost certainly trigger follow-on changes in calibration method, reference selection, and thermal layout discipline. If they were unused, then channel count becomes the dominant factor, and LMP90099 stands out as the most straightforward alternative.

Based strictly on the provided documentation, the most direct potential equivalents or replacements for Texas Instruments LMP90100 are the LMP90099, LMP90098, and LMP90097. Among them, LMP90099 is generally the nearest match in input configuration, while LMP90098 is the nearest match in excitation capability when fewer channels are acceptable. LMP90097 is the minimal family alternative for simplified implementations that do not rely on either the larger mux capacity or integrated sensor excitation.

Conclusion

Texas Instruments’ LMP90100 is not simply a 24-bit converter wrapped in a sensor interface. It is a precision analog front end engineered to reduce the number of external error sources that usually dominate industrial measurement chains long before nominal ADC resolution becomes useful. Its real strength lies in system-level integration: a low-power sigma-delta conversion core, programmable gain, multichannel analog routing, dual-reference support, matched excitation current sources, continuous background calibration, and embedded diagnostic functions work together to preserve measurement integrity under long operating hours, wide temperature swings, and electrically noisy environments.

At the architectural level, the device is aimed at the part of instrumentation design where resolution alone stops being a meaningful selection metric. In industrial sensor systems, effective performance is often limited by reference drift, front-end offset, input path mismatch, excitation instability, leakage, EMI pickup, and thermal gradients across the board. The LMP90100 addresses these issues by embedding the signal-conditioning functions that are typically scattered across discrete amplifiers, multiplexers, current sources, and calibration logic. This consolidation matters because every external junction adds uncertainty, layout sensitivity, and long-term drift. A more integrated front end usually translates into a measurement path that is easier to characterize, easier to calibrate, and more repeatable in production.

The sigma-delta ADC core is central to this approach. Sigma-delta converters are particularly effective in low-bandwidth, high-precision sensing because they trade conversion speed for noise shaping and digital filtering. In practical terms, this means the LMP90100 can resolve very small changes in sensor output while suppressing a significant portion of out-of-band noise. That behavior is well aligned with RTDs, bridge sensors, pressure elements, and slow-moving process variables, where signal content is relatively narrowband but accuracy demands are high. The key engineering point is that 24-bit output format should not be interpreted as 24 noise-free bits in the application. What matters is that the architecture gives enough dynamic range and filtering headroom to extract stable, calibrated measurements after real-world error mechanisms are included.

The programmable gain stage extends this usefulness by allowing the front end to match a wide range of sensor output amplitudes to the ADC input span. This is especially important in bridge-based sensors and low-level resistive measurements, where the raw signal can be only a few millivolts. Properly selected gain improves code utilization and reduces the impact of downstream quantization and noise. At the same time, gain must be treated as part of the total error budget, not as a free improvement. Higher gain also amplifies offset, interference, and layout-related coupling. Designs that perform well with the LMP90100 usually treat gain selection, sensor excitation level, reference strategy, and filter settings as one coupled problem rather than independent register choices.

Its multichannel input capability makes it attractive for compact monitoring nodes and modular instrumentation platforms. In these systems, one device often has to service several sensors with different signal types and update-rate requirements. The integrated channel flexibility reduces external analog switching and can simplify board routing. However, shared front ends require careful scheduling and settling management. When channels differ significantly in source impedance, gain, common-mode level, or sensor type, the time needed for analog and digital paths to settle after switching becomes a real design parameter. Reliable systems usually reserve extra conversion cycles after channel changes, especially when moving between high-gain and low-gain paths or between precision resistive measurements and higher-level voltage inputs. This is one of the places where bench behavior often diverges from spreadsheet expectations.

Dual-reference support is another feature with strong system implications. In precision measurement, the reference path is often the hidden bottleneck. A high-resolution ADC attached to a mediocre reference architecture will still produce mediocre measurement stability. By supporting multiple reference strategies, the LMP90100 allows the designer to optimize around the sensor physics rather than forcing one universal topology. Ratiometric measurement becomes especially valuable for resistive sensors and bridge circuits because it suppresses errors caused by excitation drift. In contrast, absolute measurements may benefit from a dedicated low-drift reference when the sensor output is not directly tied to the excitation path. The practical advantage of having this flexibility inside the AFE is that a single platform can often support multiple sensor classes without a major redesign of the analog chain.

The matched excitation current sources are particularly relevant for RTD and resistive sensor interfaces. Precision temperature measurement depends heavily on the stability and matching of the excitation current, because any error here directly becomes a resistance error and therefore a temperature error. Integrated matched current sources reduce external component spread and make Kelvin-style or lead-compensation techniques easier to implement. In three-wire and four-wire RTD designs, this can significantly improve repeatability across boards and reduce calibration burden. In actual implementations, current-source matching often matters more than absolute nominal value, because many systems remove absolute gain error through calibration, while mismatch creates residual errors that are harder to cancel over temperature.

Continuous background calibration is one of the more strategically important features in the LMP90100. Precision systems rarely fail because of one large initial error; they degrade through slowly shifting offsets, gain changes, and thermal dependencies that accumulate over time. Background calibration helps maintain measurement accuracy without forcing long interruptions in operation. This is particularly useful in process control and remote instrumentation where maintenance windows are limited and measurement continuity matters. In designs exposed to significant ambient variation, this feature can reduce the difference between fresh-from-calibration performance and field performance months later. It is one of those capabilities that may seem secondary during initial evaluation but becomes decisive in deployed systems.

The integrated diagnostics also deserve more attention than they typically receive in first-pass component comparisons. In industrial sensing, detecting an open sensor, shorted input, reference fault, or excitation anomaly can be as important as measuring the primary variable itself. A front end that can autonomously identify common failure modes improves system safety, reduces software complexity at the host level, and shortens fault isolation time during commissioning. This matters even more in distributed monitoring nodes where physical access is expensive. In practice, embedded diagnostics often produce more operational value than a small improvement in headline converter specifications, because they turn the measurement chain into a more observable and maintainable subsystem.

From an application standpoint, the LMP90100 fits best where sensor accuracy is influenced by the interface electronics as much as by the sensor element. RTD modules are an obvious case because they need low-noise conversion, stable current excitation, lead compensation support, and strong long-term drift control. Pressure transmitters and strain-gauge interfaces also align well with the device, especially when bridge outputs are small and thermal stability is critical. Multichannel industrial monitoring nodes benefit from the channel flexibility and integrated conditioning, particularly when board area and power budget limit the use of multiple dedicated AFEs. In these scenarios, the device is most compelling not because it maximizes raw throughput, but because it reduces analog design complexity while preserving precision.

For product selection, the strongest argument in favor of the LMP90100 is that it targets the full measurement chain rather than a single specification line. It is a better fit for designs that value stability, calibration retention, reduced external circuitry, and diagnostic coverage over sheer sampling speed. That tradeoff should be explicit. If the application is fast data acquisition, wideband vibration, or transient capture, this class of low-power sigma-delta AFE is usually the wrong tool. If the application is slow-to-medium speed industrial sensing with demanding accuracy and uptime requirements, it becomes much more attractive.

Its position within the broader LMP90xxx family adds another layer of value for both platform architects and sourcing teams. Family-level scalability can reduce redesign effort when channel count, excitation options, or integration level changes across product variants. That matters in modular industrial product lines, where one hardware concept often needs to serve several performance tiers. A common register model, similar analog behavior, and shared validation knowledge can shorten qualification cycles and lower lifecycle risk. In practice, this family continuity is often more useful than it appears in datasheet comparisons because it enables cleaner reuse of firmware, test procedures, and calibration methods.

A useful way to think about the LMP90100 is as a precision measurement subsystem compressed into a single device boundary. That compression is not just about saving BOM cost. It narrows the analog uncertainty space. Fewer external precision nodes usually mean fewer opportunities for mismatch, fewer thermally sensitive interconnects, and fewer layout-dependent parasitics. In high-resolution sensor designs, that kind of simplification often improves actual field accuracy more than chasing a marginally better standalone ADC number.

Texas Instruments designed the LMP90100 for applications where precision must survive outside the lab: over temperature, over time, across production spread, and under realistic fault conditions. That is why its integrated references, excitation resources, calibration engine, and diagnostics matter as much as the converter itself. For RTDs, pressure sensors, strain gauges, and multichannel industrial instrumentation, it offers a balanced architecture that addresses the less visible parts of precision design—the parts that usually determine whether a 24-bit signal chain performs like a precision instrument or just a high-resolution data logger.
