LMK61A2-156M25SIAT
Texas Instruments
IC OSC CLK 156.25MHZ 6QFM
31147 Pcs New Original In Stock

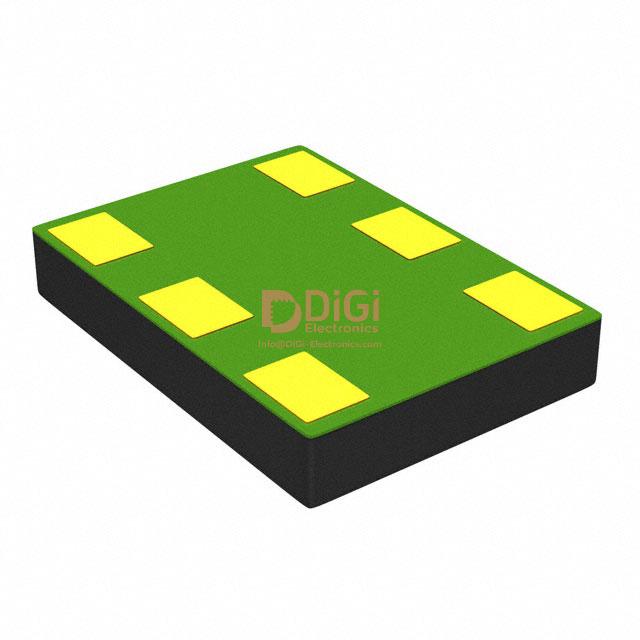

Clock Oscillator IC 156.25MHz 6-QFM (7x5)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (110 Ratings)
LMK61A2-156M25SIAT
Product Overview
1320015
DiGi Electronics Part Number
LMK61A2-156M25SIAT-DGManufacturer
Texas Instruments
LMK61A2-156M25SIAT
Description
IC OSC CLK 156.25MHZ 6QFMInventory
31147 Pcs New Original In Stock
Clock Oscillator IC 156.25MHz 6-QFM (7x5)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
LMK61A2-156M25SIAT Technical Specifications
Category
Clock/Timing, Programmable Timers and Oscillators
Packaging
Cut Tape (CT) & Digi-Reel®
Series
-
Product Status
Active
Type
Clock Oscillator
Count
-
Frequency
156.25MHz
Voltage - Supply
3.135V ~ 3.465V
Current - Supply
152 mA
Operating Temperature
-40°C ~ 85°C
Package / Case
6-SMD Module
Supplier Device Package
6-QFM (7x5)
Mounting Type
Surface Mount
Base Product Number
LMK61A2
Datasheet & Documents
Manufacturer Product Page
LMK61A2-156M25SIAT Specifications
HTML Datasheet
LMK61A2-156M25SIAT-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
296-43861-2
296-43861-1
296-43861-6
Standard Package
250
Reviews
5.0/5.0-(Show up to 5 Ratings)
de desembre 02, 2025
Der Service nach dem Kauf ist hervorragend, meine Anliegen wurden zeitnah gelöst.
de desembre 02, 2025
Fast shipment and carefully designed packaging made the experience outstanding.
de desembre 02, 2025
Their commitment to product consistency makes shopping with DiGi Electronics a hassle-free experience.
de desembre 02, 2025
I trust DiGi Electronics for both great prices and friendly service.
de desembre 02, 2025
The website interface is incredibly user-friendly, making browsing and purchasing a seamless experience.
de desembre 02, 2025
My satisfaction with their delivery times and support is consistently high.
de desembre 02, 2025
Their team is knowledgeable and provides professional guidance throughout the process.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the key design-in considerations when using the LMK61A2-156M25SIAT in high-speed SERDES applications operating near 10 Gbps?
When integrating the LMK61A2-156M25SIAT into high-speed SERDES designs, ensuring low jitter and stable power delivery is critical. The LMK61A2-156M25SIAT provides excellent phase jitter performance suitable for 10G applications, but you must maintain a clean 3.3V supply with proper decoupling (e.g., 100nF and 10μF capacitors close to the VDD pins) and isolate the oscillator’s ground from noisy digital sections. Additionally, route the output clock signal with controlled impedance (typically 50Ω) and minimize stubs to prevent reflections that could degrade signal integrity and increase bit error rates in sensitive timing paths.
Can the LMK61A2-156M25SIAT replace the Si570-156.25 in an existing design, and what are the critical integration risks?
The LMK61A2-156M25SIAT can serve as a footprint- and frequency-compatible alternative to the Si570-156.25, but key differences exist. Unlike the Si570, which supports programmable frequencies via I2C, the LMK61A2-156M25SIAT is a fixed-frequency oscillator, simplifying layout but reducing flexibility. Be aware that the LMK61A2-156M25SIAT draws higher supply current (152 mA vs. ~50 mA for Si570 in standby), potentially affecting power budget and thermal performance. Also confirm the output logic levels are compatible—LMK61A2-156M25SIAT uses LVPECL, whereas Si570 often defaults to LVDS, so ensure your receiver supports the signal type or plan for level translation.
How does the LMK61A2-156M25SIAT perform under marginal power supply conditions, such as voltage droop on a shared 3.3V rail?
The LMK61A2-156M25SIAT requires a stable supply between 3.135V and 3.465V; operation outside this range may result in frequency instability or increased jitter. In systems where the 3.3V rail experiences droop (e.g., during FPGA startup), use a dedicated LDO regulator for the LMK61A2-156M25SIAT to maintain regulation. Voltage droop as small as 100mV below the minimum can cause degraded phase noise or even oscillator stalling in marginal designs. To mitigate risk, measure rail stability under load and include sufficient bulk and high-frequency decoupling near the device.
What PCB layout and thermal management practices should be followed for reliable LMK61A2-156M25SIAT operation in densely populated boards?
For reliable LMK61A2-156M25SIAT performance in dense layouts, isolate the oscillator from high-power or switching components to minimize electromagnetic and thermal coupling. Use a solid ground plane underneath the 6-QFM (7x5) package but avoid thermal vias directly under the center pad unless specified. Since the device consumes 152 mA, thermal rise is moderate, but in tightly packed designs, ensure at least 2mm clearance around the device for airflow and stress relief. Route clock outputs away from sensitive analog or high-speed digital traces to prevent crosstalk, and adhere to MSL-3 handling—bake if exposed to moisture beyond 168 hours to prevent popcorning during reflow.
What are the long-term reliability risks of using the LMK61A2-156M25SIAT in industrial environments with temperature cycling between -40°C and 85°C?
The LMK61A2-156M25SIAT is rated for -40°C to 85°C operation and is well-suited for industrial use, but reliability depends on proper integration. Temperature cycling induces mechanical stress, especially at solder joints due to CTE mismatch between the 6-QFM package and PCB. To enhance long-term reliability, use a robust solder profile per J-STD-020, avoid board flex during assembly, and conformally coat or encapsulate in high-vibration environments. Also, ensure the oscillator is not subjected to rapid thermal transients exceeding 10°C/minute, which could momentarily destabilize output and affect downstream PLL locking in timing-sensitive systems.
