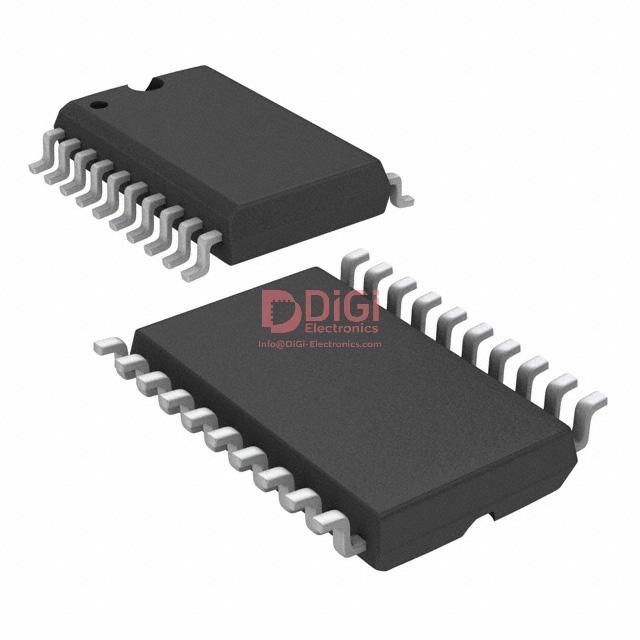

LMF100CIWMX/NOPB
Texas Instruments
IC FILTER 100KHZ SWITCH 20SOIC
3319 Pcs New Original In Stock
Universal Switched Capacitor Filter IC Universal Switched Capacitor 4th Order 100kHz 20-SOIC
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (343 Ratings)
LMF100CIWMX/NOPB
Product Overview
1323089
DiGi Electronics Part Number
LMF100CIWMX/NOPB-DGManufacturer
Texas Instruments
LMF100CIWMX/NOPB
Description
IC FILTER 100KHZ SWITCH 20SOICInventory
3319 Pcs New Original In Stock
Universal Switched Capacitor Filter IC Universal Switched Capacitor 4th Order 100kHz 20-SOIC
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
LMF100CIWMX/NOPB Technical Specifications
Category
Interface, Filters - Active
Packaging
-
Series
-
Product Status
Obsolete
Filter Type
Universal Switched Capacitor
Frequency - Cutoff or Center
100kHz
Number of Filters
2
Filter Order
4th
Voltage - Supply
4V ~ 15V
Mounting Type
Surface Mount
Package / Case
20-SOIC (0.295", 7.50mm Width)
Supplier Device Package
20-SOIC
Base Product Number
LMF100
Datasheet & Documents
Manufacturer Product Page
LMF100CIWMX/NOPB Specifications
HTML Datasheet
LMF100CIWMX/NOPB-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
296-41313-6
LMF100CIWMX/NOPB-DG
LMF100CIWMX-NDR
296-41313-1
296-41313-2
Standard Package
1,000
Alternative Parts
View DetailsPART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Reviews
5.0/5.0-(Show up to 5 Ratings)
de desembre 02, 2025
구매 후 만족도가 높아서 주변에 추천하고 싶어요.
de desembre 02, 2025
Je recommande vivement DiGi Electronics pour sa qualité, ses prix et son support client irréprochable.
de desembre 02, 2025
最後まで責任を持って対応してくれる姿勢に信頼を寄せています。
de desembre 02, 2025
The combination of robust packaging and precise logistics tracking makes their service reliable and stress-free.
de desembre 02, 2025
The product’s material engineering is impressive, providing both resilience and longevity.
de desembre 02, 2025
Their products maintain a high standard of quality, supported by reliable after-sales.
de desembre 02, 2025
Their stock management contributes significantly to our operational efficiency.
de desembre 02, 2025
Timely deliveries from DiGi Electronics help me keep my technical projects on track without stress.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
Can I still design in the LMF100CIWMX/NOPB for new projects given that it's marked as obsolete by Texas Instruments, and what are the long-term supply and reliability risks?
Designing in the LMF100CIWMX/NOPB for new production is not recommended due to its obsolete status, which indicates TI has discontinued manufacturing and will not support future demand. While 3,300 units may be available in current inventory, this stock is finite and not replenishable. Long-term supply chain disruptions, lack of replacement parts, and potential counterfeit risks increase project risk. For new designs, consider migrating to a modern alternative like the LTC1060CSW#PBF, which offers similar switched-capacitor filter functionality with active production support, better availability, and improved noise performance.
What are the key differences between the LMF100CIWMX/NOPB and the LTC1060CSW#PBF when replacing one for the other in a 4th-order 100kHz low-pass filter application?
While both the LMF100CIWMX/NOPB and LTC1060CSW#PBF are universal switched-capacitor filters capable of 4th-order configurations around 100kHz, the LTC1060 offers lower total harmonic distortion (THD), wider clock-to-center-frequency ratio options (1:50, 1:100), and better power supply rejection. The LTC1060 also supports a broader supply range (up to ±7.5V vs. ±7.5V nominal for LMF100) and comes in a compatible 20-SOIC package. However, pin compatibility is not direct—review clock input and filter configuration pinouts carefully. When replacing, recalculate external resistor/capacitor values and verify stability under your specific clock source, as timing sensitivity differs between the two ICs.
How does the moisture sensitivity level (MSL 3) of the LMF100CIWMX/NOPB impact handling and reflow during PCB assembly, and what precautions should I take?
The LMF100CIWMX/NOPB has an MSL 3 rating, meaning it can be exposed to ambient conditions for up to 168 hours (7 days) after removal from its dry pack before requiring baking. During high-volume assembly, this limits floor life and increases risk of popcorning during reflow if moisture absorption exceeds safe levels. To mitigate risk, store unused parts in a dry cabinet (<10% RH), track exposure time rigorously, and bake at 125°C for 24 hours if the 168-hour window is exceeded. Always follow J-STD-033 guidelines—failure to do so may result in internal delamination or solder joint defects, especially in high-reliability applications like medical or automotive systems.
What design constraints should I consider when using the LMF100CIWMX/NOPB in a battery-powered system with a 5V supply, particularly regarding power supply noise and clock feedthrough?
When operating the LMF100CIWMX/NOPB on a 5V supply in battery-powered designs, pay close attention to power supply noise and clock feedthrough, which can alias into the passband and degrade signal integrity. The internal switched-capacitor architecture is sensitive to supply ripple; use a low-noise LDO with at least 40dB PSRR and place a 10µF ceramic capacitor close to the V+ pin. Additionally, the clock signal (typically 100x the cutoff frequency for 100kHz operation) must be clean and properly terminated—use a dedicated clock buffer and keep traces short to minimize coupling. Avoid sharing clock lines with digital buses, as jitter and crosstalk can modulate the filter response unpredictably.
Is the LMF100CIWMX/NOPB suitable for precision audio filtering applications above 20kHz, and what are the limitations in terms of dynamic range and distortion?
The LMF100CIWMX/NOPB is not ideal for high-fidelity audio applications above 20kHz due to inherent limitations in dynamic range and distortion. While it can be configured for 4th-order filtering up to 100kHz, its typical signal-to-noise ratio (SNR) is limited by charge injection and clock feedthrough, leading to audible artifacts in high-gain stages. Total harmonic distortion (THD) typically exceeds 0.1% at 20kHz with a 5V supply, which is unacceptable for professional audio. For precision audio, consider active RC filters using low-noise op-amps (e.g., OPA1612) or modern alternatives like the LTC1068, which offer better linearity, lower noise, and built-in anti-aliasing features—critical for maintaining audio fidelity in ADC front-ends or reconstruction filters.
