LM53625NQRNLRQ1 product overview and LM53625-Q1 family positioning

Texas Instruments LM53625NQRNLRQ1 sits in the LM53625-Q1 / LM53635-Q1 automotive synchronous buck regulator family as a fixed 3.3 V, 2.5 A step-down converter optimized for high-reliability vehicle power rails. It is delivered in a 22-pin VQFN-HR package measuring 5.0 mm × 4.0 mm and uses wettable flanks to improve solder-joint visibility during automated inspection. The device is AEC-Q100 qualified, which places it in the class of regulators intended not merely to operate in automotive systems, but to remain stable under the electrical and environmental stress patterns typical of those systems.

Its family positioning is more important than the part number alone suggests. The LM53625-Q1 branch addresses designs up to 2.5 A, while the LM53635-Q1 extends the same architectural direction to 3.5 A. That split gives designers a clean current-scaling path without forcing a major change in control philosophy, PCB style, or qualification category. The LM53625NQRNLRQ1 is the fixed 3.3 V option in the 2.5 A tier, so its value proposition is not just “a buck regulator,” but a regulator pre-aligned with one of the most common digital rails in automotive electronics. In practice, that reduces both selection ambiguity and implementation overhead when the downstream load is built around MCUs, transceivers, sensors, memory, or logic domains that already expect a tightly regulated 3.3 V supply.

From a system perspective, this device is aimed at the point where automotive input conditions intersect with dense electronic integration. Vehicle rails are rarely quiet or narrow. Cold crank, load-dump transients, stop-start operation, battery attachment events, and distributed wiring inductance all push the front-end supply beyond what a general-purpose industrial regulator is usually expected to tolerate. A device such as the LM53625NQRNLRQ1 is positioned for exactly this environment: converting a relatively wide and noisy automotive input into a stable low-voltage rail while preserving efficiency, thermal margin, and EMI compliance headroom. That combination is especially relevant in telematics modules, instrument clusters, head units, body electronics, and camera or gateway subsystems where the power stage must coexist with RF, high-speed digital interfaces, and strict packaging constraints.

The fixed 3.3 V output option deserves more weight than it often gets in quick comparisons. Adjustable regulators look flexible on paper, but fixed-output automotive parts frequently shorten the validation path because they remove one error source from the feedback network and reduce the number of external decisions that can degrade robustness. In production programs, fewer exposed tuning variables usually translate into fewer edge-case failures. The tradeoff is reduced configurability, but in a design already standardized around 3.3 V logic, that tradeoff is usually favorable. It also supports cleaner BOM control and avoids resistor-divider tolerance stacking in accuracy-sensitive rails.

Another key part of the device’s positioning is its high-frequency operation. In automotive power design, switching frequency is not just an efficiency parameter; it is a layout and integration parameter. Higher-frequency operation allows smaller external magnetics and capacitors, which directly helps module size, z-height, and placement flexibility. This matters when the power supply is squeezed between connectors, shield cans, display mechanics, and thermal structures. The practical result is that the LM53625NQRNLRQ1 is not only chosen for electrical conversion, but also for board architecture. In compact ECUs, that distinction becomes critical because the regulator footprint influences the entire floorplan.

EMI behavior is another reason this part is differentiated within the family. The spread-spectrum feature is not a cosmetic addition; it is a deliberate response to the fact that automotive switching regulators are often judged as much by emissions performance as by output accuracy. Conventional fixed-frequency switching tends to concentrate energy at discrete spectral peaks, which can make CISPR-related compliance work more difficult. Spread spectrum distributes that energy over a wider band, often lowering peak amplitudes enough to make filtering and enclosure design more manageable. It is not a substitute for disciplined layout, return-current control, or proper input filtering, but it is one of those features that can create valuable margin during late-stage EMI tuning, where board changes are expensive and schedule pressure is high.

The wettable-flank package is equally practical. In automotive manufacturing, inspection strategy affects package selection almost as much as electrical performance. Wettable flanks enable optical confirmation of solder fillets on QFN-style parts, improving manufacturability and helping inline quality systems detect assembly defects earlier. That feature tends to be undervalued during schematic capture and then suddenly becomes decisive when the product moves into process qualification. For safety-relevant or mission-critical modules, visible solder verification can simplify production control and reduce ambiguity during failure analysis. In that sense, the package is part of the electrical product definition, not a secondary implementation detail.

Looking across the family, the LM53625-Q1 and LM53635-Q1 devices form a useful selection ladder. If the load profile stays comfortably below 2.5 A with transient margin accounted for, the LM53625 branch is usually the better fit because it avoids unnecessary overdesign. If startup surges, downstream capacitance charging, processor current bursts, or peripheral aggregation push the rail beyond that envelope, the LM53635 branch provides more headroom with a similar family behavior. This kind of portfolio continuity matters because automotive designs often evolve late. A subsystem that began as a simple controller board may later absorb more interfaces, more memory, or additional sensing channels. A family with aligned architecture allows current scaling without forcing a full power-tree rethink.

In actual design evaluation, current rating should never be interpreted as a steady-state number alone. A nominal 2.5 A regulator can be entirely appropriate for a 1.2 A average rail if dynamic peaks, ambient temperature, enclosure airflow, copper area, and startup sequencing are all well controlled. Conversely, it can be marginal in a design that appears lighter on paper but experiences repeated transient bursts from radio sections, display backlight logic, or communication PHY activation. The better selection approach is to treat the regulator as part of a thermal-electrical loop: output current, switching loss, inductor choice, input ripple, board dissipation, and transient behavior all interact. In that loop, a part like LM53625NQRNLRQ1 often works best when some current margin is preserved rather than consumed upfront.

Its application fit is strongest where three constraints appear together: automotive input stress, moderate load current, and limited EMI or space budget. Telematics modules are a good example because they often combine RF sensitivity, processor rails, CAN or Ethernet transceivers, and strict thermal packaging. Instrument clusters impose similar pressure from display electronics, fast wake-up behavior, and visible reliability expectations. Head units add another challenge: they concentrate digital processing and user-interface functions in an electrically noisy environment where emissions control is never optional. In battery-powered or backup-powered automotive domains, regulator quiescent behavior and operating discipline also become more visible, making a well-integrated buck stage preferable to less optimized discrete approaches.

A useful way to interpret this product is that it solves a very specific engineering problem: generating a production-ready 3.3 V rail in an automotive context without forcing excessive compromises in EMI, manufacturability, or board area. That is why its family placement matters. The part is not merely “the 3.3 V version” of a regulator family. It is the variant intended for designs where the output voltage is known, optical inspection is valuable, compliance risk must be reduced, and 2.5 A class performance is sufficient. Those traits collectively define its role more clearly than any single datasheet bullet.

For product selection, the main decision path is straightforward. Choose LM53625NQRNLRQ1 when the system needs a fixed 3.3 V rail, up to 2.5 A output capability, automotive qualification, compact implementation, and help with EMI management. Move within the LM53625-Q1 family when output-voltage options or related feature combinations differ, and step toward the LM53635-Q1 branch when load growth or transient margin justifies higher current capacity. That structure makes the family easy to navigate and reduces the risk of selecting a regulator that fits electrically but creates downstream issues in layout, validation, or manufacturing. In automotive power design, that kind of balanced positioning is usually what separates a workable choice from a durable one.

LM53625NQRNLRQ1 key electrical capabilities for automotive power conversion

LM53625NQRNLRQ1 is positioned as a high-frequency synchronous buck regulator for automotive power rails, and its electrical capabilities are best understood by looking at how they reduce system-level design friction rather than only by reading the headline specifications. The device switches at a nominal 2.1 MHz, supports input operation up to 36 V with specified transient tolerance to 42 V, maintains tight output regulation across temperature, and preserves low quiescent current under light-load conditions. Taken together, these parameters make it well suited for distributed point-of-load conversion in vehicles, where electrical stress, thermal density, and standby efficiency must all be balanced at once.

The 2.1 MHz operating frequency is more than a speed number. In a buck regulator, switching frequency directly shapes the size of the inductor and input/output capacitors, as well as the spectral location of switching noise. At 2.1 MHz, passive components can be reduced compared with lower-frequency converters, which helps shrink the power stage and ease placement near the load. This matters in automotive ECUs, camera modules, radar support boards, and body electronics, where routing length often determines both conducted noise and transient response quality. A shorter current loop with smaller passives usually translates into lower parasitic inductance and more controlled switching behavior.

That frequency choice also creates a practical EMI tradeoff. Pushing the converter into the low-megahertz range moves the fundamental switching energy above the AM radio band, which is often desirable in automotive platforms. However, higher frequency also increases switching losses and raises sensitivity to layout quality. In practice, the benefit is strongest when the PCB current loops are tightly contained, the hot node copper is kept compact, and the input bypass network is placed with almost no interconnect slack. In other words, the regulator’s frequency enables compactness, but only disciplined layout converts that potential into actual performance.

Synchronous rectification is central to the device’s efficiency profile. Instead of relying on an external or internal diode for freewheel current, the converter uses a low-side MOSFET. This reduces conduction loss, especially at moderate and high load current, because the voltage drop across the synchronous switch is much lower than the forward drop of a diode. In automotive thermal environments, this is not a minor improvement. Every few hundred milliwatts saved in the regulator can materially affect junction temperature, nearby component heating, and enclosure temperature rise. In dense modules with limited airflow and plastic housings, the thermal headroom gained from synchronous operation often translates directly into longer component life or higher available output current margin.

There is also a second-order benefit that is often undervalued. Better efficiency reduces not only average heat but also the thermal gradient across the board. Lower thermal stress helps preserve capacitor behavior, minimizes drift in nearby analog circuits, and reduces the chance that a regulator becomes the dominant hot spot in an otherwise balanced design. In mixed-signal automotive systems, that stability can be as important as raw conversion efficiency.

The input voltage range is one of the strongest selection points for this regulator. Continuous operation up to 36 V, with transient tolerance to 42 V under specified conditions, aligns well with the realities of 12-V automotive power nets. Vehicle supply rails are not clean DC sources. They experience cold crank dips, alternator-driven surges, start-stop disturbances, reverse battery protection interactions, line impedance ringing, and a variety of load-induced transients. A regulator that can survive and operate through elevated line conditions reduces the stress placed on the upstream protection network and can simplify the partitioning between TVS devices, filters, and pre-regulation stages.

This does not eliminate the need for surge protection, but it changes the design envelope. When the regulator itself has stronger high-voltage tolerance, the front end can be optimized for energy management and transient shaping rather than being forced into hard clamping at comparatively low thresholds. In practice, this often leads to a cleaner and more economical input stage, especially when multiple downstream rails share the same protected battery feed. A common pattern is to reserve heavy surge handling for true load-dump energy events while allowing the buck regulator to absorb ordinary overvoltage excursions without entering an overstressed condition.

Cold crank behavior deserves separate attention. In automotive systems, high-voltage tolerance gets much attention, but low-input operation often determines whether critical digital electronics stay alive during engine start. The regulator’s suitability in this context depends on the required output rail, load current, dropout behavior, and hold-up strategy. For a 3.3 V rail, enough margin must remain during crank events to sustain regulation after accounting for switch and inductor losses. In field designs, stable crank performance often comes less from a single regulator specification and more from a coordinated approach: local bulk capacitance, power-tree prioritization, reset timing control, and realistic transient characterization on the target harness. A regulator such as LM53625NQRNLRQ1 fits well into that strategy because its input capability covers the upper stress range, allowing the designer to focus low-voltage continuity measures where they are most effective.

Output voltage accuracy of ±1% across –40°C to 125°C junction temperature is especially valuable for modern automotive electronics, where digital, analog, and communication domains increasingly share tightly budgeted supply margins. On a 3.3 V rail, this accuracy supports predictable behavior for microcontrollers, CAN or LIN transceivers, sensors, memory devices, and interface logic. Tight regulation reduces uncertainty in logic thresholds, analog front-end bias points, reference tracking, and timing-related behavior. It also narrows the worst-case tolerance stackup between the regulator, PCB distribution drop, and load-side allowable supply range.

For ADC-based sensing paths, stable supply rails can materially improve repeatability even when the ADC uses an internal reference. Supply variation often modulates digital switching noise, driver edge rates, and substrate coupling in surrounding ICs. Keeping the rail tightly controlled across temperature reduces one more variable in systems that are already managing sensor drift, connector resistance change, and electromagnetic interference. In communication subsystems, cleaner supply behavior also helps preserve margin during simultaneous switching events, particularly when the same rail powers both control logic and interface transceivers.

The low no-load quiescent current is another important differentiator, particularly for vehicle modules that remain connected to the battery for long periods. A typical 15 µA quiescent current for the 3.3 V option under no-load conditions indicates that the device can support standby architectures without imposing a significant battery drain penalty. This is increasingly relevant as automotive electronics migrate toward always-connected behavior for remote access, diagnostics, security monitoring, and wake-on-event functions. In such systems, average power consumption is often dominated not by active conversion loss but by how the converter behaves during long idle intervals.

The practical significance becomes clear when the regulator feeds a rail that is intermittently active. During active windows, the design needs fast, efficient conversion at useful load current. During sleep, the same rail may support only housekeeping logic, wake detection, or retention circuitry. A regulator with low quiescent current allows the design to avoid unnecessary mode switching complexity or external load disconnect elements in some cases. It does not remove the need for careful power partitioning, but it gives more freedom in deciding which rails remain alive and which are gated off.

One subtle point is that low quiescent current only translates into good system standby performance if the surrounding network is designed with the same discipline. Feedback divider leakage, status pull-ups, input clamp leakage, and downstream IC sleep current can easily dominate the regulator’s own IQ. In practice, it is common to see an efficient buck chosen for standby use while the external resistor network quietly burns more current than the converter itself. The better design approach is to treat standby current as a full-path budget, not as a regulator-only metric.

From an application perspective, LM53625NQRNLRQ1 is a strong fit for converting vehicle battery rails into regulated 3.3 V or similar logic supplies in body control modules, telematics units, infotainment support circuits, ADAS sensor interfaces, and zonal controllers. Its high switching frequency supports compact implementation near the load. Its synchronous architecture supports thermal efficiency in enclosed modules. Its input range matches the upper-voltage realities of the vehicle net. Its regulation accuracy supports digital and mixed-signal stability. Its low quiescent current supports parked-car battery constraints and long standby intervals.

The most effective use case is not simply “replace a generic buck regulator with an automotive one.” The stronger use case is to deploy it where power integrity, thermal density, and idle efficiency intersect. That is where its specification set has the most leverage. In distributed automotive power trees, converters that are merely efficient under nominal load are no longer enough. The better devices are the ones that remain electrically disciplined across startup, surge, heat, and sleep. LM53625NQRNLRQ1 fits that profile well, provided the implementation respects the usual realities of automotive power design: transient-aware front-end protection, compact high-current layout, grounded EMI strategy, and standby-current budgeting at the system level.

LM53625NQRNLRQ1 input range, output behavior, and operating limits

LM53625NQRNLRQ1 is a 2.5-A synchronous buck regulator with a fixed 3.3-V output, positioned for automotive and other wide-input DC rails that must remain stable through supply variation, cold-start stress, and elevated temperature. Its electrical limits are easy to quote, but the more important point is how those limits interact in real designs: input voltage headroom, dropout behavior, load current, thermal rise, and transient stress all couple together. Read correctly, the data indicates not just where the device can operate, but where it can operate with useful margin.

The recommended post-start-up input range is 3.9 V to 36 V. That is the range where normal regulation performance, switching behavior, and datasheet-level compliance should be expected after the device has already started. Texas Instruments also indicates that extended operation down to 3.5 V is possible. This distinction matters. A converter can often continue regulating below its formal recommended range even when startup under the same condition would be less certain or less characterized. In system terms, this means a rail that is already alive may ride through a battery sag that would not be acceptable as an initial power-up condition.

That behavior is especially relevant for the fixed 3.3-V version. TI notes that the internal architecture supports a 3.3-V output from only 3.55-V input. This implies very low effective dropout for a buck topology, enabled by the synchronous power stage and low on-resistance switching path. At that point the converter is operating with minimal conversion ratio, so duty cycle is near its upper practical limit and conduction loss becomes more dominant than switching loss. Efficiency may no longer be optimal, but rail continuity often matters more than efficiency during a crank pulse or low-battery event. In automotive power design, that trade is usually correct. A processor-support rail that stays above reset threshold is worth far more than a few points of conversion efficiency during a brief sag window.

The fixed-output nature of LM53625NQRNLRQ1 is also more significant than it first appears. A fixed 3.3-V output removes the external feedback divider from the accuracy chain. That simplifies schematic capture, layout, BOM control, and production validation. It also reduces a common class of field problems: resistor mispopulation, tolerance stacking, leakage sensitivity around the FB node, and noise pickup on high-impedance feedback routing. On mixed-signal or communication boards, eliminating that vulnerability is often more valuable than the flexibility of an adjustable rail. A fixed rail does not guarantee a good design, but it removes one avoidable way to make a bad one.

The 2.5-A load capability places the device in a practical middle tier. It is not aimed at high-current core rails, but it comfortably serves medium-power digital domains, communication modules, sensor clusters, interface processors, and distributed point-of-load conversion. The useful question is not whether 2.5 A is enough in a steady-state spreadsheet, but whether it is enough under transient demand and thermal stress. Many automotive subsystems draw modest average current but generate sharp current steps when RF sections wake, processors exit low-power states, or transceivers switch modes. If the output capacitor network is undersized or ESR is poorly chosen, the converter may be theoretically within current rating yet still fail the rail-droop requirement. In practice, designs around this class of regulator benefit from checking three cases early: worst-case startup loading, repetitive load-step amplitude versus loop bandwidth, and high-ambient full-load operation with reduced airflow.

Input stress limits must also be interpreted carefully. VIN-related pins carry a 40-V absolute maximum rating, with allowance up to 42 V for short-duration events at limited duty cycle. This does not mean the part is a 42-V continuous-input regulator. Absolute maximum values define survival boundaries, not normal operating targets. Repeated operation near those limits usually compresses reliability margin, particularly when combined with high junction temperature and switching-node ringing. A robust design should therefore treat the 36-V upper recommended input as the real engineering ceiling for steady operation, then verify that line transients, harness inductance, and hot-plug behavior do not force overshoot into the absolute maximum region.

That last point is often underestimated. On the bench, a regulator may appear safe with a clean lab supply and short leads, then show unexpected VIN spikes once installed behind cable inductance, reverse-battery protection stages, or upstream switching elements. Even modest parasitics can create overshoot beyond the nominal battery rail when current steps are fast. For this reason, input filtering and clamp strategy are not secondary details. The combination of local ceramic input capacitance, damping where needed, and appropriate TVS selection usually determines whether the regulator merely works or remains robust across the actual electrical environment.

Thermal capability is strong by catalog standards. The junction operating range extends from –40°C to 150°C, and TI provides lifetime guidance of 1000 hours up to 125°C junction temperature, with 408 hours extending to 150°C. These numbers are useful because they frame temperature not as a binary pass/fail variable, but as a reliability budget. A converter can survive very high junction temperature and still be a poor long-term choice if it spends too much life near that boundary. In automotive electronics, sustained junction temperature is one of the clearest accelerants of wear-out. Semiconductor aging, package stress, capacitor degradation nearby, and solder fatigue all worsen as the thermal baseline rises. The best design target is therefore not “below 150°C,” but “comfortably below the temperature at which lifetime becomes an active constraint.”

A practical thermal approach starts with loss partitioning. At higher VIN, switching loss and gate-drive-related loss become more significant. Near dropout, conduction loss dominates because current flows with little conversion headroom. At high output current and elevated ambient, both the IC and inductor can become limiting. The regulator’s current rating only remains usable if PCB copper, thermal vias, and airflow support heat spreading. It is common to find that the silicon itself is capable, while the board implementation is not. A compact layout with insufficient copper under the package can raise junction temperature enough to erase what looked like comfortable electrical margin.

From a system perspective, the low-input operating capability is one of the device’s most strategically useful traits. A 3.3-V rail that remains regulated down to about 3.55 V input helps bridge battery droop without inserting a boost stage or a more complex pre-regulator. That simplifies architecture, reduces component count, and often improves overall reliability. The tradeoff is that the designer must be honest about what “maintain 3.3 V” really means during the sag event. If upstream protection FETs, trace drops, connector resistance, and input filter losses consume even a few hundred millivolts, the regulator may no longer see the 3.55-V minimum it needs. In low-headroom design, distribution loss is not a minor error term; it is often the whole story.

This is where layout and power-path accounting become decisive. A design that appears compliant at the source may fail at the converter pins once cable drop and protection losses are included. Measuring VIN directly at the regulator during dynamic events usually reveals much more than static calculations suggest. The most reliable implementations reserve margin not only for nominal battery sag, but also for the voltage lost in the path between battery and buck input. That discipline often separates a rail that survives crank testing consistently from one that passes only under selected conditions.

The fixed 3.3-V output also aligns well with common digital ecosystems. Many communication controllers, gateway processors, sensors, and support ASICs still use 3.3-V I/O or analog rails even when their internal cores run lower. Using a fixed-output regulator for this domain reduces qualification effort because output accuracy, compensation behavior, and internal reference usage are already optimized around that target. The absence of divider tuning reduces one more variable during EMC troubleshooting. In noisy environments, fewer high-impedance analog nodes usually translates into fewer surprises.

Overall, LM53625NQRNLRQ1 should be viewed less as a generic 36-V-to-3.3-V buck and more as a rail-continuity component for electrically demanding systems. Its value comes from the combination of moderate output current, strong low-input regulation behavior, automotive-oriented thermal robustness, and reduced configuration risk through the fixed output option. The most effective use of the part is in designs that respect the difference between recommended operation and absolute survival, preserve low-headroom margin all the way to the VIN pins, and keep junction temperature under control with board-level thermal design rather than relying on datasheet maxima. In that operating space, it is a notably practical choice.

LM53625NQRNLRQ1 architecture and control features that affect system design

LM53625NQRNLRQ1 is built to simplify power-stage implementation by moving a large part of the control loop and protection framework inside the device. For system design, this matters more than the headline current rating alone. Internal compensation removes the need to tune an external loop across every board variant, which reduces both schematic iteration and validation effort. Integrated soft start, cycle-by-cycle current limiting, thermal shutdown, and undervoltage lockout also narrow the number of external decisions that can destabilize a design during bring-up. In automotive platform work, this level of integration is especially useful because it supports reuse. A single regulator approach can often be carried across several ECU variants with only inductor, capacitor, and feedback-network adjustments, rather than a full control-loop redesign.

The practical benefit is not just faster development. It is also more predictable behavior during qualification. When compensation is internal, loop dynamics are bounded by the vendor’s intended operating envelope, so the main design task shifts from controller stabilization to power-stage selection, layout discipline, and corner-case validation. That changes the engineering workload in a favorable way. Instead of spending time correcting control-loop interaction problems, effort can be directed toward thermal margins, EMI containment, cold-crank behavior, and load transient compliance, which are usually the issues that decide whether an automotive rail is robust in production.

The 2.1 MHz nominal switching frequency is a key architectural choice because it directly reshapes the external component set. Higher switching frequency allows lower inductance and smaller capacitance for a given ripple and transient target, which is why the typical implementation can use a 2.2 µH inductor and relatively compact output capacitors. In dense PCB assemblies, this is not a minor packaging advantage. It often determines whether the regulator can be placed near the load, whether routing can remain short and low-inductance, and whether the design avoids escalating into a multilayer congestion problem around processors, transceivers, or sensor interfaces.

There is, however, a design trade behind that compactness. As switching frequency rises, switching loss and EMI sensitivity become more prominent. The device reduces the burden of loop design, but it does not eliminate the need for careful layout. The hot loop formed by the input capacitor, high-side switch path, and ground return must remain tight. Input decoupling must sit very close to the VIN and PGND pins. The SW node should be kept compact to control radiated noise and to avoid coupling into feedback or sensitive analog traces. In practice, many efficiency or noise complaints attributed to the regulator itself are actually layout-driven. With a device operating in the low-megahertz range, parasitic inductance and capacitive coupling stop being second-order effects and start shaping real system behavior.

The transition behavior between PWM operation and light-load PFM-related operation is another control feature that strongly affects system-level decisions. Under heavier load, PWM mode gives more consistent switching action and better transient containment. Under lighter load, reduced switching activity improves efficiency, which is valuable for battery-connected systems and standby power budgets. The LM53625NQRNLRQ1 allows either automatic entry into light-load behavior or forced PWM operation through the FPWM pin. This gives the designer a direct lever to balance efficiency against spectral predictability.

That choice should be made at the application level, not in isolation. If the rail powers digital logic with moderate noise tolerance and long light-load dwell time, automatic mode often produces a better energy profile. If the rail feeds communication devices, mixed-signal circuitry, RF-adjacent subsystems, or any load where low-frequency ripple components and mode-transition artifacts are difficult to absorb, forced PWM is usually the safer option even at some efficiency cost. In several board-level implementations, the more stable EMI signature of forced PWM has proven easier to qualify than a theoretically more efficient light-load strategy, especially when downstream circuits react strongly to variable switching patterns. This is one of those cases where predictable behavior can be more valuable than peak datasheet efficiency.

The BIAS pin is a small feature with a disproportionate effect on real efficiency. Once VOUT is established, connecting BIAS to the output rail allows the internal control circuitry to draw from a lower-loss source than the raw input path. On a 3.3 V output, this reduces internal dissipation and improves conversion efficiency, especially when VIN is much higher than VOUT. The underlying mechanism is simple: internal housekeeping power no longer has to be dropped inefficiently from the higher input rail. In thermally constrained designs, that reduction in internal loss can provide useful margin, not only for efficiency reporting but for sustained operation at elevated ambient temperature.

This is particularly relevant in automotive input environments where battery-derived rails may vary widely and remain above the regulated output by a large margin for long durations. In that situation, BIAS usage is not just a recommendation to gain fractional efficiency points. It is part of keeping the regulator thermally honest. Ignoring BIAS can leave unnecessary heat inside the package, and that heat often surfaces later as reduced margin during high-ambient testing or tightly enclosed module operation.

From a system architecture perspective, the device is best viewed as a pre-optimized buck platform rather than just a switching regulator IC. Its internal control integration reduces loop-design risk. Its 2.1 MHz operation enables compact power stages and more flexible placement. Its selectable light-load behavior lets the same silicon serve either efficiency-focused or noise-sensitive rails. Its BIAS implementation improves internal power utilization once the output is alive. Together, these features support a design style in which most engineering effort moves away from controller customization and toward application-specific optimization: component derating, PCB current return control, EMI filtering, startup sequencing, and fault behavior under real operating extremes.

A useful way to approach the LM53625NQRNLRQ1 is to treat its integrated functions as margin enablers, not merely convenience features. Internal compensation is valuable because it reduces one class of failure. High switching frequency is valuable because it buys placement freedom. PWM/PFM control is valuable because it lets the rail behavior match the noise and efficiency priorities of the load. BIAS is valuable because it converts an easy wiring decision into lower thermal stress. When those features are used deliberately rather than passively, the regulator becomes easier to standardize across platforms without forcing every application into the same compromise space.

LM53625NQRNLRQ1 package, pin functions, and board-level integration points

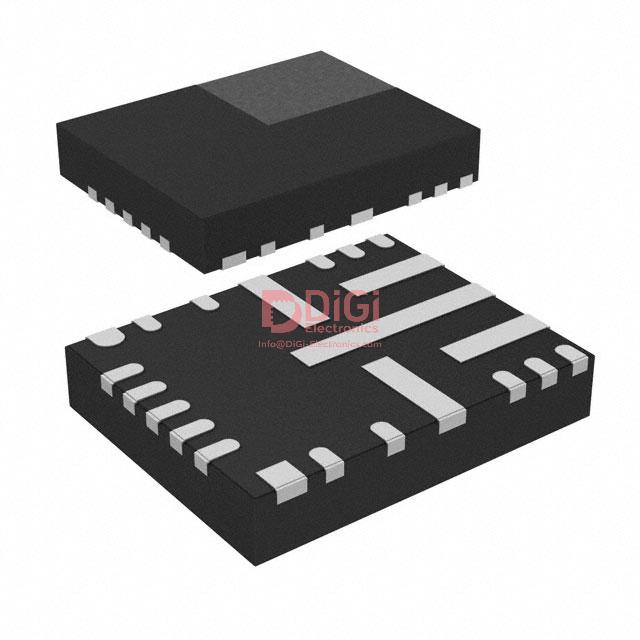

LM53625NQRNLRQ1 is built around the RNL 22-pin VQFN package, and the package choice is not a cosmetic detail. It directly shapes assembly quality, thermal behavior, parasitics, and achievable EMI performance. The wettable-flank structure is especially relevant in automotive and other high-reliability production flows because it allows optical confirmation of solder fillets at the package edge. That improves inspection observability at the board level and reduces the ambiguity often associated with fully leadless terminations. In practice, this matters less during schematic capture than during ramp-up, rework analysis, and process validation, where visible solder evidence can shorten root-cause cycles.

Electrically, the package supports TI’s HotRod-style interconnect philosophy, where parasitic resistance and loop inductance are pushed down through leadframe and pin arrangement rather than left for the PCB alone to compensate. That has a direct effect on switching edge quality. Lower parasitics reduce overshoot and ringing at the switch node, ease stress on the internal MOSFETs, and make conducted and radiated emissions easier to control. The important engineering point is that the package does not eliminate layout sensitivity. It narrows the margin for poor current return planning. If the board routes the high-di/dt loops loosely, the advantage of the package is quickly diluted.

The pin functions are organized around three domains: power delivery, analog biasing, and control/status interfacing. Understanding the separation is useful because successful integration depends on keeping these domains electrically coordinated while physically disciplined on the PCB.

PVIN1 and PVIN2 are the main power input pins for the internal switching stage. They must be tied together with a short, wide, low-impedance copper connection. This is not simply a connectivity requirement. These pins carry pulsed input current, so unequal routing or a split connection can create local imbalance, raise parasitic inductance, and worsen input ripple current distribution. The input bypass capacitors should be placed as close as possible between PVIN and PGND, with the smallest possible loop area. That loop is one of the most critical in the converter. If it is compact, input ripple current stays localized. If it spreads across the board, EMI and switching noise generally rise together.

PGND1 and PGND2 serve as the power return path for the internal low-side MOSFET. They must also be tied together directly and connected into the power ground region with very low impedance. Their relationship to AGND deserves attention. AGND is the quiet analog reference, while PGND carries switching current. These grounds must meet in a controlled way, typically at or near the device ground reference region, so that analog sensing does not ride on switching return noise. A common failure mode in compact buck layouts is treating all grounds as interchangeable copper. The converter may still regulate, but transient jitter, feedback noise, or unexplained RESET behavior can appear because the analog reference is contaminated by power return currents.

The SW pin is the switch node and connects to the power inductor. This node has the highest dv/dt in the design and is usually the strongest local noise source. Its copper area should be kept only as large as needed for current handling and thermal balance. Excess SW copper increases electric-field coupling into nearby traces and planes, often injecting noise into feedback, synchronization, or reset lines. A practical layout pattern is to give SW a short, direct path to the inductor and avoid routing any sensitive nets beneath or adjacent to this region unless shielded by a solid reference strategy.

AVIN is the analog supply input. Although it is tied to the same source rail as PVIN, it should be treated as a quieter feed into the internal control circuitry. The intent is not isolation through long routing, but clean local decoupling and avoidance of direct exposure to switching-current return noise. When AVIN routing is casually merged into the noisy power entrance path, the control block becomes more vulnerable to line-edge disturbances, especially during fast load release, input hot-plug, or harsh conducted-noise conditions.

VCC is the internal 3.1-V LDO output and requires a 4.7-µF capacitor to AGND. This capacitor is a functional stability component, not an optional bypass element. Its placement should prioritize a short return to AGND and minimal inductive path length. In switching regulators with internal control rails, poor VCC capacitor placement can show up as soft instability rather than outright failure: irregular pulse behavior, sensitivity to SYNC transitions, or degraded startup repeatability. These issues are often misread as control-loop problems when the root cause is local bias decoupling.

CBOOT requires a 470-nF capacitor to SW and forms the bootstrap supply for the high-side gate drive. The placement here is critical because the bootstrap current path is fast and repetitive. The capacitor must sit tightly between CBOOT and SW. Stretching this loop increases parasitic inductance and can degrade gate-drive amplitude during switching transitions. The resulting effect is often visible as higher switching losses, elevated MOSFET stress, and a noisier SW waveform. On dense boards, this is one of the first connections that should be locked before less critical routing begins.

The control pins define how the regulator participates in the wider system. EN controls startup and shutdown and must never float. A floating enable input can create indeterminate startup behavior, intermittent operation during supply ramping, or susceptibility to coupled noise. It is good practice to define EN with a firm bias network aligned to the desired UVLO behavior of the application rather than relying on incidental pull structures elsewhere in the system. In vehicle or industrial power trees, where supply ramps can be slow, noisy, or multi-stage, EN threshold design often determines whether startup looks clean or chaotic.

SYNC allows external synchronization to a system clock from 1.9 MHz to 2.3 MHz. This function becomes important when multiple converters share an EMI budget or when beat frequencies must be avoided in sensitive sensing or communication bands. External synchronization is often treated as an EMI cleanup feature, but its value is broader. It also makes spectral behavior predictable, which is critical when the board sits near radio, ADC, or network interfaces. The tradeoff is that the SYNC line itself becomes a noise-sensitive timing input. It should be routed with discipline, referenced properly, and kept away from the SW region.

FPWM selects forced PWM mode or automatic light-load operation and also must not float. This pin determines an important efficiency-versus-noise trade space. Forced PWM keeps switching frequency constant, usually simplifying filter behavior and lowering low-frequency output ripple variation. Auto mode improves light-load efficiency by allowing pulse-skipping or related power-saving behavior. The correct choice depends on system priorities. In low-noise sensor platforms or tightly managed EMI environments, fixed-frequency behavior is often worth the efficiency cost. In standby-dominant systems, auto mode can produce better overall thermal and energy performance. The key is to decide this at system level, not as an isolated regulator setting.

RESET is an open-drain status output used for power-good style supervision. Since it does not drive high actively, it requires a proper pull-up to a valid logic rail. The pull-up destination should match the domain that consumes the status signal. If RESET is tied casually to an unrelated rail, sequencing ambiguities can appear. This is particularly relevant in systems with multiple voltage domains, where a logically “good” output from the regulator does not necessarily mean the receiving domain is already valid.

FB in the fixed-output LM53625NQRNLRQ1 connects directly to the output node. That simplifies compensation and resistor selection at the schematic level, but it does not eliminate feedback routing sensitivity. Because FB still represents the control loop’s observation of VOUT, its routing should avoid noisy current paths and large voltage gradients. A direct connection should still be Kelvin-minded in spirit: sense the regulated output where the load-relevant voltage exists, not through a path shared with pulsed ground returns or high copper drop.

BIAS also connects to the output node. This pin allows the device to improve internal bias efficiency by deriving internal operating power from the regulated output when appropriate. In practical terms, that can reduce internal dissipation compared with drawing all bias power from VIN. The benefit becomes more visible at higher input voltage and moderate load, where every small reduction in internal loss helps thermal margin. This is one of those pins that seems straightforward in the datasheet but quietly contributes to why the regulator performs well in real systems.

Board-level integration is where these pin definitions either become a robust converter or a noisy one. The first layout priority is the hot loop formed by PVIN, the input capacitors, PGND, and the internal switching path. This loop must be compact, wide, and geometrically closed. The second priority is the switch loop from the internal high-side path through SW, the inductor, and back through the return network. The third is preserving a clean analog ground and feedback environment. These priorities are more useful than thinking in terms of “place all components close,” because not every close placement is equally valuable. Tightening a noncritical signal route does little if the input bypass loop is still broad and inductive.

Thermal behavior should also be considered as part of electrical layout, not after it. The VQFN structure can move heat effectively into the PCB when the ground and thermal landing are designed with sufficient copper and via stitching. However, thermal spreading should not come at the expense of uncontrolled switching-node expansion. A balanced layout usually keeps SW compact while allowing PGND and thermal pad regions to connect into broader copper for heat extraction. This separation of thermal area from noisy node area is one of the more important layout instincts in modern synchronous buck design.

Decoupling strategy benefits from prioritization. The input ceramic capacitors closest to PVIN and PGND are the highest leverage components in controlling current spikes. Their ESL and placement matter more than adding extra bulk capacitance a few centimeters away. Bulk input capacitance still has value for source impedance control and surge buffering, but it cannot substitute for the local high-frequency bypass loop. A similar pattern applies on the output side: the first output capacitors near the inductor and return path shape transient containment, while remote capacitance mainly supports lower-frequency load events and rail stability across distribution impedance.

A useful integration habit is to inspect the layout by current loop rather than by net name. If the eye follows where the pulsed current actually flows during each switching transition, layout weaknesses become obvious: a capacitor connected correctly but returned through a long path, AGND merged too late, SYNC routed across the SW edge field, or FB taken from a point that includes load current drop. This loop-based review tends to catch the issues that schematic checks miss.

The strongest designs using LM53625NQRNLRQ1 usually reflect one consistent principle: the package, pinout, and PCB are treated as one electromagnetic structure. When that view is applied, the device’s low-parasitic package, wettable-flank manufacturability, integrated biasing, and control options all reinforce each other. When they are handled as separate checklist items, performance becomes more variable, and the gap between datasheet behavior and board behavior grows quickly.

LM53625NQRNLRQ1 RESET, operating modes, and system supervision behavior

LM53625NQRNLRQ1 exposes two functions that strongly influence system behavior beyond basic power conversion: the RESET output and the FPWM-controlled operating mode. Both features affect how the regulator interacts with downstream logic, startup sequencing, EMC targets, standby current budgets, and fault recovery strategy. In many designs, these pins determine whether the device behaves like a simple buck converter or as a compact power-management element with built-in supervision.

The RESET pin is particularly valuable because it ties rail validity to a dedicated hardware signal. It is implemented as an open-drain output, so it does not source a logic-high level by itself and instead requires an external pull-up. This arrangement is practical in embedded platforms because it supports level translation, wired-OR fault signaling, and flexible interface voltage selection. A 3.3-V rail can therefore supervise a 1.8-V processor reset domain, or several reset sources can share one line if the timing budget is understood correctly. That flexibility often removes the need for a standalone supervisor IC, which reduces BOM count, routing complexity, and failure points at the board level.

The important detail is that RESET is not simply a comparator tied directly to the output waveform. TI adds internal filtering and a 3-ms release timer, which makes the signal significantly more useful in real systems. A switching regulator output can momentarily cross threshold during startup, load transients, or pre-bias conditions without being truly ready to support digital logic. If reset were released on the first threshold crossing, downstream devices could begin executing while the rail is still settling, often leading to non-repeatable boot faults that are difficult to trace. The internal qualification delay acts as a debounce mechanism for the power rail. It filters switching-related excursions and waits for the output to remain in a valid region long enough to indicate actual readiness rather than instantaneous compliance.

The threshold behavior is defined relative to VOUT. RESET releases high after the output exceeds the upper threshold, approximately 107% of the programmed output voltage, and asserts low when the output falls below the lower threshold, approximately 94% typical, or whenever EN is low. This creates a hysteretic supervision window. From an engineering standpoint, that hysteresis is more important than the absolute threshold numbers alone. It prevents chatter near the trip point when the rail is affected by noise, dynamic load steps, line disturbances, or soft-start ramp behavior. In practice, a non-hysteretic reset monitor on a switching rail often becomes a source of instability rather than protection, especially when the load current changes sharply at boot.

There is also a design implication in the choice of threshold placement. A low threshold around 94% is aligned with undervoltage detection for many digital loads, where timing violations or logic corruption can occur before a rail is fully collapsed. The upper release threshold near 107% indicates the device is looking for a convincingly established output state before declaring the rail valid. This is conservative in a useful way. It reduces the chance of early release into a marginal region, though it also means startup timing should be checked carefully when the rail has tight tolerance requirements, large output capacitance, or downstream circuits with narrow acceptable voltage windows.

For processor, transceiver, and control-logic rails, this RESET behavior is often sufficient as the primary power-good indicator. It works well when the downstream device only needs confirmation that the buck output is present and stable. It is less ideal when the system requires tighter reset thresholds, programmable delay, voltage tracking across multiple rails, or explicit sequencing relationships among several converters. In those cases, the integrated RESET still remains useful, but more as a local rail-valid signal than as the sole supervisor. A robust architecture often uses the converter RESET to gate local enables or hold peripheral devices inactive, while a higher-level PMIC or supervisor manages global sequencing.

A recurring integration detail is pull-up placement and timing interaction. Since RESET is open drain, the pull-up voltage defines the logic-high domain and the RC environment influences edge shape. With long reset traces, large fanout, or external filtering added by habit, the signal can become slower than expected. That rarely matters for basic reset release, but it can affect boot synchronization if several devices sample reset timing differently. Keeping the pull-up near the receiving logic and avoiding unnecessary capacitive loading usually produces cleaner, more deterministic behavior.

The other major system-level control is FPWM. This pin selects how the regulator behaves under light-load conditions. Driving FPWM high forces pulse-width modulation operation across the load range. Driving FPWM low enables automatic entry into a light-load mode optimized for efficiency. This choice is not cosmetic. It changes the spectral character of the switching activity, the output ripple profile, the inductor current waveform, and the standby power draw.

In forced PWM mode, the converter maintains a more regular switching pattern even when load current is small. The main advantage is predictability. The switching frequency remains controlled, ripple energy is concentrated around known harmonics, and output-voltage behavior is generally smoother in applications sensitive to low-frequency ripple or burst activity. This mode is often the safer choice when the rail supplies RF-adjacent circuitry, precision analog sections, high-speed serializers, audio paths, or any subsystem where beat frequencies and variable-spectrum noise can create downstream problems. It also simplifies filter design because the noise profile is less load-dependent.

The cost of forced PWM is reduced efficiency at light load. The regulator continues switching actively when a power-save mode could otherwise reduce switching losses. In systems with long standby intervals, this can materially increase quiescent power dissipation and thermal accumulation, even if the average current appears modest. The tradeoff becomes more visible in automotive and industrial nodes that spend most of their lifetime in key-off, sleep, or listen states. A design that is excellent in conducted-emissions testing may fail the energy budget for parked-current or always-on operation if FPWM is used indiscriminately.

With FPWM low, the device can transition into an automatic light-load mode. This improves efficiency by reducing unnecessary switching activity when the load is small. For body electronics, gateway modules, sensor bias rails, and always-powered housekeeping domains, this mode is often the more balanced choice. The reduction in switching losses directly helps standby current targets, and in many digital-only rails the resulting ripple behavior is acceptable. The practical caveat is that light-load modes can introduce variable-frequency operation, pulse skipping, or burst-like behavior depending on internal control strategy. That behavior can create low-frequency ripple envelopes or EMI signatures that are harmless electrically but troublesome for nearby sensitive functions.

Mode selection should therefore be driven by system constraints, not by a generic preference for efficiency or noise. If the rail feeds a processor core reset tree, a CAN or Ethernet transceiver, or a precision sensor front-end, deterministic switching often has higher value than a few points of light-load efficiency. If the same converter powers a dormant controller that wakes infrequently, automatic light-load mode usually provides the better system result. The useful engineering habit is to evaluate the mode under the actual load profile rather than under nominal full-load conditions only. Many power designs look equivalent at 1 A and behave very differently at 5 mA.

RESET and operating mode also interact indirectly. Rail supervision depends on output stability, and output stability is influenced by control mode, load step behavior, output capacitance, and PCB parasitics. In forced PWM, the output tends to present a more uniform ripple pattern, which can make reset qualification behavior easier to predict during startup and low-load operation. In automatic light-load mode, wider ripple excursions or mode transitions can alter how close the output operates to the supervision thresholds during unusual conditions such as pre-regulated battery droop, cold crank, or sudden wake-up events. The internal filtering mitigates this, but it should not be treated as a substitute for margin analysis.

A practical validation approach is to observe three waveforms together: VOUT, RESET, and load current, while sweeping input voltage and temperature and applying realistic load transitions. That usually reveals whether the 3-ms reset timer is sufficient, whether RESET chatters during brownout-like events, and whether FPWM selection affects the usable noise margin on the supervised rail. It is especially useful to test near the edges of the application, not just at nominal 12-V input and room temperature. Many subtle startup issues only appear when output capacitors are cold, input impedance rises, or the downstream device draws a short inrush burst immediately after reset release.

One useful design perspective is to treat the integrated RESET as a state-quality indicator rather than a precision voltage monitor. It answers the question, “Is this rail ready enough for dependent logic to proceed?” For that purpose, it is highly effective. It is not intended to replace every form of sequencing intelligence or fault classification. Similarly, FPWM should be viewed as a system-noise and energy-policy selector rather than a mere efficiency toggle. Once those roles are recognized clearly, the LM53625NQRNLRQ1 becomes easier to integrate correctly: RESET defines when the rail can be trusted, and FPWM defines how the rail behaves while delivering that trust across different operating conditions.

In compact power architectures, that combination is unusually useful. A single regulator can provide the output rail, qualify its validity, and let the designer bias the solution toward spectral stability or light-load efficiency depending on the domain being powered. When used with deliberate threshold interpretation, careful pull-up design, and mode selection based on actual load behavior, these features materially improve startup robustness and reduce external supervision overhead without adding control complexity.

LM53625NQRNLRQ1 efficiency, EMI, and switching-frequency considerations

LM53625NQRNLRQ1 deserves attention not only because it is AEC-Q100 qualified, but because its switching behavior is engineered for systems where EMC margin is often the real design constraint. In automotive and industrial platforms, compliance risk usually does not come from qualification status alone. It comes from how sharply the regulator commutates current, how much parasitic inductance sits in the hot loop, how predictable the switching spectrum is, and how effectively the control architecture supports frequency planning at the board level. This device addresses those factors directly, which is why its EMI profile is often more relevant than its headline current rating.

A useful way to evaluate the LM53625NQRNLRQ1 is to separate efficiency, EMI, and switching-frequency behavior, then reconnect them as a single design problem. In practice, these three are not independent. Any attempt to improve one usually perturbs the other two. A regulator that switches faster can shrink magnetics and capacitors, but it also tends to push switching loss upward. A regulator optimized for very fast edges can improve transient performance, yet those same edges increase high-frequency spectral content and make layout sensitivity worse. The strength of this device is that its internal architecture and package strategy are clearly aimed at reducing that conflict rather than forcing the board designer to absorb it entirely through external filtering.

The 2.1 MHz nominal switching frequency is central to that balance. At this frequency, the inductor and input/output capacitors can be smaller than in lower-frequency buck designs, which is especially valuable in dense modules, zonal controllers, camera supplies, radar front ends, and compact industrial I/O assemblies. Smaller magnetics reduce area and can shorten current paths, which often helps EMI as much as it helps size. That said, 2.1 MHz is high enough that switching loss, gate-drive loss, and core loss become design-visible. The practical implication is straightforward: frequency selection is not just a passive-component sizing knob. It is also a thermal and spectral placement decision.

From an EMI standpoint, the most important emissions do not originate from frequency alone. They originate from di/dt and dv/dt acting on parasitic inductance and capacitance. The input hot loop, the switch node copper geometry, the return path continuity, and the capacitor ESL all determine how much of the internal switching action escapes into the rest of the system. This is why claims of low EMI only matter when the silicon, package, and control method reduce the sensitivity of those external parasitics. The LM53625NQRNLRQ1 is positioned well here because low switch-noise performance is built into the device intent, not added as a secondary feature. That distinction matters. Parts that merely switch at a fixed frequency can still be difficult in EMC testing if their commutation behavior is spectrally sharp or layout-sensitive.

The spread-spectrum function in the LM53625NQRNLRQ1 is a good example of design assistance that works at the system level. The specified ±3% frequency deviation with a 9 kHz modulation pattern reduces peak energy concentration at the switching fundamental and its harmonics. In engineering terms, it lowers quasi-peak stress by smearing discrete spectral lines across a wider band. This does not reduce total switching energy. It redistributes that energy so test receivers and narrowband interference mechanisms see lower amplitude at any one frequency. In many designs, that can be the difference between needing a major filter change and passing with only minor tuning.

It is important, however, to keep the benefit in the right context. Spread spectrum is not a substitute for layout discipline. If the input loop is large, if the switch node floods adjacent copper, or if the input bypass network is physically remote from the device pins, the emitted noise floor remains high regardless of frequency dithering. In those cases, spread spectrum can mask a narrow spectral problem while leaving broadband coupling intact. A better way to view it is as a margin enhancer. It is most effective when the basic current-return geometry is already correct and the remaining issue is spectral concentration rather than uncontrolled switching contamination.

The practical design sequence usually starts with the current loops. The high-side FET turn-on loop and the freewheel loop should be minimized first. The input ceramic capacitors need to sit as close as possible to the VIN and power ground return of the converter, with the lowest-inductance path taking priority over cosmetic routing. The switch node should be compact, not oversized. Excess copper on SW often looks harmless in CAD but behaves like an efficient radiator and capacitive injector into neighboring nets. Ground should be continuous underneath quiet control routing, while noisy copper should be kept away from feedback, synchronization, sensor, and communication traces. These layout details often produce larger EMI gains than adding another filter stage later.

The 2.1 MHz operating point also has a less obvious system advantage. It places the fundamental above the AM broadcast band, which can simplify avoidance of some low-frequency interference concerns in automotive platforms. That does not eliminate harmonic issues, since radiated and conducted emissions can still fold into problematic regions through harmonics, cable resonance, common-mode conversion, and enclosure coupling. Still, pushing the main switching energy upward gives more freedom when designing around low-frequency victim bands. The tradeoff is that higher-order harmonics become easier to excite through poor high-frequency layout, so field containment becomes more important, not less.

Efficiency needs to be interpreted in this same framework. A converter can post good efficiency numbers in a controlled evaluation setup and still create thermal or EMC stress in a real assembly if the board parasitics distort switching waveforms. At 2.1 MHz, even small increases in ringing or overlap loss can become visible in both heat and emissions. This is one reason why package parasitics matter so much. Lower internal inductance reduces overshoot, dampens ringing tendencies, and improves switching cleanliness. That improves EMI directly and often recovers some efficiency that would otherwise be lost in uncontrolled transitions. In other words, EMI optimization and efficiency optimization are partially the same activity once parasitics dominate the behavior.

External synchronization through the SYNC pin adds another layer of control that is especially valuable in mixed-signal systems. The ability to lock the regulator on the rising edge to an external clock from 1.9 MHz to 2.3 MHz allows the power stage to participate in a broader frequency plan. This matters in systems with multiple buck converters, serializer/deserializer links, ADC sampling networks, RF receivers, precision clocks, or narrowband communication channels. Without synchronization, free-running converters can generate beat products and intermodulation patterns that are difficult to predict and even harder to filter. By locking converters to a managed frequency grid, the spectrum becomes more deterministic, and deterministic spectra are usually easier to contain.

There is also a subtle but important architectural benefit in synchronization. Once the switching frequency is controlled externally, the power designer can decide whether the objective is harmonic alignment or harmonic separation. In some systems, aligning converters to a common clock reduces beat artifacts and simplifies EMI characterization. In others, slight offsetting is preferable to prevent harmonic stacking at one frequency. The LM53625NQRNLRQ1 gives enough flexibility to support either strategy within its synchronization range. That is often more valuable than a wide frequency range by itself, because useful frequency control is not about having many options. It is about making the spectrum intentional.

In densely integrated boards, the interaction between synchronization and spread spectrum deserves careful handling. If the system clock strategy requires deterministic spectral placement, wide use of spread-spectrum operation may work against debug visibility or narrowband planning. If the primary goal is EMC margin in a less frequency-sensitive design, spread spectrum may be the better default. The right choice depends on whether the limiting factor is peak emissions, beat interference, or susceptibility of nearby circuits. The most robust designs choose one dominant objective first, then use the other feature selectively rather than enabling every noise-reduction mechanism indiscriminately.

A common pattern in automotive and industrial power trees is that the regulator itself is not the only radiator. Harnesses, shield terminations, ground offsets, and connector transitions often convert local switching noise into system-level emissions. In that environment, the LM53625NQRNLRQ1’s low-EMI characteristics are most effective when combined with tight local decoupling, carefully chosen input damping, and deliberate control of common-mode current paths. For example, an input filter can improve conducted emissions substantially, but if it is not damped or if its return path is poorly referenced, it can interact with the converter input impedance and create peaking. That kind of issue rarely appears in first-pass calculations, yet it appears quickly on a LISN or in chamber scans. Stable filter integration matters as much as filter attenuation.

Another practical point is that high switching frequency can compress the margin between acceptable layout and problematic layout. At lower frequencies, a board may appear forgiving because ringing energy remains lower or outside the most visible test regions. At around 2 MHz, small routing mistakes become easier to observe. That is not a weakness of the regulator. It is a sign that the design is operating in a regime where electromagnetic details are no longer hidden. A converter like the LM53625NQRNLRQ1 is therefore most effective in teams that treat power layout as part of the control loop, not as a post-schematic implementation task.

For applications with multiple rails, one of the more effective strategies is to place the LM53625NQRNLRQ1 on the rails that sit closest to sensitive digital timing, RF sections, or cable exits, while reserving less EMI-optimized converters for less exposed domains. That partitioning usually produces a better cost-performance outcome than trying to solve every rail with the same regulator class. The reason is simple: EMC problems are rarely uniform across the board. They concentrate around coupling paths, not current ratings. Using a low-noise regulator where spectral discipline is most valuable often gives more benefit than using it everywhere.

Taken together, the LM53625NQRNLRQ1 is best understood as a regulator designed for controllable switching behavior rather than only high-frequency conversion. Its low-EMI intent, spread-spectrum implementation, compact-frequency operation, and synchronization capability form a coherent set of tools for modern power architecture. The key is to use those tools with a clear hierarchy: first contain parasitic current loops, then shape the spectrum, then align the switching behavior with the rest of the system. When that sequence is followed, the device’s strengths become much more visible in both efficiency and EMC results.

LM53625NQRNLRQ1 thermal, reliability, and qualification characteristics

LM53625NQRNLRQ1 is positioned for automotive power conversion not only through functional integration, but through a qualification and protection profile that supports predictable behavior across harsh electrical and thermal conditions. It is AEC-Q100 qualified and rated for temperature grade 1 operation, which corresponds to an ambient range of –40°C to +125°C. That matters because the device is intended to remain electrically valid across the temperature span typically seen in distributed vehicle electronics, including modules installed behind displays, inside dashboards, near gateway controllers, or in other partially enclosed zones where ambient temperature can remain elevated for long periods.

The ESD ratings also deserve more attention than they usually receive in brief part comparisons. HBM level 2 and CDM level C6 indicate meaningful robustness against handling and manufacturing-induced discharge events, which is especially relevant for compact power devices that are often placed near connectors, cable harness interfaces, or dense mixed-signal regions of a PCB. These ratings do not eliminate the need for system-level protection, but they reduce sensitivity during assembly and service exposure. In practice, this improves margin during production transfer and lowers the probability of latent damage mechanisms that are difficult to screen at end-of-line test.

Thermal behavior is where this device must be evaluated as a power stage rather than as a nominal 2.5 A regulator on paper. The published junction-to-ambient thermal resistance of 29.4°C/W and junction-to-case-bottom thermal resistance of 2.4°C/W immediately show that the dominant thermal path is through the package into the board. In other words, package capability alone is not the limiting factor; the PCB becomes part of the thermal design. For a synchronous high-frequency buck converter in a compact package, losses are generated in a relatively concentrated area: high-side conduction loss, low-side conduction loss, switching loss, gate-drive loss, inductor ripple-related effects, and a smaller contribution from control circuitry. As input voltage rises, switching-related dissipation tends to become more important. As load current rises, conduction losses grow rapidly. At high ambient, even moderate increases in total power loss can shift junction temperature enough to consume thermal margin much faster than expected.

This is why thermal design for the LM53625NQRNLRQ1 should be approached as a coupled electro-thermal problem. Copper area under and around the package, via density into internal and backside planes, local plane thickness, and proximity to other heat-generating components all directly influence junction temperature. A design that looks acceptable in schematic review can become thermally marginal after layout compaction, especially when the regulator is placed near processors, display drivers, transceivers, or backlight power stages. The most useful interpretation of the 29.4°C/W number is not as a fixed operating result, but as an indicator that layout quality and board stack-up will determine whether the regulator runs with healthy margin or repeatedly approaches thermal protection in edge cases.

A common mistake is to validate only at nominal battery voltage and room temperature, then extrapolate performance to the vehicle environment. For this class of converter, worst-case junction stress usually appears under a combined condition: high VIN, sustained heavy load, elevated ambient, and an operating mode that prevents loss reduction at light ripple or low-duty intervals. That combined case is more informative than isolated parameter sweeps. It is also the condition most likely to expose interaction between regulator losses, inductor temperature rise, and local board heat spreading limits. In tightly packaged automotive modules, the regulator often runs hotter because the board itself becomes preheated by neighboring subsystems, which reduces the effectiveness of the assumed thermal path.

The integrated current-limit and thermal-shutdown functions are important, but they should be understood in terms of fault containment, not thermal design margin. The high-side switch current limit is typically 5 A, while the low-side current limit is typically 3.5 A. These thresholds help manage overload and short-circuit behavior, but they are not equivalent to a guaranteed continuous output current under all operating conditions. In a synchronous buck regulator, internal switch stress depends on duty cycle, inductor current ripple, transient load behavior, and switching state timing. A converter can remain below current-limit thresholds and still run too hot for long-term reliability if board dissipation is poorly managed. That distinction is critical in reliability-sensitive designs, because thermal overstress often develops gradually and may never trigger a clean protection event before lifetime is affected.

Thermal shutdown at approximately 175°C with hysteresis is similarly best treated as a last barrier against catastrophic overheating. Repeated excursions into thermal shutdown generally indicate that the design is operating outside a reliable thermal envelope. Even if functionality recovers after cooling, cycling near shutdown increases stress on solder joints, package interfaces, nearby passives, and magnetic components. In field conditions, this can produce intermittent behavior that is difficult to root-cause because the regulator appears electrically functional during bench checks. A stable design should maintain adequate junction margin below shutdown across credible worst-case conditions, not rely on thermal cycling tolerance.

From a mechanism perspective, the most important practical variable is how operating mode shifts the loss distribution. Forced PWM can improve spectral predictability and simplify EMI control, but it can also increase switching activity and raise dissipation under lighter load. Synchronization can help avoid beat frequencies and ease system EMC integration, yet it may move switching losses into a less favorable efficiency region depending on selected frequency and VIN range. These are not secondary configuration details; they can materially change the thermal operating point. The best results usually come from evaluating EMI and thermal behavior together rather than optimizing them separately. A layout or mode choice that looks attractive in conducted emissions data can create a thermal penalty large enough to erase reliability margin in high-ambient use.

Board layout remains the highest-leverage design variable after basic topology selection. The thermal pad connection, ground plane continuity, hot-loop minimization, and power-stage current return geometry affect both temperature rise and EMI performance. There is a useful pattern here: layouts that reduce parasitic inductance and current crowding often improve thermal behavior as well, because they distribute current more uniformly and reduce localized loss density. That is why thermal and EMI optimization often converge when the power loop is compact, the ground reference is low impedance, and heat is intentionally spread into broader copper regions. In practice, adding copper without considering current path quality is less effective than building a layout that is simultaneously electrically tight and thermally expansive.

For applications such as instrument clusters, telematics units, camera modules, or zonal controllers installed in warm vehicle regions, validation should center on junction temperature under sustained worst-case mission conditions. That means using maximum intended VIN, maximum continuous load rather than pulse-only load, elevated ambient consistent with enclosure heating, and the exact switching mode planned for production. It is also worth testing after nearby subsystems reach thermal equilibrium, because localized enclosure heating can shift results significantly. Designs that appear comfortable in isolated power-board testing can lose substantial margin once integrated into the final module.

A strong qualification strategy for this device therefore combines standards-based confidence with application-specific derating. Qualification confirms the device was designed and screened for automotive stress classes. It does not remove the need to control board-level thermal impedance, transient loading, or mode-dependent dissipation. The more reliable approach is to treat the regulator as a thermally coupled subsystem whose usable current capability depends on VIN, switching configuration, copper implementation, and ambient environment. That view leads to better engineering decisions than relying on the headline current rating alone, and it aligns more closely with how failures emerge in real vehicle electronics: not from a single missing protection feature, but from accumulated margin loss across thermal, electrical, and layout domains.

LM53625NQRNLRQ1 typical application context and engineering use cases

LM53625NQRNLRQ1 is best understood as an automotive-qualified synchronous buck regulator intended to translate a battery-derived supply into a tightly regulated low-voltage rail, most commonly 3.3 V for logic, sensing, and interface domains. Its typical application is not just a generic step-down stage. It is a front-end power element designed to survive the electrical behavior of vehicle power nets while remaining compact enough for dense modules. The reference implementation reflects that role clearly: input bypass capacitors absorb fast line transients and suppress switch-current loop noise, the bootstrap capacitor drives the high-side gate efficiently, the 2.2-µH inductor sets current ripple and transient behavior, and the output capacitor network closes the loop electrically by shaping load-step response and output ripple. The VCC and bias support capacitors are equally important because they stabilize the internal control and gate-drive rails, which directly affects startup quality, switching consistency, and conducted emissions.

From an engineering perspective, the most important point is that this device is not valuable only because it generates 3.3 V. Its value comes from how it generates 3.3 V under real automotive conditions. Battery-derived rails are noisy, dynamic, and often shared with loads that inject sharp disturbances. Cold crank, load dump filtering stages, harness ringing, reverse battery protection networks, and hot-plug behavior all influence the converter input. A regulator in this class must therefore handle more than nominal voltage conversion. It must preserve regulation, avoid false resets downstream, control EMI, and do so in a layout area small enough to fit near processors, transceivers, and display circuitry. That combination is where LM53625NQRNLRQ1 fits well.

The internal operating profile supports this use model. Its 36-V input capability gives practical margin for automotive battery rails after front-end protection and filtering. This reduces the need to cascade multiple power stages solely for voltage tolerance. The high switching frequency enables smaller magnetics and output capacitors, which is often decisive when the power rail must be placed close to the load to control distribution impedance. Spread-spectrum operation is especially relevant in communication-heavy modules because it lowers narrowband emission peaks that would otherwise complicate compliance work. In many designs, EMI problems do not come from average switching energy but from concentrated spectral lines interacting with cable harnesses, ground structures, or sensitive RF and high-speed digital sections. Reducing those peaks early often shortens the debug cycle more than adding shielding or post-facto filtering later.

The reset output adds another layer of system integration. In instrumentation and display-oriented modules, the power rail is rarely isolated from sequencing requirements. Microcontrollers, display controllers, serializers, sensor hubs, and external memories may all have minimum voltage and timing dependencies. A regulator with a usable reset flag can anchor this startup behavior directly, eliminating a separate supervisor in modest-complexity rails. That saves components, but more importantly it reduces ambiguity in fault behavior. When undervoltage, startup ramp delay, or transient collapse occurs, a reset tied to the actual rail condition usually gives more deterministic recovery than loosely coordinated supervisory networks.

In telematics, the device maps naturally to the 3.3-V domain that supports communication processors, GNSS companion logic, CAN or Ethernet interface sections, and various housekeeping controllers. These systems tend to operate in electrically harsh environments while sitting near RF paths and high-speed serial links. In that context, the converter must not only regulate correctly but also coexist with noise-sensitive circuits. A compact high-frequency buck with spread-spectrum modulation is often preferable to a lower-frequency design with larger passives because the smaller current loops are easier to contain physically. With disciplined layout, this can reduce magnetic coupling into nearby signal structures and keep return-current paths shorter and more predictable.

In head units, the same device is useful for local digital rails where board area, thermal density, and EMI margin all matter simultaneously. Head-unit PCBs are usually partitioned into processing, multimedia, display, connectivity, and power islands, yet these partitions are electrically coupled through common planes, cable interfaces, and enclosure constraints. A converter that can sit close to the digital load without demanding oversized inductors or bulky filtering components simplifies placement. It also reduces DC drop and transient droop between the regulator and the processor rail. In practice, this is often more valuable than nominal efficiency improvements alone, because many digital instability issues are caused by interconnect impedance and rail collapse during burst activity rather than by steady-state power loss.

In instrumentation clusters, the reset function becomes more strategically useful. Cluster controllers, display drivers, and safety-relevant status logic often require deterministic startup and recovery under brownout conditions. Using the regulator reset as part of sequencing logic can simplify the power tree and tighten fault response. This is particularly effective when the 3.3-V rail powers both computation and peripheral logic, because the reset indication reflects the actual converter state rather than an inferred condition. A subtle but important advantage appears during repeated ignition cycling and low-battery starts, where borderline input conditions can produce partial startup attempts. A reset signal linked closely to converter behavior can prevent downstream logic from entering undefined states during those edge cases.

Battery-powered and always-on automotive nodes highlight a different strength: low quiescent current and automatic light-load behavior. In modules that spend long periods in standby while preserving network presence, wake-up detection, or basic monitoring, idle consumption becomes a system-level design parameter. The benefit is not only battery preservation. Lower standby dissipation reduces local self-heating, which improves component drift behavior and can ease thermal stress in enclosed modules. In real deployments, standby power budgets are often eroded by auxiliary bias rails, supervisors, and status circuitry more than by the main converter itself. Integrating reset supervision and maintaining efficient light-load operation helps contain that drift in system complexity.

A representative engineering scenario is a compact control module positioned near communication and display interfaces, powered from a battery-derived rail that sees wide excursions and fast disturbances. The regulator must maintain a clean 3.3-V rail, fit inside a congested PCB region, pass EMI targets, and support controlled startup for digital devices. Here, the 36-V capability, spread-spectrum switching, wettable-flank package, high switching frequency, and reset flag work together in a way that reduces architectural overhead. The wettable-flank package matters in automotive production because optical inspection quality is not a minor manufacturing detail. It directly affects confidence in solder-joint integrity for bottom-terminated packages, especially in vibration-prone environments. That package choice therefore contributes to field robustness as much as to assembly convenience.

The layout shown in the typical application should be treated as an electrical requirement, not merely a placement suggestion. The input bypass capacitors must sit tight to the power pins to constrain the high di/dt input loop. The switch node should be compact and kept away from sensitive traces, especially feedback paths, clock lines, RF nets, and reset lines. The bootstrap path should remain short and clean to preserve gate-drive integrity. The inductor and output capacitors should be arranged so that load current returns do not share noisy paths with analog or control grounds. In dense automotive boards, many regulation problems that look like control-loop instability are actually layout-induced noise injection into feedback or ground references. Keeping the power loop compact and the feedback sense path quiet usually yields larger practical gains than excessive compensation changes.

Component selection around the 2.2-µH inductor also deserves a system view. Inductance value alone does not define performance. Saturation current, core loss at the chosen switching frequency, DCR, and shielding quality all shape thermal and EMI behavior. In theory, many inductors satisfy the nominal value requirement. In practice, an inductor with poor shielding or marginal saturation headroom can turn a clean design into a radiated-emissions problem or a transient-response compromise. Output capacitor choice follows the same pattern. Capacitance, ESR, DC bias derating, and placement determine whether the rail remains stable during processor burst loads or display-update transients. A design that looks correct in schematic form can still underperform if the passive network is optimized only for BOM cost and not for electrical stress.

One useful design approach is to treat the converter and its local rail as a bounded power-delivery subsystem. Define the worst-case input disturbance, characterize the downstream load steps, then place the regulator physically where the current loop and load loop can both be minimized. This often leads to better outcomes than selecting the converter first and forcing it into leftover board space. For LM53625NQRNLRQ1, that philosophy aligns well with its strengths: compact implementation, integrated supervisory behavior, and EMI-aware switching profile. The device is most effective when used as a local, deliberate power anchor for a 3.3-V domain rather than as a generic utility rail dropped somewhere on the board.

Compared with a discrete combination of lower-frequency buck regulator, external supervisor, and added EMI cleanup measures, this device can reduce both part count and integration risk. The more important gain, however, is reduction in cross-domain interactions. Fewer external timing dependencies, smaller magnetic components, and lower spectral peaks usually mean fewer surprises during validation. That is often the difference between a regulator that merely works on the bench and one that remains stable through production variation, harness differences, and temperature extremes. For automotive electronics, that distinction is where the engineering value actually resides.

Potential Equivalent/Replacement Models for LM53625NQRNLRQ1

Potential replacement options for LM53625NQRNLRQ1 are best evaluated inside the LM5362x/LM5363x-Q1 family first, because that is where the highest probability of electrical and layout continuity exists. LM53625NQRNLRQ1 is fundamentally a fixed 3.3 V, 2.5 A automotive buck regulator with spread-spectrum modulation and wettable-flank packaging. That combination defines not only output behavior, but also EMI profile, assembly inspection method, thermal margin, and how tightly an existing PCB can be reused. In practice, replacement selection is rarely just a voltage-current lookup exercise. The closer the substitute stays to the original control architecture and pin-level behavior, the lower the validation burden across EMC, thermal, startup, and production inspection.

The most direct same-family alternatives divide naturally into three dimensions: output-voltage configuration, current class, and EMI feature set. If the original design intent remains a regulated 3.3 V rail around 2.5 A, then LM536253QRNLRQ1 is a close option when spread spectrum is not required. Electrically, this device fits the same functional role, but the EMI signature will differ because the switching spectrum is more concentrated. That distinction matters more than it first appears. A design that passes conducted emissions with spread spectrum enabled can move closer to compliance limits when switched to a non-spread-spectrum part, especially if input filtering was originally optimized with little margin. In compact automotive modules, this often shows up not at nominal load but in corner cases such as cold crank recovery or high di/dt load steps, where spectral peaks become easier to excite.

If output programmability is needed, LM53625AQRNLRQ1 becomes the practical 2.5 A path. The adjustable version is useful when the rail target may shift across product variants, or when the same PCB must support multiple output settings through resistor stuffing options. This flexibility comes with small but real design consequences. The feedback divider introduces another analog node that must be routed carefully, kept away from noisy switch regions, and verified for tolerance stacking. In replacement work, adjustable versions are often selected to reduce BOM fragmentation, but that choice only pays off if the feedback network is treated as part of the power-stage stability and accuracy budget rather than as a trivial add-on.

For systems using a 5 V intermediate rail, LM536255QRNLRQ1 and LM53625LQRNLRQ1 are the parallel 2.5 A fixed-output candidates. The distinction again centers on EMI behavior, with the spread-spectrum-enabled option usually preferred when the 5 V rail feeds noise-sensitive downstream domains such as sensors, communication transceivers, or mixed-signal front ends. A 5 V replacement also changes more than the output capacitor voltage rating. It affects dissipation in downstream LDOs, transient headroom into secondary converters, and sometimes startup sequencing if supervisors or load switches were tuned around a 3.3 V rail. In other words, changing fixed output value inside the same family may be electrically straightforward, but system-level consequences propagate quickly.

When the design requires more load margin without moving away from the same general architecture, LM53635NQRNLRQ1 is the most natural upward migration path. It preserves the fixed 3.3 V output concept and spread-spectrum feature set while increasing current capability from 2.5 A to 3.5 A. This is usually the cleanest option when the board is already mature and the goal is to absorb new peak loads or reduce thermal stress without redesigning the power tree. The main advantage is not just higher current rating. It is the increase in operating margin under dynamic conditions. Rails that appear acceptable in steady-state simulation often show weaknesses during simultaneous load transients, low-input-voltage operation, or elevated ambient temperature. A higher-current sibling can improve droop performance and thermal reserve even when the average load stays below 2.5 A.

The same scaling applies to LM53635AQRNLRQ1 for adjustable-output designs and LM536355QRNLRQ1 for fixed 5 V, 3.5 A requirements. These variants are useful when the original design direction shifts from a tightly defined rail toward a broader platform strategy. In several reuse-oriented designs, selecting the 3.5 A adjustable device early has simplified future derivative support, because the extra margin absorbs later feature creep without revisiting magnetics, thermal analysis, and conducted-emissions retuning. That said, oversizing the regulator without checking light-load efficiency, compensation behavior, and cost targets can create a less balanced design. Current headroom is valuable, but only when it improves real operating margin rather than simply inflating specification comfort.

A rigorous replacement decision should be anchored around four primary checks: output-voltage type, output-current requirement, spread-spectrum necessity, and package/inspection compatibility such as wettable flanks. These four items cover the majority of first-order fit decisions, but they should not be treated as independent checkboxes. They interact. For example, removing spread spectrum can force filter changes. Changing from fixed to adjustable output can alter startup timing and tolerance behavior. Moving to a higher current part can shift thermal distribution and alter preferred inductor selection. Wettable flanks, while often viewed as a manufacturing-only attribute, matter in safety- or reliability-driven environments because they support optical solder-joint inspection. A substitute that drops this feature may still function perfectly in circuit, but it can complicate end-of-line inspection strategy and qualification flow.

Several second-order checks should also be part of any serious replacement review. The first is passive-component compatibility. Even within the same family, inductor value, saturation current, DC resistance, and output capacitor ESR can affect transient response and stability margin. The second is startup and fault behavior. Power-good timing, soft-start interaction, UVLO thresholds, and hiccup or current-limit behavior should be checked against the system supervisor and processor reset scheme. Small differences here can create intermittent boot issues that do not appear during bench bring-up but emerge during cold-temperature or low-battery testing. The third is EMI filter interaction. A regulator swap that appears pin-compatible may still alter the energy distribution around the switching frequency and its harmonics, which can change how the input filter resonates or how much attenuation is actually needed.

One practical pattern stands out in replacement projects: the best substitute is usually the one that minimizes the number of assumptions that must be revalidated. For LM53625NQRNLRQ1, that usually points first to LM53635NQRNLRQ1 when more current is needed, or to LM536253QRNLRQ1 only when the EMC plan can tolerate loss of spread spectrum. Adjustable variants are strong candidates when platform flexibility matters more than single-rail optimization. Fixed 5 V versions are appropriate when the power architecture itself changes, not merely because they sit nearby in the product table. This distinction is important. A replacement should preserve system intent, not just regulator functionality.

From an engineering standpoint, spread spectrum deserves extra weight in this family. It is often treated as an optional convenience feature, but in dense automotive and industrial layouts it frequently acts as a design enabler. Once cable harnesses, enclosure coupling paths, and shared grounds are involved, reducing narrowband emission peaks can save more effort than adding downstream shielding or aggressive filtering later. In that sense, the spread-spectrum variants are not merely feature-rich versions of the base parts; they are often the more robust choice for integration-heavy designs.

For a design centered on LM53625NQRNLRQ1, the replacement hierarchy is therefore fairly clear. If the goal is to keep fixed 3.3 V behavior, maintain spread spectrum, preserve inspection compatibility, and gain margin, LM53635NQRNLRQ1 is the strongest family-level upgrade. If the current requirement stays at 2.5 A but output flexibility becomes necessary, LM53625AQRNLRQ1 is the logical branch. If spread spectrum is unnecessary and EMC margin is already proven, LM536253QRNLRQ1 can serve as a close alternative. If the platform migrates to a 5 V rail, LM53625LQRNLRQ1 or LM536255QRNLRQ1 become relevant depending on EMI needs, with LM536355QRNLRQ1 covering the higher-current version of that path. The technically correct substitute is the one that preserves not only voltage regulation, but also the surrounding behavior that made the original part workable in the first place.

conclusion

Texas Instruments LM53625NQRNLRQ1 is best evaluated as a system-oriented automotive buck regulator rather than as a discrete power component defined by one headline parameter. It targets designs that need a fixed 3.3 V rail at up to 2.5 A from a widely varying vehicle supply, and its real strength comes from how multiple design decisions align around automotive constraints. The 36 V operating input range, 42 V transient tolerance, 2.1 MHz switching frequency, synchronous rectification, low-EMI architecture, spread-spectrum capability, external clock synchronization, integrated reset supervision, and compact wettable-flank VQFN package together form a regulator that addresses electrical, mechanical, and compliance pressures in a balanced way.

At the electrical level, the wide input capability is especially important because vehicle power nets are rarely clean or static. Cold crank, load-dump-related stress handling at the front end, battery disconnection events, and supply disturbances from inductive loads all shape regulator selection. A device that can operate across a broad nominal range and still maintain a regulated 3.3 V output reduces the need for overly conservative pre-regulation stages. In practice, this often translates into a simpler input protection network and more predictable rail behavior during real vehicle operating cycles. The 42 V transient tolerance does not eliminate the need for proper upstream surge protection, but it does improve margin and eases the burden on the surrounding design.

The 2.1 MHz switching frequency is another feature that becomes more valuable when viewed in the context of complete ECU design. Higher switching frequency allows the use of smaller inductors and capacitors, which directly supports dense layouts and lower profile assemblies. That matters in camera modules, body controllers, telematics units, gateway nodes, and compact sensor interfaces where power density competes with connector placement, shielding structures, and thermal constraints. The tradeoff is familiar: as switching frequency rises, efficiency can degrade if the architecture is not optimized carefully. Here, synchronous rectification helps recover part of that loss by reducing conduction dissipation, especially when compared with asynchronous solutions under moderate to high load. The result is a more efficient compact converter that remains practical in thermally constrained automotive enclosures.

EMI behavior is often where an otherwise capable buck regulator becomes difficult to deploy. LM53625NQRNLRQ1 is clearly positioned for this reality. Low-EMI design, spread-spectrum modulation, and external synchronization are not cosmetic additions; they directly affect whether a power tree can pass system-level EMC targets without excessive filtering, shielding, or layout rework. Spread-spectrum support helps distribute switching energy over a broader band, reducing peak emissions. External synchronization is useful when a design must control beat frequencies or align switching activity with a system clock strategy. In multi-rail systems, that can prevent interaction between converters, radios, serializers, and sensitive ADC paths. In dense automotive boards, this type of control often saves more development time than a small efficiency gain would. Experience repeatedly shows that regulators selected only on current rating and efficiency numbers tend to create late-stage EMI problems, while devices with deliberate spectral control features integrate more cleanly into the platform.

The integrated reset supervision function adds another layer of system value. A stable power rail is necessary, but for digital automotive modules it is not sufficient. MCUs, transceivers, and logic devices need deterministic startup and fault recovery behavior. By integrating reset monitoring, the regulator helps ensure that downstream processing elements only begin operation once the supply is within a valid range. This simplifies the supervisor chain, reduces external components, and improves startup consistency. In practical board design, that also reduces routing clutter around the processor domain and lowers the number of subtle timing dependencies that can surface during cold-temperature qualification or repeated ignition cycling.

Mechanically, the wettable-flank VQFN package deserves more attention than it usually gets in brief part summaries. In automotive assembly and quality control, side-wettable terminations improve solder joint inspectability, which directly supports AOI-based manufacturing and reliability validation. For safety-relevant or high-volume modules, this packaging choice is not just a convenience. It contributes to process confidence, especially when combined with compact placement and high pin-density layouts. Package selection often becomes a hidden differentiator in production readiness, and this device reflects that reality.

From a platform perspective, the part’s position within the broader LM53625-Q1 and LM53635-Q1 family is strategically useful. Selection flexibility across output voltage and current variants allows a common design language to be maintained across multiple modules. That helps standardize magnetics, layout practices, qualification methods, and sourcing strategies. For engineering teams building scalable vehicle electronics, family continuity reduces redesign effort when one product variant needs 3.3 V at 2.5 A while another requires a different rail or a higher load class. For procurement and lifecycle planning, this also lowers the friction associated with second-phase optimization or architecture reuse.

In application terms, LM53625NQRNLRQ1 fits well in designs where the 3.3 V rail feeds processors, communication ICs, sensors, memory, and mixed-signal support circuitry. It is particularly suitable when the upstream source may be a nominal 12 V or 24 V automotive net and when board area is limited. It also makes sense where EMC margin is a first-order requirement rather than a post-layout correction. One useful way to think about this device is that it reduces the number of separate decisions the designer must manually optimize. Instead of assembling EMI mitigation, supervisory behavior, compact switching operation, and automotive qualification from several loosely matched parts, the regulator consolidates those concerns into a tighter power-stage solution.

A practical design pattern is to place the device close to the input power entry for the local domain, keep the hot-loop area tightly contained, and treat the reset path with the same discipline as the feedback network. In converters of this class, layout still determines whether datasheet performance is actually reachable. Short high-di/dt paths, careful grounding, controlled switch-node copper, and disciplined partitioning between noisy power regions and sensitive signal sections remain essential. The part provides the right architectural tools, but it rewards disciplined implementation. That is often the defining difference between a regulator that merely works on the bench and one that remains stable, cool, and EMC-compliant across temperature, harness variation, and production spread.

Seen this way, LM53625NQRNLRQ1 is not simply a fixed 3.3 V, 2.5 A buck regulator. It is a compact automotive-qualified power solution engineered for robust system behavior under real platform constraints. Its value comes from integration choices that reduce external complexity while preserving control over EMI, startup integrity, thermal performance, and manufacturing robustness. For modern automotive electronics, that combination is often more important than pushing any single electrical metric to the limit.
