LM53602-Q1 and LM53603-Q1 Product Overview for Automotive Power Conversion

Texas Instruments LM53602-Q1 and LM53603-Q1 are automotive-qualified synchronous buck regulators built for local power conversion from noisy and widely varying vehicle supply rails. Both devices are AEC-Q100 qualified and address the same design space: converting battery-derived inputs into tightly regulated low-voltage rails for electronics that cannot tolerate supply disturbance, excessive heat, or weak startup behavior. The main differentiation is output current capability. LM53602-Q1 supports up to 2 A, while LM53603-Q1 extends that to 3 A. In practice, this current split maps well to modern zonal and distributed vehicle electronics, where one rail may only feed logic, sensors, or RF sections, while another must support display drivers, communication modules, or processor-adjacent loads with larger dynamic current demand.

The electrical operating window is one of the strongest indicators of the intended deployment model. These devices accept 3.5 V to 36 V nominal input and withstand transients up to 42 V, which allows direct connection to automotive supply domains without requiring a complex front-end stage in many cases. That matters because automotive power rails are not steady DC sources in the laboratory sense. They carry cold-crank sag, start-stop interruptions, alternator-induced variation, inductive disturbances, and localized harness noise. A regulator intended for this environment must do more than simply convert voltage efficiently. It must continue switching predictably during input excursions, restart cleanly after disturbance, and avoid corrupting downstream logic during edge conditions. This family is positioned around that broader requirement set.

The fixed 2.1 MHz switching frequency is another deliberate design choice rather than a simple specification point. At this frequency, external magnetics and filtering components can be made significantly smaller than in lower-frequency designs, which helps reduce board area in tightly constrained automotive modules. That benefit becomes especially relevant in instrument clusters, head-up displays, camera modules, telematics units, and ADAS nodes, where layout density is high and thermal spreading area is limited. A higher switching frequency also shifts energy farther away from the most sensitive low-frequency bands, although it raises the importance of careful PCB layout and high-frequency current loop control. In real designs, the compactness gained from 2.1 MHz operation is only fully realized when the hot loop, bootstrap path, and input bypass placement are treated as first-order design parameters rather than cleanup tasks after schematic completion.

From an architectural standpoint, the use of synchronous rectification improves efficiency across a broad load range relative to asynchronous alternatives. That is important in automotive systems because power loss affects more than thermal rise. It influences enclosure temperature, long-term reliability, and the amount of local copper area needed for heat spreading. In sealed modules or behind-display installations, every fraction of a watt removed from dissipation eases the mechanical design. The stronger value of the LM53602-Q1 and LM53603-Q1 is that their efficiency story is not limited to full-load operation. The family is clearly tuned for realistic automotive duty cycles, where modules spend significant time in standby, low-activity, or intermittent wake states. Light-load efficiency and no-load current often determine battery impact more than peak efficiency numbers do, especially for always-connected ECUs and semi-awake subsystems.

This is where the product positioning becomes more interesting. Many regulators look attractive when evaluated only at nominal input, room temperature, and steady-state full load. Automotive modules rarely live in that operating corner. They start from partially collapsed rails, idle for long periods, wake briefly, and must preserve deterministic behavior throughout. The emphasis on startup behavior, low no-load current, and supervisory features suggests that these devices were developed with system-level power-state management in mind. That makes them well suited not only for generating core rails, but also for acting as controlled entry points into larger power trees where sequencing, fault containment, and reset timing are critical.

The integrated reset signaling is especially useful in processor-based subsystems. A regulated voltage rail is only part of what the downstream digital domain needs. Microcontrollers, SoCs, memory, and interface ICs also require a valid timing relationship between rail establishment and release from reset. If reset deasserts too early, software may boot into unstable conditions. If it is missing entirely, the designer must add an external supervisor, increasing component count and introducing another timing dependency. By embedding supervisory behavior into the regulator function, the LM53602-Q1 and LM53603-Q1 simplify the local power architecture and improve robustness of startup sequencing. This kind of integration does not always receive attention in high-level product summaries, but in automotive electronics it often saves more debugging time than a marginal gain in conversion efficiency.

Application fit is broad but not generic. Navigation and GPS modules benefit from compact, efficient point-of-load regulation with low self-heating, since RF and positioning performance degrade when local noise and thermal stress rise. Instrument clusters and HUD systems require stable rails under cranking and load transients, as display logic and graphics processors can be sensitive to brownout-induced faults that appear as intermittent boot failures. Infotainment systems place additional stress on the power stage because they combine compute bursts, display backlighting interfaces, connectivity modules, and memory traffic, all of which can produce steep load transitions. ADAS platforms are even more demanding. They often distribute conversion stages close to sensors, serializers, deserializers, and processors, so the regulator must maintain predictable behavior under both dynamic load and elevated ambient temperature. In these use cases, the family’s current capability, transient tolerance, and supervisory integration form a more meaningful combination than any one parameter alone.

Thermal behavior deserves explicit attention. The package is thermally enhanced and intended for compact automotive layouts, but package capability does not replace thermal design discipline. At 2 A or 3 A output, especially when stepping from higher battery-derived inputs to low-voltage rails, losses remain strongly dependent on duty cycle, switching conditions, copper area, airflow assumptions, and board stack-up. A recurring pattern in dense automotive boards is that electrical validation passes early while thermal margin is consumed later by neighboring devices, shielding cans, or enclosure constraints. In this class of regulator, a practical design approach is to treat the exposed thermal path, ground plane stitching, and inductor thermal coupling as part of the power-stage design itself. The converter may be electrically stable on a small layout, but long-duration operation at elevated ambient reveals whether the implementation is actually production-grade.

Input transient tolerance up to 42 V increases deployment flexibility, but it should be interpreted correctly. It indicates resilience against common automotive surges and line disturbances, not immunity to every harsh event on the battery rail. Front-end protection strategy still matters. Reverse battery, load dump severity, ISO pulse exposure, and upstream suppression topology define what reaches the converter pins. In many designs, these regulators work best as the efficient local conversion stage behind a properly engineered protection network rather than as the only barrier between the vehicle supply and sensitive digital electronics. This distinction is important because robust system design comes from partitioning stress correctly across TVS devices, filters, switches, and converters, instead of expecting one IC to absorb all abnormal conditions.

Device selection between the two variants is straightforward on paper but deserves some margin thinking in practice. If the steady-state load is near 1.5 A with modest transients, LM53602-Q1 may be sufficient and can support a slightly leaner thermal budget and component set. If the rail feeds processors, communication chipsets, or mixed loads with burst current and startup surges, LM53603-Q1 usually gives better headroom. That headroom often improves more than current margin alone. It can reduce stress during load steps, lower temperature rise under peak activity, and preserve operating margin after component derating across temperature and production spread. Choosing the higher-current version for a rail that sits near the edge of the 2 A class is often a cleaner decision than trying to optimize too aggressively around nominal current averages.

Layout and component selection strongly influence whether the datasheet advantages appear in the final product. With 2.1 MHz switching, input capacitor ESL and placement become critical. The loop formed by the high-side switch, low-side path, and input bypass capacitor must be extremely compact to suppress ringing and EMI. The SW node should be controlled carefully to avoid coupling into sensitive analog or RF traces. Inductor choice must balance saturation current, DCR, core loss, and thermal rise rather than only nominal inductance. Output capacitor selection affects both ripple and transient recovery, especially when feeding digital rails with fast current steps. These are standard switch-mode design rules, but at automotive qualification levels the tolerance for “almost acceptable” layout is much smaller. A converter that appears electrically correct on the bench can still become the dominant EMI or reset-instability source once integrated into the full module.

One useful perspective is that the LM53602-Q1 and LM53603-Q1 are best understood as system-behavior components, not just voltage regulators. Their value lies in how they handle the transitions between off, standby, wake, run, and disturbance states. That is the operating reality of vehicle electronics. Efficient conversion is necessary, but controlled startup, low idle burden, predictable reset behavior, and tolerance to imperfect input rails are what make a regulator truly suitable for automotive point-of-load use. This family aligns well with that requirement profile.

For designers building distributed automotive power trees, these devices offer a balanced solution: wide VIN handling, compact high-frequency operation, synchronous efficiency, supervisory integration, and current options matched to common local rail needs. They fit naturally in modules where space is limited, thermal margin is finite, and downstream electronics require clean, deterministic power behavior under real vehicle conditions rather than ideal bench conditions.

LM53602-Q1 and LM53603-Q1 Key Electrical and Functional Characteristics

LM53602-Q1 and LM53603-Q1 are automotive-qualified synchronous buck regulators positioned for designs that need a wide input range, compact implementation, and low integration risk. At a feature level, the family looks straightforward: 36 V continuous operating input, 42 V transient tolerance, fixed 5 V and 3.3 V options, and an adjustable output version. What matters in practice is how these characteristics interact. These devices are not just wide-input regulators; they are optimized to hold regulation across the supply conditions, thermal constraints, and layout limitations typical of distributed automotive power rails.

The input operating range up to 36 V gives margin for battery-connected and pre-regulated 12 V systems, while 42 V transient tolerance provides resilience against short-duration line excursions. In real vehicle power networks, the distinction between continuous operating voltage and transient survivability is important. A converter may survive a pulse event but still require careful front-end filtering, surge suppression, or input damping to avoid overstress and EMI side effects. These devices fit well in that environment because their ratings align with common automotive rail behavior without forcing oversized external protection for routine conditions. That said, robust system design still depends on the front-end network. The regulator rating is one layer of protection, not a substitute for proper transient energy management.

The output options reflect two different design priorities. The fixed 5 V and 3.3 V variants reduce implementation friction by removing the external feedback divider. That saves components, reduces leakage paths, and avoids resistor tolerance stacking in the feedback loop. In production programs, this kind of simplification often improves repeatability more than it appears on paper, especially when multiple suppliers, temperature spread, and PCB contamination are part of the long-term operating picture. The adjustable version adds flexibility, covering 0.8 V to 6 V within the recommended range. This makes it suitable for lower-voltage digital rails, sensors, transceivers, and intermediate bus generation. The datasheet also allows extension up to 10 V with application changes, but that expanded range should be read carefully: operation may be possible, yet some guaranteed parameters no longer hold. For engineering decisions, that usually means the device can be used above 6 V only when the design team is prepared to validate efficiency, thermal margin, loop behavior, and protection response at the system level rather than relying only on datasheet limits.

A central architectural choice in this family is synchronous rectification combined with a fixed 2.1 MHz switching frequency. Synchronous rectification reduces conduction loss compared with diode-based freewheeling, which improves efficiency and thermal behavior, particularly at moderate and high load currents. The fixed high switching frequency shrinks the required inductance and output capacitance values, enabling compact magnetics and lower-profile layouts. That is especially valuable in dense control modules where vertical space, component shadowing, and thermal spreading are all constrained. The tradeoff is familiar: as switching frequency rises, switching loss and EMI sensitivity become more prominent. A 2.1 MHz regulator therefore rewards disciplined layout more than a lower-frequency design would. Current loops must be tight, grounding must be controlled, and input bypass placement must be treated as part of the power stage rather than as general decoupling. In compact automotive assemblies, this frequency choice is often the right one, but only if PCB implementation is given equal weight to schematic selection.

One of the more useful operational capabilities is the ability to regulate a 5 V output from inputs as high as 20 V while staying at 2.1 MHz, and to regulate 3.3 V from inputs as low as 3.5 V. These numbers reveal something important about the internal timing and gate-drive architecture. High step-down ratios at high switching frequencies are difficult because minimum on-time becomes a limiting factor. If the on-time cannot be made short enough, the regulator loses control authority and skips or distorts operation. Conversely, near-dropout operation for a 3.3 V rail from 3.5 V input stresses duty-cycle range and low-side control behavior. Support for both ends of that range indicates that the device is engineered to preserve usable regulation window without forcing a frequency reduction or mode compromise under these common conditions. From a system perspective, this widens the set of rails that can be generated directly from upstream vehicle or intermediate supplies without adding a pre-regulation stage.

Output accuracy is specified at ±2%, and the adjustable option uses a tightly controlled reference. In many systems this level of tolerance is more significant than raw output programmability. Modern processors, interfaces, and sensors often tolerate noise better than steady-state offset, particularly when power sequencing or analog front-end calibration is involved. A tightly regulated converter reduces the burden on downstream margin analysis and can simplify corner-case validation. The practical benefit shows up when rails are shared across multiple loads with different tolerance windows. Instead of designing around worst-case resistor divider error, reference drift, and load regulation accumulation, the fixed-voltage versions provide a more bounded output target. This is one of those design choices that saves time late in validation, when rail deviations are no longer theoretical and must be explained against subsystem failures.

Built-in loop compensation is another integration point with real consequences. Compensation design is one of the more common sources of instability, poor transient response, or excessive output ripple in switch-mode supplies. By internalizing the compensation network, the LM53602-Q1 and LM53603-Q1 reduce the number of loop-shaping decisions the designer must make, and they narrow the space of invalid component combinations. This is particularly effective in platform designs where one validated power stage may be reused across several ECU variants. The tradeoff is reduced freedom to optimize the loop for unusual output filter combinations or extreme load profiles. In most automotive rails, that is an acceptable exchange. Internal compensation tends to be a net advantage when predictability, qualification reuse, and BOM control matter more than extracting the last increment of transient performance.

The protection and control feature set is aligned with that same philosophy. Soft-start limits inrush and manages startup stress on both the converter and the upstream source. Current limit and thermal shutdown provide last-line protection under overload or fault conditions. Undervoltage lockout prevents undefined operation when the input rail is too low for controlled switching. External frequency synchronization helps manage beat frequencies and EMI interactions when several switchers share a confined enclosure or cable harness. This combination supports system-level coordination rather than just local regulation. In practice, synchronization is often undervalued until multi-rail interactions appear during EMC testing. Locking converters to a known frequency plan can make the difference between repeatable emissions behavior and a difficult debug cycle involving harness resonances and mode-dependent noise peaks.

The low external component count of the fixed-output versions deserves more attention than it usually gets. Fewer parts do not only reduce BOM cost; they also reduce sensitivity to placement variation, assembly drift, solder joint count, and inventory substitution. In automotive production environments, every eliminated passive component removes one more variable from long-term reliability and one more opportunity for supply-chain-driven redesign. For rails such as 5 V sensor supply or 3.3 V logic bias, this can be more valuable than a small improvement in peak efficiency. A regulator family that consistently meets electrical targets with a short, robust external network is often the better system choice than a theoretically more tunable alternative.

At the application level, these converters fit several common roles. They work well as point-of-load regulators for microcontrollers, communication processors, radar or camera support electronics, body controllers, and mixed-signal domains that need good regulation from a noisy upstream bus. They are also suitable as intermediate rail converters that generate 5 V or 3.3 V from a battery-derived source before local LDO cleanup or secondary conversion. Their high switching frequency is especially useful in modules where the power stage must live close to connectors, RF sections, or heat-generating processors and board area is tightly rationed. In those cases, the reduced inductor size can unlock placement options that a lower-frequency converter would not allow.

A practical reading of this family is that it targets engineering efficiency as much as electrical efficiency. The devices are designed to shorten the path from schematic to stable hardware by internalizing the parts of buck-converter design that most often create avoidable risk: compensation, feedback implementation in fixed versions, and broad operating coverage across realistic automotive rails. The result is not maximum configurability, but a more constrained and therefore more predictable design space. For automotive power architecture, that is often the stronger choice. Predictability in startup behavior, regulation window, EMI planning, and component sensitivity usually has more program value than having every control parameter exposed.

For engineers comparing regulators in this class, the LM53602-Q1 and LM53603-Q1 stand out as highly integrated buck converters that balance operating range, output accuracy, switching speed, and implementation simplicity. Their real strength is not any single headline specification. It is the way the specifications line up to support compact, repeatable, and qualification-friendly power rails with relatively low external design burden. In dense automotive electronics, that alignment is often what separates a regulator that merely works from one that scales cleanly across products and validation cycles.

LM53602-Q1 and LM53603-Q1 Output Options and Model Differentiation

LM53602-Q1 and LM53603-Q1 are best understood as two current-scaled implementations of the same automotive buck regulator platform. The primary differentiation is output current capability: LM53602-Q1 supports up to 2 A, while LM53603-Q1 extends that limit to 3 A. That difference appears simple, but in practice it affects thermal headroom, transient behavior under dynamic load, startup margin, and long-term platform flexibility. Both devices use the same 16-pin thermally enhanced HTSSOP package and remain closely aligned in architecture, pin-function class, and intended vehicle-domain use, which makes the family especially efficient from a design reuse perspective.

The shared package and platform matter more than the current number alone. In power design, a regulator is rarely selected only for steady-state load current. The more relevant question is how much margin remains when input voltage shifts, ambient temperature rises, switching losses increase, and downstream loads enter peak-demand states. A 2 A rail on paper can become a marginal design if inrush current, sensor warm-up, communication bursts, or cold-crank recovery temporarily push demand above the nominal average. In that context, LM53603-Q1 is not merely a higher-current option; it is often a margin-preserving option that can absorb system uncertainty without forcing a board-level redesign.

This is where the family alignment becomes valuable. Because both parts sit on a common implementation base, migration between them is much less disruptive than moving to a different regulator family. Layout strategy, thermal treatment, BOM structure, and qualification flow can remain substantially stable. That reduces redesign risk during late-stage requirement growth, which is a common pressure point in automotive programs where feature creep tends to show up after initial power budgeting is already considered closed. A rail originally intended for moderate logic loading may later need to support additional sensors, communication modules, or startup sequencing overlap. Having a pin-compatible or near-platform-compatible step from 2 A to 3 A gives the power tree more elasticity.

From an engineering standpoint, the current rating should be interpreted as part of a broader operating envelope. The 3 A variant can offer a practical advantage even when the expected load is below 2 A, especially if the design prioritizes lower thermal stress or stronger transient reserve. Running a regulator with more current headroom generally improves tolerance to unexpected peak events and can simplify derating strategy at elevated ambient conditions. This is often more useful than optimizing only for nominal load. Designs that target high reliability tend to benefit from avoiding operation too close to the regulator’s boundary conditions, particularly in under-hood or enclosed ECU environments where airflow is limited and copper area becomes the dominant thermal control mechanism.

Output-voltage options introduce a second layer of differentiation. Fixed 5 V and fixed 3.3 V versions are well aligned with common automotive rails for microcontrollers, transceivers, sensors, and peripheral logic. These variants reduce external component count because the output voltage is internally configured, eliminating the feedback resistor divider required by adjustable versions. That may seem like a minor BOM reduction, but the impact is broader: fewer external components mean fewer tolerance contributors, fewer assembly opportunities for variation, and less time spent validating resistor ratio accuracy, noise injection paths, and layout sensitivity around the feedback node. For high-volume programs, that simplification scales well.

Fixed-output variants also tend to accelerate design closure. When the required rail is already standardized at 5 V or 3.3 V, selecting a fixed version removes one degree of freedom from the design and narrows validation scope. This can be useful when the regulator feeds digital domains with strict sequencing and well-known voltage limits. In practice, fixed-output parts are often easier to replicate across multiple modules because they reduce schematic branching and make documentation cleaner. That consistency becomes valuable when several ECUs or subassemblies share a common power architecture.

Adjustable versions serve a different purpose. They are the better fit when the power tree includes nonstandard rails, optimized point-of-load voltages, or analog domains that need something other than the usual logic levels. They also help when a design team wants to tune the rail to account for cable drop, load-step behavior, or downstream LDO headroom. In multi-rail systems, adjustable regulators can reduce the need to introduce an entirely separate power family just to support one uncommon voltage. That kind of consolidation often pays off more than it first appears, because every additional regulator family tends to add sourcing complexity, qualification effort, and documentation overhead.

A useful way to evaluate the LM53602-Q1 versus LM53603-Q1 choice is to separate the decision into three layers. First, determine the true load profile rather than the average current alone. Include startup inrush, fault-recovery states, simultaneous peripheral activation, and low-temperature behavior. Second, evaluate thermal margin using realistic board copper and enclosure assumptions, not idealized bench conditions. Third, decide whether the rail is fixed by system architecture or likely to change across variants. That sequence usually leads to a more stable part choice than selecting first by nominal current and then trying to patch margin later.

In bench work, one recurring pattern is that initial current budgets are often too optimistic because they are derived from steady-state functional estimates. Once software enables more peripherals concurrently, or once communication activity reaches full rate, peak demand rises in ways that are not obvious in early spreadsheets. Rails feeding mixed digital and sensor content are especially prone to this. Under those conditions, the 3 A device often buys enough transient and thermal room to avoid revisiting the power stage. Conversely, if the rail is tightly bounded, low noise sensitivity is manageable within the existing architecture, and the load is well characterized below 2 A across all modes, LM53602-Q1 remains the efficient choice and avoids oversizing.

Procurement and platform management also benefit from this family structure, but the technical reason is stronger than simple part commonality. A consistent regulator family helps maintain repeatable validation behavior across multiple SKUs. EMI behavior, thermal treatment, package handling, and layout practices stay familiar. That reduces the chance that each new variant behaves like a fresh power design. In automotive development, that kind of controlled variation is often more valuable than chasing the narrowest possible optimization on a single rail.

The most effective selection approach is therefore not to treat LM53602-Q1 as the default small option and LM53603-Q1 as only the high-load upgrade. A better view is that both parts occupy different risk positions within the same design framework. LM53602-Q1 fits rails with disciplined load definition and controlled margin requirements. LM53603-Q1 fits rails where uncertainty, expansion potential, or thermal stress justify additional current reserve. Fixed-output versions are strongest when standard rails dominate and design speed matters. Adjustable versions are stronger when voltage tailoring or architecture consolidation matters more than minimum component count. When these tradeoffs are evaluated together, the family reveals its real advantage: it supports current scaling and voltage-option flexibility without forcing a major architectural shift.

LM53602-Q1 and LM53603-Q1 Automotive Use Cases and System Value

LM53602-Q1 and LM53603-Q1 are well aligned with automotive electronic modules that operate from the vehicle battery rail but behave like tightly constrained embedded systems. Navigation units, digital instrument clusters, ADAS sensor processors, infotainment domains, and HUD assemblies all demand the same power-stage characteristics: tolerance to a harsh input rail, predictable startup behavior, low standby loss, and a layout footprint that does not compete with processing, memory, RF, or display circuitry. These devices address that requirement set at the power-conversion layer rather than forcing the surrounding system to compensate for regulator limitations.

The first system value appears at the input interface. Automotive supply rails are not clean DC sources. They carry cold-crank sag, battery disconnect effects, alternator-related surges, load-dump-adjacent stress conditions, reverse battery protection interactions, and distributed cable inductance artifacts. A regulator rated for 36 V operation with 42 V transient tolerance gives the front-end architect more margin when defining protection topology and derating policy. That margin matters because front-end design is often an exercise in controlled compromise. Every additional TVS, filter stage, or clamp network raises cost, loss, and board area. A converter that already absorbs a wider portion of real vehicle disturbances reduces how aggressively the upstream network must be shaped. In practice, this often leads to a cleaner partition: surge suppression handles extreme events, while the regulator tolerates the normal high-energy edge cases that appear during switching and harness transients.

This capability is particularly useful in distributed automotive modules located away from the main power distribution center. Long supply traces and harness runs can produce overshoot at connector entry even when the nominal battery line looks acceptable on paper. Designs that seem stable on a bench supply can behave differently once cable impedance and hot-plug behavior are introduced. A converter with stronger voltage tolerance reduces sensitivity to that integration gap and lowers the risk of late-stage redesign around front-end clamps or damping elements.

The next major value is the integration of RESET supervision. In automotive modules, power sequencing is rarely just about generating 5 V or 3.3 V. The more difficult problem is deciding when downstream logic may safely execute. Processors, serializers, display engines, radar front ends, and memory devices all assume some level of rail validity before normal operation begins. The open-drain RESET output in the LM53602-Q1 and LM53603-Q1 addresses this directly by providing a filtered, delayed, output-valid indication tied to actual regulator behavior. That is more useful than a simple power-good flag with minimal conditioning because it reduces false release during startup ramps, temporary disturbances, or noisy recovery intervals.

At the system level, this feature can remove the need for a standalone supervisor in many module architectures. The immediate gain is lower component count, but the more important gain is fewer threshold domains to reconcile. Separate supervisors introduce another tolerance stack, another timing profile, and another failure-reporting path. Integrating reset qualification into the regulator shortens that chain. The microcontroller sees a status signal that already reflects converter stability, and fault handling becomes easier to model. That simplification is especially valuable in modules with multiple operating states, where the software team expects deterministic reset release during ignition transitions, wake events, and brownout recovery.

There is also a practical debug advantage. Power problems in vehicle modules are often intermittent and state-dependent. If reset behavior is handled by a separate device with loosely coupled thresholds, startup captures can become ambiguous. When reset comes from the regulator itself, scope correlation between rail regulation and reset release becomes more direct. This tends to shorten bring-up time because the engineer can validate rail settling, sequencing margin, and processor readiness from one closely related timing chain instead of reconstructing events across several parts.

Efficiency behavior across load range is another strong differentiator for these devices. Automotive electronic control units increasingly spend more lifetime in low-activity states than in peak compute conditions. Cluster domains may remain partially alive for retention or wake detection. Infotainment processors may keep support rails active while higher-power domains sleep. ADAS edge modules can sit in surveillance or standby modes for long intervals. Under these conditions, converter light-load behavior strongly influences quiescent battery drain. The automatic transition between PWM and PFM is therefore not a minor feature; it is a direct lever on parked-vehicle current budget and thermal overhead.

PFM improves light-load efficiency by reducing switching activity when energy demand is low. That cuts operating current without requiring supervisory firmware or mode-control logic. In a real module, this matters because standby architecture is usually built from several small savings rather than one dramatic optimization. A few milliamps saved in each always-on or wake-capable rail can determine whether the full subsystem meets battery-draw targets after weeks of inactive vehicle time. In this context, low no-load current is not just a datasheet metric. It is a system enabler for retention, remote update readiness, passive sensing, and wake-on-event functionality.

At the same time, automotive systems do not always prioritize efficiency over spectral behavior. Sensitive RF sections, audio paths, image pipelines, and display timing circuits may react poorly to burst-mode energy patterns. That is where forced PWM mode becomes important. It gives the designer deterministic switching behavior and a more controlled noise signature at the cost of some light-load efficiency. This trade is often the correct one in HUD or infotainment designs, where visible artifacts, audio noise, or EMI margin are more expensive to fix than a modest increase in standby loss. The useful point is not simply that both modes exist, but that the regulator allows the power strategy to match the subsystem’s operating intent. One rail can be optimized for low battery drain, while another favors predictable spectral content.

This mode flexibility also improves platform reuse. A common automotive hardware platform may support several trim levels or software variants, each with different standby and noise requirements. A converter family that can operate efficiently at light load yet support forced PWM when needed reduces the number of regulator variants across the design base. That simplifies validation, sourcing, and long-term maintenance. In automotive programs, reducing variant count often delivers more value than a small improvement in isolated efficiency numbers because qualification effort and field reliability scale with architectural complexity.

From an implementation perspective, the compactness of the power stage is also significant. In dense automotive modules, power circuits are rarely placed in ideal thermal or electrical locations. They are fitted around connectors, shield cans, display mechanics, high-speed buses, antennas, and mounting constraints. A regulator that reduces external circuitry through integrated reset signaling and adaptable operating modes makes placement less painful and routing more controlled. Shorter current loops are easier to achieve, EMI containment improves, and the layout can better support both thermal spreading and signal integrity. This is one of the less advertised but more consequential forms of system value: when the regulator feature set removes supporting parts, the remaining layout becomes easier to make robust.

A deeper engineering point is that these devices help shift robustness upstream into the converter itself rather than distributing it across many support components. That tends to produce cleaner designs. Instead of building a fragile system from individually optimized fragments, the architecture can anchor startup integrity, input tolerance, and low-load efficiency around one qualified conversion stage. In automotive electronics, this usually leads to better real-world behavior because field failures often emerge from interactions between parts, not from isolated part limits. Fewer interfaces often mean fewer unexpected timing windows, fewer threshold conflicts, and fewer noise coupling paths.

In navigation and GPS modules, this translates into stable regulation under battery fluctuations while preserving low-noise operating options for RF-sensitive sections. In instrument clusters, it supports fast, repeatable startup and dependable reset behavior for display controllers and microprocessors during ignition events. In ADAS modules, where processor rails and sensor-support rails must behave predictably during fault recovery, the reset signaling and input resilience simplify supervisory design. In infotainment systems, the balance between standby efficiency and controlled EMI becomes especially relevant because these modules combine long low-power dwell times with dense mixed-signal content. In HUD systems, where display quality and timing integrity are sensitive to supply behavior, forced PWM operation can be more valuable than maximizing light-load efficiency.

Taken together, LM53602-Q1 and LM53603-Q1 deliver value not just as buck regulators, but as subsystem stabilizers. Their voltage tolerance improves survivability against real vehicle power conditions. Their RESET implementation sharpens startup and fault communication. Their PWM/PFM behavior supports both parked-current targets and noise-sensitive operation. That combination fits the actual design pressures inside modern automotive electronics, where board area, validation effort, power-state complexity, and field robustness are all tightly linked.

LM53602-Q1 and LM53603-Q1 Internal Architecture and Control Behavior

LM53602-Q1 and LM53603-Q1 are synchronous step-down regulators built around an integrated power stage and an internally compensated control loop. The key architectural implication is that both switching devices, the high-side MOSFET and the low-side MOSFET, are actively driven by the controller rather than relying on an external Schottky diode for freewheeling current. This directly reduces conduction loss, especially once load current moves beyond the light-load region where diode drop would otherwise dominate efficiency. In practical automotive and industrial rails, that difference is often not marginal. It affects thermal headroom, enclosure temperature, and the amount of copper area required to keep the design stable under full operating range.

The internal architecture is optimized to reduce external design burden. Compensation is embedded, mode management is built into the controller, and major protection functions are part of the device behavior rather than peripheral design tasks. That changes the engineering workflow. Instead of shaping loop compensation from first principles, effort shifts toward validating operating mode behavior, transient response, EMI performance, and fault recovery under the actual input-source and load conditions. This is an important distinction because many field issues in integrated regulators do not come from loop instability in the classical sense. They come from interactions between the converter’s internal decisions and the surrounding system, such as source impedance, layout parasitics, load step profile, or sleep-state current targets.

At the switching level, the device operates as a synchronous buck converter with active commutation between the two internal MOSFETs. During the on-time of the high-side FET, input energy is transferred into the inductor while inductor current ramps upward. During the off-time, the low-side FET conducts and maintains the inductor current path with much lower loss than a diode-based implementation. The internal controller manages this alternation while monitoring output regulation, current conditions, and protection thresholds. Because both switches are controlled elements, dead-time management and body-diode conduction intervals become part of the regulator’s efficiency and robustness story. Even when not explicitly exposed to the designer, these internal timing decisions influence switching loss, EMI signature, and behavior near load transitions.

A central feature of the LM53602-Q1 and LM53603-Q1 family is the automatic transition between PWM and PFM operation. This is not just a convenience feature. It is a control strategy that changes how the converter trades ripple, switching frequency behavior, and gate-drive loss across the load range. Under moderate to high load, PWM operation provides more predictable switching action and tighter spectral concentration around the programmed frequency and its harmonics. That predictability is valuable when downstream circuits are sensitive to low-frequency ripple content or when conducted-emissions planning benefits from a stable switching pattern. Under light load, however, maintaining fixed-frequency PWM can waste power because switching and gate-drive losses become a larger fraction of delivered output power. PFM addresses that by reducing effective switching activity and allowing the converter to maintain efficiency when demand is low.

The automatic mode transition therefore reflects a broader design philosophy: prioritize efficiency when output power is small, then recover deterministic switching behavior as current rises. In real systems, this usually gives the best aggregate result, but it also introduces application-dependent tradeoffs. Light-load operation in PFM can produce larger ripple bursts, variable frequency content, and different inductor current waveforms than FPWM operation. If the load includes RF stages, precision analog front ends, or noise-sensitive sensor references, the low-load efficiency gain may not be worth the spectral variability. In such cases, forced PWM is often the better choice even though it increases quiescent dissipation.

That choice is controlled through the FPWM pin. When the pin is driven high, the regulator remains in forced PWM. When driven low, it is allowed to move automatically between PFM and PWM according to internal operating conditions. The requirement that FPWM must not float is more significant than it first appears. A floating mode-select pin can introduce ambiguous bias conditions, leading to unpredictable mode decisions, inconsistent idle-current behavior, or intermittent EMI signatures that are difficult to reproduce in validation. In board bring-up, unexplained current draw or inconsistent low-load ripple is often traced back to control pins that were assumed to be self-biased but were not. For this family, that assumption is unsafe. The mode state should be explicit in the schematic and equally explicit in layout and test plans.

From a control-behavior perspective, the value of FPWM is not only that it gives mode authority. It allows the designer to align converter behavior with system-level priorities. If the rail powers digital logic with aggressive sleep states, automatic PFM/PWM operation may maximize energy efficiency. If the same rail supports communication interfaces, clocking circuits, or mixed-signal loads where frequency predictability matters more than a few milliwatts, FPWM can eliminate a class of low-load noise issues before they appear. A useful engineering pattern is to decide mode selection from the load’s sensitivity to ripple spectrum, not from efficiency charts alone. That tends to produce more robust designs.

Protection behavior is integrated deeply into the control scheme. Current limiting, thermal shutdown, undervoltage lockout, and soft-start are not standalone add-ons. They shape how the converter behaves during startup, overload, brownout, and sustained fault conditions. This integrated protection approach is especially useful in environments where supply rails can be hot-plugged, battery-fed, or exposed to intermittent wiring faults. The converter is not simply expected to regulate under nominal conditions. It must also fail in a controlled way and recover without amplifying system stress.

Soft-start controls the rate at which output voltage rises during startup, thereby limiting inrush current and reducing the chance of overshoot or input bus collapse when upstream impedance is non-negligible. This matters more than is often acknowledged. In bench setups with stiff laboratory supplies, startup can appear clean even when the design margin is poor. The same design connected to a long harness, upstream protection device, or weak pre-regulator may behave differently. Integrated soft-start reduces the severity of these interactions, but it does not remove the need to validate startup with realistic source conditions and output capacitance.

Undervoltage lockout prevents the converter from attempting normal operation when input voltage is too low to support stable switching and output regulation. This avoids inefficient half-start states where MOSFET stress, control uncertainty, and poor output quality can coexist. In systems with wide input excursions, UVLO often acts as the boundary between graceful behavior and difficult-to-diagnose intermittent faults. It is easy to focus on the nominal input range and overlook startup ramps, battery droop, or transient sag under load insertion. In practice, these edge conditions determine whether the converter appears robust in the field.

Current limiting and short-circuit handling deserve special attention because they influence both survivability and observable fault behavior. The documented hiccup wait time of 5.5 ms indicates that during persistent overload or short-circuit conditions, the regulator does not simply drive continuously at the current limit. Instead, it enters a controlled retry pattern. This reduces average dissipation in the power stage and limits fault energy delivered into the short. The thermal benefit is substantial. Continuous current-limit operation can rapidly push an integrated regulator into a thermal runaway cycle, particularly in compact layouts or elevated ambient conditions. Hiccup mode lowers the duty of fault stress and gives the die a chance to cool between retry attempts.

From a system viewpoint, hiccup behavior also changes how faults are perceived downstream. Some loads may repeatedly attempt to start and then collapse in sync with the retry interval. That can look like unstable regulation if the fault mechanism is not understood. During debug, it is useful to correlate output voltage waveforms, input current pulses, and thermal rise rather than inspecting the output rail alone. Repetitive start-stop behavior during a hard short is usually a sign that the protection system is working as intended, not that the converter has lost control.

Thermal shutdown, typically triggered in the 162°C to 178°C range with hysteresis below the threshold, acts as the final layer of self-protection. The broad trigger range reflects process and operating variation, so it should not be treated as a precision control point. Good design practice is to regard thermal shutdown as an emergency boundary, not a usable operating mode. If a regulator enters thermal shutdown during expected workload, the issue is almost always elsewhere: insufficient copper spreading, underestimated switching loss at high VIN, excessive ambient temperature, poor airflow assumptions, or an inductor choice that drives avoidable current ripple and heating. Designs that only “pass” because thermal shutdown intervenes are not robust designs.

An important practical observation is that the interaction between protection functions can dominate real-world behavior more than steady-state efficiency numbers do. For example, a rail that starts reliably on an open bench may fail intermittently in a cold crank or overloaded startup sequence because UVLO, current limiting, and soft-start intersect in a way the nominal test never exercised. Likewise, a thermally marginal layout may regulate perfectly in room-temperature evaluation but begin hiccuping after enclosure soak because repeated overload retries elevate die temperature into the shutdown region. The internal protections are strong, but they do not replace scenario-based validation.

The absence of external compensation design is one of the family’s strongest advantages. It simplifies implementation, shortens design time, and reduces the risk of loop-instability errors that often appear in discrete-controller solutions. At the same time, integrated compensation means the loop is optimized for a defined application space rather than tuned for every possible corner case. That places more weight on component selection around the regulator, especially the inductor and output capacitors. Even when compensation is internal, power-stage dynamics still matter. Inductor value affects ripple current, transient response, and mode-transition feel. Output capacitor type and ESR influence output ripple, load-step deviation, and the way switching pulses appear at the rail. The control loop may be fixed, but the plant it is driving is still shaped by the external power components.

This is where engineering judgment matters. There is a tendency to treat internally compensated regulators as interchangeable black boxes, but that usually leads to average results rather than robust ones. A converter like the LM53602-Q1 or LM53603-Q1 should be evaluated as a controlled power stage embedded in a real network of parasitics, not as an isolated functional block. Layout quality, hot-loop minimization, grounding strategy, and capacitor placement still determine whether the internal architecture can perform as intended. In many designs, the difference between a quiet, efficient rail and a troublesome one is not the control law itself but the physical execution of the current loops that the control law must command.

For engineers assessing this family, the most useful framing is to view it as a regulator optimized around three simultaneous goals: high practical efficiency, controllable switching behavior, and graceful fault handling. The automatic PWM/PFM transition supports energy-sensitive operation at low load. Forced PWM provides deterministic behavior when spectral control matters more than idle efficiency. Integrated protections bound fault energy and thermal stress. Internal compensation reduces design complexity without removing the need for disciplined power-stage selection and layout. That balance is what makes the architecture effective. It does not eliminate tradeoffs. It packages them into a form that is easier to deploy, provided the surrounding system is designed with the converter’s mode behavior and protection logic in mind.

LM53602-Q1 and LM53603-Q1 Pin Functions and Interface Roles

The LM53602-Q1 and LM53603-Q1 are highly integrated synchronous buck regulators in a 16-pin HTSSOP package with an exposed pad, but their apparent simplicity can hide several layout- and interface-sensitive details. During schematic review, the most important task is not just to check whether each pin is connected, but to verify whether each connection supports the internal current loops, reference accuracy, startup behavior, and noise containment mechanisms built into the device. In practice, most downstream stability or EMI issues can be traced back to a small set of pin-level mistakes: switch-node routing that is too long, poor VIN decoupling geometry, misuse of BIAS, or incorrect grounding around FB and RESET.

The SW pins form the converter’s highest dv/dt switching node. Internally, they connect to the half-bridge power stage, and externally they must be shorted together immediately at the package before reaching the inductor. This is not a cosmetic recommendation. The SW copper region carries fast voltage transitions and high pulsed current, so any unnecessary trace length adds parasitic inductance, increases ringing, and injects noise into nearby nets through both electric-field and magnetic-field coupling. A compact SW connection reduces overshoot and improves EMI behavior. It also helps preserve cleaner bootstrap drive operation because the CBOOT capacitor references this same node. A useful design habit is to treat SW as a contained energy node rather than a general-purpose copper area. Making it larger than needed often degrades radiated and conducted noise instead of helping thermal performance.

The VIN pins are the entry point for the pulsed input current drawn by the high-side MOSFET. These pins must be tied together locally with a very short, low-impedance connection and decoupled directly to PGND using high-quality ceramic bypass capacitors. The relevant issue is the hot loop formed by VIN, the internal high-side switch, the low-side return path, and the input capacitors. This loop must be physically minimized. If the bypass capacitors are electrically correct but physically displaced, current commutation occurs through a larger loop area, which raises switching spikes and makes the regulator more sensitive to source impedance and wiring inductance. In bench behavior, this often appears as input ringing that was not predicted from the schematic alone. For automotive or other noisy supply environments, this local bypass network is the first line of defense, not a secondary detail.

PGND is the power return for the internal low-side MOSFET and the high-current switching path. It should be understood as a current-handling ground, not just a logical reference node. AGND, by contrast, is where sensitive control and reference functions expect a quiet return environment. These grounds must ultimately meet, but the manner of joining them matters. The best implementation keeps the noisy current loops confined near PGND and allows AGND and feedback-related signals to reference a quieter ground region before the grounds merge at a controlled point, typically near the device and exposed pad grounding structure. When PGND and analog return paths are intermixed carelessly, the regulator may still function, but load regulation, jitter, reset accuracy, or loop behavior often become less repeatable across operating conditions. This is one of those cases where electrical correctness on paper does not guarantee control integrity in hardware.

CBOOT supplies the floating gate-drive bias for the high-side MOSFET and requires a 470 nF capacitor from CBOOT to SW. This capacitor is part of the internal gate-drive energy path, so it must be placed tightly between those two pins. Its loop should be extremely short because every increment of parasitic inductance directly degrades the quality of the bootstrap supply during switching transitions. If this capacitor is routed loosely, high-side gate enhancement can become less robust under fast transients or at operating corners. Although bootstrap capacitors are often treated as routine support components, they directly influence switching edge consistency and therefore affect efficiency, EMI, and waveform cleanliness more than their simplicity suggests.

The VCC pin is the output of the internal 3.15 V regulator used by the device’s internal control circuits. It requires a 3.3 µF capacitor to ground and should not be used to power external loads. This point deserves strict enforcement during review because VCC can look like a convenient auxiliary rail. Loading it externally can disturb internal bias stability, alter startup sequencing, or create fault behavior that is difficult to diagnose. The required capacitor is not only for filtering; it also supports the internal control supply during dynamic events. If the capacitor is omitted, undersized, or poorly placed, symptoms may appear as erratic startup, unstable switching during enable transitions, or abnormal response during line disturbances. This is a classic case where a pin that seems passive is actually foundational to internal state stability.

The BIAS pin improves efficiency by allowing the internal regulator to draw power from the output rail instead of always burning power from VIN. It should connect to the regulated output node, not to ground, and it requires a 0.1 µF capacitor to ground. The functional principle is straightforward: once VOUT is available, internal housekeeping power can be sourced from a lower voltage than VIN, reducing internal dissipation. The practical implication is more important in higher-input-voltage applications, where feeding internal circuitry from VIN would otherwise create avoidable thermal stress. Connecting BIAS incorrectly defeats this efficiency mechanism and can shift thermal behavior enough to matter in compact designs. In repeated design reviews, BIAS errors are among the most common because the pin is easy to misread as a generic bias decoupling node rather than an intentional efficiency handoff path.

The EN pin controls regulator enable and disable operation. It may be tied directly to VIN for always-on use, but that choice should reflect system-level startup intent rather than convenience alone. In simple applications, tying EN high is reasonable. In more structured power trees, EN can be used to implement undervoltage qualification, sequencing, or controlled startup relative to other rails. What matters is that EN is not just an on/off input; it is often the cleanest control point for integrating the converter into broader supervisory logic. If left vulnerable to noise or slow undefined transitions, EN can cause intermittent startup chatter or partial switching attempts during supply ramping. A clean threshold strategy on EN usually pays off in much more deterministic bring-up behavior.

The SYNC pin accepts an external clock for frequency synchronization and should be grounded when unused. This pin defines whether the regulator follows its internal oscillator or locks to a system timing source. Synchronization is useful when multiple converters must avoid beat frequencies, or when the switching spectrum must be aligned with known EMI constraints. Grounding the pin when it is unused is important because leaving it floating can expose the timing function to noise pickup, leading to frequency instability or unintended mode behavior. In systems with mixed-signal content, proper use of SYNC can significantly simplify spectral planning. Even when synchronization is not required initially, it is worth reviewing whether future platform variants may benefit from it, because timing architecture tends to become more important as power density and channel count increase.

The FB pin is one of the most sensitive interfaces on the device because it closes the voltage regulation loop. On fixed-output variants, FB connects to the specified output sense point. On adjustable versions, it connects to the midpoint of the external feedback divider. In either case, it must never float and must not be tied incorrectly to ground. From a control perspective, FB is where the regulator interprets output accuracy. From a layout perspective, FB is a low-level analog sensing node that should be routed away from SW, bootstrap paths, and high-current ground returns. The best feedback routing senses the output after the inductor and near the load regulation point, not at an electrically convenient but noisy location. A recurring pattern in marginal designs is that the divider values are correct, yet the regulator shows unexpected ripple sensitivity because FB was routed through an aggressive switching environment. The lesson is simple: loop compensation may be internal, but regulation quality still depends heavily on how the feedback signal is acquired.

RESET is an open-drain power-good output used to indicate that the regulated output is in the valid range. Because it is open-drain, it requires an external pull-up to the appropriate logic rail if a valid high level is needed. Functionally, RESET is a supervision interface rather than a power pin, but its behavior is tightly coupled to startup dynamics, soft-start progression, and fault recovery. It is often used by downstream processors or other regulators as a permission signal, so incorrect pull-up selection or poor routing can create false sequencing assumptions at the system level. In more noise-sensitive applications, a modest pull-up value and a clean reference rail usually give more reliable behavior than a weak logic pull-up routed over a busy ground region.

The exposed pad is not optional mechanical metal. It is a primary thermal and electrical interface and should be tied solidly to the ground plane with an effective via structure. Thermally, it provides the dominant path for removing internally generated heat. Electrically, it helps establish a low-impedance ground reference that improves noise containment and switching current return quality. Designs that underuse the exposed pad often suffer twice: junction temperature rises, and ground impedance worsens. This dual role is especially important in compact layouts where thermal and electrical performance are tightly coupled. In practice, good exposed-pad grounding often improves more than thermal margin; it also tends to make waveforms look cleaner with no change to the schematic.

Taken together, these pins show that the LM53602-Q1 and LM53603-Q1 are integrated at the silicon level but still depend heavily on disciplined external implementation. The device reduces many classic buck-converter design burdens, yet it does not eliminate the physics of high di/dt loops, reference sensitivity, or thermal current return management. The strongest schematics are the ones that already imply a good layout: SW contained, VIN decoupling local, PGND and AGND intentionally managed, CBOOT and VCC capacitors placed as functional extensions of the IC, BIAS connected to VOUT with purpose, and FB treated as a precision sense path rather than a leftover net. That is usually the difference between a regulator that merely operates and one that remains quiet, efficient, and predictable across the full operating envelope.

LM53602-Q1 and LM53603-Q1 Operating Range, Ratings, and Thermal Boundaries

LM53602-Q1 and LM53603-Q1 are automotive-qualified synchronous buck regulators designed to operate across a broad electrical and thermal envelope, but the usable design space is narrower than the headline limits suggest. For robust implementation, it is necessary to separate four boundaries that are often conflated: recommended operating range, absolute maximum stress range, specification compliance range, and long-term reliability range. Treating these as equivalent usually leads to marginal designs that function in the lab yet degrade quickly or lose margin under transients, thermal stacking, or production spread.

On the input side, the recommended operating VIN range is 3.9 V to 36 V. This is the range in which the device is intended to regulate normally while meeting datasheet electrical behavior. The product family is also promoted as supporting input operation down to 3.5 V in specific cases, most notably when converting to 3.3 V. That lower figure should not be read as a universal minimum. In practice, it is a conditional capability tied to duty-cycle headroom, internal switch losses, dropout behavior, and the exact output target. As VIN approaches VOUT, the regulator has less switching margin, and conduction loss becomes a larger fraction of total loss. For a 3.3 V rail, operation near 3.5 V can be valid, but only if the load current, switching conditions, and tolerance stack leave enough room for regulation. This distinction matters in automotive systems where cold crank and battery droop can compress VIN precisely when downstream loads are rising.

The absolute maximum input voltage is 40 V. In addition, the device allows a 42 V condition for up to 500 ms at very low duty cycle. This is not an extension of the recommended operating range; it is a transient survival allowance. The difference is critical. Absolute maximum ratings define non-destructive stress boundaries, not guaranteed functional performance. A regulator may survive a 42 V pulse and still fall outside normal control behavior, efficiency expectations, or output accuracy during that event. In vehicle power nets, this distinction aligns well with real transient profiles: short overvoltage events are tolerated, but a design should still use upstream protection and filtering so that the regulator does not repeatedly absorb surge energy as part of normal operation. Repeated operation near survival limits is rarely the right architecture, even if the datasheet permits it.

A useful design interpretation is to reserve margin between expected worst-case VIN and the absolute maximum stress point. If the system regularly sees line excursions in the upper 30 V range, layout parasitics and ringing at the VIN pin can push the local waveform higher than the harness-level measurement indicates. This often appears only on fast probes placed directly across the IC input loop. Designs that seem compliant at the connector can violate local pin stress at the package. In buck converters, the input loop is usually the first place where theoretical margin disappears.

For the output range, the family includes fixed 5 V and 3.3 V versions, along with an adjustable option covering a recommended 0.8 V to 6 V. The 6 V ceiling is not just a catalog boundary; it marks the upper region where the published specifications remain valid without circuit changes. The datasheet notes that some specifications are not guaranteed above this level unless the application is modified. That wording indicates the control loop, bootstrap drive conditions, gate-drive biasing, or related internal operating assumptions begin to lose guaranteed margin beyond 6 V output. Engineers should read this as a boundary for normal design intent, not as a soft suggestion.

The adjustable range down to 0.8 V gives flexibility for modern digital rails, but lower output voltages bring a different set of tradeoffs. At low VOUT, duty cycle becomes small at higher VIN, which can increase sensitivity to minimum on-time limitations and switching ripple behavior. At the upper end of output voltage, especially closer to 6 V, duty-cycle expansion and bootstrap-related constraints become more important. In both directions, the simple ratio VOUT/VIN does not fully describe feasibility. Load step response, switching frequency, inductor ripple current, and compensation behavior all influence whether a rail is merely operational or genuinely production-ready.

A recurring implementation issue is assuming that if an output can be set within the nominal adjustable range, all other parameters remain equally strong across that range. They do not. Efficiency, transient undershoot, startup behavior, and thermal rise can shift noticeably between a 1.0 V rail and a 5.5 V rail, even at similar power levels. The silicon supports the span, but the surrounding magnetics and capacitors determine whether the converter remains well-behaved. This becomes especially visible when a design is tuned around a typical condition and later reused at a different output voltage without re-evaluating loop and thermal margins.

Thermal limits are defined at the junction, not at the package surface or local air. The operating junction temperature range is -40°C to 150°C, consistent with automotive use and Grade 1 ambient expectations. However, the more meaningful engineering note is that lifetime de-rates above 125°C junction temperature. This is one of the most important lines in the device definition because it separates functional survivability from durability. A converter can continue regulating at 140°C junction, yet that does not imply acceptable long-term field life under continuous exposure. Elevated junction temperature accelerates wear-out mechanisms such as metallization stress, dielectric aging, bond degradation, and package-related fatigue. From a reliability perspective, every sustained degree above 125°C costs disproportionate lifetime margin.

This leads to a practical rule: design to stay below 125°C junction in sustained worst-case operation, and use the 150°C limit as an exceptional ceiling rather than a target. That approach is usually more effective than chasing a datasheet-legal maximum load number. In many automotive modules, the converter is not the only heat source. Nearby processors, transceivers, LEDs, or reverse-polarity protection devices raise the local board temperature, which in turn reduces regulator headroom. Junction temperature is therefore a system variable, not a converter-only variable.

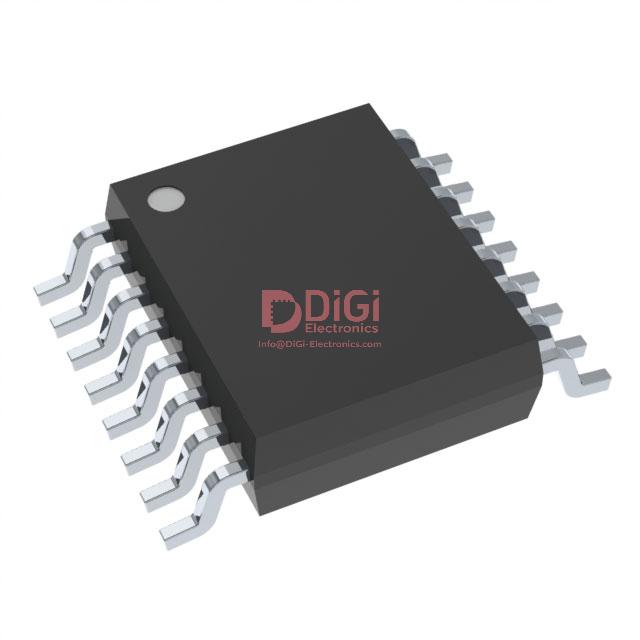

The package is a 16-pin HTSSOP with an exposed pad, and the exposed pad must be connected to the ground plane to provide a low thermal resistance path into the PCB. The published thermal metrics are useful for comparing packages and gaining first-order estimates, but they should not be treated as direct predictors of application temperature. Theta values are measured under standardized test conditions that rarely match real layouts. Actual junction rise depends strongly on copper area, plane connectivity, via density beneath the pad, internal layer spreading, local airflow, switching frequency, RMS current in the power path, and the waveform-dependent losses in the internal MOSFETs.

In compact layouts, the board often dominates thermal performance more than the package itself. A regulator placed on a sparse copper island can run substantially hotter than the same device on a dense multilayer ground structure, even at identical electrical load. The exposed pad connection is especially important because it serves both thermal and electrical purposes. A poor ground pad implementation raises thermal resistance and can also worsen switching noise by increasing impedance in the return path. That dual role is easy to underestimate. Thermal design and EMI control are coupled here more tightly than they first appear.

Switching losses become a major thermal driver at higher VIN, even when output current remains moderate. Conduction losses scale more directly with current, but switching losses scale with voltage, transition times, and frequency. As a result, a converter delivering a modest load from a high automotive rail can run hotter than expected, particularly if the design is optimized only for low-VIN bench conditions. This is one reason why thermal validation must include high-line testing, not just full-load testing. In many buck regulators, the hottest operating point is not maximum current at nominal VIN, but an intermediate or high-line condition where switching loss and ambient heating combine unfavorably.

Load profile also matters. Average current alone is an incomplete thermal indicator. Pulsed loads can generate thermal cycling even when average dissipation appears safe. Repetitive thermal expansion and contraction introduces another reliability axis that static thermal calculations miss. In systems with intermittent radios, actuator drivers, or sensor heaters, the regulator may repeatedly swing through localized thermal gradients. Those gradients affect solder joints, nearby passive components, and the package interface to the PCB. A design that passes continuous-load testing can still accumulate field stress if the real application imposes aggressive power cycling.

A disciplined design flow for these devices starts with the electrical operating envelope, then maps losses across VIN, VOUT, and load, and only after that evaluates package and board thermal response. This order matters. If thermal analysis is performed too early using nominal efficiency assumptions, the result tends to be optimistic because it hides the dependence of internal dissipation on line voltage and switching regime. A better method is to identify worst-case combinations: minimum VIN for dropout and duty-cycle margin, maximum VIN for switch stress and switching loss, maximum load for conduction heating, and maximum ambient for junction rise. The intersection of those corners defines the real safe operating area.

In application work, one of the most reliable indicators of hidden thermal margin loss is the gap between simulated and measured switch-node behavior. Excess ringing, broad transitions, or current-loop spreading usually signals that the layout is adding both EMI and dissipation. When that happens, junction temperature rises for reasons not captured in idealized power-stage calculations. Good thermal performance is rarely achieved by thermal features alone; it usually comes from a clean power loop, short high-di/dt paths, solid grounding, and sufficient heat-spreading copper implemented from the start.

For LM53602-Q1 and LM53603-Q1, the key engineering interpretation is straightforward. Use 3.9 V to 36 V as the normal design input window unless a carefully validated low-input case justifies operation down to 3.5 V. Treat 40 V as a hard stress ceiling and 42 V for 500 ms as transient survivability, not routine operation. Keep adjustable outputs within 0.8 V to 6 V if datasheet performance is expected without additional modification. Design thermally around a sustained junction target below 125°C even though the device remains functional up to 150°C. And assume that board implementation, not package rating alone, decides whether those limits are comfortably met or only narrowly avoided. That mindset usually produces converters that not only regulate correctly, but remain stable, efficient, and durable across the full automotive environment.

LM53602-Q1 and LM53603-Q1 Accuracy, Current Consumption, and Efficiency-Related Behavior

LM53602-Q1 and LM53603-Q1 place regulation accuracy, quiescent current, and conversion efficiency into a balance that fits directly into automotive always-on and intermittently active power domains. These parameters are often listed separately in a datasheet, but in practice they interact strongly. A converter with tight output accuracy but poor light-load behavior can still degrade system-level performance. A device with very low standby current but weak dropout margin can fail exactly when battery voltage collapses during cold crank or load dump recovery. For this family, the more useful view is not isolated numbers, but how those numbers shape rail behavior across sleep, wake, heavy load transients, and input sag.

Voltage regulation accuracy is the first parameter that determines whether a rail can be treated as a direct logic or interface supply without excessive downstream margining. The fixed 5 V and 3.3 V versions specify initial reference accuracy within ±1% at 25°C and within ±1.25% across wider operating conditions. The adjustable version uses a 1 V reference with similarly controlled tolerance. This level of precision matters because many digital subsystems no longer consume wide supply variation comfortably once startup thresholds, ADC references, PHY margins, and watchdog windows are stacked together. A nominal 3.3 V rail with weak regulation can quietly become a source of timing and interface instability, especially when PCB loss, connector drop, and dynamic load steps are included.

The practical implication is that the converter’s reference tolerance should not be viewed as a standalone number. It forms only one part of total DC rail error. The final output seen at the load also includes feedback divider tolerance for the adjustable version, trace resistance, ground offsets, and load regulation under thermal shift. In fixed-output variants, one source of external error disappears, which can simplify safety-oriented designs or high-volume platforms where repeatability matters more than flexibility. In adjustable designs, precision resistors and careful Kelvin feedback routing usually preserve most of the converter’s intrinsic accuracy, but layout discipline becomes part of the regulation budget. That distinction is easy to underestimate during schematic review and often shows up later as avoidable rail spread between prototypes.

Current consumption is where this family becomes more system-relevant than a simple efficiency percentage might suggest. Shutdown current is typically 1.7 µA, and no-load operating supply current in regulation is typically 24 µA for the 3.3 V version and 34 µA for the 5 V version under the stated conditions. In parked-vehicle or key-off states, these values directly influence battery retention time. More importantly, they define whether a rail can remain enabled continuously to support wake logic, sensor bias retention, or communication standby without forcing a secondary load switch architecture. In many automotive nodes, the largest energy loss over lifetime is not peak-load conversion loss but the persistent drain accumulated over long idle intervals. A few microamps or tens of microamps can therefore carry more design weight than a one-point gain in full-load efficiency.

There is also a useful engineering distinction between shutdown current and operating quiescent current in regulation. Shutdown current matters when the converter is intentionally disabled and the rail can collapse. No-load operating current matters when regulation must remain active, even with near-zero external load. These are different use cases, and choosing between them is often a system partitioning decision rather than a power-stage decision. If wake circuitry, CAN/LIN transceivers, or low-power MCUs must remain supplied, no-load operating current becomes the dominant metric. If complete rail removal is allowed, shutdown current defines the battery burden. Designs that blur this distinction tend to miss their sleep-current target late in validation.

Efficiency behavior at light load is handled through automatic mode transition, which is one of the more practical features of the family. At low output current, the converter can shift into a light-load mode that reduces switching losses and preserves battery energy when the rail is active but only lightly used. This operating region is common in body electronics, standby processing domains, and sensor rails that remain valid while downstream circuitry spends most of its time in low-duty-cycle operation. In those cases, a converter optimized only for mid-load or full-load efficiency can look good on paper yet perform poorly over the actual mission profile. The automatic light-load mode improves the average energy picture where the product spends most of its time.

That said, light-load optimization is never free. It usually changes the spectral signature of the converter, alters ripple characteristics, and can make switch-node activity less uniform. For systems sensitive to conducted or radiated emissions, or for rails feeding noise-aware analog and RF sections, the more important feature may be the availability of forced PWM mode. Forced PWM keeps the converter switching in a predictable pattern, which often makes EMI filtering and noise correlation easier. It may sacrifice some battery savings at low load, but it reduces uncertainty. In practice, this is often the better trade when passing emissions limits is harder than meeting standby current targets. One recurring pattern in power design is that predictable inefficiency is sometimes easier to engineer around than variable spectral behavior.

The dropout-related data in the datasheet is especially important because it turns abstract input-voltage range into real operating headroom. For LM53603-Q1 at 3 A load, typical dropout depends on output voltage and switching condition. When operating below 1.85 MHz, the effective dropout is lower, while at 1.85 MHz it is about 1.8 V typical for both 5 V and 3.3 V examples. This tells the designer how much margin must exist between the input rail and the regulated output when the battery or upstream bus droops. It also highlights a basic switching-converter constraint: dropout is not just a static switch resistance effect. It is influenced by duty-cycle limit, switching period, internal timing, and operating mode. As frequency increases, the available on-time budget tightens, and usable dropout margin can worsen.

This has direct application in cold crank and brownout design. A 5 V rail sourced from an automotive battery line cannot be evaluated only against nominal 12 V or even low-battery steady-state values. The rail must be checked against transient valleys, cable drop, reverse-protection loss, and front-end filter impedance. If the converter is switching at the higher frequency option, the required input headroom may become the limiting factor before current rating does. That is why frequency selection is not only an EMI and magnetics decision. It also influences survivability during input collapse. Lower switching frequency often improves dropout behavior and sometimes thermal efficiency, but it may enlarge passive components or complicate noise placement. The right operating point usually comes from ranking these constraints instead of optimizing any single one.

A useful way to think about the family is through three operating regions. In normal regulation with moderate load, accuracy and thermal efficiency dominate. In standby regulation with very light load, quiescent current and mode-transition behavior dominate. In stressed input conditions near dropout, headroom and frequency choice dominate. The best design results usually come from validating all three regions explicitly. Bench evaluation should not stop at nominal VIN, room temperature, and a resistive load. It is more revealing to measure output drift at the point of load, sweep load current through the transition between forced PWM and light-load operation, and repeat dropout tests with realistic source impedance. Many rail issues appear only when these factors are combined.

For logic and interface rails, the fixed-output variants are often the cleaner choice when 3.3 V or 5 V aligns with the load requirement. They reduce external tolerance stacking and can simplify production control. The adjustable version is more useful when rail trimming, margin testing, or nonstandard voltages are required, but its final accuracy depends more heavily on component selection and feedback routing. In both cases, the low shutdown current and low operating current support architectures where the converter remains close to the battery and stays available for rapid wake. The efficiency modes then let the same regulator cover both active and standby phases without resorting to multiple dedicated rails.

What stands out in this family is not any single headline specification, but the consistency of the trade space. Tight voltage accuracy keeps digital loads inside their margin window. Low current consumption prevents the power tree from becoming the dominant battery drain during inactivity. Selectable light-load versus forced-PWM behavior gives control over the usual efficiency-versus-noise compromise. Dropout characterization adds realism to input-sag analysis instead of leaving it to rough estimation. Taken together, these traits make the devices easier to model as part of a complete vehicle power state strategy rather than as isolated buck converters.

LM53602-Q1 and LM53603-Q1 Reset, Enable, Synchronization, and Mode Control Features

LM53602-Q1 and LM53603-Q1 expose a set of supervisory and control pins that do more than basic on/off management. They define how the regulator participates in system sequencing, fault visibility, EMI planning, and low-load operating behavior. In practice, these pins often determine whether a power tree feels predictable at bring-up and recoverable during edge-case faults. For these devices, RESET, EN, SYNC, and mode control are not peripheral features. They are part of the control surface that connects the converter to the rest of the platform.

RESET is implemented as an open-drain power-good indicator with internal filtering and timing. That distinction matters. It does not simply mirror whether the IC is enabled or switching. It reports whether VOUT has entered and remained inside a valid regulation window long enough to be considered trustworthy. This makes RESET useful for processor release, downstream rail sequencing, watchdog arming, and fault logging. In a multi-rail system, using a true output-valid signal instead of an enable-state proxy avoids a common failure mode where digital logic starts while the rail is still ramping, overshooting, or briefly collapsing under inrush.

The RESET thresholds are ratio-based to the programmed output, which keeps the mechanism portable across output voltage options. The rising threshold is typically around 105% to 110% of the nominal output target, while the falling threshold is around 92% to 96.5%, with built-in hysteresis. This asymmetry is deliberate. It creates a practical acceptance band that tolerates startup settling and load-step recovery without generating ambiguous status transitions. The internal delay before RESET deasserts high is typically 3 ms, and the glitch filter is typically 25 µs. These two time constants solve different problems. The filter rejects short disturbances, including switching noise coupling or brief transient dips. The delay enforces temporal confidence, so the output must not only cross the threshold but remain healthy long enough to be useful to the next stage.

That behavior is especially valuable when the downstream load contains large digital cores, CAN or Ethernet PHYs, sensor front ends, or memory rails with narrow initialization windows. A rail can appear acceptable on an oscilloscope during a clean bench test yet still generate false-ready events once wiring inductance, cold crank behavior, or asynchronous load activation are introduced. The internal RESET timing reduces dependence on external RC shaping and lowers the chance of status chatter during these transitions. A practical design pattern is to use RESET as the release signal for a processor reset supervisor or as an input to a sequencer FPGA/CPLD, while still allowing the firmware to observe the rail indirectly through GPIO or PMIC status. That creates both hard real-time protection and software visibility.

Because RESET is open-drain, pull-up selection deserves attention. A weak pull-up improves noise immunity and reduces contention in wired-OR schemes, but it slows the rising edge and can affect timing margins when multiple devices share the line. A stronger pull-up sharpens the edge but increases susceptibility to ground bounce and transient current injection into a logic domain during fault events. In mixed-voltage systems, the pull-up rail should also reflect the consumer of the status signal, not necessarily the regulator output itself. This is one of those small implementation choices that can determine whether a board passes corner-case validation cleanly or shows intermittent reset-release anomalies.

The EN pin provides the main entry point for startup control. Its rising threshold is typically around 1.7 V to 2 V, with hysteresis below that point, and full shutdown occurs when EN falls below 0.8 V. At first glance this seems straightforward, but the threshold placement is useful because it supports multiple system-level strategies without extra complexity. EN can be tied directly to VIN for an always-on rail, driven by upstream logic for sequencing, or fed by a resistor network to create custom undervoltage lockout behavior. The hysteresis is important because it prevents chatter when the input source ramps slowly, droops under surge current, or passes through noisy battery conditions.

For automotive and other supply-variable environments, EN often becomes the cleanest way to shape converter behavior around input uncertainty. If VIN can linger in a marginal region, relying only on the converter’s internal operating limits may allow repeated soft-start attempts, partial switching, or unnecessary stress on the input source. A resistor-divider-based UVLO on EN can force a sharper, system-defined turn-on and turn-off profile. That usually improves repeatability during crank, brownout, or hot-plug conditions. The most robust implementations place the EN threshold above the region where the upstream supply impedance and downstream inrush can interact badly. In other words, the best UVLO point is often not the lowest possible startup voltage, but the lowest voltage at which the whole power path behaves deterministically.

There is also a sequencing advantage in using EN rather than gating VIN with a front-end switch unless isolation is specifically required. EN-based sequencing keeps biasing and control conditions inside the regulator consistent and avoids introducing another high-di/dt path in series with the input capacitor network. This tends to simplify stability and EMI behavior. It also makes debug easier because the converter remains electrically present even when disabled, which helps separate startup logic issues from power-path hardware faults.

External synchronization expands control from rail validity into spectral management. The devices support synchronization from 1.9 MHz to 2.3 MHz, centered around the nominal 2.1 MHz switching frequency. That range is narrow enough to preserve intended internal compensation and timing behavior, but wide enough to coordinate multiple regulators or move switching energy away from sensitive bands. This becomes useful when several buck converters coexist with RF receivers, precision ADC sampling clocks, AM band constraints, or audio paths where beat frequencies and low-order harmonics can become system-level problems even when each regulator is individually stable.

The key value of synchronization is not just matching frequencies. It is controlling spectral predictability. Unsynchronized converters produce relative drift, which creates beat components and moving interference signatures. Those signatures are harder to filter and much harder to reproduce during validation. Locking converters to a shared clock collapses that uncertainty. Once the switching relationships are deterministic, layout parasitics and conducted-noise paths become more analyzable, and mitigation efforts such as filter tuning, shield placement, and ground partitioning become more effective. This is one reason synchronized systems often feel easier to close in EMC work even when the absolute noise amplitude has not changed dramatically.

At the same time, synchronization should be applied with intent. Aligning every converter to a common frequency can concentrate energy into a narrower spectral region, which may help one compliance limit while hurting another. In dense systems, the better approach is often to choose a synchronization plan that considers sensitive receivers, cable resonances, and the frequency response of the input network. The best switching frequency is rarely the one that looks ideal in isolation. It is the one that creates the least total conflict across the platform.

The datasheet explicitly states that SYNC should not be left floating. That guidance should be treated as mandatory, not optional housekeeping. A floating synchronization input can pick up noise and produce intermittent mode interpretation or unstable frequency behavior, especially on long traces or in high dV/dt environments. If synchronization is unused, the pin should be tied to a defined logic state per the recommended operating configuration. This is a common source of “works on bench, fails in chamber” behavior because the problem only appears when ambient noise, cable routing, or grounding changes enough to excite the floating node.

Mode control, including forced PWM behavior, is part of the same system conversation. In these high-frequency automotive-oriented converters, the tradeoff is familiar: low-load efficiency versus output ripple predictability and EMI consistency. Forced PWM keeps the switching frequency fixed and maintains more uniform ripple characteristics, which is often desirable for noise-sensitive analog loads, synchronized multi-rail designs, and EMI optimization. Pulse-skipping or auto mode improves light-load efficiency, but it introduces variable-frequency content and burst-like energy patterns that can couple more aggressively into sensors, clocks, or communication channels. Neither mode is universally better. The correct choice depends on whether the rail serves computation, analog acquisition, radio, lighting, or always-on standby functions.

A useful way to think about these control features is by timescale. EN decides when the converter is allowed to operate. Internal control loops regulate the rail cycle by cycle. RESET reports whether regulation has become system-valid over a filtered millisecond-scale window. SYNC and operating mode shape the spectral and dynamic signature that the converter presents to the rest of the design. This layered view helps during architecture work because it separates permission, regulation, validation, and spectral coordination into distinct functions. Designs become easier to reason about when each pin is assigned a clear role in that hierarchy.

From an implementation standpoint, several recurring practices improve results. Route RESET away from noisy switch nodes and treat it as a logic-status net, not a casual utility trace. Define EN with a divider or driver that has sufficient noise margin under all source conditions, especially during slow VIN ramps. Terminate or drive SYNC deliberately, with short routing and a solid return reference. If forced PWM or synchronization is used to support EMC goals, validate under both nominal and low-load conditions, because mode-related spectral changes often become most visible when output current is small. These are not dramatic design decisions, but they are often what separates a regulator that merely powers the board from one that integrates cleanly into the system.

What stands out in LM53602-Q1 and LM53603-Q1 is that these features are balanced rather than decorative. The thresholds, hysteresis, filter times, and synchronization range are all tuned to make the regulator easier to embed in real power architectures. The deeper value is not that each pin adds another option. It is that together they let the converter express state, accept system policy, and cooperate with neighboring rails. That is what makes supervisory and control pins genuinely useful in engineering terms.

LM53602-Q1 and LM53603-Q1 Design and Integration Considerations

LM53602-Q1 and LM53603-Q1 are designed to simplify automotive buck conversion, but their integration still depends on disciplined power-stage design, support-network quality, and layout control. The devices remove much of the external compensation burden and reduce the number of critical decisions compared with a discrete-controller approach, yet the remaining passive components and their physical implementation still define a large part of the final behavior. In practice, these converters are easy to make functional and much harder to make quiet, robust, and repeatable across temperature, transients, and production variation.

At the circuit level, the essential external network is compact but not trivial. The input bypass capacitors between VIN and PGND carry the converter’s pulsed input current and therefore form the first barrier against conducted noise, bus ripple injection, and local supply collapse during switching edges. Their value, ESR, ESL, and placement directly influence the current loop area of the hot path. The output capacitor at VOUT closes the power-stage energy loop with the inductor and determines a large part of load-transient behavior, output ripple, and loop damping. The bootstrap capacitor from CBOOT to SW supports the high-side gate drive and must be treated as a high-frequency switching support element rather than a generic decoupler. The VCC capacitor stabilizes the internal bias rail, and its quality affects startup consistency and internal gate-drive integrity. The BIAS capacitor to ground, supplied from the output-voltage point, supports the device’s internal biasing in a way that reduces dissipation and improves operating efficiency once the output is established.

That BIAS connection is more important than it first appears. Tying BIAS to VOUT instead of ground is not just a recommended option; it shifts internal supply sourcing away from the high-voltage input path after startup. This reduces internal power loss and lowers thermal stress, especially in applications with wide automotive input range and elevated ambient temperature. It also tends to improve conversion efficiency under sustained operation because the internal circuitry no longer burns unnecessary voltage headroom from VIN. Designs that ignore this point may still regulate correctly on the bench, but they often give away efficiency margin and thermal robustness for no benefit.

Capacitor selection deserves more attention than the simplified block diagram suggests. For VIN bypassing, the effective capacitance under DC bias matters more than the room-temperature nominal value printed in the BOM. In automotive rails, ceramic capacitors can lose a significant fraction of their rated capacitance when biased near operating voltage, so a design that appears well decoupled on paper may behave as under-capacitanced in real operation. A useful pattern is to combine low-ESL ceramics placed very close to VIN and PGND with sufficient bulk capacitance nearby to absorb lower-frequency source disturbances and cable-induced transients. This creates a two-band filtering effect: ceramics suppress switching-edge current demand, while bulk capacitors support slower battery or harness dynamics.

The VCC capacitor should also be treated as a performance-critical part. A high-quality dielectric with stable impedance over temperature is preferred because this node supports internal control and drive functions. If this capacitor is marginal, several second-order issues begin to appear: startup may become less repeatable, gate-drive waveforms may degrade, and switching behavior may become more sensitive to input disturbance. These effects are often misdiagnosed as controller instability when the real cause is simply poor local support on an internal supply-related pin.

For fixed-output versions, the absence of an external resistor divider provides more than just lower BOM count. It removes a sensitive analog node from the board, eliminates tolerance stacking from two external resistors, and avoids one common path by which switching noise couples into the regulation loop. In electrically noisy environments such as automotive modules near display drivers, communication transceivers, or long harness interfaces, that simplification is valuable. It improves repeatability across layouts and reduces the number of ways regulation accuracy can be degraded during production transfer.

Adjustable-output versions offer flexibility, but the FB node becomes a precision analog input embedded inside a high-dI/dt switching environment. That changes the design discipline. The feedback divider should be placed close to the IC, returned to a quiet analog ground reference, and routed away from the SW node, inductor fringe field, and noisy current-return paths. The lower resistor’s ground connection should not share a noisy segment of the power ground return. If the FB trace is allowed to run parallel to SW or under the inductor region, the converter may still meet nominal DC output voltage, but load regulation jitter, ripple sensitivity, or false response to switching edges can increase noticeably. This is one of those details that often separates a lab prototype that “works” from a product that behaves consistently across vehicle conditions.

Layout should therefore be read as part of the schematic, not as a later packaging step. The highest-priority loop is the input switching loop formed by the input capacitor, high-side switch path, low-side return, and PGND. This loop must be kept short and compact to reduce radiated and conducted EMI. The second priority is the switch-node copper itself. The SW node must be large enough to carry current and connect efficiently to the inductor, but not so large that it becomes an unnecessary radiator. Excess copper on SW increases capacitive coupling into nearby traces and planes, which can inject noise into FB, RESET, or communication lines. A balanced approach works best: enough copper for low impedance and thermal spreading, but controlled geometry to contain electric field coupling.

Ground strategy is equally important. Power ground and quiet signal ground should meet in a controlled way near the device reference region rather than through long shared copper segments. This reduces common-impedance coupling, which is a frequent source of unexplained jitter, reset chatter, or regulation offset in mixed-signal modules. In compact automotive boards, it is tempting to pour one large ground region and assume it solves everything. In practice, current path awareness matters more than copper abundance. A visually clean layout can still hide poor return-current geometry.

The integrated RESET output adds useful system-level value because it closes the gap between power conversion and digital supervision. In a 3.3 V rail powering logic, the RESET signal can directly indicate to the MCU that the rail has reached a valid operating window. This removes the need for a separate supervisory IC in many cases and simplifies startup sequencing. The real benefit appears during brownout and crank-like conditions, where the digital system should not attempt normal operation while the rail is still recovering. If the power tree and reset handling are designed together, firmware complexity and fault-recovery ambiguity both tend to decrease.

In a representative instrument-cluster application, the converter may step automotive battery input down to 3.3 V for the main digital domain. LM53602-Q1 is typically sufficient when the steady-state load and transient envelope remain comfortably within 2 A, such as a moderate MCU, memory, logic translation, and limited interface support. The decision should not be made only from average current. Display backlight drivers, processor wake-up spikes, communication bursts, and cold-start conditions can create short-duration demand well above nominal load. If the current profile is close to the 2 A boundary, LM53603-Q1 usually provides a better design center because the extra margin improves transient headroom, reduces thermal stress per ampere delivered, and leaves more space for future feature growth without changing converter family or design method.

That current-margin choice has a subtle secondary effect on overall robustness. Designs operated too close to converter limits often pass initial validation yet become sensitive to component aging, lower actual ceramic capacitance at bias, and higher inductor temperature rise at elevated ambient. A converter selected with realistic transient and thermal margin usually behaves better not only during peak load, but also during startup sequencing and fault recovery. In other words, current rating should be treated as a dynamic-system parameter, not just a DC nameplate number.

Startup behavior is another area where the support network quietly dominates results. If the input bypassing is weak, the local VIN node may dip or ring during initial switching pulses. If the VCC or BIAS networks are poorly implemented, internal bias rails may settle more slowly or with greater disturbance. These conditions can manifest as delayed startup, reset timing irregularity, or increased low-frequency noise before the rail reaches steady state. A clean startup waveform is usually the outcome of several small correct choices rather than one dramatic fix.

From an EMI perspective, this family’s reduced external complexity is helpful but not automatically sufficient for stringent automotive environments. The combination of input capacitor placement, hot-loop minimization, SW-node discipline, and quiet feedback routing often contributes more to radiated and conducted performance than adding filters after the fact. Once a layout has created large high-frequency current loops or broad noisy copper regions, external filtering becomes a compensating measure rather than a root-cause solution. The most efficient path is to suppress noise generation at the converter itself and reserve additional filtering for system-level constraints.

A practical design approach is to treat the converter in three layers. First, stabilize the internal and high-frequency support network: VIN decoupling, VCC capacitor, bootstrap path, BIAS connection. Second, shape the power-delivery behavior: inductor and output capacitor selection for ripple, transient response, and thermal performance. Third, protect precision and system interfaces: feedback routing, RESET handling, and ground partitioning. This layered method tends to expose integration risks early, before they appear as intermittent regulation issues or EMI failures during validation.

The LM53602-Q1 and LM53603-Q1 family earns its simplicity when the few remaining external nodes are treated with appropriate weight. Fixed-output variants maximize robustness by removing a sensitive analog path. Adjustable variants reward careful FB handling with flexibility. BIAS tied to VOUT improves efficiency and thermal behavior. High-quality VCC support improves internal stability. Tight input-loop layout and controlled SW geometry determine much of the EMI outcome. In real automotive designs, these details are not finishing touches. They are the difference between nominal functionality and a converter rail that remains stable, clean, and predictable under the full range of vehicle conditions.

LM53602-Q1 and LM53603-Q1 Package and PCB Implementation Considerations

LM53602-Q1 and LM53603-Q1 package and PCB implementation should be treated as part of the power-stage design, not as a post-schematic routing task. These devices use a thermally enhanced 16-pin HTSSOP package of roughly 5.0 mm × 4.4 mm with a 1 mm profile, which is a practical compromise for automotive point-of-load conversion: small enough for dense control modules, but still large enough to move switching loss and conduction heat into the board with reasonable thermal resistance. In this class of regulator, package performance is inseparable from PCB performance. The silicon may define the control behavior, but the board largely determines thermal margin, EMI behavior, and transient integrity.

The exposed pad is the mechanical and electrical anchor of the device. It should be soldered to a solid ground region with sufficient copper area and thermal vias into internal or backside ground planes. This connection does more than extract heat. It also establishes the lowest-impedance reference for the internal control circuits and helps suppress voltage movement at the device ground during switching events. In practice, weak exposed-pad grounding often appears first as avoidable switching noise, jitter on sensitive nodes, or unexpected thermal rise long before it is recognized as a layout defect. A robust pad-to-ground implementation usually improves several metrics at once: junction temperature, conducted noise, and control-loop cleanliness.

Ground treatment deserves more attention than the usual recommendation to “connect AGND and PGND together.” For these devices, AGND, PGND, and the exposed pad must indeed be tied together, but the quality of that connection matters more than the mere existence of it. PGND carries pulsating current from the power switch and input bypass network, while AGND serves as the reference for lower-level control functions. If the connection strategy forces analog reference currents to share a noisy return path with power pulses, the regulator may still operate, but margin erodes. Load regulation, switching edge consistency, and radiated emissions can all degrade subtly. A good implementation uses a short, low-impedance local ground region under and around the IC, with return paths arranged so high-current loops close locally rather than spreading through quiet sections of the board.

The SW node is the dominant electrical aggressor in the layout. It carries fast voltage transition and high di/dt current, so it should be kept compact and contained. The key objective is not simply to shorten the trace, but to minimize the effective hot-loop area formed by the internal high-side switch, the input capacitors, the PGND return, and the switching node connection. At 2.1 MHz, even modest parasitic inductance creates measurable overshoot, ringing, and broadband EMI. A small increase in loop inductance that might be tolerated at lower switching frequency becomes expensive here in both emissions and device stress. The SW copper should therefore be only large enough to carry current and connect cleanly to the inductor, without unnecessary spreading into adjacent layers or broad copper shapes that increase capacitive coupling. Over-enlarging the SW region is a common mistake because it appears electrically “safe” from a DC perspective while making EMI noticeably worse.

The datasheet guidance to connect paired VIN pins together, paired SW pins together, and paired PGND pins together directly at the PCB is a package-current management rule, not just a pinout convenience. These parallel pins are intended to share current and reduce connection impedance between silicon and board. If one of a paired set is connected through a longer or narrower path, current crowding can occur at the package interface. That increases localized heating and disturbs the intended symmetry of the current flow. In high-frequency converters, asymmetry at the pin level can be enough to change switching waveforms and increase common-mode noise. The cleanest approach is to merge each pin pair immediately with short, wide copper before those nets branch outward into the broader power path.

Input bypassing is critical because the input capacitors supply the sharp current pulses demanded by the internal switch. These capacitors must be placed directly across VIN and PGND with the smallest possible loop. The electrical goal is to confine the pulsed current path to a very small local circuit that does not force the upstream supply trace or cable harness to carry high-frequency ripple current. When the input capacitor is placed even slightly away from the IC, the resulting parasitic inductance often shows up as switch-node ringing, increased input ripple, and degraded EMI results during qualification testing. In automotive layouts, where supply traces may already be long and harness impedance is nontrivial, local bypass placement becomes even more decisive. It is often the difference between a quiet design and one that requires late-stage filtering patches.

The support capacitors on CBOOT, VCC, and BIAS should be treated with the same discipline, though for different reasons. The bootstrap capacitor supports the gate-drive supply for the high-side switch, so excess trace inductance or poor return referencing can directly impair switching behavior. The VCC capacitor stabilizes an internal bias rail and should remain tightly coupled to its pin and local ground reference. The BIAS network affects internal operating efficiency and bias sourcing, so loose placement can inject noise into control circuitry or reduce the intended benefit of the pin. These parts are small, but their placement is disproportionately important because they interact with internal high-speed circuits rather than slower external nodes. A layout that respects these local support loops tends to produce cleaner switching edges and more repeatable performance across temperature and load range.

Thermal design should be approached as a distributed copper problem rather than as a package-only rating exercise. The HTSSOP package can dissipate meaningful power, but only if the board provides a low-resistance heat path. Wide copper on VIN, PGND, and VOUT regions helps, but the exposed pad and underlying ground structure remain the primary thermal channel. Thermal vias under the pad should be numerous enough to connect heat into internal planes, yet designed for manufacturability so solder voiding remains controlled. In dense automotive boards, it is often better to build a compact but thermally connected copper structure than to rely on isolated top-layer spreading. Internal planes usually do more useful thermal work than visually large but electrically fragmented top copper islands.

The 2.1 MHz operating frequency creates a specific set of tradeoffs. It allows smaller inductors and capacitors, which is attractive for size-constrained modules, but this advantage only materializes when layout parasitics are held low enough that the switching frequency remains an asset rather than becoming an EMI liability. High-frequency operation narrows the gap between schematic intent and physical implementation. Magnetics shrink, but sensitivity to placement grows. The practical implication is that regulator selection should not stop at current rating, dropout, and efficiency curves. The achievable board layout quality must be part of the selection criteria. In compact designs, a theoretically efficient high-frequency regulator can underperform a slower alternative if routing constraints force large loops, poor grounding, or noisy node coupling.

Component placement should follow current flow order. First place the IC, then the input bypass network at VIN-to-PGND, then the bootstrap and VCC support parts, then the inductor at SW, and finally the output capacitors close to the inductor return path. This sequence mirrors the energy path inside the converter and usually yields the best first-pass layout. Feedback routing, if present externally in the specific design context, should be kept away from SW and other high-dv/dt copper. Quiet signal traces should reference a stable ground region and avoid crossing return-current discontinuities. When debugging marginal behavior, one recurring pattern is that control-related symptoms often originate not in compensation values but in field coupling from poorly contained power-stage geometry.

A useful implementation mindset is to classify copper into three groups: high-current pulsed paths, quiet reference paths, and thermal-spreading structures. Problems usually arise when one copper feature is asked to do all three jobs at once. For example, a large shared ground area may look beneficial for heat and grounding, yet if it forces noisy return currents through analog reference regions, it becomes electrically expensive. Separating functional intent at the layout stage leads to cleaner designs. The board then stops behaving like an accidental RF structure and starts behaving like a controlled power system.

For LM53602-Q1 and LM53603-Q1, the package enables strong performance, but only when the PCB completes the design correctly. Direct pin pairing, tightly closed input and switch loops, disciplined ground unification, compact support-capacitor placement, and deliberate thermal via strategy are not fine optimizations. They are first-order requirements. At 2.1 MHz, the board is effectively part of the converter. Designs that recognize this early usually achieve better efficiency, lower EMI, and smoother validation with fewer corrective spins.

Potential Equivalent/Replacement Models for LM53602-Q1 and LM53603-Q1

Potential equivalent or replacement models for LM53602-Q1 and LM53603-Q1 must be evaluated within the boundaries of the supplied material. Under that constraint, the most defensible conclusion is that these two devices are each other’s closest replacement candidates inside the same TI automotive buck regulator family. The relationship is not based on broad market similarity, but on shared architecture, aligned feature set, common application framing, and presentation as parallel options differentiated mainly by output current capability.

LM53602-Q1 is the lower-current member of the pair, intended for designs that remain within a 2 A load envelope. LM53603-Q1 extends that same design approach to 3 A. In practical terms, this means LM53602-Q1 is the appropriate substitute when the original design based on LM53603-Q1 has sufficient electrical margin and the actual rail demand, including startup peaks, transient excursions, and thermal derating, stays below 2 A. The reverse case is more straightforward: LM53603-Q1 is the direct upgrade path from LM53602-Q1 when additional current headroom is required without moving away from the same device family.

This replacement relationship matters because current rating alone does not define equivalence. In power designs, the closest replacement is usually the device that preserves the surrounding system assumptions: input voltage behavior, compensation strategy, switching characteristics, package style, thermal path, automotive qualification level, and expected EMI handling. The supplied documentation groups LM53602-Q1 and LM53603-Q1 in exactly this way, which strongly indicates a common electrical foundation. That kind of family alignment typically reduces redesign effort, shortens validation scope, and lowers the chance of second-order issues appearing after substitution.

From an engineering standpoint, the most important selection axis is not nominal load current but usable current under real operating conditions. A rail that appears to consume less than 2 A in steady state can still justify LM53603-Q1 if it sees repetitive inrush events, fast load steps, elevated ambient temperature, or reduced airflow. Designs in automotive environments often operate far from ideal bench conditions, and current margin translates directly into lower stress on the regulator, reduced thermal rise, and better transient containment. For that reason, replacing LM53602-Q1 with LM53603-Q1 is usually a low-risk upward move when board space, cost target, and thermal profile allow it. Replacing LM53603-Q1 with LM53602-Q1 requires tighter scrutiny because the margin is being compressed rather than expanded.

A second selection factor is output voltage option. Even within the same family, replacement is only meaningful if the available fixed-output or adjustable configuration matches the target rail requirements and startup sequencing constraints. The documentation indicates that the two parts should be chosen according to output voltage option in addition to current capability. That detail is easy to overlook, yet it is often what determines whether a substitution is electrically transparent or whether it forces changes in feedback networks, rail tolerances, or downstream power-good behavior.

The shared automotive operating envelope is another reason these two parts form the strongest replacement pair in the provided material. In automotive-qualified power components, equivalence is tied not only to nominal electrical ratings but also to survivability across temperature, line disturbance exposure, and reliability expectations associated with the application class. A substitute that matches current but falls outside the same qualification context is not truly equivalent in a vehicle design. The documentation keeps the discussion inside a common Q1-qualified family, so the replacement logic remains technically consistent.

Viewed from the mechanism level, the two devices should be treated as capacity variants of the same implementation philosophy rather than unrelated regulators that happen to overlap in voltage range. That distinction is useful during redesign. If the architecture is shared, many external design decisions such as inductor choice methodology, input bypass strategy, output capacitor selection logic, and PCB layout priorities are likely to remain closely aligned. In practice, this often means a design team can evaluate substitution with targeted checks instead of reopening the full power-tree design. The validation effort still matters, but it becomes narrower and more controlled.

For sourcing decisions, this leads to a clear rule: if the goal is to stay fully anchored to the supplied documentation, the replacement discussion should remain limited to LM53602-Q1 and LM53603-Q1. No additional pin-compatible alternatives, adjacent TI series, or competitor cross-references are identified in the material. Expanding beyond these two devices would require assumptions that are not justified by the source content. In a controlled engineering review, that boundary is important. A replacement claim is only as strong as the data behind it.

The practical choice between the two can therefore be framed in a layered way. Start with the load profile: continuous current, peak current, startup demand, and thermal derating. Then verify output voltage compatibility. Next, confirm that the existing automotive environmental requirements remain unchanged. If all three align, LM53602-Q1 and LM53603-Q1 represent the nearest documented replacement path for one another. If the rail operates close to its limit or the duty cycle is harsh, selecting the 3 A option usually creates healthier design margin. If the application is firmly below 2 A and efficiency, cost, or inventory simplification favors the smaller current class, LM53602-Q1 remains a valid counterpart.

Within the evidence provided, that is the strongest and most technically disciplined position: LM53602-Q1 and LM53603-Q1 are the direct equivalent or replacement models for each other, with the final choice driven primarily by current headroom, output voltage fit, and retention of the same automotive-qualified operating envelope.

Conclusion

Texas Instruments LM53602-Q1 and LM53603-Q1 are automotive-qualified synchronous buck regulators intended for direct conversion from wide automotive supply rails to tightly regulated low-voltage loads in space-constrained electronic modules. Their most visible distinction is output current rating: LM53602-Q1 supports up to 2 A, while LM53603-Q1 extends that capability to 3 A. Beyond that scaling point, the two devices are architecturally aligned. Both operate across a 36 V input range, tolerate 42 V transients, switch at 2.1 MHz, maintain low shutdown and no-load current, provide integrated reset signaling, and support selectable operating modes. This combination places them in a useful position for distributed automotive power design, where the regulator is expected to be electrically robust, compact, and efficient not only at nominal load, but also during standby, cranking, and light-load operation.

At the mechanism level, the value of this family comes from integration choices that reduce the number of external decisions the designer must make. A synchronous buck stage eliminates the need for an external catch diode and improves conversion efficiency, especially when stepping from battery-level voltages down to rails such as 5 V or 3.3 V. The 2.1 MHz switching frequency is not just a headline parameter; it materially shifts the magnetics and filtering trade space. Higher switching frequency allows smaller inductors and capacitors, which directly supports compact layouts and lower profile assemblies. In automotive modules, where packaging volume is usually negotiated down to the last few cubic millimeters, that matters more than datasheet summaries often suggest. The cost is that layout discipline, thermal spreading, and EMI containment become more important, because high-frequency switching compresses margins in the physical implementation.

The 36 V operating capability with 42 V transient tolerance aligns well with real vehicle electrical behavior. Automotive rails are not clean DC sources. They are noisy, load-dependent, and exposed to events such as start-stop transitions, cold crank sag, and various overvoltage disturbances. A regulator family that can remain stable and predictable through normal battery variation while also tolerating short transient excursions simplifies front-end protection strategy. It does not eliminate the need for system-level surge and transient design, but it reduces the number of edge conditions where the regulator itself becomes the weak link. In practice, that often shortens validation cycles because the power stage is less likely to require redesign after bench testing against vehicle pulse profiles.

The low shutdown current and low no-load current are equally important, though they are often undervalued during early selection. In many automotive ECUs, the dominant power challenge is not peak load delivery but quiescent power control over long parked intervals. A regulator that performs well at high load but leaks excessively in standby can create battery drain issues at the vehicle level. These devices are better understood as regulators for duty-cycled systems rather than only continuous-conduction power blocks. That distinction is useful when designing body electronics, telematics, sensor gateways, and zonal modules that spend substantial time in sleep or near-idle states. From a system architecture perspective, low standby burden is not merely an efficiency feature; it is a battery retention feature.

Integrated reset reporting adds a layer of supervisory behavior that is disproportionately valuable relative to its apparent simplicity. In low-voltage digital systems, a clean power rail is necessary but not sufficient; downstream processors, transceivers, and sensors also need deterministic startup sequencing. A built-in reset output reduces the need for an external voltage monitor in many designs and improves confidence that the powered domain is released only after the rail has reached an acceptable condition. This is particularly useful in modules where the buck regulator feeds a microcontroller directly or through a small hierarchy of secondary rails. The practical gain is less component count, less routing overhead, and fewer tolerance interactions between separate power and supervisory devices.

Selectable operating modes provide another important layer of design flexibility. In one direction, the design can be biased toward low quiescent current and improved light-load efficiency. In the other, it can be biased toward switching behavior that is easier to manage for noise-sensitive loads. This matters because automotive power design rarely optimizes a single variable. A camera module, radar front end, or RF-adjacent subsystem may prioritize spectral cleanliness and predictable ripple behavior, while a parked-body-control node may prioritize microamp-level standby performance. The ability to tune mode behavior within the same regulator family improves reuse across platforms without forcing one compromise profile onto every application.

The difference between 2 A and 3 A capability may appear incremental, but at the board level it creates a useful scaling boundary. The 2 A option fits comfortably in rails supplying microcontrollers, communication interfaces, storage, and moderate sensor aggregation loads. The 3 A version expands headroom for power-hungrier processors, denser peripheral sets, and designs where transient load steps are more aggressive. That extra ampere is often less about steady-state current and more about margin. Regulators selected too close to average operating current tend to expose weaknesses later, when software evolves, peripheral populations increase, or startup surges prove larger than first estimated. Using a two-step family like this supports cleaner portfolio planning: one control philosophy, one general footprint strategy, one qualification path, but with a practical current scaling option.

For selection engineers, the family is attractive when the objective is to compress power-stage complexity without sacrificing automotive-grade resilience. That usually means fewer external components, less dependence on companion supervisory ICs, and reduced tuning effort for common low-voltage rails. In engineering practice, this is where integrated regulators outperform nominally cheaper discrete approaches. The component cost delta can disappear quickly once board area, assembly burden, EMI rework, and validation iterations are counted honestly. A regulator family that reaches functional robustness with fewer external dependencies often lowers total implementation cost even if unit pricing is not the absolute minimum.

For procurement and platform teams, the architectural commonality between LM53602-Q1 and LM53603-Q1 supports standardization beyond simple part-number consolidation. Shared operating characteristics, similar integration philosophy, and common application patterns make it easier to create reusable power templates across multiple ECU variants. That reduces qualification fragmentation and helps maintain a more stable supply strategy. In organizations managing several module classes with slightly different current demands, this kind of family coherence has operational value. It simplifies approved vendor lists, test documentation, and second-order logistics such as inventory pooling and revision control.

Layout and thermal behavior deserve specific attention because compact high-frequency regulators reward disciplined implementation and punish casual placement. At 2.1 MHz, parasitic inductance in the input loop, switch node coupling, and return path quality have visible effects on conducted and radiated emissions. The best results usually come from minimizing the hot loop, placing input bypass capacitance as tightly as possible to the device, keeping the switch node compact, and separating sensitive feedback routing from noisy copper regions. Thermal behavior should also be evaluated under realistic ambient and airflow assumptions, not only room-temperature bench conditions. In enclosed automotive assemblies, thermal rise can shift from acceptable to limiting faster than expected, particularly when the regulator is fed from high battery voltage and asked to support sustained current near its upper range.

A practical pattern seen in robust implementations is to treat the current rating as a thermal-electrical system rating rather than a standalone electrical number. A 3 A regulator may technically meet load requirements, yet still underperform in a dense enclosure with weak copper spreading and elevated ambient conditions. Conversely, a 2 A rail can operate with excellent margin if the load profile is pulsed, the layout is efficient, and the output network is tuned for transient containment. This is why current-family selection should be done with waveform behavior, duty cycle, and enclosure conditions in view, not only with spreadsheet averages. The stronger designs usually come from selecting for margin in the dimensions that are hardest to fix late: thermals, EMI, and startup behavior.

Within the scope of the documented feature set, LM53602-Q1 and LM53603-Q1 form a practical current-scaled family for modern automotive low-voltage rails. They are especially well suited to designs that need high integration, wide input tolerance, low standby burden, and straightforward supervisory support in a compact switching solution. The deeper advantage is not simply that one device delivers 2 A and the other 3 A. It is that both devices offer a consistent power-conversion platform that maps cleanly from mechanism to deployment: robust front-end compatibility with automotive rails, compact high-frequency implementation, controllable light-load behavior, and simplified system integration. That makes the family useful not just as two regulators, but as a repeatable design building block across a wider vehicle electronics portfolio.
