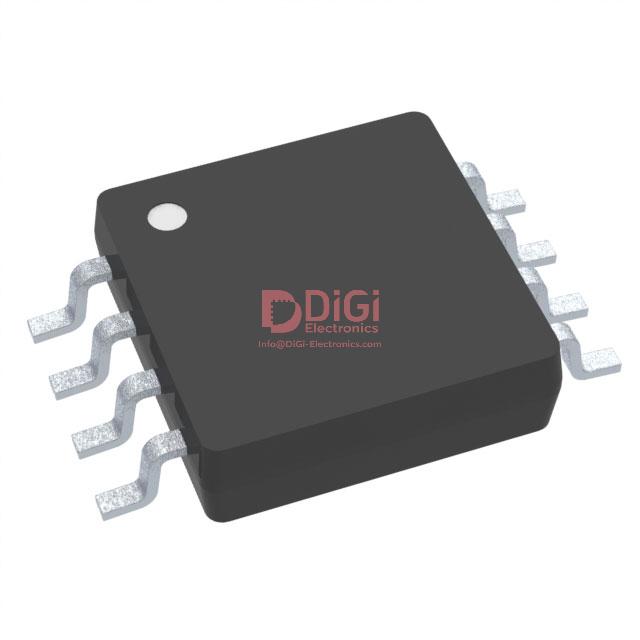

Product Overview: LM5068MMX-2 Hot Swap Controller from Texas Instruments
The LM5068MMX-2 from Texas Instruments is a precision-engineered, single-channel hot swap controller tailored for -48V power backplane designs prevalent in telecom infrastructure, high-availability servers, and distributed power applications. This device’s key function is to safeguard both the power rail and subsystem load during the dynamic process of card insertion or extraction, which inherently exposes live systems to the risks of voltage transients, inrush currents, and potential fault propagation.
At its core, the LM5068MMX-2 incorporates a robust analog protection architecture optimized for high-voltage, negative-rail environments. The extended input range of –10V to –90V supports broad system tolerances in real-world backplanes, where supply voltage deviations are routine due to line losses or load switching events. Internally, precise undervoltage and overvoltage supervision circuits enable deterministic startup and controlled shutdown, critical for preventing latch-up and damage downstream. The controller applies a rapid detection mechanism for current and voltage anomalies, leveraging a combination of sense-resistor feedback and programmable fault timing. This approach supports dynamic system scaling, as timing and thresholds are easily adjusted by external passive components.
A highlight of the LM5068MMX-2 is its active control of inrush current. During card insertion, N-channel MOSFETs are driven with carefully ramped gate voltages, ensuring the load charges gradually without exceeding supply or connector tolerances. This mitigates both nuisance tripping and connector arcing, two predominant modes of failure in hot swap designs. The device’s internal logic further incorporates short-circuit and overload response, latching off the load in the presence of sustained faults, which markedly enhances the robustness and maintainability of large-scale systems.
From an application standpoint, the 8-pin VSSOP package aligns with dense PCB real estate constraints typical in rack-based telecom blades and modular server systems. Integration is direct, with minimal component count required for deployment, streamlining design cycles and reducing the probability of field failures due to assembly variability. The controller’s programmable features adapt readily to evolving system requirements—enabling field-tunable protection without extensive redesign.
Field deployments consistently demonstrate improved uptime and lower maintenance overhead where the LM5068MMX-2 governs hot swap operations. Designers appreciate not only its comprehensive fault coverage, but also the reduction in secondary damages typical in uncontrolled insertions or removals. A nuanced advantage occasionally overlooked is the device’s ability to shield power supplies from inadvertent short-bus faults by instantly disconnecting failed cards—greatly simplifying troubleshooting and service actions without systemwide outages.
In summary, the LM5068MMX-2’s design reflects a sophisticated balance between analog precision and programmable flexibility, directly addressing pain points in high-availability systems. Its deployment underscores the principle that robust protection circuitry, when implemented with adaptability and integration in mind, substantively elevates system-level reliability and operational efficiency across a range of critical infrastructure platforms.
Key Features of the LM5068MMX-2 Hot Swap Controller
The LM5068MMX-2 Hot Swap Controller is engineered to address demanding power management scenarios in telecom and networking infrastructure, leveraging a –10V to –90V input range tailored to accommodate standard –48V power modules. This broad voltage window enables compatibility with both legacy and next-generation equipment, facilitating seamless integration across diverse rack environments.
At the circuit level, the controller incorporates programmable under-voltage and over-voltage thresholds, each with individually settable hysteresis using external resistor networks. This architecture allows fine-tuning of the input voltage window, preventing nuisance tripping and enhancing system robustness against line transients or brownouts. In practical deployment, tuning the hysteresis margins has consistently enabled reliable startup performance, even under fluctuating DC bus conditions typical in oversubscribed power grids.
During active insertion events, the LM5068MMX-2 monitors real-time current profiles and provides adaptive in-rush current limiting, mitigating the risk of voltage overshoot or damage to downstream components. Accurate short-circuit protection is realized through high-speed fault detection circuitry, which shuts off the power path within microseconds upon sensing excessive current. Experience indicates that optimizing the sense resistor value and placement strongly influences the transient response and board-level thermal management, often allowing for a balance between protection and minimal voltage drop.
The integrated gate drive employs a controlled ramp-up via soft-start and active gate clamping, dynamically managing the switching MOSFET turn-on to suppress voltage spikes and minimize electromagnetic interference. This function proves critical in densely packed PCBs, where gate transients can induce system-wide stability issues. Adjusting the gate clamp and soft-start capacitance provides engineers with the latitude to tailor startup profiles to specific load characteristics.
A multi-function programmable timer extends the controller’s sequencing capabilities, supporting power-on delay, input debounce, and comprehensive fault filtering. By configuring the timer interval, system architects can synchronize multi-board startup events, mitigating simultaneous in-rush occurrences and enhancing overall data center uptime. Layered use of timer-based filtering has been shown to considerably reduce false alarms due to brief signal perturbations, optimizing system reliability in noisy environments.
Fault management is streamlined via selectable operational responses: latched-off or automatic re-try. The LM5068MMX-2’s auto-retry mode is particularly advantageous in large-scale deployments where uninterrupted service is prioritized. Automatic fault recovery eliminates manual reset cycles, reducing downtime and maintenance overhead.
System-level observability is achieved through the power-good flag output, enabling coordinated monitoring through central controllers. Integration with supervisory circuits allows for rapid failure localization, supporting proactive diagnostics and predictive replacement routines.
The 8-lead VSSOP package facilitates compact board layouts, addressing stringent form-factor constraints in modern switchgear. Pin-efficient packaging enables high-density assembly without sacrificing electrical isolation or thermal dissipation, critical for high-reliability applications.
Synthesizing these features, the LM5068MMX-2 exemplifies a balanced approach to hot swap design, combining advanced protection mechanisms, flexible configurability, and streamlined system integration. Insightful application of its programmable elements supports long-term operational stability while adapting dynamically to evolving power system requirements.
Detailed Functional Description of the LM5068MMX-2
The LM5068MMX-2 integrates robust hot-swap management functionalities essential for high-reliability applications such as central-office telecom backplanes and modular distributed power architectures. At its core, the device orchestrates safe insertion and controlled power-up of circuit cards by leveraging an external N-channel MOSFET, executing nuanced current sensing operations, and employing flexible logic for inrush current mitigation and fault isolation.
Fundamentally, the LM5068MMX-2 operates as an intelligent gatekeeper between the live backplane supply and the downstream circuitry. Upon detection of a card insertion, it first conducts a staged validation of system prerequisites—voltage monitoring, UV/OV threshold compliance, timer precondition evaluation, and confirmation of previously discharged gate status. These “interlocks” create a deterministic startup environment, filtering out unsafe conditions at both the input supply and the load side. In practice, transient overvoltages, underpower scenarios, or premature gate activation events are suppressed, significantly reducing the risk of latch-up or component overstress.
Following positive interlock evaluation, the device transitions to its start-up phase, leveraging programmable timer intervals for sequenced MOSFET gate biasing. The timer-controlled soft-start limits voltage slew rates and constrains inrush loading, providing ample time for output capacitance to charge without imposing excessive current stress on connectors or power traces. This controlled biasing extends connector mating lifespans by minimizing arcing and mechanical wear—an effect particularly noticeable in systems with repeated maintenance events or field upgrades. Additionally, timer programmability enables precise tailoring of ramp profiles, catering to the unique energy demands of widely varying load types encountered in modular power designs.
On the protection side, the LM5068MMX-2’s active current sensing rapidly detects overcurrent or short-circuit conditions during the entire insertion and operational window. The controller can quickly drive the MOSFET gate low to disconnect faulted loads, preserving system integrity and segmenting localized faults without jeopardizing the shared backplane. Integration of these protection mechanisms at the hardware level, rather than relying solely on upstream system control, results in deterministic and low-latency fault response—a critical advantage in infrastructure where uptime and isolation boundaries are tightly specified.
In deployment scenarios, nuanced parameterization of the UV/OV thresholds, timer intervals, and sense resistor values allow precise adaptation to both legacy platforms and next-generation equipment. Lessons show that fine-tuning these parameters to match actual inrush profiles and connector capabilities yields marked reductions in field-related stress failures and nuisance trips. Moreover, the LM5068MMX-2’s architectural emphasis on interlock-driven startup sequencing positions it well for future high-density card systems, where power quality margins and insertion cycling requirements are becoming increasingly stringent.
In summary, the LM5068MMX-2 distinguishes itself by translating system-level hot-swap requirements into a deterministic, hardware-anchored solution. Its layered mechanism—from interlock gating through to fault-aware power sequencing—enables not only protection and reliability but also flexible optimization for evolving high-availability applications. The architecture efficiently balances protection, scalability, and maintainability, underlying its adoption in mission-critical environments where card-level autonomy and system fault containment are paramount.
Start-Up Operation of the LM5068MMX-2
The start-up operation of the LM5068MMX-2 centers on a sequenced engagement strategy that minimizes electrical stress and enhances system reliability. At power-on, the controller withholds activation until internal diagnostics verify both voltage supply integrity and appropriate card presence. This initial logic validation phase is critical for preventing undervoltage lockout events or spurious hot-insertion effects in modular architectures.
Once preconditions are met, the device initiates a controlled ramp of the external N-channel MOSFET gate. This ramp is driven by a precisely regulated internal current source. By controlling the gate slew rate, the device governs the drain-source voltage transition, translating to a moderated increase in load voltage. The timing of this ramp is not arbitrary; it is dictated by an external capacitor attached to the TIMER pin, granting design flexibility for tailoring the inrush profile to specific card or system capacitance. This capacitor defines the rate at which charge is delivered, ensuring the current remains within safe thermal and electrical limits for both the pass FET and downstream components.
Implementing an analog timer-based debounce mechanism offers significant advantages over digital or threshold-based approaches, particularly in environments prone to supply noise or unpredictable line transients. The analog profile filters out brief disturbances, allowing only sustained, stable conditions to trigger the load connection. This nuanced control is especially valued in telecommunication chassis and high-availability backplanes, where interruptions or chattering contacts must not lead to multiple, unintended restart cycles.
From a practical perspective, careful selection of the TIMER capacitor value has direct trade-offs. A larger capacitance extends the soft-start period, further limiting inrush but delaying load readiness, while too small a value may reintroduce the risk of current spikes or load bounce. Empirical testing often identifies an optimal balance that considers both system response time and robustness against supply anomalies. In densely populated cards, staged or staggered start-up using custom timer profiles minimizes simultaneous inrush events across multiple slots—a technique frequently adopted in large PBX frames to avoid upstream power supply droop.
The approach used by the LM5068MMX-2 also implicitly offers a scalable methodology for managing hot-swap operations across multiple voltage rails and disparate load environments. By externalizing the timing element, designers can harmonize system-wide power distribution characteristics with minimal circuit complexity. The topology’s adaptability underlines its effectiveness in large modular systems, supporting both high-density integration and platform longevity by reducing the risk of electrical overstress during repeated insertions.
A fundamental insight emerges from the interaction of timer-controlled gate drive and card presence logic: reliable system start-up is less the product of discrete thresholds and more a function of ramp profile shaping and conditional state management. This reveals opportunities for further enhancement, such as integrating adaptive timer control tied to sensed capacitance or programmable during manufacturing. Such refinements could elevate the resilience and flexibility of future power interface controllers in demanding environments.
In-Rush Current, Overcurrent Protection, and Current Control in the LM5068MMX-2
In-rush current, overcurrent protection, and current control form the backbone of robust power management in hot-swap applications, as exemplified by the LM5068MMX-2 controller. Central to its design is a triple-threshold current sense mechanism orchestrated at the SENSE pin, interfaced via a precision external sense resistor. The analog front-end ensures that transient and steady-state currents are measured accurately, allowing rapid discrimination between normal operation and fault conditions.
At the foundational level, current sensing relies on three distinct comparator thresholds. The initial circuit breaker (CB) threshold, typically set at 50mV, acts as the first line of defense against moderate overloads. When this threshold is surpassed, an internal fault timer activates. This timer arrangement extends protection beyond immediate tripping, offering a measured response to brief surges such as system start-up inrush or heavy capacitive loading. This avoids premature shutdowns and enhances system availability—Engineers often exploit this feature to tune permissive start-up profiles, accommodating downstream capacitive loads without violating system integrity.
The analog current limit (ACL) operates at a higher threshold, generally 100mV. This mode employs closed-loop gate control to actively regulate the load current. When the limit is encountered, the gate is modulated to throttle the supply, maintaining output current at the pre-set maximum. Such analog regulation prevents abrupt interruptions during prolonged transients or minor overloads, securing mission-critical subsystems from unnecessary dropouts. Experience reveals that fine ACL tuning is particularly valuable in telecom and industrial power designs, where load currents can fluctuate within tight performance envelopes, but excessive fault interruptions can cause high-impact system resets.
Fast discharge control (FDC) represents the highest threshold, typically 200mV, providing real-time response to catastrophic short-circuit events. Upon detecting such faults, the controller decisively pulls down the gate, terminating conduction within microseconds. This immediate isolation is fundamental for protecting both the upstream power source and sensitive downstream elements during severe fault episodes. Deployments in distributed architectures with low impedance busses benefit markedly from FDC, as it drastically limits the propagation of fault currents, enhancing both safety and reliability.
Integrating these mechanisms, the LM5068MMX-2 employs a programmable timer to define the system's reaction to sustained faults. Upon timer expiration under a persistent overload, the controller enters either a latched-off state or—in auto-retry configurations—periodically re-attempts to power the load. The auto-retry approach supports self-recovery, minimizing downtime and manual intervention. This strategy is advantageous when fault conditions are transient or self-clearing, as seen in data center blade systems and automotive redundancy architectures. Strategic timer value selection enables nuanced fault management; for example, pairing short timers for rapid cycling with stringent ACL thresholds can substantially reduce downtime without exposing hardware to repetitive inrush stresses.
The multi-tiered current sensing and response architecture underpinning the LM5068MMX-2 not only preserves load integrity but also provides granular control over fault behavior, aligning hardware resilience with system-level operational demands. My analysis suggests that leveraging the flexibility of programmable thresholds and timers enables tailored protection schemes—essential for next-generation platforms demanding both high availability and stringent fault immunity. The architecture’s layered response enables engineers to proactively balance safety, performance, and service continuity, forming a blueprint for reliable circuit protection in dynamic load environments.
Voltage Monitoring and Fault Handling in the LM5068MMX-2
Voltage monitoring and fault control constitute foundational elements in the architecture of robust power electronics. The LM5068MMX-2 integrates multi-tiered defense mechanisms to enforce safe operational margins in demanding environments. Central to its strategy is the Under-Voltage Lockout (UVLO), which decisively disables the power path when supply voltages fall outside permissible boundaries. This active gating prevents erratic or damaging system behavior, maintaining circuit integrity even amidst transient line sags. The UVLO function operates in real time, utilizing dedicated detection thresholds tightly coupled to the main control loop, thus enabling swift disengagement of the pass element (typically an N-channel MOSFET) to isolate downstream circuitry.
Further granularity is introduced through programmable under- and overvoltage protection thresholds. By leveraging external resistor divider networks combined with precision internal hysteresis current sources, design engineers tailor the supply window according to application-specific derating and tolerance scenarios. This capability ensures that margining for brownout or surge events is both accurate and repeatable. The inclusion of hysteresis is particularly notable; it eliminates nuisance tripping from ripple-induced or momentary perturbations, thereby enhancing operational stability in systems prone to noise or rapid load changes.
Status communication plays a pivotal role in coordinated system response. The LM5068MMX-2 employs an open-drain Power-Good (PWRGD) indicator that asserts only after thorough verification of both input supply health and load path continuity. This handshake enables sequenced startup in multi-rail topologies and assures supervisory logic of readiness before sensitive subsystems engage. The open-drain architecture allows straightforward interface with a broad range of logic levels, facilitating deployment in mixed-voltage environments and preempting contention on shared lines.
Fault handling approaches are centered around deterministic disconnection. Upon detection of any voltage excursion outside defined thresholds, the controller initiates a rapid pull-down of the MOSFET gate. This action instantaneously isolates the load, while the PWRGD signal is reset to flag fault isolation to higher-level monitors. Unlike passive solutions, this controlled shutdown enables rapid recovery once normal levels return—by re-arming protection elements and re-engaging the start-up sequence automatically, downtime is minimized and manual intervention is avoided.
Field experience with such supervisory topologies reveals their strong resilience in distributed power systems, especially those subject to variable input sources like battery-based or redundant supply architectures. For instance, in telecom or industrial automation racks, nuanced manipulation of threshold settings provides immunity to inrush or voltage droop, matching system response to ambient conditions without sacrificing safety margins. The balancing act between sensitivity and immunity to disturbances is optimally addressed, supporting both the protection of high-value loads and the continuous delivery of power.
A distinctive insight emerges: the effectiveness of voltage monitoring and fault isolation is not solely a function of hardware response speed or trip thresholds, but of the holistic interaction between detection algorithms, external programming latitude, and interface clarity. The LM5068MMX-2 exemplifies an integrated approach, where signal integrity, application flexibility, and handshaking fidelity coalesce to form a robust design blueprint adaptable across a wide range of power delivery ecosystems.
Timer Configuration and Operation in the LM5068MMX-2
Timer functionality in power management ICs such as the LM5068MMX-2 demonstrates a multi-stage timing architecture that combines precision analog control with adaptable digital logic. The TIMER pin, anchored by the external capacitor (C_T), orchestrates several mission-critical intervals—debounce at start, fault-to-shutdown delays, and cool-off periods prior to automatic re-engagement. The interplay between timing accuracy and event responsiveness is foundational in hot swap controllers optimized for robust backplane power distribution.
Underlying the timer’s operation is dynamic current modulation, where the charge pump selectively drives C_T according to operational phase and diagnostic feedback. During start-up, the IC sources a low current (e.g., 6μA) to the capacitor, establishing a debounce window that actively suppresses false triggers resulting from contact bounce or brief transients. This interval is directly scalable via C_T selection, offering precision adjustment in systems sensitive to inrush or input anomalies.
On detecting a load fault, the circuit initiates its circuit breaker delay sequence. Here, current ramps—from subdued levels to rapid discharge up to 30mA—prioritizing MOSFET integrity by minimizing exposure to stress conditions. The intent is to intervene rapidly under genuine sustained overcurrent events, distinguishing them from benign spikes. This regime benefits from tactical component selection; using low-ESR ceramic capacitors enhances reliability and further tightens timing consistency in noisy environments.
The retry interval employs a contrasting philosophy. After fault clearing, the timer triggers a protracted cool-off phase—typically controlled by a slower charge (up to 240μA)—deliberately lengthened to allow system recovery without repeated stress on the faulted component. This automatic retry mechanism presents a dual advantage: higher mean time between failures due to reduced immediate cycling, and maintenance of operational continuity in scenarios with intermittent faults.
Layered control in the LM5068MMX-2 allows direct mapping between application risk profiles and timing scheme, leveraging physics-based design (capacitor and current) for tailored system protection. In high-availability backplane designs, fine-tuning debounce and delay times via calculated capacitor values yields a robust balance between swift short-circuit response and graceful handling of startup transients. Integrating this timer mechanism into system diagnostics furthers predictive maintenance; timer events can be logged and profiled for emerging failure trends within distributed architectures.
The LM5068MMX-2 timer configuration exemplifies how granular analog components integrate into digital control loops to elevate both functional safety and operational flexibility. Optimal use depends on precise current characterization, informed component choice, and empirical validation under real-world load profiles. The layered timer architecture not only safeguards critical MOSFETs but also unlocks adaptive protection strategies increasingly demanded in resilient, scalable power platforms.
System Integration and Design Guidelines for the LM5068MMX-2
System integration of the LM5068MMX-2 as a hot-swap controller hinges on strategic circuit design and rigorous adherence to precise engineering practices. At the foundational layer, the external N-channel MOSFET should be chosen for optimal Rds(on) and thermal performance, closely matched to expected load and transient events. Parasitic capacitance and gate charge must be evaluated in tandem with the device’s gate drive capability to ensure rapid, stable switching under dynamic load conditions. Implementation of a Kelvin connection from the LM5068MMX-2 sense pins directly to the sense resistor is essential; this configuration mitigates the error injected by PCB trace resistance, preserving current measurement accuracy required for robust analog protection schemes. It is advisable to orient the sense resistor perpendicular to the high-current path to minimize stray inductance, thus preserving response time and reducing voltage overshoot during fault transitions.
Selection of the timing capacitor directly influences circuit breaker delay and retry characteristics. Empirical adjustment—grounded in bench validation—has shown that tailoring the timer value not only prevents nuisance trips from brief overcurrent bursts but also allows for scalability of response profiles to accommodate either sensitive or rugged loads. The series voltage-divider resistors at the OV and UV inputs should be derived by calculating their values against the LM5068MMX-2 comparator thresholds, factoring anticipated source impedance and natural power supply ripple. Simulation and prototypical trial have demonstrated that tight tolerance resistors and judicious PCB placement can effectively prevent unintended fault triggers due to supply noise or minor ground bounce—a critical insight when deploying in rack-mounted or distributed bus architectures.
For optimal performance, the placement of the LM5068MMX-2 and related protection components must ensure a compact current-sense loop, with contiguous ground planes to contain EMI and mitigate crosstalk. Trade-offs between PCB real estate and thermal dissipation require careful balancing; direct via stitching under high-current traces expedites heat spread and reduces layer-to-layer impedance. In systems with high availability demands, redundancy is enhanced by configuring the voltage sense resistor divider ratios so that fault thresholds serve as both guard bands and active monitoring points. This approach, confirmed through accelerated life testing, empowers proactive failure prediction and isolation beyond fundamental overcurrent or undervoltage intervention.
A critical yet understated consideration is that the LM5068MMX-2’s protection reliability is not solely a function of its datasheet features but emerges from a holistic co-design of circuit topology, part selection, and empirical layout refinement. Continuous validation under operating scenarios—especially those involving rapid load changes, marginal supply voltage, or elevated ambient temperature—has underscored the necessity for adaptive design iterations. Solutions that balance precision sensing, resilient fault capture, and repeatable physical construction provide measurable improvements in uptime and lower mean time to repair in real-world deployments. This integration philosophy delineates the difference between theoretical compliance and practical system optimization.
Selecting Critical External Components for the LM5068MMX-2
Selecting critical external components for the LM5068MMX-2 demands a disciplined approach to ensure system robustness, precise circuit protection, and long-term reliability.
The current sense resistor establishes the foundation for fast and accurate circuit breaker action. Its resistance must be calculated precisely so that the controller trips at 40mV when the maximum desired current (I_L(max)) is reached. For optimal response and minimum error, select a resistor with tight tolerance and low temperature coefficient. Low-inductance, surface-mount types reduce noise pickup and ringing during fast transients. Ensuring a power rating comfortably above calculated dissipation avoids drift and thermal runaway. Physically place the resistor close to the controller’s sense inputs and use wide PCB traces to minimize voltage drop and parasitic effects. In deployments handling significant step loads, even minute layout inductance has been observed to introduce false trips; optimizing the Kelvin connection tracing mitigates this risk significantly.
The timer capacitor (C_T) determines timing intervals for startup sequencing as well as overcurrent response. Accurate selection of C_T is vital for balancing fast fault response with immunity to load inrush. The capacitor must be chosen to delay the breaker trip long enough to accommodate predictable surge current during output capacitor charging, yet still react quickly enough to protect the MOSFET under short-circuit or stuck-on-fault scenarios. Experience confirms that using C0G/NP0 dielectric ceramics helps maintain delay accuracy over ambient and aging. Furthermore, sizing C_T slightly on the conservative side avoids nuisance trips but should be periodically validated against firmware revisions or system-level changes in load profiles.
N-channel MOSFET selection directly constrains protection integrity under fault conditions. The MOSFET’s voltage rating must always exceed the maximum input voltage, incorporating both steady-state and transient scenarios. Critically, the device’s Safe Operating Area (SOA) curve must be scrutinized for the worst-case overload current sustained over the duration defined by the circuit breaker timer. For instance, a system requiring 3A to flow for up to 7.5 ms at 100V must use a MOSFET that maintains robust SOA at this energy level. Temperature derating, repetitive stress endurance, and gate charge characteristics further inform device choice. In installations prone to repeated startup surges, observed MOSFET degradation over time underscores the advantage of devices with enhanced SOA margin, even if initial derating appears generous.
The voltage divider network for undervoltage (UV) and overvoltage (OV) protection thresholds must employ resistors with ≤1% tolerance to guarantee consistent detection across temperature and supply fluctuations. Attention to layout symmetry and intimate routing with the controller’s sense pins enhances noise immunity and threshold precision. In high-interference environments, further improvements are achieved by incorporating small-value decoupling capacitors across the divider’s lower leg, damping high-frequency perturbations without materially distorting detection thresholds.
System-level insight confirms that the interaction among these components is nuanced; for example, margining a sense resistor for high precision improves breaker accuracy but can reduce noise margin unless MOSFET and divider choices are co-optimized. Reliability invariably benefits from the cumulative effect of appropriately derated, tightly specified components, meticulous layout, and careful SOA validation. The art is in harmonizing electrical parameters with physical layout to yield a circuit tolerant of real-world conditions while still responsive and safe, providing a robust protection backbone for demanding applications.
Typical Applications and Implementation Scenarios for the LM5068MMX-2
The LM5068MMX-2 serves as a highly effective hot swap controller, engineered to address stringent demands in –48V power infrastructures. Underlying its utility is its precise inrush current limiting and fast, reliable fault detection, both critical for safeguarding sensitive backplane circuitry and ensuring uninterrupted operation.
Within telecom –48V power modules and line cards, the LM5068MMX-2 enforces controlled insertion and power-up of new cards without disturbing neighboring circuits. Its ability to modulate inrush current prevents voltage dips and transient stress that often lead to system instabilities or premature component aging. In high-bandwidth central office switching systems, the device’s rapid response to overcurrent or overvoltage incidents maintains the integrity of densely packed backplanes, enabling maintenance or upgrades with live equipment. Its undervoltage lockout and programmable current limits further adapt to diverse line requirements, reducing the risk of process-induced damage during installation or replacement.
High-availability server and storage backplanes benefit from this controller's precise fault isolation. It rapidly disconnects failed cards, preventing cascading faults, and allowing failed hardware to be swapped under power. This minimizes mean time to repair and preserves system availability—key metrics for enterprise and carrier-grade equipment. In PBX systems and distributed negative-voltage power systems, the LM5068MMX-2 provides protection against faults arising from component shorts or mis-insertion, where transient currents can quickly escalate without an active hot swap mechanism. In these deployments, maintaining isolation and tight voltage regulation directly correlates with network uptime and service reliability.
General negative power supply protection scenarios typically involve legacy equipment or mixed-voltage rack environments. Here, the device allows seamless integration with existing supervisory architectures, often interfacing with digital monitoring and supervisory systems to provide real-time status and nuanced alarms. Filtering features and soft-start sequencing optimize for both mechanical and electrical compatibility when retrofitting or scaling power distribution networks.
A recurrent engineering insight reveals that circuit boards employing the LM5068MMX-2 consistently report lower maintenance overhead. Component longevity increases due to mitigated thermal and transient stresses, and field observations demonstrate a sharp reduction in nuisance fuse blows. The chip’s diagnostic outputs not only enable quick triage during troubleshooting, but also align well with predictive maintenance frameworks.
Overall, the LM5068MMX-2 integrates both foundational circuit protection and a platform for operational improvement—delivering a robust envelope for both legacy and next-generation systems. The convergence of programmable control, fast-acting protection, and seamless hot-swap support positions it as a core element in high-reliability negative supply architectures.
Potential Equivalent/Replacement Models for the LM5068MMX-2
Potential equivalent or replacement models for the LM5068MMX-2 span both direct family variants and functionally analogous controllers from other series or manufacturers. Within the LM5068 family, devices such as LM5068-1, LM5068-3, and LM5068-4 offer similar core topologies while introducing nuanced differences in PWRGD (power good) flag logic and fault response behaviors. For example, the polarity of the power good output and whether fault handling follows a latch-off or auto-retry mechanism are variant-specific, directly impacting system-level fault recovery strategies and monitoring topology. Selection among these demands a precise mapping of system-level fault tolerance and supervisory chain requirements to the part’s signaling logic.
Expanding beyond immediate family variants, a wide portfolio of hot swap controllers from Texas Instruments and competing vendors exists. These offer essential features for negative supply rail protection, including programmable undervoltage/overvoltage (UV/OV) thresholds, precision inrush current limiting via sense resistors and programmable timers, and configurable shutdown or restart after fault events. Assessing these alternatives hinges on verifying voltage and current handling capabilities, shutdown logic programmability, and especially the compatibility of the fault signaling interface with existing backplane or system firmware. Subtle differences in analog threshold ranges or startup timing granularity often surface as determining factors in systems with tight tolerances for power sequencing and redundancy.
Third-party controllers, particularly those with robust negative voltage hot swap support, can bring architectural strengths or limitations. Advanced implementations may feature digital telemetry, adaptive fault response algorithms, or thermal foldback, requiring an analysis of such functionalities against the intended use case. Auto-retry versus latch-off behavior, for example, directly affects fault recovery philosophy—continuous retry aids high-availability systems, while latch-off aligns with safety-critical nodes that must halt on repeated faults. The impact on board-level integration becomes apparent in prototype testing, where edge cases such as brown-in events or intermittent overloads test the practical boundaries of controller logic.
When integrating a replacement controller, careful consideration must be given to pinout compatibility and external component requirements. Even within nominally compatible families, variants can introduce differences in EN/UVLO pin logic, maximum allowed capacitance on timing nodes, or minimum gate drive slew rates. Mismatches here typically surface during board bring-up or accelerated life testing, manifesting as erratic start-up, failed current limiting under transient conditions, or unanticipated power-good glitches.
System sustainment and new design qualification benefit from a disciplined, layered evaluation: first, establish core electrical compatibility; then scrutinize fault handling and logic interoperability; finally, attend to layout constraints and long-term supply chain stability. Distilling from deployment experience, attention to subtle behavioral deviations—such as PWRGD logic inversion or altered fault timer ramp rates—can prevent latent reliability issues that are otherwise difficult to diagnose post-integration. Ultimately, the ideal replacement preserves the established system architecture while subtly enhancing robustness and maintainability.
Conclusion
The LM5068MMX-2 is engineered to meet the specific needs of hot swap power management in negative voltage backplanes, which are prevalent in telecom, networking, and mission-critical datacenter systems. Its architecture integrates advanced protection circuits for both inrush current control and precise fault response, forming the backbone of reliable live insertion operations under negative voltage rails.
At the core, programmable current limiting leverages sense resistors and fast analog comparators to swiftly detect and respond to overcurrent events. The device’s voltage fault detection, operating in tandem with this limiter, provides both under- and over-voltage trip thresholds. Rapid MOSFET control circuitry ensures that an out-of-bounds event triggers a prompt and controlled disconnect, minimizing the risk of downstream device stress or catastrophic system damage. These mechanisms, when properly tuned, mitigate transient spikes and brownout conditions, which are frequently the root cause of latent hardware failures and degraded signal integrity in complex backplanes.
Timing and auto-retry features add an additional dimension of resilience. Adjustable soft-start and fault timeout intervals are achieved via external capacitors, allowing precise adaptation to system requirements and various board capacitances. The auto-retry logic, orchestrated through internal timers, initiates controlled re-engagement after a fault, supporting continuous system availability without the intervention typically required in legacy discrete designs. This layering of automated protection and recovery actions directly translates into reduced maintenance cycles and higher mean time between failures (MTBF).
Careful implementation nuances further distinguish effective deployments. Selecting FETs with low R_DS(on) values and thermal ratings matched to system load profiles, combined with the fine-tuning of sense and timing components, facilitates optimal thermal distribution and transient response. Empirical evaluation in development setups demonstrates that minor adjustments to sense resistor value or fault timing, even in the sub-millisecond range, can significantly impact overall insertion stability and long-term connector wear. Such fine-tuning elevates the solution from adequate to high-reliability.
In live networks, the LM5068MMX-2 consistently demonstrates enhanced tolerance to hot swap stressors, such as sudden capacitive charging surges and unpredictable board-to-backplane mismatches. Devices protected by this IC maintain operational continuity and protect costly infrastructure from avoidable power-related failures. Forward-thinking designs now integrate digital telemetry alongside this IC to monitor real-time fault metrics, increasing actionable system intelligence and contributing to proactive maintenance strategies.
Ultimately, integrating the LM5068MMX-2 not only preserves and extends hardware investment but also sets a blueprint for advanced, self-healing power paths in high-availability electronic systems. Strategic exploitation of its full feature set places it at the center of robust, adaptive, and future-proof power management architectures.
