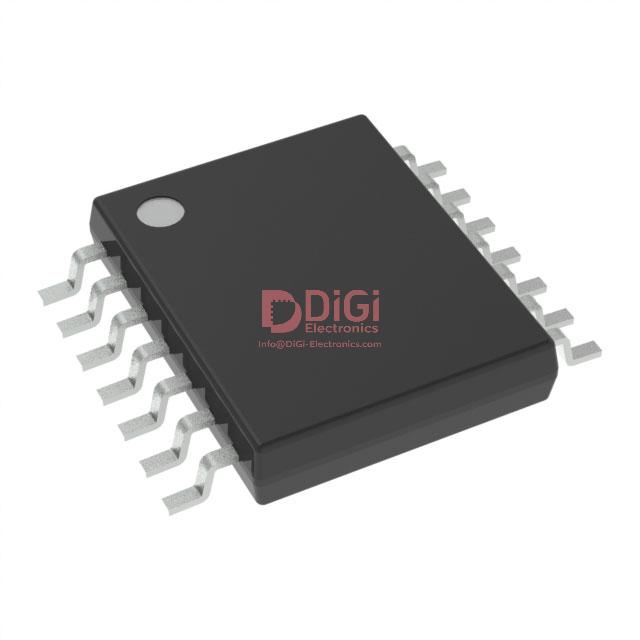

LM2700MTX-ADJ/NOPB
Texas Instruments
IC REG BOOST ADJ 2.55A 14TSSOP
15212 Pcs New Original In Stock
Boost Switching Regulator IC Positive Adjustable 1.26V 1 Output 2.55A (Switch) 14-TSSOP (0.173", 4.40mm Width)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (45 Ratings)
LM2700MTX-ADJ/NOPB
Product Overview
1278564
DiGi Electronics Part Number
LM2700MTX-ADJ/NOPB-DGManufacturer
Texas Instruments
LM2700MTX-ADJ/NOPB
Description
IC REG BOOST ADJ 2.55A 14TSSOPInventory
15212 Pcs New Original In Stock
Boost Switching Regulator IC Positive Adjustable 1.26V 1 Output 2.55A (Switch) 14-TSSOP (0.173", 4.40mm Width)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
LM2700MTX-ADJ/NOPB Technical Specifications
Category
Power Management (PMIC), Voltage Regulators - DC DC Switching Regulators
Packaging
Cut Tape (CT) & Digi-Reel®
Series
-
Product Status
Active
Function
Step-Up
Output Configuration
Positive
Topology
Boost
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
2.2V
Voltage - Input (Max)
12V
Voltage - Output (Min/Fixed)
1.26V
Voltage - Output (Max)
17.5V
Current - Output
2.55A (Switch)
Frequency - Switching
600kHz, 1.25MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
14-TSSOP
Base Product Number
LM2700
