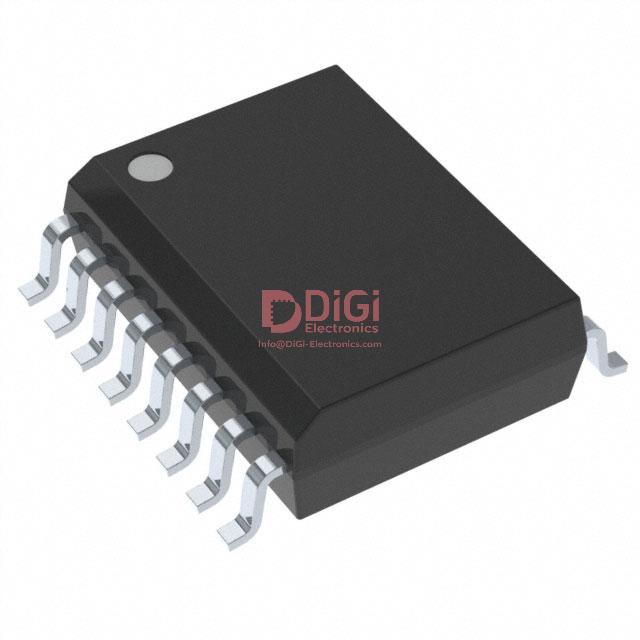

ISOW7841FDWE

Texas Instruments ISOW7841 and ISOW784x Product Overview

Texas Instruments ISOW7841 is part of the ISOW784x family, a class of highly integrated quad-channel digital isolators that merges two functions usually implemented as separate blocks: reinforced signal isolation and an isolated DC-DC power stage. This integration is not only a packaging exercise. It directly changes system architecture by reducing the number of components crossing the isolation boundary, simplifying isolated-domain power distribution, and compressing the layout footprint in designs where every millimeter of creepage distance and every square centimeter of board area matters.

At the device level, the ISOW784x family addresses a common design problem in isolated systems. A controller, processor, or interface device often needs to send multiple digital signals across a safety barrier while also powering circuitry on the secondary side. In a discrete implementation, this typically requires a digital isolator plus a separate isolated power module or transformer-based bias supply. That approach works, but it introduces extra routing complexity, more EMI interaction paths, more BOM items, and more opportunities for insulation coordination mistakes. By combining quad-channel isolation with an integrated isolated converter, the ISOW7841 collapses that stack into a single component and makes the isolation boundary easier to manage as a design object.

The signal path is built for general-purpose high-speed digital isolation, supporting data rates up to 100 Mbps. This makes the family suitable for a wide range of interfaces that do not require protocol-specific isolation but do demand deterministic digital transfer across a galvanic barrier. Typical use cases include isolated SPI, GPIO expansion, PWM transfer, ADC and DAC control signals, status signaling, and gate-drive related housekeeping channels. In practice, 100 Mbps is not simply a headline number. It provides enough margin for fast edge transport and timing integrity in systems where multiple channels must switch predictably under noisy ground conditions. That margin becomes especially valuable when routing control signals near power stages, fast-switching inverters, or high-energy industrial buses.

The integrated power stage is equally important to the value of the device. The family can deliver up to 650 mW of isolated power with high conversion efficiency, using a primary-side supply from 3 V to 5.5 V and providing regulated isolated outputs at either 3.3 V or 5 V depending on the selected variant. This supply flexibility maps well to modern mixed-voltage control systems, where the non-isolated side may be powered from a 3.3 V MCU rail or a 5 V industrial logic rail, while the isolated domain may need a clean 3.3 V supply for digital circuitry or a 5 V rail for interface devices and transceivers. The practical advantage is that the isolated rail becomes available without adding a discrete flyback, push-pull transformer stage, or off-the-shelf isolated module, each of which would otherwise demand its own startup behavior analysis, transformer placement constraints, and EMI mitigation work.

A key strength of the ISOW784x family is that the power and signal isolation are aligned within one insulation system. In many real designs, separate isolator and converter components can create subtle integration issues. The digital isolator may meet reinforced isolation, but the isolated power block may require separate certification review, different spacing rules, or additional external insulation barriers. When both functions are integrated in one qualified device, the isolation strategy becomes more coherent. This usually shortens the path from schematic to compliance review because the designer works with one barrier model instead of stitching together several.

From a safety and reliability perspective, the family sits in the reinforced-isolation category with a barrier rating up to 5000 VRMS. Texas Instruments also specifies strong long-term and surge behavior, including a projected lifetime greater than 100 years at 1 kVRMS working voltage, surge capability up to 10 kVPK, and minimum common-mode transient immunity of ±100 kV/μs. These numbers matter because isolation performance is not defined only by static withstand voltage. In actual field environments, the barrier is stressed by repeated high-dV/dt events, surge pulses, switching-node ringing, and long operating lifetimes under elevated temperature and humidity. A part that merely survives hipot testing is not automatically robust in a motor drive cabinet or grid-connected measurement node. The ISOW7841 is clearly positioned for those harsher conditions.

Common-mode transient immunity deserves particular attention. In industrial power electronics, large voltage slews can appear between grounds during MOSFET or IGBT switching events. If the isolator cannot reject those transients, logic corruption, output glitches, or communication faults may appear even though the absolute isolation rating looks sufficient on paper. A minimum CMTI of ±100 kV/μs gives substantial margin for systems with fast edges and noisy reference shifts. In design reviews, this parameter often turns out to be more operationally relevant than the isolation withstand number because it predicts whether the interface will remain functionally stable during actual switching events rather than only during certification tests.

The 650 mW isolated power capability places the device in a useful middle range. It is not intended to replace a higher-power isolated bias supply for energy-intensive secondary loads, but it is more than enough for many isolated digital subsystems. Typical examples include low-power sensors, digital isolator-side logic, data converters, interface transceivers, and control-side support circuits in gate-drive assemblies. The engineering tradeoff is favorable when the isolated domain is signal-centric rather than power-centric. If the isolated side needs only modest current but high reliability and compactness, an integrated solution like ISOW7841 is often cleaner than overbuilding the power stage with a discrete converter.

Board-level implementation benefits are often underestimated. Using a single package to carry both isolated data and isolated power reduces loop area and simplifies partitioning of primary and secondary grounds. It can also make creepage management more predictable, since fewer parts need to be placed across the isolation seam. In dense layouts, especially in multi-channel control boards, this can free enough area to improve routing discipline around sensitive analog nodes or to widen spacing near high-voltage nets. Another practical gain is reduced transformer-placement iteration. Discrete isolated converters tend to force board rework late in the layout cycle because their magnetic field coupling, switch-node noise, and return-current paths interact with nearby signal routing. Integration moves much of that complexity inside the package, where it is more controlled.

That said, integration does not eliminate power integrity and EMI considerations. It changes where they must be handled. The integrated converter still switches internally, and its energy must be supported with careful decoupling on both sides of the barrier. Placement of bypass capacitors, return path minimization, and disciplined separation between noisy and quiet sections remain important. Good results usually come from treating the device as both a high-speed digital component and a compact isolated power source at the same time. Designs that focus only on the isolation channels and neglect converter-side current loops tend to leave performance margin unused. A compact layout with short supply bypass paths and clean load decoupling on the isolated rail usually pays off immediately in lower ripple, fewer startup anomalies, and more stable communication under transient load conditions.

In application terms, the device fits especially well in industrial automation nodes, servo and motor control systems, medical electronics, grid infrastructure, and test and measurement equipment. In factory automation, it can isolate field-side digital interfaces and power local isolated logic without adding a separate converter module. In motor drives, it can support isolated housekeeping channels where noise immunity and compactness matter more than high isolated output power. In medical systems, where reinforced isolation and controlled space allocation are both critical, the integration reduces the number of barrier-crossing elements that must be reviewed during safety-driven design. In grid and energy systems, the surge and lifetime specifications align with the expectation of long deployment under electrically stressful conditions. In instrumentation, the device can simplify isolated communications and sensor-interface islands while keeping the BOM compact and repeatable.

The most compelling aspect of the ISOW7841 is not any single parameter but the balance among isolation strength, data rate, integrated power, and implementation efficiency. Many components excel in one of these dimensions while forcing compromises in the others. Here, the design intent is clearly system-level optimization. The part is built for engineers who do not just need isolation as a checkbox, but need an isolation boundary that behaves predictably in a real product under switching noise, surge exposure, long service life, and space pressure.

Viewed from a design strategy perspective, the ISOW784x family is best used when the isolated domain is functionally important but electrically modest. That is where integration creates the most leverage. It reduces architectural friction, lowers interdependency between signal and power isolation choices, and shortens layout iteration. In systems where isolated loads remain within the available power budget, this approach often produces a cleaner and more robust result than a fully discrete partition. The device effectively turns the isolation barrier from a custom subsystem into a standardized building block, which is usually the right direction when reliability, certification clarity, and compact implementation are all part of the design target.

Texas Instruments ISOW7841 and ISOW784x Family Positioning and Channel Configuration

Texas Instruments’ ISOW784x family is best understood not as a single isolator with minor ordering-code variations, but as a set of barrier-partitioning options built on the same electrical platform. The family includes ISOW7840, ISOW7841, ISOW7842, ISOW7843, and ISOW7844. All devices are quad-channel digital isolators with integrated power, packaged in a 16-pin wide-body SOIC. What changes from part to part is the channel direction map and, depending on suffix selection, the output state assumed under input-loss conditions. Those two parameters drive most of the application-level fit.

At the system level, channel direction is the first filter because it determines whether the isolator matches the actual information flow across the isolation boundary. In practice, the isolation barrier usually separates a controller domain from a field, power, or sensing domain. Signals rarely flow symmetrically across that boundary. A gate driver interface may require mostly outbound control signals and only one return status line. An isolated ADC interface may require the reverse balance. A robust design starts by counting how many logic channels must cross from side A to side B and how many must return. That count should be done before reviewing secondary parameters, because once the direction map is wrong, the rest of the electrical fit becomes irrelevant or forces avoidable workarounds.

This is where the ISOW784x variants create real design value. Even though each device offers four total channels, the usable topology changes materially with the forward/reverse allocation. The family is structured to support different signal asymmetries, allowing the isolation barrier to reflect the actual control architecture instead of forcing the PCB to adapt around a generic isolator. That matters more than it may first appear. A mismatched direction configuration often leads to signal rerouting across layers, longer return paths, reduced layout clarity, and sometimes the insertion of glue logic just to recover the intended functional flow. Those corrections increase design risk without adding system capability.

ISOW7841, in that context, should be positioned as one directional mix within a broader matrix of channel configurations rather than as a universally interchangeable member of the family. Its relevance depends on whether its channel allocation matches the signal budget of the isolated interface. This sounds straightforward, but in real projects the mistake usually appears during integration, not schematic capture. The isolator is selected based on package, isolation rating, or availability, and only later does the team discover that one feedback path is missing in the required direction. At that point, the fix may be a layout compromise or a part-number change that ripples into validation and procurement. A cleaner approach is to treat channel direction as a system-architecture decision, not as a pinout detail.

The integrated-power aspect of the ISOW784x family makes this even more important. Because these devices combine signal isolation with isolated power transfer, they often sit at the center of a compact partition between primary and secondary domains. That central role means the isolator is not just passing bits; it is effectively defining the boundary interface. In such cases, selecting the right directional variant reduces congestion around the barrier, simplifies decoupling and grounding strategy, and improves maintainability of the schematic. When the part aligns with the interface naturally, the barrier remains conceptually clean: control paths go out, feedback paths come back, and each crossing has an obvious purpose.

The fail-safe output behavior is the second major discriminator inside the family. Devices without the F suffix default their outputs high when the input signal is lost. Devices with the F suffix default low. This behavior seems like a minor logic-level preference until the failure analysis begins. In isolated systems, “input lost” can correspond to several real conditions: an unpowered upstream domain, an open input path, startup sequencing where one side wakes earlier than the other, or a fault that removes valid switching activity. The output state during those intervals becomes part of the functional safety story, whether or not the design is formally safety-certified.

The practical effect depends on the downstream logic convention. If the receiving side interprets high as enable, start, release, or logic true, then a default-high isolator can create an unintended asserted condition during brownout or disconnection. In other designs, active-low control conventions invert that risk, making default-low the wrong choice. This is why fail-safe behavior should be mapped directly to the semantics of each isolated net, not evaluated in the abstract. A channel carrying chip-select, shutdown, reset, PWM enable, or interlock status is not just a binary signal; it has a failure meaning. The right default state is the one that biases the system toward the preferred non-driven outcome under loss-of-input conditions.

Startup behavior is often where this choice becomes visible. In mixed-voltage control systems, one side of the barrier may stabilize before the other. If the isolator output assumes a state that downstream logic treats as valid control, then the system can briefly enter an unintended mode before firmware has any opportunity to correct it. This can show up as a false enable pulse, a peripheral waking unexpectedly, or a fault monitor clearing too early. In bench bring-up, these issues are easy to misread as sequencing bugs or software race conditions. In many cases the root cause is simpler: the isolator is doing exactly what its default-state option specifies. The lesson is that default output behavior should be reviewed together with power-up timing diagrams, not after them.

Fault handling introduces a similar constraint. Communication and control links across isolation barriers often feed state machines, comparators, interrupt lines, or watchdog-related logic. A default-high versus default-low output can determine whether a lost link is interpreted as “healthy,” “inactive,” “trip,” or “unknown.” That interpretation affects not only fault detectability but also fault containment. Good practice is to define, signal by signal, what the receiving side should see when the transmitting domain disappears. Once that table exists, suffix selection becomes mechanical rather than ambiguous. This reduces both design error and procurement substitution risk.

That procurement risk is worth emphasizing. The ISOW784x devices look closely related in package, family name, and broad function. From a sourcing perspective, that similarity can create a false sense of interchangeability. At the application level, however, changing from one family member to another can alter signal directionality and fail-safe state in ways that are electrically legal but functionally wrong. A replacement that fits the footprint may still invert the intended barrier behavior. The safest approach is to encode the exact direction map and suffix logic in internal AVL notes, schematic metadata, and part-approval documentation. For this family, footprint compatibility should never be treated as functional equivalence.

A useful selection flow starts with interface decomposition. First, list every signal crossing the barrier and assign its direction. Second, mark whether each signal is active-high or active-low in terms of system effect, not just voltage convention. Third, determine the desired receiver state when the transmitter is absent or invalid. Fourth, map that requirement onto the ISOW784x directional variant and suffix option. Only after that should the selection process move to secondary constraints such as timing margin, EMC behavior, thermal headroom, and inventory strategy. This order tends to prevent the common mistake of selecting by family familiarity first and functional fit second.

In board-level implementation, selecting the correct directional variant usually pays back immediately. Routing becomes shorter and more intuitive. Signal naming stays aligned with physical flow. Review effort drops because the barrier can be read almost visually from the schematic. The same effect appears during debugging. When each channel direction mirrors the real control path, probing and fault tracing are faster because the barrier no longer contains “exceptions” created by part mismatch. This is one of those design choices that seems administrative during component selection but has disproportionate leverage over integration quality.

Viewed this way, the ISOW7841 and the broader ISOW784x family occupy a clear position in isolated system design: they provide a fixed four-channel isolated interface with integrated power, while allowing the designer to choose the direction balance and loss-of-input output behavior that best matches the system partition. The right device is the one that makes the isolation boundary disappear as a source of complexity. If channel direction and fail-safe state are chosen correctly, the part behaves like a natural extension of the architecture. If they are chosen casually, the isolator becomes the place where avoidable complexity accumulates.

Texas Instruments ISOW7841 and ISOW784x Isolation and Integrated Power Architecture

Texas Instruments’ ISOW7841 and the broader ISOW784x family implement isolation with a deliberately split architecture: capacitive isolation for data channels and magnetic isolation for power transfer. That choice is not a packaging convenience. It reflects two very different engineering optimization targets inside one device.

For the digital channels, the device uses capacitive coupling across a double silicon-dioxide insulation barrier. This approach is well suited to high-speed logic transfer because the coupling structure is compact, stable over time, and compatible with precise on-chip channel matching. In practice, capacitive digital isolation tends to deliver predictable timing behavior, good common-mode transient immunity, and tight integration density. Those attributes matter when isolated interfaces carry SPI, GPIO, interrupt lines, or control signals that must retain timing margin under large ground-potential shifts.

The isolated power path is built differently. Instead of reusing the capacitive structure, the ISOW784x uses an on-chip transformer with thin-film polymer insulation. Power transfer requires a mechanism that can move more energy efficiently across the barrier than a signal-isolation capacitor can reasonably support. A transformer-based structure is the more natural choice for that task. Texas Instruments effectively separates the problem into two domains: use capacitors where signal fidelity, channel density, and edge transfer are dominant; use a transformer where energy transfer, conversion efficiency, and output rail generation are dominant. That architectural split is one of the most important aspects of the family because it shows the device was not designed as a single generic isolation block. It was partitioned according to the physics of the job.

This distinction also explains why the ISOW784x family is more than a digital isolator with an added supply feature. It is an isolation subsystem. The integrated DC-DC converter generates the secondary-side rail internally, removing the need for a separate isolated transformer supply, flyback stage, or push-pull bias module in many designs. That directly reduces bill of materials, shrinks placement complexity, and eliminates a class of cross-domain integration issues that usually appear when the isolator and isolated power source are selected independently.

In board-level design, the value of that integration is often larger than the raw part count reduction suggests. A discrete isolator plus isolated DC-DC converter typically introduces extra transformer routing, switching-loop containment work, startup interaction checks, and EMI debugging across two components with different grounding assumptions. Integrating both functions into one device does not remove all of that work, but it collapses many interface variables. Layout becomes easier to control, creepage strategy is clearer, and bring-up tends to be more deterministic. In compact sensor modules, isolated RS-485 or CAN nodes, industrial input modules, and gate-drive support circuitry, this can translate into fewer board spins and faster qualification.

The available power configurations give the family useful flexibility across mixed-voltage systems. The converter supports:

5 V input to 5 V output, with at least 130 mA available load current

5 V input to 3.3 V output

3.3 V input to 3.3 V output, with at least 75 mA available load current

3.3 V input to 5 V output, with at least 40 mA available load current

These options cover a wide range of isolated field-side loads. A 5 V isolated rail is often convenient for transceivers, some sensors, and analog front-end stages that benefit from extra headroom. A 3.3 V isolated rail fits modern ADCs, digital sensors, low-power logic, and MCU-side peripherals. The 3.3 V to 5 V mode is especially useful when the controller domain is already standardized on 3.3 V but the isolated side still needs 5 V signaling or supply headroom. The output-current differences between modes are not just catalog details. They should be treated as design constraints that reflect the internal conversion ratio and power-transfer limits. In practice, the most robust designs budget current with startup load, temperature drift, and transient demand included, not only steady-state nominal consumption.

Output selection through the SEL pin keeps that flexibility simple at the hardware level. Shorting SEL to Viso selects a 5 V isolated output. Tying SEL to GND2 or leaving it floating selects 3.3 V. This is a straightforward mechanism, but it deserves disciplined implementation because the selected rail defines the operating margin of every field-side device. It is generally better to treat SEL as a configuration input that should be fixed deliberately and routed cleanly, rather than as an afterthought. Small configuration ambiguities tend to become expensive during manufacturing test.

The integrated protection features are equally important. Soft-start limits inrush current during startup, which helps when the isolated rail drives large decoupling networks or downstream ICs with internal charge-up sequences. Overload protection and short-circuit protection reduce the chance that a field-side fault will collapse the entire isolation function in an uncontrolled way. Thermal shutdown provides a final boundary when sustained overload or adverse ambient conditions push the device beyond safe dissipation. These protections are not secondary conveniences. In isolated systems, fault behavior is often more important than nominal behavior because the isolated side may be physically remote, intermittently connected, or exposed to wiring errors.

That becomes clear during real hardware bring-up. An isolated rail that looks adequate on a schematic can behave differently once the downstream side includes cable capacitance, hot-plug transceivers, sensor excitation loads, or large local bulk capacitors. Startup failures often come from the interaction between converter current limiting and the load’s charging profile rather than from excessive steady-state load. A design may appear stable in bench tests with a resistive load and then fail in system conditions when a downstream device enters a high-current initialization phase. Soft-start and protection help, but they do not replace proper load profiling. A practical approach is to capture startup current on the isolated rail under cold start, warm restart, and fault-recovery conditions, then compare those waveforms against the converter’s guaranteed operating envelope.

Another practical point is that integrated isolated power changes the PCB design focus rather than eliminating it. Because the power stage is internal, the main external tasks shift toward supply decoupling, return-path control, thermal spreading, and noise containment around the package. The isolated output should be decoupled close to the Viso-side pins with values matched to both high-frequency switching content and downstream transient demand. If the isolated side feeds precision analog or sensitive data-conversion circuitry, it is often worth separating noisy digital return paths from measurement return paths on the isolated domain, even though both ultimately reference the same isolated ground. The device simplifies isolation architecture, but downstream partitioning still determines noise performance.

A subtle but important system-level advantage of the ISOW784x approach is consistency between isolation and power integrity. In many discrete architectures, the digital isolator and isolated converter have different isolation ratings, different transient behavior, and different parasitic coupling paths. That can complicate compliance and field reliability analysis. When both functions are integrated by design, the resulting subsystem usually behaves more coherently under common-mode stress and power-sequencing events. This reduces the number of unknown interactions, which is often the hidden source of schedule risk in industrial isolation designs.

The family is especially effective when the isolated side power demand is moderate and the design priority is compactness, simplified compliance, and predictable integration. It is less compelling when the isolated load requires substantial peak current, very low noise analog rails, or multiple isolated outputs with independent regulation. In those cases, a discrete power architecture may still be the better engineering tradeoff. The key is to treat the ISOW784x not as a universal isolated power replacement, but as a highly optimized integrated solution for a specific power class. Used within that envelope, it removes a disproportionate amount of design friction.

Viewed from an architecture perspective, the ISOW7841 and related ISOW784x devices represent a disciplined application of mixed isolation techniques inside a single package. Capacitive coupling handles what digital isolation needs most: accurate and robust signal transfer across a reinforced barrier. Transformer-based power transfer handles what isolated bias generation needs most: efficient energy movement and controlled rail generation. The integrated converter, voltage-selection flexibility, and built-in fault protections make that architecture practical at the board level, where component count, startup behavior, fault containment, and layout complexity usually matter as much as isolation itself.

Texas Instruments ISOW7841 and ISOW784x Core Electrical and Switching Performance

Texas Instruments ISOW7841 and the broader ISOW784x family combine galvanic signal isolation with integrated isolated power, and that combination matters most when timing is not a secondary concern. Across the isolation barrier, these devices support data rates up to 100 Mbps, which places them well beyond the range of simple low-speed status isolation. In practical designs, that bandwidth is sufficient for many industrial links that carry GPIO-like control signals, SPI-style traffic, clock lines, PWM-related information, interrupt paths, and converter handshakes. The key point is not only the headline data rate, but the fact that the switching behavior is controlled tightly enough to preserve timing intent after the barrier.

The electrical switching specifications show why the device is useful in timing-aware systems. Texas Instruments specifies a typical propagation delay of 13 ns at a 5 V supply, with maximum tpLH and tpHL values of 17.6 ns. Typical rise and fall times are 4 ns, and pulse-width distortion is kept under control. These numbers indicate that the ISOW784x family can support more than static logic transfer. It can also handle interfaces where edge placement, pulse fidelity, and delay consistency directly affect system margin. In isolation design, absolute speed is only one part of the problem. Delay spread, edge symmetry, and distortion often determine whether a link behaves predictably over voltage, temperature, and process variation.

Propagation delay should be viewed as a timing insertion element in the signal path. Any isolated clock, frame sync, enable line, ADC conversion trigger, or fault response signal will arrive later than its source by the specified delay. In many systems, 13 ns typical is small enough to absorb without architectural changes, but the correct design practice is to budget using worst-case values, not typical ones. That becomes especially important when multiple isolated channels interact with one another or when setup and hold windows are already tight. A device can appear transparent in bench evaluation, then erode timing margin in production if the design relies on nominal numbers. The stronger interpretation of the ISOW784x timing data is that it gives enough consistency to model the isolator like any other high-speed digital path element, rather than treating it as an uncertain boundary.

Rise and fall times around 4 ns further support this interpretation. Fast edges reduce transition uncertainty and help receivers recover clean logic thresholds with less ambiguity. That is useful for clock distribution, chip-select behavior, and narrow control pulses. At the same time, edges that are fast enough to preserve timing can also increase sensitivity to layout parasitics, reference discontinuities, and coupled noise if the surrounding PCB is careless. In isolated designs, this tradeoff is easy to underestimate because attention is often placed on creepage, clearance, and power-domain separation, while signal return quality and local decoupling near the isolator receive less focus than they should. In practice, a clean switching spec only delivers its value if the board keeps the local supply impedance low and prevents unnecessary ringing at the pins.

Pulse-width distortion deserves more attention than it usually gets. For level-based control signals, a few nanoseconds of asymmetry may not matter. For pulse-based encoding, PWM transfer, strobes, sampling triggers, watchdog kicks, or duty-cycle-sensitive timing, it matters immediately. Distortion between low-to-high and high-to-low propagation paths changes the effective width of the signal after isolation. If pulse width carries information, or if downstream logic depends on minimum high or low time, this parameter becomes as important as data rate itself. The ISOW784x family controlling pulse-width distortion means the isolator is not merely passing state changes; it is preserving temporal structure with enough fidelity for edge-sensitive systems. That distinction is often what separates a robust isolated interface from one that works only under relaxed timing conditions.

An important architectural advantage of the ISOW784x family is that signal isolation and isolated power are integrated in one device. From a system perspective, this reduces more than component count. It also reduces the number of independently varying delay contributors on the isolated side. When isolated power is generated by one component and signal transfer is handled by another, startup timing, ground-domain movement, local bias sequencing, and interaction between separate switching elements can complicate behavior. Integrating both functions into one IC simplifies the timing model and often shortens the path between the source logic and the isolated receiver circuitry. That does not eliminate the need to verify startup and transient behavior, but it generally produces a more coherent isolated subsystem.

This integration is especially useful in industrial control and measurement equipment, where isolated nodes often combine modest logic complexity with strict functional timing. Examples include isolated gate-drive command paths, sensor front-end control, digital feedback channels from remote modules, and isolated serial links into ADCs, DACs, or housekeeping controllers. In these cases, a 100 Mbps isolator with low delay and integrated power can remove the need for a separate isolated DC/DC converter plus standalone multi-channel digital isolator. The result is not only smaller area, but fewer interconnects crossing noisy regions and fewer opportunities for timing skew to accumulate between power and signal elements.

In real implementation, the most common source of trouble is not the specified propagation delay itself, but incorrect assumptions about channel coordination. If multiple signals cross the barrier and must maintain a relationship, designers often focus on the delay from source to destination without explicitly checking channel-to-channel skew under worst-case conditions. For example, an SPI clock may cross cleanly, and a data line may also cross cleanly, yet the relative skew between them can consume enough setup margin to cause intermittent read failures at higher temperature or different supply corners. The better design pattern is to treat all isolated timing paths as a set, then budget delay, skew, and receiver threshold behavior together. Devices like the ISOW784x make this feasible because the switching characteristics are defined tightly enough to support deterministic analysis.

Another practical issue appears during debugging of narrow pulses. A lab capture may show that a pulse is present on both sides of the barrier, yet the downstream logic misses it. In many cases, the pulse width after accounting for propagation behavior, distortion, and receiver threshold crossing has become marginal. This is where controlled pulse-width distortion and fast transitions become valuable, but it also highlights an engineering reality: minimum pulse width should always be checked at the destination pin, not only at the isolator input. With integrated isolated power devices, supply noise on the remote side can also shift threshold crossing slightly, so local bypassing and receiver placement still matter even when the isolator itself performs well.

A useful way to think about the ISOW7841 and related ISOW784x devices is that they occupy a middle ground that is increasingly relevant in industrial electronics: they are not just safety components, and not merely convenience power modules. They are timing-aware interconnect elements for partitioned systems. As control architectures become more distributed, isolation boundaries are no longer limited to slow supervisory signals. They often sit directly inside the functional timing loop. In that context, propagation delay, edge rate, and pulse fidelity become first-order design parameters, not secondary datasheet details. The ISOW784x family aligns well with that shift because its switching performance supports isolated links that remain predictable under real interface constraints, while the integrated power function simplifies the remote-domain implementation enough to keep the overall architecture manageable.

Texas Instruments ISOW7841 and ISOW784x EMC, Immunity, and Reliability Characteristics

Texas Instruments positions the ISOW7841 and the broader ISOW784x family as more than digital isolators with integrated power. Their main value appears when the isolation boundary is exposed to fast dv/dt, repetitive common-mode movement, and long operating life requirements at elevated electrical stress. In these conditions, electromagnetic robustness, transient immunity, and insulation reliability stop being secondary selection criteria and become the primary reason the device remains stable in the field.

A central metric is the specified minimum common-mode transient immunity of ±100 kV/μs. This number matters because isolation channels often fail functionally long before the insulation barrier fails physically. In practical systems, the barrier is repeatedly forced to ride through rapid voltage slews generated by switching nodes, half bridges, transformer primary edges, SiC and GaN power stages, and high-side shunt measurement points. If the internal signal path cannot reject this common-mode disturbance, the result is not necessarily catastrophic breakdown. More often it is corrupted data, output glitches, false trips, missed PWM edges, or control-loop instability. A ±100 kV/μs minimum CMTI gives useful margin against these effects and signals that the device is intended for electrically aggressive environments rather than only benign isolation use cases.

This is especially relevant in motor drives, traction inverters, servo systems, solar inverters, battery energy storage converters, and industrial power supplies. In these applications, common-mode voltage does not simply change in amplitude; it changes with very high edge rate and often with strong repetition. That repetition matters. A device may survive isolated transient tests yet still show intermittent behavior when exposed to sustained switching activity over temperature. High CMTI performance reduces the probability of these hard-to-reproduce failures, which are often the most expensive to debug because they appear only under specific bus voltage, load current, gate resistance, and layout conditions.

The integrated architecture also changes the EMC discussion. Since the ISOW784x combines data isolation and isolated power generation, it removes a discrete transformer-driver chain and reduces the number of cross-domain interconnects. That simplification can improve system behavior if the PCB is partitioned correctly. Fewer external isolated-power components generally means fewer uncontrolled current loops, fewer parasitic coupling paths, and less opportunity for emissions to spread through the barrier region. However, integration does not eliminate EMC work; it compresses it into a smaller physical area where layout discipline matters even more. The best results usually come from treating the device as a localized high-frequency power subsystem rather than as a passive interface component.

TI’s emphasis on low emissions and improved immunity through chip design and layout techniques is important because isolator EMC performance is largely determined by parasitics that are invisible in a simplified block diagram. Internal transformer or capacitive structures, switching converter edges, return-current paths, package coupling, and edge-rate control all shape both radiated and conducted behavior. A well-designed integrated isolator can outperform a discrete implementation not only because of component count reduction, but because the internal current loops are tightly controlled at silicon and package level. That level of control is difficult to reproduce with separate isolator, transformer, and converter components spread across a board.

The stated support for system-level ESD, EFT, and surge compliance goals is equally significant. The ±8 kV IEC 61000-4-2 contact discharge protection across the isolation barrier gives the design additional resilience during handling, installation, connector events, and cabinet-level discharge exposure. In many industrial systems, ESD is not the dominant long-term threat, but it is one of the most common causes of prototype instability and unexplained lab failures. Integrated barrier robustness helps reduce the frequency of these events. It does not replace external protection strategy at system interfaces, but it often lowers the amount of supplementary protection needed immediately around the isolation device.

EFT and surge tolerance are even more aligned with real industrial stress. Fast transient bursts couple onto control wiring, field I/O, supply rails, and chassis structures. Surge events inject larger energy and test whether the design has enough spacing, clamping, and current steering to keep stress away from sensitive nodes. The ISOW784x family’s role here is not to absorb all external threat energy by itself, but to maintain isolation-channel integrity while the surrounding protection network does its job. In a well-architected design, external TVS devices, common-mode chokes, RC damping, and careful return routing handle the bulk energy, while the isolator resists the residual stress without functional upset. That division of labor is usually the difference between a design that merely survives qualification and one that passes repeatedly with production-level margin.

One practical effect of strong intrinsic immunity is a reduction in board revision cycles during compliance testing. This benefit is often understated. When the isolation device is marginal, EMC fixes tend to become iterative and invasive: shielding gets added late, creepage paths get compromised by rework, PWM timing margins are widened, and external filtering grows until cost and area become unacceptable. Starting from an isolator with strong transient and immunity characteristics usually shifts the EMC effort from rescue work to optimization. The result is a cleaner path to compliance and better confidence that a passing result in one lab setup will remain valid after enclosure changes, cable substitutions, or component second sourcing.

Reliability is where the ISOW784x family becomes particularly suitable for infrastructure and long-service industrial equipment. A projected lifetime beyond 100 years at 1 kVRMS working voltage indicates that TI is addressing insulation wear-out rather than just one-time dielectric withstand. This distinction is fundamental. Isolation barriers are not defined only by breakdown voltage. They are also defined by how partial discharge resistance, electric field distribution, material aging, temperature, and repetitive stress interact over time. In products expected to remain installed for decades, the relevant question is not whether the barrier survives a factory hipot test, but whether it maintains dielectric integrity after years of continuous operating voltage, thermal cycling, and transient exposure.

Reinforced isolation strengthens the case further because it allows the barrier to serve as a primary safety boundary in many architectures, reducing dependence on secondary protective assumptions. The specified surge capability up to 10 kVPK adds another layer. Surge rating is often treated as a marketing number, but in practice it reflects how much overvoltage stress the insulation system can tolerate without latent damage. Latent damage is the hidden reliability problem in isolation design. A barrier may continue to function after a severe event yet suffer microscopic degradation that reduces long-term margin. Devices qualified for stronger surge stress generally provide a better buffer against this type of cumulative weakening, especially in field-installed equipment where the quality of grounding and cabling is not tightly controlled.

The integrated power converter adds a second reliability dimension through thermal behavior. Efficiency is not just an energy metric; in compact isolated subsystems it directly determines internal temperature rise. Lower power dissipation inside the package and around the isolated supply path increases thermal headroom, and thermal headroom is one of the most effective accelerators of lifetime margin across the entire isolated domain. It affects the isolator itself, nearby decoupling capacitors, reference circuitry, sensor front ends, and any secondary-side logic powered continuously from the integrated converter. In dense control boards, a few degrees of temperature reduction at the isolation boundary can be the difference between stable operation across the full ambient range and intermittent errors appearing only in sealed enclosures or under low-airflow conditions.

This advantage becomes more visible when isolated power is consumed continuously rather than intermittently. Gate-driver bias networks, high-side sensing circuits, isolated ADC front ends, and field-side communication transceivers all impose steady load on the isolated supply. In those cases, converter efficiency translates into reduced self-heating over the full mission profile, not just in peak events. A useful design approach is to evaluate the isolator at realistic ambient temperature, maximum continuous secondary load, and worst-case switching noise simultaneously. Bench results taken with light isolated load often look clean, but they can overestimate real margin. The thermal and EMC limits frequently converge under full-load, hot-environment operation.

From an application standpoint, the ISOW7841 fits systems where board area, barrier robustness, and qualification effort are tightly linked. In motor drives, the high CMTI helps preserve command integrity near high-side gate-driver and current-sense domains where PWM edges and phase-node movement are severe. In power conversion equipment, the integrated isolated power can simplify bias generation for control and sensing circuits while reducing the number of components exposed to switching noise. In high-side measurement nodes, the combination of reinforced isolation, transient immunity, and long projected barrier life supports architectures that must tolerate both electrical stress and long calibration intervals without service intervention.

Layout and implementation still determine whether the theoretical advantages become actual system margin. The usual failure mode is not violating the datasheet directly; it is allowing noisy return currents, poorly placed decoupling, excess loop area, or barrier-adjacent copper to create coupling paths that bypass the device’s internal immunity. Short decoupling paths, controlled current return loops, separation between noisy power nodes and logic-side traces, and deliberate management of chassis and earth references are typically more effective than trying to patch emissions later with ad hoc filtering. For integrated isolators with internal power conversion, output capacitor placement and the routing of isolated supply returns deserve the same attention as the data channels themselves.

A less obvious but important design insight is that strong isolation specifications should be used as margin, not consumed as allowance. If the application is expected to generate 60 to 80 kV/μs in worst-case switching, choosing a 100 kV/μs minimum device is reasonable, but the board should still be laid out as if the available margin were much smaller. That mindset usually produces more repeatable systems across process spread, temperature extremes, and future switching-speed upgrades. It also avoids the trap of validating only the current hardware while leaving no room for the next power-stage revision.

Taken together, the ISOW7841 and related ISOW784x devices present a technically coherent proposition: high transient immunity to preserve functional correctness in fast-switching environments, strong EMC behavior to reduce integration risk, and insulation reliability designed for decades of electrical service. The integrated power stage adds meaningful thermal and architectural benefits when used with realistic load and layout discipline. For industrial and infrastructure designs, that combination is often more valuable than any single headline specification because the real challenge is not simply isolating two domains, but keeping them predictably stable under noise, stress, and time.

Texas Instruments ISOW7841 and ISOW784x Package, Pins, and Output Voltage Selection

Texas Instruments ISOW7841 and the broader ISOW784x family combine reinforced digital isolation and an integrated isolated power stage in a 16-pin wide-body SOIC package, designated DWE. The nominal body size is 10.30 mm × 7.50 mm. This package is not a cosmetic choice. It is directly tied to insulation system constraints. In reinforced-isolation devices, package geometry is part of the electrical design because creepage, clearance, mold compound behavior, and lead-frame spacing all contribute to the achievable working voltage and surge robustness. The wide-body SOIC format gives enough physical separation between the primary and isolated domains while staying within standard SMT assembly flows, which is why it appears repeatedly in industrial isolation portfolios.

At the board level, this package format offers a useful balance. It is large enough to ease isolation-aware routing, yet still compact enough for dense control boards, gate-drive modules, PLC I/O cards, and isolated sensor interfaces. That balance matters more than it first appears. Very small isolation packages can save area, but they often push layout into tighter electric-field gradients, narrower creepage margins on contaminated boards, and more difficult rework conditions. The DWE body gives more routing freedom around the isolation barrier, which usually improves first-pass success when mixed with high dv/dt nodes, switching regulators, or noisy digital edges.

The pin architecture reflects the dual-domain nature of the device. Vcc and GND1 belong to the primary side. Viso and GND2 belong to the isolated side. This separation is fundamental, not procedural. The two grounds should be treated as different reference systems with an intentional insulation barrier between them. Once that is understood, the rest of the pinout becomes easier to interpret. The device carries four digital channels, labeled INA, INB, INC, and IND, with corresponding outputs OUTA, OUTB, OUTC, and OUTD. The exact signal direction depends on the specific ISOW784x variant, so the channel naming should not be read as implying a fixed left-to-right data flow across the whole family. In practice, that distinction matters during schematic capture, because pin names remain similar while channel directionality changes by ordering option. It is easy to select the correct isolation rating but the wrong data-flow variant if the review process focuses only on package and supply compatibility.

A better way to think about the channel arrangement is to separate logical naming from directional behavior. INA through IND identify channel interfaces. OUTA through OUTD identify their corresponding receive-side nodes. The family then maps these into forward or reverse channels depending on the part number. That structure supports several use cases with one mechanical footprint: SPI isolation with one return path, RS-485 control and feedback partitioning, isolated ADC interfaces, and mixed control/status links between controllers and high-side domains. Reusing the same footprint across direction variants is an understated advantage because it reduces PCB churn across product derivatives. It also lowers the risk of mechanical redesign when the interface architecture evolves late in a program.

The SEL pin is one of the most practically important pins in the device because it determines the isolated output voltage. Connecting SEL to Viso selects a 5 V isolated output. Connecting SEL to GND2, or leaving SEL floating, selects 3.3 V. This simple mechanism allows the same device family member to support two common isolated-domain rails without replacing the isolator-power component itself. That reduces design fragmentation and helps standardize BoM strategy across platforms that mix 3.3 V sensors, 5 V transceivers, and domain-specific interface ASICs.

The electrical implication of this feature goes beyond convenience. Isolated-side voltage selection affects logic-level compatibility, external load headroom, power dissipation, and noise margin. A 5 V Viso option is often useful for legacy field transceivers, isolated gate interface circuits, and analog front ends that need extra swing. A 3.3 V setting better aligns with modern MCUs, low-power converters, and digital sensors, while often reducing isolated-side power demand. In mixed-voltage systems, selecting the isolated output in the isolator itself can eliminate a secondary post-regulator, which saves area and avoids the extra conducted and radiated noise that another switching stage or even an LDO placement can introduce. In many compact designs, removing that secondary conversion stage improves not only efficiency but also EMI predictability.

The behavior of the SEL pin also deserves disciplined implementation. Although floating selects 3.3 V, relying on a floating configuration in production hardware is usually less robust than using an explicit tie to GND2. A hard connection documents intent, improves test clarity, and avoids ambiguity during failure analysis or board modification. Floating pins that carry configuration meaning can become a source of confusion during bring-up, especially when rework residue, probing conditions, or undocumented assembly changes are involved. For a reusable platform, explicit strapping tends to age better than implicit defaults.

From an integration standpoint, the ISOW784x family is built around a strong system-level idea: collapse isolation signaling and isolated power delivery into one standard package. That matters because the conventional discrete implementation requires at least two functional blocks: a digital isolator and an isolated DC-DC converter. The discrete approach can offer optimization freedom, but it also introduces a transformer selection problem, switching-node routing, converter compensation or filtering concerns, startup interaction between domains, and more opportunities for noise coupling across the barrier. The integrated approach removes many of those variables. It turns a multi-component isolation island into a single placement with defined behavior.

This simplification has a direct effect on PCB design. First-pass layout is usually easier because there is no need to route an external transformer or manage its magnetic field coupling near sensitive traces. Second, the physical barrier between grounds is visually clearer in the floorplan. Third, decoupling strategy becomes more deterministic because the primary-side and isolated-side supply pins are fixed relative to the channel pins. These factors shorten the iteration loop. In isolation designs, schedule slips often come not from the logic function itself but from secondary effects such as emissions, startup instability, or barrier-spacing corrections discovered during compliance review. A more integrated component often removes enough uncertainty to prevent those late-stage issues.

There is also a practical procurement and lifecycle angle. A single-package isolator with integrated power can reduce sourcing complexity compared with pairing a standalone digital isolator and an isolated converter from different lines or vendors. Qualification effort often scales with component count. Fewer line items can mean fewer alternates to track, fewer interactions to validate, and less exposure to cross-vendor behavioral mismatch. The value of that reduction is easy to underestimate until a platform branches into several field variants. At that point, footprint consistency and supply-voltage configurability become operational advantages, not just schematic conveniences.

Still, integration is not universally superior. The right evaluation lens is load profile, channel-direction needs, thermal budget, and EMI environment. If the isolated side needs only modest current and the benefit of a clean, compact architecture is high, the ISOW784x approach is usually compelling. If the isolated domain requires unusual voltage rails, significantly higher power, or tightly customized noise filtering, a discrete partition may remain the better engineering choice. The key insight is that the package and pinout are not merely implementation details. They encode the intended system boundary. The wide-body SOIC defines the insulation envelope. The split grounds define the energy and reference separation. The channel pins define the data boundary. The SEL pin defines how the isolated domain is energized. When these are read together rather than as isolated datasheet items, the device becomes easier to apply correctly and easier to scale across multiple designs.

In practice, the cleanest implementations usually follow a few patterns. Keep the primary and isolated copper regions visually and electrically distinct. Place local decoupling close to Vcc/GND1 and Viso/GND2 as separate return loops. Avoid routing fast unrelated signals under or tightly around the barrier region. Use an explicit SEL strap instead of a floating default. Verify the exact channel direction against the ordered suffix before freezing the netlist. These steps are simple, but they remove the kinds of integration errors that tend to survive schematic review and only appear during bring-up or compliance testing. That is where the ISOW7841 and related ISOW784x devices show their real advantage: not only in combining functions, but in reducing the number of failure modes a design team must manage at once.

Texas Instruments ISOW7841 and ISOW784x Application Scenarios and Engineering Value

Texas Instruments ISOW7841 and the broader ISOW784x family target a class of designs where signal isolation alone is no longer enough. In many real systems, the isolated side also needs a small but reliable power rail for transceivers, sensor interfaces, housekeeping logic, or data-conditioning circuits. That combination of digital isolation and integrated isolated power is the main engineering value of this family. It addresses two problems at once: maintaining galvanic separation across noisy or high-potential boundaries, and avoiding a second isolated power stage that would otherwise consume board area, increase component count, and introduce another EMI source to manage.

At a system level, these devices are most effective in architectures where the isolated domain is relatively modest in power demand but critical in function. That is a common pattern in industrial automation, inverter-driven motor systems, grid-connected monitoring, medical instrumentation, and test platforms. In each case, the designer needs deterministic signal transfer across a boundary that may experience ground offset, high common-mode noise, surge exposure, or regulatory isolation requirements. The isolated side often hosts interface electronics that cannot simply borrow the primary ground or supply. In that context, the ISOW784x family is not just a component substitution for a digital isolator plus converter. It changes the partitioning strategy of the whole subsystem.

The underlying mechanism matters. A conventional non-isolated digital interface assumes both ends share a compatible ground reference. Once that assumption breaks, signal interpretation becomes vulnerable to ground potential difference, injected noise current, transient shifts, and fault propagation. An isolation barrier removes the direct conductive path while preserving logic-level communication through a high-integrity isolation channel. When isolated power is integrated into the same device family, the isolated domain becomes electrically independent enough to support interface circuitry without an external transformer-based supply. This is particularly valuable in layouts where the isolated side exists mainly to sense, translate, or communicate, rather than to drive substantial loads.

The practical impact is often larger than the datasheet headline suggests. Replacing a discrete digital isolator plus isolated DC-DC converter with an integrated device can shorten the isolation power loop, reduce transformer placement constraints, simplify decoupling strategy, and make creepage and clearance management more predictable. It also reduces the number of interdependent failure points. In compact industrial designs, that simplification can materially improve first-pass layout success, especially when isolation spacing, emissions, and thermal density are all competing for the same board area.

In industrial automation, the family fits naturally into PLC modules, distributed I/O, remote sensor heads, isolated communication adapters, and field-side signal conditioning. These systems frequently place a microcontroller or processor on one side and field-facing circuitry on the other. The field side may include RS-485, CAN, digital input front ends, encoder interfaces, or low-power sensor electronics that must survive noisy cabling and local grounding uncertainty. Using the ISOW7841 to isolate control paths while also powering the isolated transceiver or interface logic reduces external power conversion hardware and helps keep the field-side domain self-contained.

This is especially useful in dense PLC I/O cards, where every channel block competes for area. A discrete isolated converter may be electrically acceptable but mechanically inconvenient. It consumes routing layers, magnetic keep-out space, and filtering components that scale poorly as channel density rises. An integrated isolator-power solution tends to compress that problem into a more manageable footprint. In practice, this often makes the difference between a clean modular channel architecture and a board that becomes difficult to route, difficult to certify, and sensitive to small layout changes.

Another advantage in automation systems is noise-current control. Isolation is often discussed in terms of safety, but in factory environments the more immediate benefit is frequently signal integrity. Long cable runs, multiple cabinet grounds, inductive loads, and shared return paths create conditions where common-mode disturbances can enter logic ground and distort communication timing or trigger false states. Isolating the bus or sensor-side interface prevents those currents from flowing directly into the controller ground. The result is not only better robustness under transient stress, but often more stable behavior in marginal field installations where wiring quality is uneven and grounding topology is not ideal.

Motor control is an even more demanding environment. Fast switching edges from IGBT or SiC/GaN-based inverter stages generate severe dv/dt and common-mode transients. In that environment, digital interfaces near the power stage must tolerate rapid voltage movement between local grounds without corrupting state information. The ±100 kV/μs CMTI capability of the ISOW784x family is highly relevant here because communication reliability is less about nominal logic thresholds and more about surviving repeated transient events without intermittent bit errors or latch-up behavior.

That point becomes more important as switching speeds rise. In lower-speed motor drives, noise margins may hide weaknesses in the interface. In faster topologies, especially where wide-bandgap devices are used, transient susceptibility that once looked theoretical can become a field-return problem. Fault lines, current sensors, status signals, and low-power serial links positioned near the inverter leg all see the effects of aggressive edge rates. A device with high common-mode transient immunity helps maintain deterministic behavior across the isolation boundary under those conditions.

Integrated isolated power is also useful in motor control subsystems that need local housekeeping rails rather than high gate-drive power. Current sensing modules, rotor position interfaces, fault aggregation logic, and isolated communication nodes near the power stage often need just enough isolated energy to run precision front ends or digital interface components. In those cases, integrating the power function avoids dropping a separate isolated converter into an already hostile EMI region. That can reduce the number of radiating structures and simplify shielding and filtering work around the inverter section.

One recurring implementation detail is that integrated isolated power should be matched carefully to the actual load profile. It works best when the isolated domain is stable and limited in consumption. It is less suitable when the secondary side must support large transient loads, analog stages with unusually strict supply-noise sensitivity, or future expansion that was not budgeted in the original power estimate. In practice, conservative power budgeting on the isolated side tends to pay off. Margin is often consumed by startup behavior, transceiver mode changes, temperature drift, and unexpected accessory circuitry added late in the design cycle.

In grid infrastructure and energy systems, the same architectural logic applies, but with stronger emphasis on fault tolerance, surge resilience, and long-term reliability. Monitoring nodes, protection relays, smart sensing modules, and communication interfaces frequently bridge domains with different reference potentials. Isolation prevents fault energy and ground shift from propagating into control electronics, while the integrated power function can energize the isolated communications or measurement front end. This is useful in distributed monitoring points where board space is constrained and where minimizing the number of isolated subassemblies reduces maintenance complexity.

Medical equipment and test-and-measurement systems bring a different set of priorities. Reinforced isolation, verified safety credentials, and low-noise operation are often mandatory, but so is compact mixed-signal integration. These systems commonly combine processors, data converters, sensor interfaces, communication links, and user-accessible ports inside limited enclosure volume. Here, the value of the ISOW784x family is not merely compliance support. It is the ability to isolate a sensitive subsystem while containing the design overhead of that isolation.

In medical electronics, isolated interfaces may sit between patient-adjacent signal paths, control sections, and external communication nodes. In test equipment, isolation is often used to separate measurement front ends from digital control or external interfaces exposed to uncertain ground conditions. In both cases, reducing the number of separate isolation-related components simplifies leakage-current management, spacing analysis, and emissions control. It also tends to improve repeatability across product variants, since fewer isolation building blocks need to be re-qualified each time the platform is extended.

Noise-prone serial buses such as RS-485, RS-232, and CAN are among the clearest application examples. These buses often operate in electrically harsh environments, with long cables, distributed nodes, and ground references that are nominally shared but practically unstable. Isolation prevents common-mode noise and fault current from entering the local logic ground, where they could disturb timing, reset supervisors, ADC references, or processor I/O structures. The barrier therefore serves three roles at once: safety separation, transient containment, and ground-noise decoupling.

That third role is often underestimated. In many field failures, the issue is not catastrophic breakdown but subtle corruption: communication retries, intermittent framing errors, false interrupts, or unexplained controller resets. These symptoms can persist for months because each individual event is brief and difficult to capture. Isolated interfaces often resolve such issues not by changing protocol behavior, but by removing the conductive path through which the disturbance was reaching the digital core in the first place. This is where isolation demonstrates its real system value: it restores electrical boundaries that the protocol stack alone cannot enforce.

From a design-in perspective, the ISOW784x family is most compelling when used as part of a deliberate domain-partitioning strategy. The isolated side should be treated as a compact, well-bounded subdomain with its own local decoupling, return containment, and carefully defined load envelope. Routing should preserve the integrity of the barrier, maintain spacing discipline, and prevent noisy high-dv/dt nodes from coupling into the isolated interface region. Although the device reduces external circuitry, it does not eliminate the need for disciplined placement. Good isolation performance still depends on current-loop control, capacitor placement, and attention to parasitic coupling paths across the barrier.

A useful engineering pattern is to place the ISOW device close to the boundary where logic actually crosses domains, rather than deep inside either subsystem. This keeps isolated traces short, limits ambiguous return paths, and makes the board partition visually and electrically cleaner. Where isolated bus transceivers are used, keeping the transceiver and its protection network physically associated with the isolated side usually produces more predictable surge and EMI behavior. Small placement decisions here often have a larger effect than nominal differences in isolator specifications.

Viewed broadly, the ISOW7841 and ISOW784x family represent a shift from component-level isolation toward isolation-aware subsystem integration. Their value is strongest where modest isolated power and robust digital transfer must coexist in a compact and noisy environment. They are particularly effective in control and interface layers that sit between low-voltage intelligence and electrically aggressive external domains. In those roles, the family reduces architectural friction: fewer parts, fewer isolated rails to manage, fewer ways for noise to cross into the logic core, and a clearer path from schematic intent to reliable hardware behavior.

Texas Instruments ISOW7841 and ISOW784x Design Implementation Considerations

Texas Instruments’ ISOW7841 and the broader ISOW784x family simplify isolated interface design by combining a high-performance digital isolator with an integrated power stage. That level of integration removes a large amount of transformer selection, isolated bias design, and component matching work. It does not remove the need for disciplined implementation. In this class of device, many traditional power-integrity and isolation-layout problems still exist, but they are concentrated into a smaller physical area and become more sensitive to local design choices.

A useful way to view the ISOW784x is as two tightly coupled subsystems inside one package: a capacitive isolation data path and a miniature isolated DC/DC converter. The digital isolation function tends to look tolerant at first glance because the logic interface is straightforward. The power path is less forgiving. Its switching behavior, startup energy demand, transient response, and thermal dissipation all depend heavily on the external capacitors, the input source impedance, and the load connected to VISO. In practice, most field issues with integrated isolated power devices are not caused by logic corruption first. They usually begin as power-path weakness, marginal startup, excess ripple, or thermal derating, and only later appear as communication instability.

The recommendation around input decoupling is therefore more than a routine datasheet note. The optional 100 μF capacitor between VCC and GND1 should be understood as an energy reservoir that stabilizes the converter during startup and during load steps reflected back across the isolation power stage. The guidance that the input decoupling capacitor should be at least 100 times larger than the output capacitor points to a specific mechanism: the converter expects the primary-side supply to behave as a low-impedance source while it charges the isolated output domain and supports switching transients. If the input network is too weak relative to the output capacitance, the converter can experience slow startup, input droop, repeated restart behavior, or elevated stress during inrush events.

This ratio matters because the isolated output capacitor is not just a filter element. At startup it appears as an energy demand that must be charged through the internal conversion stage. A large output capacitor increases inrush demand and extends the time during which the converter operates under heavy charging current. If the upstream rail has appreciable trace inductance, connector resistance, or a current-limited regulator, the local VCC can sag just when the converter needs the strongest source. That is why a design that appears correct on a schematic can become marginal on a real board with long supply routing or shared rails.

A robust implementation starts by treating the ISOW784x input as a pulsed power load rather than a static logic IC. Place a high-frequency ceramic capacitor close to VCC and GND1 to control switching-edge current locally. Add bulk capacitance according to the expected startup profile, rail impedance, and upstream regulator dynamics. The optional 100 μF value is often helpful when the source is remote, when multiple isolated channels share one input rail, or when the isolated output sees abrupt loading. The most reliable results usually come from combining a small, low-ESR ceramic for high-frequency current with enough bulk energy to keep the local rail stiff through startup and transients.

Output capacitance should be chosen with equal care. It is tempting to increase the VISO capacitor aggressively in pursuit of lower ripple or better hold-up. That can backfire. More output capacitance raises startup stress and may push the converter into an unfavorable operating region, especially at lower input voltage or higher ambient temperature. In many designs, the better solution is not simply “more output capacitance” but a balanced approach: use the datasheet-recommended output capacitor, keep the load transient reasonable, and add local decoupling near the actual isolated loads on the secondary side. This distributes dynamic current demand instead of forcing the integrated converter to support all transient energy through one large central capacitor.

Load-current budgeting must be done against the actual operating mode, not against the family name. The available isolated power depends on the selected input voltage, output voltage option, efficiency, and thermal environment. A 5 V-to-5 V configuration generally offers different current headroom than a 3.3 V-to-5 V configuration because the internal power stage must process energy under a different conversion ratio and input current condition. In other words, the same package can present very different system margins depending on how it is biased. Reusing one PCB across multiple product variants often exposes this issue. A board validated in a 5 V system may later be deployed in a 3.3 V variant with the same field-side sensor, indicator, or transceiver load, and the margin quietly disappears.

The safer engineering method is to allocate isolated load current with explicit derating. Start from the worst-case supply mode, not the nominal one. Include startup current for the isolated-domain circuitry, not just steady-state current. Account for temperature, since conversion efficiency and internal losses shift with operating point. Also check whether the isolated rail is powering only logic or whether it feeds loads with pulse current, such as transceivers, gate-drive support circuits, or sensor excitation paths. Average current may look acceptable while peak demand causes local droop, increased ripple, or excess heating.

Thermal behavior deserves more attention than integrated solutions often receive. The internal converter and isolation channels concentrate power dissipation inside a compact package, and that heat must still leave through the package and PCB. When the isolated output is heavily loaded, especially in higher ambient environments or dense layouts with limited copper spreading, junction temperature can become the true limiting parameter before the headline load-current figure is reached. This is one reason why designs that pass benchtop bring-up at room temperature may become unstable in sealed enclosures or under elevated field temperature. A practical design review should therefore include copper area, nearby heat sources, airflow assumptions, and realistic worst-case load on VISO.

PCB layout remains a first-order design variable. Integration improves consistency and usually helps EMC compared with a fully discrete isolated power design, but it does not make layout secondary. The internal converter still switches energy across an isolation barrier, and the external current loops around VCC, GND1, VISO, and GND2 still define conducted and radiated behavior. Poor capacitor placement can enlarge hot loops and raise both emissions and susceptibility. Weak separation between primary and secondary return regions can also degrade isolation-domain cleanliness, even if formal spacing rules are met.

Good layout begins with current-loop control. Keep the primary-side decoupling capacitor as close as possible to VCC and GND1. Do the same on the isolated side for VISO and GND2. Minimize loop area rather than only minimizing trace length; the two are related but not identical. Route the high-frequency bypass path directly and avoid vias where possible. If vias are unavoidable, use paired low-inductance transitions and keep the capacitor connection geometry compact. These small decisions often determine whether the integrated converter behaves quietly or injects switching noise into nearby analog or communication nodes.

Isolation geometry must also be preserved with intent, not just by passing a clearance check. Creepage and clearance rules should be maintained across the barrier, but designers should also avoid routing unrelated noisy nets close to the isolation boundary where capacitive coupling can undercut immunity. A clean partition between the primary and secondary domains makes debug easier and usually improves repeatability across manufacturing variation. In mixed-signal systems, it is often worth reserving the isolated side as a controlled local island rather than letting secondary traces wander back toward the primary domain for routing convenience.

EMC performance depends on both placement and system context. The ISOW784x package is optimized to reduce many of the common problems seen in discrete isolated power supplies, but board-level resonances, cable attachments, and return-current detours can still dominate the final result. A design that looks electrically clean in a small test setup may behave differently once connected to long field wiring or grounded external equipment. For that reason, decoupling strategy should be validated in the final harness environment, not only on an open bench. In several implementations, adding bulk capacitance at the device input solved startup instability, while a separate improvement came from tightening the local bypass loop and relocating a nearby connector return path that had been coupling converter noise into the system ground network.

One subtle but important design principle is to avoid treating the integrated isolated supply as “free auxiliary power.” It is convenient, but it is not unlimited. When secondary-side loads expand late in the design cycle, the isolated rail is often the first place extra circuits get attached because it is already available. That convenience can erode power and thermal margin faster than expected. A better approach is to reserve explicit margin on VISO from the beginning and define what classes of load are allowed on that rail. This keeps the isolator in a predictable operating region and prevents the isolated power function from becoming an overloaded utility bus.

For systems intended to span multiple product options, the most effective validation method is matrix-based characterization rather than single-point testing. Verify startup, steady-state ripple, output regulation, and temperature rise across each intended VCC-to-VISO configuration, with minimum and maximum isolated load, and with realistic source impedance on the primary rail. This reveals configuration-sensitive weaknesses early. It also tends to show that the strongest bench result is rarely the most representative one; the marginal cases usually occur at lower input voltage, heavier secondary loading, colder startup with large output capacitance, or hotter ambient with reduced thermal headroom.

The ISOW7841 and ISOW784x family reduce design complexity, but they reward engineers who still think in terms of energy flow, loop control, and operating margin. Strong input bypassing, disciplined output-capacitance selection, explicit load budgeting, and careful isolation-aware layout are not peripheral details. They are the mechanisms that determine whether the integrated solution behaves like a robust subsystem or a narrowly stable one. In this device family, the difference between those two outcomes is usually set not by the isolation channels themselves, but by how well the surrounding board supports the internal converter.

Texas Instruments ISOW7841 and ISOW784x Safety and Certification Profile

Texas Instruments positions the ISOW7841 and the broader ISOW784x family for systems where isolation is not just a functional requirement but a compliance-driven design boundary. These devices combine reinforced digital isolation with an integrated isolated power stage, which changes the system tradeoff in a useful way: the isolation barrier, signal transfer path, and power delivery mechanism are evaluated as a coordinated subsystem rather than as loosely matched discrete blocks. In regulated industrial control, medical electronics, and measurement platforms, that integration often reduces both design ambiguity and certification friction.

At the insulation level, the family is specified for 7071 VPK reinforced isolation under DIN V VDE V 0884-11:2017-01 and 5000 VRMS for 1 minute under UL 1577. These numbers matter for different reasons. The VDE-based reinforced isolation rating is closely tied to long-term barrier capability under defined insulation coordination rules, partial discharge behavior, and repetitive stress expectations. The UL 1577 rating is a production-oriented dielectric withstand reference that remains widely recognized in safety files and compliance reviews. When both appear in the same device profile, the result is stronger documentation coverage across design validation, agency review, and customer qualification workflows. In practice, this reduces the need to defend the isolation barrier from first principles each time the component is introduced into a new platform.

The broader certification set adds another layer of usefulness. CSA alignment with IEC 60950-1, IEC 62368-1, and IEC 60601-1 gives the device relevance across information technology, audio/video and communication equipment, and medical electrical systems. CQC approval to GB4943.1-2011 extends that acceptability into China-facing compliance paths. TÜV certification to EN 60950-1 and EN 61010-1 supports usage in laboratory, test, and measurement equipment, where insulation classification is usually examined with greater scrutiny than in general-purpose electronics. The important point is not simply that the part is certified by multiple bodies. It is that these approvals map to different end-market gatekeepers, which makes the device easier to reuse across product lines without re-opening the isolation strategy every time.

From an engineering perspective, pre-qualified isolation components create value in three places. First, they reduce the amount of evidence the system team must assemble to justify creepage, clearance, insulation class, and withstand capability at the end-equipment level. Second, they narrow the gap between schematic intent and compliance language. Third, they lower the probability of late-stage surprises, which is often where isolation decisions become expensive. A barrier component with recognized reinforced insulation credentials does not eliminate end-product certification work, but it shifts the conversation from “is the barrier acceptable?” to “is the barrier applied correctly in this system?” That is a much better place to start.

The integrated isolated power architecture also deserves attention. In many designs, digital isolation and isolated bias generation are implemented with separate devices: a multi-channel isolator plus a flyback, push-pull transformer stage, or module converter. That arrangement can work well, but it introduces extra coupling paths, layout complexity, transformer selection risk, and more variables in conducted and radiated emissions performance. With the ISOW784x approach, Texas Instruments collapses those concerns into a single package-level solution. This usually simplifies PCB partitioning across the barrier and helps maintain more predictable isolation behavior because signal and power transfer are already co-optimized. One practical benefit appears during EMC debugging. When the isolated supply and the data barrier come from the same device family, common-mode behavior tends to be easier to model and contain than in mixed-vendor, mixed-topology implementations.

Thermal and environmental robustness further reinforce the device’s fit for demanding installations. The specified operating range of −40°C to +125°C supports deployment in enclosures with poor airflow, control cabinets near power stages, and remote modules exposed to seasonal temperature swings. Thermal shutdown protection is not only a fault safeguard. It is also a design indicator that the internal converter has been considered under abnormal load or high ambient conditions. In real systems, isolated power rails are often treated as secondary concerns until startup margins, continuous load current, and hot-spot coupling begin to interact. Devices that include thermal self-protection tend to degrade more gracefully during those edge cases, which helps during bring-up and field stress events.

Efficiency in the internal converter has system-level implications beyond power loss. Lower dissipation reduces the temperature rise across both the package and the nearby isolation keep-out region, which is helpful because insulation reliability is never entirely separate from thermal stress. It also improves channel density in compact I/O modules and isolated interface boards. This is especially relevant in PLC slices, gate-drive support logic, field transmitters, and medical front-end subsystems where several isolated channels may sit close together. A few hundred milliwatts saved per channel can be the difference between a routine thermal profile and a redesign involving airflow, copper spreading, or enclosure changes.

For design teams, the strongest practical advantage of the ISOW7841 and related devices is schedule compression through reduced certification uncertainty. Components with established insulation credentials allow earlier locking of the safety architecture. That matters because isolation decisions propagate into PCB spacing rules, connector selection, enclosure partitioning, surge strategy, and test planning. Once those choices are frozen, downstream work becomes more stable. It is often easier to optimize performance than to recover from an isolation architecture change late in development. This is one reason integrated safety-certified isolation devices frequently outperform cheaper discrete alternatives at the program level, even when the bill of materials suggests otherwise.

For procurement and qualification teams, the family offers a clearer comparison baseline against competing isolation solutions. Certification breadth, recognized reinforced insulation, wide temperature capability, and integrated power reduce the number of assumptions hidden behind supplier claims. In regulated markets, supply decisions are rarely about component price alone. They are about documentation quality, audit defensibility, and repeatability across product generations. Devices that carry well-aligned safety credentials tend to hold their value longer because they remain easier to qualify in derivative designs and regional variants.

Application fit is broad, but the best use cases share a common pattern: the system needs multiple isolated channels, modest isolated power, high documentation confidence, and predictable compliance behavior. Industrial automation I/O, isolated SPI or UART links, test and measurement front ends, motor control feedback paths, battery management subsystems, and patient-connected or patient-adjacent medical interfaces are all reasonable examples depending on the exact channel and power requirements. The integrated approach is especially attractive when board area, design time, and certification burden matter as much as raw electrical performance.

The most useful way to view the ISOW7841 and ISOW784x family is not as isolated data devices with an extra power feature, but as compliance-oriented isolation building blocks. Their value comes from combining barrier integrity, recognized safety evidence, thermal resilience, and implementation simplicity into a form that maps cleanly into regulated end equipment. That combination tends to produce fewer surprises during validation, cleaner reuse across platforms, and a more controlled path from prototype to approved product.

Texas Instruments ISOW7841 and ISOW784x Potential Equivalent/Replacement Models

Texas Instruments ISOW7841 belongs to the ISOW784x family, and the most credible replacement path is usually not outside that family but within it. The practical alternatives are ISOW7840, ISOW7842, ISOW7843, and ISOW7844. These devices are closely aligned at the architectural level: reinforced digital isolation, integrated isolated power, similar package format, and a system-level intent centered on reducing external isolated power components while preserving high channel density. Because of that common base, replacement analysis is rarely limited by isolation rating or package mechanics. It is driven mainly by signal-direction topology, fail-safe behavior, and the way isolated power is used in the target design.

The key point is that ISOW7841 should not be treated as a generic four-channel isolator with power. In this family, the channel orientation is the real selector. A device may appear equivalent from a distance because the isolation specification, integrated transformer concept, and basic electrical envelope are similar, yet still be a poor substitute if the forward and reverse channels do not match the actual interface. In isolation designs, directionality is not a cosmetic parameter. It determines whether the device aligns naturally with SPI, ADC interfaces, gate-drive command paths, status feedback loops, or mixed control-and-telemetry links. If the traffic pattern changes, even slightly, the optimal family member often changes with it.

This is where the family structure becomes useful. ISOW7840, ISOW7841, ISOW7842, ISOW7843, and ISOW7844 are variations built around the same integration model, but with different channel direction arrangements. That means migration inside the family can preserve much of the original board strategy: reinforced isolation barrier, compact footprint class, simplified isolated-bias generation, and similar EMI/creepage handling assumptions. In many designs, that is far more valuable than searching for a nominally compatible part from a different product line, because it limits the number of variables that move at once.

A sound replacement decision starts from the internal mechanism of the device rather than from the part-number table. ISOW784x devices combine digital isolation channels with an integrated power transfer stage across the isolation barrier. This matters because the component is doing two jobs simultaneously. It is carrying logic information and delivering isolated energy. In a real board, those two functions interact. The signal channels define logical connectivity, while the power path constrains what can be powered on the secondary side, how startup behaves, how much margin exists during transients, and whether the isolated rail remains stable under dynamic loading. A replacement that matches channel direction but shifts usable isolated power margin can still destabilize the design in subtle ways, especially when downstream loads are not purely static.

That is why isolated power should be evaluated as a first-class replacement criterion, not a secondary checkbox. The documentation indicates that the isolated output behavior depends on SEL configuration. In practice, this means the replacement must be checked against the required isolated voltage setting, the startup sequence of the powered secondary circuitry, and the actual current profile rather than the nominal average load alone. Designs that power a transceiver, converter-side logic, sensor front end, or digital feedback network often look light on paper but can exhibit short-duration inrush or burst current demand. Those bursts may not trigger obvious failures during a bench check, yet they can produce intermittent resets, corrupted communication frames, or unexplained startup variation once temperature, cable loading, or firmware timing shifts.

The suffix variant is equally important. Within this family, the presence or absence of the F suffix changes the default output state when the input side is lost or left undriven. That behavior sits directly in the fail-safe path of the system. A replacement with the wrong suffix can alter line-state assumptions during brownout, hot-plug, sequencing faults, connector intermittency, or controller reset. On a logic diagram this may look minor. On a real bus it can invert the startup story of the system. A control line expected to idle low may float to the opposite interpreted state. A chip-select path may become active at the wrong time. A reset tree may deassert too early. In isolated systems, these issues are often misdiagnosed as firmware instability or power integrity noise because the fault appears only during transitions, not during steady-state operation.

This fail-safe detail is one of the places where replacement reviews often go wrong. Teams tend to compare isolation rating, data rate, package, and supply range first because they are easy to tabulate. The default output state is less visible, but functionally it can be the more decisive parameter. In systems with safety logic, motor control, power conversion, or industrial communications, default-state mismatches are not edge cases. They are latent design changes. The part may pass bring-up and still fail system intent.

Pin-function mapping deserves the same level of scrutiny. Family-level similarity does not guarantee that all substitution paths are pin-transparent in the way a quick schematic glance might suggest. Even when the package is shared, the actual assignment of forward and reverse channels to pins must be checked against routed nets, firmware assumptions, and the polarity expectations of connected devices. In dense isolation layouts, rerouting one signal to accommodate a different channel orientation can be more disruptive than expected because it may affect barrier spacing discipline, return-current behavior on each side of the isolation boundary, and local decoupling placement around both VCC domains.

A useful evaluation method is to work from the interface outward. First identify each signal crossing the barrier and classify it by source side, destination side, idle state, timing sensitivity, and safe state during fault conditions. Then map that set to the channel arrangement of each ISOW784x option. After that, verify the isolated power requirement under actual operating modes, including startup and fault recovery. Only then should package and layout compatibility be used to narrow the final choice. This sequence sounds obvious, but in practice it prevents the common mistake of selecting by “same family, same channel count” and discovering later that the direction mix or fail-safe state changed system behavior.

For many applications, the strongest replacement candidates can be framed by use case. If the original ISOW7841 is used in an SPI-isolated control path, another family member may become preferable if the design evolves from controller-dominant traffic to more feedback-heavy traffic. If the isolated side adds an interrupt, ready signal, or fault return line, the best-fit channel distribution may shift even though the total number of channels remains four. In converter control boards, that often happens when diagnostics are added after the first prototype revision. In sensor-isolation designs, it happens when the interface grows from simple command/response into continuous status streaming. The family is flexible enough to absorb these shifts, but only if the replacement is chosen by traffic pattern rather than by nominal equivalence.

From a board-level perspective, staying inside the ISOW784x family usually preserves the original integration philosophy: fewer external isolated power components, smaller BOM, and a cleaner isolation partition. That said, integrated-power isolators are sensitive to layout discipline in a way that standard digital isolators are not. The replacement review should therefore include decoupling topology on both sides, local current-loop containment, and noise coupling into adjacent sensitive nodes. Even if two family members are electrically close, a design operating near the isolated power limit can expose layout weaknesses that were previously masked. When a substitute is introduced, it is good practice to recheck isolated rail ripple during high data activity and during the worst-case downstream load condition, not just at no-load or nominal communication rate.

Another point worth emphasizing is that “equivalent” in this family is a system-level term, not a catalog term. These parts are integrated isolation subsystems. Their value comes from how signal isolation, power delivery, startup behavior, and fail-safe logic interact in one package. Because of that, the most reliable replacement is the one that preserves system intent with the fewest hidden behavior changes. In many cases, a different ISOW784x variant is not merely an acceptable substitute but a better fit when the application’s barrier-crossing pattern has evolved. That is a more useful way to think about replacement than searching for a one-to-one part-number mirror.

The realistic replacement path for ISOW7841 is therefore another ISOW784x member selected against three primary axes: channel direction arrangement, isolated output requirement as defined through SEL configuration, and default output state determined by the suffix option. After that, the design should verify pin-level mapping, startup sequencing, fail-safe logic under input-loss conditions, and isolated power margin under the intended load profile. When these checks are done in that order, substitution inside the family is usually straightforward and preserves the original design philosophy with minimal architectural disruption.

Texas Instruments ISOW7841 and the broader ISOW784x family are best approached as configurable isolation platforms rather than loosely similar devices. Once that mindset is adopted, replacement selection becomes cleaner: match signal flow first, preserve fault behavior second, and confirm power-delivery margin before treating the part as drop-in compatible.

Conclusion

Texas Instruments’ ISOW7841 and the broader ISOW784x family target a very specific system-level problem: delivering reinforced signal isolation and usable isolated power in a single package without forcing major compromises in bandwidth, safety margin, or layout efficiency. In industrial control, motor drives, grid-connected measurement, battery management, and high-voltage communication interfaces, isolation is rarely just a compliance checkbox. It is a boundary condition that shapes signal integrity, fault containment, thermal behavior, EMC performance, and even assembly cost. Devices in the ISOW784x family are compelling because they treat isolation as an integrated subsystem rather than a pair of loosely connected functions.

At the architectural level, the value proposition comes from combining four digital isolation channels with an internal isolated DC-DC converter. That combination removes the need for a separate digital isolator plus isolated bias supply, which is often the default discrete implementation. In practice, the discrete route consumes more board area, creates additional routing loops, introduces another switching element with its own EMI signature, and complicates startup and sequencing behavior across the barrier. Integrating both functions into one device does more than shrink the BOM. It also narrows the set of uncontrolled interactions between isolation, power transfer, and high-speed digital edges. That simplification matters in designs where certification, repeatability, and noise margin are as important as nominal functionality.

The headline specifications explain why the family fits demanding environments. Quad-channel isolation up to 100 Mbps supports fast digital links used in gate-drive command paths, SPI-style interfaces, encoder channels, or isolated status/control signaling. The integrated isolated power, up to 650 mW depending on operating conditions, is sufficient for many secondary-side support rails, interface logic, sensing front ends, and moderate auxiliary loads. A 5000 VRMS isolation rating places the family firmly in reinforced-isolation territory for systems that must tolerate high steady-state voltage separation and transient stress. The ±100 kV/μs common-mode transient immunity is especially significant in switching power environments. In real converters and motor systems, isolation barriers are not stressed by static voltage alone. They are stressed by fast dv/dt events generated by SiC or IGBT switching nodes, and poor transient immunity quickly appears as corrupted logic states, false triggering, or intermittent communication faults that are difficult to reproduce on a bench.

That last point often becomes decisive in application success. Many isolation solutions look sufficient when evaluated with slow edges and clean lab supplies. The real differentiation emerges when the barrier sits next to half-bridge nodes, long return paths, or noisy chassis structures. A device with strong CMTI and controlled internal coupling behavior reduces the amount of defensive design needed around it. It does not eliminate the need for disciplined PCB partitioning, but it gives more margin when the system moves from schematic to actual switching hardware. In high-dv/dt power stages, that margin is often more valuable than a small gain in channel count or nominal throughput.

The wide 3 V to 5.5 V input supply range adds another practical advantage. It allows the same family to fit both 3.3 V and 5 V digital ecosystems without level-translation workarounds. That flexibility is useful in mixed-generation platforms where a modern MCU or FPGA domain must interface with legacy industrial logic or isolated peripheral sections. It also helps standardize procurement and layout libraries across product variants. In engineering programs that evolve over several hardware spins, supply flexibility tends to reduce redesign friction more than expected.

From a mechanism perspective, integrating isolated power with high-speed isolation shifts the design challenge from inter-device coordination to internal energy and noise management. The isolated power section must transfer energy across the same safety boundary while maintaining regulation and not degrading data-channel integrity. That is not trivial. Every isolated power converter creates switching noise, conducted ripple, and electric field activity across the barrier. In a weaker implementation, that noise can couple into data channels or radiate into adjacent circuits. The stronger implementations are the ones where the package, modulation scheme, and internal partitioning are designed to prevent the power-transfer function from becoming the dominant noise source. This is one reason integrated solutions in this category should not be judged only by isolation rating and output power. Their practical quality is revealed by how cleanly they behave when signal traffic and power loading occur simultaneously.

For product selection, three parameters deserve primary attention: channel direction, isolated output-voltage configuration, and fail-safe output behavior. These are the fields that most directly determine whether the part will map cleanly onto the end application. Channel direction matters because isolation channels are not interchangeable once the control architecture is fixed. A gate-driver interface may need more forward control channels than reverse feedback channels, while an isolated ADC or digital sensor hub may require the opposite balance. Using the wrong directional variant can force awkward logic remapping or external glue logic, both of which erode the integration benefit.

The isolated output-voltage configuration is equally critical. The integrated power rail is not merely an accessory; it defines what can live on the isolated side without additional conversion stages. If the isolated domain needs a direct logic rail, the available output option may be sufficient as-is. If the domain includes analog sensing, interface transceivers, or gate-support circuitry with tighter ripple or voltage requirements, the output may need post-regulation, filtering, or local point-of-load conversion. In many cases, the best use of the integrated power is not to power everything on the secondary side, but to establish an isolated bias foundation and then derive quieter or more tightly regulated rails locally. This usually yields a better tradeoff between simplicity and performance than expecting one integrated source to satisfy every isolated load directly.

Fail-safe output behavior is the parameter that tends to be underestimated during early selection. It becomes important only when the system encounters undervoltage, startup asymmetry, cable disconnects, controller resets, or barrier-side faults. At that moment, the output state of an isolated channel can determine whether the system fails benignly or creates a hazardous control condition. In motor control and power conversion, a deterministic default state on loss of input is often more important than peak data rate. A design that ignores this during part selection may later require external pull networks, supervisory logic, or firmware workarounds to restore safe behavior.

In application terms, the ISOW784x family is particularly well matched to compact isolated control islands. Examples include isolated SPI links to current or voltage monitors, encoder and resolver interface segmentation, isolated digital I/O expansion in PLC modules, and communication/control paths inside power converters where a small amount of local isolated power avoids deploying a separate flyback or push-pull bias supply. In these use cases, the integrated approach improves more than density. It shortens the isolation crossing, reduces the number of components straddling functional partitions, and simplifies creepage-conscious placement. The result is often a cleaner and more reviewable design, which matters in regulated and safety-audited programs.

There is also a strong procurement and manufacturing argument for the family. Replacing a discrete isolator plus isolated converter with a single integrated device reduces line-item count, sourcing complexity, and assembly variability. Fewer components usually mean fewer lifecycle risks tied to second-source mismatches, fewer placement opportunities for assembly defects, and fewer interactions to validate across corners. This does not automatically make the integrated part lower cost in unit price terms, but cost should be evaluated at the subsystem level. Once board area, layout time, EMI debugging effort, and compliance rework are included, integrated isolation-power devices often compare more favorably than their schematic simplicity first suggests.

That said, successful adoption depends on respecting the part as both an isolator and a switching power component. Layout discipline remains central. High-frequency return loops should be minimized, decoupling placed tightly at the relevant supply pins, and noisy isolated loads prevented from injecting large current spikes directly back into sensitive logic return paths. If the isolated output powers mixed loads, partitioning the secondary-side distribution usually pays off. A small RC, ferrite, or local LDO stage can materially improve behavior for noise-sensitive digital or analog sections. In compact layouts, this is often the difference between a design that passes on the first EMC cycle and one that enters iterative debug.

Another practical pattern is to avoid using the integrated isolated power too close to its limit unless thermal headroom and load transients are well characterized. The nominal 650 mW capability is highly useful, but real available margin depends on voltage configuration, ambient temperature, airflow, and the dynamic nature of the load. Pulsed loads, startup surges, or simultaneous high channel activity can expose weak assumptions in power budgeting. A conservative design usually treats the integrated supply as a managed resource rather than a theoretical maximum. That approach tends to preserve startup reliability and reduce secondary-side brownout behavior.

Viewed strategically, the ISOW7841 and related ISOW784x devices are strongest where the isolated domain is functionally important but not power-hungry. They are not universal replacements for all isolated supplies and isolators, nor should they be forced into roles better served by dedicated power architectures. Their real strength is in collapsing a common two-block design pattern into a single, safety-capable interface element with strong transient immunity and useful data performance. When selected with attention to channel orientation, power-rail fit, and failure-state behavior, they can materially improve robustness, density, and design velocity in industrial and high-reliability electronics.
