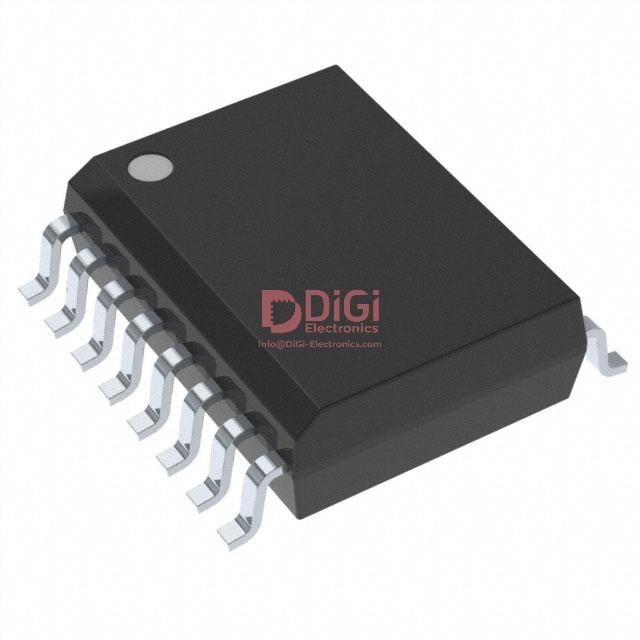

ISO7762QDWQ1

Texas Instruments ISO7762-Q1 Product Overview and Positioning

Texas Instruments ISO7762-Q1 is a six-channel automotive-grade digital isolator built for systems that must pass high-speed logic signals across a galvanic barrier without sacrificing insulation strength or noise robustness. It sits in the ISO776x-Q1 family, which targets reinforced isolation in vehicle power and control domains where voltage domains shift rapidly and signal integrity can degrade under severe electromagnetic stress. The device is qualified to AEC-Q100 and supports ambient operation from –40°C to +125°C, which places it directly in the thermal envelope of traction, charging, and power conversion subsystems rather than only in protected cabin electronics.

Its product positioning is best understood by looking at the problem it solves at the system level. In electrified vehicle architectures, the control processor, gate driver interface, sensing front end, and communication logic often operate at low voltage, while the power stage, battery stack, or floating measurement node sits at a very different potential. Isolation is not only a safety boundary. It is also a signal integrity boundary, a noise containment boundary, and often a compliance boundary. ISO7762-Q1 is intended for that exact intersection. It isolates CMOS and LVCMOS digital I/O while preserving enough timing performance for fast control loops, status feedback, protection signaling, and coordinated switching across noisy power electronics.

The six-channel architecture is especially important because channel count alone does not define usefulness. What matters in practice is channel direction flexibility across the barrier. Many automotive isolation problems are not symmetric. A design may need several outbound control lines and fewer return status lines, or the reverse for measurement and fault reporting. ISO7762-Q1 addresses these mixed-direction signal paths within a single package, which reduces routing complexity, lowers inter-device skew compared with assembling multiple smaller isolators, and simplifies safety spacing management on the PCB. In dense inverter or onboard charger layouts, replacing several discrete isolators with one coordinated device often improves both layout cleanliness and field robustness.

At the device level, the isolator uses capacitive isolation technology. This matters because the performance profile of capacitive digital isolators differs from optocouplers in ways that are highly relevant to modern automotive platforms. Capacitive isolation generally offers lower propagation delay, better channel-to-channel matching, higher usable data rates, and less long-term transfer degradation than light-based isolation approaches. For fast digital control, that translates into tighter timing margins and more predictable behavior over temperature and life. It also removes the CTR aging concerns associated with optocouplers, which can otherwise force conservative derating and periodic margin reviews in long-lifetime platforms.

The 100Mbps maximum signaling capability is not merely a headline speed specification. It indicates that the internal modulation and detection path is fast enough to preserve digital edge information in systems with short timing budgets. In practical designs, this supports PWM-related control signaling, fast fault shutdown paths, SPI-like interfaces at moderate complexity, resolver or sensor interface support logic, and tightly timed status exchange between primary and secondary domains. Even when the application data rate is far below 100Mbps, selecting an isolator with significant headroom often improves waveform fidelity and timing margin in the presence of temperature drift, supply variation, and PCB parasitics. That margin becomes visible during EMC testing, where slower or marginal isolators can exhibit pulse distortion long before they fail functionally on a bench.

One of the strongest differentiators of ISO7762-Q1 is its minimum common-mode transient immunity of 85kV/μs. In high-power automotive electronics, this is not an abstract number. Traction inverters, onboard chargers, and hard-switched DC/DC converters routinely generate rapid common-mode voltage transitions due to switch-node movement, parasitic capacitance, and ground potential displacement. If the isolator cannot reject those transients, the system may experience false toggling, corrupted telemetry, unstable gate commands, or intermittent protection events that are difficult to reproduce. A high CMTI rating means the isolation barrier and internal receiver architecture are designed to remain stable even when the two sides of the isolator move relative to each other at extreme slew rates. In practice, this directly reduces nuisance failures during motor transients, load dumps, and switching edge stress.

The 5000VRMS isolation capability in the DW package places the device in a class suitable for reinforced insulation strategies where long-term reliability and standards alignment matter. The key point is not only the dielectric withstand number itself, but how it interacts with creepage, clearance, working voltage, pollution degree assumptions, and end-equipment safety goals. Engineers often make the mistake of comparing isolators only by transient withstand or only by data rate. In actual designs, isolation selection is a multi-variable optimization. The barrier must survive manufacturing test, repetitive operating stress, fast transients, thermal cycling, and the layout realities of contaminated or humid environments. A stronger isolation rating is useful only when the package geometry and board implementation preserve it. The DW package form factor helps because it supports practical spacing management in automotive power boards, where contamination and mechanical stress cannot be treated as secondary issues.

Another important point is that ISO7762-Q1 provides signal isolation only and does not integrate isolated power. That is often the correct design choice rather than a limitation. Integrated power can simplify some interfaces, but it also introduces switching noise, thermal concentration, transformer-related layout constraints, and in some cases unnecessary coupling paths into precision or timing-sensitive sections. By separating signal isolation from isolated bias generation, the designer can optimize each function independently. This is particularly useful in gate driver support circuits, battery monitoring interfaces, and converter control partitions where the isolated rail requirements vary widely. A discrete isolated power stage can be sized for the load, filtered for the noise target, and placed to minimize loop area, while ISO7762-Q1 handles only the digital barrier crossing with high timing integrity.

Application fit is strongest in battery management systems, onboard chargers, traction inverters, starter/generator systems, and high-voltage DC/DC converters. In battery management, the device can isolate daisy-chain communication support signals, balancing control paths, or safety-related status lines between stacked domains and a central controller. Here, isolation reliability is as important as speed, because intermittent faults can be misread as cell imbalance or pack faults. In traction inverters, the need shifts toward high dV/dt tolerance and deterministic control signaling. The isolator must remain stable while the power stage commutates aggressively and phase nodes swing at high slew rates. In onboard chargers and DC/DC converters, a mix of PWM commands, fault outputs, synchronous status feedback, and housekeeping logic often needs to cross between primary and secondary or between controller and floating subsystems. The six-channel mixed-direction structure maps well to these signal groups without overbuilding the isolation network.

From a design integration perspective, supply decoupling and layout discipline remain decisive. Even with a high-CMTI isolator, poor local bypassing or excessive loop inductance on either side of the device can inject enough disturbance to create edge jitter or logic threshold excursions. The most reliable implementations place high-frequency decoupling capacitors close to each supply pin pair, maintain a short return path, and keep noisy switching copper away from the isolator input network. It is also wise to treat each side of the barrier as an independent high-speed digital island rather than assuming the isolator alone will absorb all grounding mistakes. In converter hardware, a modest layout correction around the isolator often yields more improvement than changing to a higher-rated part.

Timing analysis should also include propagation delay, pulse-width distortion, and channel-to-channel skew under temperature and supply variation. A six-channel device is frequently used in coordinated control paths, so relative timing can matter more than absolute delay. That is especially true when one channel carries an enable or shutdown command while others carry state or handshake signals. In fault-management chains, a few nanoseconds are rarely critical by themselves, but mismatched timing can produce race conditions in FPGA or MCU capture logic if not accounted for. In field troubleshooting, these issues usually appear first at temperature extremes or during brownout-like conditions, not in nominal lab operation.

A useful way to position ISO7762-Q1 against alternatives is to see it as a control-path isolator for harsh electrical environments, not as a generic logic isolator. Its value emerges when high insulation strength, high CMTI, automotive qualification, and multi-channel integration are all required at once. If the environment is electrically quiet and timing is loose, simpler devices may suffice. But once the design includes wide-bandgap switching edges, long harness exposure, or safety-driven partitioning between control and high-voltage domains, the penalty for under-specifying the isolator grows quickly. In those systems, robustness at the isolation barrier often determines whether the platform behaves cleanly only on the bench or continues to behave cleanly across production spread, EMC stress, and long service life.

What makes ISO7762-Q1 particularly relevant in current vehicle electrification trends is that isolation is no longer a peripheral component choice. It is becoming part of the control architecture itself. As switching frequencies rise, bus voltages increase, and packaging density tightens, the barrier must carry more signals with less timing uncertainty while tolerating stronger common-mode aggression. Devices like ISO7762-Q1 address that transition directly. They enable architects to partition high-voltage and low-voltage intelligence more cleanly, reduce the number of discrete isolation elements, and maintain deterministic digital behavior in environments that are increasingly hostile to conventional interfaces. In that sense, the device is positioned not just as an isolator, but as an enabling element for stable high-voltage automotive control systems.

Texas Instruments ISO7762-Q1 Core Isolation Architecture and Functional Concept

Texas Instruments ISO7762-Q1 is a reinforced digital isolator designed to move logic-level information across a galvanic barrier without creating a conductive path between two electrical domains. Its core is a double capacitive silicon dioxide isolation structure implemented on silicon. That detail matters because the device is not simply translating voltage levels. It is interrupting the DC current path, breaking ground-loop coupling, and limiting how fast common-mode disturbances can inject error into the logic path. In automotive electronics, where local grounds may shift during load transients, inductive commutation, or fault events, this isolation function is often the difference between a robust control link and an intermittent one.

At the channel level, the architecture is conceptually simple but engineered for harsh environments. Each channel contains an input-side logic buffer, an isolation transmission path based on capacitive coupling through SiO2, and an output-side logic reconstruction stage. The input buffer conditions the digital state and converts it into a form suitable for crossing the isolation barrier. The barrier itself passes changing electric fields rather than direct current. The output stage then restores the transmitted information into a valid logic signal referenced to the receiving-side supply and ground. This separation allows the two sides to operate with different ground potentials while still exchanging digital commands or status information.

The use of a double capacitive silicon dioxide barrier is one of the more important design choices in this family. Silicon dioxide is a stable insulation medium with predictable dielectric behavior and strong long-term reliability when properly qualified. A double barrier arrangement adds margin against insulation failure and improves confidence in safety-related isolation performance. From an engineering standpoint, the value is not only high isolation voltage. It is also consistency under repetitive stress, temperature cycling, and long service life. In vehicle platforms, isolation components are exposed to vibration, board contamination risk, battery-related transients, and thermal gradients. Devices that remain electrically quiet and structurally stable under those conditions reduce debug effort later in the program.

The isolation mechanism also changes how noise propagates through the system. Without isolation, a digital line shared between noisy power stages and low-voltage control electronics can become a conduit for common-mode current, transient ground offsets, or fault energy. The ISO7762-Q1 interrupts that path. It allows signal transfer while preventing direct conductive coupling between the two sides. This is especially useful when the control domain sits near precision sensing, low-voltage MCU rails, or communication transceivers that are sensitive to ground bounce and injected switching energy. In practice, many signal-integrity issues attributed to firmware timing or bus protocol instability are actually rooted in poor ground management. Isolation removes one of the main coupling mechanisms at the source.

This benefit becomes more visible in automotive power-conversion and actuation subsystems. In inverter stages, onboard chargers, DC-DC converters, battery disconnect units, e-compressors, and motor control modules, switching edges generate large dv/dt and di/dt events. Those events create displacement currents through parasitic capacitances across the PCB, harness, enclosure, and semiconductor packages. If the signal interface between power and control sections is not isolated, the logic reference can shift enough to create false transitions, metastability, or even overstress at downstream pins. An isolator such as ISO7762-Q1 acts as a boundary element. It does not eliminate all noise mechanisms, but it sharply reduces direct ground-referenced disturbance transfer and simplifies partitioning of noisy and quiet domains.

Texas Instruments positions the ISO776x-Q1 family for use with isolated power supplies, and that pairing is more than a recommendation. It reflects how isolation should be implemented at the system level. Data isolation alone solves only half of the problem. If the receiving-side supply still shares a noisy return path or is generated without adequate isolation integrity, disturbance energy can re-enter through the power rails and undermine the logic barrier. When the digital isolator and the isolated bias supply are treated as a coordinated interface, the control domain gains a genuinely separate reference environment. That usually produces cleaner ADC behavior, more predictable reset timing, and fewer unexplained communication faults during high-load transitions.

A practical layout lesson often emerges here. Even with a strong internal isolation structure, external parasitics can reintroduce coupling if placement is careless. Routing high-slew switch-node copper beneath the isolator, collapsing creepage margin with dense stitching vias, or allowing primary and secondary return currents to overlap near the device can increase common-mode injection and degrade robustness. Good results usually come from treating the isolator as a boundary crossing. Keep the two ground regions clearly separated. Control the return path on each side independently. Minimize loop area on the logic traces approaching the device. Place decoupling capacitors close to each supply pin pair, and keep noisy power-stage copper away from the isolation boundary. These choices often matter as much as the datasheet parameters.

The fail-safe behavior of ISO7762-Q1 is another feature that deserves system-level attention. For ISO776x variants without the F suffix, including ISO7762-Q1, the default output state goes high when input power or signal is lost. This default-high behavior is not a minor implementation detail. It directly shapes startup response, shutdown behavior, diagnostic interpretation, and fault containment strategy. If the isolated line carries an enable signal, PWM-related control state, watchdog handshake, or interlock status, a default-high output can either support a safe design or create an unwanted activation path depending on the logic polarity downstream.

That is why isolator selection should start from fault philosophy, not channel count alone. A default-high output is useful when the receiving logic interprets high as inactive, fault, reset, or communication lost. It is less suitable when high is mapped to turn-on, arm, or execute. In real designs, this polarity issue often surfaces late, after hardware is already partitioned, because the nominal signal function looks correct during normal operation. The mismatch only appears during brownout, partial power loss, connector disturbance, or asynchronous startup between domains. Resolving it late may require adding inversion, pull-network changes, or supervisory logic that could have been avoided by aligning fail-safe semantics at the beginning.

Startup sequencing is a common example. Suppose one side of the isolator is powered from an always-on controller rail while the other side comes up later from an isolated converter. During that interval, the output state seen by the powered domain may settle to the fail-safe high condition. If the downstream circuit treats high as permission to switch, the system can briefly enter an unintended state before firmware gains control. The clean solution is to map enable logic so that the fail-safe state corresponds to inhibit, then let software assert activity explicitly after power-good checks pass. That approach tends to be more robust than relying on timing assumptions between isolated domains.

The same principle applies to diagnostics. A default-high output can be used deliberately as a line-fault signature if the software stack treats a persistent high during expected activity as a communication-loss indicator. This is often cleaner than adding extra error signaling paths across the barrier. However, the interpretation must remain unambiguous across all operating modes. If a valid command stream can also idle high for long periods, then loss-of-input and legitimate steady-state behavior become difficult to distinguish. In that case, periodic toggling, heartbeat framing, or protocol-level timeout logic is usually a better fit than static-level monitoring alone.

From a deeper architectural perspective, the strongest use case for ISO7762-Q1 is not just signal isolation. It is control-domain decoupling. In mixed-voltage automotive systems, the challenge is rarely one isolated line in isolation. The real challenge is maintaining deterministic digital behavior while the surrounding electrical environment is dynamic, high energy, and imperfectly referenced. An isolator built on a robust SiO2 capacitive barrier gives the designer a controlled crossing point between two worlds with different noise spectra, fault exposure, and grounding behavior. Once that boundary is explicit, the rest of the design becomes easier to reason about: power partitioning, EMC containment, transient survival, reset ownership, and functional safety assumptions all become more tractable.

In that sense, ISO7762-Q1 should be evaluated as part of an interface contract. The contract includes barrier integrity, common-mode transient tolerance, fail-safe output behavior, supply independence, and PCB boundary discipline. When those pieces are aligned, the device serves as a clean digital bridge across electrically hostile zones. When they are not aligned, isolation may still exist on paper but the system can remain vulnerable through logic polarity mistakes, power-domain leakage paths, or layout-induced coupling. The most reliable implementations usually come from treating the isolator early as a structural element in the architecture rather than a late-stage signal-routing accessory.

Texas Instruments ISO7762-Q1 Channel Configuration and Signal Direction Arrangement

Texas Instruments ISO7762-Q1 is best understood as a direction-optimized six-channel digital isolator rather than a generic multi-channel barrier device. Its value comes from how the channels are partitioned across the isolation boundary. In many automotive and industrial control paths, signal flow is not symmetrical. Most signals move outward as commands, enables, clocking, or serialized control data, while a smaller set returns as status, fault indication, ready flags, or handshake feedback. The ISO7762-Q1 maps directly onto that pattern with four channels in one direction and two in the reverse direction, which often eliminates the need to combine multiple isolators just to achieve the required signal topology.

The device arranges channels A through D from side 1 to side 2. In practical terms, INA drives OUTA, INB drives OUTB, INC drives OUTC, and IND drives OUTD. Channels E and F are reversed. INE and INF reside on side 2, and their corresponding outputs, OUTE and OUTF, appear on side 1. This is not just a pinout detail. It defines the architectural role the device can play inside an isolated subsystem. Once the barrier orientation is fixed in the schematic, the signal assignment usually becomes intuitive: forward channels carry control intent into the isolated domain, while the reverse channels return observability.

That 4/2 split is especially effective in systems where a controller must supervise a power-referenced or otherwise floating section. A common mapping is four outbound lines for PWM, chip-select, reset, and enable, paired with two return lines for fault and ready. Another recurring use case appears in isolated sensing and actuator modules, where outgoing signals configure or trigger the remote function, while incoming lines confirm state or report abnormal conditions. In these topologies, the ISO7762-Q1 reduces the friction between logical signal grouping and physical component selection. The isolator no longer needs to be treated as a compromise device that is only partially aligned with the interface.

From an engineering perspective, the direction arrangement also affects timing closure and routing quality. A single six-channel isolator keeps all barrier crossings inside one package family, so propagation delay, channel-to-channel skew, and common-mode transient behavior are more controlled than in a mixed solution built from separate parts. This matters when several outbound signals are logically coupled, such as enable plus data, or strobe plus configuration bits. Even when absolute timing margins are generous, using one matched isolator usually produces cleaner timing behavior across process and temperature than stitching together two unrelated devices. That tends to simplify verification because the timing model is more unified.

Layout benefits are equally practical. When four channels share the same transmit direction, routing on the controller side becomes more compact and easier to read. The two reverse channels can then be grouped near the feedback or fault-monitor inputs. This often reduces crossover routing around the barrier and helps preserve a clean partition between noisy switching nodes and logic-domain traces. In dense designs, that kind of directional coherence saves more effort than the raw channel count suggests. It also lowers the chance of late-stage pin-swaps that complicate firmware signal mapping and test documentation.

Another advantage is power-domain clarity. In isolation design, confusion often arises not from signal function but from which side owns the input threshold and which side owns the output loading. The ISO7762-Q1’s mixed-direction structure forces that distinction early in the design. Side 1 sources logic for A through D and receives logic for E and F; side 2 does the opposite. That creates a more disciplined partitioning of controller-domain and isolated-domain responsibilities. In practice, this usually leads to cleaner schematics, fewer net-label mistakes, and a more robust review process, especially when several teams touch the same design database.

Using one six-channel device instead of multiple smaller isolators also improves integration efficiency. Component count drops, placement becomes simpler, and qualification effort is more concentrated. For automotive programs, that consolidation has secondary value beyond board area. It reduces BOM fragmentation, eases sourcing alignment around a single qualified part, and narrows the number of isolation components that must be tracked through change control. Those effects are easy to underestimate during concept design, but they become significant once the design moves into validation, manufacturing transfer, and long-term maintenance.

There is also a less obvious system-level benefit: the fixed 4-forward/2-reverse topology encourages disciplined interface design. When engineers know only two signals are available in the return direction, they tend to reserve them for high-value feedback such as fault aggregation and handshake qualification rather than scattering low-priority observability across the barrier. That usually produces a cleaner protocol. In many cases, one return line can encode health status while the other confirms transaction readiness, which is enough to support deterministic control without wasting isolated bandwidth. This kind of constraint often improves the interface rather than limiting it.

In application terms, the ISO7762-Q1 is a strong fit wherever the isolated boundary separates decision logic from an execution or measurement domain. Examples include microcontroller-to-gate-driver support logic, processor-to-isolated sensor interface blocks, and supervisory control links into floating subsystems. It is less ideal when the channel directions are evenly balanced or when bidirectional data must be dynamically reassigned, because its value depends on the design naturally matching the asymmetric channel map. Selecting it works best when the interface has already been reduced to a stable command-and-feedback structure.

A practical design approach is to assign the four forward channels first to the signals with the strongest timing or safety significance, then allocate the two reverse channels to compressed feedback signals that directly affect control decisions. That mapping usually produces the cleanest architecture. If extra reverse telemetry is desired, it is often better to carry it through a serialized or lower-bandwidth path elsewhere rather than forcing the digital isolator channel plan to become fragmented. In that sense, the ISO7762-Q1 is most effective when treated not just as an isolation component, but as a mechanism for imposing structure on the isolated interface itself.

Texas Instruments ISO7762-Q1 Key Electrical and Switching Performance

Texas Instruments’ ISO7762-Q1 sits in a class of digital isolators intended for systems where isolation cannot be allowed to become the timing bottleneck. Its specified operating range from DC to 100 Mbps is not just a headline bandwidth figure. It defines the region in which the device can reproduce logic transitions across the isolation barrier with controlled delay, bounded distortion, and predictable output behavior over qualified operating conditions. In practice, that matters more than raw Mbps alone. For isolated control links, deterministic switching behavior is usually the parameter that protects system timing closure, not the absolute maximum toggle rate.

The 100 Mbps rating places the device comfortably above the needs of many automotive and industrial control buses, but its real value emerges in short-cycle command paths, synchronized gate-drive signaling, fast fault reporting, and isolated interfaces carrying dense edge activity. In these use cases, the device is not simply passing binary states. It is preserving timing relationships between those states. The note that even higher rates may be achievable is useful, but it should be treated as margin rather than design budget. Once operation moves beyond the guaranteed region, the relevant concern is no longer whether a bit can sometimes cross the barrier, but whether delay, pulse distortion, and jitter remain bounded under voltage, temperature, process spread, and board-level noise.

Propagation delay is one of the most important parameters in that context. The ISO7762-Q1 is specified with a maximum propagation delay of 16 ns for both low-to-high and high-to-low transitions, while typical performance is around 11 ns at 5 V. That symmetry is significant. In high-speed isolated digital links, delay by itself is manageable if it is predictable. Problems begin when one edge type is consistently delayed more than the other, or when delay expands enough across operating corners to compress setup and hold margins. A low, balanced propagation delay makes the device easier to drop into synchronous architectures where edge alignment matters, including isolated SPI clocks, latch signals, inter-processor interrupts, and current-loop protection paths.

From an implementation perspective, the distinction between typical and maximum delay deserves careful handling. Typical numbers are useful for estimating nominal loop response and phase offset, but maximum delay is what should anchor worst-case timing analysis. In designs with multiple isolated channels switching in relation to one another, using only typical values often creates a false sense of timing margin. A more robust approach is to reserve headroom for the full datasheet limit and then treat any better measured behavior as operational margin. This tends to reduce late-stage debug issues, especially in control boards where one path is isolated and another is not.

Pulse width distortion, specified at a maximum of 4.9 ns, adds another layer to the timing picture. This parameter reflects how differently the device handles the leading and trailing edges of a pulse. In narrow-pulse systems, that difference directly changes effective duty cycle after crossing the barrier. For static GPIO isolation this may be irrelevant, but for PWM-associated logic, capture strobes, and encoded status pulses it can be critical. A few nanoseconds of distortion is often acceptable, yet in tightly timed control loops it can accumulate with MCU pin delay, routing asymmetry, receiver threshold variation, and downstream logic delay. The result is that pulse width distortion should be viewed as a system-level duty-cycle error source, not just an isolator characteristic.

The listed rise and fall times, typically 1.1 ns and 1.4 ns, show that the ISO7762-Q1 is optimized to preserve fast digital edges. Fast transition times help maintain timing fidelity because they reduce threshold crossing uncertainty at the receiver. They also support high toggle rates by limiting the fraction of each bit period spent in transition. At the same time, fast edges always bring a tradeoff. They increase high-frequency spectral content, which can aggravate ringing, crosstalk, and radiated emissions if layout is loose. In other words, the isolator can preserve edge integrity only to the extent that the board allows those edges to remain clean. Short return paths, controlled interconnect geometry, disciplined decoupling, and sensible partitioning across the isolation boundary matter just as much as the device itself.

That board-level interaction becomes especially visible in SPI-like interfaces. A 100 Mbps-capable isolator can easily carry SPI clocks and data streams used in motor control, battery management, and sensor front ends. Yet the observed performance often depends less on nominal bandwidth than on skew between clock and data channels, routing mismatch, and the way the receiving device samples near threshold. In repeated lab work, systems that look stable at moderate clock rates can begin failing only at certain bit patterns, not because the isolator is too slow, but because edge placement, trace discontinuity, and receiver aperture align unfavorably. Fast isolators reduce the device contribution to that problem, but they do not eliminate the need for timing-aware PCB implementation.

The supply range of 2.25 V to 5.5 V on both sides of the barrier gives the ISO7762-Q1 useful flexibility in mixed-voltage systems. It can interface naturally with 2.5 V, 3.3 V, and 5 V logic without external level-shifting components, provided both domains remain within the supported range. This is more than a convenience feature. In isolated architectures, removing unnecessary translators reduces propagation uncertainty, saves power budget, and lowers the number of components sitting near a high dV/dt boundary. The result is usually a cleaner and more predictable signal chain.

The input threshold behavior follows the supply on side 1, with logic high recognized from 0.7 × VCC1 and logic low up to 0.3 × VCC1. That ratio-based thresholding is standard CMOS-style behavior, but it has practical implications. It means noise margin scales with supply voltage, and it means the input side should not be treated as universally tolerant to arbitrary logic amplitudes just because the output side can run at a different rail. If one side is at 5 V and the other at 3.3 V, the device can translate logic states across the isolation barrier, but each side still interprets its local logic according to its own supply-referenced thresholds. This distinction matters in systems that combine low-voltage processors with legacy 5 V peripherals or gate-driver logic.

Viewed from a system architecture angle, the device effectively performs two jobs at once: galvanic isolation and logic-domain adaptation. That combination is especially useful in automotive power electronics, where control silicon often operates at 3.3 V while peripheral logic, transceivers, or monitoring circuits may sit at other rails and different ground potentials. In these environments, keeping the isolated interface direct and timing-clean is often preferable to stacking a separate level shifter in front of the isolator. Every additional stage increases uncertainty in edge placement and can complicate fault analysis during transient events.

A more subtle strength of the ISO7762-Q1 is that its switching parameters align well with systems that care about event authenticity rather than just data transport. Rapid fault flags, desaturation warnings, overcurrent indicators, and shutdown commands are often short-lived signals whose value depends on crossing the barrier quickly and without reshaping. A slow or heavily distorting isolator can convert a clean protection pulse into a marginal event at the receiver. With low propagation delay and controlled pulse distortion, this device is better suited to those protection-oriented paths than isolators optimized mainly for low-speed housekeeping signals.

For PWM-related logic, the details become more nuanced. If the isolator is carrying enable signals, sync markers, or coarse timing references, its delay profile is usually straightforward to absorb in firmware or timing tables. If it is used in a path where duty-cycle accuracy affects power stage behavior, then propagation delay matching and pulse width distortion must be considered together with the downstream gate-driver and transistor switching delays. The isolator may not dominate the error budget, but it contributes a fixed part of it. Treating that contribution explicitly early in the design phase usually prevents compensation work later.

One practical lesson is that high-speed isolators should not be selected purely by Mbps rating. A more disciplined comparison starts with four linked parameters: maximum propagation delay, channel-to-channel matching, pulse width distortion, and edge rate. The Mbps number tells whether the device can toggle fast enough. The other parameters tell whether the receiving logic will still interpret the signal correctly under worst-case conditions. In real designs, those second-order timing metrics are often the reason one isolator family behaves predictably while another produces intermittent issues despite similar headline speed.

The ISO7762-Q1 therefore fits best in designs where the isolation barrier must behave like a low-penalty extension of the digital path. Its electrical characteristics indicate a device engineered not merely to survive across an isolation boundary, but to preserve the timing structure of digital signals with relatively little degradation. That makes it a strong option for isolated SPI and GPIO expansion, fast control loops, automotive inverter and converter control signaling, and status paths in electrically noisy domains. When paired with disciplined layout and worst-case timing analysis, its switching performance supports isolation without forcing a major compromise in system responsiveness or logic integrity.

Texas Instruments ISO7762-Q1 Isolation Strength, EMC Robustness, and Safety Certifications

Texas Instruments ISO7762-Q1 is often selected not just as a digital isolator, but as a risk-control component at the isolation boundary. Its value comes from the way three attributes are balanced in one device: reinforced isolation strength, high immunity to aggressive common-mode switching, and a certification set that maps well to regulated automotive and industrial platforms. In practice, these three factors are tightly coupled. Isolation ratings define long-term dielectric integrity, EMC robustness determines whether the interface remains stable in a noisy power environment, and certifications determine how efficiently the part can be carried through product qualification.

At the physical level, the ISO7762-Q1 is built to sustain substantial electrical stress across its barrier. In the DW package, the device provides up to 5000 VRMS isolation per UL 1577, while the DBQ package supports 3000 VRMS. These numbers are not merely checkbox specifications. They indicate how much controlled dielectric stress the barrier can tolerate under standardized test conditions, and they matter most when the isolator is placed between high-energy switching domains and low-voltage control logic. In traction systems, onboard chargers, battery disconnect units, and industrial motor drives, the isolation barrier is repeatedly exposed to fast dv/dt events, surge energy, and long operating lifetimes at elevated temperature. Under those conditions, barrier robustness is less about surviving a one-time hipot test and more about maintaining predictable insulation properties over years of field operation.

That is where the projected lifetime greater than 30 years becomes important. Long-life insulation claims imply that the material system, electric field distribution, and internal spacing have been engineered with time-dependent dielectric stress in mind. This is especially relevant in systems expected to operate continuously or under repetitive switching cycles, where partial degradation mechanisms can accumulate gradually rather than appearing as abrupt failures. A published surge capability up to 12.8 kV further strengthens this positioning. In real power architectures, surge does not always arrive as a clean textbook waveform. It can be coupled through cable harnesses, ground potential shifts, or switching node interactions. A barrier that maintains margin under those events reduces the probability that the isolator becomes the hidden weak point in an otherwise robust high-voltage design.

The common mistake is to view isolation voltage and CMTI as independent specifications. In actual converter systems, they interact. A device can have strong static isolation numbers and still behave poorly if common-mode transients inject enough disturbance into the receiver path to corrupt logic states. The ISO7762-Q1 addresses this with strong common-mode transient immunity: a specified minimum of 85 kV/μs and family-level typical performance up to ±100 kV/μs. This is a meaningful threshold for systems built around SiC or fast IGBT switching, where node slew rates can become severe enough to upset marginal isolators even when average operating voltages remain within limits.

From a mechanism perspective, high CMTI indicates that the internal signaling scheme, comparator thresholds, and barrier coupling method have been designed to reject displacement currents and transient shifts that occur when the two grounds move rapidly relative to each other. In practice, this directly affects pulse integrity, edge placement, and false-toggle resistance. It is most visible in gate-drive related interfaces, current-sense signal paths, encoder links, and isolated SPI/UART style channels routed near high-energy switching loops. Designs that look stable on the bench at low bus voltage often reveal isolator weakness only after bus voltage, load current, and switching speed are increased together. A device with substantial CMTI margin gives more freedom in layout and grounding strategy and usually shortens the debug cycle during inverter bring-up.

EMC ruggedness extends this protection beyond common-mode switching alone. Texas Instruments states that the ISO776x-Q1 family has been strengthened through chip-level and layout-level improvements to enhance ESD, EFT, surge, and emissions performance. That matters because system failures at the isolation boundary are rarely caused by one disturbance type in isolation. Fast bursts, cable discharge events, radiated interference, and local ground bounce often arrive as combined stress conditions. The specified ±8 kV IEC 61000-4-2 contact discharge protection across the isolation barrier, along with HBM of ±6000 V and CDM of ±1500 V, suggests that the device has been engineered for exposure not only in controlled assembly conditions but also in harsh deployment and handling environments.

This kind of EMC robustness has practical consequences at board level. In multi-domain systems, the isolator often sits near connectors, high-voltage spacing boundaries, current sensors, or gate-driver interfaces, which are all regions where transient energy tends to concentrate. Even when the core logic is clean, poor resilience here can trigger intermittent communication errors that are difficult to reproduce. It is common to see failures appear only during EFT testing, motor load transients, or contact discharge events near cable shields. A more rugged isolator reduces those latent failure modes and can lessen the need for excessive external filtering or repeated board spins. That does not remove the need for disciplined layout, but it improves the odds that a sound layout remains robust under certification-level stress.

The certification portfolio is another major reason this family fits regulated designs well. The ISO7762-Q1 includes reinforced insulation certification under DIN EN IEC 60747-17, also referenced as VDE 0884-17, UL 1577 recognition, CSA certification to IEC 62368-1 and IEC 60601-1, CQC certification to GB4943.1, and TUV certification according to EN 62368-1 and EN 61010-1. This breadth is important because isolation components are frequently reused across product variants that target different end markets. A traction-related control board, an industrial controller, and a power conversion subsystem may share similar electrical requirements but face different compliance pathways. A device already backed by a broad certification set reduces the amount of interpretive work needed during safety review and simplifies traceability in the compliance file.

For selection work, the practical value of these certifications is not only formal approval. It is the reduction of uncertainty. Safety assessors usually want clear evidence that the insulation system, test methods, and end-equipment assumptions are aligned. When the isolator already carries recognized approvals across major standards families, documentation flow becomes more straightforward. That typically accelerates hazard analysis, creepage and clearance justification, insulation coordination review, and audit preparation. In development programs with tight schedules, this administrative compression is often as valuable as the electrical performance itself.

Package choice deserves careful attention because it changes the isolation envelope and can influence system integration. The DW package offers the higher 5000 VRMS isolation rating, making it attractive when extra margin is needed for reinforced isolation or when the design must tolerate wider environmental and compliance variation. The DBQ package at 3000 VRMS can still be appropriate in space-constrained architectures where the insulation requirement is lower and the board-level spacing design is tightly controlled. The right choice depends less on headline voltage and more on the full insulation coordination model: working voltage, pollution degree, expected transient overvoltage, altitude, thermal environment, and the certification standard applied to the end equipment.

In high-voltage automotive and industrial systems, the most reliable designs tend to treat the isolator as part of the power-stage architecture rather than as a generic logic interface. That means evaluating it against real switching waveforms, startup and shutdown behavior, fault-induced ground shifts, cable-coupled transients, and compliance test exposure. The ISO7762-Q1 stands out because its published isolation strength, long barrier life, high surge tolerance, strong CMTI, and broad safety recognition align well with that more realistic evaluation model. It is not simply a device that passes isolation tests; it is a device intended to remain stable and defensible when the surrounding system is electrically aggressive and procedurally regulated.

A useful way to frame the part is this: reinforced isolation addresses whether the boundary remains safe, high CMTI addresses whether the signal remains correct, and EMC hardening addresses whether the design remains operational under external stress. The ISO7762-Q1 is compelling because those three conditions are addressed together. For platforms such as EV power electronics, industrial drives, energy conversion equipment, and safety-reviewed control systems, that combination reduces both technical failure risk and qualification friction.

Texas Instruments ISO7762-Q1 Operating Conditions, Supply Range, and Thermal Considerations

Texas Instruments ISO7762-Q1 is designed to operate with independent supplies on each side of the isolation barrier from 2.25V to 5.5V. This is more than a convenience feature. It directly supports mixed-voltage isolation without external translation stages, which simplifies the interface between legacy 5V control domains and newer 3.3V or 2.5V logic domains. In practical designs, this range also provides margin against rail tolerance, regulator drift, and transient sag, all of which become more relevant in automotive platforms where local supplies are often shared with switching loads.

The supply architecture should be viewed as part of the signal integrity strategy, not just a power requirement. Digital isolators are sensitive to rail quality because internal edge encoding and barrier transmission circuits depend on adequate supply headroom. When the supply approaches the lower operating limit, timing margin and output validity during transients become more critical than the nominal voltage number alone suggests. A design that technically meets 2.25V at DC can still behave poorly if the rail dips below the UVLO threshold during burst load events or cold-crank conditions. For that reason, local bypassing, short return paths, and low-impedance decoupling close to each supply pin are often more important than broad bulk capacitance placed elsewhere on the board.

The undervoltage lockout behavior defines how the device enters and exits valid operation. The rising UVLO threshold is specified from 2.0V to 2.25V, while the falling threshold is 1.7V to 1.8V, with 100mV to 200mV hysteresis. That hysteresis is small in absolute terms but extremely valuable in noisy systems because it prevents repeated chatter when the rail hovers near the threshold. In real startup sequences, especially where isolated and non-isolated rails ramp at different rates, this behavior determines whether outputs remain deterministic or briefly transition through invalid states. In practice, the most reliable systems are usually the ones that treat UVLO as a dynamic system event. Instead of assuming that “power good” exists once the nominal rail is present, they verify ramp shape, sequencing order, and transient recovery under worst-case battery and load conditions.

Brownout behavior deserves specific attention. In automotive environments, the supply may not collapse cleanly. It can droop, bounce, recover, and dip again as upstream regulators and protection stages react. Under those conditions, the UVLO falling threshold of 1.7V to 1.8V and the built-in hysteresis help maintain state discipline, but they do not replace system-level supervision. If an isolated control path is safety-relevant, it is usually better to assume that any excursion near UVLO is a loss-of-validity event and handle it explicitly in the controller logic. This avoids subtle faults where the isolator itself survives correctly but the surrounding digital system misinterprets a temporary interruption as a legitimate command transition.

The specified operating temperature range of –40°C to +125°C aligns with automotive Grade 1 expectations and should be interpreted as an electrical performance range, not merely an environmental survival statement. Temperature affects propagation behavior, output drive capability, leakage, and total power dissipation. At elevated temperature, internal losses translate into less thermal headroom because the allowable junction rise above ambient becomes smaller. At low temperature, supplies may ramp more slowly or exhibit different regulator characteristics, which can shift startup behavior in ways that are not obvious during room-temperature validation. Designs that appear stable on a bench supply at 25°C often reveal sequencing or decoupling weaknesses only during cold start or hot soak testing.

Absolute maximum ratings provide the boundary for non-destructive exposure, not a usable design target. A supply limit of 6V, output current from –15mA to 15mA, and storage temperature from –65°C to +150°C indicate what the device can survive, not what it should see during normal service. This distinction matters because repeated operation near absolute maximum values accelerates reliability stress even if immediate failure does not occur. A robust design usually preserves electrical and thermal margin in all directions: supply overshoot stays below the limit during plug-in events, output loading remains comfortably within recommended behavior, and board-level thermal conditions prevent junction temperature from creeping toward its upper boundary during high switching activity.

Thermal behavior is strongly package dependent. For the 16-pin SOIC DW package, θJA is 60.3°C/W. For the 16-pin SSOP DBQ package, θJA is 86.5°C/W. That difference is large enough to affect package choice in compact control modules, sealed enclosures, or multi-isolator layouts. The lower θJA of the DW package means it converts the same internal power into a smaller junction temperature rise. In other words, it buys thermal margin without changing the schematic. This becomes important when the isolator is placed near processors, gate drivers, or DC/DC converters that already elevate local ambient temperature. Package selection in this case is not only a mechanical decision. It is often an indirect method of improving timing stability and long-term reliability.

A simple first-pass junction temperature estimate can be made with Tj ≈ Ta + Pd × θJA. Using the provided total maximum power dissipation of 314mW, the estimated rise is about 18.9°C in the DW package and about 27.2°C in the DBQ package. In a 105°C local ambient region, that projects to roughly 124°C junction for DW and 132°C for DBQ under the stated stress condition. This does not replace detailed thermal modeling, because board copper, airflow, and nearby heat sources can shift the result significantly, but it shows why package thermal resistance quickly becomes a practical design parameter rather than a datasheet footnote. In tightly packed modules, the thermal delta between these packages can be the difference between acceptable margin and sustained operation at the edge.

The published power dissipation condition is specific: 5.5V supply, 15pF load, and a 50MHz square-wave input at 50% duty cycle. Under that case, total maximum power is 314mW, split as 122mW on side 1 and 192mW on side 2. That asymmetry is useful because it reveals that power is not always distributed evenly across the barrier. Side 2 dissipates more under the stated dynamic condition, so thermal concentration may not align with intuition if the layout treats both sides as equivalent. This also implies that board copper placement and local thermal spreading can be optimized more effectively when the dissipation profile is understood per side rather than only at the device total.

These power numbers should be interpreted as switching-dependent, not static constants. Digital isolator power generally scales with supply voltage, channel activity, data rate, output loading, and edge density. A channel carrying a slow status signal contributes very differently from one forwarding a continuous clock or PWM-like waveform. In real systems, the average thermal load is often determined by a small subset of high-toggle channels rather than the channel count alone. That is why early thermal budgeting should classify channels by activity profile instead of assuming uniform switching. This usually leads to more accurate results and often prevents unnecessary overdesign on low-activity paths while highlighting genuine hot spots on high-frequency links.

Board implementation can shift thermal performance noticeably. Wider copper under and around the package lowers effective thermal resistance. Short traces reduce parasitic loading and unnecessary dynamic current. Clean return paths reduce switching noise that can otherwise increase apparent instability near UVLO or under temperature stress. It is also good practice to avoid placing the isolator immediately adjacent to components that create localized hot zones, such as power inductors or linear regulators dropping significant voltage. Even when total board ambient seems acceptable, a few square centimeters of elevated local temperature can materially change junction conditions.

From a system perspective, the most important design habit is to connect supply range, UVLO behavior, and thermal performance into a single operating model. These are not separate checklist items. A hot device has less margin to absorb supply disturbances. A noisy startup event can coincide with maximum switching activity. A compact package can turn an otherwise acceptable power profile into a junction-temperature problem once mounted in a sealed enclosure. The strongest designs are usually the ones that validate these interactions together: minimum and maximum supply, worst-case activity, real load capacitance, hot ambient, and non-ideal sequencing. For ISO7762-Q1, that integrated view is what turns datasheet compliance into production-grade robustness.

Texas Instruments ISO7762-Q1 Pinout, Package Options, and Board-Level Integration

Texas Instruments ISO7762-Q1 is a six-channel automotive-grade digital isolator offered in 16-pin SOIC and SSOP package variants, and its package choice directly affects both mechanical integration and isolation-oriented PCB execution. The device is commonly referenced in the DW wide-SOIC option and the DBQ SSOP option. For the DW package, the nominal body size is 10.30 mm × 7.50 mm. For the DBQ package, the body is listed at 4.90 mm × 3.90 mm, with a 6.00 mm family-table package reference that is useful when comparing footprint classes across related devices. The product summary for the specific variant discussed here identifies a 16-pin SOIC body width of 0.295 inches, equivalent to 7.50 mm. That dimension matters because body width, lead geometry, and pad escape routing all influence how easily the isolation boundary can be preserved on the board.

The pinout is structured to make the two galvanically isolated domains explicit. VCC1 and GND1 belong to side 1. VCC2 and GND2 belong to side 2. This separation is not just schematic convenience. It is the first layer of isolation control. A well-drawn symbol and a well-partitioned floorplan reduce the risk of accidental copper bridging, mixed return-current paths, or test-point placement that degrades margin. In review cycles, this split-domain arrangement also makes it easier to verify whether each side is powered, bypassed, and routed as an independent switching reference region rather than as a loosely separated logic block.

The signal allocation follows a 4-forward and 2-reverse channel arrangement. In practical system terms, that mapping fits many isolated communication patterns where a controller transmits multiple command or modulation lines across the barrier while receiving a smaller number of status, fault, or handshake signals in the reverse direction. The value of this arrangement is often underestimated at the schematic stage. It can reduce logic glue, simplify net grouping, and align naturally with gate-driver interfaces, isolated SPI-like sideband signaling, or mixed command-feedback links in traction, inverter, battery-management, and industrial control designs. When the directional grouping matches the application, routing becomes cleaner and the isolation partition becomes easier to maintain without trace crossover or unnecessary via transitions near the barrier.

Board-level integration is where package selection and pinout structure begin to matter more than the channel count itself. The family documentation includes layout guidance and example implementations because isolator performance is strongly shaped by parasitics external to the IC. An isolator may meet robust electrical specifications in the datasheet, but the realized immunity on the board depends on how effectively the layout prevents electric-field coupling, common-mode injection, and return-path distortion. In high-dV/dt systems, the isolation barrier inside the package is only one part of the problem. The PCB creates a second, often less controlled, coupling path if the placement and routing are not disciplined.

Creepage and clearance must be treated as system-level constraints rather than as package-only attributes. The package provides a defined physical separation, but the board can easily compromise it. Copper pours, silkscreen overlap, stitching vias, fiducials, and even test pads placed too close to the barrier can reduce practical isolation robustness. A reliable layout usually begins by drawing an explicit keep-out corridor aligned with the package isolation gap and extending that corridor through surrounding copper layers as needed. This makes the isolation boundary visible not only in the top-layer view but throughout the stackup, where hidden coupling paths often appear.

Return-current control is equally important. Each side of the isolator should have its own compact high-frequency loop formed by the local supply pin, decoupling capacitor, and ground reference. The bypass capacitor should sit close to VCC1-GND1 and VCC2-GND2 respectively, with short and low-inductance connections. That placement is not just good general practice. It reduces local supply bounce, limits edge distortion, and prevents transient current from spreading into larger planes where it can excite common-mode noise. In designs that switch fast power stages nearby, a few extra millimeters of decoupling loop length can noticeably worsen overshoot and susceptibility.

Noise coupling across the barrier is often dominated by geometry more than by logic function. Parallel routing of aggressive switching nodes near the isolator can capacitively inject disturbance into the isolated side even when the schematic appears correct. A strong layout usually keeps high-dV/dt nets, such as switch-node traces, gate-drive loops, phase outputs, or transformer primary edges, physically distant from the isolator body and from the barrier corridor. If routing density forces proximity, the next best move is to minimize broadside overlap across layers and avoid long parallel exposure. Small geometric changes can reduce coupling more effectively than adding filtering later.

Ground partitioning should be clean but not decorative. Side 1 ground and side 2 ground must remain electrically independent except through the intended isolation mechanism. At the same time, each ground region should be locally solid enough to provide predictable return paths. A fragmented or slot-heavy copper shape can increase impedance and create unintended resonances. The best results usually come from treating each side as a compact local reference island with minimal loop area, then placing the isolator exactly at the interface between those islands. This creates a layout that is easy to inspect and behaves consistently during EMC testing.

Package choice also affects manufacturability and margin. The wider SOIC option generally provides more routing room, clearer visual separation across the isolation boundary, and a more forgiving layout window in noisy designs. The smaller SSOP option can help in space-constrained modules, but the reduced dimensions tighten escape routing and can make isolation-aware placement more sensitive to nearby copper and component crowding. In dense automotive boards, that tradeoff is real: a smaller package may save area locally while increasing effort to preserve EMI robustness globally. For that reason, package selection should be made with the surrounding field environment in mind, not only with BOM or placement density targets.

A recurring integration pattern is to place the ISO7762-Q1 so that side 1 faces the low-noise controller domain and side 2 faces the higher-energy field domain, with the isolation barrier aligned to a physical split in placement zones. This orientation reduces routing ambiguity and often improves review quality because domain ownership becomes obvious. When the isolator is rotated merely to shorten one trace group, the result can be a visually compact layout that performs worse under transient stress due to mixed field exposure and awkward return loops. Readability in the layout is not cosmetic; it is often a strong predictor of electrical robustness.

For validation, it is useful to inspect not only nominal operation but also behavior under fast transients, supply perturbation, and asymmetric loading between the two sides. Isolators in automotive and industrial systems rarely fail in static conditions. Weaknesses usually emerge when one domain is switching hard, the other domain is lightly loaded, and ground-reference movement stresses the common-mode immunity window. Layouts that appear acceptable in standard logic tests can show intermittent faults during burst noise, surge-related events, or converter startup. This is why disciplined partitioning, short decoupling paths, and conservative barrier routing pay off early.

The ISO7762-Q1 pinout and package options are therefore best viewed as part of an isolation architecture rather than as simple mechanical data. The two-domain supply structure, the 4-forward/2-reverse channel organization, and the available SOIC and SSOP footprints together define how cleanly the device can be embedded into a real switching system. The strongest implementations usually come from a straightforward rule: let the package define the barrier, let the pinout define the domain flow, and let the PCB preserve both without compromise.

Texas Instruments ISO7762-Q1 Typical Automotive and Industrial-Oriented Use Scenarios

Texas Instruments positions the ISO7762-Q1 family for systems in which low-voltage control electronics must exchange digital signals with power domains that operate at substantially different ground potentials. This is a common pattern in automotive and industrial power conversion, especially in hybrid and electric powertrains, battery management systems, onboard chargers, traction inverters, DC/DC converters, and starter-generator subsystems. Across these applications, the core problem is not simply signal transfer. The real challenge is preserving timing fidelity, logic-state integrity, and safety margin while the two domains are separated by large common-mode transients, switching noise, surge events, and sustained voltage isolation requirements.

The ISO7762-Q1 fits this problem because it is not just an isolator in the abstract. Its 4-forward/2-reverse channel arrangement maps well to the signal asymmetry that appears in many control topologies. In practical power electronics, more information usually flows from the controller toward the power stage than in the reverse direction. The controller needs to issue enable commands, PWM-related timing signals, reset lines, mode selections, and configuration states. The isolated side often returns fewer signals, typically fault indication, power-good, ready, interlock status, desaturation response, or limited diagnostic feedback. That asymmetry is structural, not incidental, and devices with the right directional balance reduce routing waste, simplify channel assignment, and avoid overprovisioning.

A representative implementation is the isolated interface between a microcontroller or gate-control logic block and a floating power-stage subsystem. In a traction inverter or high-voltage DC/DC stage, the logic controller usually resides in a relatively quiet low-voltage domain, while the switching devices operate in a noisy electrical environment with rapid dv/dt and significant ground movement. The isolator becomes the digital bridge across that barrier. Forward channels can carry PWM, shutdown, reset, and state-control signals into the isolated section. Reverse channels can report fault latch status, overcurrent response, thermal protection events, or subsystem readiness. In this role, propagation characteristics matter as much as isolation strength. If delay is too high or channel-to-channel skew is poorly controlled, switching margins narrow, dead-time management becomes less predictable, and fault-response behavior can drift away from what the control algorithm expects.

This is where the device characteristics need to be understood from the mechanism upward. Reinforced isolation addresses safety and long-term electrical separation. High common-mode transient immunity addresses dynamic survivability when the local reference on one side of the barrier moves rapidly relative to the other. Fast propagation behavior addresses control-loop timing and event determinism. These three attributes are often discussed separately, but in real designs they interact. A power converter can meet static isolation requirements and still fail functionally if transient coupling corrupts logic edges. It can also survive noise but still underperform if digital delays are inconsistent enough to disturb switching coordination. The stronger design approach is to treat isolation, noise immunity, and timing integrity as one combined interface problem rather than three independent checkboxes.

Battery systems provide another strong match. In battery management and energy conversion subsystems, it is common to send multiple command and control lines into an isolated analog front-end, balancing circuit, contactor driver block, or local actuation stage, while receiving only a smaller set of status outputs. The 4/2 directionality aligns naturally with that command-heavy flow. These environments are often electrically deceptive. They may appear quieter than traction inverters at first glance, but they still experience fast switching edges from nearby converters, cable-induced common-mode disturbances, and substantial ground offsets during fault or load-transition conditions. Under those conditions, high CMTI is not a luxury parameter. It directly affects whether the interface remains transparent to the controller or becomes a source of intermittent state errors that are difficult to reproduce on the bench.

In onboard chargers and isolated DC/DC converters, the same logic applies at a different system level. The controller may need to coordinate precharge, soft-start, synchronous rectification timing, relay or contactor sequencing, fault reset, and operating mode selection across an isolation boundary. Feedback in the opposite direction is usually narrower: fault, ready, zero-cross indication, or housekeeping status. Since these power stages often combine high switching frequency with large voltage excursion, the isolator must hold logic thresholds stable while the environment changes quickly around it. A frequent weakness in these architectures is not catastrophic failure but subtle digital mistriggering during edge conditions such as startup, line disturbance, load step, or abnormal shutdown. Devices chosen only on channel count and nominal isolation rating can pass basic validation yet still create field instability when the actual switching environment becomes harsher than the lab setup.

The ISO7762-Q1 is also relevant in starter-generator and motor-drive support circuitry, where rotational systems produce electrically noisy operating envelopes and multiple subsystems may float relative to one another. In these applications, an isolator often acts as a boundary enforcer between decision-making logic and energy-processing hardware. That role has architectural value beyond signal transmission. It helps partition fault domains, constrain noise propagation paths, and keep low-voltage computational resources from being directly exposed to disturbances generated by the power stage. A well-placed digital isolator often improves the whole control partitioning strategy, especially when paired with disciplined return-path management and isolated bias supplies.

Texas Instruments also notes broader use in isolated communication-side architectures such as CAN, LIN, or other digital interfaces when used with isolated power. That should be interpreted carefully. The ISO7762-Q1 is a general-purpose digital isolator, not a protocol-specific transceiver. Its value here lies in digital partitioning. It can isolate logic-level control and status lines around a bus interface, support segmented grounding strategies, or form part of a larger isolated communications module when the actual line transceiver function is implemented elsewhere. This distinction matters because protocol isolation is not achieved by digital isolation alone. Signal integrity, bus common-mode behavior, EMC constraints, and fail-safe line characteristics still depend on the transceiver and surrounding network design. The isolator is one layer in that stack, not the entire solution.

From an engineering integration standpoint, the most effective use of the ISO7762-Q1 comes from matching it to signal topology rather than dropping it in as a generic isolation part. The first step is to classify which signals truly need galvanic isolation, which ones are timing-critical, and which ones can tolerate additional latency. The second step is to map signal directionality against the 4-forward/2-reverse structure so the isolator reflects the actual control hierarchy. The third step is to evaluate the barrier not only against steady-state voltage but also against repetitive transient stress from the converter or motor-drive environment. In practice, interfaces that look robust in static schematics often become fragile because common-mode current paths through layout parasitics, decoupling placement, and return-loop geometry were underestimated.

Layout and supply treatment strongly influence real-world performance. Even with a high-CMTI isolator, poor local bypassing, excessive loop area on fast digital traces, or loosely controlled reference stitching can degrade edge quality and increase susceptibility to false transitions. On the isolated side, the local supply must remain stable during fast transients, especially if it also feeds downstream logic or gate-drive support circuitry. It is often useful to think of the isolator as a timing-sensitive mixed-field component rather than a pure logic device. It sits at the intersection of digital state transfer, electric-field stress, and power-domain separation. Designs become more robust when that perspective drives placement, decoupling, and routing decisions early rather than after EMC issues appear.

A subtle but important advantage of using a device like the ISO7762-Q1 in automotive and industrial platforms is diagnostic clarity. When control and power domains are cleanly partitioned through a defined digital isolation barrier, fault localization improves. Status signals crossing back through the reverse channels can be structured to reflect power-stage state, local protection response, and readiness with less ambiguity. This tends to simplify startup sequencing, fault-tree design, and service diagnostics. In larger systems, that clarity can be more valuable than an isolated link’s raw electrical specification because it reduces uncertainty at the system-integration level.

The strongest application fit, then, is not merely any system that needs six isolated digital channels. It is a system with asymmetric command-and-feedback flow, strong noise exposure, meaningful timing requirements, and a need for clean architectural separation between low-voltage intelligence and high-energy execution. In that space, the ISO7762-Q1 serves as an efficient interface element for translating control intent across an electrical barrier without letting the barrier become a functional bottleneck.

Texas Instruments ISO7762-Q1 Selection Considerations Within the ISO776x-Q1 Family

Texas Instruments ISO7762-Q1 should be selected as a member of the ISO776x-Q1 family, not as a standalone device. That framing matters because the family was built on a common isolation architecture, common automotive qualification target, and the same high-level signaling behavior. In practice, this means the primary selection variable is usually not core performance capability, but signal topology across the isolation barrier.

The ISO776x-Q1 family includes ISO7760-Q1, ISO7761-Q1, ISO7762-Q1, and ISO7763-Q1. All four devices implement six digital isolation channels and are positioned for automotive systems that need robust galvanic isolation with similar integration style and similar system-level design assumptions. Since the internal technology base is aligned, design migration within the family is generally far easier than changing to a different isolator series with a different timing profile, package geometry, default-state behavior, or compliance envelope.

The first design step should be a barrier-level signal inventory. Instead of starting from part number familiarity, start from channel directionality. That is the real discriminator in this family:

ISO7760-Q1: six forward channels

ISO7761-Q1: five forward, one reverse

ISO7762-Q1: four forward, two reverse

ISO7763-Q1: three forward, three reverse

In this context, “forward” and “reverse” only become meaningful after defining side assignment in the system. That side assignment should be fixed early. If the controller sits on side 1 and the isolated gate driver, sensor interface, or communications endpoint sits on side 2, then every command, status, fault, handshake, and diagnostic line should be mapped explicitly before device selection. The ISO7762-Q1 becomes the cleanest fit when the architecture requires four signals in one direction and two in the return direction. Typical examples include command-heavy interfaces with a smaller number of feedback or fault-reporting lines.

This is more important than it may appear during schematic capture. Signal-count mistakes across an isolation barrier often surface late, usually after diagnostics, safety hooks, or manufacturing test access are added. A design that originally looked like a five-plus-one arrangement can quietly turn into a four-plus-two arrangement once a ready signal, watchdog response, or fault acknowledge line is inserted. In those cases, moving from ISO7761-Q1 to ISO7762-Q1 is usually much less disruptive than reworking around a different isolator family. Pin compatibility still needs to be verified carefully, but the migration path is typically more controlled because the electrical behavior remains conceptually aligned.

A useful selection habit is to classify isolated signals into three groups before choosing the part: deterministic control outputs, asynchronous status returns, and noncritical observability signals. That exercise often reveals that some lines assumed to be required across the barrier can be collapsed, multiplexed, or handled differently. It also helps prevent wasting reverse channels on low-value telemetry while running out of channels for safety-relevant returns. In many systems, the best use of the two reverse channels in ISO7762-Q1 is not “whatever is left,” but the two signals that most strongly close the control loop across the barrier, such as fault and ready, or fault and interrupt.

Package choice is the second major selection factor, and it should be treated as an insulation decision, not merely a footprint decision. Within the ISO776x-Q1 family, the DW package supports a higher isolation rating than the DBQ package. That difference has direct implications for compliance margin, creepage and clearance strategy, and long-term robustness expectations under automotive transients and environmental stress. If the project has formal insulation coordination requirements, package selection should be made only after reviewing the required working voltage, transient overvoltage environment, applicable standards, and board-level spacing constraints.

Board area and thermal preferences still matter, but they should come after insulation fit. A smaller package can look attractive during layout optimization, yet become the wrong choice if the final system safety review demands more insulation margin or easier certification alignment. This tradeoff becomes especially visible in platforms shared across vehicle variants, where one PCB may serve multiple end applications with different voltage domains. Choosing the package with more insulation headroom early can reduce later redesign pressure, especially when requirements evolve from prototype assumptions to production documentation.

Another practical point is that package-dependent isolation capability must be interpreted together with PCB implementation quality. The device rating is only part of the barrier story. Contamination, solder flux residue, conformal coating behavior, slotting strategy, and nearby high-field copper all influence the effective robustness of the isolated interface. In dense automotive layouts, it is easy to preserve the device footprint requirements while unintentionally degrading the electric-field environment around the barrier. The part may be correct, yet the implementation may still lose margin. That is why package choice should be reviewed together with stack-up, spacing rules, and placement constraints rather than in isolation.

From a system architecture perspective, ISO7762-Q1 is often the most balanced option in the family. Many real interfaces are not purely unidirectional, but they are also not symmetric. Control signals usually dominate in one direction, while only a small number of confirmation, fault, or synchronization signals need to come back. Four-plus-two matches that pattern well. It avoids the overconstrained routing of a five-plus-one part when two return paths are actually needed, and it avoids consuming a more symmetric three-plus-three arrangement when the third reverse channel adds no real value. That balance can simplify both channel budgeting and software assumptions around isolated feedback.

Timing and behavior consistency across a common family also matter more than part-count tables suggest. When isolators share a technology platform, validation effort tends to scale more predictably. The receive-side logic thresholds, propagation-delay class, and general operating model are less likely to introduce surprises when swapping channel-direction variants. This can reduce the amount of re-characterization needed during design iteration. It also helps preserve system-level assumptions in interfaces where edge timing, startup sequencing, and fault signaling are already tightly reviewed.

For that reason, one effective design strategy is to choose the family first, then choose the direction variant, then choose the package. That sequence reflects actual engineering risk. Family selection determines the isolation mechanism and electrical personality. Direction variant determines whether the signal map is structurally correct. Package selection determines whether the implementation meets insulation and mechanical constraints with enough margin. Reversing this order often leads to suboptimal decisions, such as locking into a compact footprint before verifying the required barrier rating or forcing awkward signal reassignment to fit a channel arrangement that was never a good architectural match.

The strongest case for ISO7762-Q1 appears in systems where the barrier separates a command source from an intelligent endpoint that must return more than a single health bit. Motor-control subsystems, isolated actuator control, battery-management subfunctions, and mixed command/diagnostic interfaces often fit this pattern. In these designs, two reverse channels are frequently enough to maintain robust state visibility without paying the routing and resource cost of a more bidirectional part. That makes ISO7762-Q1 a pragmatic middle point in the family, and often the variant that best absorbs late-stage requirement growth without forcing a platform shift.

Texas Instruments ISO7762-Q1 Potential Equivalent/Replacement Models

Texas Instruments ISO7762-Q1 replacement selection is best approached as a constraint-matching exercise, not a simple part-number swap. The most practical equivalents are usually found inside the ISO776x-Q1 family itself, because these devices share the same architectural baseline: six-channel automotive-qualified digital isolation, high data-rate capability, reinforced isolation options, and similar EMC-oriented positioning. In most designs, the real substitution variable is not the isolation technology but the channel-direction map, fail-safe behavior, and package-linked insulation capability.

The ISO7762-Q1 sits in a specific signal-partition niche. Its value comes from supporting a 4-forward/2-reverse channel arrangement, which typically aligns with isolated control paths that send multiple outbound PWM, enable, or SPI-related signals while returning a smaller number of status or fault indications. When evaluating alternatives, the first task is to redraw the actual signal flow rather than compare only package pins or channel count. In practice, many redesign efforts reveal that the original channel allocation was conservative, and one or more return channels were reserved for optional diagnostics that never became mandatory. That detail often opens the door to a cleaner family substitute.

ISO7760-Q1 is the closest replacement when all six channels are required in the same direction. It is not merely a “similar part”; it is a better structural fit for systems with strongly asymmetric communication flow. Typical examples include isolated gate-drive control expansion, digital output fanout, or sensor-side serialization where nearly all traffic moves from controller to isolated domain. In these cases, using ISO7760-Q1 can simplify routing and remove unnecessary direction reversals that otherwise force awkward net reassignment. The practical advantage is usually not electrical performance alone but PCB clarity, easier signal grouping, and lower risk of cross-domain wiring mistakes during layout or validation.

ISO7761-Q1 becomes the more appropriate alternative when the design needs five channels in one direction and one in the opposite direction. This substitution is often relevant in systems that initially budgeted two return paths but later reduced feedback complexity. A common pattern appears when one fault line is retained while a second telemetry or ready-status signal is absorbed into another interface or eliminated in firmware. In that scenario, ISO7761-Q1 provides a tighter fit to the real interface map. That kind of optimization matters because unused reverse channels are not free in a design sense; they consume routing attention, documentation effort, and sometimes create ambiguity during board bring-up when test teams attempt to reconcile schematic intent with actual signal use.

ISO7763-Q1 is the best-aligned family alternative when the architecture is more balanced and requires a 3-forward/3-reverse split. This is often the right choice in control loops with symmetrical command and feedback exchange, such as isolated peripheral interfaces, bidirectional supervisory links, or partitioned processing nodes that exchange several timing-critical digital states in both directions. From a system perspective, this device is often preferable when isolation is not just a protection boundary but also an organizational boundary between two logic domains with comparable signaling weight. Designs with balanced directionality usually benefit from cleaner connector definitions and more intuitive channel grouping when mapped onto ISO7763-Q1.

One subtle but important replacement dimension is default output behavior under fault conditions. The broader family includes suffix-F variants, where the output default state changes from logic-high to logic-low when input power is lost or the input signal path is absent. This parameter is easy to overlook because it does not affect normal functionality, yet it can strongly influence system-level safety behavior. In an enable chain, reset tree, or gate-control path, the difference between default-high and default-low determines whether the isolated side enters a permissive or inhibited state during brownout, startup skew, or cable-open conditions. The safest replacement choice is therefore the one that preserves the original system reaction to partial power loss, not simply the one that matches channel count.

That point becomes especially critical in automotive and industrial control boards where isolation channels are embedded into functional interlocks. A replacement that inverts the practical fail-state may still pass basic bench testing while creating edge-case risk during sequencing events. Experience shows that these mismatches often surface late, typically during cold-start testing, undervoltage sweeps, or EMC stress runs, because those are the moments when domains stop powering up in ideal order. For that reason, output default state should be reviewed alongside directionality at the very beginning of the replacement study, not treated as a procurement-side detail.

Package selection also requires deeper scrutiny than a footprint check. The DW and DBQ package variants are not interchangeable in a purely mechanical sense because the insulation specifications differ with package form. That means a package change can affect creepage, clearance, qualification margin, and the documented isolation rating available to the end product. In high-voltage or safety-critical designs, this is not a secondary issue. The package is part of the isolation system. A sourcing-driven substitution from one package family to another may force revalidation of insulation coordination, board spacing strategy, coating assumptions, and even enclosure-level pollution degree margins.

This is where replacement decisions often become engineering tradeoffs rather than component substitutions. If the board has already been optimized around a given creepage strategy, a nominally similar isolator in a different package may introduce more downstream work than it saves. Layout escape, keep-out rules, slotting decisions, and test-point placement can all shift once the package geometry changes. In dense automotive modules, even a small package-driven reroute near the isolation barrier can alter coupling behavior enough to affect EMC margin. The better practice is to treat package choice, isolation rating, and board-level compliance as one linked decision set.

For sourcing teams, the most efficient screening method is to rank candidates in this order: channel direction, fail-safe output state, package/insulation class, then secondary electrical details such as timing skew, common-mode transient immunity margin, and power consumption. That order reflects how substitutions tend to fail in real programs. Timing and current are usually straightforward to compare and often remain family-consistent enough to manage. Direction errors, fault-state mismatches, and insulation-spec changes are the issues that trigger schematic rework, software patches, or qualification delays.

From a design robustness standpoint, the strongest replacement is usually the one that minimizes hidden assumptions. If a candidate forces signal renaming, changes startup behavior, or requires reinterpretation of isolation compliance, it is no longer a true equivalent even if the core device class matches. Within the ISO776x-Q1 family, the cleanest alternatives to ISO7762-Q1 are therefore application-dependent: ISO7760-Q1 for 6/0 directionality, ISO7761-Q1 for 5/1, and ISO7763-Q1 for 3/3. Each can serve as a credible substitute, but only when the signal-flow model, fault response, and package-level insulation requirements are rechecked as a complete system.

The key insight is that digital isolator replacement should be driven by interface architecture, not by family proximity alone. The ISO776x-Q1 family makes substitution relatively manageable because the devices are clearly segmented by channel direction. Even so, the highest-quality replacement decision comes from validating how the isolation barrier behaves during abnormal conditions and how the package participates in the insulation strategy. Once those two aspects are confirmed, the family alternatives become much easier to compare and much safer to deploy in production.

Conclusion

The Texas Instruments ISO7762-Q1 is a six-channel reinforced digital isolator built for systems that cannot tolerate ambiguity at the isolation boundary. It targets designs that require fast digital transfer across high-voltage domains while maintaining timing integrity under strong electrical stress. The 4-forward/2-reverse channel topology is a practical fit for control architectures where most signals travel from a logic controller to a power stage, while a smaller set of return channels carries status, fault, or handshake information. That asymmetry appears frequently in traction inverters, onboard chargers, battery disconnect units, and isolated gate-drive support logic, so the channel map is not just a datasheet detail; it often determines whether the isolator drops cleanly into the signal architecture or forces additional logic and routing overhead.

At the device level, the value of the ISO7762-Q1 comes from how it balances speed, insulation strength, and noise immunity rather than maximizing only one parameter. A data rate up to 100 Mbps gives enough margin for fast PWM-related control signals, SPI-style isolation links, resolver interface support logic, and tight feedback exchange between controller and power domains. Low propagation delay matters just as much as raw throughput. In power-conversion systems, timing skew is often the real limiter because it directly affects sampling alignment, fault response latency, and deterministic control behavior. A device that is nominally fast but inconsistent under voltage or temperature drift can destabilize an otherwise solid design. The ISO7762-Q1 is attractive because it addresses the full timing problem, not only the headline bit rate.

Its reinforced isolation barrier is another central reason it is selected for automotive and industrial-grade power electronics. In the DW package, the device provides 5000 VRMS isolation, which supports use cases where the isolation boundary must survive not only normal operating voltage differences but also surge events, long service life, and regulatory scrutiny. In practice, reinforced isolation reduces architectural complexity because the barrier can satisfy functional and safety separation requirements without stacking multiple components to create equivalent protection. That simplification has second-order benefits: fewer components in the signal path, less accumulated timing uncertainty, and fewer PCB creepage compromises around dense control boards.

Common-mode transient immunity is often where digital isolators prove their worth or fail silently. In fast-switching SiC and IGBT systems, voltage slews can be extreme, and the isolator must preserve logic state while the local ground reference is moving aggressively. High CMTI is not just a robustness metric for the lab; it is the difference between stable field behavior and intermittent fault flags that appear only during edge conditions such as high load, regenerative transitions, or thermal drift at elevated bus voltage. Designs that look clean at low switching energy can become fragile once layout parasitics, current loops, and dv/dt rise into the real operating range. A device like the ISO7762-Q1 helps absorb that transition from schematic confidence to hardware reality because its barrier and signaling scheme are built for electrically hostile environments.

The supply range of 2.25 V to 5.5 V adds another practical advantage. Modern control boards often mix voltage domains: low-voltage MCUs or FPGAs on one side, legacy logic or gate-drive support circuits on the other. A wider supply range reduces the need for glue logic or level-shifting around the isolator, which keeps latency and failure modes under control. This becomes especially useful during platform reuse, where one controller generation may migrate from 5 V-tolerant logic to 3.3 V or lower while the power-stage support circuitry remains unchanged. Components that span those transitions cleanly tend to survive multiple design cycles.

EMC robustness is another area where this device aligns well with demanding deployments. Barrier-level IEC ESD capability and strong transient tolerance are not simply checklist features. They reduce sensitivity during manufacturing handling, module integration, and service events, and they lower the chance that the isolator becomes the weak point in an otherwise hardened design. In dense automotive power electronics, isolation components often sit near switching nodes, connectors, current sensors, and gate-drive loops. Under those conditions, immunity margins disappear faster than expected if the PCB stackup, reference return paths, and decoupling strategy are not disciplined. An isolator with strong intrinsic resilience gives more room to absorb unavoidable imperfections in packaging and layout.

AEC-Q100 qualification and relevant safety certifications make the ISO7762-Q1 easier to justify in automotive programs, but the deeper point is consistency across qualification, compliance, and application stress. Many components can satisfy the functional need for isolated signaling on paper. Fewer remain predictable across temperature extremes, repetitive transients, and production variation. In vehicle platforms, predictability is often more valuable than peak performance because validation effort scales with uncertainty. Devices with mature qualification and clear insulation credentials tend to shorten integration cycles, especially when they sit on safety-relevant communication paths such as fault reporting, enable control, and isolated sensor interfacing.

From a system selection standpoint, the first decision is the channel direction map. The 4/2 arrangement is efficient when the control flow is dominant in one direction, but it should be checked against real signal ownership rather than block-diagram assumptions. It is common for initial concepts to underestimate reverse-path needs once diagnostics, watchdog returns, ready signals, desaturation flags, or redundant feedback lines are added. If the reverse channel count is marginal at concept stage, it usually becomes insufficient by validation. Leaving headroom here prevents awkward redesign later.

The second decision is package and insulation fit. Isolation rating should be matched not only to nominal bus voltage but also to transient environment, creepage targets, pollution assumptions, and the product’s safety case. The isolator cannot compensate for a PCB that compresses clearance distances or routes noisy copper too close to the barrier. In practice, isolation performance is a component-plus-layout property. Good results usually come from treating the barrier region as a controlled mechanical and electromagnetic zone: keep crossing capacitance low, avoid unnecessary copper overlap, place decoupling close to each supply pin pair, and maintain clean return paths on both sides of the isolation boundary.

The third decision is fail-safe behavior. The default-high output state during input loss or open-input conditions must align with the system’s safety logic. This point is often treated as minor until fault-tree analysis starts. A default-high behavior can be ideal in some status-reporting paths and problematic in enable paths, depending on how downstream logic interprets the state. It is better to resolve that interaction early than to correct it later with inversion logic, pull networks, or firmware workarounds. Once fault handling becomes distributed across isolated domains, every default state begins to carry architectural weight.

In application terms, the ISO7762-Q1 fits especially well in EV and HEV subsystems where digital isolation must coexist with fast power switching and long operational life. In traction inverter control, it can separate low-voltage processing from high-noise gate-drive or phase-monitoring circuitry while maintaining deterministic command flow. In onboard chargers and DC-DC converters, it supports isolated control and feedback paths between primary and secondary control domains. In battery management and battery disconnect units, it can isolate status and command signals across sections with different potential references, especially where fault containment and signal integrity both matter. It is also effective in auxiliary isolated interfaces that support power modules, contactor control, current sensing chains, or redundant supervision channels.

One useful design instinct with this class of isolator is to view it as part of the timing architecture, not just the safety boundary. Isolation devices influence skew budgets, startup sequencing, fault propagation, and debug visibility. When that perspective is applied early, the resulting system is usually cleaner: fewer compensating delays in firmware, less ambiguity during brownout events, and more disciplined partitioning between noisy and quiet domains. The ISO7762-Q1 supports that style of design because it combines speed, reinforced insulation, and automotive-grade robustness in a form that maps well onto real power-electronics signal flows.

For engineering and sourcing decisions, the device is compelling when three conditions are met. The 4-forward/2-reverse topology matches the actual communication pattern. The package and reinforced isolation level satisfy both electrical and compliance constraints. The default-high fail-safe response fits the intended fault strategy. When those conditions align, the ISO7762-Q1 becomes a well-balanced isolator for high-speed digital communication in automotive and power-conversion environments where noise, voltage stress, and reliability requirements all remain active at the same time.
