DS89C387TMEA
Texas Instruments
IC DRIVER 12/0 48SSOP
1264 Pcs New Original In Stock
12/0 Driver RS422, RS485 48-SSOP
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (30 Ratings)

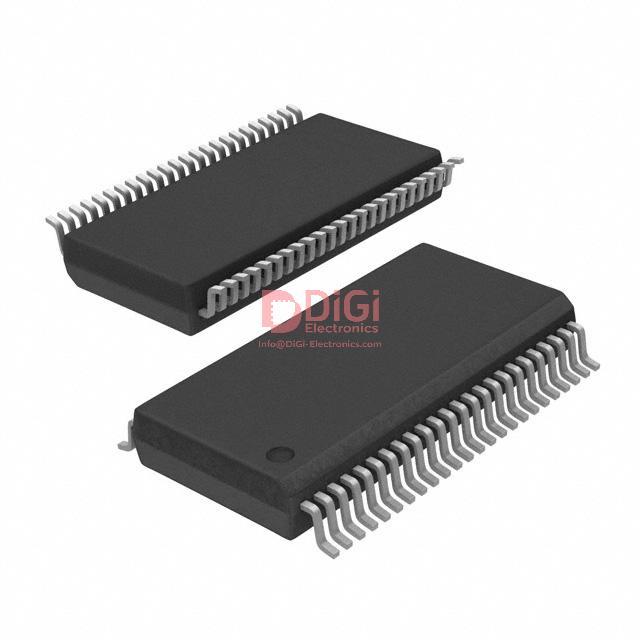

DS89C387TMEA
Product Overview
1346576
DiGi Electronics Part Number
DS89C387TMEA-DGManufacturer
Texas Instruments
DS89C387TMEA
Description
IC DRIVER 12/0 48SSOPInventory
1264 Pcs New Original In Stock
12/0 Driver RS422, RS485 48-SSOP
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
DS89C387TMEA Technical Specifications
Category
Interface, Drivers, Receivers, Transceivers
Packaging
-
Series
-
Product Status
Obsolete
Type
Driver
Protocol
RS422, RS485
Number of Drivers/Receivers
12/0
Duplex
-
Data Rate
-
Voltage - Supply
4.5V ~ 5.5V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
48-BSSOP (0.295", 7.50mm Width)
Supplier Device Package
48-SSOP
Base Product Number
DS89C387
Datasheet & Documents
HTML Datasheet
DS89C387TMEA-DG
Environmental & Export Classification
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
2156-DS89C387TMEA
TEXTISDS89C387TMEA
Standard Package
29
Reviews
5.0/5.0-(Show up to 5 Ratings)
de desembre 02, 2025
신속한 배송 덕분에 예상보다 훨씬 빠르게 상품을 받아볼 수 있었어요.
de desembre 02, 2025
Jede Lieferung wird sorgfältig geplant und ausgeführt, sodass ich mich immer auf die Pünktlichkeit verlassen kann.
de desembre 02, 2025
Sehr positive Shopping-Erfahrung bei DiGi Electronics. Die Website ist schnell, zuverlässig und bietet gute Preise.
de desembre 02, 2025
Customer satisfaction seems to be their top priority, and it shows.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the key risks when replacing the obsolete DS89C387TMEA in an existing RS-485 backplane design, and how can I ensure signal integrity isn’t compromised during the transition?
Replacing the DS89C387TMEA—an obsolete 12-driver RS-485/RS-422 device—requires careful evaluation of timing skew, output current matching, and propagation delay consistency across all 12 channels. A direct drop-in may not exist; consider modern alternatives like the Texas Instruments SN65HVD72 (for lower channel counts) or SN65HVD7512 (12-channel equivalent), but verify that differential output voltage (VOD) and common-mode range meet your backplane’s termination and noise margin requirements. Perform TDR testing on prototype layouts to confirm impedance continuity, especially since the DS89C387TMEA’s 48-SSOP package has specific pin-to-pin capacitance that affects rise times. Always validate with worst-case cable lengths and baud rates used in your system.
Can the DS89C387TMEA still be safely used in new industrial designs despite its obsolete status, given its RoHS non-compliant status and limited supply chain visibility?
Using the DS89C387TMEA in new designs carries significant long-term risks: it is marked obsolete by Texas Instruments, RoHS non-compliant (containing lead), and lacks future production support. While the part is currently in stock (1,157 pcs), this inventory is finite and not replenishable. For new industrial deployments requiring 10+ year lifecycles—especially in EU or medical markets—this creates compliance and sourcing vulnerabilities. Instead, migrate to a REACH-compliant, active alternative such as the SN65HVD7512, which offers similar 12-driver functionality, improved ESD protection (±16 kV HBM), and full RoHS compliance. If you must use existing DS89C387TMEA stock for prototypes or short-lifecycle products, implement strict inventory controls and plan for end-of-life redesign within 12–18 months.
How does the DS89C387TMEA’s lack of fail-safe biasing impact system reliability in multi-drop RS-485 networks, and what external circuitry is needed to prevent bus lockup?
The DS89C387TMEA does not include internal fail-safe biasing, meaning an idle or disconnected RS-485 bus can float into an indeterminate state, causing spurious receiver outputs and potential system lockup. To mitigate this, you must add external biasing resistors: typically a 1.2 kΩ pull-up on the A line and a 1.2 kΩ pull-down on the B line to establish a valid idle-state differential voltage (>200 mV). In noisy industrial environments, also include 120 Ω termination at both ends of the bus. Without this network, the DS89C387TMEA’s receivers may interpret noise as valid data, leading to communication errors—especially critical in safety-monitoring or control systems where deterministic behavior is required.
What layout and thermal considerations are critical when designing a PCB with the DS89C387TMEA in a 48-SSOP package, particularly under continuous full-load operation across its -40°C to 85°C range?
The DS89C387TMEA in a 48-SSOP (7.50 mm width) package has limited thermal dissipation capability due to its modest exposed pad and high channel count (12 drivers). Under continuous full-load operation—especially driving long cables or low-impedance loads—junction temperatures can exceed safe limits even within the rated ambient range. Ensure adequate copper pour under the device connected to ground, use thermal vias to inner/ground planes, and maintain at least 8 mm clearance from heat-sensitive components. Monitor total power dissipation: each driver can source/sink up to 60 mA, so worst-case power = 12 × (5V × 60 mA) = 3.6 W. Without proper thermal management, thermal shutdown or accelerated aging may occur, degrading MTBF in field deployments.
Is the DS89C387TMEA electrically compatible with 3.3V logic systems, and what level-shifting strategy should be used if interfacing with modern microcontrollers?
The DS89C387TMEA requires a 4.5V–5.5V supply and has TTL-compatible inputs with VIH(min) ≈ 2.0V and VIL(max) ≈ 0.8V, making it marginally compatible with 3.3V CMOS outputs—but only if the MCU guarantees high-level output ≥2.4V under load. However, due to voltage margin erosion over temperature and aging, direct connection risks intermittent failures. For reliable operation, use a unidirectional level shifter like the TXB0108 or SN74LVC8T245 between the 3.3V MCU and the DS89C387TMEA’s driver enable/input pins. Avoid bidirectional shifters unless direction control is isolated. This ensures clean signal transitions and protects the DS89C387TMEA from marginal logic thresholds, especially in high-noise environments where signal integrity is already challenged by long RS-485 traces.
