DRV8803DW Product Overview and Positioning

The Texas Instruments DRV8803DW is a quad low-side power driver built for systems that need multiple protected outputs from a single IC while operating across a relatively wide supply range of 8.2 V to 60 V. Its core role is straightforward: switch current through external loads connected to the positive rail and return that current to ground through four integrated NMOS low-side channels. What makes the device more valuable than a basic transistor array is not only the presence of the power switches, but the way switching, protection, inductive energy handling, and logic interfacing are consolidated into one compact component. That integration changes the design problem from building four separate output stages to managing a predictable multi-channel actuator interface.

The device fits naturally into designs where several medium-power loads must be controlled independently with minimal external circuitry. Typical examples include relay groups, solenoids, lamp or heater segments, small brushed DC motor sections, and unipolar stepper phases. In these cases, the DRV8803DW is less about motion-control sophistication and more about robust power interfacing. It is best understood as an industrial-grade output stage that sits between low-voltage control logic and higher-voltage field loads, absorbing much of the electrical stress that would otherwise have to be handled discretely.

Its internal architecture is centered on four parallel low-side channels using NMOS power transistors. Each output sinks load current when enabled, so the external load is tied between the positive supply and the output pin. This arrangement is common in embedded control hardware because low-side drive is simpler to implement, easier to protect, and often more thermally efficient than an equivalent high-side structure in the same cost class. For resistive loads, operation is simple current switching. For inductive loads, the behavior is more nuanced: when the channel turns off, the stored magnetic energy must be redirected safely. The DRV8803DW integrates clamp paths to manage that energy internally, which sharply reduces the need for external flyback components in many designs and makes board-level implementation cleaner and more repeatable.

That internal clamp behavior is one of the practical reasons the device is positioned above a generic MOSFET array. In discrete implementations, the quality of inductive load handling depends heavily on diode selection, PCB current return paths, switching speed, and transient layout discipline. With the DRV8803DW, much of this behavior is characterized at the device level. This does not eliminate the need for careful power layout, but it reduces variability and shortens design bring-up. In relay and solenoid banks, this often translates into fewer debugging cycles related to false resets, unexpected EMI bursts, or overstress caused by poorly managed recirculation currents.

The control interface is intentionally simple. A parallel input structure allows direct command of each output channel without protocol overhead or complex configuration sequencing. That makes the part especially useful in PLC-style I/O boards, distributed embedded controllers, and legacy-compatible systems where deterministic on/off control matters more than bus efficiency. In practice, this simplicity also improves fault isolation during system validation. When each output maps directly to a logic input, it becomes easier to verify timing, measure load current behavior channel by channel, and separate software issues from power-stage issues during bench testing.

From a product-positioning standpoint, the DRV8803DW occupies a middle ground between bare switching elements and fully featured motor drivers with current regulation, microstepping, diagnostics over serial interfaces, or closed-loop control support. It does not attempt to solve the entire motion-control stack. Instead, it provides a durable, compact output layer for systems where the main requirement is reliable actuation at moderate current. That positioning is important because it defines where the part creates the most value: not in highly dynamic motor-control applications requiring precision current shaping, but in equipment where ruggedness, density, and low implementation effort dominate the selection criteria.

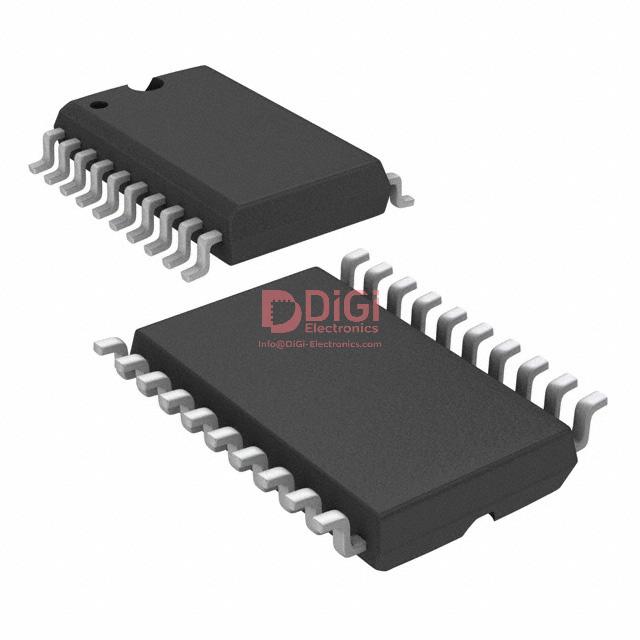

The 20-pin thermally enhanced SOIC package identified by the DW suffix reinforces that role. It gives the device a practical balance between manufacturability, heat dissipation, and board-space efficiency. Thermal behavior is central to understanding the usable current range. The headline capability of up to 1.5 A continuous current with only one channel active, or around 800 mA per channel with all four channels active at 25°C, should be read as a thermal distribution statement as much as an electrical one. In multi-output drivers, silicon current capability and package heat removal are tightly coupled. A design that energizes several channels simultaneously, especially with inductive loads and elevated ambient temperature, must treat current rating as a system-level limit rather than a per-pin entitlement.

This is where practical design experience matters. In real hardware, the limiting factor is often not the nominal on-state current of one channel but cumulative junction heating across switching events, ambient rise inside the enclosure, and copper area under the package. A board that performs well on an open bench can behave very differently inside a sealed cabinet near a power supply or transformer. For that reason, the most reliable use of the DRV8803DW comes from derating early, allocating copper generously around the thermal pad and power ground paths, and evaluating worst-case activation patterns rather than average load conditions. Designs that ignore channel concurrency usually discover thermal constraints late, often after enclosure integration.

Another practical point is that inductive loads rarely behave as ideal nameplate values suggest. Relay coils, valves, and small motors can draw significantly different current during startup, pull-in, stall, or brownout conditions. The DRV8803DW’s integrated protection helps absorb some of that uncertainty, but robust design still depends on measuring actual current waveforms under abnormal as well as nominal states. In multi-load systems, one weak assumption about inrush or release energy can affect supply stability for the entire board. The part reduces external complexity, but it does not remove the need to think in terms of transient energy and thermal accumulation.

The device is especially attractive in systems that need output-channel density without moving to a more software-heavy driver architecture. In unipolar stepper implementations, for example, it can handle phase sinking cleanly when the control method is simple full-step or wave-drive sequencing managed elsewhere. In relay banks, it provides a cleaner and more compact alternative to discrete transistor-plus-diode cells repeated four times. In solenoid control, it simplifies the power stage enough that attention can be focused on timing strategy, supply decoupling, and mechanical load behavior rather than transistor protection details. That kind of partitioning is often underestimated, but it has real engineering value because it shifts effort from repetitive circuitry to system behavior.

One useful way to view the DRV8803DW is as a building block for power-output standardization. In many embedded and industrial designs, the challenge is not only to switch one load, but to create a repeatable channel template that can be reused across product variants. A device like this supports that approach well. Its fixed integration level encourages consistent layout, common protection behavior, and predictable firmware interfacing. That often improves platform scalability more than a lower-cost discrete solution, particularly when validation cost, field reliability, and layout repetition are considered alongside BOM price.

There is also a subtle but important design advantage in choosing an integrated low-side driver over assembling equivalent functionality from separate MOSFETs and protection parts: failure behavior tends to be more bounded. With discrete implementations, different component tolerances, diode recovery characteristics, and layout asymmetries can make one channel behave differently from another under stress. An integrated driver does not eliminate failure risk, but it usually makes channel behavior more uniform. In practice, that uniformity simplifies qualification and improves confidence when multiple outputs must behave similarly across a wide operating range.

For product selection, the DRV8803DW is best matched to designs that need four low-side channels, moderate current per output, high-side simplicity at the load interface, and integrated protection in a compact package. It is not the right choice when precise current regulation, bidirectional motor control, or advanced diagnostics are mandatory. It is the right choice when the objective is to implement several robust switched outputs quickly and with controlled electrical risk. In that sense, the part is less a stripped-down motor driver and more a compact power-interface subsystem. That distinction explains its enduring usefulness in industrial and embedded hardware where straightforward switching, protection, and density matter more than feature breadth.

DRV8803DW Core Functional Architecture and Operating Principle

DRV8803DW is fundamentally a four-channel low-side power driver built around independent NMOS sinking stages. Each channel behaves as a controlled current sink between the load node and ground. In the active state, the internal MOSFET pulls the selected output low. Current then flows from the positive supply, through the external load, and into the device output. In the inactive state, the MOSFET turns off and the load current path is interrupted. This simple topology is one of the reasons the device is easy to integrate: the power path is intuitive, routing is straightforward, and each channel can be treated as an isolated low-side switch from a control perspective.

The low-side configuration defines both the electrical behavior and the preferred application envelope. It is optimized for loads that only need one-sided switching, such as relays, solenoids, lamps, and other unipolar actuators. In these cases, one terminal of the load is tied permanently to the supply rail, while the other terminal is connected to one of the DRV8803DW outputs. When the corresponding logic input is asserted, the device completes the path to ground and the load energizes. This operating mode avoids the complexity of high-side gate drive or full H-bridge commutation, which would be unnecessary for many control tasks. In practice, this makes the device especially effective in systems where the design objective is reliable actuation rather than bidirectional motion control.

At the transistor level, the operating principle is direct: a logic input controls the gate drive of an internal NMOS output stage. Once enhanced, the MOSFET enters conduction and its on-resistance determines the conduction loss at the selected load current. That detail matters in real designs because the output stage is not an ideal short to ground. The voltage drop across the MOSFET increases with current, and the corresponding power dissipation appears inside the package. For lightly loaded outputs this effect is small, but in relay banks or dense solenoid arrays it becomes a first-order thermal design parameter. A common implementation mistake is to size only for current capability while ignoring aggregate dissipation when multiple channels are on simultaneously. The device architecture supports multi-channel operation well, but board-level thermal spreading and realistic duty-cycle assumptions remain essential.

The DRV8803DW becomes more valuable when driving inductive loads because it integrates clamp structures for transient suppression. Inductors resist changes in current. When the output MOSFET turns off, the current through the coil cannot decay instantaneously, so the voltage at the output node rises until a recirculation or clamp path is established. Without protection, this flyback event can overstress the switch, inject noise into neighboring circuitry, and degrade long-term robustness. The integrated clamp diodes provide a controlled path for the stored magnetic energy, limiting the voltage excursion and protecting both the driver and surrounding components. This internal protection reduces external component count and shortens the high-energy loop, which usually improves EMI behavior compared with poorly placed discrete suppression parts.

The turnoff transient deserves more attention because it strongly influences real system behavior. The clamp network does more than protect against catastrophic voltage spikes; it also shapes the current decay profile in the load. A relay coil, for example, does not release instantaneously when the transistor turns off. The energy stored in the coil must dissipate through the clamp path, and the selected decay path affects release time, noise signature, and electrical stress. Integrated diode clamping is convenient and robust, but it generally allows a slower current decay than more aggressive suppression methods such as elevated clamp voltages. That tradeoff is often acceptable in general-purpose actuation systems, but in timing-sensitive designs it is worth recognizing that protection strategy and mechanical response are coupled. The driver solves the switching problem cleanly, yet the application still determines whether the default transient behavior is optimal.

From a control-interface standpoint, the DRV8803DW uses a parallel GPIO-style input structure. Each output channel is mapped directly to a corresponding logic input, so firmware can control loads with deterministic, one-to-one signaling. This is a practical advantage in embedded systems that prioritize latency transparency and predictable fault behavior. There is no serialization overhead, no register transaction dependency, and no need for a protocol stack just to switch a coil or lamp. During bring-up, this directness is particularly useful because each channel can be probed and validated independently with minimal software infrastructure. It also simplifies safety-oriented designs: the state of the actuator is closely traceable to the state of a single control line.

This interface style also influences system architecture. When outputs are controlled directly from a processor or FPGA, timing relationships are explicit and easy to audit. That matters in machines where several actuators must energize in a defined sequence, or where startup defaults must remain simple and fail-safe. Parallel control can consume more I/O pins than a serial driver, but it reduces abstraction layers and usually shortens the debug cycle. In many industrial and electromechanical platforms, that is a favorable trade. A design that uses a few more GPIOs but behaves predictably under brownout, reset, or firmware recovery is often the more resilient solution.

In application terms, the DRV8803DW fits best where multiple low-side loads must be switched from a single compact device with moderate design overhead. Relay control modules are a natural fit. Solenoid valve banks are another. Small DC motors can also be driven in single-ended on/off mode when direction reversal is not required. The key is to view the device not as a motor-control IC in the H-bridge sense, but as a multi-channel power interface between logic and inductive field devices. That framing helps prevent misuse. If the load needs current regulation, bidirectional drive, or dynamic recirculation control, a different driver class is usually more appropriate. If the requirement is robust channelized switching with integrated inductive transient handling, this architecture is well aligned.

Board-level implementation has a strong influence on how well the device performs. The current loops for supply-to-load-to-output-to-ground should be kept compact, especially for inductive channels with fast current interruption. Ground routing should avoid forcing logic return currents to share high di/dt power paths. Local supply decoupling near the device is not optional; it absorbs switching disturbances and stabilizes the supply rail seen by both the driver and nearby control circuitry. In dense layouts, thermal copper tied to the power ground region helps distribute heat more effectively than relying on package dissipation alone. These details are easy to underestimate because the functional schematic looks simple, but switching inductive loads always exposes weaknesses in layout discipline.

Another practical point is channel interaction through shared supply and ground impedance. Although the four outputs are logically independent, they are not physically isolated from one another. A heavily switched solenoid on one channel can inject noise onto the local ground or supply network and influence neighboring channels or upstream logic if the layout is weak. This is one reason why direct-drive low-side architectures benefit from conservative grounding and decoupling strategy. The device itself may switch correctly, yet system-level behavior can still degrade through coupled transients. Clean partitioning between control and power return paths usually has more impact than adding complexity elsewhere.

Viewed as a whole, the DRV8803DW represents a disciplined balance between integration and simplicity. Its four independent low-side outputs, internal NMOS switching elements, inductive clamp protection, and parallel control interface form a highly practical solution for direct actuation tasks. The architecture does not attempt to solve every power-driving problem. Instead, it focuses on a narrower but very common requirement: reliable, deterministic switching of single-ended loads from digital control logic. That narrow focus is exactly what gives the device engineering value. In power interface design, a part that does one job cleanly, predictably, and with manageable layout constraints is often more useful than a more feature-rich alternative that introduces unnecessary control complexity.

DRV8803DW Key Electrical and Drive Capabilities

The DRV8803DW is a four-channel low-side driver built for medium-voltage inductive and resistive load control where integration, robustness, and predictable behavior matter more than minimizing milliohms at any cost. Its electrical envelope is defined first by supply range, then by thermal current capability, and finally by switching and protection behavior. Read in that order, the device is easier to place correctly in a design.

The most immediately useful specification is the VM operating range of 8.2 V to 60 V. That span covers the majority of practical industrial distribution rails, including nominal 12 V, 24 V, and 48 V systems, while still leaving room for supply variation, cold-crank-like sag on lower rails, or lightly regulated bus conditions on higher rails. This range also makes the device attractive in mixed-load systems where one design may be reused across multiple product variants with different field supply standards. In practice, that flexibility reduces redesign effort, but it does not remove the need to check transient headroom. A 48 V rail in industrial equipment often carries surge events, cable-induced ringing, and switching spikes from nearby loads. The 60 V ceiling is useful, but it should be treated as a boundary that requires layout discipline, local bulk capacitance, and attention to inductive return paths rather than as excess margin that can absorb poor power distribution design.

The undervoltage lockout threshold at 8.2 V on VM rising defines the lower edge of usable operation. This matters because low-side drivers can appear deceptively simple in schematic form, yet their real behavior during brownout is often what determines system reliability. When VM approaches UVLO, output behavior can shift from deterministic switching to protection-driven shutdown. In relay or solenoid systems, that boundary can become visible as chatter, incomplete pull-in, or delayed release if the supply is weak or heavily shared. A practical design approach is to treat 8.2 V not as a normal operating point but as the minimum recovery threshold, and to budget additional margin above it for stable actuation under load.

Current capability needs a more careful reading than the headline numbers suggest. The device supports 1.5 A continuous output current with a single channel on at 25°C, and 800 mA continuous per channel with all four channels on at 25°C in the SOIC package. These are not independent promises; they are thermal snapshots under a specific test condition. The true continuous current in an application is set by junction temperature rise, which depends on ambient temperature, copper area, via density, airflow, load duty cycle, and how many channels are dissipating simultaneously. In other words, channel count and board thermal impedance are part of the current rating.

That distinction becomes important quickly in dense control boards. A single energized solenoid at 1.2 A may be fully acceptable on a well-laid-out board with generous copper and moderate ambient conditions. The same board may struggle if three or four outputs carry 700 mA continuously in an enclosed housing near other heat sources. The thermal coupling between channels is easy to underestimate because each output looks separate in the schematic, but all dissipation ultimately accumulates in one package and one local board region. In multi-channel drivers like this, the package is often not current-limited in the electrical sense first; it becomes heat-limited first.

The low-side FET on-resistance is a central parameter for understanding that thermal behavior. The typical RDS(on) is 0.5 Ω at TJ = 25°C and 700 mA load current, rising to 0.75 Ω at TJ = 85°C for the SOIC and HTSSOP versions. That increase is not a secondary detail. It directly changes power dissipation through I²R loss and creates a feedback effect: higher current raises junction temperature, higher junction temperature raises RDS(on), and higher RDS(on) raises dissipation again. For sustained operation, especially above a few hundred milliamps, this temperature dependence should be included in first-pass loss calculations rather than using only the 25°C number.

A simple estimate makes the point. At 700 mA, one channel with 0.5 Ω RDS(on) dissipates about 0.245 W. At 0.75 Ω, the same current dissipates about 0.368 W. Multiply that across four active channels and the package can move from roughly 1 W to nearly 1.5 W of conduction loss solely from channel heating. That is before including switching-related loss, clamp energy, or the thermal influence of adjacent circuitry. In compact boards, that difference is often the line between stable operation and thermal shutdown during worst-case ambient testing. A useful design instinct here is to do calculations using elevated RDS(on), not room-temperature typical values, unless the load is strongly pulsed and thermal averaging clearly supports a lower effective junction temperature.

This leads to an important placement insight: the DRV8803DW is best viewed as an integrated load switch array for moderate-current channels rather than as a substitute for a discrete low-loss power stage. Its value is in collapsing four low-side drivers, control logic, and protection features into a compact device with consistent behavior. That saves routing, reduces BOM complexity, and simplifies fault management. Where current is modest and channel count matters, this usually creates a better system-level result than chasing lower conduction loss with discrete FETs and separate gate-drive circuitry. Where current is high and sustained, the balance changes, and thermal design effort starts to dominate the integration advantage.

The operating supply current of 1.6 mA typical at VM = 24 V shows that the control side overhead is low relative to the load current. This is useful in systems with many distributed outputs because quiescent draw from the driver itself does not heavily burden the rail. Still, in always-on equipment with dozens of channels across multiple boards, even milliamp-level housekeeping current becomes part of the standby power budget. In those architectures, the driver’s low operating current is helpful, but system designers still benefit from grouping loads by duty cycle and disabling unused sections upstream when practical.

Switching performance is characterized by rise and fall times in the 50 ns to 300 ns range under specified resistive-load conditions. These numbers indicate that the outputs transition fast enough for clean switching of many loads, but they should not be read as a blanket statement of identical behavior with inductive loads. A resistive test condition captures transistor transition speed; actual system waveforms depend on load inductance, wiring inductance, freewheel path behavior, and supply decoupling. Fast edges are usually beneficial because they reduce transition-region dissipation, but in cable-driven field loads they also sharpen dV/dt and dI/dt, which can excite EMI problems. In practice, output speed and wiring topology are linked. Short local traces may behave quietly, while the same output routed through a long harness to a solenoid can generate ringing or radiated noise that was invisible on the bench with compact test fixtures.

This is where the off-state leakage specifications become more meaningful than they first appear. Leakage within ±50 μA for both low-side FETs and clamp diodes under stated conditions means the device behaves predictably when outputs are intended to be off. For many relay, lamp, and solenoid loads, that level is low enough to avoid false activation. It also helps in diagnostic contexts where output voltage is monitored during fault detection or open-load checking. Leakage is rarely a dominant parameter in motor or actuator drive discussions, but it becomes important in systems using high-impedance sensing, long cable runs, or loads with threshold behavior near zero current. Stable off-state behavior reduces ambiguity during startup and fault isolation.

The clamp path behavior, although not fully expanded in the given specification excerpt, is part of the practical identity of any low-side inductive load driver. When current through an inductive load is interrupted, the stored magnetic energy must go somewhere. In integrated drivers of this class, that usually means internal clamp structures manage the transient, trading simplicity for some amount of dissipation inside the package. This is often the correct trade for relays, valves, and small actuators because it removes external flyback components and keeps channel count manageable. However, repeated high-energy demagnetization events can add significant thermal stress even when average DC current looks safe. Designs that pulse solenoids rapidly or release highly inductive loads at high current often discover that turn-off energy, not steady-state conduction, becomes the hidden thermal contributor. A useful habit is to examine both hold current and release frequency before assuming the package dissipation is dominated only by I²R loss.

From an application standpoint, the DRV8803DW fits best in multi-channel output modules controlling relays, solenoids, contactors, unidirectional DC loads, lamps, and similar field devices from shared industrial rails. It is especially attractive where outputs are independent, where per-channel current is moderate, and where compact fault-tolerant implementation is more valuable than achieving the last increment of efficiency. In these systems, the broad supply range simplifies product reuse across markets, and the integrated low-side topology aligns naturally with loads tied to a positive supply bus.

The device is less ideal when the application is framed as continuous high-current drive in a thermally constrained enclosure. At that point, the 0.5 Ω to 0.75 Ω RDS(on) range becomes the dominant architectural factor. A design may still work, but the board must carry the burden through copper spreading, thermal vias, spacing from heat-generating neighbors, and realistic channel derating. Many output-stage issues attributed later to “marginal silicon” are actually package-temperature problems created early by optimistic current assumptions and room-temperature calculations.

A practical evaluation flow works well here. Start with the actual field rail, including tolerance and transient behavior. Map load current in three modes: pull-in, steady hold, and turn-off energy. Calculate per-channel conduction loss using elevated RDS(on), then add a thermal interaction factor if several outputs can be on together. After that, inspect the worst-case ambient inside the enclosure rather than the external ambient in a datasheet-style lab setup. Finally, validate with the real harness and real load, because switching behavior that looks clean into a bench resistor can become much harsher when cable inductance and actuator dynamics enter the loop. That sequence usually reveals whether the DRV8803DW is being used in its efficient operating zone or being pushed into a role better served by lower-loss discrete stages.

Taken as a whole, the DRV8803DW is not defined by any single electrical number. Its usefulness comes from how its voltage range, multi-channel integration, moderate current capability, and protected low-side architecture combine into a practical driver for industrial outputs. The key to successful use is to interpret the current and resistance specifications as parts of one thermal system rather than isolated figures. Once that mindset is applied, the device’s strengths become clear: it enables compact, repeatable, and robust output design across common industrial voltages, provided that conduction loss, inductive energy, and real board thermal conditions are treated as first-order design inputs rather than afterthoughts.

DRV8803DW Protection Functions and Fault Handling

DRV8803DW protection behavior is one of its strongest advantages over a discrete MOSFET or bipolar transistor stage. In a discrete design, current limiting, thermal supervision, short-circuit survival, and fault reporting usually require multiple external blocks, and each block introduces tolerance stack-up, response-time variation, and additional failure paths. The DRV8803DW collapses these functions into the driver itself, which improves protection consistency and reduces the amount of fault energy that can build up before intervention.

At the device level, the protection scheme is built around a simple principle: detect abnormal electrical or thermal stress early, limit the energy delivered into the fault, then give the channel a controlled opportunity to recover. This is much more useful than a one-time shutdown in systems with inductive loads, because many field faults are intermittent. Connector bounce, cable chafing, startup inrush, partial shorts, or a temporarily stalled actuator can all produce fault signatures that do not justify permanent latch-off. The DRV8803DW therefore behaves less like a passive switch and more like a self-protecting power stage.

Overcurrent protection is the first critical layer. The typical trip level is 2.3 A, with a specified maximum of 3.8 A. That spread is important in real design work. It means the protection threshold should never be treated as a precision current regulator. Instead, it should be viewed as a survival boundary that prevents destructive stress when the load current rises well beyond the intended operating range. If the application requires deterministic current control, that function must be implemented elsewhere. The internal overcurrent comparator is there to protect silicon, not to define normal load current.

The built-in 3.5 μs deglitch time is equally significant. Inductive systems produce short-duration current spikes during switching transitions, reverse recovery intervals, harness disturbances, and load commutation events. If the protection logic reacted to every narrow transient, nuisance trips would dominate operation. The deglitch filter screens out events that are too brief to be thermally meaningful. From an engineering perspective, this is a balance between immunity and responsiveness: long enough to ignore non-destructive spikes, short enough to intercept a real short circuit before junction temperature rises sharply.

If an overcurrent condition persists beyond that window, the affected channel is protected and the device enters retry behavior with a typical retry time of 1.2 ms. This retry mechanism deserves careful interpretation. It effectively creates a pulsed fault-response mode in which the driver periodically tests whether the abnormal condition has cleared. For intermittent wiring faults or temporary mechanical jams, this can restore operation automatically without system intervention. For hard shorts or sustained stalls, however, the retry cycle can generate repeated current bursts, repeated magnetic stress in the load, and cyclical heating in both the IC and the external wiring. In practice, that means the integrated retry feature should be paired with system-level policy. A controller reading nFAULT can count retries, disable the channel after a threshold, and escalate to a service flag instead of allowing indefinite fault cycling.

Thermal shutdown provides the second major protection layer. The die temperature threshold is typically around 160°C, with a specified range of 150°C to 180°C. This wide range is normal for thermal protection and reinforces an important design rule: thermal shutdown is not a thermal management strategy. It is an emergency boundary. If the application routinely approaches thermal shutdown, the design margin is already too small. The real engineering target should be to keep worst-case junction temperature comfortably below that region by controlling RMS current, PCB copper area, ambient rise, and switching loss.

This distinction matters because thermal behavior in packaged motor and actuator drivers is dynamic, not static. A channel may survive brief overloads repeatedly and still accumulate enough heat to trigger shutdown under poor airflow or elevated ambient conditions. Loads such as relays, solenoids, and small DC actuators often appear benign in steady-state analysis, yet they can generate much higher dissipation during pull-in, stall, or repeated rapid cycling. In bench validation, one common pattern is a design that passes nominal-current tests but fails after several minutes of repetitive actuation because copper spreading and enclosure heating were underestimated. The DRV8803DW will usually protect itself in that scenario, but the system behavior may become erratic unless the thermal transient is understood during design.

Undervoltage lockout adds another protective boundary by preventing operation when supply voltage falls below a safe internal threshold. This function is often underestimated, yet it directly affects output-stage reliability and logic integrity. In low-supply conditions, gate drive may become insufficient to enhance internal transistors properly, which increases dissipation and can create ambiguous switching states. In actuator systems powered from long cables, marginal adapters, or battery rails with brownout behavior, undervoltage lockout prevents the driver from operating in this half-valid region. That improves both device survivability and load predictability.

Short-circuit behavior should be viewed as the combined action of overcurrent detection, timing discrimination, and thermal containment. The DRV8803DW does not merely detect that current is high; it manages how long fault energy is allowed to flow. This distinction is what makes integrated protection materially better than a basic fuse-only approach. A fuse is primarily an energy-integrating safety element. It is useful for catastrophic protection but too slow for semiconductor preservation in many short events. The IC reacts at the microsecond scale, while the fuse handles backup protection at the system scale. Good designs still include upstream supply protection, but they do not depend on it for silicon-level fault response.

The open-drain nFAULT output is the interface point between device-level protection and system-level intelligence. When a fault such as overcurrent or overtemperature occurs, nFAULT pulls low and exposes the event to a microcontroller, CPLD, or supervisory monitor. This is more valuable than a simple alarm line. It allows the system to classify patterns rather than isolated incidents. A single short overcurrent pulse after connector insertion may be ignorable. Repeated fault assertions on one channel over several operating cycles often indicate a degrading harness, a sticky actuator, rising friction, or contamination in the mechanism. In that sense, nFAULT is not only a protection output but also a low-cost diagnostic signal.

In relay modules, the protection set reduces the usual stress associated with coil transients, accidental wiring shorts, and hot-plug disturbances. In actuator controllers, it becomes even more important because motors and solenoids regularly operate near dynamic limits. A stalled actuator can look electrically similar to a short during the first instant, but its system implications are different. If the controller correlates nFAULT timing with command state and supply telemetry, it can distinguish between startup surge, mechanical blockage, and power-rail collapse with reasonable confidence. That kind of correlation is often enough to avoid adding dedicated current-sense hardware in cost-sensitive designs.

A practical implementation detail is that fault handling should never stop at wiring nFAULT to a GPIO. The firmware should define explicit responses: debounce the fault input, timestamp assertions, maintain per-channel fault counters, and separate transient recovery from persistent shutdown. This avoids two common failure modes. The first is excessive nuisance reporting, where harmless events flood diagnostics. The second is silent degradation, where repeated automatic retries mask a real field problem until thermal stress damages surrounding parts such as connectors or cable insulation. The most reliable systems treat the DRV8803DW as the fast protection layer and the firmware as the policy layer.

PCB design also influences how well these protections perform. Low-impedance supply routing, adequate local decoupling, and solid thermal copper reduce the chance that a benign load transient is misinterpreted as a supply or current fault. In inductive-load layouts, long current loops can create voltage overshoot and ground bounce that complicate fault analysis. The driver may still protect itself correctly, but the observed behavior at the system level can become noisy or hard to reproduce. Tight loop routing and careful return-current control make the protection features easier to validate and the fault signatures easier to interpret.

The deeper value of the DRV8803DW protection architecture is not just that it prevents immediate failure. It changes the design approach from component survival to controlled degradation. When faults happen, the device does not simply absorb stress blindly; it limits exposure, signals the event, and creates room for higher-level decision-making. That is the real engineering gain over a discrete implementation. It shortens validation because many worst-case fault paths are already bounded inside the IC, and it improves field robustness because abnormal conditions become observable and manageable rather than purely destructive.

DRV8803DW Control Interface, Pins, and Logic Behavior

DRV8803DW uses a parallel control interface optimized for deterministic, per-channel switching rather than command-based configuration. This matters in systems where timing transparency is more valuable than register flexibility. A controller drives IN1 through IN4 directly, and each input maps to one output stage. When an input is high, the associated output transistor turns on and pulls the output low. Electrically, the device behaves as a four-channel low-side sink driver, so the load is typically placed between the positive supply at VM and the corresponding OUTx pin. This inverted logic relationship is important during firmware design because a logical “1” at the interface produces an active low-side drive at the power output.

That direct input-to-output mapping is one of the device’s strongest practical advantages. It removes serial bus latency, eliminates address decoding, and avoids software dependencies on peripheral drivers. In PLC-coupled designs, small embedded controllers, and FPGA-based sequencers, this reduces both verification effort and failure modes. It also makes fault isolation easier because each digital control line has a visible and immediate effect on one hardware channel. In practice, this greatly simplifies bring-up with an oscilloscope or logic analyzer since input stimulus and output response can be correlated without protocol interpretation.

The channel inputs are supported by global control pins that shape overall device behavior. nENBL is an active-low enable input. Driving nENBL low enables the output stages, while driving it high disables them. This pin is useful when the application needs a fast global inhibit independent of the state of IN1 to IN4. A common pattern is to preload channel states at the input pins, then assert nENBL low only when the system is ready to energize loads. That avoids unintended transient activation during startup or software initialization. It also provides a clean method for emergency shutdown logic, especially when a supervisory circuit needs to remove drive from all outputs at once.

RESET serves a different purpose. It is active high and clears the internal logic state along with the overcurrent protection state machine. This distinction is important: enable control determines whether outputs are allowed to operate, while reset reinitializes internal fault-handling behavior. In applications that experience repetitive inductive stress or intermittent wiring faults, RESET can be used as a deliberate recovery mechanism after the root cause has been removed. However, using RESET as a routine operating control is usually less elegant than using nENBL, because reset affects internal protection state rather than simply gating outputs. A cleaner control strategy is to reserve RESET for fault recovery and use nENBL for normal output arbitration.

The internal pulldown network on IN1 to IN4, nENBL, and RESET plays a quiet but valuable role in system robustness. These resistive pulldowns define a default state when upstream logic is high impedance, disconnected, or still powering up. In real hardware, that reduces the chance of random output activation caused by floating control traces. It also helps during in-circuit programming, hot-plug scenarios, or controller brownout events where GPIO pins may briefly enter undefined states. The default behavior is therefore biased toward inactivity, which is usually the safer direction for relay, solenoid, lamp, and valve-driving applications. Even with these pulldowns present, strong external signal definition remains good practice, particularly on long harnesses or in electrically noisy cabinets where capacitive coupling can still inject transients.

Input threshold behavior is well aligned with standard digital control systems. A low-level input is recognized up to roughly 0.6 V to 0.7 V, while a high-level input is recognized from 2 V upward. This provides broad compatibility with common 3.3 V and 5 V logic families. More importantly, the inputs include about 0.45 V of hysteresis, indicating Schmitt-trigger characteristics. That hysteresis is not a minor convenience; it materially improves immunity to slow edges, coupled noise, and ground bounce. In field wiring or mixed-power layouts, control signals often do not arrive as ideal square waves. Edges may be degraded by cable impedance, optocoupler turn-off tails, or shared ground disturbances. Schmitt-trigger inputs reduce the probability of output chatter under those conditions. That makes the interface more tolerant of real installations than a simple CMOS threshold input would be.

From an engineering perspective, the logic interface should be understood together with the device’s power-side pin structure. VM is the positive supply input for the loads and supports a wide operating range from 8.2 V to 60 V. This wide span allows the same device family to cover nominal 12 V, 24 V, and higher industrial rails without level translation on the power stage. All GND pins must be tied into a low-impedance ground system because they carry both logic reference current and switching return current. If the ground path is poorly implemented, logic integrity and output performance degrade together. A short, low-inductance connection to the local ground plane is usually more important than it first appears, especially when multiple channels switch inductive loads simultaneously.

OUT1 through OUT4 are the switching nodes connected to the loads. Since these are low-side outputs, each output pin will see dynamic voltage behavior during turn-off, especially with inductive loads such as relays, coils, and small motors. That is why VCLAMP deserves careful attention. VCLAMP defines how the device handles recirculation or flyback energy when the output transistor turns off. It can be tied directly to VM or connected through a zener-referenced scheme to VM, depending on the desired clamp level. This choice affects turn-off speed, dissipation distribution, and electromagnetic behavior. A lower clamp path generally reduces voltage stress but slows current decay. A higher clamp voltage accelerates demagnetization of inductive loads, improving release time for relays and valves, but shifts more transient energy into the clamp mechanism and device environment. In practice, clamp selection is not just a protection detail; it is a dynamic tuning parameter that influences mechanical response time and thermal behavior.

nFAULT is provided as an open-drain fault indicator. Because it is open-drain, it requires an external pull-up to the appropriate logic rail. This arrangement makes level interfacing flexible and allows multiple fault outputs to be wire-ORed if the system architecture supports aggregate fault monitoring. For diagnostic design, nFAULT should not be treated merely as an alarm lamp output. It is more useful when tied into firmware logging or hardware supervision, where it can trigger a timed response: disable outputs, sample channel states, and decide whether to issue RESET after a debounce or cooldown interval. Systems become more maintainable when nFAULT is part of a structured recovery sequence rather than a passive status line.

The NC pin should remain unconnected. That seems trivial, but it is worth respecting in production layouts. Unused package pins are sometimes repurposed informally as routing anchors or copper tie points, and that can create unpredictable behavior across revisions or second-source assumptions. For a power driver, pin discipline is part of long-term reliability.

A useful way to think about the DRV8803DW interface is as two stacked layers. The first layer is straightforward digital intent: INx selects whether a channel should sink current. The second layer is power-actuation discipline: nENBL, RESET, VCLAMP, VM, and grounding determine whether that intent is executed safely and repeatably under real electrical stress. Designs that focus only on the input truth table often work on the bench but become unstable in the field. Designs that treat the logic pins and power pins as one integrated control system usually behave much more predictably.

In application terms, the simplicity of the interface scales well across several use cases. For relay banks, each INx can directly represent one relay command, while nENBL acts as a global interlock. For solenoid arrays, the independent channels allow staggered activation to reduce inrush on the supply. In lamp or resistive-load control, the open-loop nature of the outputs supports straightforward switching with minimal software complexity. In FPGA-driven machinery, the absence of a serial configuration path means output timing can remain cycle-accurate and easy to audit. That is often more valuable than richer configurability when the system priority is repeatable control rather than adaptive behavior.

A subtle but important design practice is to define startup sequencing explicitly. Because the pins have internal pulldowns, the default condition tends toward outputs off, but that alone should not be the entire startup strategy. It is usually better to hold nENBL inactive until VM is valid, grounds are stable, and the upstream controller has completed GPIO initialization. If nFAULT is monitored during this interval, false diagnostics can also be filtered out before the machine enters normal operation. This sequence prevents confusing edge cases where logic is valid before power is stable, or where outputs are logically commanded before the clamp and supply network are ready to absorb switching energy.

The overall pin and logic organization reflects a device intended for practical load driving rather than abstract digital interfacing. Its value comes from predictable electrical behavior, modest integration overhead, and fault-aware control structure. The interface appears simple, but that simplicity is most effective when paired with disciplined grounding, deliberate clamp design, and explicit use of enable and reset semantics. In that sense, DRV8803DW is not just easy to connect; it is easy to make reliable if the control and power layers are designed as one coherent system.

DRV8803DW Package Options and Thermal Considerations

DRV8803 package selection is not a packaging detail. It directly changes conduction loss, temperature rise, usable output current, PCB layout strategy, and in some cases even system reliability margin. Within the DRV8803 family, the same functional motor-driver architecture is offered in three package variants:

DRV8803DW in 20-pin SOIC

DRV8803PWP in 16-pin HTSSOP

DRV8803DYZ in 16-pin SOT-23-THN

At first glance, these options appear interchangeable because the core device function is the same. In practice, they are not thermally equivalent, and that difference becomes visible as soon as load current, simultaneous channel usage, or ambient temperature begins to rise.

The DRV8803DW SOIC version has a typical low-side RON of 500 mΩ. The HTSSOP version is lower at 400 mΩ. That 100 mΩ difference may look modest, but in a power stage it scales with current squared. Even a small reduction in on-resistance can materially reduce conduction loss when outputs are active for long intervals. This matters most in designs that drive inductive loads with continuous or high-duty operation, such as relays held on for extended periods, solenoids with long energization windows, or brushed DC motors running near steady-state current. In these cases, package-dependent RON is not a secondary parameter. It is part of the thermal budget.

The thermal picture reinforces the same conclusion. For the DRV8803DW, junction-to-ambient thermal resistance RθJA is 67.7°C/W. Relative to the HTSSOP option, this indicates weaker heat removal under equivalent board conditions. A higher RθJA means that every watt dissipated inside the device produces a larger junction temperature rise above ambient. Once translated into operating conditions, that shifts the safe operating region downward. A design that appears acceptable at room temperature on paper can lose substantial margin inside a sealed enclosure, near a power supply hot spot, or when multiple channels switch at the same time.

The key mechanism is straightforward. Device heating comes mainly from MOSFET conduction loss and switching-related loss, while heat exits through the leadframe and PCB copper into ambient air. Package geometry defines the first part of that thermal path, and board implementation defines the second. The DRV8803DW can perform well in moderate-load applications, but it has less thermal leverage than the HTSSOP option. That usually makes it a better fit where channel current is moderate, channel concurrency is low, or duty cycle is naturally limited. If the application energizes only one or two outputs at a time, or if peak current occurs in short bursts with long off-time, the SOIC package can remain entirely practical.

A useful way to evaluate the DRV8803DW is to stop thinking in terms of headline current and instead think in terms of total dissipation per active interval. Published ratings at 25°C are reference points, not guaranteed field conditions. Real designs rarely operate on an open bench at 25°C with ideal copper spreading. Once ambient moves to 50°C or 70°C, the remaining temperature headroom shrinks quickly. If all four outputs are loaded continuously, the package must reject the sum of those losses, not the loss of a single channel in isolation. This is where many early estimates become optimistic. Current capability is usually limited by temperature rise before it is limited by nominal electrical rating.

For engineering decisions, it helps to decompose the problem into three stacked layers: silicon loss, package extraction, and board-level spreading.

At the silicon layer, the dominant term is I²R loss through the output path. If current doubles, conduction loss increases by roughly four times. That nonlinear behavior is why package differences become much more important at the top end of the load range. PWM operation adds another dimension. With inductive loads, RMS current rather than average current is often the right quantity for estimating heating. Designs that look light based on average current can still run hot if ripple current and recirculation intervals are ignored.

At the package layer, SOIC, HTSSOP, and SOT-23-THN behave differently because they do not transfer heat to the board with the same efficiency. The DRV8803DW SOIC package is straightforward to assemble and broadly compatible with mature manufacturing flows, but it is not the strongest option in the family for thermal extraction. The HTSSOP package generally offers better thermal performance and lower low-side RON, so it tends to be the better choice when sustained current matters. The smaller DYZ variant may help where footprint is the primary constraint, but board-level thermal design becomes even more critical in compact layouts.

At the board layer, copper area often determines whether the theoretical device capability is usable. A SOIC driver placed on a narrow trace island behaves very differently from the same part tied into a broad copper pour with thermal spreading on adjacent layers. In compact actuator boards, it is common to see acceptable lab performance with one channel active, followed by unexpected thermal shutdown or excessive case temperature when firmware later enables multiple loads together. The root cause is usually not the silicon itself, but insufficient spreading area and an unrealistic assumption that package current ratings transfer directly into the assembled product.

For the DRV8803DW specifically, layout discipline can recover meaningful margin. Wide copper on output and ground nodes reduces both resistive drop and local heating. Thermal stitching to inner or backside copper helps distribute heat away from the package. Nearby heat sources should be considered part of the same thermal system; placing the driver beside a regulator, FET bank, or high-dissipation resistor stack can raise local ambient enough to invalidate a comfortable spreadsheet estimate. Airflow, even when weak or indirect, often changes the outcome more than expected in enclosed products, but relying on airflow as the primary mitigation is usually less robust than designing adequate copper-based heat spreading from the start.

There is also a system-level point that is easy to miss: lower package thermal efficiency does not only reduce maximum current, it can alter channel interaction. In a multi-output driver, one heavily loaded channel raises the die temperature for all channels. That means a design using four independent loads should not evaluate each output path as if it were thermally isolated. Shared die heating creates coupling. In practice, simultaneous activation patterns, hold currents, and PWM phase relationships can matter as much as the nominal per-channel current. This is one reason why bench validation should include realistic concurrency patterns rather than single-channel tests alone.

From a selection standpoint, the DRV8803DW remains a sensible choice when the 20-pin SOIC footprint matches assembly constraints, serviceability preferences, or legacy board compatibility. It is often the practical option in established designs where SOIC handling, inspection, and rework are already standardized. It also fits well in systems driving relays, valves, or small motors with intermittent duty, where thermal load is moderate and predictable. But when the application pushes toward sustained multi-channel current, elevated ambient, or minimal PCB copper, selecting the SOIC package simply because it is available or familiar can create unnecessary design risk. In those conditions, the lower-RON, thermally stronger HTSSOP variant is often the more defensible engineering choice.

Procurement and engineering should therefore evaluate package choice as a coupled electrical-thermal decision, not a footprint substitution exercise. The family-level functional equivalence can hide meaningful differences in real operating margin. A package that is easier to source or easier to place may still cost more at the system level if it forces derating, heavier copper, airflow provisions, or tighter firmware limits on channel concurrency.

The most reliable selection method is to estimate worst-case dissipation using realistic load current, duty cycle, and simultaneous channel usage, then map that loss through package thermal resistance and board spreading assumptions with margin for enclosure temperature rise. If the resulting junction estimate is only acceptable at 25°C, the design is not yet closed. For the DRV8803DW, that discipline usually leads to a clear result: it is well suited to moderate thermal envelopes and constrained SOIC-based layouts, but it should be treated cautiously in dense, high-duty, multi-channel power scenarios where package thermal limits become the dominant constraint.

DRV8803DW Typical Application Scenarios and Engineering Use Cases

DRV8803DW targets a specific class of control problems: several inductive or semi-inductive loads must be switched from a shared supply, board area is limited, and fault tolerance matters more than waveform sophistication. Its value is not just that it provides four low-side channels. The stronger advantage is that it converts a set of failure-prone discrete output stages into a repeatable, protected switching subsystem with predictable behavior under load transients, wiring mistakes, and thermal stress.

At the electrical level, the device is best understood as a four-channel protected low-side sink driver. Each output pulls current from the load to ground when enabled, so the load itself connects between the positive supply and the output pin. That architecture is common in industrial and embedded control because many field loads are naturally driven from a positive rail and only need controlled current return. Once this is recognized, the application space becomes broad: relays, solenoids, stepper phases in simple unipolar arrangements, contactor predrivers, indicator loads, and motor-related subfunctions.

The practical significance of integrated protection should not be underestimated. In discrete implementations, a transistor, gate resistor, freewheel path, fault clamp, and thermal design margin are often treated as separate tasks. In real products, most output-stage failures come from interactions between those tasks rather than from nominal current alone. A relay with long harness wiring, for example, may appear benign in schematic form yet produce enough transient energy during release to overstress a marginal transistor layout. A protected low-side array reduces that integration risk and makes channel-to-channel behavior more consistent across production builds.

In unipolar stepper motor systems, the DRV8803DW fits the simpler end of the motion-control spectrum. A unipolar stepper exposes winding taps to the positive rail and switches individual coil ends to ground in sequence. Four low-side outputs map directly onto the four switched winding ends, so the device can drive a two-phase unipolar motor without the complexity of a bipolar H-bridge. This is useful in mechanisms where position repeatability is required but dynamic smoothness is secondary, such as feeders, shutters, indexing selectors, and low-cost paper transport subsystems.

The limitation is equally important: this is not a current-regulated chopper driver. Without active current shaping, the winding current is defined mainly by supply voltage, winding resistance, and transient inductance. That means torque consistency, speed range, and thermal behavior depend heavily on motor selection and supply choice. In practice, this configuration works best when the motor is operated well inside its electrical limits and the mechanical load profile is stable. Designs that need low-speed smoothness, quiet operation, high pull-in torque, or microstepping should move to a dedicated current-controlled stepper solution. The DRV8803DW is strongest when the requirement is robust commutation, not precision motion synthesis.

A useful engineering pattern in these stepper designs is to treat supply voltage conservatively rather than trying to compensate for missing current regulation through overdrive. Pushing a unipolar motor from a higher rail can improve current rise time, but it also sharpens dissipation peaks and makes phase imbalance harder to control. In simple products, reliability usually improves more from matching the motor to the rail than from chasing marginal speed gains in the drive stage.

Relay driving is one of the cleanest fits for the device. Relay coils are inductive, repetitive, and often deployed in groups. A four-channel protected sink driver naturally consolidates board-level output control for PLC-style modules, HVAC zone controllers, access systems, and power interface boards. Compared with discrete transistor and diode channels, integration reduces component count, shortens current loops, and simplifies routing around connectors and isolation barriers. It also improves design review quality, because each channel is architecturally identical instead of being a collection of small variations introduced during layout.

There is also a system-level benefit in relay applications: release behavior becomes more predictable when the suppression method is consistent. In many discrete circuits, diode choice varies by channel or gets placed too far from the load return path, which changes release time and EMI signature. Integrated inductive handling does not eliminate the need for careful wiring, but it narrows the number of variables. That matters in interlocked systems where one relay must drop before another engages, or where release latency affects contact wear and timing margins.

Field experience with relay outputs shows that the electrical stress often comes not from the coil itself but from installation conditions. Long cable runs add parasitic inductance and make the output stage see reflected disturbances from adjacent loads. Shared returns can inject ground noise into logic unless the power return is partitioned carefully. In those cases, the DRV8803DW should be treated as a protected endpoint, not as a substitute for power-distribution discipline. Separate high-current return paths, local bulk decoupling, and connector pin planning still determine whether the board behaves cleanly when several channels switch at once.

Solenoid control is another strong use case, particularly for valves, latches, shutters, and electromechanical locks. These loads are often electrically simple yet mechanically sensitive. A solenoid may need only on/off drive at the schematic level, but the actual requirement can involve pull-in current, hold power reduction, response time, and recovery from supply droop. The DRV8803DW handles the switching task well when the load can be driven directly from the supply and does not require bidirectional current or closed-loop force control.

The subtle design issue with solenoids is that the electrical waveform influences mechanical behavior more than many first estimates suggest. A valve that actuates reliably on the bench may become sluggish at temperature extremes or under supply sag if the coil current margin is too narrow. Conversely, a latch coil driven too aggressively can generate unnecessary heating and reduce lifetime. In straightforward systems, the best outcome often comes from using the driver for robust initial energization while tuning supply level, duty cycle, or firmware timing around the mechanical characteristics rather than around nominal coil resistance alone.

Protection features become especially valuable in solenoid systems connected through field wiring. Remote loads invite shorts to supply, shorts to chassis, connector bounce, and cable-induced transients. A discrete MOSFET can survive normal operation for years and still fail immediately on the first hot-plug event in an unfavorable harness. Integrated fault handling increases tolerance to those non-ideal events. It does not remove the need for surge planning, but it raises the baseline robustness of the output stage significantly.

For brushed DC motor subfunctions, the DRV8803DW is not a complete motor driver, but it remains useful in narrowly defined roles. Any arrangement that only requires low-side switching of a unidirectional motor-related load can be a candidate. Examples include enabling a motor branch already controlled elsewhere, switching clutches or brakes associated with a motorized mechanism, driving auxiliary windings, or controlling single-ended pump and fan stages where reverse operation is not required. The key is to avoid treating it as a substitute for an H-bridge when direction control, active braking, or current recirculation management are required.

That distinction matters because small brushed motors can appear deceptively compatible with simple low-side drive. Under startup or stall, current rises sharply, and the commutator introduces repetitive electrical noise that is harsher than relay or solenoid behavior. If the motor has appreciable inertia or can jam, thermal stress in the switching path accumulates quickly. In these cases, the device should only be used when the startup profile, stall exposure, and duty cycle are firmly bounded. Otherwise, a dedicated motor driver with current control and richer fault reporting is usually the more stable long-term choice.

As a general-purpose low-side switch array, the DRV8803DW is often most valuable in designs that need protected outputs rather than raw transistor channels. This includes indicator lamps, heaters with moderate inductive content in wiring, contactor pre-stages, small actuators, and miscellaneous machine I/O. The engineering tradeoff is straightforward: a discrete MOSFET can be optimized per channel for cost or current, but a protected multi-output device reduces design entropy. For products with multiple similar outputs, lower entropy usually translates into faster validation and fewer field anomalies.

This is particularly true when several outputs share one supply domain but serve different load types. A board may simultaneously switch relays, a door latch, and a status annunciator. Building each path discretely invites inconsistent clamp behavior, mixed grounding practices, and uneven thermal margins. Using a common protected sink architecture creates a more coherent power-output layer. That coherence simplifies EMI troubleshooting because the switching edges, fault response, and thermal characteristics follow one device family instead of several unrelated circuits.

From a layout perspective, the device should be placed with the same discipline used for any switching power component. Load current loops should be compact. Supply decoupling should be close and referenced to a low-impedance ground return. High-current output traces should not share narrow return paths with logic signals. If several channels may turn on simultaneously, copper area and thermal spreading become design variables, not afterthoughts. Multi-channel drivers are often thermally limited by aggregate dissipation long before any one channel reaches its headline current capability in isolation.

That last point is where many otherwise correct designs become fragile. Datasheet current numbers are easy to read as per-channel operating promises, but in real assemblies the limiting condition is frequently package temperature under concurrent loading. Relay banks are forgiving because average on-state dissipation is modest. Solenoid clusters and stalled motor-adjacent loads are less forgiving because channels can remain heavily loaded together. A conservative thermal budget, validated under worst-case ambient and supply conditions, is usually the difference between a robust design and one that only passes room-temperature bring-up.

In system architecture terms, the DRV8803DW is best applied where the control problem is fundamentally one of protected energy switching rather than precision power conversion. It excels when the loads are numerous, mostly independent, and electrically noisy. It is less compelling when the application demands closed-loop current regulation, bidirectional power flow, or finely shaped drive waveforms. Recognizing that boundary early leads to better partitioning: use it as the reliable switching edge of the system, and let specialized control silicon handle the cases where waveform quality is the primary requirement.

That positioning also explains why it appears in many durable industrial and embedded designs. Robust products are often built not from the most flexible parts, but from parts whose operating envelope matches the actual job with minimal interpretation. The DRV8803DW fits that philosophy well. Where four protected low-side outputs solve the problem directly, it reduces circuit complexity, tightens fault behavior, and makes board-level power control easier to reason about from first prototype through deployed hardware.

DRV8803DW Design and Integration Considerations

DRV8803DW integration is straightforward only when its role in the power path is defined correctly at the beginning. The device is not a general-purpose motor driver and not a half-bridge or full-bridge element. It is a protected low-side switch array intended to sink current from loads that are permanently referenced to the positive rail. That distinction drives the entire system architecture. If the application requires bidirectional current flow, active high-side control, recirculation shaping, or polarity reversal, the DRV8803DW is the wrong abstraction level. If the application is a bank of solenoids, relays, lamps, or unidirectional inductive actuators tied to a supply and selectively pulled to ground, then the device aligns well with the problem.

This low-side-only nature should be resolved during early partitioning, not after schematic capture. A common integration failure is treating the part as a generic “driver channel” and postponing load return-path analysis until layout. By that point, supply referencing, fault behavior, connector pinout, and EMC performance are already constrained. In practice, low-side switching changes how the load behaves under wiring faults, how diagnostics are interpreted, and how field service teams perceive a “stuck-on” or “stuck-off” output. Those effects are not secondary details. They are system behaviors created by topology choice.

The VCLAMP pin is one of the most important details because it defines where inductive energy is allowed to go during turn-off. It is not a logic supply and not the main operating rail for the IC core. Its job is narrower and more physical: it biases the internal clamp path used when drain voltage rises during inductive demagnetization. That means VCLAMP is directly tied to transient energy handling, dissipation distribution, and stress on both the device and the upstream supply. If VCLAMP is tied to VM, turn-off energy is largely returned into the supply domain, subject to the internal clamp structure and the system impedance. If VCLAMP is established with a zener-based arrangement referenced to VM, the clamp threshold can be shaped to limit voltage differently, which changes current decay behavior and power dissipation.

This is where design intent matters. A lower effective clamp level reduces switch-node excursion and can make downstream voltage stress easier to manage, but it also slows current decay in some load conditions and can increase energy retention time in the magnetic circuit. A higher clamp level usually accelerates demagnetization, which helps release solenoids faster, but it pushes more voltage stress into the switching node and can shift thermal burden into the clamping path. For relay and solenoid systems, this tradeoff directly affects release timing, audible behavior, EMI signature, and repetitive heating. It is worth treating VCLAMP as a dynamic energy-routing decision rather than a simple pin connection.

Board-level behavior around VCLAMP is often underestimated. The current pulse associated with inductive turn-off is fast, localized, and sensitive to loop inductance. Long traces between the device, clamp reference network, and bulk capacitance can create overshoot that is not obvious in low-bandwidth measurements. A design may appear stable in functional testing yet show sporadic fault activity or accelerated stress during temperature and harness-variation testing. A compact return path, low-inductance decoupling to the relevant supply domain, and a clear energy path back to bulk storage usually make more difference than adding late-stage suppression parts around the connector.

Thermal design must be evaluated as a channel-usage problem, not just a package-power problem. The headline current number for one channel does not represent the usable current for every operating mode. The real limit depends on how many outputs conduct at the same time, for how long, under what ambient conditions, and with what copper area available for heat spreading. In the DRV8803DW, this distinction is fundamental. A design that pulses one actuator at a time can often operate close to the single-channel capability because junction heating remains spatially and temporally limited. A design that holds multiple loads on continuously creates a very different thermal map. Heat sources accumulate inside the die and the package leadframe, and the allowable current per channel must be reduced accordingly.

This is one of the areas where paper compliance and field robustness often diverge. Bench validation with a single energized output can look excellent, while the deployed system spends most of its life in a four-channels-active hold state inside a warm enclosure. The failure mode is rarely immediate destruction. More often it appears as intermittent thermal shutdown, current-limit interaction, output dropouts, or long-term margin erosion. A sound approach is to define channel loading as explicit operating profiles: peak actuation, steady hold, faulted coil, simultaneous activation, elevated ambient, and low-airflow enclosure conditions. Once the load matrix is written that way, current capability becomes a bounded engineering parameter rather than a hopeful interpretation of a datasheet maximum.

Related to this, procurement substitution control should not be treated as an administrative exercise. If the original design depends on a specific current-sharing assumption, thermal pad implementation, fault response timing, or clamp behavior, then “equivalent” low-side drivers may not be equivalent in practice. Even small differences in RDS(on), shutdown threshold, internal clamp architecture, or fault blanking can shift the safe operating region enough to invalidate previous validation. The tighter the design runs against thermal or transient margins, the more important it becomes to lock down not just pin compatibility, but behavioral compatibility.

Ground implementation is another point where the device’s simplicity can be misleading. Multiple ground pins are provided for electrical and thermal reasons, and all must be tied to ground with low impedance. This is not a checklist item. The ground system defines return-current integrity, local reference stability for logic thresholds, clamp-current containment, and package heat extraction. In power switching circuits, “ground” is not one uniform node. It is a distributed return network carrying load current, transient current, and logic reference current at the same time. If those currents are forced through a poorly planned geometry, the result can be false fault signaling, output timing variation, radiated noise, and unnecessary device heating.

A practical layout pattern is to give the driver a short, wide current return into a solid ground region and to keep high-di/dt output current loops compact. Logic-ground referencing should remain close to the device’s control pins and not wander through load return bottlenecks. Where the board includes connectors to remote inductive loads, it is useful to think in terms of current loops rather than nets. The energizing loop and the demagnetization loop should both be visualized physically on the board. That mental model tends to reveal parasitic coupling paths before they become EMC problems.

Startup behavior and fault recovery deserve more attention than the simplicity of the input interface might suggest. Internal pulldowns and reset behavior help establish deterministic defaults, which is valuable for preventing unintended load activation during power sequencing. However, deterministic default state at the IC level does not automatically produce deterministic system behavior. The controller must still decide what to do when supplies ramp slowly, when VM is present before logic power, when a brownout occurs during an active load, or when nFAULT is asserted repeatedly because of a persistent field issue such as a shorted harness or overloaded actuator.

The most robust systems treat nFAULT as a state-management input, not merely an interrupt line. That means defining retry policy, debounce strategy, logging behavior, and load shedding rules. For noncritical equipment, a limited auto-retry sequence may be acceptable. For serviceable or safety-conscious equipment, repeated retries into a hard short may be undesirable because it increases thermal stress and obscures root cause during diagnostics. In those cases, latched fault handling at the controller level often produces cleaner system behavior than unconditional automatic recovery.

Another useful design choice is to align firmware timing with the physics of the load. Inductive channels do not behave like resistive GPIO loads. There is stored magnetic energy, release delay, and often mechanical motion behind the electrical waveform. If fault polling, re-enable timing, or command sequencing ignores that, the system can end up fighting itself. For example, a controller that immediately reasserts a channel after a transient shutdown may create repetitive stress cycles exactly when the package is hottest. Small timing adjustments informed by thermal and magnetic time constants often improve robustness more than changing hardware.

From an application perspective, the DRV8803DW is strongest when used as a protected output stage in distributed actuator control. Solenoid manifolds, valve banks, relay panels, small industrial selectors, and similar loads fit naturally because they benefit from integrated low-side switching, fault reporting, and simplified logic control. In these systems, the best results usually come from treating the device not as an isolated IC but as the center of a local power cell: load supply entry, clamp-energy path, bulk capacitance, ground return, thermal spreading copper, and controller interface all designed as one unit. That framing tends to produce cleaner transients, better thermal behavior, and fewer surprises during validation.

A final point is that successful integration depends less on any one electrical parameter than on respecting the interaction between topology, transient management, and operating profile. The DRV8803DW performs well when the load is correctly referenced, the clamp path is intentional, the thermal budget matches real channel usage, all grounds are implemented as true power returns, and fault handling is elevated from pin-level awareness to system-level policy. When those pieces are aligned early, the device behaves predictably and scales well from prototype to production.

Potential Equivalent/Replacement Models for DRV8803DW

Potential equivalent or replacement models for DRV8803DW should be evaluated first inside the DRV8803 family, because these parts preserve the same electrical intent, control model, and protection architecture. The closest documented replacements are DRV8803PWP and DRV8803DYZ. Both implement the same basic function as DRV8803DW: a 4-channel protected low-side driver with integrated clamp diodes and parallel-capable outputs. That common architecture matters more than the headline current number, because it preserves the load-driving method, fault behavior, and software control assumptions already built around the original design.

The most straightforward upgrade path is DRV8803PWP. This HTSSOP variant keeps the same core device behavior while improving conduction and thermal margin. Its typical RON is lower, around 400 mΩ, which directly reduces channel dissipation at a given load current. In practical designs, that reduction is often more valuable than it first appears. With low-side drivers, thermal stress scales quickly because output power loss follows I² × RON. A modest reduction in on-resistance can create a noticeable increase in usable continuous current, especially when several channels switch inductive loads in the same thermal region of the PCB. The documented capability of 2 A with a single channel on, and 1 A with four channels on at 25°C with proper PCB heatsinking, makes DRV8803PWP the strongest in-family option when the original design is thermally constrained or current headroom is tight.

DRV8803DYZ addresses a different optimization target. This SOT-23-THN version is intended for compact layouts where board area is a stronger constraint than absolute thermal robustness. It still supports meaningful drive levels, up to 1.9 A with one channel on or 900 mA with four channels on at 25°C, again assuming proper PCB heatsinking. That makes it viable for dense actuator or relay boards, provided the layout is intentionally designed to extract heat from a small package. In compact footprints, the package itself is only one part of the equation. Copper area, via stitching into internal or back-side planes, trace width at the output pins, and the proximity of adjacent heat sources often determine whether the part behaves like a true replacement or becomes a derated version of the same function.

Although these devices are functionally aligned, replacement should not be treated as pin-name equivalence alone. In low-side driver families, package changes often alter thermal impedance more than they alter logic behavior. That shifts the real operating envelope under simultaneous load conditions. The key engineering question is not simply “does the replacement support the same current?” but “under the actual duty cycle, ambient temperature, channel concurrency, and board stackup, does junction temperature remain controlled with sufficient margin?” This is where many substitution efforts become fragile. A part may match at room temperature in a bench setup and still underperform in production when multiple outputs run continuously inside an enclosed system.

Several checks should be treated as mandatory before approving DRV8803PWP or DRV8803DYZ as a replacement for DRV8803DW.

Package compatibility comes first. Even within the same silicon family, the footprint, pin pitch, lead geometry, and stencil design may change enough to require PCB rework. This affects not only placement but also solder joint reliability and thermal spreading into the board. Mechanical interchangeability should be verified from package drawings, not inferred from part naming.

Thermal resistance must be reviewed next. The package determines how effectively internal losses move into the PCB and ambient environment. If the original board relied on package body area or exposed thermal paths in a specific way, moving to a smaller or thermally different package can reduce current capability even when the datasheet lists similar electrical limits. In practice, systems with inductive loads such as solenoids, valves, relays, or lamp strings often generate more thermal stress from sustained channel activation than from peak current events. That operating pattern should drive the comparison.

Continuous current must be checked under realistic channel usage. The distinction between one channel active and four channels active is not a minor datasheet detail. It reflects thermal coupling inside the device. Four outputs at moderate current can produce a harsher junction condition than one output near the single-channel limit. For this reason, channel concurrency should be modeled explicitly. If the application uses staggered activation, pulse-mode loads, or low duty cycle outputs, a replacement may be comfortably viable. If several channels are on together for long intervals, the derating curve becomes the more relevant specification than the peak current table.

Assembly and heatsinking conditions also matter. Statements such as “with proper PCB heatsinking” should be read as a design requirement, not a generic assumption. In this class of devices, copper pour under and around the part, thermal vias, lead connection geometry, and nearby copper continuity can shift thermal behavior enough to change whether the chosen part passes margin tests. Boards that were acceptable with a larger package can become thermally marginal after migration to a compact version unless the layout is updated accordingly.

System-level derating should be applied before final selection. A replacement that works at 25°C nominal conditions may not be suitable at elevated ambient, under supply variation, or with repetitive inductive transients. The integrated clamp diodes help manage flyback energy, but repeated dissipation of inductive energy still contributes to heating. If the load profile includes frequent switching of high-energy inductive channels, the safer choice is usually the package with better thermal and conduction margin rather than the package with the smallest footprint. This is one area where conservative selection tends to reduce field issues disproportionately.

From an engineering perspective, DRV8803PWP is the clearest documented upgrade option for DRV8803DW when the goal is to preserve function while improving operating margin. It offers lower RON, stronger continuous current support, and better suitability for designs where thermal behavior is the actual limiting factor. DRV8803DYZ remains a legitimate alternative when space efficiency is the dominant constraint and the layout can be engineered to compensate for the smaller thermal envelope. The choice between them should therefore be driven less by nominal equivalence and more by which constraint dominates the product: thermal headroom or board area.

For procurement-driven substitution, staying within the DRV8803 series is the lowest-risk path supported by the documentation. That approach preserves the device class, output behavior, and protection concept while narrowing the validation work to package, thermal, and layout effects. Based strictly on the provided information, DRV8803PWP and DRV8803DYZ are the clearly documented replacement candidates for DRV8803DW, with DRV8803PWP standing out as the more robust upgrade path in most electrically demanding designs.

10. DRV8803DW

Conclusion

The Texas Instruments DRV8803DW is best evaluated as an integrated power-interface device rather than a simple quad transistor replacement. It targets a common control problem in embedded and industrial electronics: switching multiple inductive loads from logic-level signals while maintaining acceptable protection, thermal behavior, and board-level simplicity. In systems that drive unipolar stepper windings, relays, solenoids, valves, lamps, or other grounded-load topologies, the device provides four independent low-side channels with built-in protection and clamp handling, allowing the control layer to remain straightforward even when the power domain is electrically noisy.

At the architectural level, the DRV8803DW combines four low-side DMOS output stages with logic-compatible inputs and integrated protection functions. This matters because inductive loads do not behave like resistors during switching. When current through a coil is interrupted, the stored magnetic energy must be dissipated or redirected. In a discrete design, that usually means adding external flyback diodes, checking transistor avalanche limits, and validating fault behavior under short-circuit or thermal stress. The DRV8803DW absorbs much of that implementation burden into a single device, reducing schematic sprawl and making current-path behavior more predictable across the four channels.

Its four outputs are independently controlled, which is especially useful in systems where different loads must be sequenced, pulsed, or modulated separately. In a relay bank, this allows each relay coil to be managed with direct parallel logic. In a unipolar stepper implementation, each winding segment can be driven through a dedicated low-side switch without needing a more complex full H-bridge. In solenoid-based actuation, the independent channels simplify timing control for multi-valve or multi-lock systems. This independence is often more valuable than it appears at first glance, because mixed-load systems rarely switch all channels with identical duty cycles, inrush profiles, or ambient thermal conditions.

The 60 V operating capability is another practical differentiator. Many low-side driver solutions work well at 12 V or 24 V but become less attractive when designs must also tolerate 36 V or 48 V rails, line transients, or industrial supply margins. A 60 V-class device creates useful headroom for real deployments, where nominal rail voltage is only part of the story. Wiring inductance, hot-plug events, and supply overshoot can all push a driver close to its limits. Designs that look acceptable on paper often fail in validation because the selected switch had insufficient voltage margin. In this voltage range, margin is not an academic parameter; it is often the difference between a stable field design and repeated latent failures.

The integrated clamp diodes are central to the device’s usefulness with inductive loads. They provide a defined recirculation path when the load current is interrupted, limiting voltage excursions and protecting the output structures from destructive transients. In practice, this reduces both external component count and layout complexity. It also improves design repeatability. With discrete freewheel networks, behavior can vary depending on diode placement, loop area, and return-path impedance. When the clamp function is embedded into the driver, the transient current path is shorter and more controlled at the silicon/package level, which usually results in cleaner switching behavior and fewer surprises during EMI evaluation.

Protection features further separate the DRV8803DW from commodity transistor arrays. Overcurrent protection helps contain fault energy when a load is shorted or miswired. Undervoltage lockout protects the switching stage from operating in an undefined region where gate drive may be insufficient. Thermal shutdown prevents sustained overstress when dissipation exceeds what the package and PCB can remove. These mechanisms are not merely convenience features. They change the system failure mode from catastrophic to manageable. In practical hardware, that shift is extremely valuable because many faults are intermittent, installation-related, or induced by edge-case operating conditions that are difficult to reproduce in bench tests.

Current capability and thermal performance should still be treated carefully during part selection. A multi-channel low-side driver is often chosen because it simplifies the design, but thermal coupling between channels can become the true system limit. Four outputs switching modest loads may appear safe when analyzed independently, yet simultaneous conduction, elevated ambient temperature, poor copper spreading, or repetitive pulse loading can push junction temperature much higher than expected. The DW package choice therefore matters not only for assembly preference but also for power dissipation strategy. In most robust designs, the thermal budget should be derived from worst-case channel concurrency rather than typical average use, especially where relays remain energized for long periods or stepper phases are held statically.

This is one of the most common selection mistakes in low-side driver design: treating per-channel current rating as the usable system current under all conditions. That interpretation is usually too optimistic. Real boards introduce asymmetry in heat spreading, neighboring components elevate local temperature, and enclosure airflow is often weaker than assumed. A design that passes initial lab activation can still drift into thermal shutdown after prolonged field operation. The DRV8803DW helps by including thermal protection, but a shutdown event should be viewed as a warning that the thermal design margin is insufficient, not as a normal operating mechanism.

From a control perspective, the parallel logic interface keeps integration simple. A microcontroller, PLC interface stage, or FPGA can drive the outputs directly in a GPIO-like manner without serial configuration overhead. This is advantageous in deterministic systems where response timing must remain transparent and software complexity should stay low. It also improves diagnosability, since each control line maps directly to a physical output channel. In maintenance-oriented designs, this kind of one-to-one signal visibility can make bring-up and fault tracing substantially faster than with more abstracted driver architectures.

The device is particularly well suited to applications where the load topology is inherently low-side switched and current regulation is not the primary requirement. For relay and solenoid banks, the driver offers a clean integration path because these loads are typically on/off in nature and benefit more from protection and robustness than from advanced current shaping. For unipolar stepper systems, it supports straightforward winding control where the mechanical and electrical requirements do not justify a more complex integrated motion driver. In these cases, the DRV8803DW occupies a useful middle ground: more robust and compact than a discrete transistor array, but simpler and more transparent than a highly integrated motor-control IC.

There is also a procurement and lifecycle perspective that matters in real projects. Within the DRV8803 family, package variants can differ in thermal behavior, mounting style, and practical current delivery under identical electrical specifications. That means substitution decisions should not be made solely on channel count and voltage rating. Mechanical footprint, thermal pad behavior, copper utilization, and assembly constraints all affect whether another variant is truly interchangeable. In cost-sensitive programs, it is tempting to treat family members as equivalent sourcing options, but that can create downstream validation issues if package-dependent dissipation or layout parasitics are ignored.

Board layout remains important even with an integrated driver. The power return path for inductive loads should be kept short and low impedance. Ground strategy should prevent large switching currents from disturbing logic reference nodes. Supply decoupling should be placed close to the device, with particular attention to the transient behavior of shared rails when multiple channels switch simultaneously. In multi-load cabinets or distributed actuator systems, cable inductance can become a significant contributor to voltage stress and conducted noise. The driver’s integrated protection improves tolerance, but disciplined layout and harness design still determine whether the final system behaves cleanly under repeated switching.

In practice, the cleanest implementations usually separate the logic and power thinking early in the design. Logic inputs define intent; the DRV8803DW handles power translation and fault containment; the PCB and wiring then determine how well that intent survives real electrical conditions. When these three layers are aligned, the part performs as a highly effective system-integration element. When they are not, even a well-protected driver can be burdened with unnecessary transients, thermal stress, or grounding problems introduced elsewhere in the design.

For engineers selecting a four-channel protected low-side driver, the DRV8803DW remains a strong option when the requirements are clear: inductive load switching, direct logic control, industrial voltage compatibility, and reduced external protection circuitry. Its value is not just in the number of outputs, but in how it compresses switching, clamping, and fault handling into a predictable interface block. That predictability is often what shortens development cycles and improves deployment reliability. In systems built around common 12 V, 24 V, 36 V, or 48 V rails, that makes the device a technically well-bounded and practically efficient choice within the DRV8803 series.
