Texas Instruments DRV83053PHP Product Overview and Positioning

Texas Instruments DRV83053PHP is best understood as a system-level motor-drive front end rather than a standalone gate driver. It sits in the middle ground between minimal three-phase pre-drivers and fully integrated smart power stages. That positioning is important. In many BLDC and PMSM designs, the real challenge is not only switching six external MOSFETs, but coordinating gate drive, current sensing, supply supervision, fault handling, and configuration in a way that remains compact, diagnosable, and adaptable across product variants. DRV83053PHP addresses that integration layer directly.

At its core, the device combines three half-bridge gate drivers for external N-channel MOSFETs, three current-shunt amplifiers, SPI configuration and diagnostics, and an internal regulator. This combination reduces the amount of glue circuitry normally required around a microcontroller-based inverter stage. In practice, that means fewer analog support devices, fewer inter-device fault interactions, and a cleaner path from schematic to controllable motor subsystem. For designs that need flexibility in MOSFET selection but still want substantial analog integration, this is a strong architectural fit.

The voltage capability defines a broad application envelope. With an operating range from 4.4 V to 45 V and tolerance to automotive-style load transient conditions up to 45 V, the device can serve battery-powered and regulated DC bus systems across a wide span of power classes. That includes low-voltage portable systems, 12 V and 24 V industrial platforms, and embedded motion nodes where supply quality is not always ideal. The useful point here is not only the headline voltage range, but the fact that the control and protection layer remains consistent as the power stage is resized. This allows one control architecture to be reused across multiple bus voltages by changing mainly the MOSFETs, current-shunt values, and thermal design.

The use of external MOSFETs is one of the device’s most relevant product-selection advantages. In motor-drive programs, current demand, switching frequency, thermal headroom, and EMI targets often vary significantly between product families. A monolithic driver-plus-FET solution can simplify layout, but it also locks the design into a fixed silicon power stage. DRV83053PHP avoids that constraint. Engineers can optimize MOSFET RDS(on), gate charge, package thermal impedance, and avalanche ruggedness according to the real mission profile. This is especially useful when the same control electronics must support one product variant optimized for efficiency and another optimized for transient torque or peak current.

The three integrated current-shunt amplifiers are more significant than they may first appear. In three-phase control, current feedback quality strongly affects commutation smoothness, torque control accuracy, stall detection, and protection response. Integrated amplifiers help align the current-sensing path with the gate-driver timing and fault framework. They also reduce board-level matching issues that can emerge when separate amplifiers with different offsets, bandwidths, and common-mode behaviors are used. In practical motor boards, this often shortens the bring-up cycle because current reconstruction, overcurrent thresholding, and ADC scaling can be tuned within a more predictable analog chain.

SPI support further moves the device from “simple driver” into “managed analog subsystem.” Configuration over SPI enables parameter adjustment, status readback, and structured fault reporting without hardwiring every behavior into passive networks. That matters during both development and production. During tuning, SPI-accessible diagnostics can expose undervoltage events, overcurrent conditions, gate-drive faults, or amplifier-related anomalies that would otherwise require probing several internal nodes indirectly. In deployed systems, this same visibility supports more graceful fault handling. Instead of reacting to a generic shutdown signal, the controller can distinguish between a supply disturbance, a phase fault, or a gate-drive issue and choose a different recovery strategy.

The internal regulator also contributes to system simplification, but its practical value is best viewed in terms of power-tree consolidation. Motor-control boards often struggle with noisy DC buses, high di/dt switching currents, and sensitive low-voltage logic or analog nodes sharing limited PCB area. By integrating local regulation support, DRV83053PHP helps reduce the number of external supply-conditioning elements around the driver section. That does not eliminate the need for careful decoupling and grounding, but it does narrow the design surface where instability or coupling problems can occur. In compact boards, that reduction is often more valuable than the raw component count savings.

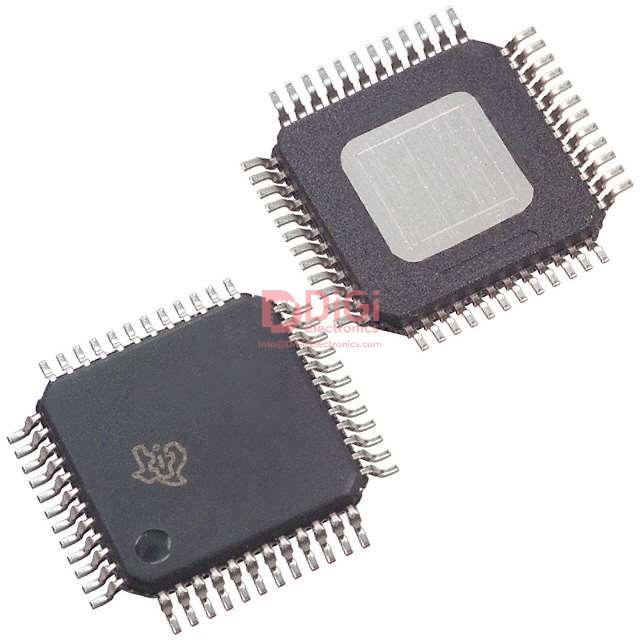

From a packaging standpoint, the 48-pin thermally enhanced HTQFP with a 7 mm × 7 mm body aligns with dense embedded motor-control layouts. The package is small enough for space-constrained designs yet still practical for routing multiple gate-drive, sense, SPI, and supply nets. This balance matters. Very small packages can save area but make current-loop control and thermal spreading harder. Here, the package class is better suited to real inverter layouts where gate-drive symmetry, shunt routing, exposed thermal paths, and digital isolation of noisy nodes all compete for placement priority.

The application range listed in the family documentation—CPAP systems, pumps, robotics, RC platforms, power tools, and industrial automation—reflects a common control pattern rather than a single market segment. These systems all need a motor-drive core that is compact, configurable, and robust under electrical stress, but they differ sharply in duty cycle, acoustic constraints, startup behavior, and fault expectations. In a CPAP blower or pump, low acoustic noise, smooth current regulation, and stable operation at varying loads dominate the design tradeoff. In power tools or robotics, peak current handling, aggressive transients, and thermal cycling become more critical. DRV83053PHP works well in this spread because it does not force the power stage into one predefined envelope.

A useful way to position the device is to compare three design tiers. The first tier uses a basic gate driver plus discrete amplifiers and supervisors; it minimizes IC cost but increases design complexity and debug time. The second tier, where DRV83053PHP belongs, integrates the analog support functions that most often create board-level friction while preserving external MOSFET freedom. The third tier uses an integrated power stage, which reduces design effort further but limits optimization and often constrains thermal or current scaling. For many medium-volume and feature-diverse products, the second tier is the most efficient long-term choice because it keeps both hardware reuse and performance tuning viable.

In implementation, several board-level details determine whether the device delivers its full value. Gate-drive loop inductance must be minimized, especially when using faster MOSFETs with low gate charge and steep dv/dt. Shunt amplifier routing needs tight Kelvin connections and a clean analog return strategy, otherwise the current-feedback advantage is diluted by switching noise. SPI diagnostics are most useful when firmware treats them as part of the control loop rather than as occasional debug aids. A recurring pattern in motor-drive development is that teams enable fault reporting but do not fully classify or log events; this leaves valuable observability unused and makes intermittent field issues much harder to isolate. Devices like DRV83053PHP justify their integration most clearly when diagnostics are built into the software architecture from the beginning.

Another practical consideration is MOSFET pairing. Because the driver supports external FET selection, the temptation is to optimize purely for low RDS(on). That is not always the best outcome. In many compact inverters, switching loss, reverse-recovery behavior, and gate-drive stress shape system performance more strongly than conduction loss alone. A slightly higher RDS(on) MOSFET with better switching behavior can produce a cleaner, cooler, and easier-to-control inverter once layout parasitics are included. This is where the device’s flexibility becomes strategically useful: it allows the power stage to be tuned to the actual electrical and thermal environment instead of to spreadsheet assumptions.

The product therefore occupies a well-defined and technically valuable niche. It is not the lowest-complexity option and not the highest-integration option. It is the option for designs where analog motor-drive support must be consolidated, firmware-level visibility must be preserved, and the power stage must remain selectable. That balance is often what separates a board that merely spins a motor from one that can be reused across platforms, debugged efficiently, and scaled with fewer architectural changes. In that sense, DRV83053PHP is less a generic driver IC and more an enabling control interface for modular three-phase motor systems.

Texas Instruments DRV83053PHP Core Architecture and Functional Integration

Texas Instruments DRV83053PHP is best understood as a tightly integrated analog front end for a three-phase inverter, not merely as a gate-driver IC. Its architecture combines gate-drive generation, current feedback conditioning, local power management, and protection supervision into a single control-plane device around the external MOSFET power stage. That integration matters because in compact BLDC and PMSM drives, performance is often limited less by the switching devices themselves than by the quality of the interfaces around them: gate-drive robustness, current-sense fidelity, supply stability, and fault response timing.

At the core is a three-phase pre-driver designed to control three half-bridges, each consisting of one high-side and one low-side external N-channel MOSFET. In practical inverter design, this partitioning is important. It preserves freedom to select MOSFETs based on current, RDS(on), package thermal behavior, and switching speed, while the DRV83053PHP handles the harder analog coordination problem of driving those devices safely and consistently. This is a common and effective split of responsibilities: external power devices define the current and thermal envelope, while the pre-driver defines switching quality, protection behavior, and measurement visibility.

The three half-bridge structure maps directly to standard three-phase motor control topologies used in BLDC trapezoidal commutation and PMSM field-oriented control. That means the device sits naturally in systems ranging from low-voltage pumps and fans to higher-dynamic-response servo auxiliaries. In these applications, the pre-driver is not passive infrastructure. It directly affects dead-time behavior, switching loss, EMI signature, current reconstruction quality, and fault containment. A well-integrated driver often simplifies control firmware because the analog layer becomes more predictable.

One of the most significant architectural choices in the DRV83053PHP is the integrated charge-pump gate drive for the high-side MOSFETs. This is more than a convenience feature. In many three-phase drivers, bootstrap-only high-side biasing imposes a practical duty-cycle constraint because the bootstrap capacitor must be periodically refreshed. If the high-side device remains on too long, the gate-drive voltage decays and the MOSFET can enter a partially enhanced region, increasing conduction loss and thermal stress. By incorporating a charge pump, the DRV83053PHP supports 100% duty-cycle operation, allowing sustained high-side drive without relying on switching events for refresh.

This capability becomes especially relevant in operating regions where one phase may need to remain continuously biased for torque production, field weakening transitions, locked-rotor management, or startup sequences at low electrical frequency. It also helps in systems that spend meaningful time near DC excitation conditions rather than in fast PWM steady state. In practice, this removes a class of corner-case behavior that often appears late in validation, when a motor control algorithm that looks correct in simulation exposes a bias-supply weakness under low-speed or stalled conditions.

From an engineering standpoint, 100% duty-cycle support also improves controllability at the firmware level. The modulation strategy no longer needs artificial refresh intervals or special handling to preserve bootstrap charge. That reduces algorithmic compromises and helps maintain cleaner current waveforms. In tightly tuned systems, avoiding such constraints can translate into better torque linearity and fewer non-ideal switching patterns near operating limits.

The integrated current-shunt amplifiers are another major part of the device’s value. The DRV83053PHP includes three bidirectional current-sense amplifiers intended for low-side shunt measurement. This allows the controller to observe phase-current-related information without external amplifier stages, reducing component count and eliminating a set of analog layout and matching problems that otherwise consume significant design effort. In motor drives, current measurement is not a secondary function. It is the basis for torque control, overcurrent response, efficiency optimization, and diagnostic observability.

Low-side shunt sensing is often chosen because it is simpler and more economical than inline phase sensing. The tradeoff is that signal reconstruction depends on switching state and timing. An integrated amplifier path helps by making gain, offset, and common-mode behavior more controlled and repeatable relative to a discrete implementation assembled from general-purpose op amps. The result is usually better correlation between design intent and actual ADC data, especially when the PWM edges are aggressive and the ground system is noisy.

The variable gain settings and adjustable offset reference give the current-sense path useful configurability. Gain selection lets the designer match amplifier output swing to the chosen shunt resistor and expected peak current. The offset adjustment is equally important because bidirectional sensing generally needs a midscale reference so that positive and negative current excursions can be represented within a single ADC input range. This is not just a feature checkbox. It directly determines how much effective resolution is available to the controller under real motor conditions.

A practical pattern is to begin shunt selection from thermal and fault-energy constraints, then choose amplifier gain to maximize ADC dynamic range without saturating during transients. If the gain is too low, low-current control becomes noisy and torque estimation degrades. If it is too high, current spikes clip the measurement path, which is often worse because clipped data destabilizes fast control loops and masks the true severity of transient events. Integrated gain options make this optimization much cleaner than redesigning external amplifier networks.

Current-sense layout still deserves careful attention even with on-chip amplifiers. The most reliable results usually come from Kelvin connections on the shunt resistor, symmetric routing of sense traces, and disciplined separation between switching current loops and measurement returns. Integrated amplifiers reduce analog complexity, but they do not remove the consequences of poor parasitic control. In inverter boards, measurement error is frequently caused less by nominal amplifier accuracy than by ground bounce, dV/dt injection, and shunt placement relative to the MOSFET commutation path.

The internal regulator extends the DRV83053PHP from a pure drive-and-sense device into a local power-management element. In this variant, the integrated 3.3 V, 50 mA LDO can supply an MCU or other low-power control circuitry, reducing the need for a separate regulator in some designs. This can simplify the power tree, lower BOM count, and shorten bring-up time, especially in compact modules where board area and startup sequencing matter as much as raw efficiency.

The LDO should be viewed as a system-integration tool rather than a universal supply rail. For lightweight digital loads, housekeeping logic, interface biasing, or a small controller, it can be an elegant fit. For noisier processing domains or peripherals with burst current demands, margin analysis becomes important. A local LDO inside the motor-driver domain can simplify architecture, but it also couples portions of the control supply to the inverter environment. In practice, this means decoupling strategy and rail partitioning still need deliberate planning. The integrated regulator reduces design burden, yet it should not be treated as a substitute for power-budget discipline.

Its ability to interface directly with a standard LIN physical interface is also useful in distributed automotive and industrial nodes where standby current and sleep behavior are tightly constrained. In these systems, the motor driver is often part of a larger electromechanical endpoint rather than a standalone inverter. The ability to support low standby current with fewer external regulators and glue circuits improves the overall node architecture. It also simplifies wake/sleep coordination, which can otherwise become fragmented across multiple PMIC and transceiver components.

The broader architectural point is that the DRV83053PHP centralizes several functions that are usually the source of integration friction in motor-drive design. Gate drive, current feedback conditioning, and local power management are strongly coupled in actual operation. Switching noise affects current sensing. Supply integrity affects gate-drive behavior. Fault events affect both. Bringing these blocks into one device tends to improve timing coherence and fault determinism, provided the board design respects the separation between power and signal domains.

That centralization also changes the design workflow. With a more integrated driver, early-stage effort shifts away from assembling discrete analog support circuits and toward system-level optimization: MOSFET selection, thermal path design, current-shunt sizing, PWM strategy, ADC timing, and fault policy. This is usually a better place to spend engineering time because those decisions drive measurable end-product behavior. Integration is most valuable when it removes low-level implementation noise and exposes the real system tradeoffs more clearly.

In application terms, the DRV83053PHP fits well in three-phase inverter designs where compactness, moderate supply complexity, and reliable current observability are required. For BLDC drives using six-step commutation, it reduces the external circuitry needed to build a practical inverter with current monitoring and supply support. For PMSM drives running sinusoidal control or FOC, the integrated sensing path and stable high-side drive are more significant, because control quality depends heavily on repeatable current information and unrestricted modulation range. In either case, the device acts as a bridge between the digital controller and the power stage, shaping how effectively software intent becomes real motor behavior.

A useful way to evaluate the part is to ask not only whether it can drive the MOSFETs, but whether it simplifies the entire inverter as an engineered system. On that measure, the architecture is well targeted. The charge pump removes a common high-duty-cycle limitation. The three current-shunt amplifiers reduce analog front-end complexity while preserving configurability. The integrated 3.3 V LDO supports a leaner power tree. Together, these functions make the DRV83053PHP a compact analog and power-management hub for three-phase motor drives, with the strongest value appearing in designs where board space, validation effort, and cross-domain integration are as critical as raw switching capability.

Texas Instruments DRV83053PHP Motor-Control Interface and Drive Method Support

Texas Instruments DRV83053PHP is not just a gate driver with broad input compatibility. Its value is in how it lets the control partition be selected deliberately: more authority can stay in the MCU when the application needs precise modulation, or more timing protection can be pushed into the driver when robustness and integration matter more than absolute switching freedom. That distinction is important in motor drives because interface choice directly affects control bandwidth, firmware architecture, EMC behavior, and fault tolerance.

The device supports 3-PWM and 6-PWM control inputs, with input frequencies up to 200 kHz. At a surface level, this looks like a standard flexibility feature. In practice, it determines how much of the inverter switching behavior is synthesized by the controller versus interpreted and safeguarded by the gate driver. For low- to mid-power motor systems, that boundary often defines the overall design complexity more than the MOSFET selection itself.

In a 6-PWM scheme, each inverter switch is driven with its own dedicated command path. The MCU outputs independent high-side and low-side PWM signals for all three phases, so modulation timing is explicit and phase-leg behavior is fully programmable. This approach is typically favored in PMSM and FOC systems because it supports exact current shaping, advanced space-vector modulation, synchronous rectification strategies, discontinuous PWM modes, and controller-managed dead-time optimization. It also gives direct access to switching-sequence refinement under changing operating points, such as low-speed torque control, field-weakening regions, or aggressive transient loading.

That extra control is not only about algorithm sophistication. It also improves observability during development. When each switch command is visible and deterministic at the MCU output, it becomes easier to correlate phase current distortion, torque ripple, and switching-node ringing with a specific modulation decision. In lab bring-up, this usually shortens debug time, especially when current-loop instability and power-stage parasitics interact in ways that are not obvious from firmware traces alone.

The cost of 6-PWM is higher interface and timing complexity. More timer resources are required, firmware must manage complementary outputs correctly, and the system becomes more sensitive to controller timing quality. If dead-time is inserted primarily in the MCU, any timer misconfiguration, asynchronous update event, or edge-case startup condition can create overlap risk. For high-performance drives this tradeoff is often justified, but it should be treated as a system-level decision, not merely a pin-count choice.

In a 3-PWM architecture, the command interface is compressed to one PWM input per phase. This reduces routing, timer consumption, software setup effort, and often the likelihood of configuration errors. For compact BLDC and cost-optimized PMSM products, that simplification is often more valuable than maximum modulation freedom. The digital interface becomes cleaner, the control stack is easier to scale across MCU variants, and pin pressure is reduced, which matters in tightly integrated designs where communication, sensing, and diagnostics are competing for I/O.

3-PWM is especially effective when the application does not require fine-grained switch-level control. Fans, pumps, compact servos, and general-purpose e-mobility auxiliaries often benefit more from robust implementation and fast production validation than from extracting the final fraction of inverter efficiency. In these cases, reducing control-path complexity usually improves total design quality. Fewer timing dependencies exist between firmware and gate driver behavior, and the resulting architecture is often easier to harden against abnormal operating states such as brownout, rotor lock, or repeated restart events.

The mention of single-PWM commutation support extends this philosophy further. In simpler BLDC implementations, especially six-step systems with limited compute budget, a single-PWM mode can reduce the control layer to a very manageable form. That does not make it universally preferable, but it aligns well with applications where low software overhead, predictable startup, and modest speed-control requirements dominate the design target. In such systems, overengineering the modulation interface often adds verification burden without producing proportional field benefit.

Support for both 3.3 V and 5 V digital interfaces is a small feature with outsized practical impact. Mixed-voltage logic remains common across motor-control platforms, especially when newer low-voltage MCUs are paired with legacy peripherals or industrial interface sections. Native compatibility on both logic levels avoids level shifters, and that does more than save BOM cost. It removes propagation uncertainty, reduces failure points, simplifies power sequencing, and often improves signal integrity at high edge rates. In PWM-based control paths, these small reductions in interface ambiguity can materially improve switching consistency.

At 200 kHz supported input frequency, the device also leaves room for high switching-frequency operation or high-resolution modulation updates. Not every motor drive should switch that fast; many should not. But having that headroom is useful because it decouples gate-driver interface capability from the optimization process. Designers can evaluate acoustic-noise reduction, current ripple, control-loop bandwidth, and magnetic-loss tradeoffs without immediately running into a control-input ceiling. That flexibility is valuable during platform development, where the final switching frequency often changes after EMI and thermal characterization.

On the output side, the programmable high-side and low-side slew-rate control is one of the most operationally important features. Gate-drive tuning is where theoretical inverter efficiency and real hardware behavior usually start to diverge. Fast MOSFET transitions reduce switching loss, but they also excite package inductance, DC-link parasitics, and layout imbalance. The result can be overshoot, ringing, common-mode noise, false triggering, and radiated EMI that is far worse than expected from schematic-level analysis. Slower edges reduce those effects, but they increase transition loss and can raise device temperature under load.

Because of this, slew-rate control should be viewed as a system-stability knob rather than a simple efficiency setting. In early prototypes, a moderate slew setting is often the fastest route to reliable waveform capture and fault-free spin-up. Once current sensing, control-loop behavior, and thermal margins are stable, the edge rate can be pushed faster phase by phase and load case by load case. This staged tuning approach usually converges faster than beginning with maximum drive strength and then trying to suppress the resulting noise through filtering or shielding. In many inverter layouts, edge control yields more EMI improvement per design hour than late-stage board modifications.

The high-side and low-side programmability also matters because the two transitions rarely behave identically. Turn-on and turn-off losses, diode recovery effects, current polarity, and PCB return geometry can make one edge much more problematic than the other. A gate driver that allows this tuning gives room to shape actual switching behavior instead of accepting a one-size-fits-all waveform. That becomes more important as bus voltage rises or when compact layouts force the power stage and sensing circuits into close proximity.

Programmable dead-time control addresses another core inverter constraint: preventing simultaneous conduction of the high-side and low-side MOSFETs in the same half-bridge. Shoot-through events are among the fastest ways to convert a logic-timing issue into a destructive power failure. In a three-phase bridge, even brief overlap can generate current spikes large enough to damage MOSFETs, distort supply rails, and corrupt nearby measurements. Dead time creates a safety margin around switching transitions, but too much of it increases body-diode conduction, raises loss, and distorts phase voltage, especially at low modulation index.

This is why dead time should not be treated as a static safety number copied from a reference design. The optimum value depends on MOSFET gate charge, driver current, PCB parasitics, operating temperature, and the actual turn-off behavior under load current. DRV83053PHP’s programmable dead-time support allows the design to be tuned around real hardware rather than nominal assumptions. In practice, a conservative value is often useful for initial validation, followed by gradual reduction while monitoring switch-node behavior, inverter temperature, and low-speed current distortion. That method generally exposes the true margin more reliably than simulation alone.

The integrated automatic handshaking for shoot-through prevention adds a second layer of protection beyond controller timing. This is a meaningful architectural advantage. Firmware-generated complementary PWMs are only as reliable as the timer setup, update synchronization, interrupt behavior, and fault-state sequencing around them. During normal operation those paths may look deterministic, but startup, shutdown, and fault recovery are where timing mistakes tend to appear. Driver-level interlock logic reduces the probability that a transient control anomaly propagates directly into a destructive bridge event. For motor systems that must survive repeated power cycling, abrupt load disturbances, or field firmware revisions, this form of local hardware protection is often more valuable than a marginally more flexible software timing model.

Taken together, the 3-PWM/6-PWM input support, logic-level compatibility, slew-rate tuning, and dead-time protection show that DRV83053PHP is designed to let the inverter be optimized along two dimensions at once: control sophistication and implementation resilience. For high-end FOC platforms, 6-PWM preserves the modulation freedom needed for dynamic current control and efficiency tuning. For resource-constrained designs, 3-PWM and simpler commutation modes reduce integration friction without abandoning key protection mechanisms. The stronger design strategy is usually to select the simplest control interface that still preserves the performance objective, then use the driver’s analog tuning features to stabilize the real hardware. In motor-drive development, that balance often produces better systems than pursuing maximum algorithmic freedom by default.

Texas Instruments DRV83053PHP Current Sensing, Regulation, and System Support Functions

Texas Instruments DRV83053PHP integrates not only the gate-drive path for a three-phase inverter, but also several support functions that strongly affect control quality, protection behavior, and board-level integration. The most relevant of these are the three current-shunt amplifiers, the internal regulator outputs, and the coordination pins used for wake, enable, fault reporting, and power-good supervision. Taken together, these blocks reduce external circuitry, but their real value appears only when they are treated as part of the control and power architecture rather than as isolated convenience features.

The three current-shunt amplifiers are exposed through SO1, SO2, and SO3, with corresponding differential inputs SP1/SN1, SP2/SN2, and SP3/SN3. Their intended role is low-side shunt measurement. This matters because low-side sensing usually provides the best tradeoff between implementation simplicity, ADC interfacing, and noise containment in cost-sensitive motor drives. The differential input structure helps reject common-mode disturbance generated by high di/dt switching events at the inverter legs, while temperature compensation improves gain consistency over operating range. In practice, this reduces drift in current reconstruction and lowers the amount of controller-side correction needed to maintain predictable torque behavior.

The bidirectional nature of the amplifiers is especially important. In a motor inverter, current does not follow a simple one-way path. During freewheeling intervals, synchronous rectification, braking, and regenerative operation, shunt polarity can reverse depending on conduction state and modulation pattern. A unidirectional measurement chain can lose observability in these regions or force awkward biasing schemes. With bidirectional sensing, the controller can preserve visibility of current sign, which improves current-loop stability and makes fault thresholds more meaningful. This is not only a control convenience; it is also a protection advantage, because reverse current events often appear first during abnormal deceleration, supply pumping, or load transients.

In trapezoidal BLDC systems, the integrated amplifiers are sufficient for more than overcurrent protection. They can support phase-current observation during commutation sectors, improve stall detection, and provide a more informed basis for torque-limiting strategies. Although six-step control is often considered tolerant of coarse sensing, field experience shows that current visibility becomes much more valuable when the mechanical load is intermittent, when supply impedance is high, or when startup under load must be reliable. Under those conditions, current waveform shape reveals commutation quality, dead-time distortion, and saturation onset long before speed feedback does.

In PMSM drives, the usefulness of the amplifiers depends on the current-sensing scheme and PWM timing strategy. Low-side shunt sensing can support closed-loop current regulation effectively, but only if the sampling windows are long enough and aligned with valid conduction intervals. This constraint becomes tighter at high modulation index, low inductance, or high electrical frequency, where the available measurement window can collapse. In such designs, the amplifier itself may still be accurate, yet the system-level observability becomes the limiting factor. That distinction is easy to overlook during schematic review and often surfaces only during firmware integration. A practical design approach is to evaluate current reconstruction feasibility from the PWM scheme first, then confirm that ADC trigger timing, amplifier settling, and blanking behavior are compatible with the chosen control bandwidth.

Layout quality has a direct impact on the usable performance of these amplifiers. The sensing path should be treated as a precision analog measurement channel embedded inside a noisy power stage. Kelvin routing from the shunt resistor to SPx/SNx is highly advisable. The shunt should return cleanly to the power ground structure, and the amplifier input traces should avoid shared high-current copper that introduces parasitic voltage error. In repeated lab bring-up, many apparent “amplifier errors” are actually ground bounce, asymmetric routing, or shunt placement too close to switching current convergence points. When current readings show PWM-edge spikes or sector-dependent offsets, the first suspect should be current-loop geometry, not amplifier transfer accuracy.

Shunt value selection also deserves disciplined treatment. A larger shunt improves signal amplitude and ADC resolution, but it adds conduction loss and reduces efficiency. A smaller shunt lowers loss, yet pushes more burden onto amplifier gain, ADC dynamic range, and digital filtering. The best value is not simply the one that fits the nominal full-scale current. It should be chosen from the combined perspective of peak transient current, minimum controllable torque, thermal rise, and fault-detection margin. In compact drives, a slightly higher shunt value often improves real control quality more than expected, because it raises low-current observability where friction compensation, startup smoothness, and acoustic behavior are determined.

The integrated regulator outputs AVDD and DVDD simplify local bias generation for analog and digital sections, and each requires a 1-µF bypass capacitor to ground. In the DRV83053PHP variant, VREG provides a 3.3-V, 50-mA LDO output, also with a 1-µF capacitor. These regulators can reduce the number of external supply rails and shorten startup sequencing, which is useful in embedded motor modules where board area and cost are constrained. Their value is not just BOM reduction. They also help localize critical bias generation near the driver, which can reduce distribution impedance and improve startup repeatability if the decoupling network is properly placed.

That said, internal regulators should be viewed as control-plane supplies, not as a general-purpose system rail. The 50-mA limit on VREG is enough for many MCUs, logic devices, and moderate interface loads, but margin can disappear quickly once communication transceivers, sensors, pull-up networks, indicator loads, or boot-time current peaks are included. A design may pass static current-budget review and still fail in field conditions because the transient consumption during MCU flash access, bus activity, or sensor startup momentarily exceeds what the rail can support. For this reason, regulator budgeting should include peak and startup demand, not only average current. It is often safer to reserve the integrated LDO for the most timing-sensitive low-power domain and offload less critical peripherals to a separate supply if the rail headroom is narrow.

Bypass implementation is equally important. The required 1-µF capacitors should be placed close to the corresponding pins with short return paths to ground. Long routing or shared return inductance weakens the regulator’s local decoupling function and can couple switching noise into analog or digital domains. When unexplained ADC jitter, watchdog irregularities, or intermittent reset behavior appears during high-load transitions, decoupling placement is frequently involved. Small details in placement can determine whether the integrated supply behaves like a stable reference rail or like a noise conduit from the power stage.

The WAKE, EN_GATE, nFAULT, and PWRGD pins make the DRV83053PHP more suitable for managed systems than a simple standalone driver. WAKE provides a high-voltage-tolerant input for exiting sleep, which is useful when the driver must remain connected to a battery or industrial bus while the rest of the system enters a low-power state. EN_GATE controls gate-driver activation and also enables the current-shunt amplifiers, which means it effectively gates both actuation and current observability. nFAULT reports fault conditions, while PWRGD exposes regulator and watchdog-related status. This combination supports a structured startup model in which power validity, control readiness, and fault containment can be sequenced explicitly.

From a system perspective, these pins enable cleaner partitioning between power electronics and supervisory logic. A robust implementation typically separates three states: quiescent standby, logic alive but power stage disabled, and full drive enabled. That separation improves fault recovery and reduces unintended motion risk. For example, keeping the logic domain active while holding EN_GATE low allows configuration, diagnostics, and communication to complete before the inverter is energized. This is preferable to bringing up control firmware and switching hardware simultaneously, especially in systems with shared supplies or uncertain load conditions. In practice, most unstable bring-up events come from sequencing ambiguity rather than from missing hardware capability.

nFAULT and PWRGD should also be used as diagnostic signals, not merely as interrupt sources. Their timing relationship often helps distinguish between undervoltage, watchdog, regulator collapse, and gate-drive-related faults. Logging these signals during startup and abnormal events can significantly shorten debug cycles. In many prototypes, the difference between a fast fix and a prolonged investigation is whether fault signaling was captured with enough temporal context to identify cause rather than symptom.

One useful way to view the DRV83053PHP is as a device that compresses the analog perimeter around the power stage. It does not eliminate the need for system engineering; it shifts the engineering focus. Instead of designing separate current amplifiers, bias rails, and supervisory glue logic, the challenge becomes correct integration of timing, grounding, power budgeting, and state management. When those pieces are aligned, the device supports compact, highly functional motor-drive designs with good observability and controlled startup behavior. When they are not, the failure modes tend to be subtle: inaccurate low-current sensing, unstable current loops at certain duty cycles, sporadic resets, or fault behavior that looks inconsistent but is actually sequence-dependent.

For that reason, the strongest design approach is to treat current sensing, regulator loading, and control-pin sequencing as one coupled problem. Current feedback determines control quality and protection speed. Regulator integrity determines whether the control domain remains trustworthy during transients. Sequencing pins determine whether the system enters and exits active states in a controlled manner. The DRV83053PHP provides the hardware hooks for all three. The quality of the final design depends on how coherently those hooks are used across schematic capture, layout, firmware timing, and power-state definition.

Texas Instruments DRV83053PHP Protection, Diagnostics, and Reliability-Oriented Features

Texas Instruments DRV83053PHP stands out less because it drives MOSFETs, and more because it supervises the entire power stage with enough granularity to keep faults from turning into hardware damage. In motor-control hardware, efficiency numbers and PWM capability often attract early attention, but long-term field behavior is usually decided by protection architecture, observability, and fault containment. DRV83053PHP is strong in precisely these areas. Its protection and diagnostic set is not just a checklist feature block; it is part of the control loop around inverter reliability.

A central element is the MOSFET VDS-based overcurrent monitoring on both high-side and low-side devices. This matters because current shunt paths alone do not always expose the earliest stage of a destructive event. A phase short, cross-conduction transient, or localized MOSFET stress can develop faster than a control loop built only around current reconstruction. By observing drain-source voltage directly, the driver can infer abnormal conduction states at the switch level, where failure actually begins. This creates a second protection path that is closer to the silicon stress mechanism than phase-current measurement alone.

That distinction is important in practical inverter design. Shunt amplifiers are excellent for control and average current limiting, but they can be blind to some fault geometries, especially when layout parasitics, blanking intervals, PWM edge behavior, or current recirculation paths distort what the controller sees. VDS monitoring complements those limitations. It is particularly useful during hard short events, startup transients, or stalled-rotor conditions where the external MOSFETs may enter unsafe operating regions before the main control firmware has enough valid data to respond. In well-designed systems, this kind of layered protection significantly reduces dependence on a single sensing modality, which is a common weakness in compact motor drives.

Another practical advantage is fault localization. Monitoring both high-side and low-side MOSFET behavior improves visibility into which half-bridge element is misbehaving. That information becomes valuable during bring-up and later during service diagnostics. When a fault report can be correlated with one switch position rather than an entire phase leg, root-cause analysis becomes faster. In dense designs where thermal coupling and switching noise can obscure symptoms, this reduces debug time and helps distinguish between real overcurrent events, gate-drive weakness, poor switching transitions, and board-level parasitic problems.

The broader gate-driver fault detection architecture extends this visibility beyond overcurrent events. A gate driver is often treated as a transparent interface between the MCU and the MOSFETs, but in reality it is an active safety component. If it cannot detect abnormal gate-drive states, the control system is operating with incomplete information. DRV83053PHP addresses this by exposing detailed fault conditions through SPI, allowing firmware to classify events rather than responding to a single undifferentiated fault pin. That changes system behavior in a meaningful way. A generic shutdown strategy is simple, but it often causes nuisance trips, poor fault recovery, and limited field insight. Fault-specific reporting enables differentiated responses such as retry logic, torque derating, controlled coast-down, fault latching, or service logging.

This SPI-based diagnostic path is especially valuable in products that must remain serviceable over time. During development, engineers can capture fault sequences under real switching conditions and identify whether instability comes from power-stage stress, timing configuration, thermal rise, or supply anomalies. In production firmware, the same reporting path supports event counters, maintenance records, and smarter system behavior under repeated marginal conditions. In practice, systems become more robust when firmware treats fault data as operational telemetry instead of only emergency shutdown input.

Shoot-through prevention and programmable dead-time control are another pair of features that deserve more than a brief mention. In half-bridge systems, shoot-through is one of the fastest routes to catastrophic loss because it creates a direct current path from the supply through the bridge. Preventing it is not only a logic problem; it is also an analog timing problem shaped by MOSFET gate charge, driver strength, PCB parasitics, temperature, and device variation. Fixed dead time can be too conservative or too aggressive depending on the chosen MOSFETs and switching conditions. Programmable dead time gives the designer room to tune the tradeoff between switching safety and efficiency.

That tuning has direct system-level consequences. Excess dead time reduces shoot-through risk, but it also increases body-diode conduction intervals, switching loss, and current distortion. In motor drives, this can elevate heating, worsen acoustic behavior, and reduce torque smoothness, especially at low speed or under light load. Insufficient dead time improves theoretical efficiency until real hardware variation turns it into cross-conduction. The more mature design approach is to treat dead time as a calibration parameter tied to the actual MOSFET set, PCB layout, bus voltage, and thermal operating window. DRV83053PHP supports that approach instead of forcing a one-size-fits-all compromise.

Thermal protection is equally important because overheating in motor systems is rarely a steady-state event. It usually develops through interaction between load surges, stalled operation, poor airflow, ambient rise, recirculating current, and switching loss concentration in limited board area. DRV83053PHP includes both overtemperature warning and overtemperature shutdown, which allows a staged response instead of a binary failure point. That distinction is highly useful. A warning threshold gives firmware time to reduce phase current, lower PWM duty, change control mode, or temporarily limit peak torque before the shutdown threshold is reached.

This staged thermal behavior is often the difference between graceful degradation and repeated hard faults. In applications such as pump controllers, fans, actuators, and power tools, thermal conditions can swing quickly with mechanical loading and enclosure conditions. A design that only reacts at thermal shutdown tends to operate near the cliff edge, causing abrupt interruptions and high thermal cycling stress. A design that uses warning telemetry to derate earlier usually lasts longer and behaves more predictably. In practice, repeated near-limit heating is often more damaging to reliability than occasional peak events, because it accelerates solder fatigue, weakens package interfaces, and magnifies parameter drift across the power stage.

Reverse battery-protection support further strengthens the device for supply environments that are less controlled than a lab bench. Reverse polarity events, supply lead swaps, and battery transients remain common failure sources in field-installed equipment. Even when external protection elements exist, the gate driver must remain behaviorally predictable during abnormal input conditions. Support for reverse battery scenarios helps prevent fault propagation into the driver and external MOSFET network, reducing the chance that a simple wiring mistake becomes a multi-component failure.

Limp-home-mode support reflects a similarly practical design philosophy. Total shutdown is not always the safest response. In many electromechanical systems, maintaining partial control for a short interval is preferable if it allows a controlled stop, valve repositioning, pressure release, or transition to a mechanically stable state. The value of limp-home capability is not just continued operation; it is controlled reduction of function under supervision. In systems exposed to intermittent wiring faults, thermal stress, or supply instability, this can prevent the secondary problems that arise when motion or flow stops abruptly. A robust motor-control platform should distinguish between faults that demand immediate isolation and faults that still permit restricted operation, and this feature set supports that distinction.

The integrated MCU watchdog adds another layer to this supervision model by addressing a different class of failure: loss of valid host control. Many inverter failures are not caused by the power stage first. They begin with firmware lockup, timing corruption, communication failure, or an MCU state that stops updating the driver coherently. When the host processor becomes unresponsive, even a healthy gate driver can become unsafe if stale commands persist. The watchdog helps detect this loss of control authority and provides a mechanism to force the system back into a known state. That is an important reliability feature because it connects software health to power-stage safety instead of assuming the MCU is always trustworthy.

Taken together, these features show a design orientation that is reliability-centric rather than feature-centric. The real strength of DRV83053PHP is the way its protections overlap. VDS monitoring covers switch stress directly. Gate-driver diagnostics expose abnormal internal and external conditions. SPI reporting gives software visibility. Dead-time control reduces timing-related bridge faults. Thermal warning and shutdown manage energy accumulation. Reverse battery support handles supply abuse. Limp-home capability supports controlled degradation. The watchdog monitors the supervisory controller itself. This is the kind of layered architecture that generally survives real deployment better than designs built around one primary protection path and a generic fault output.

In implementation, the best results usually come when these features are not left at default assumptions. VDS thresholds should be matched to the selected MOSFET RDS(on), temperature behavior, and expected current envelope. Dead time should be tuned on real hardware across voltage and temperature corners, not only in nominal bench conditions. SPI fault handling should be mapped into a firmware state machine that distinguishes retryable events from latch-worthy faults. Thermal warnings should feed derating logic rather than simply logging an error. The watchdog should be integrated with a recovery strategy that leaves the bridge in a deterministic state. When used this way, DRV83053PHP becomes more than a gate driver; it functions as a protection coordinator for the inverter.

For designers evaluating motor-driver ICs, that is the more relevant perspective. Inverter robustness is rarely determined by one dramatic fault event. It is determined by how many imperfect conditions the system can detect early, classify correctly, and survive without losing control. DRV83053PHP is compelling because it is built around that exact problem.

Texas Instruments DRV83053PHP Key Electrical and Thermal Characteristics for Device Selection

Texas Instruments DRV83053PHP is a wide-input three-phase gate driver intended for systems that need one device to span low-voltage battery rails and higher industrial bus domains without changing control architecture. Its PVDD operating range of 4.4 V to 45 V is not just a compatibility number. It directly shapes how much design margin is available during cold crank, battery droop, regenerative events, and line transients. In practice, a device that reaches down to 4.4 V gives useful headroom for undervoltage events in nominal 6 V, 12 V, and 24 V-class systems, while the 45 V upper limit allows it to sit comfortably in many 36 V and transient-managed 48 V-adjacent designs. The real selection question is less about whether the bus nominally fits, and more about whether all dynamic bus conditions remain inside the safe operating envelope after ringing, cable inductance, and supply overshoot are included.

Temperature capability is similarly easy to misread if treated as a static rating. The ambient specification of -40°C to 125°C and junction capability up to 150°C indicate that the silicon is intended for harsh environments, but the usable operating space is determined by power loss distribution across the gate driver, internal regulators, and surrounding power stage. A driver with adequate electrical margin can still become the weak link if placed near hot MOSFETs, shunt resistors, or magnetics without a thermal escape path. In motor-control layouts, the package temperature often tracks local copper heating more than free-air ambient. That makes board-level thermal design a first-order selection factor rather than a later optimization step.

The gate-drive section is one of the most decision-critical parts of this device. The DRV83053PHP provides programmable high-side peak source current up to 1 A and peak sink current up to 1.25 A. These values matter because gate drive is fundamentally a charge-transfer problem. The driver must move the MOSFET gate from one state to another fast enough to control switching loss, but not so aggressively that voltage overshoot, ringing, and EMI become dominant. The asymmetry between source and sink capability is useful. A stronger sink path often helps suppress Miller-induced turn-on and improves turn-off control in half-bridge commutation, especially in layouts with non-negligible parasitic inductance. This is one of the details that tends to matter more in hardware than it does in block diagrams.

Programmability of gate current is more valuable than the headline peak numbers suggest. It allows one control platform to support different MOSFET sets without changing the driver IC, which is especially useful when cost-down, thermal rebalancing, or second-source FET substitutions occur late in development. For small- to medium-gate-charge MOSFETs, stronger drive can reduce transition time and lower switching loss. For larger devices or noisier layouts, backing off the drive current often improves system behavior because it reduces drain slew rate, limits common-mode noise injection, and prevents false triggering on sensitive nodes. A design that is theoretically more efficient at the transistor level can become less robust at the system level if gate edges are pushed beyond what the layout can support cleanly.

The 200 kHz maximum switching frequency should also be read in the context of the charge pump and total gate charge demand. The device supports switching up to 200 kHz, but the total average gate-driver current is charge-pump limited to 30 mA. This is one of the key constraints for practical device selection. Peak current defines how quickly each transition can occur. Average current defines whether repeated switching remains sustainable over time. That distinction is often where early sizing errors appear. A MOSFET may look compatible because its gate can be charged quickly in a single event, yet the average charge required across three phases at the target PWM frequency may exceed what the internal charge-pump architecture can replenish efficiently.

A simple first-pass check is to estimate total gate-drive demand using average current proportional to total gate charge multiplied by switching frequency and the number of switching events. In three-phase inverters, that number rises quickly once both high-side and low-side devices, dead-time behavior, and modulation strategy are considered. The practical implication is clear: the DRV83053PHP is well suited to moderate total gate-charge designs, but large MOSFETs combined with high PWM rates can push it into a region where switching becomes inconsistent, gate amplitude degrades, or thermal stress increases. In that sense, the 30 mA limit is not a footnote. It is often the parameter that separates a stable inverter from one that works only under nominal bench conditions.

This also affects MOSFET selection strategy. Choosing the lowest-RDS(on) device is not always the best match for this driver. Very low conduction loss often comes with higher gate charge, and that tradeoff can shift loss back into the switching system and gate-drive supply. In compact motor drives, the better overall solution is often a MOSFET with balanced RDS(on), moderate Qg, and well-behaved reverse recovery rather than the absolute lowest on-resistance part. That choice tends to reduce gate-drive burden, ease EMI control, and preserve switching margin at higher PWM frequencies. The driver’s characteristics encourage that balanced approach.

Power-consumption behavior across modes is another useful part of system partitioning. With EN_GATE enabled, regulator enabled, and outputs in high impedance, the device draws a typical 15 mA from PVDD. Standby current is typically 4 mA, and sleep current is typically 60 µA. These figures support multi-state power architectures where the system does not simply switch between fully on and fully off. In battery-backed actuators, pumps, and smart motion nodes, the difference between standby and sleep can materially affect long-term energy budget, thermal rise inside sealed enclosures, and wake responsiveness. The WAKE input becomes important here because low-power state design is not just about minimizing quiescent current. It is about deciding which functions remain biased, how quickly the system must recover, and whether fault-monitoring coverage is still required during reduced-power intervals.

In practice, sleep current usually receives the most attention during requirements review, but standby current often dominates real energy use because systems spend far more time in armed-idle than in deep sleep. That makes the 4 mA standby figure operationally significant. If the architecture keeps regulators and communications partially active for fast restart, standby current becomes the number that drives battery hold-up calculations and off-state thermal behavior. This is a common source of mismatch between spreadsheet estimates and deployed performance.

Thermal characteristics of the 48-pin HTQFP package reinforce the importance of board design. A junction-to-ambient thermal resistance of 26.6°C/W and junction-to-board thermal resistance of 7.6°C/W indicate that the package can move heat effectively into the PCB, but only if the layout provides a low-impedance thermal path. The exposed PowerPAD tied to ground is central to this. Ground copper under and around the device should be treated as both an electrical reference plane and a heat spreader. Dense via stitching into internal and backside copper typically improves thermal extraction and also helps stabilize local ground potential during fast switching events. That dual electrical and thermal role is one of the reasons package integration details matter so much in motor-drive hardware.

The thermal numbers also clarify what can and cannot be inferred from ambient rating alone. Using a simple resistance model, even modest internal dissipation can consume a meaningful fraction of the allowable junction rise when ambient is already near 100°C. If surrounding MOSFETs or shunts elevate local board temperature, the effective thermal headroom shrinks further. In such cases, the driver can approach its junction limit before the rest of the control electronics appears stressed. This tends to happen in dense layouts where the driver is placed close to the switching nodes to minimize gate-loop inductance, which is electrically beneficial but thermally more demanding. A strong design usually resolves this by shortening critical loops while steering heat into wider ground copper and away from stagnant corners of the board.

For device selection, the most useful view is to treat the DRV83053PHP as a constrained switching-energy manager rather than only a voltage-compatible gate driver. The bus range defines where it can live. The peak source and sink currents define how sharply it can switch. The 30 mA charge-pump limit defines how much total gate charge it can support over time. The temperature ratings define the outer reliability boundary, but the package and PCB determine whether that boundary is reachable in the real assembly. When these parameters are evaluated together rather than independently, the fit becomes much clearer.

That combined evaluation usually leads to a more reliable design flow. Start with bus transients and thermal ambient. Then size MOSFETs using both conduction and gate-charge metrics. After that, verify average gate-drive current at the intended PWM frequency, not just the peak drive strength. Finally, validate the package thermal path with realistic board copper and component placement assumptions. Designs that follow this order tend to avoid a common failure mode in motor electronics: selecting parts that are individually within spec but collectively mismatched in dynamic operation. The DRV83053PHP offers good flexibility, but it rewards balanced power-stage choices and disciplined layout more than brute-force transistor sizing.

Texas Instruments DRV83053PHP Pin Functions and External Component Requirements

Texas Instruments DRV83053PHP is a three-phase gate driver with integrated current-shunt amplifiers and a mixed-signal control interface, packaged in a 48-pin HTQFP. Its pin allocation is not merely a packaging decision. It reflects the internal partitioning of the device into several interacting domains: digital control, analog current measurement, high-current gate drive, charge-pump generation, and local regulation. Reading the pinout through that lens makes implementation decisions much clearer, especially when moving from schematic capture to PCB layout and fault-debug work.

The control-side pins are grouped to support a straightforward MCU-facing architecture. EN_GATE is the primary gate-driver enable, and in practice it acts as the top-level permission signal for power-stage activity. WAKE serves the low-power or standby control path, while nFAULT and PWRGD provide two different forms of system visibility: one for exception signaling and one for supply-valid indication. The six PWM inputs, INHA/INLA, INHB/INLB, and INHC/INLC, indicate that the device is intended for direct six-input control rather than only relying on an internally synthesized commutation scheme. This gives the controller full authority over phase timing, dead-time strategy, modulation method, and fault response behavior. For field-oriented control or advanced trapezoidal schemes, that flexibility matters because timing ownership remains in the MCU or motor-control processor.

The SPI pins, nSCS, SDI, SDO, and SCLK, add a second layer of interaction beyond static hardware control. They provide access to configuration and diagnostics, which is increasingly important in systems where startup sequencing, gain selection, fault masks, and status reporting must be tuned in software. In practice, this mixed interface model is one of the stronger aspects of the device. Hardware pins handle immediate real-time actuation, while SPI handles observability and parameterization. That split reduces latency where it matters and still keeps the power stage configurable.

The current-sense section is organized as three differential amplifier channels: SP1/SN1 to SO1, SP2/SN2 to SO2, and SP3/SN3 to SO3. This arrangement is well aligned with low-side shunt sensing in three-phase inverters. Differential inputs are essential here because the sensed voltage is small, noisy, and riding in a switching environment with substantial common-mode disturbances. The amplifier output pins then present conditioned analog signals to the MCU ADC. The advantage is not just fewer external op amps. It is tighter integration between the gate driver and the current-observation path, which improves BOM efficiency and can simplify offset and gain management.

That said, the usefulness of these current-sense amplifiers depends heavily on how the shunt network and return paths are laid out. On paper, the SP/SN pairs look simple. On the board, they are among the most noise-sensitive nodes in the design. A short Kelvin connection to each shunt resistor is far more important than nominal resistor tolerance in many cases. If the sense traces share return current with the gate-drive loop or the power ground pulse current, measured phase current becomes visibly distorted during switching edges. The issue often first appears as unstable current reconstruction, unexpected torque ripple, or ADC values that look reasonable at low duty cycle but degrade badly at higher bus voltage and di/dt. For that reason, these pins should be treated as precision analog inputs inside a noisy power converter, not as generic low-voltage traces.

The gate-drive outputs are organized phase by phase: GHA/SHA and GLA/SLA for phase A, GHB/SHB and GLB/SLB for phase B, and GHC/SHC with GLC/SLC for phase C. This structure mirrors the external half-bridge topology and helps keep routing intuitive. Each high-side gate output is referenced to its corresponding switch node through SHA, SHB, or SHC, while each low-side gate output is referenced to the corresponding source-side return through SLA, SLB, or SLC. This distinction is fundamental to understanding how the driver operates. A high-side gate is not driven with respect to system ground. It is driven relative to a switching source node that slews rapidly over a large voltage range. The device therefore needs a floating drive supply for each active high-side event, which leads directly to the role of the charge-pump and bootstrap-related support pins.

The support and supply pins form the hidden infrastructure of the DRV83053PHP. PVDD and VDRAIN relate to the power domain and bus observation, while AVDD, DVDD, and VREG support internal analog, digital, and regulated supply functions. VCPH, VCP_LSD, CP1H/CP1L, and CP2H/CP2L belong to the charge-pump system. These pins are easy to underestimate because they do not connect directly to the motor phases, yet they define whether the driver can maintain stable gate overdrive across operating conditions.

The recommended external capacitors are therefore not generic decoupling placeholders. They are part of the driver’s energy-transfer mechanism. The 4.7-µF ceramic capacitor from PVDD to GND provides local bus-side support to absorb transient current drawn by the internal circuits and gate-drive events. The 1-µF ceramic capacitors on AVDD, DVDD, VCP_LSD, and VREG stabilize local internal rails. The 2.2-µF ceramic capacitor from VCPH to PVDD supports the elevated supply domain used by the charge-pump architecture. The 0.047-µF flying capacitors between CP1H/CP1L and CP2H/CP2L are active switching elements in the pump, not optional filtering parts. Their value, dielectric quality, voltage coefficient behavior, and placement all influence pump efficiency and ripple.

This point becomes important during debugging. If the flying capacitors are placed too far from the pins, use poor dielectric types, or experience excessive DC bias derating, high-side gate drive can weaken under load or during specific PWM patterns. The symptom is rarely labeled directly as “charge-pump instability.” It more often appears as excessive MOSFET heating, incomplete high-side enhancement, phase asymmetry, or faults that occur only under certain duty-cycle windows. In compact motor drives, where edge rates are high and copper routing is dense, these support capacitors should be placed with the same seriousness as bootstrap or DC-link bypass components in other inverter designs.

The 100-Ω series resistor between VDRAIN and the high-side MOSFET drain node also deserves careful interpretation. Its role is not to carry power-stage current. It conditions the voltage-sense connection into the driver and helps isolate sensitive internal detection circuitry from the raw switching aggressiveness at the drain node. Without some damping, ringing and fast transient spikes at the half-bridge can couple into monitoring circuits and create false interpretations of bus conditions or overstress internal front-end structures. A modest series resistor here is a small but effective way to improve signal quality at the boundary between the harsh power domain and the driver’s sensing circuitry.

The pullup resistors for nFAULT and PWRGD, typically 1 kΩ to 10 kΩ to the MCU supply, seem straightforward, but their selection still affects system behavior. Lower values give stronger edges and better immunity in electrically noisy environments, at the expense of slightly higher sink current. Higher values reduce current but can slow transitions and increase susceptibility to coupled noise if routing is long. In practice, the correct value often depends more on board topology and MCU input filtering than on the pin function alone. For a dense motor-control board with long status traces near switch nodes, choosing toward the lower end of the range is often the safer default.

A useful way to think about the entire pinout is by energy and information flow. The PWM, enable, wake, and SPI pins carry command and status information. The SO outputs carry measured analog state back to the controller. The GHx/GLx pins move energy into MOSFET gates. The CPx, VCPx, PVDD, and regulator pins create and stabilize the internal supply framework that makes gate actuation possible. Once this model is clear, schematic and layout priorities become easier to rank. Pins that look secondary in the symbol often turn out to be first-order design constraints on the PCB.

For layout, the device rewards domain separation. The analog current-sense paths should be short, tightly coupled, and routed away from switching nodes. The gate-drive loops should be compact to minimize inductance and reduce ringing. The charge-pump capacitors should sit immediately adjacent to their corresponding pins with minimal loop area. Local supply capacitors should connect with low-impedance paths to the device ground reference, not through long shared traces. The phase-oriented pin arrangement helps with this, but only if the external MOSFET placement follows the same logic. When the MOSFET banks are rotated or mirrored in a way that fights the pinout, routing usually becomes longer and noisier, and gate-drive quality degrades.

Component selection should also be treated as part of the driver design, not as a late procurement exercise. Ceramic capacitors must be checked for effective capacitance under DC bias and temperature, especially the 2.2-µF and 1-µF parts associated with internal rails and the charge pump. X7R or better is generally the practical baseline. Small-package MLCCs can lose a large fraction of nominal capacitance at operating voltage, and that reduction can move a design from comfortably stable to marginal without any schematic change. This is one of the more common disconnects between a simulation-clean design and a bench-problematic prototype.

The same principle applies to the current-shunt network. Integrated amplifiers reduce external complexity, but they also increase the value of disciplined shunt placement, clean Kelvin pickup, and controlled ground return strategy. A mediocre shunt layout can waste the advantage of the integrated sensing path. Conversely, when those details are handled well, the DRV83053PHP can produce a compact and highly observable three-phase stage with relatively low external analog overhead.

From a system design perspective, the recommended passives should be counted as part of the device’s functional footprint. They influence not only BOM cost, but also area, placement freedom, routing density, EMI behavior, and startup robustness. For selection work, this matters as much as the silicon feature list. A gate driver that appears highly integrated can still impose a meaningful support network once charge-pump stability, current-sense accuracy, and local rail decoupling are taken seriously. In this case, the external components are best viewed as an extension of the internal architecture. That is the right mental model for both design estimation and implementation success.

Texas Instruments DRV83053PHP Typical Engineering Applications and Design Value

Texas Instruments DRV83053PHP targets three-phase BLDC and PMSM drive systems that need the efficiency and current scalability of an external MOSFET power stage, while still benefiting from a tightly integrated gate-driver and analog support layer. Its design value is not limited to component reduction. More importantly, it creates a cleaner boundary between the control domain and the power domain. That boundary is useful in real products because motor-drive problems rarely come from one block alone. They usually emerge from the interaction between gate-drive timing, current feedback integrity, supply transients, protection thresholds, and firmware response. DRV83053PHP is valuable because it addresses those interactions in a coordinated way.

At the architecture level, the device sits in the critical middle layer of the inverter. Below it are the external MOSFETs, shunt network, DC bus decoupling, and motor phase connections. Above it are the MCU, control algorithms, supervisory logic, and system communication. The practical consequence is that the IC does more than switch transistors. It conditions the electrical interface between fast, noisy power switching and the precision signals required for stable torque control. That role becomes more important as switching speeds rise, PCB area shrinks, and product variants multiply.

The external MOSFET approach is one of the strongest engineering advantages of this device. Integrated power stages are convenient, but they lock the design into a fixed Rdson, thermal behavior, package dissipation limit, and current class. With DRV83053PHP, the designer can select MOSFETs according to bus voltage, peak current, thermal headroom, switching frequency, and cost target. This flexibility matters in products that span several performance tiers. A low-power blower, a compact servo axis, and a higher-current battery-powered actuator can share a common driver and control framework while diverging only in MOSFET selection, current shunt sizing, and thermal design. That kind of reuse often produces more value than the IC datasheet alone suggests, because the real cost driver is usually platform fragmentation rather than single-component price.

The integrated current-shunt amplifiers are another major design asset. In motor control, current feedback is not just a measurement channel. It is the basis for torque regulation, overcurrent response, field-oriented control quality, efficiency optimization, and acoustic behavior. External current-sense amplifiers can provide similar function, but they also add routing complexity, offset variation sources, and startup/debug burden. By integrating this function near the gate-driver domain, DRV83053PHP helps shorten sensitive analog paths and reduces the number of variables that must be stabilized during bring-up. In practice, this tends to improve first-pass controllability, especially in compact layouts where phase-node dv/dt can easily contaminate low-level sense traces.

In a CPAP blower or pump, the benefit appears in the form of smoother low-speed control, better detection of abnormal load conditions, and reduced analog design overhead. These applications usually demand quiet operation, stable airflow or pressure regulation, and high confidence under continuous runtime. The motor often operates across a wide speed range, with low vibration and low acoustic signature taking priority over brute-force torque density. Under those constraints, current measurement quality directly affects commutation smoothness and control loop stability. A driver that combines current-sense support with fault reporting through SPI helps the system maintain visibility into both analog and protection states without spreading that function across multiple ICs. That consolidation can simplify calibration strategy and reduce the number of borderline interactions that only appear after thermal soak or long-duration operation.

In robotics and RC platforms, the value shifts toward electrical adaptability and transient tolerance. These systems are frequently built around different battery stacks, from lower-voltage configurations to more aggressive power stages with large current bursts. A gate driver with a broad operating range and configurable gate-drive current allows the same control board concept to be adapted to motors with very different gate charge and switching behavior. That is important because a MOSFET choice that is ideal for one battery class may be inefficient or unstable in another. Being able to tune drive strength and slew rate gives the engineer a practical way to balance switching loss, EMI, and ringing without redesigning the entire inverter front end. In fast-moving platforms, this tuning freedom often determines whether the system behaves predictably under regenerative events and abrupt load reversals.

Power tools expose the inverter to especially harsh electrical conditions. Current can rise very quickly during startup, stall, impact loading, or abrupt speed regulation events. Wiring inductance, battery impedance variation, and mechanical shock can all turn normal switching edges into difficult transient environments. In that context, the protection set around DRV83053PHP becomes more than a safety net. Overcurrent protection, thermal protection, and configurable slew rates allow the designer to shape the inverter’s electrical aggression. This is a critical point: maximum switching speed is not always the best design target. In many tool-class systems, a slightly slower but better-damped edge produces lower EMI, less false triggering, and more repeatable current sensing. That usually leads to higher usable system performance than chasing the absolute lowest switching loss. The device supports this kind of balanced optimization well.

In industrial automation, system visibility often carries as much weight as raw drive capability. Drives are expected to operate under supervision, report fault context, recover in a controlled way, and fit into larger safety and diagnostics frameworks. SPI status reporting and watchdog support are therefore significant features. They allow the driver to participate in a layered fault-management strategy rather than acting as an isolated analog block. This matters because many industrial failures are intermittent and system-level. A short undervoltage event, a noisy encoder ground, a momentary shoot-through risk, or an overtemperature trend may not cause immediate destruction, but it can degrade process quality or create long-term reliability issues. Exposing driver status to the main controller gives firmware a chance to log, classify, derate, or shut down intelligently.

One of the strongest practical advantages of DRV83053PHP is modular scaling across product families. In many organizations, the highest engineering cost comes from repeatedly solving the same motor-drive problem in slightly different power classes. A common driver and feedback architecture reduces that duplication. If current demand increases, the external MOSFETs, shunt resistors, copper weight, and thermal path can be upgraded while preserving much of the existing control software, interface logic, and fault-handling framework. If current demand decreases, the same platform can be cost-optimized without abandoning validated drive behavior. This modularity is especially useful when roadmap uncertainty exists, because it lowers the penalty of moving up or down in power late in development.

Debug efficiency is another area where the device delivers disproportionate value. Motor-drive bring-up is often slowed by ambiguity. The motor does not start, but the root cause may be incorrect gate sequencing, bad bootstrap behavior, a layout-induced false overcurrent trip, unstable current-sense offsets, or firmware misinterpretation of protection flags. Integrated diagnostics and status reporting reduce this ambiguity. During first power-up, being able to read fault state, observe current-sense outputs, and correlate behavior with SPI status significantly shortens the path from symptom to root cause. In practice, this is one of the clearest signs of a well-chosen driver: not that it prevents every issue, but that it makes issues legible.

The current-shunt amplifier path deserves careful treatment in layout and calibration. Even with integration, the measurement chain remains vulnerable to phase-node coupling, ground bounce, and shunt placement errors. The most reliable designs usually keep shunt connections Kelvin-routed, isolate high-di/dt loops physically from amplifier inputs, and treat analog return paths as a controlled subsystem rather than leftover routing. It is also worth aligning the current-sense bandwidth with the control method. Excess bandwidth can invite switching noise into the control loop, while insufficient bandwidth can blunt protection responsiveness and distort current reconstruction. The device gives the building blocks, but system quality still depends on disciplined signal-chain design.

Gate-drive configuration also deserves a deliberate tuning process. A common early mistake is to select aggressive drive current simply because it improves edge speed on paper. In real hardware, the better setting is often the one that minimizes ringing at the phase node, reduces negative gate transients, and preserves current-sense fidelity during switching. The optimal point depends on MOSFET gate charge, package parasitics, power-loop inductance, and DC-bus decoupling placement. Designs that perform well in simulation can still become noisy on the bench if the power loop is physically larger than assumed. DRV83053PHP gives enough configurability to compensate for these realities, which is more useful than nominally perfect switching under ideal conditions.

Thermal behavior should also be viewed as a system problem, not a single-component check. Since the IC drives external MOSFETs, overall inverter temperature rise depends strongly on switching strategy, dead-time selection, copper spreading, airflow, and current waveform shape. In continuous-duty products such as blowers or pumps, average dissipation may dominate. In handheld or mobile equipment, peak pulse loading and cooling recovery cycles can dominate instead. The practical advantage of this device is that it supports a protection-aware architecture where thermal limits can be monitored and managed before they become catastrophic. Combining hardware protection with firmware derating typically produces a more robust product than relying on hardware shutdown alone.

From a design methodology perspective, DRV83053PHP is best used as the center of a reusable inverter platform. That means defining a stable schematic partition around the driver, current sensing, fault interface, and SPI management, then adapting only the power train and control parameters for each product. This approach tends to improve verification efficiency because the most failure-prone interfaces are exercised repeatedly across multiple designs. It also leads to cleaner firmware abstraction, where driver diagnostics and state handling become standard services rather than product-specific patches. The long-term gain is not just reduced development time. It is a more predictable validation path and fewer surprises when a design moves from prototype to production.

The deeper engineering value of DRV83053PHP is that it helps convert a motor inverter from a collection of sensitive analog and power blocks into a more inspectable, tunable subsystem. That is especially important in BLDC and PMSM systems, where control performance, EMI behavior, protection reliability, and serviceability are tightly coupled. A driver that supports flexible power-stage scaling, integrated current sensing, configurable switching behavior, and explicit diagnostics offers leverage in all of those areas at once. In many designs, that leverage is what separates a functional motor drive from a platform that is efficient to build, practical to debug, and resilient across multiple application classes.

Texas Instruments DRV83053PHP Power Supply, Layout, and Implementation Considerations

Texas Instruments DRV83053PHP requires the power network, switching layout, and sensing paths to be treated as a coupled system rather than as separate checklist items. The device integrates gate-drive functions, protection circuitry, and current-shunt amplification in one package, so any weakness in supply impedance or routing geometry quickly appears as switching instability, current-measurement error, false fault behavior, or degraded EMC performance. A robust implementation starts with the understanding that the IC does not merely consume DC power. It also processes fast transient energy associated with MOSFET gate charging, charge-pump refresh, half-bridge commutation, and fault-monitoring comparators that reference noisy power structures.

The PVDD supply path is the first critical element. The recommended 4.7-µF ceramic capacitor on PVDD should be viewed as the minimum high-frequency local reservoir, not as a complete input-energy solution. Its primary role is to supply short-duration current pulses close to the device pins and to suppress voltage excursions caused by package inductance and PCB parasitics. In a real motor drive, the upstream source is often separated from the driver by cable inductance, connector resistance, current-limited bench supplies, or long copper pours. Under these conditions, a small local ceramic capacitor alone cannot maintain a stable rail during repetitive gate-drive and switching events. Additional bulk capacitance is often required to absorb lower-frequency load transients and to prevent PVDD droop or ringing during rapid torque steps, startup, braking, or commutation at high phase current.

A useful way to size this network is to separate the problem into frequency bands. Small ceramic capacitors address the highest-frequency current edges. Mid-value ceramics or low-ESR capacitors handle intermediate energy demand. Bulk capacitance supports the bus against slower envelope changes caused by motor current dynamics and source impedance. Designs that rely on a single capacitor class often pass static checks but become fragile once wiring length increases or PWM edge rates are pushed higher. In practice, stability improves when the local PVDD loop is physically compact and when the bulk capacitor return path shares a low-impedance connection to the power ground near the switching stage rather than returning through narrow analog regions.

The interaction between the gate driver and the MOSFETs is especially sensitive to parasitic inductance. Every gate-drive pulse sources and sinks current through a loop formed by the driver output, gate trace, MOSFET gate, source return, and driver reference pin. If this loop is long or poorly referenced, the resulting inductive voltage can distort the actual gate waveform seen by the MOSFET. That distortion appears as slower turn-on, uncontrolled ringing, shoot-through risk, excessive switching loss, or false triggering in adjacent circuitry. Short routing is therefore necessary, but short routing alone is not sufficient. The gate path and its return must also remain tightly coupled. The source-reference connection used by the driver should not be treated as an ordinary ground trace. It is part of the switching loop and should be routed to minimize common-source inductance. This point is often underestimated, yet it strongly influences switching reproducibility and fault immunity.

The exposed PowerPAD connection to ground is equally functional, not merely thermal. It provides a low-impedance reference for internal circuitry and helps stabilize both electrical and thermal behavior. Leaving this pad weakly connected, necking it through narrow copper, or stitching it with too few vias can create local ground movement inside the IC reference structure. When that happens, current-sense amplifiers and protection comparators may operate against a shifting baseline. A solid ground attachment under the device generally improves heat spreading, reference integrity, and switching robustness at the same time. This is one of the few layout actions that benefits almost every subsystem in the device simultaneously.

Grounding strategy should be disciplined but not dogmatic. The common recommendation to separate power ground from sensitive analog routing is correct, but in this class of device the separation must be controlled and intentional. If the analog ground path is allowed to wander or if the reconnect point is poorly chosen, the amplifier inputs may still inherit switching noise through shared impedance. A better approach is to define high-current commutation paths first, then place the current-sense network and analog returns so they reference a comparatively quiet region tied back to the main ground at a deliberate low-impedance point. This avoids the common mistake of drawing symbolic “separate grounds” in the schematic while the PCB still forces all return currents through the same copper bottleneck.

The current-shunt amplifier inputs deserve particular care because they operate in the presence of large common-mode disturbances and fast switch-node transitions. Differential sensing only performs well when the two input traces experience nearly identical parasitic coupling. If one trace is longer, routed nearer to a switch node, or referenced to a different current return, the measurement acquires an error component that cannot be corrected in firmware. This becomes visible as PWM-correlated ripple, offset drift under load, or unstable current control at low duty cycle. Kelvin routing from the shunt element is therefore essential. The sense traces should be kept as a matched pair, away from gate-drive paths and switch nodes, and should avoid sharing return current with high di/dt loops. Small geometric differences in this area can create surprisingly large control-loop consequences, especially when the design targets low-current accuracy or fast torque response.

The VDRAIN connection and its recommended 100-Ω resistor should be preserved unless there is full validation data supporting a deviation. This path participates in overcurrent sensing and drain monitoring, so it is not simply an optional signal filter. The resistor likely serves multiple practical purposes: limiting transient current into the monitoring structure, damping ringing coupled from the drain node, and protecting internal circuitry from extreme dV/dt events. Connecting VDRAIN directly or relocating the resistor far from the IC can alter the waveform presented to the internal protection blocks. That can shift fault thresholds in time, increase susceptibility to switching spikes, or delay the intended response during a genuine overcurrent event. Protection circuits are often assumed to be digitally exact, but in mixed-signal power devices their real behavior depends heavily on the analog shape of the monitored node.

The switching nodes themselves should be treated as hostile electromagnetic regions. High-side drain and phase-node copper should be compact enough to limit radiated and capacitive coupling, yet not so constrained that current density or thermal spreading become problematic. The best layouts usually keep these nodes physically small, place their associated gate-drive components nearby, and prevent analog traces from passing under or alongside them for any significant distance. When current-sense inputs run parallel to switching copper, even a formally correct schematic can produce measurement artifacts that appear only at full bus voltage or elevated temperature. These failures are difficult to debug because they often disappear when probed with long test leads or when the PWM frequency is reduced.

Power decoupling placement should be judged by loop closure rather than by absolute distance alone. A capacitor placed near PVDD but returned through a long, inductive ground path will perform far worse than one that forms a tight, direct current loop to the driver and switching stage. The same principle applies to bootstrap and charge-pump support structures if present in the final implementation. The objective is always the same: keep the transient current local, reduce parasitic inductance, and prevent high-frequency energy from flowing through control and sensing references. Once this perspective is adopted, placement decisions become clearer. Components are not merely “close” or “far”; they are either inside the critical transient loop or outside it.

There is also a practical reliability dimension to these layout choices. Marginal layouts often appear acceptable during low-load bench testing and then become unstable in production conditions where cable harnesses are longer, bus impedance is higher, or thermal stress shifts switching behavior. A board can look electrically functional while quietly operating with narrow noise margin. Typical symptoms include intermittent overcurrent faults during acceleration, current readings that deteriorate with duty cycle, or one MOSFET pair running measurably hotter despite identical nominal drive settings. These issues are usually traced not to component value mistakes but to current-loop geometry, ground impedance, or inadequate local energy storage. That is why the most effective validation sequence includes worst-case wiring length, supply source variation, aggressive load transients, and waveform inspection directly at the IC pins rather than only at the power connector.

For DRV83053PHP, the strongest implementation strategy is to design from the inside out. Start with the IC pins, define the gate-drive and decoupling loops, anchor the PowerPAD to a low-impedance ground structure, preserve the integrity of the VDRAIN monitoring path, and only then expand into bulk power routing and connector placement. Current sensing should be inserted into this structure as a precision analog function protected from the commutation environment, not as an afterthought added after the power stage is complete. This ordering usually produces better results than trying to repair a noisy board with filters or firmware compensation later. In motor-drive hardware, layout is not packaging. It is part of the circuit behavior.

Potential Equivalent/Replacement Models for Texas Instruments DRV83053PHP

Potential equivalent or replacement models for Texas Instruments DRV83053PHP are best understood as configuration variants inside the DRV8305 platform rather than as fully independent substitutes. The key point is that DRV83053PHP is not defined only by its package or pin count. Its practical role in a motor-control design is shaped by the combination of gate-driver behavior, integrated power support functions, protection scheme, and control interface assumptions built around the DRV8305 architecture. Any replacement decision should therefore start from system function, not part-number similarity.

Within the same device family, the closest documented alternatives are DRV83055 and DRV8305N. These are the most direct candidates because they preserve the core DRV8305 motor-gate-driver framework while altering the auxiliary power architecture. That distinction matters more than it may first appear. In many BLDC or PMSM inverter designs, the gate driver is not an isolated block. It often anchors the local control-power tree, influences startup sequencing, and constrains logic-domain compatibility. As a result, a family variant can be electrically close yet still create board-level redesign work.

DRV83055 is the most natural replacement when the design intent remains aligned with the DRV8305 platform but the logic rail can operate from 5 V rather than 3.3 V. It is specified as a 5-V, 50-mA LDO version. At a functional level, this means the core gate-drive and protection concept remains comparable, while the integrated regulator output changes to a rail better suited for 5-V MCUs, digital isolators, interface logic, or analog support circuitry that expects a higher logic supply. In practice, this is often the least disruptive substitution only when the downstream circuitry is already 5-V tolerant or was originally overdesigned for either logic rail. If the original design uses DRV83053PHP specifically to power a 3.3-V MCU, encoder interface, or SPI pull-up network directly from the internal LDO, then moving to DRV83055 is not a drop-in event. It requires checking absolute maximum ratings, VIH/VIL thresholds, reset supervisor limits, ADC reference dependencies, and any external communication bus voltage assumptions. Even when the MCU itself supports 5 V, peripheral chains often do not. That mismatch tends to appear late unless reviewed at schematic level first.

DRV8305N represents a different replacement path. It is identified as a voltage-reference version rather than an integrated-LDO option. This makes it relevant in systems where the local control supply is generated elsewhere, or where the design deliberately separates gate-drive power from controller power for noise, sequencing, or thermal reasons. In more robust inverter layouts, external regulation is sometimes preferred because it gives tighter control over startup timing, load transients, EMI filtering, and fault-domain partitioning. Under those conditions, DRV8305N can be a better architectural fit than an LDO-equipped variant. However, replacing DRV83053PHP with DRV8305N is usually a more meaningful power-architecture change than the naming suggests. The board must already provide the appropriate rail externally, and the design review should verify not only nominal voltage but also ramp behavior, brownout recovery, and fault interaction between the regulator and the driver. A design that originally relied on the integrated 3.3-V LDO for deterministic local biasing may behave differently once that function is moved off-chip.

This is why DRV83055 and DRV8305N should be treated as controlled family substitutions, not generic equivalents. Their interchangeability depends on what role DRV83053PHP is serving in the actual implementation. If it is used mainly as a three-phase MOSFET gate driver with SPI configuration and the integrated regulator is lightly loaded or unused, then migration inside the DRV8305 family can be straightforward. If the LDO rail is embedded deeply into the board’s logic-power topology, the apparent substitution becomes a system-level redesign task. In motor-control hardware, power-tree details often carry more risk than gate-drive specs because they affect every digital threshold, every startup state, and every fault response path simultaneously.

A disciplined replacement evaluation should be layered from the inside out. First, confirm whether the gate-drive core is still a match: operating supply range, external MOSFET compatibility, peak gate-drive current capability, gate-charge handling, programmable dead time, and switching strategy. Second, verify the digital interaction model: SPI register map, fault reporting, enable logic, nFAULT behavior, and any calibration or initialization sequence expected by firmware. Third, review the protection envelope: overcurrent reporting method, VDS sensing behavior if used, undervoltage lockout thresholds, overtemperature protection, and fault-latch or auto-retry behavior. Fourth, check the support infrastructure: regulator type, output voltage, current budget, sequencing, package thermal path, and pin-level compatibility. This layered approach avoids a common sourcing mistake—matching headline specifications while overlooking the support functions that define actual board behavior.

For DRV83053PHP specifically, the integrated 3.3-V, 50-mA LDO is the most important discriminator. That feature often means the device was selected not only for motor-drive capability but also to simplify local controller biasing. In compact inverter modules, that integrated rail can reduce BOM count, shorten startup dependency chains, and help keep the controller physically close to the gate-driver domain. The tradeoff is that the logic supply becomes coupled to the driver choice. Once that happens, alternate part selection is no longer a simple procurement exercise. It becomes a question of whether the board was architected around a DRV8305 variant or around a broader set of interchangeable driver-plus-regulator combinations. Designs with strong modularity usually expose this clearly: the MCU rail has test access, independent regulation, and explicit domain isolation. Designs optimized for cost and density usually do not.

From a sourcing perspective, DRV83055 is the better candidate when the objective is to stay inside the same integration model and retain an internal LDO, while accepting a different regulator output. DRV8305N is the better candidate when the objective is to decouple the controller rail from the gate driver and rely on external power regulation. Neither option should be labeled a universal replacement without reviewing the actual use of the 3.3-V rail in the original circuit. That review should include steady-state load, inrush current, reset timing, level shifting, and the behavior of any sensors or communication devices tied to the rail. In several motor platforms, the nominal LDO current rating appears sufficient on paper, yet transient loading from MCU startup, EEPROM access, or communication bursts creates marginal conditions that only show up during cold start or fault recovery. Those edge cases matter more during substitution than during initial design, because the design margins were often tuned around the original variant.

The documentation cited does not identify broader cross-family replacements from Texas Instruments or from other suppliers. That absence is significant. It suggests that any non-DRV8305 replacement should be treated as a fresh comparative design exercise rather than an equivalency lookup. At minimum, that comparison would need to cover input voltage range, bootstrap scheme, half-bridge gate-drive capability, SPI or hardware interface model, current-sense and protection methodology, package footprint, thermal behavior, and regulator architecture. In practice, firmware impact should be added to that list. Gate drivers that appear similar electrically may differ substantially in register structure, fault masks, retry logic, and diagnostic timing. Those differences often dominate validation effort.

A useful way to frame the replacement decision is to ask what problem DRV83053PHP was solving in the original system. If the answer is “three-phase gate drive with integrated 3.3-V logic power,” then DRV83055 is adjacent but not identical, and DRV8305N changes the solution model more materially. If the answer is “a DRV8305 platform device, with the regulator feature being secondary,” then both alternatives become more viable. The best replacement is therefore not the one with the closest name. It is the one that preserves the original design intent with the least hidden impact on power, logic compatibility, firmware behavior, and fault handling.

Texas Instruments DRV83053PHP belongs to a family where the architectural commonality is high, but the regulator variant is not a cosmetic option. It is a system-defining parameter. That is the central consideration when evaluating DRV83055 or DRV8305N as replacements.

Conclusion

Texas Instruments DRV83053PHP is best understood not as a simple three-phase gate driver, but as a compact inverter support platform for BLDC and PMSM systems built around external N-channel MOSFETs. Its value comes from the way it consolidates several functions that usually spread across the motor-power stage: gate drive, supply conditioning, current-shunt amplification, fault supervision, SPI telemetry, and configurable switching behavior. That level of integration reduces the amount of analog glue circuitry around the inverter, shortens the signal chain between power devices and control logic, and makes the drive more tunable at the system level.

At the power-interface layer, the device operates from 4.4 V to 45 V, which places it comfortably across low-voltage industrial drives, battery-powered actuators, e-mobility subsystems, pumps, fans, and compact servo platforms. This range is wide enough to cover common 12 V, 24 V, and 36 V architectures while still giving margin for supply variation, transient conditions, and regeneration-related bus movement. In practical inverter design, that range matters less as a headline number and more as a constraint simplifier: it allows one gate-driver family to span multiple product variants without forcing a redesign of the control and protection stack.

The external MOSFET architecture is one of the most important strengths of the DRV83053PHP. Integrated power stages are attractive when BOM count is the dominant concern, but they often lock the design into a fixed current class, thermal profile, and switching-loss envelope. By using external MOSFETs, the designer can optimize RDS(on), gate charge, package thermal resistance, reverse-recovery behavior, and cost according to the exact motor and duty profile. That flexibility is especially useful in products where startup torque, stall current, thermal derating, and acoustic switching behavior vary significantly across SKUs. In those cases, the gate driver should not be the limiting factor; it should be the control point that enables power-stage scaling. DRV83053PHP fits that role well.

Its support for both 3-PWM and 6-PWM control broadens controller compatibility and directly affects control strategy. A 3-PWM interface is often preferred when firmware simplicity, lower MCU pin count, or legacy controller reuse is important. A 6-PWM interface is better aligned with advanced commutation and FOC implementations that require full independent control of high-side and low-side switching states. This dual-mode support reduces architectural lock-in. It also helps during platform evolution: a design can begin with simpler control and later migrate toward more sophisticated modulation without replacing the gate-driver hardware.

The charge-pump-based 100% duty-cycle capability deserves attention because it solves a practical limitation in high-side N-MOSFET driving. In many bootstrap-only gate-drive schemes, sustained high-side on-time becomes difficult because the bootstrap capacitor cannot refresh when the switch node remains high for too long. DRV83053PHP uses a charge pump to maintain high-side gate bias, enabling true 100% duty-cycle operation. That matters in applications where maximum bus utilization is required, where low-speed high-torque operation benefits from extended phase energization, or where field weakening and voltage headroom must be managed carefully. In real motor systems, this feature often shows up not as a marketing differentiator but as a stability improvement at operating corners that would otherwise expose bootstrap limitations.

The integrated current-shunt amplifiers are another system-level advantage. Current feedback is central to motor control, but the quality of that feedback depends heavily on analog front-end layout, common-mode behavior, noise rejection, gain accuracy, and fault survivability. By integrating the current sense path close to the gate-drive and protection infrastructure, the device reduces external analog complexity and improves the coherence between measurement and protection domains. This is particularly useful in compact inverter layouts where long analog traces near fast-switching nodes can degrade signal quality. Designs that rely on precise current reconstruction, overcurrent response, or torque-loop stability benefit from having current sensing treated as part of the power-control subsystem rather than as an afterthought.

SPI diagnostics and configurability significantly improve bring-up efficiency and field observability. In motor drives, the difference between a usable design and a robust design often lies in how clearly faults can be identified under dynamic conditions. SPI access allows firmware to read fault states, tune protection thresholds, and configure gate-drive parameters without resorting to board-level rework. That is valuable in early development, but it is just as important in production tuning, where EMI performance, switching losses, thermal behavior, and fault immunity often need iterative adjustment. Gate slew settings that look optimal in simulation can produce ringing, false triggering, or excess dissipation on an actual PCB with real parasitics. A configurable driver lets the design absorb those second-order effects without major hardware changes.

The protection set is broad enough to support electrically robust motor platforms rather than just minimal driver survivability. Inverter stages are routinely exposed to overcurrent events, shoot-through risk, supply undervoltage, transient overstress, and thermally induced abnormal states. A gate driver in this class should not only detect these conditions but also respond in a way that preserves both the power stage and the control loop. DRV83053PHP’s integrated protection framework helps localize these responses at the edge of the inverter, where timing is fast and fault containment is most effective. That local intelligence is increasingly important as motor systems become denser and power stages move closer to control electronics, sensors, and communication interfaces.

The onboard 3.3 V, 50 mA LDO adds a small but strategically useful piece of power-tree integration. It is not intended to power a feature-rich control subsystem by itself, but it can simplify support circuitry for low-power digital logic, interface sections, or housekeeping rails. In tightly constrained designs, removing even one auxiliary regulator can reduce board area, startup sequencing complexity, and failure modes. The availability of adjacent DRV8305 family variants with different regulator options also improves sourcing flexibility and platform planning. That kind of family-level reuse matters in real product pipelines, where one control board may need to support several motor-power configurations with only minor BOM changes.

From an engineering selection perspective, the DRV83053PHP is strongest when the application needs more than raw gate-drive capability but does not justify a fully integrated power stage. It occupies a useful middle ground. On one side are simple gate drivers that leave current sensing, diagnostics, and supply support to external circuits. On the other are integrated motor drivers that reduce design effort but constrain thermal scaling and transistor choice. This device provides a better balance for systems that need discrete MOSFET optimization while still demanding compact implementation, fault visibility, and analog integration around the inverter.

That balance is particularly relevant in designs where EMI, thermal margin, and current measurement accuracy interact strongly. Experience with three-phase inverters repeatedly shows that these issues rarely appear in isolation. Faster gate edges reduce switching loss but can worsen ringing and conducted emissions. Larger MOSFETs improve conduction efficiency but increase gate charge and stress the drive path. Current-shunt placement that looks acceptable electrically can become problematic once high di/dt commutation noise couples into sense traces. A device like DRV83053PHP helps because it brings the adjustment points closer together: gate behavior, current sensing, fault reporting, and control interface are all coordinated within one IC. That does not eliminate layout discipline or firmware care, but it does make the design space more manageable.

For compact motor-control platforms, this integration can materially shorten development cycles. The most time-consuming phase in many inverter projects is not schematic capture but convergence: tuning switching performance, validating fault handling, stabilizing current feedback, and reconciling control-loop behavior with hardware constraints. Devices that expose these functions through a configurable, diagnosable interface accelerate that convergence. In that sense, DRV83053PHP is more valuable as a system enabler than as a standalone component. Its real advantage is not merely that it drives six MOSFET gates, but that it creates a structured interface between the controller and the power stage.

Texas Instruments DRV83053PHP therefore stands out as a highly integrated yet still scalable solution for three-phase BLDC and PMSM drives. It supports robust inverter implementation across a broad voltage range, preserves power-stage flexibility through external MOSFET selection, and reduces analog and diagnostic overhead through onboard current sensing, SPI visibility, configurable gate drive, protection features, and a practical auxiliary LDO. For designs that must be compact, adaptable, and electrically resilient, it offers a well-judged architecture: integrated where integration improves control and reliability, discrete where optimization still matters most.
