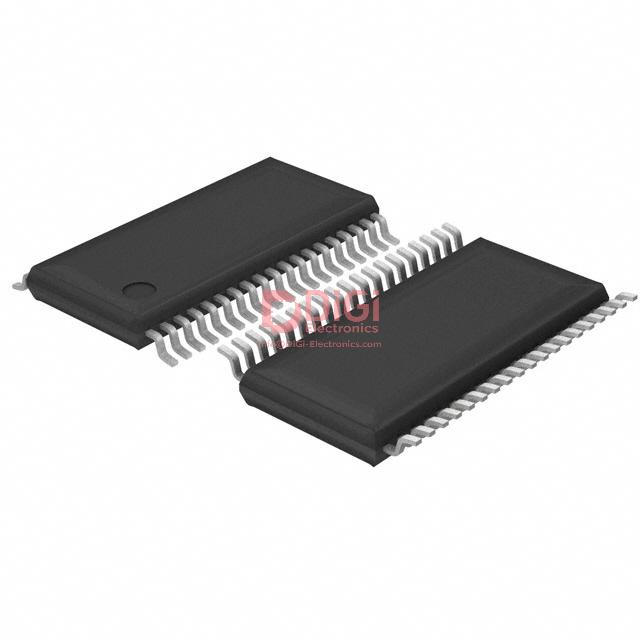

DAC8822QBDBTR

Texas Instruments DAC8822 Product Overview

Texas Instruments DAC8822 is a 16-bit dual-channel multiplying DAC built for precision analog generation where code accuracy alone is not enough. Its value lies in the combination of dual matched current-output channels, parallel data loading, multiplying capability, and a structure that lets the surrounding analog stage define the final transfer behavior. In practice, this makes it far more flexible than a conventional voltage-output DAC when the design requires deterministic gain control, bipolar signal handling, or direct integration into closed-loop analog subsystems.

At the architectural level, DAC8822 is a current-output R-2R ladder DAC with separate reference inputs for each channel. The digital code does not directly create a fixed output voltage. Instead, it steers a fraction of the externally applied reference into the output path, producing an output current proportional to both the code and the reference magnitude. This is the key mechanism behind its multiplying behavior. If the reference is a stable DC level, the device acts as a precision programmable analog output element. If the reference is an AC or bipolar signal, the DAC scales that waveform according to the digital input, enabling gain modulation, waveform shaping, or polarity-aware control.

This distinction matters in system design. A voltage-output DAC is typically easier to drop into a circuit, but it fixes more of the analog behavior inside the device. DAC8822 does the opposite. It exposes the signal-scaling core and leaves the final voltage conversion, output swing, filtering, and amplifier selection to the external design. That approach increases implementation effort, but it gives tighter control over noise, bandwidth, offset, output compliance, and dynamic settling. In precision systems, that trade is often favorable.

Each channel provides current outputs and includes matched feedback resistor structures intended for use with an external operational amplifier in a transimpedance configuration. This arrangement simplifies precise current-to-voltage conversion because the feedback element is trimmed to track the DAC ladder characteristics. The result is improved gain accuracy and monotonic transfer performance, assuming the external amplifier and board layout are chosen carefully. The matched nature of the internal resistor network is one of the more practical features of the part. It reduces the sensitivity of full-scale gain error to discrete resistor tolerance, which is often where otherwise solid DAC designs lose precision.

Monotonicity is especially important in control and calibration paths. A monotonic DAC guarantees that the analog output moves in only one direction as the digital input increments. In servo systems, programmable thresholds, actuator biasing, and test stimulus generation, this avoids small reverse steps that can destabilize loops or complicate compensation. With 16-bit resolution, even small non-idealities can become visible at low-level outputs, so monotonic behavior is not just a datasheet checkbox; it directly influences how predictable the system feels during fine adjustment and automated calibration.

The dual-channel structure is also more useful than it first appears. In many practical designs, two matched DAC channels are not used simply for two unrelated outputs. They are often paired for differential drive, coarse-fine trimming, I/Q amplitude control, bridge excitation adjustment, or simultaneous bias and offset generation. Because both channels share a common device environment, thermal tracking is generally better than with two separate DACs placed in different locations. That subtle advantage can reduce drift mismatch in systems that rely on channel-to-channel consistency over temperature.

The parallel input interface positions DAC8822 well for applications where update determinism matters more than pin count. Serial DACs are convenient, but they add transfer latency and software framing overhead. A parallel DAC can be loaded with lower timing uncertainty, which is valuable in automatic test equipment, hardware-timed industrial controllers, and synchronous waveform engines. Where multiple channels must update with tight timing alignment, the bus-style interface can simplify deterministic control at the FPGA or DSP boundary. This becomes increasingly relevant when the analog output is part of a real-time stimulus-response loop rather than a slow supervisory setting.

The 4-quadrant multiplying capability extends the range of usable analog functions. Because the DAC scales the reference rather than generating an internally fixed polarity output, it can handle positive and negative reference excursions under the proper external amplifier configuration. That allows the output to represent both positive and negative scaled versions of the input reference. In effect, the part can serve as a digitally controlled gain element. This is useful in programmable attenuators, function generators, polarity-reversible control signals, and calibration paths where a digitally selected correction factor must be applied to a bipolar signal. In such roles, the DAC is less a static output generator and more a precision analog coefficient block.

Supply operation from 2.7 V to 5.5 V broadens integration options with modern digital logic and mixed-voltage industrial platforms. However, the supply range should not be interpreted as the analog performance boundary by itself. Since this is a multiplying DAC, output range and accuracy are tightly linked to the reference path and the external amplifier rails. A common design mistake is to focus on the logic supply and overlook reference headroom, amplifier common-mode range, and output swing limits. In precision analog design, the DAC core is only one segment of the signal chain. The reference source, op amp, grounding, and PCB parasitics often determine whether the final system behaves like a 16-bit instrument or a much lower resolution subsystem.

Reference design deserves particular attention. Because full-scale current is defined by the external reference, reference noise and drift directly translate into output error. A low-noise, low-drift reference with clean routing is therefore not optional in high-accuracy designs. When the DAC is used in multiplying mode with an AC reference, the reference input becomes a signal input and should be treated like one. Bandwidth, distortion, source impedance, and feedthrough all matter. It is often beneficial to buffer the reference close to the DAC, especially if the source must drive multiple channels or long traces. Small layout decisions in this region can have a disproportionate effect on glitch energy and settling behavior.

The external op amp selection strongly shapes real-world performance. The amplifier must support the required output compliance, settle quickly with the DAC output capacitance, and maintain low offset and low bias current relative to the target resolution. For slow calibration outputs, offset drift and 1/f noise dominate. For waveform generation or fast level stepping, slew rate, gain bandwidth, and phase margin become more important. Designs that appear stable at midscale can show edge-case ringing near major code transitions if the amplifier is marginally compensated. In bench evaluation, this often appears as “DAC noise” until the transimpedance loop is probed directly. In many cases, the cure is not filtering but better amplifier selection or more disciplined feedback compensation.

Layout quality has a direct impact on whether the part reaches its intended precision. The current-output nodes are sensitive and should be kept short, clean, and isolated from digital switching lines. Ground partitioning should be done carefully, but rigid analog-digital separation is less effective than controlled return paths and low-impedance reference grounding. Decoupling must be physically close to the supply pins, and the reference path should avoid shared impedance with logic transients. For 16-bit performance, leakage, thermoelectric gradients, and contamination on the board can become measurable error sources, especially in high-impedance or low-level calibration circuits. In controlled environments, simple practices such as symmetric copper distribution around precision nodes and avoiding heat-dissipating components near the DAC often improve long-term stability more than additional signal processing.

In instrumentation and automatic test equipment, DAC8822 fits well where a programmable analog coefficient or stimulus must be both precise and repeatable. It can generate calibrated excitation levels, trim comparator thresholds, or synthesize precise setpoints for measurement front ends. In industrial control and PLC systems, it is useful for isolated analog output modules, programmable loop compensation, actuator biasing, and digital calibration overlays. In these applications, the multiplying architecture allows one design to support multiple output ranges by changing the reference and output amplifier configuration rather than replacing the DAC itself. That flexibility can reduce platform variation across product families.

For digitally controlled calibration circuits, the device is particularly effective because it separates digital resolution from analog full-scale definition. A stable reference and a suitable transimpedance stage allow very fine correction steps without forcing a fixed output span. This makes it easier to inject offset trim, gain trim, or sensor linearization factors in a controlled way. A practical pattern is to reserve one channel for static correction and the second for dynamic adjustment or temperature compensation. This tends to simplify firmware partitioning and preserves calibration traceability during production test and field recalibration.

One of the more useful ways to think about DAC8822 is not as a standalone output peripheral, but as a precision analog multiplier with digital programmability. That framing better reflects where it creates system value. It is most compelling when the design already contains a meaningful reference or signal path that needs accurate scaling under digital control. If the requirement is only to produce a moderate-accuracy DC voltage with minimal design effort, a buffered voltage-output DAC may be the better choice. But when precision, bipolar handling, deterministic timing, and transfer-function control are central requirements, DAC8822 offers a more powerful analog building block.

Texas Instruments positions DAC8822 for demanding mixed-signal environments, and its specification envelope supports that role: 16-bit resolution, dual-channel density, industrial temperature operation from -40°C to +125°C, single-supply compatibility, and 4-quadrant multiplying operation. The device rewards careful analog design. When paired with a disciplined reference network, a stable op amp stage, and clean layout, it can deliver highly controllable analog performance in systems where precision scaling matters more than convenience.

Texas Instruments DAC8822 Core Architecture and Operating Principle

Texas Instruments DAC8822 is built around two fully independent 16-bit multiplying DAC paths, labeled DAC A and DAC B. Each path is implemented as a precision current-steering R-2R ladder with a matched feedback resistor network intended to work with an external transimpedance, or current-to-voltage, amplifier. This arrangement is central to how the device should be understood: the DAC core does not directly generate a buffered voltage output. It generates a code-controlled current that reflects a fraction of the applied reference signal. The external op amp then converts that current into a usable voltage with gain, polarity, and filtering characteristics defined by the surrounding analog stage.

This architecture gives the DAC8822 a wider functional range than a conventional voltage-output DAC. Its transfer behavior is inherently multiplicative, meaning output is proportional to the product of the digital input code and the reference input. If the reference is a stable DC source, the device behaves as a high-resolution programmable analog output element. If the reference is a time-varying waveform, the same core effectively performs digital gain control on that waveform. In practice, this enables roles such as programmable attenuation, waveform scaling, offset trimming, calibration injection, and closed-loop analog control, all from the same silicon structure. That flexibility is one of the most useful aspects of the part, but it also means system-level performance depends strongly on how the reference path and output amplifier are implemented.

At the circuit level, each DAC channel uses precision resistor matching to divide and steer current in proportion to the 16-bit input code. The internal feedback resistor is trimmed to track the ladder characteristics, which simplifies external design and improves gain consistency when paired with an op amp. That matching matters because gain error in multiplying DAC systems is often dominated less by nominal resistor value and more by ratio accuracy and temperature tracking. By integrating the feedback element with the ladder, the device reduces one of the common sources of external mismatch. In well-laid-out designs, this translates into more predictable full-scale behavior across temperature and over time.

The digital interface is organized with a bus register and a DAC register for each channel. This dual-register scheme is more important than it first appears. It separates data loading from analog output updating, which allows deterministic timing in systems where output coherence matters. A new 16-bit word can be written into an input register without immediately disturbing the analog output. The transfer to the active DAC register then occurs under control of the addressing and update signals. As a result, one channel can be adjusted independently while the other holds its previous state, or both channels can be preloaded and updated together to create simultaneous output transitions. In motion control, bridge trimming, and multi-axis bias generation, this avoids transient mismatch that would otherwise appear if channels updated sequentially.

The usefulness of synchronized updating becomes even clearer in mixed-signal control loops. If two analog outputs define related parameters, such as gain and offset, or excitation and compensation, asynchronous updates can create short-lived but measurable error states. With the DAC8822 register structure, those intermediate states can be avoided. This is not just a convenience feature. It directly affects system stability in sensitive analog paths, especially where downstream amplifiers or actuators respond quickly to small changes.

The multiplying DAC operating principle also changes how reference design should be approached. Since the DAC output scales with the reference, reference noise, drift, and impedance directly propagate into the final analog result. In many designs, the limiting factor is not the nominal 16-bit resolution of the ladder but the cleanliness and stability of the reference drive. A low-noise reference buffer, short return paths, and careful grounding usually contribute more to real performance than chasing ideal digital timing alone. When the device is used as an analog multiplier, reference bandwidth becomes equally important. Any distortion, phase shift, or settling error in the reference path appears at the output as a gain-modulated artifact. For precision AC applications, the reference input should therefore be treated as a signal path, not merely a bias node.

The current-output nature of the DAC also has implications for op amp selection. The external I/V amplifier must hold the DAC output node at a virtual ground with minimal error while settling quickly after code changes. Input bias current, offset voltage, open-loop gain, bandwidth, and output swing all influence the achieved linearity and dynamic response. In slower calibration systems, a zero-drift amplifier may be attractive for reducing offset-related errors. In dynamic waveform or servo applications, however, amplifier settling and phase margin often become the dominant constraints. A common design mistake is to choose an amplifier based only on DC precision, then discover that major-code transitions ring or settle too slowly. With multiplying DACs, compensation around the op amp should be validated against the ladder capacitance and expected reference bandwidth rather than assumed from a generic transimpedance template.

The DAC8822 is specified as monotonic over 16 bits, and that specification deserves attention beyond its headline value. Monotonicity means every increment in digital code moves the analog output in the correct direction, even if the step size is not perfectly uniform. In control and trimming applications, that property is often more valuable than absolute integral linearity because it preserves predictable adjustment behavior. During gain calibration, threshold tuning, or bias optimization, monotonic response prevents the system from stepping backward when commanded forward. This simplifies search algorithms, improves loop convergence, and reduces the need for compensation logic in firmware. In field behavior, monotonicity often determines whether a fine-adjustment routine feels stable or erratic.

That said, monotonicity should not be confused with complete precision. Resolution defines the code granularity. Monotonicity guarantees directional correctness. Accuracy still depends on offset, gain error, integral nonlinearity, reference quality, and thermal behavior of the complete signal chain. In other words, a 16-bit monotonic DAC can still behave like a lower-accuracy instrument if the reference source, amplifier, or layout undermines the ladder’s native performance. This distinction is important in systems that advertise high bit depth but are ultimately limited by analog implementation details.

From an application perspective, the dual-channel configuration opens several efficient design patterns. One common use is paired coarse and fine analog control, where one channel generates a primary setpoint and the second channel injects trim or compensation into a related node. Another is differential or bipolar output generation using matched external amplifier stages, where coordinated updates preserve symmetry. The part is also well suited to programmable gain architectures, especially when one channel controls amplitude and the other sets offset or common-mode level. Because both channels are architecturally identical, thermal tracking and timing consistency are easier to manage than with mixed-device solutions.

In calibration equipment, the DAC8822 is particularly effective because the multiplying structure allows gain scaling without adding another analog multiplier stage. A stable metrology-grade reference can establish the transfer baseline, while digital code precisely sets the calibration point. In programmable sensor excitation, the reference can be driven by a waveform source, allowing the DAC to scale excitation amplitude under digital control. In these cases, the device effectively merges conversion and modulation into one element, reducing component count and often improving repeatability by avoiding cascaded analog gain blocks.

Practical implementation tends to reward conservative analog discipline. The reference input should be buffered if source impedance is not tightly controlled. The IOUT and feedback nodes should be routed as short, low-leakage analog paths with minimal parasitic coupling from digital lines. Ground partitioning should prevent bus switching currents from sharing impedance with the output amplifier return. Decoupling should be placed close to both the DAC supply pins and the external amplifier. These are standard mixed-signal practices, but with a multiplying DAC they have unusually visible impact because the architecture exposes both reference integrity and output conversion quality directly at the transfer function level.

Another subtle but important point is code-dependent glitch energy during register updates. Even when average DC accuracy is excellent, instantaneous transients can matter in sample-and-hold systems, precision waveform synthesis, or fast control loops. Simultaneous update capability helps manage timing, but it does not eliminate the analog transient associated with internal switching. If downstream circuitry is sensitive, it is often worth aligning updates to quiet portions of the control cycle or adding modest output filtering where latency allows. In many real systems, this simple scheduling choice produces cleaner behavior than attempting to over-engineer the analog stage.

Viewed as a whole, the DAC8822 is best treated not just as a 16-bit digital-to-analog converter, but as a precision code-controlled analog scaling element. That framing leads to better design choices. It shifts attention from nominal resolution alone toward transfer-function integrity, reference quality, update determinism, and output-stage design. When those factors are handled carefully, the device delivers far more than static setpoint generation. It becomes a compact building block for programmable analog signal conditioning, precision trimming, and tightly coordinated dual-channel control.

Texas Instruments DAC8822 Key Electrical and Accuracy Specifications

Texas Instruments DAC8822 is a 16-bit dual multiplying DAC positioned for precision mixed-signal designs that need both static accuracy and fast analog programmability. Its specification set is not just a collection of isolated numbers. The more useful view is to read it as a balance among linearity, switching behavior, reference-path fidelity, and power efficiency. For selection work, that balance matters more than any single headline parameter.

At the core, the 16-bit resolution defines a code space of 65,536 steps. In practice, resolution alone does not guarantee usable precision. What matters is how reliably each code transition maps to a predictable analog increment. This is where the DAC8822’s differential nonlinearity and integral nonlinearity become more important than the nominal bit count.

Differential nonlinearity is specified at ±0.5 LSB typical and ±1 LSB maximum. That matters because DNL governs step-size uniformity and monotonicity. When a precision loop, programmable gain block, or calibration source walks through adjacent codes, low DNL reduces the risk of uneven code-to-code behavior. In control and trimming paths, this directly improves predictability near threshold regions where one missing or compressed step can become visible at system level. A ±1 LSB maximum DNL spec is often the practical line engineers watch because it preserves monotonic behavior across the transfer range, which is usually more valuable in closed-loop systems than chasing idealized endpoint accuracy alone.

Integral nonlinearity is grade-dependent. The DAC8822QB is specified at ±2 LSB INL, while the DAC8822QC tightens that to ±1 LSB. This grading is useful because INL often drives total uncalibrated transfer accuracy after gain and offset are addressed. If the design includes a digital calibration stage, periodic zero/full-scale correction, or software linearization, the QB grade can be a rational cost-performance choice. If the signal path is expected to behave well with minimal correction, the QC grade reduces residual transfer curvature and simplifies the error budget. In many designs, selecting the tighter INL grade is less about raw precision and more about reducing engineering overhead elsewhere, especially when production calibration time is expensive.

The output architecture is current-mode, with a full-scale output current of 2 mA using a 10 V reference. That detail has direct implications for the analog stage that follows. A current-output DAC gives flexibility because the final voltage range, polarity, and filtering can be shaped by the external I-to-V converter and feedback network. It also means the DAC itself should be evaluated together with the reference source, output amplifier, resistor matching, and PCB parasitics. In other words, the part’s own linearity can only be fully realized if the surrounding analog path is kept equally disciplined. In lab practice, many “DAC errors” traced during bring-up are not generated inside the converter at all. They usually come from reference noise coupling, op-amp bias current interactions, or ground return contamination around the transimpedance stage.

Low output leakage current is one of the more easily overlooked but valuable specifications. The DAC8822 specifies 10 nA at 25°C and 20 nA across temperature at zero code. Leakage becomes important near zero-scale and in high-impedance post-DAC topologies, where even small parasitic currents can create measurable residual output. In precision source circuits, this helps maintain cleaner zero-scale behavior and reduces the burden on downstream offset correction. It is particularly relevant when the DAC output is routed into precision amplifiers with large feedback resistances, where nanoamp-level leakage can translate into visible microvolt- or millivolt-level offsets.

Dynamic behavior is one of the stronger aspects of the DAC8822. The typical settling time is 0.5 μs to 0.0015% of full-scale for a full-scale transition. That is a serious specification because 0.0015% corresponds to roughly 15 ppm, which is well beyond casual settling criteria. For instrumentation, automatic test equipment, waveform level control, and servo bias generation, this means the DAC can move quickly between codes and become stable enough for high-accuracy sampling with limited wait time. In real systems, fast nominal settling is most useful when glitch energy, amplifier recovery, and reference feedthrough are also controlled. A converter may look fast on paper, yet still underperform in the application if the output op amp slews poorly or if the reference node rings during large code changes. The DAC8822’s settling figure therefore signals strong intrinsic switching behavior, but the surrounding analog stage still determines whether that performance survives at board level.

The 10 MHz reference bandwidth is a defining feature because it indicates the part is intended for multiplying DAC use, not just static DC output generation. In a multiplying DAC, the reference terminal effectively becomes the analog input path, and the DAC code scales that signal. With 10 MHz reference bandwidth, the DAC8822 can support AC reference content with reasonable fidelity, making it suitable for programmable gain, digitally controlled attenuation, and waveform amplitude modulation. This expands its role beyond “set-and-hold voltage DAC” use cases. It can act as a precision analog coefficient element inside a broader signal-processing chain. That is often more architecturally valuable than a voltage-output DAC when analog flexibility is needed.

Total harmonic distortion is specified at −105 dB under stated conditions, and output noise density is 12 nV/√Hz at 1 kHz in 2-quadrant mode. These are strong indicators that the device fits low-distortion programmable analog paths. THD at this level suggests that when the reference path and output stage are equally clean, the DAC can support demanding audio-adjacent control paths, precision stimulus generation, and low-spur signal conditioning. Noise density at 12 nV/√Hz is low enough that, in many applications, the reference source and output amplifier will dominate the overall noise floor before the DAC does. This shifts design attention toward the analog environment around the converter. A quiet DAC placed behind a mediocre reference or a noisy op amp does not produce a quiet system. In precision mixed-signal work, that mismatch is common enough that component selection should treat the DAC, reference, and amplifier as one composite block.

Power operation from 2.7 V to 5.5 V adds system flexibility, especially in mixed-voltage logic environments and compact embedded platforms. The microampere-range supply current is particularly attractive in dense multichannel systems, isolated modules, and thermally constrained assemblies. Low supply current does more than save power. It also reduces self-heating, which indirectly helps thermal stability and channel-to-channel consistency when many DACs are placed close together. In precision boards, temperature gradients often create more error than static room-temperature specifications suggest. A low-power DAC eases that pressure and makes thermal behavior easier to control.

From an application standpoint, the DAC8822 fits best where the design needs one of two things: either accurate DC programmability with low error and fast settling, or code-controlled analog multiplication with low distortion. In calibration engines, threshold generators, bridge excitation trimming, and automated test systems, its linearity and settling support repeatable stimulus generation. In programmable gain or attenuation paths, its multiplying capability and reference bandwidth make it a better fit than conventional buffered voltage-output DACs that are optimized only for static reference generation. That distinction is important. The most efficient design often comes from choosing the DAC based on signal-path role, not only based on nominal resolution.

A practical selection insight is that this device rewards disciplined analog implementation. The headline specifications are strong enough that PCB layout, reference routing, amplifier choice, and grounding can become the limiting factors very quickly. Short reference paths, controlled impedance around fast-switching nodes, low-drift feedback components, and careful return-current management are not optional details here. They are the difference between obtaining “16-bit class” behavior and merely placing a 16-bit DAC on the schematic.

Another point worth emphasizing is that the grade split between QB and QC should be treated as a system-level trade, not a purchasing footnote. If the architecture already includes calibration, environmental compensation, or lookup-based correction, the looser INL grade may be entirely sufficient. If production simplicity, field stability, and reduced characterization effort are higher priorities, the tighter grade usually pays back through lower integration risk. In precision design, the cheapest component is not always the lowest-cost option once validation time is included.

Viewed as a whole, the DAC8822 is well suited to precision mixed-signal systems that need a compact dual DAC with low linearity error, very fast settling, multiplying capability, low distortion, and minimal power draw. Its electrical profile suggests a part designed not only for accurate code conversion, but for stable placement inside more demanding analog control loops and programmable signal paths. That is where its specification set becomes most meaningful.

Texas Instruments DAC8822 Interface, Register Control, and Update Logic

Texas Instruments DAC8822 uses a 16-bit parallel interface built for low-latency, timing-deterministic data transfer. That choice is not just a legacy convenience. It directly supports systems where the exact instant of analog output change matters as much as code accuracy. In automated test equipment, closed-loop industrial actuation, waveform edge alignment, and calibration platforms, a parallel bus removes the serialization delay and framing overhead that often complicate update timing on SPI-based DACs. The result is a cleaner timing model: place data and address on the bus, apply the write strobe, then control when the analog output actually moves.

The digital interface is centered on data pins D0 through D15, with D15 as the MSB, and a compact set of control lines: WR, LDAC, A0, A1, RS, and RSTSEL. This separation between data, addressing, and update control is one of the more useful architectural features of the DAC8822. It allows the system designer to decouple code loading from output activation, which is often the difference between a merely functional DAC connection and one that behaves predictably in a real-time signal chain.

A0 and A1 feed the internal address decoder and determine which destination register is targeted during a write cycle. With A1 = 0 and A0 = 0, the write applies to DAC A. With A1 = 0 and A0 = 1, no DAC channel is updated. With A1 = 1 and A0 = 0, both DAC A and DAC B are addressed simultaneously. With A1 = 1 and A0 = 1, the write applies to DAC B. This map is simple, but it is also operationally significant. The “both channels” selection is especially useful in designs that require coherent output behavior across two analog paths. Differential signal generation is a common example, but the same mechanism also helps in gain/offset trimming loops, threshold pair generation, and dual-bias programming where skew between channels would otherwise create measurable error.

The internal register structure gives the DAC8822 more than one update strategy. When WR is asserted while LDAC remains high, incoming data is captured into the input register only. The analog output does not change at that point. A later LDAC assertion transfers the stored value from the input register into the DAC register, and only then does the output update. This two-step path is the preferred method when multiple writes must be staged before a synchronized output event. It lets the digital domain prepare all new codes first, then release them at a controlled instant.

That staged-update behavior is highly valuable in systems where analog simultaneity matters more than raw write speed. If two outputs must change together, writing them sequentially without a separate update command creates channel-to-channel skew equal to at least one bus cycle plus routing and logic delay. In many low-speed applications that skew is irrelevant. In threshold stepping, sensor excitation changes, or phase-sensitive instrumentation, it can become visible. Using the input registers as preload buffers eliminates most of that uncertainty and makes system timing easier to reason about.

The DAC8822 also supports a more direct operating mode. If WR and LDAC are pulsed together, the input register and DAC register effectively behave as transparent during the write event. In that case, the written code propagates to the DAC register immediately, producing direct code-to-output action. This mode is useful when the shortest possible control path is required and synchronized multi-step staging is unnecessary. It reduces control complexity, but it shifts more responsibility to the bus timing and signal integrity of the host logic. In practice, this mode is attractive for single-channel fast updates or for systems where an FPGA generates tightly aligned strobes with minimal uncertainty.

The timing requirements are short enough to interface comfortably with modern programmable logic. Data setup time to WR is 10 ns. Address setup time to WR is also 10 ns. Hold times are 0 ns. WR pulse width is 10 ns, LDAC pulse width is 10 ns, and RS pulse width is 10 ns. WR-to-LDAC delay is specified at 0 ns minimum. These numbers imply that the DAC8822 can sustain very fast bus transactions, but they also reveal an important implementation detail: zero hold-time specifications simplify logic generation, yet they do not eliminate board-level timing risk. On a real PCB, skew between control and data paths can easily consume nominal timing margin if routing is careless or if edge rates are fast relative to trace mismatch.

For FPGA and CPLD interfaces, the cleanest implementation is usually a registered bus. Data, address, and control should be launched from the same clock domain and constrained so that external pin timing remains bounded across process, voltage, and temperature. It is tempting to generate WR and LDAC with combinational decode logic, especially when trying to minimize cycles. That often works in the lab and then becomes fragile once placement changes or the design is migrated. Registering the strobes typically produces more repeatable behavior and makes timing closure much easier. The DAC8822 is fast enough that disciplined synchronous design still leaves ample margin.

With high-speed microcontrollers, the interface is equally practical, but the risk shifts from timing capability to timing consistency. A nominally fast GPIO peripheral can still introduce jitter through firmware latency, interrupt interaction, or bus contention. If deterministic analog update timing is the real objective, a memory-mapped external bus, programmable logic front-end, or timer-assisted strobe generation generally performs better than software-bit-banged control. The DAC itself is not usually the limiting element. The surrounding digital architecture is.

RS and RSTSEL extend control beyond ordinary write cycles by providing reset-related behavior. In systems that must recover to a known analog state after watchdog events, brownout conditions, or startup sequencing, reset strategy deserves as much attention as normal data loading. A DAC that powers up or resets to an uncontrolled output can create transient faults in downstream amplifiers, valves, bias networks, or test fixtures. The right reset configuration should be selected together with the output-stage behavior, not as an afterthought. In tightly controlled systems, it is often preferable to hold updates off with LDAC while rails stabilize, preload known-safe codes into the input registers, and then release outputs in one deliberate transition.

From an architectural perspective, the most useful way to think about DAC8822 control is as a three-layer mechanism. The first layer is bus transport: 16-bit data plus address and strobes. The second layer is register staging: input register capture versus DAC register update. The third layer is analog event timing: the exact moment the output is allowed to change. Many integration issues come from collapsing these layers conceptually and assuming that a “write” is always equivalent to an “output update.” On this device, that assumption is optional by design, and exploiting that distinction usually leads to a more robust system.

A practical pattern in dual-channel designs is to treat DAC A and DAC B as a matched update pair even when they are functionally different. One channel may generate a stimulus level while the other sets a comparator threshold or compensation current. Loading both channels through the input registers and applying LDAC only after both codes are valid avoids intermediate states that can briefly violate system constraints. Those intermediate states are easy to miss during bench bring-up because they may last only tens of nanoseconds, yet they can still trigger fast downstream circuitry. The DAC8822 register model helps suppress exactly that class of subtle fault.

Another useful design habit is to reserve the simultaneous-address mode for cases where true code identity or concurrent loading is required, and otherwise program channels independently. Writing both channels at once is efficient, but it should align with signal intent. If the two outputs support different functions, independent staging followed by a shared LDAC often provides better observability and simpler debug. This approach makes it easier to trace whether a problem originated in bus data, address decoding, or output timing, especially when validating calibration or stimulus profiles.

At the board level, the parallel interface benefits from disciplined routing despite its simple logic definition. Keep the data bus length-matched well enough that setup margin is not consumed by inter-bit skew. Route WR and LDAC with particular care, since they define capture and update timing. Avoid unnecessary ringing on those edges; false strobes are far more damaging than occasional data settling issues because they can commit partially valid words. If the host logic uses very fast edges, modest source damping often improves reliability more than tightening firmware timing ever will.

The DAC8822 is therefore best viewed not merely as a dual 16-bit DAC with a parallel port, but as a controlled timing element between digital code generation and analog state transition. Its interface supports independent loading, simultaneous channel addressing, buffered updates, and direct transparent writes. That combination gives the designer freedom to optimize either coherence or immediacy. In practice, the strongest implementations are the ones that use the register and strobe model intentionally, with the update event treated as a first-class timing signal rather than as a side effect of writing data.

Texas Instruments DAC8822 Reference Network and 2-Quadrant/4-Quadrant Operation

Texas Instruments DAC8822 derives much of its system value from its reference network rather than from the DAC core alone. It is a multiplying DAC, so the output is not simply a code-to-voltage translation around an internal reference. The transfer function is directly shaped by the external reference path, and that makes the reference pins part of the signal chain, not just a support interface. In practice, this is the point that determines whether the device behaves like a straightforward programmable attenuator, a bipolar scaling element, or a precision analog computation block embedded inside a larger loop.

The device supports both 2-quadrant and 4-quadrant operation. That distinction is not only about output polarity. It changes how the resistor network is used, how the reference source is loaded, and how external conditioning circuitry must be designed. For systems that need deterministic gain control with low architectural overhead, 2-quadrant mode is usually the simpler path. For systems that must represent both positive and negative transfer behavior, 4-quadrant mode opens a more flexible signal-processing model, but it also places tighter demands on the reference amplifier and the surrounding analog layout.

At the core of the DAC8822 is a switched-resistor network that multiplies the applied reference by a digital code ratio. Because of that structure, the reference input sees a code-dependent switching environment internally, but in the intended operating configuration the effective input resistance is specified and controlled well enough for circuit design. The wide reference range of −18 V to +18 V is especially significant. It allows the DAC to operate with substantial analog headroom and makes it suitable for high-dynamic-range industrial control, calibration engines, programmable gain stages, and waveform synthesis paths where reference polarity is part of the functional requirement.

In 2-quadrant mode, the VREF pins operate as reference inputs with constant input resistance versus code. That constant-resistance behavior matters more than it may first appear. It means the reference source does not experience gain-dependent loading as the DAC code changes, which reduces one common source of nonlinearity in multiplying architectures. When the source impedance of the reference driver is non-negligible, code-dependent loading can translate directly into transfer error, dynamic glitch variation, or distortion. By maintaining a predictable load, the DAC8822 simplifies error budgeting and makes the reference path easier to stabilize.

The implementation of 2-quadrant mode is also structurally clean. The internal resistor nodes are shorted or tied according to the device pin-function table, so the external network remains compact. This is one reason the mode is often preferred when the design goal is unipolar scaling of a precision reference or waveform. A common use case is a programmable attenuation stage in which a stable positive reference is multiplied to generate a finely controlled output span. Another is closed-loop calibration, where the DAC is used to trim gain around an instrumentation front end without introducing unnecessary polarity complexity.

The 4-quadrant configuration is where the DAC8822 becomes more architecturally interesting. In this mode, the reference network is rearranged to support bipolar multiplying behavior through an external reference amplifier. Pins such as ROFS, R1, RCOM, and VREF are no longer just passive connection points. They become part of the composite analog transfer path that establishes offset, scaling, and polarity inversion. The DAC is effectively extended by the external amplifier into a bipolar signal-conditioning subsystem.

This matters because 4-quadrant operation allows positive and negative output response for positive and negative reference conditions, depending on the external topology. That enables several useful classes of circuits. Precision source generation is one example, especially when a control loop must swing symmetrically around zero. Programmable offset insertion is another, where the DAC is used not just to scale a signal but to algebraically combine reference and offset components. Bipolar transfer generation is also important in servo control, automated test equipment, and metrology channels that need signed correction values rather than simple unipolar trims.

The resistor values define the practical limits of the reference driver. The VREF input resistance is specified at 4 kΩ to 6 kΩ, and the R1/R2 structure is similarly 4 kΩ to 6 kΩ. The feedback and offset resistances are 8 kΩ to 12 kΩ, with reference input capacitance around 5 pF. These numbers are not secondary datasheet details. They govern how the external amplifier sees the DAC across frequency, how much current the reference source must deliver, and whether the closed-loop response remains well behaved when the DAC switches codes.

A reference driver connected to a 4 kΩ to 6 kΩ load over a wide voltage span can be asked to source or sink several milliamps, and that requirement becomes more relevant when low-noise buried references or precision amplifiers are selected primarily for DC accuracy. Some precision amplifiers are excellent at static error control but become marginal when driving a switched ladder through PCB parasitics. In such cases, the failure mode is rarely dramatic. More often it appears as small-signal ringing, longer settling tails, or code-transition artifacts that only become visible once the DAC is exercised dynamically. A compact isolation resistor or a carefully chosen compensation capacitor can often stabilize the interface, but these additions must be evaluated against gain error and settling-time targets.

The 5 pF reference input capacitance looks small, but it should not be treated in isolation. Package parasitics, trace capacitance, amplifier output impedance, and any filtering added for noise suppression all combine into the effective load. In fast multiplying applications, the reference path behaves like a signal path, not a static bias node. That means bandwidth allocation should be done explicitly. If the DAC is multiplying an AC or fast-stepping reference, the external amplifier must preserve phase margin while maintaining low error under transient current demand. The common mistake is to optimize only for reference noise density or initial accuracy and ignore dynamic output impedance. In multiplying DAC designs, dynamic drive capability is often the parameter that separates a clean architecture from one that is difficult to debug.

Another important implication of the reference structure is that overall system accuracy depends strongly on the quality of the reference source and the integrity of its routing. Since the DAC output is proportional to the applied reference, any drift, noise, or distortion on that node is transferred through the DAC with the programmed scale factor. This is fundamentally different from voltage-output DACs with integrated references, where the reference architecture is partly hidden inside the converter. Here the reference becomes a first-class design variable. That is why the DAC8822 is especially valuable in systems where the analog output must track an external precision standard, a calibration rail, or a mathematically derived analog quantity.

This distinction has real architectural consequences. In metrology-grade instruments, calibration-heavy systems, and high-accuracy industrial modules, it is often preferable to let one high-quality reference domain serve multiple analog functions. The DAC8822 fits naturally into that model because it can act as a programmable analog scaler tied directly to the system reference hierarchy. Instead of generating a nominal output range and correcting it later, the design can embed the DAC into the reference distribution itself. That tends to reduce compounded errors and makes recalibration more coherent at the system level.

There is also a subtle advantage in using 4-quadrant mode for signed correction paths. When offset and gain adjustments are both required, a bipolar multiplying architecture can reduce the need for separate summing stages. Fewer active stages generally mean fewer drift terms, fewer interaction points, and cleaner loop analysis. The resulting circuit is often easier to characterize over temperature because the main transfer function remains concentrated around the DAC ladder and one external amplifier rather than being distributed across multiple trim blocks.

Layout and grounding deserve equal attention. With multiplying DACs, reference return currents and output-stage currents should not be allowed to share uncontrolled impedance. The resistor network inside the DAC can only preserve ratio accuracy if the external ground and return environment is stable. In precision builds, it is often worth routing the reference return as a dedicated low-impedance path back to the analog ground star, especially when the reference amplifier also drives other loads. Small ground shifts at the DAC reference terminals can appear directly as gain or bipolar offset errors, and those errors often mimic component drift even when the real cause is current-induced ground modulation.

For design validation, static linearity testing is not enough. The reference network should also be exercised under realistic code patterns, including major-carry transitions and alternating high/low code sequences. This usually reveals whether the reference amplifier is recovering cleanly and whether the compensation strategy is robust. In laboratory bring-up, one of the more telling checks is to observe both the DAC output and the reference amplifier output simultaneously during rapid code changes. If the amplifier node shows excess overshoot or a multi-step settling profile, the DAC output will often inherit subtle errors that are otherwise hard to attribute.

Seen from a system perspective, the DAC8822 is most compelling when the design requires analog scaling as an active computational function rather than as a fixed-output conversion task. Its reference network supports that role directly. In 2-quadrant mode, it provides a predictable and efficient path for unipolar multiplying operation with stable reference loading. In 4-quadrant mode, it extends into a bipolar analog processing element through the external amplifier and resistor structure. That combination is what gives the device its flexibility. The wide reference range, controlled input resistance, and support for precision external signal conditioning make it well suited to designs where reference behavior defines overall system performance as much as nominal DAC resolution does.

Texas Instruments DAC8822 Output Stage, External Amplifier Requirements, and Dynamic Performance

Texas Instruments DAC8822 is not a voltage-output DAC. It is a dual 16-bit current-output multiplying DAC, and that single architectural fact determines most of the surrounding analog design work. The device does not define the final output voltage by itself. Instead, it delivers a precisely weighted output current that must be converted to voltage by an external transimpedance stage, usually a precision op amp with the DAC’s matched RFB pin used as the feedback element. In practice, the DAC core, the external amplifier, the feedback path, the reference source, and the PCB parasitics together form the real output stage. Treating the DAC as an isolated component usually leads to optimistic expectations and disappointing dynamic behavior.

The basic connection is straightforward. IOUT is routed to the op amp’s inverting input, and the associated RFB pin closes the loop from amplifier output back to that summing node. This topology performs current-to-voltage conversion while preserving the DAC’s ratio accuracy, because the internal resistor network and the matched feedback resistor are designed to track. The noninverting input is typically tied to a quiet analog ground or a defined offset potential if a bipolar output range is required. Although simple on paper, this node is highly sensitive. It is a virtual ground only when the amplifier has sufficient open-loop gain, bandwidth, and phase margin across the full operating range. Once that assumption weakens, gain linearity, settling, and glitch behavior all start to shift.

This is why amplifier selection is not a secondary choice. It is a functional extension of the DAC. Texas Instruments reports AC performance using a THS4011 as the I/V converter, which gives a useful reference for what the DAC can achieve in a well-behaved closed-loop implementation. That test condition should not be read merely as a lab setup detail. It effectively defines the dynamic context behind the published numbers. If a different amplifier is used, especially one with lower gain-bandwidth product, slower slew rate, larger input capacitance, or less stable behavior with capacitive summing nodes, the measured performance can diverge sharply from the datasheet curves even when static INL and DNL remain excellent.

The key mechanism behind that sensitivity is the code-dependent output capacitance, specified at 50 pF. In a current-output R-2R DAC, the effective capacitance seen at the output node changes with code because internal switches and ladder segments present different parasitic conditions as the bit pattern changes. From the amplifier’s perspective, the summing node is not driving a fixed capacitor but a dynamic load whose value and distribution shift during code transitions. This matters because the summing junction is exactly where loop stability is most fragile. A transimpedance amplifier that is stable with a static source may ring or overshoot when connected to a DAC output whose capacitance varies during operation. The issue often appears first as degraded settling tails rather than obvious oscillation, which makes it easy to miss if measurements stop at coarse time scales.

The advertised 0.5 µs settling time is therefore best understood as a system-level capability, not a guaranteed outcome under arbitrary output-stage choices. To preserve that level of performance, the op amp must maintain high loop gain at the frequencies associated with the DAC’s transition energy, and the compensation network must be tuned for the actual summing-node environment. In many builds, a small feedback capacitor across RFB is needed to control peaking and recover phase margin. The value is usually modest, but its effect is disproportionate. Too little compensation leaves underdamped behavior and long residual settling. Too much compensation stabilizes the loop at the cost of bandwidth and large-signal response. The useful design target is rarely “maximum speed” in isolation. It is fast settling into the required error band, including the last fraction of an LSB, under the real code patterns and load conditions the instrument will see.

A practical pattern emerges here. The first bench result often looks acceptable when stepping between midscale-adjacent codes or observing only the first part of the transition. Trouble shows up when testing worst-case major-carry transitions, channel interaction, and small residual errors at longer time windows. For a 16-bit DAC, the difference between a visually clean edge and true precision settling is large. Ringing that seems insignificant on a scope can consume multiple LSBs of error budget. This is one of the cases where dynamic validation should be intentionally pessimistic: exercise full-scale code jumps, both polarities of reference swing if multiplying mode is used, and realistic capacitive loading at the amplifier output. Designs that pass only nominal transitions are usually relying on accidental margin.

The external amplifier must also be chosen with noise and distortion in mind. Since the DAC8822 is often used in precision signal-generation or programmable-gain paths, the op amp’s input noise current, voltage noise, distortion spectrum, and output drive behavior directly shape the final result. An amplifier with excellent DC precision but mediocre high-frequency linearity can limit the DAC’s usefulness in multiplying applications. The DAC’s THD specification of −105 dB under stated conditions is strong enough to support waveform synthesis, reference scaling, and low-distortion amplitude control, but only if the surrounding analog path is comparably linear. Once the op amp enters nonlinear output current regions, or the reference source itself carries harmonic content, the DAC’s intrinsic linearity is no longer the dominant factor.

The 10 MHz reference bandwidth is another important clue about intended use. This is not merely a slow setpoint DAC. The multiplying architecture allows the reference input to carry an AC signal, making the DAC function as a precision programmable attenuator or waveform-scaling element. In that mode, reference path integrity becomes central. The reference source must remain low impedance across frequency, preserve phase accuracy, and settle quickly after digital updates. Any reference-path filtering that is too aggressive will improve noise while quietly reducing modulation bandwidth and introducing amplitude error at higher frequencies. Conversely, a wideband but poorly decoupled reference path can inject broadband feedthrough into both channels. The optimal reference network is usually not the quietest possible in a static sense; it is the one that preserves low impedance and controlled behavior over the actual signal band.

The isolation metrics are especially relevant in dual-channel systems. Feedthrough error of −70 dB at zero code in 2-quadrant mode indicates that even when the DAC is nominally off, some reference signal couples through the internal structure to the output. This is normal for multiplying DACs, but the level is low enough to support demanding instrumentation if the board layout does not reintroduce stronger coupling externally. Crosstalk from one channel’s reference to the other output is specified at −100 dB, which is a strong figure and valuable in applications such as quadrature generation, independent bias control, or dual-loop calibration systems. Still, channel isolation on the bench is often limited less by the silicon and more by shared reference routing, common return inductance, or amplifier supply coupling. The device can only preserve channel separation that the surrounding implementation does not collapse.

Digital feedthrough of 1 nV-s for any code change with LDAC low also deserves more attention than it usually gets. In mixed-signal systems, engineers often focus on analog settling after a code update, but the digital transition itself can couple charge into sensitive nodes before the analog loop has time to respond. In high-resolution front ends, sample-and-hold structures, or synchronous multi-channel instruments, this can manifest as narrow spikes, baseline disturbances, or apparent timing jitter in adjacent channels. The DAC8822 performs well here, but layout discipline remains essential. Keep digital edge currents out of the analog return path, avoid unnecessary overlap between digital traces and the summing-node region, and place local decoupling so transient current loops remain compact. The cleanest DAC can still look noisy if the board lets digital currents flow through analog references.

The output stage should also be designed around the intended load, not just the converter itself. The transimpedance amplifier may be stable while unloaded but become marginal once downstream filters, cable capacitance, multiplexers, or gain stages are attached. A useful design habit is to separate the precision conversion node from the load-driving function when performance is critical. One amplifier can be optimized for I/V conversion and settling at the DAC node, while a second stage handles heavier or more variable loads. This partitioning often produces better overall accuracy than forcing one amplifier to satisfy conflicting requirements for summing-node stability, output swing, and load drive. It also makes compensation more predictable.

In bipolar output configurations, attention should be paid to compliance and headroom. Current-output DACs rely on maintaining proper voltage conditions at the output nodes so ladder currents remain accurate. If the op amp cannot hold the summing junction near virtual ground across the full output swing, compliance error grows and dynamic linearity suffers before obvious clipping occurs. This is one reason high-speed precision amplifiers with adequate output swing and supply margin are frequently better choices than lower-power precision devices that look attractive on static specifications alone. The apparent efficiency gain of a slower amplifier can be offset by far more expensive debug time once code-dependent settling artifacts appear.

One useful way to view DAC8822 system design is to think in terms of energy control rather than just voltage accuracy. Each code transition redistributes charge inside the DAC, the summing node, and the amplifier feedback network. The quality of the final output depends on how quickly and cleanly that energy is absorbed by the loop without creating residual motion. This perspective naturally leads to better decisions: minimize parasitic capacitance at the summing node, keep the IOUT-to-op-amp path physically short, avoid unnecessary vias, use a solid analog ground reference, and validate compensation with real layout parasitics included. Simulation helps, but this class of design is one of the places where the physical board often becomes part of the compensation network.

For applications such as programmable instrumentation, arbitrary waveform generation, precision calibration sources, and closed-loop servo systems with both static and dynamic demands, DAC8822 remains a strong option because it gives control back to the designer. The cost of that flexibility is that the external output stage is not optional engineering detail. It is where much of the real performance is either preserved or lost. When the amplifier, reference path, compensation, and layout are treated as part of the converter rather than peripherals around it, the published settling, distortion, feedthrough, and isolation figures become achievable in practice.

Texas Instruments DAC8822 Pin Functions, Package Information, and Layout-Relevant Details

Texas Instruments DAC8822 pinout and package behavior matter well beyond simple symbol-to-footprint mapping. This device is a precision dual multiplying DAC, so its pins define not only connectivity, but also current return paths, reference integrity, channel interaction, and achievable linearity in the assembled system. In practice, the pin functions, package style, and board-level implementation form a coupled design problem. If the schematic is correct but the physical realization ignores current flow and thermal gradients, measured performance will often fall short of datasheet expectations.

The DAC8822 uses a 38-pin TSSOP package with an industry-standard pin arrangement. That choice is favorable for compact instrumentation, control, and mixed-signal modules because it balances channel density with manageable routing access. TSSOP also keeps lead inductance and package volume relatively low, which is useful in systems where digital input activity and sensitive analog nodes share a small board area. At the same time, the package is still fine-pitch enough that escape routing and reference-node protection need deliberate attention. In dense layouts, the package does not create the problem by itself, but it exposes every weakness in grounding, reference distribution, and analog trace placement.

The digital interface spans D0 through D15, forming a parallel input bus that supports direct connection to controllers, logic devices, or data latches. These pins appear straightforward, but they are the primary source of internal code-transition activity and external switching noise injection. Fast edge rates on this bus can capacitively and inductively couple into nearby analog nodes if routing is careless. This is especially relevant when the bus fans out across the same layer as IOUT or VREF traces. A common failure mode in early board revisions is placing the digital bus for routing convenience, then discovering output glitch energy or code-dependent noise that is not explained by the converter core alone. Keeping the bus compact, referenced to a stable digital return, and physically separated from transimpedance amplifier inputs usually yields a larger improvement than adding filtering after the fact.

Each DAC channel provides its own analog function pins, including IOUT, VREF, RFB, ROFS, RCOM, and associated R1 nodes. These are not generic analog pins; each has a specific role in defining transfer accuracy and output-stage behavior. IOUT is the current output of the R-2R ladder network and should be treated as a sensitive summing node. It is not a general-purpose analog output trace and should not be routed as if it were a low-impedance voltage source. In most precision designs, IOUT is connected directly into an external I/V conversion stage, often the inverting input of a low-bias, low-noise operational amplifier. The quality of that short interconnect strongly affects settling behavior and noise pickup.

The VREF pin for each channel is equally critical because the DAC8822 is a multiplying DAC. Its output is proportional not only to digital code but also to the applied reference signal. That means any noise, drift, or impedance variation at VREF directly modulates the output. Reference routing should therefore be approached as an analog signal-distribution problem, not just a DC source connection. Wide, short traces help, but more important is avoiding shared impedance with dynamic loads. If the same reference source feeds both channels, the split should be arranged so that channel switching or amplifier kickback on one side does not perturb the other through the reference network. In higher-accuracy designs, adding local decoupling and buffering close to the VREF entry point often improves repeatability more than tightening digital timing.

The RFB pin is intended to work with the external amplifier in the current-to-voltage conversion stage. It closes the gain-defining loop around the DAC ladder and should be routed with the same discipline applied to op-amp feedback networks. Long traces here add parasitic capacitance and can degrade phase margin, slow settling, or introduce code-transition ringing. ROFS, RCOM, and the R1-related nodes support ladder scaling and offset-related architecture details, and they should remain inside a quiet analog region. Even when these pins are not intuitively recognized as high-sensitivity nodes, they participate in the resistor network behavior that determines monotonicity, gain consistency, and channel matching. A useful rule is simple: if a pin influences ladder biasing or amplifier feedback, keep it out of the digital routing field and away from clocked nets.

The presence of separate AGNDA, AGNDB, and DGND pins is one of the most layout-relevant features of the DAC8822. This partitioning is not cosmetic. It reflects distinct current domains inside and around the device. AGNDA and AGNDB should serve the return paths for the corresponding channel analog circuitry, while DGND should absorb the return current associated with digital input switching. If these are joined casually with long copper meanders or stitched together only after current has already spread through sensitive copper, the separation loses its value. The better approach is to create a controlled ground structure where digital return currents remain confined near the digital bus and analog returns remain local to the reference and I/V conversion regions before meeting at a low-impedance common point.

For precision converters, return-current management belongs in the error budget. It is not just an EMC topic. Shared return impedance creates code-dependent voltage shifts, and those shifts show up as gain error, zero-scale movement, channel crosstalk, or excess noise. This is often most visible during dynamic testing, where a board that looks acceptable under static DC conditions begins to show degraded SFDR or unusual output transients under rapid code updates. A compact analog island for each channel, combined with a deliberate digital return corridor, tends to produce cleaner results than a large undifferentiated ground pour.

Channel isolation deserves special attention because the DAC8822 integrates two converters in one package. Shared package lead frame effects, common substrate coupling, reference distribution impedance, and external ground interaction can all couple channel A into channel B. The separate analog grounds help, but they do not guarantee isolation on their own. If both channels feed transimpedance amplifiers, symmetry in placement becomes valuable. Placing one amplifier close to the DAC and the other farther away often creates measurable differences in settling and crosstalk. Keeping both channels physically balanced, with similar feedback trace lengths and comparable reference routing, usually improves channel matching with no BOM cost.

The single VDD pin completes the main supply structure and should be locally decoupled with short connections to the appropriate return node. Even though the DAC core is low power, supply cleanliness still affects digital threshold stability and internal switching behavior. A small high-frequency ceramic capacitor placed near VDD is standard practice, but the placement matters more than the nominal value once the capacitor is in the correct range. If the loop from VDD to capacitor to ground is long, the capacitor becomes far less effective at suppressing fast current spikes. In mixed-signal boards, it is also useful to avoid feeding the DAC supply through the same narrow trace segment that powers more aggressive digital devices, because transient voltage drops on that segment can correlate with DAC activity and appear as unexplained performance spread.

The 38-pin TSSOP package is rated for operation from -40°C to +125°C, which makes the part suitable for industrial and high-reliability environments. However, temperature range alone does not guarantee precision across that span. Thermal gradients across the package and board often matter more than absolute ambient temperature. The listed thermal impedance of 53°C/W confirms that self-heating is modest, but in compact assemblies the DAC rarely operates thermally in isolation. Nearby processors, power regulators, or output drivers can create local hotspots and lateral gradients across the analog section. In precision systems, those gradients can shift resistor matching, reference behavior, and amplifier offset enough to become visible in calibration drift.

A practical pattern in dense designs is that the DAC itself dissipates little power, so thermal analysis is postponed. Later, test data shows one channel drifting differently from the other during enclosure warm-up. The root cause is often not excessive junction temperature, but uneven heating from surrounding components or restricted airflow. Keeping heat-generating devices away from the DAC reference and amplifier area, and avoiding copper structures that channel heat asymmetrically under the package, can materially improve stability. Where board space allows, placing the I/V amplifier and reference network in the same moderate thermal zone as the DAC often gives more predictable long-term behavior than simply minimizing trace length at all costs.

ESD robustness is specified with a 4000 V Human Body Model rating and a 500 V Charged Device Model rating. Those numbers indicate reasonable handling tolerance, but precision performance can still degrade from non-catastrophic stress. This is an important distinction for high-resolution analog parts. Devices exposed to marginal ESD events may continue to function while showing subtle parameter shifts such as increased leakage, altered reference input behavior, or worsened linearity. These effects are easy to miss in functional bring-up and may surface only during calibration, temperature sweep, or low-level signal testing. Because of that, storage, assembly, probing, and rework controls should be treated as part of performance assurance, not just yield protection.

Board-level protection strategy should also reflect where the DAC sits in the signal chain. If external connectors can inject transients into the reference or output amplifier path, protecting only the digital bus is incomplete. Clamp design must be balanced carefully, since leakage and capacitance on precision analog nodes can be more harmful than the transients they are meant to suppress. For the DAC8822, it is usually better to keep primary protection at the board entry points and preserve a clean, low-leakage environment around the DAC pins themselves.

From an implementation standpoint, the most successful layouts treat the DAC8822 as a current-domain precision element surrounded by support circuitry, not as a generic digital-controlled analog output IC. That mindset changes routing priorities. The shortest traces go to IOUT, RFB, and the amplifier summing junction. The quietest area is reserved for VREF and ladder-related nodes. Digital inputs are kept orderly and contained, with return paths defined from the start. Grounds are connected intentionally, not decoratively. Thermal neighbors are chosen with the same care as electrical neighbors. When these choices are made early, the device usually behaves predictably and requires less compensation through calibration, shielding, or software filtering later.

In that sense, the pin functions and package details are not static catalog data. They are the external expression of the converter’s internal architecture. Reading them correctly gives a fairly accurate preview of what the layout must accomplish: isolate switching energy, preserve reference integrity, control return currents, maintain channel symmetry, and prevent thermal and ESD side effects from eroding precision. That is where the DAC8822 delivers its real value in a finished design.

Texas Instruments DAC8822 Reset Behavior, Power-Up State, and System Safety Considerations

Texas Instruments DAC8822 reset behavior is not just a convenience feature. It is part of the device’s startup contract with the rest of the system. In industrial control, motion platforms, programmable analog outputs, and mixed-signal instrumentation, the first valid analog state after power application often matters as much as steady-state accuracy. The DAC8822 gives a useful degree of control here through the interaction between RS and RSTSEL, and that control can be used to shape startup behavior, fault containment, and recovery paths with much more precision than a simple digital reset line would suggest.

At the device level, the RS pin asynchronously clears both the input register and the DAC register. That distinction is important. Some DACs reset only the buffer or only the conversion register, leaving ambiguity about what will happen when the next LDAC event occurs. The DAC8822 avoids that ambiguity by forcing the staged digital code and the active output code into a defined condition at the same time. This means reset is not merely a temporary override of the output; it also redefines the internal state from which subsequent updates begin. In practice, that reduces one class of startup glitch where the output appears safe during reset but jumps unexpectedly on the first write or latch event after reset release.

The reset result is selected by RSTSEL. With RSTSEL low, reset drives the DAC to zero-scale. With RSTSEL high, reset drives it to midscale. This selection applies during an externally asserted reset and during the internal power-on reset sequence. That symmetry is a strong design feature because it aligns explicit fault recovery behavior with implicit startup behavior. If a system is designed so that midscale is the preferred neutral condition, the same condition appears both at first power application and during runtime recovery events. This reduces state-model complexity in the controller and makes analog behavior easier to reason about during abnormal transitions.

The choice between zero-scale and midscale should be made from the analog plant backward, not from the digital interface forward. Zero-scale is often treated as the obvious safe state, but that is only true when the downstream circuit interprets minimum code as minimum energy, minimum motion, or minimum stress. In many current-output DAC topologies, the actual external voltage or actuator response depends on the I/V stage, reference polarity, gain setting, and output scaling network. A “zero-scale” digital code may still map to an active or even asymmetric analog condition once the surrounding op-amp stage is considered. Midscale, similarly, is not inherently safer, but in bipolar systems it often represents the point of minimum directional bias. That can materially reduce startup torque in motor drives, offset jumps in servo loops, or charge injection into a centered actuator interface.

This is where the DAC8822 becomes especially useful in servo and control systems. If the DAC output feeds a bipolar transconductance stage or a ±10 V command interface through an external current-to-voltage converter, midscale reset can place the system close to its equilibrium command. That does not eliminate all transients, because the analog output stage, reference rail settling, and amplifier recovery still matter, but it significantly reduces the digital contribution to the startup excursion. In contrast, zero-scale is often better when the DAC ultimately drives a unipolar process variable such as valve command, LED current, or programmable bias where any positive startup activity must be avoided.

The asynchronous nature of RS deserves careful attention. Because reset is independent of serial write timing, it provides a hard override path when the host side is no longer trustworthy. This is valuable in FPGA-based platforms, multi-processor systems, and controllers that may briefly lose deterministic behavior during watchdog recovery, brownout, firmware swap, or bus contention. Asserting RS returns both channels to a known code without relying on SPI integrity, command framing, or state-machine progress. In robust designs, this is often the only analog containment mechanism that remains valid when the digital control plane is compromised.

However, asynchronous reset should not be treated as a complete safety mechanism by itself. It guarantees a digital code transition inside the DAC, not a complete analog safe state at the system boundary. The external reference source may still be slewing. The output amplifier may saturate or recover slowly. Downstream power stages may have their own enable sequencing and may respond differently to fast command changes than to static command values. A strong design pattern is to combine RS with analog-domain gating: hold the power stage disabled, clamp or disconnect the post-DAC control node if needed, allow references and amplifiers to settle, then release reset and enable the analog path in a defined order. This sequencing usually produces cleaner startup behavior than relying on DAC reset selection alone.

The internal power-on reset behavior is equally significant. Since the DAC8822 applies the selected reset code automatically at power-up, the default analog state is largely determined before the host has completed initialization. That gives the hardware designer a way to define startup behavior independent of firmware timing. In systems where software boot time is long relative to analog settling, this can remove a large uncertainty window. A practical benefit is that the analog output does not float in an undefined code state while the processor configures clocks, memory, and communication interfaces. For systems with strict startup envelopes, that characteristic is often more valuable than raw update speed.

There is also a subtle system-level advantage in using RSTSEL as a hardware configuration input instead of encoding startup state in software. Hardware-selected reset states are deterministic across cold boot, watchdog reset, and partial software failure. Software-defined startup values are flexible, but they depend on execution reaching the right branch at the right time and on the transport path remaining intact. Where process safety, actuator neutrality, or power-stage quiescence matters, deterministic hardware bias usually deserves priority, with software refinement layered on afterward.

Fault recovery is another area where the DAC8822 reset structure maps well to real systems. If the controller enters an uncertain state, RS can be used as a low-latency analog rollback signal. Since both channels are reset together, dual-channel applications such as differential command generation, I/Q biasing, or paired loop control can be returned to a coherent state in one action. That coherence is often overlooked. Recovering one DAC channel earlier than the other can create a transient that is worse than holding both in a neutral state. In paired-output systems, synchronized fallback behavior is often more important than the exact fallback code itself.

The absolute maximum ratings define the physical boundaries within which that reset strategy remains meaningful. VDD relative to GND must stay within −0.3 V to +7 V. Digital inputs must remain within −0.3 V to VDD + 0.3 V. Those limits are not operating targets. They are stress boundaries, and repeated approach to them can degrade reliability even if immediate failure does not occur. In mixed-voltage systems this matters during power sequencing, especially when the DAC is unpowered while an FPGA or isolator still drives its digital pins. Without level control or sequencing protection, a nominally valid logic signal can forward-bias internal protection structures and create unintended current paths. Many startup issues attributed to “reset behavior” are actually power-domain violations on digital inputs.

The wider tolerance on reference-related analog pins and IOUT expands integration options, but it should be interpreted with discipline. The fact that IOUT-to-ground and reference-network nodes can tolerate significantly larger voltages does not mean the surrounding signal chain is immune to sequencing errors or overdrive. These ratings mainly indicate that the DAC’s resistor network and current-output structure can survive broader analog conditions than the core digital pins. In practice, external op amps, reference buffers, multiplexers, and protection devices often become the real limiting elements first. Designs that exploit the DAC’s wider analog tolerance should still check fault current paths, op-amp input common-mode limits, output phase reversal behavior, and recovery time after saturation.

One recurring implementation issue is assuming that a defined DAC code directly implies a defined field output. In current-output DAC designs such as the DAC8822, the final control signal is shaped by the external transimpedance stage, reference source, output filtering, and any gain or offset network. If those blocks power up at different rates, the reset code may be correct while the field voltage is still incorrect for several milliseconds. A better validation method is to measure the end-to-end startup waveform at the final connector under all sequencing permutations: cold power-up, brownout recovery, watchdog reset, and digital-domain-only reset. This tends to expose interactions that are invisible in schematic review.

For zero-scale selection, an effective pattern is to pair the DAC with an output stage designed so that minimum code maps to a de-energized or mechanically unloaded state with monotonic recovery once normal writes begin. For midscale selection, the most stable results usually come when the analog scaling is symmetric around the intended neutral operating point, rather than forcing symmetry afterward in software compensation tables. Hardware symmetry reduces reset transient sensitivity and simplifies fault analysis.

A useful engineering perspective is to treat reset-state selection as part of system hazard analysis, not just interface configuration. The correct default code is the one that minimizes total startup risk after considering actuator physics, amplifier behavior, reference settling, watchdog policy, and operator expectations at the machine boundary. In many designs, the safest DAC reset state is not the one that looks safest in code space but the one that produces the least stored-energy release in the real analog path.

When used this way, the DAC8822’s reset architecture provides more than a startup default. It becomes a deterministic anchor for power sequencing, fault containment, and recovery design. Zero-scale and midscale are not merely two reset options. They are two different assumptions about what the controlled system should do when certainty disappears, and choosing between them is most effective when that assumption is verified at the analog boundary rather than inferred from the register map alone.

Texas Instruments DAC8822 Typical Application Fit and Engineering Use Cases

Texas Instruments positions the DAC8822 toward automatic test equipment, instrumentation, digitally controlled calibration, industrial control, and PLC platforms. That positioning is not arbitrary. It follows directly from the device architecture: a dual 16-bit multiplying DAC, low glitch energy, monotonic behavior, fast settling, and a parallel interface that favors deterministic update timing. These traits are not just specification-line items. In real designs, they define whether the DAC behaves like a precision signal element or becomes a hidden source of drift, latency, and control uncertainty.

At the architectural level, the DAC8822 is most useful when the analog output must remain tightly linked to an external reference domain. Because it is a multiplying DAC, its transfer function scales with the applied reference rather than depending on an internal fixed full-scale source. This gives the design two important degrees of freedom. First, output span can be tailored directly through the reference path. Second, absolute accuracy can be elevated by investing in a better reference and cleaner reference routing rather than trying to compensate downstream. In practice, this often produces a more controllable error budget than voltage-output DACs that hide full-scale generation inside the converter. The tradeoff is that reference noise, impedance, and temperature drift now appear more visibly in system performance, so the reference network must be treated as part of the converter, not as a supporting accessory.

The dual-channel structure adds another layer of usefulness. Two matched DAC paths in one package simplify channel tracking, thermal behavior, and layout symmetry. This matters whenever the application depends more on relative precision than on standalone absolute precision. Differential stimulus generation, offset-plus-gain trimming, I/Q path control, dual-threshold generation, or synchronized control of two analog nodes all benefit from shared silicon characteristics. In many systems, the value of dual integration is not simply board-area reduction. It is the reduction of mismatch sources that would otherwise have to be calibrated out later.

In automatic test equipment, the DAC8822 fits naturally as a programmable analog stimulus element or as a control source inside precision measurement front ends. ATE systems rarely care only about nominal resolution. They care about repeatable timing, low spectral contamination, predictable settling, and the ability to coordinate analog updates with digital sequencing. The parallel interface is especially relevant here. FPGA and backplane-based controllers often operate on tightly defined cycle budgets, and a parallel DAC allows deterministic loading without the variable framing overhead of slower serial links. When a test sequence requires synchronized range switching, level stepping, or bias programming across multiple analog resources, deterministic write timing is often more valuable than raw bus simplicity.

A practical pattern in tester design is to use one DAC channel for the main stimulus level and the second for threshold generation, clamp control, or gain trimming around a programmable amplifier stage. This keeps key analog control loops inside one timing and thermal domain. It also reduces the number of calibration coefficients needed to maintain correlation between programmable nodes. In high-channel-count systems, that reduction scales well because each avoided correction term simplifies manufacturing test and field recalibration.

Settling behavior deserves more attention than it usually gets in data-sheet-first selection. In precision stimulus applications, a DAC that reaches its final code quickly but injects switching transients into nearby measurement nodes can degrade throughput more than a nominally slower but cleaner device. The DAC8822’s low-glitch profile supports high update rates without forcing excessive blanking intervals. Still, board-level implementation determines whether that advantage survives. Reference decoupling, return-current control, output amplifier selection, and digital-edge containment all affect the usable settling window. A common engineering mistake is to validate DAC settling in isolation and then lose margin after integrating relay drivers, logic transitions, or multiplexed measurement paths on the same plane structure.

In instrumentation, the multiplying architecture becomes even more valuable. Many instruments need output ranges or internal scaling factors that track a master reference or measurement standard. The DAC8822 allows the instrument’s analog generation path to inherit the stability of that standard directly. This is useful in programmable gain stages, bridge excitation trimming, level shifting, transducer simulation, and ratio-based calibration loops. If the reference is ratiometrically tied to the measurement chain, part of the absolute drift can cancel naturally at the system level. That is often a better strategy than trying to force every analog block to be independently absolute.

The device is also well suited for reference-dependent waveform or setpoint generation where the output must align with metrology-grade system references. In these cases, the DAC is not just generating a voltage. It is implementing a digitally programmable scaling coefficient in the analog domain. Thinking of it this way helps with system partitioning. The converter becomes part of a transfer-function engine, not merely a programmable source. That shift in perspective usually leads to better decisions on op-amp choice, Kelvin routing of the reference path, and calibration placement.

For digitally controlled calibration systems, the DAC8822’s monotonic 16-bit behavior and low nonlinearity support fine trimming loops with stable convergence. Calibration loops tend to expose weaknesses that static output tests can miss. A trim DAC may only move a few codes around a narrow operating point, but if local DNL behavior is poor or code transitions are noisy, the correction loop can hunt or settle asymmetrically. Monotonicity matters because it preserves the directionality of corrections. Low nonlinearity matters because it keeps gain and offset trim terms reasonably separable, which reduces algorithm complexity.

The dual channels are particularly efficient in calibration architectures. One channel can control offset while the other controls gain, or both can trim matched signal paths such as dual sensor interfaces, redundant channels, or differential analog chains. In practice, this enables a compact calibration framework where the same digital controller solves two coupled analog errors with minimal hardware overhead. It also makes production calibration more scalable. When both trim outputs live inside the same DAC family and share similar transfer behavior, stored coefficients tend to remain more stable across temperature and time than in mixed-component trim schemes.

In industrial control and PLC systems, the DAC8822 is less about laboratory-grade precision in isolation and more about predictable behavior under electrical and thermal stress. The wide operating temperature range signals that the silicon is intended for demanding cabinet and field conditions, but temperature rating alone does not guarantee control integrity. What matters is how drift, startup state, reference stability, and downstream buffering interact across the installed environment. The reset configurability is therefore a meaningful feature. Startup state in control systems is a functional safety issue, not a convenience feature. A defined reset code allows the analog path to enter a known output condition during brownout recovery, watchdog events, or staged power sequencing.

That behavior is especially relevant when the DAC drives actuator setpoints, valve controls, bias currents, or threshold references for protection circuits. In such systems, an indeterminate startup output can produce a transient command before the controller completes initialization. Designing the startup path around the DAC reset behavior, output amplifier enable timing, and reference ramp sequence prevents this class of fault more effectively than trying to suppress it later in firmware. This is one of those areas where system robustness comes from boring, explicit analog state control rather than from more software.

The parallel interface, while older in style than high-speed serial alternatives, remains attractive in industrial and embedded control racks where deterministic bus timing and low protocol overhead matter more than pin minimization. With FPGA-based PLC modules or tightly scheduled microcontroller glue logic, a parallel DAC can update in a fixed number of cycles with little software ambiguity. That makes loop timing easier to characterize and certify. The cost is increased routing density, so layout discipline becomes more important, especially when digital edges share the board with precision analog references.

A careful implementation usually separates three domains around the DAC: digital write activity, reference distribution, and output signal conditioning. This separation is not merely aesthetic. It prevents dynamic ground disturbance from appearing as code-dependent analog error. Short reference paths, local high-frequency decoupling, controlled return paths, and a low-noise output amplifier are usually worth more than chasing the last fraction of nominal INL in component selection. In many fielded systems, the limiting error is not the DAC core. It is reference contamination, amplifier bias interaction, or thermoelectric gradients at connectors and resistor networks.

Another useful perspective is that the DAC8822 often performs best when treated as a precision current-steering element that requires a complete analog environment to realize its resolution. The output stage, reference driver, and load interface define whether the system actually benefits from 16-bit monotonicity. If the external op-amp introduces crossover distortion, if the reference source cannot settle under code-dependent loading, or if the load impedance shifts with operating mode, then the system can behave like a much lower grade converter despite the DAC’s intrinsic capability. The strongest designs allocate as much attention to the support circuitry as to the DAC itself.

Across its published application categories, the common thread is not simply “precision analog output.” It is controllable analog scaling under deterministic digital control. That is why the device maps well into tester stimulus engines, instrumentation gain structures, calibration loops, and industrial setpoint generation. Where the design needs two correlated precision channels, reference-defined transfer behavior, stable monotonic trimming, and predictable startup and timing characteristics, the DAC8822 is usually operating in the part of the problem space where its architecture has real leverage rather than superficial fit.

Potential Equivalent/Replacement Models for Texas Instruments DAC8822

Potential equivalent or replacement paths for the Texas Instruments DAC8822 should be evaluated first at the converter architecture level, then at the package and pin level, and finally at the system-error-budget level. Within the material provided, the clearest identified substitute is the Texas Instruments DAC8805. It is explicitly described as pin-compatible with the DAC8822 and positioned as the 14-bit version for designs that need the same physical integration approach with reduced resolution requirements.

This matters because the DAC8822 is a 16-bit multiplying DAC, and resolution is not just a datasheet number. It directly affects the smallest achievable output step, calibration headroom, and the extent to which downstream analog stages must absorb quantization and linearity limits. Moving from DAC8822 to DAC8805 preserves board-level mechanical compatibility, but it changes the granularity of the transfer function by a factor of four. In practice, that reduction is acceptable only when the application is limited more by amplifier noise, reference instability, load variation, or external trimming error than by DAC code resolution itself. In those cases, the 14-bit option can behave as a near-drop-in replacement from a layout perspective while remaining functionally adequate.

A useful way to frame the DAC8805 is not simply as a lower-resolution substitute, but as a replacement that preserves integration friction at the PCB level while shifting the design compromise into the signal-accuracy domain. That distinction is important. Pin compatibility reduces redesign effort, but it does not guarantee equivalent system behavior. The serial interface may align, the footprint may remain unchanged, and the surrounding signal chain may still require revalidation because the lower resolution can alter loop stability in calibration systems, output smoothness in waveform generation, or settling behavior in code-sensitive control paths. A replacement decision should therefore begin with the question: is the application resolution-limited or error-budget-limited?

In many designs, that answer becomes clear only after decomposing the full analog chain. If the DAC output is followed by a gain stage, filtered, and then measured by an ADC with effective resolution below 14 bits under real operating conditions, the DAC8805 may impose little practical penalty. The same is often true in industrial control channels where sensor drift, actuator hysteresis, or cable-induced noise dominates the final control accuracy. By contrast, in precision source generation, fine offset trimming, or closed-loop instrumentation where every code transition influences final performance, stepping down from 16 bits to 14 bits can create visible loss of adjustment smoothness and reduce calibration margin. What looks pin-compatible at the package level can become non-equivalent at the control-system level.

The other important selection axis lies within the DAC8822 family itself. The DAC8822QB and DAC8822QC are not architectural replacements, but they are meaningful selection alternatives because they differ in integral nonlinearity grade. The QB version is specified at ±2 LSB INL, while the QC version is specified at ±1 LSB INL. For precision systems, this distinction is often more consequential than it first appears. INL sets a bound on how far the actual transfer curve deviates from an ideal straight line, and that deviation cannot be removed as easily as simple gain and offset error. In applications that rely on monotonic and predictable code-to-output mapping across the full span, the tighter QC grade offers stronger linearity margin and reduces the burden on calibration models.

That said, the practical value of the tighter grade depends on how the DAC is used. If the operating range is narrow, or if the converter is mainly used for endpoint-controlled biasing rather than continuous precision synthesis across the full code range, the QB grade may already exceed system needs. In production environments, this distinction often becomes a yield and qualification decision rather than a pure performance decision. A tighter linearity grade can simplify downstream validation, reduce corner-case analysis, and provide more confidence when the design must hold behavior across temperature, supply variation, and lot spread. When margins are thin, choosing the better grade early usually costs less than compensating later in firmware or calibration infrastructure.

For replacement analysis, three layers should be checked in order. First, confirm electrical and functional compatibility: resolution, transfer architecture, reference usage, output topology, and timing behavior. Second, confirm physical compatibility: package, pinout, routing constraints, and whether any no-connect or function-sharing pins alter escape strategy. Third, confirm application compatibility: required effective number of output steps, allowable static linearity error, settling requirements, and how much correction the rest of the signal chain can realistically provide. This layered approach prevents a common failure mode in component substitution, where a device qualifies as pin-compatible on paper but quietly degrades system behavior under field conditions.

A practical pattern seen in redesigns is that availability-driven substitutions tend to succeed when the original design already has excess analog margin. If the reference is exceptionally stable, the output amplifier has low offset and drift, and the firmware calibration loop is robust, moving from DAC8822 to DAC8805 may be manageable in less demanding channels. If the original design was already using most of the 16-bit range to achieve fine trimming or smooth control, the replacement typically exposes previously hidden assumptions in the software and test limits. The board may power up and communicate correctly, yet the product starts missing fine calibration targets or showing larger step artifacts near critical setpoints. Those issues are not failures of compatibility; they are failures of replacement framing.

Viewed this way, the DAC8805 is the most direct documented replacement candidate when pin compatibility is the primary constraint and reduced resolution is acceptable. The DAC8822QB and DAC8822QC, meanwhile, should be treated as precision-grade options within the same device family for teams trading INL margin against cost, availability, or qualification strategy. The strongest selection approach is to treat pin compatibility as an entry condition, not a final answer. In precision analog design, the real replacement boundary is defined by the system error budget, not by the footprint.

Conclusion

The Texas Instruments DAC8822 is a dual 16-bit multiplying DAC built for precision analog generation in systems where code-to-output linearity, deterministic settling, and reference-domain flexibility matter more than simple voltage-output convenience. Its value is not just in resolution. It comes from the way the device exposes the conversion core to the system designer: dual matched channels, current-output architecture, parallel data loading, monotonic transfer behavior, and true 4-quadrant multiplying operation. That combination makes it effective in instrumentation, automated test equipment, calibration platforms, programmable gain and offset stages, and industrial control loops where the analog result must remain tightly correlated to both digital code and reference quality.

At the architectural level, the DAC8822 is a current-output R-2R multiplying DAC. That detail drives most of its practical behavior. Unlike an integrated voltage-output DAC that hides the analog conversion stage behind an internal buffer, a multiplying DAC leaves the reference path and output conversion topology more visible to the designer. The output current is proportional to the applied reference and the loaded code, so the final analog voltage depends on both digital input and the external analog network used to translate current into voltage. This is a major advantage in precision systems. It allows the same DAC core to be used for waveform scaling, programmable attenuation, gain trimming, bipolar output generation, and reference-controlled signal modulation without forcing a fixed output range or fixed buffer behavior.

The 4-quadrant reference capability is especially important. In practice, this means the DAC can process both positive and negative reference signals, enabling bipolar transfer functions and signal inversion schemes that are difficult or less clean with simpler unipolar DACs. In calibration equipment and source-measure subsystems, this opens the door to generating precise signed correction terms directly from a stable reference domain. In control systems, it supports offset injection and bidirectional actuation with reduced external switching complexity. This capability is often more valuable than headline resolution because it reduces analog glue circuitry, and every removed stage helps preserve error budget, bandwidth, and thermal stability.

The dual-channel implementation adds another layer of usefulness. Two matched DAC channels in a single package simplify designs that need differential outputs, coordinated bias and gain control, or simultaneous generation of stimulus and compensation signals. In mixed-signal control boards, one channel can establish a baseline or coarse operating point while the second channel trims offset, threshold, or loop gain. In ATE and precision calibration hardware, two channels can be paired for ratio-based adjustment or synchronized multi-node stimulus generation. The integration helps reduce channel-to-channel drift mismatch compared with discrete single-channel alternatives placed across different thermal zones on a board.

The specified 0.5 microsecond settling time makes the DAC8822 relevant not only for static precision but also for dynamic analog updates. Fast settling matters when the output must reach its final value quickly after a code transition, especially in test systems, multiplexed measurement architectures, servo updates, and closed-loop control. A DAC with excellent static linearity but slow or poorly damped settling can bottleneck throughput or inject transient uncertainty into downstream measurement windows. In real designs, the practical settling result still depends heavily on the output amplifier, board capacitance, reference drive stiffness, and grounding strategy. That is one of the most important realities with multiplying DACs: the converter itself may be fast, but the assembled analog path determines whether the system actually behaves like a fast precision source.

This is where the external amplifier requirement becomes a strength rather than a burden. Because the DAC8822 provides current outputs, the designer can select the transimpedance or output buffer stage according to application priorities. A low-bias, low-drift precision amplifier can be used for calibration-grade static accuracy. A wideband amplifier can be selected for waveform or fast-settling applications. A bipolar output stage can be configured to map the DAC transfer function into a symmetric voltage range. This freedom is valuable, but it also shifts responsibility to system-level analog design. Output op amp choice, reference source impedance, feedback resistor tracking, PCB parasitics, and Kelvin grounding all become part of the DAC performance equation.

In precision work, reference management is usually the dominant factor, and the DAC8822 makes that very visible. Since it is a multiplying DAC, the output directly tracks reference quality. Noise, drift, and distortion on the reference path are not hidden; they are transferred through the conversion process. That is why the device fits best in systems where the reference is treated as a first-class design object rather than an afterthought. A low-noise buried-zener or precision bandgap reference, proper buffering, short return paths, and thermal symmetry around the feedback network often produce larger gains than trying to over-optimize digital-side timing. In several high-resolution analog boards, the limiting error has not come from nominal DAC INL or DNL but from reference routing gradients, amplifier thermal drift, and ground return contamination from adjacent digital buses. The DAC8822 rewards disciplined analog partitioning.

The parallel interface is another meaningful feature for engineering tradeoff decisions. Compared with slower serial loading approaches, a parallel interface supports rapid code updates and deterministic write timing, which is valuable in production test systems, real-time controllers, and legacy bus-oriented architectures. It reduces update latency and can simplify synchronized multi-channel operation when timing edges need to be tightly controlled. The tradeoff is pin count and routing complexity. On dense boards, parallel buses can become a source of crosstalk and digital feedthrough if they are allowed to pass too close to the reference or output nodes. Good floorplanning helps: keep the digital interface region compact, isolate return currents, and avoid sharing sensitive analog ground segments with high-edge-rate write strobes.

Monotonic behavior is a critical but often underappreciated specification in control and calibration applications. A monotonic DAC ensures that as the digital code increases, the analog output does not reverse direction. This matters directly in servo loops, threshold trimming, programmable current sinks, and compensation systems where local output reversals can cause loop instability, false convergence, or difficult-to-diagnose calibration artifacts. At 16-bit resolution, monotonicity becomes more than a marketing term. It is one of the safeguards that allows fine-step adjustments to remain predictable near the limits of the control range. In practice, this reduces software-side compensation effort and makes tuning behavior easier to model.

From a product selection perspective, the DAC8822 occupies a useful position between simpler buffered DACs and more specialized precision source devices. It is best chosen when the design needs direct control over transfer-function scaling, output topology, and reference behavior. If the requirement is only to generate a fixed unipolar voltage with minimal analog design effort, an integrated voltage-output DAC may be a faster path. But if the system needs programmable gain, bipolar operation, ratiometric behavior, or precision analog modulation tied to an external reference, the DAC8822 offers a more capable foundation. In other words, it is a converter for systems that treat the analog signal chain as an engineered subsystem, not just as a peripheral output.

For procurement and lifecycle planning, several practical factors strengthen its position. The industrial temperature range supports deployment in factory, instrumentation, and control environments where ambient conditions are broader and thermal gradients are common. The standard TSSOP package keeps assembly straightforward and avoids unusual manufacturing constraints. Active product status is important because precision analog components often remain embedded in platforms with long service lives, and redesign cost is usually far greater than the unit price delta between candidate parts. The documented pin-compatible 14-bit alternative also has real value. It supports staged platform strategies where a common PCB can serve multiple accuracy tiers, enabling cost-optimized variants without a full hardware re-spin.

A useful design pattern with the DAC8822 is to separate the problem into three layers. First, define the reference domain: its noise, polarity, compliance range, and drift budget. Second, define the current-to-voltage conversion stage: amplifier type, feedback network, bandwidth, and output swing. Third, define the digital update behavior: bus timing, synchronization, and code management. Approaching the part in this order usually leads to better results than starting from nominal resolution alone. In many projects, the analog range plan and reference architecture determine whether 16-bit performance is meaningful; the digital interface only realizes that potential.

Another practical point is that matching between the two channels should be used deliberately. When both channels are intended to track, place their surrounding passive networks symmetrically and keep thermal sources away from only one side of the package. When they are intended to serve different roles, such as one static trim channel and one dynamic update channel, isolate the faster output path so its amplifier recovery and digital activity do not pollute the quieter channel. The part provides the channels, but system-level isolation determines whether they behave like two independent precision sources or like two coupled nodes sharing board-level noise.

The DAC8822 stands out when a design requires not merely a high-resolution DAC, but a dual-channel multiplying conversion element that can be shaped around the application’s analog physics. Its strongest advantage is flexibility anchored in precision: high-speed loading, reference-driven scaling, monotonic performance, and external output-stage optimization. In systems where reference integrity, output topology, and dynamic behavior all matter at once, that is exactly the feature set that turns a converter from a component into a design tool.
