DAC8812IBPW

Texas Instruments DAC8812IBPW Product Overview and Positioning

Texas Instruments DAC8812IBPW is a dual 16-bit multiplying DAC built for precision mixed-signal systems that need two independent analog output paths under deterministic digital control. Its value is not in simplifying the analog chain through an internal output buffer, but in preserving architectural freedom where the output stage, reference strategy, and dynamic behavior must be tuned at system level. That positioning is important. In many precision platforms, especially test, calibration, and programmable analog front ends, the DAC is only one element in a closed error budget. A buffered voltage-output DAC can reduce design effort, but it also fixes key analog tradeoffs. The DAC8812IBPW leaves those decisions external, which is often the better choice when linearity, settling profile, and reference-domain behavior matter more than circuit convenience.

The device operates from a single 2.7 V to 5.5 V supply and provides two unbuffered current-output DAC channels. As a multiplying DAC, it does not generate a final voltage directly. Instead, each channel scales an externally applied reference and delivers a proportional output current that must be converted through external circuitry, typically with a precision operational amplifier configured for current-to-voltage conversion. This architecture is central to how the device should be evaluated. The DAC transfer function is tied directly to reference quality, amplifier selection, PCB parasitics, and output compliance conditions. In practice, this means the DAC can be adapted to bipolar outputs, gain-programmable stages, waveform generation paths, or precision trimming loops with far more flexibility than a fixed voltage-output DAC.

At the core, the DAC8812IBPW implements two resistor-string or switched-network precision DAC sections optimized for 16-bit resolution and multiplying behavior. Because the output is referenced externally, the device can process both DC precision references and certain AC or time-varying reference conditions within its bandwidth limits. The specified 10 MHz reference bandwidth is especially relevant here. It indicates the part is not just a static set-and-hold element, but a viable component in systems where the reference itself carries signal content or where fast gain modulation is required. This broadens its role beyond simple offset generation into programmable gain and signal-scaling applications.

Its serial interface is SPI-compatible and supports clock rates up to 50 MHz. That matters less as a headline digital number and more as a guarantee of short command latency in high-channel-density systems. In tightly timed instrumentation platforms, serial throughput often limits how quickly multiple analog nodes can be reconfigured. The 3-wire interface keeps interconnect overhead low, while the double-buffered register scheme allows data to be loaded into each channel and updated simultaneously. That feature is particularly useful in dual-channel phase-coherent systems, matched bias updates, or test sequences where skew between outputs would otherwise appear as a measurement artifact. In real designs, this simultaneous update capability tends to be more valuable than raw serial speed because it directly supports repeatability.

Dynamic performance is one of the stronger reasons to select this device. A typical settling time of 0.5 µs places it in a useful range for precision systems that still need meaningful update bandwidth. Settling time should not be interpreted in isolation, however. In an unbuffered multiplying DAC, final settling depends heavily on the external transimpedance amplifier, feedback network, output load, and board layout. A common design mistake is to assume the DAC’s intrinsic settling number guarantees end-to-end settling at the connector or measurement node. In practice, amplifier overload recovery, feedback capacitor optimization, and reference source impedance often dominate the last few least significant bits. For 16-bit systems, that last fraction of a percent of settling is where design quality shows up. The part gives a strong starting point, but the surrounding analog implementation decides whether the full specification is realized.

Linearity is another major selection factor. In precision calibration and instrumentation applications, integral nonlinearity and differential nonlinearity are usually more important than nominal resolution alone. A 16-bit code space is only useful if monotonic behavior and predictable transfer characteristics are preserved across operating conditions. The DAC8812 family is positioned for these environments because it balances static precision with speed and dual-channel integration. That balance is often difficult to achieve. Many high-resolution DACs trade away dynamic response, while faster converters may not provide the linearity needed for closed-loop correction or reference generation. This device sits in a practical middle ground that aligns well with production test systems, programmable attenuators, and automated adjustment platforms.

From an application perspective, automatic test equipment is a natural fit because the DAC can be used to generate threshold levels, force programmable currents or voltages through external stages, and trim analog conditions in a repeatable way. The external reference approach is useful here because system designers can align the DAC range directly with calibrated metrology references already present on the board. In instrumentation, the part works well in offset correction, sensor excitation adjustment, bridge balancing, and programmable gain or threshold control. In digitally controlled calibration systems, its dual-channel structure supports paired functions such as coarse/fine trim, offset/gain correction, or differential node control. The fact that both channels share a compact package while remaining independently addressable helps reduce board area without forcing architectural compromise.

One of the more practical strengths of the DAC8812IBPW is that it allows the analog designer to choose the right output amplifier rather than accept a generic internal one. That matters in at least three ways. First, output range can be tailored precisely, including bipolar conversion through suitable op-amp topology and reference polarity management. Second, noise and drift can be aligned with the rest of the signal chain. Third, stability can be optimized for the actual load rather than for a one-size-fits-all internal buffer. This freedom comes with responsibility. Precision resistor matching, Kelvin routing around the reference path, low-leakage board surfaces, and careful grounding become part of the DAC implementation rather than optional refinements. For 16-bit performance, layout is not a finishing step; it is part of the converter architecture.

Reference handling deserves specific attention because it largely determines real system accuracy. Since the DAC multiplies the reference, any noise, drift, distortion, or source impedance variation at the reference input is directly translated to the output. A low-noise, low-drift reference with tight local decoupling is therefore essential in static precision use. In dynamic multiplying mode, the reference driver must also maintain bandwidth and phase integrity. It is often worth isolating the reference path from digital return currents and preventing code-dependent transient coupling through disciplined placement and star-connected analog grounding. In dual-channel systems, whether the channels share a common reference or use separate references should be decided based on error correlation. Shared references improve tracking; separate references improve independence. There is no universal best choice, only the right one for the measurement model.

The digital interface is straightforward, but deterministic behavior still depends on timing discipline. Fast SPI capability up to 50 MHz supports compact update windows, yet signal integrity on long traces or across mixed-voltage domains can become a hidden source of edge uncertainty. Series damping at the driver, controlled clock routing, and clean chip-select timing usually improve robustness more than simply slowing the bus. When both channels are used in synchronous applications, the double-buffer architecture should be used intentionally rather than treated as a convenience feature. It is one of the key enablers for phase alignment and repeatable state transitions.

In product positioning terms, DAC8812IBPW is best viewed as a precision building block rather than a self-contained DAC solution. It is not aimed at low-complexity embedded outputs where a rail-to-rail voltage DAC with integrated buffer is the faster path. It is aimed at systems in which the analog transfer function is part of the design problem. That distinction explains why it appears in automatic test equipment, precision instrumentation, and calibration hardware. These systems usually benefit from a multiplying DAC because it can sit naturally inside a larger analog computation chain, not just at its edge.

A useful way to frame the device is as a controlled analog scaling engine with dual-channel symmetry, high serial determinism, and enough speed to remain relevant in dynamic precision systems. Its strongest advantage appears when the surrounding analog circuitry is designed with equal care. If the goal is maximum integration, it may seem sparse. If the goal is precision under system-level control, that sparseness is exactly what makes it effective.

Texas Instruments DAC8812IBPW Core Architecture and Operating Principle

Texas Instruments’ DAC8812IBPW is a dual, current-output multiplying DAC built for systems where analog flexibility matters more than one-chip convenience. Its core architecture is centered on two independent R-2R DAC channels, each producing an output current proportional to a digitally selected code and an externally applied reference voltage. This is the defining characteristic of the device: output scale is not anchored to an internal bandgap or fixed full-scale voltage. It is set directly by the reference terminal, so the DAC behaves as a precision programmable gain element as much as a conventional converter.

Each channel exposes three essential analog nodes: a multiplying reference input, a current output, and a feedback resistor pin. That pin is not a minor accessory. It is part of the intended signal chain. In a typical implementation, the DAC output current is routed into an external op amp configured as a transimpedance stage, while the matched on-chip feedback resistor is used in the op-amp loop. This arrangement converts output current into voltage while preserving gain tracking between the DAC ladder and the feedback path. In practice, this is one of the more useful aspects of the device, because it reduces the temperature-dependent gain mismatch that often appears when a precision DAC is paired with unrelated external resistors.

The multiplying architecture deserves careful attention because it changes how the part should be evaluated. In a voltage-output DAC, digital code selects a fraction of a fixed internal reference, and the analog designer mainly worries about output buffering and settling. In the DAC8812IBPW, the reference itself is an active analog input. Any error, noise, drift, distortion, or dynamic behavior present on that node is transferred through the conversion path. The DAC therefore becomes part of a larger analog computation chain. If the reference is clean and stable, the output scales cleanly and predictably. If the reference carries ripple, phase noise, or modulation artifacts, the DAC reproduces them according to code. This is not a limitation so much as the intended operating mode, but it means reference-path design is inseparable from converter performance.

Each channel supports a 4-quadrant multiplying reference input, with an allowable reference range from -15 V to 15 V. That capability is more important than the specification line might suggest. A bipolar reference allows the same DAC core to operate with positive or negative analog scaling, which opens the door to waveform inversion, polarity control, synchronous modulation, and programmable attenuation or gain blocks. In mixed-signal control designs, this often simplifies the analog front end because sign handling can be moved into the reference domain rather than implemented with additional switching or amplifier stages. The result is a cleaner signal path and fewer places for offset and switching transients to accumulate.

The nominal full-scale output current is 2 mA with a ±10 V reference, with a relatively broad tolerance of ±20%. That number should be interpreted correctly. It is not a precision promise of channel gain accuracy by itself. It is a nominal transfer parameter that defines the current level available from the core. Designs that require absolute output accuracy must calibrate at the system level or tightly control the reference and I-to-V stage. This is one of the practical dividing lines between multiplying DACs and more integrated precision voltage-output DACs. The DAC8812IBPW gives more analog freedom, but some of the burden shifts to circuit design, reference integrity, op-amp selection, and, where needed, digital calibration.

At the mechanism level, the device operates by steering current through a resistor ladder according to the applied digital code. The external reference establishes the ladder excitation, and the switching network directs a corresponding fraction of that excitation to the output node. Because the output is current-mode, compliance conditions at the output matter. The external op amp is usually chosen to hold the DAC output node near virtual ground, minimizing voltage variation at the current output pin. That operating condition helps preserve linearity, reduces code-dependent errors associated with output voltage swing, and supports predictable settling behavior. If the output node is allowed to move excessively, static and dynamic performance can degrade in ways that are easy to misread as DAC nonlinearity when the real cause is poor transimpedance-stage control.

This is why op-amp selection is not a secondary decision. Input bias current, input offset voltage, open-loop gain, settling behavior, output swing, and stability with the DAC’s parasitic capacitances all shape final performance. A slow amplifier can dominate settling time even if the DAC core itself is fast. An amplifier with excess bias current can create output offset that masks low-code behavior. Marginal phase margin can turn code transitions into ringing. In bench work, these effects often appear first during large-signal transitions near major carry boundaries, where the interaction between ladder switching and amplifier recovery becomes most visible. A design that looks correct in static calculations may still need compensation tuning, tighter local decoupling, or a different op amp to achieve the intended waveform quality.

The internal feedback resistor is especially useful in this context because it simplifies gain-setting while preserving thermal coherence. When the DAC current is converted to voltage through a resistor matched to the internal ladder structure, drift in the transfer function is reduced compared with a discrete resistor of unrelated temperature coefficient. This does not eliminate all gain error sources, but it removes one common mismatch mechanism. In precision control loops and programmable source outputs, that usually translates into less recalibration pressure across temperature and a more predictable transfer curve over time.

Application-wise, the DAC8812IBPW fits best where the DAC is not merely generating a fixed output level but participating in analog scaling. Programmable gain amplifiers, arbitrary waveform generators, digitally controlled attenuators, servo loops, and industrial setpoint generation are natural use cases. It also aligns well with systems that already include precision op-amp stages and bipolar analog rails. In those environments, the current-output architecture is often an advantage rather than a complication. It allows the output stage to be shaped around system-level needs, whether that means inverting or non-inverting voltage generation, level shifting, summing, filtering, or direct integration into a transimpedance or reconstruction stage.

One practical pattern is to use the DAC as a digitally controlled multiplier rather than as a standalone source. If a low-distortion AC signal is applied to the reference input, the DAC can scale that signal in real time according to digital code. This enables amplitude control without forcing the signal through a separate variable-gain amplifier. The quality of the result depends heavily on reference-path linearity and the external op amp, but when executed well, it provides a compact and accurate method for programmable analog modulation. Another effective pattern is dual-channel coordinated control, where one channel establishes a coarse analog path and the second channel trims offset, gain, or orthogonal vector components. Since the two channels are independent, they can be used symmetrically or asymmetrically depending on system architecture.

There is also a useful design mindset here: the DAC8812IBPW should be treated less like a finished analog output block and more like a precision analog building element. That distinction affects layout, power design, and validation strategy. Reference traces should be routed with the same care as low-noise analog inputs. Ground return paths for the DAC and its output amplifier should be kept compact and controlled. Digital feedthrough should be contained with disciplined decoupling and edge management. Verification should include not only endpoint accuracy but also reference sensitivity, code-transition behavior, thermal drift, and amplifier stability under realistic load conditions. In systems with multiplexed or time-varying references, transient response at the reference pin becomes just as important as static DAC linearity.

For architecture selection, the main implication is clear. The DAC8812IBPW is not a drop-in replacement for a voltage-output DAC and should not be judged by that expectation. It is better viewed as a dual precision multiplying engine that rewards good analog design. When the surrounding circuitry is engineered with equal care, it delivers a level of configurability that fixed-reference voltage DACs cannot easily match. In designs that need programmable scaling, bipolar operation, and tight integration with external precision amplifiers, that tradeoff is often exactly the point.

Texas Instruments DAC8812IBPW Key Electrical Performance and Accuracy Characteristics

Texas Instruments DAC8812IBPW is a dual 16-bit multiplying DAC positioned for precision signal generation, calibration loops, programmable gain or offset stages, and low-power instrumentation modules. Its most important electrical characteristics are not isolated numbers; they define how reliably the converter maps digital code into an analog result under both static and dynamic conditions. Read in that way, the device is better understood as a precision current-steering element with fast code response, low error accumulation, and enough reference bandwidth to remain useful beyond slow set-and-hold applications.

At the static accuracy level, the first parameter to examine is relative accuracy, often treated as integral nonlinearity in practical system analysis. Within the DAC8812 family, different accuracy grades are offered. The comparison data shows the DAC8812B grade specified at ±2 LSB maximum relative accuracy, while DAC8812C is specified at ±1 LSB maximum. For the DAC8812IBPW material under discussion, INL/DNL values are listed as ±2 LSB maximum and ±1 LSB maximum respectively. For a 16-bit dual DAC, this places the part in the precision-oriented class, especially when the application depends on repeatable transfer shape rather than only endpoint adjustment.

INL matters because it defines how far the actual transfer curve departs from an ideal straight-line response after offset and gain effects are removed or accounted for. In practical terms, this determines whether a code step in the middle of the range behaves like a predictable fraction of full-scale or introduces hidden curvature. In calibration engines, sensor excitation trimming, and programmable analog control, this error often dominates after the system has already been gain- and offset-corrected. A ±2 LSB maximum INL on a 16-bit DAC implies that the residual transfer deviation is constrained tightly enough for many closed-loop and lookup-table-driven systems to maintain deterministic behavior without excessive digital compensation overhead.

DNL is equally important because it determines local step uniformity and, by extension, monotonicity confidence. With differential nonlinearity specified at ±1 LSB maximum, the DAC8812IBPW supports fine code progression across the output range. For control applications, this means a one-code increment is unlikely to create an unexpectedly small or negative analog change. That behavior is often more valuable than raw resolution itself. A nominal 16-bit code width has little value if neighboring codes collapse or reorder under real operating conditions. In practice, designs that rely on servo nulling, threshold trimming, or bias optimization benefit directly from bounded DNL because each update produces a stable, directionally correct output movement.

The dynamic specifications show that this device is not limited to static precision. Settling time is specified as 0.3 µs to ±0.1% of full-scale and 0.5 µs to ±0.0015% of full-scale. These are strong figures for a 16-bit DAC because fine-resolution systems usually expose the tradeoff between precision and speed. The tighter ±0.0015% target is especially relevant. That error band corresponds to a level where the output is close to the true final value rather than merely entering a coarse tolerance window. In practical loop timing, this distinction is critical. A DAC that settles quickly to 0.1% but takes much longer to reach near-16-bit accuracy may still bottleneck a precision measurement sequence. Here, the sub-microsecond settling figures indicate that both coarse and fine convergence are controlled well enough to support rapid update-measure-update cycles.

This has direct impact in automated calibration and scanning instruments. When a DAC drives a programmable threshold, offset cancellation node, or reference scaling path, overall throughput is often limited less by digital interface speed than by analog settling confidence. A converter with 0.5 µs settling to near-final precision can reduce guard time in each step. Over thousands of channels or trim points, that translates into meaningful cycle-time reduction. In compact mixed-signal boards, this also helps maintain loop stability because the analog path reaches a predictable state before the ADC or comparator samples it.

The 5 nV-s glitch impulse at the major carry transition is another specification that deserves more attention than it usually gets. Major carry transitions are the worst-case code changes in many DAC architectures because many internal switches toggle simultaneously. That creates transient charge injection and output disturbance. A 5 nV-s glitch impulse is low enough to make the DAC more manageable in sample-sensitive paths, especially when the output feeds a high-speed amplifier, transimpedance stage, or switched measurement front end. In practice, glitch energy is often more disruptive than static INL because it can couple into downstream circuits as a brief but significant error pulse. Designs that multiplex outputs, trigger sampling shortly after DAC updates, or operate around zero-crossing conditions tend to expose this problem quickly. Lower glitch impulse reduces the amount of analog filtering or timing margin required downstream.

The 10 MHz multiplying reference bandwidth extends the device’s usefulness beyond fixed-reference output generation. Because the DAC8812IBPW is a multiplying DAC, the reference input effectively scales the transfer function. A wide reference bandwidth means the reference port can carry not only a DC precision source but also an AC or dynamically changing signal without immediately turning the DAC into a dominant bandwidth limiter. This opens a range of architectures: programmable attenuation, waveform scaling, digitally controlled gain blocks, and modulation-oriented analog paths. In these cases, bandwidth is not just a frequency number; it reflects how faithfully the reference dynamics pass through the converter core. Many designs underuse multiplying DACs by treating them as ordinary DC DACs. In reality, the wide reference path is often one of the most valuable aspects of this class of device.

Total harmonic distortion of -105 dB at 1 kHz under stated conditions indicates that the converter can preserve spectral purity when used with a clean reference and appropriate output circuitry. This is a strong result for precision instrumentation, low-distortion calibration sources, and sine-scaling applications where the DAC operates as a multiplying element. THD should not be interpreted in isolation, however. In a real design, the output amplifier, reference driver linearity, PCB parasitics, and grounding topology can degrade harmonic performance before the DAC itself becomes the limiting factor. Experience shows that once THD reaches this level, system implementation quality dominates. A poor reference buffer or asymmetrical return-current path can erase the benefit quickly. That makes layout and analog front-end design part of the DAC performance budget, not an afterthought.

The specified output spot noise voltage of 12 nV/√Hz at 1 kHz also supports precision use cases. Noise in a high-resolution DAC is often the hidden factor that limits effective resolution, especially when the output is filtered, averaged, or amplified downstream. A 16-bit converter can have excellent nominal code granularity, but if output noise spans multiple small-code intervals over the observation bandwidth, the usable resolution drops. The listed spot noise level suggests that the DAC core is quiet enough for low-bandwidth precision generation and for applications where the analog result is measured after settling. This matters in bridge sensor trimming, bias generation for precision amplifiers, and low-drift test nodes. The key is that static resolution, linearity, and noise must be viewed together. Resolution defines the code grid; INL and DNL define its geometry; noise determines how stable each point appears in time.

Power consumption is another notable characteristic. Positive supply current is specified as 2 µA typical for VDD = 4.5 V to 5.5 V and 1 µA typical for VDD = 2.7 V to 3.6 V, with logic inputs at 0 V. This level of static current is extremely attractive in systems where analog precision must coexist with strict thermal and standby constraints. Low quiescent current reduces self-heating, and in precision circuits even small thermal gradients can show up as gain drift, output shift, or reference imbalance over time. In dense modules, reducing idle dissipation also lowers the burden on local regulation and helps preserve reference stability. That benefit is often underestimated. In precision analog design, thermal behavior and electrical behavior are tightly coupled, and a low-current DAC can simplify the thermal error story as much as the power budget.

The device therefore fits best in applications where several performance vectors must align at once: high resolution, bounded linearity error, fast settling, low glitch, good AC behavior, and very low static power. Test and measurement systems are an obvious match. A dual-channel implementation can support differential trim, offset-plus-span adjustment, or simultaneous control of threshold and reference scale. Calibration equipment can exploit the fast settling to shorten test time while still maintaining fine output placement. Industrial control modules can use the DAC for biasing or actuator command generation where monotonic movement and low standby power are both important. In programmable analog front ends, the multiplying architecture enables digital control over gain or waveform amplitude without committing to a separate variable-gain stage.

One useful way to think about DAC8812IBPW is that it gives more system value when treated as an analog building block rather than only a digital-to-voltage endpoint. Its real advantage is the combination of precision transfer behavior and dynamic responsiveness. That combination allows one device to serve in roles that are often split between a precision DAC and a faster analog scaling element. In well-balanced designs, that reduces correction complexity, timing margin, and power overhead simultaneously.

To extract that value, the surrounding circuitry must be chosen with equal care. The reference source must be low-noise and low-drift, because multiplying DAC performance tracks reference quality directly. The output amplifier must settle as fast as the DAC itself and remain linear over the expected output current and compliance range. Ground routing should isolate digital return currents from the reference and output paths. Decoupling should be tight and local, especially if the digital interface is active during analog updates. These are routine implementation details, but with a 16-bit DAC they become first-order determinants of real accuracy.

Viewed as a whole, the key electrical performance of the DAC8812IBPW shows a converter designed for more than nominal 16-bit resolution. The ±2 LSB maximum INL, ±1 LSB maximum DNL, sub-microsecond settling, low glitch impulse, 10 MHz multiplying bandwidth, low distortion, low noise, and very low supply current together define a part that is balanced across precision, speed, and power. That balance is often harder to find than a single standout specification, and in actual mixed-signal systems it is usually the characteristic that matters most.

Texas Instruments DAC8812IBPW Serial Interface, Register Structure, and Update Control

Texas Instruments DAC8812IBPW uses a 3-wire serial interface built around SDI, CLK, and CS, with an additional LDAC control that determines when new data reaches the analog outputs. At a system level, this is more than a basic SPI-compatible port. It is a timing-controlled data staging mechanism that separates transport, storage, and output activation. That separation is the reason the device fits well in dual-channel control paths where deterministic update behavior matters as much as DAC resolution itself.

The serial port is compatible with standard SPI and many MCU serial peripherals, which keeps digital integration simple. Data is shifted in on the rising edge of CLK, and the interface supports clock rates up to 50 MHz. With a 10 ns minimum high time and 10 ns minimum low time for the clock, the timing aligns cleanly with a 20 ns clock period, which directly supports that 50 MHz ceiling. This is fast enough for most bias control loops, waveform table stepping, calibration trimming, and setpoint distribution tasks, while still leaving comfortable timing margin on common FPGA and microcontroller platforms.

The digital write path is best understood in two layers. First, serial bits are transferred into an internal shift register through SDI under control of CLK and CS. Second, the received word is moved into an input register associated with the target DAC channel. This input register does not immediately alter the analog output. The actual DAC register update is deferred until LDAC is asserted low. That double-buffered structure is one of the most valuable architectural features in the DAC8812IBPW, because it decouples communication timing from analog update timing.

In practice, this means both channels can be loaded with new codes at different moments over the serial bus, then switched to their new outputs at the same instant using a single LDAC event. In phase-sensitive systems, that behavior prevents one channel from stepping early while the other is still waiting for its data transfer to complete. The improvement is not merely conceptual. In dual-output offset trimming, I/Q control, bridge excitation balancing, and synchronized actuator biasing, even small inter-channel skew can appear downstream as gain error, phase disturbance, transient asymmetry, or control loop perturbation. A DAC that updates immediately at the end of each serial transfer often introduces exactly that kind of hidden timing defect.

The LDAC input is asynchronous and active low. That matters because output updates do not need to be locked to the serial clock domain. A controller can preload both channels, wait for an external event such as a PWM boundary, ADC frame marker, FPGA state transition, or control-loop epoch, and then assert LDAC to move both channels together. This gives the DAC8812IBPW a useful role in mixed-signal systems where digital sequencing and analog state changes must stay aligned. The ability to separate “write now” from “apply now” often simplifies firmware and FPGA logic, because software no longer needs to race serial transfers against a real-time boundary.

The timing requirements are permissive enough to reduce interface fragility. Clock high time is 10 ns minimum, clock low time is 10 ns minimum, CS-to-clock setup is 0 ns minimum, clock-to-CS hold is 10 ns minimum, data setup is 10 ns minimum, data hold is 10 ns minimum, and LDAC pulse width is 20 ns minimum. For engineering implementation, these values indicate that the part is not demanding unusually tight edge placement or exotic signal conditioning. On modern controllers, especially those with hardware SPI blocks, meeting these limits is usually straightforward. On FPGAs, they fit naturally into synchronous state-machine timing without requiring oversampling or unusually constrained placement.

That said, reliable high-speed operation still depends on signal discipline. At 50 MHz, the interface may be logically simple but it is no longer electrically trivial. Long traces on CLK or CS can introduce ringing, and excess edge distortion can reduce setup and hold margin at the DAC pins even when the controller timing looks correct on paper. A compact routing topology, solid reference return, and controlled edge behavior help preserve margin. In board bring-up, a recurring issue is not protocol failure but degraded waveform integrity that produces intermittent code corruption only at the upper clock range. Slowing the SPI clock often masks the problem, but that should be treated as a diagnostic clue rather than a final fix.

The register structure also improves system behavior during coordinated updates. In many dual-channel applications, one channel defines a reference level while the other applies a compensation term. If those channels update at different instants, downstream circuitry may briefly see an invalid intermediate state. That short-lived error can be enough to trigger comparator chatter, introduce a current spike, or disturb a precision amplifier’s settling path. With the DAC8812IBPW, both values can be staged first and then applied together, avoiding transient mismatch states. This is especially useful in calibration loops where a measurement engine assumes that both DAC outputs represent the same iteration of the algorithm.

From a firmware perspective, the device supports a cleaner transaction model than single-buffer DACs. A practical pattern is to stream the next values into the input registers during inactive computation time, then reserve LDAC for the exact moment the control frame changes. This approach reduces software jitter at the analog boundary. It also scales well when one SPI bus is shared across several peripherals, because the bus can remain busy while the analog update point remains deterministic. That distinction becomes important in systems where processor latency is variable or interrupt load is nontrivial.

For FPGA-based designs, the DAC8812IBPW is particularly convenient because its interface maps directly into a small shift engine plus an update strobe generator. No complex bus adaptation is required. The zero-nanosecond minimum from CS to clock setup simplifies chip-select generation, while the 10 ns clock-to-CS hold time is easy to satisfy with one or two extra state-machine cycles. The LDAC pulse width of 20 ns minimum also gives enough room for a clean synchronized pulse even in moderately fast logic domains. In practice, using a dedicated LDAC timing block is often preferable to deriving LDAC directly from SPI completion, because it preserves the option to align updates with a system-wide event.

One subtle advantage of the asynchronous LDAC mechanism is that it lets the DAC behave like a small sample-and-hold array under digital control. The output values remain stable while new words are loaded in the background, then both outputs transition together when commanded. In control and instrumentation systems, this staged-update model usually produces better observability and fewer edge-case failures than immediate-update DACs. It makes the analog state machine explicit instead of embedding it inside serial traffic timing.

For procurement and design teams, the value of this interface is not just standards compatibility. The more important point is predictable integration. SPI-like signaling, moderate timing constraints, and deterministic dual-channel update behavior reduce both hardware risk and firmware complexity. That tends to shorten bring-up time and lowers the chance of discovering synchronization artifacts late in validation. In components like this, the digital interface is often judged as a convenience feature, but in real designs it is often the difference between a cleanly synchronized analog subsystem and one that requires repeated compensation for avoidable timing skew.

Texas Instruments DAC8812IBPW Reference Inputs, Output Behavior, and I-to-V Conversion Considerations

Texas Instruments DAC8812IBPW is best understood as a precision multiplying current-output DAC core rather than a standalone voltage-output device. Its final analog performance is determined as much by the external reference path and the I-to-V conversion stage as by the silicon itself. In practice, this means the part should be evaluated as a closed-loop analog subsystem: reference driver, DAC core, transimpedance amplifier, layout parasitics, and grounding strategy all shape the delivered accuracy, noise, and dynamic behavior.

Each DAC channel has its own reference input, VREFA or VREFB, and its own feedback resistor pin, RFBA or RFBB, intended for use with an external amplifier. This architecture provides flexibility, but it also shifts critical design responsibility outward. The reference input is not an ideal infinite-impedance node. Its resistance is specified from 4 kΩ to 6 kΩ, with 5 kΩ typical, and channel-to-channel matching is 1%. Input capacitance is typically 5 pF. These numbers define the actual load seen by the reference source and become especially important when the reference is dynamic rather than static.

That point matters because DAC8812IBPW is a multiplying DAC. The reference input is effectively part of the signal path, not just a bias source. With a static precision reference, the main concern is source accuracy, noise, drift, and the ability to drive the DAC input resistance without introducing gain error. With a time-varying reference, the requirements become more demanding. The 10 MHz reference bandwidth indicates that the internal switching network can reproduce relatively fast reference variations, enabling use in programmable gain stages, signal modulation paths, and waveform scaling applications. However, bandwidth capability alone does not guarantee clean performance. The external reference driver must remain stable into the DAC’s resistive and capacitive input loading, and it must recover quickly from code-dependent switching transients. Designs that look correct in DC simulation often show unexpected distortion or reference ripple once the DAC is clocked at speed.

A useful way to view the reference path is as an analog excitation network feeding a switched resistor structure. The nominal 5 kΩ input resistance suggests nontrivial loading, especially if one reference source is shared across multiple channels or devices. If the reference has finite output impedance, the DAC transfer gain will shift with load. If the reference amplifier has marginal phase margin into capacitive loading, glitches and settling tails can appear at the output even when the DAC core itself is within spec. In higher-accuracy builds, a dedicated low-noise buffer per reference input usually performs better than a shared source with long routing. This is not only about static precision. It reduces inter-channel coupling through common source impedance and makes dynamic behavior more predictable.

TI specifies feedthrough error of -70 dB and crosstalk error of -100 dB under stated conditions. These are strong indicators that the dual-channel architecture can support precision systems, but they should not be interpreted as unconditional board-level guarantees. Feedthrough and crosstalk often worsen outside controlled test setups due to shared reference routing, amplifier supply coupling, digital edge injection, and ground return overlap. On dense mixed-signal boards, isolation is usually limited less by the DAC die than by current loops in the surrounding layout. Short reference traces, local decoupling, and physically separated return paths often produce larger gains than chasing lower-noise components alone.

At the output, DAC8812IBPW produces a current rather than a buffered voltage. Full-scale output current is specified at 1.6 mA minimum and 2.5 mA typical. Output capacitance is code-dependent, with a typical value around 50 pF. This code dependence is not a minor detail. It directly affects the loop stability and settling behavior of the transimpedance stage. A current-output DAC can appear straightforward on paper: connect an op amp, close the loop through RFB, and obtain a voltage proportional to code and reference. In reality, the op amp sees a feedback network whose effective loading changes with code transitions, and this can create gain peaking, overshoot, or long settling tails if the amplifier is not chosen with sufficient phase margin and output drive capability.

The internal feedback resistor is typically 5 kΩ at VDD = 5 V, and TI’s intended use is to tie the RFB pin to the external amplifier output. This arrangement allows the DAC ladder and feedback path to track one another, which helps preserve gain accuracy and linearity over process and temperature. It is one of the quiet advantages of this class of multiplying DAC. Replacing the internal feedback path with a generic external resistor may look acceptable in simplified analysis, but it usually gives up matching quality that is difficult to recover elsewhere. For precision work, the internal RFB path should be treated as part of the transfer-function integrity.

The amplifier selection therefore becomes a primary design task. TI notes that static performance testing used an OPA277 precision amplifier in a closed-loop configuration, while AC testing used a THS4011 as the I-to-V converter. Those choices reveal the two dominant operating regimes. For precision DC or low-frequency applications, low offset, low drift, low bias current, and solid open-loop gain are more important than very high bandwidth. For faster waveform or multiplying applications, slew rate, loop bandwidth, settling behavior, and stability against code-dependent capacitance take priority. A common design mistake is to optimize only one side of that tradeoff. A chopper or zero-drift amplifier may look attractive for offset reasons, yet inject switching artifacts or lack the dynamic behavior needed for clean settling. Conversely, a wideband amplifier may settle quickly but introduce offset and drift large enough to erode low-frequency accuracy.

The practical design flow works better when treated in layers. Start with the required transfer range and determine the reference amplitude and transimpedance gain. Then verify the reference source can drive the DAC input resistance across tolerance and temperature without gain shift beyond budget. Next, model the I-to-V stage including DAC output capacitance, amplifier input capacitance, board parasitics, and any compensation capacitor across the feedback path if needed. After that, evaluate dynamic errors: glitch energy, settling to the required error band, feedthrough under digital activity, and inter-channel interaction when both DACs switch. This layered method avoids the common trap of validating only static linearity while missing loop-instability problems that appear later in hardware.

PCB implementation strongly influences whether the measured result resembles the datasheet. Leakage currents at the summing node can translate directly into output error, especially at elevated temperature or in humid environments. Flux residue, long high-impedance traces, and contamination around the op amp input or DAC output node are frequent sources of unexplained gain or zero errors. Keeping the summing junction compact and clean is often more valuable than adding another round of digital calibration. Grounding also deserves disciplined treatment. The analog return for the reference source and transimpedance amplifier should not share impulsive current paths with digital switching returns. When those paths overlap, the result often appears as code-correlated output modulation that is difficult to separate from DAC nonlinearity during debug.

Reference quality sets the ceiling for achievable system performance. Since the DAC multiplies its digital code by the applied reference, reference noise, drift, and distortion are transferred to the output with little mercy. In waveform applications, the reference path effectively becomes the analog carrier of all gain information. A quiet DAC attached to a mediocre reference driver will behave like a mediocre signal source. This is why the most reliable high-performance implementations treat the reference path as a first-class analog channel, with its own buffer, decoupling, and layout discipline. That design posture usually pays back more than attempting to correct errors downstream.

For dual-channel precision use, the 1% channel-to-channel input resistance match helps maintain consistency between channels, but matching in the surrounding circuitry still dominates final channel alignment. If both channels are expected to track tightly, the external amplifier choice, thermal gradients, and reference distribution symmetry should be controlled with the same care as the DAC itself. Matched channels on silicon can be made visibly mismatched by asymmetrical routing, unequal amplifier heating, or one channel seeing a cleaner local ground than the other.

The strongest engineering takeaway is that DAC8812IBPW delivers its value when used as an analog building block inside a deliberately engineered signal chain. It can support precise static conversion, dynamic multiplying operation, and compact dual-channel designs, but only when the external reference network and I-to-V stage are designed as part of the transfer function rather than as support circuitry. In most designs, the decisive performance limit is not the nominal DAC resolution. It is the interaction among reference drive stiffness, transimpedance loop stability, parasitic capacitance, and layout-induced error currents. Once that is recognized early, the part becomes far more predictable and significantly easier to optimize.

Texas Instruments DAC8812IBPW Power Supply, Reset, and Startup Behavior

Texas Instruments DAC8812IBPW is designed to fit directly into 2.7 V to 5.5 V single-supply systems, which makes it easy to deploy in standard 3.3 V and 5 V digital platforms without adding a separate logic rail. That simplicity matters beyond schematic convenience. It reduces sequencing dependencies, lowers regulator count, and removes one common source of digital-to-analog domain mismatch during startup. The device still separates analog and digital ground pins, which is an important architectural detail rather than a packaging formality. It allows return-current control at the board level, so digital switching noise can be prevented from modulating the analog output path through shared impedance.

At power application, the internal power-on reset defines the DAC state before software control becomes available. This is one of the most important behaviors in mixed-signal systems, because the interval between supply ramp-up and firmware initialization is often where unintended analog excursions occur. A DAC that powers up into an indeterminate code can inject current into a downstream transimpedance stage, shift a bias network out of range, or momentarily drive an actuator to a non-neutral position. The DAC8812IBPW avoids that ambiguity by forcing the output to zero at startup. In practical designs, that default state reduces the need for external analog clamps or reset-driven output gating, especially when the DAC feeds precision references, offset trims, programmable gain stages, or control loops that are sensitive to even short-duration transients.

The reset structure is more flexible than a fixed power-on default. The RS pin provides an active-low hardware reset path, and the MSB pin selects the code loaded during reset. With MSB low, reset loads 0x0000. With MSB high, reset loads 0x8000. This matters because “safe state” is application-dependent. In unipolar signal chains, zero-scale is often the only valid fail-safe condition. It minimizes output energy and usually corresponds to minimum drive, minimum bias, or minimum setpoint. In bipolar architectures, however, zero-scale may represent a full negative endpoint after output conditioning, while midscale maps to the true neutral point. In those cases, forcing 0x8000 during reset allows the analog chain to settle immediately around its intended center rather than recovering from one rail.

That distinction becomes especially relevant when the DAC output is followed by an op-amp level shifter or a four-quadrant signal-conditioning stage. A midscale reset can keep the downstream amplifier inside its linear common-mode region during restart, which shortens recovery time and reduces the chance of saturating compensation nodes. In servo or waveform-generation systems, this often produces a visibly cleaner restart than zero-scale reset, even though both are logically valid. The better choice is usually the one that minimizes analog recovery effort, not just the one that looks safer in register space.

The interaction between reset behavior and system sequencing deserves careful attention. If the external reference rises slowly, or if the output amplifier powers at a different rate than the DAC core, the nominal reset code alone does not fully determine startup behavior. The actual analog output is the product of code, reference state, and downstream circuit readiness. In precision systems, it is often useful to treat reset as only one layer of startup control. Another layer is reference supervision. A common design approach is to hold the load-disconnect switch open, or keep the following stage disabled, until both reference and DAC supply have settled. This avoids the subtle case where the DAC is correctly reset to a known code, but the reference node is still drifting and creates a moving output anyway.

The specified power-supply sensitivity of 0.006% for a ±5% variation in VDD indicates that the transfer behavior is only weakly dependent on normal supply movement. That is a strong indicator that the converter core is internally well regulated against supply perturbation over its intended operating range. In engineering terms, supply variation is not the first-order error term for this device under ordinary conditions. This simplifies system budgeting because VDD ripple and regulator tolerance contribute less to output-code accuracy than they do in less robust architectures. Even so, the practical implication is not that supply quality can be ignored. Fast digital transients on VDD or poor grounding can still couple into the analog path through board parasitics, reference routing, or output amplifier interaction. The data point mainly says that static transfer accuracy is resilient to moderate supply variation, not that the surrounding implementation is immune to noise.

In most high-accuracy applications, the external reference remains the dominant determinant of output fidelity. The DAC can only reproduce the quality of the reference it is given. If the reference drifts, has excess noise, or is disturbed by load transients, the output follows. This shifts the design focus from supply voltage perfection to reference integrity and return-path discipline. A low-drift reference, short Kelvin-style routing where appropriate, controlled decoupling, and a clean analog ground strategy usually yield larger gains than over-optimizing the digital supply. In practice, many output anomalies initially attributed to DAC nonlinearity turn out to be reference feedthrough, reference buffer settling, or ground lift under code transitions.

The ground pin separation supports that strategy. Tying analog and digital grounds together at a low-impedance local point near the device is usually more effective than allowing them to meet remotely through a broad plane with uncontrolled current flow. The goal is not strict isolation, which is rarely achievable on compact boards, but controlled recombination of return currents. When SPI edges, clock bursts, or FPGA activity share the same return impedance as the DAC reference network, small voltage drops can translate directly into output disturbance. This is especially noticeable in systems where the DAC output is further amplified, because board-level error sources are multiplied along with the intended signal.

Reset pin usage also benefits from disciplined handling. Since RS is an asynchronous hardware control path, it should not be left vulnerable to noise or supply-induced glitches. A weak pull-up or pull-down strategy, depending on the surrounding logic, is often worth adding if the reset source is not strongly driven during early power ramp. Designs that omit this sometimes behave correctly in lab conditions but show sporadic startup code errors in electrically noisy environments or during brownout recovery. The same caution applies to the MSB selection state. Because it defines the reset target code, its logic level must be valid before reset is released. If MSB is allowed to float or transitions late, startup behavior can become inconsistent even though the DAC itself is functioning exactly as specified.

For instrumentation systems, the zero-scale option is often the cleanest match when the analog output controls excitation, threshold level, or programmable bias that must default low. It gives a deterministic floor condition and simplifies safety analysis. For centered signal generation, offset injection, or bipolar loop control, midscale reset usually produces a more operationally stable restart because it aligns the converter with the analog neutral point from the beginning. This is one of those features that appears minor in a pin table but has outsized value at the system level. It reduces firmware dependency during fault recovery and allows hardware behavior to mirror the physical expectations of the load.

A useful design perspective is to treat the DAC8812IBPW startup path as part of the analog control strategy, not just as a digital initialization detail. Supply range, internal power-on reset, external reset selection, and reference dependence together define how the output behaves when the rest of the system is least deterministic. Designs that account for that early-time behavior tend to need fewer compensating fixes later. The device provides the hooks for predictable startup. The real advantage comes when those hooks are coordinated with reference sequencing, grounding, and downstream stage enable timing so the analog path remains controlled from the first millisecond onward.

Texas Instruments DAC8812IBPW Package, Pin Functions, and Layout Considerations

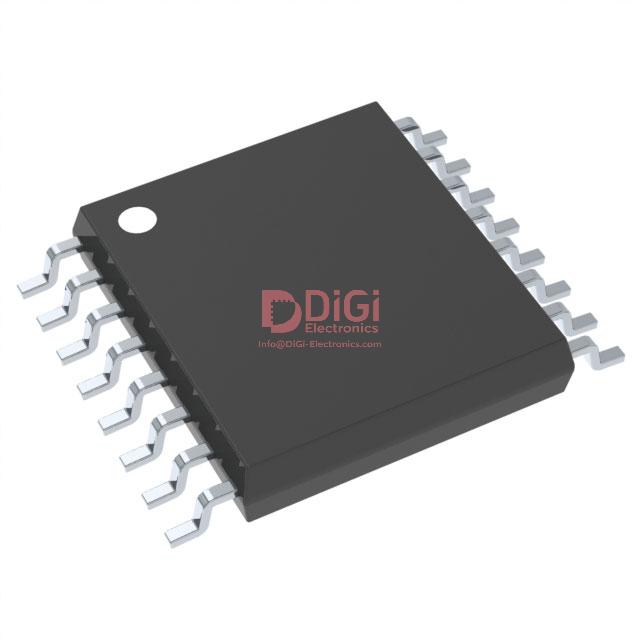

The DAC8812IBPW is a dual-channel multiplying DAC implemented in a 16-pin TSSOP package with a nominal body size of 5.00 mm × 4.40 mm. The package is compact enough for dense mixed-signal designs, yet still practical for routing the analog, reference, and serial interface nodes with adequate isolation. This balance is important because the device is not merely a low-speed voltage DAC. It is a precision current-output architecture whose real performance depends strongly on the surrounding analog stage, reference source, and PCB return paths.

At a system level, the DAC8812IBPW fits well in industrial control, instrumentation, programmable gain stages, waveform generation, and calibration circuits. Its value comes from combining two precision DAC channels with flexible reference handling in a small footprint. That flexibility, however, shifts more responsibility to the board designer. In exchange for compact size and strong linearity potential, the part expects disciplined analog implementation.

The pinout reflects the internal partitioning between precision current-steering DAC cores and digital control logic. Each channel exposes a reference input, a current output, a feedback node, and an analog ground. This arrangement is typical of multiplying DACs and reveals how the device is intended to be used: the DAC core scales an input reference and produces a current proportional to the digital code, while an external op amp usually performs current-to-voltage conversion. That external stage is not optional in most precision voltage-output use cases; it is part of the signal chain and must be treated as such from the beginning of the design.

RFBA and RFBB are the feedback-related pins associated with channels A and B. In practical circuits, they are used with an external op amp to establish a transimpedance stage or inverting output configuration. The routing around these pins must be short, local, and quiet. Any parasitic resistance in series with the feedback path modifies gain error. Any parasitic capacitance at the summing node changes loop stability and settling behavior. On paper these effects may look secondary, but on a dense board they often become the main reason why measured settling or glitch performance fails to match expectations.

VREFA and VREFB are the reference inputs for the two DAC channels. These pins deserve more attention than they often receive in first-pass layouts. In a multiplying DAC, the reference is not a static bias node; it is an active analog input that must source code-dependent current. That means the reference network must have low noise, low impedance over frequency, and a short return path to the relevant analog ground. If the reference trace is long or shares current with switching digital returns, the DAC output will directly reproduce that disturbance. In other words, the reference network is effectively part of the signal path, not just a support rail.

IOUTA and IOUTB are the channel current outputs. These nodes are sensitive because they typically connect to the inverting input of an op amp configured for current-to-voltage conversion. The trace from each current output to its amplifier should be as short as possible, with minimal exposure to adjacent digital lines or clock edges. These are high-impedance dynamic analog nodes at the loop input, so even small stray coupling can alter glitch energy, increase noise, or create channel-to-channel interaction. A common field observation is that a DAC channel can appear digitally correct while still showing poor spectral cleanliness simply because the current-output loop was routed under a serial clock or near a busy FPGA bank.

AGNDA and AGNDB provide separate analog grounds for the two channels. This separation is not incidental. It supports cleaner return-current control and reduces shared impedance coupling between channel analog sections. In layout, these pins should connect into a low-impedance analog ground region with careful local stitching rather than being forced through long narrow necks. The best implementation usually treats both analog grounds as part of one quiet analog plane region while preserving short local returns for each channel’s op amp, reference decoupling, and output network. If both channels share downstream amplifier supply bypassing or output filtering, the return currents should still be arranged so they do not modulate the DAC ground pins.

SDI, CLK, and CS form the serial interface. These pins are digitally straightforward, but physically they are a noise injection mechanism if routed carelessly. Their edge rates may be much faster than the DAC update bandwidth, and their return currents naturally seek the lowest-inductance path back to digital ground. If those currents cross analog reference or summing-node regions, the board effectively mixes digital transient energy into the analog output. The practical fix is simple: keep the digital interface grouped together, route it over a continuous digital return region where possible, and avoid crossing analog nodes with clock or chip-select traces. A slower edge rate at the driving source often improves overall analog behavior more than additional filtering applied after the fact.

LDAC enables asynchronous output update. This is useful when both channels must be loaded serially and then updated simultaneously. In control systems and waveform applications, that function can prevent inter-channel timing skew. It also creates a point of concentrated switching activity, since both outputs may move together. If LDAC is used in a precision transient-sensitive design, the update instant should be considered as an analog event, not just a digital command. Local decoupling, reference stiffness, and amplifier recovery all affect how cleanly the output transition occurs.

RS and MSB control reset behavior. These pins define how the DAC responds during reset and what code state is forced after initialization. In embedded control systems, this is more significant than it first appears. Startup determinism matters when the DAC drives actuator bias, programmable threshold networks, or calibration loops. A reset mode that looks acceptable in a bench setup may create an unwanted transient in the final product if the external op amp saturates or if the reference becomes valid later than the digital domain. Good design practice is to evaluate not only the static reset code, but also the analog sequence: reference ramp, amplifier common-mode recovery, supply settling, and digital release timing.

VDD and DGND power the digital logic and define the digital return reference. These pins should be decoupled locally with a short loop to the digital ground path. Although the digital power current is modest, the edge-related transient current can still corrupt nearby analog nodes if the bypass capacitor is placed too far away or if its return path shares analog copper. A compact local decoupling loop at the package is one of the simplest ways to reduce digital feedthrough.

From an architectural perspective, the DAC8812IBPW rewards designs that respect the multiplying DAC signal flow. The conversion path begins at the reference input, passes through a code-dependent switching network, emerges as an output current, and is completed by an external amplifier and feedback loop. Every one of these elements is exposed at board level. That is why this device can outperform more integrated buffered DACs in flexibility and precision, but also why it is less forgiving. Buffered voltage-output DACs tend to hide internal impedance interactions. The DAC8812IBPW does not. It gives direct access to the analog core, and that access is both its strength and its constraint.

PCB layout should therefore start from the analog loops, not from package fanout convenience. The most critical loops are the reference input loop, the I-to-V amplifier summing loop, and the local decoupling loop for the digital supply. These should be completed first and kept physically compact. After that, the digital interface can be routed around the analog structure rather than through it. This order of operations often leads to a noticeably cleaner result than placing the DAC first and then trying to repair analog integrity after the digital nets are already fixed.

The op amp selection and placement are tightly coupled to layout quality. A low-noise precision amplifier with excellent DC specs can still behave poorly if the summing node sees excess capacitance or if the feedback trace is too long. Stability margins should be checked with the expected DAC output capacitance, feedback resistor value, and board parasitics. In practice, an amplifier that is theoretically faster is not always the better choice; excessive bandwidth may make the loop more sensitive to routing parasitics and code-transition feedthrough. A slightly more controlled amplifier, placed close to the DAC with clean local supply bypassing, often produces better overall settling and repeatability.

Reference distribution deserves similar discipline. If both channels share one precision reference source, the split should occur in a way that preserves symmetry and minimizes coupling through shared impedance. If the channels operate independently, separate local filtering or buffering may be justified depending on update profile and dynamic load. A common integration mistake is to treat the reference source as a static low-current input and route it like a slow control voltage. In reality, the DAC reference pin current changes with code and switching activity, so the source and its decoupling must support transient behavior, not just DC accuracy.

Code-dependent output capacitance is another practical concern. This behavior can modulate amplifier phase margin and settling time across the code range. It explains why a circuit may appear stable at some output values and ring at others. The effect becomes more visible when the feedback network is physically large, when the op amp input node is exposed to stray capacitance, or when the layout forces current-output routing past other copper features. Keeping the summing node small and isolated is one of the most effective countermeasures. Guarding is not always necessary, but area minimization almost always helps.

Channel isolation should not be assumed simply because two channels are present in one package. Shared substrate effects are usually well controlled inside the device, but board-level coupling through grounds, references, digital commands, and nearby amplifier stages can dominate. When one channel handles a fast-changing waveform and the other serves as a precision bias or threshold source, physical separation of the two analog output stages on the PCB often improves stability. The package is compact, but the surrounding circuitry does not need to be symmetrical if the application roles are different.

Assembly and manufacturability also influence analog performance more than is often acknowledged. The 16-pin TSSOP is easy to assemble with standard SMT processes, but solder mask definition, pad geometry, and rework quality can subtly affect precision nodes if excessive flux residue or contamination remains around high-impedance analog connections. Keeping the IOUT and feedback region clean, avoiding unnecessary test pads on summing nodes, and controlling residue in no-clean processes can prevent leakage-related drift that is difficult to diagnose later.

For selection decisions, the DAC8812IBPW is best viewed as a precision analog building block rather than a drop-in voltage-output DAC. It is especially attractive when the design benefits from multiplying behavior, independent channel references, custom output scaling, or tighter control over the analog transfer function than integrated buffered parts allow. It is less attractive when board area for op amps and reference conditioning is unavailable, or when the layout environment is too noisy to preserve current-output DAC integrity. In well-executed designs, the part delivers strong precision and flexibility. In casual layouts, it tends to expose every weakness in grounding, reference distribution, and amplifier integration. That behavior is not a drawback of the device so much as a reminder of what high-resolution mixed-signal design actually demands.

Texas Instruments DAC8812IBPW Application Fit in Instrumentation, Calibration, and Automatic Test Equipment

Texas Instruments positions the DAC8812IBPW for instrumentation, digitally controlled calibration, and automatic test equipment, and that positioning is technically well grounded. The device is a dual 16-bit multiplying DAC, and that matters because it is not limited to producing a fixed voltage from an internal reference model. Instead, it acts as a precision programmable scaling element for externally applied reference signals. That architecture gives it a broader role in mixed-signal systems where gain, offset, threshold, or stimulus amplitude must remain tightly correlated to another analog quantity.

At the device level, the strongest fit comes from the combination of resolution, channel density, update control, and predictable timing. Sixteen-bit granularity supports fine analog adjustment over a wide code range. Dual channels reduce component count in systems that naturally require paired control variables. The serial interface simplifies integration with digital controllers, while LDAC-based simultaneous update prevents channel skew during multi-parameter changes. In precision systems, that last point is often more important than raw resolution. A high-resolution DAC that updates channels at different instants can still inject unwanted transient error into the controlled analog path.

In automatic test equipment, the DAC8812IBPW is well suited for generating programmable thresholds, bias points, comparator trip levels, and stimulus scaling coefficients. ATE channels often need deterministic analog settings that can be changed rapidly between test vectors without introducing long analog recovery periods. The DAC’s fast settling behavior helps shorten dwell time after a code transition, which directly improves throughput when many limit conditions must be tested in sequence. The dual outputs are also useful in paired test structures, such as high and low limit generation, differential bias control, or simultaneous drive and sense path trimming.

The multiplying architecture is particularly valuable in ATE because it allows the DAC output to track an external precision reference or waveform source. Rather than forcing the system into a single fixed full-scale range, the DAC can scale a metrology-grade reference already present in the tester. That approach can reduce gain-stack error and improve consistency across channels. In practice, this is often cleaner than placing a conventional voltage-output DAC in front of additional analog scaling stages, because each extra stage adds its own offset, gain drift, and settling artifacts.

In instrumentation, the DAC8812IBPW fits signal-conditioning chains that need programmable analog coefficients rather than simple static voltages. A multiplying DAC can sit inside offset-nulling loops, bridge-sensor excitation scaling paths, programmable transconductance stages, or reference trimming circuits. Since each channel has a separate reference input, one device can support two analog domains with different ranges, polarities, or calibration references. That separation is useful in modular instruments where one channel may serve a sensor excitation path while the other controls an ADC reference trim or a comparator threshold.

This external-reference dependency is sometimes treated as a complication, but in well-designed instruments it is usually an advantage. Absolute DAC accuracy is only part of the system picture. What often matters more is how accurately the DAC preserves a ratio relative to a trusted reference under temperature, load, and update conditions. A multiplying DAC naturally supports that ratio-based design method. When the surrounding reference network is stable, the overall analog behavior becomes easier to predict and calibrate.

For digitally controlled calibration, the device characteristics align especially well with gain, offset, and bias trimming tasks. Sixteen-bit resolution provides fine step size, while low differential nonlinearity helps maintain monotonic, predictable correction behavior across the code range. Deterministic reset options, including midscale or zero-scale startup behavior, simplify fault recovery and production calibration flow. Systems that must boot into a known analog state benefit from this because the control loop does not have to infer the DAC’s prior condition or wait for a calibration routine before becoming safe.

That startup behavior is more important than it first appears. In many calibrated systems, the worst transients occur not during steady operation but during initialization, watchdog recovery, or partial rail sequencing. If a trim DAC powers up unpredictably, downstream amplifiers, bias networks, or actuator drivers can briefly enter invalid operating regions. A known reset code reduces that risk and makes system verification easier. It also simplifies firmware because analog initialization becomes a bounded sequence instead of a state-estimation problem.

A practical dual-channel use case is a sensor front end in which one DAC channel trims offset and the other adjusts loop gain. These two corrections are usually coupled. If offset is updated first and gain later, the signal path can momentarily pass through an invalid calibration point and create a visible output glitch. Simultaneous update through LDAC avoids that intermediate state. In closed-loop analog sections, this often reduces false trips, short settling disturbances, and calibration oscillation during coefficient loading.

Another realistic application is in precision source-measure or data acquisition modules where one channel sets a programmable compliance threshold and the other scales a reference used by the excitation path. Because both outputs can be loaded independently and activated together, the analog subsystem can move from one operating range to another in a controlled step. That behavior is useful when changing measurement ranges under software control, especially when the system must preserve phase alignment or avoid saturating intermediate amplifier stages.

From an implementation perspective, the DAC8812IBPW performs best when treated as part of a precision analog subsystem rather than as an isolated digital peripheral. Reference source quality is critical because the DAC reproduces and scales whatever is applied at its reference input. Noise, drift, and impedance errors on that node translate directly into output behavior. Layout should keep digital switching return currents away from the reference and output paths. LDAC, SYNC, and clock timing should also be managed carefully in systems where update determinism matters, since digital edge placement can couple into sensitive analog nodes if routing is careless.

Load interface design also deserves attention. Multiplying DACs are commonly used with external op-amps for current-to-voltage conversion, range shifting, or bipolar output generation. The amplifier selection determines a large part of the real system performance, including settling time, output noise, and thermal drift. It is easy to specify a 16-bit DAC and then lose effective resolution because the output amplifier lacks enough open-loop linearity or introduces dielectric absorption effects through poor passive component choices. In calibration hardware, the surrounding network often limits performance before the DAC itself does.

There is also a system-level benefit in using a dual DAC for related calibration variables: correlation control. Two channels in the same package usually see similar thermal and environmental conditions. When offset and gain trim elements drift in a correlated way rather than independently, calibration maintenance becomes easier. This does not eliminate the need for error budgeting, but it can simplify it. In tightly packed instrumentation designs, shared environmental behavior is often more useful than chasing the lowest standalone specification on disconnected components.

Overall, the DAC8812IBPW fits these application classes because it combines fine code resolution, dual-channel integration, synchronized update capability, and multiplying DAC flexibility in a form that maps naturally onto real precision analog control problems. It is most compelling in designs where analog parameters must be scaled, trimmed, or range-switched with deterministic timing and close relationship to an external reference. In those conditions, it functions less as a simple output DAC and more as a programmable precision analog coefficient block.

Texas Instruments DAC8812IBPW Reliability, Thermal, and Environmental Data

Texas Instruments DAC8812IBPW reliability, thermal, and environmental data define more than simple handling limits. They describe the practical operating envelope of the device and strongly influence board-level design margin, calibration stability, manufacturing robustness, and long-term field behavior. For precision DACs, these parameters are especially important because failure rarely begins as a hard fault. More often, it appears first as output drift, degraded linearity under temperature, intermittent interface behavior, or reference-path stress caused by poor system partitioning.

The DAC8812IBPW is specified for an ambient operating range of -40°C to 85°C. This places it solidly in the industrial temperature class and makes it appropriate for control systems, instrumentation modules, industrial I/O cards, motion platforms, and embedded equipment exposed to seasonal outdoor cabinets or internally heated enclosures. In practice, this range should not be read as a guarantee of identical analog performance at every point within the band. Precision analog devices remain sensitive to local thermal gradients, reference stability, PCB expansion effects, and nearby power dissipation. A design that passes at 25°C with comfortable margin can still show gain shift or settling anomalies near the corners if thermal coupling and reference routing are not treated carefully. The useful engineering view is that the specified ambient range defines where the device is expected to operate correctly, while actual precision depends on how well the surrounding system controls temperature rise and noise injection.

The absolute maximum ratings establish the non-operating stress boundaries. They are not targets for normal use, and repeated exposure near these limits reduces lifetime margin even if immediate failure does not occur. The supply pin rating of VDD to GND from -0.3 V to 7 V defines the upper survival boundary for the core and interface structures. The VREFX and RFBX range of -18 V to 18 V reflects the architecture of the multiplying DAC and indicates that the reference path is designed to tolerate wider bipolar analog conditions than the logic supply itself. This is one of the more important distinctions in this device. It enables flexible reference scaling and waveform generation schemes, but it also creates a common integration mistake: designers sometimes assume the wide analog terminal tolerance means the full analog signal chain is equally forgiving. It is not. The output current path, logic pins, and supply domains still require conventional protection and sequencing discipline.

Digital logic inputs are limited to -0.3 V to VDD + 0.3 V, and lOUTX to GND carries the same boundary. These numbers imply that transient overshoot from fast digital edges, cable-coupled ringing, or powered-down back-drive conditions can become reliability risks even when average voltages appear safe. On mixed-signal boards, this tends to happen during startup, hot-plug events, or when an upstream controller powers before the DAC rail is valid. A small series resistor on digital lines, controlled edge rates, and avoidance of direct contention from external drivers often eliminate these latent stress conditions with minimal impact on interface timing. That kind of preventive design usually improves field reliability more effectively than relying on the raw robustness of the silicon.

The storage temperature range of -65°C to 150°C and maximum junction temperature of 150°C provide additional insight into process capability and packaging tolerance. These values indicate the device can withstand standard logistics, soldering-adjacent exposure profiles, and inactive storage in harsh environments, but the 150°C junction rating should be treated as a survival ceiling rather than a recommended operating point. For precision converters, accuracy and drift behavior generally degrade long before absolute thermal destruction becomes relevant. In other words, staying far away from the junction limit is not only about reliability; it is also about preserving analog integrity.

The thermal characteristics of the 16-pin TSSOP package quantify how efficiently internally generated heat leaves the die. The junction-to-ambient thermal resistance is 100.6°C/W, junction-to-case-top is 32.8°C/W, and junction-to-board is 46.8°C/W. Because DAC power dissipation is usually moderate, this device is not normally classified as a high-heat component. Still, the thermal data matter because even modest dissipation can create measurable junction rise in dense boards with poor airflow, adjacent regulators, or high reference-buffer loading. A simple estimate illustrates the point: if the device dissipates 200 mW, the junction rise above ambient is roughly 20°C using the junction-to-ambient figure. In a sealed enclosure at 70°C ambient, that places the junction near 90°C before accounting for local heating from neighboring components. That temperature is still within limits, but it is no longer trivial for precision performance.

The junction-to-board value is often the most actionable metric in real layouts. It shows that PCB copper is the dominant thermal escape path for this package in typical use. A continuous ground region beneath and around the package, short thermal paths into internal planes, and separation from hot switching elements reduce both absolute temperature and thermal gradients across the package body. Those gradients matter because multiplying DAC accuracy can be influenced not only by mean junction temperature but also by mechanical and electrical asymmetry caused by uneven heating. Boards that place the reference amplifier, DAC, and output amplifier in a thermally coherent cluster generally behave better over time than boards that optimize only for routing convenience.

Experience with similar precision DAC layouts shows a recurring issue: the DAC itself often remains within thermal limits, but the reference source or transimpedance/output stage nearby becomes the dominant drift contributor. As temperature changes, the combined chain moves in ways that appear at first to be DAC instability. In many cases, the correct response is not to over-specify the DAC, but to treat the reference path, feedback network, and copper symmetry as part of one thermal system. This is especially true when the device is used in programmable gain blocks, actuator control loops, or calibration instruments where output monotonicity alone is insufficient and repeatable endpoint accuracy is required.

The ESD ratings of ±4000 V for the human-body model and ±1000 V for the charged-device model indicate reasonable handling robustness for assembly and service operations. These are solid values for a precision mixed-signal component, but they should not be interpreted as permission to relax board-level protection strategy. HBM performance mainly reflects tolerance to slower discharge events associated with handling, while CDM is more relevant to rapid discharges that occur when the device itself becomes charged and then contacts a conductive surface. In production lines, CDM-related failures are often harder to trace because they can produce subtle parametric degradation rather than immediate non-functionality. For this reason, controlled grounding, ionization where needed, and careful tray or nozzle selection remain important even when the datasheet ESD numbers look comfortable.

At the application level, the most exposed pins are usually not the digital inputs but the analog reference and output-related nodes, especially when they connect to off-board wiring, calibration fixtures, or test headers. If the DAC is used in systems with external connectors, it is wise to think beyond component-level ESD survivability and consider surge current paths at the PCB level. Small series impedance, clamp placement that avoids injecting noise into the reference return, and separation between protection current loops and precision ground regions can significantly improve resilience without compromising output fidelity. This balance between protection and precision is often where robust analog design succeeds or fails.

The environmental data show RoHS3 compliance and REACH unaffected status. These attributes are often treated as procurement checklist items, but they also influence lifecycle planning and product continuity. For regulated industrial and professional programs, component approval increasingly requires material declarations, substance tracking, and evidence that no restricted substances create downstream documentation risk. Using parts with clear compliance status reduces qualification friction and simplifies change control. It also lowers the chance that a late-stage documentation gap delays a build release, which in practice can be as disruptive as a technical issue.

From a reliability engineering perspective, the most valuable way to read this dataset is as a set of interacting constraints rather than independent numbers. Temperature range defines where the part can operate. Absolute maximum ratings define where it can survive. Thermal resistance defines how quickly board conditions translate into junction stress. ESD ratings define how much uncontrolled handling energy the device can absorb. Environmental compliance defines whether it can move smoothly through regulated supply chains. The strongest designs treat all five dimensions together. When the DAC8812IBPW is given clean supply sequencing, a quiet and thermally stable reference network, controlled edge rates on digital lines, and a layout that uses the PCB as both thermal and electrical infrastructure, it tends to behave like a robust precision element rather than a fragile analog component.

For industrial embedded systems, that distinction is important. A multiplying DAC is often selected for resolution and interface simplicity, but its real system value comes from predictable behavior across temperature, manufacturing variation, field handling, and compliance review. The DAC8812IBPW has the ratings to support that role, provided the design uses the published limits as engineering boundaries and not as operating headroom. That is usually the difference between a board that merely functions and one that remains stable, calibratable, and supportable throughout deployment.

Potential Equivalent/Replacement Models for Texas Instruments DAC8812IBPW

Potential equivalent or replacement paths for the Texas Instruments DAC8812IBPW are most credibly found inside the DAC8812 product family rather than by jumping immediately to adjacent DAC lines. The strongest evidence comes from the device comparison information, where DAC8812C and DAC8812B appear as graded variants of the same core architecture. The documented distinction is relative accuracy: DAC8812C is specified at ±1 LSB maximum, while DAC8812B is specified at ±2 LSB maximum. That difference looks small on paper, but in precision signal-chain design it is often the parameter that separates a transparent drop-in option from a part that requires recalibration, gain-margin review, or error-budget redistribution.

For replacement analysis, the key point is that these variants are not different functional concepts. They are accuracy-binned implementations of the same dual-channel multiplying DAC platform. That matters because replacement risk is driven less by the headline resolution and more by whether the transfer behavior, digital timing, output topology, and reference interaction remain consistent enough to preserve the surrounding circuit assumptions. In this family, the migration path is attractive precisely because the operating model stays intact: dual multiplying DAC channels, serial control structure, and the same expectation that output performance depends heavily on the external reference path and output amplifier implementation.

A practical selection flow starts with relative accuracy, but should not end there. Relative accuracy determines how closely the actual transfer function tracks the ideal code-to-code progression after offset and gain are removed. In a multiplying DAC, this directly affects waveform linearity, closed-loop setpoint precision, and monotonic behavior near decision boundaries. If the original design used DAC8812IBPW in instrumentation trim, programmable gain control, or precision bias generation, the application may already be operating close to its linearity budget. In those cases, moving from a ±1 LSB grade to a ±2 LSB grade can shift error from “absorbed by calibration” into “visible at the system output,” especially when the DAC is followed by a high-gain stage. In contrast, if the DAC is used for less demanding offset positioning, threshold generation, or software-corrected control loops, the looser grade may be fully acceptable.

This is why replacement evaluation should be structured around the actual system error stack rather than the DAC datasheet in isolation. Start with the allowable end-to-end output error. Then decompose that budget into reference error, DAC linearity, resistor network effects, amplifier offset and bias current, thermal drift, layout-induced coupling, and any digital feedthrough artifacts. Once that stack is visible, the grade decision becomes simpler. A design with a dominant reference drift or amplifier offset often gains little from preserving the tighter DAC accuracy bin. Conversely, in a design with a low-drift reference, precision output amplifier, and stable thermal environment, DAC grade becomes a first-order contributor and should be preserved if possible.

Interface consistency is the next major filter. Family-level substitutes are generally preferred because firmware timing, serial framing, and channel update behavior tend to remain aligned. That reduces both verification effort and field risk. In practice, many substitution failures are not caused by static DC specifications but by small behavioral mismatches such as different latch timing, asynchronous update nuances, power-up code state, or altered reference feedthrough under dynamic loading. Staying within the DAC8812 family minimizes the chance of these second-order surprises. For an existing board already designed around DAC8812IBPW, that can save more effort than any nominal unit-cost improvement from moving to a loosely similar external alternative.

Package and implementation context also matter. The “IBPW” ordering information points to a specific package and grade configuration, so interchangeability must be checked at the full orderable-part level, not only at the base family name. Even when the silicon core is common, replacement confidence depends on matching package footprint, thermal behavior, and assembly constraints. This is especially relevant in precision analog layouts where reference routing, return-current geometry, and amplifier placement were tuned around a known package parasitic profile. A nominally compatible DAC can still perturb settling or glitch energy if board parasitics change enough to interact with the output stage.

The external amplifier architecture deserves explicit attention because the DAC8812 is a multiplying DAC, not a buffered voltage-output DAC with a fully self-contained analog front end. Its output accuracy and dynamic behavior are inseparable from the I/V conversion stage and reference drive network. That shifts replacement analysis from a single-component question into a small subsystem question. If the board uses a precision op amp with low bias current and wide output swing, a DAC8812 family substitute will likely preserve behavior well. If the amplifier is already marginal in settling time, noise density, or common-mode range, even a same-family accuracy change can alter observed performance enough to matter. In field designs, this often shows up as a discrepancy between static bench measurements and dynamic in-system behavior under code transitions.

From a procurement perspective, DAC8812B and DAC8812C should be treated as the first replacement candidates because they preserve the highest amount of architectural continuity. That continuity is usually more valuable than searching for a broader “equivalent” defined only by resolution, channel count, and interface type. Precision analog parts are rarely interchangeable at that coarse level. The hidden dependencies—reference compliance, amplifier stability, code-transition glitch behavior, and calibration assumptions—create integration cost that is easy to underestimate. A closer family match reduces that risk substantially.

A disciplined engineering decision therefore centers on three questions. First, does the target design require the tighter ±1 LSB relative accuracy, or can ±2 LSB be tolerated after considering calibration and full system error budget? Second, does the replacement preserve the same interface, package, and analog operating method closely enough to avoid board or firmware changes? Third, does the surrounding reference and amplifier network have enough margin that a grade shift will remain invisible at the application level? If all three answers are favorable, migration within the DAC8812 family is the most credible low-risk replacement path for DAC8812IBPW.

In practice, the lowest-risk substitutions are usually the ones that change the fewest assumptions simultaneously. That is the central reason the DAC8812 family variants stand out here. They keep the signal-chain model stable while allowing accuracy grade to be traded against availability or procurement constraints. For designs already validated around DAC8812IBPW, that is typically the most engineering-efficient path.

Conclusion

The Texas Instruments DAC8812IBPW should be evaluated as a precision analog subsystem element, not merely as a dual-channel DAC. It is a dual 16-bit multiplying DAC, and that distinction matters at the architectural level. Unlike buffered voltage-output DACs that embed a fixed output behavior around an internal reference model, the DAC8812IBPW exposes the signal chain more directly. Each channel converts a digitally controlled code into an analog scaling function referenced to an external input. This gives the designer tighter control over gain structure, reference strategy, dynamic range, and output-stage behavior.

Its main value comes from the combination of high resolution, dual independent multiplying reference inputs, fast settling performance, SPI-compatible serial interface, and double-buffered update logic that supports simultaneous output changes. In practice, this feature set makes the device useful where analog programmability must coexist with deterministic timing and precision system calibration. It is particularly strong in instrumentation, automated test equipment, programmable gain and offset control, waveform scaling, and closed-loop calibration paths where the external analog environment is already being engineered carefully.

From a device-physics and signal-chain perspective, a multiplying DAC is most effective when the surrounding circuitry is treated as part of the converter. The DAC core establishes ratio accuracy and code-dependent transfer behavior, while absolute output accuracy depends strongly on the external reference source, output amplifier, grounding scheme, and layout discipline. This shifts the design question from “What voltage does the DAC generate?” to “How accurately can the full analog path preserve the DAC’s coded ratio under real operating conditions?” That framing is important because it reveals both the strength and the obligation of this part. The DAC8812IBPW enables a more flexible precision architecture, but it also expects the rest of the design to be held to a similar standard.

The dual-channel structure is especially useful in systems that require matched or coordinated analog control. Because both channels can be loaded independently and updated simultaneously through the double-buffered mechanism, the device supports phase-aligned transitions and deterministic multi-parameter changes. This is valuable when one channel controls amplitude while the other trims offset, or when two analog nodes must move together to avoid transient imbalance. In precision test setups, this synchronous behavior often reduces software compensation effort because timing-induced skew is suppressed at the hardware level rather than corrected afterward.

The separate reference inputs deserve more attention than they usually receive in basic part comparisons. They allow each DAC channel to operate with its own analog scaling domain, which can simplify mixed-range systems or permit independent optimization of noise, gain, and headroom. In some designs, one channel may be referenced to a low-drift precision source for calibration output, while the other may use a dynamically conditioned signal for multiplying or modulation purposes. This flexibility is often more valuable than an integrated-output convenience feature, especially in systems where analog performance is already partitioned by function.

That said, the benefits of a multiplying DAC become fully visible only when paired with a suitable output stage. External precision op amps are not an inconvenience here; they are part of the intended performance envelope. They allow the output to be configured as unipolar, bipolar, transimpedance-based, level-shifted, or filtered according to system needs. They also let the designer optimize bandwidth, noise density, offset, output swing, and load-driving capability independently of the DAC core. In well-structured designs, this separation produces better overall results than relying on integrated buffer architectures that may be simpler but less adaptable.

A recurring implementation lesson is that reference integrity dominates real precision. In bench validation, it is common to find that code monotonicity and nominal resolution are easy to obtain, while true low-drift, low-noise output behavior is limited by reference buffering, amplifier bias interaction, thermal gradients, or digital feedthrough. The DAC8812IBPW rewards careful partitioning: isolate digital return currents from reference ground, keep the reference path short and low impedance, place output amplifiers close to the DAC, and avoid allowing serial activity to contaminate sensitive analog nodes during critical updates. These details often determine whether the design behaves like a 16-bit precision instrument or only resembles one in static specifications.

Fast settling is another meaningful advantage, but it should be interpreted correctly. Settling time is not just a speed metric; it defines how quickly the entire analog chain can become trustworthy after a code transition. In calibration engines, source-measure modules, and adaptive control loops, this affects throughput directly. However, the practical settling limit is frequently set by the external op amp, output filtering, capacitive loading, and reference recovery rather than by the DAC core alone. A strong evaluation process therefore measures the assembled channel, not the DAC in isolation. This is a common point where apparently equivalent solutions diverge sharply under real workloads.

For selection engineers, the DAC8812IBPW is most compelling when the application benefits from analog configurability and already includes precision support circuitry. It fits best in systems where external references are selected deliberately, output stages are customized, and synchronization across channels matters. In those environments, the part provides a clean digital-to-analog control kernel around which a higher-performance analog function can be built. It is less attractive where the design priority is minimum component count, low design effort, or a straightforward rail-referenced voltage output with minimal analog tuning.

For procurement and lifecycle planning, several practical aspects make the device easier to position in long-lived industrial designs. The industrial temperature range supports deployment in control, measurement, and field-installed equipment where ambient conditions are broader than office or lab environments. The 16-pin TSSOP package balances compactness with assembly familiarity and inspection accessibility. Accuracy-graded family options can help align cost with performance targets, which is useful when multiple product tiers share a common board architecture. Established environmental compliance status further supports use in procurement flows that require regulatory consistency without introducing unusual sourcing friction.

One useful way to think about this device is as an analog coefficient engine. It does not simply emit a predefined voltage; it applies digitally controlled precision scaling to an externally defined analog quantity. That makes it fundamentally more reusable across architectures than a fixed-behavior DAC. In systems that evolve over time, this often preserves design optionality. A channel initially used for static trimming can later be repurposed for programmable attenuation, waveform shaping, or closed-loop correction with only modest surrounding changes. That kind of reuse is rarely visible in first-pass comparison tables, but it often determines whether a component remains valuable across product revisions.

The DAC8812IBPW is therefore a strong fit for designs that prioritize precision architecture flexibility, synchronized dual-channel control, and true multiplying-DAC behavior. Its strengths become most evident in disciplined analog systems where external references and op amps are chosen as first-class design elements rather than afterthoughts. Where that level of control is acceptable, the part offers a precise and adaptable path to programmable analog behavior across instrumentation, calibration, and test applications, and it often delivers more long-term engineering value than simpler integrated-output alternatives.
