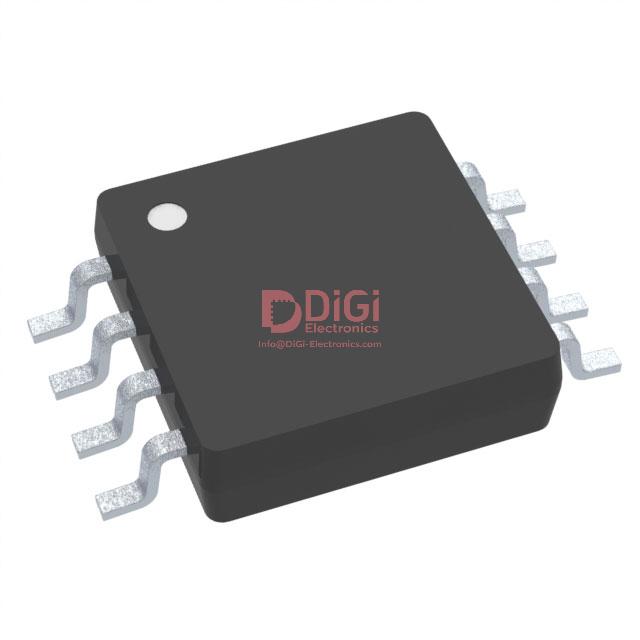

DAC8560IADGKT

With the DAC8560IADGKT, choosing between the internal 2.5V reference and an external one is a critical design trade-off. The internal reference offers a compact, low-power solution but has a specified initial accuracy of ±5mV (max) and a drift of 2ppm/°C typical, which may be insufficient for high-precision, wide-temperature-range applications. If your design requires 16-bit accuracy with minimal temperature-induced error, you should use an external reference like the REF5025, which offers 0.05% initial accuracy and 3ppm/°C drift. However, this adds BOM cost and board space. The internal reference is ideal for space-constrained, battery-powered systems where absolute precision over temperature is less critical. Note that the DAC8560IADGKT's internal reference is enabled by default, so if you use an external reference, you must disable the internal one via the control register to avoid power consumption and potential contention.

While both the AD5662 and DAC8560IADGKT are 16-bit, SPI-controlled DACs in small packages, they are not direct drop-in replacements. The AD5662 uses a 3-wire SPI interface that is compatible, but the DAC8560IADGKT uses a 24-bit shift register compared to the AD5662's 16-bit or 24-bit depending on mode. You must verify your microcontroller's SPI driver can send 24-bit frames (command + address + data) to the DAC8560IADGKT, whereas the AD5662 typically expects 16-bit frames. Additionally, the output buffer of the DAC8560IADGKT has a typical slew rate of 1V/µs and can drive loads up to 200pF directly; for a 4-20mA loop, ensure your external op-amp (e.g., for voltage-to-current conversion) can handle the DAC's 10µs settling time. If your existing PCB had compensation capacitors for the AD5662's output buffer, they may need to be removed as the DAC8560IADGKT's buffer is internally compensated and capacitive loads beyond 200pF can cause instability.

To minimize power consumption with the DAC8560IADGKT in a battery-powered application, leverage its microPower architecture with a two-pronged approach. First, use the internal reference and disable it when not needed by writing to the 'REFEN' bit in the control register; when enabled, the internal reference consumes about 135µA, but when disabled, total supply current drops to under 500nA in power-down mode. Second, for periodic updates, do not rely solely on the 'power-down' mode (selectable output load to 1kΩ, 100kΩ, or high-impedance). Instead, between updates, set the device to power-down mode with the output in high-impedance to eliminate output buffer current. Upon waking, factor in the 10µs settling time for the DAC output to stabilize to 16-bit accuracy (0.0015% FSR). Also, account for the internal reference startup time (typically 100µs) if you power it down between cycles. This duty-cycling can reduce average current to the single-digit microamp range, crucial for long battery life.

The DAC8560IADGKT is a single-channel device, but when used with external analog multiplexers (e.g., ADG708) to create multiple outputs, you face two primary risks: output glitch and charge injection. The DAC8560IADGKT's output glitch impulse area is specified as 0.3nV-s typical. When switching between channels via an external mux, the DAC output transitions to a new value, causing a glitch that can couple through the mux's charge injection (typically 2-5pC). In a closed-loop system, this transient can appear as a disturbance, potentially causing instability. To mitigate, use a track-and-hold amplifier after the mux, or implement an output filter with a cutoff frequency well below the loop bandwidth to absorb the glitch. Alternatively, synchronize the DAC's LDAC pin (latches the DAC register) with the mux's address lines to ensure the output only updates when the mux is settled. Use the DAC8560IADGKT's capability to update asynchronously, allowing you to preload the new value and then simultaneously update the output after the mux has switched, minimizing the disruption.

For high-reliability designs with the DAC8560IADGKT, maintaining its ±4 LSB INL performance requires stringent layout and decoupling. The device has separate analog (AVDD) and digital (DVDD) supply pins; they must be decoupled individually with a 10µF tantalum capacitor and a 0.1µF ceramic capacitor placed within 2mm of each pin to ground, with a low-impedance ground plane. A common mistake is using a single ferrite bead for both supplies, which can induce digital switching noise into the analog supply—instead, use separate beads if isolation is needed. For EMI immunity, keep the SPI lines (SCLK, DIN, SYNC) as short as possible, use series termination resistors (22Ω to 100Ω) near the source, and route them away from analog output traces. The DAC8560IADGKT's output buffer is sensitive to capacitive loading; direct connection to long cables or high-capacitance loads (>200pF) can cause ringing or oscillation. For driving external cables, add a series isolation resistor (50Ω to 200Ω) at the output pin, outside the feedback loop, to isolate the capacitive load and preserve the device's settling time and stability over the -40°C to 105°C range.
