DAC813JU

Texas Instruments DAC813JU Product Overview

Texas Instruments DAC813JU is a monolithic 12-bit voltage-output DAC intended for processor-based systems that need deterministic analog behavior, direct parallel loading, and low external component count. Its value is not just the converter resolution. The real advantage is architectural integration: the device combines the DAC core, a trimmed +10 V reference, interface logic, double-buffered data latches, and an output amplifier in one package. That integration materially reduces design uncertainty. In older mixed-signal systems, error often comes less from nominal converter resolution and more from reference instability, output stage mismatch, and board-level coupling between digital update activity and analog settling. DAC813JU addresses those risks at the device level.

At the signal-chain level, the part is designed to produce a precision voltage directly, which distinguishes it from current-output DACs that require an external I/V stage. That difference matters in practical designs. A current-output DAC can provide flexibility, but it also shifts key performance variables to external op-amp selection, resistor matching, compensation, and layout quality. With DAC813JU, the voltage-output path is already closed inside the device, so gain accuracy, output compliance behavior, and many stability concerns are more predictable. For control loops, setpoint generation, and programmable analog sources, this usually shortens validation time because fewer analog interactions are left exposed.

The 12-bit resolution places the device in a useful engineering middle ground. It is precise enough for many calibration, instrumentation, servo bias, and industrial control tasks, while remaining simpler to integrate than higher-resolution DACs that impose tighter reference, grounding, and thermal management demands. In a 10 V full-scale system, 1 LSB is approximately 2.44 mV. That is sufficient for many actuator drive references, threshold programming functions, and coarse-to-medium precision stimulus generation. In many deployed systems, the limiting factor is not quantization itself but total error accumulation from gain drift, offset, amplifier loading, and environmental coupling. A well-integrated 12-bit DAC often delivers more usable system accuracy than a nominally finer converter surrounded by weak analog support circuitry.

A central strength of DAC813JU is its guaranteed monotonicity over temperature. This specification is easy to underestimate, but it is critical in closed-loop and sweep-based applications. Monotonicity ensures that as the digital input code increases, the analog output does not reverse direction. In control systems, that prevents local discontinuities that can destabilize loop tuning or create false inflection points during calibration sweeps. In programmable threshold applications, monotonicity avoids edge cases where an incremented code unexpectedly lowers the output. In practice, monotonic behavior tends to matter more than absolute linearity when the DAC is embedded in a system that depends on predictable directional response.

The specified maximum linearity error of ±1/2 LSB gives the device a strong position among mature precision DACs with parallel interfaces. At this error level, transfer curve deviation remains tightly bounded relative to the converter step size. For engineers evaluating legacy-compatible parts, this means the DAC can support repeatable code-to-voltage mapping without requiring excessive correction in firmware. It also simplifies factory calibration strategy. If the system already includes a reference measurement path, a small number of calibration points is often enough to remove dominant gain and offset terms while leaving residual nonlinearity acceptably low.

The integrated +10 V reference deserves specific attention because it shapes the entire converter behavior. In many precision DAC systems, the reference is the analog anchor. Any noise, drift, or thermal gradient in the reference appears directly in output uncertainty. By integrating the reference on-chip, TI reduces interconnect sensitivity and minimizes one of the most failure-prone areas of board-level precision design. The specified gain drift of ±30 ppm/°C is not state of the art by modern precision standards, but it is solid for the device class and operating era. More importantly, it aligns with the converter architecture, so the total analog path behaves as a coordinated system rather than as a loose combination of separately sourced components. In practical deployments, that usually translates into more stable field behavior than a discrete reference scheme assembled without careful thermal symmetry.

The double-buffered latch structure is another feature with system-level importance. It enables data to be loaded into an input register and transferred to the DAC register under controlled timing. This is useful whenever output updates must occur synchronously or without transient invalid states. In multi-channel control systems, simultaneous or near-simultaneous update is often essential. Without double buffering, bus activity can momentarily expose intermediate codes, which can create glitches at the analog output. Those glitches may be harmless in a lab setup but problematic in real equipment, especially when the DAC drives sensitive bias nodes, motion setpoints, or calibration voltages. A buffered update model allows software and hardware timing to remain decoupled from the analog commit point, which is usually the safer architecture.

The parallel microprocessor interface reflects the design assumptions of the DAC813 family and remains relevant in systems built around deterministic buses or legacy processors. Compared with serial DACs, a parallel DAC consumes more pins and board routing resources, but it offers low-latency data transfer and very transparent timing analysis. That transparency is valuable in retrofit and maintenance-heavy environments where engineers must reason about bus states, strobe timing, and update determinism from schematics rather than from protocol stacks. Parallel parts also integrate well in systems that already allocate a memory-mapped or peripheral-mapped address space for direct data output. In such cases, the DAC behaves almost like an analog register, which simplifies software interaction and fault tracing.

The DAC813JU supports both unipolar and bipolar output configurations, which expands its usefulness across instrumentation and control domains. Unipolar operation is natural for programmable sources, offset generation, and ADC reference trimming. Bipolar operation is better suited to actuator centering, signed control variables, waveform generation around ground, and error-signal injection. The ability to support both modes from the same core architecture is practical because many system designs evolve over time. A channel initially intended as a 0 to 10 V command source may later be repurposed as a ±5 V trim or compensation output. Devices that preserve that flexibility reduce redesign friction.

Its supply requirements reflect classic precision analog design practice. The analog section operates from dual supplies of ±11.4 V to ±16.5 V, and the logic supply is tied to the positive rail. This is not a low-voltage modern mixed-signal part. It is intended for systems that can support true bipolar analog headroom and where output swing, amplifier linearity, and margin against clipping matter more than power minimization. That makes the device a stronger fit for industrial racks, instrumentation backplanes, calibration fixtures, and established control platforms than for compact low-power embedded nodes. In exchange for the heavier supply environment, the design gains a more comfortable analog operating region. Output amplifiers generally behave better when not pressed against tight low-voltage rails, especially in precision applications.

The DAC813JU package and grade define its deployment boundaries. The JU suffix identifies the 28-lead plastic SOIC version, and the specified 0°C to +70°C range places it in the commercial temperature class. That does not automatically exclude industrial use, but it does require disciplined thermal qualification if the end equipment faces wider ambient excursions. In practice, many failures attributed to DAC accuracy are thermal-context failures rather than intrinsic converter faults. Local heating from neighboring regulators, DAC self-heating under load, and asymmetric airflow can all distort the effective temperature seen by the reference and output stage. For this reason, thermal placement on the PCB matters more than the package style alone might suggest.

From an application perspective, the part is especially well aligned with four classes of systems. In industrial control, it works well as a programmable setpoint source for drives, valve controllers, and analog command interfaces where deterministic update timing and monotonic behavior are essential. In instrumentation, it supports excitation generation, programmable thresholds, bridge balancing, and gain/offset trimming. In calibration equipment, the integrated reference and bounded linearity support compact precision sources without requiring an external precision analog front end. In legacy processor systems, the parallel interface and high integration simplify replacement or maintenance where redesigning around a serial DAC would create unnecessary software and hardware churn.

Board-level implementation still determines whether the device reaches its expected performance. The first priority is grounding discipline. Digital return currents should not be allowed to share narrow impedance paths with the analog output reference network. Even with an integrated reference, poor ground partitioning can convert digital edge activity into apparent DAC noise or code-dependent output disturbance. The second priority is supply decoupling. Dual analog rails should be locally bypassed with a combination of high-frequency ceramic capacitors and bulk capacitance placed close to the device pins. The third priority is output loading. Although the internal amplifier simplifies use, it should not be treated as infinitely strong. Capacitive loads, long cable runs, or dynamic downstream inputs can degrade settling or provoke stability issues unless isolation resistance or buffering is added.

In practical debug work, output anomalies on voltage DACs of this class often trace back to timing assumptions and reference integrity before they trace back to converter defects. If the output appears to jump incorrectly, the first checks should be latch sequencing, bus setup and hold margins, and whether the intended update edge matches the hardware design. If the output drifts more than expected, the next checks should be thermal gradients, supply cleanliness, and load-induced amplifier stress. A recurring pattern in mature systems is that the converter itself remains stable while the surrounding environment changes over years of service: capacitor ESR shifts, ground connections oxidize, and replacement boards alter airflow or nearby heat sources. Parts like DAC813JU tend to reward conservative layout and stable mechanical integration.

One useful way to think about DAC813JU is as a precision analog subsystem packaged as a DAC rather than as a bare conversion element. That distinction explains why it remains relevant in certain designs despite its age and parallel interface. In many engineering contexts, the best component is not the one with the highest headline resolution or the newest bus protocol. It is the one that closes the most error paths inside a known architecture and behaves predictably under real operating constraints. DAC813JU fits that philosophy well. It offers enough precision to be serious, enough integration to reduce analog risk, and enough interface simplicity to remain maintainable in long-lived systems.

For design teams evaluating whether to use or retain this part, the decision should center on system architecture rather than on isolated datasheet metrics. If the application needs a direct precision voltage output, deterministic parallel loading, bipolar capability, and solid monotonic behavior in a platform already provisioned for dual analog rails, DAC813JU remains a technically coherent choice. If the design instead prioritizes low-voltage operation, dense channel count, minimal pin usage, or modern digital interfaces, newer serial DACs may be more suitable. The key insight is that DAC selection is rarely about resolution alone. It is about how much analog certainty the device contributes to the full system. In that respect, the DAC813JU is stronger than its age might suggest.

Texas Instruments DAC813JU Core Architecture and Functional Integration

Texas Instruments DAC813JU is best understood not as a standalone 12-bit DAC core, but as a tightly integrated precision output subsystem. Its architecture combines the conversion element, reference generation, output amplification, and input-data isolation into a single device. That integration is the main reason the part remains attractive in control and instrumentation paths where predictable analog behavior matters more than raw interface speed. By collapsing several traditionally discrete analog functions into one package, it reduces loop area, lowers interconnect sensitivity, and removes a number of small but cumulative error sources that usually appear around external references and output conditioning stages.

At the center of the device is a 12-bit digital-to-analog converter implemented with fast current switches and laser-trimmed thin-film resistors. This is a practical architecture for achieving both precision and usable dynamic behavior in one monolithic part. The resistor network establishes ratio accuracy, while laser trimming corrects process spread to preserve gain and linearity over production. The current-switching approach then allows the code-dependent internal currents to be steered quickly, which supports low settling time and reduces the lag between a digital update and a valid analog level. In engineering terms, this is the part of the design that defines the static transfer quality and the first-order dynamic response of the converter.

The use of thin-film resistors is not just a manufacturing detail. In precision DACs, resistor matching is the dominant mechanism behind integral nonlinearity and differential nonlinearity. Good matching ensures that each code step remains close to its ideal value, especially across major carry transitions where many bits change simultaneously. This is where lower-grade converter structures often show discontinuities or visibly uneven step behavior. In practice, when a DAC is used to drive threshold levels, calibration voltages, or waveform generation with small code increments, these resistor-level imperfections are often more important than the nominal resolution written on the datasheet. The DAC813JU gains much of its practical credibility from the fact that its precision is rooted in internal matching quality rather than in external correction.

The output stage is equally important to the overall behavior. Instead of exposing a current output that must be converted externally, the DAC813JU includes a voltage-output amplifier. This removes the need for a separate current-to-voltage conversion op amp and the compensation effort that usually comes with it. The immediate advantage is lower component count, but the more important benefit is that the analog transfer path is internally characterized as a complete system. The converter core and output amplifier are designed to operate together, so gain scaling, output compliance, and settling behavior are more controlled than in a loosely assembled discrete chain.

That internal amplifier also changes how the part fits into a system. In many embedded designs, the requirement is not to build a custom analog signal chain, but simply to produce a stable programmable voltage with minimal support circuitry. The DAC813JU addresses that use case directly. Fewer external analog nodes means fewer leakage paths, fewer parasitic capacitances, and fewer opportunities for layout-induced instability. This usually translates into shorter bring-up time and more repeatable behavior across board revisions. Experience with mixed-signal layouts repeatedly shows that every external high-impedance analog node added near a precision DAC increases sensitivity to contamination, trace coupling, and grounding errors. Integrating the output stage avoids much of that fragility.

A key architectural feature is the internal precision +10 V reference. This block gives the converter a locally defined full-scale basis and enables operation without an external reference source. In system design, that matters because the reference is often the quiet center of the entire DAC error budget. Any drift, load disturbance, or noise injected into the reference path appears at the output as gain error or output noise. By integrating the reference, the device shortens that path and reduces dependence on board-level analog design quality. For compact systems, this is often a more meaningful advantage than the raw convenience of saving one external component.

The reference is not isolated from system-level considerations, however. The ability to source at least 5 mA for external loads is useful, but it must be treated carefully. The datasheet note that load current should remain constant is not a secondary caution; it is a direct statement about gain integrity. If the reference is used as both the DAC reference source and a variable external supply node, then load variation can modulate the reference voltage seen by the converter. That creates a moving full-scale endpoint, which appears as gain shift at the analog output. In controlled lab conditions this may look minor, but in assembled equipment even modest dynamic loading on a shared reference node can produce output changes large enough to complicate calibration and stability analysis.

A disciplined design approach is to treat the internal reference primarily as a precision analog standard, not as a convenience rail. If it must feed other circuitry, those loads should be either buffered or held nearly constant over operating conditions. This is one of those details that often determines whether a design behaves like a precision instrument or merely like a functional circuit. The reference block is accurate enough to enable high-quality results, but only if the surrounding design respects the fact that reference stability and DAC accuracy are inseparable.

On the digital side, the double-buffered latch system is one of the most useful integration choices in the DAC813JU. The input path is divided into an input latch and a D/A latch. The input latch itself is structured as an 8-bit byte plus a 4-bit nibble, which reflects the interface realities of processors and buses commonly used with this class of device. This arrangement allows a 12-bit word to be assembled incrementally without forcing the analog output to follow intermediate bit patterns. Only when the D/A latch is updated does the converter output change. That separation between data loading and analog update is central to deterministic system behavior.

This architecture solves a real problem in mixed-width bus systems. Without buffering, loading a 12-bit value over an 8-bit interface would briefly present partial data to the DAC core. The output would then move through invalid intermediate codes before reaching the intended final value. In waveform synthesis or loosely filtered applications, those transients can show up as glitches. In closed-loop control systems, they can be worse, because the plant may react to an unintended command level before the final code is established. The DAC813JU prevents this by allowing the host to stage the full code and then apply it atomically to the analog domain.

The practical value of this becomes clear in multi-event timing environments. A processor can preload the next DAC code while still servicing communications, measurement, or interrupt activity, then trigger the analog update at a defined instant. That makes the DAC output transition alignable with control-loop boundaries, timer edges, or acquisition windows. In effect, the latch design decouples bus timing from analog timing. That is a subtle but powerful feature, especially in systems where deterministic update phase is more important than absolute throughput.

The 8-bit and 4-bit partitioning also reduces software and hardware friction. It allows straightforward mapping to common microcontroller bus organizations without external glue logic to reformat the 12-bit word. That may seem modest, but interface simplification is often where system robustness is won. A converter that is electrically accurate but awkward to write can still cause field problems if firmware timing, chip-select sequencing, or partial-write handling becomes error-prone. The DAC813JU avoids much of that by matching its digital structure to practical bus behavior rather than forcing the host around an idealized interface.

Viewed as a whole, the internal reference, trimmed converter core, voltage-output amplifier, and double-buffered latch system form a coherent architecture rather than a set of isolated features. Each block supports a different part of the same system objective: produce a precise analog voltage from digital data with minimal external burden and controlled update behavior. The internal reference stabilizes the transfer scale. The resistor network and current switches define conversion accuracy and speed. The amplifier delivers a directly usable voltage output. The latch structure protects analog integrity during digital transactions. The result is a device that shifts complexity inward, where matching and interaction can be better controlled.

This inward shift of complexity has direct application value in embedded control, calibration sources, programmable thresholds, and setpoint generation. In those scenarios, board area is usually constrained, firmware resources are finite, and analog predictability must survive ordinary manufacturing spread. A more discrete approach can in theory offer flexibility, but it often introduces hidden integration costs: reference routing sensitivity, op-amp stability tuning, ground return interactions, and code-update glitch management. The DAC813JU avoids much of that overhead by presenting a more complete analog output function.

In practice, the part is especially effective when the design goal is stable monotonic voltage generation rather than high-speed arbitrary waveform output. It fits naturally into systems that value repeatability, simple calibration, and low component count. Good results still depend on ordinary mixed-signal discipline: short reference paths, controlled grounding, clean supply decoupling, and avoidance of dynamic loading on precision nodes. When those basics are observed, the architecture tends to reward the designer with outputs that are easier to characterize and less sensitive to board-level variation than a functionally equivalent discrete solution.

The broader engineering lesson in the DAC813JU is that integration is most valuable when it removes the error mechanisms that are hardest to manage externally. Texas Instruments did not simply combine blocks to save space; the chosen blocks are exactly the ones whose interaction usually dominates precision voltage-output DAC behavior. That is why the device remains architecturally sound: it reduces not only component count, but also uncertainty.

Texas Instruments DAC813JU Key Electrical and Conversion Performance

Texas Instruments DAC813JU is best understood as a precision voltage-output DAC designed for systems that need predictable analog behavior without the extra design overhead of an external output amplifier stage. Its practical value is not defined by a single headline parameter, but by how its resolution, coding flexibility, static accuracy, and settling behavior combine into a stable and usable signal chain element. For selection work, this combination is often more relevant than raw bit count alone.

The device provides 12-bit resolution, which divides the programmed output span into 4096 discrete steps. In engineering terms, that places it in a range where quantization is fine enough for many instrumentation, industrial control, calibration source, and programmable bias applications, while still keeping interface and system complexity modest. The direct support for unipolar straight binary and bipolar offset binary coding is especially useful in mixed-signal platforms where different signal conventions appear across subsystems. If binary two’s complement is required, it can be implemented by externally inverting the MSB of the bipolar offset binary input. That detail matters because it reduces digital translation effort and makes the part easier to integrate into controller architectures that already standardize on signed numeric formats.

From a conversion-linearity perspective, the DAC813JU is a strong fit for precision-oriented designs that still need practical manufacturability. At +25°C, the specified maximum linearity error is ±1/2LSB. For a 12-bit DAC, this is a meaningful threshold because it indicates that the transfer curve remains tightly controlled relative to the ideal staircase response. In many real systems, this directly affects how faithfully a commanded digital code becomes a predictable analog level. When the DAC is used as a programmable reference, threshold source, or actuator command generator, linearity error translates into deterministic shape error rather than random uncertainty, which is often easier to calibrate or budget.

Differential linearity error is specified at ±3/4LSB maximum for J-grade parts, including the DAC813JU, and monotonicity is guaranteed over temperature. This monotonicity guarantee is one of the device’s most practically valuable traits. In closed-loop systems, especially servo control, valve positioning, programmable current source control, and low-distortion ramp generation, a non-monotonic DAC can create small but disruptive reversals in output as the code increments. Those reversals can produce loop dithering, false threshold crossings, or visible waveform discontinuities. A monotonic DAC avoids that class of failure. In practice, this tends to matter more than achieving extremely low integral linearity on paper, because control systems usually tolerate small absolute transfer deviations more easily than directional errors in the output trajectory. That tradeoff is often underestimated during early component selection.

Gain and offset behavior further define how much correction effort is required at system level. The gain error is specified at ±0.2% maximum, with a typical value of ±0.05%. Unipolar offset error is ±0.02% of full-scale range maximum, while bipolar zero error is ±0.2% of full-scale range maximum. These numbers show that the device starts from a relatively accurate baseline, but not necessarily from a zero-calibration condition if the end application demands traceable endpoint precision. In many industrial products, that distinction is important. A DAC may be accurate enough to function correctly without trimming, yet still benefit from one-point or two-point calibration when channel-to-channel consistency, field replacement interchangeability, or tight process margins are required. The availability of external trim provisions is therefore not just a legacy convenience; it is a practical mechanism for trading production calibration effort against final error budget.

A useful way to evaluate these offset and gain specifications is to place them inside the complete analog path rather than treating them as isolated DAC numbers. If the output drives a downstream stage with its own offset, bias current effects, temperature drift, or reference sensitivity, the DAC’s initial error may stop being the dominant term. In that situation, the DAC813JU’s intrinsic accuracy is often already sufficient, and further improvement depends more on reference quality, grounding discipline, and thermal symmetry across the board. This is a recurring pattern in precision layouts: once DAC core errors drop below a certain level, board-level details start to dominate observed performance.

Settling performance defines the usable update rate more honestly than digital interface speed. For a full-scale range change, the DAC813JU specifies 6µs typical in the 20V range and 5µs typical in the 10V range, settling to within ±0.01% of final value with a 5kΩ || 500pF load. For a 1LSB change at major carry, the typical settling time is 3.3µs in the 20V range and 2µs in the 10V range. These values indicate a device optimized for precision final-value convergence rather than aggressive high-speed reconstruction. That distinction is essential. Some DACs can update quickly in a digital sense but exhibit output glitches, slow tail settling, or code-transition artifacts that limit their usefulness in precision analog loops. Here, the specified settling target of ±0.01% provides a more application-relevant measure of readiness.

The load condition attached to the settling specification should not be treated as a footnote. A 5kΩ || 500pF load represents a realistic but still bounded analog environment. If the output is routed through long traces, switched nodes, sample-and-hold inputs, or multiplexed front ends, the effective capacitive loading can rise enough to stretch settling time or increase transient disturbance. Designs that appear correct at schematic level can lose several microseconds in real hardware because of output routing parasitics or because the receiving stage injects charge back into the node. In bench evaluation, it is common to see the nominal settling number hold only after the output path is shortened, shielded, or buffered appropriately. For that reason, the DAC813JU performs best when treated as part of an analog interconnect problem, not only as a converter block.

The distinction between full-scale settling and 1LSB major-carry settling also deserves attention. Full-scale transitions stress output slew capability and amplifier recovery, while major-carry transitions expose code-dependent switching behavior near the most significant bit boundary. If a DAC remains well behaved at major carry, it is usually better suited for fine programmed sweeps, staircase generation, and threshold scanning where code-transition cleanliness matters. This is often more valuable than fast large-step movement, particularly in test instrumentation and calibration systems that spend more time making incremental corrections than jumping across the entire range.

In application terms, the DAC813JU fits moderate-speed precision update environments. It is well aligned with programmable power supply control, analog setpoint generation, industrial actuator command outputs, waveform generation at controlled rates, and instrumentation sources that prioritize accurate endpoint arrival over raw sample rate. In these use cases, a few microseconds of settling is usually acceptable if the output reaches the target cleanly and repeatably. The part is less compelling for high-throughput arbitrary waveform generation or systems that demand very fast multiplexed channel updates, where newer current-steering or high-speed voltage-output DAC architectures would be more appropriate.

One practical advantage of this device class is that it simplifies analog design decisions around output range generation. Because it provides straightforward voltage output and supports both unipolar and bipolar coding modes, the system designer can often map software command space more directly to physical control range. That reduces the need for extra scaling stages and lowers the chance of software-to-hardware interpretation errors. In deployed systems, this kind of simplicity often improves reliability more than a marginal specification improvement would. Cleaner range mapping shortens calibration tables, reduces exception handling in firmware, and makes fault analysis easier when measured output does not match commanded state.

Another point worth emphasizing is that monotonicity over temperature changes the confidence level of the part in field conditions. Room-temperature linearity numbers are helpful, but thermal monotonicity is what protects behavior when the enclosure warms up, airflow changes, or neighboring power components shift the local thermal gradient. In practical control hardware, this can be the difference between a loop that remains quiet across the operating range and one that develops intermittent oscillation only after warm-up. Devices that preserve code-order integrity under temperature stress usually create fewer debugging surprises later in the integration cycle.

For product selection, the DAC813JU therefore occupies a very usable middle ground. It is accurate enough to support precision analog programming, fast enough for disciplined control and instrumentation updates, and simple enough to integrate without excessive analog support circuitry. Its strongest attributes are not flashy. They are the kind that reduce risk: guaranteed monotonicity, solid linearity, manageable gain and offset errors, and settling behavior specified in a realistic precision context. In systems where the analog output must move to the correct value, stay there cleanly, and do so with repeatable behavior across code transitions and temperature, those characteristics tend to matter more than a higher nominal speed figure.

Texas Instruments DAC813JU Digital Interface and Bus Compatibility

Texas Instruments designed the DAC813JU around a bus-oriented digital interface rather than a generic serial control model, and that choice shapes how the device behaves in real systems. Its interface is optimized for deterministic word loading, low software overhead, and straightforward attachment to processor-era parallel buses. For legacy boards, mixed-signal control backplanes, and instrumentation designs that still value predictable cycle timing over pin-count reduction, this architecture remains notably practical.

At the core of the interface is a split 12-bit data path. The converter accepts data as an 8-bit low-byte segment and a 4-bit high-nibble segment. These are captured independently by first-rank latches under control of LLSB and LMSB, with WR acting as the write qualifier. Once both portions of the digital word are in place, LDAC transfers the assembled code into the D/A latch, which drives the analog output update. This two-stage structure is more than a packaging convenience. It decouples bus transactions from the final analog transition, allowing software or external logic to prepare a value first and then choose the exact moment the output changes.

That distinction matters in control systems. When the bus write and the analog update occur in separate phases, the design gains timing discipline. A processor can load the next code while the output remains stable, then issue LDAC at a controlled instant relative to a sampling clock, interrupt boundary, or actuator update event. In practice, this reduces output ambiguity during multi-step register writes and helps avoid visible glitches in systems where downstream circuitry reacts quickly to step changes.

The split-latch arrangement is especially well suited to 8-bit processors. A full 12-bit DAC code can be written using a natural two-cycle sequence: one write for the lower byte, one write for the upper nibble. This maps cleanly onto classic microprocessor buses without forcing bit packing tricks or read-modify-write handling in software. In older embedded environments, this kind of interface often saves more than instruction count. It simplifies address decoding, reduces firmware branching, and makes bus traces easier to interpret during debug because each transaction corresponds to a meaningful segment of the DAC word.

The same structure also works in wider-bus systems, including 16-bit processor environments and FPGA-driven control planes. In those cases, the 12-bit value may be formed in a broader register path and then presented to the DAC through simple glue logic. Although the device is not a native 16-bit peripheral in the modern memory-mapped sense, its latch partitioning gives enough flexibility to integrate into wider bus fabrics without awkward protocol adaptation. This is one of the reasons such converters persist in long-life industrial and test equipment: they tolerate interface heterogeneity better than many highly integrated modern parts.

One subtle but important feature is that the interface allows the final byte or nibble write to coincide with the transfer into the D/A latch. That means the last data-loading action can also serve as the analog update event. In a firmware-controlled system, this reduces bus cycles and removes one extra control step. The benefit is not just efficiency. It also narrows the timing window between “digital word complete” and “analog output valid,” which can make state-machine behavior easier to reason about. In tightly scheduled loops, saving even one control write often improves jitter consistency more than it improves average throughput.

The logic-level compatibility is deliberately broad enough for direct attachment to standard 5 V digital families. The DAC813JU accepts TTL and 5 V CMOS levels across its operating range, with logic high recognized from +2 V to +5.5 V and logic low from 0 V to +0.8 V. This makes the part unusually forgiving in mixed-logic systems where output swing margins may not be ideal. A TTL peripheral, a CMOS microcontroller, and discrete bus drivers can all typically drive the interface without level translation. For maintenance engineers dealing with partial redesigns, this kind of margin reduces the risk of interface instability when replacing one subsystem while retaining another.

Low input current further supports direct CMOS drive, but the data-input behavior under floating conditions deserves careful attention. Open DATA pins can drift above +5.5 V. The device is tolerant of that condition in the sense that it is not damaged, but the electrical result is still undesirable. When a floating input that has drifted high is later driven low, transient current spikes can occur, and edge response can slow. In a bench setup this may look like occasional write anomalies, uneven bus edges, or unexplained differences between prototype and production hardware. The practical fix is simple and should be treated as mandatory discipline rather than optional cleanup: any unused DATA inputs should be tied to DCOM.

This point is easy to underestimate because floating logic pins do not always fail loudly. On a static functional test, the converter may appear to work normally. The issue tends to emerge under repetitive writes, temperature variation, or noisy backplane environments where parasitic coupling shifts the floating level unpredictably. Pulling unused inputs to a defined potential removes a source of non-repeatable behavior that otherwise consumes disproportionate debug time. In parallel bus systems, many “analog” complaints originate from neglected digital pin hygiene.

Timing behavior around WR is another place where the interface rewards correct interpretation of the datasheet. WR is the fast strobe path and should be treated as the primary write timing reference. If WR is tied permanently low and designers attempt to use only LLSB or LMSB as the effective strobe, the required data hold time becomes much longer and shows greater unit-to-unit variation. That is a direct threat to timing closure. A design that works on one board lot or at room temperature may become marginal across production spread because the control signal being used was not the path optimized for capture timing.

From an engineering perspective, this implies a clear implementation rule: use WR as the active edge-qualified write strobe, and use LLSB and LMSB as section-select controls rather than substitutes for WR. That partition aligns with the internal timing path of the device. It also gives cleaner external design because data setup and hold can be referenced to one dominant strobe instead of being distributed across multiple enables. On processor buses, this usually maps naturally to a write pulse generated from address decode plus bus write timing. In programmable logic, it is worth generating WR as a dedicated pulse with controlled width rather than deriving it casually from combinational select logic.

Experience with parallel DAC interfaces suggests that many field issues come from not separating functional correctness from timing robustness. A converter may accept codes correctly in slow firmware tests yet still be vulnerable when the bus is exercised at full rate, when interrupts alter write spacing, or when a replacement CPU board sharpens edge rates. The DAC813JU is fairly tolerant by the standards of its era, but it still rewards disciplined strobe design, defined idle states, and clean latch sequencing. The bus protocol is simple enough that most failures are not conceptual. They come from assumptions that a working breadboard sequence is automatically a production-safe timing strategy.

There is also a broader design lesson in this interface architecture. The DAC813JU reflects an older but still valuable philosophy: keep digital transport, data assembly, and analog update as distinct operations. Modern integrated peripherals often hide these boundaries behind serial protocols and internal state machines. That improves convenience but can obscure timing intent. Here, the boundaries are explicit. Because of that, the device gives the designer unusually direct control over when data is captured and when the analog output is allowed to move. In closed-loop control, waveform generation, and calibration systems, that explicitness can be more useful than a smaller pin count.

For legacy compatibility, the part is therefore stronger than its age might suggest. It interfaces naturally with 8-bit buses, adapts acceptably to wider systems, tolerates standard 5 V logic families, and provides a deterministic update path through LDAC. The main conditions for reliable use are equally clear: do not leave DATA inputs floating, do not treat auxiliary enables as replacements for WR, and exploit the latch hierarchy deliberately instead of viewing it as a complication. When those rules are followed, the DAC813JU behaves less like a fragile legacy component and more like a disciplined parallel peripheral whose timing model remains intelligible and controllable even by current engineering standards.

Texas Instruments DAC813JU Output Ranges, Reference Path, and Adjustment Method

Texas Instruments DAC813JU provides a useful example of how a precision multiplying-style voltage-output DAC can be adapted to several output standards without changing the core device. Its value is not only in the nominal resolution or static accuracy, but in the way the reference path, output scaling network, and trim nodes are exposed so that a single design can be calibrated into different analog roles with limited external circuitry.

At the system level, the device supports three common output classes: 0V to +10V unipolar, ±5V bipolar, and ±10V bipolar. That range flexibility is implemented through internal scaling resistors and a small number of external interconnect choices. The key idea is that the DAC core does not directly define the final field output span. Instead, the output amplifier and reference injection network set the practical transfer function. This is why the pin-level configuration matters as much as the digital code itself.

The range selection mechanism is straightforward but worth understanding in circuit terms. According to the device connection scheme, tying Pin 2 or Pin 3 to VOUT selects a 20V full-scale span, while tying both Pin 2 and Pin 3 to VOUT selects a 10V full-scale span. In practice, “20V full-scale” is the basis for implementing ±10V or 0V to +10V behavior depending on how the offset and bipolar nodes are driven. “10V full-scale” similarly maps into narrower transfer functions such as ±5V when the bipolar offset network is used. This arrangement reflects a classic precision DAC architecture: the raw converter current or voltage is internally scaled, then translated by an output stage whose gain is fixed through pin-selectable resistor paths.

A useful way to think about the DAC813JU is to separate its behavior into three layers. The first layer is the internal precision reference. The second is the gain path that feeds the DAC transfer scale. The third is the offset or bipolar-zero path that shifts the output origin. Once these layers are viewed independently, the adjustment method becomes much more intuitive and less like a list of isolated trim steps.

The internal +10V reference is available at VREF OUT. This is not merely a convenience node; it is the analog anchor for the entire transfer accuracy of the DAC. VREF OUT must be returned to VREF IN through a nominal 500Ω resistor, or through a 1kΩ trim potentiometer when gain adjustment is required. Electrically, this closes the reference-drive path into the DAC’s scaling network. The resistor value is part of the intended operating condition, not an arbitrary external load. Replacing it with a trim element allows controlled modification of the effective reference seen by the DAC core, which directly changes full-scale gain.

This gain-trim method is simple, but it should be treated as a precision analog function rather than a casual adjustment point. The wiper quality, temperature coefficient, and long-term stability of the trim element will directly affect output gain drift. In a bench prototype, almost any potentiometer may appear to work. In deployed equipment, low-quality trimmers often become the dominant source of recalibration drift, especially when the output is expected to hold endpoint accuracy over thermal cycling. A fixed precision resistor plus a narrow-range trim network usually behaves better than a wide-open full-range potentiometer, because it limits sensitivity and improves adjustment resolution.

The bipolar path is handled through the BPO pin. Connecting BPO to VREF OUT through a 100Ω resistor or a 200Ω potentiometer establishes the bipolar zero adjustment function. This path injects a controlled fraction of the reference-derived signal into the output conditioning network so that the transfer function can be centered around zero. In bipolar mode, this is what converts a unipolar DAC core behavior into a symmetrical positive/negative output around ground. The important detail is that bipolar zero is not just a small offset tweak. It is the mechanism that aligns the code transition structure with the required analog origin.

That distinction matters during calibration. In unipolar mode, offset adjustment is performed by applying the digital code that should ideally produce 0V output, then trimming until the output reads zero. This procedure aligns the lower endpoint of the transfer curve. In bipolar mode, offset adjustment is performed differently: the code corresponding to the maximum negative output is applied, and the trim is adjusted until the output reaches the required negative full-scale value. This may initially seem unusual, but it matches the architecture. In a bipolar output stage, the most meaningful offset condition is often the negative endpoint or bipolar zero relation, not simply the code that numerically appears to represent zero volts.

A practical calibration sequence benefits from separating gain and offset iterations even though they interact slightly. A stable method is to begin with the reference and output stage fully warmed up, then trim bipolar zero or offset first, followed by gain, and then repeat the offset trim once more. One pass is often not enough for precision work because the gain path and zero-shift path are not perfectly orthogonal. Small interaction is normal in resistor-scaled output amplifiers. Ignoring that interaction typically leaves a residual endpoint error that is much larger than the nominal DAC linearity error.

Another point that deserves emphasis is the role of the reference node as both a precision source and a sensitive analog routing point. VREF OUT should be treated as a low-noise precision node with short routing, clean grounding, and minimal parasitic pickup. Long traces, nearby digital clocks, or shared return currents can modulate the reference path and show up as output instability or code-dependent noise. In mixed-signal boards, many apparent DAC “linearity” issues are actually reference contamination or output amplifier settling disturbances. The DAC813JU exposes enough of the analog path that board layout quality directly affects achievable performance.

The output range options are especially useful in industrial control and instrumentation interfaces where one hardware platform may need to drive different standards. A 0V to +10V span fits many actuator and command interfaces. ±5V is common where moderate bipolar swing is needed with reduced headroom stress. ±10V remains a standard in test equipment, servo loops, and legacy precision control systems. The DAC813JU allows these use cases to be covered with one DAC architecture, reducing redesign effort. The real advantage is not only BOM reduction. It also simplifies calibration infrastructure because the same reference philosophy and trim strategy can be preserved across product variants.

In applications that require repeatable field calibration rather than absolute factory-trimmed endpoints, this device is particularly well balanced. It exposes enough control to remove gain and zero errors without demanding a large external precision op-amp network. That design choice is often more valuable than chasing very small untrimmed error numbers on paper. In actual signal chains, connector drops, downstream amplifier offsets, and system-level ground differences often dominate the raw DAC endpoint error. A DAC that supports stable, accessible calibration points usually integrates more cleanly into production systems than one that advertises slightly better static specs but hides the analog correction paths.

There is also a design tradeoff embedded in the selectable full-scale structure. Wider output spans such as ±10V impose greater demands on supply headroom, output amplifier compliance, and thermal stability. Narrower spans such as ±5V generally reduce stress on the output stage and can improve effective noise utilization when the application does not need the larger swing. In that sense, the range-selection pins are not only compatibility features. They are a way to match the DAC’s analog operating envelope to the real requirement, which usually leads to a cleaner and more robust signal chain.

When implementing the DAC813JU, it is worth treating calibration as part of the architecture rather than as a final production step. Select stable resistors around VREF IN and BPO, place trim components close to the device, and define a repeatable adjustment order tied to the intended output range. If the design must hold calibration over time, avoid excessive trim sensitivity and verify behavior at temperature, not just at room conditions. The device gives enough access to make this practical, and that is one of its strongest engineering qualities: it turns output range selection, reference scaling, and endpoint alignment into controlled design variables instead of external patchwork.

Texas Instruments DAC813JU Timing Behavior, Reset Control, and Update Strategy

Texas Instruments DAC813JU provides unusually explicit control over data acceptance and output update timing. That behavior is not just a convenience feature. It is a core architectural property that determines whether the device behaves cleanly in shared-bus systems, deterministic waveform engines, and closed-loop instrumentation. Its interface separates “data staging” from “analog commitment,” which is the right mental model for using the part correctly.

At the digital boundary, the DAC is built around a two-step transfer path. A host first writes the 12-bit code into the input latches, typically in split form through the 8 LSB path and the 4 MSB path. During this phase, LDAC remains high, so the analog output is held by the D/A latch and does not respond to bus activity. Only when a later control cycle pulls LDAC low, with the latch-select conditions satisfied, does the stored code move into the D/A latch and appear at the output. This is a classic double-buffered update mechanism, but in practice it is more than a textbook feature. It is what prevents the DAC from exposing intermediate digital states while the processor is still assembling a valid 12-bit word.

That distinction matters because the 12-bit value is not necessarily presented to the device in one atomic operation. In many bus-oriented designs, the lower byte and upper nibble are issued in separate cycles. Without buffering, the analog node would momentarily reflect an invalid hybrid of old and new data. In precision systems, those transient steps can inject current into downstream filters, disturb sample-and-hold circuits, or excite control-loop dynamics that were never meant to see those intermediate levels. The DAC813JU avoids that failure mode by allowing the input latches to absorb bus timing irregularities while the D/A latch defines the exact analog transition point.

The control truth table exposes several operating modes, and each has a clear system-level use case. Selective loading of the 4 MSBs or 8 LSBs supports split-word transfers when the host bus width or address map makes a single 12-bit transaction impractical. Loading the D/A latch from the input latches provides a clean commit edge for synchronous update strategies. The transparent mode, created by asserting WR, LLSB, LMSB, and LDAC low simultaneously, effectively collapses the buffering boundary and allows data to propagate directly through the latch chain. That mode can be useful in carefully bounded timing experiments or very specialized hardware pipelines, but it removes the main protection against code-transition corruption. In most precision designs, transparent operation is best treated as an exception, not a default.

A useful way to think about LDAC is as an analog frame-sync signal. The write strobes build the next code in the background. LDAC defines when that code becomes electrically relevant. This separation simplifies synchronization across multiple converters. Several DAC813JU devices can share common update timing while their data words are loaded independently beforehand. Once all channels are prepared, a common LDAC event causes simultaneous output movement. That approach is especially effective in phase-coherent waveform generation, multi-axis actuation, and instrumentation systems where skew between output channels translates directly into measurement error or control imbalance.

Reset behavior deserves equal attention because it affects both safety and startup determinism. RESET is asynchronous and dominant over normal data-input activity. When asserted low, it forces the D/A latch to 800 hex. The meaning of that code is configuration-dependent. In bipolar mode, 800 hex corresponds to bipolar zero, so the analog output moves to 0 V. In a unipolar 0 V to +10 V range, the same code is midscale, which produces +5 V. This is not a minor detail buried in control logic. It changes the physical meaning of a reset event.

That reset characteristic should be evaluated at the application level, not only at the digital interface level. In a bipolar actuator path, reset-to-midcode is often desirable because it returns the output to a neutral command state. In a servo bias network, offset trim system, or programmable source configured for unipolar output, the same reset drives the system to half of full scale rather than to zero. If downstream hardware interprets reset as a safe-off condition, that assumption can become dangerous. The device is behaving correctly, but the system interpretation is wrong. A robust design therefore defines reset in terms of resulting voltage and load behavior, not in terms of the digital control pin alone.

This also affects power-up sequencing. During startup, digital rails, reference circuitry, output amplifiers, and receiving stages rarely settle at the same time. If RESET is used to establish a known DAC state while the analog reference is still ramping, the nominal 800 hex target may not immediately translate into the intended output voltage. In well-behaved systems, RESET is held active until the reference and output chain are stable, then released only after the desired input code has been staged or after firmware has confirmed that downstream circuits are ready to accept a midscale output. That order avoids confusing startup transients with valid commanded states.

In recalibration and fault-recovery paths, asynchronous reset is often valuable because it bypasses bus traffic and state-machine latency. If a system detects loss of position feedback, reference drift, or watchdog timeout, RESET can move the converter to a known code immediately. Still, “known” is not automatically “safe.” In practical designs, the reset line is often paired with analog gating, amplifier disable logic, or relay isolation when the load cannot tolerate a midscale excursion in unipolar mode. This is one of the recurring lessons with precision DACs: deterministic digital state is only one part of deterministic analog behavior.

From a timing strategy perspective, the best results usually come from treating input-latch writes and output updates as separate scheduling domains. Bus writes can occur whenever processor bandwidth is available. Output commits should occur only at controlled instants aligned with measurement windows, PWM blanking intervals, ADC aperture timing, or loop-cycle boundaries. This reduces interaction between digital bus noise and analog update events. It also makes debugging easier because a logic trace can show data preparation independently from the instant of analog change.

Another practical consideration is code integrity during mixed-frequency operation. If the host updates the DAC while other peripherals are active on the same bus, bus contention, decode skew, or software interrupt latency can stretch the interval between low-byte and high-byte writes. The DAC813JU architecture tolerates that well as long as LDAC is kept high until the full word is valid. Systems that occasionally show unexplained output spikes often turn out to have violated this discipline, either by allowing LDAC to pulse too early or by inadvertently enabling transparent behavior during initialization. The fix is usually architectural rather than analog: enforce strict write ordering, isolate update strobes, and make the commit event explicit.

For multiplexed control systems, the device fits naturally into a staged-update model. One channel’s next value can be assembled while another channel’s current analog state is still active. In bus-driven instrumentation, that means the controller can preload correction values, gain trims, or setpoints across several devices, then apply them together. The resulting outputs appear coherent even though the underlying digital transfers were serialized. That pattern is especially important when output simultaneity matters more than bus efficiency.

The DAC813JU therefore rewards a disciplined interface design. Use the input latches as a staging buffer. Use LDAC as the true output timing control. Treat transparent mode as a specialized tool. Evaluate RESET by its analog consequence under the selected output range, not by its name. When those points are handled deliberately, the part behaves like a predictable mixed-signal boundary element rather than a simple bus peripheral, and that is the perspective that leads to stable precision systems.

Texas Instruments DAC813JU Pin Functions and System-Level Connection Guidance

Texas Instruments DAC813JU is not just a pin-defined voltage-output DAC. Its pinout reveals the intended partitioning of analog accuracy, digital interface timing, and reference-domain control. When the device is integrated well, these pins work as a coordinated system: supply rails establish analog headroom, commons define noise boundaries, digital controls determine update behavior, and reference-related nodes set transfer-function scale and trim behavior. Most implementation errors come from treating these groups independently instead of as coupled subsystems.

At the supply level, the DAC813JU separates analog power from logic power in a way that reflects the internal architecture. +VCC powers the analog core, -VCC provides negative analog headroom, and +VL powers the digital interface. The requirement that +VL be tied to +VCC is important because it removes one degree of freedom in logic-level planning. This means the interface is not intended for arbitrary low-voltage logic domains unless the full system power plan is built around that constraint. In practice, this simplifies internal level compatibility but requires board designers to confirm that upstream digital drivers meet the DAC input thresholds under all operating conditions, including power sequencing and brownout scenarios.

The analog and digital commons, ACOM and DCOM, deserve more attention than a typical “connect grounds carefully” note suggests. The specified allowance of up to ±3V difference between ACOM and DCOM without loss of accuracy is not an invitation to let them float casually apart. It is better understood as an internal tolerance against unavoidable common shifts in mixed-signal systems. The useful engineering implication is that moderate ground potential differences, often caused by digital return current or remote grounding structure, do not immediately corrupt static DAC accuracy. However, dynamic behavior is a different matter. Fast digital edge currents returning through DCOM can still capacitively or inductively couple into the analog domain, especially near reference and output routing. A robust layout usually treats ACOM as the quiet measurement ground, keeps DCOM as the local digital return, and joins them at a controlled low-impedance point near the converter or at the mixed-signal star node. This tends to reduce code-dependent output disturbance more effectively than relying on the ±3V tolerance alone.

The 12-bit data input bus, D0 through D11, is straightforward in naming but system behavior depends heavily on how the control pins are used around it. D11 is the MSB and D0 is the LSB, so any bus wiring inversion produces a transfer function that may still look active but becomes non-monotonic or badly scaled. This kind of fault is more common than it appears during bring-up because a DAC can respond “plausibly” even when bit ordering is wrong. A practical verification method is to write sparse test codes rather than ramps: 0x001, 0x002, 0x004, 0x008, and so on. That exposes swapped lines quickly and avoids wasting time debugging what appears to be reference drift or output amplifier instability.

The write and update controls define the timing boundary between digital loading and analog output change. WR controls the register write operation, while LDAC governs when the DAC output actually updates. This separation is valuable in systems that need deterministic multi-device updates or glitch-aware sequencing. A common system-level benefit is synchronous output refresh across several converters after data is preloaded. In control loops, this reduces skew between channels. In waveform generation, it limits phase error introduced by asynchronous bus timing. The design intent is clear: digital data movement and analog output transition are decoupled so that system timing can be engineered explicitly rather than accepted as a side effect of bus activity.

RESET provides a known startup or recovery state, which is especially useful in systems where output transients during power-up could propagate into actuators, references, or downstream signal chains. The significance of RESET is not just functional initialization. It is also a fault-containment tool. If the digital bus is uncertain during startup, asserting RESET prevents the DAC from interpreting partial logic states as valid commands. In mixed-voltage or slow-ramping systems, this is often the difference between a clean startup and an intermittent field issue that only appears under specific temperature or sequencing conditions.

The LMSB and LLSB pins indicate that the device supports calibration or range-related bit weighting adjustments tied to endpoint trim behavior. These pins are often overlooked because they are not part of the normal data path, yet they directly affect linearity alignment and full-scale behavior. In precision designs, pins of this type should not be routed as generic control signals. They should be treated as calibration-domain nodes, with short traces, low-noise references, and clear state definition. If left ambiguous or routed through noisy logic neighborhoods, they can introduce behavior that looks like gain error, endpoint compression, or missing-code anomalies.

The analog-side pins define the real performance envelope of the DAC. VOUT is the final output node, but its behavior is determined upstream by the reference network and output configuration. VREF OUT and VREF IN allow interaction with the internal or external reference path. BPO and the span-range pins further shape the transfer function by setting offset and output span conditions. This is where system scaling is actually established. A DAC is only as stable as its reference environment, and reference routing quality usually matters more than one more round of digital timing optimization. If the reference loop is noisy, thermally exposed, or loaded improperly, every code inherits that error. Good digital behavior cannot recover analog integrity once the reference domain is compromised.

Reference-related implementation benefits from thinking in terms of loop closure rather than just pin connection. VREF OUT is not merely an available voltage node; it is part of a precision source path that can be used internally, externally buffered, or overridden by VREF IN depending on the configuration. Any load attached to the reference output changes the local operating condition seen by the converter core. If a system needs to distribute this reference beyond the DAC itself, buffering is generally safer than direct fan-out. The hidden issue is not only DC loading but also transient coupling. Shared reference traces can carry small dynamic disturbances from one block into another, and those disturbances often appear as code-dependent output shimmer that is difficult to isolate later.

BPO and span-range control pins are critical in applications where the DAC output must map tightly to a plant input range, instrumentation offset, or bipolar drive requirement. These pins influence output scaling and zero/full-scale placement, so they should be configured with the same discipline used for precision resistor networks. In practice, the best results come from deciding the intended output transfer equation early, then assigning range and reference options to minimize downstream correction. If the DAC is forced into an awkward range and later “fixed” in software or with external gain stages, total error usually increases because offset, gain drift, and amplifier noise all compound.

Supply decoupling recommendations in the documentation should be interpreted as settling-performance guidance, not as optional housekeeping. The recommendation of 1µF to 10µF tantalum on -VCC and at least 0.01µF ceramic on +VCC, placed close to the package, points directly to how the internal analog sections draw transient current during code transitions and amplifier settling. The larger decoupling on -VCC suggests that negative-rail stability has a measurable effect on dynamic settling quality. In less demanding systems, a 0.01µF capacitor on -VCC may be functionally sufficient, but that usually means only that the circuit still works. It does not mean the DAC will settle cleanly to rated precision after large code steps. For precision applications, local bulk-plus-high-frequency decoupling is the more reliable choice: a small ceramic for fast edge energy and a larger nearby capacitor for lower-frequency rail support. Trace inductance matters here. A correct capacitor value placed far away often performs worse than a modest value placed correctly.

Power distribution strategy should also account for interaction between the DAC and nearby switching or logic devices. If a switching regulator, clock driver, or high-current digital bus sits on the same local supply segment, the DAC can see rail modulation that never shows up clearly in static voltage measurements. This often appears as elevated output noise, excessive glitch energy, or settling tails after major code transitions. A simple improvement is to isolate the analog supply feed with local filtering or a ferrite element where appropriate, while preserving a low-impedance return path. The point is not to create isolated islands blindly, but to control where high-frequency current flows.

Absolute maximum ratings and input range limits are especially relevant during transients, not only in steady-state operation. Digital inputs must remain within the specified input range, and analog supplies must stay within 0 to +18V relative to ACOM for +VCC and 0 to -18V for -VCC. The phrase “relative to ACOM” matters. If the analog common shifts because of layout error, sequencing, or connector hot-plug behavior, the effective stress on supply and signal pins can exceed safe limits even when bench measurements seem acceptable against chassis or system ground. This is one reason mixed-ground systems deserve careful startup analysis rather than only nominal-state validation.

ESD sensitivity is a practical board-handling issue but also a reliability indicator. Precision DACs often include structures that protect the device only within limited energy ranges. If the assembly process or field connectors expose signal pins before common or supply pins are established, the converter can suffer latent damage rather than immediate failure. Such damage may first appear as increased zero-scale error, unstable reference behavior, or unusual temperature drift. In high-density boards, these symptoms are easily misdiagnosed as calibration problems. It is often worth adding simple interface protection and sequencing awareness at system boundaries rather than relying solely on standard ESD handling procedures.

The package-level shorting warning is more important in dense layouts than it first appears. Around fine-pitch or closely spaced analog and supply nodes, solder spread, flux residue, exposed conductive surfaces, and adjacent rail routing can create intermittent leakage paths rather than hard shorts. Precision converters are unusually sensitive to this because microamp-level leakage near reference, output, or trim-related pins can alter endpoint behavior enough to degrade specification margins. The failure signature is often subtle: output range compression, drift that changes with humidity, or one board in a panel showing gain error while others pass. Clean spacing, solder mask discipline, and post-assembly inspection around the package perimeter often prevent long debug cycles later.

At the application level, the DAC813JU fits best in systems that need a configurable precision analog output with explicit control over update timing and reference scaling. Typical use cases include programmable sources, industrial setpoint generation, calibration subsystems, and closed-loop control interfaces. In those environments, the most reliable implementations usually follow one principle: treat the DAC as an analog component with a digital interface, not as a digital peripheral that happens to generate voltage. That design attitude changes layout priorities, power routing, startup control, and debug methodology in useful ways.

A practical bring-up flow helps reveal issues in the same order they arise inside the device. First verify supplies and commons with respect to ACOM. Then verify reference configuration and stability. After that confirm bus bit order using sparse codes. Next validate WR and LDAC timing with static loads before testing dynamic updates. Finally characterize output settling with both small and full-scale code steps. This progression maps cleanly onto the converter’s internal dependency chain, and it usually isolates faults faster than starting from application software behavior or final analog measurements.

The most important system-level insight is that the DAC813JU’s pin functions are not independent labels but control points on accuracy, timing, and stability. +VCC, -VCC, +VL, ACOM, and DCOM define the operating envelope. D0 through D11, WR, LDAC, and RESET define when data becomes analog action. VREF OUT, VREF IN, BPO, and span-related pins define what that analog action means in amplitude and offset. Once these groups are routed and managed as interacting domains, the device typically behaves predictably and meets its intended precision with far less calibration overhead.

Texas Instruments DAC813JU Accuracy, Drift, and Monotonicity in Engineering Use

Texas Instruments DAC813JU is best evaluated as a complete error system, not as a single static DAC specification. Its practical value comes from the way gain, offset, linearity, and reference behavior interact across temperature, code range, and output configuration. For engineering use, that matters far more than the nominal resolution alone.

A central strength of the DAC813JU is guaranteed monotonicity over temperature. This means that when the input code increases, the analog output does not step backward anywhere within the rated operating range. In control loops, programmable setpoint generation, and calibration paths, that property is often more important than absolute accuracy at a single temperature. A converter with low initial error but poor monotonic behavior can create local reversals in the transfer curve, which are difficult to correct in firmware and can destabilize closed-loop behavior. By contrast, a monotonic DAC preserves ordering of command values even when temperature shifts move other parameters.

The monotonicity guarantee for the J grade is tied to ±3/4 LSB over temperature. That is an important nuance. It does not imply perfect endpoint accuracy or zero differential nonlinearity at every code, but it does indicate that code progression remains well behaved under environmental variation. In practice, this gives confidence in applications such as valve positioning, motor bias control, programmable thresholds, and trim generation, where the output must move in the intended direction every time. When systems are calibrated only at a few points, monotonicity prevents interpolation from becoming unsafe or ambiguous between those calibration anchors.

Temperature drift should be read as multiple independent mechanisms rather than one combined number. Gain temperature coefficient for the DAC813JU J grade is specified at ±30 ppm/°C maximum. This term scales with output span, so its impact grows as the commanded output approaches full scale. In a 10 V full-scale system, 30 ppm/°C corresponds to about 300 µV/°C of span-related error. Across a 50°C ambient shift, that alone can accumulate to roughly 15 mV if left uncompensated. For many industrial analog outputs, that is acceptable. For tighter source applications, it becomes a primary design constraint.

Offset drift behaves differently. Unipolar offset drift is specified at ±15 ppm/°C typical and ±30 ppm/°C maximum for the J grade. Unlike gain drift, offset drift appears as a more uniform vertical shift in the transfer function. Its effect is proportionally larger near zero-scale outputs, where even a small offset can dominate percentage error. This is often where designs look correct at midscale yet miss low-end accuracy targets during environmental testing. In threshold generation or low-level bias programming, offset drift usually becomes visible before gain drift does.

Bipolar zero drift, specified at ±3 ppm of full-scale range per °C maximum, is especially relevant in systems using symmetric output ranges. Around the zero crossing, small drift terms can alter sign transition behavior, dead-zone width, or nulling accuracy. That matters in servo centering, instrumentation offset injection, and waveform generation where zero stability influences downstream interpretation. In bipolar systems, the zero point is not just another code location. It often anchors control symmetry and error budgeting for the entire signal chain.

Linearity drift over temperature is specified at ±10 ppm of full-scale range per °C maximum for the J grade. This parameter is easy to underweight because it usually appears smaller than gain or offset terms, yet it affects how well a room-temperature calibration remains valid as the environment changes. Gain and offset errors can be corrected with two-point calibration. Linearity drift cannot be removed so easily because it changes the shape of the transfer curve. In many embedded systems, this is the hidden boundary between “calibrated once” and “periodically recalibrated.” If the application depends on consistent intermediate-code accuracy over a broad temperature range, linearity drift deserves explicit treatment in the error model.

The internal +10 V reference is another defining factor. It is specified at 9.95 V to 10.05 V nominal tolerance with ±25 ppm/°C maximum temperature coefficient. Because the DAC transfer function is built around that reference, reference behavior directly drives output gain accuracy. A useful way to think about the DAC813JU is that the output span is only as stable as the combination of ladder stability and reference stability. If the internal reference drifts by 25 ppm/°C and the DAC gain term drifts by 30 ppm/°C, the worst-case span drift budget can approach the sum of both effects unless correlation is characterized and proven otherwise. In disciplined designs, these terms are treated as additive during first-pass budgeting. That avoids optimistic assumptions that later fail during thermal validation.

This is where the DAC813JU finds its proper engineering position. It is not a metrology-class DAC intended for ultra-low-drift source standards, precision bridge excitation trimming over wide thermal ranges, or instruments that promise near-reference-grade transfer stability without frequent recalibration. Its value is different. It offers a stable, monotonic, precision analog output element for industrial and embedded systems where predictable behavior is more important than extreme low drift. That includes actuator command generation, programmable test levels, analog scaling nodes, and calibration assist functions inside larger systems that already include periodic trim or system-level correction.

In actual design work, the most reliable approach is to separate the error budget into three layers. First, include initial accuracy terms: reference tolerance, gain error, offset error, and linearity at the calibration temperature. Second, include thermal movement: gain tempco, offset drift, zero drift for bipolar operation, and linearity drift. Third, include system-level contributors outside the DAC itself: output amplifier offset and drift, PCB thermal gradients, reference loading, ground impedance, and noise pickup. The third layer is where many nominally precise DAC channels lose most of their effective accuracy. A precision DAC placed next to a drifting output buffer or routed over a thermally asymmetric layout rarely behaves like its datasheet center values.

A recurring implementation pattern is that monotonicity survives poor analog layout, while accuracy does not. That distinction is useful. If a system needs stable ordering of command levels, the DAC813JU can still perform well even when board-level conditions are only moderately controlled. If the same system requires absolute voltage fidelity over temperature, then reference decoupling, local thermal uniformity, Kelvin grounding, and output buffer selection become decisive. In other words, monotonicity is primarily a converter characteristic; usable accuracy is a converter-plus-environment characteristic.

Another practical point is calibration strategy. For many applications using DAC813JU, a single room-temperature trim removes enough initial gain and offset error to make the device entirely suitable. But once ambient range widens, residual drift determines whether that trim still holds. If the product already measures its own output or monitors a downstream sensor response, temperature-aware correction can extend performance significantly with little hardware cost. Where no feedback path exists, the design should assume worst-case drift rather than typical drift. That tends to produce more realistic field behavior, especially in enclosures with localized heating from power devices or limited airflow.

The internal reference deserves a deliberate choice rather than a default one. Using it simplifies design and is often fully adequate for control-oriented outputs. Replacing or bypassing it with a lower-drift external reference can improve span stability, but only if the surrounding circuit preserves that improvement. There is little benefit in sourcing an excellent reference into a layout with thermal gradients, digital feedthrough, or an output stage whose drift exceeds the DAC’s own. Precision upgrades only matter when the full signal path supports them. This is a common inflection point in analog design: once converter drift is moderate, architecture and implementation dominate the result.

Viewed this way, the DAC813JU is a disciplined engineering component rather than a headline-spec device. Its guaranteed monotonicity over temperature is the anchor feature. Its gain, offset, and linearity drift are moderate, predictable, and manageable when properly budgeted. Its internal reference is convenient but must be counted as part of the span stability equation, not treated as an invisible constant. In systems that value robust analog programmability, repeatable code-to-output behavior, and calibration-compatible precision, it remains a practical and technically coherent choice.

Texas Instruments DAC813JU Power, Supply Range, Thermal, and Environmental Characteristics

Texas Instruments DAC813JU is a bipolar-supply, voltage-output DAC intended for systems that already operate in a traditional precision analog environment. Its supply architecture is centered on dual rails, with an operating range of +11.4V to +16.5V and -11.4V to -16.5V. In practice, the device is characterized around ±12V and ±15V, which immediately places it in the class of instrumentation, industrial control, legacy test equipment, and mixed-signal subsystems where symmetric analog headroom is part of the baseline design.

This supply requirement is not just a catalog constraint. It directly reflects the internal analog design philosophy of the device. A DAC built for bipolar operation typically uses output stages and reference handling circuits that benefit from generous voltage headroom, especially when linearity, settling behavior, and predictable output swing are priorities. With ±12V or ±15V rails, the DAC813JU can maintain stable analog behavior without relying on the rail-to-rail compromises common in modern low-voltage parts. That makes it structurally well aligned with systems where output fidelity matters more than supply minimization.

From a power perspective, the device remains fairly restrained for its category. Typical power dissipation is listed at 270mW, with 330mW also noted under certain conditions. Typical quiescent supply current is about 15mA from the positive rail and -7mA from the negative rail under no-load conditions. These values are important because they show that total device power is not dominated by output loading alone; a meaningful portion is inherent to the analog core and output circuitry. In board-level power budgeting, this means the DAC813JU should be treated as a continuously biased precision analog component rather than a dynamically power-scaled mixed-signal peripheral.

A useful engineering interpretation is that the rail current asymmetry is normal for this type of architecture. Positive and negative supply currents do not need to mirror each other, because internal bias trees, output amplifiers, reference nodes, and switching networks rarely load both rails equally. This matters during regulator sizing. It is a mistake to assume that a ±15V pair can be provisioned symmetrically just because the nominal voltages are symmetric. The positive rail often needs more current margin, especially when several precision analog devices share the same supply domain.

Thermal behavior is straightforward but should not be treated casually. At roughly a few hundred milliwatts, the DAC813JU does not appear thermally aggressive in isolation. However, in dense analog sections, local temperature rise can still affect offset, gain drift, and long-term stability of nearby components. Devices of this generation often perform best when thermal gradients across the analog signal chain are minimized rather than when absolute ambient temperature alone is controlled. In precision layouts, placing the DAC away from hotter digital logic, DC/DC magnetics, and power resistors tends to yield more repeatable analog behavior than simply staying inside the datasheet ambient range.

The specified operating temperature range is 0°C to +70°C, which classifies the part for commercial environments rather than extended industrial or automotive deployment. This is a key selection boundary. If the application experiences outdoor cabinets, poorly ventilated enclosures, or startup conditions below freezing, the nominal operating specification becomes a real design limiter rather than a formality. Many failures in mixed-signal systems are not catastrophic device failures but specification escapes: the circuit still runs, yet gain error, monotonicity margin, or output accuracy drifts outside what the application can tolerate. For that reason, ambient rating should be read as an analog performance boundary, not only as a survival condition.

Storage temperature is wider, as expected, and the package follows soldering and junction constraints typical of the device era. That distinction between storage and operation is important during logistics and manufacturing planning. A part may tolerate warehouse extremes or assembly exposure while still requiring a narrower controlled environment in service. For long shelf-life inventory, especially in maintenance programs for legacy equipment, this matters more than it first appears. Procurement decisions often focus on availability and compliance, but for older-style precision analog parts, usable deployment conditions are just as critical as whether the part can be sourced.

Environmental compliance is favorable in the regulatory sense. The DAC813JU is RoHS compliant and listed as REACH unaffected. That supports continued use in regulated production flows and service builds where material declaration is required. Still, compliance status should not be confused with ecosystem fit. A compliant part can remain technically awkward in a platform that has standardized on low-voltage single-supply rails, highly integrated converters, or aggressive thermal density targets. Regulatory acceptability solves only one dimension of part selection.

For system architects, the central tradeoff is clear. If ±12V or ±15V analog rails already exist, the DAC813JU can integrate cleanly and often with less risk than forcing a newer low-voltage DAC into a signal chain that still expects bipolar swing and high analog headroom. In that context, its supply demands are not overhead; they are alignment with the rest of the system. This is often the case in retrofit designs, VME-era platforms, laboratory instruments, servo control boards, and analog output modules that were originally partitioned around bipolar precision stages.

The picture changes in new designs built around 3.3V or 5V logic and single-supply power trees. Generating bipolar rails just for one DAC introduces cost, board area, noise sources, startup sequencing concerns, and additional thermal points. Charge pumps and isolated converters can create the needed rails, but they also inject ripple and switching artifacts into the analog domain unless filtered carefully. In precision output applications, that extra power-conversion layer can erase the practical advantage of choosing a legacy bipolar DAC in the first place. The hidden penalty is rarely only efficiency loss; it is usually analog cleanliness and validation complexity.

A recurring implementation detail is supply sequencing and analog ground discipline. Parts like the DAC813JU tend to behave best when the analog rails are well established and decoupled locally with short return paths. In systems with shared backplanes or long supply traces, insufficient local bypassing can show up as output instability, unexpected settling tails, or code-dependent analog disturbances that are easy to misattribute to digital timing. Good results usually come from treating the DAC as an analog amplifier first and a digital component second. That means tight decoupling, predictable reference routing, quiet ground return structure, and deliberate separation from fast edge-rate digital nets.

Another practical consideration is thermal and procurement interaction. Commercial-grade temperature range plus bipolar supply dependence means this device fits best where operating conditions are known and controlled. It is less comfortable in broad-deployment hardware with uncertain field environments. In lifecycle-managed equipment, though, that same predictability can be an advantage. Mature bipolar DACs often remain attractive because their behavior is well understood, their surrounding circuits are already validated, and the system-level analog performance is easier to preserve than it would be with a full converter redesign.

The most useful way to view the DAC813JU is not as an inefficient older DAC, but as a component optimized for a specific analog ecosystem. In that ecosystem, dual rails, moderate static dissipation, commercial temperature limits, and conventional compliance status form a coherent package. Outside it, every one of those characteristics becomes a migration cost. That is why the part is strongest in sustainment, compatibility-driven upgrades, and precision analog subsystems that already carry bipolar infrastructure, while it is generally a poor fit for low-voltage, power-constrained, or highly integrated new platforms.

Texas Instruments DAC813JU Package Options and Grade Differences Across the DAC813 Series

Texas Instruments DAC813JU is one member of a tightly segmented DAC813 family, where the suffix is not cosmetic but a compact encoding of package style, accuracy grade, and temperature qualification. For design selection, this matters because the DAC core architecture remains broadly consistent across the series, while the practical behavior at the board and system level shifts with grade and package. That creates a useful migration path: a design can often preserve the same functional analog topology while tuning manufacturability, environmental margin, or output accuracy through part-number changes rather than schematic redesign.

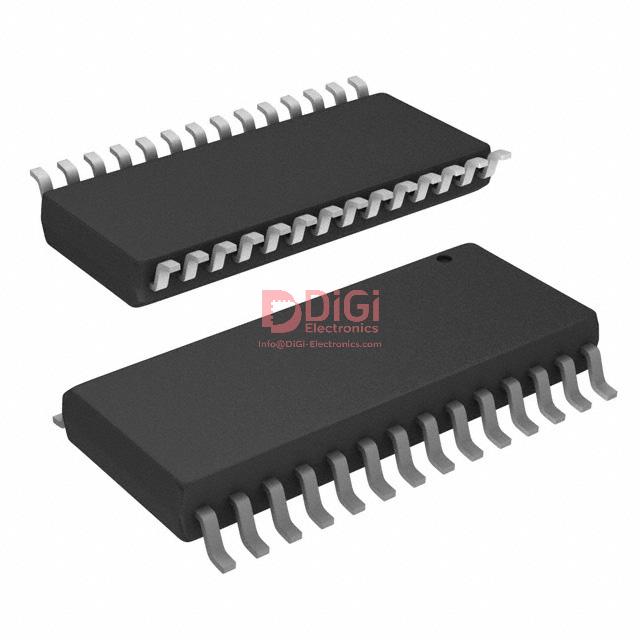

At the device level, DAC813JU is the 28-lead plastic SOIC implementation of the J-grade commercial device. Its specified linearity is ±1/2 LSB maximum at +25°C, and its gain drift is ±30 ppm/°C over 0°C to +70°C. Those two parameters describe two different error domains that are often conflated in early design reviews. Linearity error defines how closely the transfer function follows the ideal code-to-output relationship at a reference temperature. Gain drift defines how the full-scale transfer slope moves with temperature once the system leaves the calibration point. In practice, linearity determines how faithfully the DAC resolves codes, while drift determines how well that fidelity survives across ambient excursions.

The package code is equally important. In DAC813JU, the “U” identifies the plastic SOIC option, while “P” in DAC813JP identifies the 28-pin plastic DIP version. Electrically, these two J-grade variants are intended to serve the same performance tier, but mechanically they target different deployment styles. The SOIC version is usually preferred in denser layouts, lower-profile assemblies, and automated surface-mount production. The DIP version remains attractive in socketed development platforms, low-volume builds, legacy through-hole boards, and environments where probing, replacement, or rework must remain simple. The electrical specification may be nominally equivalent, but package parasitics, board routing density, thermal distribution, and assembly flow can still make one option easier to stabilize than the other.

Within the same family, the K-grade parts, DAC813KU and DAC813KP, raise the precision ceiling. Their room-temperature linearity improves to ±1/4 LSB, and gain drift tightens to ±15 ppm/°C. This is not a marginal refinement. It effectively cuts two key static error contributors in half relative to the J-grade parts. In systems where the DAC sits inside a calibration loop, waveform generation path, programmable reference source, or closed-loop control bias network, this reduction can be the difference between a one-point trim being sufficient and a more expensive multi-temperature compensation scheme becoming necessary. When output monotonicity is already acceptable, the real value of moving from J to K often appears in long-term repeatability and reduced correction overhead rather than in any immediately visible functional change.

The A-grade variant, represented here by DAC813AU, addresses a different axis of the selection space. It extends the operating range to -40°C to +85°C while retaining the J-grade class of ±1/2 LSB linearity and ±30 ppm/°C gain drift. This is a classic industrial tradeoff. The design does not gain finer intrinsic accuracy at room temperature, but it gains survivability and predictability across broader thermal conditions. In many fielded systems, that is the more valuable upgrade. A converter with stronger environmental qualification but moderate precision is often easier to deploy than a tighter room-temperature part that lacks adequate temperature coverage. The key is to distinguish between precision and robustness, because the suffixes in this family separate those concerns cleanly.

A practical way to read the DAC813 series is to treat it as a three-dimensional selection matrix. One dimension is package: SOIC versus DIP. Another is accuracy grade: J versus K. The third is operating temperature class: commercial versus extended. Once framed this way, selection becomes less about memorizing suffixes and more about matching system constraints to a controlled set of tradeoffs. If PCB area is limited, the U package is usually the natural fit. If test access and manual replacement dominate, the P package often wins. If the application is sensitive to transfer-function error or thermal gain movement, K-grade deserves early consideration. If the deployment environment includes outdoor enclosures, unregulated cabinet temperatures, or startup below freezing, the A-grade path becomes more compelling even without a nominal accuracy improvement.

This family structure is especially useful during lifecycle transitions. A product may begin with a DIP prototype because it accelerates bench validation, then move to SOIC during cost-down and densification. Another design may launch in a commercial environment using DAC813JU, then later require industrial deployment with minimal analog redesign, making DAC813AU a logical migration candidate. In precision instrumentation, an early prototype may tolerate J-grade parts for functional bring-up, while the production release shifts to K-grade to control calibration spread and reduce error accumulation downstream. That kind of pin-compatible or near-functionally equivalent migration is one of the quiet strengths of mature analog product families.

There is also a subtle but important board-level implication. Higher-grade DAC selection should not be treated as a substitute for layout discipline. A ±1/4 LSB device placed next to digital switching noise, reference instability, thermal gradients, or poor grounding can easily underperform a lower-grade part implemented on a cleaner analog section. In real designs, the converter grade, reference source, output amplifier, and PCB thermal symmetry form a coupled error system. Upgrading from DAC813JU to DAC813KU only delivers its full value when the surrounding analog chain is quiet enough and stable enough to preserve that extra precision. Otherwise, the specification improvement is absorbed by external error sources and never appears at the output node.

For procurement teams, the DAC813 family reduces sourcing ambiguity because the naming convention maps directly to design intent. Package-driven substitutions, grade upgrades, and temperature-class shifts can be evaluated with relatively low risk when the application already fits the DAC813 architecture. That said, procurement flexibility should be bounded by calibration assumptions. A board trimmed around J-grade drift may not fully exploit a K-grade replacement, and a commercial-temperature qualification plan does not automatically transfer to an extended-temperature deployment just because the pinout is familiar. The part change may be simple, but the validation scope should still match the parameter that changed.

The DAC813JU, specifically, sits in a pragmatic middle position. It offers a surface-mount format suitable for modern assembly, commercial-temperature operation appropriate for controlled environments, and precision that is strong enough for many general-purpose analog output tasks without pushing cost or qualification burden upward. It is often the right choice when the system requires reliable 16-bit-class DAC behavior but does not justify industrial temperature coverage or tighter premium-grade drift. In that sense, it is less a compromise than a balanced operating point within the series.

Seen as a whole, the DAC813 family is structured to let a design team preserve circuit intent while changing the risk profile. J-grade parts optimize mainstream cost and adequacy. K-grade parts reduce static and thermal error pressure. A-grade parts extend environmental reach. U and P packages adapt the same functional role to different manufacturing and service models. That combination gives both engineering and sourcing teams a controlled method for scaling a design without abandoning an established analog foundation.

Potential Equivalent/Replacement Models for Texas Instruments DAC813JU

Potential replacement models for the Texas Instruments DAC813JU are best selected from the same DAC813 family. That is not just a catalog convenience. It is the lowest-risk path because the family shares the same core converter architecture, interface behavior, reference strategy, output structure, and general board-level integration model. In practical replacement work, preserving those invariants usually matters more than chasing a marginally better datasheet number from a different product line.

The DAC813JU itself is a precision multiplying DAC in a 28-lead SOIC package. Any realistic substitute should first be evaluated against three constraints that tend to dominate field success: mechanical fit, electrical grade, and system calibration impact. If those remain aligned, firmware and analog-stage behavior typically stay predictable. If one of them shifts, the replacement can still work, but the effort moves from substitution into redesign.

Within that frame, the DAC813JP is the nearest package-alternative equivalent when the same functional class is required but the assembly flow favors a 28-pin plastic DIP. Electrically, it stays in the same family and performance envelope, so it is the most straightforward choice when the original SOIC footprint is not mandatory. This kind of substitution is common in legacy maintenance, prototype rework, and low-volume support builds where through-hole insertion or socketing simplifies service logistics. The key point is that the package changes, but the device identity does not change in any meaningful architectural sense.

The DAC813KU is the more interesting replacement when the goal is not only continuity but also a precision upgrade. It remains in the same SOIC form factor as the DAC813JU, which sharply reduces mechanical and layout risk, yet it improves core static accuracy parameters, including tighter linearity at ±1/4 LSB and lower gain drift around ±15 ppm/°C. That combination matters in systems where the DAC output is used as a calibration anchor, a setpoint source, or part of a closed-loop analog control path. In those cases, better linearity does not simply improve a bench specification. It reduces correction burden elsewhere in the signal chain and often stabilizes behavior across production spread.

The DAC813KP brings that same K-grade precision into the plastic DIP package. This makes it relevant in equipment that still depends on through-hole assembly, field-replaceable parts, or socket-mounted precision components. There is a recurring pattern in older instrumentation platforms: the analog section was designed with serviceability in mind, and a DIP-compatible high-grade replacement can extend product life without forcing PCB changes. In that context, the DAC813KP is not merely an alternative package. It is often the cleanest way to increase precision while preserving maintenance conventions already built into the hardware.

The DAC813AU serves a different replacement objective. It is attractive when ambient operating range is more critical than the tighter room-temperature precision emphasis associated with the J or K grades. Its -40°C to +85°C range makes it better aligned with industrial environments, outdoor-installed equipment, and systems with uneven thermal control. This is an important distinction because many replacement decisions fail when they focus too narrowly on nominal accuracy at 25°C. In deployed systems, drift, warm-up behavior, enclosure heating, and seasonal variation can dominate the actual output error budget. A wider temperature-grade part can therefore be the better engineering choice even if its static room-temperature numbers are not the most aggressive in the family.

A useful way to evaluate these options is to move from the physical layer upward. Start with package compatibility. The DAC813JU and DAC813KU share the SOIC path, while the DAC813JP and DAC813KP shift to plastic DIP. This is the first gate because mechanical mismatch immediately affects footprint, assembly method, standoff geometry, thermal behavior, and service approach. In replacement programs, package mismatch is often underestimated. Even when an adapter can solve pinout access, parasitic effects, mechanical stress, and long-term reliability can become secondary problems that consume more effort than selecting the right package from the beginning.

Next, check the electrical grade. This is where the family structure becomes valuable. The J, K, and A suffixes are not arbitrary variants. They express meaningful differences in linearity, drift, and operating envelope. The K-grade parts are the natural choice for precision-sensitive systems, especially where full-scale accuracy and repeatability directly affect system-level performance. The J-grade remains suitable where the original error budget already accounts for its class. The A-grade becomes compelling when environmental range outweighs the need for the tightest linearity trim. The right choice depends on which error source actually limits the application. In many systems, replacing a J-grade part with a K-grade part produces measurable improvement only if the reference, output amplifier, grounding strategy, and calibration method are already disciplined enough to expose the DAC’s intrinsic gain.

That leads directly to the analog mechanism level. A DAC replacement does not operate in isolation. The converter’s effective accuracy is bounded by the reference quality, output buffer stability, load impedance, supply cleanliness, and PCB leakage paths. A tighter DAC grade helps only when those surrounding blocks are not the dominant error contributors. It is common to see a precision DAC upgrade deliver little benefit because the reference drift or amplifier offset already exceeds the DAC’s improved linearity window. In those cases, the replacement still functions, but the expected performance gain remains mostly theoretical. For that reason, selecting the DAC813KU or DAC813KP makes the most sense when the rest of the analog chain is already designed to precision standards.

Temperature behavior should be examined separately from static precision. This is where the DAC813AU can become the stronger candidate. A design that sits near power components, runs in sealed enclosures, or experiences wide outdoor cycles often sees error dominated by thermal movement rather than initial trim. In such systems, broader rated operation is not a secondary feature. It is part of the primary reliability envelope. A replacement decision based only on the smallest linearity number can be misleading if the actual application spends much of its life outside benign lab conditions.

Calibration assumptions are the final major checkpoint. Staying inside the DAC813 family increases the chance that software control patterns, code-to-output expectations, and reset behavior remain intact. It also reduces the risk of hidden changes in transfer function handling. Even so, any grade change should trigger a review of production calibration constants, endpoint correction methods, and stored trim coefficients. A more accurate DAC can shift the balance of existing correction algorithms. In some cases, that is beneficial because fewer software corrections are needed. In other cases, legacy calibration routines may have been tuned around the original part’s characteristic error shape, and those routines should be revalidated rather than blindly reused.

From an application standpoint, the replacement path can be segmented cleanly. If the requirement is “same family, same package, lowest disruption,” the DAC813KU is usually the strongest upgrade candidate and the DAC813JU remains the baseline match class. If the requirement is “same family, through-hole implementation,” the DAC813JP is the closest like-for-like alternative, with the DAC813KP as the precision-enhanced version. If the requirement is “same architecture, better environmental coverage,” the DAC813AU becomes the practical choice. This kind of mapping is more reliable than treating all family members as interchangeable, because each variant optimizes a different constraint axis.

A subtle but important engineering judgment applies here. The best replacement is not always the highest-grade device. In maintenance and sustainment work, the best choice is usually the part that preserves system behavior with the smallest validation burden. If the original design already meets its performance targets with the DAC813JU, moving to a K-grade device may add little value beyond procurement flexibility. Conversely, if the design has always been close to its linearity or drift limits, selecting a K-grade variant can create margin without forcing architectural change. That distinction matters because replacement engineering is really about risk management disguised as part selection.

For most cases, evaluation should cover at least four dimensions in a disciplined order: package compatibility, temperature range, linearity/drift grade, and calibration impact. Because all candidates discussed here stay within the DAC813 series, they are inherently better positioned to preserve software compatibility, analog scaling methods, and integration assumptions than a substitution to a different DAC family. That family continuity is the main reason these devices represent the most technically grounded replacements for the Texas Instruments DAC813JU.

Conclusion

The Texas Instruments DAC813JU is a 12-bit voltage-output DAC built for parallel-bus mixed-signal systems that value deterministic timing, integrated precision support circuitry, and predictable analog behavior across temperature. Its architecture combines a trimmed +10 V reference, an internal output amplifier, double-buffered digital input registers, and selectable unipolar or bipolar output operation. This level of integration is especially useful in control and instrumentation platforms where board space, calibration effort, and update coordination matter as much as raw resolution.

At the architectural level, the DAC813JU solves three common design problems in one device. First, it removes the need for a separate precision reference in many designs. Second, it isolates the input data loading process from the final analog update through a double-buffered structure, which is critical when several DAC channels or external logic domains must be synchronized. Third, it provides a conditioned voltage output stage rather than a bare current-output core, reducing the analog design burden around output scaling and buffering. In practice, these choices make the part less about maximum density and more about system stability and implementation efficiency.

The 12-bit resolution gives 4096 code steps, which places the device in a useful middle ground. It is fine enough for closed-loop setpoint generation, programmable thresholds, actuator biasing, and calibration trim functions, yet simple enough to remain robust in older bus-oriented systems. In many industrial applications, 12-bit linearity is not the limiting factor; reference drift, grounding quality, load coupling, and downstream amplifier errors often dominate before quantization does. That is why the DAC813JU’s value is better understood through total signal-chain behavior rather than resolution alone.

Its internal +10 V reference is one of the device’s most important practical features. A reference is not just a supporting block; it defines the gain foundation of the DAC transfer function. When the reference is integrated and trimmed as part of the converter design, gain matching and thermal tracking are generally easier to control at the system level. This simplifies BOM selection and reduces sensitivity to layout mistakes around high-impedance external reference nodes. In field designs, external references often look attractive on paper but create avoidable drift or noise problems once routing, grounding, and thermal gradients are considered. An integrated reference usually produces a more repeatable result unless the application demands a higher-grade system reference shared across multiple precision channels.

The output amplifier also deserves attention. In many voltage-output DAC designs, real performance is determined less by the ideal transfer curve and more by how the output stage behaves under dynamic loading, supply variation, and capacitive interaction with the next stage. By integrating the amplifier, the DAC813JU provides a known output path with defined settling behavior and output range support. This reduces the amount of analog compensation work otherwise required with discrete buffering. For established control boards, that often means faster schematic closure and fewer surprises during bench bring-up, especially when outputs feed multiplexers, sample-and-hold circuits, or moderate-impedance instrumentation inputs.

The double-buffered input architecture is particularly relevant in parallel-bus systems. It allows one register stage to capture incoming digital data while a second stage controls when the analog output actually changes. This separation is valuable whenever glitch management and synchronous updates are important. A direct-write DAC can produce undesirable transient output movement if data bits do not arrive simultaneously, especially over wider buses or through mixed-speed glue logic. The DAC813JU’s buffering helps avoid those partial-code transitions. In multi-channel systems, this means several outputs can be preloaded and then updated together with controlled timing, which is often more important than raw conversion speed.

This deterministic update behavior is a strong match for legacy microprocessor systems, programmable logic interfaces, and embedded controllers that still use memory-mapped or latched parallel buses. In those environments, software simplicity and timing visibility often outweigh serial-interface convenience. Parallel DACs like the DAC813JU are easier to reason about at the transaction level: load the code, assert the update event, and observe a bounded analog response. That predictability remains useful in equipment where qualification history, firmware inheritance, or serviceability constrain architectural change.

Output flexibility is another reason the device remains relevant. Support for unipolar and bipolar ranges allows the same DAC core to serve different control models. Unipolar outputs fit valve control, LED current programming references, threshold generation, and ADC driver offsets. Bipolar outputs fit servo nulling, waveform biasing, error injection, and bridge excitation adjustments. In practical board design, range flexibility reduces the number of part variants needed across product families. It also allows one analog output platform to be reused across instruments with different signal conventions, which lowers redesign cost and validation effort.

From a performance-selection perspective, the DAC813JU fits best in systems already operating from ±12 V or ±15 V analog rails. That requirement matters because it signals the design philosophy of the part. This is not a low-voltage, battery-oriented DAC optimized for minimal power and compact digital interfacing. It belongs in equipment that already has established analog supplies and values headroom, range compliance, and stable linear output behavior. When those rails are present, the device integrates naturally. When the rest of the platform is single-supply and logic-dense, newer low-voltage serial DACs may be easier to justify even if they are not inherently better in absolute analog terms.

The broader DAC813 family also adds practical selection flexibility. Package, accuracy grade, and temperature range options allow the same functional design to be adapted for different cost and qualification targets. That family continuity matters more than it first appears. Reusing a known pin-compatible or behaviorally similar DAC across several SKUs reduces revalidation effort, preserves firmware assumptions, and lowers risk in procurement transitions. In long-life industrial programs, this kind of continuity often has more value than small improvements in headline specifications.

In application terms, the DAC813JU is well suited to industrial control outputs, programmable instrumentation sources, calibration injectors, test equipment setpoints, and retrofit designs built around parallel digital backplanes. It also fits systems where analog outputs do not need very high update rates but must settle cleanly and repeatably after each command. A common pattern is the generation of a stable control voltage that is updated only when a supervisory loop computes a new target. In that use case, low uncertainty after settling is more important than interface bandwidth. The device is strong in exactly that regime.

There are, however, a few design realities that should shape expectations. A 12-bit DAC with an integrated reference and amplifier can still underperform if grounding is weak, digital edges are poorly contained, or output loading is not characterized. Precision parts often reveal board-level weaknesses rather than causing them. For this device, it is worth keeping the reference return and analog ground paths quiet, avoiding unnecessary capacitive loading at the output, and checking code-transition behavior near major carries if the application is sensitive to transient spikes. On the bench, many apparent linearity issues turn out to be measurement setup problems, ground offsets, or thermal settling errors rather than DAC faults.

Temperature behavior is another area where integrated designs offer practical advantages. Because the reference and output path are part of the same device environment, thermal tracking is generally more coherent than in loosely coupled discrete implementations. Even so, enclosure airflow, nearby regulators, and power resistor placement can still create local gradients large enough to shift zero and gain over time. In precision control assemblies, modest physical separation from hot components often improves long-term output repeatability more than chasing tighter nominal specifications.

One useful engineering perspective is that the DAC813JU should not be evaluated as an isolated converter block. It performs best when treated as a calibrated analog subsystem with digital determinism. That framing changes design priorities. Instead of asking only whether 12 bits is enough, it becomes more useful to ask whether the complete output path, including supplies, grounding, load interface, and update timing, remains stable and observable under real operating conditions. In many mature systems, that systems-level predictability is exactly what determines maintenance cost and field reliability.

The DAC813JU is therefore best positioned as a practical precision DAC for established mixed-signal platforms. It is accurate enough for demanding control and instrumentation tasks, fast enough for moderate-rate precision updates, and integrated enough to reduce schematic complexity and calibration overhead. Its strongest advantage is not novelty but balance: a well-contained analog output solution with deterministic digital behavior, especially effective in platforms that already support traditional bipolar supply rails and parallel bus timing.
