DAC7625UB

Texas Instruments DAC7625UB at a Glance

Texas Instruments DAC7625UB is a 12-bit, quad-channel, voltage-output DAC intended for systems that need multiple analog outputs without adding external output reconstruction stages. Its value is not just the channel count. The device combines four matched DAC channels, parallel digital loading, double-buffered update control, and predictable industrial-temperature behavior in a single 28-lead SOIC footprint. In mixed-signal designs where board area, timing coordination, and analog consistency matter more than raw resolution alone, that combination is often more important than an extra bit or two on paper.

The device is part of the DAC7624/DAC7625 family and guarantees 12-bit monotonicity across -40°C to +85°C. That specification deserves attention. In control loops, programmable bias generation, threshold setting, and waveform level control, monotonic behavior is often the first hard requirement because it ensures the analog output always moves in the intended direction as the code increases. A converter with excellent nominal resolution but weak monotonicity at temperature can introduce non-obvious field issues, especially near transition regions where software assumes deterministic behavior.

Architecturally, the DAC7625UB uses a 12-bit parallel input path. This choice reflects a design philosophy from systems where deterministic bus timing and fast register loading are preferred over serial interface simplicity. A parallel DAC is often less attractive from a pin-count perspective, but it reduces command latency and can make synchronized multi-channel updates easier to reason about at the hardware level. In older industrial controllers, ATE platforms, and FPGA-connected instrumentation blocks, that tradeoff remains valid. When the digital source already exposes a memory-mapped or latched parallel bus, the DAC7625UB fits naturally into the data path with minimal interface translation.

A key functional element is the double-buffered input structure. Each channel can receive data into an input register first, while the actual DAC register update is deferred until the appropriate control action occurs. This separation between data loading and analog output update is critical in any system where multiple outputs must change together. Without double buffering, channel-to-channel skew appears every time the bus writes one DAC after another, and that skew can propagate into the physical plant. In motor control biasing, multi-axis calibration, phased threshold generation, or simultaneous setpoint changes across several analog domains, coherent updates reduce transient mismatch and simplify downstream compensation. In practice, this feature often saves more system effort than faster nominal settling time alone.

The internal register readback function is also more useful than it first appears. Readback does not measure the analog output, but it does provide a direct way to confirm the digital state stored inside the device. That matters in noisy backplanes, long bus routes, and systems with shared control buses where software integrity checks are part of normal operation. During board bring-up, readback is especially effective for separating digital interface faults from analog output-stage problems. If the stored code is correct but the output is wrong, debugging can move immediately toward reference integrity, supply headroom, output loading, grounding, or PCB contamination rather than wasting time on bus timing.

The DAC7625UB is a voltage-output DAC, which simplifies system integration compared with current-output architectures that require external I/V conversion. That does not make it trivial. Voltage-output DACs are generally easier to place in low-to-medium complexity systems because they reduce external analog circuitry, but they still depend heavily on reference cleanliness, supply quality, and load conditions. The practical advantage here is that the part can often drive the required signal path more directly, shortening the analog chain and reducing cumulative error sources. Fewer active stages usually mean fewer offset, noise, and stability variables to control.

Supply flexibility is one of the more important system-level attributes of this device. It supports either single-supply operation at +5 V or dual-supply operation at +5 V and -5 V. This expands its usefulness beyond simple ground-referenced outputs. In single-supply mode, it suits unipolar control voltages, programmable gain settings, LED or actuator bias references, and general-purpose low-voltage analog generation. In dual-supply mode, it becomes more attractive for bipolar spans, offset-centered waveforms, and analog subsystems that need output swing around ground. That flexibility is not merely convenient. It can eliminate level-shifting amplifiers and reduce the analog correction circuitry otherwise needed to adapt a unipolar DAC to a bipolar signal environment.

The published 10 µs settling time to ±0.012% places the device in a practical middle ground. It is not aimed at RF-class waveform synthesis or very high-speed arbitrary generation, but it is fast enough for many closed-loop control, calibration, trimming, and sequencing tasks. The important engineering point is to interpret settling time in the context of the entire signal path. If the DAC output feeds an external amplifier, sample-and-hold stage, muxed load, or long capacitive trace, the system settling time may be dominated by those external elements rather than the DAC core itself. It is common to see a design meet converter timing on paper while missing end-to-end settling at the point of use because output loading and amplifier phase margin were treated as secondary details.

Linearity figures of ±1 LSB maximum INL and ±1 LSB maximum DNL for the UB grade position the DAC7625UB as a well-controlled 12-bit device for industrial and embedded analog generation. INL affects absolute transfer accuracy across the range, while DNL influences code step uniformity. In many real systems, DNL-related behavior becomes visible first, because uneven code steps can show up as threshold asymmetry, gain trim irregularity, or small but repeatable discontinuities in ramp generation. A converter with bounded DNL and guaranteed monotonicity is generally a safer choice for calibrated control outputs than one optimized only around typical-case error numbers.

The asynchronous reset behavior of the DAC7625 version clears all registers to zero-scale. This is a small line item in the datasheet, but it has system consequences. Reset behavior defines the analog state during power-up, watchdog recovery, and fault handling. Zero-scale reset is often desirable in systems where the safest fallback output is the minimum command level. However, “safe” depends entirely on the application. In some actuator or biasing systems, zero-scale may actually correspond to an undesirable state, such as full negative offset after downstream scaling or a shutoff condition that causes another subsystem to trip. The right design approach is to treat reset state as part of the control architecture, not as a mere device default. If necessary, external conditioning or startup sequencing should enforce the true safe-state behavior.

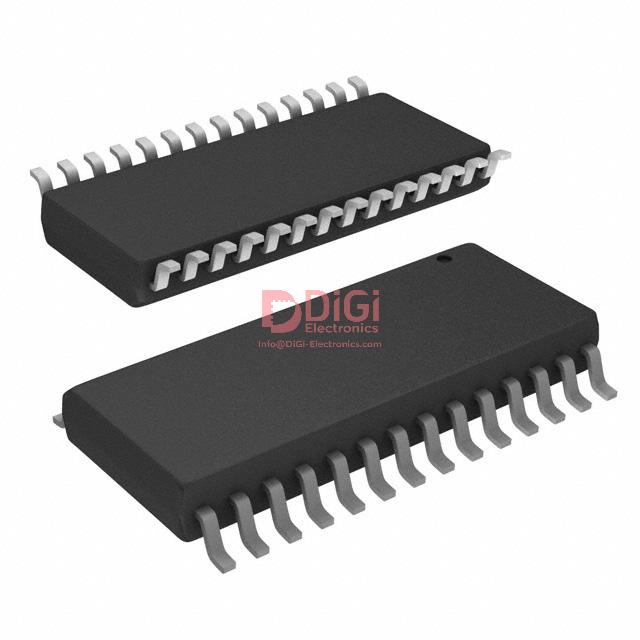

Package choice also matters. The 28-lead SOIC keeps assembly straightforward for conventional surface-mount manufacturing and avoids some of the handling constraints of finer-pitch packages. For long-life industrial platforms and lower-volume instrumentation designs, this can be an advantage because it simplifies inspection, rework, and sourcing strategies. Electrical performance still depends strongly on layout. With quad DACs in this class, reference routing, digital return current control, and output trace isolation are often the difference between clean, repeatable analog behavior and unexplained channel interaction. Even though the converter is integrated, the board must still be partitioned as if it were a small mixed-signal subsystem.

Several implementation details deserve explicit attention. First, keep the reference path quiet and low impedance. Reference noise directly maps into output noise and code-dependent uncertainty. A nominally accurate DAC will not behave accurately if its reference source is shared with switching loads or routed through digital return regions. Second, account for output loading early. Voltage-output DACs are convenient, but their accuracy and settling can degrade when driving heavy capacitive loads or poorly chosen op-amp stages. A short trace on the schematic can become a resonant analog node on the PCB. Third, use the double-buffered update mechanism intentionally. If synchronized outputs matter, the firmware and bus timing should be designed around coherent load-then-update transactions rather than ad hoc per-channel writes.

In board bring-up, one effective method is to validate the part in three layers. Start with digital integrity: verify write timing, address/control decoding, and readback consistency. Then validate static analog transfer behavior using a small set of representative codes such as zero-scale, quarter-scale, mid-scale, three-quarter-scale, and full-scale. Finally, test dynamic behavior under the actual load network, not just with an oscilloscope probe and no destination circuitry attached. This staged approach usually exposes integration errors quickly. It is common to find that a “DAC issue” is really a reference decoupling problem, output amplifier instability, or a reset sequencing race between logic and analog rails.

From a selection perspective, DAC7625UB is best understood as a robust system DAC rather than a headline-spec converter. Its strength is the balance of four channels, deterministic parallel interfacing, coordinated updates, industrial-temperature monotonicity, voltage outputs, and flexible supply operation. That mix aligns well with embedded control and instrumentation platforms where analog outputs must be predictable, maintainable, and easy to integrate into established hardware architectures. In those environments, the device tends to reward disciplined implementation more than aggressive optimization. If the surrounding reference, grounding, and update timing are designed carefully, it delivers the kind of stable behavior that keeps the analog section from becoming the dominant source of uncertainty in the system.

Why the DAC7625UB Matters in Multi-Channel Analog Output Systems

The DAC7625UB is relevant because multi-channel analog output design is rarely limited by nominal resolution alone. In most practical systems, the real constraint is coordinated behavior across channels under timing, thermal, and board-level integration pressure. A device that merely converts digital words into voltages is not enough when several outputs must track a shared control event, remain predictable over operating range, and fit into a compact architecture without excessive glue logic. The DAC7625UB fits this class of problem well because it combines four DAC channels with a register structure that separates data loading from output updating, allowing designers to control when new values appear at the outputs rather than accepting immediate, uncoordinated transitions.

That distinction matters in systems where analog outputs are part of a coupled control surface rather than isolated signals. Process control loops, ATE pin electronics, servo systems, motor drives, data acquisition subsystems, and DAC-per-pin programmers all depend on analog outputs that behave as a set. In these cases, output timing becomes a system parameter. If one channel updates earlier than another, even by a small interval, the result can be transient error, unwanted actuator motion, test inaccuracy, or a visible glitch in a calibration sequence. The DAC7625UB addresses this directly through individual input and DAC registers plus LDAC-based update control, which allows new codes to be staged first and then transferred to the outputs simultaneously. From an engineering standpoint, this is not just a convenience feature; it is a mechanism for preserving state consistency across channels.

The architectural value of integrated multi-channel DACs becomes clearer when compared with an implementation built from multiple single-channel devices. Using four separate DACs often increases the number of chip selects, reference routing paths, update signals, and layout constraints. It can also introduce subtle mismatch in timing behavior because each device may respond slightly differently to serial writes, latch events, or power sequencing. In contrast, a four-channel DAC centralizes these interactions inside one device boundary. This reduces component count, simplifies routing, and improves the odds that all channels experience similar thermal and electrical conditions. That last point is often underestimated. Channels placed inside the same package tend to show more correlated drift and more uniform behavior than channels distributed across the board, which simplifies calibration strategy and error budgeting.

The internal register scheme is one of the most useful features in real deployments. With separate input and DAC registers, software can preload next-state values for one or more channels without disturbing the outputs. The LDAC signal then acts as a commit event. This staged-update model maps naturally onto deterministic control systems. A controller can compute a new four-axis correction vector, write all four values through the serial interface, verify bus completion, and then assert LDAC at a precisely chosen instant. The outputs move together, and the analog side sees one coherent state transition. In servo applications, this reduces cross-axis coupling caused by staggered updates. In ATE, it helps maintain edge-aligned stimulus conditions. In process automation, it avoids momentary imbalance during setpoint changes across related control nodes.

Another reason the DAC7625UB matters is interface transparency. In embedded analog systems, complexity often accumulates at the boundaries between the host processor and the analog front end. If the DAC interface is ambiguous or requires elaborate sequencing to guarantee consistent behavior, software becomes harder to validate and timing closure becomes less certain. A structured serial interface with explicit register loading and controlled output latching reduces this friction. It becomes easier to describe the DAC behavior in firmware as a predictable write-then-update transaction. That predictability pays off during integration, especially when the analog outputs are synchronized with ADC sampling, PWM cycles, relay switching, or external trigger events. Clean digital control of analog timing is often the difference between a system that is theoretically correct and one that is operationally robust.

Board-level efficiency is another practical advantage. In dense control or instrumentation platforms, every extra package adds routing congestion, reference distribution complexity, decoupling requirements, and failure points. Replacing several single-channel DACs with one quad device saves area, but the more important gain is topological simplification. Fewer devices mean fewer opportunities for ground return asymmetry, reference injection, and channel-to-channel layout inconsistency. This is particularly useful in mixed-signal boards where digital buses, switching supplies, amplifiers, and sensor interfaces compete for placement. A concentrated DAC footprint allows cleaner analog partitioning and makes it easier to keep reference and output traces short, quiet, and matched.

In systems that demand predictable transfer characteristics over temperature, integrated channel behavior also supports a more disciplined calibration model. Multi-channel outputs are often calibrated not only for absolute gain and offset, but also for relative matching. Relative matching can matter more than absolute error when channels drive differential stimuli, coordinated actuator positions, or swept test levels. With a monolithic quad DAC, the channels typically share process and package conditions, so relative drift can be easier to manage than with physically separate devices. This does not eliminate the need for calibration, but it changes calibration from a constant compensation exercise into a bounded correction task. That distinction can reduce production test effort and improve long-term field stability.

The LDAC-controlled simultaneous update mechanism is especially valuable when analog outputs feed dynamic loads. Consider actuator bias control or motor-related analog command generation. If the control vector is updated one channel at a time, the plant can briefly see invalid command combinations. Even if each transition is short, systems with high loop gain or sensitive mechanics may respond to those transients. A simultaneous update path minimizes these intermediate states. The same principle applies in test stimulus generation, where timing alignment between channels can determine whether the device under test sees an intended operating point or a short-lived but misleading condition. In such environments, the DAC is participating in system state orchestration, not simply voltage generation.

A useful implementation pattern is to treat the DAC7625UB as a shadowed analog output engine. New values are assembled in software as a complete frame, written into the device’s input path, and then committed on a shared timing boundary. This pattern scales well when the analog outputs must remain phase-aligned with other subsystems. For example, one can tie LDAC control to a timer-driven event so analog output changes occur at a fixed point relative to sensor acquisition or communication framing. That kind of deterministic coupling is often more valuable than headline speed numbers because it improves repeatability, debug visibility, and control-loop analysis.

There is also a procurement and platform-planning angle that makes the DAC7625UB strategically important. Standardizing on a quad DAC with coherent update behavior can simplify product families built around common analog output requirements. Instead of redesigning around multiple single-channel parts for each variant, teams can use one device as a reusable analog output block across servo controllers, automated calibration instruments, and industrial setpoint modules. This improves firmware reuse, reduces qualification overhead, and narrows the component risk surface. In practice, lifecycle stability and design portability often matter as much as electrical specifications, especially in long-lived industrial and test platforms.

From a system design perspective, the strongest argument for the DAC7625UB is that it addresses the real failure modes of multi-channel analog output systems. These failure modes are usually not “insufficient bits.” They are unsynchronized transitions, excessive interface complexity, calibration burden, routing overhead, and channel inconsistency under operating stress. By integrating four channels, separating data staging from output update, and enabling simultaneous latching through LDAC, the device directly targets those issues. That makes it well suited for any design where multiple analog outputs must behave less like independent voltages and more like a coordinated vector under precise digital control.

DAC7625UB Core Architecture and Functional Operation

The DAC7625UB is a quad 12-bit voltage-output DAC built for systems that need multiple analog channels to move in a controlled and repeatable way. Its four outputs, VOUTA through VOUTD, are not simply four independent DACs placed in one package. The more important detail is the internal update structure behind those channels. Each output path contains both an input register and a DAC register, forming a double-buffered data path that separates digital loading from analog updating. That separation is what makes the device useful in coordinated control, waveform generation, bias programming, and multichannel calibration loops.

At the digital interface level, 12-bit parallel data is first written into the input register of the selected channel. This write does not immediately disturb the analog output. The data remains staged until the DAC register is updated. The LDAC control then transfers the staged code into the active DAC register, causing the analog output to change. This mechanism solves a common system problem: if channels are updated one by one with immediate output response, each output changes at a slightly different time, creating skew between channels. In many mixed-signal systems, that skew produces more error than one additional bit of nominal resolution would remove. The DAC7625UB addresses that directly by allowing simultaneous or tightly coordinated output transitions.

This double-buffered approach is especially valuable when several channels define a single physical state. Examples include vector generation, offset and gain trimming across matched signal paths, threshold control in test equipment, and bias coordination in sensor front ends. In these cases, sequential output movement can create transient stress, false triggering, or temporary control instability. With the DAC7625UB, the digital bus can preload all new values first, then apply one LDAC event to move the outputs together. In practice, this often simplifies firmware timing because the software no longer needs to treat bus write timing as part of the analog accuracy budget.

The device uses straight binary coding. Code interpretation is therefore direct and implementation-friendly: the output level scales monotonically from zero-scale to full-scale according to the applied digital code and the reference span. This matters because code-domain simplicity reduces translation overhead in digital controllers and minimizes avoidable mistakes during board bring-up. In embedded systems, subtle data-format mismatches often appear first as “analog” faults even though the root cause is digital code handling. Straight binary avoids much of that friction.

The analog output range is defined by the reference inputs, VREFH and VREFL. Conceptually, the DAC generates an output proportional to the fraction of full-scale represented by the digital code, mapped between those two reference boundaries. This gives the part a high degree of configurability. It is not locked to a fixed 0 V to 5 V or 0 V to 10 V span. Instead, the transfer range is established externally, which allows the DAC to be fitted to the signal domain rather than forcing the surrounding circuitry to compensate for an inconvenient output window.

That reference-defined span also deserves careful system interpretation. In precision designs, the DAC is only as stable and accurate as the reference network that defines its endpoints. Noise, drift, and impedance at VREFH and VREFL directly affect output quality. A useful design instinct is to treat the reference path as part of the analog signal path, not as a secondary support node. Layout, decoupling, and source stiffness around the reference pins often have more impact on real output behavior than small differences in digital timing logic. In multichannel boards, this is one of the first places where nominal datasheet performance can be preserved or lost.

The DAC7625UB is a buffered voltage-output device, which reduces the burden on downstream circuitry compared with current-output DAC architectures. Buffered outputs make the part easier to integrate into general-purpose analog sections because less external conditioning is needed to obtain a usable voltage signal. Even so, buffered output does not mean load-independent under all conditions. Capacitive loading, heavy output current demand, and long routing paths can still degrade settling behavior or channel-to-channel consistency. In dense control boards, keeping the output traces short and isolating large dynamic loads from the DAC node usually leads to cleaner settling and fewer unexplained transients during validation.

One of the more flexible aspects of the architecture is support for both single-supply and dual-supply operation. This extends the range of analog domains the device can serve. In a single-supply configuration, the DAC is naturally suited to ground-referenced control voltages and unipolar output requirements. In a dual-supply configuration, the output span can be arranged to include negative voltages, which is useful in bipolar control loops, bridge balancing, actuator centering, and signal-conditioning stages that operate around zero. The important point is that the DAC core itself is not limited to one output philosophy. Its usable behavior is determined by how supply rails and reference inputs are chosen together.

This interaction between supplies and references is where architecture becomes application-specific. A common mistake is to think of the supply rails as defining the output range and the references as merely scaling it. In practice, both set the operating envelope. The references define the intended transfer function, while the supplies determine whether the output buffers can realize that function with adequate margin. When the desired output range approaches either rail, especially under dynamic loading or temperature variation, headroom becomes a first-order design variable. Designs that look correct algebraically can still exhibit clipped endpoints or slower settling near the edges if this margin is not considered early.

Internally, the usefulness of the channel register structure also extends into deterministic startup and recovery behavior. The DAC7625UB resets to zero-scale, while the related DAC7624 resets to mid-scale. This is not a cosmetic family difference. It directly affects how the analog subsystem behaves during power-up, watchdog recovery, brownout events, or explicit reset sequences. A zero-scale reset is often preferable when downstream stages must default to minimum drive, minimum bias, or a known inactive state. A mid-scale reset can be advantageous in bipolar systems where center output corresponds to neutral actuation. Selecting between the two is therefore less about preference and more about fault philosophy.

In real designs, reset behavior often decides whether extra analog protection is needed. If zero-scale corresponds to a safe state, startup logic becomes simpler because the DAC naturally comes up in a benign condition. If zero-scale instead causes an actuator slam, bias collapse, or invalid threshold, then the nominally correct DAC choice becomes system-incorrect. That is why reset code should be treated as a control-state definition, not just a register default. This point is easy to underestimate during schematic capture and usually becomes obvious only when the first power sequencing tests are run.

From a timing perspective, the DAC7625UB is best viewed as a staged state machine: bus write establishes candidate values, internal buffering holds them without analog disturbance, and LDAC commits them into the live analog domain. This separation is one of the cleanest ways to bridge digital determinism and analog continuity. It allows firmware to assemble a complete multichannel output state before exposing that state to the external circuit. In systems with periodic updates, the result is a cleaner timing model. In systems with asynchronous commands, it acts like a synchronization barrier that prevents partial analog states from appearing on the outputs.

This behavior is particularly relevant when the DAC drives loops with memory, such as servo stages, thermal controllers, programmable gain chains, or reference trimming networks. Those circuits often react not only to final values but also to the path taken between values. Sequential channel updates can create short-lived but meaningful intermediate conditions. The double-buffer architecture suppresses those unintended trajectories. That characteristic is often more valuable in the field than a headline specification, because it reduces intermittent behavior that is difficult to reproduce during debug.

From an engineering perspective, the DAC7625UB sits in a useful middle ground. It is not just a simple code-to-voltage converter, and it is not so specialized that it demands a narrow application context. Its real strength is architectural discipline: four channels, independent data staging, synchronized analog update, externally defined span, buffered voltage outputs, and predictable reset state. These elements make it well suited to systems where analog correctness depends on timing coordination as much as static accuracy. When used with a clean reference design, adequate output margin, and a startup state aligned with system safety, the part supports multichannel analog control with a level of predictability that is often more important than raw converter resolution alone.

DAC7625UB Electrical Performance and Accuracy Characteristics

DAC7625UB electrical performance is best understood by separating static accuracy, channel coherence, and environment-driven error movement. For precision-oriented selection, the UB grade stands out because its transfer behavior is tightly bounded rather than loosely characterized. The device specifies ±1 LSB maximum integral nonlinearity and ±1 LSB maximum differential nonlinearity, with 12-bit monotonicity guaranteed across the full specified temperature range. That combination matters because it constrains both absolute transfer deviation and local code-step behavior, which are the two failure modes that most often degrade closed-loop control, programmable bias generation, and calibration-driven instrumentation.

Integral nonlinearity defines how far the actual DAC transfer curve departs from an ideal straight line after offset and gain terms are removed. In system terms, this is the residual shape error that cannot be corrected by a simple two-point calibration. A ±1 LSB INL limit at 12 bits means the DAC remains highly predictable across the code range, which reduces the risk of midscale curvature or endpoint compression appearing as unexplained analog error. This is especially relevant in applications where the DAC output is used as a reference threshold, actuator command, or low-bandwidth waveform source, because shape error becomes visible even when offset and gain are digitally compensated.

Differential nonlinearity describes the uniformity of adjacent code transitions. With ±1 LSB maximum DNL, the DAC7625UB controls code-step size tightly enough to guarantee monotonicity. That guarantee is often more valuable than a headline linearity number alone. In practical servo and trimming systems, monotonicity prevents reverse motion when the control algorithm increments the DAC by one code. Without that property, a nominal increase in command can produce a local decrease in output, which is difficult to diagnose once the DAC sits behind an analog stage, a plant model, or a calibration table. In precision production setups, this issue typically appears first near code regions where loop gain is high and the software assumes every step moves in the intended direction.

Offset and gain related specifications remain equally important because they define how much correction the surrounding system must absorb. Zero-scale error determines how close the output sits to the ideal low-end point when the input code is zero. Full-scale error indicates the deviation near the high-end endpoint after accounting for the nominal transfer slope. These terms usually dominate the initial absolute error budget before calibration. In many systems this is acceptable, because offset and gain errors are comparatively easy to trim either digitally or at final test. The harder problem is residual nonlinearity after calibration, which is why the UB grade’s bounded linearity has disproportionate value in precision designs.

The multi-channel nature of the DAC7625UB adds another layer. In real equipment, four DAC channels are rarely independent from a performance perspective. They may establish matched thresholds, generate coordinated control voltages, or bias several analog paths that must remain aligned over time and temperature. For that reason, channel-to-channel matching specifications are often more important than the absolute error of any single output. The datasheet’s linearity matching, zero-scale matching, and full-scale matching parameters provide a direct window into this behavior. They indicate how similarly the four converters behave, not just whether each channel is individually accurate.

Linearity matching helps predict whether channels preserve similar transfer curvature. This matters in ratio-based systems and synchronized adjustments, where software expects multiple outputs to move in parallel as codes change. Zero-scale matching shows how closely channels align at the low end, which affects applications such as bridge balancing, programmable comparator offsets, and multi-sensor excitation trimming. Full-scale matching extends the same idea to the upper endpoint and is often the key metric when outputs are used to set gain-dependent operating points. When these matching terms are tight, calibration complexity drops sharply. A single correction model can often be reused across channels with only minor residual compensation, which shortens test time and reduces coefficient storage.

Drift specifications deserve careful reading because temperature error is rarely a simple offset shift. In practice, thermal movement can appear as a combination of offset drift, gain drift, and channel tracking drift. The most manageable systems are not always the ones with the smallest raw error at room temperature, but the ones whose errors move predictably together. A quad DAC with coherent channel behavior often outperforms a nominally accurate single-channel alternative assembled from multiple devices, because shared silicon and shared thermal conditions usually improve relative stability. That advantage becomes visible in industrial environments where boards experience warm-up gradients, enclosure heating, and supply loading changes over a full operating cycle.

Power supply rejection, specified at 30 ppm/V, provides a first-order measure of how supply variation maps into output error. This is not merely a secondary datasheet number. In mixed-signal boards, DAC supplies are often exposed to digital switching currents, regulator load steps, and backplane distribution ripple. A 30 ppm/V sensitivity means every volt of supply movement creates a proportional output accuracy shift. At 12-bit resolution, even modest supply disturbances can become measurable if the analog reference path and board-level decoupling are not treated carefully. In practice, the cleanest results usually come from treating supply integrity and reference integrity as part of the same error chain rather than separate tasks. A precision DAC placed on a noisy rail behaves like a precision sensor read through a noisy amplifier: the silicon may be accurate, but the system will not be.

Output noise voltage, listed as 40 nV/√Hz over the stated measurement range, helps estimate the DAC’s contribution to the analog noise floor. This matters when the output feeds high-gain amplifiers, sample-and-hold stages, or low-frequency control loops with long integration windows. The key engineering point is that spectral density alone does not predict final noise at the load. The effective noise depends on bandwidth, filtering, output buffering, and downstream gain. In narrowband precision systems, this DAC noise may be negligible compared with amplifier offset drift or reference noise. In wideband signal-generation paths, however, the DAC can become a visible contributor. A reliable way to judge this is to integrate the expected noise over the actual signal bandwidth rather than relying on the headline density figure in isolation.

Selection work should therefore treat the DAC7625UB not as a generic quad output block, but as a component whose value comes from predictable transfer behavior under real operating constraints. The UB grade’s bounded INL and DNL, guaranteed monotonicity, and channel matching data make it particularly suitable for calibration-sensitive industrial systems. Typical examples include programmable setpoint generation, multi-loop analog control, sensor simulation, threshold trimming, and coordinated bias control across several channels. In these cases, the important question is not only whether the DAC can hit a target voltage once, but whether it can do so repeatably across channels, over temperature, and under supply movement.

A useful selection habit is to separate errors into those that can be removed in firmware and those that remain embedded in the transfer function. Zero-scale and full-scale errors are usually manageable through calibration. Supply-induced movement can often be reduced by board design. Residual nonlinearity, monotonic behavior, and inter-channel coherence are harder to fix after hardware is built. That is why the DAC7625UB UB grade earns attention in precision procurement. Its specification set reduces uncertainty in the areas that most often survive calibration and later surface as field-level performance spread. For industrial-temperature designs that need four analog outputs to behave like a coordinated precision subsystem rather than four loosely related channels, that distinction is decisive.

DAC7625UB Supply, Reference, and Output Range Options

DAC7625UB supply, reference, and output-range flexibility is one of the device’s most useful system-level advantages. It is not just a quad voltage-output DAC with a simple +5V rail requirement. Its real value appears during board-level integration, where the same part can be configured for single-supply or bipolar signal environments with only a small set of supply and reference decisions. That flexibility reduces architecture changes across product variants and simplifies reuse in mixed analog platforms.

The analog positive supply, VDD, is nominally +5V, with a specified operating window of 4.75V to 5.25V. In practice, this means the part is intended to sit on a tightly regulated 5V analog rail rather than a loosely controlled logic supply. The negative analog supply, VSS, is where the configuration space opens up. Tying VSS to 0V places the device in a single-supply operating mode suited to ground-referenced output ranges. Driving VSS to -5V enables bipolar operating arrangements and expands the legal output swing and reference relationship. This is not a cosmetic option. It changes how the DAC can map digital code to voltage and determines whether the downstream analog path must accommodate only positive signals or true positive and negative excursions.

That supply choice should be made from the output requirement backward, not from rail availability forward. If the application only needs a 0V-based control voltage, single-supply operation is usually the cleaner solution. It minimizes rail generation overhead, reduces negative-supply noise coupling, and often simplifies fault handling. If the output must center around 0V or drive circuits expecting bipolar command signals, using VSS = -5V is typically the more robust path than trying to level-shift a unipolar DAC output afterward. External level shifting can work, but it usually moves error sources out of the DAC and into extra op amps, resistor networks, and board parasitics. In many precision paths, that trade is not favorable.

The output span itself is governed by the reference inputs, VREFH and VREFL. These references define the DAC transfer endpoints for all four channels. VREFH establishes the upper output limit. VREFL establishes the lower output limit. This architecture is more powerful than a fixed-reference DAC because it makes the device a programmable interpolator between two externally defined voltages. As a result, full-scale range is not hardwired to the supply rails. It is reference-defined. That distinction matters in precision systems, because the most stable or accurate voltages on the board are often not the supply rails.

Seen from an implementation perspective, the DAC output equation is effectively bounded by VREFL and VREFH, with digital code selecting the position between those endpoints. This gives direct control over offset and span without requiring additional analog conditioning. For example, a control loop that needs a 1V to 4V actuator command can often be implemented directly by setting VREFL and VREFH to those values, instead of generating a 0V to 5V DAC output and attenuating or offsetting it later. That usually improves signal integrity because each removed stage eliminates its own offset, drift, finite gain error, and noise contribution.

Reference planning deserves more attention than it often gets. The allowable reference conditions depend on whether VSS is at 0V or -5V, so the selected reference voltages must be checked against the valid input range for the chosen supply configuration. This is a common design-in point where otherwise correct schematics fail during validation. The mistake is usually not dramatic. The circuit powers up, the DAC responds, and basic code-to-output behavior appears normal. The issue shows up near endpoint codes, during temperature sweep, or when channel-to-channel consistency is checked. In other words, the system looks healthy until precision matters. Careful endpoint budgeting at the beginning saves substantial debug time later.

A useful way to structure the design is to separate three constraints: supply headroom, reference validity, and required output swing. These are related but not identical. Supply rails define what the internal analog circuitry can support. Reference inputs define the intended transfer span. Output stage limits determine how closely the real pin voltage can approach those ideal endpoints under load. Many integration problems come from assuming those three boundaries collapse into one. They do not. A reference pair may be legal, but the output may still lose accuracy or linear settling near the rails if the load is too aggressive or if the next stage pulls current in ways the DAC output stage does not tolerate well.

Output-drive capability is therefore not a secondary detail. The DAC7625UB includes specified output-current behavior and load-related stability limits, including no-oscillation performance with capacitive loading up to 100pF. That number is highly practical. It means the output amplifier is stable into modest parasitic capacitance and short traces, but it should not be treated as a general-purpose line driver. Once routing becomes long, cable-connected, or tied to sample-and-hold inputs, effective capacitance can rise quickly. At that point, ringing, longer settling, or outright instability can appear even if static DC accuracy still looks acceptable on a meter.

This is where buffering decisions become architectural, not optional. If the DAC output feeds a high-impedance ADC reference trim node, comparator threshold input, or local control amplifier input, direct drive is often fine. If it must drive a filter network, long interconnect, external connector, or dynamic switched-capacitor input, adding a buffer is usually the safer design choice. The buffer should be selected for rail compatibility, low input bias current, and stable operation with the expected capacitive load. A small series isolation resistor between DAC output and buffer input or cable node can also improve stability in layouts where parasitic capacitance is difficult to control. This is a small intervention that often prevents a disproportionate amount of analog troubleshooting.

Short-circuit current is specified, but only for momentary fault conditions. That wording should be taken literally. The output stage is not intended to survive sustained fault drive as part of normal operation. If the application includes uncertain startup states, hot-plug events, mux contention, or field wiring exposure, external protection is worth considering. Even a modest resistor at the output can limit fault energy without significantly degrading static accuracy in high-impedance applications. In control systems, this tends to be a more efficient safeguard than relying on procedural assumptions about what the output will never be connected to.

From a signal-chain standpoint, one of the DAC7625UB’s strongest characteristics is that it produces voltage outputs directly. That avoids the extra transimpedance or I/V conversion stage required by current-output DACs. Removing that stage reduces component count and often improves consistency across four channels, especially when board area is constrained. It also shortens the error chain. Instead of DAC core error plus external conversion amplifier error plus resistor tolerance effects, the system can often work directly from DAC output to target node. In compact mixed-signal boards, this materially improves layout freedom and lowers analog interaction risk.

In multi-channel use, the shared reference architecture across all four DACs creates both an advantage and a responsibility. The advantage is ratiometric consistency. If the reference source is stable, all channels track the same endpoint framework, which is useful in coordinated bias generation, multi-axis control, and threshold banks. The responsibility is that reference noise or drift becomes a common-mode error source across every output. This means the reference distribution network should be treated as part of the analog signal path, not as a low-priority support net. Clean routing, low-impedance decoupling, and attention to return currents matter here as much as they do at the DAC outputs themselves.

A practical design pattern is to place the reference source close to the DAC, keep VREFH and VREFL routing symmetric where possible, and avoid sharing those traces with noisy digital return paths. If a precision divider is used to derive one reference from another, resistor thermal tracking is often more important than absolute nominal tolerance. Matched drift preserves span accuracy better over temperature than a pair of individually precise but poorly tracking resistors. In tightly budgeted error systems, this detail usually contributes more than another decimal place in room-temperature resistor tolerance.

The part fits especially well in systems that need reference-scaled voltage outputs with moderate drive capability and clean integration into a 5V analog domain. Typical uses include programmable thresholds, calibration injection, bias generation, gain or offset trimming, and actuator command generation where the load is controlled. It is less ideal as a direct interface to unpredictable external analog loads unless buffering and protection are designed in from the start. That distinction is important. The DAC performs best when used as a precision voltage source, not as a universal analog driver.

The most effective way to use the DAC7625UB is to treat supply selection, reference selection, and load planning as a single design problem. When those three are aligned early, the device is straightforward and elegant to integrate. When they are handled independently, avoidable errors tend to appear at the exact places the system is supposed to be most precise: at range endpoints, during load transitions, and across temperature. The device’s flexibility is real, but it rewards disciplined analog planning.

DAC7625UB Digital Interface, Addressing, and Data Handling

The DAC7625UB implements a 12-bit parallel digital interface built for deterministic register access and low-latency control. Its data bus spans DB0 through DB11, with DB0 as the LSB and DB11 as the MSB. This bit ordering is conventional, but its importance becomes more apparent when the device is integrated into mixed-signal control loops where bit significance must align exactly with firmware-side scaling, calibration tables, and output transfer logic. The interface is TTL-compatible CMOS, which makes it electrically convenient for direct attachment to a wide range of embedded controllers, programmable logic, and instrumentation backplanes without requiring complex level adaptation in many standard designs.

At the bus level, the device behaves like a memory-mapped peripheral with explicit control over destination, transaction type, and data direction. Address pins A0 and A1 select one of four DAC/register channels, labeled A through D. This addressing model is simple, but it also reflects a useful architectural choice: each analog output path is paired with its own internal register context. That separation reduces software ambiguity and allows control logic to target a specific channel without the overhead of serialized command framing that is common in narrower interfaces. In real hardware, this often translates into easier timing closure and more transparent debug because bus activity can be correlated directly with channel selection and payload data.

The CS signal gates device participation on the shared bus, while the R/W pin determines whether the active transaction is a write or a readback operation. Together, these pins define a compact interface protocol that is easy to decode in firmware and equally easy to observe on a logic analyzer. This matters in practice. Parallel DAC interfaces are often chosen not because they minimize pin count, but because they minimize uncertainty. When control timing, update sequencing, and bus observability are priorities, a direct parallel write path remains highly attractive despite higher routing cost. In systems that must react predictably to control changes, that tradeoff is often favorable.

Data handling is further simplified by the use of straight binary coding. The digital word maps directly to the converter transfer function without the additional sign interpretation required by two’s-complement or offset-binary schemes. For unipolar control applications, this is exactly the format most software layers want. It reduces translation logic, avoids unnecessary arithmetic branches, and makes the code path easier to verify. That simplicity is not just aesthetic. In tightly scheduled embedded routines, even small reductions in data conditioning improve predictability and reduce the chance of subtle range or polarity errors during integration.

The readback capability deserves closer attention because it changes how the DAC can be managed in a robust system. Many multi-channel DACs accept data blindly and provide no direct mechanism to verify what was loaded into their internal registers. The DAC7625UB allows the contents of the addressed input register to be read back through the same interface. This turns the device from a write-only endpoint into a state-visible component. In bus-controlled hardware, that distinction is valuable. It enables firmware to verify initialization sequences, confirm channel-specific configuration writes, and detect corruption caused by bus contention, marginal timing, or unexpected software interaction.

This feature becomes especially useful during board bring-up and fault isolation. In dense systems with several peripherals sharing address decoding and control strobes, a wrong register write is often not immediately obvious at the analog output, particularly if the output stage is filtered, buffered, or only sampled intermittently. Readback shortens that debug loop. Instead of inferring internal state indirectly from analog measurements, control software can query the register contents and compare them against the intended command image. That capability tends to expose wiring mistakes, decode overlaps, and race conditions much faster than output-only validation.

From a design perspective, the combination of channel addressing and readback also supports a cleaner software model. A reliable implementation will usually maintain a shadow copy of each channel word in firmware, then compare that shadow state against occasional device readback during initialization, diagnostics, or recovery handling. This is a small design pattern, but it scales well. It allows the DAC path to be treated as a verified actuator interface rather than a best-effort write sink. In systems where analog outputs affect calibration loops, bias control, threshold generation, or test stimulus, that added confidence is often worth more than raw bus efficiency.

There is also a practical timing advantage in the device’s straightforward parallel structure. Because channel selection and data value are presented explicitly, the host does not need to construct multi-byte serial frames or wait for command parsing inside the peripheral. The write transaction is conceptually immediate: select the channel, present the 12-bit code, assert the proper control sequence, and complete the transfer. This directness reduces software overhead and tends to produce highly repeatable update timing. For instrumentation and closed-loop control, repeatability is often more important than nominal throughput. A bus transaction that is simple enough to reason about cycle by cycle is easier to trust in a real-time environment.

Another useful aspect is that the interface naturally separates logical intent from analog behavior. The digital side handles selection, data validity, and transaction control; the analog side responds after the target register has been loaded and the device’s internal update behavior takes effect. Keeping those domains conceptually separate helps during system verification. If an output value is wrong, the problem can be narrowed systematically: incorrect binary code generation, incorrect channel addressing, incorrect bus control timing, or analog output path issues after a correct register load. Devices with readable internal state make this partitioning far more efficient.

In deployed hardware, the simplicity of the interface often proves beneficial under less-than-ideal conditions. Parallel buses on mixed-signal boards can pick up timing skew, ringing, or decode hazards if layout discipline is weak. With the DAC7625UB, these issues are easier to detect because the register-level result can be checked directly. That is a subtle but important operational advantage. Components that reveal their internal loaded state tend to reduce service time and improve maintainability, especially in systems where the analog outputs themselves cannot be probed easily during normal operation.

The overall interface design of the DAC7625UB reflects a practical engineering balance. It does not chase bus minimization or protocol abstraction. Instead, it favors transparency, channel-direct access, and verification-friendly behavior. The 12-bit parallel data path, A0/A1 channel addressing, CS and R/W transaction control, and straight binary format all contribute to an implementation style that is easy to map into deterministic firmware and easy to validate at the board level. The addition of register readback strengthens that model significantly, turning a basic quad DAC interface into a more controllable and diagnosable subsystem for embedded and instrumentation applications.

DAC7625UB Reset, LDAC, and Readback Functions in Control-Oriented Designs

DAC7625UB integrates three control-facing mechanisms that matter far more in deployed systems than the nominal DAC resolution alone: asynchronous reset, LDAC-governed output latching, and internal register readback. These features directly affect startup determinism, multi-channel timing, fault recovery, and serviceability. In control-oriented designs, those aspects usually dominate whether the analog path behaves predictably under stress.

The asynchronous RESET input is active low and clears both the input registers and DAC registers to zero-scale code 000H. The key point is not only that reset exists, but that it acts independently of the serial programming sequence. That independence is valuable in any design where the digital control plane can become temporarily unreliable. If the interface clock stalls, the processor hangs, or bus traffic is corrupted, RESET still provides a hard path to a defined analog state. Zero-scale output is often the preferred fail-safe because it removes ambiguity. It collapses the converter into a known condition that can be analyzed, bounded, and included in safety logic.

This behavior is especially useful during power-up. In mixed-signal boards, analog supplies, references, digital I/O rails, and controller firmware rarely become valid at exactly the same time. Without a deterministic reset state, outputs can briefly reflect stale register contents, undefined logic levels, or partial serial writes. Those transients may be short, but in closed-loop systems short disturbances are enough to trigger protection circuits, move an actuator, or corrupt a calibration sequence. Using RESET as part of the power sequencing strategy prevents that class of behavior. In practice, the cleanest implementations hold RESET asserted until the reference is settled, the logic rail is valid, and the host can guarantee correct SPI timing. That approach tends to eliminate a surprising number of startup anomalies that otherwise appear random on the bench.

There is also a subtle system-level advantage in resetting both the input and DAC registers together. Some DAC architectures only force the output register to a known state while leaving staging registers untouched. That can create confusion after fault recovery because the next update may unexpectedly restore pre-fault values. In the DAC7625UB, clearing both layers simplifies state reconstruction. After reset, firmware and hardware start from the same baseline. That makes watchdog recovery more deterministic and reduces the chance of latent analog commands reappearing after control is re-established.

LDAC provides the second layer of control by decoupling data loading from output updating. The device allows values to be written into input registers first, then transferred into DAC registers under LDAC control. This separation is one of the most useful timing tools in multi-channel analog systems. It lets the serial bus operate as a configuration path while LDAC acts as the commit signal. That distinction becomes important whenever several outputs must change together, or at least within a tightly bounded skew window.

When LDAC is held low, the DAC registers are transparent to the input registers, which gives immediate-update behavior. This mode is simple and efficient for single-channel trimming, slow supervisory control, or situations where update simultaneity is not critical. It minimizes control overhead and reduces firmware complexity. However, transparent updating can produce channel-to-channel timing dispersion in multi-output sequences because each channel changes when its data word is written, not when the full output set is ready. In instrumentation and actuator control, that difference can be measurable.

Holding LDAC high during serial writes and then pulsing it after all channels are loaded produces coordinated output updates. This is often the better mode for servo loops, arbitrary stimulus generation, bias stepping, and automated test equipment. The practical benefit is lower output skew across channels. Less skew means cleaner vector transitions, more repeatable settling behavior, and fewer unintended cross-coupled effects in downstream analog circuitry. In systems with sample-and-hold front ends, synchronous demodulation, or multi-phase drive signals, the quality of the LDAC timing path can matter as much as the quality of the SPI path.

A useful design habit is to treat LDAC as a timing-critical signal, not just a convenience pin. If it is routed casually through slow GPIO software control, the theoretical simultaneity benefit can be eroded by firmware jitter or interrupt latency. Better results usually come from driving LDAC with hardware-timed logic, a timer output, or an FPGA pin when deterministic updates are required. This is one of those details that often separates a system that is merely functional from one that is temporally well-behaved under load.

Register readback adds the third control mechanism: observability. The DAC7625UB allows firmware to read back internal input register contents, which creates a direct method to verify what the device has actually accepted. That is fundamentally different from relying only on a software shadow copy. A shadow register confirms what the controller intended to write. Readback confirms what crossed the interface and was stored inside the DAC. In robust embedded systems, that distinction is critical.

Readback becomes most valuable when debugging edge-case failures. Dense digital boards often experience issues that do not show up in nominal testing: marginal chip-select timing, clock edge integrity problems, crosstalk on long traces, level-shifter contention, or transient violations during reset release. These faults may corrupt only occasional transactions, making them difficult to isolate. Readback gives firmware a low-cost verification mechanism. A write can be followed by a readback compare, either continuously in critical loops or selectively during initialization, calibration, or maintenance diagnostics. That turns the DAC from a passive endpoint into a measurable participant in system integrity checks.

In fielded equipment, readback also improves fault localization. If the commanded value, software shadow, and readback value disagree, the failure is likely in the communication path or timing layer. If the readback matches the programmed value but the analog output is wrong, the issue is more likely downstream: reference instability, output loading, amplifier faults, grounding errors, or converter damage. This simple partitioning significantly shortens debug cycles. In practice, it is often the fastest way to determine whether a problem belongs to firmware, digital hardware, or the analog chain.

The combination of RESET, LDAC, and readback is stronger than the individual features suggest. RESET establishes a known safe baseline. LDAC controls when new commands become active. Readback verifies what was staged before activation. Together, they support a disciplined command model: clear state, preload values, verify integrity, then commit outputs at a defined instant. That sequence maps well to industrial control, instrumentation sequencing, and test systems because it reduces uncertainty at each transition point.

From an architectural perspective, this device supports a staged-control pattern that is often underappreciated in DAC selection. Many designs focus first on resolution, INL, or settling time. Those parameters matter, but in operational systems the more decisive question is often whether output state transitions are auditable and deterministic. A DAC that can be reset safely, updated coherently, and interrogated internally is easier to integrate into systems that require recoverability and traceability. That usually pays off more than a small improvement in static accuracy that cannot be preserved at the system level.

For implementation, a few practices tend to produce the best results. Tie RESET into both power-on supervision and watchdog recovery so the analog outputs always return to a defined state after control failure. Use LDAC in transparent mode only where asynchronous per-channel changes are acceptable; otherwise stage all channels first and issue a single controlled update. Add readback verification at least during initialization and safety-critical mode changes, and consider periodic validation if the environment is noisy or the bus is heavily shared. Also ensure that the zero-scale reset behavior is compatible with the downstream analog chain. In some systems zero-scale is truly safe; in others it may correspond to negative full-scale after external signal conditioning, so the full signal path must be evaluated rather than the DAC alone.

Seen this way, the DAC7625UB is not just a voltage-output converter with a serial interface. It is a controllable analog state element with explicit mechanisms for fail-safe entry, timed state transition, and digital observability. That makes it particularly well suited to designs where analog outputs must do more than reach the right value. They must reach it at the right time, recover cleanly from faults, and remain diagnosable when the surrounding system becomes imperfect.

DAC7625UB Package, Pinout, and Signal Assignment Considerations

DAC7625UB package selection and pin assignment are not just mechanical details. They directly shape achievable DC accuracy, channel isolation, update behavior, and layout complexity. The device uses a 28-lead SOIC package with a body width of 0.295in, or 7.50mm, which places it in a useful middle range for mixed-signal boards: compact enough for dense instrumentation and control designs, yet still large enough to route a 12-bit parallel bus, control lines, supplies, references, and four analog outputs without forcing extreme PCB escape strategies.

From a packaging perspective, the 28-lead SOIC offers a practical tradeoff between density and analog usability. It avoids the board area and assembly limitations of through-hole parts while remaining easier to inspect, hand-rework, and prototype than finer-pitch packages. That matters in real layouts because quad DACs rarely sit alone. They are usually surrounded by reference circuitry, output conditioning stages, logic translation, connectors, and often some form of ADC or sensing front end. In that environment, package geometry affects not only placement density but also how cleanly analog and digital routing can be separated. A package that is physically compact but not excessively tight tends to reduce routing compromises, and that often translates into better repeatability across builds.

The pinout reflects the dual nature of the device. Four dedicated analog output pins, VOUTA through VOUTD, expose the converter channels individually. This is the correct arrangement for systems that need independent bias generation, threshold setting, waveform control, or multichannel calibration. It also means each output should be treated as its own analog net, not as a generic low-priority trace. Even if all four channels share the same nominal transfer characteristics, their board-level performance can diverge if load impedance, capacitive pickup, or local return current conditions differ. In practice, channels that look identical in the schematic can behave differently once one of them is routed past a clock line, another feeds a long connector trace, and a third drives an op-amp input with different parasitic loading.

The reference structure deserves particular attention. VREFH and VREFL define the analog span against which the DAC codes are converted. Their placement at opposite ends of the package is more than a pinout convenience; it has layout implications. The reference pair forms the electrical foundation of transfer accuracy, gain consistency, and low-level linear behavior. If VREFH is routed from a low-noise precision source but VREFL shares a noisy ground return or a digitally contaminated local plane region, the effective reference span becomes dynamic. The resulting errors do not always appear as obvious noise. They can show up as code-dependent output shifts, inter-channel correlation, degraded monotonic behavior near transitions, or unexplained gain drift during digital bus activity. A recurring issue on mixed-signal boards is that VREFL gets treated as ordinary ground. In precision DAC layouts, that assumption is usually too casual. It should be routed and decoupled with the same intent as a sensitive analog node.

The supply pins VDD, VSS, and GND establish the internal operating boundaries for the analog and digital sections. Their exact roles should be interpreted in the context of the device operating mode and system supply architecture, but the broader design principle is consistent: supply integrity is part of signal integrity. For a quad DAC with a parallel interface, switching current from digital input activity can modulate internal thresholds and analog output stability if supply decoupling is weak or return paths are shared carelessly. A short, low-inductance decoupling network placed close to the supply pins is essential. One local high-frequency ceramic capacitor is the minimum expectation; in more demanding designs, pairing that with a nearby bulk or mid-frequency capacitor improves resilience against bus burst activity and simultaneous output updates. The best layouts also ensure that decoupling current loops remain physically tight rather than spreading into broader ground regions where they can intersect reference and output return paths.

The digital interface pins—RESET, LDAC, CS, A0, A1, R/W, and DB0 through DB11—define how data enters the converter and when outputs update. This is where package-level pin awareness becomes system behavior awareness. A 12-bit parallel bus is fast and simple from a logic standpoint, but it can inject substantial edge energy into the package and PCB if driven aggressively. The most common layout mistake is to route the bus as though it were electrically harmless because its frequency is modest. Edge rate matters more than toggle rate in many cases. Fast logic transitions on DB lines, chip select, or load control can capacitively and inductively couple into nearby analog traces, especially the reference pins and high-impedance output destinations. If the controller or FPGA driving the DAC has programmable drive strength, reducing edge aggressiveness often improves analog quietness without any meaningful penalty in throughput.

RESET and LDAC deserve separate treatment because they influence system-level predictability. RESET defines startup or recovery behavior, and its default state should be controlled rather than left vulnerable to power-up transients. LDAC determines when the DAC registers propagate to the outputs, which becomes important in multi-channel systems requiring synchronous updates. If LDAC is routed casually across a noisy digital region, the board may exhibit occasional timing-related analog glitches that are difficult to reproduce. In one class of designs, tying LDAC low seems attractive for simplicity, but that can sacrifice deterministic simultaneous updates and increase the visibility of intermediate states during channel reprogramming. Where channel coherence matters, deliberate LDAC timing is usually worth the extra control effort.

Addressing inputs A0 and A1, together with CS and R/W, provide command select functionality for the internal register structure. These pins often receive less attention than the data bus, yet their timing quality can affect write integrity just as strongly. If control and data lines arrive with mismatched skew due to long serpentine routes or level-shifting asymmetry, the DAC may still function in nominal testing but become marginal across voltage and temperature corners. Good engineering practice is to route control signals with similar discipline to the bus itself, keep them out of analog corridors, and avoid unnecessary stubs. The goal is not high-speed digital perfection; it is stable write timing with minimal analog disturbance.

The NIC pin, being not internally connected, should remain electrically unused. That recommendation is easy to dismiss as trivial, but it is worth following literally. Using NIC as a mechanical tie point, test anchor, or opportunistic routing node adds risk with no benefit. Even if a given revision of the die leaves the pin floating, future assumptions, parasitic coupling, or assembly variability can turn that decision into an avoidable debugging variable. Leaving it open preserves intent and removes one source of ambiguity during bring-up.

Mixed-signal layout discipline is the central design requirement for this device. The DAC7625UB integrates precision analog output circuitry and a parallel digital interface in the same package, so the board must prevent the digital side from setting the analog floor. The most effective layout strategy starts by defining physical zones. Place the DAC so that the digital bus enters from one side and the reference/output circuitry exits toward a quieter analog region. This simple placement choice often matters more than elaborate post-routing cleanup. Once that orientation is established, keep VREFH and VREFL short, guarded from bus lines, and referenced to a quiet analog ground region. Route VOUTA through VOUTD away from toggling control lines and avoid long parallel runs with digital nets. Where outputs must cross mixed regions, ground shielding or layer reassignment is often more effective than increasing trace spacing alone.

Ground management should be handled with intent, not slogans. The usual advice to separate analog and digital grounds is incomplete unless return current paths are understood. What matters is controlling where digital switching currents flow and ensuring they do not share impedance with the reference and output paths. In many practical boards, a continuous ground plane with functional zoning works better than aggressively split planes that force return detours. The DAC ground, reference low node, and nearby analog conditioning components should sit in a locally quiet area of that plane, while bus drivers and other high-edge-rate logic should return elsewhere. The key is to prevent digital current loops from traversing the analog neighborhood of the package.

Decoupling and reference buffering should be considered together. If the DAC is expected to maintain accuracy under dynamic code changes on multiple channels, the reference source must remain low noise and low impedance over the relevant frequency range. A precision reference that looks excellent in static specifications can still underperform if its output impedance rises with frequency or if it is placed too far from the DAC pins. Where the reference source must also feed other devices, buffering or star-style distribution often avoids interaction. A subtle but common failure mode occurs when the reference line is treated as a static DC net and routed through congested areas with vias, branch points, and shared loads. The resulting small disturbances can dominate the error budget long before intrinsic DAC linearity does.

Output routing should reflect the expected load and downstream circuitry. If the outputs feed high-impedance amplifier inputs, preserving quiet routing and minimizing leakage or contamination is the main priority. If they drive cables, multiplexers, or sample-and-hold inputs, capacitive loading and transient current demands become more relevant. In those cases, local output buffering may be necessary to preserve settling behavior and isolate the DAC from external disturbances. It is rarely wise to assume that the raw DAC pin can tolerate any board-level load simply because the nominal voltage range appears compatible. Load interaction often defines real performance more strongly than static resolution.

For verification, pinout awareness should continue into test planning. Provide access to the reference nodes, one or two representative digital control lines, and at least one clean analog output measurement point near the device before long downstream routing. This makes it far easier to distinguish intrinsic DAC behavior from board-induced artifacts during bring-up. When troubleshooting, one useful pattern is to program static codes, then compare output noise with the digital bus idle versus continuously active. If output quality degrades noticeably during bus activity, the package-level partition between digital and analog routing is usually the first place to inspect.

The most important design insight is that this device rewards physical discipline more than schematic complexity. Its pinout already tells the story: references anchor accuracy, supplies anchor stability, digital lines control timing, and outputs expose every layout decision to measurement. Teams that treat those groups as separate but interacting energy domains usually achieve datasheet-like behavior with little drama. Teams that see only a 28-pin DAC often end up debugging noise, gain inconsistency, or channel mismatch that was created on the PCB rather than inside the converter.

DAC7625UB Dynamic Behavior and Typical Performance Trends

DAC7625UB dynamic behavior is best understood by looking beyond static accuracy numbers and focusing on how the output actually moves in time, across code, and across temperature. The device is not merely a multi-channel voltage-output DAC with acceptable DC precision. Its value is that it preserves usable precision while still responding fast enough for closed-loop control, programmable bias generation, and multi-channel instrumentation tasks that cannot tolerate long recovery intervals after each update.

The 10 µs settling time to ±0.012% is one of the most important dynamic indicators in the specification. In practical terms, this tells you how long the output requires after a code change before it enters and remains within a very tight error band around the final value. The ±0.012% window corresponds to roughly 1 LSB at 13 bits, so this is not a relaxed endpoint definition. It is a precision settling spec. That distinction matters. Many systems can produce a rapid voltage transition, but the true constraint is the time required for glitch energy, amplifier slewing, internal switching transients, and final linear settling to decay far enough that the downstream circuitry sees a valid value.

This places the DAC7625UB in a useful middle ground. It is clearly faster than parts intended only for static trimming or infrequent supervisory setpoint updates, yet it is not a waveform DAC optimized for high-throughput arbitrary signal synthesis. That balance often aligns well with servo loops, actuator bias control, threshold generation, programmable references, and sensor excitation trimming. In these systems, update rates may be modest, but the required post-update accuracy is not. A nominally fast output stage without clean settling often causes more trouble than a slower but predictably settling one, especially when the next conversion, comparator decision, or control action is triggered immediately after the DAC update.

A practical reading of the 10 µs number should also include system-level margin. Settling time on the datasheet is measured under defined load and step conditions. On the board, capacitive loading, reference drive impedance, grounding quality, output buffering, and even nearby digital edge activity can stretch the observed response. In mixed-signal layouts, the last fraction of a percent often disappears more slowly than expected because the output is not only settling internally but also recovering from board-level coupling. In precision designs, it is often wise to budget additional time beyond the nominal figure unless the exact application conditions have been characterized on hardware.

Channel-to-channel crosstalk at 0.25 LSB on any other DAC for a full-scale step is another metric that deserves careful interpretation. In a quad DAC, isolation between outputs is rarely perfect because channels share substrate structures, supply paths, digital interface activity, and often portions of the reference or internal bias network. The stated crosstalk figure gives a bounded view of how much one channel’s large transition can disturb another channel’s output. For tightly coordinated multi-channel systems, that number is more useful than it first appears. It is effectively a statement about channel independence under dynamic stress.

This matters in applications such as four-channel bias control, programmable gain staging, valve or motor command generation, and synchronized threshold setting. If one output performs a full-scale transition while another output must remain quiet and accurate, crosstalk becomes a direct error term rather than a secondary effect. A 0.25 LSB disturbance is small enough to be acceptable in many industrial and instrumentation cases, but whether it is negligible depends on timing. If the disturbed channel is sampled immediately after the neighboring update, the transient may appear as real signal error. If there is adequate dead time between channel activity and observation, the same disturbance may be operationally invisible. This is why crosstalk should be evaluated not only by amplitude but also by when in the control or measurement sequence it occurs.

In practice, multi-channel DAC behavior is often limited less by the converter core than by shared return paths and reference distribution. A common pattern on dense boards is that crosstalk seen during evaluation exceeds the datasheet trend because the reference bypassing is weak or analog and digital currents overlap in the same copper region. When the DAC is used near its precision limits, separating sensitive output routing, minimizing reference impedance, and controlling update timing usually yields more improvement than searching for marginally better static linearity on paper.

The typical performance plots add another layer of value because they reveal how the DAC behaves across the transfer curve rather than at a few guaranteed endpoints. Linearity error versus code shows where residual transfer-function curvature or segment transitions appear. Differential linearity error versus code indicates whether step size remains uniform as the code advances. Looking at all four DACs under both VSS = 0 V and VSS = -5 V operation is especially useful because output-stage behavior often changes when the negative rail configuration changes. A unipolar supply arrangement and a bipolar-capable arrangement do not stress internal structures in the same way, and the code-dependent error shape can shift accordingly.

These plots are often more informative than a single maximum INL or DNL figure. A maximum limit tells you the worst case somewhere in the range. The plotted shape tells you where the errors concentrate, whether they are monotonic and smooth, whether they cluster near major carries, and whether all channels track similarly. For calibration-heavy systems, this shape matters. Smooth, repeatable error can often be compensated. Sharp, localized irregularity is harder to remove, especially when temperature and supply conditions move the location or magnitude of the defect. From an engineering perspective, a DAC with slightly larger but well-behaved error can be easier to integrate than one with a better headline number but less predictable code-region behavior.

The inclusion of both VSS = 0 V and VSS = -5 V curves also helps frame output compliance strategy. When the negative rail is present, the analog output stage has more headroom for certain ranges, and zero-scale behavior may improve depending on load and required swing. This can be relevant in systems that need true near-ground control under varying load or that require bipolar output spans without external level shifting. The choice is not only about output range. It also affects error distribution, recovery behavior near the rails, and how much design effort is needed in downstream buffering.

Temperature-related zero-scale and full-scale error plots are equally important because they expose drift mechanisms that static room-temperature tests cannot capture. Zero-scale error drift usually reflects offset-related movement in internal amplifier paths, resistor matching changes, and bias dependence. Full-scale error drift includes gain-path variation, reference interaction, and scaling network temperature coefficients. Together, these plots show whether the DAC remains predictably aligned across ambient changes or whether recalibration intervals must be shortened.

For industrial environments, this is not a secondary concern. A DAC may look excellent on the bench at 25 °C and still create field issues if offset and gain drift move in different directions across the operating range. In closed-loop systems, drift at zero scale can skew the baseline operating point, while drift at full scale compresses or expands command span. The resulting behavior is often interpreted at first as sensor drift or actuator inconsistency when the actual source is the command path. Reviewing the zero-scale and full-scale temperature trends early in the design phase helps avoid that misdiagnosis and supports a more realistic calibration plan.

A useful design approach is to treat the typical temperature plots as behavioral guidance rather than guaranteed limits, then build margin around the dominant slope seen in the expected operating band. For example, if the equipment will spend most of its life between -10 °C and +60 °C rather than across the full absolute range, the slope and curvature inside that narrower region often matter more than endpoint extremes. This supports more efficient compensation strategies. In many systems, a two-point trim combined with temperature-aware correction at the controller level is enough to extract noticeably better performance than the raw datasheet guarantee suggests.

The broader implication of these dynamic and typical-performance metrics is that the DAC7625UB is intended for stable, controlled precision in real operating conditions, not just nominal compliance at room temperature. Its specifications point to a part designed for engineers who care about how the output behaves after updates, how one channel affects another, how code-dependent errors are distributed, and how the transfer function shifts with ambient conditions. That combination is what makes it appropriate for moderate-speed precision control and instrumentation. It can move fast enough to stay relevant in active systems, but its stronger advantage is that its behavior is sufficiently characterized to support predictable integration.

One point that deserves emphasis is that typical plots are most valuable when used to shape verification strategy. If the linearity plot shows code-region structure, test those regions explicitly. If the crosstalk number matters, trigger worst-case full-scale transitions on adjacent channels while observing a held output. If temperature drift is a concern, measure both zero and full-scale at thermal endpoints and not only midscale. This style of validation aligns with how the device actually behaves and usually exposes system weaknesses earlier than broad but shallow testing.

Viewed this way, the DAC7625UB is less about absolute speed and more about disciplined analog behavior under realistic constraints. That is often the more useful property in industrial and instrumentation designs, where repeatability, interaction control, and temperature stability determine whether precision on the schematic survives into deployed hardware.

DAC7625UB Application Fit for Process Control, ATE, Servo, and Data Acquisition

The DAC7625UB is a strong fit for multi-channel mixed-signal systems that need deterministic analog output generation under direct digital control. Its value is not just that it integrates four DAC channels in one package. The more important point is that it combines channel density, coordinated updating, parallel interface speed, and industrial-grade operating range in a way that matches real control hardware rather than lab-only signal generation. In systems where several analog nodes must move together, where startup state must be controlled, and where output values may need to be verified rather than assumed, this device aligns well with process control, ATE, servo platforms, and data acquisition subsystems.

At the architectural level, the DAC7625UB addresses a common system problem: multiple analog outputs often need to be generated with predictable timing and without cross-channel ambiguity. In many practical designs, the issue is not raw DAC resolution alone. It is whether the outputs can be loaded, staged, and then applied in a coordinated manner. The double-buffered structure directly supports this requirement. A controller can write new codes into input registers without disturbing the present analog state, then issue an update so all selected outputs transition together. That behavior is especially useful when the analog outputs form a coupled set of commands rather than independent voltages. In control terms, this prevents intermediate states from appearing while values are being rewritten one channel at a time. Those intermediate states are often the hidden source of loop upset, actuator jerk, or false threshold events.

The parallel interface is another practical strength. In systems that still prioritize deterministic transaction timing over bus minimization, a parallel DAC remains attractive. The interface reduces uncertainty in command latency and simplifies cycle-level control in FPGA, DSP, or microcontroller designs that need predictable analog update windows. This matters in ATE and motion systems, where the analog command path is often part of a tightly scheduled timing chain. A serial interface can save pins, but a parallel interface can simplify timing closure and reduce software overhead when multiple channels are updated frequently. In practice, that tradeoff often becomes favorable when the DAC sits close to the digital controller on a dense board with controlled routing.

For process control, the DAC7625UB maps well onto applications that require several programmable analog setpoints inside one loop station or control module. The four outputs can serve as valve commands, bias references, alarm thresholds, trim controls, or drive signals for external current-loop transmit stages. The coordinated update mechanism is particularly valuable when process variables are interdependent. If one setpoint changes before another, even for a short interval, the plant can see a temporary mismatch. In thermal systems, fluid handling, or chemical dosing, that mismatch may not cause immediate instability, but it can create small transients that accumulate into visible process noise or overshoot. Synchronous output transfer reduces that risk. It is often better to think of the quad DAC not as four separate outputs, but as a compact analog control vector generator.

Industrial temperature capability also matters here. Process equipment often operates in electrically noisy and thermally uneven environments. A DAC selected for such systems must hold predictable behavior across cabinet heating, outdoor installations, or proximity to power stages. In these settings, a part with suitable temperature performance reduces the amount of compensation and recalibration burden pushed onto software. That does not eliminate the need for system calibration, but it improves baseline stability and lowers drift-related maintenance complexity.

In ATE, the DAC7625UB fits naturally into pin electronics, programmable bias generation, comparator threshold control, and per-channel stimulus trimming. ATE architectures care about two things that this device supports well: density and certainty. Four channels per device help compress the analog section, especially in modular card designs where board area is expensive and channel count scales quickly. More importantly, the device supports deterministic programming behavior. The specified settling performance, on the order of 10 µs, is adequate for many instrumentation and test timing domains where outputs must reach a stable target before a measurement window opens. Readback capability adds another layer of robustness. In test systems, silent configuration faults are expensive because they distort correlation and are difficult to diagnose. Being able to verify programmed state through readback helps separate digital loading issues from downstream analog faults.

That verification path becomes more valuable as systems age. On large ATE platforms, failures often come not from obvious device breakdown but from marginal bus behavior, connector wear, or timing drift across revisions. A DAC with readback allows the control software to confirm state integrity before a critical sequence. That does not guarantee the external analog node is perfect, but it sharply narrows the diagnostic search space. In engineering practice, this kind of feature often saves more time than an incremental improvement in nominal speed or resolution.

For closed-loop servo and motor-related control hardware, the DAC7625UB offers useful startup and coordination behavior. Zero-scale reset is not just a convenience feature. In many actuator systems, power-up behavior is part of the safety model. A known reset condition reduces the chance of unintended output drive during initialization, especially when the digital controller, power stage, and feedback path do not become valid at exactly the same time. If the DAC feeds command amplifiers, torque references, or auxiliary bias rails, forcing outputs toward a defined low state during reset can simplify interlock design. It also reduces the number of external gating circuits needed to suppress transient commands.

Coordinated updates matter in servo systems because multiple analog quantities are often coupled. One output may define the main command, while others adjust gain scheduling, offset compensation, clamp thresholds, or auxiliary axes. If these values are changed sequentially, the loop may briefly operate under mixed conditions. That can appear as a small disturbance, but in high-gain systems even a brief mismatch can translate into audible chatter, current spikes, or position error. Loading the next command set and applying it in one update event avoids these partial-state artifacts. This is one of the less obvious advantages of a buffered multi-channel DAC: it improves not just control functionality, but control choreography.

In data acquisition systems, the DAC7625UB is often more useful as an infrastructure component than as a simple waveform output. It can generate programmable offsets for signal conditioning chains, set comparator or window thresholds, establish bridge excitation trims, or inject calibration references into the front end. This is a common pattern in precision measurement hardware. The ADC usually receives most of the attention, but the quality and programmability of the supporting analog references strongly affect usable system accuracy. A DAC that can reliably control offset and threshold points gives the acquisition chain adaptability without requiring mechanical trim or excessive analog switching.

This role is especially important in systems that support multiple sensor types or operating ranges. Instead of redesigning the analog front end for each use case, the hardware can expose a set of programmable analog control points. The quad structure is efficient here because one device can simultaneously manage offset correction, gain-related reference adjustment, alarm threshold generation, and calibration injection. That kind of partitioning reduces component count and keeps analog control local to the acquisition section, which usually improves noise management and board routing compared with distributing these functions across several single-channel devices.

A practical design advantage across all of these application areas is channel consolidation. Using one quad DAC instead of multiple single-channel parts reduces package count, routing complexity, reference distribution effort, and update synchronization overhead. It also improves channel matching from a system perspective because the outputs share the same device environment and interface behavior. The benefit is not only lower BOM count. It is a cleaner control architecture with fewer opportunities for timing skew and layout inconsistency. In dense mixed-signal boards, that simplification can be as valuable as the converter performance itself.

Good implementation still matters. The DAC7625UB will perform best when the reference path is quiet, digital switching return currents are controlled, and output loading is understood rather than assumed. In process and servo boards, it is usually worth separating digital and analog return routing carefully around the DAC and its reference network, even if the grounds join at a common system point. In ATE and data acquisition designs, local decoupling and short reference traces help preserve code-to-voltage fidelity under fast bus activity. A common field issue is treating the DAC as purely digital because it has a bus interface; in reality, its output behavior is often dominated by analog layout discipline, reference quality, and amplifier interaction downstream.

Viewed as a system component, the DAC7625UB is most effective when its features are used as part of the control strategy rather than as isolated specifications. The quad outputs provide compact analog authority. The double-buffered update path provides timing coherence. The parallel interface provides deterministic loading. Zero-scale reset supports controlled startup. Readback supports configuration confidence. Those traits line up well with process control modules, ATE resources, servo electronics, and configurable data acquisition front ends because these systems do not just need analog outputs. They need analog outputs that behave predictably inside larger timing, safety, and calibration frameworks. That is where this device fits best.

DAC7625UB Design-In Considerations for Selection Engineers

When evaluating the DAC7625UB for a new design, the main task is not simply checking whether its resolution and channel count meet the datasheet target. The more important question is whether its interface behavior, reference architecture, output drive capability, and ordering-grade details align with the larger control system around it. This device tends to fit best in designs where digital timing is already structured, analog performance is expected to be repeatable across channels, and deterministic startup behavior matters as much as static accuracy.

A first design-in checkpoint is the host-side interface model. The DAC7625UB uses a parallel interface, which is efficient when the system already exposes a memory-like bus, FPGA fabric, CPLD control, or wide GPIO resources that can update multiple control words with predictable timing. In that environment, the device integrates cleanly and often reduces software overhead because the write path is direct and timing closure is easier to characterize. The tradeoff is pin cost. In compact controller designs, especially those built around small microcontrollers, the digital routing burden can become more expensive than the DAC itself. Address decoding, latch timing, bus contention risk, and board-level signal integrity all begin to matter. A serial DAC may look slower on paper, but in a pin-limited architecture it often produces a better total system result because it compresses routing complexity and leaves more freedom for isolation and grounding.

In practice, the parallel interface becomes attractive when channel update determinism matters more than absolute pin efficiency. That is often the case in programmable instrumentation, waveform generation subsystems, and closed-loop calibration fixtures where several outputs must be written with low latency and minimal firmware uncertainty. A useful design habit is to evaluate not only whether the host can drive the interface, but whether it can do so cleanly under worst-case timing, including interrupt activity, bus sharing, and startup sequencing. Many integration issues appear only after the board is fully populated, when nominally valid bus timing produces occasional output corruption due to edge skew or insufficient setup margin. The DAC itself is usually not the problem; the issue is often that the surrounding logic was treated as functionally compatible rather than timing-robust.

Reset behavior deserves equal attention because it defines how the analog subsystem behaves before software takes control. The DAC7625UB resets to zero scale, and that characteristic is not a minor implementation detail. It directly shapes fault response, power-up output state, and recovery behavior after watchdog or brownout events. In systems that drive actuator thresholds, bias networks, programmable gains, or external control voltages, reset state must be treated as part of the safety architecture. Zero scale is often desirable because it creates a defined and conservative startup condition, but that is only true if the downstream circuitry interprets zero scale as benign. In bipolar signal chains, level-shifted outputs, or circuits where zero code maps to an active state after external conditioning, the assumption can fail quietly.

This is where the distinction from the related DAC7624 family becomes operationally important rather than catalog-level trivia. Selection errors within closely related DAC families often happen because engineers compare resolution, package, and channel count, yet overlook reset semantics. In review cycles, that detail is easy to miss because both parts may appear functionally interchangeable once normal operation begins. The safer approach is to analyze reset behavior at the system boundary: what voltage appears at the final load node, how long it persists, and whether any analog post-processing stage inverts, offsets, or amplifies it. When this is checked early, startup behavior stops being a hidden risk and becomes a controlled design parameter.

Reference strategy is the dominant analog consideration because VREFH and VREFL establish the output span for all channels. That means the reference path sets not only full-scale range, but also gain accuracy, drift behavior, inter-channel consistency, and a large share of low-frequency repeatability. In a multi-channel DAC, a weak reference network creates a correlated error source across all outputs. This is often more harmful than independent channel noise because it shifts the entire control space together. If the application relies on matching between channels, ratio stability, or repeatable calibration transfer over temperature, the reference network should be treated as a first-order subsystem, not a support circuit.

A sound reference design starts with impedance control and noise discipline. The reference source should remain stable under code-dependent switching activity, supply disturbances, and temperature variation. Routing should be short, quiet, and protected from digital edge coupling. Decoupling should be placed to minimize both broadband noise and transient injection into the reference pins. In dense mixed-signal layouts, one recurring issue is that the reference net is routed as though it were a static DC signal. In reality, it sits inside a dynamic converter structure and can reflect internal switching behavior back into the analog domain if the source is too soft or the return path is poorly managed. A reference buffer may be justified even when average current demand appears low, simply because dynamic stiffness matters more than nominal load.

It is also useful to think in terms of error budgeting rather than isolated component specifications. A precision reference with excellent initial accuracy does not guarantee precision outputs if thermal gradients, ground drops, and package-level coupling are left unmanaged. In many industrial boards, channel-to-channel agreement is limited less by the DAC core than by how the reference and return currents share copper with digital logic. The practical result is that the best reference part can underperform a modest one if the layout hierarchy is wrong. A compact analog island, a controlled ground return, and careful separation from bus transitions usually produce more measurable benefit than chasing marginally better reference numbers in isolation.

Output loading is the next filter because direct-drive capability only helps when the load is compatible with the converter’s analog output stage. The DAC7625UB can simplify the signal chain by eliminating unnecessary external amplifiers in moderate-load applications, but that advantage should not be assumed under all operating conditions. Resistive loads, sample-and-hold inputs, multiplexed analog paths, cable-driven nodes, and capacitive interfaces stress the output differently. Static current demand is only one part of the picture; dynamic settling, phase margin, and glitch response can become dominant once the output sees capacitance or abrupt load transitions.

A common integration mistake is to validate output swing with a benign bench load, then discover degraded settling or code-transition artifacts in the actual system. Long traces, protection networks, ADC front ends, and connector capacitance can turn a nominally simple output into a dynamically difficult one. External buffering remains a sensible option when the load is heavy, distributed, or uncertain. The best reason to add a buffer is not only current gain, but isolation: it decouples the DAC from downstream variability and makes system behavior easier to predict across assemblies and temperature. In precision control designs, that predictability often matters more than minimizing component count.

Selection engineers should also examine whether the load requires monotonic transient behavior rather than only acceptable DC accuracy. For example, calibration voltages feeding comparators, threshold generators, or sensitive bias nodes may react more to short settling excursions than to final static error. In those cases, an output buffer with known capacitive-load stability can improve real-world performance even if the DAC could technically drive the load by itself. A cleaner architecture is often one in which the DAC defines the value and the buffer defines the interface boundary.

Device grade and suffix interpretation are the final checkpoint, but they should not be treated as a procurement afterthought. The DAC7625UB is the tighter ±1 LSB linearity version in the 28-lead SOIC package across the full industrial temperature range. That matters because neighboring family members can differ in linearity grade, package option, and reset behavior while appearing very similar in distributor listings or internal parts databases. In production programs, these near-neighbor substitutions are a recurring source of latent risk. A part that is “close enough” electrically may still shift calibration yield, temperature margin, or startup behavior in ways that only appear during environmental test or field deployment.

A disciplined selection flow should therefore tie the exact suffix to the analog error budget, assembly constraints, and firmware assumptions. If the software expects a certain transfer behavior and the manufacturing team expects a specific package footprint, the ordering code becomes part of the design definition, not a purchasing detail. Locking that mapping early prevents avoidable respins and keeps validation results portable from prototype to production.

Taken together, the DAC7625UB is strongest in systems that value deterministic parallel control, defined zero-scale reset behavior, shared multi-channel precision, and moderate direct-drive simplicity. Its real design-in success depends less on isolated datasheet metrics than on how well the digital interface, reference network, and output environment are shaped around it. When those pieces are handled deliberately, the device behaves like a predictable precision building block rather than just a catalog DAC with good numbers.

Potential Equivalent/Replacement Models for the DAC7625UB

Potential replacement analysis for the DAC7625UB should start from the fact that it is not just a generic quad 12-bit DAC. It belongs to a tightly defined Burr-Brown family in which the apparent similarities hide a few parameters that can materially change system behavior. The most relevant candidates are therefore the DAC7625U, DAC7625P, DAC7625PB, DAC7624U, DAC7624UB, DAC7624P, and DAC7624PB, with the selection driven less by nominal function and more by second-order details such as linearity grade, package style, and power-on reset state.

At the architectural level, the DAC7625UB and its close relatives share the same general operating model: four 12-bit voltage-output DAC channels integrated in one device, intended for systems that need compact multi-channel analog generation with straightforward digital interfacing. That common foundation makes the family attractive for substitution studies because channel density, resolution class, and output style remain consistent. In practice, however, successful replacement depends on whether the original design used only the obvious specifications or also relied on the tighter parametric behavior of a specific grade.

The closest direct family alternative is the DAC7625U. It is effectively the same device class in SOIC form, which makes it the most mechanically compatible candidate when the board footprint must remain unchanged. The key difference is linearity grade. The DAC7625UB is specified at ±1 LSB, while the DAC7625U is specified at ±2 LSB. That difference looks small on paper, but in a 12-bit system it can determine whether the DAC output is suitable for calibration-sensitive control loops, waveform synthesis with monotonic accuracy expectations, or instrumentation paths where endpoint correction alone is not enough. If the original design used the UB grade to suppress code-dependent output deviation, moving to the standard U grade should be treated as a performance downgrade rather than a neutral substitution. If the application is bias generation, threshold setting, or low-cost actuator control with modest absolute accuracy demands, the DAC7625U can be a practical and lower-risk fallback.

The DIP-packaged DAC7625P and DAC7625PB are functionally aligned options for systems that can accept a package transition. Their relevance is highest in legacy platforms, bench fixtures, socketed prototypes, or field-serviceable assemblies where through-hole parts remain easier to handle. As with the SOIC versions, the grade suffix matters. The PB version provides tighter linearity than the base P version, so the same screening logic applies: do not treat P and PB as interchangeable if output transfer fidelity is part of the system margin. In mixed-generation designs, package substitution often appears simple but introduces layout and parasitic changes that can alter analog settling behavior, reference routing quality, and digital feedthrough. That does not usually disqualify the part, but it shifts the task from part replacement to partial board-level revalidation.

The DAC7624 family members deserve equal attention because they preserve the same broad quad 12-bit voltage-output concept while changing one parameter that is often underestimated during replacement reviews: reset code. The DAC7624 resets to mid-scale, code 800H, while the DAC7625UB resets to zero-scale, code 000H. This is not a cosmetic distinction. In many analog control systems, startup state defines whether the load remains safe, whether a servo loop wakes up near equilibrium, or whether downstream amplifiers saturate before firmware takes control. A mid-scale reset can be desirable in bipolar offset-generation schemes or centered actuator drive paths, but it can be unacceptable in unipolar output stages that assume a benign zero-output condition at power-up. In systems with analog multiplexing, programmable gain stages, or external sample-and-hold structures, the wrong reset state can create transient behavior that is difficult to diagnose because it occurs before software initialization.

That reset distinction is one of the strongest filters in practical replacement selection. If the original DAC7625UB was chosen to guarantee zero-scale startup, then the DAC7624U or DAC7624UB is only a valid substitute if the surrounding system explicitly tolerates or compensates for a mid-scale output during reset. The same rule applies to the DIP variants DAC7624P and DAC7624PB. On paper, they look nearly equivalent because the channel count, resolution, and family lineage all align. At system level, they may behave fundamentally differently during power sequencing. In instrumentation racks, motor preload circuits, and valve-control interfaces, that single parameter can be more important than static linearity.

A useful way to rank the candidates is to separate replacement criteria into three layers. First is functional equivalence: quad channels, 12-bit resolution, voltage outputs, and family-compatible interfacing. Second is parametric equivalence: linearity grade, output accuracy expectations, and any performance assumptions embedded in calibration procedures. Third is behavioral equivalence: package constraints, startup/reset state, and interaction with the surrounding analog chain during power transitions. Most substitution mistakes occur when only the first layer is checked. In stable production hardware, the second and third layers usually determine whether the replacement is transparent or whether firmware, calibration constants, or power sequencing need revision.

From an engineering risk perspective, the safest path is usually DAC7625UB to DAC7625U when package compatibility is mandatory and some degradation in linearity is acceptable. That path minimizes board impact and preserves zero-scale reset behavior. By contrast, any migration from DAC7625UB to a DAC7624 variant should be treated as a behavioral change request, not just a sourcing substitution, because the reset state can alter startup output conditions even when all static operating modes appear compatible. A package move from SOIC to DIP or vice versa should likewise be considered a mechanical and analog-layout change, especially if the design operates near noise, settling, or thermal limits.

In actual replacement work, linearity grade often matters less in isolation than in how the original design used calibration. A system with per-channel factory trim may absorb a looser DAC7625U more easily than expected if the dominant errors were gain and offset. A system that depends on predictable code-to-code transfer shape, however, will not recover from poorer integral linearity through simple calibration. That distinction is worth emphasizing because datasheet comparison by headline resolution often hides the real source of output error in precision channels.

The relevant candidates identified by the documentation are therefore best understood as a small compatibility matrix rather than a flat list of equivalents. DAC7625U is the nearest SOIC-family substitute when zero-scale reset must be preserved and a wider linearity tolerance is acceptable. DAC7625P and DAC7625PB serve the same functional role in DIP-based implementations, with PB preferred where tighter transfer accuracy is needed. DAC7624U, DAC7624UB, DAC7624P, and DAC7624PB remain close architectural relatives, but their mid-scale reset behavior makes them suitable only where startup output conditions are explicitly compatible with that difference. For replacement analysis, matching resolution and channel count is only the entry point. The real decision is set by linearity grade, package constraints, and reset behavior, in that order only if the application allows it; in many control systems, reset behavior moves to the top of the list.

Conclusion

The Texas Instruments DAC7625UB is a quad 12-bit voltage-output DAC intended for systems that require four coordinated analog channels with deterministic digital control and stable output behavior. It fits a class of designs where analog precision matters, but just as important is timing certainty at the interface level. In that respect, the device is not simply a DAC array. It is a controlled analog output subsystem with buffered outputs, parallel-bus programmability, readback support, and reset behavior that is predictable enough for industrial sequencing.

At the architectural level, the value of the DAC7625UB comes from integration balance. Many multi-channel designs can reach 12-bit resolution with a wide range of devices, but fewer parts combine four channels, output buffers, monotonic performance across industrial temperature, and a parallel interface that supports tightly bounded update latency. That combination matters in equipment where output states are part of a larger control loop and where software timing alone is not considered sufficient. The device is therefore best understood as a component for systems that care about analog correctness and digital determinism at the same time.

The core analog behavior starts with the four voltage-output DAC channels. Because the outputs are buffered, the part reduces the amount of external signal-conditioning circuitry needed for moderate-load applications. This simplifies board-level implementation and improves channel density. Buffered outputs also help standardize behavior across channels, which becomes important when several analog setpoints must track one another in a repeatable way. In practice, this reduces calibration effort at system bring-up, especially when the outputs feed ADC references, control amplifiers, threshold generators, or actuator command paths.

Its guaranteed 12-bit monotonicity over -40°C to +85°C is one of the most meaningful specifications in real control hardware. Monotonicity ensures that increasing the digital code does not produce a reverse step at the analog output. For instrumentation and control loops, this is often more operationally important than chasing a lower nominal error number on paper. A system can tolerate a bounded gain or offset error if calibrated. It is far less tolerant of non-monotonic transitions that create local instability, tuning irregularities, or false threshold behavior. This is particularly relevant in servo tuning, bias generation, and programmable source applications where code sweeps are part of normal operation.

The ±1 LSB linearity grade associated with the UB version is another selection-critical point. This is not just a catalog suffix. It defines the expected transfer-function quality and directly affects whether the part is suitable for precision setpoint generation without heavy compensation. In the field, designers often discover that channel count and interface convenience are easy to obtain, while guaranteed linearity across temperature and production spread is where risk accumulates. The UB grade addresses that risk. It gives tighter confidence that the commanded code maps to a sufficiently predictable analog level, which is valuable in ATE fixtures, industrial calibration tools, and programmable excitation circuits.

The digital interface deserves equal attention because it shapes how the DAC behaves inside a real embedded system. The parallel bus provides deterministic command transfer with timing that is easier to budget than serial alternatives when multiple channels must be updated under strict control-cycle constraints. In applications with fixed scan intervals, interlocked outputs, or synchronized analog switching, this can simplify firmware and reduce interface-induced phase uncertainty. A serial DAC may save pins, but in systems with hard timing edges, the time spent shifting data can become architectural noise. The DAC7625UB avoids much of that uncertainty by making data movement explicit and bounded.

Coordinated output updating is where the part becomes especially useful in multi-axis or multi-loop designs. When several analog channels represent related variables, asynchronous updates can inject transient mismatch into the plant or test setup. Even a short skew between channels can appear as a false command vector, unwanted torque disturbance, or measurement inconsistency. Devices like the DAC7625UB are attractive because they support a cleaner update model for grouped outputs. That matters not only in motion and process equipment, but also in stimulus generation and trim systems where channel relationships are often more important than absolute settling on any single channel.

Readback capability is another practical feature that tends to be undervalued until diagnostics become important. In maintenance-oriented systems, being able to confirm register state over the interface helps distinguish between software faults, bus corruption, latch timing issues, and true analog-path problems. During validation, readback also shortens debug cycles because it lets the design team verify what the DAC believes it has been told to output, rather than inferring that state indirectly from measurement results. In complex industrial hardware, this can save substantial effort when intermittent faults appear only under specific sequencing or temperature conditions.

Power-supply flexibility broadens the part’s usefulness. Support for single-supply or dual-supply operation allows the same DAC family to span unipolar and bipolar-oriented analog sections. That can be valuable in platform designs where one product variant drives only positive control voltages while another must support centered or signed signal ranges after downstream conditioning. From an engineering standpoint, this reduces redesign pressure and can simplify qualification strategy. It also helps when integrating with mixed analog domains, where the DAC must coexist with both low-voltage digital logic and legacy analog circuitry.

Reset behavior is a subtle but decisive characteristic, especially for industrial and safety-adjacent equipment. The DAC7625-specific zero-scale reset behavior means the startup state is not ambiguous. That directly affects how downstream circuitry responds at power application, watchdog recovery, or brownout events. In many analog control systems, a known zero-scale output is safer and easier to manage than a retained state or midscale default. It allows output clamps, interlocks, and actuator interfaces to be designed around a defined electrical condition. This detail is often overlooked in early part selection and then becomes central once failure mode reviews begin.

For selection work, the DAC7625UB should be treated as a precision control component rather than as a commodity converter. The important checks are straightforward: confirm the UB linearity grade, confirm the 28-lead SOIC package aligns with assembly and thermal constraints, and confirm the reset-to-zero behavior matches system startup policy. It is also worth validating bus timing margins against the host processor under worst-case conditions, not only at nominal lab speeds. Parallel-interface parts are deterministic, but only when setup, hold, and control signal integrity are respected across voltage, temperature, and board loading.

At the board level, output accuracy will depend not only on the DAC itself but on grounding, reference cleanliness, output loading, and thermal gradients. A 12-bit DAC is not unusually demanding, yet multi-channel precision can degrade quickly if digital return currents are allowed to contaminate the analog region near the reference or output traces. In dense layouts, one recurring issue is assuming that buffered outputs eliminate all load-related concerns. They do not. Capacitive loading, downstream amplifier bias currents, and dynamic reference disturbances can still shift behavior enough to affect repeatability. Clean partitioning, short analog return paths, and conservative output buffering strategy remain worthwhile.

In process control, the device maps well to valve command generation, threshold programming, and multi-loop setpoint output where timing and monotonic response matter more than ultra-high resolution. In ATE, it is well suited for programmable biasing, limit generation, and fixture-level stimulus channels where four outputs in one package help reduce channel-to-channel mismatch and board area. In servo and motor control support circuitry, it can provide coordinated analog command levels for current limits, compensation parameters, or auxiliary references. In data acquisition support paths, it is useful for programmable offsets, excitation levels, and calibration injection. These are all scenarios where 12-bit resolution is often sufficient, provided the transfer curve is stable and updates are controlled.

A practical observation from integration work is that this class of DAC performs best when the system architect explicitly defines which errors are handled by hardware precision and which are handled by calibration. The DAC7625UB is strong where monotonicity, channel density, and deterministic access are required. It should not be selected on the assumption that every downstream analog imperfection will disappear behind its specifications. Used correctly, it provides a very solid analog command foundation. Used casually, it can appear less accurate than expected because the surrounding signal chain dominates the error budget.

The device remains a well-defined solution when the architecture genuinely benefits from a parallel-interface quad DAC. That qualifier is important. If pin count, routing simplicity, or low-speed control dominates the design, a serial DAC may be a better fit. But when four analog outputs must be updated with bounded timing, with reliable startup state, industrial temperature monotonicity, and credible linearity assurance, the DAC7625UB stands out as a practical and disciplined choice. Its strengths are not flashy. They are structural, and in long-life industrial designs, structural strengths usually matter most.
