Texas Instruments DAC7612U Product Overview

Texas Instruments DAC7612U is a dual 12-bit serial-input DAC built for systems that need deterministic analog output behavior without the board-level overhead of separate reference, output buffer, and multi-chip control logic. Its integration level is the main design advantage: two DAC channels, a trimmed 2.435 V internal reference, serial input interface, channel latches, and rail-to-rail output amplifiers are all combined in one device operating from a single +5 V supply. In practical designs, this reduces not only component count, but also routing complexity, reference distribution risk, and startup interaction between analog and digital sections.

At the architectural level, DAC7612U fits a class of precision voltage-output DACs intended for low-to-moderate speed control and instrumentation loops rather than waveform synthesis or ultra-high-speed reconstruction. That distinction matters. The part is optimized for stable DC accuracy, monotonic transfer behavior, and predictable settling under industrial conditions. In many embedded control systems, those traits produce more system value than raw update rate. A control loop, calibration output, or programmable threshold source usually benefits more from repeatable code-to-voltage behavior than from MHz-class analog update bandwidth.

The dual-channel structure is particularly useful when two outputs must track the same thermal and supply environment. Typical examples include generating command-and-feedback offsets, setting independent bias rails, driving paired actuator references, or supplying synchronized analog setpoints to adjacent subsystems. Using two discrete DACs can achieve the same function, but often introduces extra drift mismatch, more reference-domain uncertainty, and more software coordination overhead. Housing both channels in one package naturally improves matching of operating conditions and simplifies timing control.

The internal 2.435 V reference deserves special attention because it reshapes the system-level error budget. In discrete DAC implementations, the reference often becomes the dominant source of drift, noise coupling, and layout sensitivity. By integrating the reference, DAC7612U removes one of the most failure-prone analog design decisions in compact systems. This is not merely a convenience feature. It shifts the design problem from “how to build a stable analog source around the DAC” to “how to preserve the DAC’s native performance through layout, grounding, and load management.” That is usually a more manageable engineering task.

Its buffered rail-to-rail voltage outputs further reduce interface friction. Many current-output DACs or unbuffered voltage DACs require external op amps, compensation analysis, and load-specific stability checks. Here, the on-chip output amplifiers allow direct voltage-output generation with less analog glue circuitry. For dense embedded boards, this often shortens the signal chain enough to improve both assembly robustness and field reliability. It also helps in portable or distributed instrumentation nodes where power, area, and BOM count are tightly constrained.

From the data conversion standpoint, the 12-bit resolution provides 4096 output codes per channel. In a 0 V to full-scale configuration, each LSB corresponds to roughly full-scale/4096, so with a 2.435 V reference-scaled architecture the step size is small enough for fine setpoint control in industrial and embedded applications, yet not so fine that noise, PCB contamination, or load instability immediately dominate the useful output resolution. This is one reason 12-bit DACs remain practical in factory and instrumentation systems: they often align well with real analog environments where achieving true 16-bit field accuracy would require disproportionate effort elsewhere in the chain.

A more important specification than nominal resolution is guaranteed monotonicity over the full industrial temperature range from -40 °C to +85 °C. Monotonic behavior ensures that increasing the digital code never causes the analog output to decrease. In control applications, this is a foundational property. Without monotonicity, a calibration routine can become unstable, a valve command can reverse locally, or a servo loop can exhibit small but disruptive discontinuities. The value of guaranteed 12-bit monotonicity is therefore not academic. It directly supports predictable tuning, easier firmware linearization, and safer control edge cases near transition boundaries.

Settling time is specified at a typical 7 µs to within 1 LSB for a full-scale step. This places DAC7612U in a useful operating region for multiplexed setpoint generation, moderate-speed closed-loop control, and calibration systems that need quick but not RF-class response. In practice, settling time should be treated as a system parameter rather than an isolated component number. Output loading, ground bounce, digital feedthrough, and downstream amplifier input characteristics can easily dominate the effective analog stabilization time observed on the bench. A common pattern is that the DAC itself meets the nominal figure, while board parasitics and aggressive digital edge placement add extra microseconds of observable settling tail. Good layout and controlled update timing usually recover most of that margin.

Power consumption is another defining strength. At 3.7 mW typical, the device fits comfortably into low-power industrial modules, portable instruments, and thermally constrained mixed-signal boards. Low dissipation is not only a battery-life concern. It also reduces self-heating, which helps preserve gain and offset consistency over time. In compact analog sections, thermal gradients often become a hidden contributor to drift. A low-power DAC with integrated reference and buffers can therefore improve analog stability indirectly by keeping the local thermal profile flatter.

The serial interface is straightforward and implementation-friendly. The device supports a synchronous serial input path using CLK, SDI, CS, and LOADDACS, which is effectively a 3-wire style data mechanism with separate control over transfer framing and DAC register loading. This split between serial shifting and DAC update is operationally useful. It allows data to be clocked in first and then applied to the outputs at a controlled instant, enabling coordinated channel updates and reducing unintended transient behavior. That detail becomes important when two analog outputs must change simultaneously, such as in differential bias control, coordinated actuator driving, or gain/offset correction pairs.

With serial clock capability up to 20 MHz, DAC7612U interfaces cleanly with a broad range of microcontrollers, DSPs, and FPGA logic. The high clock limit does not imply that the analog output is intended for high-speed waveform generation; rather, it provides digital timing margin. Designers can complete register loading quickly, minimize bus occupancy, and maintain deterministic update sequencing even when the control processor is servicing multiple peripherals. In embedded firmware, this usually translates into simpler driver timing and fewer compromises in scheduler design.

For system integration, the most effective way to view DAC7612U is not as a generic DAC, but as a compact analog output subsystem. Its internal reference, output buffers, latch structure, and dual-channel organization collectively reduce the number of board-level decisions that can degrade precision. This matters most in industrial products, where repeatability across manufacturing lots and environmental conditions often carries more weight than chasing the last fraction of a percent in nominal accuracy under laboratory conditions.

Several application classes align especially well with this part. In process control, each channel can generate independent command voltages for valve positioners, loop setpoints, or programmable thresholds. In data acquisition equipment, the DAC can provide calibration injection, offset trimming, or sensor excitation adjustment. In closed-loop servo systems, the two outputs can support paired control variables such as bias and command, or coarse and fine adjustment paths. In PC peripherals and portable instrumentation, the combination of single-supply operation and low power simplifies local analog generation where PCB area and power budget are tightly limited.

There are also subtle integration benefits that often become visible only during prototyping. An internal reference usually shortens bring-up time because one major uncertainty is removed from the first revision. Buffered outputs reduce the need for immediate analog rework around load driving. The separate LOADDACS control can simplify debugging because data transfer and output action can be observed independently. In mixed-signal boards, this kind of predictability often saves more schedule time than a better headline specification would.

A useful design practice with DAC7612U is to treat the analog outputs as precision nodes even though the device is easy to interface digitally. Keep digital return currents away from the reference and output paths. Place local decoupling close to the supply pins. Avoid loading the outputs with capacitive networks that could stretch settling or provoke amplifier instability. If long traces or off-board connections are required, it is often better to isolate the DAC from cable effects with a secondary stage rather than forcing the on-chip buffer to absorb every parasitic condition directly. Devices in this category usually perform best when allowed to operate inside a controlled analog environment, not as universal line drivers.

For part selection against competing compact DACs, the central tradeoff is clear. DAC7612U does not aim to be the highest-resolution or fastest-updating option. Its value lies in balanced integration: dual outputs, internal precision reference, buffered voltage outputs, low power consumption, industrial temperature support, and solid monotonic DC behavior. That combination is often the right answer when the real design objective is to ship a stable analog-output function with minimal external circuitry and low firmware complexity.

In that sense, DAC7612U is best understood as a reliability-oriented mixed-signal building block. It addresses the common engineering problem where analog output capability is necessary but not intended to become the dominant subsystem in the design. By integrating the pieces that most often introduce drift, mismatch, and implementation overhead, it lets the surrounding system remain simpler and more predictable. For industrial and embedded designers, that is frequently the more valuable form of precision.

Texas Instruments DAC7612U Core Architecture and Functional Blocks

Texas Instruments DAC7612U is built around a compact dual-channel voltage-output DAC architecture that favors simple digital interfacing and low external component count. At a block level, the device combines a shared serial input path, channel-select logic, two independent DAC data registers, an internal reference source, two 12-bit conversion cores, and buffered output stages for VOUTA and VOUTB. This partitioning is not just a matter of integration density. It reflects a deliberate balance between digital loading flexibility and analog output determinism, which is often the main design concern in mixed-signal control paths.

The internal serial interface is the first block that deserves attention because it defines how the device behaves in a real system. Data is applied at SDI and shifted into the internal register on the rising edge of CLK. The serial word contains both payload bits and channel-selection information, allowing a single serial stream to address either DAC A or DAC B. From an interface engineering standpoint, this is a practical architecture. It avoids duplicated input buses, reduces routing overhead, and simplifies isolation between digital control logic and the analog section. In multi-device chains or controller-limited systems, that shared serial path can materially reduce firmware complexity and pin pressure.

The more subtle point is that the serial register is not itself the active conversion element. It serves as a staging area between the host controller and the actual DAC registers. This distinction matters because it separates data transport timing from analog update timing. In many DACs, confusion arises when engineers assume that shifting in data immediately alters the output. In the DAC7612U, the design provides a cleaner model: serial loading prepares a value, while register update control determines when the analog path is allowed to respond. That separation is valuable in systems where output edge timing matters more than raw bus activity.

DAC Register A and DAC Register B hold the digital codes that directly feed the two 12-bit DAC cores. These registers are the functional boundary between the digital interface domain and the precision analog conversion domain. Once a code is latched into one of these registers, the corresponding DAC core converts it into an analog level referenced to the internal voltage reference. Because each channel has its own register and DAC core, the two outputs can operate independently even though they share the same serial transport mechanism. This is especially useful in dual-loop control systems, programmable bias generation, threshold setting, and offset trimming, where independent analog outputs are needed but synchronized bus access is still desirable.

The LOADDACS pin is one of the most important control features in the device, and it deserves deeper treatment than it usually gets. When LOADDACS is low, the DAC registers behave as transparent latches, independent of CS or CLK state. This creates a direct path from newly loaded serial data into the active DAC registers. That behavior can be extremely useful, but it also introduces a timing characteristic that must be handled with intent. If LOADDACS is asserted at the wrong time, outputs may update during data movement rather than after a complete command frame. In a lab setting, this often appears as unexpected output steps, channel misalignment, or brief analog transients that seem at first to be signal integrity problems but are actually update-control issues.

A reliable implementation pattern is to treat LOADDACS as a true analog event-control signal rather than just another digital pin. Keep it inactive while clocking serial data, then assert it only after the target word is fully loaded and stable. When both channels need coordinated refresh, preload each channel’s data sequentially and use LOADDACS to define the common update instant. This approach is particularly effective when the two outputs drive related nodes, such as I/Q bias points, dual-threshold comparators, or paired actuator commands. The practical advantage is not merely synchronized code transfer. It is reduced output skew at the system level, which often matters more than absolute DAC settling time.

The internal reference block is another major architectural choice. By integrating the reference, Texas Instruments reduces dependence on external precision voltage sources and eliminates one of the most common sources of board-level analog inconsistency. Reference routing is often underestimated in mixed-signal layouts. Even when an external reference is electrically superior on paper, poor placement, thermal gradients, or digital coupling can degrade effective conversion stability. An internal reference avoids many of these board-induced variables and tends to improve channel-to-channel consistency because both DAC cores operate from the same on-chip source. For compact designs, this can be a better system-level tradeoff than chasing marginal reference accuracy improvements with additional external circuitry.

That said, integrated references should be viewed in the context of the full error budget. Gain error, temperature drift, load regulation, and amplifier output behavior all interact. In precision applications, the key question is rarely whether the internal reference is “good” in isolation. The real question is whether it is sufficiently stable and repeatable for the closed-loop or calibration strategy used by the system. In many practical designs, a slightly less ideal reference with tighter layout control and fewer coupling paths will outperform a theoretically better external reference implemented on a crowded board.

The two 12-bit DAC cores form the heart of the analog conversion function. Each core translates the stored digital code into an analog voltage proportional to the reference. For system designers, the most relevant implication is monotonic and predictable code-to-voltage behavior across two independent channels in a single package. That matters in applications where one output sets a baseline and the other applies a trim or offset. It also matters in calibration systems, because matching trends between channels are often more valuable than absolute perfection on either channel alone. A dual DAC with shared architecture tends to behave more coherently across temperature and supply variation than two unrelated single-channel devices placed side by side.

The output amplifier stages at VOUTA and VOUTB complete the signal chain. Their rail-to-rail capability increases usable output span and reduces the need for external buffering in low-voltage designs. This is one of the device’s most practical integration benefits. External op-amps add not only cost and area, but also offset, bias current concerns, phase-margin questions, startup sequencing issues, and extra opportunities for noise pickup. With the DAC7612U, the output path is more self-contained, which simplifies power distribution and analog routing. In many cases, the outputs can connect directly to ADC references, control inputs, comparator thresholds, or programmable setpoint nodes with minimal conditioning.

Still, integrated output amplifiers should not be treated as infinitely strong drivers. Load characteristics remain important. Capacitive loading, dynamic input currents from downstream circuits, and long PCB traces can affect settling behavior and output stability. A practical design habit is to validate the DAC output under the exact intended load, not just with a high-impedance bench instrument. A waveform that looks clean on an oscilloscope with a short probe ground can behave differently once routed into a sampling network or a switching analog front end. This is where architecture knowledge turns into implementation value: once the output stage is recognized as part of the precision chain rather than a generic buffer, interface decisions become more disciplined.

From a board-level perspective, the DAC7612U is best understood as a device that compresses an entire dual-channel setpoint-generation subsystem into a single package. The internal reference and integrated output amplifiers reduce external BOM, but the larger benefit is control of error sources that are otherwise distributed across the PCB. Fewer precision traces, fewer sensitive nodes, and fewer analog interconnects generally lead to more repeatable production behavior. This is especially relevant in dense embedded systems where the analog section must coexist with fast clocks, switching regulators, and high-edge-rate digital lines.

A sound layout strategy follows naturally from the internal block structure. Keep the digital serial lines compact and well-contained, avoid routing them parallel to the analog outputs, maintain a low-impedance ground return, and give the supply decoupling path short, direct placement. Although the device integrates many analog support functions, it remains a mixed-signal component, and mixed-signal discipline still applies. One recurring field issue in similar devices is not conversion accuracy itself but output disturbance caused by digital feedthrough through poor return-current management. In practice, careful pin-near decoupling and clean ground referencing often produce larger improvements than elaborate filtering added later.

In application terms, the architecture fits well in systems that need two programmable voltages with moderate resolution, compact implementation, and deterministic control. Examples include gain and offset trimming, threshold generation, sensor excitation adjustment, bias tuning, portable instrumentation, and industrial control nodes. The dual-channel structure is particularly effective where one channel defines a coarse operating point and the other maintains a secondary parameter. Because both outputs share a common reference framework and update logic, the resulting behavior is easier to characterize and calibrate than a collection of discrete analog building blocks.

One of the stronger aspects of the DAC7612U architecture is that it encourages disciplined timing design. The serial path, per-channel registers, and LOADDACS gating together create a clear hierarchy: transport, staging, then analog update. That structure may look simple, but it aligns well with robust embedded design practice. Devices that expose this kind of separation tend to integrate more predictably into real systems because they let firmware and hardware define exactly when state changes are allowed to propagate into the analog domain. For a dual-output DAC intended for practical control and bias applications, that is a more meaningful advantage than integration alone.

Texas Instruments DAC7612U Key Electrical and Performance Specifications

Texas Instruments DAC7612U is a dual 12-bit voltage-output DAC aimed at systems that need predictable analog behavior with low interface complexity. For device selection, the most useful parameters are not only the headline resolution, but how that resolution survives real transfer errors, code transitions, output settling, and channel matching. Read together, these numbers define whether the part behaves like a clean voltage generator or merely a nominal 12-bit converter on paper.

The 12-bit architecture provides 4096 discrete output codes. With the nominal 4.095 V full-scale range, each LSB equals 1 mV. That scaling is unusually practical. It removes mental conversion overhead during firmware development, production test, and field diagnostics because digital code and analog output map almost one-to-one in millivolt terms. In embedded calibration loops, this often reduces software complexity and makes threshold design more transparent. When a design team can think in integer millivolts instead of fractional scaling constants, debugging usually becomes faster and less error-prone.

Resolution alone, however, does not guarantee usable precision. The more meaningful question is how closely the actual transfer curve tracks the ideal one. For the standard DAC7612U, relative accuracy is specified at ±2 LSB maximum, with ±1/2 LSB typical. This parameter effectively combines offset, gain, and linearity effects after endpoint adjustment and indicates how far the real output may deviate from the ideal straight-line transfer. In practical terms, this means the converter can support fine control granularity, but absolute output predictability depends on the surrounding error budget. In instrumentation and programmable bias applications, that distinction matters because a nominal 1 mV step size is only fully valuable if static transfer errors stay small enough relative to the application tolerance.

Differential nonlinearity, specified from -1 to +1 LSB maximum and ±1/2 LSB typical, describes step-size uniformity from one code to the next. This is one of the most operationally important specifications because it directly affects local smoothness of the output. If adjacent code transitions vary too widely, a control loop can show uneven response even when average accuracy appears acceptable. The guaranteed monotonicity is therefore a major strength. It ensures the output does not reverse direction as the input code increases. In closed-loop trimming, actuator biasing, threshold generation, and calibration ramps, monotonicity is often more valuable than absolute endpoint accuracy. A converter with modest gain error but guaranteed forward progression is usually easier to compensate in software than one with occasional backward code movement.

Zero-scale and full-scale behavior define the endpoint realism of the DAC. At code 000H, the zero-scale error ranges from -1 to +3 LSB. This means the nominal zero output may sit a few millivolts above or slightly below ideal ground-referenced expectation. At code FFFH, the output is specified from 4.079 V to 4.111 V, with 4.095 V typical. This endpoint spread is not large, but it is large enough to matter in systems where the DAC output directly sets comparator thresholds, excitation levels, or analog references for downstream circuits. In those cases, assuming ideal endpoints without verification can shift system behavior in ways that are difficult to trace later. A recurring implementation pattern is that engineers validate midscale performance carefully but overlook endpoint clipping margins, then discover reduced usable range only during environmental testing or production screening.

Channel-to-channel consistency is captured by zero-scale match and full-scale match, both 1/2 LSB typical and 2 LSB maximum. For a dual DAC, these match terms are often more useful than absolute accuracy when both outputs participate in the same analog function. Examples include differential stimulus generation, dual-threshold control, I/Q bias adjustment, or synchronized offset trimming. Good matching reduces the burden on per-channel compensation and helps maintain symmetry across channels. In practical board-level use, matched behavior also tends to simplify acceptance testing because the outputs track one another more predictably than absolute numbers alone would suggest.

The DAC7612UB variant improves relative accuracy to ±1 LSB maximum, with ±1/4 LSB typical. This is not just a tighter datasheet number. It changes system partitioning decisions. A tighter transfer curve can reduce or eliminate production calibration, shorten test time, and improve first-pass yield in precision assemblies. Where calibration infrastructure is already available, the standard grade may still be the better economic choice. But when field interchangeability, low-touch manufacturing, or consistent cold-start accuracy matter more than component price, the tighter B-grade often pays back indirectly. In many designs, the real cost driver is not converter unit price but the cumulative expense of calibration fixtures, test software, and margin consumed by uncertainty.

Dynamic behavior determines whether static precision can actually be used at runtime. The typical settling time is 7 µs to within ±1 LSB of final value. This places the device comfortably in the range of moderate-speed update systems such as setpoint generation, programmable gain control, servo bias adjustment, and low-bandwidth waveform output. The important engineering point is that settling time should be interpreted together with load conditions and update strategy. A DAC may nominally settle in microseconds, yet board parasitics, output loading, reference impedance, or amplifier interaction can extend effective stabilization time. On mixed-signal boards, the analog node seen at the measurement point is often slower than the bare DAC output specification suggests.

The listed glitch impulse of 2.5 nV-s typical and digital feedthrough of 0.5 nV-s typical indicate controlled transient behavior during code changes and digital activity. These numbers matter most near major-carry transitions, in sampled systems, or whenever downstream circuitry is sensitive to brief energy spikes. In precision sampling chains, even a small glitch can charge a high-impedance node enough to create visible error if acquisition timing is too aggressive. A common mitigation is to avoid sampling immediately after large code transitions, especially around midscale where binary DAC architectures often produce the largest switching disturbance. Layout discipline also plays a quiet but decisive role here. Clean reference routing, short analog return paths, and separation of digital edge currents from the output node usually make more difference than expected when trying to preserve the DAC’s intrinsic transient performance.

From an application perspective, the DAC7612U fits best where straightforward voltage programmability, monotonic transfer, and moderate settling speed are more important than ultra-high update rate or sub-LSB absolute precision. It is well suited to programmable offsets, bias generation, test stimulus, threshold setting, calibration injection, and general industrial control outputs. Its 1 mV-per-code transfer is especially attractive in systems where firmware engineers and validation teams need fast interpretability. That convenience is not cosmetic. It often improves maintainability over the product lifecycle because service tools, logs, and production diagnostics can use direct code-to-millivolt reasoning without conversion ambiguity.

A useful way to evaluate this DAC is to separate three questions. First, does the application require fine step size? The 12-bit, 1 mV-per-LSB transfer answers that well. Second, does it require guaranteed directional behavior? The monotonicity guarantee answers that. Third, does it require calibrated precision or inherently tight absolute accuracy? That is where the distinction between DAC7612U and DAC7612UB becomes decisive. In many real designs, monotonicity and matching drive system success more strongly than absolute endpoint perfection, because gain and offset can be corrected once, while non-monotonic behavior and poor channel consistency are much harder to work around after hardware is fixed.

For selection engineers, the part should therefore be viewed as a disciplined, application-friendly DAC rather than simply a 12-bit converter with a convenient output span. Its specifications describe a device optimized for stable control behavior, manageable calibration strategy, and clean integration into practical mixed-signal systems. The strongest designs around it are usually the ones that exploit its monotonic transfer and simple scaling, while budgeting explicitly for endpoint and linearity tolerances instead of assuming ideal analog behavior.

Texas Instruments DAC7612U Serial Interface and Data Loading Method

Texas Instruments DAC7612U uses a compact serial interface, but the timing behavior around data shifting and register loading is where most integration errors occur. At a signal level, the device is simple: SDI carries straight-binary data, CLK shifts that data into the serial path on each rising edge, and CS enables the transaction when driven low. In practice, however, the interface is not just a basic SPI write. It is a two-stage update path consisting of serial shifting first and DAC register transfer second. That distinction matters because it determines whether a write only prepares new data or actually changes the analog output.

The input word is structured as a 14-bit frame. Bits B0 through B13 map to A1, A0, and D11 through D0. The first two bits act as the destination selector, and the remaining twelve bits define the output code. This arrangement allows one serial bus to update multiple output channels without separate data paths. From a firmware perspective, the frame builder should be treated as a deterministic packet formatter rather than a raw bit stream. If bit ordering is mishandled, the failure mode is rarely random. It usually appears as the wrong channel changing correctly, or the correct channel changing to a value that looks shifted, truncated, or mirrored. Those are strong indicators that address and payload boundaries are misaligned.

The addressing mechanism is straightforward, but its system effect is more important than it first appears. The two address bits do more than identify DAC A or DAC B. They define where the current shift-register contents will land when LOADDACS triggers a transfer. That means the serial port and the output stage are decoupled in time. A controller can send one code, hold the output unchanged, then commit the update exactly when needed. This is one of the more useful aspects of the DAC7612U in control-oriented designs, because it supports deterministic output timing without requiring the serial transfer itself to occur at the same instant as the analog transition.

The internal data path can be understood in three layers. The first layer is the shift register, which captures incoming bits on CLK rising edges while CS is active. The second layer is the DAC input register selected by the address field. The third layer is the analog output stage that reflects the loaded DAC register contents. Keeping these layers mentally separate helps when debugging. If serial traffic looks correct on a logic analyzer but the voltage does not change, the issue is often not in the shift timing but in the load timing. Conversely, if LOADDACS behavior appears correct but the output is wrong, the problem often sits earlier in the chain, such as frame length, bit order, or a spurious extra clock.

LOADDACS is therefore not just an auxiliary control pin. It is the commit signal for the analog domain. The truth table indicates that different combinations of address, clock state, CS, and LOADDACS either continue shifting, transfer the currently assembled word into a DAC register, or leave the outputs untouched. This gives the part a form of transactional behavior. Data can be staged first, then applied later. That staging is especially valuable when output coherence matters more than bus efficiency. A common pattern is to write both channel values sequentially, then use LOADDACS to force a controlled update boundary. This reduces output skew between channels and avoids visible intermediate states.

The recommendation to hold CLK high under certain non-shifting conditions is not a minor note. It is a defensive timing rule. Since data advances on the rising edge, any unintended low-to-high transition while CS and other control signals are in an active combination can push the shift register by one bit. In embedded boards, false edges often come from less obvious sources than firmware. Slow GPIO reconfiguration, shared trace coupling, clock gating transients, and startup pin float can all create one extra transition that is enough to corrupt the frame. In bench bring-up, this often appears as a code that is correct most of the time but fails at specific power-up sequences or interrupt loads. The root cause is usually edge integrity, not data content.

A robust implementation treats the DAC7612U interface as edge-sensitive logic rather than a generic serial peripheral. Firmware should define the idle clock state explicitly, drive CS with clean transaction boundaries, and avoid changing SDI too close to CLK rising edges. If the controller uses a hardware SPI block, its mode must be chosen based on the DAC timing rather than on convenience. The critical requirement is that the DAC samples SDI on the rising edge, so setup and hold margins around that edge must remain valid across board delay, GPIO slew, and voltage corners. Software bit-banging can work well when update rate is modest, but it must maintain monotonic edge ordering under interrupt activity. Hardware SPI is generally safer for repeatability, though only if CS and LOADDACS are sequenced with equal care.

For firmware architecture, it is useful to separate three operations: frame generation, serial transmission, and output commit. Frame generation should pack A1, A0, and D11:D0 into a known bit order with no ambiguity. Serial transmission should guarantee exactly 14 valid rising edges while CS is low. Output commit should assert LOADDACS only after the correct frame has fully settled in the device. Treating these as distinct primitives improves testability. It also simplifies migration if the interface later moves from GPIO bit-banging to a hardware SPI controller or FPGA logic.

At the hardware level, signal cleanliness matters more than the low nominal data rate may suggest. A DAC interface is often placed near analog circuitry, where digital edge noise can couple into references, output traces, or sensor paths. Very fast clock edges are not always beneficial. Controlled slew, short return paths, and clear separation between serial lines and analog nodes usually improve real system behavior. If LOADDACS is used as a synchronous update trigger, its routing deserves the same attention as CLK. Excess ringing or skew on that line can shift the effective analog update instant and defeat the purpose of coordinated loading.

The application value of this interface scheme becomes clear in systems that need timing control rather than just value control. In servo loops, the next actuator command can be preloaded during computation and applied exactly at the loop boundary. In data acquisition systems, offset or excitation outputs can be changed in alignment with conversion phases to avoid transient ambiguity. In waveform generation, one channel can be prepared while another remains stable, then both can transition in a controlled sequence. The practical advantage is not only synchronization. It is also reduced software jitter, because bus activity and output timing no longer need to coincide.

One useful integration strategy is to view LOADDACS as a timing-domain bridge. The serial write belongs to the digital communication domain, which is often bursty and scheduler-driven. The actual analog update belongs to the control domain, which usually needs deterministic phase alignment. Keeping those domains separate improves system composure. It also prevents a common design mistake: assuming that the end of a serial frame is the same as the output update instant. On this device, those are related but not identical events, and good designs exploit that distinction instead of ignoring it.

In validation, it is worth checking more than functional correctness. Scope captures should confirm the exact number of clock edges, the idle clock level before and after CS activity, and the temporal relationship between LOADDACS and the completed frame. On the analog side, measure not just the final output voltage but the transition timing relative to the digital trigger. That is often where hidden integration defects appear. A design may seem correct under slow manual writes yet fail when the system moves into periodic operation, because asynchronous firmware events create edge timing that the bench test never exercised.

The DAC7612U serial interface is therefore best understood as a controlled staging-and-commit mechanism. The 14-bit word carries both routing and value information. CLK and CS govern safe capture into the shift path. LOADDACS governs when that captured word becomes an analog reality. Once that model is clear, the device becomes easier to integrate and significantly more useful in systems that require precise, low-latency, channel-selective analog updates.

Texas Instruments DAC7612U Output Characteristics and Analog Behavior

The DAC7612U is a dual, buffered, voltage-output DAC intended to place a usable analog voltage directly on VOUTA and VOUTB without the extra transimpedance stage required by current-output DACs. That architectural choice matters at system level. It reduces external component count, shortens the analog signal path, and avoids one more source of offset, drift, and stability tuning. In practice, it also shifts attention from output conversion design to output loading, reference integrity, and board-level analog hygiene.

From a supply of +5V, the device typically delivers a full-scale output near 4.095V. This immediately shows that the output amplifier is not rail-to-rail. The missing headroom is not a defect; it is a predictable consequence of the internal output buffer architecture, which trades absolute rail reach for stability, linearity, and direct-drive usability. For design work, the correct assumption is that the DAC output range lives inside the supply rails, and all downstream scaling, comparator thresholds, ADC ranges, and actuator interfaces should be aligned to that practical span rather than to an idealized 0V-to-5V expectation.

The output stage is strong enough for many moderate-load interfaces, but it is still a precision analog node, not a power driver. At code 800H, output drive capability is specified as ±5mA typical, with ±7mA maximum listed in the analog output characteristics. This is best read as a linear operating guideline rather than just a current number. The central engineering question is not whether the output can source or sink current at all, but how much output error appears while doing so. That is where load regulation becomes more important than raw current capability.

Load regulation is specified as 1 LSB typical and 3 LSB maximum for loads of 402Ω or greater at code 800H. This tells more about practical system behavior than the drive current line alone. The internal buffer can hold its commanded voltage reasonably well into moderate resistive loads, but output accuracy is no longer independent of loading. If the DAC feeds a high-impedance amplifier input, a comparator reference node, or an ADC input with benign sampling demand, the static error contribution is usually manageable. If it drives a lower-value resistor network, a passive filter with noticeable DC loading, or a multiplexed analog bus, the voltage shift under load can become a real part of the error budget.

A useful way to think about the output stage is as an amplifier with finite output compliance and finite loop gain under load. As source or sink current rises, output headroom shrinks and the amplifier’s ability to maintain ideal code-to-voltage transfer degrades. That is why output swing versus load and pull-down voltage versus sink current deserve attention. These plots expose the nonlinear edge of “works electrically” versus “meets accuracy target.” In precision control loops, that distinction is often where unexpected bias enters the system. Designs that look acceptable from DC current numbers alone can still miss calibration targets because the output buffer is operating too close to its compliance boundary.

The device is stable with capacitive loads up to 500pF without oscillation. This is a valuable characteristic because many real mixed-signal nodes are not purely resistive. PCB traces, connector parasitics, ADC sample capacitors, filter capacitors, ESD structures, and cable loads all add capacitance. An output amplifier that remains stable with 500pF of direct loading is generally easier to integrate than one that requires isolation resistors by default. Even so, stability and dynamic accuracy are not identical. A DAC can remain free of oscillation and still show slower settling, additional overshoot, or longer recovery after code steps when driving a capacitive network.

That difference becomes important in interfaces to sample-and-hold circuits and multiplexed ADC front ends. If the DAC output is connected to a switched-capacitor input, the effective load is impulsive rather than static. The average DC loading may be light, yet transient charge demand can still disturb the output amplifier. In those cases, a small series resistor near the DAC pin often improves behavior by isolating the internal buffer from fast capacitive kickback. The resistor value is usually chosen small enough to preserve settling and gain accuracy while damping charge injection effects. This kind of adjustment is rarely visible in top-level block diagrams, but it often determines whether the final analog path behaves cleanly across temperature and code transitions.

Short-circuit current is specified as ±15mA typical, and short-circuit duration to GND or VDD is indefinite. That indicates a robust output stage with built-in protection margin. It is useful during bring-up, connector hot-plug events, accidental probing errors, or fault conditions in reconfigurable systems. Still, indefinite short-circuit tolerance should be treated as a survivability feature, not a normal operating mode. Extended fault loading increases internal dissipation and can locally heat the output structure, which is never ideal for precision behavior. In tightly packed analog sections, even modest self-heating can shift offset and gain more than expected, especially when both channels are simultaneously loaded.

The typical performance plots are where the analog personality of the DAC becomes visible. Broadband noise and output voltage noise versus frequency show how quiet the output really is after the static transfer function is satisfied. For slow control loops, this may be negligible. For threshold generation, low-level sensor excitation, or bias programming ahead of a high-gain analog stage, it can become the limiting factor. Noise at the DAC output is not just a random annoyance; when filtered by downstream circuitry, it can convert into jitter, threshold uncertainty, or low-frequency drift-like behavior.

Midscale glitch behavior is another critical plot. Around major code transitions, especially near midscale, internal switching causes a brief impulse at the output. In waveform generation, servo bias updates, and programmable references feeding high-speed comparators, this glitch can matter more than static INL or DNL. A system may be perfectly monotonic and still inject a narrow transient large enough to trigger a sensitive downstream stage. The practical lesson is that update timing and receiving-circuit bandwidth must be considered together. If the receiving node is wideband, the glitch energy is more visible. If the node is filtered or sampled after a controlled delay, the effect can be greatly reduced.

Large-signal settling, rise time, and fall time extend that dynamic picture. These parameters show how quickly the output reaches and stays within its error band after a code change. In control systems, the relevant question is usually not how fast the edge initially moves, but how long it takes until the output is trustworthy. A fast rise time with a long tail or minor ringing can still be problematic if the next stage samples too early. This is one reason datasheet settling curves deserve more weight than nominal slew-style descriptions. In actual signal chains, the “usable update rate” is often determined by settling to the required precision, not by digital interface speed.

One subtle but important design point is that code-dependent loading can interact with dynamic performance. At midscale, the DAC may meet one set of settling expectations under a light load, yet near full-scale or under heavier sink/source conditions the output buffer may recover differently. Engineers sometimes characterize only one representative operating point and then assume the result scales across the range. That assumption is risky with buffered voltage-output DACs. A better approach is to validate at the highest intended load, near output range extremes, and around the code regions that matter most to the application.

For precision control use, the DAC7612U fits best when the output is treated as a calibrated analog source rather than a generic voltage pin. Buffering may still be beneficial if the destination impedance is uncertain, if multiple loads are tied to one channel, or if cable routing introduces significant capacitance or external fault exposure. An external precision op-amp is not mandatory in every design, but it becomes a clean way to decouple the DAC from load-dependent error when absolute accuracy matters more than component count. In many cases, the DAC performs best when allowed to generate the voltage and a downstream amplifier handles the interface burden.

Layout and reference handling strongly influence the quality of the observed output characteristics. A buffered DAC can only reproduce a clean voltage if its reference and supply environment are equally clean. Ground impedance shared with digital return current, reference trace pickup, and local supply bounce can all masquerade as DAC nonlinearity or excess noise. On mixed-signal boards, placing the DAC close to the reference source and keeping the output trace away from fast digital edges usually produces more improvement than chasing minor theoretical error sources. The analog output stage is often blamed for behavior that is actually injected upstream through grounding or reference contamination.

A practical evaluation flow is to separate static and dynamic checks. First confirm output range, zero-scale behavior, full-scale behavior, and load regulation under the intended DC load. Then evaluate settling and glitch response with the actual receiving circuit attached, not with an ideal bench load. Finally check fault and startup behavior, especially if the output can encounter unknown external voltages during power sequencing. This staged approach usually exposes the real integration risks quickly and avoids overinterpreting a single favorable bench measurement.

Viewed as a whole, the DAC7612U offers a balanced analog output stage: direct voltage output, moderate load drive, useful capacitive-load stability, and reasonable fault tolerance. Its real performance is shaped less by the digital code interface than by how the output buffer is loaded, how the analog node is routed, and how the receiving circuit reacts to dynamic transitions. That is the right lens for evaluating it in precision systems. The datasheet numbers define the boundaries, but the plots reveal how the device behaves inside them.

Texas Instruments DAC7612U Power, Reference, and Efficiency Profile

Texas Instruments DAC7612U uses a single +5 V supply with an operating window of 4.75 V to 5.25 V. That looks simple on paper, but in system design it is one of the device’s most practical strengths. A fixed 5 V rail removes the need for dual analog supplies, avoids charge-pump support circuitry, and reduces the number of power domains that must be sequenced, filtered, and monitored. In mixed-signal boards built around 5 V logic, microcontrollers, or legacy industrial interfaces, this directly lowers integration effort. It also narrows the number of failure paths during bring-up because analog output behavior stays tied to one well-defined rail rather than depending on multiple supply relationships.

The internal architecture gains another advantage from the integrated 2.435 V reference. In many DAC designs, the external reference becomes the hidden complexity point: it adds its own temperature drift, layout sensitivity, startup behavior, and noise contribution. Here, the internal reference allows the DAC7612U to deliver its intended 4.095 V full-scale output without requiring an additional precision source in standard use cases. That matters beyond simple BOM reduction. It compresses the analog signal chain, shortens sensitive routing, and removes a common source of gain error caused by mismatch between the DAC core and a separately selected reference. In practice, fewer reference-related interconnects usually translate into more repeatable production behavior, especially on compact boards where analog and digital return currents are forced to coexist.

The 4.095 V full-scale characteristic is also a useful engineering choice. It fits comfortably below the 5 V rail, preserving output headroom and reducing the risk of saturation near the top end of the transfer range. This is often preferable to attempting rail-to-rail swing in precision control paths, where the last few tens or hundreds of millivolts near the supply often carry the highest nonlinearity or load dependence. For data acquisition offsets, actuator bias generation, programmable thresholds, and calibration voltages, a slightly reduced full-scale range can improve predictability at the system level because the output remains in a more controlled operating region.

Power consumption is low enough to make the DAC7612U attractive in both continuously powered equipment and duty-cycled systems. The specified supply current is 0.75 mA typical and 1.5 mA maximum, corresponding to 3.5 mW typical and 7.5 mW maximum dissipation. These numbers are modest, but their real value appears when viewed at board level. In dense enclosures, thermal budgets are often consumed by processors, communication transceivers, and power conversion stages, leaving little margin for analog support components. A DAC that stays in the single-digit milliwatt range simplifies temperature-rise calculations and avoids creating local hot spots that could disturb nearby precision circuitry. In battery-backed control modules, the same low current helps preserve runtime without forcing aggressive power gating.

Efficiency in this context should not be interpreted only as low static dissipation. It also reflects functional efficiency: how much analog capability is obtained per unit of support circuitry, routing area, and validation effort. The DAC7612U scores well here because the single 5 V rail and built-in reference reduce the overhead usually required to stabilize a precision output channel. A device that consumes little power but demands an external reference, separate analog regulation, and extensive filtering may not be efficient at the system level. This part avoids much of that penalty. That balance is often more important than absolute current alone.

Power supply sensitivity is specified at 0.0025%/% typical, which gives useful insight into how strongly output accuracy tracks supply variation. This parameter matters most when the 5 V rail is shared with dynamic digital loads such as processors, fieldbus interfaces, or display drivers. Even with a modest sensitivity figure, rail movement can still translate into measurable output error if the supply is noisy, marginal, or poorly decoupled. For that reason, the single-supply simplicity should not be mistaken for immunity to power integrity issues. Clean local bypassing remains important, and analog return routing should be treated carefully so that digital switching currents do not modulate the DAC’s effective ground reference.

The typical curves provided for power supply rejection versus frequency are especially relevant in real designs. Low-frequency PSRR behavior helps assess the effect of regulator drift, load-step recovery, and slow supply wander. High-frequency PSRR indicates how much switching noise from DC/DC converters, clocks, and digital edges can leak into the output path. In many control applications, low-frequency disturbances are more damaging than broadband noise because they resemble legitimate command signals or calibration shifts. High-frequency feedthrough, by contrast, may be filtered later if the load or following stage has limited bandwidth. The practical implication is that supply-noise analysis should be aligned with the application spectrum rather than judged by a single aggregate noise figure.

The minimum supply voltage versus load characteristic adds another layer that is easy to overlook. Output load does not only affect drive capability; it can also shift the effective operating margin of the converter. As load current increases, internal output stages may require more headroom to preserve linearity and full-scale compliance. This becomes relevant when the DAC output is connected directly to low-impedance nodes, long cable runs, or multiplexed analog networks with varying input characteristics. A design may appear correct under bench conditions with a high-impedance instrument, then lose margin in the actual system once the real load is attached. For that reason, output loading should be validated with the exact destination circuitry, not just inferred from nominal datasheet limits.

The supply current dependence on logic input voltage and temperature is another practical indicator of how the DAC behaves in mixed-voltage and wide-environment systems. Logic-level compatibility is often treated as a digital-only concern, but it affects power draw and sometimes noise generation inside the device. Temperature adds another dimension. A DAC that is quiet and efficient at room temperature can shift meaningfully at the corners, particularly in sealed industrial assemblies where internal ambient rises above the external rating. Checking current consumption and output stability across logic states and temperature is therefore not just a compliance exercise; it helps reveal whether the surrounding regulator, thermal path, and digital interface margins are genuinely robust.

From an application standpoint, the DAC7612U fits well in industrial controllers, embedded instrumentation, programmable setpoint generation, and analog biasing functions where moderate output range, low power, and compact support circuitry are valued more than extreme output current or flexible supply operation. It is particularly effective in systems that already maintain a regulated 5 V plane and need deterministic analog output without adding another precision analog subsystem. In these cases, the internal reference is not merely a convenience feature; it is a design stabilizer that removes one of the most variable external analog elements.

A useful design pattern with this device is to treat the local 5 V supply and ground environment as part of the DAC transfer function. That mindset tends to produce better results than viewing power delivery as a separate utility block. Short bypass paths, controlled digital edge routing near the interface pins, and isolation from high-di/dt return currents usually improve output consistency more than adding excessive post-processing later. Experience with similar single-supply precision DACs shows that most unexpected error is rarely caused by the nominal conversion core. It more often comes from shared impedance, reference contamination, or unrealistic assumptions about load behavior. The DAC7612U’s specifications suggest that when the surrounding power network is disciplined, the part can deliver a very efficient and predictable analog channel with relatively little design overhead.

Texas Instruments DAC7612U Package, Pin Functions, and Temperature Range

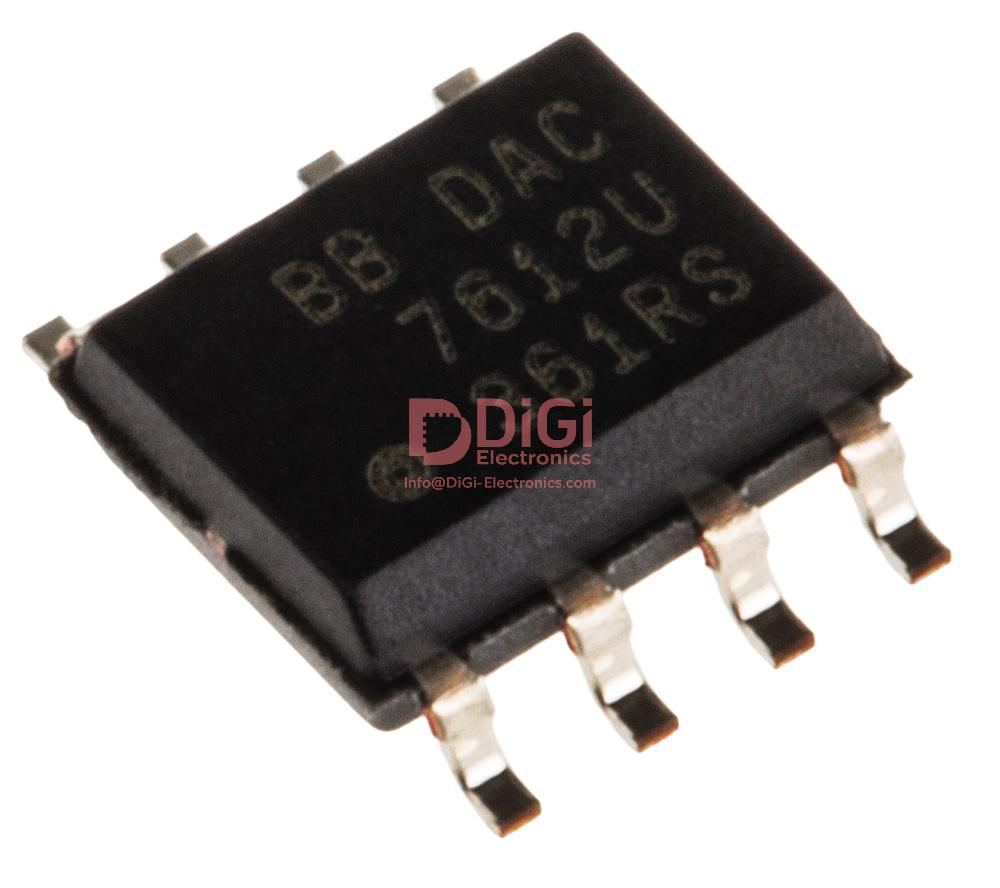

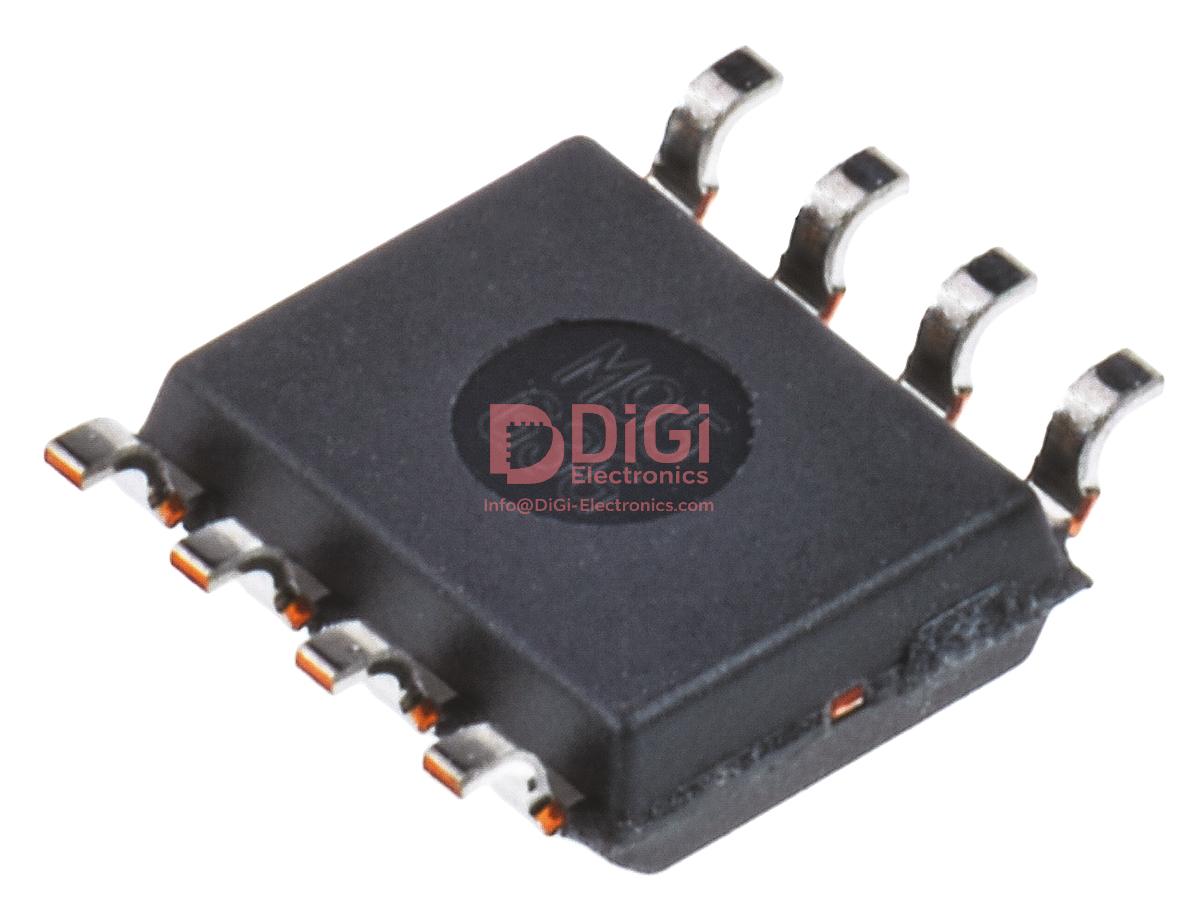

Texas Instruments DAC7612U is a dual-channel voltage-output DAC implemented in an 8-lead SOIC package, and that combination of function density and package simplicity is a large part of its practical value. In mixed-signal boards, package choice is rarely just a mechanical detail. It directly affects routing topology, analog return quality, thermal behavior, assembly yield, and long-term manufacturability. The DAC7612U’s narrow SOIC format fits well in space-constrained designs while still leaving enough pin pitch and body size to avoid many of the handling and inspection issues that appear when precision analog parts move into smaller leadless packages. In compact control modules, instrumentation cards, and embedded analog output stages, this package often strikes a useful balance between density and layout control.

The 8-pin arrangement is also efficient from a signal-integrity perspective because each pin maps cleanly to a small set of essential functions. Pin 1, SDI, is the serial data input and forms the entry point for programming DAC words. Pin 2, CLK, is the serial clock that defines the data transfer timing. Pin 3, LOADDACS, controls the loading of the internal DAC registers, which is especially useful when output update timing must be managed explicitly rather than occurring immediately with every serial transfer. Pin 4, CS, is the active-low chip-select input used to frame valid communication cycles. Pin 5, VOUTB, is the analog output of DAC channel B. Pin 6, GND, is the ground reference for both digital interface behavior and analog output accuracy. Pin 7, VDD, is the positive supply input. Pin 8, VOUTA, is the analog output of DAC channel A.

At first glance, this pinout looks minimal, but that minimalism is functional rather than limiting. The digital pins are grouped to support clean serial routing from a nearby controller or FPGA, while the analog outputs are placed so they can be routed away from switching edges with relatively little crossover. On dense boards, this matters. A DAC can meet its datasheet on paper yet still produce output noise, code-dependent disturbance, or settling anomalies if serial lines are allowed to run parallel to analog outputs over long distances or if the return current path under the device is fragmented. With the DAC7612U, the package gives enough layout freedom to keep the digital interface compact and the analog exits short, which is often more valuable than a nominally smaller footprint.

Each pin has system-level implications beyond its basic name. SDI and CLK define the serial interface bandwidth and timing margin, so their edge quality should be controlled rather than maximized. Very fast clock edges are not automatically beneficial in this class of converter. They increase spectral content, inject more switching energy into the local ground, and can couple into VOUTA or VOUTB if routing is careless. In practice, short traces, a solid ground plane, and moderate drive strength from the host controller usually produce more stable analog behavior than aggressively sharp digital transitions. CS should be treated as a framing signal with clean assertion and deassertion timing, because partial or ambiguous command framing is a common source of field-debug confusion in simple serial DAC interfaces.

LOADDACS deserves special attention because it affects how the dual outputs behave in real systems. In many applications, the ability to preload data and then update one or both channels at a controlled instant is more important than raw resolution alone. That matters in waveform generation, gain trimming, threshold setting, and bias control loops where asynchronous channel changes can create transient mismatches. The presence of a dedicated load control pin suggests a design intent that favors deterministic update behavior. That is a useful architectural feature because it lets the designer separate communication timing from analog output timing. When both channels must change together, synchronized loading reduces output skew and helps prevent intermediate states from propagating into downstream analog blocks.

The analog outputs, VOUTA and VOUTB, should be viewed not merely as pins but as interface boundaries between the converter core and the rest of the signal chain. Their electrical performance depends strongly on output loading, reference conditions internal to the part architecture, supply cleanliness, and the impedance environment on the PCB. Even if the device is specified as a voltage-output DAC, downstream circuitry still determines how much of the nominal precision is preserved. High-capacitance loads, long traces, or direct connection into dynamic sampling inputs can degrade settling or introduce ringing. A buffer stage, RC isolation, or careful load partitioning is often justified when the output must remain monotonic and stable under dynamic conditions. This is one of the recurring realities of practical DAC design: converter accuracy is only the first layer; output integrity at the application boundary is where the design succeeds or fails.

Ground and supply pins are equally central. Pin 6, GND, is the reference node against which the DAC’s output accuracy is ultimately realized, so its local environment must be quiet and low impedance. Treating GND as just another net is a frequent mistake in compact analog boards. The return current from the serial interface, nearby logic, and any output load should not be forced through narrow necks or discontinuous copper near the DAC. Pin 7, VDD, should be locally decoupled with a capacitor placed as close as possible to the package, with the return path tied directly into the same low-impedance ground region used by the DAC. A second bulk capacitor nearby can help if the local rail also feeds switching digital devices or op-amps with burst current demand. This is not excessive caution. Small supply disturbances at the DAC package can translate into measurable output movement, especially when the analog output is later amplified.

The package itself contributes to thermal and assembly behavior. An SOIC body is mechanically robust, widely supported by contract assembly lines, and easy to inspect with standard optical processes. For products expected to move through multiple manufacturing sites or second-source assembly partners, this reduces process friction. Rework is also simpler than with finer-pitch or bottom-terminated packages, which becomes relevant in low-volume instrumentation or pilot production where board modifications are common. From an engineering management perspective, this kind of package stability can be as valuable as a small improvement in electrical headline specifications, because it reduces total integration risk.

The stated operating temperature range of -40°C to +85°C places the DAC7612U in the industrial category, and this is more significant than a catalog checkbox. Temperature range defines the envelope within which offset behavior, gain stability, digital timing margin, startup reliability, and package stress must remain controlled. In factory automation, distributed control nodes, instrumentation enclosures, and edge-installed electronics, the device may see slow seasonal drift, rapid startup from cold soak, or self-heating in poorly ventilated housings. A part qualified across -40°C to +85°C is positioned for exactly these conditions. The practical implication is not that performance is identical at every point in the range, but that behavior remains bounded and characterized well enough for predictable system design.

Temperature also interacts with board-level mechanics and analog precision in subtle ways. In compact analog sections, the DAC may sit near regulators, processors, current drivers, or interface transceivers that create local thermal gradients. The ambient specification alone does not capture this. Junction temperature can rise above ambient, and nearby heat sources can create channel-to-channel or board-to-board variation if layout places the DAC in an uneven thermal field. A consistent design approach is to keep precision analog devices away from concentrated heat sources, avoid routing heat-heavy copper directly under sensitive analog regions unless intentional, and maintain similar thermal surroundings across production variants. These choices reduce drift surprises later during calibration or environmental testing.

In outdoor-adjacent and semi-protected installations, the -40°C to +85°C range is particularly useful because enclosure temperatures often diverge sharply from weather data. A sealed box in sunlight may run hot even when ambient conditions look moderate, while overnight startup in winter can push internal electronics close to the lower qualification limit. The DAC7612U’s temperature rating makes it suitable for these environments provided the rest of the analog chain is designed to the same standard. That last point is often overlooked: system robustness is limited by the weakest thermal element, not by the best-qualified IC on the schematic.

From an application standpoint, the device fits naturally into dual-channel setpoint generation, programmable biasing, sensor excitation trimming, threshold adjustment, and low-to-medium-speed waveform output. The dual outputs allow one package to support paired functions such as offset and gain control, coarse and fine bias setting, or independent actuator references. In control-oriented designs, using a dual DAC instead of two singles can reduce routing complexity and improve update coordination. It also simplifies inventory and qualification because one component covers both channels under the same thermal and compliance status. This kind of integration usually improves maintainability more than it improves headline board area, which is a more meaningful advantage over a product lifetime.

There is also a broader design lesson in the DAC7612U’s feature set. Devices like this are most effective when treated as timing-aware analog subsystems rather than simple serial peripherals. The digital interface may be straightforward, but the quality of the analog result depends on update sequencing, output loading, grounding, supply isolation, and thermal placement. Designs that account for these interactions early tend to achieve stable output behavior with little iteration. Designs that postpone them often end up adding filters, op-amp buffers, firmware workarounds, or calibration steps to recover margins that were lost at the layout stage.

For procurement and lifecycle planning, the RoHS-compliant and REACH-unaffected status is not merely administrative background. These declarations affect component approval flow, environmental reporting, customer documentation packages, and readiness for regulated markets. In many programs, the delay is not caused by electrical validation but by compliance traceability gaps during release to production. A component with clear environmental status reduces that friction. It does not determine whether the DAC is the right analog choice, but it does improve its usability within controlled product-development workflows, especially where BOM governance and export documentation are tightly managed.

Taken together, the DAC7612U presents a compact and disciplined implementation of a dual analog-output function. The 8-lead SOIC package supports practical routing and assembly, the pinout enables direct serial control with managed output update timing, and the industrial temperature range aligns with real deployment conditions rather than bench-only operation. In designs where predictable analog behavior matters more than marketing-level feature count, these characteristics are often exactly what make the part usable.

Texas Instruments DAC7612U Timing Requirements and Digital Logic Considerations

Texas Instruments DAC7612U timing behavior is simple at the interface level, but reliable integration depends on treating the digital port as a real timing system rather than a generic SPI-like endpoint. The device is specified around a 5 V supply and industrial temperature range, so every timing number should be read as a boundary condition under those operating assumptions. The published limits are not targets. They are the minimum conditions required for the internal shift and latch circuitry to interpret control and data signals without ambiguity.

At the clock interface, both high time and low time are specified at 30 ns minimum. That immediately defines the serial timing envelope. A full clock period must be at least 60 ns, which corresponds to roughly 16.7 MHz if the design is held strictly to the minimum high and low pulse widths. Many discussions reference 20 MHz-class operation because the family is generally considered fast enough for that range, but practical implementation should be checked against the exact timing table, waveform definitions, and controller duty-cycle behavior. This distinction matters. A serial engine configured for 20 MHz with an ideal 50% duty cycle produces 25 ns high and 25 ns low, which would violate a strict 30 ns minimum requirement. In practice, this is where timing closure becomes more important than headline clock rate.

The same principle applies to the control signals. LOADDACS requires a minimum pulse width of 20 ns. Data setup and hold times are each 15 ns minimum. Load setup time is 15 ns minimum, and load hold time is 10 ns minimum. Chip-select timing requires 30 ns setup and 20 ns deselect minimum. These values define the sequence in which the DAC samples incoming bits, transfers the completed word into its internal register structure, and then updates the analog output when commanded. The interface is not complex, but the edge relationships are tight enough that careless firmware timing or aggressive bus sharing can create intermittent failures that are difficult to reproduce.

A useful way to read these numbers is to separate them into three timing domains. The first domain is shift timing, dominated by clock high, clock low, data setup, and data hold. This determines whether the serial word enters the device correctly. The second domain is framing timing, dominated by chip select assertion and release. This determines whether the DAC recognizes the word boundary cleanly. The third domain is update timing, dominated by LOADDACS and its relation to the loaded data. This determines when the analog output actually changes. Treating these as separate mechanisms helps during debug because each failure mode has a different signature. Shift timing errors often appear as corrupted codes. Framing errors produce missing or misaligned writes. Update timing errors usually look like stale outputs or output changes occurring at the wrong instant.

The DAC7612U uses CMOS input thresholds, with VIH specified at 0.7 × VDD and VIL at 0.3 × VDD. At a 5 V supply, that places the guaranteed logic-high threshold near 3.5 V and the guaranteed logic-low threshold near 1.5 V. This has direct implications for controller selection. A 5 V MCU or FPGA bank is naturally compatible. A 3.3 V controller is not automatically safe unless the actual input structure, operating margin, and worst-case conditions are analyzed carefully. A nominal 3.3 V high level falls below the guaranteed 3.5 V VIH requirement, so direct connection cannot be treated as compliant even if it appears functional on a bench at room temperature. This is one of the most common integration mistakes with older 5 V CMOS DACs. The interface seems to work until temperature, supply variation, or noise reduces the already-limited high-level margin.

Input leakage of ±10 µA is small enough that static loading is rarely a concern, but it is still relevant in systems with weak pull resistors, shared buses, or level-translator outputs that enter high-impedance states during reset. In those conditions, the DAC input pins can float into undefined regions long enough to capture false transitions. A well-behaved startup sequence should therefore ensure deterministic levels on CS, CLK, DIN, and LOADDACS before the controller begins active communication. In mixed-voltage systems, this requirement becomes more important because translators and supervisors do not always come out of reset in a clean order.

From a digital logic perspective, the safest design method is to budget margin explicitly rather than trying to operate at the published minima. If 30 ns is the required clock high and low time, a design target closer to 40 to 50 ns per half-cycle usually produces a more robust interface, especially on boards with multiple loads or long traces. The same applies to setup and hold windows. A firmware-driven GPIO implementation that nominally meets 15 ns setup and hold can still fail once compiler optimization, interrupt latency, and instruction reordering are considered. Hardware SPI blocks are better, but only if the exact edge polarity, frame timing, and chip-select behavior match the DAC’s requirements. Some SPI peripherals deassert chip select automatically between bytes, which can break devices expecting a continuous framed word. Others produce asymmetrical duty cycles at higher divisors, which can silently violate minimum pulse-width limits.

Signal integrity becomes relevant sooner than many expect because the interface edges are much faster than the nominal serial rate suggests. Even at moderate clock frequencies, a fast driver feeding several DACs on a shared bus can generate ringing, overshoot, and skew that consume timing margin. The failure is rarely obvious at the protocol level. Instead, it appears as occasional bit errors that track board population, cable length, or output switching activity elsewhere in the system. Short routing, solid return paths, and modest edge-rate control are often more effective than trying to push firmware changes into a marginal hardware channel. In many layouts, adding small series resistors near the driving source on CLK and DIN stabilizes the waveform enough to recover margin without affecting throughput materially.

When multiple DACs share the same clock and data bus, skew management becomes a first-order design parameter. Clock arrival time, data arrival time, and chip-select timing no longer depend only on controller output timing. They also depend on physical route mismatch, fanout loading, translator delay, and any buffering inserted for isolation. A bus that works with one DAC can become marginal with three devices simply because the distributed load slows one edge and shifts another. In those cases, it is better to think in terms of end-to-end timing at the DAC pins, not controller pin timing. The interface should be verified where the receiving latch sees it, not where the waveform was launched.

Firmware should also distinguish clearly between “loading a code” and “updating the output.” This DAC architecture allows those actions to be coordinated through CS and LOADDACS so output transitions occur exactly when intended. That is useful in systems requiring synchronized analog updates, deterministic waveform steps, or simultaneous channel changes. A common implementation pattern is to shift data into the DAC input register while keeping LOADDACS inactive, then pulse LOADDACS only after all intended channels or devices have been prepared. This decouples bus activity from analog output transition time. In control systems, this separation often reduces output glitch perception at the system level because the analog state change is moved to a known and repeatable instant.

In practical board bring-up, the fastest path to confidence is to validate three things on a scope or logic analyzer: clock pulse width at the DAC pin, data stability around the sampling edge, and LOADDACS placement relative to the completed serial frame. If these three are correct, most interface problems disappear quickly. If one is marginal, the device may still appear functional during static tests while failing under burst transfers or temperature sweep. That pattern usually indicates hidden timing compression caused by software jitter, bus contention, or edge distortion rather than a data-format issue.

One design habit consistently improves reliability with this class of DAC: reserve timing margin at the architecture stage instead of trying to recover it later with patchwork fixes. Using a slightly slower serial clock, keeping control edges monotonic, and ensuring logic-level compatibility often produces a larger system benefit than squeezing maximum bus speed from the interface. The DAC7612U does not demand a complicated protocol, but it does reward disciplined digital timing. Once the edge relationships are clean, the device behaves predictably, and output update timing becomes a controllable part of the analog system rather than a source of uncertainty.

Texas Instruments DAC7612U Typical Application Scenarios and Engineering Selection Insights

The DAC7612U is best understood as a compact dual voltage-output DAC intended for control-oriented analog generation rather than high-speed waveform synthesis. Its value comes from integration balance: two DAC channels, internal reference support, monotonic behavior, and low operating power in a single device that does not demand a large analog support network. In designs where analog outputs are functional control variables rather than signal-processing endpoints, that combination is often more important than pushing absolute speed or ultra-high resolution.

At the architectural level, the device fits systems that need deterministic, repeatable DC or slowly varying analog outputs. A common pattern is one channel assigned to the main control path while the second channel supports system trimming, compensation, or supervisory thresholds. This pairing is more useful than it first appears. In many mixed-signal boards, the second output is not merely “another DAC”; it often removes the need for a separate reference-setting circuit, a digital potentiometer, or a manually tuned calibration network. That consolidation usually improves not only BOM count but also thermal consistency, routing symmetry, and long-term maintenance behavior.

In process-control hardware, the DAC7612U maps naturally to applications where outputs define analog setpoints. One channel can command a valve positioner, current-loop setpoint stage, or proportional actuator interface, while the second channel establishes a comparator threshold, alarm trip level, or calibration baseline. Keeping both outputs in one package reduces inter-device variation and simplifies grounding strategy. On dense boards, this matters more than datasheet summaries often suggest. With two separate DACs, even small differences in reference path impedance, supply decoupling placement, or local thermal gradients can show up as channel-to-channel mismatch. A dual DAC avoids much of that friction and usually shortens bring-up time.

In data acquisition equipment, the part is useful when the analog output is supporting the measurement chain rather than replacing it. It can generate programmable sensor excitation, bridge offset correction, ADC input biasing, or a trim signal for gain and reference calibration loops. This is especially practical in systems that need field-adjustable analog conditions but do not require dynamic waveform generation. A recurring implementation approach is to use one DAC output to inject a known offset into the front end and reserve the second for reference trimming during production calibration. That arrangement can reduce the amount of analog hand-tuning required at test, and it often makes calibration coefficients easier to manage because they are applied through stable digital control rather than resistor selection.

In closed-loop servo and motion-control systems, guaranteed monotonicity is one of the more meaningful specifications. It ensures that when the digital code changes in one direction, the analog output does not reverse direction due to DAC nonlinearity. In control loops near equilibrium, that behavior prevents small command updates from creating counterintuitive plant reactions. The practical benefit is not dramatic in a block diagram, but it becomes obvious when tuning loops with fine step adjustments. Non-monotonic behavior can create dead zones, hunting, or intermittent threshold crossings that look like compensation problems but are actually source-generation artifacts. A monotonic DAC does not solve loop design issues, but it removes one subtle failure mode from the system.

Portable and distributed instrumentation also align well with the DAC7612U. Low power consumption and a relatively self-contained analog implementation are valuable when battery budget, thermal rise, and PCB area are constrained. In these designs, the savings from reduced support circuitry often exceed the apparent importance of the DAC itself. Fewer precision external components mean fewer leakage paths, fewer temperature-sensitive nodes, and less assembly variation. That tends to produce cleaner first-pass behavior in compact instruments, especially where analog and digital domains are crowded together and every unnecessary passive network increases coupling risk.

Selection should start with supply-domain compatibility. The device is fundamentally oriented around a +5 V design environment. That makes it straightforward in legacy industrial and instrumentation platforms, but less natural in modern 3.3 V-only digital systems. If the rest of the board is already partitioned with a 5 V analog rail, integration is usually simple. If not, adding a dedicated rail just for the DAC may erase some of the simplicity advantage. This is one of the first filter criteria that should be applied. A part can be electrically capable yet architecturally wrong if it forces extra power-tree complexity, level shifting, or startup sequencing constraints.

The output span is another important engineering checkpoint. The full-scale output of about 4.095 V is convenient because it aligns closely with 1 mV per LSB scaling, which makes firmware handling, diagnostics, and calibration tables unusually clean. That is not just a cosmetic benefit. In systems with service interfaces, manufacturing screens, or telemetry logs, simple unit mapping reduces interpretation errors and speeds debugging. At the same time, that span is not universally ideal. If the downstream stage expects 0-5 V, bipolar drive after level shifting, or a lower-voltage range matched to a modern ADC reference domain, then gain or offset conditioning may be required. Once external scaling amplifiers are introduced, total error should be re-evaluated at the system level rather than assuming the DAC’s standalone precision still dominates.

Output loading deserves more attention than it often receives. Voltage-output DACs are easiest to apply when they drive high-impedance inputs with controlled capacitance. Problems begin when the output is treated like a general-purpose analog source. Low-impedance loads, sample-and-hold kickback, long trace capacitance, multiplexed analog buses, or direct cable interfaces can all degrade settling or even create stability issues. In practice, if the node is not clearly high impedance and local, buffering should be considered early rather than added as a late fix. A simple op-amp buffer, chosen for input bias, output swing, capacitive-load tolerance, and supply compatibility, often turns a marginal interface into a robust one. The key is to evaluate the DAC and buffer as one analog stage, not as independent blocks.

Reference behavior also needs system-level thinking. An integrated reference is a strong advantage because it reduces component count and avoids a separate precision voltage source. However, internal convenience should not be confused with universal reference authority. If the application depends on absolute accuracy across temperature, cross-board matching, or traceable calibration performance, the reference path must be reviewed with the same rigor as the DAC transfer curve. In many successful designs, the internal reference is entirely adequate for command generation and trim functions, while systems demanding tighter absolute control reserve external calibration in firmware to absorb residual gain and offset errors. That approach usually provides a better cost-performance balance than forcing unnecessary analog precision into every node.

Board-level implementation has a direct effect on whether the DAC behaves like a precision component or just a nominal voltage source. Decoupling should be tight to the supply pins, digital return currents should not share sensitive analog paths, and output traces should avoid aggressive coupling from clocks or switching nodes. This is especially relevant when one DAC channel sets a static threshold and the other drives a changing command. Crosstalk can then appear as false interaction between two otherwise independent functions. On mixed-signal boards, keeping the DAC physically close to the receiving analog stages usually pays off more than chasing minor passive-value optimizations elsewhere.

From a selection perspective, the DAC7612U is a strong choice when the design needs two stable, moderate-precision voltage outputs in a 5 V analog domain, with low power and limited external circuitry. It is less attractive when the system is deeply optimized for low-voltage rails, requires rail-to-rail span, must directly drive difficult loads, or depends on faster dynamic updates. The part performs best when used as a controlled analog setpoint engine embedded inside a larger measurement or control system. In that role, its integration level, monotonicity, and straightforward scaling create an efficient design path with fewer hidden analog complications than many more feature-rich alternatives.

Texas Instruments DAC7612U Reliability, Handling, and Operating Limits

The DAC7612U is a precision mixed-signal component, so reliability is not determined only by whether the device appears functional after power-up. In practice, reliability is tied to how consistently its analog transfer behavior stays inside the intended error budget over time, temperature, and handling exposure. That distinction matters. A DAC can survive an electrical event and still exhibit offset shift, gain error movement, or degraded linearity that quietly erodes system accuracy. For a precision DAC, operating margin is therefore as important as absolute survival.

The published absolute maximum ratings define the boundary beyond which permanent damage or latent degradation can occur. For the DAC7612U, VDD to GND is limited to -0.3 V to 6 V. Digital input pins must remain between -0.3 V and VDD + 0.3 V. The analog output pin, VOUT, must stay between -0.3 V and VDD + 0.3 V. Maximum junction temperature is +150°C, and storage temperature spans -65°C to +150°C. These values are not recommended operating points. They are stress limits. Repeated exposure near them can shorten useful life or shift precision parameters, even when no immediate failure is visible.

A common design mistake is to treat absolute maximum ratings as transiently acceptable during sequencing or fault conditions. In mixed-voltage systems, that assumption is risky. If the digital interface is driven before VDD is established, the input protection structures can conduct. This may not destroy the device instantly, but it can inject current into internal nodes in ways the architecture was not intended to tolerate. The same issue appears when the output is connected to downstream circuitry that can force VOUT above the supply rail during startup, shutdown, or fault recovery. The practical rule is simple: prevent every pin from seeing an out-of-range voltage at all times, including power sequencing, hot-plug events, cable discharge, and debug rework.

Supply integrity deserves more attention than the headline limits suggest. The nominal dissipation of this DAC is usually low, but the 325 mW package power dissipation rating and 150°C/W thermal resistance still define a real thermal envelope. Using the standard junction rise estimate, even modest power can become relevant when the local ambient temperature is elevated by adjacent converters, processors, or poorly ventilated enclosures. For example, a board operating in a sealed industrial module may have an ambient temperature far above room conditions, and a cluster of nearby heat sources can create local hot spots that are not captured by a simple air-temperature measurement at the enclosure edge. In such layouts, thermal headroom should be evaluated at the component level, not assumed from average board power.

Thermal behavior affects more than survival. Precision analog performance often shifts before any thermal limit is approached. Reference-related error, zero-scale movement, and full-scale drift can all worsen as junction temperature changes. For that reason, a good thermal design for the DAC7612U is not just about staying below +150°C junction. It is about minimizing temperature gradients, avoiding rapid thermal cycling, and keeping the device in a predictable operating region. Placing the DAC away from switching inductors, power MOSFETs, and linear regulator hot zones generally improves repeatability more effectively than post-processing calibration alone.

The specified storage range of -65°C to +150°C indicates mechanical and material robustness, but storage compliance does not guarantee metrological stability after uncontrolled handling. Long exposure to high storage temperature, repeated solder rework, and poor moisture handling can all influence package stress and, indirectly, analog precision. In assembly flows, limiting unnecessary thermal excursions is often beneficial for consistency across production lots. That becomes especially visible in instrumentation designs where unit-to-unit matching matters.

Electrostatic discharge handling is explicitly important for this device, and the warning should be interpreted broadly. ESD damage is not always catastrophic. In precision ICs, small internal degradation can appear later as excess drift, increased leakage, or calibration instability. That is often harder to diagnose than a hard failure because the part still communicates and produces output, just not with the expected long-term accuracy. Standard controls such as grounded work surfaces, controlled transport materials, wrist grounding, and proper field-service discipline are therefore not procedural overhead. They directly protect analog performance.

In bench work and low-volume integration, ESD-related parametric damage often shows up as a system that passes initial functional test but fails guardbanded accuracy checks after thermal soak or after several power cycles. That pattern is easy to misattribute to firmware, reference instability, or layout noise. In reality, precision DACs are sensitive enough that marginal handling practices can create intermittent-looking analog errors. Treating every unpackaged or partially assembled board as a precision electrostatic-sensitive assembly avoids that class of failure early.

The DAC7612U’s long-term drift and its full-scale and zero-scale behavior versus temperature are especially relevant in systems where absolute output accuracy matters more than monotonic operation alone. Long-term drift determines how calibration ages. Zero-scale behavior reflects how the output baseline moves with temperature and time. Full-scale behavior captures gain-related sensitivity to environmental conditions. These three effects interact at the system level. If the design uses a precision external reference chain, low-noise buffering, and stable passive components, DAC drift may become a dominant residual error. If the rest of the chain is less stable, DAC drift may be masked initially but can still emerge after field aging or wide-temperature deployment.

The most effective way to interpret these curves is to map them directly into the system error budget. Instead of asking whether drift is “good” in isolation, estimate the impact in output units over the intended calibration interval and temperature range. In a low-bandwidth control system, that may translate into actuator bias shift. In instrumentation, it may appear as span error and baseline offset. In programmable power or threshold-generation circuits, it can move trip points enough to affect interoperability margins. The right calibration strategy follows from that mapping.

Production calibration is useful when initial offset and gain error must be minimized, but it does not remove temperature coefficients or long-term drift. Periodic recalibration is effective when the application permits maintenance intervals and when environmental exposure varies over deployment. Temperature compensation becomes attractive when the thermal environment is measurable and repeatable enough for correction to track reality. In many designs, a hybrid approach works best: calibrate at production, characterize thermal behavior at a small number of points, and reserve field recalibration only for systems with very tight lifetime accuracy requirements. This usually yields better cost-performance balance than overengineering the analog chain to eliminate every source of drift in hardware.

There is also a layout dimension to reliability that is often underestimated. A precision DAC output can remain within electrical limits while still suffering apparent instability caused by ground impedance, digital feedthrough, or reference contamination. When that happens, teams sometimes suspect component reliability when the root cause is actually board-level coupling. Short return paths, clean reference routing, local decoupling at the supply pin, and separation from fast digital edges are basic but highly effective. The practical insight is that preserving specified performance is often more about preventing secondary stress and interference than about avoiding dramatic overvoltage events.

Protection design should be selective. Adding clamps, series resistors, or filtering around digital and analog pins can improve fault tolerance, but each measure must be checked against accuracy impact. Excessive output loading, leakage from protection devices, or nonlinear clamp capacitance can create new precision errors. The best protection network is one that enforces the pin-voltage limits during real faults while remaining electrically invisible during normal operation. For this class of DAC, that usually means low-leakage devices, controlled source impedance, and careful review of startup and shutdown current paths.

A robust implementation of the DAC7612U therefore rests on three layers. First, maintain strict compliance with voltage, current, and temperature limits under all operating and fault conditions, not just in steady state. Second, control handling and assembly quality so that latent ESD or thermal damage does not erode analog performance. Third, translate drift and temperature behavior into explicit system-level calibration and compensation choices. Designs that follow only the first layer may survive. Designs that apply all three are much more likely to remain accurate and stable throughout service life.

Potential Equivalent/Replacement Models for Texas Instruments DAC7612U

Potential replacement analysis for the Texas Instruments DAC7612U starts most credibly inside the same device family. Based on the available documentation, the Texas Instruments DAC7612UB is the closest and most defensible substitute. It preserves the essential design assumptions of the original part: dual 12-bit DAC architecture, serial interface style, +5 V single-supply operation, SO-8 package format, and the same industrial temperature range of -40°C to +85°C. From an engineering substitution perspective, this matters more than headline similarity. A replacement is only truly low risk when the electrical behavior, board footprint, firmware interaction, and environmental rating remain aligned with the original design envelope.

The key documented difference between DAC7612U and DAC7612UB is the accuracy grade. The DAC7612UB is the tighter-selected version of the same core device family. Its relative accuracy is specified at ±1 LSB maximum, while the DAC7612U is specified at ±2 LSB maximum. Differential nonlinearity remains within ±1 LSB for both, but the B-grade device shows tighter typical performance. This indicates that the UB version is not a functional redesign but a screened or binned improvement in static transfer accuracy. In practical terms, the substitution path is attractive because it improves a measurable analog parameter without forcing changes in digital timing, PCB layout, or supply design.

That distinction is important in mixed-signal systems. Many DAC substitutions fail not because the nominal resolution matches, but because second-order assumptions change. Output compliance behavior, reference implementation, update timing, startup state, serial word framing, and package parasitics often determine whether a “similar” part is actually usable. In this case, the documented overlap between DAC7612U and DAC7612UB strongly suggests a drop-in path with low integration friction. When the replacement remains inside the same family and package, the validation burden usually shifts from interface requalification to performance confirmation.

From the device physics and converter behavior standpoint, the relative accuracy improvement has the most value in applications where channel-to-channel transfer consistency matters more than raw resolution alone. A 12-bit DAC divides full-scale output into 4096 steps, so a 1 LSB versus 2 LSB relative accuracy error can be meaningful in calibration-sensitive loops, programmable thresholds, bias generation, and offset trimming functions. In systems that use software correction, tighter intrinsic linearity reduces calibration effort and improves lot-to-lot predictability. In open-loop applications, it directly lowers the risk of endpoint mismatch and transfer deviation.

This is especially relevant when the DAC is not operating as an isolated signal source but as part of a larger analog chain. If the DAC output feeds an amplifier, comparator threshold network, VCO control input, or current-setting stage, linearity errors can propagate into gain uncertainty, tuning drift, or threshold asymmetry. In those cases, the DAC7612UB provides a cleaner starting point even if the system-level improvement appears modest on paper. A one-LSB tightening at the DAC level often prevents a larger compounded error after downstream scaling or amplification.

In board-level replacement practice, same-family substitutions are usually preferred not only because they fit mechanically, but because they preserve hidden system assumptions accumulated over time. Legacy designs often encode these assumptions in test limits, firmware timing margins, production fixtures, and field service procedures rather than in the schematic itself. A pin-compatible higher-grade variant such as DAC7612UB tends to preserve those operational behaviors. That makes it suitable not only for new builds but also for sustaining engineering, where the real objective is to maintain stable production without reopening a full qualification cycle.

For procurement and lifecycle planning, the DAC7612UB is best understood as a controlled upward substitution, not a lateral cross-reference. It does not introduce a new architecture or alternate vendor dependency. Instead, it maintains family continuity while improving one of the core DC precision metrics. This is often the safest kind of replacement because it reduces the number of unknowns. In supply-constrained environments, a higher-grade family member can often be adopted faster than a cross-family part, provided commercial availability is acceptable and the tighter grade does not create unnecessary cost pressure.

At the same time, it is important not to overgeneralize beyond what the source material supports. The documentation identifies DAC7612UB as the direct family replacement path, but it does not establish any broader equivalence with devices outside the DAC7612 line. No additional substitutes should be assumed without a full datasheet comparison. For DACs, cross-family replacement requires checking much more than nominal resolution and channel count. Serial protocol details, reference topology, output buffer structure, settling behavior, zero-code and full-scale behavior, glitch energy, power-up defaults, and load-driving limits all affect practical compatibility. A device can match on paper and still fail in-circuit because one of these parameters sits just outside the original design margin.

A disciplined replacement workflow would therefore treat DAC7612UB as the primary candidate, then verify a short set of critical items before release: pinout identity, logic timing compatibility, output range behavior under actual load, reference-related constraints, power-up transients, and DC transfer error against system acceptance limits. In most cases, this level of review is sufficient when moving to a tighter grade within the same family. If the system includes closed-loop calibration, it is also worth checking whether the improved linearity changes stored correction coefficients or production trim distributions. That is usually a minor issue, but in tightly controlled instrumentation platforms it can surface unexpectedly.

One practical pattern seen in mature designs is that an apparently “better” DAC can expose weaknesses elsewhere in the signal chain. When linearity improves, amplifier offset, resistor tempco, reference drift, or ground coupling may become the new dominant error terms. That does not reduce the value of the DAC7612UB; it simply means the substitution should be evaluated at system level rather than interpreted as a standalone precision upgrade. The most effective replacements are the ones that preserve compatibility while making the total error budget easier to manage.

Within the limits of the provided material, the engineering conclusion is straightforward: the Texas Instruments DAC7612UB is the most direct and technically justified replacement for the Texas Instruments DAC7612U. It maintains the same family architecture and implementation context while offering tighter relative accuracy. Any move beyond that family should be treated as a new selection exercise, not as an implied equivalent.

Conclusion

Texas Instruments DAC7612U is best understood as a tightly integrated dual 12-bit voltage-output DAC optimized for 5 V mixed-signal systems that need predictable analog generation without the overhead of a larger precision signal chain. It combines two DAC channels, an internal reference, rail-to-rail output amplifiers, and a compact serial interface in an 8-lead SOIC package, which materially reduces external component count and shortens the analog design path. That level of integration is not only about saving board area. In many embedded and industrial designs, fewer external precision nodes also means fewer drift interactions, fewer layout-sensitive connections, and a lower probability of calibration surprises late in validation.

At the architectural level, the device targets a practical midpoint between cost, simplicity, and analog performance. The 12-bit resolution maps naturally to a 4.095 V full-scale range with 1 mV per LSB scaling, which is unusually convenient in real systems. This simplifies firmware, test scripting, and field diagnostics because code-to-voltage translation becomes nearly trivial. In control loops, programmable thresholds, bias generation, and actuator setpoint outputs, that direct 1 mV relationship reduces arithmetic overhead and lowers the chance of software-side scaling mistakes. That may seem minor on paper, but in production code and during debugging, simple transfer functions consistently reduce integration time.

Guaranteed monotonicity over the industrial temperature range is one of the device’s most important practical characteristics. In many control and instrumentation applications, monotonic behavior matters more than absolute precision because it preserves directional correctness. When the input code increases, the output does not step backward. That property is essential in valve control, gain trimming, programmable current sources, and threshold generation, where non-monotonic transitions can create oscillatory behavior, false calibration points, or difficult-to-reproduce edge cases. A DAC with slightly modest absolute accuracy but strong monotonic behavior often performs better at the system level than a nominally more precise part with less predictable transfer behavior under temperature variation.

The internal reference is another key integration advantage. In compact analog output stages, external references are often added to improve precision, but they also introduce additional noise paths, warm-up characteristics, routing sensitivity, and BOM complexity. By embedding the reference, the DAC7612U creates a more self-contained voltage-generation subsystem. This is especially useful in space-constrained controllers, remote I/O modules, and compact instrumentation boards where channel density and design repeatability matter. The internal reference also helps standardize performance across builds, since fewer external precision components means fewer vendor and tolerance interactions. In practice, this tends to make first-pass bring-up smoother and reduces the amount of analog characterization needed to establish a stable production baseline.

Its integrated rail-to-rail output amplifiers extend usability in single-supply systems. In 5 V designs, the ability to drive near the supply rails removes the need for additional buffering in many cases, especially when the DAC output feeds high-impedance inputs such as ADC reference nodes, comparator thresholds, offset injection networks, or calibration points in sensor front ends. The phrase “rail-to-rail” still requires engineering judgment, since actual output swing depends on load conditions, output stage limitations, and error budget allocation near the endpoints. The useful takeaway is that the part is designed to maximize output range under a single supply, which is often the difference between a clean direct connection and an added amplifier stage.

The serial interface reinforces the device’s system-level efficiency. A compact digital interface is valuable not only because it saves pins, but because it simplifies routing across dense digital-analog boundaries. In embedded boards where MCU GPIO count is constrained, a straightforward serial DAC like this can be integrated with minimal firmware complexity and without consuming excessive package resources. It also supports cleaner modularity in designs where one controller manages multiple analog outputs, threshold generators, or calibration rails. The more subtle advantage is timing determinism: serial DACs of this class are generally easy to schedule inside periodic control tasks, and their update behavior is usually easier to reason about than more elaborate mixed-interface devices.

Dynamic performance is also well aligned with its target applications. A typical settling time of 7 µs is fast enough for a broad range of industrial control, instrumentation biasing, and embedded analog-output tasks. It is not positioned as a waveform-synthesis DAC for high-speed reconstruction, but that is not its purpose. Instead, it fits systems where output values change at control-loop timescales, calibration intervals, multiplexed test sequences, or moderate-rate setpoint updates. In these contexts, 7 µs settling is often more than sufficient, provided the surrounding analog network does not dominate the response. This last condition matters. In deployed systems, the external RC filtering, capacitive loading, sample-and-hold behavior of downstream circuits, or even long cable effects frequently determine the effective settling time more than the DAC core itself. Good lab results with a lightly loaded output can become misleading if the actual application includes distributed capacitance or protection networks.

Low power operation further strengthens the part’s fit for distributed and embedded use. In industrial nodes, handheld instrumentation, and compact controller modules, power is rarely just a thermal concern. It also affects reference stability, local ground behavior, and enclosure-level design margins. Lower dissipation helps preserve analog consistency by reducing self-heating and localized thermal gradients, both of which can subtly shift output behavior in dense boards. This is one reason highly integrated low-power DACs often feel more stable in practical products than their raw datasheet comparison alone would suggest.

From an application standpoint, the DAC7612U is particularly effective in three classes of designs. First, in industrial control, the two channels map naturally to paired analog outputs such as command plus offset, dual actuator drive references, or control signal plus alarm threshold. Second, in instrumentation, it can serve as a compact source for sensor excitation trimming, comparator trip levels, bridge balancing offsets, or ADC calibration injection. Third, in general embedded systems, it works well wherever analog outputs are needed but board space, firmware simplicity, and supply constraints rule out more elaborate signal-generation architectures. The dual-channel format is often more valuable than expected, because one channel usually gets assigned to the main function while the second quietly solves an auxiliary biasing or calibration requirement that would otherwise force an extra component onto the board.

There are also a few design implications worth handling carefully. Since the device includes an internal reference and integrated output amplifiers, supply integrity and grounding still matter even though the part appears self-contained. Noise on the 5 V rail can couple into the analog output path if local decoupling and return-current control are weak. In mixed-signal layouts, placing the DAC close to the consuming analog stage usually yields better results than placing it close to the MCU, especially when output traces would otherwise cross digital activity zones. Another recurring issue is load interaction. Even when the output amplifier can technically drive a target node, dynamic accuracy may degrade if the load is too capacitive or if downstream circuits inject transient current. In those cases, a small isolation resistor or carefully chosen post-filter network can stabilize behavior without significantly compromising resolution.

Code-transition behavior should also be considered at the system level. With 12-bit resolution and 1 mV steps, the DAC is well suited for smooth parameter control, but downstream circuits may not respond linearly to small voltage changes. A motor driver threshold, LED current control input, VCO tuning pin, or analog front-end offset node may compress, saturate, or exhibit temperature-sensitive gain. In those cases, the apparent DAC linearity is only one part of the total transfer function. It is often more effective to characterize the end-to-end response and linearize it in firmware than to overemphasize standalone DAC accuracy. This is where the DAC7612U’s predictable step size and monotonic behavior become especially useful: they provide a stable foundation for system-level correction.

For applications demanding tighter linearity, the DAC7612UB offers a direct path to improved accuracy within the same family. That matters because pin-compatible or near-equivalent upgrades reduce redesign risk. In practice, this kind of family continuity is underrated. Many designs begin with a value-optimized variant, then move to a tighter-grade option when calibration cost, compliance margin, or customer requirements change. Having that option available without reworking the broader architecture is a strong advantage during product evolution.

The strongest reason to select the DAC7612U is not any single headline parameter, but the way its features align. Dual outputs, internal reference, rail-to-rail buffering, monotonic 12-bit transfer, low power operation, and compact serial control form a coherent solution rather than a checklist of isolated specs. For 5 V industrial and embedded systems that prioritize simplicity, stable behavior, and efficient implementation, it offers a well-balanced analog output building block. It is most successful when used exactly within that design philosophy: not as an ultra-precision instrument DAC, and not as a high-speed waveform engine, but as a compact, reliable source of controlled voltage in systems where integration quality matters as much as nominal resolution.
