CSD95379Q3M

CSD95379Q3M Product Overview

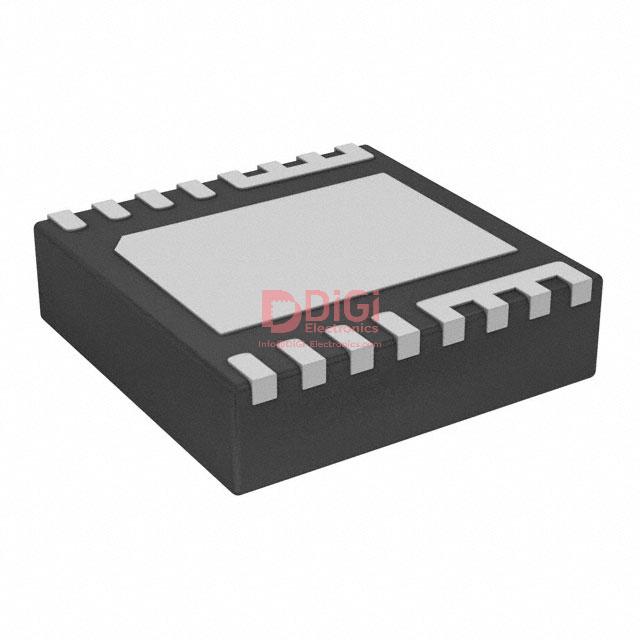

Texas Instruments CSD95379Q3M is a highly integrated NexFET power stage built for synchronous buck converters where board area, switching efficiency, and thermal behavior must be optimized at the same time. It combines the high-side MOSFET, low-side MOSFET, and gate driver inside a 3.3 mm × 3.3 mm 10-VSON package, forming a compact half-bridge power block that reduces the number of critical external interconnects. This integration is not only a packaging convenience. It directly improves electrical performance by shortening the internal gate-drive and power-current paths, which helps reduce parasitic inductance, contain switching noise, and support faster edge transitions without the same penalty normally seen in discrete implementations.

At the architectural level, the device is best understood as a pre-optimized switching cell intended to sit between an upstream PWM controller and the output inductor of a buck converter. In a conventional discrete design, the driver, MOSFET pair, bootstrap network, and routing geometry all interact strongly, and layout quality often determines whether the converter meets efficiency and EMI targets. With the CSD95379Q3M, much of that sensitivity is absorbed into the package-level design. This is one of its main practical strengths. It allows the designer to focus more on controller selection, power-stage placement, thermal spreading, and input decoupling strategy, rather than spending excessive effort stabilizing a marginally routed gate-drive loop.

The device is targeted at applications requiring a compact and efficient half-bridge stage with fast switching capability. It supports up to 20 A continuous output current and 45 A peak current under specified operating conditions, making it suitable for point-of-load rails, intermediate current regulator stages, and multiphase power systems used in space-constrained digital platforms. In practice, this current class is well aligned with modern low-voltage rails that demand high transient response and tight thermal control, especially where several rails must coexist in a confined footprint.

A key selection advantage is its compatibility with both 3.3 V and 5 V PWM logic. This widens controller pairing options and simplifies integration into systems where logic voltage levels are already defined by the platform. In mixed-voltage designs, this kind of interface flexibility removes one more translation layer and helps preserve timing integrity between the controller and the power stage. That matters more than it first appears, because in high-frequency buck conversion, small timing errors can translate into measurable dead-time loss, body-diode conduction, or shoot-through margin reduction.

Its efficiency figures clarify the design intent. The datasheet cites system efficiency of 92.5% at 12 A and power loss of only 1.8 W at the same load point. These values indicate a power stage optimized for the region where conduction loss and switching loss are both significant and must be balanced carefully. At lower currents, gate-charge-related and transition losses tend to dominate the efficiency curve. At higher currents, MOSFET RDS(on), package resistance, and thermal rise become more influential. The CSD95379Q3M is clearly engineered to hold a favorable balance across this operating range rather than being optimized for only one corner case.

From an engineering perspective, the integrated-driver approach delivers value in three areas. First, it reduces loop inductance in the high di/dt switching paths. This improves switching cleanliness and lowers overshoot and ringing risk. Second, it enables tighter matching between the driver strength and the MOSFET gate characteristics, which supports predictable switching behavior. Third, it compresses the thermal and electrical footprint into a repeatable building block, which is especially useful when scaling to multiphase architectures. In many dense regulator layouts, repeatability is as important as raw efficiency because it shortens design iteration time and reduces the chance of phase-to-phase imbalance caused by placement inconsistency.

Thermal behavior deserves attention because compact power stages often shift the design challenge from schematic simplicity to heat extraction. A 1.8 W loss level at 12 A is efficient, but in a 3.3 mm package that heat still needs a low-impedance path into the PCB. The device therefore fits best in layouts with solid copper planes, well-stitched thermal vias, and close, low-ESL input bypass capacitors. Experience with similar integrated stages shows that electrical performance can appear acceptable on an early prototype while junction temperature silently becomes the limiting factor under sustained load or poor airflow. For this class of device, the thermal design should be treated as part of the power-stage selection process, not as a downstream layout refinement.

The package choice also reflects a broader design philosophy common in modern power conversion: move the most timing-sensitive and parasitic-sensitive functions into a tightly controlled physical structure, then let the board implement power distribution and heat spreading. This is particularly effective in high-density computing, communications, and embedded processing systems where the regulator must sit close to the load and where transient current demand can change rapidly. In these cases, minimizing parasitic path length is not just about improving steady-state efficiency. It also improves dynamic response by supporting cleaner switching and reducing disturbances that would otherwise complicate loop compensation and EMI control.

For practical deployment, the CSD95379Q3M is most compelling when the design priorities include limited PCB area, moderate-to-high current demand, and the need for fast time-to-layout with lower integration risk. It is less about replacing every discrete MOSFET design and more about replacing the portion of the design effort that usually gets consumed by gate-drive optimization and half-bridge layout tuning. That distinction is important. In applications where every milliohm and every thermal degree must be customized, a fully discrete stage may still offer more tuning freedom. But for a wide range of production converters, the integrated power stage often delivers a better system-level tradeoff because it reduces design variability while preserving strong electrical performance.

In application scenarios such as server sub-rails, telecom cards, industrial embedded compute modules, FPGA core supplies, and compact POL regulators, the device aligns well with the need for efficient current delivery in a constrained footprint. It is particularly useful in multiphase systems where each phase must be physically compact and electrically consistent. When phases are replicated across a board, integrated stages like this tend to simplify current-path symmetry and make thermal distribution easier to manage at the system level.

The CSD95379Q3M should therefore be viewed not simply as a MOSFET pair with a driver, but as a layout-aware switching element engineered for dense synchronous buck implementation. Its combination of compact size, 20 A continuous current capability, 45 A peak current support, controller compatibility, and strong efficiency metrics makes it a practical choice for designs where electrical efficiency, thermal containment, and placement density are tightly coupled constraints. In many modern power architectures, that coupling defines the design problem, and this device is clearly shaped around solving it.

CSD95379Q3M Target Applications and System Positioning

Texas Instruments positions the CSD95379Q3M as an integrated power stage for compact synchronous buck converters in NVDC notebook and ultrabook platforms, tablets, and point-of-load rails used in networking, telecom, and computing equipment. This positioning is not incidental. It reflects a very specific design center: systems that need meaningful output current from a small layout envelope, while still maintaining acceptable efficiency across a wide load range and preserving thermal headroom under dense board conditions.

At a system level, the device fits designs where the power rail is no longer an isolated function block, but a tightly constrained part of the overall platform architecture. In mobile platforms, every square millimeter of PCB area competes with battery, memory, RF, or thermal hardware. In communication and compute hardware, the same pressure appears in the form of rail density, airflow limitations, and rising transient demands from modern ASICs, FPGAs, and processors. A device like the CSD95379Q3M becomes relevant because it addresses these constraints simultaneously rather than optimizing only one of them.

Its application value is best understood by looking at the three constraints it is meant to reconcile.

The first is board area. Integrating the MOSFET pair and driver into a single power block reduces external placement complexity and shortens the high-current switching path. That directly helps layout compactness and also improves electrical behavior. In practical buck designs, the smallest footprint is rarely achieved by simply selecting the smallest package. It comes from reducing the amount of routing needed around the hot loop, lowering parasitic inductance, and making it easier to keep gate-drive and power paths controlled. Integrated stages often save more area in the surrounding layout than their package size alone would suggest.

The second is load current. In notebook core rails, graphics rails, or intermediate bus POL converters, current demand can rise quickly and remain elevated for long intervals. Under these conditions, conduction loss, switching loss, and thermal spreading all become coupled. The CSD95379Q3M is well aligned with this class of rail because the integrated architecture is intended to support substantial current delivery without forcing the designer into a discrete implementation that consumes more area and creates more layout sensitivity. That matters because once current moves beyond a modest level, the penalty for poor parasitic control becomes visible in overshoot, ringing, EMI, and localized heating.

The third is efficiency across operating states. This is often where design tradeoffs become less obvious. Many rails are evaluated at full load, but system energy behavior is strongly influenced by partial-load and light-load operation. In notebooks and tablets, standby, suspend, connected-idle, and bursty compute activity can dominate average use conditions. In those regimes, gate-charge loss, dead-time behavior, diode emulation strategy, and controller coordination matter as much as low RDS(on). A power stage that performs well only near rated current can still produce a weak system result if idle and transition states are frequent. That is why this device is particularly relevant in mobile and always-on platforms, where the efficiency curve shape matters more than a single peak number.

The support for switching frequencies up to 2 MHz adds another layer of system flexibility. High-frequency operation is not merely a checkbox for reducing inductor size. It changes the entire regulator trade space. As frequency rises, magnetic components and output capacitors can often shrink, transient correction can become faster, and rail placement closer to the load becomes easier. This is valuable in space-constrained POL designs where routing distance and component height are tightly controlled. At the same time, experienced designs rarely push frequency upward without checking the full loss budget. Above a certain point, switching loss and driver-related loss can erode the gains from passive miniaturization. The useful insight is that 2 MHz capability should be viewed as an optimization window, not a target to hit by default. In many designs, the best operating point is the one that balances magnetic size, thermal rise, EMI margin, and light-load efficiency rather than maximizing frequency.

For NVDC notebook architectures, the CSD95379Q3M fits naturally because these systems often require rails that transition smoothly across adapter-powered and battery-powered states. The converter must maintain efficiency while coping with changing input conditions, dynamic processor loading, and aggressive board-level integration. In such designs, the compact power stage reduces layout burden near the controller and makes it easier to maintain clean switching behavior in crowded sections of the motherboard. This matters because mobile platforms often expose the cost of small layout mistakes very quickly through acoustic noise, EMI issues near radios, or unexpected skin-temperature rise around power islands.

In tablets and similarly compact devices, the value shifts slightly. Current levels may still be significant, but z-height, thermal spreading, and low-power operating modes become even more critical. Here, high-frequency capability supports smaller passives, while integrated construction helps keep the switching loop physically tight. The result is not just a smaller regulator, but one that is more predictable to tune. That predictability is often underappreciated. In dense handheld layouts, reducing the number of sensitive high-speed interconnects in the power stage can make first-pass bring-up noticeably smoother, especially when there is little freedom to rework copper geometry after the mechanical stack is frozen.

In networking, telecom, and computing point-of-load rails, the emphasis usually shifts toward sustained current, transient response, and thermal stability. Loads such as ASIC cores, memory rails, and processor support rails may exhibit rapid di/dt events superimposed on heavy average current. Under these conditions, the integrated stage helps by minimizing parasitic elements in the switching path and enabling a cleaner physical implementation of the buck converter. Cleaner implementation generally translates into better switching waveform control, lower ringing, and more manageable EMI containment. In multi-rail systems, this can reduce the risk that one poorly behaved converter becomes the dominant noise source for the entire board.

Thermal behavior deserves explicit attention because it is often the limiting factor in small power stages. Efficiency numbers alone do not tell the full story. What matters is where the heat is generated, how uniformly it spreads into the PCB, and whether adjacent components are forced into a hotter local environment. The CSD95379Q3M is attractive in compact designs because integrated stages can simplify thermal modeling and make the heat source easier to place over a well-prepared copper region. In practice, thermal success depends heavily on the board implementation: via density under thermal pads, copper thickness, inner-plane coupling, and airflow direction often decide whether a nominally capable stage remains cool and stable under sustained load. This is one of the recurring realities in power design: package capability and PCB execution are inseparable.

Another important aspect is control-loop and controller pairing. A power stage should not be selected in isolation. Its switching characteristics, gate-drive behavior, and optimal operating frequency interact with the chosen controller’s dead-time management, current-limit method, light-load mode, and compensation strategy. In compact regulators, this interaction often determines whether the final design feels robust or fragile. A strong combination delivers clean start-up, stable operation during mode transitions, and controlled thermal rise under real workload profiles. A weaker combination may still pass nominal tests but show erratic behavior during input hot-plug, deep load release, or low-duty-cycle operation. The CSD95379Q3M makes most sense when treated as part of a coordinated power train, not as a drop-in current block.

From a practical design perspective, the device is especially compelling when the project is constrained by schedule as well as area. Integrated power stages reduce the number of high-speed decisions the layout must absorb, which often shortens iteration time. They also lower the risk associated with discrete MOSFET matching, driver routing, and switch-node containment. That benefit becomes more visible as switching frequency increases. Once operation approaches the upper end of the supported range, parasitics that were once tolerable can dominate waveform quality. Integrated stages help keep that behavior bounded and reproducible across builds.

A useful way to position the CSD95379Q3M is this: it is not simply for designs that need high current, nor only for designs that need small size. It is for designs where electrical density matters. Electrical density is the condition in which current, switching speed, thermal flux, and area are all compressed into the same small region of the board. In that environment, the cost of parasitic inductance, poor thermal spreading, and inefficient light-load behavior rises sharply. Devices built for this class of problem tend to deliver value far beyond their datasheet headline numbers because they reduce implementation risk at the system level.

For teams evaluating it against discrete alternatives, the real comparison should include more than efficiency and current rating. It should include routing difficulty, switch-node containment, BOM complexity, tuning effort, validation time, thermal repeatability, and EMI margin. In many modern platforms, those factors dominate the total engineering cost. The CSD95379Q3M aligns well with systems where those hidden costs are already becoming visible, particularly in notebook, tablet, and dense POL converter applications where compactness and predictable performance are equally important.

CSD95379Q3M Architecture and Integrated Power-Stage Concept

CSD95379Q3M stands out primarily because it collapses the most timing-critical portion of a synchronous buck converter into a single, tightly optimized power stage. Instead of assembling a high-side MOSFET, a low-side MOSFET, and a gate driver as separate devices, it integrates the driver IC and both NexFET power transistors in one compact package. That integration does more than save board area. It directly changes the electrical behavior of the switching loop, reduces layout sensitivity, and makes converter performance more repeatable across designs.

At the architectural level, this device should be viewed as a half-bridge switching engine rather than simply a pair of MOSFETs with a driver attached. In a discrete implementation, the interaction among gate driver strength, MOSFET gate charge, package inductance, PCB loop inductance, and dead-time control often determines whether the converter behaves cleanly or becomes difficult to stabilize under fast load transients. By integrating these elements, the CSD95379Q3M removes several interface boundaries where parasitic inductance and impedance mismatch usually appear. The result is a shorter commutation path, lower ringing tendency, and tighter switching-edge control.

This matters most in the high di/dt loops. In a synchronous buck stage, the dominant switching stress concentrates in the loop formed by the input decoupling capacitor, high-side FET, low-side FET, and the internal current return path. In discrete layouts, even a few extra millimeters of routing can add enough inductance to increase voltage overshoot, degrade EMI behavior, and force conservative gate-drive tuning. With the CSD95379Q3M, the internal interconnect between driver and MOSFETs is far shorter and better controlled than any practical PCB implementation using separate parts. That is the real advantage of the integrated power-stage concept: not just compactness, but electrical compression of the switching loop.

The device is specified as a synchronous buck power stage with half-bridge functionality, and that description is important. It implies the package is optimized around complementary switching behavior, including the transitions where one MOSFET turns off and the other turns on. Those transitions are where shoot-through risk, body-diode conduction loss, reverse-recovery stress, and switching-node ringing tend to accumulate. In an integrated stage, the gate driver can be matched more precisely to the MOSFET pair, so turn-on and turn-off behavior can be balanced against efficiency and noise more effectively than in a loosely coupled discrete design. In practice, this often reduces the amount of empirical tuning otherwise needed to achieve acceptable waveforms.

The use of NexFET technology also fits this optimization strategy. Power-stage performance is not determined only by low RDS(on). Gate charge, output capacitance behavior, reverse-recovery characteristics, and figure-of-merit tradeoffs all shape efficiency across load current and switching frequency. An integrated design allows these transistor characteristics to be selected in the context of the driver’s source and sink capability, rather than as isolated datasheet targets. That is a more system-aware design philosophy. In modern POL regulators and high-current point-of-load rails, this approach usually produces better real switching efficiency than simply selecting the lowest-resistance discrete MOSFETs available.

The package contributes as much to the architecture as the silicon itself. Texas Instruments highlights the 3.3 mm × 3.3 mm SON footprint, ultra-low-inductance construction, and PCB footprint optimized at the system level. These features should be interpreted as part of the power-stage design, not as packaging details added afterward. In switch-mode power conversion, package inductance often becomes part of the circuit whether intended or not. It shapes switch-node overshoot, gate stability, and effective stress on the MOSFETs. A package engineered for low inductance therefore improves both electrical margin and layout predictability.

That predictability is often undervalued during component selection. A discrete solution may appear flexible on paper, but the implementation burden increases quickly when the design must meet efficiency, thermal, and EMI targets simultaneously. Integrated power stages such as the CSD95379Q3M reduce the number of routing degrees of freedom in the most sensitive region of the converter. This usually shortens board bring-up time, because fewer waveform anomalies originate from component placement and interconnect geometry. In dense regulator designs, that can be more valuable than a small theoretical gain from custom discrete optimization.

There is also a practical thermal implication. A compact integrated stage concentrates heat, so it must be supported by a disciplined PCB copper strategy and effective thermal spreading into the surrounding planes. However, because the internal conduction paths are optimized and parasitic losses are reduced, the thermal performance is often more controlled than expected from the small footprint alone. Designs that place strong emphasis on low-inductance input bypassing, solid ground reference continuity, and adequate thermal vias usually extract the intended performance without extensive iteration. The common failure mode is not the package itself, but treating it like a generic small MOSFET instead of as a high-speed power module.

From an application perspective, the CSD95379Q3M fits designs where current density, switching speed, and implementation simplicity must coexist. Examples include processor core rails, FPGA supplies, telecom point-of-load converters, and compact distributed power architectures. In these environments, switching frequencies are high enough and board space constrained enough that parasitic control becomes a first-order design variable. An integrated half-bridge stage is particularly effective here because it localizes the most aggressive switching behavior into a structure already characterized and optimized by the vendor.

A useful way to think about this device is that it shifts converter design effort away from transistor-level assembly and toward system-level integration. The engineer spends less time managing gate-drive compatibility, MOSFET pairing, and package-induced ringing, and more time optimizing input decoupling, inductor selection, control-loop behavior, and thermal spreading. That is generally a better allocation of effort. In high-performance buck regulators, the most reliable gains usually come from controlling the whole power path rather than trying to micro-optimize isolated components.

The CSD95379Q3M therefore should not be selected only because it integrates parts. It should be selected when the design benefits from reduced parasitics, faster and cleaner switching transitions, compact placement, and lower implementation risk in the half-bridge stage. Its value lies in combining silicon, driver matching, package physics, and layout intent into one power-stage building block. That combination is what makes the integrated architecture materially different from a traditional discrete MOSFET-plus-driver approach.

CSD95379Q3M Key Electrical and Efficiency Advantages

The CSD95379Q3M is fundamentally optimized as a low-loss integrated power stage for high-current point-of-load conversion from a 12 V distribution rail to low-voltage loads. Its value is not only in the absolute efficiency number shown in the datasheet, but in how its loss behavior, thermal sensitivity, and switching-frequency range interact within a real regulator design. For compact CPU, FPGA, ASIC, and memory supplies, those interactions usually matter more than any single headline specification.

Under the datasheet test condition of VIN = 12 V, VDD = 5 V, VOUT = 1.8 V, IOUT = 12 A, fSW = 500 kHz, and LOUT = 0.29 µH, the device reports a typical power loss of 1.8 W at 25°C junction temperature. At 125°C junction temperature, typical loss increases to 2.3 W at the same operating point. That 0.5 W rise is technically modest, but system-level impact can still be significant. In dense multiphase regulators, a fraction of a watt per phase often translates into a measurable rise in local PCB temperature, reduced thermal margin for nearby phases, and tighter constraints on airflow or copper spreading. The important point is that the part does not simply have “good efficiency”; it maintains reasonably controlled loss growth as junction temperature rises, which is a practical indicator of stable high-load operation.

The listed 92.5% efficiency at 12 A provides a useful reference point for 12 V to low-voltage conversion. At this operating condition, the stage is processing substantial current while stepping down to a rail typical of digital cores and memory subsystems. In that environment, even a 1% efficiency delta can shift the thermal design from comfortable to constrained, especially when several rails are packed into a small footprint. What makes the CSD95379Q3M attractive is that its efficiency level is already in the range where thermal design becomes more manageable without demanding excessive derating. This is often more valuable than chasing peak efficiency at a narrow load point that rarely matches the actual workload profile.

The underlying reason for this efficiency profile is the balance between conduction loss and switching loss. At moderate to high output current, conduction loss in the high-side and low-side MOSFETs remains a dominant term, and its temperature dependence explains much of the loss increase from 25°C to 125°C. As junction temperature rises, MOSFET on-resistance increases, so the same load current produces more I²R loss. In integrated stages like this one, parasitic inductance is also generally better controlled than in discrete layouts, which helps reduce switching stress and ringing. That benefit is easy to underestimate. Lower parasitic inductance does not only improve waveform quality; it also reduces the penalty typically paid when pushing edge rates and switching frequency upward.

The 2 MHz switching capability extends the usefulness of the device beyond conventional mid-frequency buck designs. High-frequency operation allows smaller inductors and can reduce the amount of output capacitance needed to meet transient specifications, which is highly relevant when board area and profile height are constrained. For modern digital loads with fast current slew and tight regulation windows, this flexibility can simplify placement and improve transient containment near the load. However, the gain is never free. As frequency increases, switching loss rises, gate-drive related current increases, and dead-time optimization becomes more critical. The normalized loss and driver-current curves in the datasheet correctly frame switching frequency as a first-order tradeoff variable rather than a pure performance upgrade.

In practice, 2 MHz capability should be viewed as an optimization ceiling, not a default target. Designs that operate near the upper end of frequency range often do so because the magnetic size reduction or transient benefit is worth the additional thermal burden. For many 12 V input rails delivering around 1 V to 1.8 V outputs at double-digit amperes, the most balanced operating region is often well below the maximum frequency. Around that range, the design can preserve strong efficiency while still taking advantage of relatively small inductors and fast control response. That trade space is where integrated power stages like the CSD95379Q3M tend to show their strongest system-level value.

Another practical advantage of the stated loss numbers is that they provide a realistic starting point for thermal estimation. Engineers can back-calculate expected temperature rise using board-level thermal resistance, copper area, and airflow assumptions, then quickly determine whether the design has enough margin for elevated ambient conditions. This matters because integrated power stages are often selected early based on current rating, but the eventual bottleneck is frequently thermal density rather than electrical capability. A part that delivers acceptable efficiency on paper but disperses heat poorly in the intended layout can become difficult to scale. The CSD95379Q3M’s loss profile suggests a device intended for efficient operation in mainstream high-current rails without demanding extreme cooling measures, provided layout discipline is maintained.

Layout still remains a decisive variable. High efficiency in the datasheet does not automatically transfer to the PCB unless the current loops are kept compact, input decoupling is placed tightly, and thermal paths into the board are deliberately designed. With integrated stages, the package reduces some of the variability seen in discrete FET implementations, but it does not eliminate layout-induced loss, overshoot, or EMI issues. A recurring pattern in power-stage implementation is that a theoretically efficient design becomes thermally noisy simply because the input bypass network or ground return path was treated as secondary. The device gives a strong baseline, but the final result still depends on whether the surrounding power train is designed with equal care.

From an application perspective, the CSD95379Q3M fits particularly well in converters where power density and thermal predictability matter as much as raw current delivery. Processor core rails, FPGA auxiliary rails, accelerator cards, embedded compute modules, and high-speed memory terminations all benefit from a stage that can run efficiently at meaningful load current while preserving frequency flexibility. In those applications, the most useful interpretation of the datasheet is not that the part can switch at 2 MHz or that it reaches 92.5% efficiency at one test point, but that it provides enough design latitude to tune for board area, thermal headroom, transient response, and component sizing without moving into an unstable efficiency regime.

A strong design approach with this device is to treat the datasheet operating point as a calibrated reference, then map expected use conditions around it: low-line versus high-line input, nominal versus hot junction, and moderate versus peak load current. That exposes where the design is conduction-loss limited, where it becomes switching-loss limited, and how much benefit is actually gained by increasing frequency. In many cases, that exercise shows that the best overall solution is not the highest-efficiency point or the highest-frequency point, but the operating region where thermal behavior, transient response, and passive component size are balanced. The CSD95379Q3M appears well suited to exactly that style of engineering optimization.

CSD95379Q3M Operating Modes and PWM Control Behavior

The CSD95379Q3M integrates several mode-control features that are not merely convenience options around a power stage. They directly shape conversion efficiency, current flow behavior, transient response, and standby power. The two control dimensions that matter most in practice are the SKIP#-selected operating mode and the tri-state behavior of the PWM input. Read together, they define how the power stage behaves from active regulation down to near-idle conditions.

At the core of the device is a synchronous buck power stage with a control FET and a synchronous FET. In normal PWM operation, the two MOSFETs switch complementarily to transfer energy from input to output while regulating the inductor current. The mode selection changes how aggressively the synchronous FET is used when load current becomes small. That detail is critical, because at light load the dominant loss mechanisms shift. Conduction loss becomes less important, while switching loss, gate-drive loss, and reverse-current-related loss begin to dominate. The CSD95379Q3M addresses this transition through selectable diode emulation.

When SKIP# is held low, diode emulation is enabled. In this mode, the synchronous FET is prevented from sustaining negative inductor current once the inductor current decays toward zero. The converter is therefore allowed to enter discontinuous conduction mode. From an energy-flow perspective, this is a controlled refusal to circulate current when the load does not need it. The result is higher light-load efficiency, lower unnecessary recirculation loss, and reduced energy wasted in maintaining continuous inductor current. This matters most in systems that spend significant time in low-power states, bursty activity, or sleep-to-wake transitions.

The practical value of diode emulation becomes clear on battery-powered rails with long idle intervals. In those designs, forced synchronous rectification can create reverse current during low-demand windows, especially when the control loop is trying to maintain regulation with very small energy packets. That reverse current is not always obvious in a simplified schematic review, but it appears quickly in efficiency plots and input-current measurements. In bench work, the difference often shows up as a cleaner reduction in input power once the load drops below the boundary between continuous and discontinuous conduction. The improvement is not only theoretical; it usually appears as a measurable extension of low-load battery life when the rail remains enabled for long periods.

When SKIP# is high, the device operates in forced continuous conduction mode. Here, the synchronous FET continues to commutate in the normal complementary pattern, even when the inductor current would otherwise cross zero. This keeps the switching behavior more regular and preserves tighter control of the inductor current waveform through load transitions. The tradeoff is lower efficiency at light load due to switching activity and possible reverse current. However, the benefit is improved predictability. Forced continuous mode is often the better choice for rails that feed fast digital loads, noise-sensitive domains, or systems where output impedance and transient recovery matter more than idle efficiency.

That distinction is often underestimated during architecture selection. Light-load efficiency and transient fidelity are usually in tension, and the SKIP# pin is effectively the mechanism that lets the designer choose which side of that tradeoff is more important for a given rail. For application processors, sensor hubs, always-on logic, and battery-backed housekeeping rails, diode emulation is usually the more effective setting. For core rails with sharp load steps, timing-critical FPGA supplies, or converters that must maintain a consistent switching pattern for EMI planning, forced continuous operation is often the more robust choice. In practice, the best mode is rarely universal across a board; it is rail-specific.

The PWM input behavior is equally important because it determines how the power stage interprets commanded switching states and how it responds when the controller intentionally releases the line. A logic low on PWM turns the control FET off and the synchronous FET on. A logic high turns the control FET on and the synchronous FET off. This straightforward mapping allows the device to follow an external controller’s gate-timing decisions with the expected half-bridge action. The more interesting case is when PWM becomes open or high impedance. If that condition persists longer than the specified tri-state shutdown hold-off time, both MOSFET gates are driven low.

This tri-state response is not a minor protection detail. It is a power-state control mechanism. Driving both MOSFETs off prevents unintended conduction when the upstream PWM source is inactive, disconnected, reset, or intentionally placed in a high-impedance state. It also avoids ambiguous switching behavior during controller startup or sleep entry. In multiphase or shared-control environments, this matters because a floating PWM line can otherwise produce uncertain gate states, excess dissipation, or output disturbances. The hold-off interval adds immunity to brief glitches and timing dead zones, so the device does not drop into shutdown on every transient interruption of the PWM signal.

From a system-integration perspective, tri-state PWM enables a clean separation between active regulation and low-power retention behavior. The external controller can effectively park the power stage without requiring a dedicated shutdown sequence at the MOSFET level. That simplifies power-management orchestration, particularly in platforms with deep sleep states or connected-standby requirements. The implementation is especially useful when different subsystems wake and sleep asynchronously and the power tree must remain stable while control signals transition through undefined regions.

The low quiescent current behavior associated with tri-state control further extends this capability. With PWM in tri-state, the quiescent current drops to approximately 130 µA with immediate response. That is already low enough to matter in standby budgeting, particularly when several rails remain electrically present but inactive. When SKIP# itself is held at tri-state, the current falls further to 8 µA typical, although switching resumes with about 20 µs delay. This establishes two distinct standby levels: a fast-response low-power state and a deeper low-current state with modest wake latency.

That distinction is highly useful in platform power design. The 130 µA state suits rails that may need near-instant recovery, where the controller wants to pause switching without paying much static-current penalty. The 8 µA state is better aligned with extended idle periods where every microamp matters more than immediate wakeup. The 20 µs resume time is short in absolute terms, but whether it is acceptable depends on the rail’s role. For housekeeping supplies or background domains, it is typically negligible. For tightly sequenced high-speed logic rails, it must be evaluated against startup timing budgets and load demand immediately after wake assertion.

In measurement work, these low-power states are worth validating directly rather than assuming ideal behavior from the digital truth table alone. Layout parasitics, controller pin states during reset, and pull-up or pull-down networks around PWM and SKIP# can influence whether the intended standby condition is actually reached. A common issue is that external biasing leaves a pin in a defined logic level when the design expected tri-state behavior, which prevents the lowest-current state from ever being entered. Another frequent detail is wake sequencing: if the control source resumes PWM before the surrounding rail conditions are stable, the resulting current pulse can look like an unexplained startup anomaly unless the mode transition timing has been scoped carefully.

There is also an EMI dimension to these operating modes. Diode emulation reduces switching activity at light load, which often helps total power loss, but the resulting pulse-skipping or discontinuous current pattern can shift noise energy into lower-frequency components that are easier to observe elsewhere in the system. Forced continuous mode usually produces more uniform switching spectra, which can simplify filter tuning and noise correlation, even while costing more efficiency. This is one reason mode selection should not be made from efficiency curves alone. The best operating mode is the one that fits the rail’s combined electrical, thermal, and spectral constraints.

A useful way to think about the CSD95379Q3M is that it provides three operational personalities within one power stage. In active switching, it behaves as a standard synchronous buck stage under external PWM control. With SKIP# low, it becomes efficiency-biased at light load by suppressing reverse current and allowing discontinuous conduction. With PWM tri-stated, and optionally SKIP# tri-stated as well, it shifts toward standby preservation by collapsing gate activity and minimizing quiescent draw. That range is what makes the device well suited for modern platforms where a rail is rarely just “on” or “off,” but instead moves across several energy states with different performance priorities.

For design decisions, the most effective approach is to treat mode selection as part of rail definition rather than as a late firmware option. First identify whether the rail is load-transient-limited, battery-life-limited, or standby-current-limited. Then match the CSD95379Q3M mode behavior to that objective. If the rail spends most of its life lightly loaded, diode emulation is usually the right default. If the rail must absorb sharp current steps with consistent switching behavior, forced continuous mode is safer. If the rail participates in sleep-state power management, tri-state PWM and SKIP# handling should be designed intentionally, including pull networks, controller state behavior, and wake timing margins. That is where the device’s operating features stop being datasheet bullet points and become real system-level advantages.

CSD95379Q3M Pin Functions and Interface Design

CSD95379Q3M pin functions and interface design center on one objective: maintaining a low-impedance, tightly controlled switching loop while preserving clean logic interaction with the external PWM controller. Although the device uses a compact pinout, each pin participates in either power transfer, gate-drive energy delivery, mode selection, or switching-node containment. In practice, the electrical behavior of the part is shaped less by the pin list itself than by how these pins are interconnected on the PCB, because parasitic inductance and return-path discontinuity quickly dominate at the edge rates involved in synchronous buck operation.

The control-side interface begins with SKIP#, PWM, and VDD. These three pins largely determine how the stage behaves under light load, how it interprets controller commands, and how robustly it drives the internal MOSFETs. SKIP# is not just a mode-select input. It directly changes the current-decay behavior of the converter at low load. Pulling SKIP# low enables diode emulation mode, which suppresses reverse inductor current by turning off the low-side FET when current approaches zero. That improves light-load efficiency and reduces circulating loss. Driving SKIP# high selects forced continuous conduction mode, where the low-side device continues to commutate current through both positive and negative inductor current intervals. This is usually preferred when output ripple, transient predictability, or tight control-loop behavior matters more than no-load efficiency. Leaving SKIP# in a tri-state condition places the device into a very-low-power state, which is useful in rail-gating or standby architectures where reducing gate-drive bias consumption is more important than maintaining active regulation.

That mode behavior has direct system implications. Diode emulation often reduces switching loss under light load, but it can also make the switching pattern less uniform and can shift the EMI signature into a more difficult-to-filter region due to burst-like activity in some controller combinations. Forced continuous conduction typically produces a more repeatable waveform and often simplifies validation when the rail feeds noise-sensitive digital or RF circuitry. A practical design bias is to select operating mode based on the dominant failure risk: efficiency-limited thermal margin points toward diode emulation, while ripple-sensitive subsystems and demanding transient loads usually justify forced continuous conduction.

PWM is the primary command input from the external controller and uses a tri-state signaling scheme. This is important because the power stage is not merely decoding a binary pulse train; it is also using the logic state to infer operating intent, including shutdown-related conditions supported by compatible controllers. Support for both 3.3 V and 5 V PWM levels is a meaningful integration advantage. It eliminates level-shifting in many designs, reduces interface latency and component count, and avoids introducing another fast-edge signal path near the switching stage. Even so, PWM routing should be treated as a small-signal control trace, not as a casual digital connection. It should be referenced to a quiet ground return, kept away from VSW, and prevented from sharing a long return path with high di/dt input current loops. Marginal PWM integrity does not always fail catastrophically; more often it appears as pulse-width jitter, inconsistent dead-time behavior, or load-dependent switching anomalies that are difficult to isolate later.

VDD supplies the gate drivers and internal circuitry, so its quality directly affects switching consistency. In a power stage like the CSD95379Q3M, VDD is not a passive bias node. It is a pulsed energy source for charging and discharging MOSFET gates at high repetition rate. Any droop, noise injection, or excessive source impedance on VDD changes the effective gate-drive amplitude and can degrade switching speed, transition symmetry, and loss distribution between the high-side and low-side devices. A local high-frequency bypass capacitor is therefore not optional in any serious layout. The capacitor should be placed with minimal loop area to the VDD and PGND pins, using short, wide interconnects and preferably direct plane access through closely coupled vias if layers change. In bench characterization, unstable VDD decoupling often shows up first as excess switch-node ringing or unexplained thermal spread rather than as a visible fault on the bias rail itself, so it deserves the same attention as VIN bypassing.

The power-side pins define the current paths that dominate efficiency, EMI, and voltage stress. VIN is the input supply entry point and anchors the high-current pulsed input loop formed by the input capacitors, high-side FET, low-side FET, and PGND return. Input capacitor placement near VIN is critical because the instantaneous current demanded by the high-side switching transition must be supplied locally. If the capacitor is physically remote, the loop inductance between capacitor, VIN, and PGND creates overshoot, ringing, and additional RMS current stress. In compact high-current stages, this effect is not secondary. It determines whether the converter behaves like a controlled switch network or like a resonant radiator. A useful rule is to place the highest-frequency ceramic input capacitors as close as possible to the VIN-to-PGND power path, while larger bulk capacitance can sit slightly farther away to support lower-frequency energy demand.

PGND is provided on two pins, and both must be tied together on the PCB. This requirement reflects current-density and return-path control, not package redundancy. These pins form part of the main power return and also serve as the local reference for gate-drive currents and internal control blocks. Splitting or weakly tying them together introduces unequal current distribution and raises common-source inductance, which then perturbs the apparent gate voltage during switching. That can increase shoot-through risk, slow turn-off, and amplify ringing. The safest implementation is to join the PGND pins with a short, low-inductance copper region immediately at the package, then connect that region directly into the input bypass capacitor return. This creates a compact commutation loop and stabilizes the internal source reference. When this detail is ignored, the converter may still appear functional at moderate load, but switching loss and EMI usually rise sharply as current increases.

VSW is the switching node and deserves special handling because it combines large voltage swing, fast edge rate, and high current slew. Electrically, it connects the half-bridge midpoint to the output inductor. Physically, it is the node most likely to inject noise into nearby circuits through electric-field coupling and parasitic capacitance. It should therefore be kept compact, with enough copper for current handling and thermal spreading but without unnecessary expansion that turns it into an EMI plate. Routing sensitive traces beneath or adjacent to VSW is a common source of false controller behavior and unexplained noise coupling. The output inductor should be placed close enough to keep the VSW path short, but not in a way that forces the switch node to spread broadly under the inductor body unless the stackup and shielding strategy are well understood. One recurring lesson in dense layouts is that reducing VSW copper area often improves EMC more effectively than adding late-stage filtering.

The bootstrap interface formed by BOOT and BOOT_R supplies the high-side gate drive. The required 0.1 µF, 16 V X5R ceramic capacitor between these pins is a functional energy reservoir, not merely a recommendation. During high-side on-time, the gate driver draws charge from this capacitor to elevate the high-side gate above the switching node. The capacitor therefore sees repeated charge-discharge cycles and must maintain effective capacitance under DC bias and temperature. Using an underspecified dielectric or placing the capacitor with excessive parasitic inductance can weaken the gate-drive pulse and increase high-side switching loss. Placement should be extremely tight between BOOT and BOOT_R, with the shortest possible loop. This loop is easy to underestimate because it does not carry the main load current, but its parasitics directly affect the gate waveform of the high-side MOSFET. If the bootstrap path is poorly implemented, symptoms often include degraded efficiency at higher duty cycle, switch-node distortion, and sensitivity to VIN variation.

From a layered interface perspective, the pins fall into three groups. VDD, PWM, and SKIP# define command and gate-drive readiness. BOOT and BOOT_R sustain high-side gate overdrive during switching. VIN, VSW, and PGND close the energy-transfer path. This grouping is useful during schematic capture and layout review because each group should be verified against a different failure mechanism. Control pins are checked for logic integrity and reference cleanliness. Bootstrap pins are checked for local loop compactness and capacitor quality. Power pins are checked for current-loop minimization, thermal conduction, and field containment. Reviewing the design in these layers catches errors earlier than reviewing the pin list linearly.

At the application level, the CSD95379Q3M is easiest to integrate when the external controller, input capacitor bank, and output inductor are treated as part of one tightly coupled switching cell rather than as separate schematic blocks. The device supports broad controller compatibility through its 3.3 V and 5 V PWM acceptance, but electrical compatibility alone is not enough. The controller ground reference must be coherent with the power stage ground at switching frequency, otherwise the PWM threshold margin can collapse during high di/dt events. Similarly, selecting diode emulation or forced continuous conduction should align with the control-loop target, expected load profile, and conducted-noise budget, not just efficiency goals. In compact multiphase regulators or point-of-load converters, this part tends to perform best when mode selection, bypass strategy, and loop geometry are decided together instead of being optimized independently.

A useful way to think about this pinout is that it is already optimized for current commutation, but only if the board preserves that intent. The package does not remove the need for careful loop design; it narrows the margin for layout mistakes. The strongest designs usually come from treating VSW as a contained disturbance, PGND as a high-current reference rather than a generic ground, VDD as a dynamic gate-energy rail, and SKIP# as a system-behavior selector rather than a simple logic option. With that perspective, the CSD95379Q3M becomes more than a compact power stage. It becomes a predictable switching building block that can be tuned for efficiency, noise, and transient behavior with relatively little interface overhead.

CSD95379Q3M Electrical Ratings and Recommended Operating Conditions

For power-stage selection and qualification, the CSD95379Q3M must be evaluated not only by its headline limits, but by how those limits interact during fast switching, thermal loading, and layout-dependent parasitics. Its absolute maximum VIN-to-PGND rating is 20 V, while the recommended operating range extends to 16 V. That gap is not excess design margin to be consumed casually. In a synchronous buck stage, the switch node can ring well beyond the applied input rail during commutation, so the practical safe operating space is often defined by transient behavior rather than DC VIN alone. Designs that operate near the top of the recommended input range need tighter control of loop inductance, decoupling placement, and edge-rate-related ringing, because overstress usually appears first as repetitive switch-node excursions rather than as a steady-state voltage violation.

The VDD rail follows the same principle. Although 6 V is the absolute maximum, the intended gate-drive operating window is 4.5 V to 5.5 V. This range is narrow for a reason. Below it, MOSFET enhancement degrades, conduction loss rises, and switching transitions can become slower or asymmetrical. Above it, gate-oxide stress margin is reduced without meaningful system benefit. In practice, stable VDD regulation and low-noise routing are more important than simply meeting the nominal voltage target. If the gate-drive supply is generated locally from a bias rail shared with other fast digital or driver circuitry, supply bounce during load steps can interact with the internal undervoltage protection and create intermittent behavior that is difficult to reproduce on the bench unless probing is done directly at the device pins.

The current capability figures also need careful interpretation. The device is specified for 20 A continuous output current and 45 A peak output current under defined conditions: 12 V input, 5 V VDD, 1.8 V output, 500 kHz switching frequency, and a 0.29 µH inductor. The peak rating is based on a 10 ms pulse at duty cycle no greater than 1%, with six 10 µF ceramic capacitors placed across VIN and PGND. This test setup matters. It indicates that the published peak number assumes a low-impedance input network and a pulse duration short enough that thermal equilibrium is never approached. In actual converters, repetitive load bursts, finite airflow, PCB copper distribution, and inductor saturation behavior often become the real current limiters well before the silicon alone does. A robust qualification flow treats the 45 A value as a transient survivability reference, not as a usable repetitive operating point.

The specified switching frequency range of 25 kHz to 2000 kHz gives broad architectural freedom, but frequency selection should be driven by loss partitioning rather than magnetics size alone. At the low end, inductor ripple current rises unless inductance is increased, which tends to enlarge magnetics and slow transient response. At the high end, switching loss, dead-time sensitivity, gate-drive loss, and switch-node ringing become increasingly dominant. For this device class, the most stable designs often land in a middle region where MOSFET switching loss and inductor AC loss remain balanced, and where the control loop can still exploit fast energy transfer without forcing excessively narrow pulse widths. The specified 40 ns minimum PWM on-time becomes a real constraint in high-VIN, low-VOUT applications. Once the required duty cycle approaches the controller’s minimum pulse capability, pulse-skipping, nonlinearity, or output regulation error can appear, especially during startup or light-load operation. The 85% maximum on-time duty-cycle limit creates the complementary boundary for low-dropout scenarios, where high duty ratio is required to sustain output under low headroom.

Bootstrap design is another point that looks simple in the datasheet but can dominate field reliability. The minimum recommended bootstrap capacitance is 0.1 µF. Electrically, this capacitor must support high-side gate charge delivery while maintaining adequate voltage across the bootstrap supply during the entire on-time. If the capacitor is undersized, poorly located, or paired with a diode path that has excessive impedance, the high-side MOSFET may not be driven fully during long pulses or elevated frequency operation. The resulting partial enhancement often shows up first as increased switching-node distortion and rising device temperature rather than an immediate functional fault. A slightly larger, low-ESR bootstrap capacitor placed with minimal loop area often improves margin at negligible cost, particularly in layouts where the high-side gate-drive path is not ideal.

The warning about excessive AC overshoot at the switch node deserves more emphasis than it usually gets. In integrated power stages, the silicon is optimized for compact current loops internally, but external placement of input capacitors and grounding still determines whether the package sees a controlled commutation event or a high-Q resonant spike. When VIN is high, the energy available to excite parasitic inductance is higher, and the switch-node waveform can overshoot negative and positive limits within a few nanoseconds. This is one of the most common ways an otherwise compliant design drifts into reliability risk. A board can pass static electrical checks and still accumulate long-term stress through repetitive overshoot. The most effective mitigation sequence is usually: place high-frequency ceramic input capacitors directly between VIN and PGND, minimize the hot-loop area, keep gate-drive return paths short and well referenced, and verify waveforms with a low-inductance probing method. Long ground leads on passive probes regularly hide the real peak voltage or invent ringing that does not exist, so measurement technique is part of the design itself.

The undervoltage and reset thresholds on VDD are essential to the device’s operating integrity. Typical power-on reset occurs at 4.15 V on the rising edge of VDD. Undervoltage lockout occurs at 3.7 V on the falling edge, with 0.2 V hysteresis. These thresholds prevent the MOSFET gates from being driven in a partially enhanced state where dissipation can rise sharply. The hysteresis is modest but useful, especially during bias rail ramping or short disturbances. Still, if the VDD source has slow rise time, poor transient response, or noise near the threshold region, the power stage can chatter around startup or during brownout events. In multi-rail systems, sequencing matters: it is safer when the bias supply reaches a stable value before the controller begins applying active PWM. Designs that ignore this interaction often show startup anomalies only at temperature extremes or under pre-biased output conditions.

Temperature limits must also be read with distinction between ambient operation, case conditions, and silicon junction behavior. The operating temperature range is listed as -40°C to 125°C, while other datasheet sections reference junction temperatures up to 150°C, including summary status tables. This is typical of power semiconductor documentation, but it should not be interpreted as permission to run indefinitely near 150°C junction unless lifetime derating has been assessed. Electrical performance remains functional at elevated junction temperature, yet conduction loss, switching loss, and parameter spread all worsen as temperature rises. A design that is thermally acceptable at room ambient can lose substantial margin once copper temperature, neighboring heat sources, enclosure effects, and low-airflow conditions are included. It is usually more effective to design for lower parasitic loss and better spreading into the PCB than to rely on the upper thermal limit as a normal operating point.

From an application perspective, these ratings place the CSD95379Q3M well into the class of compact, high-current synchronous buck stages used for sub-2 V rails from intermediate buses such as 12 V or lower distribution rails. It is especially suited to point-of-load conversion where current density and transient response matter, but where layout discipline is strong enough to control switch-node stress. The combination of 20 A continuous capability, wide switching-frequency range, and standard 5 V gate-drive bias makes it flexible across FPGA, ASIC, DSP, and networking power rails. The limiting factors in these applications are rarely the published maximums in isolation. More often they are minimum on-time at high step-down ratio, thermal density in compact board regions, and switch-node integrity under fast current slew.

A sound selection approach starts by mapping the intended VIN range, VOUT target, controller timing limits, inductor value, and transient load profile against the device’s operating window. Then the analysis should move to dynamic stress: switch-node overshoot, input capacitor RMS current, bootstrap refresh margin, and estimated junction rise under realistic airflow and copper conditions. This layered method is more predictive than screening only against absolute maximum ratings. In practice, designs that survive qualification cleanly are usually the ones that treat the electrical table as the first filter and the switching waveform as the final truth. The CSD95379Q3M provides solid capability within its intended envelope, but it rewards conservative transient design, disciplined layout, and bias-supply stability far more than it rewards operation near headline limits.

CSD95379Q3M Thermal Behavior and Safe Operating Considerations

CSD95379Q3M thermal behavior is central to any realistic assessment of its electrical capability. The device integrates high current handling into a very small footprint, which means thermal limits are not a secondary check after electrical design; they are part of the primary design equation. In practice, the advertised current class of a compact power stage is only achievable when heat can be removed through the PCB at a rate consistent with switching and conduction losses. For this reason, the thermal data in the datasheet should be read not as static package properties, but as boundary conditions tied directly to layout quality and operating environment.

The datasheet specifies a junction-to-case thermal resistance, measured from the top of the package, of 22.8°C/W, and a junction-to-board thermal resistance of 2.5°C/W under defined test conditions. These two values already reveal the dominant thermal path. Heat does not primarily escape through the package top. It is transferred mainly into the board. That distinction is critical when evaluating cooling strategy. Adding airflow above the component may help, but the strongest lever is often the PCB itself: copper spreading area, via density, internal plane continuity, and the thermal connection into neighboring structures. In dense power layouts, it is common to see acceptable schematic-level loss estimates fail in hardware because the board does not provide a sufficiently low-impedance thermal path away from the silicon.

Texas Instruments measured typical characteristics on a 4-inch × 3.5-inch, 0.062-inch PCB built with six 1-oz copper layers. This test platform is not a generic reference. It is a thermal enabler. A board of this type provides significant lateral and vertical heat spreading, and that has a direct effect on the reported operating capability. If the actual application uses fewer layers, thinner copper, fragmented planes, or reduced local copper under the power stage, the effective thermal resistance will rise, often enough to materially reduce continuous current headroom. This is one of the most common interpretation errors in component selection: comparing current ratings between devices without normalizing the thermal test environment. A compact power stage can look electrically superior on paper while underperforming in a constrained layout simply because its datasheet numbers were obtained on a stronger thermal platform.

The safe operating area curves make this dependency explicit. Output current capability is shown as a function of ambient temperature, board temperature, and airflow. That framing is important because it moves the discussion away from a single absolute current number and toward a system-level operating envelope. Current capability is not fixed. It contracts as ambient rises, as local board temperature increases, and as cooling conditions deteriorate. In natural convection, the local thermal gradient builds more quickly, especially when adjacent power components inject heat into the same copper region. In forced-air systems, the same device can sustain significantly higher power dissipation, but only if airflow actually reaches the board surface and is not blocked by shielding, tall magnetics, or card-edge geometry. Nominal chassis airflow values often overstate local cooling effectiveness at the point where the power stage sits.

A useful way to interpret the thermal behavior is to separate loss generation from heat extraction. Loss generation comes from conduction loss in the MOSFET paths and switching loss driven by operating frequency, gate timing, voltage, and current. Heat extraction depends on board architecture and cooling conditions. The device operates safely only where these two sides remain in balance. If electrical optimization pushes switching frequency upward to reduce passive component size, the thermal system must absorb the extra switching loss. If the board is compact and copper-limited, a lower frequency or improved phase distribution may be more effective than trying to recover margin through airflow alone. This is where power stage selection becomes an exercise in thermal co-design, not just component substitution.

The junction-to-board thermal resistance value of 2.5°C/W is particularly informative for layout engineers. It implies that once heat is coupled into the board, the board can be an efficient sink, but only under the assumed construction. To preserve something close to that performance, the copper under and around the device must remain thermally continuous. Splitting planes with aggressive routing channels, anti-pads, or isolation voids weakens heat spreading. Stitching vias should not be treated as optional, especially when internal planes are intended to share the thermal load. Even small interruptions around the thermal pad region can create localized hot spots that are not obvious in average temperature measurements. Infrared images in such cases often show a narrow high-temperature band near the switching node side or near the current path into the inductor, even when the overall board temperature appears acceptable.

Board temperature is often a better design variable than ambient temperature alone. Ambient defines the external environment, but board temperature captures accumulated thermal stress from the entire power train. In systems with limited spacing, the CSD95379Q3M may be strongly affected by nearby inductors, other phases, ASICs, or memory rails. A design may pass initial bench testing with the power stage isolated, then lose margin once the full assembly is energized. This is why thermal validation should be done in the final mechanical configuration, with realistic neighboring heat sources active. Evaluating the power stage in isolation can produce overly optimistic results, especially on open benches where convection is better than in the finished enclosure.

There is also a subtle but important interaction between electrical efficiency and thermal stability. As temperature rises, MOSFET characteristics shift, which changes conduction loss. That can create a positive feedback loop in marginal designs: higher temperature increases loss, which drives still higher temperature. Well-engineered layouts suppress this effect by keeping thermal gradients shallow and current distribution uniform. In multi-phase designs, current balancing also matters. If one phase runs slightly hotter due to asymmetrical layout parasitics or unequal airflow exposure, it may drift into a less favorable operating point and become the thermal bottleneck for the whole converter.

From an application standpoint, the CSD95379Q3M is best suited to designs where the PCB is treated as an active thermal structure. Networking, server, telecom, and high-density point-of-load systems can use it effectively when layer stackup, copper allocation, and airflow are planned early. It is less forgiving in mechanically constrained layouts where copper area is sacrificed late in the design cycle or where component placement forces the power stage into a thermally stagnant zone. The device rewards disciplined implementation. It does not respond well to the assumption that a strong datasheet current figure can compensate for weak board-level heat removal.

A practical design approach is to use the SOA curves as the first screening tool, then derate further based on actual board construction and enclosure conditions. If the datasheet test board is materially stronger than the intended application board, it is wise to assume reduced current capability until measurement proves otherwise. Thermocouple data, IR imaging, and load-step testing at high ambient are all useful here. Short steady-state tests are not enough. Some boards reach apparent equilibrium quickly at the package top while deeper copper regions continue heating, slowly pushing junction temperature upward. This delayed rise can explain field issues that were not visible in brief bench validation.

Another recurring lesson is that airflow should be qualified, not assumed. Even in forced-air platforms, local recirculation zones can degrade cooling sharply. Rotating the board, changing the inductor height, or shifting a nearby capacitor bank by a few millimeters can alter the flow field enough to change thermal margin. Because the package depends heavily on board extraction, any mechanical change that affects copper temperature or local air stagnation can move the operating point. Thermal robustness therefore comes less from maximizing one parameter and more from keeping the whole heat path predictable.

The safest interpretation of the CSD95379Q3M datasheet is that its performance is real, but conditional. The component can deliver strong power density when embedded in a board designed to carry both current and heat efficiently. The limiting factor in many applications is not silicon capability but the quality of the thermal path surrounding it. Teams that treat current rating, copper design, airflow, and enclosure constraints as a single integrated problem will extract the most value from the device and avoid overstating usable margin during product selection.

CSD95379Q3M Typical Performance Trends and What They Mean in Design

The typical performance curves in the CSD95379Q3M datasheet are more than supporting graphs around the absolute maximum ratings and static specifications. They describe how the power stage behaves once it is placed inside a real buck converter, where temperature, switching frequency, voltage stress, current ripple, and gate-drive demand interact at the same time. Read correctly, these plots help predict not only efficiency, but also thermal margin, control-loop behavior, rail-to-rail portability, and light-load power quality.

A useful starting point is the power-loss trend versus output current and junction temperature. Loss increases with load current in the expected way, but the temperature dependence is the more important design signal. As junction temperature rises, MOSFET conduction loss increases because RDS(on) increases. That means electrical loss and thermal stress do not act independently; they form a positive feedback path. A warmer device dissipates more power, and the additional dissipation drives the junction hotter still. In compact point-of-load layouts, this loop becomes the real constraint long before the nominal current rating is reached.

This is why current capability should never be interpreted as a single number detached from board conditions. The same power stage can appear comfortably sized on paper and yet run close to thermal saturation on a dense multilayer board with limited copper spreading or weak airflow. In practice, designs that look efficient at room temperature often lose margin quickly during sustained high-duty operation, especially when nearby components preheat the local area. The datasheet trend makes it clear that thermal design is part of the electrical design, not a later mechanical check. Copper area under the device, via density into internal planes, and the thermal interaction with the inductor often determine whether the converter remains in a stable low-loss regime or drifts into a hotter, less efficient operating point.

The frequency-related loss curves add a second layer of design meaning. The CSD95379Q3M supports operation up to 2 MHz, but the normalized loss trend shows that higher frequency carries a direct efficiency cost. This increase is not only due to more switching events per second. It also reflects greater gate-charge cycling, more overlap loss during transitions, and usually higher AC loss in the inductor and input capacitors. At elevated frequency, the power stage often shifts from a conduction-dominated regime toward a switching-dominated regime, particularly at moderate load. That shift matters because many designs select frequency based on size targets alone and discover later that the thermal budget has been consumed by transition loss rather than load current.

The practical implication is that 2 MHz is a capability, not a default operating point. It is valuable when PCB area is constrained, transient response must be sharpened with smaller inductance, or output capacitance must be reduced. But if efficiency and thermal headroom dominate the requirement, backing away from the maximum frequency often yields a better system result. In many buck designs, the best frequency is not the highest one the silicon can tolerate, but the point where total loss, transient response, inductor size, EMI behavior, and controller drive current are all balanced. That balance point usually emerges only after evaluating the whole power train rather than the power stage in isolation.

The normalized loss curves versus input voltage, output voltage, and output inductance show another important fact: the CSD95379Q3M does not have a single efficiency identity. Its behavior depends strongly on converter operating point. Input voltage changes the switching stress and affects transition energy. As VIN rises, the voltage swing across the high-side and low-side MOSFETs grows, and switching loss typically increases even if output power remains unchanged. This is why a rail converted from 12 V to 1.2 V can stress the stage quite differently from one converted from 5 V to 1.8 V, even if their output currents are similar.

Output voltage matters because it changes duty cycle, freewheel interval, and current distribution between the integrated FETs. In low-output-voltage rails, the duty cycle is small, so the low-side path conducts for most of the switching period. That tends to emphasize low-side conduction behavior and dead-time sensitivity. As output voltage rises relative to input, the high-side device carries current for longer, and the loss partition shifts. This matters when one power stage is reused across several rails in a platform. A device that performs very well on a core rail may show a different thermal pattern on an I/O or auxiliary rail, even when both seem to fit within the same nominal current class.

Output inductance introduces a more subtle tradeoff. Lower inductance increases ripple current, which tends to raise RMS conduction loss and core loss, but it also improves slew capability and can support faster transient correction. Higher inductance reduces ripple and often improves steady-state efficiency, but it slows current ramp response and may require more output capacitance or more aggressive control compensation to hold the rail within tolerance during load steps. The normalized inductance trend is useful because it exposes that the inductor is not a passive bystander in efficiency. It changes the current waveform seen by the power stage, and therefore changes how the silicon dissipates energy.

This point becomes especially relevant in platform designs where a single regulator architecture is copied across multiple loads. It is tempting to standardize on one inductance value for procurement simplicity, but the plots suggest that this can quietly move some rails away from their optimum operating region. Fast digital rails, analog rails with low ripple sensitivity, and always-on rails rarely benefit from the same switching-frequency and inductance pair. The power stage may be common, but the best surrounding network often is not.

The driver current versus frequency curve deserves more attention than it usually gets. As switching frequency rises, driver current demand increases because the internal gate nodes must be charged and discharged more often. This current does not contribute to output power. It is overhead required to keep the switching action running. In systems with tight VDD bias budgets, this overhead can become significant, particularly when several rails switch at high frequency from the same controller or bias source. What appears to be a modest increase in frequency can therefore create a disproportionate rise in internal support power.

This helps explain the value of the device’s low-power states during light-load or inactive conditions. At low load, the fixed costs of switching and gate driving occupy a larger share of total loss, so reducing switching activity or entering a lighter operating mode can improve overall efficiency more effectively than optimizing conduction loss. In practical power-tree design, this distinction matters for standby targets. It is common for a rail to meet full-load efficiency goals and still miss platform idle-power limits because gate-drive overhead, controller quiescent current, and magnetics loss were not considered early enough. The driver-current curve provides an early warning for that class of issue.

From a design methodology perspective, the most productive way to use these plots is to read them as coupled sensitivities rather than isolated trends. Frequency affects loss, but it also changes inductor selection, ripple current, driver demand, and thermal rise. Junction temperature affects conduction loss, but it also shifts margin against thermal shutdown and modifies long-duration reliability stress. Input voltage changes switching loss, but it can also reshape EMI behavior and snubber requirements. Once these dependencies are viewed together, the datasheet becomes a map of trade spaces rather than a list of component attributes.

A strong implementation flow usually starts by identifying which regime dominates the target rail. For high-current core rails, conduction and thermal spreading often dominate first, so board layout and copper utilization deserve early attention. For compact high-frequency rails, switching loss and driver overhead usually surface first, so frequency selection and dead-time-aware optimization become more important. For wide-input systems, VIN-driven switching stress may become the limiting factor, making the worst-case input condition more important than the nominal one. The CSD95379Q3M supports all of these use cases, but not with the same optimal settings.

One consistent lesson from these trends is that the best-performing design rarely comes from maximizing a single parameter. Maximum frequency, minimum inductance, or the lowest room-temperature loss point can all look attractive in isolation. Yet converters fail specifications at the intersections: hot board, high VIN, sustained load, tight airflow, and a bias rail shared by multiple channels. The typical curves are valuable because they reveal where those intersections become nonlinear. That is where margin is usually won or lost.

For the CSD95379Q3M, the practical design message is clear. Use the typical plots to build an operating envelope, not just to validate a nominal point. Check how loss moves with current at elevated temperature. Quantify what frequency buys in size and what it costs in efficiency and bias current. Evaluate VIN, VOUT, and inductance as variables that reshape the power stage rather than simple converter inputs. When these relationships are accounted for early, the device can be used much more effectively across dense, multi-rail platforms with fewer late-stage thermal or power-budget surprises.

CSD95379Q3M Powering, Bootstrap Design, and Gate-Drive Support Components

CSD95379Q3M power delivery around the gate driver should be treated as a switching-energy network, not as a simple bias connection. VDD does more than keep the internal control logic alive. It supplies the pulsed current needed to charge and discharge the MOSFET gates at high di/dt, so its local impedance directly shapes switching behavior, noise generation, and timing stability. For that reason, the recommended 1-µF, 10-V X5R or better ceramic capacitor from VDD to PGND is not just a generic decoupler. It is the primary local energy reservoir for the integrated driver. Its effectiveness depends as much on placement and current-loop compression as on nominal capacitance. If that capacitor is electrically distant, routed through vias with excess inductance, or downgraded to a dielectric with strong DC bias loss, the driver can see transient VDD droop during switching edges. That often appears first as inconsistent rise and fall behavior, elevated switching loss, and reduced noise margin before it becomes an obvious functional issue.

A useful way to think about the VDD bypass is to model the driver current as a sequence of narrow current pulses synchronized to the PWM edges. The capacitor must source those pulses locally while the upstream rail replenishes charge more slowly through a parasitic inductive path. In compact power stages, the parasitic inductance of even a short trace can dominate the high-frequency behavior. This is why the capacitor should be placed immediately between VDD and PGND with the smallest possible loop area, using wide copper and a direct ground return. In practice, layouts that appear acceptable from a DC perspective can still show measurable gate-drive supply ringing once switching current is injected into the loop. The best results usually come from treating the VDD capacitor as part of the driver package boundary rather than as a nearby support component.

The bootstrap network for the high-side MOSFET operates on the same principle of local charge storage, but its role is more constrained and more sensitive to switching sequence details. The integrated bootstrap diode simplifies implementation by removing one discrete component and reducing uncertainty in diode selection, but the external bootstrap capacitor remains decisive. The recommended 100-nF, 16-V X5R ceramic capacitor between BOOT and BOOT_R forms the floating supply that raises the high-side gate above the switching node. During low-side conduction, this capacitor charges through the internal diode. When the high-side FET turns on, the stored charge is used to maintain the required gate-to-source voltage while the source node slews upward toward VIN.

That mechanism makes bootstrap sizing a charge-balance problem. The capacitor must be large enough that its voltage droop during the high-side on-time stays within the gate-driver operating margin after accounting for gate charge, internal driver consumption, leakage, and any dynamic losses coupled through parasitics. The datasheet recommendation of 100 nF is therefore a practical value chosen to support reliable operation over the intended use range, not an arbitrary placeholder. Undersizing this capacitor can produce a high-side gate drive that looks acceptable at light load or moderate duty cycle but degrades under longer on-times, higher temperature, or more aggressive switching conditions. The failure mode is often subtle at first: increased RDS(on) during the high-side interval, delayed turn-on, or pulse-width-dependent efficiency drift.

Capacitor selection quality matters as much as nominal value. X5R or better dielectric is specified for good reason. With small-case MLCCs, effective capacitance falls under DC bias and temperature stress, and that derating applies directly to bootstrap hold-up capability. A nominal 100-nF capacitor can lose a meaningful fraction of usable capacitance in operation. In power stages running close to duty-cycle or thermal limits, it is often worth verifying effective capacitance rather than relying on catalog values. This becomes more important when VIN is high, switching frequency is elevated, or the application demands repeatable efficiency across wide operating corners.

Placement of the bootstrap capacitor should follow the same high-frequency discipline as the VDD bypass, but with even stronger attention to the BOOT-to-BOOT_R loop. This loop carries fast charging and discharging currents and sits on a moving reference potential. Any added inductance increases ringing, distorts the effective gate-drive waveform, and can aggravate VSW overshoot through coupling paths inside the half-bridge. A short, tightly routed capacitor connection is usually more beneficial than adding extra capacitance farther away. In this part of the circuit, geometry often outweighs component count.

The optional RBOOT resistor introduces a useful degree of damping and edge-rate control into the high-side gate-drive path. Electrically, it limits the peak current used to charge the high-side gate and slows the control FET turn-on transition. That reduces dv/dt at the switching node and helps suppress VSW overshoot and ringing driven by package and PCB parasitics. The datasheet’s suggested range of 1 Ω to 4.7 Ω reflects a classic switching tradeoff: lower resistance favors faster transitions and lower switching loss, while higher resistance reduces EMI stress and voltage spike amplitude but increases transition time and dissipation.

This resistor is often more valuable than it first appears because it gives the design a tunable damping element after the major power-stage choices are fixed. In tightly packed layouts, especially where input decoupling is constrained or current return paths cannot be made ideal, VSW ringing can remain significant even when the schematic follows the reference guidance. In those cases, a modest RBOOT value can shift the design from borderline to robust without major layout rework. The efficiency penalty is usually small if the resistor is kept within the recommended range and chosen based on measured waveforms rather than intuition alone.

There is also a deeper benefit to using RBOOT selectively: it can improve system-level predictability. Very fast switching edges may look attractive in isolated efficiency measurements, but they tend to amplify sensitivity to lot variation, temperature drift, probe-induced misreads, and board-to-board parasitic differences. Slightly slowing the high-side turn-on often produces cleaner, more repeatable behavior across operating corners. In many converter designs, that consistency is worth more than extracting the last fraction of a percent of peak efficiency under nominal conditions.

A practical tuning sequence is usually straightforward. Start with the recommended bootstrap capacitor and VDD bypass placed as tightly as possible. Validate the VSW waveform under worst-case VIN, load current, and temperature conditions. If overshoot or ringing is excessive, introduce a small RBOOT value, often beginning near 1 Ω, then increase only as needed. Observe not just spike amplitude but also switching loss, thermal rise, dead-time interaction, and any signs of degraded high-side enhancement. This stepwise method tends to converge quickly because the resistor mainly affects a narrow but critical part of the switching event.

It is also worth noting that bootstrap behavior interacts with duty cycle and refresh time. Since the bootstrap capacitor charges when the switching node is pulled low, extremely high duty-cycle operation reduces recharge opportunity. In normal buck applications this is usually manageable, but margins narrow as high-side on-time lengthens. Designs expected to operate near dropout or under sustained high duty cycle should be checked carefully to ensure the bootstrap supply remains adequate. The integrated diode helps simplify the network, but it does not remove the underlying dependence on periodic refresh.

Taken together, the VDD capacitor, bootstrap capacitor, and optional RBOOT resistor define the electrical environment in which the integrated driver must operate. They should be designed as a coordinated support set rather than as isolated BOM entries. The best-performing implementations usually come from a simple discipline: minimize parasitic loop inductance first, preserve effective capacitance under bias, then use RBOOT as a controlled adjustment for edge shaping. That order matters. Layout and capacitor integrity solve root causes; resistance tuning refines the behavior once the physical switching loops are already under control.

CSD95379Q3M PCB Layout and Implementation Considerations

The CSD95379Q3M is designed to reduce the layout burden of a synchronous buck power stage by integrating the high-side MOSFET, low-side MOSFET, and gate-driver-related interconnects into a compact module. That integration removes a large portion of the parasitic inductance and resistance normally introduced by discrete placement. Even so, the device does not eliminate layout sensitivity. It shifts the critical design focus outward, from transistor-to-transistor interconnects inside the power stage to the PCB structures that surround the module. In practice, overall efficiency, switch-node behavior, EMI, voltage overshoot, and thermal balance still depend heavily on board implementation.

The key point is that the package only solves the parasitics inside its boundary. The external current loops remain the designer’s responsibility. If those loops are not kept short and well-contained, the electrical advantage of the integrated power block is quickly diluted. This is why the datasheet places so much emphasis on footprint definition, capacitor placement, and example layouts. The part is layout-tolerant only in the areas it has already internalized. Everywhere else, it behaves like a fast, high-di/dt switching stage and should be treated accordingly.

The first layout priority is the input loop. The dominant pulsed current path in a buck converter flows from the input capacitors into VIN, through the internal high-side switch, out through VSW, back through the low-side path to PGND, and then into the input capacitors again. This loop carries steep current edges, so even a few extra millimeters of trace length can add enough inductance to increase ringing, switching loss, and conducted noise. The input capacitors therefore need to be placed as close as possible to the VIN and PGND connections of the device. The shortest path is not just a general recommendation here; it directly determines loop inductance. Wide copper, minimal via transitions, and direct return geometry all help. If ceramic capacitors are used in parallel with bulk input capacitance, the small, low-ESL ceramics should be the closest elements in the loop, with bulk capacitance slightly behind them providing energy support at lower frequencies.

The PGND pins must be tied together with a low-impedance connection. This is electrically important, not merely a mechanical requirement. Ground current in a power stage is not uniform. It contains switching return current, gate-drive return current, and often analog reference current from nearby control circuitry. If the PGND structure is fragmented or narrowed, local voltage gradients appear across the copper, and those gradients can corrupt switching behavior or inject noise into the controller. A compact, well-stitched PGND region reduces this risk. If multiple layers are available, stitching vias near the power ground pins help lower spreading inductance and improve current distribution through the return path.

The VSW node deserves special discipline. It is the highest dv/dt node in the converter and a common source of unwanted electric-field coupling. From a functional perspective, VSW must connect to the inductor with low impedance. From a noise perspective, that copper area should still be kept only as large as necessary. Excessive VSW copper increases capacitive coupling into adjacent traces and planes, which can elevate EMI and disturb feedback, enable, or sensing lines. A common mistake is to spread the switch node for the sake of current handling without considering field coupling. For this device, the better approach is usually a compact, direct connection from VSW to the inductor, with nearby sensitive nets routed away from that zone and preferably shielded by quiet ground where possible.

The gate-drive support network also remains layout-critical, even though the main switching devices are integrated. The VDD bypass capacitor and bootstrap capacitor must be placed close to their associated pins to minimize the gate-drive loop area. These capacitors supply short, high-peak currents during switching transitions. If they are placed too far away, the resulting parasitic inductance slows gate drive, increases ringing, and can distort the intended switching waveform. The practical effect is often seen as reduced efficiency, hotter operation, or inconsistent waveforms across operating conditions. Tight local placement preserves the intended driver behavior and helps the module switch cleanly under load transients.

Thermal layout should be considered alongside electrical layout rather than after it. The compact package can achieve excellent current density, but that also means heat is concentrated into a small board area. Copper connected to the thermal pads and current-carrying pins performs two roles at once: it lowers electrical impedance and spreads heat into the PCB. This coupling between thermal and electrical design is easy to underestimate. Narrow copper may still meet DC resistance targets yet create localized heating that raises MOSFET junction temperature and worsens conduction loss. A well-designed copper region, supported by thermal vias into internal or back-side planes, improves both efficiency and reliability. The strongest layouts typically avoid treating thermal copper as an isolated heatsinking feature; instead, they build it into the main current path.

The placement of the inductor and output capacitors should follow the same loop-based thinking. The path from VSW through the inductor into the output capacitor bank and back to power ground forms the output current loop. While this loop is generally less aggressive than the input switching loop, its geometry still affects ripple, load transient response, and radiated behavior. Keeping the inductor close to the module reduces resistive loss and limits switch-node trace length. Output capacitors should be placed so the AC ripple current returns efficiently, without forcing current to spread through broad, resistive ground paths. In dense layouts, this often means arranging the inductor and output capacitors as a compact cluster around the power stage rather than distributing them for routing convenience.

Control and sensing signals should be separated from the power path both physically and electrically. High-speed power modules often appear simple because the power stage footprint is compact, but the surrounding controller can still be highly sensitive to noise pickup. Feedback traces should be routed away from VSW and input loop copper, with a clean ground reference and, where possible, Kelvin-style sensing from the output node after the inductor and capacitor filtering region. If a controller shares ground with the power stage, the connection strategy matters. It is usually better to let noisy current return locally in the power stage and connect analog ground into a quieter reference point than to let both share an uncontrolled return path.

From implementation experience, the most reliable layouts are usually built by identifying the highest di/dt loops first and locking those placements before routing anything else. With the CSD95379Q3M, that means placing the input ceramics, power block, bootstrap and VDD capacitors, and inductor in a tightly constrained arrangement before attention shifts to signal routing. Designs that reverse this order often end up with acceptable schematic connectivity but weak physical current geometry. The board may still function, yet lab results reveal avoidable ringing on VSW, elevated temperature under full load, or EMI margins that are too narrow for comfortable production release.

Another practical pattern is that this device rewards compactness only when that compactness is deliberate. Simply reducing distances is not enough if return paths are indirect or layer transitions are poorly chosen. A short trace with a bad return path can perform worse than a slightly longer trace over a solid reference structure. This is an important distinction because modern power layouts are shaped as much by current-loop closure as by visible trace length. In that sense, the CSD95379Q3M should be viewed not as a generic drop-in power block, but as a packaged high-speed switching cell whose external electromagnetic environment must be intentionally completed by the PCB.

This makes the part especially attractive in designs where high-density buck layout practices are already part of the development flow. When the PCB is engineered around loop minimization, field containment, and thermal spreading, the integrated package can deliver the low-parasitic behavior it was built for. When those disciplines are missing, the package still works, but much of its advantage is left unused. The best results come from treating the footprint, capacitor network, current return structure, and thermal copper as one integrated power-delivery system rather than as separate layout tasks.

Potential Equivalent/Replacement Models for CSD95379Q3M

Potential replacement evaluation for the CSD95379Q3M should start from one premise: Texas Instruments does not identify a pin-for-pin or functionally guaranteed direct substitute in the available documentation. In practice, this shifts the task from part-number lookup to constraint-driven matching. The correct question is not whether another device looks similar on a distributor page, but whether it reproduces the electrical behavior, control interface, thermal response, and layout interaction of the original power stage closely enough for the target design.

The CSD95379Q3M is not just a pair of MOSFETs in a small package. It is an integrated synchronous buck NexFET power stage intended to sit between a PWM controller and the output filter while minimizing parasitic inductance, gate-drive losses, and switching loop area. That integration level matters because many apparent alternatives fail not on voltage or current rating, but on second-order effects such as dead-time behavior, bootstrap charging margin, low-side conduction characteristics, or switching-node ringing under the same PCB conditions.

A rigorous replacement screen should first preserve the device’s functional role. The candidate should be an integrated synchronous buck power stage, not merely a discrete high-side and low-side MOSFET pair unless the surrounding control and layout can be redesigned. The original device supports both 3.3-V and 5-V PWM input compatibility, diode emulation, tri-state PWM operation, and very low quiescent current modes. These are not optional convenience features. They define how the power stage interacts with the controller during startup, shutdown, light-load operation, and power-save states. A replacement that omits one of these behaviors may still regulate under nominal load, but it can fail system-level requirements such as standby power, transient recovery, or output voltage behavior during PWM high-impedance intervals.

Electrical stress limits form the next layer of comparison. The documented operating input range of 4.5 V to 16 V sets the baseline for VIN compatibility. Any substitute should tolerate this full range with adequate design margin, not merely survive at the nominal rail. This distinction becomes important in systems with adapter hot-plug events, battery rail overshoot, or upstream converter ringing. Switching support up to 2 MHz is equally significant. A part that is rated for lower practical switching frequency may still turn on and off at 2 MHz in a lab setup, but losses, thermal rise, and timing margins often deteriorate quickly near the upper end. Replacement review should therefore consider efficiency and transition quality at the actual operating frequency, not only the datasheet maximum.

Current capability must also be interpreted carefully. The 20-A continuous and 45-A peak figures are useful anchors, but they are not universal truths detached from board design. Continuous current ratings for integrated power stages are heavily conditioned by copper area, via density, ambient temperature, airflow, and allowable junction rise. In sourcing reviews, it is common to see a candidate with a nominally higher current rating perform worse after placement into the original footprint because its thermal path couples differently into the PCB. For that reason, thermal impedance, exposed-pad geometry, and recommended land pattern deserve the same attention as the current headline.

Package compatibility is another common source of false positives. The 3.3 mm × 3.3 mm 10-VSON footprint appears straightforward, but replacement suitability depends on more than body size and pin count. Pin assignment, switch-node pin placement, bootstrap capacitor routing, and the internal partitioning of power and signal grounds strongly affect loop inductance and EMI behavior. Even minor differences in the switch-node lead frame can change overshoot and ringing enough to stress the device or degrade efficiency. When a candidate claims package similarity, the land pattern and parasitic current loops should still be overlaid against the existing PCB before any assumption of interchangeability is made.

Control-path behavior deserves a dedicated review because it often determines whether a “close” replacement is actually usable. PWM input thresholds must align with the controller’s output swing over process and temperature. Tri-state PWM support must behave the same way the original design expects, especially in multiphase or power-save architectures where the controller may intentionally release the drive line. Diode emulation should also be checked beyond the feature label. Different implementations enter discontinuous conduction at different thresholds and with different timing, which can alter light-load ripple, zero-crossing noise, and idle efficiency. In systems with strict acoustic-noise or standby-power targets, these differences tend to surface quickly.

Bootstrap implementation is another nontrivial comparison point. High-side gate-drive integrity depends on internal bootstrap diode characteristics, bootstrap undervoltage behavior, and recharge timing under duty-cycle extremes. A replacement may appear compatible in steady-state operation, yet show weak startup or pulse-skipping anomalies when the high-side on-time is long, the switching frequency is high, or the low-side refresh interval is limited. This issue is easy to underestimate because it often does not appear in simplified simulations unless parasitics and realistic controller behavior are included.

UVLO behavior should be treated as a system-level compatibility parameter, not just a protection feature. The exact rising and falling thresholds, hysteresis width, and startup sequencing can influence whether the converter enters a clean monotonic startup or falls into repeated retries under marginal input conditions. This becomes especially relevant in designs powered from rails with finite impedance, such as adapter inputs, backplanes, or battery-fed buses, where inrush and converter startup interact. A candidate with different UVLO timing can force a redesign of soft-start assumptions even when every other major rating seems aligned.

Thermal behavior must be verified on comparable PCB structures. Datasheet thermal numbers are only first-order guidance. Integrated power stages are extremely sensitive to copper spreading, thermal via stitching under the exposed pad, and switch-node copper shape. In board revalidation, one useful pattern is to compare not only steady-state case temperature, but also the thermal slope during burst load and the junction response during short transient overloads. Some parts exhibit acceptable average temperature while still running sharp localized hot spots around the low-side FET due to current recirculation patterns. That effect can shorten reliability margins without obvious symptoms in a short bench test.

Switch-node transient tolerance is another filter that should not be skipped. In synchronous buck layouts, switch-node overshoot is strongly influenced by package inductance, input bypass placement, dead-time tuning, and diode reverse recovery behavior. A substitute that is nominally rated for the same VIN may still be less robust under repeated high-dv/dt transients. This difference often emerges only when testing with the actual board stackup, actual ceramic input network, and realistic load-step conditions. If the original design operates near the upper half of the input range, the replacement should be assessed with margin for ringing rather than judged solely by static voltage rating.

A practical replacement workflow usually works best when divided into three gates. The first gate is datasheet equivalence: voltage range, integrated topology, PWM compatibility, low-power operating modes, current capability, switching frequency, and package. The second gate is schematic interaction: bootstrap network, UVLO, control thresholds, fault behavior, and any required external bias conditions. The third gate is board-level validation: efficiency over load, thermal imaging, switch-node waveform quality, startup and shutdown behavior, and light-load regulation. Most candidate parts pass the first gate more often than the second and third. That pattern is worth keeping in mind because procurement pressure often emphasizes visible specifications while the design risk sits in the interaction details.

From an engineering perspective, the most reliable substitutes are not necessarily those with the closest advertised current rating. The stronger indicator is behavioral similarity under the same controller and the same PCB constraints. In compact power stages, parasitics and control semantics dominate outcomes more than catalog-level specs suggest. A slightly lower-rated device with closely matched drive logic, transition behavior, and thermal coupling can be safer than a nominally stronger part that alters switching dynamics or low-load mode behavior.

If no near-equivalent integrated power stage is available, the decision should be treated as a redesign rather than a replacement. That means revisiting compensation margin, efficiency targets, EMI containment, thermal spreading, and controller compatibility together. Attempting to force-fit a loosely similar device into the existing design often creates hidden costs in validation time, field risk, and production variability.

For the CSD95379Q3M specifically, any candidate replacement should therefore be screened against these core requirements: integrated synchronous buck power stage architecture, 3.3-V and 5-V PWM compatibility, diode emulation, tri-state PWM behavior, ultra-low quiescent current operation, 20-A continuous capability, 45-A peak capability, 4.5-V to 16-V input operation, support for switching frequencies up to 2 MHz, and a truly compatible 3.3 mm × 3.3 mm 10-VSON implementation. After that, bootstrap behavior, UVLO thresholds, thermal performance on a like-for-like PCB, and switch-node transient robustness should be validated experimentally before approving the part for production use.

Conclusion

The CSD95379Q3M is a tightly integrated synchronous buck power stage built for designs where current density, conversion efficiency, and board utilization must be optimized at the same time. Its value is not just in MOSFET integration, but in how that integration compresses the high-current switching loop, reduces parasitic inductance, simplifies gate-drive matching, and improves repeatability across production layouts. In practical power architectures, that matters more than the headline current number alone, because converter behavior at high slew rate is often dominated by package and interconnect parasitics rather than by ideal silicon capability.

At its core, the device combines a high-side MOSFET, low-side MOSFET, and gate driver in a compact 3 mm × 3 mm SON package. This integration directly targets one of the most difficult problems in discrete buck implementation: maintaining switching efficiency and clean transition behavior while keeping the loop physically small. With the driver and NexFET power devices co-optimized in one package, propagation timing, gate charge interaction, and dead-time-related behavior become easier to control than in a loosely assembled discrete solution. That reduces design uncertainty, especially in compact multiphase rails or space-constrained point-of-load converters.

The electrical positioning of the CSD95379Q3M reflects this optimization strategy. It supports 20 A continuous current and 45 A peak current, which places it comfortably in the range of processor core rails, memory rails, and high-performance POL converters found in notebooks, tablets, telecom cards, networking nodes, and embedded computing platforms. These are not merely high-current applications; they are applications with steep load steps, limited airflow, aggressive PCB area constraints, and strong pressure to maintain efficiency from idle to peak load. A power stage in this class must therefore perform across multiple regimes, not just at nominal full load.

One of the more important design enablers is support for switching frequencies up to 2 MHz. High-frequency operation allows the surrounding power train to shrink, particularly the inductor and output capacitor network, which is attractive in thin or densely populated systems. However, the real engineering tradeoff is more nuanced. As switching frequency rises, magnetic size decreases, but switching loss, gate-drive loss, and sensitivity to layout quality increase. The CSD95379Q3M is clearly intended to operate in that high-density region where frequency is used as a layout and transient-response tool, but it still requires disciplined thermal and parasitic management. In other words, the device enables high-frequency operation; it does not eliminate the usual penalties of high-frequency power conversion.

Compatibility with both 3.3 V and 5 V PWM controllers makes the part easier to insert into a wide range of voltage regulator architectures. This is especially useful in platform families where the same power stage may need to pair with different controllers across cost tiers or product revisions. The tri-state PWM input behavior adds another layer of system flexibility. In multiphase and power-saving control schemes, a tri-state interface can support mode transitions cleanly and help coordinate low-load behavior without forcing a fully custom driver arrangement. That may look like a small interface detail, but in practice it often reduces system-level friction during controller integration.

Selectable diode emulation is another feature with strong real-world value. At high load, continuous conduction operation is typically preferred for ripple control and transient robustness. At low load, allowing the low-side device to stop conducting reverse current can materially improve light-load efficiency. This matters in battery-powered systems and always-on rails where the converter may spend a large portion of its life far below rated load. Designers sometimes focus too heavily on peak efficiency numbers near mid-load, but field behavior is often shaped by idle and standby operating time. A power stage that supports efficient mode control across load conditions is therefore more useful than one optimized only for benchmark operating points.

Very low standby current modes reinforce that same system orientation. In portable and networked equipment alike, sleep and suspend states are no longer edge cases; they are standard operating conditions. Leakage and bias consumption that look negligible on paper can accumulate into meaningful battery drain or thermal overhead when multiplied across several rails. The CSD95379Q3M addresses this with low-power operating support, making it suitable not just for active conversion efficiency but also for system power-state management.

The thermal dimension deserves more emphasis than it usually receives in brief component evaluations. A 20 A integrated stage in a 3 mm × 3 mm footprint is inherently thermally dense. That means the device should be understood as a heat injector into the PCB, not as a standalone thermal object. Its package can perform well only if the board is designed as an effective heat spreader through copper area, thermal vias, and low-impedance connection into internal and backside planes. In compact systems, a design may meet electrical targets in simulation and still fail practical validation because the local copper is too fragmented by nearby routing or because heat from adjacent components couples into the same region. The strongest designs usually treat power-stage placement, inductor placement, and thermal spreading as one problem rather than three separate tasks.

Transient stress is equally important. In synchronous buck stages, the most damaging conditions often occur during startup, hard load release, input hot-plug events, shoot-through-related disturbances, or ringing caused by package and layout inductance. Integrated stages reduce some of this risk by minimizing internal parasitics, but they do not eliminate external stress paths. Input bypass capacitor placement remains critical. The high di/dt loop from VIN through the high-side FET, into SW, through the low-side path, and back to the input capacitor must be kept as tight as possible. If that loop is allowed to spread, voltage overshoot and ringing increase quickly, and those effects can erode reliability margin even when average operating conditions appear safe. In dense layouts, this is often the difference between a regulator that behaves cleanly on the bench and one that shows sporadic switch-node anomalies in environmental or corner-case testing.

Bootstrap design also deserves careful execution. Since the high-side gate driver depends on the bootstrap capacitor and associated charging path, poor bootstrap placement or weak grounding discipline can degrade gate-drive amplitude under dynamic conditions. At moderate frequency this may appear tolerable, but at higher duty cycle or fast transient operation the margin can narrow. A common failure pattern in compact buck layouts is treating the bootstrap network as a low-priority support circuit. In reality, it is part of the switching path timing mechanism. Tight placement, short return paths, and noise-aware routing around the bootstrap node materially improve switching consistency.

PCB layout is therefore not a secondary implementation task; it is part of the electrical design of the converter. The device’s integrated architecture delivers its full benefit only when the external loop inductances are kept low, the power ground and signal ground relationships are controlled, and the switch node is managed to avoid unnecessary coupling into sensitive traces. The most robust layouts usually follow a hierarchy: first constrain the hot loops, then place the input decoupling, then establish thermal copper, then route sensitive control paths away from the switch-node electric field. When this order is reversed, the design often becomes electrically functional but unnecessarily noisy, hotter, and less repeatable.

From an application perspective, the CSD95379Q3M is especially well suited to point-of-load rails that must respond to rapid current transients while fitting into limited footprint. Processor-adjacent rails are a strong example. In such rails, load-step performance depends on both controller strategy and power-stage responsiveness. An integrated stage with low parasitic switching behavior helps the converter maintain cleaner edges and better dynamic control, which can reduce the burden on output capacitance in some operating windows. Similar advantages appear in networking and telecom cards, where multiple distributed rails compete for area and airflow. There, the compact package and controller compatibility simplify rail replication across a board without creating a large BOM or placement penalty.

For notebook and tablet-class systems, the blend of efficiency, light-load support, and compact implementation is particularly attractive. These platforms rarely operate at one steady current. They swing between sleep, idle, burst compute, display-related load changes, and charging-related system states. A power stage that can remain efficient and well behaved across these transitions is more valuable than one optimized only for continuous heavy load. The CSD95379Q3M fits this pattern well because its feature set aligns with dynamic power-state operation rather than with a single narrow performance point.

A useful way to evaluate this device is to view it as an integration tool for reducing design entropy. Discrete MOSFET-and-driver implementations can still outperform integrated stages in some highly customized designs, especially when thermal spreading area is abundant and switching frequency is moderate. But in compact, schedule-driven products, integration often wins because it collapses several tuning variables at once: driver-MOSFET compatibility, gate-loop control, package parasitics, and placement complexity. That tends to shorten validation cycles and reduce the number of late-stage surprises. In practice, this predictability is often as valuable as a small gain in absolute efficiency.

The CSD95379Q3M stands out as a highly optimized choice for dense synchronous buck converters where footprint, efficiency, transient behavior, and system power-state performance must be balanced together. Its integrated driver and NexFET architecture give it a strong foundation for modern POL design, but its real success depends on disciplined execution around thermal spreading, input decoupling, bootstrap routing, and switching-loop containment. Used with that level of care, it becomes more than a compact power stage; it becomes a reliable building block for high-density power delivery systems.
