CD74ACT541M96

Texas Instruments CD74ACT541M96 Product Overview

Texas Instruments CD74ACT541M96 is an octal non-inverting buffer and line driver with 3-state outputs in the 74ACT logic family. At the device level, it combines eight parallel buffer channels with two active-low output-enable inputs, allowing the outputs to switch between driven logic states and high-impedance isolation. This structure makes it well suited for digital systems where one logic source must be distributed cleanly to multiple destinations, or where several devices share a common bus and require deterministic output handoff.

The functional value of this device is not just that it repeats logic states. Its real role is signal reinforcement at the interface boundary between logic generation and logic distribution. In many 5 V digital designs, the limiting factor is not logic correctness at the source pin, but degradation across interconnect, capacitive loading, simultaneous fanout, and edge-rate distortion at the receiver side. CD74ACT541M96 addresses that problem by providing stronger output stage drive than standard logic gates, while preserving non-inverting logic behavior and adding bus-friendly output control. That combination is often more useful than adding discrete gates, because it centralizes buffering, reduces skew variation across channels, and simplifies enable management.

The internal organization reflects common bus and interface design patterns. Eight channels are grouped into a single wide datapath, which maps naturally to byte-oriented processor buses, memory interfaces, latch stages, and general digital backplane routing. The two output-enable pins control output activation, typically in grouped fashion, so the device can be inserted between a source and a shared destination network without forcing constant bus ownership. When disabled, outputs enter a high-impedance state, effectively disconnecting the device from the bus. This is essential in multi-device systems where bus contention can create excessive current spikes, logic corruption, or long-term reliability stress. In practice, the 3-state feature is often the actual reason this device is selected, while the buffering function becomes the performance enabler.

The 74ACT family positioning is important for understanding its electrical behavior. ACT devices are advanced CMOS implementations designed to provide TTL-compatible input thresholds while retaining CMOS-style low static power characteristics. That makes CD74ACT541M96 particularly attractive in mixed-logic environments where upstream devices may not swing rail-to-rail in the ideal CMOS sense but still need to interface reliably into a 5 V distribution stage. This detail matters in legacy processor systems, FPGA support logic operating with 5 V-tolerant conventions, and control boards that mix older TTL-oriented peripherals with CMOS-based glue logic. A buffer that only matches logic function but not threshold behavior can appear correct in a schematic yet become marginal in hardware. Devices in the ACT class reduce that risk.

Texas Instruments specifies balanced propagation delays, which is more significant than it may appear in a brief datasheet summary. In wide buses, delay symmetry across bits helps maintain timing coherence between channels. If one bit path lags noticeably behind another, setup and hold margins at downstream devices begin to erode, especially when the bus is clocked near its practical limits or when trace lengths are already mismatched. A device like CD74ACT541M96 is therefore not only a drive-strength element but also a timing-conditioning component. It creates a more controlled launch point for all eight signals. In board-level practice, this can simplify timing closure because the designer is managing one known buffer stage rather than eight independent, unevenly loaded source pins.

The ±24 mA output drive capability is another major selection factor. That specification places the device in a category suited for real interconnect work rather than purely symbolic logic translation on a schematic. When a bus must feed several inputs, pass through connectors, or cross a board with appreciable parasitic capacitance, output current directly affects edge integrity and timing. Stronger drive allows the output stage to charge and discharge line capacitance faster, reducing rise/fall degradation and preserving noise margin at the receiving end. At the same time, drive strength should not be treated as a free gain knob. Excessive edge speed can increase ringing, overshoot, undershoot, and ground bounce if routing and decoupling are weak. In that sense, CD74ACT541M96 is most effective when used as part of an interconnect strategy, not as a standalone fix for poor layout.

The ability to drive 50-ohm transmission lines makes the device especially relevant in designs where traces are electrically long relative to edge rate. Once transition times become fast enough, a PCB trace is no longer just a wire; it behaves as a transmission structure with characteristic impedance, reflection behavior, and termination sensitivity. The line-driver framing in the product description is therefore accurate. This is not merely a logic buffer for local gate-to-gate connection. It can serve as the active launch stage into controlled-impedance routing, especially for medium-speed parallel digital buses on larger boards or between board sections. In these use cases, the designer should think in terms of source impedance, load placement, and reflection windows rather than only VIH and VIL levels. The strongest designs treat the CD74ACT541M96 as part of the signal path physics.

Fanout to 15 FAST ICs further indicates its intended system role. Fanout specifications are often read casually, but they encapsulate both current drive capability and input loading assumptions. In practical engineering terms, this means one device can replicate a digital control or data pattern across a moderate number of downstream loads without requiring a buffer tree. That is useful in address expansion, control signal distribution, and replicated enable paths. Still, fanout numbers should be treated as a first-order guideline. Actual board performance depends on trace topology, capacitive aggregation, receiver technology, and simultaneous switching behavior. A distributed star topology with long branches may fail earlier than the nominal fanout value suggests, while a tightly routed bus with short drops may perform comfortably.

The operating supply range of 4.5 V to 5.5 V places the device firmly in the standard 5 V logic domain. This is an advantage in systems that still rely on 5 V signaling for noise margin, peripheral compatibility, or direct interfacing to legacy components. It also means the device is not a universal fit for newer low-voltage cores without careful interface planning. In mixed-voltage systems, it is easy to misuse a strong 5 V buffer where a level-translating or overvoltage-tolerant solution is actually required. The CD74ACT541M96 should therefore be selected when the design intent is robust 5 V bus buffering, not generic logic adaptation. The distinction matters because many intermittent field issues come from using a buffer to solve a level problem it was never designed to address.

The ambient operating temperature range of -55°C to 125°C supports deployment in industrial, automotive-adjacent control environments, outdoor instrumentation, and harsh embedded platforms where thermal variation cannot be ignored. Wide temperature capability is more than a qualification checkbox. It provides design margin against threshold drift, propagation shift, output drive variation, and leakage changes across environmental extremes. In systems exposed to cold start conditions or enclosed high-temperature operation, logic parts with narrower temperature limits often become hidden reliability constraints. Here, the specified range gives confidence that the part can remain electrically predictable under conditions that would already be stressing clocks, regulators, and connectors.

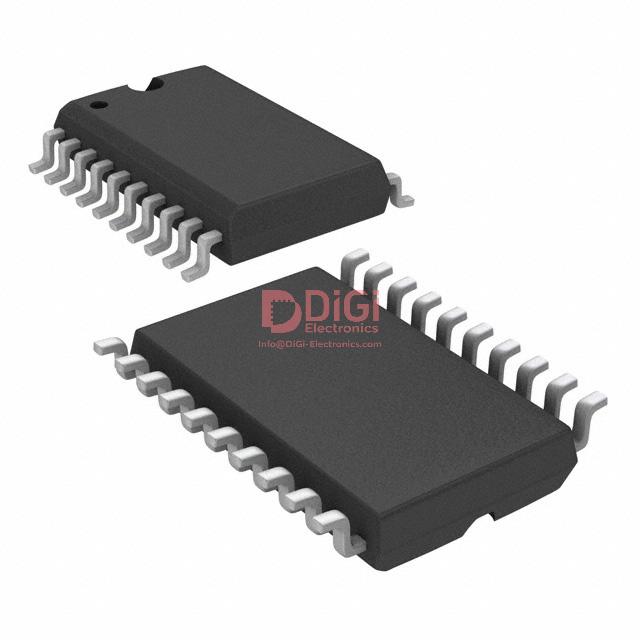

The CD74ACT541M96 variant is supplied in a 20-pin SOIC package for surface-mount assembly. From a layout and manufacturing perspective, this package fits well into mainstream automated assembly flows and supports compact routing for byte-wide buses. The pin count and footprint are manageable enough for dense digital boards while still offering practical solderability and inspection. In board implementation, the most important placement choice is usually not the package itself but its location relative to the signal source and the interconnect being driven. For bus reinforcement, the part is generally most effective when placed near the driver side of a long route, so it launches a clean edge into the trace. If placed too close to the receiving end, it may leave the upstream segment under-driven and fail to control the main reflection behavior.

In application scenarios, the device is a strong fit for processor-to-memory glue logic, expansion bus buffering, address and control line distribution, LED or display interface staging where logic loading accumulates, and backplane-connected digital modules. It also works well as an isolation stage between a timing-sensitive controller and a noisy shared digital domain. In these cases, the two enable pins can be used not only for bus arbitration but also for staged startup behavior, fault containment, or selective interface muting during reconfiguration. That flexibility is often underused. A buffer with tri-state control can become a low-cost architectural boundary, separating subsystems during reset, firmware update, hot-plug sequencing, or test access.

A useful design pattern is to treat the CD74ACT541M96 as a deterministic bus launcher. Instead of driving a wide external interface directly from a controller pin bank with uneven loading, the controller can feed the buffer locally through short traces, while the buffer drives the longer or heavier network. This arrangement reduces stress on the controller, normalizes loading across bits, and often improves EMC behavior because the switching current is localized around a well-decoupled interface device. The improvement is rarely dramatic in a schematic, but it is often visible on an oscilloscope, where edge shape and settling become much cleaner.

Decoupling and grounding deserve explicit attention with this part. A wide buffer switching multiple outputs simultaneously can generate substantial transient current. Local bypass capacitance placed close to the supply pins is essential, and the return path should be short and low inductance. If several outputs change at once into significant loads, supply bounce can distort thresholds and create false switching elsewhere in the logic domain. This is not a flaw in the device; it is a normal consequence of fast edges and real package parasitics. In practice, stable operation depends as much on power-distribution discipline as on the logic device selection itself.

Viewed as a component choice, CD74ACT541M96 is best understood as a board-level signal integrity tool packaged as a logic IC. Its value lies in the combination of byte-wide organization, 3-state bus compatibility, TTL-threshold ACT inputs, strong output drive, and timing consistency across channels. For 5 V digital systems that must move parallel signals cleanly across real interconnect, it offers a practical and mature solution. The strongest designs use it deliberately: not just to make a signal stronger, but to define ownership, shape timing, and control how digital energy enters the physical bus.

Texas Instruments CD74ACT541M96 Device Family Positioning and Functional Role

Texas Instruments CD74ACT541M96 is best understood as a 5 V, octal, non-inverting buffer/line driver with 3-state outputs, positioned for systems that still rely on TTL-compatible signaling behavior but need the lower static power and integration advantages of CMOS. It sits in the CD54/74AC/ACT540/541 family, where the architectural split is simple but important: 540 devices invert, 541 devices do not. For the CD74ACT541M96, the signal presented at each input appears at the corresponding output unchanged when the device is enabled, which makes it a natural fit for bus isolation, fan-out expansion, and interface staging where signal polarity must be preserved.

The more meaningful distinction is not the 540 versus 541 naming, but the AC versus ACT logic-family behavior. AC devices are designed for a wider supply range, typically 1.5 V to 5.5 V, while ACT devices target 4.5 V to 5.5 V operation and provide TTL-compatible input thresholds. That combination defines the CD74ACT541M96 much more precisely than the part number alone: it is a 5 V CMOS buffer optimized for direct interaction with classic TTL-style logic levels. In board-level design, that matters because many legacy controllers, glue-logic chains, peripheral ASICs, and industrial backplanes do not produce rail-to-rail CMOS-high levels under all conditions. A pure AC input may demand a higher VIH, while ACT input structures accept the lower high-level voltages typical of TTL outputs. This is often the difference between a buffer that is theoretically compatible and one that is electrically comfortable across process, temperature, and noise margin variation.

Functionally, the device implements eight parallel non-inverting buffer channels with 3-state outputs, typically arranged for bus-oriented use. The 3-state feature is not just a convenience; it is the mechanism that allows multiple devices to share a common data path without hard contention. When disabled, the outputs enter a high-impedance state, effectively disconnecting the device from the bus. In practice, this supports memory buses, peripheral expansion paths, FPGA-to-peripheral breakout, and address/data multiplexing schemes where only one source should actively drive a line at a time. In older 5 V systems especially, the 541 class became a standard building block because it solves three recurring problems at once: it increases drive capability, reduces loading on upstream logic, and provides deterministic bus isolation.

At the circuit level, the CD74ACT541M96 reflects the broader value proposition of ACT logic: CMOS internal implementation with switching performance shaped for fast digital interfacing. Compared with bipolar FAST or AS/ALS style devices, CMOS sharply reduces static supply current, which becomes relevant when many buffers are distributed across a control board. That reduction in quiescent dissipation improves thermal margin and power budget stability, especially in systems that remain energized continuously. At the same time, ACT devices retain the transition speed and output-drive characteristics needed for practical line-driving tasks, so the part is not merely a low-power replacement. It is better viewed as a balance point between robust signal distribution and manageable power behavior.

Texas Instruments also highlights SCR-latchup-resistant construction. That phrase is easy to gloss over, but it points to a real reliability concern in CMOS systems. Latch-up is a parasitic thyristor effect that can be triggered by transient overvoltage, undershoot, sequencing faults, or injected current at the pins. Once triggered, it can create a low-impedance path between supply rails, leading to excessive current and potential device failure unless power is removed. In field hardware, the risk is not hypothetical. Long traces, connector hot-plug events, inductive loads nearby, and poorly controlled ground differentials can all create the kind of stress that exposes weak latch-up immunity. A latchup-resistant CMOS buffer therefore contributes more than durability; it reduces the need to overcompensate with external protection in moderately harsh digital environments.

From an application perspective, the CD74ACT541M96 is most effective when used as a signal integrity tool rather than just a logic extender. A common design mistake is to treat octal buffers as generic “more drive” blocks without considering where they should sit in the signal path. In practice, they are most valuable when placed at boundaries: between a weak controller output and a capacitive cable, between a timing-sensitive logic source and a heavily loaded backplane segment, or between two logic domains that share voltage class but differ in loading and trace topology. Used this way, the device acts as an electrical firewall. It localizes capacitance, sharpens edge delivery to downstream nodes, and shields the upstream device from bus disturbances.

That said, stronger edges are not automatically better edges. ACT outputs switch quickly, and in compact layouts this is usually beneficial, but on longer traces or unterminated interconnects the same fast transition can increase ringing, overshoot, and ground bounce. Experience with legacy 5 V boards shows that replacing an older slow bipolar buffer with a faster CMOS ACT device can solve logic-level margin issues while creating waveform-quality problems that were previously hidden. The right engineering response is not to avoid the part, but to design around its edge rate: keep return paths tight, avoid fragmented reference planes, watch simultaneous switching outputs, and add modest series damping where trace length and load discontinuity justify it. In many cases, a small resistor at the driver side does more for real bus reliability than chasing nominal propagation delay numbers.

The non-inverting behavior of the 541 variant also matters in system architecture because it preserves software-visible bit mapping and simplifies diagnostics. Inverting buffers are sometimes electrically interchangeable if firmware or wiring is adjusted, but in serviceable equipment that trade usually increases confusion. With a 541, logic analyzers, boundary checks, and board bring-up remain intuitive because the observed output state directly matches the commanded input state when enabled. That reduces interpretive overhead during validation and fault isolation, especially in dense parallel interfaces where multiple control signals change together.

The enable structure deserves similar attention. In bused systems, output-enable timing is often as important as propagation delay. If one device releases a bus too late while another asserts too early, contention currents can become significant even when the overlap is brief. With octal drivers, this can produce current spikes, local supply dip, and intermittent data corruption that appears random at the system level. The practical lesson is that enable timing should be treated as a first-class timing path, not as a secondary control detail. The CD74ACT541M96 is well suited for bus arbitration and multiplexed interfaces, but only when disable-to-high-impedance and enable-to-valid timing are accounted for explicitly in the design budget.

In mixed-logic systems, the CD74ACT541M96 often occupies an interesting middle ground. It is not a voltage translator in the modern sense, since it is fundamentally a 5 V device, but it can bridge compatibility gaps among 5 V TTL-like sources, CMOS subsystems, and bus-oriented loads. This makes it especially relevant in retrofit designs, controller upgrades, and industrial maintenance programs where one section of the platform is modernized while the rest remains electrically conservative. In these settings, the part frequently serves as a stabilizing element: it decouples new logic from old bus loading assumptions and restores predictable drive behavior without requiring a full interface redesign.

A useful way to think about the device family is that AC parts optimize around CMOS-level flexibility, while ACT parts optimize around 5 V system interoperability. For the CD74ACT541M96, that interoperability is the real product identity. The non-inverting octal 3-state function is the visible feature, but the deeper engineering value is that it lets a 5 V digital design preserve signal meaning, maintain TTL-level compatibility, and improve load-driving robustness using a CMOS implementation that is both faster and more power-efficient than many older alternatives. In legacy and industrial platforms where electrical margins matter more than headline novelty, that combination remains technically relevant and, in many cases, difficult to replace with something simpler.

Texas Instruments CD74ACT541M96 Core Functional Architecture

Texas Instruments CD74ACT541M96 is fundamentally an octal non-inverting buffer and line driver built around eight parallel signal paths, mapping A0–A7 directly to Y0–Y7. Its internal behavior is combinational rather than sequential. There is no data storage, no clock domain interaction, and no state retention. Each channel simply reproduces the logic level present at its input when the device is enabled. This directness is the key to understanding its role in a digital system: it is not used to transform protocol timing, but to reinforce signal integrity, isolate loading, and control when a signal group is allowed to drive a shared destination.

The output stage architecture is what gives the device its practical value. With OE1 and OE2 both asserted low, all eight output drivers become active and the Y pins follow the corresponding A pins with non-inverting polarity. If either enable input is deasserted high, the output stage for the entire octal group transitions to a high-impedance state. In that condition, the outputs are electrically disconnected from the bus from the system’s point of view, allowing other devices to drive the same lines without direct contention. This tri-state behavior is not just a logic convenience; it is the mechanism that turns the part from a simple buffer into a controlled bus interface element.

The dual active-low enable structure is more important than it may first appear. At a schematic level it seems like a minor gating feature, but architecturally it enables two independent control domains to supervise the same driver bank. One enable can be tied to a coarse-grained system-level arbitration signal, while the other is driven by local address decode, state-machine logic, or board-level qualification. This separation reduces glue logic and improves fault containment. In shared backplane or memory-mapped bus designs, that extra degree of control can prevent transient overlap between multiple drivers, especially during mode changes, reset release, or asynchronous subsystem startup. In practice, using one enable as a hard safety gate and the other as the normal functional select path often results in a cleaner and more debuggable design.

From a device-role perspective, CD74ACT541M96 should be treated as a signal-drive resource rather than a data-handling resource. It does not correct timing relationships, remove glitches, or stabilize asynchronous transitions. If a noisy decode pulse appears at the input, the output will reproduce it. If upstream logic violates the intended switching sequence, the buffer will not mask that behavior. This is a useful design property when transparency is required, but it also means the surrounding logic must already be well behaved. The part is therefore most effective in systems where the logical decision has already been made elsewhere and the remaining requirement is to distribute that decision across heavier loads, longer traces, or a shared bus segment.

At the electrical interface level, the ACT family is designed to combine TTL-compatible input thresholds with high-speed CMOS-style output drive behavior. That makes the device especially useful in mixed-logic environments where upstream stages may not swing rail-to-rail in the same way as pure CMOS logic. This compatibility reduces interface risk in legacy expansions, processor glue logic, and mixed-vendor digital subsystems. A practical benefit appears when older TTL-like sources are asked to drive multiple CMOS inputs or long interconnects. Direct connection may meet static logic thresholds on paper but still produce weak noise margin or slow edge behavior under load. Inserting a device such as the CD74ACT541M96 re-establishes cleaner logic levels and restores predictable edge quality at the receiving side.

Its value in fanout expansion is straightforward but often underestimated. As digital nets grow beyond a few loads, the cumulative input capacitance of downstream devices and trace parasitics begins to degrade rise and fall times. This degradation does not always show up first as outright logic failure. More often it appears as shrinking timing margin, increased susceptibility to crosstalk, or greater sensitivity to process and temperature spread. Buffering the net with an octal line driver localizes that capacitive burden to the driver output stage and relieves the original source. This partitioning is one of the cleaner ways to preserve timing closure in board-level logic without redesigning the upstream device selection.

In bus-interface applications, the part is particularly effective when a group of related signals must be enabled and disabled together. Address buses, control buses, and parallel data paths often need exactly this form of grouped management. Because all eight channels share the same enable control, the device naturally fits use cases where byte-wide or control-word-wide coherency matters. It ensures the bus is either fully driven or fully released as one unit. That behavior simplifies timing analysis compared with solutions that gate lines individually, where skew between enables can create short invalid windows. For systems sensitive to contention, this grouped tri-state behavior is often more valuable than raw propagation speed.

A subtle but important design consideration is that line drivers like this one improve distribution, but they do not automatically solve signal integrity problems caused by poor topology. If the output is routed into long unterminated traces, star branches, or heavily mismatched loads, the stronger edge rates can actually make ringing more visible. In other words, drive strength is beneficial only when the interconnect strategy is coherent. A well-buffered bus with disciplined routing usually performs better than a direct connection, but an overdriven and poorly terminated network may simply fail faster. The device should therefore be viewed as part of a channel design, not as a universal cure for weak signaling.

The enable path also deserves timing attention. Because the outputs can switch between active drive and high impedance, OE control effectively participates in bus timing just as much as the data inputs do. If enable deassertion occurs too late relative to another device taking ownership of the bus, even a brief overlap can create shoot-through current and logic disturbance. If enable assertion occurs before input data is stable, invalid data can be driven onto the bus. In practical implementations, it is often safer to design the control sequence so that bus release happens first, then data changes, then bus drive is asserted after a defined guard interval. This approach trades a small amount of dead time for significantly better robustness.

In transparent buffering applications, another useful pattern is to place the CD74ACT541M96 at the boundary between a timing-sensitive source and a physically distributed load cluster. The source then only needs to drive the relatively small input capacitance of the buffer, while the buffer handles the heavier external fanout. This arrangement is common in processor support logic, FPGA expansion headers, and memory control distribution. It also simplifies rework and measurement, since the buffer creates a natural observation and isolation point during validation. When debugging marginal edges or unexplained bus interaction, having that boundary often shortens the path to root cause.

A broader architectural insight is that parts like the CD74ACT541M96 remain relevant not because they add logic complexity, but because they reduce electrical ambiguity. In many digital designs, functional logic is easy to describe while physical signal behavior is what actually limits reliability. An octal buffer with tri-state control sits exactly at that boundary. It converts a nominal logic connection into a managed interface with defined ownership, better load isolation, and stronger output drive. That is why it appears repeatedly in designs that must remain stable across board revisions, cable options, and varying subsystem combinations.

Used correctly, the device serves three main purposes at once: it replicates logic state without inversion, it increases the effective drive capability of upstream logic, and it enforces controlled participation on shared lines through its dual active-low enables. Those functions make it well suited for fanout management, bus isolation, address and control distribution, and mixed-logic interfacing where transparency is required but direct loading would be risky. The most effective designs treat it not as a generic buffer dropped in late, but as an intentional boundary element between logic generation and signal distribution.

Texas Instruments CD74ACT541M96 Pin Configuration and Signal Organization

Texas Instruments CD74ACT541M96 is an octal non-inverting buffer/line driver with 3-state outputs, packaged in a 20-pin form factor that is intentionally organized for clean byte-wide signal handling. Its pin configuration is not just a packaging detail; it directly reflects the device’s role in bus isolation, fan-out improvement, and layout simplification. When viewed from a board-level design perspective, the pin arrangement reduces routing ambiguity and helps preserve signal ordering across 8-bit data paths.

The functional pin set is compact and predictable:

VCC provides the positive supply rail.

GND provides the reference ground.

OE1 and OE2 are active-LOW output-enable controls.

A0 through A7 are the logic inputs.

Y0 through Y7 are the buffered, non-inverting, 3-state outputs.

The central structural idea is one-to-one signal mapping. Each input channel A0 to A7 feeds the corresponding output channel Y0 to Y7 without inversion or bit reordering. That direct relationship matters in parallel digital systems because it removes unnecessary logical translation at the component level. In practice, this lowers the chance of schematic errors, reduces net-name remapping during PCB layout, and makes design review faster because the visual relationship between source and destination remains obvious.

The dual enable architecture, OE1 and OE2, deserves more attention than it typically gets. Both pins are active LOW, and both must be asserted appropriately for the outputs to drive. If either enable condition is not met, the outputs enter the high-impedance state. Electrically, this allows the device to disconnect from a shared bus without altering the logic state present elsewhere on that bus. In system terms, the part can act as a controllable interface boundary between a driving domain and a receiving domain. This is especially useful in backplane-style interconnects, memory buses, FPGA expansion paths, and microprocessor subsystems where multiple devices may need time-multiplexed access to common traces.

From a signal-organization standpoint, the pinout supports a natural left-to-right or source-to-destination routing model. Inputs are grouped as a byte, outputs are grouped as the corresponding byte, and the enable pins sit as control points for the entire bank. That organization is beneficial when the buffer is inserted between two physically separated logic regions on a PCB. Rather than crossing signals to satisfy an awkward internal mapping, traces can often be kept short, parallel, and visually ordered. This tends to improve not only readability but also electrical behavior, because cleaner routing usually means fewer discontinuities, less skew variation between bits, and fewer opportunities for coupling caused by unnecessary trace crossover.

At the logic level, CD74ACT541M96 is non-inverting, so the output state follows the input state when enabled. This characteristic makes it suitable for transparent buffering rather than logic manipulation. The device is therefore most effective when the design problem is electrical rather than algorithmic: insufficient drive strength, excessive bus loading, the need to isolate a sensitive source from downstream capacitance, or the requirement to implement controlled bus connection and disconnection. It is often a mistake to think of this class of part as merely a “repeater.” In many systems, it functions more accurately as a boundary conditioner that protects timing margins by reshaping loading conditions seen by upstream logic.

The ACT logic family context is also important. CD74ACT541M96 belongs to the Advanced CMOS logic family with TTL-compatible input thresholds, which makes it valuable in mixed-logic environments where legacy TTL-level outputs must reliably interface with CMOS-based buffering. That compatibility can eliminate the need for dedicated level-adaptation logic in 5 V systems. However, this convenience should not be interpreted too broadly. The part is not a universal voltage translator. Its usefulness depends on the supply domain and the actual VIH/VIL requirements of the surrounding devices. In real designs, interface assumptions around thresholds are a common source of subtle failures, especially when a schematic appears logically correct but the voltage margins are not rigorously checked.

The 3-state output behavior expands the application range significantly. When disabled, Y0 through Y7 present a high-impedance condition, effectively removing the device from the active signal path. This enables bus sharing and controlled segmentation. For example, one section of a board may generate data continuously while another section should only see that data during selected operating windows. By driving the enable pins from a decode or arbitration signal, the CD74ACT541M96 can provide deterministic connection control without changing the logical content of the bus. In dense digital assemblies, this is often cleaner than redesigning the source logic to support direct multi-drop driving.

There is also a practical layout advantage in the one-to-one pin mapping that becomes obvious during board implementation. In byte-wide buses, net swapping is sometimes acceptable from a functional standpoint, but it complicates debug and documentation. When A3 no longer lands on Y3 in the physical design, every oscilloscope check, boundary scan interpretation, and bring-up note becomes slightly harder to follow. A straightforward A-to-Y correspondence keeps the mental model aligned with the physical board. That simplicity pays back during validation, rework, and field analysis, where time is often lost not on difficult circuit theory but on avoidable traceability issues.

The placement of OE1 and OE2 can also be exploited for control partitioning. Although both pins affect the output bank, they allow flexible integration with system control logic. One enable might be tied to a global output-enable condition, while the other is driven by a local chip-select or bus-arbitration signal. This arrangement creates a simple hardware interlock. It is a small architectural detail, but in larger systems it can prevent accidental bus contention during reset sequencing or partial-power operating states. Designs that appear stable in steady-state operation often fail during startup, shutdown, or asynchronous handoff conditions, and gated enable structure is one of the simplest ways to harden that behavior.

In application scenarios, the device fits naturally between a source bus and a destination bus when the logic family, supply voltage, and timing budget are already compatible. Common examples include buffering data outputs from a microcontroller to a peripheral connector, isolating address or control lines that fan out across multiple loads, and inserting a controlled drive stage between programmable logic and an external subsystem. It is also useful when a design needs stronger output drive without altering bit polarity or introducing protocol-level changes. In these cases, the device adds electrical robustness while remaining logically transparent.

Timing and loading should still be treated as first-class concerns. Even with direct one-to-one mapping, a buffer is not electrically invisible. It adds propagation delay, output transition characteristics, and enable/disable timing that must be included in the bus analysis. In slower systems this overhead is usually negligible, but in tightly timed interfaces the enable path can matter as much as the data path, especially if bus ownership changes dynamically. A disciplined design approach checks not only steady-state logic levels but also transient overlap windows where two devices could briefly drive the same line.

The documentation for the 541 family typically illustrates the non-inverting signal path clearly, showing that each input channel propagates directly to its matching output channel under control of the active-LOW enable structure. That visual model is useful because it matches how the part behaves in real hardware: as a cleanly organized, byte-oriented buffer stage. The stronger insight is that this organization reduces system friction. It simplifies schematics, keeps PCB routing intuitive, preserves bus ordering, and supports controlled connection to shared digital resources. When supply compatibility and threshold margins are properly verified, CD74ACT541M96 integrates with very little translation overhead and serves as a reliable building block for structured parallel digital design.

Texas Instruments CD74ACT541M96 Electrical Operating Range and Environmental Limits

Texas Instruments CD74ACT541M96 is specified for 5 V ACT logic operation, and its usable electrical window is intentionally narrow enough to guarantee switching performance while still giving practical margin for regulated systems. Under recommended conditions, VCC must remain between 4.5 V and 5.5 V. That range is not just a power requirement; it defines the region in which input thresholds, propagation delay, output drive capability, and noise margins are characterized. Designing near the center of this window, rather than at its edges, usually produces the most stable timing and the least sensitivity to supply ripple, ground bounce, and temperature drift.

Input and output voltages are recommended from 0 V to VCC during normal operation. In engineering terms, this means the device is intended to operate as a standard rail-referenced CMOS/ACT buffer without routine overdrive beyond the supply rails. Once a signal exceeds those rails, internal protection structures begin to participate, and the part is no longer behaving as a purely logic-level element. That distinction matters in mixed-voltage systems, hot-plug conditions, long-cable interfaces, or backplane environments where transient overshoot is common. A design may appear functionally correct on the bench while still stressing the input clamp network on every transition.

The ambient operating range of -55°C to 125°C is unusually broad for general logic and is one of the stronger attributes of this device. It supports use in industrial controls, defense-adjacent hardware, outdoor instrumentation, high-temperature enclosures, and other thermally variable platforms. However, wide temperature capability should not be interpreted as temperature immunity. At low temperature, edge rates can sharpen and internal delays shift; at high temperature, leakage rises, noise margins can compress slightly, and sustained load current becomes more relevant. In dense boards, the actual semiconductor junction temperature can exceed ambient by a meaningful amount, especially when multiple outputs switch simultaneously into capacitive loads. In practice, thermal headroom is often consumed less by static dissipation than by repetitive dynamic switching and output loading.

Absolute maximum ratings define survival boundaries, not operating goals. For CD74ACT541M96, the supply voltage stress limit is -0.5 V to 6 V. This does not imply usable logic performance above 5.5 V; it only means permanent damage is not expected if the device is exposed briefly within that boundary. The same interpretation applies to input and output stress limits. If a design routinely approaches absolute maximum conditions, long-term reliability becomes difficult to defend even if no immediate failure is observed. A robust design usually keeps normal worst-case conditions comfortably separated from these limits, especially when production spread, ringing, and power-sequencing events are considered.

The specified input diode current limit of ±20 mA and output diode current limit of ±50 mA reflect the presence of internal clamp paths. These paths are helpful for ESD and transient absorption, but they are not intended to serve as continuous current-handling mechanisms. If an input goes above VCC or below ground, current can flow through these diodes and effectively inject charge into the supply or substrate. In lightly loaded systems this may cause only localized stress; in more complex assemblies it can create phantom powering, latch-up risk amplification, or sequencing anomalies. A recurring pattern in board-level debug is that a logic buffer appears to “partially wake up” through an I/O pin when a neighboring device drives the line before VCC is valid. Series resistors, sequencing control, or rail-clamp management usually solve this more cleanly than relying on the device’s intrinsic protection network.

The output source or sink current rating of ±50 mA per output pin also requires careful interpretation. It is a stress ceiling, not a recommended continuous drive level for logic integrity. At high output current, VOH and VOL degrade, edge shape changes, simultaneous switching noise increases, and package-level current distribution becomes a limiting factor. The more system-relevant constraints are often the total VCC or ground current limits, both rated at ±100 mA. That means the device cannot be treated as eight independent 50 mA drivers operating at once. The package current paths, bond wires, and leadframe impose aggregate limits that become visible as ground bounce, supply droop, and timing uncertainty before outright damage occurs. In practical design reviews, this is one of the first places where theoretical pin-level capability diverges from board-level reality.

Storage temperature from -65°C to 150°C indicates mechanical and material survivability outside powered operation. This is useful for logistics, transportation, and harsh-environment qualification planning. Still, repeated excursions to extreme storage conditions can interact with solder joint fatigue, packaging stress, and board-level material expansion in ways not captured by the logic datasheet alone. For long-life products, component capability should be aligned with the full assembly stack, not considered in isolation.

The ESD rating of ±2000 V under the standard handling model indicates a reasonable level of intrinsic protection for manufacturing and field service environments that follow controlled procedures. It is enough to support conventional grounded handling workflows, but it should not be mistaken for immunity at the system interface. Device-level ESD ratings and system-level surge robustness are different design domains. A part can survive standard component handling yet still fail when exposed to cable discharge events, connector hot-plug transients, or inductive ringing on long traces. Where this buffer sits close to external connectors or noisy harnesses, external suppression, controlled impedance routing, and current-limiting techniques remain important. The most reliable layouts treat internal ESD structures as a last line of defense, not the primary one.

From an assembly and supply-chain perspective, RoHS compliance simplifies environmental acceptance, and MSL 1 is favorable because it removes most special moisture-control burdens during standard floor life and reflow preparation. This helps in contract manufacturing environments where mixed component sensitivity levels can complicate kitting and bake procedures. Even so, good storage discipline still matters. MSL 1 reduces process friction, but it does not compensate for poor reel handling, oxidation issues, or repeated thermal exposure during rework.

A useful way to think about CD74ACT541M96 is as a fast 5 V logic buffer that rewards conservative margins. It performs best when the power rail is tightly regulated, input signals remain strictly within the rails, output loading is distributed rather than concentrated, and transient energy is controlled before it reaches the pins. In many designs, failures attributed to “logic IC weakness” are actually consequences of unmanaged sequencing, excessive capacitive loading, or allowing stress ratings to become routine operating conditions. Keeping the part well inside its characterized region generally yields predictable timing, cleaner switching behavior, and much stronger field reliability across the full temperature range.

Texas Instruments CD74ACT541M96 Output Drive Capability and Logic-Level Characteristics

Texas Instruments CD74ACT541M96 is not just an octal buffer with 3-state outputs; its real value appears when a logic node must be converted from “functionally valid” to “electrically robust.” In many 5 V digital systems, the limiting factor is not logic correctness at the source device but whether the signal can still meet threshold, timing, and noise-margin requirements after fanout, trace parasitics, connector loss, and shared bus loading are added. The CD74ACT541M96 addresses that gap by combining TTL-compatible input thresholds with comparatively strong push-pull output drive, making it a practical signal-distribution stage rather than a simple repeater.

The specified ±24 mA output drive is central to that role. Source and sink strength matter because digital interconnect rarely behaves symmetrically. A node may charge multiple input capacitances, then discharge through return-path inductance and trace resistance under a different edge condition. A device that can both source and sink substantial current maintains more predictable edge placement and logic-level stability across varying load conditions. In practice, this means the CD74ACT541M96 can support higher fanout, tolerate less ideal routing, and reduce the risk that a valid logic waveform at the source becomes marginal at the destination. That distinction becomes important when one output must feed several devices, long backplane traces, or off-board interfaces buffered only at one end.

Its input thresholds are equally important. At VCC = 4.5 V, VIH is specified at 2.0 V minimum and VIL at 0.8 V maximum. These are classic TTL-style thresholds, implemented within an ACT CMOS process. That combination is often more valuable than it first appears. In mixed-logic systems, not every upstream driver produces a rail-to-rail high level under dynamic load. Some legacy TTL outputs, older bus controllers, and certain open-collector or weakly pulled-up nodes can still present a legal high above 2.0 V while falling short of a CMOS-style high threshold. A pure CMOS-input buffer would treat that region with much less margin. The CD74ACT541M96 avoids that problem and effectively acts as a compatibility layer between logic families while preserving the low static power and dense integration expected from CMOS.

This TTL-compatible thresholding has a second-order system advantage: it decouples recognition margin from output swing margin. The device can accept a relatively modest logic-high input but regenerate a much stronger, near-rail output. That regeneration behavior is one of the most useful properties in large digital assemblies. A degraded upstream waveform does not need to be passed downstream in degraded form. Instead, as long as the input still lands safely inside the valid logic window, the CD74ACT541M96 reconstructs the signal with stronger edge drive and improved output-level compliance. In board-level design, this often produces a bigger reliability gain than the nominal fanout number alone suggests.

The output-voltage specifications show how this regeneration holds up under load. At 4.5 V supply, VOH is specified at 4.4 V under light load and 3.94 V at -24 mA. VOL is specified at 0.1 V under light load and 0.36 V at 24 mA. These are strong numbers for a logic buffer intended to sit between a controller and distributed digital loads. The important interpretation is not just that the part can deliver current, but that it does so while retaining useful noise margin. A high-level output near 3.94 V under heavy source current still leaves substantial headroom above a 2.0 V TTL-style input threshold. Likewise, a low-level output of 0.36 V under full sink load remains comfortably below a 0.8 V low threshold. That separation is what keeps a system stable when simultaneous switching, supply droop, or local ground movement begins to compress the effective logic window.

From a signal-integrity perspective, the device is best viewed as an impedance-lowering and noise-margin-restoring stage. Each additional receiving input contributes capacitance, leakage, and sometimes stub inductance. Long traces add distributed capacitance and can create edge-rate-dependent ringing. Connectors introduce discontinuities, and shared ground paths convert output current into transient local reference shifts. A weak logic output may still toggle correctly in a schematic-level sense, yet become increasingly sensitive to overshoot, undershoot, and delayed threshold crossing on the actual board. The CD74ACT541M96 helps by presenting a relatively light input burden to the upstream device and a much stronger output to the downstream network. That partitioning usually simplifies timing closure and lowers the probability of intermittent field failures that only appear at temperature, supply tolerance corners, or worst-case loading.

There is, however, a practical boundary that experienced designers tend to respect: strong drive solves many DC and low-frequency loading issues, but it can worsen transmission-line effects if used carelessly. A ±24 mA output can produce very fast edges into short or moderately loaded traces. If the interconnect is electrically long relative to rise and fall time, ringing can become more severe, not less. In such cases, the CD74ACT541M96 still remains useful, but the surrounding implementation matters: short stubs, controlled routing, solid return paths, and, where needed, small series damping resistors placed near the output. In other words, the device should be treated as a capable line driver within a disciplined interconnect design, not as a universal cure for poor layout.

The 3-state architecture extends its usefulness beyond simple buffering. In bused systems, multiple devices may share downstream lines while only one is active at a time. The 3-state leakage characteristics, along with input leakage in the microamp range, become relevant when evaluating idle bus behavior, pull-up or pull-down sizing, and cumulative leakage across many nodes. On a small design, microamp leakage may appear negligible. On a large assembly with many unpowered domains, multiple buffers, and long idle intervals, aggregate leakage can shift bus bias levels enough to affect startup state, false wake-up conditions, or bus contention margins. Low leakage helps preserve predictable idle voltages and reduces the need for overly strong bias networks that would otherwise increase static power or distort active drive conditions.

Another subtle but important point is that leakage specifications become especially useful when buses traverse partial-power or sequencing boundaries. If one section of a system powers down while another remains active, undefined current paths through logic inputs and disabled outputs can produce unexpected biasing. While the CD74ACT541M96 is not a substitute for dedicated level translation or power-isolation circuitry, its low leakage in normal operating assumptions makes it easier to estimate these boundary conditions and to keep bus behavior controlled during inactive states.

In application terms, the part fits well in several recurring patterns. One common use is fanout expansion from a microcontroller, FPGA, or bus controller that must drive several peripherals with shared timing. Another is address or control-line buffering in 5 V systems where the original source can meet logical thresholds but should not be burdened by total board capacitance. It is also useful as a signal-regeneration stage before a connector or cable interface, especially when preserving valid high and low levels under load matters more than strict point-to-point speed optimization. In these roles, the key advantage is not simply “more current,” but a cleaner separation between logic generation and physical distribution.

A practical design habit is to evaluate the device in three layers: threshold compatibility, DC drive margin, and dynamic interconnect behavior. Threshold compatibility answers whether the incoming signal will always be recognized. DC drive margin answers whether the outgoing signal will hold valid levels at the intended fanout and load current. Dynamic behavior answers whether the real waveform on the PCB still crosses thresholds cleanly after package inductance, trace impedance, and simultaneous switching are included. The CD74ACT541M96 scores well in the first two layers by specification. The third layer depends heavily on implementation, and this is where many designs either become robust or unexpectedly fragile.

That distinction is worth emphasizing because the datasheet numbers can look comfortably generous while the board still misbehaves. A buffer with strong VOH and VOL under load may still show threshold jitter at the receiver if the return path is poor or if several outputs switch together and inject ground bounce. The best results usually come when decoupling is placed tightly at the device, output groups with heavy simultaneous switching are routed thoughtfully, and heavily loaded nets are reviewed not just for static fanout but for edge-rate quality. In practice, when these details are handled early, the CD74ACT541M96 behaves like a very effective logic backbone component: it absorbs marginal upstream conditions, re-establishes clean digital levels, and distributes them with significantly more electrical confidence.

Seen this way, the CD74ACT541M96 represents a useful engineering compromise that remains relevant in 5 V logic environments. Its TTL-style input thresholds allow broad compatibility. Its CMOS output stage restores amplitude with strong source and sink capability. Its voltage-level guarantees preserve noise margin even at substantial load. Its low leakage supports predictable bus behavior in larger assemblies. The part is most effective when used deliberately as a boundary element between logical intent and physical distribution, where signal validity must survive not just the truth table but the realities of the board.

Texas Instruments CD74ACT541M96 Timing Performance and Switching Behavior

Texas Instruments CD74ACT541M96 timing behavior is best understood by separating two questions: how fast data moves through the device, and how cleanly the device connects to or disconnects from a shared bus. For an octal buffer with 3-state outputs, both matter. Raw propagation delay determines whether setup and hold budgets can be met across a parallel path, while enable and disable timing determines whether the part behaves safely in systems where multiple drivers share the same lines.

At 5 V, with a 50 pF load and 3 ns input edge rates, TI characterizes the ACT541 function with data-to-output propagation delays of 2.1 ns minimum and 7.5 ns maximum for tPLH, and 2.1 ns minimum and 8.2 ns maximum for tPHL. These values place the device firmly in the fast TTL-compatible CMOS buffer class. In practical timing work, the important point is not only that the part is fast, but that the low-to-high and high-to-low paths are relatively close. That balance reduces polarity-dependent timing distortion across an 8-bit word. On wide control or address buses, this is often more useful than chasing the lowest possible single-edge number, because timing closure problems usually emerge as skew accumulation rather than as isolated delay failures.

The enable path has different behavior and must be treated separately from pure data propagation. TI specifies tpZL and tpZH from output-enable control to valid output drive as 3.5 ns minimum and 12.2 ns maximum. Disable timing, expressed as tPLZ and tpHZ, is also 3.5 ns minimum and 12.2 ns maximum over -40°C to 85°C, extending to 13.4 ns maximum over -55°C to 125°C. These numbers are less about signal forwarding and more about bus ownership transfer. In real systems, this is where many designs become fragile. A bus buffer can meet data delay targets and still create intermittent faults if one device releases the lines too slowly or another begins driving too early. The 3-state control path should therefore be analyzed as a separate timing channel with its own worst-case budget.

The underlying mechanism is straightforward. A data transition propagates through the internal logic path and output stage, while the enable signal gates the output driver itself. Because the enable path must force the output stage into either active drive or high impedance, it involves a different internal control sequence than a normal input-data transition. That is why enable/disable delays are typically longer and more variable than data-path delays. It also explains why bus turn-around timing cannot be inferred from tPLH and tPHL alone. Treating the OE path as “just another logic input” is a common modeling mistake and usually produces optimistic margins.

The test conditions matter. The published delays assume a 50 pF load and 3 ns input transition time. If the actual load is lighter, switching can be faster. If the bus is heavily loaded, long-routed, or exposed to connector capacitance, edge movement at the output will slow and apparent delay at the receiving endpoint will grow. This distinction is important: datasheet propagation delay is measured at the device pins under defined conditions, but system timing is closed at the receiver threshold after trace flight time, reflections, and capacitive loading are added. For that reason, CD74ACT541M96 should be evaluated not only as a logic element but also as a distributed interconnect driver.

ACT-family behavior adds another useful dimension. The device uses CMOS internal design with TTL-compatible input thresholds, which makes it attractive when interfacing with legacy TTL-like signaling while preserving fast switching. That combination is often effective in mixed-voltage-era 5 V backplanes, controller buses, and glue-logic sections where fan-out and edge preservation matter more than state retention. The part is not a register and provides no timing isolation through clocking, so any upstream jitter, skew, or asynchronous activity passes through with only the buffer’s delay added. This is why it performs well as a throughput element but should not be expected to clean up poor timing architecture.

For byte-wide buses, the balanced delay profile has a practical advantage. When one bit rises while another falls, unequal edge delays can create transient code errors at downstream combinational decoders or comparators. CD74ACT541M96 does not eliminate this class of issue, but its relatively symmetric tPLH and tPHL behavior helps contain it. In address expansion, memory selection, or peripheral decode trees, that symmetry can be the difference between a stable interface and one that produces narrow glitch windows under corner conditions. The impact becomes more visible when multiple buffers are cascaded, since even modest asymmetry compounds stage by stage.

Bus contention analysis deserves explicit attention. If one device disables with a worst-case delay near 12.2 ns or 13.4 ns at temperature extremes, and another device enables aggressively on the same edge, overlap current can appear on the shared lines. Whether that overlap is harmless or destructive depends on output strength, line impedance, supply decoupling, and repetition rate. In low-duty systems, brief contention may only create supply noise. In high-activity buses, it can shift thresholds, inject ground bounce, and degrade signal integrity well beyond the switching instant itself. A conservative design approach is to reserve non-overlap time between disable and enable events rather than assuming ideal sequencing. This usually costs little and buys disproportionate robustness.

A useful implementation pattern is to derive OE timing from a control source that changes earlier than the data source, instead of toggling both at nearly the same instant. That approach reduces ambiguity during bus handoff and keeps the output stage from switching data while simultaneously entering or leaving high impedance. In dense boards, it also reduces current spikes that appear when many channels switch together. The device is fast enough that these effects can become visible as package-induced noise, especially when several outputs drive in parallel into moderate capacitive loads. Local decoupling and short return paths are not optional details here; they directly influence whether the published timing remains representative in the assembled system.

Temperature range should also shape interpretation of the numbers. The extension of disable timing maximum to 13.4 ns over -55°C to 125°C signals that 3-state release is one of the more corner-sensitive behaviors. Designs intended for industrial or extended environments should budget using the worst-case release value, not the room-temperature intuition suggested by typical ACT performance. This is particularly relevant in systems with asynchronous masters, memory transceivers, or multiplexed buses where bus ownership changes are frequent and not tightly phase-aligned to a single clock domain.

In application terms, CD74ACT541M96 is well suited for fast parallel buffering, address/data bus isolation, fan-out expansion, and interface reinforcement where low latency is required and no storage element is needed. It is less about transforming logic state and more about preserving timing while increasing drive utility. The strongest reason to choose it is not simply that it is fast, but that its delay behavior is predictable enough to support disciplined timing budgets across multiple bits and repeated bus transactions. That predictability is what usually determines whether a design remains stable after routing, loading, and environmental spread are included.

A sound evaluation method is to treat the device as three timing blocks: input-to-output propagation, output-enable assertion, and output-disable release. Once separated this way, integration becomes clearer. Data timing answers whether information arrives on time. OE assertion answers when the buffer is allowed to drive. OE release answers when the bus is truly free. That framing tends to expose hidden assumptions early, especially in systems where engineers initially focus only on propagation delay and overlook the fact that shared-bus reliability is usually decided by 3-state timing, not by the nominal speed of the logic path.

Texas Instruments CD74ACT541M96 Power, Capacitance, and System-Level Loading Considerations

Texas Instruments CD74ACT541M96 combines low static CMOS power with the higher drive capability and TTL-compatible input behavior of the ACT family. That combination is often attractive in mixed-logic buses, memory interfaces, and control planes, but power and loading analysis should not stop at the headline quiescent current number. In practice, the useful design picture emerges only when static supply current, internal switching loss, input-state-dependent current, and external capacitive loading are evaluated together.

The datasheet lists quiescent supply current, ICC, at 8 µA typical, 80 µA maximum over -40°C to 85°C, and 160 µA maximum over -55°C to 125°C. That is still very low by logic-device standards and remains one of the core advantages of CMOS over older bipolar families, especially in systems that spend long periods idle or in low-activity states. For always-powered control hardware, reset trees, address decode blocks, and backplane housekeeping logic, this low static current keeps baseline rail loading nearly negligible. Even so, it is important not to overinterpret ICC as the full power story. In most real applications, once outputs begin toggling and bus lines start charging and discharging, dynamic current quickly dominates.

That transition from static to dynamic behavior is where the power dissipation capacitance, CPD, becomes important. Texas Instruments specifies CPD as 60 pF typical for the ACT540/ACT541 class. This parameter models the effective internal capacitance switched inside the device during logic transitions. It is not the same as pin capacitance and should not be merged with external load capacitance without care. CPD is primarily used in the standard dynamic power estimate:

PD(dynamic internal) ≈ CPD × VCC² × f

where f is the switching frequency associated with internal activity. This term captures the energy consumed even if the external outputs are lightly loaded. It reflects internal transistor charging, discharge paths, and parasitic node movement that occur whenever the logic state changes. In other words, the device burns power not only to drive the board, but also to switch itself.

For system estimates, this internal component should be separated from output-load power:

PD(load) ≈ Σ(CL × VCC² × α × f)

where CL is the effective load capacitance seen at each switching output and α is the activity factor. This split is useful because it reveals two different optimization paths. CPD is fixed by the silicon and package family. External load power is controlled by topology, routing, fanout, trace length, connector count, and the number of receiving inputs. When designs run into thermal or supply-noise margins, reducing bus swing frequency or trimming capacitive loading is usually more effective than trying to optimize the buffer choice alone.

The listed capacitances support that analysis. Input capacitance, CI, is 10 pF. Three-state output capacitance, CO, is 15 pF. These values are not large in isolation, but in wide parallel buses they accumulate quickly. An upstream device driving several ACT inputs sees that capacitance directly, along with trace parasitics, vias, stubs, and any probe or test fixture loading. On a single net, 10 pF may look harmless. On an 8-bit or 16-bit bus with multiple attached packages, the capacitive aggregate becomes a meaningful edge-rate limiter. That affects propagation delay, increases rise and fall times, and can reduce timing margin even before transmission-line effects become dominant.

The output side deserves equal attention. Using the CD74ACT541M96 can restore logic levels and improve current drive in a heavily loaded path, but it does not remove capacitive burden from the system. It relocates and reshapes the drive problem. The source driving the 541 now sees the input capacitance of the buffer instead of the full downstream bus, which is often a worthwhile trade. The 541 output stage then takes ownership of charging the larger distributed load. This is one of the practical reasons bus buffers improve timing closure: they partition capacitive domains. The improvement is not magical reduction of capacitance, but controlled isolation of where the capacitance is seen.

That distinction matters when interpreting edge quality. If a weak upstream controller directly drives a long bus, the entire network capacitance appears at its pins, slowing edges and stretching delay. If the controller instead drives the CD74ACT541M96, the controller sees only the buffer input loading plus the short local interconnect. The buffer then drives the remote bus with a stronger output stage better suited to that job. In many layouts, that partitioning improves setup and hold margins more than a nominal propagation-delay comparison would suggest. The propagation delay added by the buffer is often offset by the reduced RC delay and cleaner transitions in the larger network.

The 3-state output capacitance, CO = 15 pF, is especially relevant in shared buses and multi-drop architectures. When the output is disabled, the device no longer actively drives the line, but it still presents capacitive loading. This matters in bus arbitration and multiplexed backplane designs where several devices sit on the same net and only one is enabled at a time. The disabled devices are not electrically invisible. Their output capacitance remains part of the load budget, and in high-speed buses that passive contribution can materially slow active drivers. A common modeling mistake is to account only for active fanout while ignoring the capacitive presence of all non-driving nodes. In dense three-state systems, that omission can produce optimistic timing simulations and underpredicted supply transients.

Another parameter that deserves more attention than it often gets is ΔICC, the additional quiescent supply current per input pin when TTL-compatible inputs are held high. This is a characteristic feature of ACT logic. Because the family accepts TTL input thresholds, the front-end input structure differs from ideal rail-to-rail CMOS assumptions, and that can introduce extra supply current when certain input bias conditions exist. In small quantities, the effect is minor. In large systems with many permanently asserted control inputs, pull-ups to VCC, or buses parked high for long intervals, ΔICC can become a measurable standby-current contributor. It rarely dominates total power, but it can invalidate simplistic “CMOS means near-zero static current” assumptions.

This point becomes more important in boards populated with many ACT devices. A single input’s extra current may be negligible. Across dozens or hundreds of inputs, it becomes part of the baseline power floor. This shows up most clearly in industrial and telecom-style cards where enable lines, address qualifiers, or unused inputs are tied high across multiple packages. The rail current then sits noticeably above the nominal ICC expected from the device count alone. For that reason, standby budgeting for ACT logic should track not only package count but also input state distribution.

From a mechanism perspective, the complete power model for the CD74ACT541M96 is best thought of as four stacked terms: base quiescent current, input-state-dependent current such as ΔICC, internal switching loss represented by CPD, and external capacitive drive loss determined by bus loading. This layered view is more useful than treating “power” as a single datasheet number. It also maps directly to design controls. Temperature and process corner affect the first two. Clock rate and activity factor affect the third. Topology and layout dominate the fourth.

In application scenarios, the balance among these terms changes significantly. In low-duty-cycle control systems, static ICC and ΔICC may be the only relevant contributors. In high-speed memory address buffering or FPGA-to-peripheral fanout, CPD and output-load switching power dominate. In long-cable or connector-rich interfaces, external capacitance and edge-shaping concerns often outweigh everything else. That is why the same buffer can appear almost power-free in one design and unexpectedly warm or noisy in another. The silicon has not changed; the surrounding capacitance and toggle behavior have.

A practical evaluation flow usually starts by estimating the average activity of each output rather than assuming all bits toggle every cycle. Real buses often show very nonuniform behavior. Enable lines may switch rarely. Lower address bits may toggle frequently. Data buses may depend strongly on traffic pattern. Using one blanket toggle rate for all outputs tends to distort both power and simultaneous-switching analysis. A better method is to classify nets into high-, medium-, and low-activity groups, then combine CPD-based internal power with per-output capacitive power using realistic CL values from routing and receiver count. That approach typically yields estimates close enough for thermal and regulator budgeting without requiring exhaustive signal simulation.

Board behavior often reinforces this. The largest current spikes are usually not caused by steady toggling on one line, but by many outputs changing at nearly the same time. The CD74ACT541M96 can source and sink substantial transient current into capacitive loads, and that current comes from the supply through very short time windows. If local decoupling is weak or return paths are poorly controlled, the resulting supply bounce can erode noise margin or create false switching elsewhere. In that sense, capacitance is not just a delay parameter and not just a power parameter. It is also a noise-injection mechanism. Designs that treat these as separate issues often miss the common root cause.

This is where placement and decoupling strategy become inseparable from logical function. A bus buffer placed close to the receiving cluster can reduce the effective length of the heavily switched segment seen by the source. A short, low-inductance decoupling path at the buffer supply pins helps absorb the charge bursts associated with CPD and output switching. Tight return paths and minimized stub loading often buy more timing margin than selecting a nominally faster logic family. In wide-bus layouts, these physical details often decide whether the part behaves like a clean signal restorer or a source of ringing and ground bounce.

One subtle but useful design perspective is that the CD74ACT541M96 should be viewed less as a generic “fanout increaser” and more as a capacitance boundary element. Its main system value is often in redistributing where capacitance is presented and where switching current is drawn. That framing leads to better design decisions: place it where it isolates a weak source from a wide or distant load, where it localizes high di/dt currents near solid decoupling, and where its three-state behavior aligns with bus ownership. Used this way, the buffer does more than strengthen logic levels. It reshapes the electrical topology of the bus.

For accurate budgeting, the most reliable method is to combine datasheet parameters with a first-order board model. Start with ICC and expected ΔICC contributions for the intended input states. Add internal dynamic power from CPD at the estimated switching rate. Then calculate output-load power using realistic capacitance values that include receiving inputs, traces, connectors, and any disabled bus participants. Finally, sanity-check the result against simultaneous switching, decoupling quality, and thermal environment. That process usually exposes whether the limiting factor is average power, peak current, edge-rate degradation, or bus contention margin.

In the end, the low quiescent current of the CD74ACT541M96 is real and valuable, but it should be treated as only the first layer of analysis. The device’s practical behavior in a system is governed by how often it switches, how much capacitance it must move, how its TTL-compatible inputs are biased, and how effectively the board contains the resulting current transients. When those factors are modeled explicitly, the part becomes predictable and easy to deploy. When they are ignored, timing and power issues tend to appear not as isolated failures, but as a cluster of symptoms tied back to the same loading assumptions.

Texas Instruments CD74ACT541M96 Layout and Transmission-Line Application Considerations

Texas Instruments CD74ACT541M96 should be viewed as more than an octal buffer for fanout expansion. Its datasheet positioning as both a fanout buffer and a line driver is the more important signal. The stated ability to fan out to 15 FAST ICs and to drive 50-Ω transmission lines, with characterization extending to 75 Ω at elevated temperature, places the device in a boundary region between logic buffering and signal-distribution infrastructure. In that region, trace impedance, edge rate, return-current continuity, and load partitioning matter as much as simple logic compatibility.

This distinction changes how the part should be applied. In a short, purely lumped-load logic cluster, the CD74ACT541M96 behaves like a straightforward drive-strength upgrade. Once traces become long enough that flight time is no longer negligible relative to edge time, the same device becomes part of the interconnect system. At that point, the output stage, PCB geometry, branch topology, and termination strategy collectively define signal quality. Treating it only as a “strong buffer” often leads to avoidable overshoot, ringing, and timing uncertainty.

The core value of the CD74ACT541M96 lies in its ability to decouple a timing-sensitive source from a larger and less predictable load domain. A microcontroller bus that must reach several peripherals, an FPGA control port that must feed long board traces or connectors, or a memory-control path that must isolate a critical timing node from distributed capacitance are all typical use cases. In each case, the device serves two roles at once: it increases available drive and it localizes electrical stress away from the original source. That second role is often more important than the first, because many timing issues on shared buses are not caused by insufficient static drive current but by edge distortion from distributed capacitance, stubs, and return-path disruption.

Placement should follow the actual electrical intent, not a generic “put buffers close to loads” rule. If the goal is source isolation, the CD74ACT541M96 belongs near the original logic source so that the upstream net remains short, light, and clean. This keeps the source-side waveform well controlled and prevents downstream loading from feeding directly back into a sensitive timing node. If the goal is line launch control onto a distributed bus or long routed segment, placement near the branch origin is often better. In that configuration, the buffer becomes the defined launching point for the high-speed net, and the downstream topology can be engineered with known impedance and managed branching. Designs that place the device midway along a net without a clear electrical reason usually inherit the disadvantages of both choices: an already loaded source side and an uncontrolled downstream launch.

Transmission-line behavior is where the part’s line-driver capability becomes operationally meaningful. A 50-Ω trace is not simply a “wire with low resistance.” It is an energy-transfer structure with a characteristic impedance that the driver excites. The CD74ACT541M96 output stage will launch fast edges into that structure, and if the receiving end or intermediate branches are not impedance-aware, the reflected energy returns to the driver and reshapes the waveform. In practice, this appears as ringing, false threshold crossings, reduced noise margin, or increased apparent clock-to-output uncertainty at the receiving device. The fact that the datasheet explicitly references 50-Ω and 75-Ω line driving indicates that the output stage has enough dynamic capability for such environments, but that does not eliminate the need for proper interconnect discipline. It only means the device is suitable for that class of problem.

One useful engineering view is to separate three regimes. In the first regime, the interconnect is electrically short relative to the edge rate, and lumped-capacitance modeling is sufficient. In the second, interconnect delay and edge time are comparable, making reflections visible but manageable. In the third, the net is fully transmission-line dominant, and topology decisions become first-order design parameters. The CD74ACT541M96 is often selected because a net has quietly moved from the first regime into the second, even if the schematic still looks simple. Byte-wide control buses are especially prone to this transition because each line may seem individually harmless while the aggregate simultaneous switching current and branch loading create a very different electrical environment.

Decoupling and return-path design are critical because ACT outputs switch quickly and can draw sharp transient current from the supply network. A bypass capacitor should sit close to the device power pins with a short, low-inductance loop to ground. This is not just a checklist item. The local power-distribution impedance directly influences output edge integrity and internal threshold stability during simultaneous switching. If the VCC-GND loop is inductive, the device can inject local ground bounce and supply droop into its own switching reference. The result can resemble a signal-integrity problem on the traces when the root cause is actually power integrity at the package. A compact capacitor placement, solid reference plane, and minimal via discontinuity around the device usually improve results more than small schematic-level tweaks.

Ground continuity under routed outputs matters for the same reason. Return current follows the path of least impedance, which at fast edge rates means the nearest reference plane beneath the signal. If a trace launched by the CD74ACT541M96 crosses a split plane, changes layers without a proper return transition, or passes through a connector region with poor reference continuity, the return current is forced into a larger loop. That larger loop raises loop inductance, worsens ringing, and increases radiated emissions. On parallel buses this can also increase line-to-line coupling, making one channel’s edge timing depend on its neighbors. A design may appear marginal only when several outputs switch together, which is a common field symptom of return-path weakness rather than inadequate DC drive.

The input slew-rate specification deserves more attention than it usually gets. Texas Instruments specifies 0 to 10 ns/V from 4.5 V to 5.5 V for ACT inputs. This is a practical warning that the device expects reasonably fast transitions at its input thresholds. Slow input edges force the input stage to dwell in its high-gain threshold region longer, where noise susceptibility is higher and internal current can increase. In a quiet bench setup this may seem tolerable. In a dense digital system with shared supplies and fast adjacent nets, it can produce output jitter, spurious transitions, or inconsistent switching delay. This is one of the less obvious reasons a buffer may appear “unstable” when the real issue is an upstream signal with degraded edge rate. The problem often becomes visible when a low-drive controller pin, RC-shaped control line, or long pull-up network feeds an ACT input directly.

From a practical design standpoint, the CD74ACT541M96 should not be used to compensate for poor edge generation at its input. It is good at restoring drive capacity downstream, but it is not a universal cleanup stage for arbitrarily slow or noisy inputs. If the incoming signal violates the intended slew environment, the downstream waveform may still be fast, but its timing can be less deterministic than expected. A cleaner approach is to ensure the source meets the input transition requirement, or to choose an input structure more tolerant of slower edges when that is unavoidable.

Termination strategy depends on topology and timing margin. If the CD74ACT541M96 drives a single long point-to-point trace, source termination is often the most economical way to control initial edge amplitude and suppress reflections. The resistor, placed close to the output pin, combines with the driver’s effective output impedance to better match the line. This preserves a clean first arrival at the receiver in many systems where one round-trip reflection can be tolerated or naturally absorbed by timing slack. For multi-drop buses, source termination is less universally effective because every branch stub becomes its own reflective feature. In those cases, branch length control is often more important than nominal termination value. Short stubs, consistent spacing, and a defined trunk route usually produce better results than attempting to “fix” a poor topology with scattered resistors.

When the device is used to drive off-board signals, connector behavior becomes part of the transmission-line model. The output current capability may be sufficient, but the connector pin field, cable impedance, reference assignment, and common-mode path can dominate waveform quality. A common mistake is to verify board-level traces while underestimating the discontinuity introduced at the board edge. Assigning adjacent grounds, minimizing pin escape asymmetry, and maintaining reference continuity into the cable or remote board are often decisive. In that setting, the CD74ACT541M96 is best treated as the launch element of a complete channel, not merely the final logic gate before a connector.

The device is also useful as a timing isolation element in memory and control paths, but this benefit depends on understanding what kind of isolation is being created. It isolates capacitive and transmission-line loading, yet it also inserts propagation delay and channel-to-channel skew. On byte-wide buses, that tradeoff is usually acceptable when the source was previously overloaded or when buffering creates a cleaner timing partition between functional regions. The improved edge shape at the destination often outweighs the added buffer delay. In tightly phased interfaces, however, the inserted delay must be included in setup/hold analysis rather than treated as electrically neutral. Cleaner signals do not automatically imply better timing if the architecture was already operating near cycle limits.

A useful rule in practice is to evaluate the part at the system level using three concurrent budgets: load budget, timing budget, and integrity budget. The load budget asks whether the source can meet edge and level requirements across all attached loads without assistance. The timing budget asks whether the extra propagation delay and skew are acceptable. The integrity budget asks whether the interconnect geometry, reference structure, and termination scheme allow the line-driver capability to be used safely. The CD74ACT541M96 is a strong choice when all three budgets align. It is a weak choice when only the first appears favorable and the other two are assumed away.

The strongest applications are therefore not the ones where “more drive” is casually needed, but the ones where bus segmentation, controlled launch, and source protection improve the electrical architecture. In those designs, the part works best when placed intentionally, decoupled tightly, routed over continuous reference planes, fed with compliant input edges, and connected to transmission-line topologies that are simple enough to analyze. That is where its role as both fanout buffer and line driver becomes fully useful, and where the datasheet’s transmission-line claims translate into predictable board-level performance.

Texas Instruments CD74ACT541M96 Typical Engineering Use Cases

Texas Instruments CD74ACT541M96 fits best in 5 V digital systems that need a non-inverting octal buffer with tri-state outputs, predictable ACT-family switching behavior, and enough output drive to offload a processor, ASIC, FPGA, or peripheral interface from direct bus loading. Its value is not only in duplicating logic states across eight channels, but in reshaping how signal ownership, capacitive loading, and interconnect integrity are managed at the board level. In practice, it is often selected less as a generic buffer and more as a control point between a logic source and a shared electrical environment.

At the device level, CD74ACT541M96 provides eight non-inverting buffer channels grouped under two active-LOW output-enable controls. That structure matters. It allows byte-wide paths to remain electrically simple while still giving the designer fine control over when the outputs participate in a bus. The tri-state function is the key mechanism that makes the part useful in multi-master or multiplexed systems. When disabled, the outputs move to high impedance, effectively removing the device from the line. When enabled, it presents a low-impedance actively driven output stage suitable for driving several TTL-compatible inputs or a moderate board trace load. In systems where bus contention causes intermittent faults that are difficult to reproduce, this controlled attach-detach behavior is often more important than the basic buffering action itself.

The ACT logic family is especially relevant in mixed 5 V environments because it combines CMOS-style output capability with TTL-compatible input thresholds. That characteristic is often the real reason this device stays in long-lived designs. Many legacy processors, peripheral controllers, and glue-logic networks do not produce ideal rail-to-rail transitions under all loading conditions, yet they still need to be received robustly. A buffer with ACT thresholds can cleanly interpret these logic levels while restoring stronger output edges to the next stage. This makes CD74ACT541M96 a practical bridge between older TTL-oriented logic conventions and denser CMOS-based subsystems that still operate from a 5 V rail.

One of the most common engineering uses is processor and MCU bus expansion. In this role, the device sits between a local controller and a wider system bus, reducing the direct fanout burden on the controller pins. As address and data buses accumulate memory devices, latches, peripheral interfaces, and test hooks, the effective load seen by the source can become large enough to degrade edge rate and timing margin. Inserting CD74ACT541M96 turns the local controller into a logic source for one buffer input bank rather than the direct driver of the entire downstream network. The controller then sees lower effective capacitive loading, while the buffer takes responsibility for charging and discharging the larger bus capacitance. This often simplifies timing closure, especially where rise and fall times begin to consume too much of the valid data window.

In shared bus and backplane-style systems, the part is useful as a byte-wide bus attachment element. The two enable pins can be mapped into arbitration logic so that the outputs only drive the bus during an assigned transfer phase. This arrangement is straightforward, but the engineering benefit goes beyond avoiding obvious contention. It also localizes fault domains. If one module is disabled correctly, it stops influencing bus edge shape, leakage behavior, and transient current interaction with other modules. In practical board debugging, isolating a problematic node by forcing output-disable can quickly distinguish between a source-side timing problem and a distributed bus loading problem. Devices with clean tri-state behavior are valuable for exactly this reason.

Address and data bus isolation is another strong use case, especially where one subsystem is timing-sensitive and another is electrically noisy. A CPU or ASIC may meet its logic timing on paper, yet still suffer degraded margins when routed directly into a bank of memory-mapped devices, opto-isolated interfaces, or long board traces passing through connectors. CD74ACT541M96 helps by separating the sensitive source node from the aggregate load. The immediate improvement is often seen in edge fidelity: less waveform rounding, lower apparent cross-coupling from adjacent nets, and reduced sensitivity to small layout imperfections. The deeper effect is that the original source now drives a short, local input structure, while the buffer output stage handles the heavier dynamic current demand of the external network.

Interface buffering between subsystems is also a frequent application, particularly when modular partitioning is more important than pure logic translation. The device does not solve voltage-domain mismatch in the modern low-voltage sense, but it is very effective where two 5 V logic regions need electrical decoupling without inversion or protocol change. A common example is separation between a computation block and an I/O-heavy block. The computation side benefits from a lighter and cleaner load. The I/O side receives stronger drive and clearer ownership control. This partitioning tends to improve maintainability because signal paths become architecturally explicit: source domain, buffer boundary, interconnect domain, and destination domain. Systems with repeated field revisions often benefit from this kind of electrical compartmentalization because it leaves more room to change connectors, downstream fanout, or board placement without requalifying the core logic source.

Line driving into moderate-impedance interconnects is another area where the part is well matched, provided expectations remain realistic. CD74ACT541M96 is suitable for board-level traces, ribbon-linked internal assemblies, and connectorized paths of modest length where signal rates and loading remain within conventional logic-buffer practice. It is not a substitute for controlled-impedance transmission-line drivers in high-speed links, but it is often sufficient for parallel control buses, status buses, and local expansion headers. The useful design mindset is to treat it as an edge restorer and capacitive-load driver, not as a universal cure for poor interconnect design. When trace lengths increase enough for reflections to dominate logic thresholds, termination strategy and topology matter more than simply adding drive strength.

Industrial control boards often expose the exact conditions where this device adds value. A timing-sensitive controller may need to fan out into several logic destinations, each adding input capacitance, connector parasitics, and switching noise from adjacent power electronics or relay drivers. Direct connection may still function in a bench setup but become marginal across temperature, process spread, and installation variation. Buffering the path with CD74ACT541M96 usually reduces that sensitivity because the source sees a more controlled electrical environment. The result is typically cleaner transitions and wider effective noise margin. In systems with periodic field disturbances, what appears initially as random logic upset is often a margin problem aggravated by cumulative loading. Proper buffering tends to eliminate that class of issue before it becomes a reliability investigation.

Legacy 5 V redesigns are another natural fit. In maintenance programs, component replacement is rarely only about logic truth tables. Threshold compatibility, enable polarity, package thermal behavior, availability in established assembly flows, and known behavior under existing EMC constraints all matter. CD74ACT541M96 is attractive because it preserves a familiar non-inverting octal buffer model while matching many of the assumptions embedded in older ACT-based designs. This reduces the risk of introducing subtle threshold or timing shifts that can occur when replacing older logic with superficially equivalent modern families. In retrofit work, the best replacement is often the one that changes the electrical character of the surrounding design as little as possible.

From a timing perspective, the part is most effective when used deliberately as a boundary element rather than dropped in reactively after a routing problem appears. If the buffer is placed close to the original source, it minimizes the loaded stub at the source pins and transfers the heavier switching burden to a physically stronger stage. If it is placed near the receiving end, it may restore logic levels but does less to reduce source loading. For broad buses, placement usually follows whichever side needs protection more: source integrity or destination conditioning. That decision is rarely neutral. A well-placed buffer can recover several nanoseconds of effective margin once trace capacitance and fanout are included, while a poorly placed one merely adds propagation delay without solving the underlying loading distribution.

Power integrity should also be treated as part of the use case, not as an implementation detail. ACT outputs can switch quickly enough to produce noticeable transient current, particularly when multiple channels toggle simultaneously. In byte-wide bus applications, simultaneous switching noise can couple into neighboring logic if local decoupling and return paths are weak. A small logic buffer can therefore become a visible noise source on a crowded board if bypassing is casual. Good placement of decoupling capacitors, short supply loops, and a low-inductance ground reference usually determine whether the stronger output drive becomes an asset or a side effect. In practice, many unstable bus symptoms attributed to “bad timing” are actually local supply disturbance around fast-switching logic.

There is also a useful architectural pattern in using the dual enables asymmetrically. Instead of viewing them only as redundant control pins, they can be assigned to separate gating conditions such as functional selection and bus grant, or system mode and fault inhibit. This creates a simple hardware interlock that prevents accidental bus drive under abnormal conditions. In robust control systems, this style of gating is often preferable to relying on a single software-controlled enable path, because it embeds electrical safety directly into the logic structure.

The strongest reason to choose CD74ACT541M96 is that it solves several board-level problems at once with very little design complexity. It increases fanout capability, isolates loading, enables orderly bus sharing, preserves non-inverted byte-wide data flow, and remains well aligned with established 5 V logic practice. Its best applications are not the ones that merely need “more drive,” but the ones that benefit from a clean electrical boundary between a logic source and a bus, connector, or subsystem whose behavior is otherwise too variable, too heavy, or too shared to drive directly. In that role, the device is simple, but not trivial. It becomes part of the system’s signal-integrity strategy rather than just another gate in the schematic.

Texas Instruments CD74ACT541M96 Potential Equivalent/Replacement Models

Texas Instruments CD74ACT541M96 replacement assessment should start from electrical behavior and system role, not from naming similarity. The device is an octal non-inverting buffer/line driver with 3-state outputs, dual active-LOW output enables, and ACT-family input thresholds intended for 5 V logic environments that often need TTL-compatible switching levels. Any credible substitute must preserve those conditions first. Package suffixes, ordering codes, and even close family names matter only after function, threshold behavior, and enable topology are verified.

Within the related Texas Instruments options listed here, the comparison set is:

CD74ACT541

CD74AC541

CD74ACT540

CD74AC540

CD54ACT541

CD54AC541

CD54ACT540

CD54AC540

The closest baseline is CD74ACT541. CD74ACT541M96 is not a different logic function; it is a package-specific ordering variant of the same 74ACT541 device. In practice, this means the replacement path inside the same family is usually straightforward if the package, pinout, thermal behavior, and procurement status align. When a design already depends on ACT-level thresholds and 5 V bus timing, this is the reference point against which all other candidates should be judged.

The critical distinction in this family is between ACT and AC logic. That difference is often underestimated because the truth tables look identical. The functional diagram may match, but the input stage does not. ACT devices are designed with TTL-compatible thresholds, which makes them useful when a 5 V system is driven by legacy TTL outputs, mixed-voltage control logic with restricted VOH margins, or long backplane traces where high-level noise margin is already tight. AC devices, by contrast, use CMOS-like input thresholds over a wider operating range. That gives flexibility, but it also changes the required input voltage for a valid logic HIGH. In a clean all-CMOS system this may be acceptable. In a mixed-logic design, it can quietly become the reason for intermittent field failures.

For that reason, CD74AC541 is only a conditional replacement. It preserves the same non-inverting 8-bit buffer structure and 3-state output behavior, but it should not be treated as electrically equivalent by default. The wider 1.5 V to 5.5 V supply range can look attractive, especially in boards that are being reused across multiple voltage rails, yet that advantage only matters if the upstream logic can reliably satisfy AC input thresholds under all process, voltage, temperature, and loading conditions. A bench test at room temperature is not enough. Marginal compatibility often passes bring-up and then fails after layout changes, bus loading shifts, or low-temperature startup.

The 540 variants require even stricter caution. CD74ACT540 and CD74AC540 are octal inverting buffers, not non-inverting ones. Their output polarity is reversed. That makes them unsuitable as direct replacements unless inversion is already compensated elsewhere in the logic path. Sometimes a design has spare inversion in an FPGA, CPLD, or software-defined decode chain, and in those cases a 540 can be absorbed without architectural damage. But when the device is used on an address bus, control bus, or shared enable path, replacing a 541 with a 540 tends to create failures that are not subtle. Bus contention, incorrect chip selects, and invalid timing relationships appear immediately. Functional equivalence must include polarity, not just channel count and 3-state capability.

The CD54-prefixed devices are related in logic function but serve a different product context. They are typically associated with military-oriented qualification, broader screening expectations, and different environmental assumptions. From a logic perspective they may look compatible, but replacement decisions in this direction should not be made from schematic similarity alone. Qualification flow, documentation requirements, temperature range, lifecycle controls, and traceability expectations can dominate the decision. In regulated or long-life platforms, these non-functional attributes are often more important than the logic core itself.

A disciplined replacement review for CD74ACT541M96 should therefore check six areas in order.

First, confirm the logic function. The original device is a non-inverting octal buffer with 3-state outputs. If the replacement changes polarity, channel behavior, or output disable behavior, it is not equivalent.

Second, verify the enable structure. CD74ACT541 uses dual active-LOW enables. That matters because many designs split bus control across two domains, use staged output activation, or tie the enables into separate decode logic for fault isolation. A part with a single enable, different polarity, or altered internal gating may pass a superficial review but still break system sequencing.

Third, validate the input-threshold model. This is the most common source of incorrect substitutions between AC and ACT families. If the board expects TTL-compatible input recognition at 5 V, ACT is usually the safe class. If the board is fully CMOS-driven and margin analysis supports it, AC may work. The distinction should be proven with actual VIH/VIL requirements and worst-case source levels, not inferred from “same family” logic tables.

Fourth, check supply range and operating point. ACT devices are typically used in fixed 5 V logic systems. AC devices can span a wider voltage range, but that flexibility does not automatically improve compatibility. The real question is whether the replacement behaves correctly at the voltage rail used by the original design and whether all timing and threshold parameters still hold at that point.

Fifth, confirm package and assembly compatibility. For CD74ACT541M96, the suffix usually indicates a specific package and shipment form. Even when the silicon is the same, a replacement can fail at the manufacturing stage if the footprint, body width, pin pitch, thermal mass, moisture sensitivity handling, or reel format changes. In redesigns, package mismatch is often caught early. In sustaining builds, it is a frequent source of avoidable delay because the schematic team sees equivalence while the assembly flow does not.

Sixth, compare timing and drive behavior in the actual bus environment. Buffer substitution is rarely just about static logic. The part may be sitting on an address bus, data bus, memory interface, or cable-driven control line where edge rate, output drive, disable time, and capacitive loading determine whether the system remains stable. Two devices with matching truth tables can behave differently enough at the edge level to create overshoot, slower release from the bus, or contention windows during handoff between drivers. This becomes especially important when the buffer is used as a bus isolator between devices with different trace lengths or different output strengths.

In practical screening, CD74ACT541 remains the direct same-family replacement anchor. CD74AC541 is a candidate only when the system can tolerate AC thresholds and when the upstream and downstream interfaces are analyzed at the electrical level. CD74ACT540 and CD74AC540 are not direct replacements because of inversion. CD54ACT541 and CD54AC541 may align functionally, but they belong in a qualification-driven evaluation, not a convenience substitution path.

A useful engineering approach is to classify replacement decisions into three tiers. The first tier is package or ordering-code equivalence within the same logic family, where CD74ACT541 is the natural reference. The second tier is electrical-near-equivalence with threshold differences, where CD74AC541 may fit after margin validation. The third tier is functional-near-equivalence with structural differences, such as the 540 family, which should only be considered if the surrounding logic can be intentionally modified. This tiered view avoids the common mistake of treating all nearby part numbers as equally viable options.

The most reliable substitutions are usually the least creative ones. When a buffer sits on a shared bus, preserving threshold behavior and enable timing is more valuable than chasing broader supply range or nominally similar alternatives. In many systems, the buffer is not just a logic repeater; it is part of the timing architecture and signal-integrity strategy. That is why CD74ACT541 is the proper comparison baseline for CD74ACT541M96, while the other listed parts should be treated as scenario-dependent alternatives rather than direct replacements.

For procurement and design review, the screening checklist should therefore remain explicit:

non-inverting 8-bit buffer function,

3-state outputs,

dual active-LOW enables,

ACT-compatible 5 V input threshold behavior when TTL-level interfacing is required,

package and land-pattern compatibility,

and matching dynamic performance for the intended bus, backplane, or line-driving condition.

Texas Instruments CD74ACT541M96 is best replaced first by the same CD74ACT541 device family in a compatible package form. All other options require deliberate validation of polarity, thresholds, qualification context, or system-level timing before they can be accepted.

Conclusion

Texas Instruments CD74ACT541M96 is a 5 V octal non-inverting buffer and line driver intended for byte-wide digital paths that need higher source and sink capability than standard logic outputs can provide. It belongs to the ACT family, so it combines CMOS-style implementation with TTL-compatible input thresholds. That detail is often the real selection trigger: the device fits naturally into mixed 5 V logic environments where upstream devices may not deliver full CMOS-high levels, yet downstream loads still require fast, well-defined switching and stronger drive.

At the functional level, the device implements eight non-inverting channels with 3-state outputs and two active-LOW output-enable controls. This dual-enable structure is more useful than it first appears. It allows subdivision of the 8-bit path into two 4-bit groups for flexible bus management, staged activation, or partial isolation during board bring-up. In practice, that can simplify shared-bus architectures, FPGA or MCU expansion ports, memory-mapped interfaces, and backplane-connected logic where output contention must be tightly controlled. The 541 topology is especially effective when the design goal is transparent buffering rather than logic translation or inversion.

The output stage is one of the device’s strongest attributes. With drive capability around ±24 mA, the CD74ACT541M96 is suited for applications where a controller or logic device must fan out into several receivers, drive longer PCB traces, or maintain edge integrity into moderately heavy capacitive loading. This is not just about current magnitude. It is about preserving logic margins under dynamic conditions. A weak output may meet static voltage thresholds on paper while still producing degraded edges, excess delay spread, and higher susceptibility to crosstalk or false switching. The stronger ACT output stage reduces that risk and gives timing closure more margin in practical board conditions.

Propagation behavior is also important. The device offers relatively balanced and predictable delays, which matters when multiple bits must arrive with limited skew. In parallel interfaces, byte-lane timing is often less constrained by absolute propagation delay than by channel-to-channel consistency. A buffer with stable internal timing helps prevent data-valid window erosion at the receiving side. This becomes more relevant as trace lengths diverge, loading differs across outputs, or the interface is pushed closer to its timing limits. In these situations, inserting a well-behaved octal buffer is often cleaner than trying to compensate with ad hoc routing adjustments alone.

The ACT-family input structure deserves careful attention during selection. Compared with pure CMOS families such as HC, ACT devices accept TTL-like logic thresholds, which makes them particularly useful in legacy and hybrid systems. This allows reliable interfacing to older processors, peripheral ICs, and control logic that may not swing close to the positive rail on a logic HIGH. That said, this same feature means the part is not a voltage translator in the modern sense. It is optimized for 5 V domains, and using it at the boundary of lower-voltage logic requires explicit verification of VIH, VIL, output overvoltage tolerance, and power-sequencing behavior. Designs that ignore this distinction often pass bench testing and then fail under corner conditions.

The tri-state capability is central to its value in bus-oriented systems. When disabled, the outputs enter a high-impedance state, allowing multiple devices to share a common data path without direct contention. In real designs, however, enable timing deserves as much attention as data timing. If two drivers overlap during turn-on and turn-off, the resulting current spikes can create localized ground bounce, supply droop, and intermittent logic faults that are difficult to reproduce. A practical approach is to budget explicit dead time between bus ownership transitions and to place local decoupling close to the package power pins. On densely routed boards, that small discipline usually yields more benefit than trying to debug sporadic contention after layout is frozen.

The 20-pin SOIC package used in the CD74ACT541M96 variant makes the device attractive for compact industrial and embedded assemblies where through-hole parts are no longer preferred but board-level rework must still remain manageable. The package is dense enough for efficient placement yet not so fine-pitch that assembly risk increases unnecessarily. Thermal stress is generally modest because logic dissipation is low in static operation, but dynamic power should not be ignored in high-toggle applications. Fast edges, capacitive loads, and frequent output switching can raise internal dissipation and inject noise into the 5 V rail. Good decoupling and controlled return paths remain essential, especially when several outputs switch simultaneously.

Its rated operating range from -55°C to 125°C supports use in harsh or extended-environment designs where timing stability and logic-state integrity must hold across startup cold soak, elevated enclosure temperature, and electrically noisy conditions. This temperature capability is not merely a catalog feature. In industrial control, transport systems, and rugged embedded platforms, devices often face slower edges, shifting thresholds, and changing leakage behavior across temperature extremes. Selecting a buffer with broad environmental headroom reduces the need for last-minute derating decisions and lowers qualification risk.

From an application standpoint, the CD74ACT541M96 is a strong fit in memory and address buffering, MCU-to-peripheral fan-out, bus isolation, LED or indicator drive interfaces within logic-current limits, and control signal reinforcement across connectorized assemblies. It is also useful when a design needs to restore signal integrity after a long route segment or after a high-pin-count programmable device that has limited per-pin drive strength. In these cases, placing the buffer near the source usually improves edge control and reduces the burden on the originating logic. Placing it near the load can be better when the goal is signal restoration after a lossy path. The better choice depends on whether the dominant problem is launch strength, transmission loss, or load clustering.

For selection engineers, the key discriminator is not simply that this is an octal buffer. It is that it is a 5 V ACT, non-inverting, tri-state octal buffer with established behavior in classic parallel digital systems. Many substitution mistakes happen because one of those attributes is treated as secondary. Replacing ACT with HC can break threshold compatibility. Replacing a 541 with a 540 changes polarity. Replacing with a different bus buffer may alter enable grouping, output symmetry, or timing. In stable production platforms, these differences matter more than headline current numbers.

For sourcing and lifecycle decisions, the full ordering code CD74ACT541M96 should be treated as the package-specific procurement target rather than just a generic family reference. That helps avoid ambiguity around package form, shipment configuration, and approved manufacturer traceability. In controlled builds, this level of specificity prevents silent substitutions that appear equivalent at the logic-function level but differ in assembly fit, environmental rating, or validation history.

The device remains a practical choice when a system requires transparent byte-wide buffering, stronger 5 V logic drive, controlled bus isolation, and predictable ACT-family interfacing in a mature SOIC implementation. Its value is highest in designs that respect the real reasons buffers are inserted into digital paths: not to add logic, but to recover electrical margin, isolate timing domains, and make the behavior of a board more deterministic under load, temperature, and shared-bus interaction. In that role, CD74ACT541M96 continues to be technically solid and operationally reliable.
