CD4572UBM

CD4572UBM from Texas Instruments: Product Positioning and Core Value

CD4572UBM from Texas Instruments occupies a specific but still useful position within the 4000B CMOS logic family: it is not a generic hex gate, but a precomposed mixed-function logic building block. Inside one package, it integrates four inverters, one 2-input NOR gate, and one 2-input NAND gate. That arrangement matters because many real control and interface problems do not require six identical gates. They require a small set of polarity changes, one or two decision nodes, and minimal board overhead. The CD4572UBM addresses exactly that pattern.

Its core value is therefore functional fit rather than raw gate count. In practical designs, logic support often grows around a main controller, analog front end, sensor path, or power stage. A few signals need inversion, one condition must be masked, and another must be combined for enable or fault logic. If these functions are implemented with separate inverter, NOR, and NAND devices, the board absorbs extra packages, extra routing, more decoupling points, and more supply-interaction risk. The CD4572UBM compresses those needs into one CMOS part, which is often a better engineering trade than using several nominally simpler ICs.

At the device-architecture level, the product reflects a design philosophy common to the 4000B series: broad voltage tolerance, low static power, and logic functions that remain useful across generations of systems. The 3 V to 18 V supply range is not just a catalog feature. It changes how the part can be deployed. In low-voltage systems, it can serve as a lightweight glue-logic element around battery-powered or mixed-signal circuitry. In higher-voltage legacy systems, it can interface more naturally with older CMOS domains and discrete control networks without forcing immediate migration to tighter low-voltage logic families. That flexibility is often more valuable than speed in systems where timing margins are measured in microseconds rather than nanoseconds.

The internal mix of four inverters plus NAND and NOR also maps well to the underlying structure of many small logic networks. Inverters are rarely wasted. They are used for polarity correction, edge shaping support, active-low to active-high translation, oscillator or RC timing support, and signal restoration after passive conditioning stages. The remaining NAND and NOR gates then provide the first layer of combinational logic. This combination can implement interlocks, startup sequencing conditions, alarm qualification, or enable-chain logic with fewer compromises than a uniform six-inverter or four-NAND package. In other words, the part aligns with how support logic actually accumulates in hardware, not how logic functions are abstracted in textbooks.

This is where the CD4572UBM remains relevant in control logic and signal conditioning. Many embedded systems still contain “small logic islands” outside the processor. These islands handle reset qualification, watchdog shaping, fault aggregation, manual override paths, and sensor-status gating. Such functions are often intentionally kept out of firmware because they must remain deterministic during boot, brownout, or fault recovery. A mixed-function CMOS logic IC is well suited for these tasks. It introduces little static power burden, tolerates broad supply variation, and can preserve a straightforward schematic that is easy to audit.

The wide operating temperature range of -55°C to +125°C extends that usefulness into harsher environments. This specification is important not only for obvious industrial or high-reliability applications, but also for designs where local thermal gradients can be large even if ambient conditions look moderate on paper. Power stages, sealed enclosures, and distributed control assemblies regularly expose support logic to conditions well beyond office-lab assumptions. Devices from the 4000B family often survive in these spaces because their electrical behavior is predictable across broad operating corners, provided propagation delay and input transition quality are treated with the respect they require.

That last point deserves emphasis. The CD4572UBM is best understood as robust wide-range CMOS, not as a fast modern logic part. The engineering advantage comes from tolerance and simplicity, not edge-rate performance. At higher supply voltages it can drive useful CMOS-level transitions with low quiescent current, but propagation delay remains materially larger than in advanced logic families. In many support circuits this is irrelevant. In a power-good qualifier, interlock chain, or mode-selection path, tens or even hundreds of nanoseconds rarely matter. In clocked interfaces or tightly timed digital buses, they matter immediately. The device rewards designs that treat it as glue logic with generous timing margin.

Input behavior also shapes correct application. Like other CMOS logic devices, the CD4572UBM benefits from well-defined input states and controlled edge conditions. Floating inputs should be avoided, and slow analog-like transitions should be examined carefully if the logic is connected to noisy environments or long traces. In field designs, intermittent issues often come not from the logic function itself but from ambiguous thresholds at startup, high-impedance sensor outputs, or switch inputs with inadequate conditioning. A small amount of pull-up, pull-down, RC filtering, or hysteresis elsewhere in the chain usually prevents a disproportionate amount of debugging effort later. Mixed-function parts such as this one are most successful when they sit in a logic network that has already been disciplined electrically.

From a board-level perspective, the device can reduce component count in a way that improves more than procurement efficiency. Fewer packages mean fewer solder joints, fewer opportunities for pin-swap mistakes, shorter local interconnects, and usually cleaner placement around the logic cluster. This matters in dense support circuitry where the cost of a signal is often routing complexity rather than silicon. A single mixed-function package can also simplify EMC behavior modestly by keeping short internal logical relationships inside the IC rather than exposing them across multiple package-to-package traces. The improvement is not dramatic, but in noise-sensitive control sections, every reduction in unnecessary loop area helps.

For procurement and lifecycle planning, the part offers another kind of value: it fits legacy and long-duration designs without imposing a redesign toward a narrower logic ecosystem. Many systems in industrial infrastructure, instrumentation, transportation support electronics, and maintenance-oriented platforms still depend on supply flexibility and conservative logic implementation. In those contexts, replacing several single-function devices with one CD4572UBM can simplify the bill of materials while preserving validation history and avoiding unnecessary changes in threshold behavior. This is often a stronger reason to choose the part than unit cost alone.

Application scenarios follow naturally from the internal gate composition. In a fault-monitoring block, the NOR gate can combine multiple active-high inhibit conditions, while inverters generate the required active-low forms for downstream enables. In a startup controller, the NAND gate can enforce multi-condition permission logic, with inverters buffering reset or power-good signals into the needed polarity. In sensor conditioning, inverters can restore logic levels after RC shaping or transistor stages, while the NAND and NOR provide compact alarm gating. In maintenance-prone systems, this arrangement often produces schematics that are easier to interpret because the intended logic function is visible without spreading basic gates across multiple devices.

A useful design pattern is to reserve the inverters not only for polarity correction but for signal hygiene. One inverter can normalize an external digital input after a long trace or connector path. Another can isolate a timing node from a larger logic fanout. A third can create the complementary form needed for active-low logic conventions. Once these practical needs are handled, the NAND and NOR gates can be dedicated to the actual decision logic. This tends to produce cleaner partitioning than using a homogeneous gate array, where valuable combinational gates are often consumed just to repair polarity or buffering problems.

The deeper reason mixed-function devices remain relevant is that support logic in physical systems is rarely elegant in the abstract sense. It is shaped by reset polarity, fail-safe defaults, wiring conventions, relay interfaces, analog comparators, and subsystem ownership boundaries. A part like the CD4572UBM embraces that reality. It is not optimized for maximum logical symmetry; it is optimized for the asymmetry that appears in actual equipment. That makes it easy to underestimate from a purely digital viewpoint and surprisingly effective from a system viewpoint.

Seen this way, the CD4572UBM delivers its strongest value when the goal is to build small, reliable, voltage-tolerant logic structures around larger functional blocks. Its mixed gate set reduces package count, its 4000B CMOS heritage supports wide supply and temperature operation, and its logic composition maps well to the messy but repeatable needs of control and conditioning circuitry. In designs that prioritize robustness, maintainability, and direct implementation of basic logic intent, it remains a precise and defensible component choice.

CD4572UBM Logic Architecture and Internal Gate Configuration

CD4572UBM is best understood not as a generic logic IC, but as a deliberately mixed-function CMOS building block optimized for small control networks. Its internal logic set combines six circuits across eight effective signal inputs arranged as 1, 1, 2, 2, 1, 1. In implementation terms, the device provides four inverter stages, one 2-input NOR gate, and one 2-input NAND gate. That mix is unusually practical because it mirrors the gate patterns that repeatedly appear in compact digital designs: signal inversion, basic qualification, simple interlocking, and local decision making.

At the circuit architecture level, the four inverters do more than flip polarity. In real logic paths, they absorb leftover inversion requirements that would otherwise force an additional package, and they often clean up signal presentation between functional blocks. In CMOS systems, an inverter is also the most fundamental gain element, so these stages are frequently used to restore logic amplitude after a weak source, isolate a node with limited fan-out margin, or reshape timing relationships inside short combinational chains. Even when no explicit “buffer” is specified in the logic diagram, one of these inverter sections often ends up solving that role with minimal design cost.

The 2-input NOR and 2-input NAND sections extend the device beyond simple polarity handling into actual logic composition. Since NOR and NAND are universal gates, either one can be expanded into more complex Boolean structures when needed. In small state-decode paths, enable trees, fault masks, or inhibit logic, a single NOR and a single NAND are often enough to eliminate another package entirely. This is where the CD4572UBM becomes more valuable than a bank of identical inverters: it supports both signal conditioning and localized decision logic in one footprint. That combination tends to reduce routing spread, shorten logic paths, and simplify gate allocation during late-stage schematic cleanup.

A useful way to view the input arrangement is as an intentional distribution of logic resources rather than a random mixture. The single-input sections map cleanly to inversion and polarity adaptation. The two double-input sections handle conditional logic where two signals must be combined with either active-high or active-low interpretation. This distinction matters because many practical digital interfaces are not polarity-neutral. Reset lines, chip enables, fault indicators, and interlock signals often arrive with mixed active states. A device that already includes both inversion capacity and dual-input universal gates reduces the amount of logic translation required to align those conventions.

The layout-oriented detail highlighted by Texas Instruments is more important than it may first appear. One NOR input is placed adjacent to VSS, and one NAND input is placed adjacent to VDD. This pin adjacency makes it easier to repurpose those gates as inverters by tying one input directly to the appropriate rail. For the NOR gate, grounding one input converts the gate into an inverter on the other input. For the NAND gate, tying one input high does the same. In dense PCB layouts, especially where routing must stay single-layer for part of the design or where trace crossings are expensive, this pin placement can remove unnecessary detours. That does not change the logical function of the silicon, but it changes how efficiently the silicon can be used in a real board.

This kind of package-aware logic architecture is often undervalued in abstract gate-level discussions. On paper, any inverter can be synthesized from NAND or NOR structures. On a board, however, the cost is not Boolean equivalence but routing friction. A logic device becomes more useful when its pinout supports likely transformations without creating wiring penalties. In practice, mixed-gate CMOS parts like the CD4572UBM often outperform more “regular” devices in low-density designs simply because they fit the physical implementation better. The best small logic devices are not just logically complete; they are layout-cooperative.

From an application perspective, the device fits naturally into glue logic, interface conditioning, and compact control functions. A common pattern is to use one or two inverters for polarity normalization, then assign the NOR or NAND gate to generate a qualified control output, while the remaining inverters handle status inversion or output staging. In reset and startup logic, the NAND gate can combine an enable signal with a supervisory condition, while the NOR gate can detect absence-of-assertion cases or implement simple inhibit behavior. In sensor or switch interfaces, the inverters can absorb active-low conventions and provide local signal cleanup before the two-input gates perform decision combining.

Another practical advantage is design elasticity during revision cycles. In many small digital systems, the exact gate allocation is not fully stable until board integration is nearly complete. A package containing only one gate type can force awkward logic rewrites if a polarity assumption changes late in the process. The CD4572UBM offers a more forgiving resource pool. If one node flips from active-high to active-low, one of the spare inverters can absorb the change. If a qualification condition must be added, the NAND or NOR gate is already available. This flexibility is often what prevents a minor ECO from turning into a package-count increase.

There is also a timing-related benefit to this architecture. When inversion and combinational gating are colocated in one CMOS package, short local paths can be built with fewer inter-package transitions. That usually reduces parasitic loading and cuts some routing-induced uncertainty. In moderate-speed control logic, this can make edge relationships more predictable than a functionally equivalent implementation scattered across multiple devices. The improvement is not dramatic in every case, but in asynchronous interlocks and loosely timed handshaking paths, fewer package boundaries often translate into cleaner behavior.

Engineers should still use the device with a clear understanding of CMOS operating practice. Unused inputs should never be left floating, since high-impedance CMOS gates can drift into undefined states and increase supply current. When repurposing NOR or NAND sections as inverters by tying one input to a rail, the rail connection should be direct and low-impedance. Signal fan-out should remain within the output drive capability of the family and the target load. These are standard considerations, but they matter more in mixed-function packages because every gate tends to be used intentionally, leaving less tolerance for careless input handling.

One subtle strength of the CD4572UBM is that it encourages efficient logic partitioning. Instead of treating inversion as an afterthought and decision logic as the primary design element, the device naturally supports a layered approach: first normalize signal polarity, then combine conditions, then re-invert or buffer as needed for the next stage. That mirrors how many robust control paths are actually built. The result is not just fewer chips, but cleaner logic intent. In low- to moderate-density CMOS designs, that often matters more than raw gate count.

Viewed this way, the CD4572UBM is less a miscellaneous gate assortment and more a compact implementation strategy for real-world combinational control. Its four inverters handle signal adaptation and restoration, its NOR and NAND gates provide universal logic composition, and its pin-oriented functional flexibility reduces layout overhead. For designs where flexibility, board efficiency, and logic cleanup are more valuable than uniform gate replication, this architecture is exceptionally well judged.

CD4572UBM Functional Behavior and Pin-Level Organization

The CD4572UBM is a mixed-function CMOS logic device built on a 16-pin package format that combines four independent inverters, one 2-input NOR gate, and one 2-input NAND gate in a single part. Its practical value is not just gate count reduction. The real advantage is logic consolidation: several low-complexity Boolean operations can be placed in one package with predictable CMOS behavior, low static power, and straightforward routing. In compact control logic, that often matters more than raw integration density.

At the package level, the device is anchored by the supply rails VDD and VSS, with the remaining pins allocated to logic inputs and outputs for the inverter, NOR, and NAND sections. The four inverter channels operate as separate single-input stages, so each can be used without affecting the others. This independence is important in designs where one channel is used for waveform cleanup, another for polarity correction, and others for local enable or status logic. The NOR and NAND sections are dedicated two-input combinational blocks, each with its own defined input pair and output node. Internally, the partitioning is simple, but system-level use can become quite flexible when the outputs are cross-coupled or when spare inverters are used as signal conditioners ahead of the multi-input gates.

From a logic standpoint, the behavior is standard and deterministic. Each inverter produces the complement of its input. The NOR section outputs a logic high only when both inputs are low, implementing Y = not(A + B). The NAND section outputs a logic high except when both inputs are high, implementing Y = not(A · B). These are elementary functions, but in practical digital design they form a highly efficient base layer. The presence of both NAND and NOR in the same device broadens implementation options because each supports different polarity conventions naturally. A design already dominated by active-low signaling tends to map more efficiently into NAND-based structures, while reset, inhibit, and absence-detect logic often aligns more directly with NOR behavior.

An important engineering detail is that NAND and NOR are universal gates. This means the CD4572UBM can implement substantially more than its pin names suggest. By tying inputs together, a NOR or NAND gate can be repurposed as an inverter. By combining inverter outputs with the two-input sections, it becomes possible to synthesize AND, OR, and selected conditional functions with minimal external logic. In practice, this allows the device to absorb last-minute glue logic that would otherwise require an additional package. That kind of flexibility is especially useful during board refinement, where a spare inverter may solve a polarity mismatch and the NAND or NOR block can enforce an interlock or qualification condition without changing the main controller firmware.

The most effective way to understand the device is to move from gate behavior to signal-path use. At the lowest layer, each section is a CMOS logic stage with high input impedance and rail-referenced switching behavior. At the next layer, the gates become signal operators: inversion, suppression, combination, and gating. At the application layer, the part acts as a compact logic fabric for localized decision-making. For example, one inverter may reshape a slow or inverted status line, the NOR gate may combine two fault indications into a single active-high inhibit after polarity adjustment, and the NAND gate may generate an enable output that remains asserted unless two permissive conditions are simultaneously true. In many small control blocks, that is enough to complete the entire support logic around a sensor, timing stage, or microcontroller interface.

This is where the CD4572UBM tends to perform best: peripheral logic that is too small to justify programmable logic, but too interconnected to handle cleanly with discrete transistors or a single generic gate type. Around microcontrollers, it can manage reset qualification, watchdog-related gating, or simple hardware veto paths that should remain independent of software state. In alarm and supervision circuits, the NOR function is useful for absence-based detection, since a high output occurs only when all monitored inputs are inactive. In timing and oscillator support networks, the inverters can be used for edge restoration or polarity management before handing a signal into a NAND or NOR decision stage. In front-end qualification, spare inverters can isolate and normalize incoming lines so the final gate sees a cleaner logical condition.

One subtle but important design advantage of this part is functional asymmetry. Devices that contain only one repeated gate type are theoretically universal, but they often force unnecessary inversions and awkward routing. The CD4572UBM reduces that overhead because it already provides a mix of primitive operations that map more naturally to real control logic. In actual schematics, many small logic problems are not “pure NAND” or “pure NOR.” They are combinations of inversion, permissive gating, and fault aggregation. This part matches that pattern well, which is why it can simplify a circuit beyond what the raw gate inventory would suggest.

Input protection is also a relevant part of the device behavior. The datasheet indicates that all inputs include a CMOS protection network. This improves resistance to handling-related disturbances and helps the device tolerate normal transient exposure at the input interface. That said, the protection network should be treated as a safeguard, not as a license to exceed ratings. Inputs must still remain within specified voltage limits relative to the supply rails, and unused inputs should not be left floating. In CMOS logic, floating inputs can drift into undefined regions, increasing current consumption and producing unstable output behavior. A disciplined biasing strategy, even for apparently unused gates, usually prevents intermittent faults that are difficult to reproduce later in system testing.

In practical layouts, several recurring lessons apply. First, unused inverter channels are often more valuable than they appear. They can be assigned as deliberate delay elements only with caution, since propagation delay varies with supply, temperature, and load, but they are very effective as polarity correctors or as buffer stages for lightly loaded control lines. Second, when NAND and NOR outputs feed external wiring or long traces, the designer should account for capacitive loading because edge degradation can alter timing margins in surrounding logic. Third, mixed-voltage assumptions should be avoided unless the datasheet explicitly supports the intended interface conditions. CMOS parts are forgiving in some respects, but threshold behavior and input overstress can become hidden reliability issues if logic levels are not checked carefully against the operating supply.

For small control systems, the strongest use case is often not gate synthesis in the abstract, but localized hardware intent. A few examples illustrate this clearly. A microcontroller output can be inverted and combined with a hardware fault line so that the final NAND output disables an actuator unless both software command and hardware health are present. Two alarm sources can feed the NOR gate when the requirement is to assert a line only when no alarm condition exists. An inverter can clean up an active-low sensor indication before it enters a final permission path. In these cases, the device acts less like a collection of separate gates and more like a compact logic toolkit for enforcing system behavior close to the physical interface.

The CD4572UBM therefore should be viewed as a structured glue-logic element rather than a simple miscellaneous gate IC. Its four independent inverters provide signal conditioning and polarity control. Its NOR and NAND sections provide compact two-input decision logic. Together, they support efficient implementation of interlocks, qualification paths, fail-safe control, and interface adaptation. When used with careful attention to supply limits, input biasing, and loading, the device can remove surprising amounts of peripheral logic while keeping the resulting schematic readable, maintainable, and electrically disciplined.

CD4572UBM Electrical Operating Range and Environmental Capability

The CD4572UBM stands out less for its logic function alone than for the width of the electrical and environmental envelope in which that function remains usable. Texas Instruments specifies a recommended supply range of 3 V to 18 V over the full rated temperature span. In practical terms, that is not a minor convenience. It means the device can be dropped into low-end 3.3 V-adjacent control domains, traditional 5 V digital sections, and older or specialized CMOS platforms built around 10 V or 15 V rails without forcing a logic-family change. For mixed-product portfolios, this kind of range often matters more than nominal gate behavior, because it reduces the number of unique logic devices needed across otherwise dissimilar designs.

The value of that 3 V to 18 V range becomes clearer when viewed from the device physics level upward. In the 4000B CMOS family, logic thresholds, propagation delay, noise margin, and dynamic power all shift with supply voltage. A wider usable VDD range gives the designer freedom to trade speed, noise immunity, and power dissipation according to system priorities rather than according to the narrow limits of the logic part. At lower supply voltages, switching speed is reduced, but power and stress are also lower. At higher voltages, the device typically delivers stronger noise margins and faster edge-driven internal transitions, which can be useful in electrically noisy installations or long interconnect environments. That flexibility is one of the reasons these devices continue to appear in long-life control electronics.

The published parametric ratings at 5 V, 10 V, and 15 V are especially useful because they anchor design estimates to the most common operating points in the 4000B ecosystem. This is not just a datasheet formatting choice. It gives direct visibility into how key parameters move across the supply range without forcing the engineer to extrapolate too aggressively from a single test condition. In real design work, these discrete operating points help when checking timing closure, input threshold compatibility, and static margin against legacy subsystems. A design reviewed at 5 V may look comfortable, but the same circuit on a 15 V rail can exhibit materially different timing and input behavior. Having characterized values at each rail reduces uncertainty early in schematic selection.

The temperature capability is equally important. The rated operating range of -55°C to +125°C places the CD4572UBM in a category suitable for environments where logic devices are exposed to more than office-grade conditions. Cold-start behavior at subzero temperatures, enclosure heating under solar load, industrial cabinet hotspots, and conduction-heated assemblies near power stages all become more manageable when the logic component is not the first item to fall outside specification. In many robust designs, wide temperature rating is not selected for constant extreme operation. It is selected to preserve margin during startup, fault recovery, transport, storage transition, or transient local heating that does not appear in average ambient numbers.

This thermal range also affects procurement and lifecycle decisions. A logic device that remains valid across military-style cold conditions and high-temperature industrial conditions can support multiple variants of the same control platform with minimal BOM disruption. That is often more valuable than optimizing each variant around a narrower, cheaper logic family. Reuse lowers qualification effort, simplifies stocking, and reduces the risk of hidden redesign work when one product line migrates to a different supply rail or enclosure class. In that sense, the CD4572UBM functions as a platform component rather than a single-use logic element.

From an interface standpoint, the broad voltage range helps bridge system generations. Legacy equipment often combines 5 V TTL-derived control logic, 12 V or 15 V CMOS-era sections, and discrete transistor interfaces in the same product family. A device like the CD4572UBM can sit comfortably inside those architectures without requiring level translation in every path, provided input threshold and output drive requirements are checked carefully against the actual rail. This is where selection discipline matters. Wide VDD capability does not automatically imply universal compatibility with every neighboring logic family. At 5 V, for example, direct interaction with TTL-like outputs may require closer examination of VIH margins than a casual review suggests. The part is flexible, but good use of that flexibility depends on threshold-aware design rather than broad assumptions about “5 V logic” as a single category.

The environmental capability also has a subtle reliability benefit. Devices specified across a wide temperature and voltage window are often easier to derate sensibly. Running a part well inside its allowed envelope generally improves confidence in long-duration field operation, especially in systems with uncertain thermal distribution or supply variation. In practice, designs that operate the CD4572UBM at moderate supply levels with controlled edge rates and clean decoupling tend to show very stable behavior over time. The common failure mode is rarely the logic core itself. It is more often poor board-level treatment: long traces left unterminated in noisy cabinets, inadequate bypassing near the package, or assumptions that a slow CMOS family can ignore transient integrity issues. In higher-voltage CMOS logic, those details still matter.

A useful design pattern is to treat the device’s electrical range as a margin reservoir, not as an invitation to operate casually at the extremes. If the system nominally runs at 12 V with possible surges, rail tolerance and transient suppression should still be reviewed against absolute limits and switching behavior. If the product is expected to start at very low temperature, timing should be checked with the actual load and edge conditions rather than inferred from room-temperature bench behavior. The broad datasheet limits make the part adaptable, but the best results usually come from using that adaptability to absorb uncertainty, not to avoid analysis.

For selection engineers, the more important interpretation is that the CD4572UBM offers system-level elasticity. Its logic function is stable across multiple power architectures and thermal classes, which makes it attractive in equipment families that evolve over time or must remain serviceable long after original design assumptions have changed. For procurement teams, that same elasticity supports part commonality across products with different rails, enclosure conditions, and qualification targets. The part therefore occupies a useful middle ground: simple in function, but unusually capable as a reusable logic building block when voltage diversity and environmental headroom are real design constraints.

CD4572UBM DC Electrical Characteristics and Output Drive Performance

The CD4572UBM shows the expected DC behavior of a mature CMOS logic device: negligible static input loading, very low quiescent dissipation, and output drive that improves with supply voltage but remains fundamentally limited compared with true power drivers. That combination makes it effective in logic distribution, gating, and signal conditioning roles, especially where static efficiency matters more than brute-force load drive.

At the input stage, leakage is one of the strongest characteristics. With a maximum input current of 1 µA across the full temperature range at 18 V, and a typical value around 100 nA at 25°C, the device behaves almost like an open circuit in steady-state conditions. This matters in large fan-in logic structures, resistor-biased control nodes, and long-duration standby states where leakage accumulation can otherwise distort bias points. In practice, this low input current gives wide freedom when interfacing to high-value pull-up or pull-down networks. It also reduces error introduced by passive timing or sensing networks, provided board contamination and surface leakage do not dominate. On real assemblies, leakage on the PCB can easily approach or exceed the device’s own input current, so layout cleanliness and flux control become part of the electrical design rather than an afterthought.

The quiescent current behavior follows the same CMOS pattern. Static supply current remains extremely small over normal operating conditions, and the fact that quiescent current is production-tested at 20 V is more important than it first appears. It means the low static-power characteristic is not just a theoretical process feature but a screened production parameter. For systems that spend most of their time in fixed logic states, this gives the CD4572UBM a predictable advantage. It fits well in always-on supervisory paths, battery-retained logic islands, and distributed control sections where many devices remain powered continuously. The practical design implication is clear: in static mode, supply current is rarely set by the IC itself. External bias networks, floating inputs, and downstream loads usually dominate first.

Output drive is where the device must be interpreted carefully. The output stage can both source and sink current, and the guaranteed capability rises with VDD. The specified minimum output current levels are about 0.64 mA at 5 V, 1.6 mA at 10 V, and 4.2 mA at 15 V, with similar magnitude for sourcing and sinking. The higher descriptive figure of 6.8 mA high and low output current at 15 V reflects a stronger operating condition, but it should not be read as blanket drive capability under all logic margin requirements. The more useful engineering view is that output current is available only by allowing some departure from the rails. As load current rises, VOH falls below VDD and VOL rises above ground. That is normal CMOS behavior, but it becomes critical when one output fans out to multiple inputs, long traces, or mixed-family interfaces.

This is the point where datasheet numbers often get misused. A listed output current is not the same as recommended continuous load current for arbitrary applications. For logic interfacing, the real question is whether the output still meets the receiving threshold with enough noise margin under worst-case voltage, temperature, and process conditions. In that sense, the CD4572UBM is best treated as a logic-stage driver. It is comfortable driving CMOS inputs, moderate interconnect capacitance, and high-impedance control lines. It is not intended to directly power LEDs, relays, low-resistance pull networks, or transmission-line-like loads unless an external buffer is inserted. Designs that ignore this distinction often appear to work at room temperature on the bench, then lose edge quality or logic margin once supply variation, temperature drift, or production spread is introduced.

The relationship between supply voltage and drive capability is central to using this part well. As VDD increases, MOS channel overdrive increases, on-resistance drops, and the output stage can deliver more current for the same voltage error. That is why the step from 5 V to 15 V materially changes usable drive strength. At 5 V, the device should be considered lightly loaded logic. At 10 V and 15 V, it becomes more robust for distributed CMOS-level signaling, but still not a substitute for a dedicated line driver. A useful rule in practice is to reserve the guaranteed current figures for worst-case verification, then operate well below them if clean edge placement and rail fidelity are important. This becomes especially relevant when outputs feed asynchronous control inputs, where slow transitions can create timing ambiguity or increased dynamic current in downstream CMOS stages.

Rail-oriented output swing remains one of the device’s most valuable properties. Under specified test conditions, VOL stays near 0 V and VOH stays near VDD, which preserves full CMOS logic amplitude and strong noise immunity. For static logic chains, this rail-to-rail behavior allows straightforward cascading without the level degradation seen in some bipolar families. It also helps in systems with broad supply tolerance, because the logic swing scales naturally with the rail. That said, rail proximity should always be interpreted together with load current. With negligible load, the output is effectively at the rail. With rising load, the output moves inward. This is not merely a DC detail; it directly affects noise margin, switching point robustness, and cross-device compatibility.

The input threshold limits also scale with supply voltage, which is typical for unbuffered or standard CMOS input structures. This is advantageous in homogeneous CMOS systems because threshold tracking follows the supply. A logic high at 15 V is judged relative to a 15 V rail, not to a fixed TTL-like standard. The resulting design style is clean and consistent, but it requires discipline when mixing logic families. If the CD4572UBM is driven from lower-voltage logic, or if its outputs feed devices with nonproportional thresholds, direct compatibility cannot be assumed. This is one of the subtle areas where robust designs differ from merely functional ones. Supply-scaled thresholds are excellent inside one CMOS voltage domain, but they demand explicit level planning at domain boundaries.

In practical use, the most reliable operating model is to view the CD4572UBM as a low-static-power logic element with moderate voltage-dependent output strength. It excels when the circuit is dominated by state retention, combinational control, and clean CMOS fan-out. It becomes less comfortable when asked to absorb board-level parasitics, off-board wiring, or nonlogic loads. When edge rates begin to matter, even a DC-oriented device discussion must include capacitive loading. A few CMOS inputs are trivial; a long trace plus connector plus multiple device gates is not. The DC drive numbers may still look acceptable, yet transition times can lengthen enough to increase susceptibility to noise or timing skew. In such cases, the most effective fix is usually not to push the device harder, but to isolate the load with a buffer stage and let the CD4572UBM remain in the operating region where its CMOS strengths are most intact.

This part is therefore best understood not by its maximum current figures alone, but by the balance it strikes: very low static burden, strong rail-referenced logic behavior, and enough output capability for disciplined CMOS interconnect. Used within that frame, it is predictable and efficient. Used as a general-purpose load driver, it quickly runs into the natural boundaries of classic CMOS output stages.

CD4572UBM Dynamic Characteristics and Timing Implications

The CD4572UBM sits in the class of CMOS logic devices optimized for supply-range flexibility and low static power rather than edge-rate performance. Its timing behavior is stable enough for disciplined design, but it should be treated as a medium-speed logic element whose delay is materially affected by supply voltage, output loading, and signal integrity at the pins. That combination makes it useful in control-oriented logic paths, while making it unsuitable for designs that depend on tight timing closure or narrow clock margins.

At TA = 25°C, with 20 ns input rise and fall times, CL = 50 pF, and RL = 200 kΩ, the specified propagation delay shows the expected CMOS dependence on supply headroom. At 5 V, propagation delay is 100 ns typical and 200 ns maximum. At 10 V, it improves to 55 ns typical and 110 ns maximum. At 15 V, it reaches 40 ns typical and 85 ns maximum. Transition time follows the same pattern: 100 ns typical and 200 ns maximum at 5 V, 50 ns typical and 100 ns maximum at 10 V, and 40 ns typical and 80 ns maximum at 15 V. Input capacitance falls in the 10 pF to 15 pF range, which is moderate for CMOS of this family and becomes relevant when one source drives multiple inputs or when RC-sensitive front-end signals are involved.

The underlying mechanism is straightforward. In CMOS logic, dynamic speed is set largely by how quickly the output stage can source or sink charge into the external load capacitance. A higher VDD increases overdrive on the MOS devices, reducing effective output resistance and allowing the internal nodes and the load to charge or discharge faster. That is why the device accelerates significantly as the supply moves from 5 V to 15 V. The improvement is not linear in a strict sense, but the trend is strong enough that supply voltage should be viewed as a first-order timing parameter, not a secondary detail.

Load capacitance has the complementary role. Every output transition must move charge proportional to C × V. As CL increases, delay and edge time increase because the output stage current must support a larger charge transfer. The datasheet’s note that propagation delay varies with capacitive loading is not just a generic warning. In practice, PCB trace capacitance, connector loading, oscilloscope probe capacitance, and fan-out into several CMOS inputs can move real delay well away from the nominal 50 pF condition. A path that looks safe on paper at room-temperature typical values can become marginal once the real board parasitics are included.

The specified transition times also deserve attention. They are not merely cosmetic edge-shape numbers. Longer transitions increase the interval during which the receiving stage sees an intermediate logic level, and that can expand uncertainty in downstream switching thresholds, especially when several gates are chained. In slower logic families this effect is often tolerated, but in timing-sensitive control paths it accumulates. A chain of several CD4572UBM stages at 5 V with moderate loading can create enough total delay and edge degradation to shift enable windows, stretch hazard pulses, or upset assumptions about asynchronous qualification timing.

This is why the device is a good fit for general-purpose control logic, sequencing, gating, signal qualification, and interface support around slower digital sections. It works well where logic decisions occur on microsecond-scale or relaxed sub-microsecond intervals, and where low quiescent dissipation and wide supply compatibility matter more than short combinational latency. It is much less appropriate in fast handshake paths, bus arbitration logic, narrow pulse capture, or clock-domain boundary logic where tens of nanoseconds matter and jitter-like timing spread from operating conditions can no longer be ignored.

One practical design pattern is to use the CD4572UBM near the outside of a system rather than at its timing core. In that role it can filter, gate, combine, or qualify control signals before they enter a faster logic domain or analog control section. It is also well suited for delayed enable structures, interlock logic, and mode-selection networks where deterministic function is more important than minimum latency. Designs tend to remain robust when the part is used to enforce state conditions or inhibit unsafe transitions, not when it is inserted into the shortest path of a timing-critical pipeline.

The input capacitance range of 10 pF to 15 pF is modest, but it becomes significant in aggregate. If one upstream node fans out to several inputs, the total capacitive burden rises quickly even before trace parasitics are counted. On high-impedance or resistor-shaped signal sources, that capacitance can stretch input edges enough to alter effective timing at the receiving gate. This becomes especially visible in RC-derived timing networks, mechanically switched inputs, and sensor-driven logic lines, where the source impedance is not negligible. In such cases, the gate delay itself may not be the only contributor; the source-to-input RC can become the dominant term.

Another important point is that the datasheet timing values are measured under controlled input slew conditions. The 20 ns input rise and fall times used for characterization are fast relative to the device’s own output timing. If the actual design presents slower input transitions, the internal switching point may be crossed more gradually, introducing additional uncertainty in output timing and potentially raising transient current during the overlap region. For asynchronous inputs or RC-shaped control signals, it is prudent to avoid assuming datasheet delay numbers will map directly to board behavior.

In cascaded logic, timing budget should therefore be built from worst-case thinking rather than from attractive typical values. At 5 V, a two- or three-stage path can already consume several hundred nanoseconds once maximum propagation delay, transition-time broadening, and realistic loading are included. Temperature and process spread will only widen that window. A disciplined margining approach is to start with the maximum delay per stage, add board-level capacitive effects, then reserve additional slack for supply variation and threshold interaction at the receiving gates. This tends to produce designs that behave consistently without requiring selective tuning after layout.

A useful engineering heuristic is to treat the CD4572UBM less like a generic “logic gate” and more like a voltage-scalable switching element with meaningful analog behavior around its digital thresholds. That framing leads to better decisions. It encourages attention to fan-out, edge shaping, supply selection, and path placement in the architecture. It also explains why the part performs well in glue logic and supervisory roles: those applications tolerate analog variation around transitions as long as the final logic decision is correct and sufficiently separated in time from the next event.

Board experience reinforces the same lesson. Delay excursions often come not from the silicon alone but from accumulated small effects: long traces, shared control nets, passive pull networks, and test instrumentation attached during validation. A gate that appears comfortably inside timing in simulation can become the limiting element once a harness, connector, or daughtercard adds capacitance. The safest approach is to evaluate the device in the actual loading environment and avoid placing it in paths where a 2:1 variation between typical and worst-case delay would be difficult to absorb.

Used with that mindset, the CD4572UBM is predictable and effective. Its dynamic profile is entirely acceptable for control-centric digital functions, especially when supply flexibility is valuable and power dissipation must remain low. The key is not to overestimate its speed. If timing is budgeted with real loads, realistic supply rails, and stage-by-stage margin, the part integrates cleanly into slower logic systems and provides dependable operation without demanding aggressive timing management.

CD4572UBM Transfer Characteristics, Noise Behavior, and Design Interpretation

The CD4572UBM is best understood not only through its static logic tables, but through its analog behavior around the switching region. The published transfer characteristics reveal how the device actually transitions between logic states as input voltage moves across the threshold band. That behavior matters whenever the device is driven by anything other than a fast, clean CMOS edge.

The inverter transfer curves show the familiar CMOS S-shaped response. At low input voltage, the PMOS network dominates and the output remains near VDD. At high input voltage, the NMOS network takes control and the output falls toward VSS. Between these two regions, both transistor networks conduct simultaneously. This intermediate zone is where gain is highest, where the output changes most rapidly for a small input variation, and where the circuit is most sensitive to noise, supply disturbance, and edge-rate effects.

The threshold is not fixed. It shifts with supply voltage, process variation, and temperature. As VDD changes, the effective switching point and transition steepness change with it. At higher supply voltage, the gain around the threshold usually becomes more pronounced, but dynamic current during switching also becomes more relevant. With temperature increase, carrier mobility decreases and transistor parameters drift, which shifts the transfer curve and can widen practical uncertainty in borderline input conditions. For design work, this means the switching region should always be treated as a band rather than a single voltage.

That point becomes important in slow-edge environments. If the CD4572UBM is driven from an RC waveform, a resistor-divider network, a long interconnect, or an analog front-end with limited slew rate, the input may dwell inside the transition region for a nontrivial time. Since the part does not provide Schmitt-trigger action, there is no built-in hysteresis to suppress repeated toggling caused by noise or ripple riding on the input waveform. In practice, this is where transfer curves become more useful than nominal VIH and VIL limits. They let the designer estimate how much margin exists between an expected waveform and the actual switching band, and they expose cases where a mathematically valid logic signal is still operationally fragile.

In threshold-sensitive combinational paths, this analog perspective prevents a common mistake: assuming digital correctness from DC levels alone. A slowly moving input can momentarily produce uncertain propagation timing, elevated supply current, and even spurious transitions if coupling or ground movement perturbs the signal while it crosses the threshold region. The effect is often subtle in bench tests and more visible in temperature sweep, low-voltage operation, or systems with inductive loads switching nearby. When logic states are timing-critical, the relevant question is not only whether the input eventually reaches VIH or VIL, but how it travels through the undefined region and how long it remains there.

The noise immunity test circuit provided in the datasheet should be read in that context. It is not just a compliance artifact. It gives a practical indication of how much unwanted disturbance the logic path can tolerate before a false state transition becomes likely. In the 4000B family, this matters because these devices are often inserted into mixed-voltage or mixed-signal assemblies where digital nets are exposed to analog-like edges, long routing, relay transients, sensor outputs, or supply domains with relatively soft impedance. Under those conditions, the input node behaves less like an ideal Boolean variable and more like a small analog system coupled to its environment.

A useful design interpretation is to treat the CD4572UBM input as a high-impedance threshold detector with finite susceptibility rather than a perfect digital port. High input impedance reduces DC loading, but it also means weak interference currents can create noticeable voltage disturbance if the source impedance is high. This is one reason RC-generated timing nodes, pull-up resistor networks, and long unshielded traces can become disproportionately sensitive. The issue is not the logic family itself; it is the combination of high impedance, no hysteresis, and slow transition rate.

For that reason, clean input transition design is not optional when robustness matters. Source impedance should be kept low where practical. Decoupling should be placed close to the package so that switching current does not modulate the local threshold through supply bounce. Return current paths should remain short and predictable. If traces carrying fast edges or high dV/dt switching currents run near threshold-sensitive inputs, capacitive injection can produce false toggles even when steady-state voltage levels look compliant. In dense layouts, separating quiet logic inputs from aggressively switching outputs often improves reliability more than adding nominal logic margin on paper.

The output current characteristic graphs add another layer of realism. Datasheet table values for VOH, VOL, IOH, and IOL are necessary, but they are sparse points on a continuous curve. The plotted output low and output high current characteristics show how output voltage degrades as load current increases. This matters directly for fan-out calculations, especially when operating away from the standard supply rails or near thermal limits. A logic output that appears strong in a static table can lose substantial margin when driving multiple CMOS inputs plus trace capacitance, leakage paths, indicator networks, or level-shifting elements.

In practical terms, fan-out for this class of device is often limited less by input current and more by dynamic loading and required edge quality. CMOS inputs draw little DC current, but wiring capacitance, package parasitics, and off-state leakage from connected circuitry can slow edges and increase transition time. As edge rates slow, the receiving gate spends more time in its high-gain region, and system susceptibility increases. That is why a fan-out estimate based only on DC input current can be misleading. The more useful method is to combine the output drive curves with expected capacitive load, target switching speed, and worst-case temperature. This gives a design limit that aligns better with actual behavior.

The inverter current curves are equally informative. They show that supply current is not constant across input voltage. Current rises near the switching threshold because both pull-up and pull-down devices conduct simultaneously. In systems where multiple gates see slow edges at the same time, this can produce a transient increase in supply current that is much larger than the quiescent value implied by static CMOS assumptions. That effect is easy to overlook in low-frequency designs, yet it can become the source of local supply dip, reference shift, or cross-coupled false switching if bypassing is weak. A design that looks electrically quiet in steady state can still become noisy during transitions.

This leads to a broader interpretation of the transfer data: the CD4572UBM should be designed as a low-power CMOS logic device with distinctly analog switching behavior. That framing is useful because it aligns the implementation strategy with how the part actually behaves. If the driving signal is sharp and the supply is well-decoupled, the device behaves predictably and with wide practical margin. If the driving signal is slow, high-impedance, or exposed to coupled noise, the switching region becomes the dominant design concern.

For RC-derived signals, a simple buffering stage with hysteresis upstream is often more effective than attempting to tune resistor values until the waveform “usually works.” For long traces, series damping at the driver and firm local decoupling near the receiver often reduce threshold crossings caused by ringing. For mixed-signal interfaces, defining a deliberate threshold-conditioning stage prevents the logic gate from serving as an unintended analog comparator. These measures usually cost little and remove the need to rely on optimistic interpretation of transfer curves.

When supply voltage is nonstandard, the curves become even more valuable. The 4000B family is frequently chosen for its wide supply range, but wide range does not mean uniform behavior. At lower VDD, noise margins narrow in absolute volts, output drive weakens, and transition times under load become longer. At higher VDD, edge strength improves, but so can transient disturbance if layout control is poor. The right operating point depends on whether the design priority is low power, speed, noise margin, or interface compatibility. Reading the transfer and current plots together gives a clearer answer than any single table parameter.

A disciplined approach is to use the transfer characteristics to define the vulnerable region, use the noise data to estimate how much disturbance can be tolerated there, and use the output drive curves to verify that connected loads do not push the device into marginal timing or voltage conditions. This layered reading of the datasheet is usually the difference between a circuit that only functions in nominal test conditions and one that remains stable across startup, temperature shift, supply variation, and field wiring differences.

The key design message is straightforward. The CD4572UBM is reliable when treated as a CMOS logic element with real threshold dynamics, not as an ideal binary block. The published transfer curves, noise test information, and output current graphs provide the tools to predict that behavior with much higher accuracy. Used together, they support better fan-out estimates, cleaner interface design, and more robust operation in systems where signal edges are imperfect, loads are variable, or the electrical environment is not quiet.

CD4572UBM Power Dissipation and Frequency-Related Considerations

CD4572UBM power behavior is best understood by separating static CMOS efficiency from switching-related loss. At rest, the device benefits from the familiar CMOS characteristic of very low quiescent current. That makes it attractive in control paths, state decoding, and logic selection functions that spend most of their life in stable states. In these conditions, supply current is often dominated more by leakage and surrounding circuitry than by the logic device itself.

The picture changes once nodes begin to toggle repeatedly. Dynamic power rises with three variables at the same time: switching frequency, supply voltage, and effective capacitive load. This is the practical center of the device’s power story. Each output transition charges or discharges internal and external capacitances, and the energy associated with that action is drawn from the supply on every cycle. As frequency increases, that energy cost repeats more often. As VDD increases, the energy per transition rises strongly. As load capacitance grows, the amount of charge moved on each edge increases as well. In real designs, these three terms rarely vary independently, which is why quick one-number power estimates often miss the true operating point.

Texas Instruments supports this view with typical dynamic power dissipation versus frequency data and delay normalization data versus supply voltage. Those two data sets should be read together rather than in isolation. Frequency indicates how often the device pays the switching cost. Supply voltage affects both delay and power, which creates a useful but sometimes expensive tradeoff. Raising VDD usually improves switching speed and timing margin, but it also increases dynamic dissipation. In low-to-medium speed designs, there is often no real benefit in operating near the top of the supply range if timing already closes comfortably at a lower rail. That decision alone can materially reduce thermal stress and total system current.

A useful engineering model starts from the standard CMOS dynamic power relation, where power scales approximately with capacitance, the square of supply voltage, and switching frequency. The exact internal implementation of the CD4572UBM adds some device-specific behavior, but this framework remains the right first-order tool. It explains why a lightly loaded logic gate toggling occasionally can be almost negligible in the power budget, while the same gate embedded in a continuously active pulse path can become a nontrivial contributor. It also explains why output loading deserves more attention than it sometimes gets in legacy CMOS designs. Trace capacitance, connector parasitics, multiple CMOS inputs, test points, and long board routes can push switching loss up faster than expected.

This distinction matters immediately in always-on systems. If the CD4572UBM is used in alarm logic, low-duty control interlocks, mode selection, or rarely changing decode logic, static power remains the dominant consideration and overall dissipation stays very low. In these use cases, the device aligns well with power-sensitive architectures, especially when the rest of the system already operates with low switching activity. The advantage is not just lower average power. It also reduces self-heating, which helps maintain stable logic thresholds and predictable timing over temperature.

The opposite case appears in oscillator-adjacent logic, repetitive pulse shaping, clock-derived gating, divide-by-paths, and continuously active combinational networks. Here, dynamic current can exceed static current by a wide margin. This is where many board-level estimates go wrong: the logic function looks simple, so it is treated as essentially “free,” but the switching duty is persistent and the output loading is not minimal. Once a gate is driven continuously, especially at elevated VDD, the relevant question is no longer whether CMOS is low-power in principle, but whether the actual switching energy fits the thermal and rail-current budget of the assembled design.

Capacitive load deserves separate emphasis because it influences both power and waveform quality. Larger loads increase the charge moved on each transition, directly increasing dynamic loss. They also slow edge rates, which can extend transition intervals and increase sensitivity to timing degradation in downstream stages. In practice, this means power and timing begin to couple. A heavily loaded output not only consumes more energy, but may also reduce noise margin under fast system-level timing conditions. The device can still function correctly, but the operating headroom narrows. This is especially relevant when one output fans out across multiple loads or drives a long PCB net with measurable distributed capacitance.

A practical board-level approach is to evaluate the device under realistic switching assumptions rather than under idealized static conditions. Start with the expected toggle rate of each active node, then estimate total output capacitance, including package, routing, receiving inputs, and any probing or diagnostic structures. Next, compare required timing against the supply-voltage-dependent delay behavior. That step often reveals an optimization point: a slightly lower supply may still satisfy propagation delay requirements while reducing dynamic loss meaningfully. This kind of cross-check is usually more valuable than relying on nominal current expectations taken from low-activity examples.

Thermal limits provide the hard boundary for these electrical tradeoffs. The package-level maximum power dissipation is specified as 500 mW from -55°C to +100°C. From +100°C to +125°C, that limit derates linearly by 12 mW/°C, reaching 200 mW at +125°C. This derating should be treated as an active design constraint, not a distant absolute maximum. Ambient temperature, local board heating, nearby power devices, and enclosure airflow all affect how much real margin exists below the published number. A design that appears comfortable on paper at room temperature can become marginal in a sealed product or in a corner of the board exposed to hot components.

The specified 100 mW dissipation limit per output transistor is equally important. It reminds the designer that total package power is not the only concern; dissipation concentration inside a single output structure can also matter. This becomes relevant when one output is used much harder than the others, for example when it drives a larger capacitive net, switches more often, or sees output-stage stress due to unfavorable loading conditions. Uniform logic utilization is generally safer than allowing one node to carry a disproportionate share of the dynamic burden.

In applied design work, the most reliable results usually come from treating the CD4572UBM as a low-static-power logic element that must still be analyzed like any other switching device once activity rises. For low-duty applications, its CMOS efficiency is a clear advantage. For continuously toggling paths, supply rail choice, load capacitance, and switching frequency become the real design drivers. A disciplined estimate that combines these factors early will usually prevent both overdesign and unpleasant thermal surprises later, while preserving the simplicity that makes this class of logic useful in the first place.

CD4572UBM Reliability, Protection Features, and Absolute Maximum Ratings

CD4572UBM reliability begins with its positioning inside the B-series CMOS framework defined by JEDEC Standard No. 13B. That matters because the part is not only specified as an isolated logic device, but as a member of a process and behavior class with known CMOS expectations. In practice, this gives a stronger basis for interpreting thresholds, input behavior, power sensitivity, and handling limits across supply range and temperature. For design work, that family-level consistency is often more valuable than a single table of numbers, because it supports predictable integration into larger mixed-logic systems.

The absolute maximum ratings define the device survival envelope, not its intended operating region. This distinction is critical. A DC supply voltage from -0.5 V to +20 V, an input voltage from -0.5 V to VDD + 0.5 V, and a maximum DC input current of ±10 mA on any one input describe conditions the silicon may tolerate briefly without immediate catastrophic failure. They do not imply functional correctness, timing compliance, or long-term reliability at those levels. Designs that treat absolute maximum values as usable margins usually accumulate hidden damage mechanisms: gate oxide stress, junction overstress, parasitic conduction, and accelerated parameter drift. A robust design keeps steady-state operation comfortably inside recommended ranges and treats the absolute maximum table as a fault boundary.

The voltage limits reflect the underlying CMOS structure. Input pins typically connect to MOS gate structures plus protection paths tied to the supply rails. When an input rises above VDD + 0.5 V or falls below VSS - 0.5 V, those protection elements can forward-bias. Once that happens, current is no longer confined to the intended high-impedance input path. Instead, it is injected into the substrate or supply network. In a benign case, this causes excess current and logic disturbance. In a worse case, it can trigger latch-up-like behavior, local heating, or cumulative degradation. The ±10 mA input current limit should therefore be read as a hard cap under abnormal conditions, not as a usable interface current for level translation or signal clamping.

Supply overstress deserves the same caution. Although the device can withstand up to +20 V in the absolute maximum sense, operation near that edge sharply reduces design margin. CMOS reliability is strongly tied to electric field stress across thin dielectric regions and to the behavior of internal junctions under transient events. Even if the part appears to function during bench evaluation, repeated excursions near the top of the allowable range can shorten useful life, especially in systems with switching noise, cable-induced ringing, or slow power sequencing. A practical rule is simple: if the power rail can overshoot, then the nominal rail is already too close to the limit.

The stated storage temperature range of -65°C to +150°C defines non-operating survivability for logistics and assembly exposure, not guaranteed functional performance. Storage stress affects package materials, bond interfaces, and long-term moisture behavior as much as silicon itself. The lead temperature limit of +265°C for 10 seconds at the specified measurement point is similarly a process constraint. It is relevant during soldering, rework, and board assembly qualification. In real manufacturing flows, the risk is rarely the nominal peak temperature alone. The larger issue is thermal profile control: dwell time, temperature gradient, repeated heating cycles, and local hotspot formation. Excessive rework can degrade solder joints and package integrity long before visible damage appears.

The integrated CMOS input protection network improves resilience during ordinary handling and normal electrical disturbances. That protection is useful, but it should be viewed as a first-line barrier, not as a substitute for system-level protection design. Internal networks are typically optimized for moderate incidental stress, such as small electrostatic events or brief overvoltage conditions. They are not intended to absorb sustained fault energy from long traces, inductive kickback, hot-plug transients, or inter-board voltage mismatch. When a design places the CD4572UBM at external connectors, across cable runs, or near noisy power domains, additional series resistance, clamp strategy, and layout discipline become far more important than the presence of internal protection alone.

Unused inputs must never float. This is one of the most important practical reliability rules for CMOS logic. A floating CMOS input does not settle to a clean logic state. It can drift into the threshold region where both pull-up and pull-down devices partially conduct, increasing supply current and creating internal switching noise. It also becomes an antenna for capacitive pickup, which can lead to intermittent logic transitions and hard-to-reproduce field failures. Tying unused inputs directly to VDD or VSS eliminates this uncertainty, reduces unnecessary current draw, and improves noise immunity. In dense digital assemblies, this small discipline often separates stable behavior from sporadic faults that only appear during EMC exposure or temperature variation.

Decoupling between VDD and VSS is equally important. CMOS gates draw relatively low static current, but transient current demand during switching can still create local supply collapse or ground bounce if the supply loop is inductive. A nearby bypass capacitor provides the high-frequency current locally and helps keep internal thresholds referenced to a stable rail. Without adequate decoupling, the part can appear sensitive to input timing or neighboring logic activity when the real problem is supply integrity. In practice, placing a small ceramic capacitor close to the device power pins is not just good layout hygiene; it is part of protecting the device from self-generated stress and from false logic interpretation.

A useful way to think about reliability for the CD4572UBM is in three layers. The first layer is silicon integrity: do not exceed pin voltage or current limits, and do not operate close to the absolute maximum envelope. The second layer is logic stability: tie unused inputs, maintain clean rail decoupling, and avoid slow or noisy signal conditions that linger near the threshold region. The third layer is system interaction: control transients, manage sequencing, and ensure that no external node drives the device when its supply is absent or collapsing. Many field issues originate in this third layer, where the logic device itself is healthy but is forced into unintended conduction paths by the surrounding circuitry.

One recurring issue in practical designs is powered-off input injection. If a signal source remains active while CD4572UBM VDD is at 0 V, an input driven above ground can forward-bias the internal protection path into the supply rail. That can partially power the device through the input pin, disturb adjacent logic, and create unpredictable startup behavior. The effect is often subtle: the board may pass basic functional tests yet fail intermittently during sequencing or service events. A small series resistor on the driving line, or a sequencing constraint that guarantees valid supply before input drive, usually resolves the problem with minimal cost.

Another common issue is transient overshoot caused by fast edges and trace inductance. Even when the nominal logic amplitude is valid, ringing can push an input beyond VDD + 0.5 V or below VSS - 0.5 V for short intervals. Because CMOS inputs are very high impedance, it is easy to assume they are electrically benign. In reality, high impedance makes them more vulnerable to voltage excursions unless the interconnect is controlled. Short traces, controlled return paths, moderate edge rates, and occasional series damping resistors often improve reliability more effectively than adding stronger clamps after the fact.

For conservative engineering, the best interpretation of the datasheet guidance is not merely “stay within limits,” but “preserve margin under all realistic disturbances.” That means accounting for supply tolerance, startup behavior, load-induced noise, assembly temperature exposure, and maintenance conditions. The CD4572UBM is a reliable CMOS device when treated as a logic element inside a controlled electrical environment. It becomes much less predictable when used at the edge of its protection assumptions. Good designs therefore do not consume the absolute maximum table as available headroom. They reserve it as emergency space, and they shape the surrounding circuit so that the device rarely approaches it.

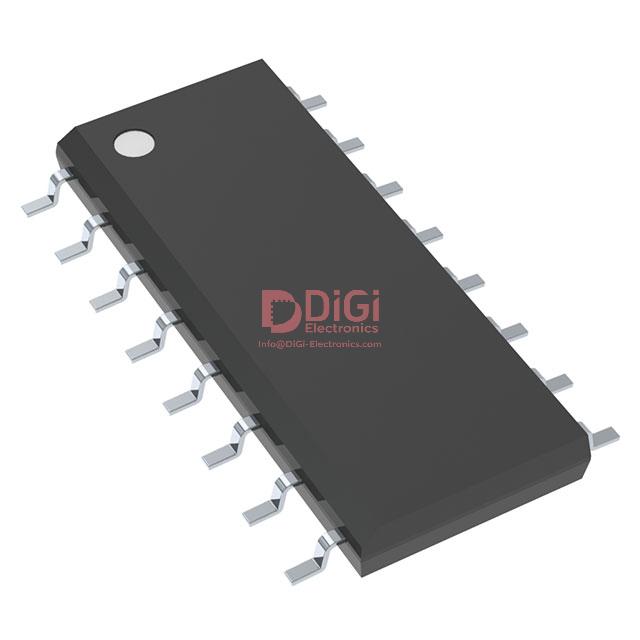

CD4572UBM Packaging Options and Mounting Considerations

CD4572UBM packaging is not just a mechanical detail. It directly affects assembly flow, board density, thermal behavior, inspection access, rework effort, and even how comfortably the device fits into mixed-technology designs. Within the CD4572UB family, Texas Instruments provides multiple package paths, including PDIP for through-hole implementations, SOIC/SOP for mainstream surface-mount use, and TSSOP for tighter layout constraints. The CD4572UBM specifically refers to the 16-pin SOIC variant, a surface-mount package with an approximate body width of 0.154 inch, or 3.90 mm.

This package sits in a useful middle ground. It is compact enough for standard SMT production, but not so small that placement, inspection, or manual rework become unnecessarily difficult. That balance is one of the main reasons SOIC remains common in industrial controls, maintenance-oriented electronics, and long-life platforms where serviceability matters as much as footprint efficiency. In practice, the CD4572UBM often fits designs that need classic CMOS logic behavior without forcing a migration to very fine-pitch assembly rules.

From a mounting perspective, the SOIC package offers several advantages over denser alternatives. Lead pitch and lead geometry are generally forgiving during PCB assembly, especially when stencil design, solder paste volume, and pad dimensions stay close to vendor recommendations. Compared with TSSOP-class devices, SOIC packages tolerate a wider process window before solder bridging or alignment sensitivity becomes a concern. That margin is valuable in boards produced across different contract manufacturers or in product lines that may move between prototype, pilot, and volume assembly without extensive pad redesign.

The mechanical scale of the 16-pin SOIC also improves visual inspection quality. Lead fillets are easier to verify under magnification, and hand-solder touch-up is more manageable than with finer-pitch packages. This matters more than it may first appear. Logic devices like the CD4572UB are often placed near connectors, timing networks, or glue-logic interfaces, where late-stage ECOs or diagnostic rework are common. A package that supports controlled removal and replacement with lower pad-damage risk can reduce debug time and preserve PCB yield during validation.

Board layout should treat the CD4572UBM as a standard CMOS logic device in a gull-wing SMT package, but several package-driven details deserve attention. First, pad geometry should support reliable solder wetting without excessive toe length that encourages solder accumulation and lead skew. Second, traces should avoid creating large thermal imbalance between pins, especially where one side of the package fans into a copper-rich area and the opposite side does not. Uneven thermal mass can shift wetting behavior during reflow and occasionally produce subtle coplanarity-related defects that are difficult to reproduce. On small logic ICs, these issues are easy to underestimate because power dissipation is modest, yet assembly defects still originate from heat flow, not logic complexity.

Placement near heat-generating components should also be considered, even if the CD4572UBM itself is low power. CMOS logic timing margins, input thresholds, and leakage behavior remain more predictable when the local thermal environment is stable. In dense boards, placing the device directly adjacent to regulators, power resistors, or switching magnetics can expose it to repetitive thermal cycling that does not violate absolute ratings but can complicate long-term reliability. A modest clearance and a clean local ground reference usually improve both manufacturability and signal integrity.

The package choice also influences prototyping strategy. PDIP versions in the same family remain useful when breadboarding, socketing, or rapid bench evaluation is required. They reduce handling friction during early functional experiments and are convenient for low-volume lab fixtures. However, once the design moves toward production, the CD4572UBM SOIC variant typically becomes the better transition target because it reflects actual SMT assembly conditions without demanding the tighter controls associated with TSSOP. That makes it a strong bridge package between conceptual validation and manufacturable hardware.

TSSOP family members can still be attractive when board area becomes the primary constraint. They enable higher routing density and lower occupied footprint, which is valuable in portable systems or I/O-heavy digital sections. The tradeoff is narrower process margin. Fine-pitch parts are less tolerant of stencil variation, paste smearing, lead contamination, and rework exposure. In designs where the logic function is simple but field support or second-source assembly flexibility is important, the SOIC option often delivers lower total program risk than the smallest possible package. This is a case where nominal footprint reduction does not always translate into better engineering value.

Environmental and logistics characteristics of the CD4572UBM are also favorable for mainstream production. Texas Instruments lists this SOIC version as Moisture Sensitivity Level 1. In practical terms, that means the package has unlimited floor life under standard ambient conditions before reflow, which simplifies inventory handling and reduces the need for dry-pack control discipline compared with more moisture-sensitive devices. For mixed production environments, this lowers operational friction. It becomes easier to stage reels, pause builds, and resume assembly without repeatedly questioning bake requirements or exposure time limits.

Its RoHS compliance and REACH-unaffected status further reduce qualification overhead. These declarations do not change circuit behavior, but they streamline documentation and purchasing workflows, especially in programs serving industrial or globally distributed markets. When logic components are used in many small support functions across a design, simplifying compliance review at the component level can save disproportionate engineering time later in the product lifecycle.

A useful way to think about the CD4572UBM is as a packaging choice optimized for robustness rather than extremeness. It does not maximize density like TSSOP, and it does not maximize breadboard convenience like PDIP. Instead, it supports reliable SMT assembly, practical rework, solid inspection access, and broad manufacturing compatibility. For many real products, especially those expected to remain maintainable over years of revisions, that balance is more valuable than chasing the smallest footprint.

When selecting among family package options, the decision should be tied to the actual constraints of the design phase. If the immediate need is circuit exploration or socket-based test access, PDIP remains useful. If the product is moving into standard SMT production with moderate board density and a need for serviceability, CD4572UBM in 16-pin SOIC is often the most efficient choice. If layout pressure is severe and the assembly line is already tuned for fine-pitch devices, TSSOP may justify the additional process sensitivity. The underlying logic function may stay the same across these variants, but the package strongly shapes how easily that logic can be built, inspected, debugged, and sustained in production.

CD4572UBM Application Scenarios and Engineering Selection Guidance

The CD4572UBM is most useful when a design needs a compact amount of fixed combinational logic with built-in polarity flexibility. It sits in the space between single-function logic gates and more configurable devices such as CPLDs or small MCUs. In that space, it solves a common engineering problem: several unrelated glue-logic tasks must be implemented with low cost, wide supply tolerance, and minimal design overhead.

Its value is not in raw logic density or speed. Its value is in consolidation. A design may need a few NAND functions for enables, a NOR path for fault aggregation, and some inversion to correct signal polarity between stages. Implementing those requirements with separate devices increases package count, routing complexity, and procurement friction. The CD4572UBM reduces that fragmentation by combining practical gate resources in one CMOS package. In boards where logic content is small but scattered across the schematic, that consolidation often matters more than theoretical gate count.

This device fits especially well in control-oriented electronics. Input signal conditioning is a typical case. Sensor outputs, switch states, comparator flags, or open-drain status lines often arrive with polarity that does not match the downstream control scheme. A mixed-gate device allows those signals to be inverted, combined, or masked without introducing unnecessary architectural complexity. In real designs, this is often the difference between a clean control path and a board that accumulates patch logic over successive revisions.

Interlock and inhibit logic is another strong application area. Industrial and embedded control systems frequently require several permissive conditions before an actuator, converter, or relay driver can be enabled. At the same time, any single fault condition may need to force a disable path immediately. NAND and NOR structures map naturally onto these requirements because they express “all conditions true” and “any fault true” relationships directly. The CD4572UBM is therefore well aligned with hardware-level protection chains, especially where deterministic behavior is preferred over firmware-mediated gating.

Simple alarm and fault-combine logic also benefit from this structure. Many systems generate multiple low-rate status outputs that must be merged into one service indicator, interrupt request, or shutdown input. This logic is rarely computationally complex, but it is operationally important. Using a stable CMOS gate device avoids consuming programmable resources for trivial logic and keeps the fault path visible in the schematic. That visibility is often underrated. When serviceability and review clarity matter, explicit hardware logic is easier to trace, validate, and maintain than logic buried in software or spare programmable fabric.

The device also works well as peripheral logic around counters, timers, and microcontrollers. Not every timing or state relationship should be absorbed into firmware. A hardware gate can reshape reset conditions, combine wake events, generate active-low enables, or block illegal combinations before they reach a processor pin. This is particularly useful when startup behavior must be defined before firmware execution begins. In several field-proven control designs, a small amount of external logic has prevented ambiguous boot states that would otherwise require software workarounds and additional qualification effort.

Wide-supply systems are a particularly natural fit. One of the practical strengths of 4000B CMOS is its broad operating voltage range. In mixed-voltage control equipment, instrumentation modules, and legacy systems, logic often exists outside the narrow 3.3 V and 5 V domains common in modern digital boards. The CD4572UBM can operate across 3 V to 18 V, which gives it strong utility in battery-powered equipment, 12 V or 15 V control rails, and retrofit designs where supply conditions are inherited rather than chosen freely. That said, wide supply capability should be treated as an integration advantage, not as a blanket guarantee of compatibility. Logic thresholds, noise margins, and interface protection still need to be checked at the system level.

Legacy equipment maintenance is another important scenario. Many long-life platforms were built around 4000B-series CMOS because of its robustness, broad supply tolerance, and straightforward behavior. In these environments, replacing failed logic with compatible families is often safer than redesigning around modern high-speed alternatives. The CD4572UBM helps preserve electrical behavior and timing expectations while avoiding unnecessary redesign risk. In maintenance work, that kind of continuity often has more value than replacing a part with something nominally newer.

A representative application is a control board that receives multiple status and safety signals from different subsystems. Two status lines may need to be NAND-combined to generate an active-low enable only when both conditions are valid. A separate pair of fault-related signals may need to be NOR-combined so that any asserted abnormal condition drives a fault indicator path. Additional lines may require inversion to match the polarity expected by a timer, latch, or microcontroller input. The CD4572UBM can implement all of these within one package. The immediate benefits are reduced placement area, fewer interconnects, and lower assembly complexity. The less obvious benefit is cleaner logic ownership: the signal transformations remain localized instead of being distributed across multiple devices and net segments.

From a selection perspective, speed is the first practical filter. The CD4572UBM is appropriate for moderate-speed combinational paths, control logic, and status processing. It is not intended for high-frequency clock trees, fast bus interfacing, or tightly timed synchronous paths where propagation delay and edge-rate constraints dominate. In engineering reviews, the mistake is often not that the nominal logic function is wrong, but that the timing role is underestimated. A gate used only for “simple combining” can still sit on a path that defines startup sequencing, interrupt latency, or asynchronous shutdown response. That path should be evaluated with real propagation-delay budget, not schematic intuition.

Output loading is the second key criterion. CMOS inputs are usually easy loads, so fan-out to other logic inputs is generally not problematic when the system is architected sensibly. The real caution is external loading from LEDs, pull networks, long traces, transistor bases, relay-interface stages, or capacitive wiring harnesses. These loads can slow transitions, increase current demand, and distort logic thresholds under dynamic conditions. In practice, trouble often appears not at nominal DC levels, but during switching edges and across temperature. If the output must drive anything beyond light CMOS input loading, buffering or interface conditioning is usually the cleaner choice.

Supply compatibility is the third major criterion, and it deserves more than a quick voltage-range check. The ability to run from 3 V to 18 V is a major system-level advantage, but input high and low thresholds must align with the devices driving and receiving those signals. This becomes important in mixed-family systems, especially where one section runs at 3.3 V logic and another uses a higher CMOS rail. A gate powered at a higher voltage will not necessarily interpret lower-voltage logic outputs correctly unless the threshold relationship is verified. This is one of the most common hidden integration risks in otherwise simple glue-logic designs. The part is flexible, but the surrounding signal ecosystem must be equally coherent.

Board-level behavior should also be considered during placement and routing. Because the device is often used in control and status paths, its inputs may originate from noisy or slow-moving sources such as mechanical switches, comparator outputs near threshold, or long field lines. In those cases, logic design and signal-conditioning design overlap. A gate alone cannot fix chatter, metastable transitions, or poor line discipline. RC filtering, hysteresis upstream, pull strategy, and grounding quality may determine real-world stability more than the truth table itself. A small amount of attention here prevents intermittent faults that are difficult to reproduce once the board leaves the bench.

There is also an architectural point worth emphasizing. Devices like the CD4572UBM are most effective when used to keep simple logic in hardware and keep firmware focused on sequencing and policy. When a design uses hardware gates for polarity correction, basic interlocks, and immediate fault masking, the overall system tends to become easier to reason about. Startup states are more deterministic. Safety-related dependencies remain visible. Validation effort becomes more localized. That is often a better engineering trade than moving every low-level decision into software simply because a processor is available.

For selection, the best fit is usually a design with sparse but varied logic requirements, moderate timing demands, modest output loading, and either wide supply needs or 4000B compatibility constraints. If the logic becomes stateful, timing-critical, or voltage-domain-intensive, a different solution may scale better. But when the requirement is straightforward combinational control around real interfaces, the CD4572UBM remains a disciplined and efficient choice. It is a small device, but in the right part of a system, it removes disproportionate complexity.

Potential Equivalent/Replacement Models for CD4572UBM

Potential equivalent or replacement options for the CD4572UBM are most reliably found inside the same CD4572UB product family. In this case, the strongest replacement path is not a logic redesign but a package migration that preserves the exact internal function. The directly relevant variants identified in the available documentation are CD4572UBE in PDIP, CD4572UBNSR in SOP, and CD4572UBPWR in TSSOP. These parts maintain the same mixed-gate logic configuration while adapting the device to different assembly flows, board densities, and manufacturing constraints.

This distinction matters because the CD4572UBM is not a generic small logic device. Its value comes from a specific internal topology: four inverters, one 2-input NOR gate, and one 2-input NAND gate integrated in a single package. That combination is uncommon enough that part-number similarity or package similarity alone is not a safe basis for substitution. A replacement is valid only if it reproduces the same gate mix, preserves pin-level behavior, and operates correctly across the intended voltage, thermal, and timing envelope.

From a device-selection perspective, package-equivalent members of the same family are usually the lowest-risk option because they preserve the silicon function and differ mainly in mechanical implementation. The PDIP version is often useful for socketed builds, lab validation, and low-volume through-hole assembly. The SOP and TSSOP versions are better aligned with automated surface-mount production and tighter PCB layouts. In practice, these package choices also affect secondary design factors such as routing density, inspection access, thermal coupling into the board, and rework difficulty. The logic may be identical, but the manufacturing behavior is not.

A practical screening flow should start with functional topology before any discussion of sourcing flexibility. That point is easy to underestimate. Many devices in the broader CMOS logic ecosystem are marketed as multi-gate parts with similar package sizes and overlapping voltage ranges, yet they implement six identical gates rather than a mixed set. A hex inverter, triple NAND, or quad NOR device may appear close in inventory systems or distributor filters, but it will fail as a drop-in substitute if the original design depends on the exact internal gate composition of the CD4572UBM. This is one of those cases where logical equivalence must be proven structurally, not inferred categorically.

Electrical compatibility is the next filter. Even when a candidate part matches the gate topology, the supply range must still align with the application. The CD4572UB family belongs to a CMOS logic class often selected for wide operating voltage tolerance, low static power, and predictable logic thresholds within that family context. Substitutes should therefore be checked for VIH/VIL levels, output drive capability, propagation delay, rise/fall performance, and input protection behavior. Margins that look acceptable on paper can become problematic in mixed-voltage systems, RC-shaped inputs, or long-trace environments where edge rate and threshold movement influence actual switching reliability.

Temperature behavior should be treated as a design parameter rather than a procurement detail. If the original CD4572UBM was chosen for operation across a defined industrial or extended temperature range, any alternative must meet the same requirement without qualification gaps. Timing spread over temperature is especially relevant when one package change leads to a different assembly process or PCB stack-up, since parasitics can shift enough to expose narrow timing assumptions. In low-frequency logic this may seem negligible, but field issues often emerge in edge cases such as power-up sequencing, asynchronous resets, or gating paths that were never formally timed.

Package compatibility also deserves more attention than a simple footprint check. A mechanical replacement must be evaluated at three levels: land pattern compatibility, pinout identity, and assembly-process fit. For example, a SOP and a TSSOP variant may be logically interchangeable yet require different stencil design, paste volume, pick-and-place settings, and rework tooling. In prototype stages, this difference is mostly a layout decision. In production, it influences defect modes such as insufficient solder wetting, tombstoning of nearby passives due to density changes, and yield loss from tighter process windows. The replacement decision is therefore part logic validation and part manufacturing engineering.

When no same-family package option is available, broader substitution becomes substantially more complex. The correct approach is to verify the exact Boolean resources required by the application, then determine whether they can be recreated with another standard logic device or a small set of devices without breaking timing, power, or board constraints. In some designs, the CD4572UBM was likely selected precisely to collapse several discrete gates into one package, reducing routing complexity and minimizing interconnect delay. Replacing it with multiple single-function logic ICs can restore functionality, but it may also increase trace length, loading, EMI exposure, and failure points. What looks like a harmless BOM workaround can quietly degrade robustness.

There is also a system-level consideration that often becomes visible only during redesign: mixed-gate devices encode intent. A board using the CD4572UBM often reflects a compact logic partition where inversion, NAND, and NOR functions are deliberately co-located. Replacing that part with a cluster of separate gates changes not only the schematic but also the physical logic topology on the PCB. That shift affects how noise couples into the circuit, how power rails are locally decoupled, and how easily future maintainers can interpret the design. In dense or long-life products, preserving that original integration level is usually worth more than it first appears.

For sourcing and lifecycle planning, the most defensible strategy is to treat the CD4572UB family as the primary equivalence domain and consider package variants as the first line of substitution. Only after exhausting those options should engineers move into cross-family or multi-device replacements. This keeps validation scope narrow and avoids turning a simple availability issue into a logic requalification effort. In practice, this approach shortens ECO cycles, reduces test burden, and limits the chance of introducing subtle behavioral changes into otherwise stable designs.

The central point is straightforward: the CD4572UBM should not be evaluated like a generic six-gate logic part. Its replacement process must begin with internal gate composition, then proceed through electrical range, timing, thermal suitability, and package implementation. If those layers are checked in the right order, acceptable replacements are clear. If they are checked out of order, the part can look substitutable long before it is actually safe to use.

Conclusion

The Texas Instruments CD4572UBM is best understood as a mixed-function CMOS utility device rather than a simple logic IC. It combines four inverters, one 2-input NOR gate, and one 2-input NAND gate in a single 16-pin SOIC, which allows a designer to solve several low-density logic problems without allocating board area to multiple packages. That consolidation is the primary reason this device remains relevant. In practical designs, the value is not just the gate count, but the specific gate mix: inversion, NAND, and NOR cover a large portion of glue-logic needs for enable generation, signal qualification, simple state interlocking, polarity correction, and fallback combinational control.

Its electrical profile follows classic 4000B-series CMOS behavior, and that defines both its strengths and its limits. The 3 V to 18 V supply range is unusually broad by current logic standards and immediately opens application space across battery-powered nodes, industrial control rails, legacy 5 V systems, and higher-voltage logic domains where standard low-voltage families would require translation or protection. Near-rail output swing is especially useful in mixed-threshold environments, where noise margin matters more than raw switching speed. Low static power is another structural advantage. In systems that spend long periods in stable logic states, quiescent dissipation remains negligible compared with many bipolar or faster CMOS alternatives, which makes the part attractive for always-on support functions.

The timing envelope is moderate, and this point should be treated carefully during selection. Devices in the 4000B family are not intended for high-speed datapath logic or tightly timed synchronous interfaces. They are better suited to control-plane roles where propagation delay is measurable but not system-critical. In practice, this means the CD4572UBM works well for reset shaping, mode selection, basic interlocks, chip-enable conditioning, and logic-level housekeeping around slower peripherals or supervisory functions. When timing closure depends on nanosecond-scale margins, this device is usually the wrong tool. When logic must be robust across a wide supply and temperature span, and delay in the tens to hundreds of nanoseconds is acceptable depending on operating conditions, it becomes a very efficient choice.

Temperature capability from -55°C to +125°C is not just a catalog feature. It signals process stability and deployment flexibility in environments where commercial-grade logic can become a maintenance risk. Automotive-adjacent control hardware, outdoor instrumentation, power conversion subsystems, and remote industrial modules often need simple logic that survives cold start, high enclosure temperature, and electrical noise without requiring a more complex programmable device. In those settings, a part like the CD4572UBM often reduces validation effort because its behavior is transparent, deterministic, and easy to analyze at the schematic level.

The internal function mix also supports cleaner architecture at the board level. Four inverters let the device absorb common polarity mismatches between sensors, microcontroller GPIOs, enable pins, and transistor-driving stages. The NAND and NOR gates then handle the most common combinational decisions without additional ICs. This matters more than it may seem. Small support-logic requirements often expand late in a project, and using a mixed-gate device creates headroom for ECO-style fixes, signal rerouting, or safety interlocks without respinning around a larger logic family migration. That kind of flexibility is often more valuable than choosing a nominally more optimized single-function gate device.

From a signal-integrity perspective, the CD4572UBM benefits from the inherent high input impedance of CMOS, but that same characteristic requires disciplined handling of unused inputs and slow-moving signals. Floating inputs must never be left unmanaged. They can increase supply current, create unpredictable switching, and inject avoidable noise into adjacent logic behavior. In field-proven designs, tying unused inputs to defined rails through direct connection or suitable biasing is a small step that prevents a disproportionate number of intermittent issues. Likewise, if an input edge is exceptionally slow or noisy, the lack of Schmitt-trigger conditioning should be considered. The part is reliable when used within its intended envelope, but it is not a substitute for dedicated input hardening in noisy threshold-crossing applications.

For selection engineers, the most compelling case appears when three conditions align. First, the design needs only a few basic logic operations. Second, supply flexibility or environmental range is more important than speed. Third, minimizing package count is desirable for area, cost, or reliability reasons. Under those conditions, the CD4572UBM often outperforms a collection of newer single-gate logic parts because it simplifies sourcing, reduces placement complexity, and keeps the logic function visible and auditable. That visibility is a practical advantage in regulated or long-life systems, where replacing a transparent hardware function with firmware or programmable logic can increase verification scope.

For procurement teams, the part offers value beyond unit price. Family continuity within the CD4572UB line improves substitution planning and package strategy, which helps when balancing assembly preferences, lifecycle risk, and second-source considerations at the platform level. In lower-volume or maintenance-driven production, using a well-established CMOS logic family can also reduce long-term support friction. Mature logic devices often persist in distribution channels longer than specialized modern alternatives, particularly when their function remains broadly applicable.

A useful way to position the CD4572UBM is as a voltage-tolerant, thermally resilient logic building block for support circuitry that must remain simple and dependable. It is not the fastest option, nor the most integrated, but that is precisely why it fits so well in low-complexity digital infrastructure. Where the design objective is stable behavior, broad operating margin, and economical consolidation of elementary logic, this device is a strong candidate. In many cases, the better engineering choice is not the part with the highest performance metric, but the one whose behavior stays predictable across supply variation, temperature stress, and late-stage design changes. The CD4572UBM fits that category well.
