BQ78350DBTR-R1

Texas Instruments bq78350-R1 Product Overview

Texas Instruments bq78350-R1 is a pack-side battery management controller and gas gauge built to work with the bq769x0 battery monitor AFE family. In practical terms, it sits above the analog front end and converts raw pack measurements into control decisions, protection actions, and usable battery data. It targets rechargeable packs based on Li-ion and LiFePO4 chemistries, with support spanning roughly 3-series to 15-series configurations depending on which bq769x0 device is paired with it. This positioning is important because the bq78350-R1 is not a standalone monitor. Its value comes from how it closes the loop between cell measurement, pack protection, gauging, balancing, and system communication.

At the architecture level, the device is best understood as the digital supervisory layer of an intelligent battery pack. The bq769x0 AFE measures cell voltages, pack current, and temperatures, while the bq78350-R1 interprets these signals, applies programmable algorithms, maintains status and history data, and decides when the pack should charge, discharge, balance, or shut down. This split is effective in engineering terms because it keeps precision analog sensing close to the cells while moving policy, configuration, and reporting into a more flexible control device. That separation usually simplifies pack design reviews, especially when safety thresholds and gauging behavior need multiple rounds of tuning during validation.

One of its central functions is fuel gauging through the CEDV algorithm, or Compensated End-of-Discharge Voltage. Unlike approaches that rely only on open-circuit voltage or only on coulomb counting, CEDV is structured around the pack’s discharge voltage behavior under load, with compensation terms that help map real operating conditions to remaining capacity. This matters because battery packs rarely operate in ideal laboratory conditions. Load transients, temperature shifts, cell aging, and impedance growth distort the voltage response. A gauging method that accounts for discharge characteristics can remain practical in embedded systems where computational complexity, cost, and implementation effort must stay under control.

The engineering tradeoff behind CEDV is worth noting. It is generally more model-dependent than a simple current integration scheme, but less burdensome than a full electrochemical estimation framework. For many commercial battery packs, that middle ground is exactly the right design point. It delivers useful state-of-charge estimation without pushing the system into excessive calibration overhead or requiring highly sophisticated host-side processing. In fielded products, the limiting factor is often not the gauge core itself but the quality of the characterization data used to configure it. Packs that are tuned with representative cells, realistic load profiles, and actual thermal conditions tend to behave far better than packs configured from nominal datasheet values alone.

State-of-health handling is another area where the bq78350-R1 adds system-level value. Beyond reporting remaining charge, the controller tracks information related to pack aging and operating history. This is essential because state-of-charge answers “how much energy is left now,” while state-of-health answers “how much capability remains compared to when the pack was new.” In a deployed pack, these two quantities diverge more over time. A pack may still report a high state-of-charge while delivering far less runtime than expected due to capacity fade or elevated internal resistance. Designers who ignore this distinction often end up with products that appear accurate at the top of discharge but become unreliable near end-of-run conditions.

The history and data logging features are therefore not secondary conveniences. They are diagnostic infrastructure. Nonvolatile storage of fault events, usage counters, and operational history helps trace whether a returned pack failed because of repeated overcurrent events, prolonged storage at high temperature, chronic cell imbalance, or charger misuse. In production environments, this data also shortens root-cause analysis. A battery controller that preserves evidence after a fault is significantly easier to support than one that only reports instantaneous status.

Protection management is a major reason to choose this device family. The bq78350-R1 works with the AFE to implement programmable overvoltage, undervoltage, overcurrent, short-circuit, and temperature-related protections. The key advantage is not merely that these protections exist, but that they can be configured at the pack level with coordinated behavior. Real battery packs need more than threshold comparators. They need timing filters, recovery conditions, charge and discharge FET control logic, and a fault hierarchy that avoids nuisance trips while still reacting fast to genuine hazards. The bq78350-R1 enables that coordination, making it suitable for designs where pack autonomy is required and the host cannot be trusted as the primary safety manager.

This pack autonomy is especially valuable in systems that may be hot-plugged, left in storage, exposed to varying chargers, or connected to hosts with limited battery intelligence. A well-configured battery pack should remain safe even if the host is unresponsive or partially misbehaving. That design principle tends to separate robust commercial packs from fragile ones. The bq78350-R1 supports that approach by keeping critical protection and control inside the battery domain rather than delegating too much responsibility upstream.

Cell balancing support extends this supervisory role. Multi-series packs drift over time because cells do not age identically and do not experience exactly the same leakage, temperature, or charge acceptance. Without balancing, the weakest cell constrains the entire pack. It reaches overvoltage first during charging and undervoltage first during discharge, reducing usable capacity and accelerating mismatch. The bq78350-R1, in combination with the bq769x0 AFE, supports balancing control so the pack can gradually reduce cell divergence. In practice, balancing strategy matters as much as balancing capability. Overly aggressive balancing can waste energy and create thermal complications, while balancing that is too conservative may never correct meaningful mismatch. Good pack designs usually treat balancing as a maintenance mechanism, not a cure for poor cell matching.

Communication is handled through SMBus, which makes the device suitable for smart battery architectures and host-integrated power systems. SMBus gives the host access to standard battery information such as state-of-charge, voltage, current, temperature, and fault conditions, while also enabling configuration and diagnostics during development and manufacturing. This interface is often where the product experience becomes visible. A battery pack can have strong internal protection and reasonable gauging, yet still feel unreliable if host-visible reporting is delayed, inconsistent, or poorly mapped to system behavior. Clean SMBus integration with stable parameter definitions usually prevents a large class of support issues later.

The LED or LCD segment drive support for state-of-charge display may appear simple, but it reflects a useful design philosophy. Not every pack has a sophisticated host interface available at all times. Direct local indication remains valuable for service tools, portable equipment, field checks, and user feedback during charging or storage. In engineering terms, this is a low-bandwidth but high-utility observability path. During bring-up, even a basic on-pack display can save time by confirming that gauging, wake conditions, and pack state transitions are behaving as expected before the full host stack is ready.

From an application perspective, the bq78350-R1 fits best in intelligent battery packs where safety, runtime reporting, and serviceability must coexist. Power tools, portable medical support equipment, industrial handhelds, light mobility systems, backup packs, and embedded energy modules are typical examples. In these applications, the pack is no longer just an energy container. It is an instrumented subsystem with its own logic, memory, and fault response. That shift has design consequences. Cell selection, current shunt sizing, thermistor placement, FET thermal design, and firmware configuration all interact. The controller provides the framework, but pack performance still depends heavily on the discipline of the surrounding hardware design.

A recurring implementation lesson is that measurement integrity drives everything above it. If current sensing has offset drift, if thermistors are badly placed, or if cell sense routing is noisy, the most carefully configured gauge and protection thresholds will still underperform. The bq78350-R1 can only be as accurate as the signals it receives. For that reason, layout and sensing details deserve the same attention as algorithm configuration. Tight Kelvin routing for the shunt, controlled impedance on sense lines where appropriate, filtering chosen to reject switching noise without hiding real events, and thermal sensing near the actual limiting components often make the difference between a stable pack and a difficult one.

Another practical point is chemistry-specific tuning. The device supports both Li-ion and LiFePO4, but those chemistries behave differently enough that a one-size-fits-all configuration is rarely satisfactory. LiFePO4 in particular has a flatter discharge curve over much of its usable range, which makes voltage-based interpretation more challenging around mid-state-of-charge regions. That does not make the device unsuitable. It simply raises the importance of proper characterization and parameter extraction. Engineers usually get the best results when they build configuration data from the exact cell model, expected current range, and target temperature window rather than relying on family-level assumptions.

The bq78350-R1 also helps reduce development time because it consolidates functions that would otherwise be split across a microcontroller, external EEPROM, discrete protection logic, and custom host software. That consolidation lowers integration risk and often improves traceability during certification or production transfer. The real benefit, however, is not just component reduction. It is behavioral consistency. When gauging, protection, balancing, and event logging share a common control context, system interactions are easier to predict and validate.

Viewed this way, the bq78350-R1 is less a simple gas gauge and more a pack control nucleus for the bq769x0 ecosystem. Its strongest use case is not merely measuring remaining charge, but enabling a battery pack to behave like an accountable, self-protecting subsystem. That distinction matters. In modern battery-powered products, the quality of the pack controller often determines whether the battery is treated as a commodity component or as a managed energy platform with measurable reliability, diagnosability, and lifecycle awareness.

Texas Instruments bq78350-R1 Positioning in Battery Pack Architectures

Texas Instruments positions the bq78350-R1 as the supervisory intelligence layer in a multi-cell battery pack, not as the front-end measurement device. That distinction matters because battery pack design often fails when measurement, protection, estimation, and host interaction are treated as a single function. In this architecture, those functions are intentionally separated. The bq76920, bq76930, and bq76940 devices form the analog front end, or AFE, responsible for cell-voltage acquisition, current-related measurement support, and low-level protection sensing. The bq78350-R1 sits above that layer and converts raw monitoring capability into a complete pack-level battery management implementation.

From a system perspective, the bq78350-R1 is the digital control plane of the pack. It gathers measurement data from the companion bq769x0 AFE, interprets that data in the context of battery state, applies configurable management logic, maintains fuel-gauging behavior, tracks operational history, and exposes pack information to the outside system through a host-facing interface. This is the function that makes the pack behave like an intelligent subsystem rather than a set of monitored cells.

The architectural split between the bq78350-R1 and the bq769x0 family is useful because analog acquisition and battery decision logic have very different design constraints. The AFE must remain close to the cells, tolerate electrical noise, resolve small voltage differences, and react to protection events with predictable timing. The battery management controller, by contrast, must maintain state models, execute configuration-dependent logic, store nonvolatile parameters, and present coherent system information upstream. Keeping these layers separate improves reuse and usually simplifies validation, especially when the same battery management behavior must be deployed across packs with different series counts.

The supported pairing range is straightforward. With the bq76920, the controller can be used in 3-series to 5-series systems. With the bq76930, it scales to 6-series through 10-series packs. With the bq76940, it supports 9-series through 15-series designs. The practical value is not only voltage-range coverage. It is the ability to preserve a largely common digital battery-management strategy while swapping the AFE to match stack height. That reduces redesign effort across product tiers and helps maintain consistency in firmware behavior, configuration flow, manufacturing test, and field diagnostics.

At the mechanism level, the bq78350-R1 should be viewed as the layer that closes the loop between sensing and action. Cell voltages, pack current context, and temperature-related inputs originate in the AFE path. The controller then uses those inputs to determine pack status, remaining capacity, charge and discharge conditions, and protection state transitions. It also supervises pack-level behaviors such as FET control policy, fault reporting, learned battery parameters, and data logging. In practice, this division helps isolate the estimation problem from the measurement problem. That is a stronger design pattern than relying on a single device to do everything, particularly when pack accuracy and serviceability matter.

This becomes more important in real products because protection thresholds alone do not define battery quality. A pack may be electrically protected yet still behave poorly from the system viewpoint if state-of-charge estimation is unstable, capacity learning is weak, or fault reporting lacks context. The bq78350-R1 addresses that higher layer. It enables the pack to report meaningful operational information rather than only raw safety status. For host systems, that difference is substantial. A charger, inverter, mobility controller, or embedded appliance generally needs interpretable battery state, not just overvoltage and undervoltage flags.

Another practical advantage is separation of responsibilities during development. Hardware teams can focus on cell front-end integrity, signal paths, balancing layout considerations, thermistor placement, and protection timing around the bq769x0. In parallel, battery-management configuration can focus on chemistry-dependent parameters, gauging behavior, fault policy, and host register integration on the bq78350-R1 side. That split tends to reduce iteration time. It also makes bring-up more disciplined, because analog correctness can be verified first, then pack behavior can be tuned with less ambiguity about where an issue originates.

In fielded systems, this architecture also improves failure analysis. When a pack shows incorrect remaining-capacity reporting, the root cause is often not in cell measurement hardware but in learning configuration, current calibration consistency, taper conditions, or load profile mismatch. Conversely, when protection triggers unexpectedly, the investigation usually starts closer to the AFE, sense path, threshold settings, or transient behavior. A layered design makes those debug paths cleaner. That is one reason this controller-plus-AFE model remains attractive even when more integrated devices exist.

For engineers selecting components, the key point is that the bq78350-R1 should be chosen when the goal is an intelligent battery pack with pack-level management, fuel gauging, configurable protections, historical data retention, and host communication, built on top of the bq769x0 measurement and protection foundation. It is not the right mental model to compare it directly with a standalone cell monitor. It is better understood as the system manager that gives operational meaning to AFE data.

That positioning also reflects a broader battery-pack design principle: the most scalable architectures separate physical sensing from battery-state interpretation. The sensing layer tells the system what is happening at the cells. The controller layer decides what that means for safety, usability, service life, and system behavior. The bq78350-R1 exists in that second layer. When used with the appropriate bq76920, bq76930, or bq76940 device, it provides a structured path from raw cell measurements to a deployable battery management system that can be reused across 3-series through 15-series product families with relatively consistent design logic.

Texas Instruments bq78350-R1 Core Functional Capabilities

Texas Instruments bq78350-R1 is better understood as a pack-level battery management controller than as a simple fuel gauge. Its value comes from the way it consolidates measurement, protection coordination, charging supervision, data retention, and host communication into a single control plane for smart battery packs. In practical pack architectures, that level of integration changes both the hardware partitioning and the firmware strategy. Instead of scattering gauging, protection handling, balancing control, and user-facing status functions across multiple devices, the design can center these functions around one device with a coherent data model.

At the core of the device is fuel gauging based on the CEDV algorithm. This matters because CEDV is designed to estimate remaining capacity and state-of-charge by correlating cell voltage behavior with discharge conditions, learned pack characteristics, and compensated operating states. In real products, the difficulty is rarely measuring voltage or current in isolation; the challenge is converting those measurements into stable, believable capacity information across temperature shifts, pulse loads, aging, and rest transitions. The bq78350-R1 addresses that by making fuel gauging part of a broader pack management loop rather than an isolated metrology task. That architectural choice tends to produce better system behavior, because protection thresholds, charging decisions, and reported capacity all draw from the same pack state context.

State-of-health monitoring extends this model from short-term capacity estimation to long-term pack condition assessment. In engineering terms, SOH is not just a diagnostic label. It becomes a control input for maintenance planning, warranty screening, field analytics, and user expectation management. A pack that can quantify degradation trends is much easier to manage at system level, especially when runtime predictability matters more than nominal capacity. In deployed systems, the more useful SOH implementations are the ones that remain interpretable after months of irregular cycling, partial charging, or thermal stress. The bq78350-R1 is relevant here because SOH is tied into its logging and gauging framework, allowing historical operating data to reinforce current health estimates rather than treating each cycle as an isolated event.

Cell balancing support is another feature that deserves to be viewed from the mechanism upward. In multi-cell packs, imbalance does not only reduce usable capacity. It also creates asymmetry in protection margin, accelerates stress on weaker cells, and complicates charge termination behavior. The practical value of integrated balancing is that it lets the pack actively reduce divergence among cells without requiring a separate balancing controller. This simplifies the control stack and reduces coordination overhead between devices. In actual pack tuning, balancing strategy often becomes a tradeoff among thermal budget, balancing time, charger behavior, and desired top-of-charge accuracy. A controller that already understands pack state can apply balancing more intelligently than a disconnected balancing block, especially near full charge where small voltage differences can have outsized impact on usable pack energy.

The programmable protection features for voltage, current, and temperature are central to the device’s role in safety-oriented pack design. What makes these features important is not merely that thresholds exist, but that they are configurable and embedded in a controller that also tracks pack state and operating history. This allows protection policy to be shaped around the target chemistry, cell vendor characteristics, load profile, and environmental conditions. In practice, protection tuning is one of the most iterative parts of battery pack development. Conservative settings reduce risk but can create nuisance trips, degraded runtime, or poor charger compatibility. Aggressive settings improve apparent performance but can compress safety margin. A device like the bq78350-R1 is useful because it gives the design team a common framework for refining these thresholds while preserving traceability through logged events and pack telemetry.

SMBus host communication turns the pack into an active subsystem rather than a passive energy source. This interface is not just for reading state-of-charge. It enables structured exchange of pack status, alarms, lifetime metrics, configuration-related data, and authentication results. In system integration work, this is often where a battery pack either becomes easy to productize or remains difficult to support. A well-implemented SMBus layer allows the host to make informed decisions about power budgeting, charge scheduling, service handling, and fault escalation. It also reduces ambiguity during validation, because engineers can correlate host-side behavior with internal pack events instead of inferring pack state indirectly from terminal behavior.

Lifetime data logging adds a dimension that is often undervalued during early design phases and deeply appreciated later. Once a pack enters real operating conditions, failures and performance deviations are rarely explained by a single instantaneous measurement. They are usually the result of accumulated stress, repeated edge-case operation, or a mismatch between expected and actual usage profiles. Lifetime logging provides a record of those conditions. Maximum temperature exposure, current extremes, fault histories, and other long-term indicators become essential in root-cause analysis. In field return scenarios, access to this data can sharply reduce diagnostic uncertainty. It allows separation of cell aging, abusive operating conditions, charger mismatch, and application-induced overload, which is critical for improving both the next hardware revision and the qualification process.

CC-CV charging support, including precharge, charge inhibit, and charge suspend, expands the device’s role from monitoring into active charge process supervision. This is significant because charge management is where electrochemical limits, system constraints, and user expectations interact most tightly. Precharge is essential for safely recovering deeply discharged packs. Charge inhibit prevents charging under unsafe conditions, typically driven by temperature or voltage constraints. Charge suspend allows temporary interruption without collapsing the larger control state. Integrating these functions into the same controller that performs gauging and protection reduces policy fragmentation. In practical designs, fragmented charge control often leads to inconsistent behavior, such as state-of-charge jumps after suspend events, poor handling of weak cells near depletion, or ambiguous fault recovery sequences. The bq78350-R1 helps avoid that by keeping charge-state supervision within the same decision framework as pack measurement and fault handling.

Optional LED or LCD state-of-charge display driving may appear secondary compared with protection and gauging, but it has product-level importance. Local capacity indication allows the pack to communicate useful status even without a host system present. This is valuable in service workflows, removable packs, industrial tools, portable instrumentation, and any design where pack interchangeability matters. More importantly, integrating display drive into the pack controller keeps the displayed status aligned with the internal gauging model. That alignment is easy to underestimate. When capacity indication is derived from a separate logic path, discrepancies between reported and displayed charge often emerge, especially around low-state or post-charge conditions. A unified controller reduces those inconsistencies and generally produces a more trustworthy pack interface.

SHA-1 authentication addresses a different class of design requirement: pack identity and trust. In ecosystems where accessory validation, counterfeit mitigation, or controlled interoperability matters, authentication is not an optional add-on. It becomes part of the product architecture. The useful aspect of integrating authentication into the battery controller is that the pack can present both operational telemetry and identity assurance through the same managed subsystem. That creates a cleaner trust boundary between pack and host. While authentication alone is not a complete security strategy, embedding it into the battery management path raises the barrier against unauthorized pack substitution and simplifies host-side verification flow.

Taken together, these functions make the bq78350-R1 a consolidation device. That is the most important lens for product selection. The reduction in external supervisory logic is not just a bill-of-materials benefit. It affects schematic complexity, fault-tree definition, firmware partitioning, validation effort, manufacturing configuration flow, and field diagnostics. Fewer loosely coupled control elements usually mean fewer hidden interactions, especially around fault response and charge behavior. That tends to improve design predictability, provided configuration is handled carefully.

The device is particularly well suited to intelligent pack designs where the battery is expected to do more than store energy. It supports packs that must report usable energy accurately, protect themselves under varied operating conditions, balance cells over lifetime, communicate rich diagnostics to a host, and provide local user feedback. This makes it relevant in systems where pack autonomy matters, such as removable industrial batteries, medical mobility platforms, backup energy modules, and portable equipment with serviceable battery assemblies. In these contexts, a battery pack that only exposes voltage and current is operationally weak. A pack that can describe its own condition, history, and constraints becomes much easier to integrate into a larger power system.

One design insight stands out here: integration only creates value when the functions are calibrated as one system. The bq78350-R1 offers broad capability, but the strongest results come when gauging parameters, protection thresholds, balancing strategy, and charge policy are tuned against the actual cell stack and application profile rather than left near generic defaults. In battery products, most disappointing behavior is not caused by missing features. It is caused by features that were enabled without system-level alignment. This controller gives enough breadth to build a highly capable smart pack, but that same breadth means the design process should treat configuration data as a first-class engineering artifact, not as a final-stage adjustment.

For teams evaluating controller options, the key takeaway is that the bq78350-R1 should be selected as an integrated pack management element with embedded operational intelligence. Its feature set supports a battery pack that can measure, decide, protect, communicate, and document its own history with relatively little external supervisory infrastructure. That combination is what makes it attractive in intelligent battery designs where reliability, observability, and functional density are all design priorities.

Texas Instruments bq78350-R1 Supported Battery Configurations and Application Scope

Texas Instruments bq78350-R1 targets multi-cell smart battery packs that need more than basic protection. Its stated support for Li-ion and LiFePO4 chemistries, pack capacities up to 320 Ah, and charge or discharge current reporting up to 320 A places it in a practical middle band of battery management designs: well above consumer single-string gadgets, yet below the very large traction systems that require more distributed and heavily modular architectures.

At the chemistry level, the device fits two distinct operating profiles. Li-ion systems usually prioritize energy density, compact packaging, and broad use across mobility and portable equipment. LiFePO4 systems trade some energy density for improved thermal stability, long cycle life, and a flatter discharge curve. That chemistry flexibility matters because it allows the same gas-gauge and pack-management platform to serve products with very different optimization targets. In engineering terms, this reduces redesign effort across adjacent product lines while preserving a common telemetry and protection framework.

The 320 Ah capacity ceiling should not be read as a simple number on a datasheet. It defines the approximate scale of pack models the device can represent with its internal gauging and management logic. In many real designs, this range aligns with light electric mobility platforms, industrial tools with high surge demand, telecom backup modules, and UPS batteries sized for minutes to a few hours of ride-through. Similarly, the 320 A current reporting limit indicates that the device is meant for systems where meaningful load transients occur, but where current levels still remain within the envelope of centralized pack control. That makes it suitable for battery packs that see startup surges, motor loading events, or short-duration peak power demands, while still requiring accurate state reporting rather than only hard cutoff protection.

Its documented application range is broad but technically coherent. eBikes, eScooters, pedelecs, and pedal-assist bicycles need compact multi-cell packs with reliable state-of-charge estimation, charge control, fault capture, and user-visible health information. These systems often operate under pulsating current profiles caused by acceleration, grade changes, and assist-mode switching. A controller that combines protection supervision with usable telemetry is valuable here because ride quality and range estimation depend as much on stable battery data as on raw cell capacity.

Power tools and gardening tools introduce a different stress pattern. They demand high peak current, repetitive load spikes, and tolerance to abrupt thermal swings. In these systems, battery management must distinguish between a legitimate short high-power event and a true fault condition. That distinction is often where pack behavior feels either well-tuned or overly conservative. A pack built around the bq78350-R1 can sit in that boundary layer effectively when the configuration is calibrated carefully, especially in conjunction with a suitable analog front end and current-sense path design. In practice, conservative default thresholds often protect the hardware but degrade tool usability; refined tuning usually improves both perceived power delivery and fault robustness.

Battery backup, UPS, wireless base station backup, and telecom power systems represent another strong fit. These applications place less emphasis on rapid acceleration-like current transients and more emphasis on predictable capacity tracking, standby reliability, fault logging, and long service intervals. In such systems, the ability to expose battery status to a host controller is often as important as the protection itself. Operators want remaining capacity, health trends, event history, and warning thresholds that can be mapped into maintenance actions. A battery pack that simply disconnects on fault is harder to manage in the field than one that also explains why the event occurred and how the pack has been aging over time.

Handheld vacuum cleaners and robot vacuums sit at the smaller end of the listed application space, but they still illustrate the same architectural value. These products benefit from compact smart packs that report usable runtime, support charger interaction, and maintain a record of abnormal conditions. The load profile is again distinct: repeated motor starts, varying suction levels, and in the case of robot platforms, long periods of autonomous operation where host-level decisions depend on battery data quality. Here, robust telemetry improves not only protection but also system behavior such as return-to-dock timing, runtime estimation, and charge scheduling.

What ties these applications together is not merely voltage or capacity range. It is the requirement for an integrated pack-level intelligence layer. The bq78350-R1 is especially relevant when a design needs four things at once: chemistry-aware gauging, pack protection, status communication, and persistent operational history. That combination is often overlooked early in development. Many teams first focus on overvoltage, undervoltage, overcurrent, and temperature shutdown thresholds, then later discover that the real product requirement is interpretable battery behavior. Once a product reaches field use, data visibility becomes critical. Service teams need to know whether failures are caused by abusive load conditions, charger mismatch, thermal stress, aging cells, or configuration drift. A controller in this class helps close that gap.

From a system design perspective, the practical application scope of the bq78350-R1 is therefore defined less by marketing categories and more by architecture boundaries. It fits centralized smart battery packs where the battery remains a managed subsystem rather than a passive energy block. If the end product needs the pack to communicate with a host, enforce layered protections, preserve fault history, and provide credible state information under varying load and temperature conditions, this device sits in a strong position.

A useful way to interpret its role is to see it as a bridge between cell supervision and product-level power behavior. In simpler packs, protection only reacts after a limit is crossed. In better packs, the battery becomes measurable, diagnosable, and operationally predictable. That difference is substantial in deployed systems. It improves user feedback, charger coordination, maintenance planning, and fault isolation. In many battery-powered products, this shift from reactive protection to informed pack management is what separates an electrically functional design from a mature energy subsystem.

There is also an important scaling insight here. The device’s supported capacity and current ranges are high enough to serve demanding portable and stationary systems, but still concentrated in product classes where a single smart battery controller remains practical. Once the pack moves toward very large traction-scale energy systems, requirements typically expand into distributed sensing, more complex balancing strategies, stronger isolation schemes, and higher-level supervisory controllers. The bq78350-R1 is most compelling before that transition point, where one still wants a compact, integrated, data-rich battery management solution.

For engineers selecting this part, the strongest use cases are not simply “Li-ion” or “LiFePO4” packs. The strongest use cases are packs that must behave like intelligent assets: they need to report status clearly, survive variable operating conditions, enforce protection reliably, and leave enough diagnostic evidence to support debugging and service. That is why the listed applications are not random examples. They all depend on battery packs that must do real system work, not just store energy.

Texas Instruments bq78350-R1 Communication, Data Access, and Host Integration

Texas Instruments bq78350-R1 is notably strong on host-side integration because it exposes the battery pack as a structured, queryable subsystem rather than a closed protection block. Through SMBus, the device provides access not only to standard battery status information, but also to diagnostic indicators, configuration-dependent data paths, and historical operating records. In practice, this changes the role of the battery pack in the system architecture. The pack can participate as an intelligent endpoint that reports state, faults, and operating context to the host processor, charger, manufacturing fixture, or service interface with relatively low software overhead.

At the electrical interface level, the SMBus connection is implemented through SMBC and SMBD, both bidirectional open-drain pins. This matters because the communication layer is not self-driven high; it depends on proper pullup design, bus capacitance control, and line integrity across the full pack-to-host interconnect. In compact designs, these details are often treated as routine, but they strongly affect communication margin. A bus that appears functional on a bench setup can become intermittent once cable length increases, charger noise is introduced, or a processor enters aggressive low-power timing modes. For this device, reliable host access starts with disciplined bus design, not only protocol compliance.

The resistor-programmable SMBus slave address option is one of the more practical integration features. Supporting up to eight addresses gives system designers flexibility when multiple smart battery-related devices share the same host bus. This is useful in modular power systems, multi-pack service fixtures, or platforms where charger, battery, authentication device, and monitoring endpoints may coexist. The value of this feature is less about address count alone and more about reducing architectural friction. It allows the battery subsystem to fit into broader system-level bus planning without requiring an external address translation layer or redesign of existing host-side software assumptions.

SMBus timing is defined for slave-mode operation from 10 kHz to 100 kHz, and this range should be treated as a real integration boundary rather than a nominal datasheet line item. It defines the communication envelope in which the gauge can reliably respond while also maintaining its internal measurement, control, and protection responsibilities. Hosts that are built around faster I2C defaults often need explicit configuration to remain within this range. That adjustment is easy to overlook, especially when firmware teams assume SMBus compatibility from a generic I2C controller. In deployment, many communication issues traced to “device instability” are actually bus-speed mismatches, timeout handling errors, or weak pullup sizing that only become visible under temperature and load variation.

From a protocol-integration perspective, the key point is that SMBus access to the bq78350-R1 is not just for reading remaining capacity or voltage. It opens a path to operational introspection. A host can retrieve state data for runtime decisions, diagnostic data for fault interpretation, and historical data for service analysis or fleet health tracking. That layered visibility is valuable because battery issues are often temporal rather than instantaneous. A single voltage read rarely explains a shutdown event, but a combination of present state, fault flags, and stored history often does. This is where the device becomes more than a fuel gauge. It acts as a compact telemetry node embedded inside the pack.

Internally, the bq78350-R1 also maintains a separate communication relationship with the companion bq769x0 analog front end through SDA and SCL, with each line requiring 10-kΩ pullups to VCC. This internal link should be treated as a dedicated functional interface, distinct from the external SMBus path to the host. That distinction is important at the schematic and layout level. The AFE link supports the gauge’s acquisition of cell-level and protection-related information, while the external SMBus link exposes processed battery information outward. Merging the two conceptually can lead to poor design decisions, especially when debugging. If the host cannot read battery data, the fault may reside in the external SMBus network, the gauge firmware state, or the internal AFE communication path. These are different failure domains and should be instrumented and validated separately.

In schematic planning, this separation usually deserves explicit treatment. The internal AFE bus should be routed with short, clean traces and stable pullups because it directly affects the gauge’s ability to build an accurate internal model of pack conditions. The external SMBus, by contrast, should be designed for interoperability and system-level robustness, including connector behavior, hot-plug stress, EMI exposure, and coexistence with other bus participants. Keeping these interfaces logically and electrically distinct simplifies bring-up and sharply reduces debug time when field issues arise.

A useful engineering pattern is to validate the design in two phases. First, confirm that the bq78350-R1 and bq769x0 operate correctly as a local battery-management subsystem with no host dependency beyond basic test access. Then qualify the external SMBus integration as an independent layer, including address resolution, timing margin, bus recovery behavior, and host transaction sequencing. This layered validation mirrors the device architecture and tends to expose root causes faster than end-to-end testing alone. It also aligns with how failures typically appear in deployed systems: either the battery subsystem loses internal coherence, or the host loses visibility into an otherwise functioning battery subsystem.

Another point that deserves emphasis is that host integration quality depends as much on software behavior as on electrical design. The host should not treat the battery as a simple polled peripheral with optimistic assumptions. Reads may need retry logic, transaction spacing, and careful interpretation of status versus fault conditions. Historical and diagnostic registers are most useful when the software stack preserves context rather than flattening everything into generic “battery error” states. A host that can distinguish transient communication loss from pack protection entry, or low-state-of-charge from permanent fault history, will produce far better system behavior and far more serviceable logs.

In real product environments, subtle issues often appear around bus ownership and startup sequencing. If the host begins polling before the battery subsystem is fully stable, the first transactions may fail and trigger unnecessary recovery actions upstream. If a charger and host both access the same bus without disciplined transaction management, intermittent collisions or elongated clock stretching behavior may surface in ways that are hard to reproduce. Designs that appear electrically correct can still become operationally noisy unless the bus is treated as a shared control channel with clear timing expectations and fault-handling policy.

The broader design implication is that the bq78350-R1 rewards a system approach. Its SMBus interface gives direct access to rich battery information, but the value of that information depends on a clean physical layer, correct timing, sensible host firmware, and clear separation between the internal AFE link and the external host bus. When those pieces are aligned, the device integrates cleanly into systems that need both battery protection and battery intelligence. That combination is what makes it especially effective in designs where battery state is not merely monitored, but actively used to influence charging strategy, runtime policy, maintenance workflows, and fault diagnosis.

Texas Instruments bq78350-R1 Protection and Safety Functions

Texas Instruments bq78350-R1 integrates protection, pack management, and hardware safety coordination in a form that fits multi-cell rechargeable battery systems with stricter fault-handling requirements. Its protection architecture is not limited to simple threshold detection. It is better understood as a supervisory layer that continuously evaluates electrical and thermal stress, then translates fault decisions into graded hardware actions. That matters in packs for power tools, light electric vehicles, and standby energy systems, where the difference between a recoverable event and a destructive event often depends on response sequencing rather than on a single protection limit.

At the core, the device provides programmable protection coverage across voltage, current, and temperature domains. These three variables define most of the failure envelope of a lithium-based pack. Voltage protection handles both overvoltage and undervoltage conditions. Overvoltage protection is primarily a charge-side safety function, but in practice it also acts as an aging-control mechanism because repeated high-voltage stress accelerates cell degradation, gas generation, and long-term impedance rise. Undervoltage protection serves a different role. It prevents deep discharge, avoids copper dissolution and irreversible chemistry damage, and keeps weak-cell divergence from turning into a pack-level reliability problem.

Current protection addresses both charge and discharge stress. In engineering terms, overcurrent supervision is not just about conductor heating. It also constrains MOSFET safe operating area, connector stress, weld integrity, and localized current crowding inside the cell stack. In high-pulse applications, the useful design question is rarely whether a current spike exists, but whether its duration and context justify a shutdown. A programmable protection device such as the bq78350-R1 is valuable because it allows those decisions to be tuned against the real transient profile of the load instead of relying on conservative fixed hardware alone. That tuning is often what separates a robust pack from one that nuisance-trips under startup surges, regenerative events, or stalled-load peaks.

Temperature protection completes the main protection set. Thermal faults are usually downstream effects of electrical abuse, environmental exposure, or cooling asymmetry, but they must still be handled as first-class events. The bq78350-R1 supports thermal monitoring using external NTC thermistors through the companion AFE and can also use an internal temperature source. This flexibility is important because thermal observability is highly layout-dependent. A thermistor near the cell core region tracks energy accumulation and runaway precursors better than a sensor near the pack shell. A sensor near the FETs or bus structure captures switching and conduction losses that may not immediately appear at the cells. In compact packs, mixing sensor locations often provides better protection behavior than simply increasing the number of sensors. The key is to monitor where thermal gradients form earliest, not merely where placement is easiest.

The hardware-oriented pins extend the device beyond measurement and decision logic into coordinated actuation. PRECHG is intended for optional precharge FET control. This function becomes important when the downstream system presents large input capacitance or when immediate full-current connection would create damaging inrush. A precharge path allows controlled voltage equalization before the main path closes. In practical designs, this reduces connector pitting, suppresses false short-circuit interpretation during hot-plug events, and lowers stress on the primary discharge FETs. Precharge control is often treated as a convenience feature, but in fielded systems it tends to improve both reliability and fault discrimination.

SAFE is one of the most important outputs in the device. It is an active-high signal intended to initiate an additional safety action, such as fuse blow or another irreversible isolation mechanism. This creates a second line of defense beyond standard charge and discharge FET switching. That distinction matters because MOSFET-based protection is effective for routine and transient faults, but it is not always the final answer in severe failure modes. A welded FET, a gate-drive anomaly, a shorted transistor, or an uncontrolled external energy source can defeat normal switching isolation. SAFE provides a path to move from reversible control to enforced disconnect. In a layered safety strategy, that is the point where the design stops trying to manage the fault and instead removes the pack from service.

The most effective use of SAFE is selective rather than aggressive. If configured too loosely, it can lead to unnecessary one-time fuse events and costly pack loss. If configured too conservatively, it may activate too late to prevent escalation. A strong implementation usually reserves SAFE for faults that imply structural loss of control: persistent secondary protection conditions, impossible telemetry combinations, repeated high-severity events within a short window, or states indicating that commanded FET behavior does not match observed electrical response. The best protection systems are not those that trip earliest, but those that distinguish between abnormal operation and loss of containment authority.

KEYIN supports key-switch related discharge FET behavior. This pin is especially useful in systems where pack output should be gated by user intent or host readiness rather than by cell availability alone. In mobile or vehicle-adjacent platforms, KEYIN can prevent unintended output activation during handling, storage, or service operations. It also helps formalize the startup state machine. Instead of treating pack power-up as an immediate consequence of connection, the design can require a defined enable condition. That simplifies host integration and reduces ambiguous edge cases during insertion, wake, or brownout recovery.

PRES provides insertion sensing. This feature improves how the pack interprets mechanical connection events and can be used to coordinate wake-up, authentication timing, load engagement, or state estimation transitions. In real assemblies, connector mating is rarely ideal. Pins do not always engage simultaneously, and transient contact bounce can create misleading measurements if the control system assumes an instantaneous valid connection. Insertion sensing helps the firmware separate physical presence from electrical readiness. That distinction is useful when deciding when to enable measurement, communication, and power-path actions.

PWRM acts as a power mode state indicator. While simple on the surface, state indication is important in battery systems because many protection mistakes happen during mode transitions rather than during steady-state operation. Sleep, ship, standby, charge, discharge, and fault modes often use different timing assumptions and measurement cadences. Exposing power-mode information simplifies coordination with external circuitry and can help avoid race conditions between pack logic and system logic. In practice, clear mode signaling reduces intermittent issues that are hard to reproduce, especially in low-power products where wake sources overlap.

A useful way to view the bq78350-R1 is as a layered protection coordinator. The first layer is continuous sensing of cell, pack, and thermal conditions. The second layer is programmable decision logic that applies thresholds, delays, and policy. The third layer is controlled intervention through FETs and support pins such as PRECHG. The fourth layer is hard safety escalation through SAFE. This layered model is stronger than a flat protection scheme because faults do not all require the same response energy. Minor overstress should be corrected cleanly and recoverably. Severe or uncontrollable faults should trigger irreversible isolation. Designing these levels explicitly tends to produce better safety behavior than trying to force every event through one shutdown path.

For tools, the device’s protection set is particularly well aligned with bursty current demand and repeated hot-load connection. Tool motors generate startup spikes, stall events, and regenerative disturbances that can confuse simplistic current protection. Coordinated use of current thresholds, delay filtering, thermal sensing near the FET region, and optional precharge improves tolerance to legitimate transients while still reacting quickly to sustained fault energy. In these systems, one recurring issue is setting discharge overcurrent too close to nominal peak motor demand. That often looks acceptable in bench tests but becomes unstable after pack aging, colder operation, or connector wear. Leaving margin for impedance growth usually improves field behavior more than tightening thresholds for nominal-condition efficiency.

In light electric vehicle packs, undervoltage and thermal supervision often interact more strongly than expected. Under high load, a weak cell group can sag first, trigger undervoltage logic, and recover immediately when the load is removed. If this pattern repeats, it usually indicates that pack imbalance, aging spread, or resistance rise is becoming the dominant limit, not raw capacity. A protection controller that captures and classifies such conditions is more useful than one that merely disconnects. The underlying value is not just protection; it is observability into degradation mechanisms. That observability supports better service decisions and more realistic design margins.

In backup systems, overvoltage and standby thermal behavior deserve particular attention. These packs may spend long periods near top-of-charge, where overvoltage margin is tight and thermal changes are slow. Here, external thermistor placement becomes critical because ambient enclosure temperature can diverge from cell temperature by a meaningful amount during float-like conditions or during charger fault scenarios. The presence of both external and internal temperature monitoring options allows the design to separate local IC temperature from pack thermal mass behavior. That distinction can reveal whether a thermal event originates in the cells, the switching path, or the surrounding environment.

One practical design pattern is to avoid treating the protection thresholds as isolated numbers. Voltage, current, and temperature limits influence each other through impedance, chemistry, and operating state. For example, high current at low temperature can produce undervoltage behavior that looks like a weak cell event but is actually reversible polarization. Similarly, elevated temperature can reduce apparent resistance and temporarily mask a developing electrical weakness. Good configuration work therefore starts with operating profiles and fault energy paths, then maps those to thresholds and delay windows. This usually leads to fewer nuisance trips than choosing each threshold independently from datasheet extremes.

Another important point is that the extra hardware pins are most valuable when their actions are made explicit in the system fault philosophy. PRECHG, SAFE, KEYIN, PRES, and PWRM should not be left as loosely connected features. Each one should correspond to a defined event class, expected timing, and verification case. When these signals are integrated early into the architecture, pack behavior becomes easier to validate and easier to explain during failure analysis. When added late, they often become underused or misapplied, especially SAFE, which can lose its intended role as a controlled last-resort mechanism.

The bq78350-R1 is strongest when used as part of a deliberately layered safety design rather than as a single-chip answer to all hazards. Its programmable protections cover the core electrical and thermal risks of multi-cell packs, while its dedicated control and safety pins allow those protections to be translated into practical hardware actions. The result is a pack architecture that can handle routine operating stress, discriminate between transient and persistent faults, and escalate cleanly when control authority is no longer sufficient. That combination is what makes the device well suited to systems where safety is not defined by one threshold crossing, but by how consistently the pack responds as conditions move from normal operation into fault territory.

Texas Instruments bq78350-R1 Gas Gauging, State Monitoring, and Diagnostic Value

Texas Instruments’ bq78350-R1 is not only a protection-oriented battery pack controller. Its real value appears when fuel gauging, state monitoring, and persistent diagnostics are treated as one coordinated subsystem. In practice, this device turns a battery pack from a simple energy source into an instrumented power asset that can report remaining capacity, reflect long-term degradation, and preserve evidence of how the pack has been used over its lifetime.

At the center of this capability is the CEDV-based gauging method. CEDV, or compensated end-of-discharge voltage, estimates available capacity by correlating cell voltage behavior with discharge progression while compensating for operating conditions. This approach is fundamentally different from pure coulomb counting. Coulomb counting tracks charge flow and can provide strong short-term resolution, but it tends to accumulate offset and drift unless it is periodically corrected. A voltage-based method such as CEDV uses the battery’s terminal behavior as a reference, which gives the system a way to anchor state-of-charge estimation against real electrochemical response. That makes it especially useful in embedded packs where low-cost, robust, and field-stable gauging is more important than laboratory-grade model complexity.

The quality of this estimate depends heavily on characterization and configuration. Battery voltage is not a direct linear measure of remaining capacity. It varies with load current, temperature, cell aging, relaxation state, and manufacturing spread. The bq78350-R1 addresses this by using compensation tables and learned behavior so that the reported state of charge remains useful across realistic operating conditions. In engineering terms, the device is not simply reading voltage; it is interpreting voltage within a constrained model of pack behavior. That distinction matters. A raw voltage threshold can only say whether a battery is high or low. A tuned CEDV implementation can provide a more actionable estimate of usable runtime and discharge margin.

This is where many pack designs either succeed or fail. If the CEDV parameters are derived from representative cell data, the gauge can remain stable and credible over a broad operating envelope. If they are copied from a similar chemistry without proper validation, the reported state of charge may look plausible during nominal discharge yet collapse near end-of-discharge, exactly where the host system needs accuracy most. In fielded systems, that kind of error often surfaces as “unexpected shutdown” rather than as an obvious gauging defect. The problem is rarely the algorithm itself. It is usually weak characterization, insufficient temperature coverage, or incomplete understanding of load profile dependence.

State-of-health monitoring extends the value of the gauge from short-term energy reporting to long-term asset awareness. State of charge answers how much energy is available now. State of health answers how much the battery has changed since it was new. These are related but distinct quantities. A pack can report 100% state of charge while still delivering far less runtime than expected if aging has reduced its full charge capacity or increased impedance. The bq78350-R1 helps expose that difference. Over repeated cycles and time in service, it tracks indicators that reveal degradation trends. This enables more meaningful maintenance decisions, because the system can distinguish between a fully charged healthy pack and a fully charged worn pack.

That distinction becomes critical in long-service applications. In telecom backup systems, reserve runtime is often more important than daily cycling efficiency. A pack that appears normal under float or standby conditions may still fail to sustain load during an outage because internal resistance has risen or effective capacity has faded. In power tools, the pattern is different but equally demanding. High pulse currents, repeated fast charging, and frequent thermal excursions create stress signatures that are not visible through simple voltage checks. In both cases, state-of-health data helps bridge the gap between present measurement and future reliability.

The nonvolatile logging features are therefore as important as the live gauge output. The bq78350-R1 stores battery history and diagnostic records that survive power removal. This persistent record changes how a returned pack can be evaluated. Instead of inspecting only the pack’s current condition, engineering teams can reconstruct elements of its operating history: exposure to temperature extremes, fault events, abnormal charge or discharge conditions, and cumulative usage patterns. This historical layer is often the only way to understand failures that cannot be reproduced on the bench.

Intermittent issues are a good example. A pack may arrive appearing electrically normal, with no visible fault and acceptable present-day measurements. Without retained history, the analysis often stops at “no fault found.” With lifetime counters and logged events, a very different picture may emerge. Repeated operation near thermal limits, chronic overcurrent exposure, deep discharge events, or prolonged storage at unfavorable states of charge can leave a diagnostic fingerprint. The practical value here is high: failure analysis shifts from speculation to evidence-based reconstruction.

In real deployment, this historical data also improves design feedback loops. If multiple field returns show similar stress patterns, the root cause may lie outside the battery electronics themselves. The charger profile may be too aggressive. The enclosure may trap heat. The host firmware may allow operation too close to cutoff under pulse load. What makes the bq78350-R1 useful is that it can expose system-level interactions through battery-side evidence. This is one of the more underappreciated advantages of pack monitoring ICs: they often reveal integration flaws before those flaws are obvious anywhere else in the product.

A strong engineering approach is to treat the gauge, health monitor, and log memory as a unified diagnostic model rather than as separate features. The gauge provides a real-time estimate. The health monitor explains why runtime is changing over life. The historical log explains how the pack arrived at its current condition. When all three are reviewed together, patterns become much easier to interpret. For instance, declining runtime with stable cycle count but elevated thermal exposure suggests one class of failure mechanism. The same runtime decline with moderate temperature but frequent high-current spikes suggests another. This layered interpretation is far more effective than checking only present capacity or only protection flags.

For service organizations, the benefit is operational as well as technical. Nonvolatile history can reduce unnecessary pack replacement, shorten troubleshooting time, and support warranty decisions with defensible data. In systems deployed across large fleets, it also enables condition-based maintenance instead of calendar-based replacement. That shift can materially improve total cost of ownership. Replacing all packs on a fixed schedule is simple, but it ignores usage diversity. Some packs age gently. Others experience heavy stress early. The bq78350-R1 makes that difference measurable.

There is also a design philosophy embedded in this device that is worth emphasizing. Battery management should not be limited to preventing catastrophic faults. Good battery management should also preserve observability. A protected pack that cannot explain its own degradation is difficult to optimize and expensive to support. By combining CEDV gauging, state-of-health tracking, and lifetime data retention, the bq78350-R1 supports a more complete control loop between field behavior, service diagnostics, and next-generation design improvement.

For applications where power continuity, runtime predictability, and post-event analysis matter, that combination is especially effective. It gives the host system a credible estimate of remaining energy, gives maintenance teams a view into aging, and gives failure analysis a durable trace of what actually happened in service. The result is not just better battery reporting. It is a more observable and more manageable power subsystem.

Texas Instruments bq78350-R1 Display, User Interface, and Authentication Features

Texas Instruments’ bq78350-R1 integrates two functions that are often treated as secondary in battery pack design but have outsized system impact in practice: a local user-facing capacity display and embedded authentication. Both features sit close to the pack controller layer, which means they can reduce host dependency, simplify system partitioning, and enforce tighter control over pack behavior across a product ecosystem.

The display function is intentionally simple, but its value comes from where it is implemented. The device can directly support up to five state-of-charge indication segments using LED1 through LED5. These outputs can be configured in firmware to drive either discrete LEDs or LCD segments. When LCD mode is selected, the COM pin provides the common backplane connection required by the display. This gives the designer a compact way to expose remaining capacity at the pack itself, without involving a higher-level processor, an external display controller, or a communication round trip to the host.

At the electrical level, this matters because battery packs are not always attached to an active system when the user needs feedback. A pack sitting on a shelf, mounted in a tool, or inserted into a charger often benefits from immediate visual indication. In those cases, host-rendered battery information is either unavailable or too slow to be useful. By placing the display logic inside the battery management path, the pack can expose a deterministic and low-latency state-of-charge view with very little additional circuitry. That reduces both interface complexity and software coordination effort at the system level.

The five-segment architecture is not intended to provide precision metrology to the end user. It is a bounded, robust indication mechanism. That distinction is important. In field designs, a coarse but stable display is usually preferable to a highly dynamic readout that flickers with load transients or changes meaning across operating modes. Segment-based indication works well because it maps naturally to decision thresholds: recharge soon, sufficient for one task cycle, or ready for full operation. In other words, the display is less about exact percentage reporting and more about operational confidence.

LED and LCD support also gives flexibility across product classes. LED implementations are usually preferred where brightness, low cost, and instant readability are more important than quiescent power. This is common in power tools, portable cleaning equipment, and service packs that are checked frequently under variable lighting. LCD-based designs become attractive when low steady-state consumption and cleaner industrial design matter more, especially in packs that may remain idle for long intervals. The presence of a dedicated COM line for LCD operation reduces the need for external multiplexing arrangements and keeps the implementation aligned with compact pack electronics.

In practical pack development, the local display becomes most effective when the segment thresholds are tuned to the real discharge profile rather than copied from nominal percentage divisions. A flat open-circuit voltage region, temperature-dependent capacity shift, or application-specific load pulse can make equally spaced thresholds feel inaccurate to the user. Better results usually come from aligning segment transitions with usable energy under the target load envelope. That approach produces an indicator that feels more truthful in operation, even if the underlying display remains intentionally simple. A pack that shows three bars and reliably completes the expected work cycle builds more trust than one that advertises 60% remaining but trips early under load.

There is also a broader architectural benefit. Because the bq78350-R1 can own this basic interface function, the host no longer needs to guarantee display availability for every user interaction. That can simplify products with detachable packs, shared charging bays, or multi-platform battery compatibility. It also improves failure containment. If the host UI stack is unavailable, the pack can still communicate minimum useful status. In engineering terms, this is a clean example of pushing essential observability down to the subsystem that has the most direct knowledge of the energy state.

The second feature, SHA-1 authentication, addresses a different but equally system-level concern: identity and trust at the battery boundary. In battery-powered equipment ecosystems, the pack is not just an energy source. It is a managed subsystem with safety, performance, warranty, and lifecycle implications. Authentication provides a mechanism for validating that the connected pack belongs to the intended ecosystem and can be treated according to expected rules. This can influence charging permission, discharge enablement, feature access, service workflows, and compatibility handling across families of devices and accessories.

From an implementation perspective, authentication is valuable because it ties policy enforcement to something stronger than connector fit or electrical presence. Mechanical compatibility alone does not guarantee that a pack meets the intended cell specification, protection behavior, data integrity level, or aging model assumed by the host device. Once products scale across regions, suppliers, or accessory tiers, this distinction becomes more important. Authentication gives the platform a way to verify identity before granting full operational trust.

For procurement and platform strategy, this capability supports controlled interchangeability. Not every organization wants unrestricted cross-use of packs between adjacent product lines, aftermarket variants, or unmanaged service channels. Sometimes the goal is ecosystem protection. In other cases, it is more operational: ensuring that only packs with validated characteristics are fast-charged, deeply discharged, or used in high-power modes. The bq78350-R1’s authentication support can therefore be part of a broader control scheme that combines electrical qualification, firmware policy, and asset traceability.

There is also a reliability dimension that is easy to overlook. Authentication is often framed only as anti-counterfeit infrastructure, but in practice it can reduce ambiguous failure modes. When a device can positively identify the pack class before enabling aggressive operating conditions, the system avoids making assumptions about internal impedance, thermal response, or supported current levels. That is especially relevant in platforms where the same connector may appear across multiple battery options. A verified identity allows the host to select the correct charging profile, power limit, and user messaging path with less guesswork.

That said, authentication should not be treated as a substitute for sound electrical and safety design. It is one layer in a defense-in-depth strategy. Robust pack validation still depends on measured parameters, fault monitoring, protection thresholds, and conservative fallback behavior when verification fails or communication is degraded. The strongest designs use authentication to improve certainty, not to eliminate the need for independent checks. In real deployments, graceful degradation matters. A system that cannot authenticate a pack should transition to a clearly defined reduced-function or blocked state rather than entering an undefined operating region.

The most effective use of these two features together is architectural rather than cosmetic. The display localizes essential user feedback at the pack edge. Authentication localizes trust establishment at that same boundary. One improves visibility, the other improves control. When both are used well, the battery pack becomes a more autonomous and more deterministic subsystem. That usually leads to cleaner host software, fewer edge-case interactions, and better consistency across chargers, tools, vehicles, and service fixtures.

In product categories such as power tools, portable cleaning equipment, and light electric vehicles, this combination is particularly useful. These systems often operate in intermittent sessions, rely on swappable packs, and need immediate status without waiting for a main UI path to initialize. They also tend to have stronger incentives around accessory validation, safety consistency, and lifecycle management. In such environments, the bq78350-R1’s display and authentication features are not peripheral conveniences. They are practical mechanisms for reducing system ambiguity at the exact point where energy, identity, and user expectation intersect.

Texas Instruments bq78350-R1 Pin-Level Design Considerations

Texas Instruments bq78350-R1 is not a passive monitor interface. Its pin behavior directly influences measurement integrity, standby current, fault recovery, pack interaction, and production robustness. In practice, the schematic quality around this device is determined less by the number of connected features and more by whether each pin is treated according to its electrical role in the pack control path.

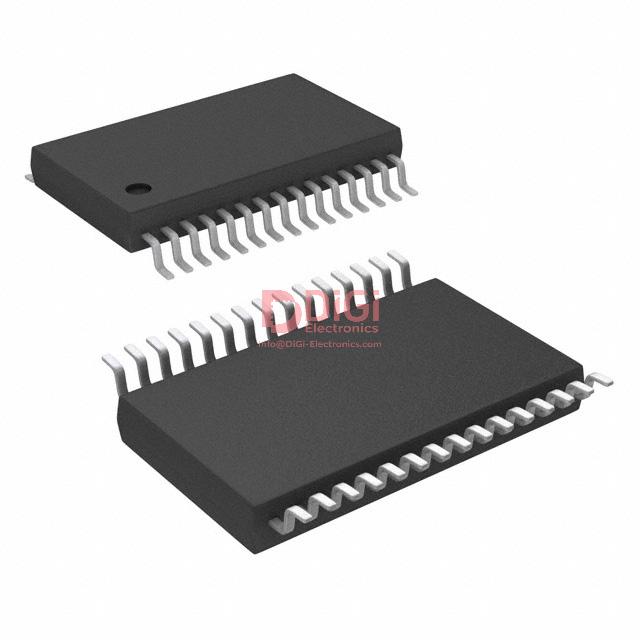

The device is housed in a 30-pin TSSOP package, but the important design question is not package count. The real issue is which pins participate in always-on biasing, which pins affect state retention, which pins are exposed to the outside world, and which pins can silently degrade reliability if left floating or weakly defined. A strong implementation starts by classifying pins into four groups: measurement and bias control, reset and memory retention, address and communication support, and user or system interface signals.

BAT is one of the most consequential pins because it represents the translated battery voltage input to the controller. This is not merely a sensing node. It is part of the pack’s decision-making context for protections, operating states, and host-reported telemetry. Since the battery stack voltage is typically reduced through an external divider before reaching BAT, the divider values, tolerance, leakage, and routing all matter. High divider impedance lowers quiescent current, but it also makes the node more susceptible to noise, leakage contamination, and ADC settling errors. Low divider impedance improves stiffness and measurement response, but it wastes current continuously unless managed carefully. The best designs do not optimize only for static current. They balance divider current, filtering, and firmware sampling behavior as a combined system.

This is where VEN becomes useful. VEN can enable the input voltage divider only when voltage translation is needed, reducing permanent loss through the divider network. That feature is often more valuable than it first appears. In low-power packs, divider current can become a nontrivial portion of long-term storage drain. Gating the divider through VEN helps preserve shelf life without sacrificing visibility when measurements are required. The implementation detail that matters is timing. The divider node must be allowed to settle after VEN asserts and before a measurement is trusted. If the RC time constant is ignored, the reported pack voltage may be biased low or show sample-to-sample inconsistency. This tends to appear only during validation or at temperature extremes, which is why it is often missed in quick bring-up.

VAUX provides an auxiliary voltage input and should be treated with the same discipline as BAT if used. If it is not used, tying it to VSS is the correct approach because it prevents undefined analog behavior and avoids a floating input from acting as a noise collector. This recommendation may seem routine, but it reflects a broader design principle for mixed-signal battery electronics: every unused analog path should be given a deterministic DC state. Floating analog pins rarely fail loudly. They more often inject uncertainty into adjacent functions or complicate debug when the pack is subjected to ESD, EFT, or strong RF fields.

RBI deserves special attention because it supports RAM backup through an external capacitor. This pin has direct value in disturbance tolerance. During short-circuit events, load transients, or momentary supply collapse, preserving volatile runtime information can significantly improve recovery behavior. The practical benefit is not only data retention for its own sake. It helps maintain continuity of learned parameters, fault context, transient counters, and pack state variables that would otherwise be lost during an abrupt event. In systems that undergo repeated fault interruptions, this can make the difference between graceful restoration and confusing post-fault behavior.

The RBI capacitor should therefore be selected and placed with intent. A capacitor that is too small may not sustain RAM long enough through a realistic transient. A capacitor with excessive leakage or poor temperature behavior reduces the margin exactly when the pack is stressed. Placement also matters. Long routing adds vulnerability to coupled noise and reduces the effectiveness of the backup node during fast disturbances. A compact loop and clean local grounding improve resilience. In field-proven designs, RBI is often one of those pins that receives little attention initially and later proves to be one of the most useful for preserving diagnostic continuity.

MRST is the master reset input and must be held high for normal operation. Electrically, this is simple. System-level implications are not. Reset pins are common entry points for accidental instability because they can pick up noise, suffer from weak pull networks, or interact poorly with external test fixtures. If MRST is exposed beyond a tightly controlled local network, it can become a source of intermittent resets that are hard to reproduce. The safer approach is to define a strong default high state, keep routing short, and avoid unnecessary exposure to connector-accessible traces. If external reset control is needed, add enough conditioning to ensure reset is deliberate rather than incidental. In battery packs, a reset event is not a neutral occurrence. It can disrupt timing relationships, erase runtime context if backup is insufficient, and create misleading fault signatures.

ADREN and SMBA support optional address detection functions. Their value becomes clearer in multi-pack ecosystems or platforms that need configurable SMBus addressing without a hardware redesign. The power implication is subtle but relevant. Address-detection networks can consume current continuously if implemented with static resistor paths. Using ADREN to control when this network is active reduces avoidable standby drain. This is one of the recurring themes in low-power battery management: a small static current at one pin can become a large product-level penalty over storage time.

If SMBA is unused, tying it to VSS is recommended. That is not only about preventing floating logic. It avoids false address-state interpretation and stabilizes the digital boundary condition. The same principle applies to optional functions generally. If a feature is not used, terminate the pin in a way that makes the unused state explicit and electrically quiet. Battery controllers benefit from hard-defined unused states much more than from nominally harmless openness.

GPIO_A and GPIO_B are configurable digital pins, and their flexibility can be helpful for pack-specific logic, status indication, feature enables, or board-level interlocks. The danger of configurable pins is that they are often treated as future placeholders. In reality, any uncommitted GPIO can become a path for leakage, undefined startup behavior, or latent firmware dependency. If a GPIO is not used, tie it to VSS as recommended. If it is used, define three things at the schematic stage: default power-up state, external pull strategy, and fault-safe behavior if firmware is delayed or absent. This reduces the chance that a GPIO-controlled function activates unexpectedly during brownout, programming, or manufacturing test.

SAFE and PRECHG are protection-oriented outputs and should be considered part of the pack power path rather than generic digital signals. These outputs usually interact with FET gate-control or precharge-support circuitry, so their loading, polarity assumptions, and timing behavior need to be reviewed against the external power stage. A common design weakness is to validate these pins only in nominal transitions. The more important cases are abnormal ones: deeply discharged cells, charger hot-plug, output short recovery, or a system-side bulk capacitor that demands controlled inrush. PRECHG in particular is only as effective as the surrounding resistor, FET, and timing design. If the external precharge path is underdesigned, the controller may appear functionally correct in bench checks but fail during real connector engagement where bus capacitance and contact bounce dominate the event.

SAFE should be reviewed in the context of system fail-state architecture. The question is not merely whether the signal toggles as expected. The better question is whether the downstream hardware enters a clearly safe electrical state under all controller power conditions, including reset, sleep, and fault collapse. In battery electronics, “safe” should be defined by the passive circuit behavior first and by firmware intent second.

PRES, KEYIN, and DISP sit closer to the pack-system interface and user interaction layer. These pins often seem secondary compared with measurement and protection nodes, yet they can strongly affect real-world robustness because they are frequently routed to connectors, buttons, or external indicators. PRES is commonly used for insertion sensing and may require additional ESD protection. That recommendation should be taken seriously because insertion-related lines are high-risk ESD entry points. They experience repetitive contact events, external cable or fixture coupling, and unpredictable discharge paths. Protection should be selected so that clamp behavior is effective without creating excessive leakage or distorting the intended logic threshold. A weak or poorly placed ESD network often passes basic lab checks and then becomes a field return driver.

KEYIN and DISP support user-facing or host-coordinated interaction functions. Even when their electrical loading is modest, they benefit from clean logic-level definition and noise-aware routing. Any signal tied to mechanical inputs or display-related activity should be checked for debounce, transient filtering, and startup determinism. A battery pack that wakes unexpectedly or changes state because of a marginal edge on an interaction pin will appear unreliable even if the core battery algorithms are functioning correctly.

Unused pins tied to VSS form an important part of the design discipline around the bq78350-R1. VAUX, SMBA, and unused GPIO pins should not be left floating. This is one of those recommendations that can look overly cautious on paper but consistently pays off in hardware. Floating pins increase the surface area for undefined behavior. They complicate EMC testing, introduce extra current paths through internal structures, and reduce repeatability across builds. Tying them to VSS shrinks the uncertainty space. In mixed-signal battery systems, reducing uncertainty is often more valuable than adding features.

A useful way to approach the full pin-level design is to think in terms of energy, state, and exposure. BAT and VAUX manage translated energy information. VEN and ADREN control whether supporting networks consume current continuously. RBI preserves state through transient collapse. MRST defines state re-entry. PRES, KEYIN, and DISP are exposed to the outside environment and therefore need stronger protection and filtering discipline. SAFE and PRECHG bridge internal logic to the external power stage, where mistakes become high-energy failures rather than mere logic faults.

From an implementation standpoint, several practical habits improve outcomes. Keep analog translation nodes short and separated from switching paths. Treat reset and backup nodes as sensitive control infrastructure, not utility traces. Avoid routing externally exposed pins alongside high dV/dt nets. Validate VEN-controlled measurement timing over temperature and after long idle periods. Check RBI hold-up using realistic fault waveforms rather than ideal supply drops. Review every configurable or optional pin for its power-up state and its behavior if firmware is not yet in control. These checks are usually more valuable than adding another round of nominal functional testing.

The broader lesson is that pin-level design on the bq78350-R1 is really system-behavior design in disguise. BAT, RBI, MRST, VEN, ADREN, and the interface pins each encode assumptions about noise, power, retention, and external interaction. When these assumptions are made explicit in the schematic, layout, and validation plan, the controller behaves predictably across storage, insertion, fault, and recovery conditions. When they are treated as simple connectivity details, the pack may still work on the bench, but it will do so with less margin and far less diagnostic clarity.

Texas Instruments bq78350-R1 Electrical and Operating Characteristics

Texas Instruments bq78350-R1 is a companion battery management controller intended to operate in a tightly regulated low-voltage domain. Its core supply, VCC, is specified from 2.4 V to 2.6 V with a 2.5 V nominal target. This narrow window is not a trivial datasheet detail. It indicates that the device expects a well-controlled internal rail and that its measurement accuracy, digital timing, and reset behavior are all tied to stable supply generation. In pack designs, this usually means the surrounding power architecture must treat the 2.5 V rail as a precision resource rather than a generic logic supply. Small rail disturbances that may be harmless for simple digital ICs can directly influence conversion repeatability, startup sequencing, or fault interpretation in a battery monitor path.

The operating ambient range of −40°C to 85°C places the device in a practical industrial class. That range is broad enough for outdoor-capable battery packs, light mobility systems, backup power modules, and embedded energy storage units installed in non-climate-controlled enclosures. The important engineering point is that temperature range alone does not guarantee measurement quality across the full system. At the pack level, thermal gradients between the controller, sense paths, balancing elements, and cells often dominate the real error budget. In practice, designs that perform well in the lab but drift in field conditions usually suffer less from the absolute rating itself and more from layout asymmetry, localized heating, and insufficient thermal coupling awareness.

The absolute maximum VCC rating of −0.3 V to 2.75 V relative to VSS defines the non-destructive boundary, not the intended operating zone. This distinction matters. Operating near 2.75 V may not destroy the device, but it pushes beyond the recommended regulation range and reduces design margin during transients. The same reasoning applies to negative undershoot events. In compact battery packs, supply ringing from hot-plug events, charger insertion, or abrupt load disconnects can create short-duration excursions that are easy to miss unless probing is done with proper bandwidth and grounding technique. A robust design therefore treats absolute maximum values as emergency limits and leaves meaningful headroom under real switching and connector-induced transient conditions.

Several I/O pins are open-drain and tolerant to 6 V. That feature is valuable for mixed-voltage interfaces, especially when the controller must communicate with protection circuitry, pack-side logic, or pull-up rails that do not match the 2.5 V core domain. Open-drain signaling also improves interface flexibility in noisy battery environments because line behavior is largely defined by external pull-up impedance, bus capacitance, and edge-rate control. However, 6 V tolerance should not be interpreted as a license for careless interfacing. Pull-up selection directly affects rise time, current injection during faults, and susceptibility to coupled noise. In longer harnessed or connector-exposed paths, slower edges often improve EMI behavior, but they must still satisfy timing margins. A balanced pull-up network usually performs better than simply choosing the strongest resistor value that still passes logic thresholds.

The ADC input range on BAT and VAUX is specified from −0.2 V to 1 V. This limited analog span reflects a front-end architecture optimized for scaled sensing rather than direct high-voltage acquisition. In other words, the device expects the external network to translate battery-related quantities into a controlled low-level measurement window. That approach can support excellent precision, but only if the analog conditioning path is designed as part of the measurement system rather than as a peripheral resistor divider. Divider tolerance, reference stability, source impedance, leakage paths, and PCB contamination all become part of the effective transfer function seen by the ADC. In low-current battery packs, even subtle flux residue or moisture-induced leakage on high-impedance nodes can create errors that are disproportionately large relative to the converter’s microvolt-level offset specification.

The ADC conversion time is 16 ms. From a signal-processing perspective, this places the measurement subsystem in a moderate-speed regime suited to battery telemetry, protection supervision, and state estimation rather than fast control loops. Battery variables rarely require microsecond responsiveness, but they do require consistency and noise rejection. A 16 ms conversion interval is often a reasonable tradeoff between throughput and settling. It gives analog nodes time to stabilize and allows digital firmware to operate on measurements that are less vulnerable to narrow transient spikes. At the system level, this means event handling must distinguish between electrical faults that require immediate hardware action and slower electrochemical or load-related changes that can be resolved through sampled data. Designs that try to infer very fast current or voltage dynamics purely from this ADC path usually end up misclassifying switching artifacts as pack events.

The converter is nominally 16-bit, with an effective resolution of 13 to 14 bits. This is one of the most important numbers in the specification because it separates digital code width from usable analog information. The remaining bits are absorbed by noise, nonlinearity, thermal effects, and front-end limitations. For engineering decisions, ENOB is usually more relevant than nominal resolution. In a battery pack, a 13- to 14-bit effective result can still be very strong, provided the analog chain is quiet and the scaling network is chosen intelligently. It is often more productive to optimize grounding, filtering, and source impedance than to chase the full 16-bit code space in software. Overspecifying firmware math while neglecting analog hygiene rarely improves pack accuracy.

The ADC offset error is specified at 140 µV typical and 250 µV maximum. For low-level measurements, this is a meaningful parameter because offset sets a floor on how accurately near-zero conditions can be interpreted. In practical fuel gauging and protection systems, offset is especially relevant when estimating small differential changes, low current conditions, or threshold crossings that feed higher-level algorithms. What matters is not just the raw offset value but how it combines with resistor tolerances, temperature drift, and calibration strategy. A recurring implementation pattern is that teams focus heavily on gain calibration but postpone offset characterization until late validation, only to discover threshold behavior shifting across temperature or between production lots. Addressing offset early, with controlled board-level zero-point measurements and realistic thermal profiling, usually reduces downstream algorithm compensation complexity.

The power-on reset threshold is typically 1.8 V. This threshold defines the point at which the internal logic recognizes that supply conditions are insufficient for valid operation. In startup sequencing, the gap between the 1.8 V reset threshold and the 2.4 V minimum operating VCC is significant. It creates a region where the device may be out of reset behaviorally but not yet within its fully specified operating envelope unless the rail ramps cleanly into regulation. This is why rail monotonicity and ramp-rate quality matter. Brownout behavior, partial initialization, and intermittent communication faults often trace back to supply ramps that look acceptable in slow simulations but contain plateaus or rebounds in hardware. A controlled startup path with verified transient capture is typically worth more than adding software retries after the fact.

The two oscillator domains support both computational activity and time-base functions. The main oscillator runs at 4.194 MHz, while the low-frequency oscillator is 32.768 kHz. This pairing is a familiar architecture in battery management devices: a higher-frequency domain for active processing and interface tasks, and a lower-frequency domain for timing retention, periodic wake events, and low-power state management. The 32.768 kHz clock is especially useful because it maps naturally to timekeeping functions and low-power scheduling. In battery pack applications, clock behavior affects more than timing accuracy. It also influences coulomb counting intervals, timeout supervision, balancing cadence, and sleep-current strategy. One practical lesson is that timing assumptions made in firmware should always be checked against oscillator tolerance under temperature and low-supply conditions. In long-duration pack deployments, even modest timing drift can accumulate into noticeable estimation error or misaligned maintenance actions.

For interface robustness, the device carries ±2000 V HBM and ±500 V CDM ESD ratings. These values indicate a reasonable level of intrinsic silicon protection for manufacturing handling and controlled assembly environments. They should not be confused with system-level immunity at exposed connectors or service points. Battery packs often see repeated cable insertion, charger contact discharge, and enclosure-coupled transients that exceed what component-level ESD ratings meaningfully guarantee. A sound protection strategy therefore remains external and application-specific. TVS placement, return path control, connector pin ordering, series impedance, and chassis coupling usually determine field robustness more than the IC’s internal ESD cell ratings. In exposed designs, the most reliable implementations tend to treat the controller as the final protected node rather than the first line of defense.

From a board-level perspective, the specifications suggest a device that can deliver stable battery monitoring performance when the surrounding design respects precision analog constraints. The supply rail must be clean, the analog scaling network must be treated as part of the converter, and the startup path must be intentionally engineered. The device’s measurement capabilities are strong enough for sophisticated pack supervision, but only when layout and transient management are handled with discipline. In compact battery electronics, the hidden failure mode is rarely a dramatic violation of one absolute limit. More often it is the accumulation of small compromises: a pull-up chosen without rise-time analysis, a high-impedance ADC node routed near switching traces, an ESD path that shares sensitive ground return, or a reset rail that recovers too slowly after a disturbance.

The most effective way to read these characteristics is not as isolated numbers but as a set of constraints defining the controller’s operating physics. The 2.5 V supply domain defines precision boundaries. The ADC range and effective resolution define what the analog front end must preserve. The reset threshold and oscillator scheme define startup and timing assumptions. The ESD values define only a baseline, not a complete protection story. When those pieces are aligned, the bq78350-R1 fits well into battery pack designs that require reliable measurement, controlled low-power behavior, and durable field operation across demanding ambient conditions.

Texas Instruments bq78350-R1 Power Modes, Consumption, and Data Retention

Texas Instruments bq78350-R1 is built around a practical tradeoff that appears in nearly every battery pack design: the gauge must remain sufficiently aware of pack state, yet its own quiescent demand cannot become a meaningful parasitic load. This is especially important in packs that may sit on shelves, remain installed in low-duty products, or spend long intervals disconnected from chargers and loads. In that context, the device’s power modes are not just convenience states. They define how the pack behaves over time, how much state information is preserved, and how quickly the system can resume full function.

The current profile across the available modes shows a deliberate scaling of functionality against energy draw. In operating mode, the typical current is 650 µA when flash programming is not active. This is the state intended for normal gauging, protection coordination, measurement activity, and host interaction. SLEEP mode reduces the typical current to 300 µA, roughly halving the control-side drain while preserving a more responsive operating posture than a full shutdown. SHUTDOWN mode drives consumption down to 0.1 µA typical, with 1 µA maximum, which moves the control electronics into a regime where battery self-discharge and cell chemistry dominate long-term capacity loss rather than the gauge itself.

That spread is more meaningful than the raw numbers first suggest. A few hundred microamps may look small during active use, but across several months of storage it becomes material, particularly in lower-capacity packs or products with aggressive shelf-life targets. In practice, standby current that is acceptable during normal deployment can become the dominant hidden drain during warehousing, distribution, or seasonal usage. The bq78350-R1 addresses this by allowing the pack designer to align the power state with the real operational phase rather than forcing a single static compromise.

Operating mode should be viewed as the fully informed state of the system. The gauge remains active, measurements are current, and control logic is available without latency associated with deep recovery. This is the correct mode when the pack is installed in an active platform, when communication must remain available, or when charge and discharge events may occur at any time. It is also the mode in which state estimation quality is easiest to maintain, because voltage, current, and time continuity are preserved. In engineering terms, this state maximizes observability of the battery while accepting the highest controller-side energy overhead.

SLEEP mode is often the most underestimated state in battery pack design. It is not merely a lower-power option; it is often the best balance for assembled systems that are electrically quiet but not truly inactive. A product sitting on a dock, a tool pack waiting between shifts, or an installed device with intermittent wake events often benefits more from SLEEP than from an aggressive shutdown policy. The reason is system-level efficiency, not only IC current. If wake frequency is nontrivial, deep shutdown can create repeated initialization, state resynchronization, and host-side complexity that outweigh the small savings achieved by forcing the gauge into its lowest-consumption state. In many field designs, the best low-power architecture is the one that avoids excessive mode churn.

SHUTDOWN mode serves a different purpose. At 0.1 µA typical, it is tailored for long storage intervals where preserving stored energy matters more than immediate availability. This state becomes particularly valuable for spare battery packs, shipment configurations, and products with long dormant phases before first use. At this current level, the gauge contribution to pack depletion becomes almost negligible. That matters not only for runtime preservation but also for cell health. Deeply discharged cells during storage create downstream recovery problems, service events, and safety margin erosion. A shutdown-capable gauge is therefore doing more than saving energy; it is helping preserve the pack’s recoverability envelope over calendar time.

A useful way to think about these modes is to map them to lifecycle phases rather than only to electrical conditions. Operating mode aligns with active service. SLEEP aligns with installed idle. SHUTDOWN aligns with logistics, warehousing, and infrequent-use storage. Designs that make these transitions intentionally tend to outperform designs that leave the gauge permanently active out of simplicity. The latter approach often looks harmless in bench testing, yet the penalty appears months later as unexplained pack depletion.

Data retention is the second half of the design story. Low power is only valuable if the gauge can preserve the information needed to resume operation predictably. The bq78350-R1 includes data flash with 10-year retention and 20,000 write-cycle endurance. These figures indicate that configuration storage is intended for long field life rather than only factory programming. Pack-specific parameters, calibration data, protection thresholds, and learned configuration values can remain stable over extended deployment without frequent rewriting. The 20,000-cycle endurance also provides a reasonable margin for production updates, service recalibration, and controlled field reconfiguration, provided that write strategy is disciplined.

That last condition is important. Endurance numbers are often misused by treating nonvolatile memory as if it were operational logging space. It is better to reserve flash writes for configuration changes, service events, and bounded learning operations rather than continuous runtime persistence. Frequent unnecessary writes rarely fail immediately; instead, they consume margin invisibly. Robust designs separate fast-changing operational variables from long-term configuration data and commit only what must survive power removal. This is one of the quieter distinctions between a pack that works in the lab and one that remains maintainable over years.

Runtime continuity is supported through RAM backup on the RBI pin, with a backup retention voltage of 1.7 V. This feature is significant because it provides a bridge between transient power loss and full cold restart behavior. In practical systems, supply interruptions do not always justify losing volatile context. Short disturbances, pack reconnect events, or brief collapses during service handling can otherwise force the gauge to rebuild state from a less informed baseline. By backing RAM through RBI, the device can retain critical volatile information when the backup domain remains above threshold, reducing disruption and supporting faster recovery to meaningful operation.

The 1.7 V backup retention threshold is not just a datasheet detail. It effectively defines the boundary between temporary power disturbance and true volatile-state loss. System designers should treat this threshold as a design constraint when dimensioning backup support, validating retention time, and analyzing worst-case discharge paths. If the RBI-backed rail decays too quickly or is exposed to leakage that was ignored during schematic review, the intended retention behavior may disappear under real storage or servicing conditions. In low-power systems, leakage paths outside the IC often decide whether backup retention works as expected.

From an application perspective, these retention mechanisms create a layered memory strategy. Data flash stores long-life, infrequently changing configuration and calibration content. RAM carries active operational context for fast and efficient execution. RBI backup extends the lifetime of that volatile context across controlled interruptions. Together, they allow the gauge to operate like a system with both persistent identity and temporary working memory, which is exactly what a battery pack controller needs when it must survive years of deployment, intermittent handling, and irregular power conditions.

A practical implementation pattern is to avoid using the deepest power state as the default answer to every low-activity condition. SHUTDOWN is best reserved for clearly defined storage scenarios, especially when wake events are rare and shelf preservation is critical. SLEEP is usually the better choice for products that remain assembled and may re-enter service without warning. The difference becomes obvious during validation: systems using SLEEP for near-ready idle tend to exhibit cleaner wake behavior, fewer host synchronization edge cases, and less ambiguity around state recovery. Systems forced into frequent SHUTDOWN transitions often save current on paper while accumulating firmware complexity and recovery corner cases.

Another recurring design issue is the tendency to focus only on gauge current while ignoring the rest of the pack leakage budget. In a well-optimized storage design, FET leakage, protection circuitry draw, divider networks, pull resistors, and contamination-driven board leakage can exceed the bq78350-R1 current by orders of magnitude in SHUTDOWN. Once the gauge is reduced to sub-microamp territory, the dominant problem usually shifts elsewhere. This is why low-power validation should be done at the pack level, across temperature, contamination state, and realistic storage durations, rather than by reading the IC current number in isolation.

The memory characteristics also deserve system-level discipline. Ten-year flash retention is strong, but long retention depends on proper programming conditions, controlled update frequency, and thermal exposure consistent with the intended application envelope. Likewise, 20,000 write cycles is ample for configuration management but not a substitute for event logging architecture. If the system must preserve frequent statistics or service counters, a managed aggregation and periodic commit strategy is more robust than writing every event. Designs that respect the intended role of each memory domain age more gracefully.

Seen as a whole, the bq78350-R1 power and retention architecture is aimed at battery packs that must do three things well at once: stay accurate during active use, waste very little energy during inactivity, and preserve enough state to avoid behaving like a blank controller after every disturbance. The device’s operating, SLEEP, and SHUTDOWN modes provide the energy-side scaling. Data flash and RBI-backed RAM provide the continuity side. The strongest implementations are the ones that treat these features not as isolated specifications but as parts of a single pack lifecycle strategy, where current consumption, wake behavior, memory retention, and storage survival are designed together rather than optimized one at a time.

Texas Instruments bq78350-R1 Implementation and System Design Considerations

Texas Instruments bq78350-R1 should be treated not as a standalone gauge, but as the supervisory layer that turns a protected cell stack into a managed battery system. Its role is most effective when paired with a front-end such as the bq76930, where the AFE handles direct cell measurement and low-level protection signaling while the bq78350-R1 builds the higher-level behavior: gauging, policy enforcement, fault interpretation, host communication, and pack-state coordination. That architectural split is important because it changes how the pack should be designed. The analog front end establishes visibility into the cell stack, but the bq78350-R1 determines how that visibility is converted into system decisions.

In lithium-based battery packs, this distinction matters most during charging and fault handling. The bq78350-R1 supports CC-CV charging workflows, including precharge, charge inhibit, and charge suspend. These are not just feature checkboxes. They allow the pack to enforce staged charging behavior that reflects actual cell conditions rather than simply passing charger power through a protection path. Precharge support is particularly useful when a deeply discharged pack must be brought back cautiously to avoid excessive stress on weak cells. Charge inhibit and suspend functions become equally valuable when temperature, cell imbalance, or safety conditions make charging temporarily undesirable. In practice, this allows the battery pack to act less like a passive energy reservoir and more like an active participant in the charging process.

A useful way to understand the device is to start from the measurement chain and move upward. At the lowest layer, the AFE monitors individual cell voltages, current, and temperature inputs. The bq78350-R1 consumes that information and applies estimation and rule logic to determine remaining capacity, available energy, pack status, and fault state. At the next layer, it exposes this interpreted battery state to the rest of the system through SMBus and local signaling. At the top layer, it coordinates protection and usability features such as LED state-of-charge display, learned battery behavior, historical fault records, and charge/discharge control responses. A stable implementation depends on getting all three layers aligned. Good hardware without correct policy configuration produces a noisy or misleading battery. Good firmware settings on weak sensing hardware produce equally poor results.

Consider an eBike pack built around 10 series-connected Li-ion cells. In that case, the bq76930 provides a practical monitoring fit for the series stack, while the bq78350-R1 becomes the pack intelligence node. It can estimate remaining capacity in a way that is useful to the vehicle controller, present that information over SMBus, and maintain operational history that helps distinguish normal aging from abusive operation. It can also drive a local LED state-of-charge indicator, which seems simple but often reduces system ambiguity during field use and service. More importantly, it can coordinate protection actions under fault conditions instead of leaving each subsystem to react independently. That coordination is where much of the product value appears. A battery pack becomes easier to integrate when fault behavior is deterministic, communication is consistent, and user-visible status aligns with actual electrochemical state.

In this type of mobility application, one subtle design challenge is the mismatch between instantaneous load behavior and perceived battery state. eBike drives often generate pulsed current demand, regenerative transients in some architectures, and large load changes across terrain and assist modes. If the gauging layer is not tuned with realistic current profiles and thermal conditions, state-of-charge reporting can become unstable or pessimistic. The bq78350-R1 is capable of much better behavior, but only if the pack characterization and configuration are done with the final load environment in mind. Bench results taken at smooth current ramps rarely reflect what the battery will see when a drivetrain controller starts chopping current aggressively. This is one area where the implementation quality matters more than the nominal feature set.

The UPS battery module is a different but equally revealing example. Here the pack may spend long periods at standby, operate at elevated ambient temperature, experience shallow or infrequent cycling, and require service diagnostics after months of quiet operation. Under these conditions, low-power modes become more than a convenience. They directly affect shelf retention, system parasitic loss, and long-term maintenance intervals. Historical logging becomes highly valuable because many failures in standby systems are cumulative rather than immediate. A single event rarely explains pack degradation. Instead, the useful record is a pattern: repeated thermal excursions, long-duration overvoltage exposure, marginal balancing behavior, or repeated deep discharge during maintenance outages. The bq78350-R1 is well suited to this style of system because it can preserve enough operational context to support informed service decisions instead of simple pack replacement based on age alone.

State-of-health tracking is especially relevant in UPS designs because capacity fade is often not visible until discharge runtime is suddenly inadequate. A pack that appears healthy in float or standby conditions may fail runtime expectations due to resistance growth, loss of usable capacity, or cell divergence. In these systems, the ability to combine gauged metrics, logged history, and host-accessible diagnostics creates a much stronger maintenance strategy than threshold-only protection. This also highlights a broader point: battery management quality is rarely determined by protection alone. Protection prevents immediate damage. Diagnostics and estimation preserve long-term system value.

From an interface perspective, several implementation details deserve close attention because they affect robustness more than expected. The open-drain nature of several outputs and communication lines means pullup design is not optional fine-tuning. It defines edge rates, logic compatibility, standby current, and noise behavior. If pullups are too weak, communication margins shrink and rise times become vulnerable in electrically noisy assemblies. If they are too strong, current consumption increases unnecessarily and some interface nodes become less tolerant of transient conditions. This tradeoff is easy to underestimate during schematic capture and often shows up only after cabling, host interfaces, and production tolerances are all present.

The same applies to the required pullups on AFE communication pins. These lines often sit at the boundary between clean digital intent and noisy battery-pack reality. Layout, trace routing, reference quality, and pullup placement all influence signal integrity. In compact packs with switching loads, motor drives, or charger noise nearby, communication stability can degrade in ways that look like firmware issues but are actually hardware timing or grounding problems. A design that works on an evaluation bench can become intermittent once wire harnesses, enclosure grounding, and high-current paths are introduced. For that reason, interface bring-up should be done under realistic electrical stress rather than only under ideal lab conditions.

Voltage-domain constraints on I/O pins also require disciplined attention. Battery packs often bridge multiple logic domains: the cell stack domain, low-voltage host logic, charger interfaces, service connectors, and optional user indicators. The bq78350-R1 sits inside that boundary network, so designers must verify not just nominal compatibility but fault-case compatibility. Back-driving through pullups, leakage through attached peripherals, or accidental exposure to higher service voltages can create subtle failure paths. These issues are rarely dramatic at first. More often they produce intermittent wake behavior, communication lockups, elevated sleep current, or degraded long-term reliability. Conservative interface isolation and explicit domain review usually pay for themselves quickly.

Power budgeting should also be examined from the system level, not just at the IC level. In a battery pack, every pullup, indicator, monitoring path, and always-on peripheral contributes to quiescent drain. The bq78350-R1 supports low-power operation, but the surrounding implementation determines whether that advantage is preserved. LED indicators, SMBus pullups, alert lines, and external interface circuitry can dominate standby consumption if left active without a defined power-state strategy. This is particularly important in service-stocked packs, seasonal vehicles, and standby assets where months of idle storage may occur. A pack can meet all active-mode requirements and still fail commercially if quiescent loss causes unexpected deep discharge in storage.

Another important design consideration is how fault policy is mapped to product behavior. The bq78350-R1 can log abuse conditions and coordinate protective actions, but the engineering value depends on choosing fault thresholds, delays, and recovery rules that reflect the application. In a traction battery, aggressive shutdown may maximize safety but create ride interruptions under transient stress unless delays are tuned carefully. In a UPS module, a conservative recovery policy may preserve pack integrity but complicate automatic return-to-service. The strongest designs treat threshold selection as a system-control problem, not a register-programming task. Faults should be classified by energy risk, reversibility, and serviceability. That framing leads to better choices than simply pushing limits to maximize apparent robustness.

The device is also most effective when designers resist the temptation to separate gauging from control philosophy. Remaining-capacity reporting, charge acceptance behavior, thermal policy, and fault handling should be calibrated as one coherent model of pack behavior. If state-of-charge estimation says energy is available while discharge rules cut off early, the host loses trust in the battery. If charge control allows operation the gauge later interprets as abnormal, historical data becomes harder to use. Consistency across these layers is what makes the pack feel predictable to the host system and maintainable over its life.

In practice, successful bq78350-R1 implementations usually come from teams that validate in three passes. First, they verify the electrical layer: pin domains, pullups, wake behavior, communication integrity, and current measurement stability. Second, they tune the battery model and protection settings against the real cell selection, thermal path, and load profile. Third, they validate system behavior at the pack level, including charger interaction, host communication timing, standby current, fault recovery, and service workflows. Skipping any one of these layers tends to move the problem downstream, where it becomes harder to diagnose and more expensive to fix.

Seen this way, the bq78350-R1 is less a single-purpose battery monitor than a configurable battery intelligence layer that sits between electrochemical reality and system expectations. Its real strength is not any isolated function, but the way gauging, charge-state control, diagnostics, communications, and protection can be made to behave as one coordinated subsystem. When the surrounding hardware, configuration data, and application policy are aligned, it enables a pack that is safer, more predictable, easier to service, and significantly easier for the host system to trust.

Texas Instruments bq78350-R1 Package Information and Thermal Considerations

Texas Instruments bq78350-R1 uses a 30-pin TSSOP package with a nominal body size of 7.80 mm × 6.40 mm. This package choice is not incidental. In battery management electronics, especially multi-cell pack controllers, the package must support a moderate signal count, predictable PCB assembly, and acceptable thermal behavior without forcing a migration to finer-pitch manufacturing. The 30-pin TSSOP sits in a useful middle range: compact enough for dense pack layouts, but still forgiving in inspection, rework, and routing compared with smaller lead-frame or no-lead options.

From a mechanical and manufacturing perspective, this package is often well aligned with battery control board constraints. It provides enough pins for cell-monitoring support logic, communication, protection coordination, and configuration interfaces, while keeping board escape routing manageable on standard stackups. In practice, this matters because battery management boards rarely dedicate area to a single IC alone. They also carry current-sense paths, thermistor inputs, balancing networks, protection FET interfaces, EEPROM or flash support, and connector structures. A package that reduces layout friction can improve the entire design, not just the local footprint.

The key thermal figures for the 30-pin TSSOP package are:

junction-to-ambient thermal resistance, θJA = 81.4°C/W,

junction-to-case-top thermal resistance, θJC(top) = 16.2°C/W,

junction-to-board thermal resistance, θJB = 34.1°C/W.

These values should be interpreted as thermal path indicators rather than fixed operating outcomes. θJA describes how effectively heat leaves the die and reaches ambient under standardized board and airflow conditions. It is useful for rough power-to-temperature estimation, but it can mislead if treated as a board-independent constant. Real battery packs usually differ substantially from JEDEC test environments. Copper area, nearby heat sources, enclosure ventilation, conformal coating, and even foam compression inside the pack can shift effective thermal behavior.

θJC(top) is often more relevant for measurement strategy than for heat removal in this class of package. It indicates the thermal coupling between the die and the top of the package. If thermal validation is performed with an IR camera or a thermocouple on the package surface, this metric helps explain the relationship between observed case temperature and actual junction temperature. In dense battery assemblies, top-side readings can lag or underrepresent transient die heating if adjacent components dominate the local temperature field.

θJB is especially important for placement decisions. It reflects how strongly the device exchanges heat with the PCB, which is often the dominant path in TSSOP-based control devices. For the bq78350-R1, this means the board is not merely an electrical interconnect. It is part of the thermal system. Copper connected to ground or other low-impedance nets can spread heat away from the package, while narrow traces and thermal isolation slots can concentrate it. A controller with low self-dissipation may still run warm if mounted on a board section that acts as a heat collector from balancing resistors or gate-drive components.

Under normal operating conditions, self-heating of the bq78350-R1 is modest because its own current consumption is relatively low. A simple first-pass estimate shows why. If the device dissipates only tens of milliwatts, the resulting junction rise predicted from θJA is typically only a few degrees Celsius. On its own, that is rarely a reliability threat. The more realistic thermal risk is environmental coupling. In battery pack electronics, thermal stress often arrives indirectly through conduction in the PCB, radiation from nearby hot surfaces, and confined ambient conditions inside the enclosure.

This distinction is important in engineering reviews. It is easy to dismiss thermal analysis for low-power control ICs, but that often leads to local placement mistakes. A controller may be electrically correct and still be positioned next to cell-balancing resistors that pulse significant power during equalization events. It may sit near charge-discharge FETs whose switching and conduction losses elevate board temperature over long intervals. It may also share a region with current-sense elements that produce stable thermal gradients under heavy load. In these cases, the IC temperature no longer reflects its own power dissipation. It reflects system power density.

A practical layout approach is to treat the bq78350-R1 as thermally sensitive rather than thermally aggressive. That means avoiding direct adjacency to components with large average or pulsed dissipation, especially balancing resistors, precharge elements, linear regulators, and high-current MOSFET clusters. Even a few millimeters of separation, combined with thoughtful copper partitioning, can reduce heat injection into the controller region. Where board area is constrained, orienting the package so that its thermal exposure favors cooler copper zones can be more effective than simply increasing clearance in one direction.

PCB copper plays a dual role here. It can cool the IC when tied to broad, low-temperature planes, but it can also deliver heat into the package if those planes are connected to hotter subsystems. This is one of the more common thermal misconceptions in compact battery boards. More copper is not automatically better. Copper connected to a hot balancing network can worsen controller temperature. The useful objective is not maximum spreading alone, but controlled spreading toward thermally quiet regions.

The package thermal data also informs validation methods. During prototype bring-up, measuring only ambient temperature near the board edge says little about controller stress. Better correlation comes from sampling the package top, the local board beneath or adjacent to the IC, and the nearest known heat source during representative operating modes: idle, charge, discharge, balancing, and fault handling. This reveals whether the device is self-heating, board-heating, or enclosure-heating dominated. That separation is valuable because each mechanism suggests a different corrective action.

Another practical point is time constant. Battery management systems often operate in long-duration states rather than short computational bursts. Thermal equilibrium may take minutes rather than seconds, especially inside enclosed packs with limited airflow. A controller can appear safe during bench testing and still drift upward in temperature during extended balancing or sustained high-current discharge. Thermal characterization should therefore include steady-state dwell periods long enough for the enclosure and board mass to settle. Short tests tend to understate the thermal interaction between the control IC and adjacent power components.

The 30-pin TSSOP package remains a sound choice for this device because it supports accessible manufacturing and predictable thermal behavior. It does not demand exotic assembly controls, and its leaded structure tolerates many of the process realities found in industrial and battery-pack production. That said, package familiarity should not lead to thermal complacency. In tightly integrated pack electronics, thermal reliability depends less on the controller’s internal dissipation and more on how intelligently the package is embedded into the larger heat map of the board.

For robust designs, it is useful to think of the bq78350-R1 as part of a thermal network rather than a standalone low-power IC. The junction temperature is shaped by package resistance, PCB conduction paths, neighboring loss mechanisms, and enclosure-level heat retention. Once viewed this way, the thermal metrics become more than datasheet numbers. They become placement constraints, measurement guides, and reliability inputs for the full battery management architecture.

Texas Instruments bq78350-R1 Potential Equivalent/Replacement Models

Texas Instruments bq78350-R1 replacement evaluation starts from one decisive fact: BQ78350DBTR-R1 is marked Not For New Designs. That status does not automatically mean immediate obsolescence, but it changes the engineering posture. The device should no longer be treated as a stable anchor for new pack platforms. Instead, it should be viewed as a legacy battery management controller that may still support existing programs, while new development should move toward a forward-looking architecture with a clearer lifecycle path.

Based strictly on the provided material, no explicit direct equivalent, successor, or pin-compatible replacement is identified. That absence is important. In battery pack electronics, “replacement” is often misunderstood as a catalog-matching exercise. In practice, for a device like the bq78350-R1, replacement is primarily an architecture-level decision. The controller sits within a coupled battery management stack, and its behavior depends not only on its own feature set but also on the analog front end, firmware model, gauging algorithm, protection thresholds, communication interface, and pack-level safety strategy. As a result, any search for an alternative should begin with function equivalence and system compatibility, not package similarity.

The most reasonable replacement direction, using only the supplied information, is to look for solutions aligned with the same Texas Instruments battery management concept: a battery management controller operating with the bq769x0 family, supporting 3-series to 15-series lithium-based packs, communicating through SMBus, and combining fuel gauging with protection management for both Li-ion and LiFePO4 designs. This narrows the candidate space in a meaningful way. It also implicitly defines what must be preserved if the replacement is expected to minimize redesign effort: cell monitoring topology, host communication behavior, gauging philosophy, and pack control partitioning between controller and AFE.

A useful way to frame the problem is to separate electrical compatibility from behavioral compatibility. Electrical compatibility covers voltage domains, cell count support, interface mapping, pull-up strategy, thermistor inputs, FET drive interaction, low-power behavior, and any display or authentication-related pins. Behavioral compatibility is usually more difficult. It includes state-of-charge estimation dynamics, protection timing, recovery behavior after faults, SMBus command map expectations, learning cycle behavior, and the way the controller responds in storage, ship, and low-current standby conditions. In battery-powered systems, these behavioral details often matter more than nominal feature overlap. A replacement that matches the block diagram but changes gauging convergence, alarm behavior, or shutdown sequencing can force host-side firmware changes and pack requalification.

The required cell count range is one of the first hard filters. The bq78350-R1 targets 3-series through 15-series lithium-based battery packs. That immediately excludes lower-voltage gauge families and many single-chip monitor-gauge devices optimized for consumer cells. It also implies a particular class of pack architecture where balancing, cell monitoring, and fault handling operate across a relatively wide stack. Any candidate that only partially overlaps this range may create variant proliferation across product lines, which is usually a poor long-term outcome unless the portfolio itself is being intentionally segmented.

The gauging method is another critical discriminator. The supplied content specifically calls out CEDV-based gauging as something that must be confirmed. That is not a minor checkbox. Gauging algorithm choice directly affects field behavior, qualification effort, and model portability across chemistries. A design team accustomed to CEDV tuning, data flash calibration, and pack learning flow should assume that a migration to a different gauging method will alter test methodology and production programming. In real projects, this is where replacement efforts often expand unexpectedly. The hardware change may appear manageable, while the effort to recover equivalent state-of-charge accuracy under dynamic loads becomes the dominant schedule driver. For packs used in tools, mobility devices, backup modules, or industrial battery systems, small changes in SOC behavior near end-of-discharge can affect user-visible runtime and host shutdown margin more than any parametric difference on the datasheet.

SMBus compatibility deserves the same level of scrutiny. At first glance, SMBus support sounds generic, but implementation details matter. Command support, timing, alert behavior, manufacturer access functions, sealing and unsealing flow, and edge-case handling under low-voltage conditions can vary enough to break software assumptions. If the existing host stack was built around a known bq78350-R1 register map or event model, the true replacement cost includes validation of every transaction path from startup to fault recovery. This becomes especially important in systems with smart battery semantics, charger coordination, pack authentication, or service tooling that reads manufacturer-specific diagnostics. A replacement that preserves the physical bus but shifts semantics is not direct in any practical engineering sense.

Display-drive and authentication requirements should also be verified early, even if they are secondary in the current design. These functions often look optional until downstream dependencies surface. A local display path may affect enclosure-level UX or service diagnostics. Authentication can be tied to charger interoperability, consumable control, safety interlocks, or aftermarket policy. When these features are embedded in the pack controller, removing or relocating them changes both electronics partitioning and product behavior. In replacement planning, latent dependencies of this kind should be treated as architectural hooks, not peripheral extras.

Power-mode behavior and storage-current constraints are especially important for lifecycle planning. Battery packs often spend long periods in warehouse storage, transport, service stock, or dormant installation states. In that environment, quiescent current is not merely a power metric; it is a shelf-life and recoverability parameter. A replacement controller with different ship-mode entry, wake-up logic, or background current can shift the minimum allowable storage conditions and alter the service policy for deeply discharged packs. Experience across battery programs shows that low-power mode differences are easy to underestimate during bench evaluation because they are not always visible in short test cycles. They appear later in aging stock, field returns, or post-transport recovery anomalies. For that reason, standby current and wake behavior should be validated with realistic timelines, not just lab snapshots.

Compatibility with the intended AFE and pack architecture is the final gate that ties the whole assessment together. The bq78350-R1 is not a standalone abstraction. It is part of a controller-plus-AFE partition, which means replacement candidates must be evaluated against the selected analog front end, balancing method, FET control philosophy, sense resistor range, temperature sensing network, and fault containment approach. In many battery platforms, the controller and AFE form a semi-coupled ecosystem. Replacing only one side can trigger changes in calibration flow, production test vectors, and even PCB layout constraints around cell inputs and high-voltage isolation strategy. This is why the safest replacement mindset is not “what part replaces this IC,” but “what controller-AFE combination reproduces the pack’s required behavior with acceptable redesign cost.”

For existing products already built around the bq78350-R1, the replacement question should be split into two tracks. The first track is sustainment: secure availability, review last-time-buy exposure, lock down firmware baselines, and characterize any lot-to-lot risks if procurement remains possible. The second track is migration: identify a future architecture, define what behavior must remain invariant, and plan a formal requalification campaign. Combining both tracks into a single rushed action usually creates unnecessary risk. Legacy programs generally benefit from maintaining a stable production image while the migration path is validated in parallel. That reduces the chance of introducing software and hardware changes into a mature field base under supply pressure.

For new designs, the implication is more direct. Since no formal successor is named in the provided material, the bq78350-R1 should not be selected as the starting point for a fresh platform unless there is a compelling short-horizon reason and a deliberate migration plan already exists. New platform selection should prioritize components with active design support, clearer roadmap continuity, and a battery management architecture that aligns with the intended pack family over multiple product generations. In practice, choosing a newer path early often costs less than preserving compatibility with a device already outside the preferred lifecycle window.

A disciplined replacement workflow helps contain scope. Start by freezing the current pack requirements in measurable terms: cell range, chemistry support, SOC accuracy targets, protection thresholds, balancing behavior, host command requirements, low-power current, wake sources, display and authentication needs, and production calibration flow. Then classify each requirement as mandatory, adaptable, or legacy-only. This step usually exposes where a nominal replacement is impossible and where controlled redesign is acceptable. After that, evaluate candidate controllers or controller-AFE combinations against the frozen requirement set, not against marketing feature lists. Finally, plan validation around pack behavior, not only IC functionality: charge/discharge accuracy, fault injection, recovery sequencing, temperature corner cases, seal-state behavior, and long-duration storage tests.

The central engineering view here is that the absence of an explicitly identified successor is itself a design signal. It indicates that the migration path must be earned through verification, not assumed through naming similarity or vendor lineage. For the bq78350-R1, any candidate replacement should therefore be treated as a requalification project with potential firmware, hardware, and test impacts. That is the most defensible interpretation of the supplied documentation, and it is the one most likely to prevent avoidable surprises in both new development and lifecycle management.

Conclusion

The Texas Instruments bq78350-R1 is a pack-side battery management controller built to pair with the bq769x0 analog front-end family for 3-series to 15-series Li-ion and LiFePO4 battery packs. Its significance is not just high integration, but system consolidation. It brings fuel gauging, state-of-health estimation, programmable protection control, SMBus communication, lifetime logging, authentication, and local user-interface support into one controller layer. That architecture reduces the gap between raw cell telemetry and usable battery intelligence at the pack level.

At a system level, the device sits between the cell-monitoring front end and the host environment. The bq769x0 handles cell voltage acquisition, current measurement support, and hardware-oriented analog supervision, while the bq78350-R1 converts those measurements into operational decisions. This separation is important. In practical battery systems, safe operation depends not only on detecting voltage, current, and temperature limits, but also on interpreting how those signals evolve over time. A controller that only reacts to thresholds behaves like a protection block. A controller that also tracks charge state, aging, and event history behaves like a battery intelligence node. The bq78350-R1 belongs clearly to the second category.

Its fuel-gauging function is one of the main reasons it remains relevant as a reference design point. Accurate gauging in multicell packs is difficult because the pack is rarely in ideal conditions. Load transients, cell imbalance, temperature shifts, and aging all distort simple voltage-based estimation. The bq78350-R1 addresses this by combining measured current, voltage behavior, and learned pack characteristics to estimate remaining capacity and full-charge capacity with more usable fidelity than threshold methods alone. In deployed systems, this matters less for displaying a neat percentage and more for making control decisions. Runtime prediction, reserve margin enforcement, charge termination confidence, and maintenance scheduling all depend on gauge quality. In many fielded products, users tolerate modest voltage error, but they react strongly to unstable remaining-capacity reporting. That makes gauge stability as important as raw accuracy.

The state-of-health and lifetime data features add another layer of value. A battery pack is a time-varying system, and its failure modes often develop gradually before they become protection events. By logging operational history, learned capacity changes, temperature exposure, and fault patterns, the controller creates a traceable degradation profile. This is useful in service environments because it separates true cell aging from misuse, thermal stress, chronic overcurrent operation, or charger mismatch. In practice, this type of historical visibility often shortens root-cause analysis far more than adding another protection comparator would. When a returned pack shows repeated high-temperature charge attempts or persistent imbalance growth, the issue becomes diagnosable rather than speculative.

Protection handling is another strong point. The bq78350-R1 does not simply expose fixed safety functions; it allows programmable coordination of overvoltage, undervoltage, overcurrent, short-circuit, and temperature protections within a broader pack policy. That distinction matters in applications with widely different load signatures. A power tool pack, a light electric vehicle pack, and a telecom backup pack may all use similar cell chemistry ranges, but their current bursts, rest intervals, charger behavior, and allowable recovery logic differ substantially. A controller that supports configurable thresholds, delays, and response behavior is easier to align with the actual electrical stress profile of the target product. In engineering terms, this improves protection selectivity and reduces nuisance trips without relaxing safety margins.

Its SMBus interface makes the battery pack visible to the host as an information-bearing subsystem rather than an opaque energy source. This host visibility is often underestimated during component selection. In smart packs, communication is not a convenience feature; it is the mechanism that enables coordinated system behavior. The host can query remaining capacity, charging status, fault conditions, cycle count, temperature status, and learned battery parameters. That supports better power budgeting, safer charging decisions, clearer maintenance messaging, and more controlled shutdown strategies. In equipment such as UPS units or industrial portable systems, host-readable battery status can be the difference between graceful derating and abrupt field failure.

The inclusion of authentication support reflects another practical design consideration: battery packs are increasingly part of a controlled ecosystem. Authentication is not only about vendor lockout. It can also support safety and liability control by ensuring charger-pack compatibility, validating service replacements, and preventing operation with electrically marginal or unqualified pack assemblies. In systems where fault energy is high or regulatory exposure matters, this function becomes strategically valuable. It shifts part of product integrity enforcement into the pack electronics themselves.

Local display support may appear secondary beside gauging and protection, but it serves an important integration role. In many portable or semi-autonomous systems, immediate pack-level indication of charge or fault state reduces dependence on the host and simplifies diagnostics. During manufacturing, service, or storage handling, local indication often shortens verification steps. In practice, a simple pack-side state display can reveal whether a problem originates in the battery, the charger, or the system load before any bus-level debugging begins.

From a product selection perspective, the bq78350-R1 fits best in battery packs that need both strong supervision and meaningful exported data. It is well suited where the battery must actively participate in system management rather than merely disconnect under fault. Typical application classes include light electric vehicles, power tools, UPS systems, telecom backup modules, industrial portable equipment, and other smart battery designs where pack telemetry, event history, and host communication are operational requirements. The strongest fit is in designs where battery behavior influences system policy in real time.

The chemistry support across Li-ion and LiFePO4 also broadens its utility, but the system implications should be considered carefully. These chemistries differ in voltage profile, thermal behavior, and state-of-charge observability. LiFePO4, in particular, has a flatter discharge curve, which makes voltage-only estimation less informative across much of the usable range. In such cases, the value of integrated gauging and learned behavior becomes even more pronounced. Selection should therefore focus not only on series-cell count compatibility, but on whether the controller’s estimation and protection model matches the intended chemistry behavior under real operating conditions.

For procurement and lifecycle planning, the device’s Not For New Designs status is the main constraint. This does not erase its technical value, but it changes how that value should be used. In existing platforms, it may remain a viable sustainment component depending on supply conditions and qualification strategy. In new developments, it is better treated as a mature benchmark architecture than as a default design-in choice. That benchmark remains useful because it defines a fairly complete feature envelope for pack-side battery intelligence: gauge capability, configurable protections, logging, host communication, authentication, and user indication in one controller path. Any replacement candidate should be evaluated against that full envelope, not just against voltage and current monitoring basics.

A common selection mistake is to compare battery management parts primarily on cell-count range and protection lists. That usually leads to underestimating the integration burden outside the datasheet headline features. Once lifetime logging, stable gauging, host communication behavior, field diagnostics, and security requirements are added back into the design, a seemingly simpler controller can become the more complex system choice. The bq78350-R1 illustrates an important engineering principle: in battery packs, intelligence density often matters as much as protection coverage. A pack that can explain its condition, enforce policy consistently, and expose useful state to the host is generally easier to validate, easier to service, and more robust across its deployed life.

Viewed in that context, the bq78350-R1 represents a mature and technically coherent battery intelligence platform for multicell smart packs. Its architecture is especially relevant in applications that require coordinated protection, trustworthy charge-state visibility, degradation tracking, and host-accessible diagnostics. Even with lifecycle limitations, it remains a strong reference for what a well-integrated pack controller should provide when the battery is expected to function as an active subsystem rather than a passive power source.
