Texas Instruments bq32000 Product Overview and BQ32000DR Positioning
Texas Instruments positions the bq32000 as a practical real-time clock for embedded systems that need stable clock and calendar retention across primary power interruptions without adding excessive software or power-path complexity. Within that family, the BQ32000DR refers to the 8-pin SOIC package option, which targets designs that prefer a widely manufacturable footprint, straightforward routing, and standard assembly flow. Its value is not in unusual RTC functionality, but in how it combines familiar timekeeping behavior with backup-domain resilience, calibration control, and integration features that reduce board-level design friction.
At the device level, the bq32000 is built around the classic RTC problem: maintain valid time with minimal energy while the rest of the system is powered down or unstable. It tracks seconds, minutes, hours, day, date, month, and year, including automatic leap-year compensation, which removes one layer of calendar maintenance from firmware. That matters more than it first appears. In systems expected to run unattended for years, eliminating periodic calendar correction logic reduces edge-case bugs, especially around month rollover, leap-day handling, and restart recovery after brownout events.
A more important differentiator is its power-domain behavior. The device automatically switches to a backup source when the main supply falls below the valid operating threshold. In practice, this is the core reason such an RTC is selected. Timekeeping devices are often evaluated by nominal feature count, but field reliability is usually decided by how gracefully they cross power discontinuities. Automatic switchover avoids the need for external supervisory glue logic and simplifies the backup architecture. In systems with intermittent mains, removable primary batteries, or aggressive power gating, this function directly improves timestamp continuity and reduces the chance of clock corruption during supply transitions.
The integrated trickle charger extends that usefulness by supporting rechargeable backup elements such as supercapacitors or rechargeable cells, depending on the system design constraints and charging policy. This is one of the more consequential aspects of the bq32000 when viewed from a lifecycle perspective. A primary-cell-backed RTC is simple, but a recharge-capable backup path can reduce service intervals and improve maintainability in products that see repeated main-power availability. At the same time, this feature requires disciplined design decisions. Charge current limits, backup-element chemistry, leakage budget, and expected holdover duration must be analyzed together. In many designs, the trickle charger is most valuable not because it maximizes backup time, but because it stabilizes retention performance over repeated power-loss cycles without relying on scheduled battery replacement.
The timing base uses a 32.768-kHz crystal, which aligns with the standard watch-crystal ecosystem and keeps cost and sourcing practical. However, RTC accuracy is rarely determined by the silicon alone. Crystal load capacitance, PCB parasitics, stray coupling, temperature profile, and mechanical stress all affect final performance. This is where the programmable calibration range of –63 ppm to +126 ppm becomes especially useful. Calibration allows the designer to compensate for systematic frequency error after the crystal and layout behavior are known. That capability is often undervalued during schematic review and becomes highly valuable during validation, when measured drift reveals that “nominal” accuracy assumptions were too optimistic. A device that provides usable trim margin is easier to production-tune than one that depends entirely on ideal crystal behavior.
The calibration range also shifts the part from being merely a basic RTC to a manageable timing subsystem. For products that log events, schedule maintenance intervals, coordinate low-duty-cycle wakeups, or attach timestamps to sensor data, a few tens of ppm can accumulate into operationally significant drift over months. In these cases, software correction is possible, but hardware-level calibration is cleaner and usually more robust. It reduces firmware compensation complexity and avoids time-jump artifacts that can confuse higher-level logic. In practice, designs that expose a service-mode calibration path during manufacturing or final test tend to realize much better long-term timing consistency than designs that treat RTC accuracy as fixed.
The oscillator-fail detection feature addresses another failure mode that is easy to overlook until it appears in deployment. If the crystal stops oscillating because of startup margin issues, contamination, mechanical shock, or poor layout, the system needs a way to distinguish “retained time” from “invalid time.” Without that distinction, software may continue operating on corrupted timestamps with no clear indication that the RTC domain failed. Oscillator status signaling gives firmware a basis for trust evaluation. That is a subtle but important system-level improvement: a clock is useful only if the software can determine when not to trust it.
The configurable interrupt output expands the role of the bq32000 beyond passive time retention. In many embedded designs, the RTC is also part of the wakeup and scheduling architecture. A programmable interrupt can be used to trigger periodic service activity, low-power wake events, or time-aligned housekeeping operations. This makes the device relevant not only in systems that need correct date/time after power loss, but also in systems that use time as a control primitive. The distinction is important. Some RTCs exist only as a timestamp source; others contribute to power-management behavior. The bq32000 sits closer to the second category when its interrupt capability is used well.
Texas Instruments also emphasizes compatibility with industry-standard RTC behavior. That positioning has real design value. For retrofit projects or platform refreshes, compatibility reduces migration risk at both the hardware and firmware levels. Register model familiarity, standard I2C access, and conventional RTC semantics make the part easier to substitute into existing architectures. Engineers often treat compatibility claims as marketing shorthand, but in legacy-support environments it can be the deciding factor. If the surrounding software stack, diagnostics flow, and manufacturing tools already assume a standard RTC transaction model, a compatible replacement can shorten redesign time significantly.

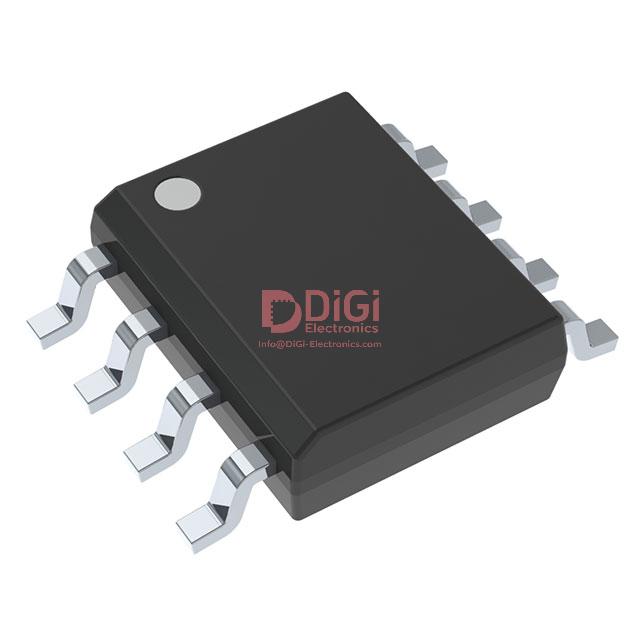

The BQ32000DR package option deserves attention in that context. The 8-pin SOIC format is not the smallest possible packaging choice, but it remains one of the most deployment-friendly. It offers solid inspection visibility, broad contract-manufacturing compatibility, and less placement sensitivity than finer-pitch alternatives. For industrialized embedded hardware, package practicality often outweighs area minimization. A part that is easy to assemble, rework, and source across multiple production cycles can be the better engineering choice even when denser packages exist.
From an application standpoint, the bq32000 fits naturally into consumer and general embedded systems, but its real usefulness extends to equipment with irregular power availability, persistent data logging needs, or maintenance-sensitive field deployment. Typical examples include metering nodes, gateway controllers, security panels, appliance controllers, asset trackers, networked sensors, and user-interface modules that must preserve time through battery swaps or supply dropouts. In these environments, the RTC is not just preserving wall-clock data. It is preserving event order, auditability, and recovery continuity after restart.
A recurring design pattern is to pair the bq32000 with a host processor that spends most of its time in deep sleep or is fully unpowered between active windows. In that architecture, the RTC becomes one of the few continuously alive domains in the system. That changes how the part should be evaluated. Backup current, crystal startup behavior, interrupt determinism, and backup recharge strategy become system-level parameters, not isolated component details. Designs that perform well on the bench often do so because the backup domain was treated as a first-class subsystem early in the design, with careful placement of the crystal, short and quiet oscillator traces, and explicit validation of switchover behavior under slow supply ramps and brief brownouts.
One practical lesson is that backup-supported RTC designs fail less often because of the RTC IC itself than because of assumptions around the backup source. Rechargeable coin cells, supercapacitors, and small storage elements each behave differently across temperature, aging, and repeated charge cycles. A trickle charger feature is beneficial, but only when the recharge profile and retention requirement are aligned. If the backup source cannot sustain the expected outage duration at end-of-life conditions, the RTC architecture is only superficially robust. The stronger design approach is to size the backup path from the holdover requirement backward, then confirm that recharge opportunity, leakage, and calendar retention current all fit with margin.
Another practical consideration is time validity after manufacturing and first power-up. RTC devices often leave production without a meaningful time value loaded. Systems that depend on authenticated logs, scheduled operation, or network coordination should treat initial RTC state as untrusted until explicitly set. Features such as oscillator-fail indication help, but the broader lesson is that a retained clock should be managed like any other persistent state: initialized deliberately, validated after exceptional events, and calibrated if long-term timestamp quality matters.
Viewed as a product-selection candidate, the bq32000 is strongest in designs that value dependable retention, manageable accuracy, and backup flexibility more than advanced timekeeping extras. It is not positioned as a feature-heavy timing hub. It is better understood as a robust infrastructure component: an RTC that solves the power-fail continuity problem cleanly, offers enough calibration authority to correct real-world drift, and remains easy to integrate into both new and legacy embedded platforms. That combination makes the BQ32000DR a sensible choice when the objective is not novelty, but predictable long-term timekeeping behavior under practical system conditions.
Texas Instruments bq32000 Core Functions and Timekeeping Architecture
Texas Instruments bq32000 is not just a battery-backed real-time clock. In embedded systems, it acts as a compact time-retention subsystem that combines calendar maintenance, oscillator supervision, and data-validity signaling in a way that reduces firmware complexity and lowers the chance of silent time corruption. Its value becomes clearer when viewed from the inside out: first as a register-coherent time base, then as a long-life calendar engine, and finally as a trust boundary between retained time and system-level decision logic.
At the functional level, the bq32000 maintains clock and calendar data in 24-hour format, with date fields organized as YY-MM-DD-dd. The device updates its timekeeping registers once per second, and the key point is that these registers are refreshed simultaneously rather than field by field. That design choice is more important than it may appear. In many embedded platforms, the host processor reads RTC values over a serial interface while interrupts, bus latency, or low-power wake transitions are occurring. If seconds, minutes, and date fields were updated asynchronously, a read operation could capture a mixed snapshot such as a new second with an old minute, or a rolled-over date with a previous hour. The bq32000 avoids that class of inconsistency by presenting a coherent time image at each one-second boundary.
This synchronous register update mechanism directly improves software robustness. Firmware does not need elaborate retry loops simply to detect mid-update tearing, and system designers can be more confident that a single read transaction represents a valid timestamp. In practice, that reduces edge-case defects that often surface only after long uptime or during field conditions where timing and bus access align poorly. It is a small architectural detail with outsized system impact, especially in data loggers, meters, access controllers, and remote sensor nodes where timestamps may drive billing, audit trails, or sequence reconstruction after a reset.
The calendar engine further extends that reliability by integrating leap-year compensation. This feature removes the need for the host to continuously correct month lengths or insert leap days in software. For short-lived prototypes, this may sound like convenience. For deployed products with multi-year service lives, it is closer to a risk-control mechanism. Calendar errors usually remain invisible until a boundary date is crossed, and once they occur, they tend to propagate into logs, maintenance records, scheduled actions, and communication payloads. By pushing leap-year handling into the RTC itself, the bq32000 reduces dependence on firmware assumptions, patch cycles, or application-layer corrections. The result is a cleaner separation of responsibilities: the RTC maintains civil time, while the host focuses on policy and application logic.
That separation is particularly useful in systems where the main processor spends long periods powered down or operating in reduced-clock modes. In those designs, keeping calendar correctness inside the RTC avoids repeated time reconstruction after wake-up. It also simplifies boot sequencing. Firmware can treat the retained time as a service provided by a dedicated hardware block rather than as a state variable that must be revalidated through software rules at every startup.
A more subtle but equally important part of the bq32000 architecture is oscillator supervision. Timekeeping is only meaningful if the oscillator has remained active and stable. The device exposes this through the OF flag, which indicates oscillator-fail status, and through the STOP bit, which allows the host to explicitly disable the oscillator. Together, these controls create a basic but effective integrity model for retained time. The RTC does not merely store calendar values; it also provides context about whether those values should be trusted.
This distinction matters in real products. After battery insertion, mechanical shock, PCB rework, deep discharge, or marginal crystal startup, an RTC can contain plausible-looking register contents that are no longer valid. Without an oscillator-fail indicator, firmware may accept these values as if they represent continuous time. The bq32000 gives the host a hardware-level signal to gate that decision. A sound initialization sequence typically checks OF before using the clock for scheduling, event ordering, or secure timestamping. If OF is set, firmware can fall back to a known-safe path such as requesting network time, loading a factory default, or marking stored records as having uncertain chronology.
The STOP bit is also more than a simple control field. It supports deliberate management of oscillator operation during manufacturing, test, storage, and certain low-power handling cases. For example, boards may be assembled and stocked before final calibration or system commissioning. In that flow, being able to control whether the oscillator runs prevents ambiguous assumptions about elapsed shelf time or battery consumption. In debugging, explicit oscillator stop/start control also helps isolate whether a timekeeping fault originates in the crystal network, backup supply path, or host-side initialization sequence.
From a system architecture perspective, the strongest feature set of the bq32000 is the way these pieces work together. Synchronized register updates ensure that a timestamp read is internally coherent. Leap-year compensation ensures that long-term calendar progression remains correct. Oscillator status signaling ensures that the system can evaluate whether retained time has remained continuous. This combination turns the device into a supervisory timekeeping block rather than a passive clock peripheral. That distinction is useful because embedded systems rarely fail due to not having a clock; they fail because they trust a clock at the wrong time.
In application design, this means the RTC should be treated as part of the platform’s state-validity chain. A robust implementation does not simply read time and proceed. It establishes a policy: read the registers coherently, inspect oscillator status, determine trust level, then expose time to higher-level software. Systems that follow this pattern tend to behave better during brownouts, battery swaps, firmware updates, and service interventions. The RTC becomes a source of both time and confidence metadata.
One practical pattern is to classify time into states such as valid, uncertain, or invalid based on OF and initialization history. That approach prevents downstream modules from making binary assumptions. Logging code can still store events with an uncertainty flag. Communications stacks can defer certificate checks until time is restored. Scheduled-control logic can inhibit actions that depend on strict chronology. The bq32000 supports this style of design well because it gives enough hardware visibility to distinguish “time value exists” from “time value is credible.” That is a more useful distinction than raw register retention alone.
Another recurring lesson in deployment is that RTC issues often appear as software defects until power-path and oscillator behavior are examined closely. Seemingly random timestamp jumps, non-reproducible schedule misses, or log entries with impossible dates frequently trace back to startup sequencing, backup domain instability, or unhandled oscillator-fail conditions. Devices like the bq32000 help narrow that ambiguity. When firmware actively uses OF and manages STOP intentionally, fault isolation becomes much faster. The timekeeping path stops being opaque and becomes observable enough to support disciplined diagnosis.
Viewed this way, the bq32000 is well suited to embedded products that need long-duration calendar retention with modest firmware overhead and explicit trust signaling. Its architecture reflects a practical understanding of where RTC failures actually cause system problems: not in counting seconds, but in crossing power events, calendar boundaries, and initialization edges without losing temporal integrity. That is why its synchronized update behavior, leap-year automation, and oscillator-status reporting should be considered as one design set, not as isolated features. Together they provide a compact, hardware-centered foundation for reliable retained time in real systems.
Texas Instruments bq32000 Backup Power Strategy and Trickle-Charge Design
The bq32000 is built around a simple but highly consequential power model: run the RTC from the primary rail when VCC is valid, and preserve timekeeping from VBACK when the system supply collapses. That sounds routine, but in practice this power-domain split determines retention reliability, field maintenance profile, charge-path safety, and even how low-power measurements should be interpreted during bring-up. For designs that must preserve time across brownouts, transport mode, battery replacement, or long storage intervals, the backup strategy is not a peripheral detail. It is one of the core architectural choices.
The operating window already frames the design space clearly. VCC is intended for 3.0 V to 3.6 V operation, while VBACK accepts 1.4 V to 3.6 V. This asymmetry is useful. It allows the real-time clock core to remain alive from a much lower-energy reservoir than the main logic rail requires. In engineering terms, the device separates functional availability from retention availability. The rest of the system may be down, but the RTC can still maintain state with only microamp-level support from the backup source.
A key parameter is the automatic switchover threshold. The electrical characteristics specify a typical switchover near 2.0 V, with a range from 1.5 V to 2.5 V. This range matters more than the typical value. In a robust design, threshold spread should be treated as a real system variable, not a footnote. If the main rail decays slowly or carries ripple during shutdown, the actual transition point can influence whether the RTC sees a clean handoff or spends time near the boundary between supply domains. In tightly budgeted systems, that boundary condition can be more important than nominal standby current.
The backup current is specified at 1.2 µA typical and 1.5 µA maximum under the stated test conditions. That is low enough to make both supercapacitor-backed and primary-cell-backed implementations practical, but the energy-storage behavior differs sharply between them. With a battery, retention time is usually dominated by shelf life, self-discharge, and replacement policy. With a supercapacitor, retention time is driven by capacitance, leakage current, initial charge voltage, voltage derating across temperature, and the minimum usable VBACK level before timekeeping fails. The RTC current itself is only part of the equation. In many supercapacitor designs, leakage current of the storage element can exceed the RTC backup current by a wide margin, so retention estimates that ignore capacitor leakage often look good on paper and disappoint on the bench.
That is why the bq32000 guidance to use only one backup implementation, either a supercapacitor or a battery, should be treated as a strict power-path rule rather than a casual recommendation. Mixing both introduces charge-sharing ambiguity and can create failure modes that are hard to detect in normal test coverage. A battery paralleled with a supercapacitor may see uncontrolled inrush, reverse current stress, or unintended discharge during repeated power cycling. Even if the arrangement appears to work during early prototypes, it usually weakens long-term predictability. A clean single-source backup architecture is easier to characterize, easier to certify, and easier to maintain over product lifetime.
The mention of integrated trickle charging further sharpens the design decision. Trickle charging is beneficial when the backup element is rechargeable, especially a supercapacitor, because it allows the system to replenish stored energy whenever VCC is present. This can eliminate service dependency associated with replaceable cells and is often attractive in products with intermittent but regular primary power availability. However, the charge path must be viewed as an energy-management function, not merely a convenience feature. Charge current, source impedance, charge time after first power-up, and the effect of repeated shallow recharge cycles all influence real holdover behavior.
In supercapacitor-backed designs, the practical engineering problem is rarely “will it switch over,” but “how long will retention actually last across temperature, aging, and production variation.” A first-order retention estimate can be built from the usable voltage window and effective capacitance. If the capacitor is charged near the upper end of the allowed backup range and the RTC remains functional down to around the lower VBACK limit, the available stored charge is finite and often smaller than expected once leakage and derating are included. A nominal capacitor value measured at room temperature and ideal frequency conditions does not represent effective backup energy under all field conditions. High-temperature leakage can dominate. Long board storage before deployment can also materially reduce the starting voltage if the charging opportunity is short. In other words, capacitor-backed RTC retention is a dynamic system behavior, not a static component calculation.
Battery-backed designs invert the tradeoff. They usually provide much longer holdover and more stable retention assumptions, especially when using a low-leakage non-rechargeable chemistry matched to the expected storage and deployment environment. The penalty is serviceability and lifecycle management. Every battery-backed RTC design inherits a replacement strategy, transport considerations, and a policy for low-volume or long-life inventory where self-discharge becomes visible. In procurement terms, choosing a primary cell is choosing a maintenance model. That choice is often justified for infrastructure, metering, or industrial logging products where uninterrupted retention over very long outages is worth the service burden.
The switchover threshold should also be considered alongside the upstream power tree. If VCC is generated by a regulator with slow collapse, a heavily loaded rail, or a supervisor-controlled discharge path, the transition into backup mode may not resemble a neat digital event. In those cases, it is useful to validate not only steady-state backup current but also the transient path during power loss and recovery. Subtle issues often appear here: the main rail can hover in the threshold region, the backup source can momentarily source unexpected current, or the RTC can experience recovery timing that differs from simulation assumptions. Designs that look electrically valid in schematic review can still show edge-case retention faults because the supply ramp profile was never treated as part of the RTC subsystem.
The datasheet note that VCC needs a pulse for the stated backup current measurement condition is one of those details that can prevent wasted debug time. Low-power validation on the bench is sensitive to startup history. If the device has not seen the expected VCC event, measured backup current can diverge from the published number, leading to false conclusions about silicon behavior or board leakage. In practice, when characterizing microamp currents, setup discipline matters as much as instrumentation. Fixture leakage, flux residue, humid surfaces, long scope probes, and source-measure settling errors can easily overshadow the RTC current itself. A clean measurement sequence with controlled power-up, guarded nodes where possible, and a stable thermal condition usually resolves discrepancies that initially appear mysterious.
From a board-level perspective, the backup path should be routed and protected as a high-impedance, low-energy node. That means minimizing contamination risk, avoiding unnecessary test-point loading, and thinking carefully about any adjacent nets that could inject leakage or noise. For supercapacitor designs, initial charge current and recharge behavior after long outages deserve attention. Even if the integrated trickle-charge path limits current, the recharge interval may be long enough that the product appears functional while the backup reservoir is still far from fully restored. This can create an operational blind spot during production test or installation, where a unit passes basic checks but cannot yet survive the expected outage duration. A short validation script that charges the reservoir fully or verifies backup readiness directly can remove that ambiguity.
There is also a broader system-design point here. The best backup source is not always the one with the highest theoretical retention time. It is the one whose failure modes are easiest to predict over the full deployment model. In products with frequent power availability and a desire to avoid battery maintenance, a supercapacitor often aligns better with system economics and compliance goals. In products with sparse service access or very long unpowered intervals, a non-rechargeable battery is usually the more deterministic choice. The bq32000 supports both paths, but it does not erase the need to choose one based on real operating patterns rather than abstract preference.
A disciplined design flow for the bq32000 therefore starts with outage profile, not component availability. Define how long retention must survive, how often VCC returns, what temperature range the backup element will see, and whether field replacement is acceptable. Then map those answers into either a supercapacitor-plus-trickle-charge implementation or a primary-cell implementation. After that, validate the actual switchover behavior on the target power tree, not just the static parameters in isolation. That sequence tends to produce designs that behave predictably in the field, which is the real metric that matters for an RTC backup subsystem.
Texas Instruments bq32000 Oscillator, Crystal Requirements, and Accuracy Considerations
Texas Instruments bq32000 uses a 32.768 kHz tuning-fork crystal as its time base, which is the standard frequency for low-power RTC designs because it divides cleanly to 1 Hz with minimal circuitry. On paper, the oscillator interface looks simple: select a crystal with 32.768 kHz nominal frequency, about 70 kΩ maximum series resistance, and load capacitance centered at 12 pF, with an acceptable range of 10.8 pF to 13.2 pF. In practice, this part of the design is not a passive checkbox. It is the dominant factor in whether the RTC behaves like a stable reference or a slowly wandering counter.
The first point to understand is that RTC accuracy emerges from the oscillator loop, not from the IC alone. The bq32000 provides the sustaining amplifier and divider chain, but the final frequency is set by the electromechanical behavior of the crystal and by the parasitics around it. Crystal tolerance, temperature response, motional parameters, PCB leakage, trace capacitance, and even contamination near the crystal pins all shift the effective operating point. This is why TI’s stated pre-calibration accuracy of ±35 ppm must be read carefully. That number is tied to defined test conditions, a reference board, and a specific surface-mount crystal. It is not a universal device guarantee in arbitrary layouts. The important engineering implication is that the RTC should be treated as a clock subsystem, not as a standalone IC specification.
Crystal load capacitance is one of the most commonly misunderstood parameters in this context. The crystal is specified to oscillate at its nominal frequency when it sees its target load capacitance. If the total effective load at the oscillator pins is too high, the crystal tends to run low in frequency. If it is too low, the crystal tends to run high. With the bq32000, the recommended target is 12 pF, and that number must include the full network seen by the crystal, including device input capacitance, package effects, trace capacitance, and stray coupling on the board. A layout that appears electrically identical at schematic level can still produce measurable drift if the crystal is placed farther away, routed across noisy copper, or surrounded by flux residue that increases leakage. In low-frequency oscillator design, these small effects are not secondary. They often explain why two prototypes built from the same BOM do not show the same long-term timekeeping.
Series resistance matters for startup margin and oscillation robustness. A 32.768 kHz tuning-fork crystal has relatively high motional impedance compared with higher-frequency resonators, so the oscillator amplifier must provide enough negative resistance to start and sustain oscillation across voltage, temperature, and aging conditions. The 70 kΩ requirement is therefore not just a compatibility note. It is a boundary on loop gain. A crystal with excessive ESR may still oscillate on the bench, especially at room temperature with a fresh battery, but fail to start reliably after cold soak, after extended storage, or under lower supply conditions. Designs that pass initial bring-up can still show intermittent oscillator failure later if startup margin was thin from the beginning. In RTC applications, robust startup is often more valuable than chasing a marginally better nominal tolerance on the crystal datasheet.
Board implementation has an outsized influence because the oscillator operates with very small signal energy. Keep the crystal close to the RTC pins. Minimize trace length and keep the two crystal nodes symmetric. Avoid routing high-edge-rate digital lines nearby. Do not place aggressive switching currents under the crystal region if the stackup allows a cleaner local reference area. Guarding the oscillator nodes from contamination is also worthwhile, especially in products exposed to humidity or no-clean process residue. In this frequency range, leakage paths and parasitic capacitive imbalance can translate directly into measurable ppm error or startup inconsistency. A compact, quiet, and clean oscillator layout usually outperforms a theoretically optimized but physically spread-out implementation.
TI’s programmable calibration range of –63 ppm to +126 ppm is one of the most practical features of the bq32000. It acknowledges a reality often ignored in early design reviews: even with a compliant crystal and careful layout, initial frequency error after assembly will vary across production units. That variation comes from crystal tolerance, solder-process stress, board parasitics, and the normal spread of oscillator drive conditions. Calibration gives the system a way to trim out this accumulated offset instead of forcing the hardware to achieve perfect nominal accuracy on its own. For systems without regular GPS disciplining, network time updates, or frequent host-based correction, this register-level adjustment can reduce drift from a visible operational issue to a manageable maintenance parameter.
The useful way to think about calibration is not as a rescue tool, but as part of the intended timing architecture. A good design flow measures raw RTC error on representative boards, across a realistic voltage and temperature window, then selects an initial trim strategy based on production goals. If the deployment environment is stable, a one-time factory trim is often enough. If temperature excursions are large and timestamp integrity matters, a more advanced scheme can characterize drift versus temperature and apply compensation in firmware when system context is available. The bq32000 does not become a temperature-compensated RTC by itself, but its calibration range is wide enough to absorb a meaningful portion of real-world offset. The strongest designs use that range deliberately rather than assuming the untrimmed oscillator will be sufficient.
Accuracy also needs to be translated into system-level terms. A 1 ppm frequency error corresponds to roughly 0.0864 seconds per day. At 35 ppm, drift is about 3 seconds per day, or roughly 1.5 minutes per month, before considering temperature variation and aging. That level may be acceptable for event logging with periodic maintenance sync, but it is weak for systems that rely on autonomous timestamp ordering over long intervals. Once the error is stated in seconds per day instead of ppm, design tradeoffs become much easier to assess. It becomes obvious whether better crystal screening, tighter layout control, production calibration, or periodic software correction is justified.
Temperature behavior deserves separate attention because tuning-fork crystals have a characteristic parabolic frequency curve around their turnover temperature, usually near room temperature. Even a well-trimmed RTC at 25°C will drift more at colder or hotter operating points. This is why a board can look excellent during lab validation and then accumulate larger error in outdoor or industrial deployment. Calibration removes static offset, but it does not cancel the crystal’s temperature law. In applications with wide ambient variation, the limiting factor often shifts from initial tolerance to temperature-induced curvature. That is where design expectations need to be realistic: the bq32000 can be made accurate enough for many embedded products, but not all timing requirements are best served by a simple crystal RTC architecture.
The integrated oscillator-fail detection adds an important layer of operational resilience. In deployed equipment, the critical question is often not just whether the time is accurate, but whether the time base has remained continuous. Battery depletion, shipping conditions, mechanical shock, or severe environmental stress can interrupt oscillation without generating an obvious symptom at the application layer until timestamps begin to look suspicious. Oscillator-fail status gives firmware a way to distinguish “clock running but drifting” from “clock validity compromised.” That distinction is valuable. It allows the software to invalidate retained time after a fault, request external resynchronization, or tag logged data with reduced trust until the clock domain is re-established.
In production and validation work, a few patterns appear repeatedly. Boards that place the crystal as an afterthought often show larger unit-to-unit spread than expected from the crystal tolerance alone. Designs that share the crystal area with noisy buses sometimes pass room-temperature functional tests but show startup anomalies after thermal cycling. Assemblies cleaned inconsistently can exhibit low-frequency instability that is hard to reproduce in controlled bench conditions. These effects are subtle enough to evade schematic review yet strong enough to dominate real RTC behavior. The lesson is straightforward: if timekeeping matters, oscillator layout, cleanliness, and characterization should be treated with the same discipline given to power integrity or signal integrity.
A sensible implementation strategy for the bq32000 starts with a crystal chosen for low ESR, load compatibility, and reputable aging performance. It continues with a tight, quiet PCB layout around the oscillator pins. It then validates startup across voltage and temperature corners rather than only checking nominal operation. After that, measured drift data should inform whether production trim is necessary. Finally, firmware should monitor oscillator-fail status and define a recovery policy for lost clock continuity. Taken together, these steps turn the device from a generic RTC component into a predictable timing subsystem.
The broader design insight is that low-frequency RTC oscillators reward restraint. Extra circuitry, long routing, unnecessary loading, and optimistic assumptions all tend to reduce accuracy margin. A simpler and cleaner oscillator environment usually yields better field performance than a more elaborate design that ignores parasitics. With the bq32000, TI provides the essential hooks: a standard 32.768 kHz interface, explicit crystal targets, a practical calibration range, and oscillator-fail detection. Whether the final product achieves stable and trustworthy timekeeping depends on how carefully those hooks are turned into a complete implementation.
Texas Instruments bq32000 Interface, Register Behavior, and Host Control Logic
Texas Instruments bq32000 is a real-time clock built around a conventional I2C two-wire interface, but its practical value is less about basic bus compatibility and more about the way its register behavior supports predictable host-side time management. Because it operates up to 400 kHz, it fits naturally into embedded designs that already place low-bandwidth peripherals on a shared control bus, including sensors, nonvolatile memory, power devices, and board-management functions. That interoperability matters at the schematic level, but it matters even more in firmware architecture, where the RTC often becomes part of a broader system-state model rather than a standalone timing component.
At the electrical interface layer, the device follows standard-mode and fast-mode I2C timing, covering 0 to 100 kHz and extending to 400 kHz. This gives the host designer freedom to place the bq32000 on an existing bus segment without creating a special-case timing domain. In mixed-peripheral systems, that is not a trivial advantage. Many integration failures do not come from protocol incompatibility but from marginal timing interactions caused by pull-up sizing, trace capacitance, and bus fanout. A device that stays within mainstream I2C timing envelopes reduces these edge-case risks. In practice, the cleanest implementations tend to treat the RTC as a low-rate, high-reliability endpoint rather than trying to optimize its transactions aggressively. The transfer size is small, and the engineering priority is deterministic access, not throughput.
The register model exposes two control points that strongly influence software robustness: the oscillator-fail indicator and the oscillator stop control. The OF flag is central to trust validation. Firmware should not assume that retained time is valid simply because register reads return plausible values. A time register can contain formatted data while still being semantically invalid after oscillator interruption, backup-domain instability, or incomplete initialization. The OF flag provides the missing context. Well-structured host logic should check this condition early during boot or wake transitions and use it to classify the RTC state into trusted, untrusted, or requiring reseed. That classification is more useful than a simple pass/fail check because different products recover differently. Some systems can request network time, some can fall back to a manufacturing timestamp, and some must mark logs as temporally uncertain until synchronization occurs.
The STOP bit complements this behavior by giving the host explicit control over oscillator operation. This is useful during manufacturing, board test, controlled storage modes, and fault recovery workflows. The deeper point is that STOP should be treated as a lifecycle control, not merely a register bit. If firmware can halt the oscillator, it must also define the conditions under which timekeeping authority is suspended and later restored. Designs become cleaner when STOP transitions are tied to explicit software states such as factory-programming mode, backup-domain service mode, or invalid-time quarantine. Without that discipline, it becomes easy for different firmware layers to make conflicting assumptions about whether time is advancing.
One of the more practical aspects of the bq32000 is the way its clock and calendar registers are updated once per second as a coherent set. This avoids a classic RTC problem: reading seconds, then crossing a rollover boundary before reading minutes or date fields, which produces a logically inconsistent timestamp. With the bq32000, firmware can read the grouped registers with much less concern about partial rollover artifacts. That simplifies driver design and reduces the need for retry loops or double-read validation schemes commonly used with less synchronized RTCs. The benefit is not just code reduction. It also improves confidence in event stamping, especially in systems where time reads occur from interrupt-context deferral paths, telemetry sampling routines, or startup diagnostics.
Even with coherent once-per-second refresh, careful host behavior still matters. A robust read path usually performs three checks in sequence: verify bus access succeeded, verify oscillator status is valid, then consume the returned timestamp. That order prevents a subtle failure mode in which a communication success is mistaken for time validity. The same principle applies during time-setting operations. It is generally better to treat time initialization as an atomic service at the application layer, even if it is implemented as multiple register writes underneath. When the surrounding software marks time as “valid” only after the full write sequence completes and oscillator state is confirmed, downstream modules avoid consuming half-initialized temporal data.
From an implementation perspective, the bq32000 is best integrated as part of a small host-side time service abstraction rather than accessed directly throughout the codebase. That abstraction should own I2C transactions, status interpretation, invalid-time policy, and conversion between register format and system time structures. This design pays off quickly. It localizes BCD handling, isolates oscillator-fault semantics, and makes it easier to enforce one consistent policy for startup, brownout recovery, and field diagnostics. In larger systems, this service often becomes the boundary between physical timekeeping and logical time distribution. The RTC provides retained wall-clock continuity; upper software layers decide whether that continuity is trustworthy enough for logging, scheduling, certificate validation, or user-visible time display.
There is also a system-level engineering tradeoff worth noting. Because the bq32000 is simple and bus-friendly, it is tempting to regard it as a passive peripheral. In practice, RTCs influence fault behavior disproportionately. A stale but believable timestamp can be more damaging than an obvious time failure because it contaminates logs, timeout logic, maintenance records, and synchronization heuristics. For that reason, the OF flag should drive more than a warning message. It should shape system behavior. In designs that handle this well, time is not considered valid by default after every reboot. It becomes valid only after the RTC proves continuity or after an explicit resynchronization event reestablishes authority.
On the I2C side, compatibility with both standard-mode and fast-mode operation also broadens MCU and SoC selection flexibility. It allows the same RTC design to migrate across platforms without revisiting the peripheral timing model in detail, provided the usual bus-level constraints are respected. This is especially useful in product families where one board variant uses a small microcontroller and another uses a Linux-capable processor on the same peripheral topology. The RTC interface remains stable, and the main engineering work shifts to software policy rather than hardware adaptation. That is a favorable division of complexity. Hardware should provide timing correctness and electrical compliance; firmware should provide trust management, recovery logic, and lifecycle control.
In deployment, the most reliable systems usually apply a simple rule set: read time only through a centralized driver, check oscillator integrity before accepting retained data, use STOP only inside controlled state transitions, and treat time initialization as a governed operation rather than an incidental register write. The bq32000 supports this style well. Its interface is conventional, its timing is easy to accommodate, and its register behavior gives the host enough visibility to distinguish mere communication success from genuine timekeeping validity. That distinction is where most of the engineering value resides.
Texas Instruments bq32000 IRQ Output and Frequency-Test Capabilities
Texas Instruments bq32000 provides a small but very useful set of observability features through its IRQ pin. Although the pin is often treated as a simple interrupt line, it is better understood as a multiplexed output node that can expose internal RTC state in several controlled ways. Its behavior is determined by the FT, FTF, and OUT bits, and these bits define whether the pin acts as a static logic output or as a frequency-test source. For board bring-up, production screening, and low-level fault isolation, this capability is more valuable than it first appears.
At the register level, the control model is compact. The OUT bit selects the static output state when frequency-test mode is not enabled. The FT and FTF bits switch the pin into test-output behavior and choose the exported frequency. In practical terms, the device can drive the IRQ node as logic high, logic low, 1 Hz, or 512 Hz. This is a deliberate design choice: one mode supports coarse functional confirmation, while the other supports faster and more instrument-friendly timing inspection.
The power-up behavior is equally important because it affects repeatability during initialization. On an initial power cycle, OUT comes up as one, while FTF and FT are cleared. On later power-ups, if backup power has been maintained, OUT is preserved, while FTF and FT are again cleared. That means the frequency-test modes are not persistent across these transitions, but the static output state may be. In a real design, this matters because firmware that assumes a default post-reset pin function can misread board state after a backup-retained restart. A clean initialization sequence should therefore treat IRQ configuration as explicit, not implied.
The 1 Hz output is the most accessible diagnostic mode. It provides an immediate indication that the oscillator is running, the divider chain is alive, and the RTC domain is not stalled. On a scope or logic analyzer, this signal is easy to verify even in a noisy lab setup. It is often the fastest way to distinguish between a crystal startup problem and an I2C configuration problem. If register access works but 1 Hz never appears when enabled, suspicion shifts toward the time base rather than the serial bus.
The 512 Hz option is more revealing than the 1 Hz output when timing quality needs closer inspection. A higher-frequency test point gives more edges in less time, which improves measurement efficiency and allows quicker confirmation of clock continuity, duty behavior, and gross frequency error. In production environments, this mode is often the better choice for automated validation because it shortens observation windows. It also helps when probing long traces or shared test fixtures, where a 1 Hz signal can be visually confirmed but is inefficient for quantitative timing checks.
One subtle point in the bq32000 design is the limited visibility of calibration effects at the IRQ output. Texas Instruments notes that when IRQ is configured for 1 Hz, calibration-induced pulse-width adjustments are generally not apparent except at long intervals, every eight or sixteen minutes depending on calibration polarity. This can confuse validation if the expectation is to “see” trimming behavior directly on a short capture. The underlying reason is that RTC calibration is applied as periodic correction to the clock path rather than as a continuously obvious frequency offset on the exported 1 Hz signal. For short tests, the output looks stable and ordinary even when calibration is active. This is one of those cases where the absence of visible disturbance does not imply the absence of correction.
That detail also carries a broader engineering lesson: low-frequency observability is not the same as calibration transparency. A 1 Hz test output is excellent for alive/not-alive decisions, but it is a weak instrument for characterizing subtle compensation behavior. If calibration verification is part of the requirement, the test method should account for the correction interval and measurement duration. Otherwise, a valid calibration implementation may be misclassified as ineffective simply because the observation window is too short.
The electrical interface of IRQ deserves as much attention as the register settings. The pin is open drain, so it does not source a logic-high level by itself. A pullup resistor is required, and that pullup should be connected to Vcc. This recommendation is not a formality. It ensures that the line is only biased when the primary supply is present, and it prevents the pullup network from back-powering or loading the RTC during backup-only operation. In low-power timekeeping designs, this is a critical distinction because leakage paths that look harmless in normal operation can become dominant current drains when the device is running from a coin cell or supercapacitor.
Texas Instruments further recommends tying all pullups to Vcc for the same reason. This keeps external logic from imposing a voltage on interface lines while the main rail is absent. In practice, violating this rule can produce difficult-to-diagnose symptoms: elevated backup current, partial biasing of I/O structures, undefined logic levels at attached devices, or apparent loss of retention margin. These failures often appear intermittent because they depend on the exact supply sequence and the external circuit state. Designs that operate reliably on the bench can still show shortened backup life in the field if this pullup strategy is ignored.
From a system perspective, IRQ can be treated as a lightweight health-monitoring point. During early board validation, configuring 512 Hz first is often the fastest way to confirm that the oscillator and divider path are functional. After that, switching to 1 Hz gives a simple long-interval heartbeat suitable for firmware sanity checks or in-circuit observation. If the application later uses IRQ for a static output role, that transition should be made only after validation is complete, since test visibility is otherwise lost. This staged use of the pin tends to reduce debug time because it turns a single node into both a timing witness and a configuration endpoint.
Another practical point is that open-drain test outputs are highly sensitive to pullup value and line capacitance when observed at higher frequencies. At 512 Hz this is rarely a signal-integrity challenge in the strict sense, but weak pullups on long traces can still soften edges enough to mislead threshold-based instruments or low-cost production fixtures. The waveform may appear rounded or delayed even though the RTC itself is operating correctly. Choosing the pullup therefore becomes part of measurement design, not just logic interfacing. A resistor that is acceptable for interrupt signaling may be suboptimal for clean frequency observation.
The bq32000 IRQ function is best viewed as a small diagnostic interface embedded inside the RTC rather than a single-purpose interrupt output. The FT, FTF, and OUT bits expose just enough internal behavior to support meaningful verification across development, manufacturing, and service. The most effective use comes from respecting three constraints at the same time: initialize the control bits explicitly after any relevant power event, interpret 1 Hz output as a functional heartbeat rather than a fine calibration indicator, and connect pullups only to Vcc so backup operation remains electrically clean. When those details are handled correctly, IRQ becomes a high-value signal for both design confidence and operational robustness.
Texas Instruments bq32000 Key Electrical, Environmental, and Timing Specifications
Texas Instruments bq32000 is positioned as a low-power real-time clock with an operating envelope that aligns well with mainstream embedded equipment, especially designs that need stable timekeeping across primary power loss without the cost or qualification overhead of harsher-environment RTC solutions. Its electrical, environmental, and handling specifications are not just checklist items; they directly shape power architecture, interface margin, manufacturing flow, and long-term field behavior.
From the supply perspective, the device is optimized for standard low-voltage digital systems. The recommended VCC range of 3.0 V to 3.6 V matches common 3.3 V rails used in microcontrollers, sensors, and companion logic. This is important because it avoids the need for level shifting or a dedicated RTC rail in many designs. In practice, this simplifies both schematic partitioning and bring-up. A 3.3 V host can usually connect to the bq32000 directly over its digital interface, provided rail sequencing and pull-up strategy are handled correctly. That kind of compatibility tends to matter more than it first appears, because RTC integration is often delayed until late in a project, when rail additions become expensive in both PCB area and validation time.
The main supply current, specified at 100 μA maximum at 3.3 V during timekeeping, places the part in a practical middle ground. It is low enough for always-on operation in line-powered or intermittently powered systems, yet not so low that board-level leakage and support circuitry can be ignored. In battery-backed products, the surrounding design often determines actual standby life more than the RTC itself. Pull-up resistors, leakage through protection structures, and unintended current paths through shared nets can easily dominate the RTC current budget if not reviewed carefully. A useful design habit is to treat the RTC domain as a separate leakage audit zone rather than assuming the datasheet current alone defines backup lifetime.
Backup operation is one of the more consequential aspects of the bq32000. The supported backup voltage range of 1.4 V to 3.6 V gives flexibility in selecting a supercapacitor, coin cell, or other backup source. That lower-end support is especially useful in designs that allow backup energy storage to discharge significantly before time retention is considered lost. The backup current, typically 1.2 μA and 1.5 μA maximum under stated conditions, is a strong fit for long-retention use cases. On paper, this looks straightforward. In deployed systems, however, retention time depends heavily on the full backup path: source self-discharge, series resistance, charging method, switchover topology, and the temperature profile over the product’s inactive periods. For example, a coin-cell-backed RTC may appear to have years of margin, but contamination, flux residue, or a marginally biased protection network can compress that estimate faster than expected. The bq32000 supports low-current retention effectively, but the board must be designed to deserve that advantage.
The device’s ambient operating range of –40°C to 85°C makes it suitable for a broad set of embedded deployments, including consumer devices exposed to outdoor storage, utility-adjacent equipment, portable instrumentation, and industrial control nodes installed in non-automotive environments. This range is often sufficient for products that need extended-temperature operation without pursuing the added cost and process burden associated with automotive qualification. The more important engineering implication is not just survivability across that span, but timing stability and power behavior near the corners. RTCs are often assumed to be “set and forget” components, yet time accuracy drift usually becomes visible only after weeks or months in the field, particularly in systems that experience daily thermal cycling. For that reason, temperature range should be interpreted not only as an environmental limit but also as a boundary condition for system-level timing expectations, calibration policy, and service strategy.
Digital input thresholds are defined relative to VCC, with logic low up to 0.3 × VCC and logic high from 0.7 × VCC. This is a conventional CMOS-style interface model and generally integrates cleanly with 3.3 V logic. The ratio-based thresholds preserve noise margin across the allowed supply range, which is preferable to fixed-level thresholds in systems where rail tolerance and ripple vary with operating mode. At 3.3 V, the effective VIH threshold is around 2.31 V and VIL is around 0.99 V, giving predictable interface behavior with standard MCU GPIOs and I2C-style signaling environments. Still, these margins should not be interpreted casually when mixed-voltage domains are involved. If the host side can enter a partially powered state while the RTC remains active on backup, unintended injection or undefined logic levels can appear at interface pins. This is a common source of intermittent backup current inflation and, in some cases, false bus activity. A robust design usually isolates the RTC interface behavior during host brownout and shutdown rather than assuming nominal threshold specs alone will prevent edge-case faults.
The output low voltage specification of 0.4 V at 3 mA sink current indicates adequate low-level drive for standard digital interfacing, especially on moderately loaded lines. It is not a high-drive output profile, and it should be treated accordingly. In practice, RTC outputs are best used as logic-level indicators or timing references, not as direct drivers for heavy loads, long traces, or noisy external circuitry. Keeping capacitive loading under control and avoiding aggressive pull-up values helps maintain signal integrity and reduces unnecessary power draw. This becomes relevant when the interrupt or clock-related outputs are routed off-board or into connectors, where line transients and coupling can degrade otherwise compliant logic performance.
Input current and leakage current in the ±1 μA range reinforce the part’s suitability for low-loading digital connections. For most embedded designs, this means the bq32000 will not materially disturb shared logic nets or pull-up-defined states. The more subtle benefit is in backup-domain isolation. Low leakage at the pin level helps prevent interface pins from becoming hidden battery drains when the main system is powered down. Even so, field experience consistently shows that external components, not the RTC silicon, are the first suspects when standby current fails to match estimates. ESD diodes on adjacent devices, test pads exposed to contamination, and resistor-divider networks left connected to backup rails can all contribute more than the RTC itself. This is why low-leakage parts like the bq32000 reward disciplined board partitioning; their true performance appears only when the rest of the design is equally restrained.
The documented ESD capability of 2000 V human body model and 500 V charged device model across all pins provides a reasonable baseline for standard manufacturing and assembly handling. These values indicate the device has meaningful built-in robustness, but they should not be mistaken for a guarantee against poor layout or uncontrolled handling environments. RTC pins often connect to traces that leave the immediate IC area and may run toward headers, batteries, crystals, or service interfaces. Those routes can become effective entry points for ESD and fast transients long before the intrinsic device rating is challenged in a controlled qualification sense. In other words, the datasheet ESD numbers are a starting point, not a board-level immunity result. Good placement, short return paths, controlled connector exposure, and disciplined grounding remain necessary if the design is expected to behave consistently outside the lab.
From a manufacturing and compliance standpoint, the bq32000 is relatively easy to deploy. RoHS3 compliance and REACH-unaffected status support procurement and regulatory workflows without introducing unusual material restrictions. MSL 1 is especially useful in production because it minimizes concerns about floor life and moisture-driven package handling constraints. That can reduce assembly friction in mixed-volume environments where reels may be opened, staged, and reused across multiple runs. In practical terms, MSL 1 does not remove the need for sensible storage discipline, but it does lower the process risk compared with devices that require tighter bake and exposure controls. This matters more than it seems in RTC selection, because such parts are often low-cost line items assembled into products with much higher downstream service costs if latent reliability issues emerge.
Taken together, the bq32000 specifications describe a component that is less about extreme headline performance and more about balanced integration behavior. Its real strength is that it fits naturally into 3.3 V embedded platforms, supports efficient backup retention, tolerates a wide operating temperature range, and avoids special manufacturing burdens. That combination is often more valuable than chasing the lowest possible current or the widest possible rating in isolation. In many designs, the deciding factor is not whether an RTC has the most aggressive datasheet number, but whether its electrical assumptions match the rest of the system closely enough to reduce surprises during qualification, low-power validation, and long-duration deployment. The bq32000 meets that test well when the surrounding power and interface details are treated with equal care.
Texas Instruments bq32000 Package, Pin Functions, and Hardware Integration Guidance
Texas Instruments bq32000 in the BQ32000DR variant is implemented in an 8-pin SOIC package with a nominal body size of 4.90 mm × 3.91 mm. This is a pragmatic package choice for RTC integration in embedded systems that favor mature assembly flows, easy optical inspection, and low process risk over extreme miniaturization. In practice, this package also reduces bring-up friction. Pad geometry is forgiving, solder fillets are visible, and rework is simpler than with leadless alternatives. For low-speed timing devices such as RTCs, those advantages often matter more than footprint compression.
At the device level, the bq32000 is not just a timekeeper. It is a mixed-domain component that bridges a low-frequency crystal oscillator, a primary supply rail, a backup energy source, and an I2C control interface. That combination makes pin-level understanding more important than the small pin count suggests, because each pin participates in a different sensitivity class: analog timing, low-leakage backup power, digital communication, or system event signaling.
OSCI and OSCO form the external 32.768 kHz crystal oscillator interface. These two pins should be treated as a quiet analog timing node rather than ordinary digital nets. The oscillator loop operates with very small signal amplitudes and is sensitive to parasitic capacitance, trace imbalance, leakage contamination, and injected noise from adjacent switching nets. In layout, the crystal should be placed as close as possible to OSCI and OSCO, with short, symmetric traces and minimal copper exposure around the oscillator path. Routing these pins under clocks, DC/DC switch nodes, or fast GPIO lines creates a subtle failure mode: the RTC may appear functional, yet exhibit elevated drift, intermittent startup, or startup only under certain temperature and supply conditions. That type of issue is often misdiagnosed as crystal tolerance error when the root cause is board-level coupling.
VBACK is the backup supply input and should be viewed as a protected retention rail rather than a general secondary supply node. Its purpose is to keep timekeeping alive when Vcc disappears. The recommendation to use only one energy-storage method, either a battery or a supercapacitor, is more important than it first appears. Mixing both sources seems attractive for extending retention time, but it complicates charge-state behavior, leakage paths, and source prioritization. It can also introduce undefined transition behavior during brownout or long storage conditions. A single backup strategy gives more predictable retention performance and simplifies validation. Battery-backed designs usually optimize for long calendar retention with very low standby current. Supercapacitor-backed designs favor rechargeability and short-to-medium holdover intervals. The correct choice depends less on nominal capacity and more on the expected power interruption profile, product shelf life, and maintenance model.
GND is the electrical reference for both the digital interface and the oscillator subsystem. Even in a low-power RTC, ground integrity affects oscillator stability and bus robustness. A quiet local ground reference near the device helps prevent small ground shifts from modulating the crystal loop or corrupting logic thresholds. This is especially relevant on boards with aggressive load transients, such as radios, backlights, or switching regulators that share return paths.
SDA and SCL are the I2C serial interface pins. Electrically, they are simple open-drain lines, but their integration detail matters because the bq32000 spans main-power and backup-power states. The guidance to connect pullup resistors to Vcc ensures that the bus is inactive when the system is running only from backup power. That choice prevents the I2C pullups from becoming an unintended current path that drains the backup source or partially powers sections of the system through the bus lines. This is a classic low-power design trap. If pullups are tied to an always-present rail while the host domain is off, leakage and back-powering can defeat backup current targets by a wide margin. The representative 4.7 kΩ pullups shown for SDA and SCL are a solid starting point, but they are not universal values. Final resistor selection should consider bus capacitance, trace length, attached device count, rise-time budget, and system power goals. On compact boards with only one controller and one RTC, higher resistance may reduce current without violating timing. On longer buses or multi-drop configurations, lower resistance may be needed to preserve signal edges.
IRQ is the configurable interrupt output. Like the I2C pins, it is commonly shown with a pullup resistor to Vcc, typically 4.7 kΩ in representative diagrams. This arrangement keeps the interrupt output aligned with the active system domain and avoids unnecessary backup-domain loading. The IRQ pin is valuable when the RTC is used as more than a passive clock source. It can support periodic wake events, alarm-driven state changes, or fault recovery scheduling. In low-duty-cycle systems, this pin often becomes the bridge between timekeeping and power management policy. A useful design pattern is to treat IRQ as a scheduling primitive rather than just an alarm flag. When used carefully, it reduces polling traffic on the I2C bus and allows the host to stay in deeper sleep states for longer intervals.
Vcc is the primary supply input and should be locally decoupled with a 1 µF capacitor placed close to the pin, as recommended. For a low-current RTC, this capacitor is not about bulk energy delivery; it is about maintaining local supply integrity during rail transitions, digital edge activity, and upstream noise events. Placement matters more than nominal value. A correctly placed capacitor with a short return path is more effective than a larger capacitor placed remotely. In mixed-supply boards, it is also worth checking the Vcc ramp profile. RTCs often survive slow ramps electrically, but poorly controlled ramp behavior can complicate system initialization and bus availability during startup if the host begins I2C access before the timekeeper is fully stable.
From a hardware integration perspective, the recommended pullup topology and decoupling strategy reflect a broader principle: the RTC should remain electrically quiet, isolated from unintended current paths, and deterministic across power-domain transitions. That principle is often more important than any single schematic symbol. Many field issues around RTCs are not due to the RTC core itself. They come from interactions at the boundaries: bus lines driven when rails are absent, oscillator traces routed through noisy regions, backup sources with excessive leakage, or interrupt lines referenced to the wrong domain.
The SOIC package thermal data, including a junction-to-ambient thermal resistance of 114.8°C/W, is included primarily for completeness and system-level reliability analysis. In normal operation, thermal dissipation is negligible because RTC power is extremely low. Even so, these values are still useful in engineering workflows. They support standardized component database entries, derating reviews, and formal documentation required in regulated or quality-driven programs. More subtly, thermal context matters because RTC accuracy is inherently temperature-sensitive, even when self-heating is not. In other words, package thermal resistance is rarely a power concern here, but the local thermal environment still influences timekeeping performance. Placement near hot processors, chargers, or RF power stages can produce measurable drift simply by shifting the crystal temperature away from its nominal operating point.
A disciplined integration flow for the bq32000 usually starts with three checks. First, validate the crystal network as an analog timing path, not just a two-pin connection. Second, confirm that all pullups associated with SDA, SCL, and IRQ terminate to Vcc rather than a rail that remains alive in backup mode. Third, verify that the backup source is singular, low leakage, and consistent with the retention requirement. If these three conditions are met early, the device tends to be uneventful in production, which is exactly what a real-time clock should be.
In practical board work, the most persistent issue is not functionality loss but silent degradation. The RTC still responds over I2C, registers look valid, and alarms trigger, yet long-term accuracy or backup lifetime falls short of expectations. That usually points back to board parasitics, leakage, or domain-crossing mistakes rather than to the package or the silicon itself. The bq32000 is straightforward, but it rewards careful attention to the few places where analog, digital, and low-power design constraints intersect. That intersection is where robust RTC integration is decided.
Texas Instruments bq32000 Application Value for Consumer and Embedded Designs
Texas Instruments positions the bq32000 for broad consumer and embedded use, but its real value appears in designs where time retention must survive power loss without pulling the rest of the system into a more complex power-management scheme. The device solves a narrow problem with good discipline: maintain calendar time accurately, switch cleanly to backup power, expose enough status for software to verify time validity, and do so with a low integration burden. That combination is more important than it first appears, because in many products the RTC is not a headline feature, yet failures in timekeeping quickly propagate into logging errors, scheduling drift, poor user experience, and difficult field diagnostics.
A common fit is a mains-powered or externally powered embedded product built around a 3.3 V digital rail. In that architecture, the bq32000 operates from the main supply during normal conditions and transitions to a backup source when VCC collapses. This avoids the need to keep a larger always-on domain alive just to preserve time. The design effect is simple but significant: the primary processor, display, wireless subsystem, and high-current peripherals can go fully dark, while the RTC remains responsible only for continuity of time and date. That partitioning generally leads to better standby behavior, fewer edge cases in brownout recovery, and a cleaner reset strategy.
The oscillator-fail indication is especially useful in real systems. Retaining power is not the same as retaining valid time. A backup source may remain connected while the crystal fails to start, suffers excessive disturbance, or drifts through a poor layout or contamination issue. By exposing the OF flag, the bq32000 gives firmware a direct method to distinguish “power returned” from “time continuity was actually preserved.” That distinction matters in products that timestamp logs, sequence scheduled actions, or present a user-visible clock. In practice, this status bit often becomes the hinge point for startup policy: either trust the RTC and continue, or fall back to network sync, user setup, or a factory default recovery path.
This is one reason the part works well in embedded products that do not want a heavyweight software stack. The calendar engine already handles leap-year compensation and maintains synchronized timekeeping registers, so the host is not forced to implement brittle correction logic around month boundaries, leap-day transitions, or mid-read rollover cases. These are small features on paper, but they remove the sort of latent defects that usually appear only after months in the field. Calendar bugs are rarely dramatic during bring-up. They tend to surface later, under exactly the conditions that are hardest to reproduce.
At the interface level, 400 kHz I2C support keeps the RTC easy to place on a shared management bus with sensors, EEPROMs, PMICs, or housekeeping controllers. That matters because the RTC usually lives in a crowded low-speed control domain rather than on a dedicated interface. Faster standard-mode compatibility is not about raw throughput; the register set is small. The value is timing margin inside a busy bus schedule and reduced software friction when the same platform already standardizes on fast-mode I2C. Devices that require unusual bus handling often create needless platform exceptions. The bq32000 largely avoids that.
The backup architecture deserves more attention than the brief “battery or capacitor support” description suggests. This flexibility is useful not just for procurement, but for product-line engineering. A rechargeable supercapacitor path may suit products expected to experience frequent but short outages, where maintenance-free operation is preferred and backup duration requirements are modest. A primary coin-cell path fits products that may sit unpowered for long intervals and must still retain time across storage, transport, or seasonal use. Using one RTC across both variants simplifies firmware reuse, PCB commonality, qualification effort, and second-order support tasks such as manufacturing test and service documentation. In families of cost-sensitive products, this kind of pin- and behavior-level consistency usually delivers more value than a marginal component cost difference.
There is also a system-level benefit in separating backup policy from the timekeeping function itself. When the RTC accepts multiple backup strategies, the platform can tune retention duration, replaceability, service model, and regulatory considerations without reworking the software-visible clock behavior. That decoupling is useful in products that evolve over several revisions. Early builds may prioritize BOM cost and simple assembly, while later variants add longer holdover requirements or maintenance constraints. Keeping the RTC constant while changing only the backup energy element reduces redesign risk.
From an implementation perspective, the bq32000 sits in a productive middle ground. It is more capable than minimalist RTCs that offer little beyond raw counters, yet it does not force the design into the complexity of highly integrated supervisor devices with broader power-control responsibilities. That balance is often where the real engineering value lies. Over-integrated parts can create dependencies a design does not need. Under-featured parts shift hidden work into firmware, validation, and support. The bq32000 avoids both extremes by covering the failure modes and operational details that matter most for retained time.
In deployed systems, the practical issues are usually not in reading or writing the clock registers. They appear around power transitions, oscillator startup, and assumptions made by higher-level software. For example, if firmware treats any readable RTC value as valid time, a product may silently generate incorrect event chronology after a marginal backup event. If the PCB places the crystal in a noisy area or routes high-edge-rate signals nearby, backup retention may appear functional while oscillator continuity is intermittently compromised. If the backup source is selected only from a nominal capacity perspective, retention in storage or at temperature corners may fall short of the product claim. The bq32000 provides the hooks to manage these issues, but the design succeeds only when those hooks are used deliberately.
A sound implementation pattern is to treat the RTC as a trusted source only after explicit qualification at boot. Read the oscillator status early. If continuity was lost, mark dependent timestamps as untrusted until time is resynchronized. Keep the crystal layout compact and quiet. Validate switchover behavior with realistic supply ramp-down and ramp-up profiles rather than ideal bench toggling. Check backup retention under thermal extremes, not only at room temperature. These steps are straightforward, yet they often determine whether the RTC becomes an invisible infrastructure block or a recurring support problem.
For consumer-facing products, the application value extends beyond technical neatness. Preserved time affects alarm schedules, parental controls, usage logs, maintenance reminders, transaction ordering, and every feature that implies a stable sense of chronology. In many devices, users do not think about the RTC until it fails. That is exactly why a part like the bq32000 is useful: it removes timekeeping from the list of features that require attention. In embedded products, the same logic applies to serviceability. Accurate retained timestamps make fault reconstruction, fleet monitoring, and post-event analysis far more reliable.
The strongest case for the bq32000, then, is not that it offers a long feature list. It is that the selected features map closely to the real integration costs of adding robust RTC behavior: clean backup switchover, calendar correctness, synchronized access, standard I2C operation, and explicit oscillator-fail reporting. These are the details that prevent a simple clock function from turning into a multi-layer validation problem. For designs that need dependable time retention without expanding software complexity or power architecture scope, the device provides a disciplined and efficient solution.
Texas Instruments bq32000 Potential Equivalent/Replacement Models
Texas Instruments positions the bq32000 as a replacement-class real-time clock for designs built around industry-standard RTC functions. Based on the provided documentation, that is the strongest supported statement: the device is intended to fit the same design space as common external RTCs, but the documentation does not name explicit one-to-one cross-reference part numbers. In practice, this places the bq32000 in the category of “candidate equivalent,” not “drop-in confirmed replacement,” until compatibility is verified against the target design at electrical, logical, and production levels.
For evaluation purposes, the bq32000 should be treated as an external I2C RTC centered on a 32.768-kHz crystal, with automatic switchover to a backup source, programmable calibration, oscillator-fail detection, and an 8-pin SOIC package option. Those features define its replacement value more accurately than any marketing phrase. When an existing design already expects these behaviors, the bq32000 becomes a credible migration option. When the original RTC relies on less visible details such as register-map quirks, interrupt timing edge cases, or crystal loading assumptions, the replacement question becomes more complex than the headline feature list suggests.
A useful way to assess equivalence is to separate the problem into mechanical compatibility, power-domain behavior, digital interface behavior, and timekeeping integrity. This avoids the common mistake of treating RTCs as interchangeable simply because they all keep calendar time over I2C. In real designs, most replacement failures do not come from basic timekeeping. They come from second-order mismatches that only appear after integration, low-power cycling, or long-duration drift measurements.
At the mechanical level, package match is only the first filter. The BQ32000DR form factor may align with many 8-pin SOIC RTC footprints, but footprint compatibility does not guarantee pin-function compatibility. Engineers should confirm each pin role individually, including supply pins, crystal pins, I2C pins, output or interrupt pins, and backup-related pins. Even a single mismatch in backup input placement or output function can turn an apparent drop-in option into a board rework exercise. This is especially relevant in legacy platforms where the footprint was created around a specific vendor’s pin assignment and no abstraction layer exists at the PCB level.
At the power level, backup architecture is one of the most important replacement variables. The bq32000 supports automatic backup switchover, which is essential in systems that must preserve time through main rail collapse. That sounds standard, but backup implementation differs significantly across RTC families. Some parts are optimized for coin-cell domains, some for supercapacitor backup, and some impose different thresholds, switchover delays, or leakage characteristics. These details matter in products with long shelf life or aggressive low-power budgets. A replacement can appear correct on the bench yet fail retention targets in storage if backup current or switchover behavior differs from the original design assumptions. In battery-backed timing circuits, microamp-level deltas are not minor; they directly translate into months or years of retention margin.
Voltage range comparison should therefore be done on both the main supply and the backup source, not as a single combined check. The correct question is not only “Does it operate at the required voltage?” but also “At what voltage does it switch, how does it behave during brownout, and what current does it draw in each state?” Designs with noisy power rails or slow supply ramps should be checked carefully because RTC state behavior during marginal transitions can differ more than the nominal feature table suggests.
At the interface level, I2C compatibility also needs deeper review than bus type alone. Clock rate support must be matched, but that is only the visible part. Register map layout, BCD encoding conventions, control bit defaults, status flag clearing behavior, and read/write sequencing all affect firmware portability. A part can be electrically I2C-compatible and still require firmware modification because time registers are organized differently or fault flags behave differently after oscillator restart. In mixed-vendor replacements, this is often the first hidden cost. The hardware may fit, but software assumptions built around an earlier RTC driver can silently corrupt time initialization, alarm handling, or power-fail recovery logic.
The oscillator subsystem deserves special attention because RTC replacement quality is ultimately measured by long-term time accuracy, not just successful I2C transactions. The bq32000 uses a 32.768-kHz crystal and provides programmable calibration plus oscillator-fail indication. These are strong indicators of a design intended for practical field reliability. Calibration support is especially valuable because nominal crystal tolerance, temperature drift, board parasitics, and aging all contribute to cumulative error. In many deployments, the deciding factor is not whether the RTC works, but whether it can be trimmed efficiently enough to meet service interval or timestamp integrity requirements without adding software compensation overhead elsewhere in the system.
Crystal load requirements should be compared carefully against the existing design. This parameter is easy to overlook during replacement screening because it is not as prominent as interface type or package. Yet a mismatch between the RTC’s expected load and the installed crystal, or the surrounding board capacitance, can introduce drift that is difficult to diagnose later. The failure mode is subtle: communication still works, the clock still runs, but time error accumulates outside specification. In dense layouts, nearby switching activity, crystal trace imbalance, and grounding strategy can amplify this effect. For RTC migration work, oscillator behavior should be validated on the actual PCB, not inferred only from datasheet numbers.
The oscillator-fail indication feature also changes the reliability profile of the design. In systems that log events, synchronize communications, or maintain scheduled operations, detecting oscillator interruption is often more valuable than raw RTC presence. A replacement that exposes oscillator health gives firmware a basis for rejecting suspect timestamps and forcing controlled recovery. This is one of those capabilities that may seem secondary during part selection but becomes highly useful in deployed equipment where silent timing corruption is worse than visible timing loss.
Interrupt and frequency-output behavior should be reviewed with equal care. Even when two RTCs offer output pins that appear equivalent, pulse shape, polarity, enable sequencing, startup state, and flag-clearing rules can differ. If that pin is tied into a wake source, periodic scheduler, or supervisory circuit, small behavioral differences can propagate into system-level faults. In low-power embedded systems, wake timing is often tightly coupled to RTC edge behavior. A replacement should therefore be verified not only for nominal output frequency but for transition timing across reset, backup switchover, and oscillator recovery states.
Timekeeping current and backup current remain core procurement filters, but they should be interpreted in application context rather than in isolation. A slightly higher current number may be acceptable in mains-powered equipment with short backup intervals, but the same difference can be unacceptable in a metering, asset-tracking, or standby-heavy platform. The strongest replacement candidates are not those that merely meet absolute limits. They preserve the original design’s operating margin across temperature, storage, and aging. That margin-based view is more reliable than a simple yes/no checklist.
From a qualification standpoint, exact equivalence should be confirmed across three layers. First, schematic-level compatibility: pin functions, pull-ups, crystal network, backup source routing, and output usage. Second, firmware-level compatibility: register access model, initialization sequence, fault handling, and any code assumptions about control/status bits. Third, validation-level compatibility: startup behavior, drift, backup retention, brownout recovery, and environmental performance. If any of these layers is skipped, the project may still pass bring-up while carrying latent field risk.
A practical screening flow works well here. Start with pinout and supply-domain comparison. Then review the register map and software driver effort. Next, validate oscillator operation on the actual board with the intended crystal. After that, run controlled tests for main-to-backup switchover, backup-to-main recovery, and long-duration drift. Finally, verify any interrupt or clock-output dependencies in the surrounding system. This sequence tends to surface the real incompatibilities early, before procurement commits volume to a part that is only superficially similar.
The most defensible interpretation of the available documentation is therefore narrow but useful: the Texas Instruments bq32000 is presented as a strong candidate wherever an industry-standard external RTC is required and the design expects I2C communication, 32.768-kHz crystal timekeeping, automatic backup switchover, calibration capability, oscillator-fail monitoring, and an 8-pin SOIC implementation. What the documentation does not support is a claim of direct equivalence to any specific competitor device without additional comparison.
That distinction matters. In RTC selection, broad functional similarity is easy to establish. True replacement suitability is determined by the less visible parameters: backup thresholds, current in each power state, crystal loading, status-bit semantics, and output-pin behavior under corner conditions. The bq32000 appears well positioned for replacement consideration precisely because it covers the core RTC functions expected in embedded designs, but any final decision should be closed only after side-by-side analysis of package and pinout compatibility, main and backup voltage ranges, I2C speed support, timekeeping and backup current, calibration range, interrupt or frequency-output behavior, backup-source implementation method, and crystal load requirements. For a target design that depends on precise low-power behavior and firmware continuity, that disciplined comparison is not optional. It is the point where a candidate replacement becomes a qualified one.
Conclusion
The Texas Instruments bq32000, including the BQ32000DR SOIC variant, is best understood not as a generic RTC, but as a low-complexity timekeeping subsystem intended for products that must preserve calendar continuity across unstable or intermittent power domains. Its appeal comes from a balanced feature set rather than extreme integration. It operates from a 3.0 V to 3.6 V primary rail, supports a 1.4 V to 3.6 V backup source, communicates over a standard 400 kHz I2C interface, and adds several implementation-oriented functions that materially improve field reliability: trickle charging for backup storage, programmable oscillator calibration, oscillator-fail indication, synchronized time-register transfer, and a configurable interrupt output.
From a design-in perspective, this device fits products that need deterministic RTC behavior without the overhead of a highly specialized PMIC-integrated solution. The architecture is simple enough to reduce bring-up risk, yet it includes enough protective and corrective mechanisms to support long service life in embedded equipment. That combination is usually more valuable than adding features that remain unused in production. In practice, stable RTC deployment depends less on the presence of a calendar counter and more on how the clock source, backup domain, and firmware state handling interact over years of operation.
At the electrical level, the bq32000 separates the main supply path from the backup supply path in a way that supports automatic time retention during primary power loss. This is the core mechanism that makes the part useful in real systems. During normal operation, the device runs from VCC and remains accessible over I2C. When VCC falls out of range, the internal power switching transitions the RTC core to the backup source so the oscillator and counters can continue running. That transition is conceptually simple, but system robustness depends on how cleanly the surrounding design supports it. Backup-source impedance, leakage on adjacent nets, and rail sequencing behavior often determine whether retention works reliably at the board level.
The backup strategy deserves more attention than it usually receives during schematic review. A coin cell, supercapacitor, or rechargeable storage element can all be valid choices, but each changes the operating envelope. A coin cell favors low maintenance and long shelf retention, but recharge paths must be disabled or tightly controlled. A supercapacitor supports short hold-up intervals and frequent charge-discharge cycling, but retention time becomes highly sensitive to standby current budget and capacitor aging. A rechargeable cell can be attractive when the system sees regular powered operation, yet the charge profile and long-term chemistry behavior must align with the RTC’s trickle-charge implementation. In many field designs, the backup source is selected by BOM habit rather than by retention model. That usually leads to avoidable service issues.
The integrated trickle-charge function is one of the more practical features of the device, but it must be treated as a system-level decision, not a convenience option. The charge path affects lifetime, safety margin, and storage behavior. The correct configuration depends on the actual backup element, expected ambient range, and duty cycle of main power availability. An overpermissive charge setting may not fail immediately, but it can accelerate capacity loss or shift the backup element outside its intended use case. The better approach is to treat backup charging as a constrained energy-management problem: define the recharge window, estimate leakage and retention demand, then select the resistor and diode options accordingly. Designs that do this early tend to avoid the common pattern of acceptable lab behavior followed by weak backup retention after deployment.
Clock accuracy is dominated by the external 32.768 kHz crystal and the PCB environment around it. The bq32000 provides programmable calibration, but calibration is not a substitute for a poor oscillator network. Crystal ESR, load capacitance match, trace symmetry, noise coupling, and mechanical stress on the board all affect oscillator startup and long-term stability. The oscillator-fail detection feature is therefore more important than it appears in a feature table. It gives firmware a way to distinguish between valid retained time and time that merely appears retained because registers still contain old values. In deployed systems, this distinction matters. A retained but invalid timestamp can be more damaging than a clearly flagged clock failure because it silently contaminates logs, schedules, and event ordering.
The oscillator-fail flag and the STOP control should be treated as part of the device’s operational state machine. Firmware should not simply initialize the RTC once and then assume continuous validity. A more resilient sequence is to check the oscillator state at every meaningful startup path, validate whether time data is trustworthy, and only then release the clock into application use. If the oscillator-fail condition is present, software should reinitialize the time base in a controlled way and explicitly clear status after recovery. This avoids the common integration mistake where the RTC is technically running, but the system has no reliable basis for deciding whether the current timestamp is valid.
The synchronized register update behavior is another detail with outsized practical value. RTC designs often fail at the interface boundary rather than in the oscillator itself. Reading time registers while the internal counters are changing can produce mixed-field values, such as a second field from one instant and a minute field from the next. The bq32000 addresses this through synchronized transfer behavior, which simplifies firmware and reduces the chance of subtle timestamp corruption. This matters most in systems that read time infrequently or only during critical events, where one inconsistent read can propagate into incorrect transaction order, timeout handling, or maintenance records.
The 400 kHz I2C interface is standard enough to ease integration, but bus topology still matters. Pullups should be referenced to VCC, not to the backup domain, to avoid unintentionally loading or back-powering the device during main-supply loss. This is one of the most important board-level implementation details because it directly affects backup current and power-domain isolation. In mixed-voltage or multi-device buses, attention should also be given to bus contention during power sequencing. An RTC that survives a power interruption internally can still fail system expectations if another bus participant leaks into its pins or prevents proper communication during recovery.
Crystal placement and routing deserve disciplined layout practice. The crystal should be placed close to the RTC pins, with short and quiet traces, minimal parasitic coupling, and no nearby switching activity. Ground return quality matters, but excessive copper under oscillator traces can also alter parasitics. Mechanical effects should not be ignored. Boards that flex during enclosure assembly or thermal cycling can shift crystal behavior enough to expose startup sensitivity. In practice, oscillator issues often appear intermittent, temperature-dependent, or batch-specific, which makes them expensive to diagnose late. A conservative layout is usually far cheaper than post-build characterization.
The programmable calibration feature is most useful when treated as a production trim or environmental compensation mechanism rather than a universal accuracy fix. It can correct residual frequency error after selecting a suitable crystal and layout, but it should not be expected to rescue a design with unstable loading conditions or excessive noise injection. The strongest implementation pattern is to measure actual drift under representative operating temperatures, derive a bounded correction strategy, and apply it only when the system’s timing requirements justify the added firmware complexity. Not every application needs this. Products that only require coarse time retention can often leave calibration untouched, while log-centric or scheduled-operation systems benefit from tighter control.
The IRQ output extends the device beyond passive timekeeping. It enables periodic wake, alarm-based scheduling, and low-power coordination with the host controller. In battery-sensitive systems, this can reduce unnecessary polling and allow the main processor to remain in sleep states longer. The feature is modest, but in well-partitioned low-power designs it shifts the RTC from a timestamp source to a lightweight scheduling anchor. That change can simplify firmware architecture, especially when the host only needs to wake on coarse temporal boundaries rather than maintain continuous active timing.
For sourcing evaluation, the bq32000 is attractive because it is well-defined, conventional, and easy to compare against adjacent RTC options. The SOIC package format is familiar to manufacturing flows, inspection processes, and rework procedures. This lowers handling risk compared with more compact packages in products where assembly margin matters more than area minimization. Environmental and compliance documentation also supports procurement screening with less ambiguity. These attributes do not improve clock accuracy directly, but they do reduce lifecycle friction, and that has real value in long-duration embedded programs.
A useful way to assess this part against alternatives is to ignore the headline feature count and instead examine implementation closure. Does the application need backup switchover with minimal firmware complexity? Is there a clean 3.3 V rail and a realistic backup source plan? Can the layout support a stable 32.768 kHz crystal environment? Will firmware actively manage oscillator-fail conditions and first-boot time validity? If the answer to these questions is yes, the bq32000 is often a better choice than a nominally richer device whose extra functions increase validation effort without improving the actual time-retention outcome.
In long-life products, RTC reliability is rarely limited by the digital calendar block. The dominant risks come from backup-energy assumptions, oscillator behavior, and weak fault handling at startup. The bq32000 addresses these areas with a pragmatic set of controls and indicators, but it rewards disciplined integration. When crystal selection, pullup routing, backup-source design, and firmware treatment of OF and STOP are handled carefully, it becomes a dependable timekeeping element for consumer and embedded systems that must remain coherent through repeated power interruptions. That is its real design value: not complexity, but predictable persistence under ordinary failure conditions.
