Product overview: BQ2057CDGKRG4 Linear Li-Ion Charger IC (Texas Instruments)
The BQ2057CDGKRG4 leverages a linear charging topology tailored to single-cell Li-ion and Li-pol chemistries, addressing precision control and compact integration requirements. At its functional core lies an internal voltage reference and charge algorithm, enabling tightly regulated output and protection against overvoltage—critical for maintaining battery life and cell integrity. The linear regulatory approach minimizes noise and thermal issues often encountered with switching topologies, improving charge reliability in dense form factors.
Optimized for versatility, the IC supports configurable charge current via external resistor selection, facilitating adaptation to diverse cell characteristics and charge profiles. The ability to sense charge current on both high- and low-side placements offers greater flexibility for board layout designs and improved measurement accuracy. This dual-sensing architecture allows the implementation of charge schemes that can compensate dynamically for varying input voltages and cell impedances, a valuable asset in consumer electronics exposed to unpredictable load environments.
Application scenarios highlight the charger’s suitability for portable and wearable devices, where available board area and thermal dissipation are constrained. The device’s small VSSOP package permits tight component placement, enabling designers to meet aggressive miniaturization targets without sacrificing charge management sophistication. The programmable charge-rate, integrated with a dynamic compensation mechanism, effectively mitigates risk of lithium plating and overheating, especially when fast charging is required under different operating conditions. This is achieved through real-time feedback control circuits that moderate charge currents as environmental or cell parameters shift—the result is enhanced cycle life and safety margins in end-use products.
Practical design refinements emerge when leveraging the BQ2057CDGKRG4 in prototyping and production stages. The minimized external BOM reduces assembly complexity, cycle times, and points of failure. Integrated safety features such as automatic charge termination and temperature monitoring streamline compliance with stringent regulatory standards for battery-powered devices. The IC’s behavior under fluctuating input power sources—such as USB or handheld solar modules—demonstrates robust tolerance and predictable state transitions, contributing to a consistent user experience in field deployments.
A distinctive insight comes from the charger’s integration approach: by balancing simplicity of externally programmable charge settings with sophisticated internal compensation logic, the IC provides designers with both granular control and reliable automation. This duality allows for efficient scaling between low-cost consumer applications and high-value industrial designs. The BQ2057CDGKRG4 embodies a strategy that prioritizes protective intelligence over mere component reduction, suggesting a future direction for charger ICs where adaptability and active battery health management become baseline expectations.
Key features of the BQ2057CDGKRG4 series
The BQ2057CDGKRG4 series offers a focused, high-performance solution for managing the charging of Li-ion and Li-polymer battery packs in both single-cell (4.1 V or 4.2 V) and dual-cell (8.2 V or 8.4 V) arrangements. This versatile configuration support stems from the device’s internal voltage regulation architecture, which maintains tight voltage control across varying environmental conditions and supply voltages, with regulation accuracy exceeding ±1%. Such precision ensures optimal battery utilization while safeguarding against overcharge, which is vital for both cell longevity and system safety.
A defining aspect of the BQ2057CDGKRG4 lies in its low dropout voltage of just 0.3 V—significantly reducing the power dissipated as heat within charging circuits. This characteristic directly contributes to higher conversion efficiency and supports the design of compact, thermally efficient end-user devices. Experience in densely packed PCBs demonstrates that minimizing thermal hotspots at the charging IC can be decisive in achieving smaller enclosure sizes.
The AutoComp™ charge-rate compensation is engineered for adaptive response to variations in battery pack internal impedance. Rather than relying on static charging profiles, the controller adjusts the charge current dynamically, reducing overall charge times, especially as cells age or under fluctuating load conditions. This mechanism leverages internal feedback paths and real-time sensing, exemplifying robust engineering for performance-oriented battery packs. In field scenarios, this adaptability reduces downtime and improves reliability for mission-critical devices.
Cell temperature monitoring is supported via a straightforward external thermistor interface. The controller can suspend charging or adjust the charging profile depending on real-time temperature feedback, providing an additional safety layer. This proves indispensable in applications exposed to variable thermal environments, such as portable instrumentation or medical wearables, where battery pack health is paramount.
Flexibility in designing current sensing is reflected through programmable charge current and the choice between high-side or low-side current sensing. This architecture enables system designers to tailor both the charge rate and board layout according to application-specific constraints, without compromising accuracy or system cost. Practical implementation often reveals that selecting low-side current sensing can simplify routing and reduce BOM costs in cost-sensitive designs, while high-side sensing may favor enhanced isolation in noise-sensitive environments.
The device offers highly configurable charge status signaling. The status pin is adaptable for direct LED drive or can be interfaced with a host microcontroller, supporting both independent and integrated charge management strategies. Automatic charge restart upon voltage drop below programmed thresholds, as well as charge termination through minimum current detection, ensure that packs return to full charge only when needed, preventing unnecessary cycling and premature capacity fade.
Automatic transition to low-power sleep mode on supply removal reduces quiescent current draw, which is especially beneficial in standby-heavy use cases. Space-conscious designs are supported by the availability of the IC in packages such as SOIC, TSSOP, MSOP, and VSSOP, streamlining integration into compact and lightweight hardware platforms.
These features combine to provide a robust, adaptable charging solution that addresses both foundational performance requirements and nuanced design challenges in modern portable electronics. Through the interplay of precise control, thermal efficiency, and adaptive compensation, the BQ2057CDGKRG4 exemplifies a systematic approach to enhancing energy management strategies in battery-powered systems.
Application spectrum for BQ2057CDGKRG4
The BQ2057CDGKRG4 is engineered with a comprehensive feature set that emphasizes both versatility and operational safety, making it a foundational choice for battery charging across diverse portable platforms. Its core architecture centers on linear, precision charging control for single-cell lithium-ion and lithium-polymer batteries. By integrating temperature-qualified charging, programmable charge current, and voltage monitoring, it effectively reduces thermal runaway risks and supports reliable battery maintenance cycles—parameters essential for mission-critical and safety-sensitive domains.
In emergency call systems and telematics control units, the BQ2057CDGKRG4’s capacity for precise end-of-charge detection and robust input supply tolerance mitigates the likelihood of over- or undercharging during unpredictable supply conditions. This functionality proves invaluable in automotive telematics and aftermarket tracking solutions, where charge integrity and battery longevity are crucial for data retention and uninterrupted operation. Its standby leakage current control strategies also ensure minimal drain on the battery during idle states, a non-trivial concern in extended park or deployment scenarios.
Gaming and computer accessories leveraging rechargeable batteries benefit from the device’s compact form factor and low profile packaging, facilitating seamless integration without compromising board space. Its programmable preconditioning and fast-charge algorithms translate to reduced user downtime and enhanced battery health—a direct answer to the high usage cycles and rapid charging demands of modern peripherals.
Point-of-care and test equipment in portable medical devices require stringent adherence to thermal and electrical safety. The BQ2057CDGKRG4’s built-in charge termination, fault recognition, and protection mechanisms streamline both design certification and field performance, decreasing the probability of device failure in high-stakes, health-critical environments. Its proven track record in clinical deployments suggests a solid balance between charge efficiency and patient safety.
In the realm of electronic point-of-sale (EPOS) card readers, where device uptime directly impacts transaction throughput, the charge management strategy of the BQ2057CDGKRG4 reliably sustains operational readiness. It shows consistent performance under fluctuating input voltages commonly found in mobile retail and transit environments, with thermal feedback systems safeguarding device longevity.
Underlying these scenarios is the IC’s capability to blend validation flexibility with system-level protection. Field experience consistently highlights the efficiency gains achieved by leveraging its programmable current set-points, enabling custom-tailored profiles that closely match end-application demands. Furthermore, real-world deployments indicate that the BQ2057CDGKRG4’s straightforward interface and diagnostic outputs accelerate design cycles, particularly when compliance with international safety standards is non-negotiable.
Deploying the BQ2057CDGKRG4 across disparate application classes demonstrates the convergence of reliability, configurability, and integration ease—qualities that are often more impactful in production settings than nominal datasheet metrics alone. This convergence underpins its selection as a preferred charge management controller in fast-evolving segments reliant on battery-powered mobility.
Functional architecture of BQ2057CDGKRG4
The BQ2057CDGKRG4 integrates a specialized linear charge-management system optimized for single-cell Li-ion and Li-polymer configurations. Its operation centers on orchestrating a precise charging profile, divided into precharge (battery conditioning), constant-current (CC), and constant-voltage (CV) phases. In the precharge phase, the controller applies a reduced current to deeply discharged cells, gradually elevating cell voltage to a programmable threshold and minimizing lithium plating risks. Progressing to the constant-current phase, the IC ensures a tightly regulated charge current, leveraging an external sense resistor for real-time feedback. This architecture enables accurate current measurement, largely immune to ambient noise and trace parasitics, provided PCB layout and Kelvin connections are optimally engineered.
The system’s voltage regulation loop engages at the transition to constant-voltage mode. By directly sensing the battery positive terminal, it dynamically maintains terminal voltage at the optimal cutoff level specified for Li-based chemistries. This dual-loop control structure ensures minimal deviation from target current and voltage profiles, contributing to extended battery longevity and cycle life.
Thermal safety is paramount in advanced charging systems. The BQ2057CDGKRG4 integrates an external thermistor interface, forming a protection loop that actively inhibits charging outside of programmable temperature windows, such as 0°C–45°C for most Li-ion systems. The implementation leverages negative temperature coefficient thermistors, with threshold programming achievable through appropriately selected resistor dividers. In practice, this protection proves invaluable during field deployments where environmental variation is routine, preventing cell degradation or hazardous failure modes due to charging under unsafe thermal conditions.
An additional dimension of adaptability arises from the COMP pin, serving as the compensation and output adjustment node. During rapid charge events, battery pack and PCB trace resistances can induce significant voltage drops, especially at elevated currents. By providing a compensation path, the COMP pin enables fine-tuning of the regulation loop, offsetting system impedance and ensuring accurate voltage delivery at the cell terminals. This function is critical for maintaining adherence to manufacturer-defined voltage limits under varying load and routing conditions, particularly in compact or high-output power designs.
The charge-control output architecture employs an external pass-transistor—either a PNP BJT or a P-channel MOSFET. Device selection is guided by system efficiency targets, board space, and expected thermal dissipation. MOSFETs typically offer lower on-resistance and superior efficiency under high loads, reducing thermal management overhead. In contrast, BJTs may be selected for cost-sensitive or legacy designs where component count minimization is prioritized. Practical deployment experience highlights the importance of precise transistor selection and thermal design, as suboptimal choices can elevate case temperatures and impact charging linearity.
A robust charge-management IC like the BQ2057CDGKRG4 forms the cornerstone of reliable, compact battery-powered systems. Its architectural focus on precise current and voltage regulation, integrated thermal safeguards, and adaptability for various external components makes it suitable for applications ranging from handheld instrumentation to backup power modules. Subtle optimization of sense resistor tolerances, board layout, and compensation tuning continually enhances performance, a point often underestimated during early-stage prototyping. At the systems level, embedding such advanced linear charging control not only boosts reliability but also affords a degree of application flexibility that simplifies compliance with evolving safety and certification standards.
Detailed operating principles of BQ2057CDGKRG4
The BQ2057CDGKRG4 is engineered as a single-cell Li-ion/Li-polymer battery charge controller, featuring tightly integrated charge state management and protection mechanisms. Its operational logic initiates with pack qualification after input power is applied. Here, the device assesses battery voltage and temperature against application-specific thresholds, ensuring that only appropriate cells are selected for charging. Should the cell voltage reside below the configured precharge level, the controller initiates a conditioning phase. In this mode, approximately 10% of the nominal fast-charge current is delivered to the battery, allowing gradual recovery of deeply discharged cells while minimizing thermal stress on the pass element—an essential safeguard against capacity degradation and safety risks in high-impedance cells.
Following successful conditioning, the charge cycle advances into the constant-current mode. The sense resistor, which may be deployed in either high- or low-side topology to accommodate system constraints and optimize ground reference strategy, dictates the current setpoint via a precise feedback loop. The controller carefully regulates current flow, consistently driving the charge process until the battery voltage converges on the predefined regulation level tailored for the chemistry in use. This direct control mechanism prevents overcurrent incidents and allows for predictable estimation of charge completion time, directly aligning with stringent system-level reliability requirements.
Upon attaining the voltage regulation point, the BQ2057CDGKRG4 gracefully transitions to a constant-voltage phase. The IC now shifts focus to maintaining a tightly controlled terminal voltage. Monitoring of the charge current becomes paramount at this stage; when the tapering current crosses below a minimal programmed threshold—usually indicative of full state-of-charge—the controller flags charge completion and shifts the pack into maintenance. This multi-stage approach aligns with best-practices in battery management, fostering both capacity optimization and longevity.
Crucially, the AutoComp™ feature is engaged throughout charge phases. By sensing battery pack impedance and dynamically adjusting the regulation voltage, the IC compensates for the real-time voltage drop across cell internal resistance, especially under load and temperature fluctuations. This dynamic compensation sharply improves topping performance, enabling faster and safer completion of charge cycles, particularly for cells exhibiting higher internal impedance due to age or suboptimal temperature conditions. In practice, this feature helps prevent premature charge termination and mitigates common issues such as reduced energy density over the battery’s life span.
Interface feedback is provided by the STAT output, offering direct digital signaling for charge state, charge-completion, and fault or sleep conditions. This status reporting simplifies integration within embedded system architectures and supports robust charge state monitoring in both manual and automated test environments. Robust automatic recharge logic is also embedded: the controller will reinitiate charging when pack voltage decays beneath a set threshold, supporting reliable standby operation and minimizing the effects of self-discharge.
For applications emphasizing energy conservation, the BQ2057CDGKRG4 automatically enters a low-power sleep mode when the supply voltage is removed. This feature effectively suppresses parasitic drain, preserving stored energy during extended periods of inactivity without requiring external signal intervention—an important consideration for portable or intermittently powered instrumentation.
Field deployment feedback highlights the robustness of the dual-phase (constant current and constant voltage) charging strategy, particularly where operational cycles include frequent deep discharges. Carefully sizing the sense resistor and tuning the precharge/termination thresholds, in conjunction with system-level thermal considerations, yield optimal charge throughput and battery reliability. The AutoComp™ implementation adds a significant margin of safety and performance in pack designs where cells may demonstrate wider-than-expected resistance variation over time or as environmental conditions shift.
A key insight is that the BQ2057CDGKRG4’s architecture, by prioritizing dynamic control and precise state feedback, supports both high-cycle-life battery operation and plug-and-play integration across a diverse range of system voltages and charge profiles. This flexibility, coupled with enhanced safety and self-maintenance features, positions the device as a preferred solution for compact, high-reliability battery-powered designs requiring minimal external supervision.
Electrical and thermal performance characteristics of BQ2057CDGKRG4
The BQ2057CDGKRG4 features an electrical architecture engineered to support high-precision charging cycles within demanding embedded and portable systems. Its operating supply voltage window of 4.5 V to 15 V aligns with typical system rails, enabling flexible integration with both USB-powered and higher-voltage adapter-based charging infrastructure. This flexibility reduces design effort by accommodating multiple power sources without circuit-level modifications.
Voltage regulation is tightly controlled, with factory-trimmed thresholds at 4.1 V or 4.2 V for single-cell configurations and 8.2 V or 8.4 V for series pairs. This preset functionality mitigates risk of overcharge and supports rapid qualification across battery chemistries, easing compliance to cell vendor safety requirements. The regulation circuitry sustains ±1% accuracy across supply and thermal variations, limiting cell aging and maximizing charge effectiveness. This level of control is particularly valuable where environmental drift or unregulated adapters introduce system noise and voltage instability.
Current programming is handled externally via a sense resistor, allowing fine-grained adaptation to battery capacity and desired charge profile. By selecting appropriate resistor values, the system can support both fast-charge and trickle-charge regimes without system redesign. This external programmability inherently supports modularity and reuse across hardware platforms, enhancing supply chain and design scalability. The chip’s ESD robustness—500 V HBM and 250 V CDM ratings—ensures resilience during handling and assembly, reducing risk of latent failures often encountered in high-volume production environments.
Thermal performance is underpinned by architectural measures to minimize power dissipation. The BQ2057CDGKRG4 features a low-dropout linear control topology, reducing excess heat generation even at minimum input-output voltage differentials. Proper pass transistor selection is critical: PNP BJTs or P-channel MOSFETs are recommended, with selection driven by thermal resistance, package limitations, and anticipated worst-case ambient conditions. Calculation of safe operating area can be streamlined by using manufacturer-provided thermal impedance data, ensuring junction temperature stays below maximum ratings, especially during high-current phases. Practical implementation benefits from PCB copper pours beneath the pass element, which further distribute and dissipate heat.
In demanding applications, such as industrial data collection devices or medical portables, maintaining safe junction temperatures while maximizing charge throughput requires careful balancing of R_DS(on) selection for MOSFETs or H_FE choice for PNP types. Designs must account not only for electrical stress but also for long-term cumulative thermal degradation, which is often overlooked in first-pass layout efforts. Algorithms or lookup tables that modulate charge current as die temperature approaches threshold offer an additional safety layer and further extend cell and system life.
Viewed holistically, the BQ2057CDGKRG4 brings together precise charge termination, system flexibility, and process-hardened handling to fulfill the dual imperatives of safety and platform reuse. By vertically integrating voltage, current, and thermal management, the device reduces the need for external supervision circuits and delivers a consistent, manufacturable solution that can scale from prototype to production without excessive system redesign.
Implementation guidelines for BQ2057CDGKRG4-based designs
Optimal BQ2057CDGKRG4 charger integration demands precise orchestration of analog components and careful parametric selections. The sense resistor governs charge current regulation; its value, typically chosen to balance accuracy and dissipation, must match the targeted charge rate per datasheet guidelines. Low-resistance, tight-tolerance resistors improve measurement fidelity and thermal stability—a factor crucial under sustained high-current conditions.
Pass element selection presents an engineering trade-off between simplicity, cost, and thermal performance. PNP transistors and P-channel MOSFETs serve as control switches; their VCE(sat) or RDS(on) directly affects efficiency, and their breakdown voltage, continuous current rating, and package thermal resistance delineate safe operating regions. For BJTs, high h_FE minimizes base drive losses, while MOSFETs with appropriate gate thresholds ensure full enhancement from logic-level drive. Attention to heat spreading, via PCB copper pours and strategic via placement, offsets package thermal limitations during prolonged charging periods.
Robust temperature monitoring utilizes recommended NTC thermistors interfaced with voltage-divider networks. Calculating divider resistors merits consideration of expected temperature range and the battery’s chemistry-specific cutoff points. Empirical validation is recommended, as ambient and battery placement can introduce unexpected offsets. Integrating thermal sensing closely or with minimal lead lengths lowers the risk of erroneous readings caused by ground plane interference.
The COMP pin configuration unlocks advanced charge-rate compensation using AutoComp™. Enabling or disabling this feature hinges on application variability—mobile platforms benefit from dynamic compensation, while fixed installations may prefer static rates. Precise calculation of compensation resistors requires correlating battery profile curves to expected charge temperature and voltage characteristics; iterative bench testing ensures that real-world rates align with specification targets.
Input bypassing with ceramic capacitors (≥0.1 µF) stabilizes local supply rails against pulse loads and switching transients. Optional output capacitance delivers ripple suppression, especially critical in designs lacking a battery during powered-up states. Simulating worst-case scenarios—abrupt input transitions or battery removal—will inform proper selection of capacitance values to minimize undervoltage fault triggers.
Termination and recharge thresholds are tuned for battery longevity and safety. Selection of these limits should align with manufacturer data, but consideration of cycle life versus charge efficiency yields enhanced operational consistency. Practical experience demonstrates that slightly conservative cutoffs reduce field complaints of premature charge termination, especially in thermally challenging environments.
Integration success correlates with iterative prototyping and signal tracing. Attention to ground returns, minimizing trace inductance, and shielding temperature sense lines provide resilience against ambient noise. The BQ2057CDGKRG4’s predictable performance hinges on leveraging these engineering subtleties, translating datasheet theory into robust, scalable charger designs.
PCB layout considerations for BQ2057CDGKRG4
PCB layout methodologies critically impact the charge accuracy, thermal stability, and operational reliability of systems utilizing the BQ2057CDGKRG4 charger IC. This device’s proper functioning depends not only on electrical integrity but also on precise thermal and parasitic management throughout the board design. At the root level, heat dissipation for external pass transistors constitutes a primary area of concern. Sufficient copper pours, spatially optimized thermal vias, and ideally dedicated heatsink pads are essential to avoid thermal hotspots and premature silicon aging. Empirical evidence consistently reveals reduced junction temperature and tighter output regulation where designers allocate multi-layer copper areas and prioritize direct thermal conduction paths, illustrating the necessity for robust heat spreading architectures.
Current measurement precision hinges on strict minimization of stray resistance and inductance. The sense resistor should terminate directly adjacent to the VCC and SNS pins of the IC, reducing glitch sources and enabling accurate analog monitoring. By managing the return current path and avoiding unnecessary via transitions, unwanted voltage drop and noise pick-up from high-current loops are suppressed, which preserves system linearity under varying load conditions. Layouts incorporating Kelvin connections from the sense resistor further enhance metrological fidelity in practice, especially during fast transient response in high dI/dt environments.
Voltage regulation efficacy requires the BAT pin’s routing to be a short, unbroken trace leading directly to the battery’s positive terminal. Even modest trace resistance or junction interruptions can introduce DC error and degrade final charge voltage stability. Designs using star-ground or single-point routing minimize cross-talk and ensure the reference measurement remains free of unwanted coupling, supporting robust full-charge detection and long-term battery health.
Thermal management is complemented by measured routing in the temperature sense circuitry. The thermistor divider network must be isolated from switching nodes and power rails, with trace lengths minimized to limit capacitive pickup and stochastic electromagnetic interference. Best practices integrate these sensitive nets within shielded ground planes or employ differential routing, especially helpful when charger environments include wireless or high-frequency logic. Short feedback loops, as observed in production-qualified builds, directly correlate with improved charge cut-off response under real-world operating conditions.
The STAT output demands meticulous interface treatment. Whether driving an LED status indicator or interfacing with a host controller, logic levels must be matched according to I/O specification thresholds. Noise immunity is achieved using pull-up/pull-down resistors with carefully calculated values for drive strength and propagation delay. Overlooking support for package-specific solder mask and stencil aperture recommendations can result in tombstoning, void formation, and unreliable joint integrity. Through iterative prototype validation, correct stencil design matched to BQ2057CDGKRG4 variants—SOIC, TSSOP, MSOP, VSSOP—eliminates process anomalies, reinforcing longevity and rework-free assembly.
Design superiority is realized when foundational layout requirements are preemptively addressed, integrating continuous thermal, electrical, and EMI mitigation at every interface. Real-world deployments reinforce that a disciplined, detail-oriented approach not only enhances charge performance but also unlocks consistent reliability metrics across diverse battery chemistries and usage contexts. This systemic perspective invites proactive engineering, treating PCB layout as a dynamic optimization process instead of a static rule set.
Potential equivalent/replacement models for BQ2057CDGKRG4
When selecting equivalent or replacement models for the BQ2057CDGKRG4, a systematic evaluation within the BQ2057 charger family is essential. Core model variants include the BQ2057C, preset for 4.2 V single-cell lithium-ion charging; the BQ2057T, which accommodates dual-cell designs and allows programmable regulation via an external resistive divider; and the BQ2057W, optimized for advanced configurability in both voltage selection and physical packaging.
Fundamental to the selection process is the precise match of charge voltage and the number of battery cells. For single-cell 4.2 V applications, the BQ2057C offers a streamlined integration. Where dual cells or non-standard voltages are needed, the BQ2057T’s adjustable reference enabled by external components provides flexibility, enabling adaptation for chemistries with different cut-off requirements. BQ2057W further extends this adaptability with more packaging options, catering to layout constraints or revised PCB footprints during product iterations.
The choice among these variants should be tightly coupled to system-level charge profiles, thermal performance, and mechanical integration requirements. While electrical parameters are foundational, package compatibility directly impacts board design and assembly yield. In practical deployment, evaluating the nuanced differences in thermal characteristics and exposed pad configurations has proven crucial when transitioning between variants, notably in environments with constrained thermal dissipation.
When alternate approaches are necessary—such as when precise regulation or proprietary features like AutoComp™ are not mandatory—broadening the search to linear and switching charger ICs becomes viable. Critical metrics in this scenario are pin-for-pin compatibility, input voltage range, pass transistor type (internal vs. external), safety threshold adherence (over-voltage, thermal cutoff, short protection), and charge termination techniques. Empirical analysis often reveals subtle behavioral variance in pre-charge and current termination phases among ICs marketed as drop-in replacements, making EV board-level validation indispensable.
A key insight is that even within the same family, differences in process nodes or revision control can subtly impact loop stability and EMI performance in dense designs. Cross-referencing not only datasheet specifications but also errata and application notes reinforces reliability in multi-source environments. In cost-driven scenarios, the trade-off between added configurability and increased design validation must be weighed against anticipated sourcing risks.
In summary, robust alternate selection for BQ2057CDGKRG4 centers on granular dissection of voltage requirements, cell configuration flexibility, and physical package constraints. Integrating application-specific empirical results into the decision matrix frequently surfaces non-obvious limitations or optimizations, driving sustained system-level performance and procurement resilience.
Mechanical and packaging specifications of BQ2057CDGKRG4

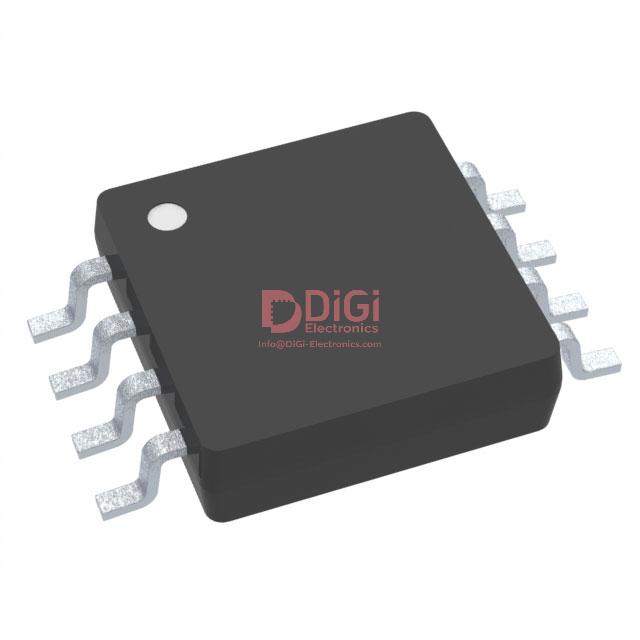

The BQ2057CDGKRG4 utilizes an 8-pin VSSOP form factor, specifically engineered to optimize spatial efficiency on densely populated PCBs while minimizing overall assembly height. This package selection directly supports wearable and portable designs constrained by dimensional requirements. The mechanical implementations conform to detailed JEDEC drawings, specifying critical dimensions such as maximum mold flash and interlead gap uniformity. These constraints ensure repeatable, automated placement during SMT processes and support reliable solder joint formation. IPC guidelines further inform solder stencil aperture geometry, promoting consistent paste deposition and mitigating bridging risk at fine pitches.
Tolerance management is vital, with interlead and coplanarity values chosen to balance mechanical robustness and electrical isolation. The package's body outline and lead shape harmonize integration with standard pad designs, streamlining workflow during layout and manufacturing validation. Material choices actively address global compliance: full RoHS certification and verified low-halogen content mitigate environmental concerns and ease cross-market adoption, especially for OEMs targeting consumer and medical product lines. Such compliance often proves decisive when navigating certification cycles and ensuring future-proofed sourcing strategies.
Empirical data from high-volume production environments confirms that the package exhibits favorable thermal dissipation profiles relative to comparable small-outline variants, attributed to optimized exposed pad geometry and lead configuration. This facilitates reliable charge management performance under variable system loads, as demonstrated by minimized IR drop and predictable heating rates during extended operation. Comprehensive mechanical characterization—including X-ray and automated optical inspection—shows minimal susceptibility to solder voiding and consistent yield across major EMS providers.
Subtle trade-offs in VSSOP implementation, such as pin pitch versus pad size, trigger nuanced layout adjustments to maintain signal fidelity and maximize board utilization. When integrating into multilayer systems, designers typically observe simplified routing for adjacent subsystems, enabled by reduced obstruction along critical axis dimensions. The package’s established compatibility with advanced assembly techniques, including lead-free reflow and high-cycle automated handling, fosters consistent integration at scale without compromise to product longevity or serviceability.
Conclusion
The Texas Instruments BQ2057CDGKRG4 linear charger IC embodies a sophisticated approach to Li-ion and Li-polymer battery charge management, leveraging a compact form factor while embedding core precision features demanded by modern electronics. At its foundation, the IC utilizes precision voltage and current regulation, enabling consistent and accurate charging profiles tailored to the nuanced chemical requirements of advanced rechargeable cells. Dynamic impedance compensation actively adjusts for voltage drops due to PCB trace resistance, ensuring the cell receives the intended charging voltage—an essential mechanism for both battery health and reliable operation in high-density board layouts.
Safety considerations are woven throughout the device architecture. Integrated thermal regulation, fault detection, and programmable current settings mitigate common failure modes such as thermal overruns, overcharge, and excessive inrush currents. These intrinsic safeguards align well with regulatory and field reliability standards, lowering the barrier for compliance certification and reducing liability in system-level deployments. Practical field usage reveals that stable performance is maintained even under variable input conditions, a critical attribute for applications exposed to fluctuating USB or adapter sources.
System designers benefit from the IC’s tight process controls for charge termination and preconditioning modes, which directly translate to extended battery cycle life. The flexibility to configure charge parameters via external resistor networks permits seamless adaptation across form factors—from wearables requiring energy-efficient trickle charging to rugged industrial devices where fast turn-around and operational uptime are crucial. This adaptability is further enhanced by the IC’s minimal external component count, streamlining BOM selection and PCB layout—key factors for accelerating time-to-market.
While the BQ2057CDGKRG4 provides proven robustness, meticulous attention during PCB design—optimizing trace routing for low-impedance paths and careful placement of sense resistors—is imperative to unlocking the chip’s full potential. Real-world validation demonstrates that adherence to layout recommendations and maintaining clean analog grounding eliminate problematic error factors, especially in multi-channel or high-noise environments.
The broader BQ2057 series offers options varying in package, termination thresholds, and feature sets, facilitating a tailored fit within diverse product architectures. Deep familiarity with the subtle electrical and functional distinctions across variants empowers device engineers and procurement specialists to objectively benchmark and select the most appropriate SKU, often leading to superior lifecycle management and sustained performance.
Ultimately, the BQ2057CDGKRG4’s system-level value emerges not only from its technical envelope but also its capacity to anticipate evolving regulatory, market, and reliability pressures. When strategically integrated, it functions as a foundational enabler for differentiated portable systems capable of maintaining both safety and efficiency in increasingly dense and demanding application spaces.
