Texas Instruments AMC7891 Product Overview

Texas Instruments AMC7891 is best understood as a compact mixed-signal service device for boards that must sense, bias, supervise, and adjust multiple analog nodes at the same time. It integrates an 8-channel, 10-bit, 500-kSPS SAR ADC, four independent 10-bit DACs, an internal temperature sensor, and 12 configurable GPIOs behind a 4-wire SPI-compatible interface. The value of the device is not only in the feature list, but in how these functions are combined around a single control plane. In practical monitor-and-control architectures, that combination reduces routing complexity, eases software management, and removes many of the timing and interoperability issues that appear when separate converters and digital expanders are stitched together from multiple vendors.

The device fits naturally into systems where analog visibility and analog actuation must coexist. RF front ends are a strong example. Power detector outputs, bias monitor voltages, temperature-related nodes, supply rails, gain-control loops, and enable pins often live in the same design but are traditionally implemented with a patchwork of ADCs, DACs, comparators, and GPIO devices. AMC7891 collapses that support circuitry into a single 36-pin, 6 mm × 6 mm QFN package, which directly improves density and usually simplifies placement around sensitive analog sections. That matters on crowded communication boards, where every additional device increases power-distribution effort, SPI chip-select management, and layout risk.

At the measurement layer, the integrated 8-channel SAR ADC provides moderate resolution with relatively fast conversion capability. A 10-bit, 500-kSPS converter is not intended for precision instrumentation, but it is well matched to supervisory and control loops that need responsive updates rather than ultra-fine quantization. That distinction is important during part selection. Many monitor-and-control tasks are dominated by threshold detection, coarse calibration, drift tracking, and health reporting. In those cases, sampling speed, channel integration, and control-loop convenience often deliver more system value than moving to a higher-resolution converter with a larger software and hardware footprint. In practice, once the monitored signal chain is noisy or the control target has limited sensitivity, 10-bit conversion is often the more balanced engineering choice.

The four independent 10-bit DACs extend the device from passive observation into active control. These outputs can be used for bias generation, threshold setting, gain adjustment, laser or amplifier control, and setpoint trimming across a broad class of communication and industrial subsystems. The key advantage is locality between measurement and control resources. When ADC feedback and DAC outputs exist within the same device and are accessed through one SPI register model, firmware can implement compact closed-loop behaviors with lower integration overhead. That tends to shorten bring-up time because engineers can prototype supervisory loops without coordinating several devices with different timing models, references, and startup characteristics.

The internal temperature sensor is easy to underestimate, but in dense analog systems it adds useful context to every other measurement. Temperature is often the hidden variable behind drift in bias currents, detector outputs, gain response, and reference margins. Having on-chip temperature data available through the same interface allows the host to correlate system behavior with local thermal conditions without adding a separate sensor IC. This is especially useful in RF and optical hardware, where thermal gradients can shift performance long before a fault becomes obvious. A simple compensation table or derating policy becomes much easier to implement when temperature telemetry is already part of the monitor-and-control fabric.

The 12 configurable GPIOs further increase the device’s system value because they allow low-speed digital supervision to sit alongside analog telemetry. These pins can support enables, resets, status capture, alarm routing, mux control, and sequencing tasks that would otherwise consume FPGA pins or require an external I/O expander. In mixed-signal board design, this level of integration often produces a second-order benefit: it reduces the number of control domains crossing between processors, CPLDs, and analog cards. Fewer domain crossings usually mean fewer race conditions at startup and fewer board-level surprises during fault handling.

From an electrical integration standpoint, the supply architecture is one of the device’s more practical strengths. The analog core runs from a 4.75 V to 5.5 V supply, while the SPI and GPIO domains can operate from 1.8 V to 5.5 V. This split-supply structure is well aligned with current digital platforms, where management controllers and logic often run at lower voltages than analog support circuitry. In many designs, that allows direct interface to low-voltage processors or FPGAs without adding external level shifters. Removing level translation is more than a BOM reduction. It eliminates another source of delay, edge distortion, and power-up dependency, all of which matter when the device participates in reset sequencing or early-stage board supervision.

The operating range of -40°C to +105°C positions AMC7891 for infrastructure and embedded deployments that see real thermal stress rather than bench-only conditions. That range is particularly relevant in cellular base stations, optical transport hardware, and outdoor communication units, where internal board temperatures may rise significantly under sustained load. A monitor-and-control IC in these environments must remain predictable not only at nominal conditions, but during warm restarts, enclosure heat soak, and seasonal extremes. Devices that integrate many support functions but lose margin at elevated temperature can create subtle serviceability problems. The AMC7891’s specified range makes it more suitable for designs where telemetry and control are expected to remain available across the full mission envelope.

Application fit is strongest in systems that have many medium-accuracy analog points and several low-bandwidth control outputs. Cellular base stations are an obvious target because they contain numerous bias rails, detector outputs, supply monitors, and enable lines spread across power amplifiers, LNAs, mixers, and transceiver support circuits. Optical networking equipment is another strong match. Laser driver support, photodiode monitoring, thermal compensation, and analog housekeeping often demand exactly this kind of mixed ADC-DAC-GPIO integration. General-purpose monitor-and-control platforms also benefit, especially when a management processor needs one compact peripheral to supervise voltages, read thermal behavior, and issue analog trim commands without consuming excessive board area.

One useful way to view AMC7891 is as a board-management analog companion rather than merely a converter device. That framing changes how it is deployed. Instead of asking whether the ADC is high resolution enough in isolation, it is better to ask whether the device can absorb a whole class of support functions that would otherwise be distributed across the design. In many real products, this system-level consolidation is the primary reason the part wins. It simplifies procurement, shortens schematic capture, reduces placement congestion, and gives firmware a single coherent register map for monitor-and-control tasks. Those advantages are easy to miss if evaluation is limited to converter specifications alone.

There are, however, design tradeoffs worth handling carefully. A highly integrated mixed-signal device is only as effective as the partitioning around it. ADC accuracy will depend on input routing discipline, grounding strategy, reference cleanliness, and how aggressively digital edges are allowed to couple into analog nodes. Boards that treat the device like a purely digital peripheral often leave performance on the table. Short analog runs, controlled source impedance, local decoupling, and clear return-current planning make a visible difference. A practical pattern is to place the AMC7891 near the analog support signals it supervises, not near the host controller by default. SPI can usually tolerate the longer route more gracefully than sensitive monitor voltages can.

The DAC side also benefits from realistic expectations. These outputs are well suited for bias and control programming, but they should not be assumed to replace precision references or high-linearity signal-generation paths. In monitor-and-control design, the best results usually come when DAC outputs are assigned to stable setpoint generation and trimmed through firmware during calibration or startup. That approach matches the device’s strengths and keeps the analog architecture robust. It also reduces the temptation to overburden a support IC with waveform-generation duties it was not designed to optimize.

Firmware integration is generally straightforward because one SPI interface exposes the major functions, but good register-management discipline matters. In systems with multiple monitored channels and active control outputs, configuration drift can become a hidden maintenance issue. It helps to structure software so that startup defaults, periodic telemetry reads, fault responses, and DAC update policies are all explicit and versioned. On projects with long life cycles, that kind of discipline often matters more than the initial hardware hookup. A well-integrated monitor-and-control device can centralize board intelligence, but it also centralizes the consequences of poor configuration control.

For product selection, AMC7891 is a strong candidate when the design objective is to minimize external monitor-and-control components without sacrificing interface flexibility. It is less about chasing top-end converter performance and more about achieving balanced mixed-signal integration in a small footprint. If the system requires moderate-resolution telemetry, several programmable analog outputs, local temperature awareness, and a block of low-speed digital control, the device maps cleanly onto that need. Its real strength lies in reducing subsystem fragmentation. In dense communication and infrastructure hardware, that often translates directly into lower risk, faster bring-up, and a cleaner path from prototype to production.

Texas Instruments AMC7891 Integration Architecture and Functional Positioning

Texas Instruments AMC7891 is best understood as a mixed-signal support device that collapses several secondary but essential control functions into one coordinated control plane. Its architectural value is not simply that it contains an ADC, DACs, GPIO, and supervisory logic in one package. The stronger point is that these functions are arranged to serve closed-loop analog subsystems where measurement, bias generation, status handling, and host communication must stay tightly synchronized with low implementation overhead.

At the signal-path level, the device centers on an internal analog multiplexer feeding an 10-bit SAR ADC. This allows eight external analog nodes to be observed through a shared conversion engine rather than through discrete monitor ICs or multiple dedicated converters. That choice reflects the intended operating model: the AMC7891 is not trying to be a high-speed data-acquisition front end, but a supervisory monitor for systems where many analog variables matter, yet only modest bandwidth and resolution are required. Voltages such as drain bias monitors, gate control feedback, current-sense outputs, detector outputs, or housekeeping rails can all be sampled in sequence under digital control. In practice, this sequential architecture is often a better fit than parallel conversion because most supervisory variables change slowly relative to the host control interval.

The four buffered DAC channels complete the control side of the architecture. These outputs are not peripheral add-ons; they are the actuation mechanism that makes the device useful in bias management and analog trimming. In RF power stages, optical modules, precision analog front ends, and industrial transmitter chains, there is often a recurring need to generate stable programmable voltages for gain setting, offset adjustment, bias point establishment, or threshold control. Integrating those DACs next to the monitor path reduces partitioning friction. A host processor can observe a node through the ADC, update a DAC setpoint, then remeasure the effect without crossing multiple unrelated devices or software abstractions. That shortens the control loop conceptually and physically.

The configuration registers and serial interface block provide the digital framework that binds these resources into a usable subsystem. From an integration perspective, this is where the AMC7891 earns much of its practical value. A discrete implementation using one ADC, one quad DAC, a GPIO expander, and several glue components can achieve similar nominal functionality, but coordinating power-up states, addressing, register maps, fault handling, and timing interactions quickly becomes a system burden. With the AMC7891, these concerns are consolidated. The host sees one register space and one communications endpoint, which tends to simplify firmware state machines and reduce edge-case behavior during startup or recovery.

The onboard temperature sensor adds another layer of supervision that is often more useful than it first appears. In many control assemblies, thermal drift is not only a reliability concern but a calibration concern. Bias targets that are acceptable at room temperature may push devices into inefficient or nonlinear operating regions across temperature. With local temperature awareness inside the same supervisory IC, compensation can be made more coherent. The host can relate analog readings, DAC settings, and thermal state without relying on separate thermal telemetry paths with different update rates or error characteristics. For compact RF or analog modules, that tighter correlation often helps maintain repeatability under changing ambient and self-heating conditions.

GPIO control logic extends the device from a pure analog companion IC into a broader supervisory element. Enable lines, reset pins, alarm outputs, mode selects, detector flags, and sequencing signals rarely justify dedicated logic devices on their own, yet they are indispensable in real hardware. When GPIO is placed beside the analog monitor and control channels, the subsystem becomes more than a collection of converters. It becomes a local management node. A bias rail can be enabled, a settling interval can be observed, an analog node can be sampled, and an alarm condition can be asserted back to the host using one tightly grouped device. This is especially valuable in modules where external connectors are limited and every control net must justify its existence.

Its functional positioning is therefore very specific. The AMC7891 is not intended to replace precision instrumentation ADCs, waveform-generation DACs, or high-current power-management ICs. It occupies the layer between a main processor and the physical analog hardware that processor must supervise. That middle layer is often underestimated in system planning. Designs tend to focus on the primary signal chain and the main compute element, while bias, telemetry, interlocks, and calibration support are treated as scattered utilities. Devices like the AMC7891 show that these utilities are better handled as a designed subsystem. Once grouped that way, layout, firmware, and validation usually become cleaner.

This positioning makes the device particularly well suited to RF transistor modules and communications hardware. In such systems, several analog nodes must often be observed at once: PA drain voltage, gate bias feedback, current-sense outputs, coupler detector voltages, temperature-related references, and supply health indicators. Meanwhile, DAC outputs establish the control voltages that define operating point and efficiency. GPIO handles PA enable, fault interrupt, bypass mode, or gain-state selection. If these functions are distributed across several chips, routing becomes denser, analog traces become longer, and fault behavior becomes harder to reason about. With the AMC7891, those tasks can be localized, which usually improves controllability and reduces design entropy.

Board-space efficiency is one of the most visible benefits, but the deeper gain is architectural compression. Fewer packages reduce not only area but also power sequencing dependencies, inter-device interface risk, and procurement complexity. In dense communications boards, every support IC added to the BOM multiplies placement constraints, decoupling requirements, and test permutations. A single integrated monitor-and-control IC often leads to shorter routing around sensitive analog nodes, and that can matter more than the area saved on paper. In compact layouts, signal integrity and routing simplicity are usually inseparable.

There is also a useful systems tradeoff embedded in the device’s moderate converter performance. A 10-bit SAR ADC and supervisory-grade DACs are not excessive, but that is often the correct engineering balance. Bias control loops, threshold setting, and health monitoring generally benefit more from predictability, channel availability, and integration than from laboratory-grade resolution. In many deployed systems, excessive converter precision on housekeeping paths adds cost and software complexity without materially improving control quality. What matters more is whether the analog front end, references, grounding, and update strategy are good enough to maintain stable operating regions. The AMC7891 fits that design philosophy well.

In implementation, one recurring pattern is to use the ADC channels not just for passive monitoring but for verification of commanded analog states. A DAC can set a bias voltage, while another ADC channel reads back the resulting node after the external amplifier or transistor network has settled. This creates a simple supervisory loop that catches open circuits, drift, or soft failures that would otherwise remain hidden until system-level degradation appears. Another common pattern is staged startup: assert an enable through GPIO, wait for rail establishment, sample voltage and current indicators, then release the next stage only if the measured values remain inside limits. Integrating these actions in one device reduces race conditions that often appear when monitoring and control are split across unrelated peripherals.

From a layout and bring-up perspective, the integrated architecture tends to reward disciplined partitioning. The analog inputs should be treated as low-bandwidth measurement points, not as general-purpose taps from noisy switching nodes. Short routing, sensible source impedance, and a clean reference strategy have disproportionate impact on useful measurement accuracy. The DAC outputs also benefit from careful loading assumptions. Although buffered, they should feed well-defined high-impedance control nodes or properly designed external stages rather than ambiguous mixed-use nets. Designs that respect this separation usually achieve stable behavior quickly, while designs that treat the device as a generic utility block often spend more time chasing offset, noise pickup, or DAC settling artifacts.

A less obvious advantage appears during firmware development and production test. Because analog supervision, bias control, and digital I/O share one register map, manufacturing diagnostics can be structured around compact scripts: set DAC values, toggle enables, sample monitor channels, compare against expected windows, and flag any deviation. This reduces fixture complexity and makes board-level screening more deterministic. The same mechanism often carries into field diagnostics, where the host can periodically interrogate the analog state of the module and identify aging or configuration drift before functional failure occurs.

Viewed this way, the Texas Instruments AMC7891 is not merely a convenience IC. It is an integration element for mixed-signal subsystems that need moderate-accuracy observation, programmable analog control, and digital supervision in a small footprint. Its strongest use case emerges where several slow analog variables, a few control voltages, and a handful of digital control lines must operate together as a coherent support layer around a higher-value signal chain. In that role, the device helps shift system design away from fragmented housekeeping circuitry toward a more deliberate and testable control architecture.

Texas Instruments AMC7891 ADC Monitoring Resources

Texas Instruments AMC7891 includes a compact but capable analog monitoring path built around eight external analog inputs, AIN0 through AIN7, routed into a shared 10-bit SAR ADC through an internal multiplexer. This architecture is aimed less at precision instrumentation and more at fast supervisory measurement inside mixed-signal control systems. In that role, the device fits well. It can observe multiple analog nodes with enough speed and determinism to support power-state supervision, bias verification, fault detection, and low-latency telemetry in communication and embedded control equipment.

At the front end, the eight inputs are uncommitted, which is an important system-level advantage. The device does not force a fixed partition between housekeeping signals and application-specific measurements. Any of the channels can be assigned to rails, sensor outputs, bias nodes, or feedback points. In practice, that flexibility reduces glue logic and avoids wasting ADC resources on predefined functions that may not match the board-level monitoring plan.

The input operating range is nominally 0 V to 5 V, while the absolute input range extends from AGND - 0.2 V to AVDD + 0.2 V. That distinction matters. The wider absolute range is a survivability limit, not a recommended measurement region. Designs that routinely approach those margins invite distortion, protection diode conduction, and difficult-to-debug channel interaction, especially when fast multiplexed sampling is involved. For stable monitoring behavior, it is better to keep signals comfortably inside the normal operating window and treat the absolute limits purely as boundary conditions for fault tolerance.

The ADC full-scale range depends on the selected gain. With gain = 1, the converter spans 0 to VREF. With gain = 2, it spans 0 to 2 × VREF. This seems simple, but it has direct consequences for signal-chain optimization. The useful rule is to choose gain so that the expected signal swing occupies as much of the ADC range as practical without forcing clipping under transient conditions. A 10-bit converter only provides 1024 codes, so every avoidable loss of span reduces effective observability. In monitoring applications, under-ranging is often a larger practical error source than the converter’s own linearity terms.

The gain option also helps when the monitored nodes vary in amplitude across the system. Low-level bias or feedback signals can be scaled to better use the available code range, while larger supervisory voltages can remain in a wider span. That said, multiplexed architectures reward consistency. If neighboring channels have very different source impedances or very different signal amplitudes, settling behavior after channel switching becomes more important than static ADC specifications. The datasheet numbers describe the converter core well, but board-level performance still depends on how quickly the selected input can charge the internal sampling network after a mux transition. For that reason, buffering or reducing source impedance on critical channels usually improves repeatability more than chasing the last fraction of an LSB in calibration.

On static accuracy, the AMC7891 ADC is specified at 10-bit resolution with integral nonlinearity typically ±0.1 LSB and up to ±1 LSB, and differential nonlinearity typically ±0.1 LSB with monotonic operation guaranteed. Offset error is typically ±0.5 LSB and gain error is typically ±0.5 LSB, each with maximum values of ±2 LSB. Offset and gain error matching between channels are both specified at ±0.4 LSB. These are solid figures for a supervisory converter embedded in a mixed-signal device.

The matching terms deserve special attention because they are often more valuable than absolute accuracy in real systems. When the task is to compare channels inside one device, detect relative drift, or verify that several bias nodes remain aligned, channel-to-channel consistency can matter more than whether the absolute code corresponds perfectly to an external standard. That makes the AMC7891 particularly useful in closed equipment where trend monitoring and threshold discrimination dominate over precision metrology. A converter with modest absolute resolution but good internal consistency often produces more actionable diagnostics than a nominally higher-resolution ADC with weaker channel correlation.

From a timing perspective, the device is clearly optimized for fast observation rather than slow background scanning. Conversion delay is 2 µs typical and 4 µs maximum from trigger to conversion start. Single-channel throughput reaches 500 kSPS when SCLK is at least 12 MHz. For one monitored node, that is sufficient for many control-oriented tasks, including loop observation, rapid threshold checks, and waveform sampling at a coarse but useful temporal resolution. It is not intended to replace a dedicated high-resolution data acquisition ADC, but it is fast enough to make supervisory decisions without adding a separate converter.

When all eight channels are enabled in autocycle mode, the total update interval is 16 µs. This number is often the real design reference, because most deployments use the ADC as a scan engine rather than a single-channel instrument. A 16 µs frame across eight signals means each node is revisited quickly enough for rail health monitoring, thermal proxy measurements, and event correlation in moderately dynamic systems. It also places a clear upper bound on what kind of control interaction is realistic. Fast inner control loops should not rely on a full eight-channel scan. By contrast, outer loops, protection logic, and telemetry layers are a much better fit.

There is also an architectural tradeoff hidden in that scan rate. Multiplexed ADCs create time skew between channels. In a full scan, the first and last channel are not sampled simultaneously. For slowly changing quantities, that is irrelevant. For phase-related or transient-sensitive signals, it can distort interpretation. This is one of the most common misreads in mixed-signal monitoring designs: multiple channels are treated as if they were captured at one instant when they were actually acquired sequentially. If cross-channel timing matters, the scan order should be chosen carefully, and the firmware should interpret the data as time-staggered samples rather than as a synchronous snapshot.

The data-available signaling is practical and well suited to embedded host integration. The open-drain DAV output asserts conversion availability without requiring continuous polling. In direct mode, DAV goes low when a conversion completes. In auto mode, it emits a 1 µs pulse at the end of the conversion cycle. This is a small feature, but in real firmware it matters. Polling wastes bus bandwidth and injects unnecessary software jitter. A hardware-ready indicator enables interrupt-driven or event-scheduled data collection, which usually produces more deterministic timing and lowers host overhead.

The open-drain implementation also makes board-level integration easier because it supports wired signaling and flexible voltage-domain interfacing through an external pull-up. That said, the 1 µs pulse width in auto mode should be checked against the host interrupt path and any synchronizer logic. On a heavily loaded line or a slow digital domain crossing, a narrow pulse can be missed unless it is stretched or latched. In practice, designs that route DAV into an interrupt controller generally benefit from verifying the pulse at the actual pull-up value and line capacitance used on the board, not just in the schematic.

For application mapping, the AMC7891 ADC is strongest when analog visibility is needed inside a device that already performs mixed-signal control. Voltage supervision is the obvious use case: rail levels, reference tracking, bias generation, and analog status reporting. It is also effective for watching slow control-loop variables, verifying actuator drive levels, or checking sensor-derived analog nodes before they feed higher-level logic. In communication equipment, where many analog observables are important but few demand precision instrumentation-grade conversion, this balance of channel count, speed, and integrated handling is usually more valuable than raw resolution.

A practical implementation detail is channel prioritization. Not every monitored point deserves the same update cadence. One effective pattern is to reserve direct mode for latency-sensitive measurements such as fault-related rails or rapidly moving feedback nodes, then use autocycle mode for periodic housekeeping channels. That split uses the ADC in a way that matches its strengths: fast triggered conversion where reaction time matters, and efficient scan-based acquisition where coverage matters. Systems that force every signal through the same scan policy often either waste bandwidth or miss the signals that actually drive decisions.

Another useful pattern is lightweight calibration at the system level. The specified offset and gain errors are already reasonable, but for threshold-based monitoring, even a two-point production trim on the most critical channels can noticeably tighten guard bands. This is especially relevant when the ADC is used near decision boundaries such as undervoltage warning thresholds or bias-valid windows. Tightening those thresholds through calibration often yields more system value than increasing nominal ADC resolution, because it reduces false trips and improves confidence in protective logic.

Viewed as an engineering component, the AMC7891 ADC should be treated as a deterministic monitoring engine rather than a general-purpose precision digitizer. Its value comes from integration, channel flexibility, predictable timing, and adequate accuracy across multiple analog nodes. When the analog sources are conditioned properly, the scan strategy reflects signal dynamics, and DAV is used to keep data movement disciplined, the device supports a surprisingly broad range of supervisory functions with minimal external overhead. That is usually the right optimization in embedded mixed-signal systems: not maximum converter performance in isolation, but enough measurement quality delivered exactly where control and monitoring need it.

Texas Instruments AMC7891 DAC Control Resources

Texas Instruments AMC7891 includes four independent 10-bit monotonic DAC channels intended for control-plane analog generation rather than metrology-grade synthesis. That distinction matters. The device is optimized to generate stable, repeatable control voltages inside mixed-signal supervisory systems, where compact integration, predictable settling, and direct drive capability are usually more valuable than absolute precision at the parts-per-million level. In this role, the DAC block is not just an accessory. It is one of the main reasons the device fits bias management, threshold programming, and low-bandwidth analog regulation.

The four outputs, DACOUT0 through DACOUT3, span 0 V to 5 V and are internally buffered. With 10-bit resolution, the nominal code step is about 4.88 mV per LSB over the full-scale range. That immediately frames the practical design space. If a controlled node tolerates a few millivolts of adjustment granularity, the AMC7891 can often drive it directly. If the target function requires sub-millivolt trimming, external scaling, gain staging, or a finer DAC architecture becomes necessary. In most RF bias loops, detector thresholds, gain-control voltages, and calibration offsets, however, 10-bit resolution is often sufficient because the controlled analog subsystem itself usually has larger process spread, temperature drift, or control sensitivity variation than one DAC LSB.

The buffered output stage is a particularly useful part of the design. Each DAC can source or sink up to 10 mA while staying within 300 mV of the rails. This is a stronger practical specification than the nominal 0 V to 5 V range alone, because it tells how the output behaves when connected to a real control node rather than an ideal infinite-impedance load. Many bias pins, varactor control lines, reference-adjust inputs, and threshold nodes are not purely static loads. Some include internal bias currents, leakage paths, RC filtering networks, or transient charge demand during reconfiguration. A DAC that only looks good on paper under light load can become inaccurate or sluggish once placed in the system. Here, the 10 mA drive capability means a large class of control points can be driven without adding an external op amp, which reduces component count, routing complexity, and stability risk.

The stated short-circuit current of ±30 mA adds another layer of robustness. It should not be treated as a normal operating mode, but it indicates the output stage is designed with fault tolerance in mind. In board-level practice, control outputs often pass through connectors, test points, jumper options, or dense analog routing where accidental shorts or incorrect bring-up conditions are possible. A DAC output that survives brief abuse without cascading failure is materially easier to deploy in development platforms and field-serviceable hardware.

Load interaction deserves closer attention. The DAC is stable with up to 10 nF capacitive load and no resistive load, and its DC output impedance is 1 Ω. These two numbers say a lot about intended usage. The low output impedance supports direct driving of moderate static loads and helps maintain commanded voltage under varying sink/source conditions. The capacitive-load specification is equally important because analog control lines are frequently filtered to suppress digital noise, SPI update feedthrough, or switching artifacts from nearby power circuitry. A common implementation is a small RC network directly at the controlled node. The AMC7891 gives enough load stability margin that moderate filtering can be added without immediately forcing a compensation redesign. Even so, it is usually wise to avoid assuming “stable with capacitance” means “immune to all output network choices.” Large capacitors, long traces, and nonlinear loads can still alter settling behavior. In practice, keeping the DAC close to the controlled block and placing the filter capacitor at the load side tends to produce more predictable results than building a heavily loaded star-routed analog control bus.

Accuracy specifications place the DACs firmly in the “good control accuracy” category. Relative accuracy is typically ±0.05 LSB and up to ±1 LSB. Differential nonlinearity is typically ±0.1 LSB with monotonic behavior guaranteed. Monotonicity is one of the most valuable properties in control applications because it ensures the output always moves in the intended direction as the digital code changes. In a threshold-setting loop or bias search algorithm, non-monotonic regions can produce false optima, unstable convergence, or confusing calibration data. Monotonic behavior removes that class of failure and simplifies software assumptions. That benefit is often underappreciated. In many embedded calibration systems, monotonicity matters more than absolute endpoint accuracy, because software can compensate offset and gain, but it cannot easily repair local reversals in the transfer function.

Offset error is typically ±0.5 mV and up to ±5 mV, while gain error is typically ±0.025% FSR and up to ±0.2% FSR. These values are well matched to control-oriented use. A useful way to interpret them is to compare them against the 4.88 mV LSB size. Typical offset is well below 1 LSB, and even worst-case offset remains close to a single-code-scale issue in many operating points. Typical gain error is similarly modest for system-level bias and threshold generation. If the application needs exact analog voltage at the pin across process and temperature, calibration is still the proper approach. But for circuits where the DAC is used to tune behavior rather than create an external measurement standard, these error levels are generally predictable and easy to budget.

Timing performance supports responsive but not high-speed waveform applications, which is exactly where this DAC family belongs. Settling time is 5 µs for a near full-scale transition from code 0x008 to 0x3F8 to within 1/2 LSB with 2 nF load capacitance. That is fast enough for supervisory loops, adaptive bias updates, threshold reconfiguration, and periodic trimming. It is not intended for arbitrary waveform generation or wideband modulation. The distinction is important during architecture selection. If the analog output only changes during calibration, startup, thermal compensation, or occasional control updates, 5 µs is effectively instantaneous at the system level. If the design needs continuous dynamic modulation with spectral cleanliness, a different class of DAC should be selected.

Glitch energy is low at 0.15 nV-s around major carry transitions near midscale. This is an understated but relevant specification. In many control systems, the DAC output is not only setting a DC level; it may also feed a sensitive analog block whose response to transient impulses is nonlinear. PA bias lines, comparator thresholds, and gain-control nodes can all convert brief DAC glitches into measurable output disturbances if the downstream circuit has enough sensitivity or bandwidth. Low glitch energy reduces that risk and also lowers the burden on external filtering. In practice, the cleanest updates still come from combining low-glitch DAC behavior with controlled update timing, such as writing new codes during quiescent system intervals or after temporarily freezing a downstream control loop.

Power-on reset forces all DAC outputs to 0 V. This startup behavior is often more important than steady-state accuracy because many mixed-signal systems are vulnerable during sequencing. A zero-volt default is usually the safest baseline for bias and threshold control, especially in RF and power-sensitive sections where excessive startup bias can overstress devices or generate unwanted emissions. The practical value here is not merely convenience. It simplifies failure-mode analysis. When a board powers up, resets, or recovers from interface faults, the analog outputs return to a known low-energy state rather than an undefined condition. That predictability reduces the amount of external hardware needed for startup containment.

At the application level, the AMC7891 DAC block is well aligned with PA bias adjustment, LNA control, analog threshold programming, detector reference generation, and low-bandwidth closed-loop trimming. In PA bias control, the DAC resolution is usually adequate because the transfer curve from gate voltage to quiescent current is nonlinear and device-to-device spread dominates. The useful design pattern is to let the DAC establish a coarse but stable control voltage, then use ADC feedback elsewhere in the AMC7891 signal chain to close the loop on actual current, power, or detector voltage. That architecture plays to the part’s strengths: integrated actuation and observation in one device, with modest software compensation replacing external analog complexity.

For LNA control and similar front-end bias tasks, output noise sensitivity and startup behavior become more visible. A direct DAC connection may work well when the controlled node is already filtered or has low bandwidth. Where gain or noise figure shifts noticeably with small bias disturbances, a simple RC filter near the destination pin usually improves behavior without compromising response time. The integrated DAC’s low output impedance helps here, since the filter can be implemented without requiring a separate buffer in many cases. A practical approach is to start with the smallest capacitor that suppresses observable control noise, rather than defaulting to a large value that lengthens settling and complicates transient behavior.

Threshold programming is another strong use case. Comparator references, alarm trip points, and window-detection limits rarely need precision instrumentation accuracy, but they do need deterministic code-to-voltage behavior and monotonic updates. The AMC7891 DACs fit that requirement well. One effective pattern is to use one DAC for the nominal threshold and another for a tracking offset or hysteresis-control term. Since four channels are available, systems with multiple monitored domains can assign separate DACs to independent limits while still keeping control localized within the same device.

The integrated nature of the AMC7891 is a system-level advantage that becomes more compelling as board density increases. Four DACs alongside analog measurement resources reduce the number of reference domains, SPI targets, and error sources distributed across the PCB. It also shortens calibration paths. When sensing and control live in the same mixed-signal device, firmware can implement trim loops with fewer synchronization uncertainties and less analog routing exposure. That usually leads to better repeatability than a discrete architecture assembled from separate monitor ICs, DACs, and support amplifiers, even if each standalone component appears stronger in isolation.

One design insight stands out repeatedly with devices in this class: the main performance limit is often not the DAC transfer curve itself, but the electrical behavior of the node being driven. Leakage, bias current variation, shared grounding, digital feedthrough, and temperature-dependent load impedance can all dominate the final control accuracy. For that reason, the best results usually come from treating the DAC output as part of a complete analog control channel rather than as an ideal voltage source. Short routing, quiet return paths, local filtering, and software-level endpoint calibration typically deliver more improvement than chasing tiny datasheet linearity differences between similar DACs.

Viewed in that context, the AMC7891 DAC resources are not precision outputs in the laboratory sense, but they are highly capable integrated control outputs. They provide enough resolution, drive strength, monotonicity, and settling speed to solve a wide range of real analog-control problems directly. When the design objective is compact supervisory control with predictable startup, manageable calibration, and low external component count, these DACs are a very efficient fit.

Texas Instruments AMC7891 Temperature Sensor and System Health Monitoring

Texas Instruments AMC7891 extends system supervision beyond voltage and current monitoring by integrating a local temperature sensor on the same device. This matters because thermal behavior is rarely an isolated variable in mixed-signal control hardware. It is usually coupled to supply loading, analog front-end drift, bias stability, and long-term reliability. By embedding temperature measurement inside the supervisory device, AMC7891 gives the host a direct view of the IC’s local thermal environment without adding an external sensor, extra routing, or another addressable component on the board.

The internal sensor covers -40°C to +125°C, which aligns well with the operating envelope expected in industrial, communications, and infrastructure equipment. Typical accuracy is ±1°C, and ±2.5°C is specified across the range when AVDD is 5 V. That level of accuracy is not intended for precision metrology, but it is well matched to board-level thermal supervision. In practice, most protection and maintenance decisions do not require absolute temperature to within a fraction of a degree. They require stable, repeatable awareness of whether the device is heating abnormally, operating near a guardband, or drifting relative to a known baseline. For those tasks, AMC7891 is well positioned.

The sensor resolution is 0.125°C per LSB, with a conversion time of 15 ms. These two numbers define the practical character of the measurement path. The 0.125°C code step gives enough granularity for smooth thermal trend observation, while the 15 ms conversion time makes it suitable for supervisory sampling rather than fast thermal control loops. That distinction is important. Thermal mass in most enclosures, RF boards, and power-conditioned analog sections is large enough that meaningful temperature changes occur over hundreds of milliseconds to seconds, not microseconds. In that regime, the AMC7891 sensor provides more than enough temporal resolution to detect thermal rise, rate-of-change, and sustained overload conditions.

A useful way to interpret the integrated temperature sensor is as a health indicator for the local silicon and surrounding board region. Because the sensor is on-chip, it does not measure remote hot spots directly. It reports the thermal condition of the AMC7891 die, which is shaped by ambient temperature, self-heating, PCB copper distribution, nearby power components, airflow, and enclosure behavior. This is often exactly what system designers need when the goal is supervisory awareness rather than spatial thermal mapping. The die temperature reflects whether the local control and monitoring domain is operating inside a safe thermal envelope. In many architectures, that is more actionable than adding a separate sensor in a mechanically convenient but thermally less relevant location.

For system architects, this integration can simplify the bill of materials and reduce analog housekeeping overhead. Removing a separate temperature sensor IC saves component cost, placement area, power budgeting effort, qualification time, and firmware integration work. It also removes failure modes associated with another package, another interconnect path, and another set of tolerances. In dense boards, the routing simplification is often more valuable than the component reduction itself. Shorter signal paths and fewer low-level analog interfaces usually improve robustness, especially in RF and mixed-signal environments where noise coupling and layout compromises accumulate quickly.

In RF communication hardware, local temperature information is particularly useful because thermal drift often appears first as a bias shift or gain change before it becomes a hard fault. Power amplifier support circuitry, transceiver conditioning blocks, and precision bias rails all respond to temperature. An integrated local reading from the AMC7891 can be used by the host to adjust bias strategy, derate operating points, or trigger staged protective actions. The advantage is not only fault detection but also early correction. Systems that react to temperature trend rather than waiting for an overtemperature threshold generally maintain performance more gracefully and avoid abrupt shutdown events.

The sensor also fits naturally into broader system health monitoring. A supervisory controller can periodically log temperature alongside supply voltages, current measurements, alarm states, and time stamps. Once those variables are stored together, correlations become much more valuable. A rising local temperature with stable rails may indicate ambient loading or airflow degradation. A rising temperature that tracks a current increase may point to workload-driven stress. A gradual shift over weeks can reveal fan wear, dust accumulation, enclosure blockage, or bias misconfiguration. In fielded systems, this kind of contextual trend data is often more useful than a single threshold crossing because it supports predictive maintenance rather than reactive servicing.

From an implementation perspective, the most effective use of the temperature channel is rarely a single fixed overtemperature limit. A layered strategy works better. One threshold can mark elevated temperature and trigger more frequent monitoring. A higher threshold can reduce load, adjust operating margins, or notify the host management layer. A final threshold can force protective action if the thermal rise continues. Adding a rate-of-change check improves this further. Even though the sensor is not designed for rapid transient capture, a sustained increase across several 15 ms conversions can still identify a meaningful thermal excursion early enough for supervisory intervention.

There is also a calibration and interpretation aspect that should not be ignored. Absolute accuracy matters less when each board establishes a known thermal baseline during validation. In many designs, the useful question is not “Is the temperature exactly 73.0°C?” but “Is this board running 8°C hotter than it did in the qualified condition at the same operating point?” That comparison-based approach extracts more value from the integrated sensor than treating it as a stand-alone precision thermometer. It is often a better engineering trade because system-level thermal behavior is dominated by board layout, enclosure mechanics, and power distribution more than by sensor quantization.

Experience with embedded thermal monitoring consistently shows that local sensors are most effective when they are tied to operating state. Logging temperature without recording load condition, RF output level, supply mode, or calibration state produces weak diagnostics. Logging them together produces a usable thermal signature. In communication equipment, for example, a moderate temperature rise during transmit operation may be normal, while the same rise during idle mode is a strong anomaly. The AMC7891 sensor becomes more valuable when firmware treats it as one variable in a coupled system model rather than as an isolated health flag.

Another practical consideration is self-heating. Since the sensor is integrated on the AMC7891 die, its reading can include temperature rise caused by the device’s own power dissipation. That is not a flaw; it is part of what makes the reading meaningful for local supervision. Still, during characterization, it is worth measuring how the reported temperature shifts across supply conditions, conversion activity, and nearby thermal loading. That small effort usually prevents misinterpretation later, especially when alarm thresholds are set tightly or when the board operates across a wide ambient range.

In applications where rapid thermal transients are not dominant, the AMC7891 temperature sensor covers the main supervisory needs efficiently. It supports overtemperature detection, thermal trend analysis, compensation support, and reliability monitoring with no external sensor IC. Its real strength is not just integration for its own sake, but integration that places temperature in the same control framework as the rest of system telemetry. That tighter observability often leads to cleaner protection logic, leaner hardware, and more informed host decisions across the product lifecycle.

Texas Instruments AMC7891 GPIO and Digital Control Capability

Texas Instruments AMC7891 extends well beyond mixed-signal monitoring and control by integrating 12 general-purpose digital I/O pins, grouped as GPIOA0 to GPIOA3, GPIOB0 to GPIOB3, and GPIOC0 to GPIOC3. This matters in designs where analog telemetry, power sequencing, fault handling, and simple digital control all need to coexist inside one tightly coordinated device boundary. In practice, that integration reduces glue logic, shortens control paths, and simplifies register-level orchestration between analog events and digital actions.

A key design detail is that the GPIO bank is powered from an independent GPIOVDD rail, specified from 1.8 V to 5.5 V. That separation is more than a convenience. It allows the digital interface domain to track the voltage requirements of the surrounding logic without forcing the analog core to operate at the same level. In board-level architectures, this is often the difference between a clean direct connection and an otherwise avoidable level-shifting stage. A 1.8 V FPGA bank, a 3.3 V MCU, or legacy 5 V supervisory logic can all be interfaced more naturally by selecting GPIOVDD to match the local digital ecosystem. The maximum allowable voltage on the GPIO pins is bounded by GPIOVDD, so the supply effectively defines both logic compatibility and the safe operating ceiling of the entire GPIO domain.

The input thresholds reflect this flexible supply architecture. At GPIOVDD = 1.8 V, the logic-high input threshold is defined as 0.7 × GPIOVDD, while the logic-low threshold is 0.3 V. At higher GPIOVDD settings from 3.3 V to 5.5 V, VIH is fixed at 2.1 V and VIL at 0.8 V. From an interface-engineering standpoint, this behavior is useful because it gives predictable interoperability with common CMOS-style logic families. At 3.3 V and 5 V rails, the fixed thresholds align well with mainstream controller outputs. At 1.8 V, the ratio-based VIH requirement is stricter in absolute margin terms, so signal integrity deserves more attention when long traces, weak pull structures, or heavily shared nets are involved. Designs that look acceptable at static DC conditions can become marginal during fast transient events if edge quality is poor.

Output performance is sized for logic signaling rather than direct power drive. When operating at 1.8 V, VOH is specified down to GPIOVDD - 0.25 V with a 1.6 mA load. From 3.3 V to 5.5 V, VOH is GPIOVDD - 0.2 V at the same load. VOL is 0.4 V at -1.6 mA load. These numbers indicate a modest but practical drive capability suitable for digital inputs, control strobes, status signaling, and gate-driving through external interface stages. The AMC7891 should not be treated as a high-current actuator driver. If a GPIO is used to control a relay, MOSFET gate network, optocoupler, or other load with nontrivial current or dynamic charging demand, an external transistor or dedicated driver stage is the correct extension. That preserves logic-level integrity and avoids hidden timing or voltage droop issues.

This distinction between logic drive and power drive is where many implementations either stay elegant or become fragile. For example, using a GPIO to directly energize a relay coil is not just a current-limit problem; it also injects switching noise and inductive disturbance into a device that is often sitting near precision analog measurements. A small external transistor, proper flyback suppression, and local return-current control usually cost little but protect both analog accuracy and long-term robustness. The same principle applies to LED indicators. Even when the average current seems modest, simultaneous switching on multiple pins can create unnecessary supply bounce if the GPIO rail is not decoupled with the same care given to the analog rails.

Functionally, these GPIOs let the AMC7891 participate in system management rather than merely report measurements. Typical uses include enable lines for downstream regulators, alarm or fault inputs from companion devices, mode-select straps, reset supervision, analog mux address control, and general status collection. In power and instrumentation systems, this enables a useful pattern: analog conditions measured by the AMC7891 can be evaluated by a host controller, which then updates the same device’s GPIO states to alter hardware configuration in response. That shortens the loop between observation and action. It also keeps related control signals physically and logically close to the analog subsystem they influence.

In many systems, this means the AMC7891 can absorb work that would otherwise be assigned to a separate GPIO expander. The benefit is not only BOM reduction. It also reduces address-space fragmentation, board routing overhead, and software branching across multiple peripherals. A single SPI or serial control path managing both analog and digital support functions is often easier to validate than a distributed collection of small devices. This becomes especially valuable during fault handling, where fewer inter-device dependencies usually translate into more deterministic behavior.

There is also a subtler architectural advantage in the pin grouping. Organizing the GPIOs as A, B, and C banks encourages structured signal assignment. One effective approach is to dedicate one bank to outputs used for sequencing or mode control, another to status and fault inputs, and the third to board-specific utility functions. That kind of partitioning simplifies firmware mapping and helps constrain unintended interactions during debugging. Even if the hardware does not enforce bank-level function separation, applying it intentionally tends to improve maintainability once the design grows beyond a prototype.

When these GPIOs are used as inputs for alarms or asynchronous status signals, timing and default-state planning matter. Open-drain fault lines, pull-up selection, and startup behavior should be treated explicitly. If GPIOVDD rises later than the source device driving a status signal, the interface can enter undefined or back-powered states unless the external network is chosen carefully. This is a common corner case in mixed-voltage systems with independent rail sequencing. The clean solution is to define the inactive state with pull resistors referenced to the correct domain and ensure that no external source can drive beyond GPIOVDD during partial-power operation.

For outputs controlling muxes, enables, and mode pins, the practical question is rarely just whether the logic thresholds match. The larger issue is whether startup defaults are safe before configuration registers are written. If an enable pin connected to a power stage or analog switch comes up in the wrong state for even a few milliseconds, the system may enter a condition that is difficult to recover from cleanly. In designs with strict sequencing requirements, external passive biasing should enforce the hardware-safe state independently of software. The GPIO then becomes a controlled override, not the only line of defense.

Another useful application is reset supervision and interlock signaling. A GPIO can monitor a reset-good flag from another IC while separate GPIO outputs gate subsystems on or off in a controlled order. This makes the AMC7891 a practical coordination node in systems where analog rails, digital readiness, and fault recovery need to be synchronized. The value here is not raw pin count but locality of control. Signals tied directly to measurement, protection, and board-state logic can be managed within one device context, which often results in cleaner fault trees and easier bring-up.

From a system perspective, the most effective use of AMC7891 GPIO is not as a generic collection of spare pins, but as a digital extension of the mixed-signal control plane. Assign the pins to functions that benefit from being near telemetry, thresholds, alarms, and sequencing logic. Reserve heavy-load or timing-critical digital tasks for dedicated devices. That division aligns with the electrical characteristics of the GPIO block and usually leads to a more stable and explainable design.

Used this way, the AMC7891 becomes more than an analog front-end with a few extra digital pins. It becomes a compact board-management element that can sense, decide through the host, and influence surrounding hardware with minimal external support. The result is a design that is smaller, easier to route, and often more coherent at both the hardware and firmware levels.

Texas Instruments AMC7891 SPI Interface and Data Handling

Texas Instruments AMC7891 communicates with the host through a 4-wire SPI-compatible serial port using CS, SCLK, SDI, and SDO. Although the signaling model is familiar, the device implements a strict 24-clock transaction format with specific edge timing and update behavior. That combination makes the interface simple at first glance, but it also means firmware timing, chip-select handling, and board-level signal quality directly affect correctness.

A useful architectural detail is that the serial interface runs from its own SPIVDD supply, independent of the main analog supply domain. SPIVDD can operate from 1.8 V to 5.5 V, which gives the device strong interoperability across a wide range of controllers and digital backplanes. In practice, this separation does more than solve logic-level compatibility. It also helps isolate the digital interface behavior from analog supply constraints, which is valuable in mixed-signal systems where the analog rails are optimized for precision performance while the host processor may be running at a lower digital voltage. This partitioning reduces the need for external level translation in many designs, and that usually improves both timing margin and EMI behavior.

The SPI port supports SCLK frequencies up to 30 MHz, which is fast enough for low-latency register writes and efficient acquisition of monitored data. That bandwidth matters most when the device is used as part of a closed-loop control or telemetry path, where configuration writes, status reads, and measurement retrieval must coexist without creating excessive bus occupancy. At 30 MHz, a 24-bit frame is short enough to support dense polling schemes, but the practical throughput still depends on firmware overhead, CS handling, and whether the host SPI controller can sustain back-to-back framed transactions without inserting long idle gaps.

The timing relationship is central to correct operation. Data is shifted into the AMC7891 on the falling edge of SCLK and shifted out on the rising edge. This edge polarity defines how the host SPI peripheral must be configured. If the host samples and launches on the wrong phase, communication may appear partially functional during bench testing yet fail intermittently across temperature, voltage variation, or longer trace lengths. This is a common source of subtle integration faults because many MCU SPI blocks allow several clock mode combinations that seem plausible. For this device, the implementation should be verified not only against nominal waveform diagrams but also against setup and hold margin at the actual board routing and clock rate being used.

CS is not only a chip select but also the frame boundary marker. When CS transitions low, the input shift register becomes active and the device starts interpreting the next 24 clock events as one command frame. This framing behavior is important because the AMC7891 does not treat SPI traffic as a continuous stream. It expects complete, discrete transactions. The DAC outputs and internal register settings are updated after the 24th clock, which means the transaction is effectively committed only when the full frame is delivered. If CS returns high before the 23rd clock edge, the command is ignored. That rule provides a degree of protection against truncated transfers, but it also means firmware must guarantee atomic frame delivery.

This fixed-length framing model has several implementation consequences. First, the host driver should always transmit exactly 24 clocks per command unless a specific read protocol requires otherwise. Second, CS should be controlled so it remains low for the entire frame with no mid-frame glitches. Some SPI controllers automatically deassert CS between bytes or words unless configured for continuous assertion. That default behavior can silently break AMC7891 communication, especially when a 24-bit transfer is emulated as three 8-bit writes. A robust design treats the 24-bit command as one indivisible bus operation. If the controller cannot natively generate 24-bit frames, firmware should use a mode that keeps CS active across all three bytes or manage CS manually with carefully bounded timing.

The update point after the 24th clock also affects how software should reason about register writes and DAC behavior. Since outputs and settings do not update progressively during the frame, the host can build deterministic command sequences without worrying that intermediate byte boundaries will trigger partial state changes. That property is useful in systems where multiple parameters must be changed with precise ordering. At the same time, software should not assume the new state is valid before the frame completes. In tightly timed control loops, reading back status immediately after a write may require attention to device-specific latency and command pipelining, especially if the SPI master queues transactions aggressively.

The SDO timing deserves equal attention during readback. Because data is clocked out on the rising edge, the host must sample at the complementary edge with enough margin to tolerate line delay, trace reflection, and clock skew. On short, well-routed interconnects this is usually straightforward. On denser boards, especially those combining RF, switching power, and precision analog content, the margin can shrink faster than expected. One practical pattern is to validate read integrity at the maximum intended SPI clock while stressing the surrounding system activity. A bus that works at 5 MHz in a quiet test setup may show bit errors at 30 MHz once nearby converters, RF stages, or high-current switching nodes become active.

The Schmitt-trigger inputs on CS, SCLK, and SDI are a meaningful feature in that context. They improve tolerance to slow edges and noise near the switching threshold, which helps in electrically noisy environments and in systems where the host interface traces pass through mixed-signal regions. This does not remove the need for disciplined layout, but it does increase robustness against real-world signal degradation. In practice, Schmitt-trigger inputs are especially helpful when SPI lines are routed over moderate distances on a board, share connector paths, or see edge rounding from series resistors used for ringing control. The interface becomes less sensitive to threshold chatter, which can otherwise produce extra clocks or corrupted command bits.

Even with that built-in noise immunity, SPI integrity still depends heavily on layout and driver configuration. At higher clock rates, SCLK quality dominates interface reliability. Clock overshoot, undershoot, and ringing can create false edge interpretation long before average voltage levels look problematic on a low-bandwidth probe. A common mitigation is to place small series resistors near the SPI master outputs to damp edge rate and reduce reflections. This often improves waveform quality more effectively than reducing clock frequency alone. Ground referencing is equally important. If the digital return path is fragmented near the AMC7891, the interface may become sensitive to transient ground shifts that are hard to diagnose from protocol-level symptoms.

From a firmware perspective, defensive handling of the transaction boundary is often more important than raw SPI throughput. The driver should explicitly validate frame length, SPI mode, and CS behavior during initialization. If DMA is used, the transfer unit should align with the 24-bit command structure rather than generic byte streaming. Error recovery should also assume that any interrupted frame is invalid and must be retried from a clean CS high state. That approach avoids ambiguous internal state and tends to make field behavior much more deterministic.

It is also worth treating the AMC7891 interface as a control path rather than just a serial link. In mixed-signal devices, configuration writes can affect analog outputs, monitoring thresholds, and system-level fault behavior. Because the commit occurs at the end of the 24-clock frame, each transaction can be viewed as a small state transition packet. Thinking about it that way leads to cleaner software structure: commands are assembled completely, transferred atomically, and followed by any required verification read or settling delay. This model scales well when multiple devices share the same SPI bus, since it encourages explicit sequencing and avoids hidden timing assumptions.

In application scenarios such as power management modules, RF bias control, precision monitoring subsystems, or industrial mixed-signal boards, these interface characteristics become especially relevant. The independent SPIVDD domain simplifies integration with diverse controller voltages. The 30 MHz clock capability allows high-rate supervisory access. The strict 24-clock framing provides deterministic updates. The Schmitt-trigger inputs improve tolerance to board-level electrical noise. Together, these features make the interface efficient and robust, but only when the design respects the exact edge timing and frame semantics. The most reliable implementations usually come from treating SPI not as a generic peripheral block to enable once and forget, but as a timing-defined interface whose electrical and transactional details are part of the functional design.

Texas Instruments AMC7891 Power, Reference, and Signal Range Design Considerations

Texas Instruments AMC7891 power and reference planning is less about reading three supply pins and more about understanding how the device partitions analog accuracy, digital interoperability, and system noise containment. The architecture is intentionally split into AVDD, GPIOVDD, and SPIVDD so the analog path can stay in a stable 5 V-class environment while the digital interfaces follow the logic levels of the host system. That separation is a practical advantage, but it also creates a design obligation: each rail must be treated according to the type of circuitry it feeds, not merely powered within its allowed range.

AVDD powers the analog core and must remain between 4.75 V and 5.5 V. GPIOVDD powers general-purpose digital I/O and accepts 1.8 V to 5.5 V. SPIVDD powers the serial interface and also accepts 1.8 V to 5.5 V. In mixed-voltage systems this allows direct connection to low-voltage processors or FPGAs without level translators, provided signal integrity and timing remain within the interface specification. The deeper implication is that logic compatibility can be solved independently of analog accuracy. That is often the right partition in supervisory and monitor-control designs, where the digital controller may operate at 1.8 V or 3.3 V but the analog measurement and actuation chain benefits from a cleaner 5 V supply with better headroom.

The supply split also reduces one common failure mode in board-level integration: forcing the entire device onto a single logic-compatible rail and then compromising analog range or performance. With the AMC7891, that shortcut is unnecessary. A robust implementation usually keeps AVDD locally filtered and quiet, while GPIOVDD and SPIVDD are routed with digital return-current behavior in mind. In practice, this often means AVDD gets tighter local decoupling and more controlled routing around the reference and analog input network, while the digital rails can tolerate the switching activity associated with bus edges and GPIO state changes.

Current consumption is modest, but it should not be treated as negligible when rail quality matters. In operating mode, the total supply current is typically 6.5 mA and can reach 10 mA. If all three supply domains are at 5 V, this corresponds to about 32.5 mW typical and 55 mW maximum. In power-down mode, total supply current drops to 1.25 mA typical and 2 mA maximum, translating to about 6.25 mW typical and 11 mW maximum at 5 V. These numbers position the device well for always-on supervision, housekeeping measurement, and low-duty-cycle control loops. The power level is low enough for dense boards and thermally constrained assemblies, but high enough that rail impedance, startup sequencing, and local bypassing still matter.

A useful design perspective is to view the power-down mode not as a near-zero-energy state, but as a reduced-function retention state in a monitoring architecture. In systems that wake periodically, engineers often budget only average current and overlook the fact that analog settling, reference stabilization, and SPI synchronization may dominate effective measurement latency after wake-up. The AMC7891 fits best when the control strategy respects these transitions rather than assuming instant full-accuracy operation after re-enablement.

Reference selection is where the device shifts from a convenient mixed-signal peripheral to a deliberate signal-chain component. The internal 2.5 V reference allows the ADC and DAC blocks to operate without an external precision reference IC. This reduces component count, routing complexity, and startup dependencies. When the internal reference is enabled, the REF pin becomes a reference output and requires a 4.7 µF capacitor to AGND. That capacitor is not a formality. It stabilizes the reference node, lowers dynamic impedance over frequency, and helps suppress conversion-to-conversion disturbances coupling into the reference path.

The internal reference has a nominal output of 2.5 V, reference buffer power of 360 µA at AVDD = 5 V, and a temperature coefficient of 10 ppm/°C. For many monitor and control applications, that is a well-balanced specification. It is typically sufficient for thresholding, telemetry, calibration-assisted monitoring, and DAC-driven bias generation where absolute precision is important but not at the level of standalone instrumentation. The hidden advantage of using the internal reference is coherence inside the device: ADC and DAC functions share the same reference framework, so relative behavior often becomes easier to manage than with a loosely integrated external scheme.

That said, internal references are rarely the whole story in systems requiring channel-to-channel consistency across multiple devices, tighter thermal drift control, or alignment to a plant-wide measurement reference. In such cases, disabling the internal reference buffer and driving REF externally can be the better system decision. The external reference input range is 0.3 V to AVDD, and the REF input resistance is specified as 20 kΩ for VREF = 5 V and AIN = 5 V. This input is not idealized; it loads the source, and that load must be included in reference buffer drive calculations. A decoupling capacitor from the external reference output to AGND is recommended to suppress wideband noise and maintain a low-impedance reference node near the device.

The key engineering tradeoff is not simply internal versus external reference. It is local simplicity versus global reference integrity. The internal reference is usually the fastest path to a stable design and avoids injecting external reference routing noise into the device. The external reference becomes valuable when the AMC7891 must participate in a larger analog ecosystem with shared gain calibration, ratio consistency, or tighter drift budgets. In fielded systems, the external-reference approach often pays off only if the board layout, reference buffer, grounding strategy, and calibration plan are already disciplined. Otherwise, a theoretically superior reference can underperform because its distribution network adds noise, drop, or coupling that the internal option would have avoided.

If the REF pin is used to source an external load from the internal reference, Texas Instruments recommends adding an external buffer amplifier with high input impedance. This is an important boundary condition. The internal reference should be treated primarily as a precision internal support node, not as a general-purpose board reference rail. Directly loading it with other circuits risks voltage shift, dynamic modulation, and degraded conversion consistency. A high-input-impedance buffer isolates the AMC7891 from downstream load variation and preserves the reference quality seen by the converter blocks. In practice, this buffer should be placed physically close to the REF pin, with short return paths and careful avoidance of digital edge coupling into the reference trace.

Signal range planning follows directly from the reference architecture. In mixed-signal devices, reference voltage effectively defines the scale against which analog values are interpreted or generated. This means the quality of the reference path influences not only absolute accuracy but also noise floor, repeatability, and control-loop stability. Designers sometimes focus on nominal voltage values and miss the more important issue: reference impedance versus frequency. A reference that measures correctly with a DMM can still produce poor conversion behavior if transient current demands from the internal converter circuitry are not absorbed locally. That is exactly why the recommended capacitor on REF matters, and why external reference routing should be compact, shielded from switching nodes, and tied to a quiet analog ground region.

Board implementation strongly influences whether the AMC7891 behaves like a precision monitor-control device or merely a functional one. AVDD decoupling should be placed close to the supply pin with a short path to AGND. The REF capacitor should sit as near as possible to the REF pin. SPI and GPIO return currents should not flow through the same copper that sets the analog reference return potential. If the board uses split or partitioned ground regions, the analog return path around REF, AVDD bypassing, and analog input circuitry should remain compact and continuous. Overly aggressive ground splitting can be as harmful as no partition at all if it forces long detour return paths or introduces impedance discontinuities near the converter support nodes.

A recurring implementation lesson is that digital rail flexibility can create false confidence. It is easy to connect SPIVDD and GPIOVDD to a low-voltage controller and assume the integration risk is solved. In reality, fast SPI edges referenced to a different digital domain can still capacitively or inductively couple into the analog area if the layout is dense or the return path is poorly managed. The supply architecture gives voltage compatibility, not automatic noise immunity. Good designs use the flexibility to reduce level-shifting complexity while still controlling edge rates, trace adjacency, and local decoupling.

From an application standpoint, the AMC7891 fits well in supervisory controllers, power-supply monitoring, bias and trim generation, fault management, and embedded service processors where analog observability and simple actuation must coexist with modern low-voltage digital hosts. In these use cases, the internal 2.5 V reference is usually sufficient when the goal is compactness and predictable integration. When the device is embedded in a larger precision measurement chain, an external reference can align it with system-wide calibration and drift targets. The better choice depends less on datasheet ideology and more on where the dominant error terms actually live: inside the reference source, in the board distribution network, or in the surrounding sensors and loads.

The most reliable design approach is to start from the analog intent. If the system needs a self-contained monitor/control IC with minimal external analog support, keep AVDD clean, use the internal reference, place the 4.7 µF REF capacitor carefully, and isolate REF from any external load with a buffer if sharing is required. If the system needs cross-device reference consistency or a tighter precision budget, move to an external reference only after confirming that the source can drive the REF input properly and the layout can preserve reference integrity. The AMC7891 is flexible enough to support both strategies, but its best performance comes when supply partitioning, reference topology, and physical implementation are treated as one connected design problem rather than three independent checklist items.

Texas Instruments AMC7891 Package, Pin Functions, and PCB Implementation Points

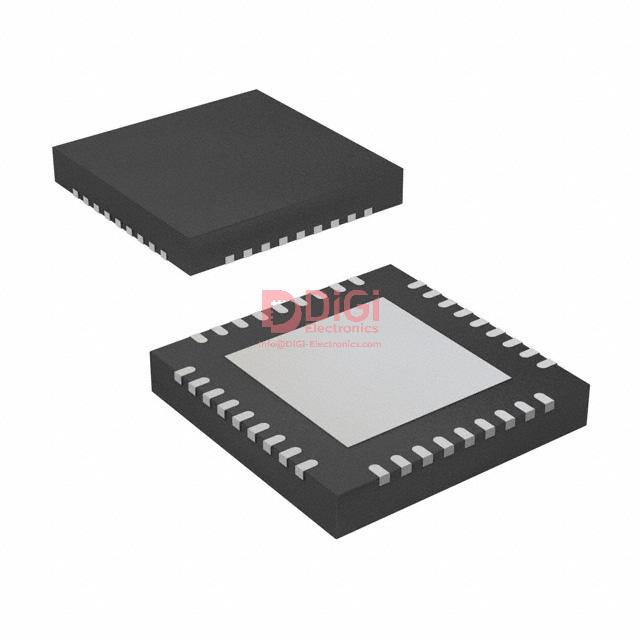

Texas Instruments AMC7891 uses a 36-pin VQFN package in a 6 mm × 6 mm outline with an exposed thermal pad on the bottom side. The small footprint is attractive for dense mixed-signal boards, but the package shifts more responsibility to the PCB. Electrical stability, thermal margin, and converter accuracy are no longer determined only by the IC itself. They depend heavily on how the package is anchored into the board stackup, how return currents are guided, and how sensitive analog nodes are isolated from digital activity.

The exposed pad is not just a mechanical or thermal feature. In this device class, it acts as a low-impedance reference attachment to the PCB and is one of the main paths for heat extraction. Connecting this pad solidly to the ground plane with multiple vias is therefore a functional requirement, not a layout refinement. A sparse via pattern or partial solder coverage often leads to two coupled problems: higher junction temperature and a less stable local ground reference under dynamic load conditions. The published thermal numbers make this clear. A junction-to-ambient thermal resistance of 30.6°C/W means that package temperature rise can become significant when internal dissipation is sustained. The much lower junction-to-board thermal resistance of 5.3°C/W shows that the board is the intended heat spreader. In practice, this means thermal performance is dominated less by the package body and more by copper area, via density, and how effectively heat is transferred into the inner and backside planes.

A robust implementation usually places an array of thermal vias directly under the exposed pad and ties them into a continuous ground structure. Small-diameter vias with reasonable pitch tend to give better manufacturability and more uniform solder attachment than a few large vias. If via-in-pad is used, tenting or filling strategy should be reviewed carefully to avoid solder wicking and voiding. Large pad voids are often tolerated electrically, but in thermally loaded designs they reduce both heat conduction and pad stiffness. On compact boards, it is also useful to avoid splitting the ground plane directly beneath the device. A continuous copper region under the package improves both thermal spreading and the local AC return path.

The grounding scheme of AMC7891 deserves more attention than the pin count might suggest. AGND1 and AGND2 are the analog ground references and should be shorted together to form a unified AGND region. DGND is the digital reference. Although these nodes may connect into the same board-level ground system, the key requirement is that their potential difference remain below 0.3 V. That number should not be read as a relaxed allowance. In a mixed-signal converter, even much smaller transient differences can degrade repeatability, introduce code-dependent disturbances, or modulate the DAC and ADC transfer behavior. The real objective is not merely DC continuity. It is to keep the analog and digital return currents from contaminating each other in the frequency range where the device is sensitive.

A good layout approach is to treat AGND as the quiet local reference for the analog pins and place decoupling returns, reference-related returns, and DAC output-related returns into this analog ground region first. DGND should carry the digital interface return currents and any fast edge activity associated with logic transitions. These currents should be allowed to close locally rather than cross the analog section in search of a return path. When the two ground domains join, the connection should be short, low impedance, and close to the device’s own grounding structure. In many practical layouts, the best result comes from using a continuous ground plane while functionally partitioning current paths by placement rather than by aggressive copper splitting. Hard splits often create larger return-loop areas and produce exactly the ground offsets they were intended to prevent.

The analog pin group includes eight AIN inputs, the REF pin, and four DAC outputs. These nodes should be treated according to sensitivity rather than simply by signal direction. The AIN pins are measurement inputs, so they are vulnerable to capacitive pickup, crosstalk from serial interfaces, and reference ripple. The REF pin is usually the most sensitive analog node in the system because any disturbance on the reference directly scales converter performance. Even when the internal architecture provides some rejection, broadband noise on the reference path tends to appear as conversion instability or low-frequency drift that is difficult to debug later. For this reason, the REF trace should be short, shielded by ground where possible, and separated from switching digital lines. If an external reference source is used, its decoupling network should be placed tightly around the pin with the shortest possible return path to AGND.

The four DAC outputs are buffered and can be used directly, which simplifies downstream interfacing. Still, “buffered” should not be interpreted as “immune to layout.” If these outputs drive high-impedance control nodes, bias networks, or feedback points in a power or sensing loop, they should be routed as quiet analog outputs. Crosstalk into a DAC line can translate into control perturbation, output ripple, or subtle setpoint movement. This is especially visible when a DAC output passes near SPI lines, clocks, or other edges with high dV/dt. A short trace, controlled load, and local RC filtering where system bandwidth allows often give a much more stable result than relying on the output buffer alone. In boards that combine AMC7891 with switching converters or gate-drive circuitry, maintaining physical distance between DAC traces and high-current switching loops is often more effective than later filtering.

The eight AIN channels also benefit from source-aware routing. If an input source has high impedance, the trace becomes more susceptible to leakage, capacitive coupling, and charge injection from neighboring nets. In that case, trace length should be minimized, guard-ground adjacency can help, and any anti-alias or source-filter network should be placed close to the pin rather than near the signal origin. If the source is low impedance, routing becomes more forgiving, but shared return paths can still inject measurement error. A recurring field issue in mixed-signal boards is not random noise but deterministic error linked to digital bus activity. The pattern often traces back to an analog input routed parallel to a clock line for a few centimeters or to a reference capacitor returned into a digital current path. These errors are repeatable, load-dependent, and often mistaken for converter nonlinearity until the layout is reviewed.

The DAV pin is open-drain and requires an external 10 kΩ pull-up resistor to GPIOVDD when used. This detail is small but important. Open-drain outputs do not define a logic-high level by themselves, so signal integrity and timing depend on the pull-up network and the receiving logic domain. If the line is routed over any meaningful distance or shared with multiple loads, rise time should be checked against the required polling or interrupt timing. A 10 kΩ value is usually appropriate for low-speed signaling and moderate capacitive load, but on a noisy board a weaker pull-up can leave the line too slow or too vulnerable to coupled transients. If DAV is not used, tying it to DGND is a clean termination choice and avoids leaving a floating digital node on the board.

Placement strategy is as important as net connectivity. The best results usually come from centering AMC7891 within the analog control region, keeping the reference and analog inputs on one side in a quiet field, and pushing digital access lines toward the digital side of the layout. Decoupling capacitors should sit close to the corresponding supply pins, with direct via access into the ground plane. The current loop formed by each supply pin, its capacitor, and the return via should be made as compact as possible. This reduces local supply bounce and prevents high-frequency current from spreading through the broader ground system. If multiple supply rails are present, each should be decoupled according to its noise content and the device pin function, rather than using a generic capacitor pattern.

Thermal and electrical design should not be separated during review. On this package, the exposed pad, ground strategy, and local copper geometry influence both simultaneously. A board with an excellent schematic but a weak pad attach, fragmented ground under the package, or poorly controlled return paths may still pass initial bring-up and then show drift, inconsistent ADC codes, or DAC-related interference under temperature or load stress. Designs that remain stable across operating corners usually have one common characteristic: the PCB treats the device as a mixed-signal subsystem, not as a set of independent pins. That mindset leads naturally to a solid pad-to-ground connection, unified and low-impedance grounding, protected reference routing, and disciplined separation between analog nodes and digital switching paths.

Texas Instruments AMC7891 Electrical Performance and Key Specification Interpretation

Texas Instruments AMC7891 is best evaluated as a mixed-signal system management device, not as a standalone precision converter. That distinction matters because its value does not come from leading-edge resolution or metrology-grade dynamic performance. It comes from how effectively it consolidates monitor, bias, threshold, and housekeeping functions into a single device with predictable behavior. In practical board-level design, this often reduces component count, routing complexity, calibration overhead, and software coordination effort more than a higher-spec converter would.

Its 10-bit ADC and 10-bit DAC should be read in that context. A 10-bit converter provides 1024 codes, which is modest by data-acquisition standards but often entirely sufficient for supervisory loops, slow analog trimming, rail monitoring, RF bias adjustment, fault threshold setting, and power subsystem telemetry. In these use cases, absolute converter depth is rarely the only factor that determines useful system resolution. Sensor scaling, reference quality, layout noise, supply ripple, settling behavior, and software filtering usually dominate the final result. A well-implemented 10-bit path with stable transfer characteristics can outperform a nominally higher-resolution solution that is undermined by board noise or poor reference management.

That is why the AMC7891 fits well into monitor-and-control architectures. In RF bias control, for example, the goal is usually not waveform reconstruction but controlled placement of an operating point. If a bias loop includes periodic calibration or closed-loop adjustment against measured current, temperature, or output power, 10-bit granularity is often enough to reach the desired operating region and keep drift contained. The same applies in power management telemetry, where knowing whether a rail, current sense node, or thermal proxy has moved meaningfully is more important than extracting fine laboratory-grade detail. For analog threshold generation, repeatability and smooth code progression usually matter more than very small LSB size.

The DAC monotonicity specification is especially important here. Monotonic behavior guarantees that output moves in only one direction as the input code increases or decreases. In control systems, that is not a cosmetic detail. It prevents local reversals that can destabilize loops, complicate calibration tables, or create hard-to-diagnose dead zones near threshold boundaries. A non-monotonic DAC may still look acceptable on a bench when sweeping slowly, but in firmware-managed bias updates or fault margin adjustments, even a single backward step can create inconsistent behavior. Monotonicity is therefore one of the most operationally valuable properties of a control DAC, often more valuable than adding a few bits of nominal resolution.

The ADC dynamic specifications should also be interpreted with care. SFDR of 76 dBc, SNR of 61 dBc, SINAD of 60.5 dBc, and THD of 75 dBc are reported for a 1 kHz, -1 dBFS sine wave. These figures are useful, but they should not be read as evidence that the device is intended for spectral analysis, precision audio, or wide-dynamic-range signal digitization. They indicate that the ADC path is clean enough for low-frequency observability in embedded analog systems. In health monitoring, bias verification, current and voltage supervision, and slow-loop measurement, this level of AC performance is usually more than adequate. It supports confidence that the converter is not introducing large distortion artifacts or excessive noise relative to the signal class it is meant to observe.

A useful engineering reading of the ADC numbers is to treat them as indicators of measurement cleanliness rather than as targets for frequency-domain applications. In many monitor channels, the measured variable is quasi-static or slowly varying. Examples include drain current proxies, supply rails, thermistor voltages, detector outputs, and control-loop feedback nodes. For these signals, averaging, digital filtering, and bounded bandwidth often improve effective usability more than a higher headline SNR would. In practice, once the front-end source impedance, anti-alias filtering, and grounding are handled correctly, the converter’s dynamic performance is rarely the limiting factor in supervisory measurement.

The DAC noise figures deserve similar contextual interpretation. Output noise density of 260 nV/√Hz at 1 kHz and integrated 0.1 Hz to 10 Hz noise of 20 µVp-p indicate that the DAC output is suitable for generating stable control voltages in many biasing and threshold applications. These values are not ultra-low-noise benchmark numbers, but they are well aligned with the intended role of the device. For bias generation into moderate-bandwidth control nodes, enable thresholds, comparator references, and management-level analog setpoints, this noise level is generally low enough to avoid visible system impact.

The more important question is how that DAC noise propagates through the surrounding analog path. If the DAC feeds a high-gain amplifier, a sensitive VCO tuning node, a low-noise RF bias network, or a narrow-margin analog front end, the local transfer function can amplify what initially appears to be a small noise source. This is where many evaluations become misleading. A DAC may look quiet in isolation, yet the downstream circuit can convert its low-frequency noise into gain drift, phase perturbation, or output power variation. For that reason, the AMC7891 should be validated as part of the complete control chain rather than as an isolated source. In most housekeeping and supervisory applications it will be comfortably sufficient, but in noise-critical paths, filtering, buffering, or topology changes may still be needed.

Power-up behavior is another area where the AMC7891 is stronger than raw resolution numbers suggest. The DAC outputs reset to 0 V at power-on, which is a highly practical feature in systems where uncontrolled startup bias can stress downstream stages. This matters in RF chains, laser drivers, gate-bias networks, and analog subsystems with narrow safe-operating windows. A known-zero startup state simplifies the protection strategy because it reduces the need for additional clamps, sequencing glue logic, or external analog gating. It also makes firmware bring-up more deterministic. Instead of first neutralizing unknown analog outputs, software can move directly into a defined initialization sequence.

In fielded systems, startup determinism often carries more value than an incremental improvement in converter resolution. Many failures are not caused by steady-state inaccuracy but by transient conditions during reset, brownout, hot-swap, or staggered rail sequencing. A device that powers up into a benign analog state reduces these risks materially. It also shortens debug cycles, because unwanted startup excursions are among the most difficult mixed-signal issues to reproduce consistently.

From a system architecture perspective, the AMC7891 is best used where integration and coordination matter more than converter prestige. It is a strong fit for boards that need multiple analog observability and control points without the cost, power, or layout burden of assembling separate ADCs, DACs, references, and supervisory logic. That includes telecom and RF platforms, industrial control cards, power shelves, test fixtures, and embedded monitoring modules. In these environments, the device acts as an analog management layer. It measures enough, controls enough, and starts safely enough to support the rest of the system.

One recurring design pattern is to pair devices like this with software calibration rather than chasing hardware precision at the component level. Gain and offset errors, sensor variation, and board-level tolerances can often be corrected digitally with little system penalty. When that is done carefully, the practical value of a 10-bit converter rises significantly. What matters then is stable transfer behavior, monotonic control, repeatable startup, and low enough noise to keep corrections meaningful over time. The AMC7891 aligns well with that philosophy.

Another useful way to frame the part is that it closes the gap between pure analog support circuitry and true data conversion. It is not trying to replace a precision measurement chain, and it does not need to. Its role is to provide controlled visibility and actuation around the edges of a larger system. That role is common, often underestimated, and frequently where integration yields the largest reliability gain. When evaluated on those terms, the electrical specifications make sense: moderate resolution, respectable dynamic cleanliness, practical DAC noise behavior, and startup characteristics that reduce system risk.

For product evaluation, the correct question is not whether the AMC7891 competes with a high-resolution instrumentation converter. It does not. The more useful question is whether its specification set is well balanced for embedded monitor-and-control tasks. In most supervisory analog applications, the answer is yes. The device offers enough ADC performance to observe low-frequency variables with confidence, enough DAC quality to generate stable control voltages, monotonic behavior that protects loop predictability, and startup defaults that simplify safe system sequencing. Those attributes usually matter more to the end product than raw bit depth alone.

Texas Instruments AMC7891 Typical Application Scenarios for Engineers

Texas Instruments AMC7891 fits best in systems that need dense monitor-and-control capability at the edge of an analog signal chain. Its value is not just that it integrates ADCs, DACs, GPIO, and temperature sensing into one device. The more important advantage is architectural consolidation. In many communication and industrial control platforms, the low-bandwidth analog supervision path grows organically until it consumes excessive board area, routing effort, firmware attention, and failure analysis time. AMC7891 addresses that problem by turning scattered housekeeping functions into a single SPI-managed mixed-signal control point.

At the device level, its role is straightforward: observe analog operating conditions, generate analog control setpoints, and coordinate simple digital control states. In practice, this closes many small but essential loops around RF, optical, and power-conditioning subsystems. These loops are usually not high-speed control loops in the classical sense. They are supervisory loops that maintain bias, enforce limits, sequence rails, detect drift, and support calibration. That distinction matters, because it defines where AMC7891 delivers the most value: near the boundary between precision analog management and system-level digital orchestration.

In a cellular base station RF chain, AMC7891 maps naturally onto bias and telemetry functions around power amplifiers, low-noise amplifiers, driver stages, couplers, and detector circuits. RF subsystems rarely fail in dramatic ways at first. More often, they drift. Gain compresses earlier than expected, bias currents shift with temperature, or detector voltages indicate rising mismatch or power imbalance. A device with multiple ADC channels allows these analog observables to be sampled continuously or on a scheduled basis, giving the host processor a real-time operational view of the RF path rather than a simple pass/fail indicator.

Its DAC outputs are equally important in this environment. RF front-end blocks often require carefully adjustable bias or reference voltages. These setpoints may need to change across operating modes, temperature regions, output power targets, or calibration states. Using AMC7891 DACs for these nodes simplifies implementation because the same device that measures the response can also apply the correction. This creates a compact monitor-adjust-verify path over SPI. That pattern is often cleaner than distributing the function across discrete ADCs, standalone DACs, and GPIO expanders, especially when bring-up time and repeatability matter more than raw loop bandwidth.

GPIO integration helps with the control plane around the analog path. Enable pins, reset lines, gain-state selects, external alarm captures, and mux controls can all be handled locally. This is not just a pin-count convenience. It reduces synchronization problems between analog measurement and digital state changes. When the same peripheral controls both the observation points and the related logic signals, firmware can implement more deterministic sequences, such as disabling a PA, changing a bias level, waiting for settling, and then validating detector feedback. In board-level debugging, this kind of coherence often shortens root-cause isolation because state transitions are easier to correlate with measured analog values.

In optical networking equipment, AMC7891 is well suited to housekeeping control around transceiver support circuitry, laser-driver supervision, receive-path diagnostics, and local power domains. Optical systems usually contain many “quietly critical” analog nodes. Laser bias, modulation-related control points, monitor photodiode outputs, transimpedance-related references, and precision rails all affect link quality and long-term stability. These are rarely signals that demand very high sample rates, but they do require reliable visibility and repeatable setpoint control. That is exactly the operating region where a mixed-signal monitor-and-control device becomes efficient.

The on-chip temperature sensor adds another useful dimension in optical designs. Thermal behavior is often one of the hidden variables behind intermittent faults, wavelength drift, output power variation, or calibration movement over time. Correlating temperature with analog feedback channels can reveal whether a control issue is electrical, thermal, or interaction-driven. In many designs, this local thermal visibility proves more actionable than relying only on a distant board-level sensor, because thermal gradients across optics and analog front ends can be significant even on compact assemblies.

The GPIO bank also has practical value in optical modules and line cards. Status inputs from protection circuits, module-present detection, fault outputs, and simple control strobes can be absorbed without introducing another digital companion device. That reduces both BOM count and software fragmentation. One recurring issue in housekeeping architectures is that every added peripheral creates another register map, another initialization sequence, and another potential failure point during power-up. Consolidation through AMC7891 helps keep the supervisory layer comprehensible, which is often more important than saving a few cents on individual components.

For a general-purpose monitor-and-control board, AMC7891 works well as a mixed-signal satellite connected to an FPGA, MCU, or application processor over SPI. This is a strong architectural choice when the host has limited analog capability, when its integrated ADC resources are already committed, or when analog routing to the host would degrade signal integrity or layout simplicity. By placing AMC7891 physically near the monitored subsystem, sensitive analog traces can remain short and local while only the SPI interface crosses into the digital domain. That usually improves noise behavior and makes board partitioning cleaner.

This satellite-controller model also scales well in modular systems. A host can treat each AMC7891 instance as a local service node responsible for one analog neighborhood: an RF section, a power-conversion island, an optical module support area, or a calibration fixture interface. That partitioning makes firmware more structured. Instead of a monolithic control task with scattered I/O assumptions, the software can operate around well-defined channel groups and update sequences. In larger systems, that often leads to better maintainability than relying on miscellaneous host GPIOs and opportunistic ADC usage.

From an engineering implementation standpoint, the main design benefit is not merely integration but coupling between observability and actuation. Whenever a design must both measure and influence an analog node group, placing those functions in one device creates a more testable and more calibratable subsystem. For example, a DAC can step a bias reference while ADC channels observe the resulting detector voltage, supply current proxy, or feedback signal. That enables production calibration, field retuning, and fault localization with minimal extra hardware. In many platforms, this capability becomes more valuable over the product lifecycle than the initial space savings.

There are also practical layout and system considerations that shape good AMC7891 usage. Analog inputs should be grouped by noise sensitivity and source impedance, with attention to reference stability and return-current control. DAC outputs that set critical bias points should usually feed well-understood analog stages rather than long, exposed nets. GPIO lines tied to noisy enables or switching events should be routed so they do not contaminate nearby analog measurement channels. These are ordinary mixed-signal rules, but they matter more in highly integrated control devices because one poor routing decision can couple noise across functions that otherwise would have been physically separated.

SPI protocol design deserves similar attention. In monitor-and-control applications, communication reliability often matters more than throughput. It is better to define deterministic update frames, clear startup defaults, readback verification for critical writes, and fault-handling behavior when the host resets unexpectedly. A common source of field issues in supervisory subsystems is not analog error but state inconsistency: DACs holding old values, GPIOs defaulting incorrectly, or ADC data being interpreted before analog settling completes. Treating AMC7891 as a managed control endpoint rather than a simple peripheral usually avoids these problems.

A useful design pattern is to separate channels into three classes: continuous health telemetry, event-driven diagnostics, and command-driven control points. Health telemetry includes supply rails, detector outputs, and temperature. Event-driven diagnostics covers nodes that only matter during alarm investigation, startup, or calibration. Command-driven control points include DAC-set bias levels and GPIO-managed enables. Structuring firmware and schematics around those classes makes the device easier to integrate and debug. It also aligns with how these systems are actually operated after deployment: most channels are observed for trend and limit checking, while a smaller subset is actively changed.

The strongest application scenarios for AMC7891 are therefore not defined by one industry alone but by a recurring system pattern: many low-to-medium-speed analog observables, several adjustable analog setpoints, a handful of digital control lines, and a host that benefits from offloading housekeeping detail. Communication infrastructure, optical transport, and modular monitor-and-control boards all match that pattern well. When used this way, AMC7891 does more than save components. It creates a disciplined boundary between the main digital controller and the analog operating envelope of the subsystem, which is often the difference between a design that merely functions and one that remains manageable through bring-up, calibration, and long-term support.

Texas Instruments AMC7891 Selection Advantages, Limits, and Design Tradeoffs

Texas Instruments AMC7891 is best understood as a system-integration device rather than a standalone precision converter. Its value comes from collapsing several board-level functions into a single mixed-signal component: eight analog monitor channels, four DAC outputs, an internal temperature sensor, and 12 GPIOs, all tied together through a programmable interface structure. In designs where supervision, bias generation, basic closed-loop control, and housekeeping signals must coexist, this level of integration changes the architecture itself. It reduces component count, shrinks routing complexity, and often removes several small but failure-prone glue circuits around the data path.

The practical advantage is not just fewer parts. It is tighter control over signal ownership inside the design. When monitoring channels, DAC setpoints, and GPIO state machines sit inside one device, sequencing becomes easier to reason about. Register-based configuration replaces a collection of loosely coupled comparators, DACs, ADCs, and expanders. That usually shortens bring-up because there are fewer inter-device timing interactions to debug. In compact control boards, this also helps PCB partitioning. Analog sensing, DAC outputs, digital status, and supervisory telemetry can be kept physically close, which often improves routing discipline and lowers the chance of accidental coupling through long traces.

The voltage-domain arrangement is one of the more useful design features. The analog core remains on a 5 V rail, while the SPI and GPIO logic can operate from 1.8 V up to 5.5 V. In mixed-voltage systems this matters more than it first appears. It allows direct connection to modern low-voltage processors or FPGAs without adding dedicated level translators on every control path. That reduces latency, saves board area, and removes another class of interoperability issues. In practice, this kind of domain flexibility often determines whether a mixed-signal device feels easy or awkward to integrate. Here, the AMC7891 is clearly designed to sit between legacy analog requirements and newer low-voltage digital control planes.

This split-domain approach does come with an implicit tradeoff. The device still expects a proper 5 V analog supply, so it does not fully align with systems built around single-rail low-voltage power trees. If the rest of the board is centered on 3.3 V or below, the 5 V requirement adds a local supply rail, along with its regulation, decoupling, startup behavior, and noise management burden. That is usually acceptable in instrumentation, power management, or industrial control hardware where 5 V analog rails already exist. It is less attractive in aggressively power-optimized embedded platforms where every additional rail complicates sequencing and EMI control. The integration density can offset that penalty, but only if the design genuinely uses a meaningful portion of the channel mix.

Converter resolution defines the real application boundary. Both ADC and DAC functions are 10-bit, which places the AMC7891 in the supervisory and control class, not the precision metrology class. This is enough for threshold monitoring, rail observation, actuator biasing, LED or current-loop setpoint generation, and moderate-granularity feedback loops. It is not enough for fine calibration, high-dynamic-range sensing, or trimming tasks where sub-millivolt behavior matters over temperature and time. A common selection mistake is to focus on channel count and integration while underestimating what 10-bit quantization means at the system level. Once reference scaling, front-end tolerance, noise, and layout parasitics are included, usable control granularity becomes the real constraint. In many boards that is still perfectly adequate. In some boards it quietly becomes the dominant error source.

That distinction is especially important when the DAC outputs are used to bias sensitive analog stages. A 10-bit DAC can set operating points cleanly for coarse thresholding or programmable margins, but it will not behave like a fine trimming element unless the full-scale range is intentionally narrowed by external circuitry. The same is true on the ADC side. If the monitored signals are power rails, thermistor dividers, current-sense amplifiers, or fault thresholds, 10 bits is often enough to make robust decisions. If the goal is waveform characterization, subtle drift analysis, or high-accuracy telemetry, the device is being pushed outside its natural design center. The best results come when the engineer treats the AMC7891 as a supervisor with conversion capability, not as a data acquisition engine with a few extra peripherals attached.

Startup behavior is another area where the device shows strong system-level thinking. DAC reset to 0 V is a meaningful safety feature, not just a convenience item in the datasheet. In power sequencing, motor bias control, laser or LED drive conditioning, and programmable analog thresholds, a known-safe DAC state at reset removes one of the more common transient failure paths. Undefined or retained DAC outputs can force loads into unsafe regions before firmware gains control. Starting from 0 V gives the rest of the platform time to establish references, validate supply rails, and complete initialization before asserting analog outputs. In boards that interact with external power stages or sensitive downstream amplifiers, this behavior simplifies fault containment and startup qualification.

Low operating power and power-down support add to this supervisory profile. These features are useful not because the AMC7891 is an ultra-low-power sensor hub, but because they allow the device to fit into staged-power architectures. In systems with sleep states, maintenance modes, or conditional subsystem activation, being able to reduce active overhead while preserving a consolidated monitoring and control block is often more valuable than chasing absolute minimum current on a per-function basis. A single integrated device usually consumes less total system power than several discrete devices with duplicated references, interfaces, and always-on support logic.

The internal temperature sensor should be viewed realistically. It is useful for thermal supervision, board health awareness, and coarse compensation decisions. It is not optimized for fast thermal control loops, and the 15 ms conversion time makes that clear. This timing is acceptable for monitoring enclosure rise, local hot-spot trends, or protection thresholds where thermal inertia dominates. It is much less suitable when temperature is part of a rapid correction loop or when spatial thermal accuracy matters more than local die temperature. In practice, internal temperature readings are most effective when treated as a secondary diagnostic signal that complements external thermal sensing rather than replaces it.

From an implementation standpoint, analog integration does not eliminate analog discipline. The monitor inputs still require careful source impedance planning, filtering, grounding, and protection strategy. Dense integration can create a false sense that analog behavior has been abstracted away by the IC. It has not. If high-impedance sources are routed casually, or if DAC outputs share return paths with noisy digital currents, the resulting performance loss can easily exceed the nominal converter limits. A compact mixed-signal part concentrates functionality, which means layout mistakes also concentrate their effects. Short return paths, well-placed decoupling, guard-aware routing around sensitive nodes, and deliberate partitioning of digital edge currents remain essential.

There is also a board-level tradeoff around failure containment. Consolidation reduces BOM and interconnect complexity, but it centralizes functions that might otherwise fail independently. If the design depends on the AMC7891 for multiple supervisory roles at once, fault analysis should reflect that aggregation. It is often worth defining degraded modes in firmware so the system can distinguish between loss of one external signal and loss of the monitoring hub itself. This is where integrated devices reward disciplined architecture. The hardware becomes simpler, but software responsibility grows because more control authority is concentrated behind one SPI endpoint.

The strongest application fit is therefore clear. AMC7891 works well in power-supply supervision, industrial control cards, communication modules, embedded bias-control subsystems, and general-purpose housekeeping planes where several moderate-resolution analog and digital functions must be coordinated without consuming significant board area. It is particularly attractive when the alternative would be a separate monitor ADC, a quad DAC, a GPIO expander, and discrete thermal supervision. In those cases, the savings are not only physical. Validation effort usually drops because interface standardization and state observability improve.

It is a weaker fit for high-accuracy instrumentation, detailed sensor acquisition, precision calibration engines, or designs that are rigidly constrained to low-voltage-only analog rails. In such cases, a higher-resolution ADC/DAC pair or a more specialized monitoring architecture will usually produce a better long-term result, even if the initial schematic looks more fragmented. That is the central tradeoff: AMC7891 favors architectural efficiency over conversion depth. When channel mix, startup safety, interface flexibility, and board simplification dominate the requirement stack, it is a strong selection. When absolute precision is the primary metric, its integration becomes secondary to its 10-bit ceiling.

Potential Equivalent/Replacement Models for Texas Instruments AMC7891

Potential replacement evaluation for Texas Instruments AMC7891 should begin from the correct premise: this device is part of a broader Texas Instruments Analog Monitor and Control family, and the vendor guidance points to family-level selection rather than a guaranteed one-to-one drop-in substitute. That distinction matters. In mixed-signal control devices, a part can look similar at the feature-list level while still diverging in register map behavior, conversion timing, reference architecture, reset behavior, or alarm handling. For AMC7891, the practical replacement path is therefore requirement-driven selection inside the TI AMC portfolio, followed by a strict compatibility audit.

The first layer of evaluation is functional partitioning. AMC-class devices usually sit at the boundary between sensing, supervisory control, and low-speed actuation. In that role, the device is not just an ADC or just a DAC; it often becomes a small analog management subsystem connected over SPI. Because of that, replacement analysis must separate what the system truly depends on from what the original design merely happened to use. The critical questions are straightforward: how many analog input channels are actually populated, how many DAC outputs are active in firmware, whether the internal temperature sensor participates in control or protection loops, how GPIO lines are assigned, and what converter resolution is required for both measurement fidelity and output granularity. Once those dependencies are mapped, the candidate set usually becomes much smaller.

Channel count is the most visible parameter, but it should not be treated as a simple numeric match. If the original design uses only a subset of AMC7891 monitoring inputs, a lower-channel family member may be viable in a cost-reduced redesign. If the design is already multiplexing external signals aggressively or operating near monitoring limits, a higher-channel device may be the safer migration path. In practice, spare channels often become valuable during late validation because they enable additional health checks, current-sense taps, or board-temperature observation without major schematic disruption. That small architectural margin tends to pay back quickly in debug and field diagnostics.

DAC resources require a similar but deeper review. Matching the number of outputs is necessary, but output behavior is usually the real constraint. Engineers should verify output range, monotonicity expectations, settling time, startup default state, and reference dependency. A candidate with the same DAC count but different output scaling or power-up behavior can change actuator bias conditions, margining circuits, or calibration routines. This becomes especially important when DAC outputs are used for threshold generation, laser biasing, supply trimming, or programmable analog front-end control, where a minor transfer-function difference can propagate into system-level drift or calibration offset.

Converter resolution is often overemphasized in marketing comparisons and underanalyzed in system context. A higher-resolution candidate is not automatically a better replacement. If the analog front end, sensor noise floor, PCB layout, and reference stability limit effective number of bits, extra nominal resolution may add little value while increasing data-processing latency or firmware complexity. Conversely, reducing resolution can be acceptable in supervisory applications where thresholding and trend detection matter more than precision measurement. The key is to evaluate effective system accuracy, not only converter specification. In many deployed designs, reference tolerance, input-divider drift, and grounding strategy dominate the actual error budget long before the data sheet LSB size becomes the limiting factor.

The internal temperature sensor deserves explicit attention because it is often treated as a convenience feature until firmware or protection logic starts relying on it. If AMC7891-based logic uses internal die temperature for thermal derating, fault reporting, or compensation tables, then a replacement must be checked for sensor availability, accuracy class, update behavior, and register compatibility. If temperature monitoring is only advisory, external alternatives may be acceptable. A recurring issue in board migrations is that internal temperature channels are assumed interchangeable, yet different devices may report die-local thermal conditions with different offsets and time constants. That can alter fan control thresholds, warning behavior, and thermal margin calculations.

GPIO count and behavior can become hidden blockers. On paper, GPIOs look fungible, but in real systems they may be assigned to reset chains, interrupt aggregation, mux controls, or hardware strapping functions that have tight sequencing rules. A substitute device with the same number of GPIOs but different default direction, drive strength, pull state, or interrupt capability may require firmware changes or even external glue logic. The safest method is to classify each GPIO by electrical role: static control, status input, interrupt output, timing-sensitive handshake, or shared multifunction use. That classification usually exposes whether the replacement is only logically compatible or truly system-compatible.

SPI compatibility must be examined at multiple layers. Electrical support for SPI is only the entry point. True migration confidence requires checking frame length, command structure, register addressing, readback conventions, daisy-chain support if used, clock polarity and phase assumptions, chip-select timing, and behavior during partial transactions or brownout recovery. Firmware teams often discover late that a candidate device is “SPI-compatible” only in the generic sense, while the software stack assumes specific register initialization order, fault-clear semantics, or status-bit persistence. For that reason, register-level comparison should happen early, before schematic changes are finalized. In low-volume redesigns, firmware rework can dominate the total migration cost more than hardware edits.

Supply-voltage architecture is another major filter. Replacement devices must be checked against analog supply range, digital I/O levels, reference voltage requirements, power-up sequencing, and tolerance to rail ramp asymmetry. Mixed-signal monitor-and-control parts often have subtle dependencies between analog performance and supply topology. A device that fits functionally but expects a different reference domain or logic threshold can force level shifters, reference redesign, or sequencing changes. Those additions may appear minor, yet they can inject noise, complicate bring-up, and consume board area. In dense designs, preserving the original supply and reference architecture is often more valuable than gaining an extra feature.

Package constraints should be treated as both a mechanical and signal-integrity issue. Pin count and footprint are the obvious items, but thermal behavior, lead inductance, exposed pad requirements, and pin grouping also matter. Even when package dimensions are close, a different pinout can disturb analog routing symmetry, increase crosstalk, or lengthen sensitive reference traces. For monitor-and-control devices, small routing changes can produce measurable conversion variance, especially where high-impedance inputs, DAC outputs, and digital clocks converge in a tight area. A nominally manageable PCB respin can therefore become an analog performance regression unless layout is reviewed as part of replacement screening.

Operating temperature range should be evaluated against the real deployment envelope, not only the procurement target. If AMC7891 is used in industrial control, power infrastructure, or outdoor electronics, replacement screening should include temperature-dependent drift, startup behavior at cold corners, and alarm reliability at hot corners. Field experience repeatedly shows that supervisory mixed-signal parts can remain functionally alive outside nominal comfort zones while their measurement fidelity degrades enough to trigger false alarms or poor control decisions. A broad operating range spec is helpful, but drift behavior across that range is usually the more meaningful criterion.

A practical replacement workflow is to move through four gates. First, establish a hard requirements matrix: used channel count, DAC dependencies, GPIO assignments, temperature-sensing role, resolution floor, supply rails, interface assumptions, package envelope, and environmental limits. Second, shortlist TI AMC family devices that meet those hard constraints at the feature level. Third, perform a compatibility audit at pin, register, voltage, timing, and startup-state levels. Fourth, validate the top candidate on a bench setup that reproduces the original firmware sequence and representative analog loads. This staged method avoids a common mistake: selecting by data-sheet similarity first and discovering system-level incompatibilities only after procurement and layout effort are already committed.

For procurement and lifecycle planning, the absence of a documented direct one-to-one TI replacement for AMC7891 means internal classification becomes important. A candidate can be a form-fit-function replacement, a firmware-compatible replacement, or only a redesign candidate. These are very different categories. Treating them as equivalent creates schedule risk. In many organizations, the most efficient path is to separate immediate sustainment needs from optimization goals: use the closest family match for continuity if inventory pressure exists, but reserve feature expansion or channel-count changes for a controlled redesign rather than forcing both objectives into one substitution cycle.

The strongest replacement direction for Texas Instruments AMC7891 is therefore to stay within the Texas Instruments AMC family and evaluate alternatives against the actual system dependency map rather than searching for an assumed drop-in equivalent. That approach aligns with the vendor’s own positioning of the product family and reflects how mixed-signal control devices behave in real designs. The best substitute is not the part with the nearest headline specifications; it is the one that preserves measurement integrity, control behavior, firmware assumptions, and board-level electrical conditions with the least unintended change.

Conclusion

Texas Instruments AMC7891 is best understood as a mixed-signal housekeeping and supervisory hub rather than a standalone data-conversion device. It integrates the functions that repeatedly appear around analog front ends and control backplanes: an 8-channel 10-bit ADC for monitoring, four 10-bit DACs for setpoint generation, an on-chip temperature sensor for local thermal awareness, and 12 GPIOs for status and control signaling. These blocks are tied together through a fast SPI-compatible interface, allowing a host controller to manage analog and digital telemetry through a single compact IC. This level of integration is particularly effective in RF communication platforms, optical transport hardware, and dense monitor-and-control boards where board area, routing simplicity, and device count matter as much as absolute converter precision.

The main engineering value of the AMC7891 is not that each individual function is exceptional in isolation, but that the functions are balanced around real subsystem needs. Many control planes do not require high-resolution precision ADCs or ultra-low-drift DACs. They need predictable, repeatable, moderate-resolution measurement and control for bias loops, supply supervision, laser or amplifier housekeeping, threshold setting, and fault-state visibility. In that operating range, the AMC7891 removes a large amount of interface fragmentation. Instead of allocating separate ADC, DAC, GPIO expander, and temperature monitor devices, the design can centralize these roles in one SPI endpoint. That usually translates into fewer nets, fewer power-domain interactions, less firmware overhead at the driver layer, and a cleaner PCB floorplan.

From the bottom up, the ADC section addresses the monitoring side of the problem. Eight channels of 10-bit conversion are sufficient for reading supply rails, bias voltages, detector outputs, current-sense nodes, and other relatively slow analog variables. In practical monitor-and-control architectures, these signals are rarely bandwidth-intensive. What matters more is deterministic polling, channel availability, and enough resolution to detect drift, margin loss, or out-of-family behavior before it becomes a fault. A 10-bit ADC is often the right economic point for this class of telemetry, especially when the system-level decision is based on thresholds, trend analysis, or calibration tables rather than fine-grain metrology. In dense systems, this also reduces the temptation to overdesign the monitoring path with precision converters whose performance is not actually used by the control algorithm.

The DAC section supports the control side with four 10-bit outputs. These channels are well matched to tasks such as setting bias voltages, programming reference levels, trimming analog operating points, or driving control inputs on companion ICs. In many deployed systems, DAC resolution above 10 bits only produces visible value when the surrounding analog chain, reference quality, and software calibration strategy can preserve that extra granularity. If the load path includes gain variation, temperature drift, or external tolerances larger than one least significant step of a higher-resolution DAC, additional converter bits become more cosmetic than useful. The AMC7891 sits in a practical range where control smoothness and implementation cost remain aligned. That balance is one reason it fits well into supervisory loops rather than instrumentation-grade actuation paths.

The integrated temperature sensor is easy to underestimate, yet it often improves system robustness more than another increment of converter resolution. Thermal context changes how analog readings should be interpreted and how control outputs should be applied. In RF and optical hardware, gain, bias current, detector response, and supply behavior often shift with local temperature. A colocated sensor gives firmware a direct way to compensate, derate, or alarm based on the environment seen by the supervisory IC itself. It also simplifies bring-up because local thermal data can quickly explain changes in ADC readings or DAC tuning behavior during stress tests, chamber sweeps, or enclosure-level validation.

The 12 GPIOs extend the device from measurement-and-control into broader supervisory orchestration. They can be used for reset lines, enable pins, fault flags, mux selects, interrupt handling, power-sequencing assists, or general status collection. This matters because monitor-and-control subsystems rarely stop at analog telemetry. They also need low-speed digital coordination across regulators, amplifiers, switches, sensors, and protection circuits. Integrating GPIO alongside ADC and DAC resources keeps these interactions synchronized under one register model and one serial link. That reduces firmware complexity in a subtle but important way: the host can sample analog conditions and change digital state through the same device transaction framework, which makes control loops easier to reason about and debug.

The SPI-compatible interface is a major contributor to the device’s practicality. SPI remains one of the most manageable choices for supervisory devices because it is simple, low-latency, and well supported across FPGAs, microcontrollers, and embedded processors. In systems where several mixed-signal peripherals compete for software attention, using a single SPI-managed supervisory IC reduces driver sprawl and improves timing visibility. It also simplifies isolation planning in modular architectures, since one serial control path can sometimes replace several mixed-signal interfaces that would otherwise require separate level translation or routing treatment. During board bring-up, this usually results in faster validation because configuration, polling, and fault reproduction are concentrated through one access method.

The strongest selection argument for the AMC7891 is system consolidation, but that phrase is often treated too narrowly as a BOM-count benefit. The deeper advantage is architectural compression. Fewer external devices mean fewer reference interactions, fewer opportunities for analog crosstalk through long traces, fewer addresses or chip-select dependencies, and fewer corner cases during power-up sequencing. It also reduces the number of components whose tolerances and startup behavior must be modeled together. In compact analog control domains, this often improves not only cost and density but also integration predictability. A smaller supervisory chain is usually easier to qualify than a loosely assembled collection of single-function parts.

This makes the AMC7891 a strong fit for several application classes. In RF communication hardware, it can supervise PA bias nodes, monitor rail health, adjust gain-control references, and collect alarm inputs without forcing a fragmented support design around the main signal chain. In optical networking equipment, it can handle laser bias-related housekeeping, temperature-aware operating-point adjustment, supply monitoring, and module-level control signaling in a compact footprint. In general industrial or embedded monitor-and-control boards, it can serve as the central service IC for analog measurements, analog setpoints, and low-speed digital coordination. In each of these cases, the value is highest when the supervisory plane is important but not the primary source of product differentiation. The device handles the infrastructure layer efficiently so engineering effort can stay focused on the core signal-processing or transport function.

There are also clear boundaries to where it should be used. The AMC7891 is not the best choice when the design target depends on high-precision metrology, very low-noise waveform generation, or fast closed-loop analog control requiring high sampling rates and fine resolution. If the monitored variables demand tight absolute accuracy across temperature and aging, or if DAC output linearity is central to product performance, then a dedicated precision converter chain is usually the better path. Similarly, if GPIO count or digital sequencing complexity grows beyond moderate supervisory needs, a larger control device may become more efficient. The right way to evaluate AMC7891 is to ask whether the control plane needs integrated adequacy or specialized excellence. It is optimized for the former.

In implementation, the most successful designs usually treat the device as a structured subsystem resource rather than a collection of independent features. ADC channels should be grouped by signal type and update criticality. DAC outputs should be assigned to functions that benefit from deterministic nonvolatile configuration strategy and straightforward calibration. GPIO should be reserved for supervisory tasks, not consumed casually by miscellaneous logic that may later complicate firmware ownership. Analog inputs should be routed with the same discipline applied to larger converters, even if the resolution is moderate, because ground noise, reference cleanliness, and channel protection still determine whether 10-bit performance is actually achieved on the board. Experience across monitor-and-control designs shows that moderate-resolution devices often underperform not because of their architecture, but because they are placed in layouts as if they were digital utilities rather than analog components.

Another practical consideration is software partitioning. When one IC owns multiple supervisory functions, firmware can either become simpler or more entangled depending on the register-access model. A clean abstraction layer pays off quickly: one block for telemetry acquisition, one for analog setpoint management, one for thermal status, and one for digital I/O policy. That separation helps preserve maintainability as the board evolves. It also prevents a common failure mode in compact supervisory designs where ad hoc SPI transactions accumulate until calibration, fault handling, and sequencing logic become difficult to verify. Devices like the AMC7891 deliver their full value when hardware integration is matched by disciplined software structure.

From a sourcing and productization perspective, the consolidation offered by the AMC7891 supports BOM simplification, package density, and assembly efficiency. Those are visible benefits, but the less visible gain is often lifecycle resilience. Reducing the number of supervisory components can shrink qualification effort, lower inventory diversity, and simplify second-order interactions during revision changes. In products that must move through multiple board spins or support derivative variants, a compact mixed-signal supervisor can provide a stable control foundation with fewer redesign ripple effects.

The AMC7891 is therefore best selected when the design requires moderate-resolution analog monitoring and control, flexible digital interfacing, and compact integration in a single device. Its strength lies in combining enough analog capability with enough digital utility to cover the majority of housekeeping functions around larger systems. That is why it works so well in analog-intensive platforms where supervision must be reliable, dense, and easy to manage, but does not need to compete with dedicated precision instrumentation components. In that operating space, it is not merely a convenient part. It is a structurally efficient one.
