Can the AM5728BABCX be safely used in an industrial control system operating at 85°C ambient temperature, and what thermal management strategies are recommended to avoid junction temperature violations?

The AM5728BABCX has a maximum junction temperature (TJ) of 90°C, so operating in an 85°C ambient environment leaves only a 5°C margin for self-heating—this is extremely tight and risky without active cooling. Even light computational loads can push TJ beyond the limit due to power dissipation from the dual-core Cortex-A15 and integrated GPUs/DSPs. To mitigate this, implement a thermally conductive PCB layout with multiple ground planes, use a heatsink with forced airflow, and monitor die temperature via the built-in thermal sensor. Consider derating CPU frequency or enabling dynamic voltage and frequency scaling (DVFS) in software to reduce heat under sustained loads.

What are the key risks when replacing the AM5728BABCX with the NXP i.MX 8M Plus in a medical imaging device that relies on real-time DSP and vision processing?

While the i.MX 8M Plus offers similar ARM Cortex-A53 performance and NPU acceleration, it lacks the AM5728BABCX’s tightly coupled C66x DSP cores and IVA-HD video accelerator, which are critical for low-latency, deterministic image processing in medical applications. Migrating DSP algorithms from TI’s Code Composer Studio to NXP’s eIQ environment may introduce timing uncertainties and require significant re-validation. Additionally, the AM5728BABCX supports hardware-based memory protection units (MPUs) and deterministic interrupt handling better suited for safety-critical tasks. A full risk assessment should include latency benchmarking, certification impact (e.g., IEC 62304), and potential need for external DSP co-processors to match functionality.

How does the AM5728BABCX’s mixed-signal I/O voltage support (1.8V and 3.3V) impact PCB design when interfacing with legacy 5V TTL sensors without level shifters?

The AM5728BABCX’s I/O pins are not 5V-tolerant—applying 5V signals directly can cause latch-up or permanent damage, even if the pin is configured as an input. While some 3.3V-tolerant pins exist, none support 5V logic levels per the datasheet. Designers must use bidirectional level translators (e.g., TXB0108 or SN74LVC8T245) on all signal lines connecting to 5V TTL devices. Relying on series resistors or pull-ups is insufficient and risky. Furthermore, ensure power sequencing avoids back-driving the I/O rails during startup, as the AM5728BABCX’s MSL3 rating requires careful handling to prevent ESD damage during assembly.

Is it feasible to run both USB 3.0 and Gigabit Ethernet simultaneously on the AM5728BABCX in a high-throughput data acquisition system, and what bandwidth bottlenecks should be anticipated?

Yes, the AM5728BABCX supports concurrent operation of its USB 3.0 (5 Gbps theoretical) and Gigabit Ethernet (1 Gbps) interfaces, but real-world throughput is limited by the shared L3 interconnect and DDR3 memory bandwidth. Under heavy load, contention between the IVA, GPU, and CPU can saturate the memory controller, reducing effective data rates. For sustained transfers, prioritize DMA usage and minimize CPU involvement. Also, verify that your PCB layout meets USB 3.0 SuperSpeed differential pair impedance (90Ω ±10%) and Ethernet magnetics placement requirements to avoid signal integrity issues that could degrade performance or cause link drops.

What long-term reliability concerns should be considered when deploying the AM5728BABCX in outdoor telecommunications equipment with wide temperature cycling from -20°C to +70°C, despite its specified 0°C to 90°C TJ range?

Although the AM5728BABCX’s junction temperature range is 0°C to 90°C, operating below 0°C ambient violates its specified conditions and risks cold-start failures, increased leakage current instability, and potential latch-up during power-up. Repeated thermal cycling between -20°C and +70°C accelerates solder joint fatigue in the 760-FCBGA package, especially without underfill. Mitigate this by using conformal coating to reduce moisture ingress, selecting PCBs with low CTE materials (e.g., high-Tg FR4 or polyimide), and implementing a controlled power-ramp sequence to minimize inrush stress. Additionally, monitor long-term drift in clock accuracy due to crystal oscillator sensitivity at low temperatures, which may affect Ethernet PHY synchronization.

Texas Instruments AM5728BABCX - DiGi Electronics Sitara™ 1.5GHz MPU

Name: Texas Instruments AM5728BABCX
Brand: Texas Instruments
SKU: AM5728BABCX
Price: 392.7824 USD
Availability: InStock
Rating: 5.0 (29 reviews)

AM5728BABCX Product Overview and AM572x Sitara Positioning

AM5728BABCX belongs to Texas Instruments’ AM572x Sitara family and should be understood as a heterogeneous embedded processing platform rather than a conventional standalone application MPU. At the device level, it integrates dual Arm Cortex-A15 cores running up to 1.5 GHz in a 760-pin FCBGA package, but the practical value of the part comes from the way its compute domains, accelerators, and I/O fabric are combined into a single system-oriented architecture. Its role is to consolidate workloads that would otherwise be split across multiple processors, FPGA logic, or dedicated interface devices.

The AM572x positioning is important because it reflects a deliberate architectural strategy. Many embedded systems no longer fit neatly into either the microcontroller model or the pure applications-processor model. They need Linux-class software capability, deterministic control behavior, multimedia processing, industrial networking, and secure connectivity at the same time. AM5728BABCX addresses that overlap by providing high-level application processing alongside specialized engines for video, graphics, signal processing, and real-time communication. In engineering terms, this reduces inter-device latency, lowers board complexity, simplifies power-tree planning, and avoids the software overhead that appears when major functions are distributed across separate chips.

At the processing layer, the dual Cortex-A15 subsystem provides the main applications domain. This is where operating systems such as Linux typically host the user interface, middleware, networking stacks, file systems, supervisory control logic, and cloud or edge connectivity functions. The Cortex-A15 is not selected here merely for raw frequency. Its deeper pipeline, out-of-order execution behavior, and strong memory subsystem make it suitable for workloads that combine UI rendering, protocol handling, data aggregation, and higher-level decision logic. In practice, this matters when the system must keep a responsive interface while simultaneously handling fieldbus traffic, sensor streams, and local analytics without visible stalls.

What makes the AM5728BABCX more capable than a dual-core Arm processor alone is the surrounding heterogeneous compute structure. The AM572x platform is designed so that workloads can be placed according to timing sensitivity and computational character. Signal-heavy or mathematically dense functions can be pushed away from the Cortex-A15 cores to dedicated processing resources. Graphics and video tasks can be isolated from control software. Real-time operations can run independently of application-level software jitter. This separation is often the difference between a system that works in a lab setup and one that remains stable under field conditions, where display activity, communication bursts, and control deadlines all collide.

This mixed-processing model is especially relevant in industrial and intelligent vision designs. A single device may need to acquire image data, pre-process it, run analytics, update an HMI, exchange industrial Ethernet frames, and log data upstream. If all of that is forced onto general-purpose CPU cores, the design quickly encounters scheduling contention, thermal inefficiency, and unpredictable latency. AM5728BABCX avoids that trap by giving the system architect several execution domains with different strengths. The result is not only higher throughput, but better partitioning discipline. Good designs on this class of processor usually begin by treating each subsystem as a separate timing and bandwidth problem, then mapping it onto the most suitable engine instead of defaulting to the Arm cores.

From the multimedia standpoint, the device family is positioned for products that require richer visual and video capability than a standard industrial controller would normally provide. This includes advanced HMIs, operator terminals, machine vision interfaces, smart surveillance endpoints, and embedded analytics nodes. The inclusion of graphics and programmable video resources means the processor can support fluid display behavior and media-oriented data paths without needing an external graphics processor. That integration is not just a feature checklist advantage. It reduces memory traffic across off-chip interfaces, cuts BOM cost, and removes a common integration risk associated with driver coordination between separate application and graphics devices.

The industrial relevance of AM5728BABCX is equally central to its positioning. The AM572x family is intended for systems where communication is not limited to standard Ethernet or USB, but extends into industrial networking and time-sensitive control environments. In these systems, interface flexibility is only useful if paired with predictable behavior. The platform therefore fits applications such as automation controllers, protocol gateways, industrial PCs, robotics interfaces, and edge controllers that must bridge plant-floor communication with higher-level software stacks. A recurring design benefit in such systems is that control-plane and information-plane tasks can coexist on one processor while remaining cleanly separated in software and scheduling terms.

Cryptographic acceleration adds another layer of system value. In current embedded deployments, security is no longer a peripheral feature. It directly affects boot integrity, firmware updates, device authentication, and protected communications. Hardware-based security functions offload the CPU and help maintain throughput when secure channels are active. More importantly, they allow security mechanisms to remain enabled in production systems without consuming a disproportionate share of application compute budget. In connected industrial equipment, this tends to matter most when multiple encrypted sessions, remote management, and persistent logging all operate concurrently.

The package and integration level also have practical implications. A 760-FCBGA device with this amount of functionality demands disciplined board design, especially around DDR routing, power distribution, high-speed interfaces, and thermal behavior. The processor enables major system consolidation, but it also shifts more design responsibility into PCB layout, PMIC coordination, and memory topology decisions. In most successful implementations, early attention to bandwidth budgeting and power sequencing prevents later software symptoms that might otherwise be mistaken for driver or OS instability. With a device in this class, hardware architecture and software architecture are tightly coupled from the beginning.

For product selection, AM5728BABCX is best viewed as a convergence component. It is particularly strong when the design target combines three or more of the following: a substantial HMI, real-time or near-real-time control, industrial communication, local analytics, camera or video handling, and secure connectivity. If the product only needs simple control and modest connectivity, the device can be excessive. If the product requires high-end server-class compute or desktop-style graphics, it is not the right category either. Its strongest position is in the middle ground where embedded systems need broad functional integration, deterministic behavior in selected subsystems, and enough application horsepower to support modern software frameworks.

A useful way to think about the AM5728BABCX is that it reduces system fragmentation. Instead of building one board around an MPU for Linux, another around an MCU for control, and adding extra devices for graphics or protocol handling, the design can be centered on a single coordinated processing platform. That does not automatically make development simple; heterogeneous devices demand careful partitioning, memory planning, and software ownership boundaries. But when those are handled well, the payoff is significant: fewer chips, lower interconnect complexity, tighter data movement, and a cleaner path from prototype to production.

Within the Sitara portfolio, the AM5728BABCX therefore occupies a high-performance tier aimed at embedded products that are no longer satisfied by basic application processing alone. Its value lies in workload orchestration across integrated compute and acceleration resources. That is the real reason it fits applications such as industrial communication nodes, advanced HMIs, automation systems, embedded analytics platforms, and control equipment with strong interface demands. The part is not merely powerful; it is architected to let multiple classes of embedded workload coexist efficiently on the same silicon, which is often the deciding factor in modern system design.

AM5728BABCX Processing Architecture and Heterogeneous Compute Resources

AM5728BABCX is built around a heterogeneous processing model in which the dual Arm Cortex-A15 subsystem acts as the system anchor, while multiple specialized engines absorb workloads that would otherwise overload a conventional MPU-only design. The architectural value is not simply the presence of more cores. It comes from the way different compute domains are matched to different classes of work: control-heavy software on the A15s, numerically dense kernels on the DSPs, deterministic service functions on the M4-based IPUs, and multimedia or graphics pipelines on dedicated accelerators. That division is what makes the device particularly effective in systems that must combine Linux-class software, real-time behavior, and high data throughput on a single SoC.

The Cortex-A15 pair is the primary execution domain for operating systems, middleware, communications stacks, UI frameworks, file systems, and system-level orchestration. As a dual-core 32-bit Arm implementation with Neon support, it is well positioned for embedded Linux and similar environments where a large software ecosystem matters as much as raw compute. In practice, these cores typically host the software that changes most often over the product lifecycle: application logic, network services, update infrastructure, data management, and supervisory control. That makes them the natural location for code that benefits from rich toolchains, memory protection, and broad library availability.

Neon is important here not because it replaces the DSPs, but because it fills a useful middle layer. It can accelerate vectorizable tasks such as image pre-processing, basic filtering, audio stages, checksum operations, and data layout transforms without forcing every performance issue into a separate accelerator path. This is often the most efficient first optimization step. Many pipelines run best when the A15 handles control and moderate SIMD work, while only the high-cost kernels are offloaded to the DSPs or fixed-function engines. That balance usually reduces software fragmentation and keeps latency more predictable.

The real distinction of AM5728BABCX appears in the DSP subsystem. The AM572x family includes up to two C66x floating-point VLIW DSPs, and AM5728 is among the variants with both DSP1 and DSP2 enabled. These cores are designed for sustained arithmetic intensity. They are strong fits for FIR and IIR filtering, FFT-based analysis, machine vision primitives, sensor fusion, motor or motion control mathematics, and other workloads dominated by multiply-accumulate operations and structured dataflow. Compatibility with C67x and C64x+ object code also protects prior software investment, which matters in industrial and signal-processing markets where proven algorithm code may have been refined over many product generations.

The DSPs are most valuable when they are treated as algorithm engines rather than general-purpose processors. A common design mistake is to migrate too much application logic into the DSP domain simply because compute is available there. That usually complicates integration, memory ownership, and debug flow. A cleaner partition is to let the A15 own policy, sequencing, and high-level state, while the DSPs execute bounded kernels with well-defined inputs, outputs, and performance expectations. When partitioned this way, the system becomes easier to scale and easier to verify under load. This is one of the more important architectural lessons with AM57-class devices: heterogeneous compute pays off only when responsibility boundaries are kept sharp.

The dual Cortex-M4 IPU subsystems, identified as IPU1 and IPU2, add another layer of separation. Their presence is often underestimated because they do not deliver the headline throughput of the A15 or C66x blocks. However, they are highly useful for deterministic service functions, low-latency control paths, supervisory monitoring, and subsystem autonomy. Tasks such as peripheral coordination, time-sensitive housekeeping, local control loops, and isolated service firmware fit naturally here. In systems where Linux on the A15 may experience scheduling variation, moving critical support tasks to an IPU can materially improve responsiveness and fault containment.

This M4 layer is also useful as a structural buffer between the application domain and hardware-facing routines. For example, a design can place communication marshaling, sensor management, or watchdog-linked recovery logic on an IPU, allowing the A15 to focus on system services and user-visible behavior. That separation tends to simplify safety-oriented reviews and makes it easier to reason about failure modes. Even when absolute real-time requirements are moderate, assigning “must always respond” tasks to the IPUs often leads to a more robust system than attempting to keep everything inside a large Linux process space.

AM5728BABCX further integrates a broad set of co-processing resources listed in product documentation as DSP, BB2D, IPU, IVA, GPU, and VPE. This matters because the device is not merely a CPU-plus-DSP product. It is a multimedia-capable SoC with several specialized acceleration paths that can remove large classes of work from the general-purpose cores.

The GPU serves graphics and parallel visual workloads, especially in systems with advanced HMIs, composited displays, or 3D-assisted user interfaces. In many embedded products, the GPU is not only about aesthetics. Offloading display composition and rendering can free substantial A15 bandwidth for control and communications. When user experience and deterministic backend behavior must coexist, that offload becomes architecturally important rather than optional.

IVA and VPE are similarly significant for video-centric pipelines. They allow portions of video analytics, encode/decode processing, or image stream handling to move into engines built for sustained media throughput. In systems handling multiple camera streams, display output, or codec-heavy data movement, using these blocks is often the difference between a stable thermal and bandwidth profile and a design that appears feasible only in a synthetic benchmark. BB2D contributes to 2D graphics and image manipulation paths, helping with composition, blits, and other display pipeline operations that would otherwise consume CPU cycles with low architectural return.

This concentration of engines is why AM5728 is one of the more fully enabled AM572x variants. The product-selection significance is straightforward: it can consolidate application processing, signal processing, vision or media handling, and UI acceleration into one device without forcing an external FPGA, companion DSP, or second application processor for many designs. That reduces board complexity, inter-device latency, and software synchronization overhead. It also simplifies BOM control, power distribution, and long-term support strategy. In embedded systems, integration at this level is often more valuable than a narrow increase in peak CPU performance.

From an engineering workflow perspective, the architecture should be understood as a resource allocation problem rather than a simple feature list. The question is not “which cores are available,” but “which workload belongs on which compute domain, under which latency, bandwidth, and maintenance constraints.” The best AM5728 designs usually begin by classifying software into four buckets: control-plane software, data-plane compute, deterministic service logic, and media/graphics pipelines. Once this is done, mapping becomes clearer. The A15 runs the control plane. The C66x DSPs absorb dense numeric kernels. The M4 IPUs host deterministic service logic. The GPU, IVA, VPE, and BB2D handle the visual and media path. This layered mapping is more stable than assigning functions opportunistically as performance issues arise.

Memory traffic is often the hidden limiter in heterogeneous SoCs, and AM5728BABCX is no exception. A design may appear compute-rich on paper, yet underperform if data movement between processing domains is excessive or poorly scheduled. DSP acceleration only helps when buffers are aligned, transfer granularity is sensible, and ownership handoff is disciplined. Similar constraints apply to video and graphics paths. The practical implication is that software architecture must account for data locality early. Moving a task to an accelerator while leaving a fragmented buffer model in place can produce marginal gains at best. In many cases, the major performance win comes not from the accelerator itself, but from redesigning the pipeline so each engine receives data in the format and cadence it expects.

Another recurring issue is the interaction between isolation and coordination. Heterogeneous devices invite clean partitioning, but every partition creates interfaces, synchronization points, and debug boundaries. Over-partitioning can become as harmful as under-utilization. If a workload is modest and tightly coupled to application state, keeping it on the A15 with Neon may be better than distributing it across A15, DSP, and IPU. Conversely, if timing guarantees matter, resisting offload in the name of software simplicity can create long-term instability. The most effective approach is usually incremental: start with a working A15-centric implementation, then migrate only the portions that show persistent compute pressure, latency sensitivity, or power inefficiency.

In deployment-oriented systems, this architecture also improves fault handling and service continuity. A Linux application issue on the A15 does not necessarily imply loss of all subsystem behavior if watchdog, monitoring, or low-level maintenance functions reside on an IPU. Likewise, DSP-resident algorithm execution can remain insulated from UI spikes or network stack bursts on the application cores. This separation is one of the less visible but more valuable reasons to choose a heterogeneous processor. It enables graceful degradation strategies that are difficult to achieve in a purely CPU-centric design.

Viewed as a whole, AM5728BABCX is not just a high-integration embedded processor. It is a compute fabric with distinct execution layers optimized for different kinds of work. The dual Cortex-A15 cores provide a flexible software-rich control environment. The dual C66x DSPs deliver arithmetic acceleration for algorithmic workloads. The dual Cortex-M4 IPUs add deterministic and autonomous service capability. GPU, IVA, VPE, and BB2D extend the device into graphics and multimedia domains. For designs that must combine application logic, signal processing, media handling, and responsive control in one platform, that mix is unusually strong. The architectural advantage is greatest when the processor is used as intended: not as a pool of interchangeable cores, but as a set of specialized engines coordinated by clear software boundaries and disciplined dataflow.

AM5728BABCX Graphics, Video, and Display Capabilities

AM5728BABCX places unusual emphasis on the visual data path. Its value is not limited to driving a screen; it comes from how display, graphics, video, and memory movement are arranged as a coordinated subsystem. That distinction matters in embedded products where the bottleneck is rarely raw compute alone. In practice, visual responsiveness is usually constrained by bandwidth arbitration, buffer movement, composition latency, and how efficiently the device can transform camera or decoded video into a final display frame. The AM5728 architecture addresses these points with a display subsystem, dedicated 2D and 3D engines, video acceleration blocks, and direct support for mainstream display interfaces.

At the display layer, the device documentation indicates support for Full HD output at 1920 × 1080p and 60 fps, with a display controller, DMA engine, multiple input and output paths, and up to three pipelines. This is a strong architectural signal. A processor built only for basic framebuffer output typically exposes a much simpler display path and leaves composition work to the CPU or GPU. Here, the presence of multiple pipelines means the system can manage independent image layers such as background video, UI overlays, cursors, alarm banners, or instrumentation widgets with lower software overhead. The DMA-backed display controller is equally important because it reduces CPU involvement in frame transport. In real systems, this often translates into more deterministic UI performance under load, especially when network traffic, control loops, and logging are active at the same time.

The practical implication for HMI terminals, industrial panels, and embedded display controllers is not just that the screen looks good. It is that the processor can sustain structured visual workloads. A typical operator interface may need to render static assets, animate controls, overlay status indicators, and update trend graphs while maintaining low touch latency. If all of that is pushed through general-purpose cores, responsiveness degrades quickly as soon as the application starts doing useful work elsewhere. The AM5728BABCX avoids that trap by distributing the workload across fixed-function and specialized engines. That is often the real difference between a product that feels stable and one that appears overloaded even when average CPU utilization looks acceptable.

The graphics subsystem is split in a way that is especially useful for embedded design. The BB2D subsystem based on the Vivante GC320 handles 2D graphics operations, while 3D rendering is provided by a dual-core PowerVR SGX544 GPU. This separation is more than a feature checklist. In an embedded GUI stack, much of the day-to-day work is still 2D in nature: blits, fills, alpha blending, image scaling, color conversion, and composition of layered assets. Offloading these operations to the 2D engine can free the 3D GPU for scene rendering or keep the 3D path idle when the interface does not need it. That improves efficiency and can simplify thermal budgeting.

The dual-core SGX544 becomes relevant when the interface moves beyond conventional static HMIs into richer visualization. Examples include animated dashboards, OpenGL ES-based interfaces, 3D machine models, perspective transitions, map overlays, or multi-window industrial diagnostics. In these cases, the GPU does not simply add visual polish. It makes it possible to preserve a responsive interface while keeping CPU cycles available for protocol handling, analytics, or supervisory logic. A CPU-only design can be forced to render these interfaces, but usually at the cost of higher power, less headroom, and more fragile frame timing. The stronger architectural approach is to let each engine handle the class of operations it was built for.

The video path broadens the role of the processor from display controller to multimedia endpoint. The IVA-HD subsystem, with support for H.264 encode and decode up to 4K at 15 fps and up to 1080p60 for other codecs, indicates that the device is prepared for compressed video workflows as well as local rendering. That becomes important in systems that ingest, store, relay, or transform visual streams rather than merely presenting generated graphics. A machine vision front end may need to capture and preprocess incoming video, an industrial recorder may need local encode capability, and a remote-monitoring terminal may need to decode live streams while still running a full GUI. Integrating those functions in the SoC can remove external codec devices from the board and reduce both design complexity and failure points.

The Video Processing Engine and the three Video Input Port modules reinforce this point. They suggest a processor architecture designed for movement and conditioning of visual data, not just frame generation. In deployment, this can support use cases such as multi-camera acquisition, video overlay on local display, image pipeline staging before analytics, or direct presentation of live sources to the operator. This layered arrangement is often more valuable than peak graphics numbers. In embedded equipment, the challenge is frequently to connect camera input, compression, scaling, format conversion, and display output without wasting memory bandwidth or introducing unnecessary software copies. The AM5728BABCX is better understood as a visual pipeline manager than as a processor with a screen attached.

One practical lesson in this class of design is that display capability alone does not guarantee a clean implementation. Multi-pipeline subsystems are powerful, but they reward disciplined partitioning of layers and careful memory planning. The most stable designs usually reserve hardware pipelines for elements with distinct timing or update behavior: for example, live video on one plane, static UI on another, and transient overlays on a third. That reduces redraw pressure and avoids re-compositing the full frame for every small screen change. When this is done well, the interface remains fluid even during video updates or alarm bursts. When it is done poorly, the system still works, but memory traffic rises sharply and latency becomes unpredictable.

The same applies to the coexistence of 2D and 3D acceleration. Efficient products tend to use the 2D engine aggressively for routine composition and image operations, then invoke 3D only where it clearly adds value. That balance is often better than pushing the entire UI through a 3D framework. In embedded systems, elegant architecture is usually the result of selective acceleration, not maximal acceleration. The AM5728BABCX supports that selective model well because its hardware blocks map naturally to different visual workloads.

On the output side, support for HDMI 1.4a and DVI 1.0 through the HDMI encoder expands integration options for equipment that must connect directly to standard displays, operator monitors, or commercial panels. This simplifies product definition because the same compute platform can serve sealed embedded panels, service displays, and external monitor configurations with fewer board-level changes. For industrial and medical-style visualization products, that flexibility is often more useful than a narrowly optimized display interface. It also helps shorten development cycles because standard display attachment reduces uncertainty during bring-up and validation.

For operator terminals, smart displays, and embedded visualization nodes, the combination of Full HD output, multi-pipeline composition, 2D and 3D acceleration, codec support, and standard display interfaces creates a balanced visual platform. The architecture is well suited to systems that need to present dense information, react quickly, and optionally ingest or transform video in parallel. The most important point is not any single block in isolation. It is the way the blocks reduce cross-domain interference. Display refresh, UI rendering, video decode, and data movement can proceed with less contention than in a generalized CPU-centric design.

That makes AM5728BABCX particularly relevant in products where the screen is part of the control system rather than a decorative endpoint. In those designs, visual behavior carries operational meaning. Delayed overlays, dropped frames, or sluggish redraws are not cosmetic defects; they directly affect usability and confidence in the device. The processor’s multimedia architecture addresses that requirement at the hardware level, which is generally a more scalable strategy than trying to recover responsiveness later through software optimization alone.

AM5728BABCX Memory Architecture and Data Storage Interfaces

AM5728BABCX places memory architecture at the center of system behavior, not at the edge of the specification sheet. In this device class, processor throughput is rarely limited by core count alone. It is usually limited by how predictably data can be fetched, shared, and committed across heterogeneous engines. That is where the AM572x memory subsystem becomes strategically important. Its dual DDR3/DDR3L architecture, on-chip SRAM resources, DMA fabric, and broad storage interfaces together define the practical ceiling for graphics pipelines, video chains, control workloads, and embedded Linux platforms.

The device integrates two DDR3/DDR3L EMIFs, each supporting up to DDR3-1066 and up to 2 GB per interface. On paper, that suggests strong raw capacity and respectable bandwidth. In practice, the more important detail is the way memory is exposed in the unified L3 address space. Up to 2 GB of SDRAM is made directly available to all L3 initiators, and that region is typically interleaved across both EMIFs to improve effective throughput and reduce contention hotspots. This is not a cosmetic implementation detail. It directly affects how the MPU, GPU, DSP, IVA, and DMA masters observe external memory and how well they can operate concurrently under load.

Interleaving across both EMIFs is one of the more valuable architectural features because it converts two physical memory channels into a more balanced shared resource. Sequential and mixed-access workloads benefit when transactions can be distributed instead of converging on a single controller. In image processing or multi-stream video systems, this usually translates into fewer bandwidth cliffs when several engines become active at once. A design that looks adequate in terms of total megabytes per second can still fail under real traffic if memory topology is uneven. The AM5728BABCX avoids part of that risk by letting the shared SDRAM window behave more like a coordinated subsystem than two isolated banks.

The additional architectural note about memory above 2 GB is equally significant. If total physical memory exceeds 2 GB, the extra space is only accessible by the MPU through Arm v7 LPAE. This creates an asymmetric memory model. It means not all masters see all installed DRAM, even though the board may physically carry more than 2 GB. That distinction matters early in system partitioning. Shared buffers for DSP, GPU, hardware accelerators, or DMA-visible descriptors must remain inside the common L3-visible SDRAM window. Large application heaps, file cache expansion, or Linux user-space memory growth can use the MPU-only region, but only if software architecture is designed around that boundary. Ignoring this often produces subtle failures later, especially when developers assume total installed memory is uniformly accessible.

A useful design pattern is to treat the first 2 GB as the high-bandwidth shared working set and any memory above that as MPU-private expansion space. That separation tends to simplify software ownership, reduce integration surprises, and preserve determinism for accelerators. Frame buffers, codec working memory, DMA rings, and inter-processor communication regions fit naturally into the shared addressable zone. Larger non-real-time allocations, application-level caches, and bulk data staging can move upward into the LPAE-managed region. This is not just a software convenience. It aligns the memory map with the hardware visibility model, which generally leads to cleaner performance behavior.

Beyond external DDR, the device provides up to 2.5 MB of on-chip OCMC RAM. This resource is often more valuable than its size suggests. OCMC is not a replacement for DDR capacity, but it is a powerful tool for latency control. Small but timing-critical data structures perform better when they are isolated from external memory arbitration. Command queues, real-time control buffers, frequently touched lookup tables, and short-cycle intermediate data can be placed there to avoid the variability of DDR under heavy system traffic. In mixed-criticality designs, this can make the difference between stable timing and periodic stalls that only appear once the graphics stack, file system, and communication channels are all active.

In deployment, OCMC RAM tends to reward selective usage rather than aggressive filling. Placing everything possible into on-chip RAM often complicates memory management without producing proportional gains. The better approach is to identify a narrow set of structures whose access latency directly impacts pipeline continuity. For example, descriptor rings used by high-rate DMA channels, small synchronization buffers shared between subsystems, or hot-path metadata that would otherwise bounce through cache and DDR can all benefit. The gain is usually not visible in average benchmark numbers. It shows up in reduced jitter, fewer deadline misses, and more graceful behavior under burst load.

The Dynamic Memory Manager and enhanced DMA resources are critical complements to the raw memory hardware. In a heterogeneous SoC, performance depends less on moving data fast in one place and more on moving it with low intervention across many places. DMA engines reduce core overhead, but their real value lies in preserving locality and decoupling processing stages. When video frames, audio streams, neural pre-processing buffers, or sensor data can move directly between interfaces, accelerators, and memory, the cores are left to execute algorithms rather than act as transport agents. That separation becomes increasingly important as software stacks grow more layered.

A common mistake in system planning is to treat DMA as a generic optimization added after functional correctness is achieved. On AM5728BABCX, DMA strategy should be part of the initial architecture. Buffer sizes, alignment rules, cache maintenance policy, and interrupt pacing all interact with memory throughput. Poorly chosen transfer granularity can increase bus overhead. Excessive cache cleaning can erase the expected benefit of offloaded transfers. Shared buffers placed in the wrong region can force avoidable copies. The most efficient systems usually emerge when the data path is drawn first and the software ownership model follows it, not the other way around.

For non-volatile storage and memory-mapped external devices, the platform includes a General-Purpose Memory Controller that supports NAND, NOR, and asynchronous interfaces, with ECC assistance through ELM. This gives the device practical flexibility in boot design and industrial interfacing. NAND remains attractive where cost per bit matters and software can tolerate flash management complexity. NOR is still useful where direct execute-in-place behavior, simpler boot paths, or high read reliability dominate. Asynchronous device support also helps when integrating legacy peripherals or custom external logic that does not justify a high-speed serial protocol.

ECC support through ELM is especially relevant in NAND-based designs. Raw NAND always pushes some reliability burden into the system architecture, and that burden grows with density and field life. Hardware-assisted error location reduces software complexity and helps sustain acceptable read integrity under wear. In products expected to log data continuously or survive unstable power conditions, storage reliability is rarely determined by flash type alone. It depends on how well ECC, bad block management, boot redundancy, and write patterns are coordinated. The AM5728BABCX provides the hardware hooks, but the robustness still comes from disciplined partitioning and update strategy.

Quad SPI adds another useful storage tier. It sits between simple boot flash and high-capacity mass storage, offering a compact path for bootloaders, configuration images, trusted firmware, and moderate-sized application assets. In many embedded Linux systems, QSPI becomes the most stable home for first-stage boot content because it provides a predictable and isolated path independent of removable media or high-level file systems. This can simplify field recovery and reduce the number of variables during startup. For systems with strict boot-time requirements, keeping early boot assets in QSPI while reserving eMMC or SATA for the root filesystem often produces a cleaner and more serviceable design.

The presence of a SATA Gen2 interface extends the platform into heavier data-centric applications. SATA is not just about adding storage capacity. It changes the scale at which the processor can handle logs, media assets, and local databases. In gateways, recorders, machine-vision nodes, or edge analytics systems, sustained write bandwidth and storage endurance can become as important as compute throughput. SATA makes the device more suitable for high-duty-cycle recording and replay tasks that would stress lower-end flash interfaces. It also allows storage architecture to be separated by function, with high-speed local capture on SATA and firmware or control-plane storage on eMMC or QSPI.

The four MMC/SD/SDIO interfaces provide another layer of flexibility that is easy to undervalue until integration begins. The family supports a combination that includes one UHS-I 4-bit interface, one 8-bit eMMC interface, and additional SDIO-capable ports. This matters because different embedded products usually need different storage personalities. eMMC is the natural choice for managed onboard flash in production systems due to integration simplicity, decent performance, and controlled supply chain options. SD can support removable expansion, service workflows, and data export. SDIO allows the same host infrastructure to connect wireless modules or other peripherals without introducing a separate interface family. The result is not just broad compatibility, but more freedom in balancing boot reliability, field serviceability, and BOM complexity.

For boot architecture, the interface diversity enables several strong patterns. A robust industrial layout often places the primary boot chain in QSPI or eMMC, stores the main operating system in eMMC, and reserves SD for provisioning or recovery. A data-heavy multimedia design may boot from eMMC while streaming assets from SATA. A cost-sensitive controller may use NAND with ECC-backed management if software ownership of flash maintenance is acceptable. The key is to match each medium to its failure mode and access pattern rather than selecting one interface to do everything. Systems become easier to validate when boot-critical code, writable runtime storage, and bulk data repositories are intentionally separated.

Memory and storage on AM5728BABCX should therefore be viewed as one connected architecture. External DDR determines how shared computation scales. OCMC RAM defines where latency can be controlled tightly. DMA and memory management shape how efficiently data flows through the SoC. GPMC, QSPI, SATA, and MMC/SD/SDIO define how software is persisted, updated, and expanded in the field. The strongest designs are usually the ones that respect these as interacting layers rather than independent checklist items.

From an engineering perspective, the device is best used when memory regions are assigned by access semantics instead of by convenience. Shared real-time buffers belong in the universally visible SDRAM window or in OCMC when latency dominates. MPU-private expansion memory above 2 GB should be treated as capacity, not as universal working space. Boot media should be selected for determinism first and capacity second. High-bandwidth storage should be reserved for workloads that truly need sustained throughput. Once the architecture follows those rules, AM5728BABCX becomes much easier to scale from a functional prototype into a stable production platform.

AM5728BABCX Connectivity and Peripheral Integration

AM5728BABCX stands out less because of any single interface and more because of how much system-level connectivity is pulled on-chip. In embedded designs, that changes the architecture. Fewer external controllers mean fewer clock domains, fewer high-speed routing compromises, lower BOM pressure, and a simpler software stack boundary. On AM5728BABCX, connectivity is not an accessory to the compute subsystem; it is part of the device’s core value proposition.

At the network layer, the integrated 2-port gigabit Ethernet capability through GMAC is one of the most important selection drivers. In industrial control nodes, edge gateways, and distributed machine subsystems, dual-port Ethernet often supports more than basic uplink and downlink connectivity. It enables line-topology designs, segmented traffic handling, local switching strategies in software, and cleaner physical partitioning between plant-facing and service-facing channels. When both ports are available directly on the processor, board designers avoid adding an external switch or separate MAC device just to satisfy basic network topology requirements. That usually improves latency determinism, reduces power overhead, and simplifies EMI management because fewer high-speed devices are switching on the board.

This matters most in systems where networking is not merely used for remote access, but is part of the control architecture itself. A controller that must expose diagnostics upstream, talk cyclically to peer equipment, and still leave room for firmware service access benefits directly from integrated dual-port Ethernet. In practice, this also shortens bring-up. Fewer external networking components mean fewer reset interactions, fewer PHY-interface corner cases, and fewer dependencies during early board validation. That kind of integration tends to save time not in theory, but in the first weeks of lab work when stable link training and reproducible packet behavior matter most.

The USB subsystem extends that same integration philosophy. AM5728BABCX includes one USB 3.0 dual-role interface and one USB 2.0 dual-role interface, with embedded PHY support indicated in the family feature set. The immediate benefit is obvious: high-speed external attachment without requiring standalone host-controller silicon. The more important engineering implication is flexibility. Dual-role support allows the same hardware platform to behave differently across product variants or operational modes. One deployment may use USB 3.0 for high-speed log extraction or local mass-storage access, while another may expose it as a service interface during manufacturing, field updates, or maintenance.

USB 2.0 remains highly relevant despite the presence of USB 3.0. It is often the better fit for compatibility-oriented expansion, low-complexity service channels, and attachment of commodity peripherals where peak throughput is not the design constraint. In products that require a local HMI, temporary debug access, or technician-oriented access points, having both generations available directly on the SoC reduces architectural compromises. A recurring pattern in embedded products is that USB starts as a convenience feature and becomes operationally essential later, especially for diagnostics, firmware recovery, and trace export. Devices that integrate both high-speed and broadly compatible USB paths handle that evolution more gracefully.

For high-bandwidth expansion, the PCI Express and SATA capabilities push AM5728BABCX beyond the profile of a conventional control-oriented MPU. The AM572x family integrates PCI Express 3.0 subsystems with two 5-Gbps lanes, configurable as one 2-lane Gen2-compliant port or two 1-lane Gen2-compliant ports, and also includes SATA 3 Gbps support. This is a useful combination because it gives designers multiple ways to allocate bandwidth according to product goals rather than forcing a fixed expansion model. One design may use PCIe for a communications accelerator or specialized I/O module. Another may reserve it for high-speed data capture hardware, while SATA supports local storage for buffered logging, event recording, or edge analytics.

That flexibility has architectural value beyond raw throughput. In many embedded platforms, the challenge is not simply adding a fast interface, but deciding which traffic should stay local, which should move across a network, and which should terminate in persistent storage. PCIe and SATA together support that partitioning cleanly. A system handling camera data, waveform capture, or high-rate telemetry can ingest data through a custom peripheral, process locally, and commit selected results to storage without forcing all traffic through external bridges. This reduces latency and can make thermal and power behavior more predictable because the data path is shorter and less fragmented across multiple chips.

The serial and control-oriented I/O set is equally significant, especially for mixed-domain systems. AM5728BABCX integrates five I2C ports, ten configurable UART/IrDA/CIR modules, four McSPI modules, eight McASP modules, dual DCAN modules compliant with CAN 2.0B, HDQ/1-Wire, QSPI, keyboard controller support, and up to 247 GPIO pins. On paper, this looks like interface abundance. In actual system design, it means peripheral arbitration becomes a software problem rather than a board-level expansion problem. That is usually preferable. It is far easier to remap software ownership of a native serial block than to redesign a board because one more UART or SPI channel was needed late in the program.

I2C and SPI coverage supports dense sensor, PMIC, display-control, and housekeeping topologies. A design with multiple clock generators, power monitors, EEPROMs, ADC front ends, and auxiliary controllers can keep those functions distributed across dedicated buses instead of overloading a single shared channel. That improves fault isolation and helps avoid the subtle bus-capacitance and address-collision issues that appear when too many low-speed devices are packed onto one segment. UART density is especially valuable in gateway-class products, where debug consoles, modem links, legacy service ports, barcode readers, GNSS receivers, and auxiliary processors may all require independent serial paths. It is common for early concept documents to underestimate UART usage; platforms with abundant native serial resources usually age better as requirements expand.

The McASP blocks deserve special attention because they extend the device into audio and synchronous data-streaming applications. In some products they support conventional audio I/O. In others they are better understood as flexible serial transport engines for codec interfaces, beamforming front ends, or specialized sampled-data paths. When combined with the processor’s broader compute and multimedia capabilities, these interfaces make the device suitable for equipment that must bridge machine control and rich local interaction, such as operator terminals with voice, alarms, or synchronized media handling.

The inclusion of dual DCAN modules adds another practical dimension. CAN remains deeply embedded in industrial, transportation, energy, and mobile equipment ecosystems because of its robustness and established tooling. Native CAN support reduces the need for external USB-to-CAN or SPI-to-CAN workarounds, which often become failure points under harsh conditions. When the processor can terminate CAN traffic directly, timing control is cleaner and software integration is simpler. This is especially useful in systems that combine Ethernet-based supervision with local fieldbus attachment. The processor can act as a bridge, protocol concentrator, or supervisory node without a patchwork of external interface chips.

QSPI and HDQ/1-Wire support may appear secondary next to Ethernet and PCIe, but they often solve practical design requirements with minimal overhead. QSPI is valuable for boot storage, fast nonvolatile parameter access, and staged firmware strategies where a small, deterministic flash path is preferred over larger managed storage. HDQ/1-Wire is relevant in identification, battery-related subsystems, and low-pin-count accessory management. These interfaces do not define the product, but they reduce the number of special-purpose companion ICs needed to complete it. That has a disproportionate effect on design cleanliness.

Up to 247 GPIO pins further reinforces the device’s role as a system integrator. High GPIO count is not just about LED control or spare pins. It supports interrupts from distributed peripherals, timing strobes, board-identification straps, reset coordination, mux control, FPGA handshake lines, safety-state signaling, and custom low-latency sideband interfaces. In complex products, GPIO exhaustion often appears late, after all “minor” control functions have accumulated. Devices with large GPIO headroom give layout and firmware teams room to absorb those additions without introducing extra expanders that complicate boot order and fault recovery.

The two dual-core PRU-ICSS subsystems are among the most strategically important blocks in the AM5728BABCX. Their value is not only that they support industrial communication use cases, but that they provide a programmable, low-latency execution domain adjacent to the main application processors. This changes what can be handled in software at the edge of the hardware. Tasks that are awkward on a general-purpose OS-controlled core, such as deterministic bit-level protocol handling, custom frame parsing, precise output timing, or cycle-sensitive capture, can be offloaded into the PRU-ICSS domain. That offload model is often what separates a processor that can theoretically support industrial networking from one that can do so while still carrying substantial application workloads.

This is where the AM5728BABCX moves beyond the category of a multimedia-capable MPU with extra interfaces. The PRU-ICSS blocks make it suitable for communication-centric control designs that require deterministic interaction with external devices while simultaneously running higher-level software stacks, graphics, analytics, or supervisory logic. That combination is valuable in modern equipment because the boundary between control processor and application processor is increasingly blurred. Products are expected to handle local visualization, secure connectivity, protocol conversion, data logging, and some degree of edge intelligence in one enclosure. A processor that integrates rich application interfaces but lacks deterministic peripheral handling often creates a gap in exactly the place the product needs to differentiate. The AM5728BABCX avoids that gap.

A useful way to view the connectivity set is as three layered domains. The first domain is deterministic field interaction: CAN, UART, SPI, I2C, GPIO, and PRU-ICSS. The second is local system expansion and media movement: USB, QSPI, McASP, SATA, and PCIe. The third is plant or infrastructure connectivity: dual-port gigabit Ethernet. The processor is strong because these domains coexist without obvious imbalance. Some devices provide excellent local control I/O but weak high-speed expansion. Others provide strong application connectivity but need external devices for industrial timing and protocol handling. AM5728BABCX is compelling because it connects all three domains on one platform.

This balance translates directly into application fit. In an industrial controller with integrated HMI, the serial buses can service sensors, touch controllers, PMICs, and low-speed modules, while Ethernet links the controller into the plant network and USB supports maintenance workflows. In a communications gateway, the UART and CAN resources can absorb legacy or field-level traffic, PRU-ICSS can manage timing-sensitive protocol behavior, and Ethernet plus PCIe can feed broader data aggregation or backhaul functions. In multifunction equipment, the device can simultaneously support storage, local display, service access, actuator control, and supervisory networking without forcing interface consolidation too early in the design.

One consistent lesson from complex embedded projects is that interface count alone is not enough. What matters is whether those interfaces can be used concurrently without creating software bottlenecks, board complexity, or timing interference. AM5728BABCX is strongest when used as a consolidation platform. Instead of building a design around a main processor and then surrounding it with bridge chips to recover missing capabilities, engineers can start with a more direct partition: deterministic tasks near PRU-ICSS, application and UI tasks on the main processing domain, and high-bandwidth ingress or storage over PCIe, SATA, or USB. That architecture tends to be easier to validate, easier to scale across product variants, and more resilient when requirements shift late.

For selection decisions, the key insight is that AM5728BABCX should not be evaluated only on CPU performance or accelerator availability. Its integrated connectivity materially affects system cost, timing behavior, expansion strategy, and product maintainability. The device is particularly well aligned with designs that must bridge industrial control, networking, user interaction, and data movement on a single board. In that role, its peripheral set is not simply broad. It is architecturally coherent, and that coherence is what makes the platform practical in demanding embedded designs.

AM5728BABCX Security, Control, and System Management Features

AM5728BABCX places security, control, and system management in the critical path of platform behavior rather than treating them as peripheral add-ons. That distinction matters in embedded systems with external connectivity, mixed-trust software stacks, or protected algorithm assets. In such designs, the real constraint is rarely raw compute alone. The limiting factor is whether the device can enforce trust boundaries, coordinate heterogeneous processing elements, and sustain deterministic behavior under fault, load, and power-state transitions. On that axis, the AM572x architecture is notably practical.

At the security layer, the device integrates hardware cryptographic acceleration for AES, SHA, RNG, DES, and 3DES, and this capability is identified as available across the AM572x family. The engineering value is straightforward: move cryptographic primitives out of software execution paths and into dedicated hardware. That reduces cycle pressure on the Arm cores and DSP resources, but the more important effect is often latency stability. Software encryption running on general-purpose cores can become sensitive to interrupt load, memory contention, and task scheduling. Dedicated crypto hardware makes secure communication and data protection more predictable, which is often more valuable than absolute throughput.

This matters in several common deployment patterns. In a networked HMI, industrial gateway, or vision-enabled controller, the same processors may already be balancing UI rendering, fieldbus interaction, analytics, and local control loops. If TLS session handling, firmware image verification, or secure storage is also pushed onto the main cores, transient CPU spikes appear exactly where designers least want them. Hardware acceleration lowers that interference. It also simplifies system budgeting because encryption cost becomes less coupled to application complexity.

The random-number generator deserves more attention than it usually gets in device summaries. In secure systems, entropy quality is a foundational dependency. Session keys, nonces, challenge values, and many authentication workflows degrade rapidly if randomness is weak or software-derived from predictable sources. A hardware RNG is therefore not just a feature checklist item. It is part of the trust chain. In practice, designs that rely on software pseudo-random generation too early in boot or before sufficient entropy accumulation often create subtle weaknesses that are difficult to detect during normal validation. Integrated entropy support reduces that exposure.

DES and 3DES are legacy algorithms, and their presence should be interpreted accordingly. Their practical value today is mainly interoperability with older infrastructure, installed industrial systems, or compatibility-constrained security frameworks. AES and SHA are the stronger strategic assets for current designs. In processor selection, this is an example of where breadth of algorithm support is useful, but implementation strategy should still align with modern security profiles. Selecting a device with legacy support can ease migration, yet new product designs should avoid inheriting obsolete cryptographic assumptions simply because the hardware permits them.

Security acceleration alone does not produce a secure platform. The more decisive factor is whether it can be integrated into a coherent execution model across a heterogeneous SoC. AM5728BABCX combines Arm cores, DSP resources, and multiple system support blocks, so isolation and coordination become as important as encryption. In systems like this, the highest-risk failures often come from boundary mistakes: one core assuming ownership of shared memory, one subsystem resetting while another still depends on it, or one software domain exposing data before integrity checks complete. Hardware support for coordination is therefore part of the security story, not separate from it.

That is where the control and supervision blocks become highly relevant. Enhanced DMA and system DMA are central examples. DMA is often described only as a throughput feature, but in real systems it is also a determinism feature. Offloading repetitive data movement reduces processor intervention, shortens service paths, and lowers interrupt density. More importantly, it decouples I/O traffic from software timing variability. In a multimedia or sensor-processing pipeline, that can be the difference between a stable frame schedule and sporadic underflow or overrun events. In control-oriented designs, it helps preserve CPU availability for actual decision logic rather than data shuffling.

A useful pattern on AM572x-class devices is to let DMA handle bulk transfers between peripherals and memory while compute engines consume prepared buffers with minimal copy overhead. This arrangement reduces cache pollution and makes multi-engine scheduling easier to reason about. It also tends to expose bottlenecks earlier. When DMA is planned as a first-class system resource rather than added late for optimization, software architecture becomes cleaner and performance tuning becomes less reactive.

Spinlocks and mailboxes are equally important in heterogeneous multiprocessing. They do not increase benchmark numbers, but they often determine whether multicore software remains maintainable after the first major feature expansion. Spinlocks provide a hardware-assisted mechanism for controlled access to shared resources. Mailboxes support low-latency signaling between processing domains. Together they form the basis for practical ownership models across Arm and DSP subsystems. Without them, teams often fall back to ad hoc shared-memory protocols that work under light load and then fail under timing stress, especially during initialization, shutdown, or recovery paths.

The subtle advantage of hardware-assisted interprocessor coordination is not speed alone. It is reduction of ambiguity. Shared-resource bugs in heterogeneous SoCs are rarely obvious. They appear as deadlocks during rare boot orders, intermittent corruption under sustained traffic, or lost events after partial resets. Standardized coordination primitives narrow the space for such failures. In fielded systems, this usually matters more than a small gain in average-case throughput.

Timers, PWM subsystems, watchdog support, and RTC capability anchor the device in actual control applications. Timers are the backbone of deterministic scheduling, timeout handling, timestamping, and periodic service execution. PWM extends that utility into actuation domains such as motor drive stages, power control loops, dimming, and waveform generation. The watchdog timer is the essential last line of recovery when software escapes its expected state space. RTC support adds persistent timekeeping, which is valuable not only for user-facing time functions but also for security events, maintenance records, and fault correlation across resets or power interruptions.

In practice, watchdog strategy is often where system-management quality becomes visible. A watchdog that is simply serviced from a high-level application loop provides weak protection. A better pattern is staged supervision: lower layers confirm scheduler health, task progress, or communication liveness before allowing the watchdog service path to complete. On devices with multiple active processing domains, the strongest approach is usually cooperative supervision, where health information from several subsystems contributes to the decision. That converts the watchdog from a reset timer into a basic system-integrity monitor.

PRCM, the power, reset, and clock management subsystem, is one of the most strategically important blocks in the device because it governs operating-state transitions across the SoC. In a complex embedded platform, power management is not just about reducing consumption. It is about sequencing. Clocks must be stable before dependent logic runs. Resets must be released in valid order. Domains entering or leaving low-power states must preserve enough context to avoid software inconsistency. Poor handling here creates failures that are difficult to reproduce because they depend on exact timing around wake-up, brownout, or subsystem restart conditions.

A strong PRCM architecture helps engineering teams partition the design into controllable domains. That improves both power efficiency and fault containment. If one subsystem can be reset or clock-gated without disturbing the rest of the platform, recovery becomes cheaper and downtime shorter. This is particularly useful in products expected to operate continuously for long intervals, where full-system reboot is technically possible but operationally undesirable. The practical value of fine-grained power and reset control is often discovered late in development, usually after encountering a peripheral lockup or a rare resume failure. Devices that expose these controls cleanly tend to age better across product revisions.

On-chip debug through CTools adds another layer of value because visibility is essential in a processor with heterogeneous execution resources. Complex SoCs do not fail in one place. They fail at interactions: cache coherency assumptions, timing drift between producers and consumers, interrupt storms, or state transitions that leave one core ahead of another. Source-level visibility, tracing support, and integration with the compiler and debugger ecosystem are therefore not convenience features. They are necessary instruments for reducing integration risk.

The development environment described for Arm and C66x DSP work is significant for the same reason. A device with accelerators, DMA engines, DSP cores, and control peripherals only becomes productive if the toolchain can expose enough of the machine to support optimization and diagnosis. C compilers, DSP assembly optimization support, and meaningful debug visibility help teams move from proof-of-concept code to stable production software. This transition is often underestimated. Early prototypes can tolerate inefficient task partitioning and broad polling loops. Production systems cannot. They need measured offload decisions, memory-aware optimization, and repeatable debug workflows.

One useful way to interpret the AM5728BABCX feature set is as an architecture designed to keep high-value compute resources focused on application logic while dedicated blocks absorb repetitive, timing-sensitive, or coordination-heavy work. Crypto engines handle protection primitives. DMA engines move data. Mailboxes and spinlocks structure ownership. Timers and PWM manage temporal behavior and actuation. PRCM controls lifecycle state. Debug infrastructure shortens the path from failure observation to root cause. The result is not just higher performance. It is a more partitionable system.

That partitionability is where much of the device’s long-term value lies. Systems built on heterogeneous SoCs often succeed or fail based on whether responsibilities can be assigned cleanly across hardware and software boundaries. When those boundaries are explicit, teams can evolve products with less regression risk. Security services can be hardened without disturbing control loops. DSP workloads can expand without destabilizing communications. Power policies can be revised without rewriting the entire platform. AM5728BABCX appears well aligned with that style of engineering, where controllability and observability are treated as first-order design goals rather than secondary refinements.

For system architects evaluating embedded platforms, the key takeaway is not merely that AM5728BABCX includes security and management features, but that these blocks support a disciplined system design approach. The device provides the mechanisms needed to offload, isolate, supervise, and recover. Those mechanisms become increasingly valuable as products move from single-function prototypes into connected, updateable, long-life deployments, where the hardest problems are usually not peak compute, but sustained control over system behavior.

AM5728BABCX Application Fit and Engineering Use Cases

AM5728BABCX is best understood as a convergence-class embedded processor rather than a single-purpose controller. Its fit is strongest in systems that must execute Linux-class application software, render rich graphics, terminate multiple industrial interfaces, and still keep deterministic or performance-critical tasks close to the hardware. That positioning is central to why the AM572x family appears in industrial communication, HMI, analytics, automation, and high-performance control equipment. The device is not merely powerful in raw compute terms; its value comes from how much system-level functionality is integrated around that compute.

At the architectural level, the device combines dual Arm Cortex-A15 cores with a heterogeneous set of accelerators and peripheral subsystems. This matters in practice because embedded products rarely fail due to lack of nominal CPU performance alone. They fail when unrelated workloads compete for memory bandwidth, when display activity interferes with control response, or when protocol handling consumes too much application-core time. AM5728BABCX addresses that class of problem by distributing work across specialized engines. The Cortex-A15 cluster handles operating systems, middleware, UI logic, network services, and supervisory functions. DSP and co-processing resources can take algorithmic loads such as filtering, feature extraction, machine data reduction, or protocol-adjacent processing. PRU-ICSS blocks add a separate layer for low-latency industrial I/O and timing-sensitive communication. This partitioning is often more important than peak benchmark numbers because it gives the design room to stay predictable under mixed load.

In HMI-centric equipment, the device is particularly well aligned. A modern industrial interface is no longer a simple status panel. It often includes multi-layer graphics, high-resolution touch interaction, trend visualization, diagnostics, alarm management, remote service access, and secure connectivity to plant or enterprise systems. AM5728BABCX supports this model through its Cortex-A15 application cores, graphics subsystem, 2D acceleration, and display pipeline integration. HDMI and full-HD display support reduce the amount of external logic needed for panels or external monitors. The practical effect is a cleaner board architecture and fewer high-speed design compromises around display output.

That graphics capability is only part of the story. In deployed HMI platforms, the real bottleneck is usually not drawing pixels but sustaining responsiveness while the device is simultaneously logging data, handling field communications, and running background services. A processor that can render a UI under ideal conditions but stalls during Ethernet traffic spikes is a poor HMI platform. The AM5728BABCX architecture is better suited because the UI workload can remain on the application side while communication and data processing are distributed elsewhere. This is where the device’s subsystem integration becomes more valuable than any single feature. The product can behave like a visualization node, a communications endpoint, and a local analytics processor without forcing every task through the same software path.

For industrial gateways and communication controllers, the AM5728BABCX presents an unusually balanced interface mix. Dual gigabit Ethernet, serial connectivity, dual CAN, and PRU-ICSS support give it broad reach across legacy and modern field networks. In gateway designs, the requirement is rarely just “support many ports.” The harder problem is translating between networks with different timing expectations, packet structures, and service models while maintaining system manageability. The Arm cores can host protocol stacks, security services, remote update logic, and data-model translation layers. At the same time, the PRU-ICSS can absorb timing-sensitive communication functions that would otherwise be difficult to guarantee under a general-purpose OS.

This separation is useful in systems that bridge plant-floor networks to edge or supervisory infrastructure. One side may require deterministic cycle handling, while the other side expects IP-based networking, encrypted sessions, file transfer, web-based diagnostics, or containerized service logic. A simpler MCU often handles the field side well but becomes constrained at the edge-compute side. A general-purpose application processor may excel at edge services but struggle with strict real-time I/O behavior unless external controllers are added. AM5728BABCX fits in the middle of that gap. It enables a single-platform design where industrial networking, application services, and data movement can coexist with fewer companion devices.

The heterogeneous compute structure also makes the device attractive in analytics-oriented embedded systems. In this context, analytics does not necessarily mean large-scale AI inference. More commonly, it means local signal conditioning, event detection, compression, feature calculation, thresholding, anomaly pre-processing, or sensor-fusion tasks performed before data is sent upstream. The AM572x family’s design philosophy of splitting control and system software on the Arm cores from heavy algorithmic work on DSP resources is sound engineering. It improves throughput, but more importantly, it improves software containment. Performance-critical code can be isolated from UI and networking jitter, while the main application stack remains maintainable.

That containment has practical value during product evolution. Early versions of a machine node often begin with straightforward control and monitoring. Later revisions add waveform analysis, predictive maintenance indicators, local image handling, or richer event correlation. If the original architecture used only the application cores, these additions can destabilize timing margins and force major software restructuring. With AM5728BABCX, the hardware already supports a layered execution model. Algorithmic functions can be moved into dedicated resources without redesigning the entire platform. This tends to extend product life and lowers the risk of software dead ends.

In automation and control equipment, the processor is best used above the low-end actuator or bare-metal control layer. It is well suited to supervisory controllers, integrated machine controllers, vision-assisted control nodes, and systems where control, communication, data logging, and visualization must coexist. Its timers, watchdog support, memory bandwidth, and broad peripheral integration provide the foundation for this role. The key distinction is that it should not be evaluated as a replacement for a simple deterministic MCU in every control task. Its strength emerges when the system must merge hard interface requirements with high-level software behavior.

A useful way to frame the device is as a consolidation engine. In many industrial products, the baseline architecture grows organically: one processor for HMI, another for fieldbus, another for control coordination, perhaps an FPGA or communications ASIC for timing-sensitive tasks. That arrangement works, but it increases board area, software boundaries, boot coordination, inter-processor communication complexity, and long-term maintenance burden. AM5728BABCX can reduce that fragmentation. It does not eliminate the need for careful partitioning, but it often allows multiple functional blocks to collapse into a single SoC design. This can improve BOM efficiency and reduce failure surfaces, especially in systems where software integration maturity is high enough to take advantage of the heterogeneous hardware.

Power, thermal behavior, and software complexity still need disciplined treatment. A processor of this class can be underused if the design team approaches it like a larger MCU, or overcomplicated if every subsystem is activated without a clear workload map. The most successful implementations usually start by assigning roles explicitly: application and connectivity on Cortex-A15, deterministic protocol handling on PRU-ICSS, algorithm acceleration on DSP resources, display and graphics through the dedicated multimedia path. When that mapping is done early, the system becomes easier to scale and debug. When it is done late, integration friction tends to appear around memory contention, interrupt routing, and software ownership of shared resources.

From an engineering selection standpoint, AM5728BABCX is a strong fit when the product roadmap includes at least three of the following in one platform: advanced HMI, industrial networking, local analytics, protocol bridging, edge processing, or supervisory control. It is less compelling in narrowly scoped designs where only one of those functions is needed. Its real advantage is not just that it can do many things, but that it can do them concurrently with architectural separation. That is the difference between a processor that merely supports a feature list and one that supports a durable product design.

In field-oriented deployments, this distinction becomes visible quickly. Systems with mixed traffic, heavy UI use, and continuous data handling rarely operate near their nominal lab conditions. Unexpected spikes from maintenance sessions, burst logging, screen transitions, or firmware services can expose weak partitioning decisions. Devices like AM5728BABCX provide better headroom against these realities because they were built for mixed-domain workloads from the start. That makes the part especially relevant for industrial products expected to evolve over long deployment cycles, where adding new software capabilities after launch is not an exception but a normal requirement.

Viewed this way, AM5728BABCX is not simply suitable for industrial communication, HMI, analytics, automation, and control because the documentation says so. It fits because its internal composition matches the actual structure of those systems: asynchronous interfaces, deterministic edges, data-heavy services, operator-facing graphics, and ongoing feature growth. That alignment is what makes it a practical engineering choice.

AM5728BABCX Package, Operating Conditions, and Design Considerations

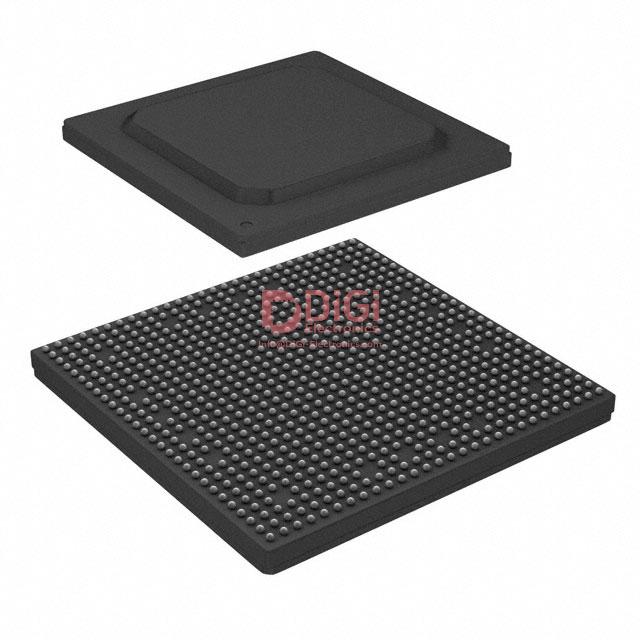

AM5728BABCX is delivered in a 760-pin FCBGA package with a 23 mm × 23 mm body and 0.8 mm ball pitch, and it is intended for surface-mount assembly. That package choice says more than the mechanical outline. It places the device firmly in the class of high-integration application processors where system success depends as much on implementation discipline as on processor selection. At this pin count and pitch, escape routing, layer stack-up definition, via strategy, assembly yield, and warpage control become first-order design variables rather than downstream layout details.

The FCBGA format also reflects the device’s bandwidth expectations. A processor integrating dual DDR interfaces, PCIe, SATA, USB 3.0, display pipelines, and dedicated accelerators cannot be supported by a casual board architecture. The package is effectively the physical manifestation of the chip’s internal concurrency. When many interfaces can operate simultaneously, pin assignment, return-current continuity, and power-domain isolation start interacting in ways that are easy to underestimate early in a project. In practice, this class of device tends to expose weaknesses in board planning very quickly, especially when DDR timing margin and high-speed serial compliance must be achieved on the same design.

The listed I/O voltages of 1.8 V and 3.3 V indicate a mixed-voltage environment, which immediately affects interface partitioning, level compatibility, and power-tree design. This is not simply a matter of providing two rails. Each voltage domain carries implications for boot configuration pins, peripheral attachment, signal quality, and sequencing behavior. A mixed-I/O processor often rewards a deliberate domain map created before schematic capture begins. That map should identify which interfaces remain native at 1.8 V, which peripherals require 3.3 V tolerance, and where translators can be avoided entirely. Every unnecessary voltage translation stage adds delay, routing complexity, and another source of bring-up instability.

The published operating temperature entry of 0°C to 200 appears unreliable and should be treated as a data extraction artifact rather than a usable design limit. For a processor in this category, operating conditions must be taken only from the formal device documentation, including recommended operating conditions, thermal limits, and derating guidance. That point matters because thermal assumptions drive multiple downstream decisions: regulator sizing, copper allocation, airflow planning, heatsink attachment method, and even enclosure geometry. A common failure mode in early platform planning is to treat package size as a proxy for thermal ease. In reality, a compact FCBGA with dense internal integration can create localized power density that is far less forgiving than the footprint suggests.

The documentation’s emphasis on recommended operating conditions, electrical characteristics, thermal behavior, power sequencing, and clocking is a clear signal that this device must be designed as a complete electrical system. The processor is not an isolated component. It is the center of a tightly constrained network of supplies, references, clocks, memories, and high-speed channels. If these surrounding elements are engineered independently, interactions emerge during bring-up that are difficult to debug because the root cause is distributed across the design. That is why the best implementation flow usually starts with the power architecture, memory topology, and clock plan before peripheral expansion is finalized.

Power supply design is one of the most consequential parts of an AM5728BABCX implementation. Processors of this class typically depend on multiple rails with different noise sensitivity, current transients, and sequencing requirements. The practical challenge is not only generating the required voltages, but generating them with the correct ramp behavior, regulation bandwidth, and transient response under dynamic workload changes. Internal accelerators, DDR traffic bursts, and display activity can all produce fast current steps. If the power distribution network is weak, these transients surface as marginal behavior that may appear random: intermittent boot issues, unstable peripheral enumeration, memory stress failures, or unexplained lockups under combined workloads.

A robust PDN for this processor should be treated as a frequency-dependent structure, not a static collection of rails and decoupling capacitors. Capacitor selection needs to account for effective capacitance under DC bias, mounting inductance, and placement relative to the package breakout. Plane continuity and via current return paths matter as much as nominal capacitance values. In dense processor boards, poor decoupling rarely fails in an obvious way; it erodes margin until the design becomes sensitive to temperature, silicon variation, and software state. This is one of the areas where disciplined simulation and measurement repay their effort quickly.

DDR implementation deserves special attention because memory performance and memory stability determine the practical ceiling of the entire platform. Dual DDR interfaces increase bandwidth potential, but they also tighten layout requirements and increase the number of coupled constraints. Byte-lane matching, topology selection, reference plane continuity, termination strategy, and VTT/VREF integrity all affect timing margin. It is rarely enough to route for length matching alone. The electrical environment must remain consistent across the path, especially through layer transitions and breakout regions where impedance discontinuities tend to accumulate. In many designs, the memory interface looks acceptable in CAD but loses margin because the breakout geometry quietly introduces asymmetry and return-path disruption.

An effective DDR design process starts with placement, not routing. Memory devices should be placed to minimize topology compromises, reduce skew-management burden, and preserve clean reference structures. Once placement is fixed, the stack-up should be validated against the target impedance and manufacturability limits. Only then does route tuning become meaningful. Experience shows that DDR interfaces become difficult when the physical architecture is forced to adapt to late mechanical changes. Moving a connector or heatsink keep-out after memory placement often creates routing detours that consume timing margin long before the problem is visible in simulation reports.

High-speed interfaces such as PCIe, SATA, USB 3.0, and display links impose another layer of design discipline. Differential pair routing rules are well known, but the implementation details are where most losses occur. Pair matching is necessary, yet it is not the dominant factor in many failures. More often, degraded channel performance comes from impedance discontinuities at breakouts, stubs created by unnecessary vias, poor reference transitions, or coupling into nearby aggressors. A high-speed lane can meet basic geometric rules and still underperform if the stack-up, connector launch, and return-path management were not considered as one channel.

For this processor, the interaction between high-speed serial routing and the rest of the board should be treated systemically. The board is not a set of independent nets. Power planes, memory buses, switching regulators, and display interfaces all share physical space and electromagnetic bandwidth. It is often better to reduce congestion around a critical channel than to chase perfect tuning afterward. Clean floorplanning usually delivers more margin than heroic routing cleanup. That principle becomes especially important in mixed-function boards where industrial I/O, graphics, storage, and networking coexist.

Clocking is another domain where understated errors can destabilize an otherwise solid design. The documentation’s inclusion of clock architecture guidance is significant because clock quality affects far more than simple frequency generation. Jitter, supply noise coupling, routing asymmetry, and improper isolation between clock sources and switching nodes can degrade subsystem performance indirectly. In processor platforms, clocks should be placed and routed as sensitive analog structures embedded inside a digital board. This mindset changes layout behavior: short and shielded paths, controlled return current, quiet supply filtering, and physical separation from noisy converters are prioritized early rather than corrected later.

Thermal design should be approached as a continuous constraint from package selection through enclosure integration. A processor with this level of integration can shift power dissipation significantly depending on workload composition. CPU activity alone is not the whole picture. Simultaneous use of graphics, video pipelines, memory interfaces, and accelerators may move the device into a much harsher thermal state than software-only estimates suggest. For that reason, thermal planning should be based on realistic use-case combinations rather than average power assumptions. Designs that appear stable on a bench under isolated testing can lose margin in production when interfaces operate concurrently for extended periods.

The package size and ball array density also affect thermal escape through the PCB. Copper spreading, via fields under thermal constraints, and heatsink interface flatness all influence junction behavior. In dense BGA designs, thermal and electrical objectives sometimes conflict. Large copper regions help heat spreading but can complicate impedance control or assembly balance if not planned carefully. The best results usually come when thermal design is integrated into stack-up and placement decisions from the beginning, rather than added as a mechanical remedy after the board is complete.

At the board level, the family documentation’s focus on power mapping, DDR layout, differential routing, PDN implementation, thermal solutions, single-ended interfaces, and clock routing makes one point unmistakable: the processor should be evaluated as a platform commitment, not as a line-item component. Feature count alone can be misleading. Dual DDR, high-speed serial interfaces, and hardware accelerators create strong capability density, but they also create a proportional verification burden. A team can select the correct processor functionally and still miss schedule or reliability targets if the board design flow is not mature enough for the integration level.

That is why early feasibility work should include more than software compatibility and peripheral checklists. It should examine stack-up feasibility, escape routing density, rail count and regulator footprint, memory placement options, thermal headroom, and compliance test readiness. These are not secondary implementation details. They determine whether the advertised silicon capability can be converted into a manufacturable, stable product. In many cases, the true differentiator between a smooth deployment and a prolonged debug cycle is not the processor itself but the quality of these early constraints.

A useful way to think about AM5728BABCX is that it compresses a large amount of system functionality into one device while shifting much of the engineering challenge to interconnect quality and power integrity. That is a favorable trade only when the surrounding hardware is designed with the same level of rigor as the silicon. When that happens, the processor’s integration works as intended: shorter inter-device paths, tighter subsystem coupling, and high aggregate capability. When that rigor is missing, the same integration amplifies board-level mistakes and makes them harder to isolate.

For engineering evaluation, the practical question is not simply whether AM5728BABCX offers the required interfaces and compute resources. The better question is whether the intended design process can support a processor with this combination of package density, mixed-voltage I/O, memory bandwidth, high-speed connectivity, and thermal sensitivity. If the answer is yes, the device can serve as a strong foundation for complex embedded platforms. If the answer is uncertain, the risk will usually appear first in layout iterations, bring-up time, and margin-related failures rather than in the feature matrix.

Potential Equivalent/Replacement Models for AM5728BABCX

Potential replacement assessment for AM5728BABCX should start from the fact that this device sits inside the AM572x Sitara family, where most substitution paths are architectural rather than purely commercial. In practice, the strongest documented alternatives are AM5729 and AM5726 from Texas Instruments. Neither is a universal drop-in replacement under all conditions, but both are close enough at the subsystem level to support a structured migration analysis.

AM5728BABCX occupies a middle-to-high feature position in the family. Its value comes from the balance it strikes between application processing, signal processing, multimedia acceleration, industrial connectivity, and programmable real-time control. That balance is usually more important than raw CPU compatibility alone. In board-level redesigns, the failure mode is often not CPU mismatch, but silent loss of one accelerator, one display path, or one video block that the software stack assumed was present. For that reason, replacement screening should begin with subsystem dependency mapping, not with part-number similarity.

AM5729 is the nearest upward family alternative. It preserves the same broad processing model built around dual Arm Cortex-A15 cores, dual C66x DSPs, dual IPUs, memory architecture, and the major high-speed and industrial interfaces. It also retains the multimedia and graphics-oriented blocks that typically drive AM5728 selection, including BB2D, display outputs, HDMI, IVA, GPU, VPE, VIP, SATA, PCIe, PRU-ICSS, Ethernet, USB, DDR3 interfaces, and OCMC RAM. The main documented distinction is the addition of four Embedded Vision Engines, which are not supported on AM5728. This makes AM5729 the most natural feature-preserving or feature-expanding option when the original design already depends on the richer side of the AM572x architecture.

From an engineering perspective, AM5729 is attractive because it usually minimizes architectural compromise. If the existing design uses Linux on the Cortex-A15 cluster, offloads signal workloads to the C66x DSPs, and relies on GPU, display, HDMI, or IVA pipelines, AM5729 keeps that processing partition intact. That matters because software migration cost is often dominated by preserving hardware acceleration paths. When those blocks remain available, the adaptation effort is more likely to center on device-tree updates, power/clock validation, thermal checks, and performance retuning rather than major application restructuring. In several real design transitions within SoC families, keeping the same acceleration topology has proven more valuable than preserving nominal CPU benchmarks, because it avoids rewriting media frameworks, buffer routing, and interprocessor communication flows.

AM5726 is the downward-feature alternative. It still carries the dual Cortex-A15 subsystem, dual C66x DSPs, dual IPUs, VPE, VIP, OCMC RAM, DDR3 interfaces, SATA, PCIe, Ethernet, PRU-ICSS, USB, CAN, and a large portion of the family’s connectivity and compute backbone. However, the documentation makes clear that several visible multimedia and graphics functions are absent: BB2D, display outputs, HDMI, EVE, IVA, and GPU are not supported. This is not a small delta. It changes the type of product the device can support without significant architectural rework.

AM5726 therefore fits only when the original AM5728BABCX design uses the SoC primarily as a compute-and-control platform rather than as a graphics or video-centric processor. It can make sense in systems where the Cortex-A15 complex handles high-level control, the DSPs perform deterministic signal tasks, the PRU-ICSS supports industrial Ethernet or custom real-time I/O, and the application does not depend on integrated display rendering, HDMI output, 3D acceleration, or IVA-based video processing. In these cases, AM5726 can be viewed as a resource-trimmed derivative that preserves the family’s core heterogeneous processing model while removing the blocks that often drive cost and software complexity.

The practical distinction between AM5729 and AM5726 is best understood by looking at dependency layers.

At the compute layer, all three devices remain close. The dual Cortex-A15 and dual C66x DSP structure provides continuity for operating systems, control software, and many DSP-oriented workloads. If the existing design is dominated by protocol handling, edge analytics, motor control coordination, or machine communication stacks, this common foundation is highly relevant.

At the acceleration layer, the divergence becomes decisive. AM5729 extends the vision side with EVEs, while preserving the acceleration set already expected by AM5728-class designs. AM5726 removes key multimedia engines. This means a workload that appears portable at the CPU level may still fail system-level requirements because frame composition, video encode/decode assistance, or rendering acceleration disappears. In migration work, this layer is where many “compatible” candidates stop being practical.

At the I/O and system integration layer, the family resemblance remains useful. DDR3 interfaces, SATA, PCIe, Ethernet, PRU-ICSS, USB, and other industrial and embedded interfaces provide continuity for many carrier-board and software integration assumptions. Even so, interface presence alone is not enough. Pin multiplexing, package compatibility, power rails, boot configuration, clocking, and thermal behavior still need full verification before treating a family member as a production substitute. A family-level match lowers risk; it does not eliminate it.

For selection work, a disciplined decision path is more reliable than a simple feature checklist.

If the original AM5728BABCX design uses display outputs, HDMI, GPU rendering, BB2D acceleration, IVA resources, or any multimedia pipeline tightly coupled to those blocks, AM5729 is the only clearly aligned replacement candidate in the supplied documentation. It preserves the intended usage model and adds headroom for embedded vision workloads. This is the safer path when schedule, software reuse, and platform continuity matter more than incremental BoM pressure.

If the original design does not use those multimedia features and is instead anchored around CPU, DSP, PRU-ICSS, storage, networking, and general embedded control functions, AM5726 becomes a possible down-feature option. The key phrase is “possible,” because the absence of GPU, HDMI, display, BB2D, EVE, and IVA support must be validated not only against application requirements but also against manufacturing test methods, service tools, and maintenance workflows. In practice, some products appear headless in normal operation but still rely on display or graphics blocks during commissioning, diagnostics, or recovery. Those hidden dependencies are easy to miss unless the validation matrix includes the full product lifecycle.

A useful engineering rule is to treat AM5729 as a feature-preserving migration path and AM5726 as a requirement-pruning migration path. That framing avoids a common evaluation error: assuming that a lower-feature family member is acceptable because the main application boots and basic interfaces enumerate. A replacement is only successful when the entire deployed behavior remains intact, including corner-case media flows, startup sequencing, real-time response, field update behavior, and thermal margins under peak concurrency.

Another important point is that software architecture should influence the replacement choice as much as hardware fit. If the existing AM5728BABCX platform was designed with strong hardware abstraction, modular driver binding, and clear separation between application logic and accelerator-specific services, migration to AM5729 is usually straightforward and migration to AM5726 is at least measurable. If, however, the software stack contains hard assumptions about framebuffer paths, OpenGL acceleration, video pipelines, or DSP/IVA load balancing, the apparent savings from moving downward can be erased by integration effort. In embedded systems, the cheapest silicon option is not always the lowest-cost replacement once validation and software maintenance are included.

For procurement and lifecycle planning, the most credible replacement logic is therefore feature-first and workload-aware. AM5729 is the closest documented family alternative to AM5728BABCX when preserving graphics, video, display, and heterogeneous acceleration capability is important. AM5726 is a narrower alternative suitable only when the design can tolerate the removal of those multimedia and graphics subsystems while still benefiting from the AM572x compute and connectivity base. Any final substitution decision should be gated by schematic review, package and pin compatibility analysis, boot-mode validation, power integrity checks, thermal characterization, and a software audit that specifically searches for hidden use of omitted hardware blocks.

In short, the replacement question is less about whether another AM572x device exists and more about which hardware accelerators the original product actually depends on. Once that dependency map is explicit, the family hierarchy becomes clear: AM5729 is the nearest upward-compatible choice, while AM5726 is a conditional downward-compatible candidate for designs that can operate without the richer multimedia and graphics infrastructure of AM5728BABCX.

Conclusion

Texas Instruments AM5728BABCX is a highly integrated member of the AM572x Sitara family, positioned for embedded systems that exceed the scope of a conventional application processor. Its architecture is built around dual Arm Cortex-A15 cores, but the real value emerges from the way these cores are coupled with C66x DSP resources, dual IPUs, a 3D graphics engine, dedicated video acceleration, dual DDR interfaces, broad storage connectivity, industrial I/O, and hardware security primitives. This is not simply a CPU with peripherals attached. It is a heterogeneous compute platform designed to absorb control, signal processing, multimedia, and communications workloads within a single device boundary.

At the architectural level, the AM5728BABCX is well suited to systems where workloads are mixed rather than uniform. The Cortex-A15 cluster handles operating system services, upper-layer application logic, UI frameworks, networking stacks, and system coordination. The DSPs extend the device into domains such as real-time filtering, audio processing, machine vision pre-processing, and deterministic numeric workloads that would otherwise consume excessive CPU cycles or power. The IPUs provide an isolated execution domain for low-latency control and peripheral supervision, which is especially useful when Linux-class software must coexist with time-sensitive subsystem management. In practice, this separation reduces software contention and simplifies system partitioning, particularly in designs that need both rich applications and reliable real-time behavior.

One of the strongest engineering advantages of the AM5728BABCX is workload consolidation. In many embedded products, a UI processor, a communications controller, and one or more auxiliary compute devices are often split across multiple chips. That approach can work, but it increases board complexity, memory duplication, power sequencing burden, software maintenance overhead, and failure surfaces at subsystem boundaries. The AM5728BABCX moves in the opposite direction. It enables a design strategy where high-level control, graphics, media pipelines, industrial networking, and algorithmic acceleration coexist on one processor fabric. This often leads to a cleaner board architecture and a more manageable software stack, provided that task partitioning is done deliberately from the start.

Its memory subsystem is equally important to understanding its role. Dual DDR support is not just a specification detail; it directly affects bandwidth headroom in systems where display refresh, video movement, CPU execution, and accelerator traffic compete for memory access. In graphics-heavy HMI or vision-assisted control equipment, memory bandwidth becomes a first-order design constraint well before raw CPU utilization appears critical. A processor such as the AM5728BABCX remains attractive because its broader subsystem balance is intended for these contested data paths. Designs that ignore this balance often look sufficient on paper yet degrade under concurrent real workloads, especially once UI, networking, and media operations are active simultaneously.

The device’s multimedia and graphics capabilities make it particularly effective in modern HMI platforms. Rich interfaces are no longer cosmetic features; they increasingly serve as the operational layer for diagnostics, visualization, user workflow guidance, and remote support. The integrated GPU and video subsystems allow the processor to drive display-centric applications without forcing the main CPU complex to absorb all rendering and media responsibilities. In fielded systems, this matters because responsive UI behavior tends to define perceived product quality more strongly than peak benchmark numbers. A platform that maintains smooth display updates while handling communication traffic and background processing is often the one that feels robust in deployment.

For industrial communication equipment, the AM5728BABCX stands out because interface density and protocol coexistence are now critical design drivers. Many systems must bridge legacy serial channels, Ethernet-based industrial protocols, local storage, service interfaces, and secure remote connectivity at the same time. A processor with broad I/O coverage reduces the need for external bridging logic and gives the software architecture more room to evolve. This flexibility is valuable in products that may begin with one protocol mix and later expand through firmware or board variants. The practical benefit is not only feature availability, but also the ability to preserve a common hardware base across multiple SKUs.

Automation and edge analytics systems benefit from the heterogeneous nature of the device. Control-oriented nodes increasingly need local inference, event classification, waveform analysis, or image-based inspection without sending all raw data upstream. The AM5728BABCX is not best viewed as a dedicated AI processor, yet it is highly capable in edge analytic pipelines where deterministic preprocessing, decision logic, and system control must operate together. The DSP blocks are especially useful when the workload contains repetitive math kernels, while the Cortex-A15 environment remains suitable for orchestration, protocol handling, and data model integration. This split is often more practical than forcing every function into a general-purpose CPU execution model.

Security is another part of the integration story that deserves more attention than it often receives. Hardware cryptographic acceleration is not merely a checklist item for secure boot or encrypted communications. In connected embedded systems, security features become operational infrastructure. They affect firmware authenticity, field update trust, credential storage, and the feasibility of maintaining throughput under encrypted traffic. When these functions are handled in hardware rather than purely in software, the system typically gains both performance margin and implementation discipline. This is especially relevant in long-life industrial products, where update pathways and secure connectivity are no longer optional.

Within the AM572x family, the AM5728BABCX occupies a useful middle ground for comparison and platform planning. It provides a feature-rich configuration that allows engineers and sourcing teams to evaluate tradeoffs against nearby options such as AM5729 or AM5726 without leaving the same architectural ecosystem. This family context matters because processor selection is rarely about absolute performance alone. It is about finding the point where compute resources, accelerator mix, peripheral set, thermal limits, software complexity, and bill-of-material targets align. A family-based decision path reduces migration risk and supports phased product strategies, especially when one design may later branch into higher-end or cost-optimized derivatives.

From a system design perspective, the most effective way to use the AM5728BABCX is to treat it as a platform for partitioned compute rather than as a faster application CPU. That distinction changes design decisions early. It influences which tasks belong on the Cortex-A15 cores, which should be offloaded to DSPs, which safety- or timing-sensitive functions belong on IPUs, and how memory traffic is shaped across the system. Teams that approach it as a conventional MPU often underuse its architecture and carry unnecessary CPU load into late-stage optimization. Teams that map functions to the right execution domains early usually achieve better latency behavior, cleaner thermal profiles, and more stable software scaling.

In deployed designs, one recurring lesson is that integration pays off most when the interfaces between software domains are kept explicit and narrow. The AM5728BABCX provides enough internal capability that it can either simplify a system dramatically or become difficult to manage if every subsystem shares resources without discipline. Clear ownership of memory regions, predictable interprocessor messaging, and early profiling of display-plus-network-plus-algorithm concurrency tend to produce far better outcomes than isolated subsystem validation. This processor rewards architecture-level thinking more than feature-by-feature assembly.

The AM5728BABCX is therefore best understood as a deeply integrated embedded processor for complex systems that require compute flexibility, interface breadth, and acceleration beyond standard MPU-class devices. It is especially compelling in HMI terminals, industrial gateways, automation controllers, video-aware embedded equipment, and edge analytic nodes where multiple workload classes must coexist reliably. Its strength is not any single block in isolation, but the way the blocks combine to reduce external dependencies and enable a more capable, more scalable embedded design.
