AM4376BZDND80

Texas Instruments AM4376BZDND80 Product Overview and AM437x Sitara Family Positioning

Texas Instruments AM4376BZDND80 is an 800MHz member of the AM437x Sitara family, built on a single-core 32-bit ARM Cortex-A9 and delivered in a 491-ball 17mm × 17mm NFBGA package. That basic description is accurate, but it only captures the top layer of what makes the device relevant. Its real value lies in how the AM437x architecture combines Linux-class application processing, deterministic control support, display capability, industrial communications, and broad peripheral integration into one embedded compute node. In practice, the device is less a simple MPU and more a system consolidation point for designs that need both high-level software flexibility and tight interaction with real-world interfaces.

The AM437x family, including AM4372, AM4376, AM4377, AM4378, and AM4379, occupies a deliberate middle position in the Sitara portfolio. It sits above entry-level control-oriented processors that mainly handle simple HMIs or protocol tasks, and below multicore application processors intended for heavier graphics or compute workloads. This positioning matters because many embedded products do not fail on peak CPU demand; they fail on integration friction. A design may need an application processor for UI and networking, a real-time element for fieldbus timing, a display path for local control, and a dense peripheral set for storage, touch, and external modules. AM437x addresses that overlap directly, which is why it appears so often in industrial panels, medical monitoring nodes, data terminals, and instrumentation platforms.

At the compute layer, the Cortex-A9 core gives the AM4376BZDND80 a software environment suitable for embedded Linux, RTOS-assisted control partitions, and mixed middleware stacks. An 800MHz single-core implementation is not intended to compete with high-end application processors on raw parallel throughput. Its strength is better understood as balanced determinism under system load. In many embedded deployments, a single fast core with predictable peripheral behavior and low software overhead produces a more stable platform than a multicore device that introduces synchronization complexity, thermal overhead, and a larger validation surface. This is especially relevant when the product must boot quickly, maintain long software support cycles, and pass industrial or medical qualification with minimal architectural churn.

The broader AM437x architecture is engineered around integration rather than CPU frequency alone. Memory control, display support, communication interfaces, and industrial subsystem features are not bolt-on peripherals; they are part of a design strategy that reduces external glue logic. This is one of the main reasons the AM4376BZDND80 is attractive in cost- and reliability-sensitive designs. A system that might otherwise require a discrete MPU, an external graphics path, a communication controller, and additional support ICs can often be collapsed into a simpler board. Fewer high-speed inter-device links typically mean fewer signal integrity issues, lower power distribution stress, easier EMC tuning, and a shorter bring-up cycle.

For application architects, the family’s most important trait is its ability to bridge two domains that are often treated separately: application-facing functions and machine-facing functions. On one side, there is enough processing headroom for local UI, connectivity stacks, security functions, and application logic. On the other, the platform is aimed at industrial control environments where timing consistency, protocol handling, and direct interaction with sensors, drives, or operator interfaces are just as important. That duality explains the family’s fit across industrial automation, patient monitoring, point-of-sale, test and measurement, navigation, barcode scanning, and portable terminals. These systems differ in end use, but they share a common architectural pattern: they need one processor that can manage the user experience, communications, and system control without excessive partitioning.

In industrial automation equipment, the AM4376BZDND80 is well aligned with compact controllers, gateway HMIs, operator panels, and edge processing nodes. These designs often require Ethernet-based communications, local display rendering, nonvolatile storage, USB connectivity, and deterministic interaction with field I/O. Using a device in this class allows the control board and HMI board to be merged or at least tightly coupled around one processing architecture. That usually simplifies software ownership as well. Instead of maintaining separate firmware and application platforms with duplicated diagnostics and update mechanisms, the design can centralize health monitoring, communication handling, and lifecycle management.

In medical and patient monitoring systems, the relevance shifts slightly. The processor’s value is not just performance, but platform coherence. A monitoring terminal may need waveform rendering, touchscreen interaction, local alarm processing, data logging, network upload, and multiple peripheral attachments. Here, integration reduces design risk. Fewer major ICs mean fewer power domains, fewer firmware boundaries, and fewer long-tail compatibility problems during regulatory maintenance. In this class of product, stable long-term supply and software continuity often matter more than chasing the highest benchmark result, and the AM437x family is positioned accordingly.

For point-of-sale terminals, barcode scanners, navigation devices, and portable data terminals, the same consolidation principle shows up in a different form. These products tend to need display control, storage, USB or serial expansion, networking, and responsive application behavior within a strict thermal and cost envelope. A single-core Cortex-A9 at 800MHz is generally sufficient when the software stack is well partitioned and the graphics workload is moderate. In fact, moderate compute paired with strong peripheral integration often yields better battery, thermals, and BOM efficiency than overprovisioning the CPU and then paying for unused capability elsewhere in the design.

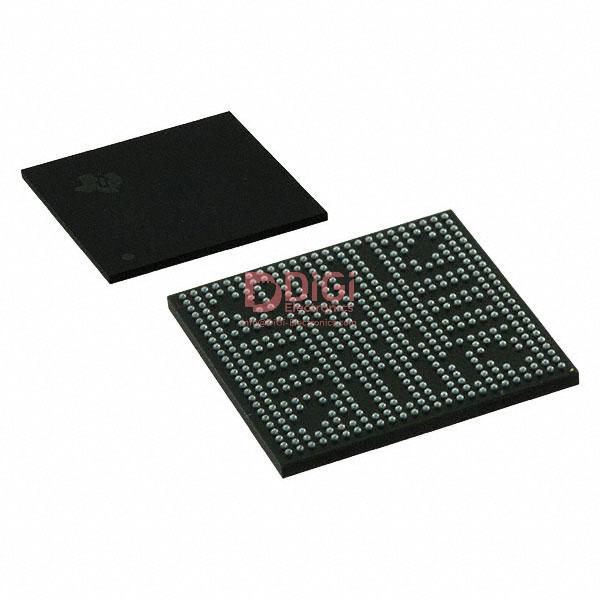

The package choice also deserves attention. A 491-ball NFBGA in a 17mm × 17mm footprint is compact enough for dense embedded layouts, but it still requires disciplined PCB planning. Escape routing, DDR interface layout, power rail partitioning, and return path continuity all need to be handled early. In designs using processors in this class, board success is often determined less by schematic complexity than by whether the floorplan respects the memory topology and high-speed interface constraints from the start. A common pattern in successful layouts is to place DDR as close as possible with short, length-managed routing, then organize power and peripheral breakout around that core region. When this is done well, bring-up tends to be straightforward. When it is deferred, debug time expands quickly into SI, timing margin, and boot stability issues that are expensive to isolate later.

From a sourcing and product planning perspective, the AM4376BZDND80 belongs to a family strategy that gives useful migration space. Engineers can design around the AM437x platform and retain options across adjacent variants depending on required feature mix, software footprint, or interface count. That kind of family-level scalability is often more valuable than a one-time device optimization. It protects the platform against future SKU changes, customer segmentation needs, and supply-chain pressure. In many embedded programs, the best processor is not the one with the highest standalone specification, but the one that allows the product line to evolve without forcing a board respin or software rewrite.

A practical way to view the AM4376BZDND80 is as a balanced integration engine for embedded systems that need one processor to supervise both the digital application layer and the physical interface layer. Its 800MHz Cortex-A9 core provides enough compute for modern embedded software stacks, while the AM437x family context gives it broader significance: industrial orientation, peripheral density, UI support, and system-level consolidation. That combination is why it remains relevant in designs where reliability, lifecycle stability, manageable complexity, and board-level efficiency matter more than headline compute metrics.

Texas Instruments AM4376BZDND80 Core Processing Architecture and Compute Resources

Texas Instruments AM4376BZDND80 is built around an ARM Cortex-A9 application processor and should be viewed as more than a simple control MCU. Its compute architecture positions it in the class of embedded processors that bridge real-time device control, rich software environments, and moderate edge-side data processing. The device variant in question is specified at 800MHz, even though the broader AM437x architecture scales to 1GHz in other members of the family. That distinction matters in sizing performance headroom, thermal margin, and software responsiveness. In many designs, the practical question is not peak clock frequency alone, but whether the memory hierarchy, acceleration blocks, and internal RAM arrangement can sustain the intended workload without forcing excessive dependence on external DDR.

At the core level, the Cortex-A9 provides a mature 32-bit RISC execution model with a strong embedded software ecosystem. It is well suited to systems that need a full operating system, networking stacks, graphics or UI layers, and application-level control logic on a single processor domain. The architecture becomes more interesting when examined through its cache and local memory structure. The processor includes 32KB L1 instruction cache and 32KB L1 data cache, which reduce front-end fetch stalls and data access latency for hot code paths. Behind that sits 256KB of L2 cache, and this block can also be configured as L3 RAM. That configurability is not just a feature-list detail. It gives the designer a tradeoff between transparent caching and explicitly managed low-latency memory.

In practice, that choice affects software architecture. If the workload is Linux-based with mixed application behavior, L2 cache mode usually delivers the best general-purpose performance because it absorbs DDR latency and improves code and data locality automatically. If the design contains tightly bounded service routines, early boot code, or performance-critical buffers with predictable access patterns, configuring part of this resource as L3 RAM can provide more deterministic behavior. The benefit becomes visible when a task must complete within a bounded timing window and cache refill variability is unacceptable. For embedded networking, industrial protocol handling, or display update staging, that memory flexibility can simplify timing closure.

The on-chip memory resources further reinforce this role. The device includes 256KB boot ROM and 64KB on-chip RAM, while the broader family architecture supports up to 512KB of total internal RAM when ARM memory configured as L3 RAM is combined with OCMC RAM. This internal memory is often underestimated during early design work. It is critical during the interval before external DDR is initialized, and it remains valuable after boot for latency-sensitive code, descriptor tables, communication queues, and scratch buffers. A common pattern is to place first-stage boot logic, exception vectors, and a small set of critical runtime services in internal RAM, then move larger software frameworks to DDR once the memory subsystem is stable. This approach reduces bring-up risk and improves robustness during power sequencing or field recovery scenarios.

The inclusion of the NEON SIMD engine and VFPv3 floating-point unit significantly changes the performance profile of the AM4376BZDND80. Without these units, the Cortex-A9 would still be capable for control-heavy embedded Linux workloads, but with them the device becomes much more effective for data-parallel and numerically intensive operations. NEON accelerates vector-style processing by applying a single instruction to multiple data elements in parallel. VFPv3 improves scalar floating-point efficiency and reduces the software overhead of emulated math operations. Together, they make the processor substantially more credible for signal conditioning, waveform manipulation, image preprocessing, audio handling, sensor fusion stages, and UI rendering support.

The practical value of NEON is often highest in workloads that appear ordinary at first glance. Image format conversion, checksum or packet data manipulation, FIR-style filtering, matrix operations, and even parts of communication stacks can benefit from SIMD optimization. In field designs, one often sees CPU load drop sharply after moving hot loops from generic C implementations to compiler-assisted or hand-tuned NEON paths. The gain is not always about headline benchmark speed. It can also free enough CPU budget to keep Linux responsive while background communication, local analytics, and display refresh run concurrently. That margin frequently determines whether one processor can handle the full product feature set or whether a second processing element becomes necessary.

VFPv3 matters in a similar but more targeted way. Numeric code involving floating-point math becomes more predictable and maintainable when native hardware support is available. This is especially relevant in instrumentation, control visualization, and edge-side preprocessing where calibration, scaling, filtering, and engineering-unit conversion are routine. Fixed-point arithmetic still has value where exact determinism or minimal power is required, but on this class of processor the presence of VFPv3 shifts the balance toward shorter development cycles and clearer software implementation for many algorithms. In several embedded products, that alone can reduce integration friction because algorithm teams can preserve a larger portion of reference code during migration to the target platform.

From a system architecture perspective, the AM4376BZDND80 is best understood as a processor optimized for mixed-mode embedded computing. It can host a high-level operating system such as Linux, yet still retain enough low-latency internal resources to support critical peripheral interaction and timing-sensitive service layers. That combination is particularly useful in HMI terminals, connected instruments, embedded gateways, and industrial nodes where the software stack is no longer limited to bare-metal control. Such systems typically require networking, file systems, security layers, update frameworks, web or graphical interfaces, and protocol translation, all while maintaining stable behavior at the I/O boundary.

The memory hierarchy is the main factor that determines how well those use cases scale. When DDR access patterns are inefficient, even an 800MHz Cortex-A9 can feel constrained. When hot code, critical buffers, and frequently reused data structures are placed intelligently across L1, L2, and internal RAM, the same processor can deliver a noticeably stronger real-world result than its clock rate suggests. This is one of the more important design lessons with the AM437x class: the architecture rewards memory-aware software much more than raw-cycle-oriented coding. Performance tuning is therefore less about chasing peak MHz and more about reducing avoidable latency, minimizing cache thrash, and keeping deterministic paths off the slowest memory tiers.

This also shapes boot and reliability strategy. The boot ROM and internal RAM allow a staged startup model in which the processor can validate configuration, initialize essential clocks and pin states, and prepare DDR safely before launching the main software image. In products expected to recover from unstable power, corrupted storage, or interrupted updates, that capability becomes a significant system-level advantage. A resilient early boot path built around internal resources is often easier to validate than one that assumes external memory is immediately available and always stable.

For Linux-based designs, the AM4376BZDND80 offers a practical balance between software richness and embedded control discipline. It is capable enough to run modern middleware and application logic, but still close enough to the hardware to support deterministic handling where the software architecture is planned carefully. That makes it a strong fit for designs that sit between MCU-class simplicity and multicore application-processor complexity. In this range, the real differentiator is not only the Cortex-A9 core itself, but the way TI combined cache, configurable local memory, boot infrastructure, and math acceleration into a device that can support both structured embedded control and feature-heavy application software without a large architectural jump.

Texas Instruments AM4376BZDND80 Memory Architecture and External Memory Support

Texas Instruments AM4376BZDND80 presents a memory subsystem that is notably balanced for embedded MPU designs that need both application-class execution bandwidth and robust nonvolatile storage options. Its external memory architecture is not merely a list of supported interfaces; it reflects a design intent aimed at systems that must bridge deterministic embedded control, Linux-capable compute, and long-life industrial deployment. The practical value lies in how these memory paths can be combined, not just in their individual specifications.

At the center of the volatile memory architecture is a 32-bit DDR interface supporting LPDDR2, DDR3, and DDR3L. LPDDR2 is supported up to 266 MHz clock, which maps to LPDDR2-533 data rate, while DDR3 and DDR3L operate up to 400 MHz clock, corresponding to DDR-800. This places the device in a range that is well aligned with HMI, gateway, industrial controller, and communication workloads where memory bandwidth matters, but where power, layout complexity, and cost still dominate design tradeoffs.

The 32-bit data bus is important because it defines the practical bandwidth ceiling available to the Cortex-A9 subsystem and the rest of the memory-mapped system. In many MPU-based designs, memory performance is not limited by raw clock rate alone but by the interaction between bus width, access patterns, refresh overhead, contention from DMA-capable peripherals, and software behavior. A 32-bit DDR channel at these supported rates gives enough throughput for Linux-class operation, frame buffer activity at moderate display resolutions, protocol stacks, and mixed control-plus-UI workloads. It is not an overbuilt memory fabric, and that is part of its strength. The device avoids pushing into unnecessarily complex high-speed DDR territory while still covering the majority of embedded MPU use cases.

The support for up to 2 GB of total addressable DDR space gives system designers room to scale software complexity without forcing a platform migration. In practice, many AM437x deployments will use far less than the ceiling, but the larger addressability matters when moving from RTOS-based designs to full Linux systems, or when adding graphics, browser-like UI layers, local databases, or containerized service partitions. That headroom is often more valuable than peak bandwidth because memory exhaustion tends to destabilize embedded systems in ways that are difficult to diagnose in late-stage integration.

Device population flexibility is another strong point. The controller supports one x32 device, two x16 devices, or four x8 devices. This affects far more than schematic convenience. A single x32 device can reduce routing complexity and often simplifies timing closure on dense boards. Two x16 devices frequently offer a practical middle ground between availability, price, and layout. Four x8 parts can be useful when sourcing constraints dominate or when a design must leverage commodity memory footprints already established in an organization. This configurability improves resilience against component shortages, and that benefit becomes especially visible in long-lifecycle products where a theoretically optimal memory choice can become a liability if second-source options vanish.

Memory-type flexibility also has meaningful electrical and thermal implications. LPDDR2 can be attractive in power-sensitive designs, especially where lower active and standby consumption influence enclosure temperature or power rail sizing. DDR3 and DDR3L are often preferred for cost efficiency, broad market availability, and familiarity across manufacturing ecosystems. DDR3L in particular is often a pragmatic choice when power margins are tighter but the design still wants mainstream DDR behavior and sourcing flexibility. In board development, the best choice is often not the fastest supported memory but the one that yields the most stable signal integrity margin with the fewest layout compromises. On this class of MPU, conservative memory selection usually shortens bring-up time more effectively than chasing the theoretical top of the supported envelope.

The external memory subsystem extends beyond DDR through the General-Purpose Memory Controller. The GPMC gives the AM4376BZDND80 a second axis of memory flexibility by supporting asynchronous devices over 8-bit and 16-bit interfaces with up to seven chip selects. It supports NAND, NOR, muxed-NOR, and SRAM, which allows the processor to interface with a wide range of nonvolatile and static memory technologies without external glue logic. This matters because many embedded systems still rely on more than one storage class: high-speed DDR for runtime execution, NAND for large firmware or file-system storage, NOR for boot-critical images, and SRAM for legacy or specialized peripheral expansion.

The GPMC is particularly relevant in systems where boot strategy, field-update resilience, and data retention policy must be engineered together. NAND provides density and cost efficiency, but it carries bad-block management and bit error accumulation that must be handled correctly in both software and hardware. NOR offers simpler random-access semantics and often more straightforward boot integration, but with lower density and higher cost per bit. SRAM remains valuable where deterministic access latency or compatibility with older subsystem designs is required. The AM4376BZDND80 does not force one storage philosophy. It gives the platform architect room to choose the failure model and cost structure most appropriate for the product.

Its ECC support is one of the more significant implementation details. BCH ECC with 4-bit, 8-bit, or 16-bit correction capability, along with Hamming code for 1-bit correction, allows the GPMC path to be tuned according to flash characteristics and reliability targets. This is not a cosmetic feature. In NAND-based systems, ECC strategy directly affects usable flash lifetime, tolerated wear, and the practical field reliability of boot and data partitions. Lower correction strength may reduce overhead, but stronger BCH modes become increasingly valuable as NAND geometries shrink or retention conditions worsen. The included Error Locator Module, which identifies error locations from syndrome polynomials generated by the BCH process, reduces software burden and improves recovery determinism. That hardware assist is especially useful during boot flows, where software complexity should be minimized and correction latency should remain predictable.

In deployed systems, ECC configuration often becomes one of the most underestimated architecture choices. Designs that treat NAND as simple bulk storage without matching ECC strength to the actual flash device tend to pass initial validation but degrade under temperature cycling, long retention intervals, or repeated update operations. A more robust approach is to treat ECC policy as part of the storage architecture from the first schematic revision. On AM4376BZDND80, the hardware support is sufficient to do this correctly, but the real benefit appears only when the flash selection, partition layout, bootloader behavior, and maintenance strategy are aligned early.

QSPI adds a third meaningful memory path and is arguably one of the most practical features in the overall architecture. The documented support for execute-in-place from serial NOR flash enables compact boot architectures with significantly reduced routing burden compared with parallel flash solutions. For many embedded Linux or bare-metal systems, QSPI NOR is an effective way to store first-stage bootloaders, secondary boot code, trusted firmware components, recovery images, and configuration data. It provides a clean compromise between capacity, pin count, and board simplicity.

The execute-in-place capability is especially valuable when boot code size is modest and deterministic startup matters. Running directly from serial NOR can reduce copy time during early initialization and simplify memory usage before DDR is trained and available. In practical board design, QSPI also lowers pin pressure and helps routing on compact multilayer stacks, which can improve manufacturability and reduce signal integrity risk elsewhere. It is often the difference between a straightforward cost-optimized PCB and one that requires additional layers primarily to support legacy parallel flash topologies.

What makes the AM4376BZDND80 memory architecture effective is the way these interfaces support different system phases. DDR serves high-bandwidth runtime execution. QSPI NOR can provide reliable and simplified boot storage. GPMC-connected NAND or NOR can scale nonvolatile storage capacity or support legacy memory-mapped designs. This layered memory model maps well onto real products, where no single memory technology satisfies all constraints at once. A strong embedded platform is usually not the one with the highest headline bandwidth, but the one that allows clean separation between boot-critical code, high-volume data storage, and runtime working memory.

From a system engineering perspective, the most important insight is that AM4376BZDND80 is optimized for memory architecture optionality rather than memory extremity. That is the correct design philosophy for industrial and embedded MPU platforms. Products in this space rarely fail because their DDR peak rate is slightly too low; they fail because memory choices create avoidable complexity in sourcing, board layout, boot recovery, or field reliability. This device addresses those failure modes well by allowing memory architecture to be tuned around product constraints instead of forcing the product around the processor.

For Linux-capable systems, the DDR interface is adequate for kernel, user space, networking, and moderate graphics workloads. For industrial control platforms, the GPMC and QSPI interfaces enable robust storage partitioning strategies, including dual-image firmware, persistent logging, parameter retention, and recovery-safe boot chains. For long-lifecycle designs, the ability to shift between LPDDR2, DDR3, DDR3L, NAND, NOR, and serial NOR reduces dependence on any single memory market segment. That flexibility carries real program value during redesign cycles, certification maintenance, and late-stage supply disruptions.

The AM4376BZDND80 therefore stands out not because it chases aggressive memory specifications, but because it offers a well-composed external memory architecture that is broad, practical, and deployment-aware. It supports the full stack from high-level OS execution down to boot flash resilience and storage error management. For engineers evaluating MPU platforms, that combination usually translates into faster bring-up, fewer board-level compromises, and a memory subsystem that remains useful across multiple product variants rather than only in the first design win.

Texas Instruments AM4376BZDND80 PRU-ICSS Real-Time Control and Industrial Communication Capabilities

Texas Instruments AM4376BZDND80 stands out in the AM437x family primarily because of its PRU-ICSS architecture. This subsystem is not a peripheral in the usual sense. It is a tightly integrated real-time processing domain designed to operate alongside the Cortex-A9 while remaining functionally independent in timing behavior, execution flow, and clocking. That separation is the key design decision. It allows the device to serve two very different workloads at once: Linux-class application processing on the ARM side and deterministic control or industrial communication on the PRU side.

At the architectural level, the PRU-ICSS solves a problem that general-purpose MPUs often struggle with. Industrial systems rarely fail because average CPU throughput is too low. They fail when latency is inconsistent, interrupt response is delayed, or protocol timing is disturbed by OS scheduling, cache effects, memory contention, or network stack jitter. The AM4376BZDND80 addresses this by embedding dedicated real-time engines that can operate with cycle-level predictability. In practice, that means timing-sensitive protocol handling does not have to compete with user interfaces, data logging, remote management, or application-layer software for processor attention.

The AM437x architecture includes two PRU subsystems, each containing two PRU cores. Each PRU is a 32-bit load/store RISC processor running at up to 200 MHz. These cores are deliberately simple. That simplicity is an advantage, not a limitation. A short pipeline, deterministic instruction timing, direct I/O visibility, and local memory placement make behavior much easier to model than on a high-performance application core. For control engineers and embedded developers, this translates into a much cleaner timing budget and far fewer surprises during integration.

The subsystem itself is more than the PRU cores alone. It includes instruction RAM, data RAM, local interconnect resources, interrupt handling, and peripheral elements such as UART, eCAP, MII Ethernet interfaces, and MDIO. On PRU-ICSS1, shared RAM provides an efficient exchange point between the PRUs and the larger SoC software stack. The parity-based single-error detection in instruction and data RAM is also relevant in industrial environments, where fault visibility matters as much as raw performance. It does not turn the subsystem into a safety processor by itself, but it improves robustness and makes fault detection more explicit at the subsystem level.

The industrial communication value of PRU-ICSS is especially important. Texas Instruments supports a range of protocols including EtherCAT, PROFIBUS, PROFINET, EtherNet/IP, EnDat 2.2, Ethernet Powerlink, and Sercos. This breadth is not just a marketing checkbox. It changes platform economics. Instead of using a separate communication ASIC, an FPGA, or an external protocol coprocessor, the system can consolidate protocol handling inside the MPU. That reduces board complexity, cuts interface glue logic, and simplifies synchronization between control software and fieldbus traffic. In many designs, eliminating one external real-time communication device also removes a layer of firmware maintenance and integration risk.

One of the more practical capabilities is concurrent protocol support, such as running EnDat together with another industrial communication protocol. This matters in motion and drive systems, where encoder feedback and deterministic network communication often need to coexist with minimal phase error. When these functions are split across unrelated devices, synchronization becomes harder and diagnostic visibility becomes fragmented. Keeping them under one SoC allows tighter timestamp alignment, cleaner fault correlation, and lower communication overhead between system layers.

The dual-PRU-subsystem arrangement creates useful partitioning options. A designer can dedicate one PRU-ICSS block to field communication and reserve the other for machine-side timing tasks such as encoder capture, pulse train generation, custom serial interfaces, or fast digital I/O sequencing. That partitioning often improves system maintainability because protocol firmware and machine-control firmware can evolve with less coupling. It also gives a clearer fault boundary during validation. When real-time communication and machine interfacing are mixed inside one software image, debugging timing interactions becomes significantly harder.

The MII Ethernet ports and MDIO support are central to the industrial Ethernet role of the subsystem. Unlike a conventional Ethernet MAC path that depends heavily on the main processor and OS-managed network stack, PRU-based Ethernet handling can place frame parsing, timing enforcement, and protocol state handling closer to the hardware edge. This is where deterministic communication becomes realistic on an MPU platform. The real advantage is not simply speed. It is bounded behavior under load. That distinction is critical in factory networks, where missed timing windows are often more damaging than reduced throughput.

The PRU-ICSS is also valuable beyond standardized fieldbus use. Because it has direct access to pins, interrupts, and SoC resources, it can implement custom peripheral behavior that would otherwise require an FPGA or CPLD. This includes proprietary serial protocols, unusual sensor timing, sub-microsecond GPIO response, pulse measurement, waveform generation, or protocol bridging between legacy equipment and modern Ethernet-based control systems. In many embedded products, these “small” custom interfaces become the reason a design slips or expands in cost. A programmable real-time engine inside the MPU gives an efficient escape path when standard peripherals are close, but not quite sufficient.

A practical pattern in factory automation is to run Linux on the Cortex-A9 for HMI, web services, file systems, analytics, remote updates, and supervisory logic, while the PRU handles the timing-critical edge behavior. That split is cleaner than trying to force a general-purpose OS into hard real-time responsibilities. Even when PREEMPT_RT or other tuning methods are applied, the main processor still remains exposed to shared-resource effects that are difficult to eliminate completely. The PRU avoids that class of problem by design. It is a stronger architectural answer than attempting to optimize around nondeterminism after the fact.

Another engineering benefit appears during system scaling. Early prototypes may use the PRU only for one industrial protocol. As requirements grow, the same subsystem can absorb auxiliary functions such as timestamping, synchronization strobes, motor feedback preprocessing, or protocol adaptation. This kind of growth path is often underappreciated during part selection. A processor that merely “meets today’s CPU requirement” can become expensive when new timing-sensitive features appear late in the project. The AM4376BZDND80 provides more elasticity because real-time behavior is programmable rather than fixed in a narrow-function hardware block.

There is also a software architecture implication. PRU firmware works best when treated as a hardware-adjacent execution layer rather than as a second application processor. The most effective partition is usually simple: keep the PRU code focused on bounded-time operations, event handling, protocol primitives, and low-level data movement; keep the ARM side responsible for configuration, policy, diagnostics, and noncritical computation. Designs that follow this boundary tend to be easier to validate and more stable over time. Designs that push excessive control complexity into PRU firmware often become difficult to maintain, even if they initially appear efficient.

In protocol-heavy systems, the real value of PRU-ICSS is that it reduces the number of timing assumptions the rest of the design must carry. Once fieldbus handling, encoder servicing, or precise I/O strobes are isolated inside deterministic cores, the ARM software can be developed with more normal software engineering practices. That separation lowers integration stress and makes performance issues easier to localize. It also improves resilience when the application stack grows, which it almost always does.

From a processor-selection perspective, this is why AM4376BZDND80 is more than an ARM Cortex-A9 MPU with industrial branding. Its defining capability is the combination of application processing and programmable deterministic I/O control in one device. Many processors can run industrial software stacks. Far fewer can maintain hard timing guarantees while simultaneously supporting a rich operating system environment without external assistance. The PRU-ICSS is what closes that gap. For industrial OEM designs, especially in automation, motion, gateways, and intelligent edge controllers, that capability often determines whether the system remains elegant or accumulates compensating hardware and software complexity.

Texas Instruments AM4376BZDND80 Graphics, Display, Touch, and Camera Integration

Texas Instruments AM4376BZDND80 extends well beyond a pure control processor. Its graphics, display, touch, and camera blocks form a compact visual-computing subsystem that can support modern embedded HMI and imaging designs without immediately depending on an external application processor or FPGA. This matters because in many embedded products, the challenge is not raw compute alone. The challenge is balancing deterministic control, responsive UI rendering, display pipeline flexibility, and low-complexity sensor integration inside a constrained power and cost envelope. The AM4376BZDND80 addresses that balance in a fairly deliberate way.

At the graphics layer, the integrated PowerVR SGX530 provides a meaningful step above a CPU-driven framebuffer architecture. The AM437x documentation characterizes it as a tile-based 3D engine with up to 20 million polygons per second, backed by a scalable shader architecture and support for OpenGL ES 1.1, OpenGL ES 2.0, and Direct3D Mobile. In practical embedded terms, the most important point is not the headline polygon number. The real value is that composition, animation, shading, and transform-heavy GUI elements can be offloaded from the ARM core. That changes the system design profile. CPU cycles can remain available for protocol handling, control logic, data acquisition, or local analytics while the graphics engine handles richer rendering.

Tile-based rendering is particularly relevant in embedded systems because it reduces external memory bandwidth pressure compared with brute-force immediate-mode approaches. In products where DDR bandwidth is already shared by CPU execution, display refresh, video buffers, and peripheral DMA traffic, this architectural choice helps preserve responsiveness. That benefit often becomes visible only after integration, when the UI starts competing with industrial Ethernet stacks, file systems, or real-time control tasks. A graphics engine that is merely “present” is not enough. A graphics engine that reduces memory traffic is often what keeps the system usable under load.

For GUI design, this means the AM4376BZDND80 can support interfaces with anti-aliased widgets, animated transitions, layered compositing, and more visually expressive instrumentation. It is still necessary to size expectations correctly. This is not a high-end mobile multimedia SoC. It is best viewed as a capable embedded visualization platform suited to control panels, medical instruments, handheld terminals, smart appliances, and operator interfaces where the UI must feel polished but system cost and power remain constrained. In that class of product, the integrated SGX530 is strategically valuable because it lifts the user experience ceiling without forcing a jump to a more complex processing tier.

The display subsystem reinforces that positioning. Support for resolutions up to 2048 × 2048 and a 24-bit LCD controller gives substantial headroom for embedded panel integration. WXGA-class operation is especially relevant because it aligns well with industrial panels and mid-size operator displays where readable layout density matters. The subsystem supports multiple pixel formats, including palletized modes, RGB in 16-bit and 24-bit formats, and YUV 4:2:2. That range is not just a feature list. It gives system architects flexibility in trading visual quality, memory footprint, bus bandwidth, and legacy panel compatibility.

The support for passive and active monochrome and color panels, along with RGB interfaces at 12-bit, 16-bit, 18-bit, and 24-bit, makes the device adaptable across several display cost tiers. In lower-cost products, 16-bit paths can reduce memory and bandwidth pressure while still delivering acceptable color quality. In premium HMI products, 24-bit output supports more refined gradients and better visual consistency for modern GUI themes. The RFBI support also matters in cases where the display module is not a standard parallel RGB panel but uses a remote framebuffer-style connection. That can simplify reuse of existing display modules in product families where redesigning the visual subsystem would otherwise be expensive.

Where the display engine becomes especially useful is in the amount of 2D pipeline assistance it provides. Overlay, windowing, resizing, color-space conversion, gamma support, transparency color keying, cropping, synchronized buffer update, and multi-buffer handling are all features that directly reduce software complexity. This should not be underestimated. Many UI problems in embedded products are not caused by lack of rendering capability. They are caused by timing artifacts, tearing, format mismatch, and excessive CPU involvement in moving pixels between incompatible buffers. Hardware support for these functions narrows those failure modes.

Overlay and windowing are central when combining static UI layers with dynamic content such as status banners, alarm indicators, or live video regions. Instead of redrawing the entire scene on every update, separate planes can be managed more efficiently. Resizing and cropping become important when a camera image, thumbnail, or remote feed must be inserted into a display region without forcing the main software stack to perform full-frame transformations in software. Color-space conversion is equally practical because many capture and video-oriented sources natively use YUV formats, while displays and GUI toolkits generally prefer RGB pipelines. When the hardware can bridge that gap, the software path becomes cleaner and more deterministic.

Gamma support and transparency keying are often dismissed as cosmetic, but in shipping products they improve perceived quality and implementation simplicity. Gamma adjustment helps maintain legibility and visual consistency across different panel technologies. Transparency mechanisms simplify compositing of icons, soft keys, and alert overlays. Synchronized buffer update and multi-buffer support are also important because they directly affect visual stability. In operator-facing systems, tearing during screen transitions or numerical updates quickly gives the impression of weak system quality even if the underlying control functions are correct. Double or multiple buffering, combined with synchronized updates, is one of the most effective ways to produce a stable interface under real operating conditions.

A practical pattern in industrial HMI design is to assign static chrome, background graphics, and persistent widgets to one layer, then reserve another layer for rapidly changing content such as trends, alarms, cursor movement, or camera preview. That approach tends to lower redraw cost and simplifies timing analysis. On platforms like AM4376BZDND80, the display hardware features make that pattern natural rather than forced. The result is often a more responsive UI with fewer software workarounds.

Touch integration is handled through the touch screen controller associated with ADC0, with support for 4-wire, 5-wire, and 8-wire resistive touch configurations. This is a highly pragmatic design choice. In many embedded environments, projected capacitive touch is not automatically the best option. Resistive panels remain relevant when operation through gloves is required, when contamination is common, when water droplets or conductive residue can interfere with capacitive sensing, or when the mechanical stack must tolerate a more rugged and lower-cost implementation. The AM4376BZDND80 acknowledges those realities directly.

The integration of touch capability with the ADC path can simplify board design and reduce the need for external controller devices. That helps with BOM control, routing, and software integration. It also aligns well with products where touch is not a premium consumer feature but a functional input channel that must remain predictable across harsh operating conditions. In this type of design, raw touch performance is not the only metric. Stability, calibration retention, noise tolerance, and recovery from electrical disturbance matter more.

In practice, resistive touch implementations often need careful attention to sampling strategy, debounce logic, and filtering because display switching noise, backlight power stages, and long panel traces can inject errors into the ADC readings. The integrated controller solves only part of the problem. Good layout discipline, analog grounding strategy, and software-side coordinate filtering remain essential. A common implementation lesson is that touch accuracy should be evaluated while the full display subsystem is active, not in isolation on a quiet bench setup. Once the backlight driver, high-speed memory traffic, and interface transitions are all present, the noise environment changes materially. Designs that account for that early usually avoid painful recalibration and threshold tuning later.

The camera interface broadens the role of the device from HMI processor to entry-level vision-enabled platform. Support for dual-port 8-bit and 10-bit BT656, single-port 12-bit input, YUV422/RGB422 and BT656 formats, RAW format support, and pixel clocks up to 75 MHz creates room for several classes of image-input designs. That includes simple operator-facing imaging, barcode or document capture, process observation, machine assistance, and light inspection tasks where moderate image acquisition capability is sufficient.

This interface flexibility is valuable because image sensors and camera modules vary widely in output conventions. A device that only accepts one narrow format often forces external bridge logic or a sensor change. By supporting both formatted video-style input and RAW paths, the AM4376BZDND80 gives developers more freedom in sensor selection. RAW support is particularly useful when the processing chain needs direct access to sensor data before full color conversion or compression, for example in inspection, measurement, or custom enhancement pipelines. YUV and BT656 support, by contrast, fit more naturally when the goal is to display or stream standard video-oriented content with minimal preprocessing.

The 75 MHz pixel clock ceiling places the device in a practical middle ground. It is not aimed at high-end vision throughput, but it is sufficient for many embedded capture use cases where the image serves an interface, recording, or moderate analytics function rather than a full computer-vision pipeline. This distinction matters. If the application requires dense real-time inference, multi-camera synchronization, or high-resolution image processing with substantial preconditioning, a more specialized vision SoC is usually the better choice. But if the requirement is to add visual context to a control system, support local image capture, or embed a live preview into an HMI, the integrated interface is often enough and avoids unnecessary platform escalation.

An effective system-level use case is combining the camera input with the display overlays and graphics engine to build a guided visual workflow. A live image can occupy one layer, while graphics overlays provide region markers, instructions, status annotations, or pass/fail indicators. This is useful in service tools, handheld diagnostics, assembly assistance, and compact inspection terminals. The important design advantage here is that image input, display composition, and UI rendering all reside within one coherent processor platform. That reduces data movement, shortens latency, and simplifies software partitioning.

From an engineering perspective, the strongest aspect of this integration is not any single block in isolation. It is the way the blocks fit together. The graphics engine improves rendering efficiency. The display subsystem handles composition and panel interfacing. The touch controller provides low-cost local input. The camera port allows image acquisition. Together, these resources enable a product architecture in which control, visualization, and moderate sensing coexist on one processor. That is often the most economical point in the design space for industrial and embedded products that need a polished front end but do not justify a much larger multimedia platform.

One useful way to position the AM4376BZDND80 is as a convergence device for “visual control nodes.” In such nodes, the interface is no longer secondary. It is part of the control value itself. Operators expect smooth interaction, layered information, and occasionally visual confirmation from a camera or live process image. Devices in this category need enough graphics and I/O intelligence to feel modern, but they also need deterministic behavior, long-lifecycle support, and manageable integration effort. This processor sits well in that gap.

The main design discipline is to treat the visual subsystem as a bandwidth-managed pipeline rather than a collection of independent features. Display refresh, GPU access, camera DMA, and CPU memory activity all contend for shared resources. Strong results usually come from early budgeting of DDR bandwidth, buffer sizes, layer usage, and update frequency. A design that uses the hardware overlays, avoids unnecessary full-frame redraws, and matches pixel formats carefully will generally outperform a nominally similar design that pushes everything through software composition. That is where the practical value of the AM4376BZDND80 becomes most visible: not simply in having graphics, display, touch, and camera blocks, but in enabling an efficient partition of work across them.

Texas Instruments AM4376BZDND80 Connectivity and Peripheral Interface Resources

Texas Instruments AM4376BZDND80 exposes a connectivity and peripheral mix that is unusually balanced for embedded control, gateway, and HMI-class designs. Its value is not only in the raw interface count, but in how those interfaces reduce external glue logic while still supporting deterministic networking, local storage, fieldbus attachment, service access, and general system supervision from a single processor. In practice, that combination matters more than any one headline peripheral. It shortens board-level interconnect paths, lowers latency between subsystems, and simplifies software ownership across the platform.

At the network layer, the device integrates dual 10/100/1000 Mbps Ethernet capability, with family support for up to two industrial Gigabit Ethernet MACs, an integrated switch, and IEEE 1588v2 precision time protocol. This is a strong architectural choice for systems that need both standard IP connectivity and time-aware industrial traffic. The integrated switch is especially important because it changes the role of the processor from a simple endpoint into a compact network node. Instead of routing all traffic through an external switch IC, the design can terminate one port, forward another, and still maintain timing visibility close to the application layer. That arrangement is often cleaner in industrial controllers, protocol gateways, and distributed measurement units where line topology, bounded latency, and timestamp quality all matter.

The Ethernet MACs support MII, RMII, and RGMII, plus MDIO for PHY management. That flexibility is more than a pin-compatibility feature. It lets the same processor scale across board variants with different cost, speed, and layout constraints. RMII is often the pragmatic option when pin count and routing simplicity dominate. RGMII becomes the better fit when full Gigabit throughput is required and the PCB stack-up can support tighter timing margins. MII remains useful in legacy or compatibility-driven designs. MDIO support keeps PHY configuration and diagnostics under software control, which is useful during production test and field bring-up, where link negotiation behavior and cable-side faults often need to be observed without external instrumentation.

IEEE 1588v2 support deserves specific attention. In many embedded processors, time synchronization is listed as a feature but only becomes valuable when tied to MAC-level timestamping and a software architecture that can preserve timing fidelity. Here, the industrial Ethernet orientation suggests a more serious timing path. That makes the AM4376BZDND80 suitable for coordinated motion-adjacent systems, event correlation nodes, synchronized data logging, and edge devices bridging real-time Ethernet segments to higher-level applications. A useful design pattern is to keep timestamp generation and packet handling close to the Ethernet subsystem, while pushing less time-critical analytics to higher software layers. That separation usually produces more stable timing under CPU load than a monolithic networking stack.

USB connectivity is equally practical. The processor provides up to two USB 2.0 high-speed dual-role ports with integrated PHY, allowing each port to act as host or device. This reduces BOM count and eliminates one of the more common integration annoyances in embedded USB designs: external PHY placement and its associated power, clocking, and signal integrity overhead. For compact products, that is a meaningful simplification. It also improves design agility. One port can be assigned as a maintenance or provisioning interface, while the second is used for removable storage, a wireless dongle, a camera, or a peripheral expansion module.

Dual-role support also expands deployment options late in the design cycle. A port initially intended for factory flashing can later become a field service console or a USB gadget interface to a host PC, with limited hardware change. That kind of reuse is often undervalued early on and becomes critical when product variants start diverging. The integrated PHY helps further by reducing uncertainty around high-speed routing boundaries. Even so, experience shows that USB reliability in the field still depends heavily on power-domain behavior, cable quality tolerance, and connector protection strategy. The processor reduces complexity, but robust VBUS control, ESD handling, and suspend-resume sequencing still determine whether the interface feels industrial-grade or merely feature-complete.

The serial peripheral set is broad and maps well to layered embedded architectures. Up to two CAN ports supporting CAN 2.0A and 2.0B make the device appropriate for automotive-adjacent, industrial, and distributed control networks where robust differential signaling and error confinement are still preferred over higher-bandwidth links. CAN on this class of processor is often most effective when used for supervisory control, actuator coordination, or interoperability with existing installed equipment, while Ethernet handles management, logging, and upstream integration. That split leverages the strengths of each bus without forcing one interface to cover incompatible roles.

Up to six UARTs provide a large amount of low-overhead connectivity. UART remains the interface that quietly keeps mixed-technology systems manageable. It is often the easiest way to attach cellular modules, GNSS receivers, Bluetooth controllers, RS-232/RS-485 transceivers, debug consoles, and vendor-specific submodules. Support for IrDA and CIR modes broadens legacy compatibility, while RTS/CTS flow control across all UARTs improves sustained transfer reliability. UART1 adds full modem control, which is useful in communication-centric designs where DCD, DTR, DSR, or RI still influence software state machines. A practical advantage of having this many UARTs on one processor is that debug access can remain physically separate from operational communications. That separation tends to pay off during integration, where one serial path is often consumed by diagnostics long before the system is stable enough to share ports safely.

For synchronous serial devices, up to five McSPI interfaces and three I2C controllers provide a useful division of labor. SPI is the preferred path for higher-throughput, low-latency peripherals such as ADCs, DACs, display controllers, external SRAM-like devices, or specialized industrial front ends. I2C remains the control-plane bus for PMICs, sensors, EEPROMs, clocks, and housekeeping devices. The presence of both in healthy quantities enables a cleaner board architecture: high-speed peripherals can stay on dedicated SPI segments, while low-speed configuration devices share I2C buses with manageable loading. This is one of the more effective ways to keep startup sequencing deterministic and avoid the congestion that appears when too many unrelated devices are forced onto a single control bus.

The QSPI interface extends that storage and boot flexibility. QSPI is often the most economical way to add nonvolatile memory with better read bandwidth than conventional SPI flash, while avoiding the pin and board cost of wider parallel memory devices. In many embedded Linux or RTOS systems, QSPI flash becomes the ideal home for bootloaders, secure assets, fallback images, and compact root filesystems. It also provides a practical recovery path. When eMMC contents become corrupted or field updates fail, a stable QSPI-resident rescue image can significantly improve serviceability. This is one of those interfaces whose strategic value becomes most visible after deployment rather than during initial feature comparison.

The processor also supports up to three MMC/SD/SDIO ports, which is important because removable and embedded storage often have conflicting requirements. One port can host eMMC for the primary software image, another can support an external SD card for logging or software updates, and a third can connect SDIO-based wireless modules or similar peripherals. This segregation is useful both electrically and operationally. eMMC benefits from a tightly controlled layout and power environment, while removable media paths need stronger tolerance for hot insertion, contamination, and user error. SDIO connectivity also allows low-pin-count radio integration without consuming a USB port, which can be a decisive trade in compact gateway products.

The HDQ/1-Wire interface is a small but practical inclusion. Interfaces of this type are often used for battery packs, identification devices, calibration tokens, or simple environmental accessories. They rarely drive processor selection, yet they can eliminate a protocol bridge or bit-banged workaround in systems that need low-speed peripheral identity and health data. In dense designs, these seemingly minor dedicated interfaces often reduce software timing jitter and CPU overhead compared with implementing the same function through emulation.

For audio and multichannel serial transport, the AM4376BZDND80 includes up to two McASP instances with transmit and receive clocks up to 50 MHz. McASP is relevant beyond conventional audio playback or capture. In embedded equipment, it can serve voice interfaces, alert systems, industrial acoustic sensing, codec attachment, and time-structured serial data exchange with specialized digital front ends. The 50 MHz clock capability provides room for multichannel operation and higher sample rate scenarios, though actual system performance depends on DMA strategy, buffering depth, and clock-tree quality. A common integration mistake is to treat audio as a secondary feature and place clock planning too late. On devices with this level of interface density, shared pinmux and clock dependencies can quietly constrain McASP options if they are not reserved early.

GPIO capacity is also substantial, with up to six banks and 32 GPIOs per bank, multiplexed against alternate functions. The raw count is useful, but the more important point is that GPIO on this processor acts as the adaptation layer between the SoC and the physical product. It absorbs board-specific variance: resets, enables, presence detects, status LEDs, relay drives, interrupt lines, mux selects, and timing strobes. Because the GPIOs can serve as interrupt inputs, they also support efficient event-driven integration with external devices that do not justify a heavier bus interface. External DMA event inputs further extend this model by enabling lower-latency interaction patterns, especially where repetitive sampling or external pacing signals need to trigger data movement with minimal CPU involvement.

Pin multiplexing is the hidden engineering constraint behind this rich peripheral set. The AM4376BZDND80 offers enough functions to support many architectures, but not all of them simultaneously on every package and board design. Successful use of this processor depends less on counting peripherals and more on composing an interface map that respects boot requirements, memory routing, power domains, debug access, and future serviceability. This is where early system partitioning matters. If Ethernet, MMC, USB, and multiple serial ports are all considered fixed too late in the layout phase, pinmux collisions can force awkward compromises or external expanders that erase the original integration advantage. A disciplined interface allocation spreadsheet, tied directly to software ownership and manufacturing test needs, is usually one of the highest-value artifacts in projects built around a feature-dense SoC like this.

From an application perspective, the peripheral mix aligns well with several system classes. In an industrial controller, Ethernet handles plant or cell-level networking, CAN links to drives or legacy nodes, UARTs connect service tools and communication modules, SPI and I2C manage sensors and local control devices, and MMC/QSPI support resilient software storage. In an HMI or panel system, USB covers service and external accessories, Ethernet provides remote connectivity, McASP supports alerts or operator audio, and GPIO handles local I/O expansion and control signals. In an edge gateway, the integrated switch and dual Ethernet ports support inline deployment, while UART, CAN, SDIO, and USB connect heterogeneous field interfaces and wireless backhaul options. The processor fits these roles because the interfaces are not isolated features; they form a coherent edge-integration envelope.

A less obvious but important benefit is procurement and lifecycle resilience. When a processor already includes Ethernet switching support, USB PHYs, CAN, storage interfaces, and a wide serial mix, the design depends on fewer auxiliary bridge ICs. That usually reduces sourcing complexity, qualification effort, firmware fragmentation, and long-term maintenance exposure. Fewer support chips also mean fewer clock islands, fewer reset dependencies, and fewer board-level interoperability surprises. Integration at the SoC level is not automatically better in every case, but for products that must be maintained over multiple revisions, it often yields a more stable platform than an architecture assembled from narrowly specialized interface components.

Viewed as a whole, the AM4376BZDND80 interface set is best understood as a system-consolidation tool. It supports high-bandwidth networking, deterministic control traffic, multiple storage tiers, abundant service channels, and flexible low-speed peripheral attachment without requiring a large ecosystem of external bridges. The strongest designs built around it typically exploit that consolidation intentionally: time-sensitive traffic stays close to the Ethernet and DMA infrastructure, slow control devices are grouped cleanly on I2C, bandwidth-oriented peripherals sit on SPI or MMC, service functions remain isolated on dedicated UART or USB paths, and GPIO is reserved for board identity and operational control rather than used as a patch for missing architecture. That approach turns a long peripheral list into a maintainable platform rather than a crowded schematic.

Texas Instruments AM4376BZDND80 Security, Boot, Debug, and System Management Features

Texas Instruments AM4376BZDND80 integrates a security and control foundation that is stronger at the hardware-assist level than at the platform-trust level. That distinction matters early in system design. The device provides dedicated cryptographic acceleration, robust boot configuration logic, extensive debug visibility, and structured power management. However, several high-assurance features often associated with secure embedded platforms in the broader AM437x family are restricted to HS variants. In practice, this means the AM4376BZDND80 can efficiently execute cryptographic workloads and support disciplined lifecycle management, but system architects must not assume it natively delivers the full chain of secure boot, authenticated debug, or trusted execution services available on security-enhanced derivatives.

At the cryptographic layer, the device includes hardware accelerators for AES, SHA, RNG, DES, and 3DES. This hardware is significant because it shifts security processing away from the general-purpose Cortex-A9 pipeline and into dedicated engines optimized for deterministic throughput and lower CPU utilization. In communication-heavy systems, that changes the design envelope. Tasks such as bulk data encryption, digest generation, session material preparation, or entropy sourcing no longer compete as aggressively with application threads, real-time control loops, or network stack execution. The gain is not only performance. Latency becomes more predictable, memory traffic is often reduced, and software complexity can be contained by treating the accelerator as a service block rather than reproducing critical primitives entirely in software.

That said, cryptographic acceleration should not be confused with a complete hardware root of trust. It is best understood as an execution aid, not as policy enforcement by itself. If a design requires authenticated firmware loading, anti-rollback behavior, secure key ladders, or protected debug unlock procedures, those properties must be mapped carefully against the exact device grade. This is where the separation between standard AM437x devices and AM437xHS devices becomes operationally important. The HS devices add secure boot, debug security controls, Trusted Execution Environment support, and the Secure Control Module. These are system-level trust mechanisms. They govern whether code is allowed to run, how secrets are provisioned or isolated, and how invasive observability is restricted during deployment. On AM4376BZDND80, the security architecture therefore tends to rely more heavily on external trust anchors, controlled manufacturing flows, software hardening, and board-level key protection when the application requires stronger assurance.

A practical design pattern emerges from this limitation. The built-in crypto engines are highly effective for accelerating TLS-related primitives, protected storage formats, signed update verification performed in software policy layers, and secure communications between system nodes. But if the product must defend against unauthorized firmware replacement at first boot or prevent unrestricted field debug access, those controls should be treated as separate architectural work items rather than assumed silicon defaults. This distinction avoids a common integration error: selecting a processor based on the presence of crypto hardware, then later discovering that the intended trust boundary was never actually enforced in hardware.

The boot process itself is straightforward and hardware-defined. Boot mode configuration pins are latched on the rising edge of the PWRONRSTn reset input. This mechanism sets the initial boot behavior and creates a clear dependency between board-level strap design, reset integrity, and startup determinism. In engineering terms, the boot path begins before software exists. Pull-up and pull-down resistor values, reset timing margins, signal stability during power ramp, and interaction with external supervisors all influence whether the processor samples the intended mode consistently. On dense boards or noisy industrial platforms, strap instability can create intermittent startup failures that look like software faults but are actually reset-domain issues. The most reliable implementations treat boot pins as timing-critical configuration inputs, not as passive logic defaults.

This latching behavior also has manufacturing implications. Because the boot source is decided at reset sampling, board test strategies can intentionally use alternate boot modes for recovery, low-level provisioning, or production diagnostics. That flexibility is useful, but it should be controlled carefully in final products. Any exposed path that changes boot behavior can become a maintenance tool or an unintended attack surface, depending on how the platform is deployed. For that reason, mature designs usually align strap accessibility, enclosure policy, and software fallback logic rather than treating boot mode only as a bring-up concern.

The device-identification facilities add another layer of control and traceability. Production ID, unique JTAG ID, device revision data, and fuse-based feature identification allow software and test infrastructure to determine exactly which silicon instance is present and which feature set is enabled. These identifiers are valuable during manufacturing because they let test programs adapt automatically to device revision, binning, or configuration status. They are equally valuable later in fleet management, where failure analysis and software qualification depend on distinguishing one silicon revision from another. When integrated into boot logs or diagnostic telemetry, these fields reduce ambiguity during field issue reproduction. In complex embedded products, that usually shortens the path from symptom to root cause more than any single debug feature.

Debug capability on the AM437x family is notably strong and reflects the needs of mixed-criticality embedded systems. The platform supports JTAG and cJTAG for ARM and PRU-ICSS debug, real-time trace output for the Cortex-A9, a 64KB embedded trace buffer, boundary scan, and IEEE 1500 support. This is a broad set of observability tools, and its real value appears when the software stack is heterogeneous. Linux or another high-level OS may run on the Cortex-A9 while time-sensitive industrial logic executes on the PRU-ICSS, and peripheral interactions span Ethernet, display, storage, and fieldbus interfaces. In that kind of system, ordinary printf-style debugging becomes inadequate very quickly. The available trace and scan infrastructure makes it possible to observe temporal relationships, isolate race conditions, and validate board connectivity without relying solely on software instrumentation.

The embedded trace buffer deserves specific attention. External trace pins are useful but expensive in board routing, connector design, and signal-integrity budget. A local trace buffer provides a practical middle ground. It captures execution history around faults without requiring continuous high-speed export off-chip. During bring-up, this often becomes the fastest way to inspect startup failures, exception paths, or rare timing interactions before the main software environment is stable enough to log them properly. In field-service-oriented products, it also supports post-mortem analysis with less hardware overhead than a full trace connector strategy.

Boundary scan and IEEE 1500 support strengthen manufacturing diagnostics and subsystem validation. These are not glamorous features, but they often save disproportionate time in production and failure isolation. They help separate assembly faults from software defects by providing direct structural test coverage at the board and embedded-core levels. On multilayer boards with fine-pitch packages and multiple high-speed interfaces, that separation is critical. Without it, early failures can trigger long and expensive software investigations before an open net, solder bridge, or reset-tree issue is identified.

Debug power must be balanced against deployment security. On devices where stronger debug security controls are not part of the selected silicon feature set, the debug interface becomes a lifecycle decision rather than a purely development convenience. The safest approach is to define debug policy as part of product architecture: which ports remain physically accessible, what manufacturing stage permits unrestricted access, what service scenarios require diagnostics, and how the system behaves if unauthorized tools are connected. In many embedded programs, debug is treated as something to disable later. A better approach is to classify it from the beginning as a managed interface with operational, safety, and security consequences.

System management is handled by the Power, Reset, and Clock Management module, which coordinates deep-sleep entry and exit, sleep sequencing, wake-up sequencing, and power-domain switch sequencing. This subsystem is central to platform stability because it ties together energy optimization, reset behavior, and peripheral availability. The AM437x architecture partitions the device into multiple power domains, including always-on or nonswitchable RTC and wake-up domains alongside switchable domains for the MPU subsystem, graphics, peripherals, and infrastructure. That partitioning enables meaningful power reduction, but it also introduces state-management complexity. Any software stack using low-power modes must understand which clocks disappear, which registers lose context, which wake sources remain active, and how quickly each domain can be restored to a usable state.

From an implementation perspective, power domains are only as effective as the software model that controls them. It is easy to enable a deep-sleep path on paper and then discover that one peripheral driver assumes an always-running clock, one DMA path is not quiesced correctly, or one wake event is routed through a domain that was powered down. The result is usually intermittent resume failure rather than a clean reproducible bug. Stable low-power deployment therefore depends on sequencing discipline: explicitly parking interfaces, validating retention assumptions, measuring wake latency under load, and checking reset reasons after every suspend-resume transition. On AM437x-class devices, those steps are not optional if the design expects both aggressive power savings and industrial reliability.

The presence of separate RTC and wake-up domains is especially useful in products that must maintain timekeeping, alarm functions, or limited supervisory behavior while the main processing domains are off. This supports architectures where the processor spends long periods in reduced-power states and wakes only for scheduled activity, external events, or communication windows. The design advantage is clear in gateway, HMI, and industrial edge applications. The subtle challenge is that wake-up logic becomes part of the system contract. Spurious wake sources, poorly filtered interrupts, or software that repeatedly bounces domains between states can erase the intended power savings and stress long-term stability.

Viewed as a whole, the AM4376BZDND80 is best positioned as a processor with strong hardware assist for cryptography, rich debug infrastructure, deterministic boot configuration, and capable power-domain management. Its main architectural caveat is that advanced trust-establishment features belong to HS-class devices, not to the baseline security set implied by the crypto engines alone. Designs that respect that boundary tend to succeed. They use the accelerator blocks to improve throughput and reduce CPU load, use boot straps and identification logic to build deterministic provisioning and traceability flows, use the debug fabric aggressively during development but govern it carefully in deployment, and treat power management as a coordinated hardware-software discipline rather than a checkbox feature. In that framing, the device becomes easier to place correctly: not as a fully self-securing endpoint, but as a capable embedded compute platform whose security and lifecycle behavior depend on precise architectural decisions around the silicon.

Texas Instruments AM4376BZDND80 Analog, Timing, Motor-Control, and Data-Movement Functions

Texas Instruments AM4376BZDND80 integrates a set of mixed-signal, timing, and data-path resources that materially extend its role beyond a general-purpose Cortex-A9 MPU. In embedded control designs, these subsystems often determine whether the device can meet deterministic response, sampling fidelity, and sustained I/O throughput targets without external assist logic. The AM4376BZDND80 is therefore better understood as a control-oriented SoC, where analog acquisition, pulse generation, event timing, and low-overhead data transport are tightly coupled to the compute domain.

At the analog front end, the device provides two 12-bit SAR ADCs, ADC0 and ADC1, each supporting conversion rates up to 867 kSPS. Both ADCs access input signals through an 8:1 analog input multiplexer, which gives design flexibility but also introduces the usual engineering tradeoffs associated with switched-input acquisition. When multiple channels are scanned, source impedance, settling time, and channel sequencing begin to matter. In practice, raw converter resolution is only part of the story. If the signal source is weakly driven or routed through a noisy board environment, effective accuracy will be limited more by analog design discipline than by the nominal 12-bit specification. Short return paths, careful grounding, and modest front-end filtering usually produce greater gains than post-processing alone.

ADC0 supports resistive touch-screen control, which makes it useful in HMI-centric products where low component count is important. ADC1 is especially relevant in control applications because it can be paired with the PWM subsystem to form a closed-loop actuation path. That pairing is one of the more valuable architectural features in the AM4376 family. It allows current, voltage, or position-related analog feedback to be sampled in temporal alignment with switching activity, then used to adjust duty cycle or phase with bounded latency. This matters in motor-control loops, power-stage supervision, and actuator regulation, where sampling at the wrong point in the PWM cycle can inject measurement error rather than useful control information. A design that synchronizes ADC triggering to PWM edges often performs much better than one that merely samples “fast enough.”

The timing and control fabric is built around several hardware blocks that are common in industrial motion and event-driven systems. The device includes up to three 32-bit eCAP modules, up to six enhanced high-resolution PWM modules, and up to three eQEP modules. These are not generic timer peripherals in a minimal sense; they are function-specific blocks intended to shift repetitive real-time work out of software and into hardware state machines. That distinction is important. In embedded control, timing quality is not defined only by clock frequency. It is defined by edge placement accuracy, capture determinism, and the ability to react to external events without software jitter.

The eCAP modules are used for timestamping and pulse measurement. They are effective for frequency estimation, pulse-width analysis, tachometer input processing, and event interval characterization. In systems that must interpret asynchronous external signals, eCAP often becomes the simplest way to preserve timing fidelity while the main processor remains occupied with protocol stacks or application logic. A practical pattern is to use eCAP for direct measurement and then move summarized results into a slower supervisory task, rather than trying to service every edge in an interrupt-driven software loop.

The enhanced PWM modules are central to motor drives, digitally controlled power stages, LED dimming with tight phase management, and synchronized industrial outputs. High-resolution PWM capability improves duty-cycle granularity and edge positioning, which becomes valuable when switching frequency is high and control bandwidth is nontrivial. Fine edge control can reduce torque ripple in motor systems, improve waveform shaping, and support cleaner current regulation. It also gives margin when EMI constraints force compromises in switching strategy. In real designs, PWM resources tend to be consumed quickly, not only by primary drive outputs but also by auxiliary timing tasks such as trigger generation, dead-band insertion, fault response, and synchronization across multiple channels. The availability of up to six such modules therefore has real architectural weight.

The eQEP modules address incremental encoder interfacing, which is a recurring requirement in servo systems, rotary positioning, and closed-loop motion platforms. Hardware quadrature decoding avoids the interrupt overhead and edge-loss risk that arise when software attempts to track encoder transitions at higher rotational speeds. More importantly, eQEP does not simply count pulses; it supports direction-aware position tracking and timing relationships that are essential for velocity estimation and commutation logic. When paired with ePWM and ADC feedback, eQEP completes a hardware-assisted motion-control chain: command generation, actuator drive, and physical feedback all reside within coordinated on-chip peripherals. That reduces latency, simplifies software partitioning, and usually improves fault handling because the control loop remains less dependent on operating-system scheduling behavior.

The general timer set complements these specialized blocks. The device provides twelve 32-bit general-purpose timers, including a 1 ms timer commonly used as the operating-system tick source, along with one public watchdog timer. HS variants also include a secure watchdog. This timer inventory is large enough to support layered software timing models without overloading a single scheduler source. In practical systems, general-purpose timers often disappear into infrastructure roles: timeout supervision, protocol timing, periodic acquisition, debounce windows, diagnostics, and software-managed state transitions. Having many 32-bit timers allows those roles to remain isolated, which is preferable to multiplexing unrelated functions onto one timing base and then debugging hidden coupling effects later.

The watchdog architecture deserves more attention than it usually receives. In systems that combine Linux, field I/O, and time-sensitive control tasks, failure modes are rarely total. More often, one subsystem stalls while others continue running. A watchdog is therefore most effective when it is treated as part of a fault-containment strategy rather than a last-resort reset mechanism. The public watchdog can supervise software liveness at the platform level, while secure watchdog support on HS devices strengthens designs that must maintain a trusted recovery path. The most reliable implementations typically avoid feeding the watchdog from a single high-level task. Instead, they gate refresh permission on the health of several critical functions, which makes the watchdog a meaningful diagnostic instrument instead of a decorative feature.

For data transport, the on-chip enhanced DMA controller is one of the key enablers of sustained system performance. The EDMA subsystem contains one channel controller and three transfer controllers, supporting up to 64 logical channels and eight QDMA channels. Its purpose is not merely to improve throughput in an abstract benchmark sense. It is to preserve processor availability and timing determinism by removing repetitive memory movement from the Cortex-A9. This becomes decisive when the system simultaneously handles display traffic, communication streams, ADC result movement, storage I/O, or frame-buffer updates. Without DMA, the processor spends too much time acting as a copy engine, and cache behavior becomes less predictable under load.

The structure of EDMA matters because transfer orchestration and transfer execution are separated. That allows complex movement patterns to be scheduled efficiently while actual data transfers proceed in parallel through the transfer controllers. In application terms, this supports continuous peripheral servicing with lower software intervention. A common and effective usage model is to build a pipeline: peripheral event triggers a DMA transfer, the data lands in a ring buffer or double buffer, and software processes completed blocks at a coarser cadence. This approach is usually superior to per-sample interrupt handling. It lowers interrupt density, reduces context-switch churn, and creates a cleaner boundary between real-time I/O and upper-layer processing.

The value of EDMA is especially clear in systems with mixed bandwidth classes. For example, a design may need to capture ADC samples, refresh a display, receive network packets, and write log data to external memory at the same time. These flows do not all require maximum speed, but they do require bounded service latency and low interference with one another. EDMA helps convert that problem from “can the CPU keep up” into “can the memory system be scheduled sensibly.” That is a far healthier design position. In practice, once DMA is used correctly, the main remaining bottleneck is often memory arbitration rather than raw compute capacity. This shifts optimization toward buffer layout, burst sizing, and transfer priority rather than cycle-level software tuning.

The AM4376BZDND80 also includes interprocessor communication support through hardware mailboxes and spinlock mechanisms. These resources are important in partitioned software architectures where Linux runs on the Cortex-A9 while time-critical logic executes elsewhere in the SoC, including PRU-ICSS-based firmware. The hardware mailbox provides a low-latency signaling path, and spinlocks support controlled access to shared resources. This is more than a convenience feature. In heterogeneous systems, communication quality often determines whether the architecture is robust or fragile. Shared-memory messaging without disciplined synchronization tends to work in light testing and fail under stress, especially when timing assumptions are implicit rather than enforced.

A more effective pattern is to assign each processing domain a narrow, explicit responsibility. Linux handles networking, UI, storage, and system management. Real-time firmware handles edge-near control, timestamp-critical I/O, or protocol servicing with deterministic deadlines. Mailboxes then carry events and command descriptors, while shared memory is used for structured buffers rather than ad hoc state sharing. Spinlocks should be applied sparingly and only around truly shared control structures. Excessive locking across domains usually signals that task boundaries were drawn too loosely. The strongest AM4376 designs use hardware IPC to minimize ambiguity, not to patch over architectural indecision.

Seen as a whole, the analog converters, PWM and capture blocks, encoder interface modules, timer array, EDMA engine, and IPC hardware form a coherent embedded-control substrate. The practical advantage is not that each block is individually impressive, but that they can be chained into deterministic data and control paths with limited processor intervention. ADC samples can be aligned to PWM events, transferred through DMA, interpreted alongside encoder feedback, and acted on through hardware-timed outputs, while Linux or application software remains focused on orchestration rather than bit-level timing. That separation is where the device delivers its real system value.

In many SoCs, peripheral count looks strong on paper but the blocks do not combine naturally into low-jitter execution paths. The AM4376BZDND80 is more useful than a simple feature list suggests because its control-oriented peripherals support composition. That makes it well suited to industrial HMI with embedded control, compact drives, intelligent field devices, and gateway-class equipment that must bridge user-facing software with real-time plant interaction. The device rewards designs that treat hardware peripherals as cooperating engines rather than isolated registers behind a CPU. When used that way, it can absorb a surprising amount of control and data-movement work before the main processor becomes the limiting factor.

Texas Instruments AM4376BZDND80 Power, Voltage, Temperature, and Package Characteristics

Texas Instruments AM4376BZDND80 combines compute capability with a package and power architecture that strongly influences board design, thermal behavior, assembly flow, and long-term sourcing decisions. From an implementation standpoint, the device is not just selected by CPU performance. Its electrical domains, thermal envelope, package geometry, and clock/power-control model directly shape layout complexity, PMIC selection, boot strategy, and low-power operating policy.

The device is offered in a 491-pin NFBGA package measuring 17 mm × 17 mm with a 0.65 mm ball pitch. That combination places it in a range where routing density is substantial but still manageable on cost-sensitive multilayer boards when escape planning is done early. The cited via channel array approach matters because it reduces the routing penalty normally associated with high-pin-count BGAs. In practice, this means the package is better aligned with industrial and embedded designs that need broad peripheral access without immediately forcing premium HDI stackups. Even so, that benefit depends heavily on pin-function planning. If DDR, high-speed interfaces, industrial Ethernet, and wide peripheral expansion are all used simultaneously, routing pressure rises quickly and the theoretical package efficiency can be lost through excessive layer count or constrained return paths.

The 0.65 mm pitch deserves careful interpretation. It is fine enough to demand disciplined manufacturing rules, solder mask control, and escape strategy, but it is not so aggressive that it becomes inherently assembly-hostile. This is often a favorable balance for products transitioning from prototype to volume build. Designs in this package class usually benefit from early DFM alignment with the intended assembly house, especially around via-in-pad decisions, warpage tolerance, and X-ray inspection criteria. A recurring issue in similar deployments is not the BGA itself, but late-stage changes in memory topology or peripheral muxing that force a reroute after the stackup has already been cost-optimized.

The specified I/O voltages of 1.8 V and 3.3 V are more than simple interface limits. They define how the processor fits into mixed-voltage systems and indicate the need for deliberate bank-level voltage planning. In practical designs, this affects level compatibility with legacy peripherals, transceivers, sensors, and external memory devices. It also has implications for power sequencing and rail integrity. A common source of instability in multicore and multiperipheral SoCs is not insufficient nominal voltage, but transient interaction between I/O activity, rail ramp timing, and local decoupling quality. For AM4376BZDND80, the interface-voltage flexibility is useful, but it is most effective when grouped by function rather than consumed opportunistically pin by pin.

The operating junction temperature range of -40°C to 90°C positions the device for extended-temperature embedded and industrial use, but that range should be read as a system design target rather than a guaranteed field condition under any workload. Junction temperature is a product of ambient conditions, enclosure characteristics, airflow, PCB copper spreading, and software-driven utilization. In processor platforms with Linux-class workloads, industrial protocol stacks, graphics activity, or continuous communication traffic, thermal headroom can erode faster than initial bench measurements suggest. The practical lesson is that thermal validation should include worst-case clocking states, sustained I/O activity, and realistic enclosure boundary conditions. Short functional bring-up at room temperature often hides the thermal margin issues that appear only after power management is fully enabled and the software image reaches production behavior.

Surface-mount implementation, RoHS compliance, and REACH-unaffected status make the part straightforward from a regulatory and assembly perspective, particularly for programs targeting industrial or export-sensitive markets. The MSL 3 rating with 168 hours is operationally significant for manufacturing control. It means floor-life management cannot be treated casually once reels or trays are exposed. For high-pin-count BGAs, moisture handling discipline is not paperwork overhead. It directly affects solder joint reliability and reflow yield. In builds with staggered assembly schedules or partial kitting, this often becomes one of the small process details that determines whether first-pass yield remains stable.

The clocking architecture is one of the more consequential technical characteristics of the AM437x family. The high-frequency oscillator supports 19.2 MHz, 24 MHz, 25 MHz, or 26 MHz reference clocks, giving flexibility when aligning the processor with ecosystem-standard oscillators and communication timing requirements. This flexibility simplifies integration into designs that must coexist with telecom, industrial networking, or legacy platform timing conventions. More importantly, the five ADPLLs create a structured clock-generation framework rather than a monolithic system clock tree. That separation enables different performance domains to be tuned for workload needs, peripheral timing, and power goals.

This matters because clock architecture is often where SoC-level efficiency is either realized or wasted. A processor with broad peripheral capability can still become power-inefficient if every domain is driven from overly conservative clock settings. The AM4376BZDND80 avoids that trap by supporting dynamic voltage and frequency scaling and by allowing individual clocks for subsystems and peripherals to be enabled or disabled. These controls make it possible to align energy consumption more closely with actual activity. In systems with bursty computation, intermittent communications, or time-scheduled acquisition, this is far more valuable than a single low-power mode specification. Fine-grained gating usually delivers the more meaningful system-level savings because most embedded products do not remain fully active or fully asleep for long intervals; they oscillate between partial-use states.

The practical value of this framework becomes clear in architectures with active, idle, and standby modes. If the system uses RTC-backed wake events, scheduled polling, or network-triggered resume behavior, the processor can be partitioned so that only the required timekeeping or wake infrastructure remains powered and clocked. That reduces static waste while preserving responsiveness. Designs that ignore this capability often end up solving power problems at the battery or thermal level instead of the software-policy level, which is usually the more expensive place to solve them. In contrast, a design that maps software states cleanly onto hardware power domains tends to achieve better standby current, lower steady-state temperature, and more predictable wake latency.

A subtle but important engineering point is that DVFS only creates value when the voltage regulator architecture and software control path are designed around it from the beginning. If the power tree cannot support stable transitions, or if the operating system and drivers hold subsystems in unnecessarily active states, the feature exists only on paper. For this device, the real advantage comes when PMIC sequencing, PLL configuration, DDR timing margins, and peripheral driver behavior are validated as a combined operating envelope. That integrated view usually separates a design that merely boots from one that remains robust across temperature, process variation, and workload changes.

From a procurement perspective, the package, compliance status, and environmental ratings indicate a device intended for long-life embedded deployment rather than consumer-only use. The temperature range and industrial positioning support use in equipment exposed to harsher ambient conditions, but procurement teams should still track secondary factors such as assembly capability across manufacturing sites, MSL handling procedures in logistics, and any package-specific yield sensitivities that could affect ramp planning. For parts in this class, supply continuity is not just a matter of silicon availability. It also depends on whether contract manufacturers can repeatedly build the package with stable quality at the target cost.

At the board level, the AM4376BZDND80 should be treated as a power-managed compute node, not simply as a processor requiring a few supply rails. Its physical form factor, mixed I/O voltages, industrial temperature capability, and subsystem-level clock control collectively point to a design philosophy centered on balanced integration. The strongest implementations usually come from starting with power states, thermal budget, and interface-voltage partitioning first, then mapping software behavior and peripheral usage onto that structure. That approach makes the package easier to route, the thermal range easier to preserve, and the power-management features far more effective in real deployments.

Texas Instruments AM4376BZDND80 Application Scenarios and Engineering Selection Considerations

Texas Instruments positions the AM4376BZDND80 within a class of embedded processors that must bridge two domains at once: application-layer computing and time-sensitive control. That positioning is not accidental. The AM437x architecture combines a Cortex-A9 application core with industrial-grade peripheral integration, display capability, flexible memory support, and PRU-ICSS real-time subsystems. As a result, it fits products that cannot be reduced to either a simple microcontroller design or a high-end application processor design. It sits in the middle, where Linux-class software, graphical interfaces, connectivity, and deterministic external interaction must coexist on one device.

This balance explains why the device appears in patient monitoring, navigation equipment, barcode scanners, point-of-sale terminals, industrial automation nodes, portable radios, portable data terminals, and test systems. These are not random market labels. They share a common system pattern: a moderately rich software environment, multiple external interfaces, long-lived platform requirements, and at least one subsystem that cannot tolerate nondeterministic response. In that sense, the AM4376BZDND80 is best understood not simply as an MPU, but as a consolidation platform for embedded systems that would otherwise require a processor-plus-FPGA or processor-plus-MCU partition.

At the architectural level, the Cortex-A9 running at 800 MHz provides the software anchor for OS-based designs, especially where Linux is needed for networking stacks, UI frameworks, middleware, remote management, data logging, and protocol translation. That processing level is generally sufficient for embedded GUIs, database-light transaction logic, protocol gateways, and local analytics, provided the design avoids desktop-style software inflation. In practice, this device performs best when the application is engineered around bounded workloads and explicit hardware offload rather than treating the MPU as an unrestricted general-purpose compute pool. Designs that remain disciplined in this way typically achieve more stable latency, lower thermal stress, and easier software maintenance.

The more important differentiator, however, is not the A9 alone. It is the coexistence of the application core with PRU-ICSS. In many embedded systems, Linux is desirable for feature velocity and connectivity, but Linux alone is a weak foundation for sub-millisecond field timing, custom industrial signaling, or tightly bounded I/O service intervals. The PRU-ICSS resolves that tension. It gives the design a deterministic execution domain that can absorb protocol timing, custom waveform generation, specialized capture tasks, or industrial Ethernet handling without forcing those functions into external programmable logic. For engineering teams, this often changes the system partitioning decision entirely. If the timing problem fits inside PRU capability, the board can stay simpler, software ownership stays more centralized, and BOM risk is lower than in a split-MPU-plus-FPGA architecture.

This makes the device particularly effective in industrial HMI terminals. A typical HMI node must render graphics, manage operator workflows, store logs, communicate over Ethernet, support USB expansion, and in many cases speak directly to machinery through industrial networks or proprietary I/O. The AM4376BZDND80 can host the Linux application stack, drive a WXGA-class display, process touch input, and still preserve real-time resources for machine-side interaction. That matters because UI responsiveness and machine communication often interfere with each other when forced onto a single non-deterministic execution layer. A common failure mode in lower-end architectures is that display activity, network bursts, or filesystem operations inject jitter into control-facing I/O paths. The PRU-ICSS reduces that coupling and gives the design a cleaner separation between human-facing software and plant-facing timing behavior.

In motor-control-adjacent and instrumentation systems, the value proposition shifts slightly. Here the analog and timing peripherals become more central. ADC1, PWM generation, eQEP, capture resources, and timers allow the SoC to participate in measurement and control loops while the A9 handles supervisory logic, data presentation, communications, and diagnostics. This is not the same as saying the AM4376BZDND80 should replace every dedicated real-time control MCU. For very high-bandwidth current loops or hard safety control paths, a dedicated control processor may still be the better choice. But in many midrange systems, especially where the control bandwidth is moderate and the product requires a substantial software stack around it, this SoC can collapse supervision, visualization, connectivity, and portions of the control-plane interface into one device with a much cleaner software and hardware boundary.

The memory strategy deserves more attention than it often receives during early selection. Support for LPDDR2, DDR3, and DDR3L appears flexible on paper, but the practical implications differ sharply. DDR3 and DDR3L are often straightforward choices for systems with larger Linux footprints, graphics buffers, and long-term component sourcing options. LPDDR2 may help in power-sensitive designs, but power savings at the memory level should be evaluated against board complexity, sourcing stability, and layout familiarity within the team. In real projects, memory choice is rarely driven by peak bandwidth alone. It is driven by boot-time behavior, SI margin, supply rail design, thermal envelope, and what the software stack will look like two years after launch rather than at prototype stage. An SoC like this can appear comfortably overprovisioned in early demos, then become memory-constrained after cybersecurity updates, UI framework expansion, and feature growth. Conservative DDR sizing is often the lower-risk decision.

Board-level execution is equally important. The AM4376BZDND80 is integrated enough to reduce external chip count, but that does not make it layout-trivial. DDR routing quality, power sequencing discipline, return path continuity, oscillator quality, and Ethernet PHY placement still shape product stability. In mixed-use systems with display, Ethernet, USB, and real-time I/O all active, layout mistakes surface as intermittent field issues rather than immediate bring-up failures. That is one reason this class of device rewards front-loaded hardware planning. Early pin-mux review, realistic interface reservation, and DDR escape analysis prevent later compromises. It is very easy to consume attractive peripheral options in schematic capture, then discover during software integration that the required industrial I/O mapping, debug accessibility, and expansion header support cannot coexist cleanly.

CPU headroom should be evaluated with realistic software assumptions rather than nominal benchmark thinking. The 800 MHz variant is sufficient for many deployed systems, but the question is not whether the core can boot Linux and render a GUI. The question is whether it can sustain worst-case concurrency: display updates, encrypted communication, file logging, fieldbus traffic, maintenance services, browser-like UI components if present, and startup self-test routines. A design that targets only average load will often pass the lab phase and degrade in deployed environments where background services accumulate. A useful engineering rule is to reserve meaningful margin for software drift, not just functional load. Embedded platforms in industrial and commercial markets tend to gain features far more often than they lose them.

Security evaluation also needs precision. Cryptographic acceleration is valuable, but engineers should separate performance features from trust features. Hardware crypto can improve secure communication throughput and reduce CPU overhead. That does not automatically imply secure device identity, verified boot chain integrity, secure key storage policy, or resistance to unauthorized firmware substitution. Since some advanced security capabilities are limited to HS variants, the exact product security model must be aligned with the exact device ordering strategy. This point is often underestimated in programs where procurement and engineering make assumptions from family-level documentation. If the product will be deployed in distributed infrastructure, payment-adjacent equipment, authenticated service networks, or regulated data environments, the secure boot and lifecycle trust model should be frozen early, not retrofitted after software architecture is already in place.

For industrial communication, the PRU-ICSS should be treated as a system-level asset, not merely a peripheral checkbox. Its presence is most beneficial when the design explicitly assigns it ownership of timing-critical functions. If it is left unused until late in the project, teams often attempt to force real-time behavior into Linux user space or kernel drivers, then revisit PRU integration only after jitter problems appear. That sequence increases software cost. A stronger approach is to define the real-time partition at the architecture stage: what signals are owned by PRU, what events are timestamped there, what protocol framing happens there, and what information is promoted upward to the A9 domain. Designs that make this partition early typically have cleaner fault handling and more predictable scalability.

The same layered thinking applies to software architecture. The AM4376BZDND80 supports systems that naturally divide into three planes: a real-time I/O plane, a control and service plane, and an application/UI plane. The real-time plane belongs with PRU-ICSS and tightly bounded peripheral handling. The control and service plane includes kernel drivers, networking, protocol stacks, watchdog strategy, diagnostics, and update management. The application plane handles workflows, rendering, configuration, logging, and external service integration. When these layers are allowed to leak into each other, the platform becomes difficult to validate. When they are kept disciplined, the SoC delivers much more than its raw clock speed suggests. This is one of the less obvious strengths of the AM437x family: not extreme compute density, but strong architectural containment for mixed-criticality embedded products.

From a productization perspective, the integration level has both upside and concentration risk. Fewer external support devices can reduce BOM count, shrink board area, and simplify software ownership. At the same time, the SoC, memory, PMIC strategy, and key PHYs become tightly coupled decisions. If one element tightens in supply, redesign flexibility may be limited. Lifecycle planning therefore has to extend beyond SoC availability alone. It should include DDR companion longevity, package assembly capability across manufacturing sites, thermal margin in sealed enclosures, and the practical future use of currently unused interfaces. Reserving interface options is not wasteful in this class of design. It is often what allows a later SKU to add a scanner engine, a second network path, isolated field I/O, or a service port without forcing a board spin.

For procurement and platform teams, the key engineering selection question is not simply whether the AM4376BZDND80 meets today’s feature list. It is whether the product fundamentally benefits from unified application processing and deterministic edge interaction in one device. If the answer is yes, this part can be a very efficient anchor for long-lived embedded designs. If the application is mostly UI and connectivity with little timing sensitivity, a simpler application processor may be more cost-efficient. If the design is dominated by fast control loops and hard real-time behavior with minimal software complexity, a control MCU may be a better fit. The AM4376BZDND80 is strongest exactly in the middle zone, where software richness and I/O determinism must coexist and where reducing the boundary between those worlds has real system value.

In that middle zone, the device’s practical advantage is not any single peripheral. It is the way the pieces combine: Linux-capable processing, display support, industrial connectivity options, useful control peripherals, flexible DDR choices, and PRU-based determinism. That combination lets engineers build systems that feel application-rich at the surface while remaining electrically and temporally disciplined underneath. For embedded products that must survive feature growth, protocol diversity, and long deployment cycles, that is often the more meaningful metric than headline MHz alone.

Texas Instruments AM4376BZDND80 Potential Equivalent/Replacement Models

Texas Instruments AM4376BZDND80 belongs to the AM437x Sitara processor family, so the most credible replacement candidates, based strictly on the provided family-level documentation, are AM4372, AM4377, AM4378, and AM4379. These parts sit in the same processor line, share the same architectural baseline, and are positioned around a common integration model built on a Cortex-A9 application core, graphics capability, external memory support, PRU-ICSS for deterministic real-time functions, and a broad peripheral set. From an engineering screening perspective, this makes them the nearest family-level substitutes rather than arbitrary cross-family alternatives.

That distinction matters. A processor from the same family is not automatically a drop-in replacement, even when the package class and platform lineage appear aligned. In practice, “equivalent” at the processor level has several layers: silicon architecture, package and pinout, boot behavior, peripheral instance count, graphics path, security mode, software support, and lifecycle fit. The supplied material supports only a family relationship, not a fully verified one-to-one interchange claim. For that reason, AM4372, AM4377, AM4378, and AM4379 should be treated as structured evaluation targets, with the expectation that final approval depends on feature-by-feature confirmation.

At the architecture level, the replacement logic is straightforward. The AM437x family was designed as a platform, not as a set of isolated devices. That usually means the software stack, development flow, and much of the hardware design methodology can remain within the same operating envelope when moving between variants. This is often the strongest reason to stay inside the family during redesign or supply-driven substitution. It reduces migration uncertainty in the kernel, bootloader, board support package, industrial protocol handling, and driver framework. Even when there are variant-specific differences, the engineering effort is usually bounded and easier to validate than a migration to a different Sitara family or to another vendor’s SoC.

The first technical filter is package and board compatibility. For AM4376BZDND80, the key checkpoint is alignment with the 491-pin NFBGA format and the associated pin multiplexing model. Even when two variants share the same package designation, replacement risk can still exist in power rails, reserved balls, boot strap assignments, DDR interface usage, and peripheral mux conflicts. A board may route only the subset needed for the original design, and that can become limiting if the candidate variant moves a required function onto a different pin group or changes default mux expectations. In actual maintenance programs, this is where many “same-family” replacements fail early: not because the silicon is fundamentally incompatible, but because the existing PCB escaped with no margin for alternate routing assumptions.

The second filter is compute and timing performance. Processor speed differences across AM437x variants can affect real-time scheduling, UI responsiveness, Linux boot time, network stack headroom, and protocol consolidation margin. A nominally compatible device can still underperform if the original design was already near CPU saturation, especially in systems combining HMI, gateway logic, fieldbus stacks, and local data logging. Conversely, if the deployed product uses only a fraction of the available compute budget, a lower-positioned family member may remain fully acceptable. The correct engineering approach is not to compare clock rate in isolation, but to compare workload composition: interrupt density, graphics refresh demand, network throughput, PRU-assisted protocol timing, memory bandwidth pressure, and thermal operating envelope.

Graphics and display capability form another critical branch in the decision tree. The family documentation places these devices in the same conceptual platform, but application fit depends on the exact display pipeline requirements. Designs using only simple framebuffer output may tolerate more variation than systems relying on richer display interfaces, layered rendering, or accelerated graphics behavior. In HMI-centric products, display-related mismatches tend to surface late if not checked early, because the initial software bring-up can appear successful while frame timing, resolution support, or UI smoothness fail under full workload. For that reason, graphics should be verified as a first-order requirement rather than a secondary one.

PRU-ICSS support deserves special attention because it is often the hidden anchor for choosing an AM437x device in the first place. In many industrial and edge-control designs, the Cortex-A9 is not the sole reason the processor was selected; the real value comes from combining application processing with deterministic I/O handling and industrial communication acceleration. If the original AM4376BZDND80 design uses PRU-ICSS for Ethernet-based field protocols, motor-control side tasks, timestamped I/O, or cycle-accurate signaling, then family-level similarity is not enough. The replacement candidate must be checked for equivalent PRU resources, software image portability, peripheral attachment, and timing closure under the existing firmware architecture. This is one of the areas where an apparently small variant difference can force a substantial revalidation cycle.

Security configuration is another nontrivial checkpoint, especially where HS-only functions or secure provisioning flows are involved. In many systems, the processor part number is only one layer of the security model; the practical deployment also depends on boot mode restrictions, key handling, secure storage assumptions, and manufacturing programming flow. If the original product depends on secure boot, trusted firmware staging, encrypted assets, or locked-down field update mechanisms, then replacement screening must include security state compatibility, not just application functionality. Security-related mismatches are especially expensive because they often remain invisible until production provisioning or field update validation.

Software migration impact across AM437x variants is often manageable, but only when handled with discipline. Staying within the same family usually preserves broad compatibility at the SDK and BSP level, yet variant-specific adjustments may still be required in device tree configuration, clock setup, memory timing, peripheral enablement, pin multiplexing, and boot scripts. The most efficient migration path is to treat the replacement as a controlled derivative design rather than assuming binary interchangeability. That means freezing the known-good software baseline, introducing only the minimal hardware-description deltas, and validating in layers: boot ROM behavior, DDR initialization, console access, storage boot, network bring-up, field I/O, graphics path, and finally stress operation. This staged method tends to expose incompatibilities early, before they are masked by higher-level software complexity.

From a sourcing and lifecycle standpoint, same-family replacement is usually the right first move, but not always the final one. A strong candidate is not simply the device with the closest name. The better choice is the one that preserves the original system constraints with the least hidden cost in validation, manufacturing updates, thermal characterization, and regulatory retest exposure. In long-lived industrial designs, a slightly higher-featured variant can sometimes be the safer maintenance option if it offers better availability resilience or reduces the chance of another redesign event. That tradeoff is often more rational than optimizing only for nominal feature matching.

For AM4376BZDND80, AM4372, AM4377, AM4378, and AM4379 are therefore the most relevant potential replacement models within the documented scope. They should be approached as family-qualified candidates for structured evaluation. The practical review should cover 491-pin NFBGA package alignment, pin-level compatibility, CPU performance margin, graphics and display needs, PRU-ICSS usage, security-mode requirements, and software migration effort. If those layers remain aligned, much of the board architecture and software framework can likely be preserved. If any one of them diverges in a critical path, the replacement may still be possible, but it shifts from a substitution exercise into a managed redesign.

Conclusion

Texas Instruments AM4376BZDND80 is best understood not as a general embedded MPU with extra peripherals, but as a convergence device for systems that must run a feature-rich software stack while still meeting hard timing requirements at the edge. Its value comes from how multiple compute domains are assembled into one platform: an 800MHz ARM Cortex-A9 for application control, NEON and floating-point acceleration for signal-heavy workloads, a graphics and display path for local visualization, and the PRU-ICSS subsystem for deterministic real-time interaction with field devices and industrial networks. In practical designs, this combination reduces the need to partition the system across a Linux-class processor, a separate MCU, and protocol-specific interface logic.

At the application-processing layer, the Cortex-A9 provides enough headroom for embedded Linux, protocol stacks, web-based management interfaces, HMI frameworks, and moderate edge analytics running concurrently. The NEON engine is especially useful when the product must process sensor streams, filter data, accelerate image primitives, or handle DSP-like operations without adding a dedicated accelerator. Floating-point support further improves efficiency in control-adjacent workloads such as calibration, waveform analysis, condition monitoring, or model-based compensation. This matters because many embedded products no longer operate as fixed-function controllers; they increasingly combine UI, connectivity, diagnostics, local logging, and protocol translation on the same compute node.

Memory architecture is one of the less visible but more consequential parts of the device. Support for external DDR allows software-rich designs to scale beyond tightly constrained MCU memory models, while flexible external memory interfaces help attach nonvolatile storage, boot memory, or expansion devices with fewer glue components. In practice, memory selection and layout become central to overall system behavior. DDR routing quality, power integrity, and boot-device strategy have a direct impact on startup reliability, long-term stability, and software update robustness. For designs with large GUI assets, protocol stacks, and persistent logs, memory bandwidth planning should be treated as an architectural issue early rather than as a board-level detail handled later.

The graphics and display subsystem expands the processor’s role beyond control into operator-facing equipment. The integrated PowerVR SGX530, display support, and touch capability allow a single chip to drive local HMIs with richer visual behavior than is practical on smaller controllers. This is relevant in industrial panels, portable instruments, and service terminals where responsive visualization improves usability and reduces operating error. The stronger design pattern here is not simply “adding graphics,” but collapsing control, visualization, and connectivity into one software-defined platform. That approach simplifies BOM structure and often shortens integration time, though it also raises the importance of balancing UI responsiveness against background networking and real-time tasks.

Connectivity is another area where the AM4376BZDND80 is engineered for system consolidation. Dual USB 2.0 with integrated PHY reduces external interface overhead for host or device roles such as maintenance access, peripheral attachment, firmware loading, or data extraction. Ethernet support enables the processor to function as a connected node in industrial or instrumentation networks, while the broad serial I/O set supports expansion into legacy and application-specific interfaces. UART, SPI, I2C, CAN-adjacent external interfacing patterns, and GPIO-rich attachment strategies become easier to implement when the MPU already exposes a broad peripheral base. In product development, this often translates into fewer bridge ICs, fewer firmware boundaries, and fewer failure points in communication paths.

The PRU-ICSS subsystem is the real differentiator. It changes the device from being merely a Linux-capable processor with industrial peripherals into a hybrid platform that can enforce precise timing behavior at the pin and protocol level. The PRUs operate independently of the main ARM core and are intended for cycle-sensitive tasks such as industrial Ethernet handling, custom serial protocols, motor-control-adjacent signaling, timestamping, latch capture, and tightly bounded I/O sequencing. This architecture is particularly effective when the application requires both deterministic field interaction and high-level supervisory software. Instead of isolating these domains on separate chips and then solving the synchronization problem between them, the AM4376 allows both to coexist within one integrated timing model.

That integration has practical implications for industrial networking. Protocol handling at the PRU layer can preserve deterministic behavior while Linux on the Cortex-A9 manages configuration, diagnostics, data aggregation, remote access, and application logic. In many control and gateway products, this split is cleaner than an MCU-plus-SOM architecture because it avoids duplicated Ethernet resources, duplicated memory hierarchies, and cross-processor software maintenance. It also supports a more maintainable product structure: real-time code remains compact and timing-focused, while high-level features evolve independently in the OS domain. This separation, when enforced well, tends to improve long-term software maintainability more than simply maximizing benchmark performance.

Power, package, and board design should be evaluated with the same seriousness as compute features. A processor with this level of integration is attractive precisely because it can replace several devices, but that benefit only materializes when power sequencing, thermal behavior, DDR layout, high-speed signal escape, and decoupling strategy are handled correctly. In compact HMI or DIN-rail designs, thermal margin can narrow quickly once display activity, Ethernet traffic, USB load, and CPU-intensive software run together. It is usually wise to model worst-case concurrency rather than treating each subsystem in isolation. A device that appears lightly loaded in function-by-function analysis can become power-dense in actual field operation because real products rarely exercise just one block at a time.

Software architecture is equally important. The strongest use of AM4376BZDND80 is not to move every function onto Linux by default, nor to overuse the PRU for tasks that belong in the application domain. The better pattern is domain separation by timing sensitivity. Put supervisory control, UI, file systems, security services, protocol management layers, and update logic on the Cortex-A9. Reserve PRU resources for interfaces and control paths where jitter, latency determinism, or waveform accuracy directly affect product behavior. This division produces systems that are easier to debug and scale. It also avoids a common failure mode in mixed-workload platforms: using the real-time subsystem as a general-purpose co-processor until maintainability collapses.

In industrial HMI equipment, the device fits particularly well because it can simultaneously host the GUI stack, manage touch input, talk to PLC-side networks, and control local I/O with bounded timing. In connected instrumentation, it supports data acquisition, local display, wired connectivity, USB service access, and edge-side preprocessing on one platform. In protocol gateways and intelligent communication modules, the PRU-ICSS can anchor deterministic network interaction while the ARM core handles translation, diagnostics, and cloud or SCADA-facing services. In each of these cases, the processor’s advantage is less about any one peripheral and more about reducing architectural fragmentation.

Component selection, however, should remain disciplined. The AM4376BZDND80 is not automatically the best choice for every embedded control product. If the design does not need Linux-class software, rich display support, or industrial communication flexibility, a simpler MCU or lower-tier MPU may deliver lower power, easier layout, and faster certification. The device becomes compelling when several requirements stack together: local visualization, network connectivity, service interfaces, moderate compute needs, and deterministic I/O behavior. That threshold-based view is usually more useful than comparing raw CPU metrics across families.

Within the AM437x Sitara family, this part deserves close evaluation when a project sits at the boundary between controller, HMI node, and industrial communication endpoint. Its integrated architecture can simplify system partitioning, reduce external support logic, and create a more unified software platform. The key is to treat it as a system-level building block rather than as a processor chosen only by clock rate or peripheral count. When its application core, graphics path, memory subsystem, connectivity blocks, and PRU-ICSS are aligned with the product’s real workload profile, it offers a notably efficient foundation for industrial HMI, control, and connected instrumentation platforms.
