AM3517AZCN and the AM3517 Sitara family at a glance

Texas Instruments’ AM3517AZCN is a member of the Sitara AM3517 family, aimed at embedded designs that need more than a simple control MCU but do not require the complexity, power, or cost profile of a multicore application processor. Its value is not defined by raw CPU frequency alone. The real advantage comes from how much system functionality is consolidated around the processor core: application processing, display output, multimedia acceleration paths, external memory support, Ethernet, USB, and a broad set of industrial I/O interfaces. In practice, that combination makes the device a strong fit for products that sit at the boundary between control systems and user-facing computing platforms.

At the compute level, the AM3517 integrates a 600 MHz ARM Cortex-A8, implemented as a 32-bit single-core architecture. That immediately places it in a useful middle tier. It is significantly more capable than traditional microcontrollers when running embedded Linux, graphics stacks, protocol software, and file systems, yet it remains more deterministic and easier to thermally and electrically manage than many higher-end processors. For engineering teams building HMIs, connected controllers, or compact multimedia terminals, this balance often matters more than peak benchmark numbers. In many deployed systems, the limiting factor is not arithmetic throughput but the ability to move data cleanly between interfaces, memory, display, and network services without adding external companion ICs.

The AM3517AZCN package format reflects that integration target. It is supplied in a 491-pin NFBGA with a 17 mm × 17 mm body, which signals a high pin-count design intended to expose rich external connectivity while keeping board area under control. This packaging choice supports dense routing of DDR memory, display signals, USB, Ethernet, and low-speed peripherals on a compact PCB. At the same time, it introduces the usual BGA design constraints: escape routing discipline, stack-up planning, impedance control on fast interfaces, and careful power-distribution design become mandatory rather than optional. In designs of this class, package integration reduces BOM count, but PCB quality becomes a larger part of overall system success.

One of the strongest reasons to consider the AM3517 family is the way it collapses multiple system domains into one processor. Instead of combining a CPU, a display controller, external Ethernet logic, USB support, and several peripheral controllers through separate devices, the AM3517 provides a more unified architecture. That changes the board design problem in a favorable way. Fewer major ICs usually mean fewer inter-chip timing problems, fewer high-speed buses crossing the PCB, a lower probability of interface mismatch, and a simpler supply chain. It also tends to improve software cohesion, because more functions are managed within one silicon and one vendor support model. This is especially useful in products with moderate to high production life, where validation effort and maintainability often dominate over component cost alone.

The processor family is particularly well aligned with systems that combine a graphical or media-oriented front end with industrial or consumer connectivity. Examples include single-board computers, industrial and home automation panels, navigation units, digital signage endpoints, point-of-service terminals, digital TV subsystems, portable media devices, and portable industrial gaming platforms. These are not random example categories; they reveal the architecture’s intended operating envelope. The AM3517 is well suited for devices that must present information, respond to network events, manage local storage, and interface with external sensors or control blocks, all while running a full operating system. In that sense, it serves as a convergence device: not a pure media SoC and not a pure control processor, but a practical embedded application processor for systems where those roles overlap.

Display and multimedia support are central to that positioning. In embedded products, display handling is often underestimated during early selection. Teams may focus first on CPU speed or memory size, then discover later that the display path, UI responsiveness, or video movement places the real burden on the platform. A processor like the AM3517 is valuable because it is designed with those front-end demands in mind from the start. When the same device can coordinate application logic, frame updates, peripheral events, and network traffic, the overall architecture becomes easier to reason about. This often reduces the need for awkward partitioning between “main logic” and “UI logic,” which can otherwise complicate both hardware and software.

From a memory and I/O perspective, the AM3517’s integration profile also changes how engineers should think about system partitioning. In many embedded products, the most expensive mistakes are made not in the CPU choice itself but in underestimating memory bandwidth, peripheral concurrency, and boot architecture. A processor with rich interfaces invites ambitious feature sets, but those features compete for shared resources. Ethernet traffic, USB transfers, display refresh, filesystem operations, and application tasks all eventually converge on memory and internal buses. Good designs account for that early. Stable behavior under load usually depends less on theoretical feature support and more on whether the memory topology, power rails, and software task model were sized for simultaneous activity rather than isolated test cases.

Support for Linux, Windows CE, and Android is another major selection signal. For engineering evaluation, operating-system compatibility is not just a software convenience. It indicates the maturity of the surrounding ecosystem: bootloader support, kernel adaptation, driver availability, middleware options, graphics stacks, filesystem strategies, security update pathways, and long-term maintenance feasibility. For procurement and product planning, this matters because software ecosystem strength directly affects platform longevity. A processor can look excellent at the datasheet level and still become expensive to deploy if BSP quality, driver stability, or OS migration paths are weak. The AM3517 family stands out because it aligns with operating environments that are familiar in HMI and connected embedded systems, where development speed and software reuse are often decisive.

There is also a strategic design point here. A processor family that supports multiple high-level operating systems offers flexibility not only during initial development but across product evolution. A platform may begin as a Linux-based industrial terminal, later require Android for a richer UI stack, or retain Windows CE for legacy software compatibility in an installed base. That flexibility can preserve hardware investment across several product variants. In practice, such reuse is rarely perfect, because BSP customization, display pipelines, and peripheral drivers still require effort, but the presence of established OS support lowers migration risk substantially. This is one of the quiet advantages of established embedded processor families: they reduce architectural dead ends.

For industrial and commercial deployment, connectivity integration deserves separate attention. Ethernet, USB, serial interfaces, and control-oriented peripherals together make the AM3517 useful in mixed-domain systems, where one side of the product talks to operators or cloud services while the other side talks to sensors, field devices, or local control electronics. That duality appears constantly in embedded designs. A touchscreen panel may need to render a UI, log data locally, expose USB for service, and maintain Ethernet communication with a supervisory network. A POS terminal may need network access, local display handling, storage, and peripheral communication with scanners, printers, or payment modules. In these cases, integration is not merely a convenience feature; it is what keeps the architecture compact and supportable.

A practical lesson from deployments in this class of processor is that integration shifts effort away from component-level interfacing and toward system-level engineering. Board bring-up often succeeds or fails on power sequencing, DDR layout quality, clock-tree discipline, and software initialization order. The CPU may be fully capable, yet instability appears if the design treats memory routing or supply integrity as secondary details. The same applies at the software layer. Teams sometimes assume that because Linux or Android is supported, system integration will be straightforward. In reality, boot time, UI smoothness, peripheral hot-plug behavior, and recovery from fault conditions require deliberate tuning. The processor provides the foundation, but product quality emerges from how well the hardware and software are shaped around real operating conditions.

That is why the AM3517AZCN is best understood not simply as a 600 MHz ARM Cortex-A8 device, but as a system integration platform. Its appeal lies in reducing the distance between concept and deployable product for embedded systems that need graphics, connectivity, and general-purpose application processing in one design. For projects where the requirement is to build a capable HMI or connected terminal without overcommitting to a larger and more power-hungry processor class, the device occupies a very practical design space. It is especially compelling when the goal is to keep the architecture unified, the board compact, and the software stack anchored in well-supported embedded operating systems.

Seen this way, the AM3517 Sitara family represents a disciplined engineering tradeoff. It does not attempt to maximize every metric. Instead, it combines enough CPU performance, enough multimedia capability, enough display support, and enough industrial connectivity to cover a broad range of real embedded products with one coherent platform. That kind of balance is often what gives a processor long practical relevance. In embedded development, the most useful devices are frequently not the most extreme ones, but the ones that let the entire system close cleanly across hardware, software, manufacturability, and lifecycle support.

AM3517AZCN architecture and processing resources

AM3517AZCN is built around a 600 MHz ARM Cortex-A8 MPU subsystem, and its practical value comes less from raw clock rate than from how efficiently the device converts that clock budget into useful work. The Cortex-A8 implements the ARMv7-A architecture and uses an in-order, dual-issue, superscalar pipeline. That combination is important. It does not behave like a deeply out-of-order application processor that hides poor software behavior automatically, so system performance depends strongly on code structure, memory locality, and branch behavior. When the software stack is aligned with the microarchitecture, the device can sustain much higher real throughput than a simple scalar control processor, especially in embedded Linux or RTOS environments where display management, protocol handling, file systems, and application logic compete for the same compute resources.

The dual-issue design allows the core to dispatch more than one instruction per cycle under favorable conditions, but only when instruction pairing rules, dependencies, and memory access timing permit it. In practice, this means the AM3517AZCN rewards software that is compiled well, keeps hot data close in cache, and avoids excessive branch turbulence. That is one reason the Cortex-A8 remains effective in midrange embedded systems: it sits in a useful zone between small microcontrollers and heavier multicore application processors. It offers enough architectural sophistication to run feature-rich software stacks, but it still behaves predictably enough for engineers to reason about timing bottlenecks at the system level.

A key extension of the main core is the NEON SIMD coprocessor. NEON is not just a multimedia feature; it is a throughput engine for any workload that can be expressed as parallel operations on vectors of narrow data types. Image scaling, color-space conversion, pixel blending, FIR filtering, audio preprocessing, checksum acceleration, and some control-oriented math kernels can all benefit. In HMI terminals, this often shows up in frame composition, UI animation support, waveform rendering, or camera-adjacent preprocessing. The practical engineering lesson is that NEON delivers the best value when data is already arranged in contiguous blocks and the workload is regular. If the algorithm is dominated by pointer chasing, scattered accesses, or frequent scalar decision points, the gain can collapse quickly. On this class of processor, data layout is often as important as algorithm choice.

The integrated vector floating-point unit complements NEON by improving execution of floating-point workloads that do not map cleanly onto integer SIMD lanes. This is useful in systems that combine user-facing graphics with measurement, signal conditioning, or lightweight analytics. A common pattern is to leave operating system services, protocol stacks, and supervisory logic on the ARM core while moving numerically dense inner loops to NEON or VFP-aware code paths. That division tends to produce better responsiveness because it reduces the chance that computational bursts interfere with foreground interaction tasks. In deployed systems, smooth UI behavior is often determined not by average CPU load but by whether short compute spikes are controlled.

The branch handling machinery in the Cortex-A8 is another major contributor to usable performance. The architecture includes dynamic branch prediction, a branch target address cache, a global history buffer, and an 8-entry return stack. These blocks reduce pipeline disruption by predicting control flow before the true branch outcome is fully resolved. In software-heavy embedded systems, especially those running GUIs, middleware, interpreters, or network stacks, branch density is often high. Better branch prediction directly improves instruction delivery and lowers wasted cycles. The return stack is particularly helpful for function-heavy code paths, where call and return behavior would otherwise generate recurring control hazards. For practical optimization, this means tight loops, flatter control flow, and reduced indirect branching can produce benefits beyond simple instruction count reduction. On this processor, control-flow cleanliness often translates into visible latency improvements.

The cache hierarchy is modest by desktop standards but well balanced for its intended domain. The AM3517AZCN provides 16 KB of L1 instruction cache, 16 KB of L1 data cache, and a 256 KB L2 cache. This structure is designed to keep frequently used code and active data near the core while buffering access to slower external memory. In operating-system-based embedded products, the cache hierarchy often determines whether the platform feels responsive under mixed load. A display refresh task, a communication stack, a file-system transaction, and application logic may all be individually lightweight, yet together they can produce heavy pressure on memory bandwidth and cache residency. The 256 KB L2 cache helps absorb this interaction and reduces the penalty of moving repeatedly between working sets.

The inclusion of ECC Hamming code calculation on L2 cache is not a cosmetic feature. It improves robustness in systems expected to run continuously, operate in electrically noisy environments, or support field deployments where silent data corruption is unacceptable. In many embedded products, reliability issues first appear as intermittent software failures that resist reproduction. Cache protection reduces one class of uncertainty and improves confidence in root-cause analysis. This becomes more important as software complexity rises, because debugging intermittent faults in a large embedded stack is far more expensive than preventing them structurally.

From a system-design perspective, the memory hierarchy also places constraints on software architecture. The Cortex-A8 can execute quickly, but if application code repeatedly misses cache due to oversized working sets, unaligned buffers, or poorly scheduled data movement, the advantage of the core and NEON is diluted. In practice, framebuffer operations, packet processing, and file I/O can easily contend for memory. A useful design pattern is to isolate latency-sensitive threads, align and reuse frequently touched buffers, and avoid unnecessary memory copies between software layers. On AM3517AZCN-class devices, memory traffic is often the real performance limiter long before arithmetic throughput is exhausted.

The debug and observability features are equally relevant to engineering productivity. Embedded Trace Macrocell support enables noninvasive visibility into execution flow, which is critical during board bring-up, bootloader validation, kernel initialization, and intermittent fault investigation. Traditional printf-style debugging is often too intrusive for timing-sensitive issues, and in early platform stages it may not be available at all. Trace support allows observation without materially altering system behavior, which is especially useful when diagnosing race conditions, startup sequencing problems, or exception paths that disappear when instrumented too heavily.

IEEE 1149.1 JTAG boundary scan adds another layer of practical value. During hardware integration, many failures originate not in the processor core but in solder joints, pin mux configuration, DDR routing assumptions, reset topology, clock distribution, or interface contention on shared buses. Boundary scan shortens the path from symptom to physical cause by allowing structured visibility at the board level. On complex designs, this can save substantial time during first-power validation and manufacturing diagnostics. It also helps separate software defects from signal-integrity or assembly issues before teams spend days debugging the wrong layer.

Taken together, the AM3517AZCN is best understood as a balanced embedded application processor rather than a generic CPU block. Its Cortex-A8 core provides enough architectural depth to support full operating systems and rich applications. NEON and VFP extend the device into media, signal, and numerically heavier workloads. Branch prediction and cache hierarchy sustain software throughput when the codebase is large and event-driven. ECC-backed cache and hardware debug features improve reliability and shorten integration time. The strongest designs on this device usually do not treat these capabilities independently. They align software partitioning, data layout, and debug strategy with the underlying hardware behavior from the start. That approach consistently yields better responsiveness, fewer late-stage surprises, and more predictable field performance.

AM3517AZCN memory subsystem and external memory expansion

AM3517AZCN uses a two-tier memory architecture that balances bandwidth, boot flexibility, and board-level expandability. At the high-performance side, the SDRC provides the primary external volatile memory path for software stacks that require large working memory, such as embedded Linux, graphics frameworks, network services, and protocol-heavy control applications. At the flexible expansion side, the general-purpose memory controller serves lower-speed nonvolatile storage and memory-mapped peripherals with minimal glue logic. This split is not just a feature checklist. It reflects a practical system partition: place latency-sensitive code and dynamic data on SDRAM, keep boot assets and persistent storage on flash, and expose custom hardware through a memory-mapped interface that software can access with simple transactions.

The SDRC supports 16-bit and 32-bit mDDR or DDR2 interfaces up to 166 MHz, with 1 GB of total addressable space. In system terms, this is the main execution memory domain. Its role is not only to hold the kernel and user-space processes, but also to absorb burst traffic from display refresh, networking, filesystem cache, and DMA-driven peripheral transfers. A 32-bit DDR path is usually the right choice when the design carries a display pipeline, multiple concurrent I/O streams, or a software stack with significant cache miss pressure. A 16-bit interface can still be attractive when board cost, pin routing, power envelope, or layer count matters more than peak bandwidth. That tradeoff becomes visible quickly in real designs: a narrower bus can be fully sufficient for headless control systems, but it often becomes the limiting factor once framebuffer traffic and storage I/O begin competing for memory cycles.

The practical value of supporting both DDR2 SDRAM and mobile DDR SDRAM lies in design optimization rather than simple compatibility. DDR2 is typically selected when density, ecosystem availability, and cost efficiency are dominant. Mobile DDR is more attractive when power behavior or legacy component alignment matters. The key engineering point is that the processor does not force a single memory technology decision across all products. A platform family can reuse the same SoC while choosing different SDRAM devices for industrial HMI panels, data loggers, or communication controllers. That flexibility often shortens qualification cycles because the software architecture stays stable while the memory bill of materials adapts to product tier and lifecycle constraints.

Memory controller capability alone does not guarantee stable operation. External DDR design quality strongly determines whether the theoretical bandwidth is actually usable. Signal integrity, length matching, power rail cleanliness, and timing margin are all first-order concerns. On AM3517AZCN-class systems, stable boot under temperature variation is usually a better design target than nominal operation on a bench. In practice, memory interfaces that appear functional during light testing can fail under sustained DMA traffic, display activity, or thermal drift. A conservative layout, disciplined termination strategy, and early stress validation are often worth more than pushing for an aggressive memory configuration that leaves little margin.

The general-purpose memory controller adds a different kind of value. It exposes a 16-bit multiplexed address/data bus with up to eight chip-select outputs, each offering 128 MB of address space. This controller is optimized for asynchronous external devices rather than high-speed SDRAM-style burst memory. It can connect directly to NOR flash, NAND flash, SRAM, and pseudo-SRAM without external bus translation, and it supports programmable protocol behavior for custom devices. From a software perspective, this turns many external components into simple memory-mapped regions. That is an efficient model in embedded systems because it reduces interface complexity, avoids unnecessary serial protocol overhead, and gives deterministic access semantics where required.

The chip-select structure is particularly useful in systems that need several external functions but must avoid adding dedicated controllers. One region can host boot NOR or NAND, another can expose FPGA control/status registers, another can map acquisition buffers in external SRAM or pseudo-SRAM, and additional regions can support specialized ASICs. This arrangement works well in industrial equipment where the processor must coordinate a mix of storage, control logic, and domain-specific hardware. It also reduces dependence on bridge components, which helps both BOM cost and failure surface. Fewer bridges mean fewer clock-domain boundaries, fewer software drivers, and usually a cleaner bring-up path.

The support for flexible asynchronous protocol timing deserves more attention than it often gets. This feature is what allows the controller to interface not only with standard memories but also with FPGA, CPLD, or ASIC logic that may not follow fixed commodity memory timing. Read and write strobes, setup and hold windows, and access cycles can be tuned to fit the external device. In effect, the processor can treat custom hardware as an extension of its memory space. That model is powerful for control-centric products. Registers, FIFOs, sample windows, and command ports can be reached with ordinary load/store operations, which simplifies driver design and can produce very deterministic software behavior.

There is, however, an architectural discipline that makes this approach work well. The GPMC should be used for what it is good at: moderate-bandwidth, memory-mapped interaction with clearly bounded latency requirements. It is not a substitute for SDRAM, and it should not be overloaded with traffic patterns that demand sustained high throughput. A common mistake is to place large, frequently accessed data buffers behind an asynchronous interface and then expect CPU-side performance similar to main memory. The result is usually bus contention, poor responsiveness, and timing sensitivity. The better pattern is to keep hot data structures in DDR, place persistent assets or control windows on the GPMC, and move bulk data through DMA when the access pattern allows it.

The integrated 64 KB on-chip SRAM provides an important intermediate layer between internal processor resources and external memory. Although small by Linux standards, it is highly valuable during boot, exception handling, deterministic buffering, and memory-critical routines that cannot tolerate external memory latency or initialization dependencies. Early startup code can execute before external SDRAM is fully trained and configured. Small real-time buffers or stack regions can also be placed there when predictability matters more than capacity. In mixed-load systems, this SRAM often becomes the quiet place where critical software paths remain insulated from DDR bus noise generated by display, storage, or network traffic.

The on-chip boot ROM complements this by defining a stable startup anchor. It reduces dependency on external state during power-up and allows the device to begin execution in a controlled way before handing off to boot media and initialized system memory. This matters in products that must recover cleanly from brownout events, field power cycling, or storage irregularities. A robust boot chain usually uses ROM for immutable first-stage behavior, nonvolatile memory for second-stage loaders and images, internal SRAM for early execution and staging, and external DDR only after clocks, controller timings, and board-level conditions are confirmed. That sequence is not merely conventional. It isolates uncertainty step by step.

DMA support is the mechanism that ties the memory subsystem together into a usable data platform. With 32 logical channels and configurable priority, the system DMA controller can move data among peripherals and memory with much lower CPU overhead than programmed I/O. This is especially important once the system begins handling concurrent traffic. Ethernet reception, storage transfers, display refresh support, and peripheral streaming can all compete for memory bandwidth. DMA allows these movements to occur in parallel with software execution, but it also exposes the true quality of memory architecture choices. Poor SDRAM bandwidth planning or an overused external memory bus becomes obvious when multiple DMA channels become active.

A practical design pattern on AM3517AZCN is to use DDR2 or mDDR as the main software and buffer space, NAND or NOR on the GPMC for boot and persistent firmware storage, and memory-mapped FPGA logic on another chip-select for product-specific acceleration or I/O concentration. In that arrangement, DMA moves sampled data or packet streams into DDR, the CPU processes or classifies the data there, and the GPMC-visible logic handles deterministic edge interfacing. This partition tends to scale well because each memory tier serves a distinct role. Main memory handles volume, flash handles persistence, on-chip SRAM handles critical small-footprint execution, and external custom logic handles timing-specific hardware interaction.

For industrial HMIs, the memory subsystem supports a straightforward split: SDRAM for OS, GUI framework, and framebuffer; flash for bootloader, kernel, and root filesystem; GPMC-mapped external logic for keypad scanning, fieldbus adaptation, or supervisory I/O; on-chip SRAM for fast control loops or protected diagnostic buffers. In data-acquisition equipment, the same resources can be organized differently: DDR for capture buffers and algorithm workspace, NAND for logged records, and FPGA-connected GPMC windows for control registers and low-latency data exchange. The architecture is flexible because it does not force a single memory hierarchy usage model. It provides enough structure to support Linux-class software while still leaving room for hardware-centric extensions.

One useful way to view AM3517AZCN is that it offers memory as a system integration fabric, not just as storage. The SDRC is the high-bandwidth execution plane. The GPMC is the configurable edge plane. On-chip SRAM is the deterministic refuge. DMA is the traffic manager across all of them. Designs that respect those roles usually reach stable performance with less tuning effort. Designs that blur them too much often end up chasing timing problems, unpredictable latency, or avoidable software complexity.

When expanding external memory on this device, the best results usually come from choosing one clear purpose for each memory region early in the architecture phase. Use the SDRC path for anything that grows, bursts, or multitasks. Use GPMC chip-selects for boot media and memory-mapped hardware functions. Reserve on-chip SRAM for code and data that must remain dependable during initialization or peak bus load. Then validate the design under concurrent DMA and peripheral stress rather than isolated memory tests. That approach aligns with how the AM3517AZCN memory subsystem is built, and it is where the device shows the most engineering value.

AM3517AZCN graphics, display, and video capabilities

AM3517AZCN stands out in the AM35x family because its multimedia path is built as a first-class subsystem rather than an afterthought attached to a general-purpose CPU. That distinction matters in embedded designs where the processor is expected to drive a responsive HMI, render animated graphics, manage multiple display layers, and in some cases ingest live video at the same time. In this device, graphics acceleration, display composition, and video I/O are not isolated features; they form a pipeline that reduces CPU involvement in pixel movement, format conversion, and rendering. That architectural balance is one of the main reasons AM3517AZCN fits display-centric embedded products better than simpler processor variants.

A key differentiator is the integrated PowerVR SGX graphics accelerator, which is not available on AM3505. This block gives AM3517AZCN a hardware path for 3D graphics and advanced visual effects, allowing the system to move beyond static frame-buffer GUIs into richer interfaces with transitions, textured elements, anti-aliased vector graphics, and lightweight gaming-style interaction. In practical engineering terms, this means the ARM core can stay focused on control logic, communication stacks, and application processing while the SGX engine handles geometry, rasterization, and shader execution.

The SGX core uses a tile-based rendering architecture. That detail is more important than it first appears. Tile-based rendering minimizes external memory bandwidth by dividing the screen into smaller regions, processing geometry and shading locally, and committing final results efficiently. In embedded systems, memory bandwidth is often the hidden constraint behind poor UI smoothness, high power draw, and intermittent rendering stalls. A tile-based engine helps control that problem at the architectural level. The published performance figure of up to 10 MPoly/sec should not be read as a standalone indicator of user experience; the more relevant point is that the device provides a hardware-managed graphics path compatible with embedded display workloads where bandwidth efficiency matters as much as raw polygon throughput.

API support further improves its practical value. Support for OpenGL ES 1.1, OpenGL ES 2.0, and OpenVG 1.0 allows the same silicon to address several classes of interface design. OpenGL ES 1.1 supports fixed-function style pipelines suited to legacy or lower-complexity 3D content. OpenGL ES 2.0 enables programmable shading, which is useful for custom visual effects, animated dashboards, and branded UI behavior. OpenVG 1.0 supports vector graphics acceleration, a strong match for instrument panels, scalable iconography, and interfaces that must remain sharp across multiple resolutions. For engineering teams, this flexibility reduces the need to force all graphical content into a single rendering model.

The universal scalable shader engine is another important part of the design. By combining pixel and vertex shading capability in a multithreaded execution model, the accelerator can adapt compute resources to the active graphics workload instead of dedicating rigid hardware partitions to one stage of the pipeline. In embedded UI designs, workloads tend to vary widely over time. One frame may emphasize 2D compositing and alpha-blended overlays, while another may include transformed objects, animated gauges, or shader-based effects. A more flexible shader architecture helps maintain consistent visual behavior across those changing conditions. In practice, that usually translates into fewer frame-time spikes when the display switches from static information to animated state transitions.

The display subsystem complements the SGX accelerator by handling output formatting and image operations that would otherwise consume CPU cycles or memory bandwidth. Support for parallel digital output up to 24-bit RGB covers a broad set of LCD interfaces commonly used in industrial panels, operator terminals, and infotainment modules. The ability to support up to two LCD panels is especially useful in systems that separate local control display from secondary operator or passenger viewing surfaces. Even when a design ultimately drives a single panel, dual-display support often provides flexibility during prototyping, diagnostics, or product line reuse.

Support for a remote frame buffer interface LCD panel connection broadens integration options for panel modules that do not fit a standard direct RGB interface model. This can simplify system partitioning in designs where the display element is physically separated from the main processing board or where a panel module integrates some display-side intelligence. That type of flexibility often becomes valuable late in product development, when display sourcing changes or enclosure constraints force interface adjustments.

The image manipulation features are more significant than their short specification list suggests. Hardware rotation by 90, 180, and 270 degrees removes a common software burden in products where the same main board is reused across portrait and landscape installations. Hardware resizing from one-quarter to eight times enables image reuse across panels with different native resolutions and supports picture-in-picture, thumbnail previews, and adaptive layout behavior. Color space conversion is essential wherever camera, video, and graphics assets use different pixel encodings. Eight-bit alpha blending allows multiple layers to be composed cleanly, which is critical for modern HMIs that overlay icons, text, warning states, and semi-transparent controls over live or pre-rendered backgrounds.

These functions tend to matter most when a design leaves the demo phase and enters product-level integration. At that point, a display pipeline is rarely asked to show one full-screen image. More often it must merge UI widgets, status banners, soft keys, cursor layers, and sometimes a live video tile, all while maintaining acceptable latency. Hardware support for scaling, blending, and rotation reduces the temptation to solve everything in software, which usually leads to avoidable CPU load and fragile frame timing. One recurring lesson in embedded display work is that visual complexity is less dangerous than data movement. Devices such as AM3517AZCN are valuable because they move that burden into dedicated hardware.

The subsystem maps well to digital signage controllers, industrial HMIs, medical operator panels, and navigation displays. In a signage design, the processor may need to scale static assets, composite dynamic text and branding layers, and drive a panel at a fixed refresh rate without visible tearing. In an industrial HMI, the display often mixes vector-style controls, alarm overlays, and trend graphics, where deterministic UI behavior matters more than cinematic rendering. In a navigation display, multiple data classes must coexist: base maps, route overlays, directional prompts, and transient notifications. The AM3517AZCN display path is aligned with these scenarios because it supports layered composition rather than only raw pixel output.

Video capability extends the device from display controller to mixed media processor. On the output side, support for composite NTSC/PAL and separate luma/chroma S-video through integrated DAC resources allows the processor to interface with legacy video equipment, older monitors, recording systems, and transitional product platforms where analog output remains necessary. Although digital interfaces dominate new display designs, analog video support still has value in industrial retrofits, service interfaces, and cost-sensitive field deployments. Keeping that capability on-chip reduces external component count and avoids additional video conversion devices.

The input path is particularly interesting for system architects. The integrated video processing front end includes a 16-bit video input port capable of HD video capture, with support for REC656/CCIR656 and YCbCr422 formats. This positions AM3517AZCN for systems that receive structured video streams from camera modules, decoders, or external imaging front ends. The support for image sizes up to 16K pixels in both directions and a maximum 75-MHz pixel clock indicates a subsystem designed with margin, allowing it to accommodate a broad range of timing configurations and frame formats even when the final application uses a much smaller operating envelope.

The front-end conditioning functions reveal that the device is intended to cope with real signal behavior, not only ideal digital streams. Optical black clamping, digital clamping, and black-level compensation are useful in camera-oriented pipelines where offset stability, black reference accuracy, and sensor-related baseline correction affect final image quality. These are the kinds of details that determine whether a video path produces stable, usable imagery under varying lighting and sensor conditions. The inclusion of 10-bit to 8-bit A-law compression hardware is also notable. That feature helps reduce data width efficiently while preserving perceived detail better than a simple linear truncation in many cases, which can be helpful when downstream bandwidth or storage is constrained.

From an implementation perspective, the strongest use case is not raw vision processing in the modern AI sense, but deterministic acquisition and presentation of video in embedded products. AM3517AZCN can capture a video stream, perform required format handling, and present that stream locally with graphics overlays, all within a single integrated platform. This is useful in machine interface terminals with camera assist, portable diagnostic systems, video door controllers, mobile data terminals, and record-and-display products. The device is particularly effective where the requirement is “capture, condition, display, and annotate” rather than “run large-scale image analytics.”

One practical consideration is that the presence of graphics and video hardware does not automatically guarantee a fluid user experience. The real result depends on memory architecture, display resolution, frame-buffer strategy, and software composition policy. A design that overuses full-screen redraws or routes too many layers through external memory can still become bandwidth-limited. In systems based on AM3517AZCN, the best results usually come from assigning each subsystem the work it handles natively: SGX for graphics rendering, display hardware for scaling and blending, video front end for acquisition and format alignment, and the CPU for orchestration rather than pixel pushing. When that partitioning is respected early, the platform tends to scale cleanly from simple panels to more visually ambitious interfaces.

Another practical insight is that dual support for rich graphics and video input can create hidden synchronization challenges. Camera-derived content, UI refresh timing, and display scanout do not naturally align. If buffer ownership and update timing are not defined carefully, the result is tearing, stale overlays, or intermittent latency spikes. This is why the hardware feature set should be viewed as a pipeline, not a checklist. The value of AM3517AZCN is highest when the design treats acquisition, composition, and display output as one timed system with explicit buffer management and predictable frame cadence.

Within the AM35x lineup, AM3517AZCN is therefore best understood as the variant aimed at products where display quality and media handling are central to product value. The addition of PowerVR SGX changes the class of interface the processor can realistically support. The display subsystem adds the composition and adaptation features needed for real products rather than lab demos. The video front end extends the platform into capture-oriented designs that need local visualization and moderate preprocessing. Taken together, these capabilities make AM3517AZCN suitable for embedded systems that must render, scale, blend, capture, and output visual data with a level of hardware assistance that materially reduces system complexity.

AM3517AZCN connectivity and peripheral integration

AM3517AZCN stands out in connectivity and peripheral integration because it reduces the number of external companion devices needed to build a capable embedded platform. That matters at the board level, not only for bill-of-materials cost, but also for routing complexity, power sequencing, software integration effort, and long-term reliability. In many embedded designs, interface count alone is not the differentiator. The real advantage comes from how many system roles can be consolidated into one processor without forcing awkward architectural tradeoffs. AM3517AZCN does this well by combining network, USB, removable storage, and control-bus interfaces in a way that supports both rich operating environments and deterministic peripheral handling.

A strong example is the integrated 10/100-Mbit Ethernet MAC. With Ethernet built into the processor, the design avoids the latency, pin overhead, and driver fragmentation that often come with an external network controller. This is especially useful in systems that need IP networking as a baseline feature rather than as an optional add-on. Industrial HMIs, edge gateways, compact service terminals, and connected instrumentation benefit from this arrangement because network access becomes part of the primary platform architecture. It simplifies remote diagnostics, firmware deployment, event reporting, and protocol bridging. In practice, integrating the MAC also tends to make EMC tuning and board bring-up more predictable, since the interface boundary is narrower and fewer components participate in the critical data path. The result is not just connectivity, but a cleaner network subsystem that is easier to validate under load.

The USB subsystem gives the device a broader operational envelope. Support for USB OTG with standard DP/DM signaling across high-speed, full-speed, and low-speed modes allows the platform to switch roles depending on product context. That flexibility is valuable in equipment that may appear as a managed device in one deployment and as a host in another. A service port, for example, may initially be used for factory programming or diagnostics, then later support field updates, accessory attachment, or data extraction. The presence of a multiport USB host subsystem further extends the design space by enabling simultaneous attachment of peripherals such as Wi-Fi adapters, storage devices, touch controllers, cameras, or barcode modules. When product summary data indicates three USB 2.0 ports plus one USB 2.0 interface with PHY, the implication is clear: the processor is prepared for systems that need concurrent device expansion rather than a single maintenance connector.

This matters most when the product must support mixed peripheral classes without resorting to a separate USB hub architecture too early in the design. A common issue in embedded platforms is that USB starts as a convenience feature and gradually becomes a structural requirement. Once that happens, limited host capability can force redesigns in power distribution, enclosure layout, and software stack partitioning. AM3517AZCN gives more headroom from the start. That headroom is often more valuable than raw interface count suggests, because it gives room for late feature additions without destabilizing the main board design. In engineering terms, it increases interface elasticity.

The three removable media interfaces for MMC, SD, and SDIO add another important layer. These ports are not only for consumer-style storage expansion. In embedded systems, they often serve four distinct functions: nonvolatile boot media, local application or data storage, field-service update paths, and attachment points for SDIO-based wireless modules. Having multiple interfaces allows those roles to be separated instead of multiplexed. That separation improves robustness. A system can boot from one device, log data to another, and reserve a third for communication expansion or maintenance. This is a more resilient pattern than sharing one interface across all functions, where service operations can interfere with normal runtime behavior.

In Linux-based platforms, this also improves software organization. Storage and update workflows become easier to partition, and recovery mechanisms can be designed with fewer dependencies. For example, one SD interface can be reserved for a protected boot or recovery medium while another remains user-accessible. That architecture reduces the risk of turning a routine field update into a full service event. It also supports product variants more efficiently. A single hardware platform can be shipped with different combinations of removable storage, wireless expansion, or secure boot paths depending on market requirements, with minimal PCB rework.

The integrated high-end CAN controller is equally significant, especially in systems that must interact with established control networks while still running higher-level application software. CAN remains deeply embedded in transportation, factory equipment, distributed machinery, and subsystem coordination tasks because it offers a practical balance of robustness, wiring simplicity, and deterministic communication behavior. By integrating CAN directly into the processor, AM3517AZCN becomes suitable for designs that need to receive machine-state information, issue control-related messages, and still maintain graphical, networked, or data-centric functions on the same compute node.

This combination is particularly useful in gateway-class products. One side of the system may be handling operator interaction, Ethernet communication, local storage, or USB-based expansion. The other side may be tied to a CAN field bus carrying status, commands, and fault information from controllers, drives, or distributed modules. That bridging role is often underestimated during component selection. It is not enough for a processor to support both domains individually. It must support them with enough integration that timing behavior, driver maturity, and software partitioning remain manageable. AM3517AZCN is attractive here because it reduces the architectural gap between control-plane traffic and application-plane processing.

From a system design perspective, the real strength of these peripherals is not their individual presence, but their coexistence. Ethernet supports remote connectivity and system integration. USB supports role flexibility and peripheral growth. MMC/SD/SDIO supports storage, boot, and modular expansion. CAN supports real-time interaction with control networks. Together, they allow the processor to act as a convergence point inside the product. That convergence has practical consequences. It shortens inter-device communication paths, reduces external glue logic, and makes software ownership cleaner. Instead of coordinating several semi-independent chips, the design can centralize much of the I/O behavior around one processor and one software platform.

There is also a board-level advantage that tends to become visible only later in development. When several major interfaces are integrated into the main processor, signal integrity planning becomes easier to control as a whole. Power domains, reset dependencies, clocking assumptions, and interrupt topology can be designed with fewer unknowns. This usually reduces bring-up iteration count. It also improves the odds of achieving stable behavior across environmental variation, especially in products exposed to electrical noise, temperature spread, or inconsistent field power conditions. Designs with fragmented connectivity often look equivalent on paper but become harder to stabilize once all peripherals are active simultaneously.

For application scenarios, AM3517AZCN fits well wherever a device must combine user-facing intelligence with embedded I/O diversity. Industrial operator panels can use Ethernet for supervisory communication, USB for service and accessory support, SD for updates and logging, and CAN for machine-side integration. Portable diagnostics equipment can use removable media for data capture, USB for instrument attachment, and Ethernet for backend synchronization. Gateway systems can bridge CAN-based control domains to Ethernet networks while exposing local maintenance or storage features. Consumer-adjacent embedded products also benefit when multiple connectivity modes must coexist in a compact platform without inflating component count.

A useful way to evaluate the device is to view it not simply as an applications processor with extra ports, but as an integration-oriented node designed to absorb boundary functions that would otherwise be spread across the board. That changes the selection logic. The decision is less about whether Ethernet, USB, SD, and CAN are each available, and more about whether the processor can reduce total system friction across hardware, firmware, and product lifecycle support. In that respect, AM3517AZCN presents a well-balanced interface mix. It supports straightforward connected designs, but it also leaves enough architectural room for systems that evolve over time, which is often where integrated peripheral strategy proves its real value.

AM3517AZCN interface flexibility and control-oriented I/O resources

AM3517AZCN offers unusual interface density for a device positioned as an applications processor. Its value is not limited to high-visibility functions such as display, storage, or networking. The more strategic advantage lies in its control-plane peripherals: multiple UARTs, I²C controllers, SPI ports, McBSP channels, HDQ/1-Wire support, large GPIO capacity, and a broad timer set. In real designs, these resources often determine whether the processor can serve as the single coordination point for both data processing and equipment control, or whether external bridge logic becomes necessary.

A useful way to read this peripheral mix is to separate it into three layers. The first layer is low-speed command and status transport, handled by UART, I²C, HDQ/1-Wire, and GPIO. The second layer is synchronous streaming and deterministic serial exchange, handled by McSPI and especially McBSP. The third layer is temporal orchestration, handled by the general-purpose timers, watchdog, and 32-kHz sync timer. When these layers are well balanced inside one device, system partitioning becomes simpler. AM3517AZCN is strong precisely because it does not force all external communication into one bus model.

The four UARTs provide more than basic serial console access. One includes IrDA and consumer IR modes, which broadens its use in legacy handheld, remote-control, or isolated optical communication paths. In many embedded platforms, UARTs are consumed quickly: one for debug, one for a field service port, one for a wireless module, and one for a low-bandwidth industrial or maintenance interface. Having four reduces multiplexing pressure and lowers software complexity because ports can stay dedicated to well-defined functions. This matters in deployed systems, where reusing a single UART through analog switches or firmware-controlled muxes often creates fragile failure modes during boot, update, or recovery.

The three high-speed I²C controllers are equally important. I²C is usually treated as a simple board-management bus, but in mixed-signal systems it often becomes the backbone for PMIC control, sensor configuration, clock-tree programming, touchscreen controllers, EEPROM access, and low-speed telemetry. A single controller can become congested or operationally risky if too many device classes share it. Separating buses by function improves both timing predictability and fault containment. One bus can be reserved for power and board-management devices, another for user-interface peripherals, and a third for hot-plug or module-local devices. This partitioning is not just architectural neatness; it shortens bring-up time and simplifies root-cause analysis when one branch is held low or behaves marginally under temperature or cable noise.

The four master/slave McSPI ports extend that flexibility into higher-throughput or lower-latency control domains. SPI is often chosen where I²C becomes too slow, too noise-sensitive, or too constrained by addressing and bus sharing. Multiple McSPI ports allow direct attachment of ADCs, DACs, display controllers, FPGA configuration paths, industrial front ends, or external real-time coprocessors without external SPI arbitration logic. The master/slave capability also helps when the processor must operate in different system roles across product variants. That is an underappreciated advantage. A device that can be SPI master in one design and SPI subordinate in another supports platform reuse more effectively than a fixed-role interface map.

The McBSP subsystem is one of the most technically significant parts of AM3517AZCN. Five McBSP ports with direct support for I2S, PCM, and TDM move the device beyond generic serial connectivity into structured streaming applications. These interfaces are not only relevant for audio codecs. They are useful anywhere framed, clocked, low-latency data movement is needed. Multi-channel voice systems, industrial sampling chains, telecom-style framing, and custom synchronous links can all map naturally onto McBSP resources. The support for up to 128 transmit and receive channels reinforces that this block is designed for serious serial stream aggregation, not merely stereo audio attachment.

Buffering depth is another point that deserves attention. McBSP1, 3, 4, and 5 provide 512-byte transmit and receive buffers, while McBSP2 provides 5-KB transmit and receive buffers. This asymmetry is meaningful. It suggests McBSP2 is better suited for the most timing-sensitive or bursty stream, where additional elasticity reduces service pressure on the CPU and DMA. In practice, larger buffering helps absorb interrupt latency variation, memory contention, and software scheduling jitter. That becomes valuable when the processor is simultaneously handling display traffic, file-system activity, and communication stacks. A design that maps the most critical audio or TDM stream to McBSP2 will generally achieve more margin than one that treats all ports as interchangeable.

The sidetone cores on McBSP2 and McBSP3 add another layer of specialization. Filter, gain, and mix operations implemented close to the serial stream can offload common voice-path tasks and reduce software overhead. This is especially relevant in duplex voice or operator-interface products where local feedback and echo-related signal conditioning must be handled with stable latency. Even when the DSP or CPU could perform these functions, using dedicated signal-path support often improves determinism and frees cycles for protocol or application tasks. Designs that ignore such embedded assist features often end up spending far more effort on timing closure in software than expected.

The HDQ/1-Wire interface looks modest compared with the larger peripheral blocks, but it can remove disproportionate integration friction. Battery identification, simple health monitors, low-pin-count memory devices, and lightweight peripheral management elements often rely on single-wire style communication. When the controller is native, the design avoids bit-banging, timing hacks, and GPIO ownership conflicts. This is the kind of feature that rarely appears on the front page of a product brief yet can eliminate one small but recurring source of board-support-package complexity.

Up to 186 GPIO pins make AM3517AZCN particularly suitable for equipment that still needs a large direct-control surface. In industrial and mixed-function systems, many signals are not bandwidth-intensive but are operationally critical: enables, resets, chip selects, interrupts, status lines, relay controls, LED banks, mode straps, tamper inputs, and sensor triggers. A high GPIO count reduces dependence on external expanders and CPLDs for simple control tasks. That has two concrete benefits. First, latency is lower and software is simpler because signal transitions do not have to traverse an intermediate serial expander. Second, fault handling is cleaner because boot-critical pins remain available before higher-level buses are initialized. In practice, retaining direct ownership of reset, power-enable, and error-monitor signals often makes the difference between a recoverable field condition and a board that requires hard power intervention.

That said, large GPIO counts should not be viewed as pure surplus. They are most valuable when used with discipline. Pin planning becomes a system architecture task, not merely a layout step. Grouping GPIOs by voltage domain, boot-state sensitivity, interrupt criticality, and runtime ownership pays off later in software maintenance and EMI control. A common mistake is to allocate GPIOs opportunistically during schematic capture, then discover that critical outputs toggle during reset sequencing or that interrupt-heavy signals are spread across awkward banks. Devices like AM3517AZCN reward early pin budgeting because they offer enough flexibility to do it well.

The timer resources are similarly broad and more useful than their plain description suggests. Twelve 32-bit general-purpose timers provide enough timing infrastructure to separate concerns cleanly. Some can handle periodic scheduling, others pulse generation or capture, and others can be reserved for protocol timing, timeout supervision, or measurement tasks. This matters because software-only timing built atop a shared tick tends to degrade as workloads diversify. Dedicated hardware timers preserve determinism where it counts. In control-oriented products, assigning specific timers to actuator cadence, sensor acquisition windows, timestamping, and diagnostics creates a more analyzable system than routing everything through a generic scheduler.

The 32-bit watchdog timer is essential for robust supervision, but its value depends on how it is integrated. A watchdog should not merely confirm that the main loop is alive. It should reflect progress across the subsystems that actually define correct operation: communication servicing, control execution, memory health, and application state advancement. Devices with rich peripheral sets, such as AM3517AZCN, can otherwise appear active while a critical I/O path is stalled. Pairing the watchdog with timer-based health checkpoints usually yields a more credible recovery strategy than a simple periodic kick.

The 32-bit 32-kHz sync timer adds a low-frequency, stable time base that is useful for long-duration scheduling, timestamp continuity across power states, and coordination with low-power or always-on functions. In systems that mix user-facing features with control responsibilities, maintaining a reliable slow time base simplifies event logging, debounce windows, maintenance intervals, and wake scheduling. It is not a glamorous block, but stable low-rate timing is often what keeps background supervision from becoming a source of drift and inconsistency.

Taken as a whole, these peripherals show that AM3517AZCN can operate as a convergence device between application processing and embedded control. That is its deeper system role. It can host user interface, networking, storage, and media functions while still directly managing the board-level and equipment-level interfaces that many processors outsource to companion logic. This reduces component count, but more importantly it reduces architectural fragmentation. Fewer bridge devices mean fewer firmware boundaries, fewer reset dependencies, and fewer opaque failure interactions.

The strongest use cases are systems with mixed traffic classes: bulk data on one side, deterministic control and streaming on the other. Examples include operator panels with local audio and sensor interfaces, networked industrial nodes with removable storage and service ports, medical or instrumentation platforms with multiple serial peripherals, and gateway-style products that must connect legacy synchronous devices to modern software stacks. In these scenarios, AM3517AZCN is not just a processor with extra ports. It is a board-level integration anchor.

The most practical design insight is that its peripheral richness should be exploited intentionally rather than consumed casually. The best results come from mapping interfaces by timing behavior and fault domain, not only by availability. Put the most jitter-sensitive stream on the deepest McBSP buffer. Separate management I²C traffic from noisy peripheral branches. Reserve UARTs for fixed operational roles. Keep boot-critical controls on direct GPIOs. Use timers to localize real-time responsibility rather than centralizing every deadline in software. When applied this way, the device’s interface flexibility does more than simplify schematics. It improves predictability, serviceability, and long-term platform reuse.

AM3517AZCN package, voltage, and operating conditions

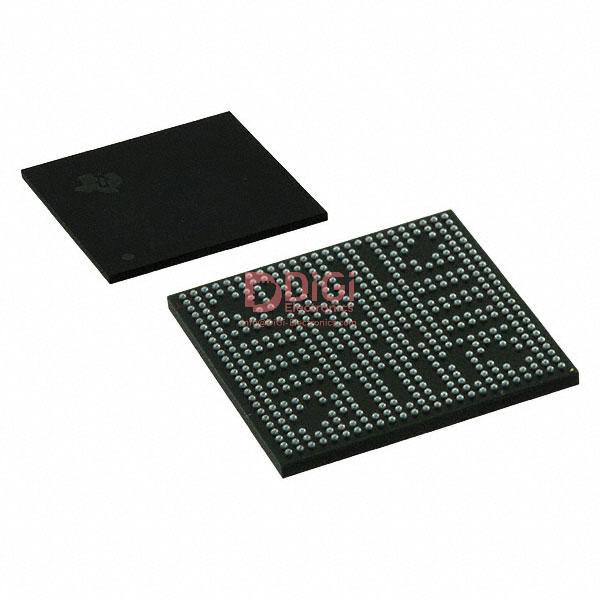

The AM3517AZCN is delivered in a 491-ball NFBGA identified by the ZCN package code. The body size is 17.10 mm × 17.10 mm with a 0.65 mm ball pitch. This is not just a mechanical detail. It defines much of the board-level design envelope around the device. A 491-pin NFBGA at this pitch gives the processor enough escape capacity for memory, display, storage, and peripheral interfaces without forcing the package into a much larger footprint. In practice, this is a balanced geometry: dense enough to support a highly integrated SoC, but still manufacturable on mainstream multilayer embedded boards when stack-up, via strategy, and solder mask tolerances are controlled early.

The package choice has direct implications for routing architecture. At 0.65 mm pitch, fanout planning becomes a first-order task rather than a layout cleanup step. Designers typically need to decide very early whether the board will rely on dog-bone fanout, microvias, or a hybrid escape scheme, especially if DDR routing, USB, LCD, and parallel peripheral buses must coexist in a constrained area. The compact package helps reduce interconnect length, which is beneficial for signal integrity and power delivery, but it also concentrates current return paths and thermal density into a smaller region of the PCB. That combination means the package should be treated as an electrical and thermal interface, not only as a mechanical enclosure.

The voltage architecture of the AM3517AZCN reflects the internal partitioning common to application-oriented processors. The 1.2 V core rail powers the internal logic, where low-voltage operation helps control dynamic power and switching losses. The mDDR/DDR2 interface uses 1.8 V I/O, which aligns with the signaling requirements of those memory technologies. Other I/O banks support either 1.8 V or 3.3 V operation, giving the device enough flexibility to connect to lower-voltage memories and transceivers while still interfacing with legacy peripheral ecosystems.

This mixed-voltage model is one of the more practically useful characteristics of the device. It reduces the need for external level translation in many embedded systems, but it also introduces rail-sequencing and domain-isolation considerations that are easy to underestimate. In a robust design, each voltage domain should be treated as a separate integrity problem: its own regulator behavior, decoupling network, startup profile, noise tolerance, and interaction with adjacent domains. When these rails are loosely grouped under a single “power” category, subtle failures tend to appear later in validation, often as boot instability, DDR training issues, or intermittent peripheral enumeration faults that only show up across process and temperature spread.

The 1.2 V core rail deserves particular attention because it is usually the most sensitive to transient load behavior. Processor activity is bursty by nature. Internal clock domains, memory access patterns, and peripheral DMA events can generate fast current steps that are invisible in a static power estimate. For that reason, regulator selection should be driven not only by average current capability but also by load-step response, output impedance across frequency, and the practical ESL/ESR behavior of the local decoupling network. A common failure mode in early prototypes is to meet the nominal voltage target in steady-state measurement while still allowing short-duration droop during boot or high interrupt activity. These short events can be enough to destabilize the device long before they are obvious on standard bench instrumentation.

The 1.8 V DDR supply domain introduces a different class of constraints. Memory interfaces are less forgiving than general GPIO because timing margins are tight and signal quality is shaped by the interaction of routing topology, termination strategy, reference plane continuity, and supply noise. The nominal 1.8 V support is only the starting point. The real design task is to preserve timing and voltage margin under simultaneous switching conditions. It is often useful to think of the DDR rail and routing as one combined channel rather than separate power and signal tasks. That viewpoint tends to produce better outcomes, because memory failures are frequently rooted in cross-domain effects: rail ripple shifts thresholds, threshold shifts alter edge placement, and edge placement errors consume setup and hold margin.

Support for both 1.8 V and 3.3 V on the remaining I/O domains broadens integration options significantly. This allows direct attachment to low-power devices where reduced swing is preferred, while preserving compatibility with many established sensors, control ICs, and industrial support components still operating at 3.3 V. In system terms, this flexibility helps avoid unnecessary translators, reduces BOM count, and simplifies timing closure on medium-speed interfaces. At the same time, mixed-voltage boards tend to create hidden coupling paths through pull-ups, reset lines, boot configuration pins, and bidirectional interfaces. The safest approach is to define domain ownership for every net in the schematic, then verify that no signal can back-power an unpowered bank through protection structures during startup or fault conditions. This issue is especially relevant in designs where external modules or removable media may be powered from a different rail sequence than the processor itself.

The specified junction operating range for the AM3517AZCN is 0°C to 90°C for the referenced listing. This range should be read carefully. Junction temperature is not the same as ambient temperature, and confusion between the two remains a common source of underdesigned thermal solutions. Junction temperature reflects the silicon operating point after package and board thermal resistance are accounted for. In other words, a system operating in a 60°C enclosure can still violate a 90°C junction limit if airflow is weak, the PCB copper area under the package is insufficient, or nearby components elevate the local board temperature. For this class of processor, thermal qualification should be based on realistic workload conditions rather than idle-mode measurements. Video activity, sustained external memory transfers, and heavy peripheral traffic can move the dissipation profile enough to invalidate a margin estimate built only on low-duty-cycle tests.

The reference to commercial and extended temperature grades means variant selection cannot be separated from deployment conditions. Part number alignment, package code, and temperature grade should be locked before reliability qualification begins. If this is deferred, the design may pass electrical validation while still failing productization requirements such as cold-start behavior, long-duration thermal soak, or derating policy for sealed enclosures. It is often more efficient to treat environmental grade selection as part of system architecture rather than sourcing cleanup. That avoids a common late-stage problem: discovering that the originally validated device grade does not match the actual thermal or field reliability envelope of the final product.

Environmental and assembly classifications also matter more than they first appear. RoHS3 compliance and REACH unaffected status support regulatory alignment for modern manufacturing flows, but the more operationally important parameter here is the moisture sensitivity classification. The AM3517AZCN is listed as MSL 3 with 168 hours floor life. That requirement directly affects factory handling discipline. Once the dry pack is opened, exposure time, ambient humidity, and reflow scheduling all become controlled variables. If these controls are treated casually, moisture-driven package stress can lead to internal damage during reflow, including delamination or latent reliability degradation that does not always appear in immediate post-assembly test.

For NFBGA devices in this class, assembly yield depends on combining component handling rules with board process realism. Warpage, stencil design, paste volume consistency, and reflow profile tuning all interact with the fine-pitch ball grid. In low-volume prototype runs, it is easy to assume that passing X-ray and basic bring-up confirms process adequacy. That assumption is often too optimistic. Marginal joints under high-I/O-count BGAs can remain electrically functional while still carrying reduced fatigue life under thermal cycling. A better manufacturing posture is to connect the MSL requirement, reflow profile validation, and long-term reliability objectives into one process window rather than treating them as separate checklist items.

From a system design perspective, the package, voltage domains, temperature grade, and assembly classification should be viewed as one integrated constraint set. The package affects routing density and thermal spreading. Routing density affects supply integrity and DDR margin. Supply integrity influences functional stability across temperature. Temperature and assembly process together shape long-term reliability. The strongest designs emerge when these are solved concurrently instead of sequentially. That is especially true for compact embedded products, where every simplification at the schematic stage tends to reappear later as a layout, thermal, or production penalty.

A practical design strategy is to establish four baselines before committing to layout: a power tree with explicit rail sequencing assumptions, a PCB stack-up matched to the BGA escape and DDR topology, a thermal estimate based on realistic active workloads, and an assembly plan aligned with MSL 3 handling. Once those baselines are fixed, the AM3517AZCN becomes much easier to integrate predictably. The device’s mixed-voltage flexibility and dense package are real advantages, but they reward disciplined implementation. In this kind of processor, most field issues do not come from violating a headline specification outright. They come from consuming too much margin in several small places at once.

AM3517AZCN application positioning and operating system support

Texas Instruments positions the AM3517 family as a crossover device between a microprocessor platform and a highly integrated embedded controller. The AM3517AZCN is particularly well suited to products that need application-class software behavior without the board complexity typically associated with larger multimedia processors. Its fit across single-board computers, transportation equipment, industrial and home automation, navigation terminals, digital signage, smart appliances, point-of-service terminals, digital TV endpoints, portable media players, and portable industrial gaming devices is not just a marketing spread. It follows directly from how the device balances compute capability, graphics, display, connectivity, and control-oriented peripherals in one part.

At the center of that positioning is the ARM Cortex-A8 core. This gives the device enough processing headroom for embedded Linux-class software stacks, graphical user interfaces, protocol translation, local data handling, and moderate multimedia coordination. In practice, this class of CPU is often chosen when the product must do more than deterministic control. It can host web-based configuration layers, run higher-level frameworks, support network services, and maintain a more flexible software architecture than a traditional MCU platform. That matters in systems where feature expansion is expected after deployment, or where a single hardware platform must support several product variants.

The rest of the integration is what makes the AM3517AZCN commercially attractive. The display subsystem and PowerVR SGX graphics accelerator move it beyond a simple headless controller. A local display can be driven with a more responsive user interface, smoother rendering, and a better visual hierarchy for operator interaction. In digital signage, kiosk-style equipment, and control panels, this reduces the gap between embedded hardware and user expectations shaped by consumer devices. The graphics block is not simply about visual polish. It also offloads the CPU, which helps preserve responsiveness when networking, storage access, and UI updates occur concurrently.

Connectivity is another major reason this device spans such diverse applications. Ethernet and USB support allow the AM3517AZCN to function as both a network endpoint and a peripheral host platform. That opens straightforward paths for software update mechanisms, remote management, data export, and accessory attachment. In field systems, these interfaces often determine whether maintenance is expensive or routine. A design that can expose service logs over Ethernet, support USB-based provisioning, and recover through standard interfaces is usually easier to deploy and sustain over a long product life. This is one of the less visible but more decisive advantages of integrated processors in industrial and commercial equipment.

For automation and transportation systems, the value shifts toward the control-side interfaces. CAN, serial ports, GPIO, watchdog resources, and flexible storage options make the AM3517AZCN workable in environments that still depend on robust equipment-level signaling rather than purely high-level networking. This is where the part’s mixed personality becomes useful. It can act as a local HMI node, communications concentrator, and application processor while still interfacing with legacy or field-oriented subsystems. In many practical designs, that reduces the need for a separate HMI processor plus a dedicated communications controller. Fewer major devices on the board generally means lower power-distribution complexity, simpler software partitioning, and fewer failure boundaries.

Video input and output support further broadens the application envelope. A product that captures camera data and presents local visual output can use the AM3517AZCN for inspection terminals, navigation displays, assisted-view systems, entry monitoring, or media-capable operator stations. The important point is not raw video performance alone. It is the ability to combine visual acquisition, local rendering, storage, and communications on one platform. That integration is often more valuable than peak throughput because it shortens the path from prototype to stable product. Designs that split these functions across multiple devices may gain theoretical flexibility, but they usually pay for it in driver coordination, memory architecture, bring-up time, and thermal tuning.

The operating system support for Linux, Windows CE, and Android is equally central to the device’s application positioning. In embedded product development, OS support is not a secondary checklist item. It defines the software ecosystem available to the program. Linux support is especially significant because it brings a mature kernel base, extensive networking stacks, filesystem options, device model support, industrial middleware, and long-term maintainability through source-level control. For products that need custom protocol handling, remote administration, security patching, or broad peripheral adaptation, Linux usually provides the best engineering leverage. It also allows a cleaner path for integrating open-source packages, web engines, and update frameworks.

Windows CE support historically matters in a different way. It has been valuable in products built around established commercial GUI stacks, existing enterprise integration layers, or legacy codebases that were already structured around Microsoft-oriented embedded development. In programs where reuse of prior software matters more than architectural modernization, this kind of OS option can sharply reduce migration cost. That said, long-term platform strategy needs careful review, because OS viability is not just about technical capability. Toolchain continuity, security maintenance, and future staffing flexibility become more important as product lifecycles extend.

Android support points to another product direction: rich graphics, touch-centric interfaces, and application frameworks with a more consumer-like interaction model. In devices such as infotainment-style terminals, smart appliances, portable media equipment, or specialized kiosks, Android can accelerate UI development and shorten the gap between hardware capability and polished user experience. However, Android is most effective when the product truly benefits from its framework model. If the system is heavily control-centric, boots into a single dedicated function, and has strict serviceability or determinism constraints, a streamlined Linux platform is often the more disciplined choice. This is one of the common selection errors in embedded programs: choosing the most visually capable OS rather than the one that minimizes lifecycle friction.

From an engineering management perspective, OS support directly drives middleware availability, graphics stack selection, driver maturity, security posture, and test scope. A processor with nominal peripheral richness but weak software enablement often creates more schedule risk than a slightly less capable device with stable board support packages and a known ecosystem. The AM3517AZCN is best understood through that lens. Its practical value is not just in the hardware blocks listed on a datasheet, but in how those blocks map onto usable software stacks with manageable integration effort. When evaluating suitability, the strongest question is not whether the device can theoretically support an application category, but whether it can do so with a software architecture that remains maintainable for the product’s service life.

This is why the listed application set holds together technically. Digital signage and operator terminals benefit from the CPU, display pipeline, graphics acceleration, and network interfaces. Automation gateways and transportation nodes benefit from control interfaces, watchdog support, and communication flexibility. Navigation and camera-linked products benefit from video capabilities paired with local display and storage. Smart appliances and POS terminals benefit from the combination of UI capability, connectivity, and manageable software environments. The same silicon can support all of these because it was designed around convergence at the board level: enough application processing to run substantial software, enough multimedia support to handle modern interfaces, and enough embedded I/O to remain useful in equipment-centered designs.

In real product development, that convergence usually pays off most when teams avoid overextending the device into roles better served by either a simpler MCU or a more modern high-end applications processor. The AM3517AZCN is strongest in the middle ground. It fits products that need a local interface, network connectivity, modest graphics, and broad peripheral integration in a stable embedded form factor. It is less compelling if the design requires heavy contemporary multimedia workloads, advanced 3D UI composition, or strict hard-real-time behavior without architectural partitioning. Used in its natural operating envelope, it can reduce board count, simplify system partitioning, and support a software stack rich enough for differentiated products without forcing unnecessary platform complexity.

For procurement and product planning, this translates into lower development risk when the chosen operating system aligns with the product model. Linux improves reuse across generations and gives the broadest control over maintenance. Windows CE can preserve value in legacy-oriented deployments. Android can accelerate interface-rich designs when the added framework overhead is justified. The device’s application positioning is therefore best seen as a function of both silicon integration and software leverage. The hardware makes many product types possible, but the operating system choice determines whether those products are efficient to build, support, and evolve.

AM3517AZCN package variants and AM3517/AM3505 device comparison

AM3517AZCN package selection should be evaluated at two levels: silicon capability and package-exposed system capability. In the AM3517/AM3505 family, the first and most important silicon-level distinction is the presence of the PowerVR SGX graphics accelerator. AM3517 integrates the SGX engine, while AM3505 does not. This is not a minor checkbox difference. It directly affects the feasible user interface class, rendering pipeline partitioning, CPU loading, memory bandwidth usage patterns, and long-term software architecture.

For systems that render composited GUIs, animated transitions, OpenGL ES class graphics, or visually dense operator interfaces, the AM3517 has a clear advantage. The SGX block offloads a category of graphics work that would otherwise be approximated in software on the ARM core. In practical designs, that difference usually appears less as a peak-performance metric and more as a system-balance improvement. CPU headroom remains available for protocol stacks, control logic, media handling, or application frameworks instead of being consumed by display effects and 2D/3D scene composition. The result is often better responsiveness under load, more predictable latency, and lower risk when the software stack grows late in the program.

By contrast, AM3505 remains viable when the display path is simple, graphics are largely static, or the product does not require hardware-accelerated 3D rendering. In those cases, removing the SGX dependency can simplify parts of the software integration path and may reduce unnecessary feature overhead. This is especially true in equipment where the display is mainly for status, menus, or low-refresh instrumentation. The engineering decision is therefore not just “graphics or no graphics.” It is whether the product roadmap is likely to demand richer visual behavior over time. In many embedded programs, display requirements expand after the base hardware has already been fixed. That pattern often makes the AM3517 the safer selection even when the first release does not fully exploit the graphics accelerator.

The second major selection point is package variant, specifically ZCN versus ZER. The ZCN package is the 491-pin NFBGA. The ZER package is a 484-pin PBGA with 23.20 mm × 23.20 mm body size and 1.0-mm pitch. This difference matters for more than footprint compatibility. It influences escape routing strategy, layer count pressure, fanout complexity, assembly behavior, inspection strategy, and which peripheral functions are actually available at the board level.

The documentation explicitly identifies TV out as available on the ZCN package and unavailable on the ZER package. That is a system-level constraint, not a packaging footnote. If the design requires NTSC, PAL, or any composite-video style output path tied to the device TV-out function, the package decision is already made: ZCN is the valid path within the documented options. In engineering terms, this should be treated as a hard architectural filter at the beginning of device selection, not as a later board-layout choice.

This package-specific functional exposure is a common source of avoidable redesign. A device may appear equivalent at the processor level, but package choice can silently remove an interface that marketing, firmware, or a downstream customer assumes is available. Once the schematic is built around the wrong package, recovery usually affects layout, power distribution validation, boot configuration review, and software test planning. The cost is rarely limited to a package swap.

The ZCN 491-pin NFBGA option typically aligns with designs that need the fullest practical access to device functionality, including TV out. NFBGA also tends to demand more disciplined PCB design execution. Escape routing, via strategy, impedance control, and assembly process margin should be reviewed early rather than left to layout closure. This is especially relevant if the board already carries DDR, high-speed peripheral interfaces, or dense power-domain decoupling around the processor. In compact designs, the package decision can indirectly determine whether the stack-up remains manufacturable without pushing the board into a more expensive fabrication class.

The ZER 484-pin PBGA, with its documented geometry and pitch, may be attractive where TV out is not required and package form or manufacturing preferences favor that route. In some board environments, a PBGA option can offer a more comfortable assembly and inspection profile, particularly when the rest of the design is cost-constrained and peripheral density is moderate. That said, package convenience should not outweigh future feature containment. If there is even moderate probability that video output requirements may evolve toward analog TV-out compatibility, selecting ZER can close that door permanently within the family.

A useful way to frame the selection is to separate the decision into three engineering questions. First, does the application need graphics acceleration now or in the foreseeable product lifecycle? If yes, choose AM3517 over AM3505. Second, does the design require TV out? If yes, choose the ZCN package. Third, if TV out is not required, is there a manufacturing, layout, or board-mechanical reason to prefer the ZER package? Only after the first two questions are settled does the package tradeoff become a conventional implementation choice.

From a system architecture perspective, AM3517AZCN is the most capability-preserving option among the variants discussed. It combines the graphics accelerator advantage of AM3517 with the documented TV-out availability of ZCN. That combination makes it the strongest candidate for products with multimedia interfaces, richer HMIs, mixed display requirements, or uncertain roadmap expansion. Even when TV out is not used in the first release, retaining the package path that exposes more functionality can reduce redesign risk if product variants are expected later.

For narrowly defined platforms, however, a leaner choice may be justified. If the application has no need for SGX acceleration and no requirement for TV out, AM3505 or a non-ZCN package may better match the actual system envelope. The right answer depends less on maximum feature count than on how much architectural flexibility the design needs to preserve. In embedded programs, the most expensive mistakes usually come from selecting a device that satisfies the first specification draft but leaves no margin for the second one. That is why the AM3517 versus AM3505 decision should be made at the software-and-UX level, while the ZCN versus ZER decision should be made at the interface-availability-and-manufacturing level. When those two layers are evaluated separately and then recombined, AM3517AZCN emerges as the correct choice whenever both advanced graphics and package-exposed TV out are part of the product definition.

Potential Equivalent/Replacement Models for AM3517AZCN

Potential replacement analysis for AM3517AZCN should stay inside the AM35x lineage. That is the only path that preserves architectural continuity at the CPU subsystem, memory interface, peripheral model, software stack, and power-management behavior. Moving outside this family quickly turns a sourcing problem into a platform migration, with impacts on boot flow, BSP maintenance, validation scope, and long-term support. In practice, the realistic candidates are therefore AM3517 package variants and, with feature tradeoffs, AM3505.

AM3517AZCN is defined not only by its processor core but by a specific feature integration point inside the AM35x family. The key differentiators are the presence of the PowerVR SGX graphics accelerator and the package-level I/O exposure associated with the ZCN option. That means replacement assessment cannot stop at CPU compatibility. It has to examine three layers at the same time: silicon feature set, package-level pin accessibility, and system-level software assumptions. Many substitution efforts fail because they validate only the first layer.

AM3505 is the nearest documented sibling, but it is not a full equivalent. The decisive gap is the absence of the PowerVR SGX graphics accelerator. From an engineering standpoint, this is not a minor feature delta. It changes the rendering path, UI responsiveness under load, graphics driver dependencies, and in some products even thermal and memory bandwidth behavior. If an existing design uses SGX-backed acceleration for HMI composition, OpenGL ES workloads, or display effects that were budgeted around hardware acceleration, AM3505 is not a transparent substitute. The software may still boot and much of the peripheral layer may still align, but the user experience and CPU loading profile can shift enough to break timing margins or increase latency in unrelated tasks.

That said, AM3505 becomes a valid candidate in designs where graphics was never functionally critical, or where the display path is simple enough to tolerate software rendering. Industrial control panels, low-frame-rate status displays, networked data concentrators, and headless gateways often fall into this category. In these cases, the real question is not “does the part fit the family,” but “what hidden dependencies accumulated around SGX over the product lifecycle.” A practical review usually needs to inspect the graphics middleware, kernel configuration, boot-time driver initialization, and any user-space assumptions tied to accelerated rendering. It is common to discover that a product nominally has “no 3D requirement” yet still relies on SGX-enabled libraries inherited from an older software baseline. That kind of dependency tends to surface late unless checked early.

Within the AM3517 family itself, package variants are closer in silicon behavior but still require careful handling. The documented ZCN and ZER options are not board-level drop-in replacements. The difference is not just mechanical outline. Package selection affects pin mapping context and feature exposure, including the documented availability of TV out on ZCN and its absence on ZER. This is an important distinction because package migration is often underestimated. Even when the processor family and nominal function remain the same, board escape routing, impedance-controlled paths, companion device hookups, and unused-pin treatment can all change. A package-compatible assumption without a pin-level audit is risky.

The TV-out difference is especially significant because video functions tend to sit at the intersection of hardware design and software configuration. If the existing product uses composite or related video output exposed through the ZCN package, a move to ZER is not simply a layout update. It is a feature removal at the system boundary. That can affect display topology, regulatory retesting if external connectors change, manufacturing test procedures, and field-service expectations. Even if TV out is not currently populated in production, it is worth checking whether the pins are used in diagnostics, factory calibration, or regional product variants. Those secondary uses often matter more than the original design notes suggest.

A structured replacement decision is therefore best made from the bottom up.

At the silicon-function level, first determine whether the application requires AM3517-class graphics acceleration. If yes, AM3505 should be excluded early to avoid wasting effort on an eventual software dead end. If no, AM3505 can remain in scope, but only after confirming that the software image can be rebuilt or trimmed without SGX dependencies. This includes driver packages, graphics frameworks, startup services, and any benchmark or watchdog thresholds that assumed accelerated rendering performance.

At the package and PCB level, determine whether the existing design specifically depends on ZCN-exposed interfaces, especially TV out. If the board was laid out around ZCN, another AM3517 package may still be a platform-level alternative, but not a direct assembly substitution. A redesign may be modest or substantial depending on how tightly the original routing and connector scheme were coupled to the package. In high-density layouts, even small pinout changes can ripple into DDR routing, power-plane continuity, layer count, and EMI behavior. The engineering cost of that ripple often outweighs the apparent benefit of a “similar” package.

At the software-maintenance level, the safest substitution is the one that preserves the most assumptions already embedded in the BSP and application stack. This is where AM3517-to-AM3517 migration usually has a stronger business case than AM3517-to-AM3505, even when both seem technically feasible. Preserving the graphics path, boot configuration, and peripheral exposure reduces regression work and lowers the chance of field-discovered corner cases. In embedded programs with long validation cycles, software continuity is often more valuable than nominal BOM savings.

From a sourcing perspective, the decision logic is straightforward but should be applied with engineering discipline rather than part-number similarity. If the design requires AM3517 graphics capability and the ZCN package’s TV-out availability, AM3517AZCN remains the closest aligned option. If graphics acceleration is not required and the software can be simplified accordingly, AM3505 is the most credible functional fallback within the documented family relationship. If AM3517 functionality must be preserved but package availability forces a change, another AM3517 package variant can be evaluated as a redesign target rather than as a drop-in replacement.

One useful rule in these evaluations is to separate “can operate” from “can replace.” A device may boot the same software baseline, expose many of the same peripherals, and still fail as a replacement because it changes one interface the product quietly depends on. In the AM3517AZCN case, graphics acceleration and package-specific video availability are exactly that kind of boundary condition. Treat them as first-order constraints, not as secondary features.

The most robust replacement strategy is therefore conservative: stay within AM3517 when full feature preservation matters, use AM3505 only when the graphics path is demonstrably nonessential, and treat package changes as board-level redesign events rather than procurement substitutions. That approach usually shortens qualification time, reduces integration surprises, and keeps the replacement decision anchored to actual system behavior rather than to nominal family similarity.

AM3517AZCN selection considerations for engineering and sourcing teams

AM3517AZCN is best evaluated as a system-consolidation device rather than as a standalone applications processor. Its value appears when a design must run application software, drive a display stack, manage networked or local connectivity, and still retain enough low-level I/O to control sensors, actuators, external logic, or legacy field interfaces. In that role, the device can replace what would otherwise become a split architecture built from a higher-level MPU plus one or more support MCUs, display controllers, or interface bridges. That consolidation usually improves BOM control, reduces inter-processor software partitioning, and removes a class of board-level integration issues that often surface late in validation.

At the architecture level, the AM3517AZCN combines an ARM Cortex-A8 core with external memory support, graphics capability, display interfaces, video-related functions, and a broad peripheral set that includes Ethernet, USB, CAN, and multiple serial and control interfaces. The practical implication is not just feature abundance. It is that the processor sits in the useful middle ground between an embedded control device and a multimedia-capable application platform. That balance matters in products such as industrial HMIs, connected operator panels, healthcare terminals, smart control gateways, and consumer devices that must present a polished interface while still interacting with real hardware at the edge.

The first engineering question should be whether the product really needs this level of integration. If the software stack is limited to basic control logic, a modest UI, and straightforward communications, a less feature-rich member of the same family may produce a better cost-power-complexity tradeoff. In many projects, teams initially favor the higher-spec device as insurance, but unused multimedia blocks and graphics capability can become hidden cost drivers without improving shipped functionality. A disciplined requirement map usually separates “needed on day one” from “possible in a future roadmap,” and that distinction often determines whether AM3517AZCN is justified.

Graphics is one of the main decision points. The presence of the PowerVR SGX accelerator makes AM3517AZCN materially more attractive when the product is expected to move beyond static screens and basic 2D menus. Richer UI frameworks, animated transitions, touch-oriented interaction models, map rendering, layered dashboards, and visually branded interfaces all benefit from hardware graphics acceleration. The advantage is not only visual quality. It also reduces CPU contention by offloading rendering work that would otherwise erode responsiveness in communication, control, or background application tasks.

If the interface is predominantly text, icons, status pages, and low-frame-rate 2D elements, comparing against AM3505 is sensible. In that case, the absence of advanced graphics acceleration may not be operationally relevant. However, this comparison should be made carefully. A UI that looks simple in a product definition document often becomes more demanding after marketing requirements, remote update features, multilingual assets, and touchscreen ergonomics are added. In practice, interface complexity tends to grow rather than shrink across product revisions. For that reason, it is often useful to evaluate not only current screen complexity but also the likely software behavior eighteen to thirty-six months into field life.

Display and media path planning should also be handled early. The ZCN package is associated with TV-out capability, which can be significant in multimedia or dual-output designs. Even when TV out is not part of the initial release, package-linked functions can affect later derivative products, service tools, factory diagnostics, or region-specific variants. This is why package selection should not be treated as a mechanical procurement detail. It directly shapes feature availability, routing density, escape strategy, layer count, signal integrity margin, and assembly risk.

Package choice has immediate board-level consequences. High-pin-count packages with multimedia, memory, and mixed peripheral routing demand a disciplined PCB stack-up from the start. DDR2 or mDDR interfaces are usually where weak layout methodology first becomes visible, but display timing, USB integrity, Ethernet magnetics placement, and power sequencing are close behind. A processor like AM3517AZCN rewards early co-design between hardware architecture and PCB implementation. Teams that postpone pin-mux planning or treat interface assignment as a late-stage activity often end up with compromised routing, extra vias on sensitive nets, and avoidable power-domain noise coupling. The device may still function, but robustness across temperature, EMC testing, and manufacturing variation becomes harder to maintain.

Thermal design should be considered in the same integrated way. A Cortex-A8 device with graphics and active I/O subsystems rarely dissipates power uniformly across use cases. Idle menus, peak UI animation, USB activity, Ethernet traffic, memory bandwidth bursts, and video-related functions load the silicon differently. Thermal margins that look acceptable in a nominal software demo can narrow quickly once the full production image is running. For compact enclosures, especially fanless products, it is better to define representative worst-case workloads early and validate junction behavior against realistic ambient conditions rather than relying on average-case assumptions.

Software architecture is another major selection factor. AM3517AZCN is strongest when the platform is expected to host a richer embedded software environment, possibly including Linux-class application layers, network services, graphical frameworks, and update mechanisms. Its peripheral integration supports this well, but the benefit depends on whether the software organization is prepared to exploit it. A highly integrated MPU reduces external hardware, yet it can shift complexity into BSP management, driver integration, boot architecture, and long-term security maintenance. In other words, hardware consolidation is valuable only when software ownership is mature enough to absorb it efficiently.

From a system-design perspective, the broad interface set is one of the most compelling reasons to choose this device. Ethernet, USB, CAN, and serial/control ports allow one processor to bridge enterprise connectivity, local service access, and field-level equipment. That is especially useful in edge platforms that must speak upward to network infrastructure while speaking sideways to peripherals and downward to control electronics. The strongest designs are those that use this interface density to simplify topology, not to maximize feature count for its own sake. Every exposed interface adds software, test, and compliance scope. The best use of AM3517AZCN is selective integration around a clear system boundary.

For sourcing teams, the documented active product status is important because it reduces immediate lifecycle uncertainty, but that data point should still be embedded in a broader risk model. Active status is necessary, not sufficient. Procurement should review lifecycle visibility across the full dependency chain, including memory devices, PMICs, oscillators, Ethernet PHYs, display components, and any package-specific manufacturing constraints. In many programs, the processor is not the first component to go unstable in supply. The processor simply receives the most attention because it is the hardest to redesign around.

RoHS3 compliance and REACH unaffected status are foundational qualification inputs, particularly for globally shipped products and regulated verticals. These attributes support standard environmental compliance workflows, but they also reduce friction during customer audits and design transfer between manufacturing sites. Clear package and temperature information similarly helps accelerate qualification because it anchors MSL handling, assembly process planning, derating analysis, and environmental test definition. What matters is not just that these data exist, but that they are explicit enough to support repeatable internal approval gates without interpretation gaps.

A useful sourcing consideration is whether the selected package, temperature grade, and feature combination align with forecast flexibility. If the design may later branch into cost-optimized and premium variants, locking too early into a package solely for immediate convenience can constrain future portfolio management. In contrast, if TV-out or other package-associated capabilities are genuinely tied to roadmap differentiation, choosing the correct variant at the beginning can avoid painful respins. This is one of those decisions where a small amount of upstream planning prevents a large amount of downstream requalification effort.

The most defensible case for AM3517AZCN emerges when three conditions are simultaneously true. First, the product needs a real applications-class processor rather than a control-oriented MCU. Second, the interface and display requirements are broad enough that peripheral consolidation creates measurable system value. Third, the roadmap has credible potential to use richer graphics or multimedia-adjacent features rather than merely preserving them as theoretical headroom. When those conditions are met, the device can simplify hardware partitioning and create a cleaner long-term platform.

If those conditions are weak, selection should be challenged. Over-selection at the processor level tends to ripple into higher memory requirements, more demanding PCB implementation, deeper software maintenance obligations, and a broader validation surface. Under-selection creates a different failure mode, where the product reaches market quickly but struggles to absorb UI evolution, connectivity expansion, or software feature growth. For this family, the most effective selection method is to treat the processor not as a component purchase but as a platform commitment. That framing usually leads to better engineering discipline and better sourcing outcomes.

Conclusion

AM3517AZCN is best understood not as a general-purpose MPU chosen only for clock rate, but as a system-integration device for embedded products that must sustain feature growth over a long service life. Its value comes from the way compute, graphics, memory interfaces, display support, and industrial connectivity are combined in one architecture. That integration reduces external component count, simplifies board partitioning, and preserves headroom for software expansion, which is often the real constraint in long-life embedded platforms.

At the core of the device is a 600 MHz ARM Cortex-A8, augmented by NEON SIMD and floating-point capability. This combination changes the class of workloads the platform can absorb. It can execute conventional control-plane software, protocol stacks, UI frameworks, and embedded Linux class applications, while still leaving room for moderate signal processing, media handling, and graphics-related tasks. In practice, this matters because long-life products rarely remain fixed after release. Display assets grow heavier, communication stacks accumulate security and maintenance updates, and application logic becomes less deterministic over time. A processor selected too close to the initial load profile often creates a lifecycle problem years later. AM3517AZCN offers a more resilient margin.

The memory subsystem is equally important in that equation. Support for DDR2 and mDDR enables designs that need a balance between bandwidth, cost, and layout feasibility. For systems running graphical user interfaces, network services, and storage-backed software frameworks, memory bandwidth becomes a first-order design parameter rather than a secondary specification. Slow or undersized memory planning tends to surface later as UI lag, frame-buffer contention, and unstable responsiveness under network load. On AM3517AZCN, the available memory architecture is strong enough to support richer software stacks without immediately forcing migration to a more complex application processor family.

A major differentiator in the AM3517AZCN is the inclusion of PowerVR SGX graphics acceleration and a flexible display subsystem. This is not merely a convenience feature for adding a screen. It changes the system architecture by offloading rendering work that would otherwise consume CPU cycles, memory bandwidth, and software effort. In connected HMIs and multimedia-capable industrial devices, the difference between software-rendered and hardware-accelerated graphics is often the difference between a responsive interface and one that degrades under real operating conditions. The practical lesson is that display requirements should be evaluated against the product roadmap, not the first release. Even when initial screens appear simple, later revisions tend to introduce anti-aliased widgets, animations, layered overlays, multilingual assets, and remote-service dashboards. Hardware graphics support gives that evolution a much safer path.

Video input and output capability further expands the application envelope. For embedded systems that must combine operator interaction, local visualization, and image-linked workflows, this integration reduces the need for companion processors. It enables architectures where one device coordinates UI rendering, data acquisition, communications, and moderate media handling. That consolidation is especially useful in industrial and field-deployed products, where every additional IC affects thermal behavior, power sequencing, boot complexity, and long-term sourcing risk. A design with fewer high-pin-count devices is often easier to validate and easier to sustain.

Connectivity is another reason the device remains compelling for long-life design. Ethernet, USB, CAN, serial interfaces, and GPIO provide a broad I/O surface that fits mixed-domain products. Many embedded systems must bridge modern network connectivity with legacy field interfaces while still supporting maintenance ports, sensors, and local expansion. AM3517AZCN aligns well with that requirement because it reduces the need for external bridge logic. From an engineering standpoint, this is not only about BOM reduction. It also improves timing closure, software ownership boundaries, and fault isolation. Each removed bridge or companion controller eliminates a synchronization point that would otherwise need validation across power, reset, suspend, and exception-handling conditions.

The device is particularly well positioned for connected HMIs, multimedia-enabled industrial controllers, medical-adjacent interfaces, building automation panels, and application-rich gateways where local display and network presence must coexist. In these scenarios, the processor can host a full UI stack, manage network protocols, interface with field buses, and expose diagnostic or service functions from one compute domain. That architectural concentration can shorten development cycles, but it only works well when the software partition is planned early. CPU-intensive real-time tasks should not be allowed to compete freely with graphics, storage I/O, and network traffic. In systems built around AM3517AZCN, the most stable results typically come from assigning hard timing responsibilities to well-bounded software paths and treating the application processor domain as a managed shared resource rather than an unlimited compute pool.

For product selection, the critical question is not whether AM3517AZCN has many peripherals, but whether its specific integration matches the expected feature trajectory of the end product. If the roadmap includes richer visualization, remote connectivity, protocol expansion, USB-attached devices, or interface consolidation, then the processor offers strong structural value. If the product is likely to remain a narrow control node with no meaningful display, limited networking, and low software complexity, then a simpler device may deliver better cost and validation efficiency. The right selection criterion is therefore architectural fit over lifecycle, not specification breadth in isolation.

Comparison within the AM35x family makes this evaluation more concrete. Against alternatives such as AM3505, AM3517AZCN is attractive when graphics, display, and broader interface capability are active design requirements rather than optional possibilities. This distinction matters because family-level compatibility can tempt teams to defer feature decisions too long. In practice, graphics and display subsystems affect PCB layout, memory planning, power design, thermal margin, software framework choice, and validation scope from the beginning. Treating them as late-stage options usually increases redesign risk. Choosing AM3517AZCN early is justified when those functions are expected to become part of the shipping product, even if not all are enabled in the first release.

Package choice, including distinctions such as ZCN versus ZER, should be viewed as part of system manufacturability rather than only sourcing detail. Package format influences routing density, escape complexity, assembly yield sensitivity, thermal spreading, and inspection strategy. In long-life products, those factors become more important than they may appear during prototype bring-up. A package that is technically equivalent at the silicon-feature level can still alter production risk and cost structure in meaningful ways. For that reason, package evaluation should be tied to the intended PCB layer count, manufacturing ecosystem, rework expectations, and volume profile.

Long-life embedded design also requires looking beyond functional integration toward sustainability of the full platform. A processor such as AM3517AZCN can support an ambitious product for years, but only if the surrounding design avoids common traps. Power integrity must be treated carefully because devices with application processing, graphics, and multiple I/O domains are more sensitive to sequencing and transient behavior than simpler MCUs. Thermal design should be validated under worst-case composite loads rather than isolated benchmarks, since display activity, USB transfers, Ethernet traffic, and CPU utilization can align in the field in ways that are rarely reproduced by narrow lab tests. Software maintenance must also be anticipated early, especially when the design uses Linux-class components and graphics frameworks. In long-service equipment, software aging and update burden often dominate hardware aging.

One useful pattern in designs based on AM3517AZCN is to treat its integration as a way to simplify the hardware while being disciplined in software layering. Keep boot, recovery, field update, diagnostics, and application logic clearly separated. Reserve interface bandwidth for service functions before the application fully consumes the system. Leave thermal and memory margin that looks excessive during first prototypes. Those decisions rarely seem urgent at launch, but they pay back heavily once the product accumulates revisions, customer variants, and maintenance obligations. A processor with this level of integration rewards teams that design for operational elasticity, not just nominal functionality.

Within the documented AM35x family, AM3517AZCN stands out when display capability, embedded connectivity, and interface consolidation are core product requirements. Its architecture supports a class of embedded systems that sit between simple control platforms and much larger application processors. That middle position is often the most valuable one in industrial and long-life designs: enough performance and integration to absorb feature growth, but still bounded enough to keep the system understandable, supportable, and economically viable over time.
