AM3354BZCZ80

AM3354BZCZ80 and the AM335x Sitara Family Positioning

AM3354BZCZ80 belongs to Texas Instruments’ AM335x Sitara family, a line of application-oriented microprocessors built around the ARM Cortex-A8 core and aimed at embedded products that need more than deterministic control alone. Its role is best understood as the midpoint between a pure microcontroller and a high-end application processor. It provides enough compute headroom to run rich software stacks, enough peripheral density to reduce external companion ICs, and enough interface breadth to fit systems that must sense, communicate, display, store data, and interact with operators in real time.

At the device level, AM3354BZCZ80 is an active 800 MHz single-core ARM Cortex-A8 processor delivered in a 324-ball NFBGA package. That simple description, while accurate, does not fully capture its system value. In the AM335x family, processor selection is rarely driven by CPU frequency alone. The more decisive factors are typically peripheral composition, industrial communication readiness, graphics and display capability, memory architecture, software support, and lifecycle stability. In practice, these attributes define whether the device can act as the central controller for a complete embedded product without forcing major architectural compromises.

The AM335x family was positioned for systems such as industrial automation equipment, home automation hubs, connected vending machines, printers, weighing instruments, education-oriented platforms, medical consumer devices, gaming accessories, and electronic tolling endpoints. That diversity is not accidental. It indicates a processor architecture optimized for edge devices that sit at the boundary between physical processes and networked software. Such systems often need a local user interface, moderate graphics, wired or industrial networking, nonvolatile storage, multiple low-speed peripherals, and the ability to host embedded Linux or a real-time software framework. AM3354BZCZ80 fits this pattern well because it is not designed as a minimal control node. It is designed as a compact embedded computing platform.

From an architectural standpoint, the ARM Cortex-A8 core gives the AM335x family a useful balance of performance, power, and software compatibility. The core is strong enough for HMI workloads, protocol gateways, data logging, supervisory control, and application-layer decision logic, yet still efficient enough for cost-sensitive embedded products. This matters in designs where the processor is expected to handle both infrastructure tasks and application behavior. A lower-class MCU may manage control loops and basic communication, but it becomes strained when the product also needs a web interface, display rendering, file-system management, remote updates, security services, and multiple concurrent communication stacks. The AM3354BZCZ80 addresses that gap by moving the platform into true application-processor territory while preserving an embedded-oriented integration model.

The family’s broader value comes from on-chip integration. AM335x devices are designed to absorb a large portion of the board-level function set into a single processor domain. Display interfaces support local operator panels. Networking resources support connected operation. Audio interfaces allow voice or signal-processing front ends where needed. Storage interfaces simplify boot media and data retention design. Timing and serial peripherals support sensor, actuator, and subsystem attachment. Mixed-signal resources help with lower-complexity measurement and supervisory tasks. This level of integration reduces BOM count, routing complexity, software fragmentation, and qualification effort. In many products, that is more important than absolute peak compute performance. A processor that removes two or three support ICs often improves manufacturability and long-term maintainability more than a nominal CPU upgrade.

One of the AM335x family’s defining characteristics is its fit for industrial and communication-heavy systems. Many embedded deployments are constrained less by arithmetic throughput than by interface orchestration. A device may need to bridge Ethernet traffic, drive a display, log events to flash, exchange data over UART or SPI with subsystems, and maintain response predictability for control-related functions. Under these conditions, a processor with balanced I/O architecture is more useful than one that simply offers a faster application core. This is where the AM335x positioning is technically sound. It was built for systems whose complexity arises from concurrency, protocol diversity, and software layering rather than from compute-intensive algorithms alone.

Software ecosystem support is a major part of the family’s practical appeal. The documentation notes support for Processor SDK Linux and TI-RTOS, and this has direct engineering and sourcing implications. Linux support enables rapid development of connected products with standard networking stacks, UI frameworks, file systems, package-managed toolchains, and broad community familiarity. TI-RTOS support gives a path for designs that need a more controlled real-time software environment with lower software overhead. The key point is not merely that multiple OS options exist, but that the device sits within a mature ecosystem where boot flow, BSP availability, driver support, middleware integration, and long-term maintenance are already well understood. That maturity often reduces schedule risk more effectively than selecting a theoretically stronger but less supported device.

In actual design cycles, this software maturity changes architecture decisions early. When a processor family already has stable Linux distributions, reference designs, established DDR and NAND or eMMC implementation guidance, and known debug workflows, the engineering team can spend more effort on product differentiation rather than enablement work. That distinction is easy to underestimate during component selection. A device may look equivalent on a feature comparison table, but if its software stack is less proven, bring-up time expands quickly. Board spin risk, peripheral validation effort, and kernel integration work all tend to rise together. The AM335x family has remained relevant partly because it reduces this class of risk.

The package and performance point of AM3354BZCZ80 also deserve contextual interpretation. The 324-NFBGA form factor supports dense integration and suitable I/O escape for feature-rich embedded boards, but it also implies disciplined PCB design. Power integrity, DDR routing, thermal distribution, and assembly quality become first-order concerns. In products using AM335x-class processors, the processor itself is usually not the source of project difficulty; the challenge is often the total platform design around it. DDR layout margins, boot media reliability, PMIC sequencing, Ethernet PHY integration, and EMI behavior around display and communication interfaces typically define project success. For that reason, the most successful AM335x implementations are usually the ones that treat the processor as a board-level subsystem rather than as a standalone chip choice.

Memory subsystem planning is especially important. A Cortex-A8 running Linux at 800 MHz can appear modest by current standards, but system responsiveness depends heavily on external memory design, storage latency, and software partitioning. If the platform is overloaded with heavyweight frameworks or poorly optimized graphics paths, the processor may seem underpowered. If the software architecture is disciplined, with lean services, controlled background activity, efficient I/O handling, and sensible UI design, the same silicon delivers stable and commercially robust performance. This is a recurring pattern in embedded products: architectural efficiency often matters more than headline compute metrics.

The application spread listed for the AM335x family reveals another useful insight. Devices such as connected vending machines, smart scales, printers, educational consoles, and toll systems all share a common requirement set: they interact with users, connect to external systems, manage transactions or state, and operate unattended for long periods. That makes reliability, recoverability, and maintainable software infrastructure more valuable than raw CPU peak. AM3354BZCZ80 aligns with this requirement profile because it supports building systems that are serviceable in the field. Linux-capable processors with strong peripheral integration are often easier to update, monitor, and extend over the product lifecycle than simpler control-centric devices that reach their architectural limits early.

For industrial and semi-industrial equipment, the AM335x positioning is particularly strong where local intelligence and protocol handling must coexist. A controller may need to present an HMI, log operational data, communicate upstream over Ethernet, and supervise attached modules while still maintaining bounded behavior for machine interaction. In such cases, using a processor family with established industrial adoption provides a secondary advantage: many integration patterns, software porting approaches, and reliability practices are already known. Power-fail handling, watchdog strategy, dual-partition update schemes, and field diagnostics are easier to implement when the platform has been widely deployed in similar operating conditions.

A subtle but important strength of the AM3354BZCZ80 class is design elasticity. It allows one hardware platform to serve multiple product tiers with software differentiation. A single baseboard can often be adapted into a touchscreen model, a networked gateway version, or a headless controller variant with limited redesign. That flexibility can materially improve platform economics. In families like AM335x, the processor is not only chosen for current requirements but also for how well it supports derivative products, firmware feature expansion, and interface growth over several years. This is one of the more practical reasons such devices remain attractive in embedded roadmaps.

Seen from a procurement and lifecycle perspective, the AM3354BZCZ80 is not just a specification match for an 800 MHz ARM processor. It is a member of a family with established market positioning, broad application fit, mature tool support, and a system-level integration model suitable for long-lived embedded products. For engineering teams, that means lower uncertainty in bring-up and software deployment. For sourcing teams, it means the device is easier to justify in programs where ecosystem continuity and support horizon matter as much as unit cost. In embedded systems, the strongest processor choice is often the one that minimizes total platform friction, and the AM335x family has historically been positioned with exactly that objective in mind.

AM3354BZCZ80 Core Processing Architecture and Compute Resources

AM3354BZCZ80 is built around a single ARM Cortex-A8 core implementing a 32-bit application-processor-class architecture, clocked up to 800 MHz in this device variant. That frequency point matters. It is not simply a trimmed version of the 1 GHz family members. It defines a thermal, power, and cost position that is often better aligned with industrial nodes, operator panels, protocol converters, and mixed-control edge equipment, where sustained responsiveness, software ecosystem maturity, and peripheral integration usually matter more than peak benchmark numbers.

The Cortex-A8 core fills the space between MCU-class determinism and high-end multicore application processing. In practice, this gives system designers enough compute headroom for embedded Linux, graphics-assisted HMI layers, protocol stacks, secure connectivity frameworks, and local decision logic, without introducing the software and power-management complexity that often comes with SMP systems. In many embedded products, that tradeoff is stronger than it first appears. A single well-utilized core with balanced memory and I/O behavior is often easier to validate, easier to keep real-time aware, and more predictable under field load than a larger processor running far below architectural efficiency.

A key performance feature inside the processing subsystem is the NEON SIMD engine. NEON is not just a multimedia add-on. It is a vector execution resource that can accelerate any workload with regular, data-parallel structure. This includes FIR filtering, sample conversion, sensor fusion pre-processing, CRC and checksum acceleration in software paths, image transforms, waveform handling, and parts of industrial protocol parsing where repeated arithmetic or byte-lane operations dominate runtime. The practical value of NEON becomes most visible when CPU utilization seems acceptable in average conditions but collapses under burst workloads such as display refresh, compressed asset handling, or concurrent communication channels. Optimized libraries can shift these hotspots away from scalar execution and restore margin without requiring a hardware redesign.

That said, NEON is most effective when the software pipeline is arranged around memory locality and vector-friendly data layout. A common mistake is to focus only on instruction-level acceleration while leaving buffers misaligned, fragmented, or copied excessively between driver, middleware, and application layers. On AM3354BZCZ80, better gains usually come from combining NEON optimization with cache-aware buffer management, DMA offload where possible, and reduction of unnecessary kernel-user data movement. The architecture rewards balanced optimization more than isolated tuning.

The cache hierarchy is one of the reasons the device performs well in embedded systems that must manage both user-facing tasks and control-side activity. The core integrates 32 KB of L1 instruction cache and 32 KB of L1 data cache, along with 256 KB of L2 cache. This is not large by desktop standards, but in embedded designs it is often enough to keep hot code paths, scheduler activity, protocol state machines, and graphics primitives close to execution. The result is lower effective latency and better sustained throughput, especially when the software image is intentionally partitioned into frequently used paths versus cold, infrequent routines.

Reliability features in the memory subsystem are equally important. The L1 data cache includes parity-based protection, and the L2 cache includes ECC. These details are easy to overlook in high-level comparisons, but they directly affect field robustness. In industrial and electrically noisy deployments, transient faults are not theoretical. Cache protection helps prevent silent corruption in active execution paths, which is far more valuable than recovering after an observable crash. In devices expected to run continuously with limited service access, this kind of architectural resilience becomes a design advantage rather than a specification footnote.

The on-chip memory resources further reinforce the device’s embedded orientation. The 176 KB boot ROM provides a stable first-stage initialization base and supports flexible boot strategies across different storage configurations. This reduces dependence on external components during early startup and simplifies board-level bring-up. The 64 KB on-chip RAM, accessible to all bus masters and supporting retention for fast wakeup, is especially useful in designs that need quick recovery from low-power states, temporary buffering for critical routines, or placement of latency-sensitive code and data outside external memory timing variability.

This internal RAM is more valuable than its size suggests. In real systems, small deterministic memory regions often solve specific bottlenecks better than simply increasing DDR bandwidth. Time-critical interrupt service paths, boot-time diagnostics, shared control data, and small communication queues can benefit from placement in internal RAM, particularly when external memory is under contention from display traffic, DMA bursts, or filesystem activity. A recurring pattern in reliable AM335x designs is to reserve on-chip memory for the few software elements that must remain stable even when the rest of the system is busy.

The interrupt controller supports up to 128 interrupt requests, which positions the device well for I/O-dense applications. This matters when a single processor must coordinate UARTs, SPI channels, I2C devices, timers, GPIO events, DMA completions, watchdog activity, and industrial communication interfaces at the same time. High interrupt count alone does not guarantee good responsiveness, but it enables cleaner event partitioning and avoids multiplexing too many asynchronous sources through software polling or external glue logic. In embedded Linux systems, this helps preserve responsiveness under mixed workloads. In RTOS-based systems, it enables more explicit prioritization and lower latency event handling.

The broader architectural value of AM3354BZCZ80 is that compute and control functions are not separated into unrelated domains. Many processors offer acceptable application performance but expect external devices or secondary controllers to handle deterministic interfacing, industrial timing, or intensive peripheral coordination. AM3354BZCZ80 instead sits in a more integrated design space. It gives the main processor enough compute capability for operating systems and application frameworks while still fitting naturally into control-oriented platforms. This reduces BOM growth, board complexity, inter-processor communication overhead, and software partitioning effort.

For HMI systems, this architecture works well because display logic, UI frameworks, local networking, and machine-state coordination can coexist on one processing foundation. For gateways, the processor has enough headroom to manage protocol conversion, local filtering, diagnostics, and secure communication without immediately forcing a jump to multicore devices. For industrial controllers, the single-core model can be an advantage when system behavior must remain understandable under stress. Debugging timing interactions, validating update mechanisms, and qualifying long-life software stacks are all easier when the compute architecture is capable but not excessively layered.

An important engineering perspective is that the usefulness of this processor is not defined by raw MHz. Its real strength lies in architectural balance: enough scalar performance for general application logic, NEON for targeted acceleration, protected cache for execution integrity, internal memory for deterministic placement, and interrupt capacity for dense peripheral orchestration. Systems built on this class of processor tend to succeed when the design team treats it as a convergence point between software-driven functionality and hardware-near control behavior, rather than as a small general-purpose CPU.

This balance also explains why AM3354BZCZ80 remains relevant in long-life embedded platforms. It supports software stacks that are substantially richer than those of microcontrollers, but it avoids much of the validation burden introduced by more complex processor topologies. Where the workload is shaped by communication diversity, moderate UI requirements, control adjacency, and the need for stable field behavior, this architecture often reaches a better overall optimum than either end of the spectrum. It is not the highest-performance choice in the family, but in many deployed systems it is the variant with the fewest wasted resources and the most usable compute.

AM3354BZCZ80 Memory Architecture and External Memory Support

AM3354BZCZ80 provides a memory subsystem designed for cost-sensitive embedded platforms that still need broad external memory flexibility. Its architecture combines a dedicated external DRAM interface with a General-Purpose Memory Controller, allowing the device to span two very different needs at once: high-bandwidth volatile memory for execution and frame buffering, and robust nonvolatile storage for boot, firmware, logs, or field data retention. This split is not just a checklist feature. It is one of the reasons the device fits well into industrial control nodes, HMI terminals, compact single-board computers, and long-life embedded products where memory strategy often drives both performance and lifecycle risk.

At the volatile memory layer, the external memory interface supports mDDR, DDR2, DDR3, and DDR3L. The documented operating points include 200 MHz for mDDR, 266 MHz for DDR2, and 400 MHz for DDR3 and DDR3L, which maps to effective transfer rates up to 800 MT/s for the DDR3-class devices. The interface uses a 16-bit data bus and supports up to 1 GB of total addressable space, with memory population options of either one x16 device or two x8 devices. From a board-design perspective, this matters because the processor does not force a single memory technology decision across all product tiers. A low-power design can lean toward DDR3L. A legacy-compatible or cost-tuned design may stay with DDR2 where supply conditions still permit. A design intended for higher ecosystem reuse may prefer DDR3 because layout practices, validation flows, and component availability are generally more mature.

The practical implication of the 16-bit DRAM bus is often misunderstood. It does not make the device underpowered by default. In this class of processor, memory efficiency depends at least as much on access pattern quality, display workload, DMA behavior, and software locality as on raw bus width. For many control-oriented or interface-heavy systems, a well-tuned 16-bit DDR3 subsystem is entirely sufficient. The bottleneck more often appears when the design mixes display refresh, graphics activity, network traffic, and CPU-intensive software stacks without careful memory arbitration. In those cases, memory type selection should be treated as only one part of the solution. Buffer sizing, burst alignment, and peripheral traffic shaping usually have equal impact.

The supported DRAM options also create a useful path for platform scaling. A common design pattern is to keep the processor, PMIC approach, and much of the PCB architecture stable while adjusting memory population by product variant. Entry configurations may use smaller density devices and lower-cost memory technology. Higher-end variants may move to larger DDR3 or DDR3L parts to absorb bigger Linux footprints, richer UI assets, or larger application caches. That kind of migration is valuable because software growth tends to be gradual but relentless. Memory headroom that seems excessive in early prototypes often disappears once graphics assets, security layers, update logic, and diagnostic tooling are added.

Power behavior is another important layer. DDR3L is often selected not simply because it is labeled low power, but because its lower operating voltage can reduce total memory subsystem dissipation in designs where thermal margin is limited or enclosure airflow is poor. This becomes more visible in fanless HMI panels and sealed industrial units. Even then, the benefit should be evaluated in the context of actual access activity. If the software keeps the DRAM busy through frequent framebuffer updates or large-copy operations, signal integrity and power delivery quality become just as important as nominal voltage savings. Stable operation at the top supported rate depends on disciplined routing, controlled impedance, length matching, and clean rail behavior during burst activity. In practice, memory bring-up failures are often traced less to controller capability than to marginal layout or underestimated power integrity.

The nonvolatile side of the architecture is handled by the General-Purpose Memory Controller. GPMC supports flexible asynchronous interfaces in 8-bit and 16-bit modes, with up to seven chip selects. It can connect to NAND, NOR, muxed-NOR, and SRAM, which gives the device unusual storage elasticity for embedded designs that need to balance boot reliability, density, and field update strategy. This controller is especially useful when a design must combine fast boot metadata, bulk firmware storage, and persistent operational data without overcommitting to a single memory type. NOR can serve deterministic boot or small code storage needs. NAND can provide lower-cost, higher-density storage for large images, file systems, and logging. SRAM can support special-purpose buffering or external interface expansion in legacy-oriented designs.

The GPMC becomes significantly more valuable because it integrates ECC support rather than leaving error management entirely to software. It supports Hamming code for 1-bit ECC and BCH for 4-, 8-, or 16-bit correction, with an error locator module that works from BCH syndrome polynomials to identify error locations. That capability is central when using NAND flash, where raw bit errors are expected to increase with wear, retention time, and process scaling. In systems that boot from NAND or store critical application images externally, ECC is not an optional enhancement. It is part of the basic reliability model. Without it, nominal storage density quickly becomes unusable under field conditions.

A common engineering mistake is to evaluate NAND only on density and unit price. In deployed systems, the more important question is how error behavior evolves over temperature, erase cycles, and data retention intervals. The GPMC’s ECC support helps offset these risks, but system design still needs the right partitioning strategy. Boot-critical regions should be isolated and protected conservatively. Update images should be written in a way that supports verification and rollback. Log storage should account for wear distribution rather than treating NAND as if it were an infinite append-only medium. When these policies are aligned with hardware ECC capabilities, the platform becomes much more tolerant of long service life and imperfect power conditions.

The seven chip-select capability also deserves attention because it expands design freedom beyond simple flash attachment. It allows memory-mapped external devices to coexist on the same controller domain, which can simplify legacy migrations or mixed-storage architectures. That said, flexibility at the interface level should be used selectively. Excessive dependence on asynchronous external devices can complicate timing closure and software maintenance. In most modern designs, the best use of GPMC is to attach only the devices that benefit from memory-mapped access or require boot-time visibility. Treating it as a universal expansion bus is possible, but not always efficient.

From a bill-of-materials perspective, the combined DRAM and GPMC strategy helps reduce sourcing pressure. The processor is not tightly bound to one DRAM standard or one flash technology, so supply-chain adaptation remains possible when specific memory families become constrained or when lifecycle policies change. This is particularly relevant for industrial products expected to remain in production for years after consumer memory markets have shifted. Preserving alternate qualified memory paths early in the design can save major redesign effort later. In practice, this means validating more than one DRAM vendor where possible, keeping pad-compatible options open, and avoiding software assumptions that lock the platform to one storage geometry unless there is a strong reason.

An effective way to read the AM3354BZCZ80 memory architecture is to see it as a system-level balancing tool rather than a set of isolated interface specifications. The DRAM interface covers runtime bandwidth and software scale. The GPMC covers boot flexibility, nonvolatile expansion, and storage resilience. Together they let the platform absorb very different product goals without changing the processor foundation. That is often the most valuable trait in embedded hardware: not peak specification in one dimension, but enough architectural range to keep performance, reliability, cost, and lifecycle under control at the same time.

AM3354BZCZ80 Real-Time Control Capabilities Through PRU-ICSS

AM3354BZCZ80 stands out in real-time control primarily because of its PRU-ICSS, a subsystem built to handle deterministic tasks outside the timing variability of the Cortex-A8 domain. This is not a minor auxiliary block. It is effectively a tightly coupled real-time processing island integrated into the SoC, designed for workloads where interrupt latency, scheduler jitter, and peripheral abstraction overhead are unacceptable. In designs that must combine high-level software with hard timing behavior, this separation is often more valuable than a raw increase in ARM compute performance.

At the architectural level, the PRU-ICSS is isolated from the main processor path and can execute independently of the ARM core. That independence is the key mechanism behind its real-time behavior. While the Cortex-A8 may be running Linux, handling networking stacks, file systems, user applications, and non-deterministic interrupt loads, the PRUs continue executing short, predictable instruction sequences at fixed timing. This allows the device to host two execution models at once: a feature-rich application processor environment and a microcontroller-like deterministic engine embedded in the same package.

The subsystem contains two programmable real-time units, each implemented as a 32-bit load/store RISC processor running at 200 MHz. In practical terms, this gives each PRU a 5 ns instruction cycle, which is the basis for precise edge handling, bit-level protocol timing, and cycle-accurate control loops that would be difficult to guarantee on the ARM side. Each PRU includes 8 KB of instruction RAM and 8 KB of data RAM, both protected with parity-based single-error detection, and the subsystem adds 12 KB of shared RAM for data exchange between the PRUs and coordinated tasks. There are also three 120-byte register banks accessible by each PRU, which reduce state movement overhead and support fast context-style data access in latency-sensitive firmware.

This memory organization is small by application-processor standards but highly effective for deterministic firmware. The constraint forces a style of implementation centered on compact state machines, fixed-size buffers, direct register manipulation, and explicit scheduling. That usually leads to better timing clarity. In practice, PRU firmware that tries to mimic general-purpose software quickly becomes difficult to maintain and harder to validate. Firmware that treats the PRU as a timing engine, protocol sequencer, or data pump tends to scale much better and is easier to reason about under worst-case conditions.

The interrupt controller inside PRU-ICSS is another important part of the design. It maps system input events into controllable signaling paths for the PRUs and the rest of the SoC. This matters because deterministic behavior is not just about fast execution; it is about bounded response paths. A well-structured event pipeline lets the PRU react to external conditions with minimal software overhead and then notify the ARM only when higher-level processing is required. That split is one of the most effective ways to reduce latency variation across the whole system.

The local interconnect bus further extends the subsystem’s role from simple coprocessor to embedded real-time fabric. It links internal and external masters to PRU resources, allowing the PRUs to interact with memory, peripherals, and shared data structures without excessive software mediation. In system design terms, this enables a streaming model: the PRUs acquire or generate tightly timed data, perform first-stage handling, and pass condensed or time-decoupled information to the Cortex-A8. This is often superior to pushing raw edge-level events directly into Linux, where software overhead grows quickly and timing confidence drops.

The industrial communication capability of PRU-ICSS is one of its most commercially significant strengths. The subsystem supports implementation of protocols such as EtherCAT, PROFIBUS, PROFINET, EtherNet/IP, Ethernet Powerlink, and Sercos. These are not merely software compatibility points. They represent protocol classes with strict timing behavior, frame handling requirements, synchronization constraints, and vendor-specific stack integration demands. Supporting them in a programmable real-time engine is much more flexible than depending on fixed-function communication peripherals, because the implementation can be adapted for profile variations, custom telegram handling, or system-specific scheduling strategies.

This flexibility matters in products that live across multiple industrial ecosystems. A single hardware platform can often be reused with different communication personalities by updating PRU firmware and associated software on the ARM side. That reduces board redesign effort and shortens platform branching. In many industrial programs, the long-term value of that reuse exceeds the nominal cost savings of selecting a simpler processor at the start.

The integrated peripheral support around PRU-ICSS further reinforces its role as a real-time interface engine. The subsystem includes a UART with flow control, one eCAP module, and two MII Ethernet ports with MDIO support. These blocks are not just convenience features. They allow the PRU to anchor itself directly to communication and timing signals without routing everything through higher-level subsystems. The eCAP path is useful when precise timestamping or pulse-width measurement is required. The MII interfaces enable low-level Ethernet frame interaction under PRU control, which is critical for industrial Ethernet variants where timing and frame sequencing must be managed deterministically.

Beyond standard protocol implementation, the PRU-ICSS is especially effective for custom peripheral emulation and nonstandard digital interfaces. This is where the subsystem often delivers its highest engineering value. If a design needs a proprietary fieldbus, unusual encoder format, deterministic GPIO sequencing, oversampled digital capture, or tight synchronization between several external devices, the PRU can usually implement the required behavior without adding an external FPGA or dedicated MCU. That does not mean it replaces programmable logic in every case. Very high bandwidth parallel processing and deeply pipelined signal transformations still favor FPGA-based approaches. But for many control and industrial interface problems, the PRU hits a more efficient point in the trade space: enough determinism, enough programmability, and much lower integration friction.

A common deployment pattern is to run Linux on the Cortex-A8 for system management, application logic, cloud connectivity, HMI layers, and file-backed configuration, while assigning the PRUs to cycle-sensitive I/O. This division works well because each domain is used according to its strengths. The ARM handles complexity and software ecosystem requirements. The PRUs handle timing closure. When this partition is done correctly, the Linux side never sees individual edge deadlines. Instead, it receives filtered events, buffered data blocks, timestamps, or control-state updates. That architectural boundary is one of the cleanest ways to keep a mixed-criticality design stable over time.

Several practical use cases illustrate this well. In deterministic industrial Ethernet, the PRU can manage frame timing, port-level behavior, and synchronization-sensitive transactions, while the Cortex-A8 handles diagnostics, configuration, and supervisory communications. In encoder interfacing, the PRU can decode pulse streams, track position with tightly bounded latency, and expose only position and status values upward. In timing capture applications near motor-control systems, the PRU can timestamp edges or pulse trains with predictable granularity, which is often more useful than attempting to run the entire control loop on a non-real-time application core. In proprietary fieldbus bridging, the PRU can serve as the adaptation layer that preserves legacy electrical or timing behavior while the ARM presents a modern software interface to the rest of the product.

Experience with this class of architecture shows that the main challenge is rarely whether the PRU can meet the timing target. The more frequent issue is partitioning the problem correctly. If too much policy, parsing, or dynamic decision-making is moved into PRU code, firmware complexity rises sharply and available memory becomes restrictive. If too little is moved, the ARM side inherits timing responsibility and the original design objective is lost. The most robust systems use the PRU for deterministic acquisition, generation, and first-stage protocol handling, then push anything state-heavy, configuration-heavy, or service-heavy to the Cortex-A8. That boundary tends to produce firmware that is compact, testable, and resilient under system load.

Another practical point is observability. Real-time subsystems can fail in ways that are timing-dependent and difficult to reproduce once instrumentation changes execution behavior. For that reason, it is usually better to build trace points, timestamp latching, and lightweight health counters into the PRU firmware from the beginning. The small memory footprint makes this feel expensive, but the return during integration is significant. A few bytes reserved for event markers can save days when debugging missed edges, frame slips, or unexpected handshake delays.

From a system architect’s perspective, PRU-ICSS often becomes the deciding feature when comparing AM3354BZCZ80 to generic application processors. Many processors can run Linux. Many can expose Ethernet, UART, and GPIO. Far fewer can do that while also providing a deterministic, low-latency execution subsystem tightly integrated into the same device and programmable at the signal-sequencing level. That capability changes the type of products the SoC can support. It enables one chip to cover supervisory software, industrial networking, and custom real-time interfacing without forcing an external control companion.

The deeper significance of PRU-ICSS is that it closes the gap between software-defined flexibility and hardware-level timing discipline. In embedded control and industrial communication, that gap is where many designs become overcomplicated, typically by adding extra processors or programmable logic simply to recover determinism. AM3354BZCZ80 reduces that need. Its PRU-ICSS gives the platform a controlled way to absorb timing-critical functions internally, which improves integration density and often simplifies validation. For applications that need both a rich software stack and precise external interaction, that balance is exactly what makes the device technically and strategically compelling.

AM3354BZCZ80 Graphics, Display, and Human-Machine Interface Functions

AM3354BZCZ80 extends the AM335x family beyond pure control-plane roles by integrating a usable HMI pipeline around processing, display generation, graphics acceleration, and touch acquisition. This matters because many embedded products do not need a discrete GPU-class subsystem or a dedicated display companion IC, but they do need enough local rendering capability to present responsive screens, status graphics, operator workflows, and touch-driven interaction. In that design space, the device reaches a practical balance: enough graphics and display integration to support modern embedded interfaces, without pushing the system into the cost, power, and software complexity of a higher-end multimedia processor.

At the graphics layer, the AM335x family documentation associates this platform with the PowerVR SGX530 3D engine. That accelerator gives the device a hardware path for rendering workloads that would otherwise consume a large share of CPU time if implemented in software. The SGX530 uses a tile-based rendering architecture, which is especially relevant in embedded systems because tile-based designs reduce external memory bandwidth pressure compared with immediate-mode rendering approaches. That architectural choice is not a minor detail. In compact systems, DDR bandwidth is often the first shared resource to become constrained once display refresh, UI composition, network traffic, and application code begin competing at the same time. A tile-based engine helps contain that pressure by improving locality and reducing unnecessary framebuffer traffic.

The quoted throughput of up to 20 million polygons per second should be read in the correct engineering context. It does not turn the AM3354BZCZ80 into a rich multimedia SoC for advanced 3D scenes, but it is more than sufficient for embedded HMI acceleration, animated transitions, gauge clusters, lightweight 3D effects, and visually smoother UI composition. In practice, the value of the SGX530 is less about peak polygon rate and more about offloading repetitive rendering tasks from the ARM core so that control logic, communications, and UI responsiveness can coexist with fewer compromises. That distinction is important in industrial and medical interfaces, where deterministic application behavior usually matters more than visual complexity.

The shader support and API coverage, including OpenGL ES 1.1 and 2.0, Direct3D Mobile, and OpenMAX, make the graphics block flexible enough for several software stacks. OpenGL ES 2.0 support is particularly useful because it enables programmable rendering paths for custom widgets, alpha blending, scaling, and GPU-assisted scene composition. In a constrained embedded design, even modest GPU support can noticeably improve perceived quality. Anti-aliased dials, smooth fade transitions, rotated icons, or camera-overlay style graphics become feasible without forcing the processor into sustained high-load rendering loops. In many shipped systems, the real benefit is not flashy graphics but lower CPU occupancy during redraw-intensive screens.

The display subsystem is equally significant. The integrated LCD controller supports up to 24-bit output and resolutions as high as 2048 × 2048 with a maximum 126 MHz pixel clock. On paper, those limits define the upper edge of the controller. In real products, achievable display configuration depends on timing margins, framebuffer size, DDR bandwidth, refresh rate, and the amount of simultaneous system activity. A high theoretical resolution is only useful if the memory subsystem can sustain raster fetches while the rest of the application continues to run predictably. That is why practical display design on AM3354BZCZ80 usually starts from the bandwidth budget, not from the controller’s maximum resolution number.

The integrated display driver and raster controller support character displays, passive-matrix LCDs, and active-matrix LCDs, which gives the device unusual range across product tiers. A single processor can therefore be used in both cost-sensitive text or segmented-style interfaces and richer color-TFT operator panels. This portability can simplify platform strategy. Development teams can reuse the same core processor architecture across basic and advanced product variants, changing mainly the panel, software stack, and memory sizing. That kind of reuse often has more commercial impact than raw graphics specifications.

One of the more valuable implementation details is the DMA-based framebuffer fetch. By pulling display data directly from external memory, the subsystem avoids tying the processor to constant refresh servicing. That offload model is fundamental to embedded HMI stability. Display refresh is relentless and periodic; if the CPU had to manage it actively, jitter and missed deadlines would quickly appear once communication stacks, control loops, logging, and UI updates overlap. With DMA handling scanout, the processor can focus on preparing frame content rather than sustaining the display itself. The practical outcome is a cleaner separation between application timing and visual output timing.

That said, external framebuffer operation introduces its own design constraints. Framebuffer size grows quickly with resolution and color depth. A single 800 × 480 framebuffer at 24-bit color already consumes substantial memory, and double buffering increases that requirement further. Once overlay layers, GUI assets, or off-screen rendering surfaces are added, DDR sizing and bandwidth margins need careful review. In systems that appear underpowered on paper, the bottleneck is often not shader throughput or ARM frequency, but memory traffic caused by full-screen redraws, alpha-blended widgets, and poorly optimized asset formats. A well-performing AM3354BZCZ80 design usually owes as much to disciplined display architecture as to the silicon itself.

For touch input, the integrated 12-bit SAR ADC operating at 200 kSPS and multiplexed across eight analog channels allows the device to directly support resistive touch screen interfaces in 4-wire, 5-wire, or 8-wire configurations. This is a practical choice for industrial and cost-sensitive products, where resistive touch remains relevant because it works with gloves, tolerates contamination better than many capacitive implementations, and can be easier to qualify in electrically noisy environments. The integration is useful because it avoids a separate touch controller for systems that do not need multi-touch or gesture-heavy interaction.

The resistive touch support should also be viewed through the lens of signal integrity and software filtering. Raw ADC capability alone does not guarantee a good user experience. Resistive panels are sensitive to noise, panel aging, pressure variation, and mechanical tolerance. Stable coordinate extraction depends on sampling strategy, debounce timing, pressure validation, and filtering methods such as median or weighted moving averages. In practice, touch quality is often determined less by nominal ADC resolution and more by how carefully the acquisition path is tuned against display noise, power ripple, and user interaction patterns. A poorly filtered 12-bit reading can feel worse than a lower-resolution system with disciplined calibration and rejection logic.

A subtle but important advantage of having ADC-based touch integrated on the processor is tighter coordination between the input path and the UI stack. Sampling can be scheduled with awareness of display activity, application state, and low-power modes. This can simplify latency control in compact systems. At the same time, designers need to account for coupling between the LCD interface, backlight power stage, and analog touch measurement path. Layout discipline matters here. Ground return planning, analog reference stability, and separation of noisy switching domains can have a larger effect on touch accuracy than component selection alone.

From an application perspective, the AM3354BZCZ80 is well positioned for operator panels, handheld service terminals, low-cost medical interfaces, building controls, vending systems, instrumentation displays, and automation nodes that need local visualization. In these products, the key requirement is not cinematic graphics. It is reliable rendering of menus, trends, alarms, status objects, and guided workflows while the processor also manages field I/O, networking, storage, or protocol stacks. The integrated graphics and display pipeline reduces BOM count and simplifies board architecture, which often improves both reliability and EMC behavior by eliminating extra high-speed interconnects to external display-assist devices.

For industrial HMIs, one of the strongest fits is the mid-range panel that needs a responsive TFT UI, moderate animation, and direct touch support, but not advanced multimedia decode or complex compositing across multiple displays. The AM3354BZCZ80 can support this class effectively when the software stack is chosen with restraint. Lightweight GUI frameworks, careful use of GPU acceleration, region-based redraw, compressed image assets, and disciplined framebuffer management usually produce better real-world behavior than attempting to replicate desktop-style UI patterns. Embedded display design rewards selective richness, not excess.

In lower-cost medical or laboratory terminals, the same integration has a different value. Deterministic behavior, fast boot, stable touch response, and clear presentation often outweigh visual sophistication. Here, the device’s integrated HMI functions help keep system behavior predictable. The CPU can remain available for measurement handling, protocol processing, and local data management while the display subsystem maintains output continuity. That division of labor is often exactly what makes a compact instrument feel reliable in use.

A recurring design insight with this class of processor is that the best HMI outcomes come from balancing three shared resources: DDR bandwidth, CPU headroom, and UI update policy. Teams often focus first on display resolution or graphics API support, but long-term responsiveness usually depends more on how aggressively the interface redraws, how large the framebuffers are, and whether animation is used where it improves comprehension rather than merely adding activity. On AM3354BZCZ80, efficient HMIs are rarely limited by the absence of features. They are limited by unnecessary memory movement and software layers that ignore the cost of each pixel touched.

The integration level of AM3354BZCZ80 therefore has real architectural value. The LCD controller, raster engine, DMA path, resistive touch support, and graphics acceleration form a coherent embedded HMI subsystem around the application processor. That combination can remove the need for separate display timing devices, external touch controllers, or graphics companion chips in many designs. The result is a smaller hardware footprint and a more unified software model, which tends to shorten bring-up and reduce system interaction faults. For products that need a dependable local interface rather than a full multimedia experience, this is exactly the kind of integration that produces efficient, robust designs.

AM3354BZCZ80 Connectivity and Peripheral Integration

AM3354BZCZ80 stands out less because of any single interface and more because of how completely its peripheral fabric covers the edge-node problem. It is not just a processor with add-on I/O. It is a device that can terminate networks, bridge field buses, stream media, manage local storage, and still retain enough timing and control resources for deterministic machine interaction. That level of integration changes board architecture. Instead of building around several companion controllers, the design can often collapse into one SoC, external memory, power management, PHY-side magnetics where needed, and application-specific analog or isolation stages.

The USB subsystem is a good example of this integration strategy. The device provides two USB 2.0 high-speed dual-role ports with integrated PHY. That matters because it removes a common external dependency and shortens the signal path for a difficult high-speed interface. In practice, integrated PHY support reduces routing burden, lowers BOM pressure, and simplifies compliance-focused layout decisions compared with solutions that require external transceivers. Dual-role capability is also more useful than it first appears. It allows one design to support device-mode provisioning, firmware update, diagnostics, or data logging extraction, while also enabling host-mode expansion for Wi-Fi modules, storage devices, or service accessories. In deployed systems, that flexibility often eliminates a dedicated maintenance connector or secondary controller.

The Ethernet block is even more strategically important. AM3354BZCZ80 integrates two industrial Gigabit Ethernet MACs with 10/100/1000 Mbps capability, switch support, and broad media interface compatibility including MII, RMII, RGMII, and MDIO. This gives the board designer several architectural paths. One path uses external PHYs for standard copper networking. Another uses the dual MAC arrangement to isolate control traffic from plant or enterprise traffic. A third leverages switch capability to create compact line or ring topologies without introducing a separate switch ASIC. That is where the device becomes especially effective in industrial gateways, protocol bridges, and distributed controllers.

IEEE 1588v1 support adds another layer of value. Precision time alignment is not just a networking feature; it is a system-level coordination mechanism. Once timestamping is available near the MAC, distributed sampling, synchronized motion events, and ordered data correlation become much easier to implement with bounded software overhead. In systems that combine Ethernet traffic with local PWM, capture, or encoder feedback, this capability helps close the gap between network time and machine time. That is often the difference between a device that merely communicates and one that participates coherently in a larger control domain.

The serial interface set reflects the same design philosophy: breadth first, but with enough detail to remain practical. Up to six UARTs, each with IrDA and CIR modes and with UART1 supporting full modem control, allow the processor to absorb a surprising number of legacy and service channels. Debug console, HMI link, wireless module, external controller, maintenance port, and metering interface can all coexist without immediate pressure to add multiplexers or USB-to-serial bridges. In real designs, UART count is often underestimated early and regretted later. Once manufacturing hooks, field diagnostics, and optional module variants are included, these interfaces tend to disappear quickly. Having six available reduces that friction and keeps software partitioning cleaner.

The SPI capability, with up to two McSPI interfaces supporting master or slave operation at up to 48 MHz and up to two chip selects, is well suited for medium-speed control-plane peripherals. ADCs, DACs, shift-register chains, display controllers, secure elements, and specialized sensors can be integrated without overloading the CPU with protocol adaptation. SPI is also one of the easiest interfaces to recover during bring-up, so having native ports available tends to accelerate early board validation. A recurring pattern is to dedicate one SPI bus to boot- or security-related devices and reserve the other for application peripherals, which reduces contention and keeps latency behavior predictable.

Storage and removable media support are handled through up to three MMC/SD/SDIO ports with 1-, 4-, and 8-bit modes. This is more than a convenience feature. It enables clean separation between boot media, removable logging media, and radio or combo modules that expose SDIO. In data-centric embedded products, this matters because it avoids overloading one channel with incompatible priorities. A common implementation uses eMMC for the root filesystem, a microSD slot for field updates or logging retrieval, and SDIO for a wireless connectivity module. That partitioning improves maintainability and avoids a cascade of compromises around boot reliability, connector wear, and service workflows.

The I2C subsystem, with up to three master/slave ports supporting standard and fast modes, provides the low-speed control fabric that many embedded systems quietly depend on. Power management ICs, EEPROMs, temperature sensors, clock generators, GPIO expanders, touch controllers, and low-rate supervisory devices can be kept on isolated buses. This is not just a matter of pin count. Segmenting I2C domains reduces debug ambiguity and limits fault propagation. When one noisy peripheral or hot-pluggable module misbehaves, it is far better for that failure to affect only one bus than to stall the entire control plane. Designs that allocate one I2C channel to core board management, one to off-board peripherals, and one to optional modules usually age better through product revisions.

Audio and time-domain streaming are supported by up to two McASP ports with clocks up to 50 MHz, FIFO support, TDM and I2S-style framing, and SPDIF/IEC60958-1/AES-3 format support. While these features are naturally relevant for audio products, their utility extends well beyond conventional sound processing. McASP is often an efficient way to move framed serial data with deterministic timing, especially where low-jitter clocking and multi-channel transport are required. In mixed-function systems, one port can serve a codec or digital audio link while the second is repurposed for structured serial streaming associated with sensing or specialized instrumentation. That flexibility is valuable because it avoids consuming general-purpose serial resources for tasks that are fundamentally synchronous.

Industrial control integration is where AM3354BZCZ80 becomes particularly compelling. Two CAN 2.0A/B ports cover a large class of field networks and subsystem communications without external protocol offload devices. CAN remains attractive where robustness, long operational history, and strong ecosystem availability matter more than raw throughput. Native CAN support simplifies gateway designs that must bridge Ethernet-facing software stacks to machine-local bus traffic. It also reduces latency uncertainty compared with USB-attached or SPI-attached CAN controllers, especially under interrupt-heavy workloads.

The eCAP, eHRPWM, and eQEP modules give the device direct traction in motion, power, and event-driven control. eCAP is useful for timestamping external events and pulse measurements. eHRPWM supports deterministic waveform generation for motor drives, converters, and actuator control. eQEP enables direct handling of quadrature encoder feedback. Taken together, these blocks mean the processor can interact with real electromechanical systems without first outsourcing the timing-critical layer to a separate MCU or FPGA in many mid-range designs. This does not imply that every control application should be fully centralized in the SoC, but it does mean the partition line can be pushed much further than with general-purpose application processors that lack dedicated control peripherals.

The GPIO structure, four banks of 32 pins subject to multiplexing, completes the integration picture. High pin count alone is not the key point. The real value comes from the multiplexed pin architecture, which lets the same package adapt to different product roles. One board spin can prioritize display and user I/O. Another can trade those pins for extra serial channels, industrial timing inputs, or storage signals. This type of configurability supports platform-based product families. The same core hardware can be repurposed across variants by changing mux assignments, external population options, and firmware configuration, without redesigning the compute base.

Timers and the watchdog appear routine on paper, but they are part of what makes the peripheral set operationally complete. Timers absorb housekeeping, periodic sampling, timeout supervision, and waveform scheduling that would otherwise add software jitter. The watchdog is essential in unattended systems, not as a last-resort checkbox, but as part of a recoverability strategy. Designs that actually behave well in the field usually treat watchdog integration early, alongside boot sequencing and fault logging, rather than as a final software patch.

What makes this peripheral density valuable is not simply the number of interfaces. It is the reduction in boundary surfaces between chips. Every external bridge that disappears removes at least one driver layer, one clock domain crossing, one set of level or reset dependencies, and one procurement risk. It also reduces the number of places where signal integrity, power sequencing, and software ownership can become ambiguous. This is why highly integrated SoCs often produce disproportionate system benefits even when the nominal BOM savings seem modest. The real gains show up in bring-up time, fault isolation, certification effort, and long-term maintainability.

That said, the integration only pays off if interface allocation is planned as a system exercise rather than a schematic exercise. A common failure mode is to consume peripheral pins opportunistically during early board design and discover later that mux conflicts force awkward compromises between debug access, storage width, networking, and control I/O. The better approach is to model the product as several concurrent fabrics: high-speed data, deterministic control, low-speed management, service/debug, and future expansion. Once those fabrics are mapped explicitly, the AM3354BZCZ80 peripheral set can usually be assigned in a way that preserves both current requirements and revision headroom.

From a board-design perspective, the device can often consolidate networking, local storage, display-side support, audio transport, field I/O, and service interfaces into a single compute node. That has obvious effects on component count, but the more important outcome is architectural compression. Fewer companion ICs mean fewer rails, fewer reset trees, fewer clock-distribution decisions, and fewer software ownership boundaries. For sourcing and lifecycle planning, that translates into lower exposure to single-function component shortages and fewer redesign triggers caused by peripheral bridge obsolescence. In embedded products intended for long service life, this kind of integration is not just convenient. It is a form of risk control built directly into the silicon choice.

AM3354BZCZ80 Power Management, Clocking, and Operating Conditions

AM3354BZCZ80 integrates power management, reset control, and clock generation as a coordinated control plane rather than as isolated support functions. That architecture matters in embedded designs because energy use, thermal behavior, wake latency, and functional determinism are all coupled at the silicon level. For systems expected to idle for long periods, wake on external events, or operate without forced airflow, the device’s power and clock framework is not just a datasheet feature set. It is a primary design constraint.

At the center of this framework is the power, reset, and clock management block, which governs state transitions across the device. Its role extends beyond simply asserting resets or gating clocks. It sequences entry into standby and deep-sleep modes, controls which domains remain powered, defines the order of switch-off and switch-on events, and manages wake-up recovery. In practice, this sequencing is critical because embedded failures during low-power transitions rarely come from the steady state. They usually appear at the boundaries: a peripheral clock disabled too early, a memory path not retained as expected, or a wake source not routed through the always-on logic. The AM3354BZCZ80 addresses this by separating always-available wake infrastructure from switchable compute and peripheral domains, which allows low standby power without losing the ability to resume deterministically.

The power-domain structure is intentionally asymmetric. The RTC and wake-up logic reside in nonswitchable domains, providing a persistent timing and event-detection layer even when major processing resources are shut down. The MPU, graphics, and peripherals or infrastructure domains are switchable, allowing the system to remove power from blocks that are not needed. This partitioning enables several operating profiles. A design can keep only timekeeping and wake detection alive for minimum standby current, retain selected infrastructure for faster resume, or leave more of the interconnect active when latency matters more than absolute power reduction. The useful engineering insight here is that deep-sleep efficiency is not determined only by the lowest possible domain state. It is determined by whether the wake-up path, software state model, and peripheral ownership model were designed to match that state. A theoretically optimal low-power mode is often inferior if recovery forces excessive reinitialization or destabilizes external devices.

The clock architecture provides the timing flexibility needed to make that power strategy practical. The device includes an integrated 15- to 35-MHz high-frequency oscillator and five ADPLLs that synthesize clocks for the MPU subsystem, DDR interface, USB and peripheral functions, L3/L4 interconnect, Ethernet, graphics, LCD pixel generation, and other clock domains. This matters because the processor is not driven from a monolithic clock tree. Instead, the design uses multiple independently managed clock domains, each tuned for performance, throughput, and power. The immediate benefit is selective scaling: compute-intensive paths can run fast while less critical logic remains at lower rates or is gated entirely. The deeper benefit is isolation of timing intent. DDR, display, networking, and core execution each have distinct jitter, frequency, and duty requirements, and separate PLL-based clock generation makes it possible to satisfy these requirements without overclocking unrelated sections of the chip.

Fine-grained clock enable and disable control for subsystems and peripherals is one of the more practically valuable features. In many embedded boards, average power is dominated not by the CPU alone but by inactive logic left clocked due to software convenience. Gating unused modules reduces dynamic power directly, lowers local heat generation, and often simplifies thermal compliance. The effect becomes more visible in systems with LCD refresh, Ethernet traffic, USB connectivity, and DDR activity occurring together. Even when the MPU utilization looks moderate, the aggregate switching power in peripheral and interconnect domains can dominate the thermal profile. Good board-level results usually come from explicit peripheral clock ownership in software rather than from relying on generic idle behavior.

SmartReflex Class 2B adds another layer by enabling adaptive voltage scaling based on die temperature, process variation, and performance demand. This is more than a static guardband reduction feature. It allows the device to move closer to the actual voltage needed by a given sample under given conditions instead of operating permanently at a conservative worst-case point. Combined with dynamic voltage and frequency scaling, the processor can trade performance for efficiency in a controlled way. The practical implication is that energy optimization should be handled as a closed-loop policy, not as a fixed operating point. Workloads on AM3354BZCZ80 are often bursty: UI refresh, network processing, storage access, and control tasks rarely peak at the same instant for long durations. A well-designed DVFS policy can exploit this burst structure by allowing fast completion at higher frequency when needed, then dropping voltage and frequency aggressively during lower demand periods. In many cases, this produces better energy behavior than holding the device at a mid-range frequency continuously.

The operating conditions define the physical boundaries within which these mechanisms remain reliable. The device supports 1.8 V and 3.3 V I/O levels and is specified for a junction temperature range of 0°C to 90°C. These are straightforward numbers, but their implications are system-wide. I/O voltage planning affects PMIC rail count, level compatibility with external devices, signal integrity margins, and power sequencing dependencies. Junction temperature limits drive enclosure assumptions, copper utilization, airflow expectations, and software power policy. A common design mistake is to treat the thermal range as a board-ambient specification. It is not. Junction temperature reflects the silicon die after internal dissipation, package thermal resistance, board spreading, and enclosure conditions have all combined. In compact fanless products, the difference between ambient temperature and junction temperature can become substantial during sustained DDR, display, and Ethernet activity.

Thermal planning should therefore start from realistic activity vectors rather than from nominal processor utilization alone. On this device, processor load, DDR bandwidth, LCD pixel clocking, graphics activity, and Ethernet throughput can contribute concurrently. DDR and display traffic are especially easy to underestimate because they remain active even when application code appears light. A kiosk or industrial HMI design with a bright display, continuous framebuffer updates, periodic network traffic, and moderate CPU load can generate a steadier thermal burden than a short compute-heavy task. Early thermal models should include these persistent switching sources, along with PMIC losses and board-level regulator efficiency. Designs that ignore them often pass bench tests in open air and then fail margin testing once placed into sealed enclosures.

PMIC selection should be approached as part of the SoC operating-state design, not as a separate power-delivery exercise. The rail architecture must support core voltage scaling, I/O rail requirements, wake-capable standby states, and power-up sequencing compatible with the device’s reset and clock behavior. Rail ramp rates, sequencing dependencies, and transient response are important because AM3354BZCZ80 can shift current demand rapidly during state transitions or frequency changes. A PMIC that is electrically adequate at average load may still be unsuitable if it responds poorly to fast dynamic current steps from the MPU or DDR domains. In practice, regulator stability under real workload transitions matters as much as static current capacity.

The interaction between power domains and external interfaces also deserves careful treatment. If a switchable internal domain drives an external peripheral that remains powered, the interface must return to a defined state during standby and wake-up. Otherwise leakage paths, false signaling, or latch-up conditions can appear at the system level. This is particularly relevant for mixed-voltage interfaces using 1.8 V and 3.3 V rails, where sequencing mismatches can create unintended current paths through protection structures. Clean rail planning, isolation strategy, and reset behavior should be validated together. These issues tend to surface late if they are checked only at schematic review rather than during state-transition analysis.

From a software perspective, the value of the hardware power architecture is realized only when clocks, domains, and wake sources are managed intentionally. Peripheral drivers need clear idle semantics. Resume paths must account for what was retained and what was fully powered down. Wake sources should be filtered to avoid spurious exits from low-power states. The strongest low-power implementations usually treat power state management as part of the platform architecture from the beginning, not as a final optimization pass. On AM3354BZCZ80, that discipline is especially worthwhile because the hardware provides enough granularity to gain meaningful reductions, but also enough flexibility to expose weak assumptions in software.

For fanless industrial and kiosk-class deployments, the most effective engineering approach is to evaluate the device as a coupled electro-thermal timing system. Use the domain structure to remove unnecessary power. Use the PLL and clock controls to align frequency with actual throughput needs. Use SmartReflex and DVFS to reduce voltage margin during favorable conditions. Model thermal behavior against sustained real workloads, not synthetic CPU-only tests. Plan I/O rails and PMIC behavior around transition correctness as well as steady-state power. When these pieces are aligned, AM3354BZCZ80 can deliver a stable balance of responsiveness, low standby power, and thermal compliance without forcing excessive design complexity.

AM3354BZCZ80 Security, Boot, Debug, and System Management Features

AM3354BZCZ80 integrates a security and control baseline that is more useful than its feature list first suggests. Its crypto engines, boot-configuration logic, debug fabric, fuse infrastructure, and interprocessor coordination blocks are not isolated utilities. They form a system-level control plane for building connected embedded products that must start predictably, expose only intended service paths, and coordinate software domains with different timing and privilege requirements.

At the security layer, the documented hardware accelerators for AES, SHA, and random number generation reduce the need to implement core cryptographic primitives in software. That matters for more than performance. In embedded systems, software-only crypto often creates unstable latency under interrupt load, increases CPU residency in sensitive code paths, and complicates secure key handling. A dedicated engine moves the bulk of the transformation work into hardware, which typically gives tighter execution bounds and lowers the attack surface associated with repeatedly moving key material through general-purpose execution context. In practical designs, this becomes especially valuable when the Cortex-A8 is already committed to networking, filesystem activity, and control loops, because security operations stop competing so aggressively for deterministic CPU time.

The more important engineering implication is how these accelerators support trust establishment across the product lifecycle. AES and SHA are not just checkboxes for encrypted traffic. They are building blocks for image authentication, protected configuration storage, key wrapping, credential provisioning, and secure field updates. The random number generator is equally significant, because weak entropy is often the hidden failure mode in otherwise correct security architectures. Session keys, nonces, challenge values, and provisioning seeds all depend on entropy quality. In production systems, the difference between “crypto present” and “crypto usable” usually comes down to whether the platform can generate, protect, and consume randomness without fragile software workarounds.

Secure boot is marked as optional and tied to custom part engagement with Texas Instruments. That constraint changes how the device should be evaluated. It means secure boot is not simply a software feature waiting to be enabled late in the project. It is a product-definition decision that affects sourcing, provisioning flow, recovery design, and manufacturing control. If authenticated boot is required, the decision must be made early, because the chain of trust begins before the operating system is active and cannot be retrofitted cleanly after board, factory, and update processes have already stabilized. In practice, teams that delay this decision often end up building partial compensating controls in software, which can protect applications but cannot fully secure first-stage execution or defend against image substitution at the earliest boot stages.

The boot mechanism itself is intentionally hardware-centric. Boot mode is selected through configuration pins sampled on the rising edge of PWRONRSTn. This latching behavior gives a deterministic selection point and decouples boot-source choice from software state. From a board-design perspective, that is useful because boot intent is established before firmware has a chance to fail or become corrupted. It allows the product to expose a fixed primary boot source for normal operation, while still reserving alternate modes for factory programming, board bring-up, or recovery. The electrical detail matters here: because the pins are latched on a reset edge, pull resistors, strap tolerances, reset timing, and signal stability during ramp-up directly affect boot reliability. Seemingly minor layout or reset-supervisor choices can create intermittent boot-path selection errors that are hard to reproduce once the system appears mostly functional.

A practical pattern is to treat boot straps as part of the platform safety architecture rather than as passive configuration. If a design needs field recovery, strap options should be chosen so that a failed primary image does not force invasive rework. If the device boots from removable or externally writable media, the recovery path should be evaluated against both serviceability and unauthorized image insertion. On systems with tight uptime requirements, it is also useful to define what each strap state means operationally: normal production boot, controlled manufacturing boot, and restricted recovery boot should not collapse into an ambiguous matrix of possible media. Simpler boot policy usually produces stronger products.

Debug support on the AM3354BZCZ80 is extensive. JTAG and cJTAG are available for the Cortex-A8 and PRCM, with additional PRU-ICSS debug capability, boundary scan support, and IEEE 1500 support. This is valuable during bring-up, validation, and manufacturing, but it also creates a classic embedded tradeoff: the same observability that accelerates root-cause analysis can become a privileged access channel if left unmanaged. For engineering teams, full debug visibility is often essential during early board spins, DDR tuning, power sequencing checks, peripheral validation, and real-time firmware development. For deployed products, unrestricted debug access is often incompatible with security goals.

That is why debug policy should be treated as part of the threat model, not as a post-production checkbox. Boundary scan and IEEE 1500 support are particularly useful in manufacturing because they improve structural test coverage, reduce fixture complexity, and help isolate solder, routing, and assembly defects before software is mature. Yet production units should not necessarily expose the same level of access as lab units. The right operating model is usually staged: broad debug in development, constrained debug in manufacturing, and tightly controlled or disabled debug in the field. The FuseFarm becomes important in that context because it provides a device-resident identity and configuration anchor that software can read and use for inventory, traceability, and platform awareness.

The FuseFarm includes factory-programmable bits such as production ID, unique JTAG ID, and revision information readable by the host ARM. This set of identifiers is easy to underestimate, but it supports several high-value workflows. Revision awareness lets firmware apply silicon-specific workarounds cleanly. Unique IDs support board-to-cloud registration, serialized provisioning, and secure asset tracking. Production identifiers improve manufacturing traceability and post-deployment failure analysis. In a disciplined deployment pipeline, these immutable identifiers become the stable reference that ties together test logs, calibration data, credentials, software images, and service history. That linkage often determines whether field issues can be diagnosed quickly or remain anecdotal.

There is also a subtle security benefit in using hardware identity correctly. Systems that derive operational policy from mutable software configuration alone tend to drift. Systems that anchor critical decisions to immutable device attributes are more robust against accidental misprovisioning and certain classes of cloning or substitution errors. The hardware identity is not, by itself, a trust solution, but it is an excellent root for one.

The interprocessor communication features extend the device’s system-management value beyond basic compute. Mailbox-based messaging and hardware spinlocks support synchronization between the Cortex-A8, PRCM, and PRU units. This matters because AM3354-class designs often combine a rich operating environment on the Cortex-A8 with deterministic peripheral handling or low-latency control in the PRUs, while power and clock behavior is managed through PRCM interactions. Without explicit hardware-backed coordination primitives, these domains tend to rely on ad hoc shared-memory conventions, which are fragile under timing stress and difficult to verify.

Mailboxes provide a structured signaling path for event delivery, ownership transfer, or command dispatch between processing elements. They are especially useful when software components run under different scheduling models. A Linux process on the Cortex-A8 may tolerate variable latency and complex stack interactions, while a PRU task may operate under cycle-sensitive constraints. Direct polling through shared memory can work, but it scales poorly and often introduces unnecessary latency or cache-coherency complexity. A mailbox gives a clearer synchronization boundary. The hardware spinlock complements that by protecting shared resources when multiple agents need serialized access. This is important not only for data integrity but for maintaining system behavior that remains explainable under contention.

In practice, the value of hardware spinlocks shows up when the architecture mixes high-level software services with real-time I/O ownership. Shared ring buffers, command descriptors, status blocks, and low-level control registers are common conflict points. Software-only locking across heterogeneous execution domains is easy to get mostly right and still fail intermittently under burst traffic, suspend/resume activity, or fault recovery. A hardware spinlock does not solve design errors, but it sharply reduces the gap between intended arbitration and actual arbitration at runtime. That makes failures easier to reason about and easier to reproduce.

A useful design approach is to treat the Cortex-A8, PRUs, and power-management control as separate timing islands connected by explicit contracts. Mailboxes carry intent. Shared memory carries payload. Hardware spinlocks guard ownership transitions. When those roles are kept distinct, the software architecture becomes easier to test and less prone to race conditions that only appear under simultaneous I/O load and power-state transitions. This is especially relevant in systems where Linux handles networking and update logic while PRUs maintain deterministic industrial signaling or motor-control timing. The coordination hardware does not replace architecture discipline, but it gives that discipline a reliable substrate.

Taken together, the AM3354BZCZ80 security, boot, debug, and management features are best understood as enforcement points at different moments of system life. Crypto hardware protects data and trust material during operation. Secure boot, where enabled, protects the earliest execution path. Boot straps define recovery and deployment behavior before software runs. Debug and scan infrastructure support development and manufacturing but require strict production policy. Fuse-based identity anchors traceability and provisioning. Mailboxes and spinlocks maintain coherence across heterogeneous compute domains once the system is alive. The strongest implementations are the ones that connect these blocks into a single operational model instead of enabling them as unrelated features.

AM3354BZCZ80 Package, Temperature Range, and Integration Considerations

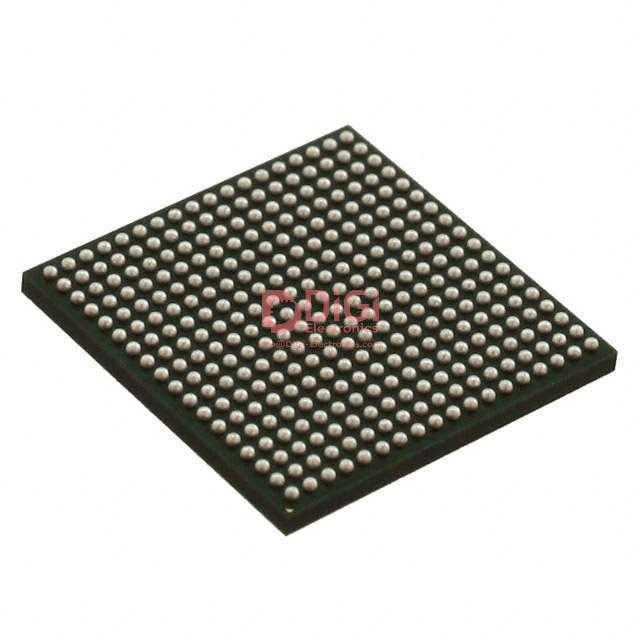

AM3354BZCZ80 is implemented in a 324-ball NFBGA package with a 15.0 mm × 15.0 mm body, intended for surface-mount assembly and positioned firmly in the class of processors that demand board-level discipline rather than simple peripheral breakout. The package identifier ZCZ maps to the 324-ball option within the AM335x family, and that detail matters early because package selection is not a mechanical afterthought; it defines how much of the SoC’s interface fabric is realistically accessible on the PCB. In this case, the 324-ball footprint aligns with designs that need broader I/O exposure and tighter subsystem integration, especially when Ethernet, USB, LCD, serial channels, memory interfaces, and industrial control signals must coexist without excessive multiplexing compromises.

From a layout perspective, a 324-ball BGA at this density generally pushes the design into multilayer territory with controlled fanout strategy from the first routing pass. The package size itself is not extreme, but the combination of ball count, signal class diversity, and the AM335x requirement set makes stack-up planning a first-order decision. Power rails, DDR signals, clock distribution, high-speed serial interfaces, and dense low-speed control nets all converge under the same body. That means escape routing cannot be treated as a local PCB task; it must be coordinated with placement, return-path continuity, and rail partitioning. In practice, designs that begin with only pin accessibility in mind often end up reworking the board once memory timing, reference plane integrity, and via consumption are evaluated together. It is usually more effective to lock stack-up and DDR topology before finalizing connector placement, not after.

The package choice also has a direct influence on memory subsystem implementation. AM335x devices are commonly paired with external DDR, and the physical relationship between the processor ballout and the memory devices drives signal quality outcomes more than nominal schematic correctness. With the 324-ball package, the processor offers the I/O breadth needed for feature-rich systems, but that same advantage increases routing competition around the core memory region. A useful design pattern is to reserve the cleanest breakout channels and most direct layer transitions for DDR first, then allocate remaining escape capacity to peripheral groups. This ordering tends to reduce late-stage timing fixes and avoids the common failure mode where peripheral convenience silently degrades memory margin.

Power architecture should be treated with the same level of rigor. The package exposes a processor integration level that typically includes multiple supply domains, sequencing dependencies, and rail-specific decoupling behavior. The electrical challenge is not only generating the rails, but distributing them with low impedance across a compact BGA footprint while preserving quiet return paths for clocks, analog references, and sensitive digital transitions. In boards using this class of processor, decoupling is most effective when approached as a frequency-distributed network rather than a checkbox count of capacitors near the package. Placement priority should follow current-loop minimization and via inductance control, especially on the core and DDR rails. When the power network is planned only from regulator outputs inward, the board often passes basic bring-up but becomes unstable under simultaneous interface activity, display switching, or network load bursts.

The package’s fuller I/O access compared with smaller family variants is one of its strongest practical advantages. The AM335x family includes versions in smaller 298-pin packages, but AM3354BZCZ80 belongs to the 324-ball branch, which is more suitable when the design must expose multiple major interfaces at once. This becomes important in gateway, HMI, PLC, motion-control, and edge-logging designs where interface concurrency is a system requirement rather than a convenience. Dual Ethernet, multiple UARTs, USB connectivity, display outputs, and industrial control lines can be implemented with fewer compromises in pin assignment. That reduces the need for external expanders or interface tradeoffs, which in turn can simplify firmware architecture and lower latency across the control path. The package is therefore not just larger; it materially changes what kind of board can be built around the processor without architectural concessions.

Manufacturing constraints are also part of the integration picture. The device is RoHS3 compliant and REACH unaffected, which supports regulatory alignment in modern production flows. More operationally significant is the moisture sensitivity rating: MSL 3 with a 168-hour floor life. For prototype teams this is often overlooked because the part appears electrically robust and mechanically standard, but BGA reliability during reflow is strongly influenced by storage and handling discipline. Once reels or trays are exposed, assembly timing, bake policy, and line control begin to matter. This does not alter circuit behavior directly, but it can determine whether a board fails before electrical validation even starts. In low-volume builds, intermittent bring-up issues are sometimes traced not to design errors but to solder integrity under the package caused by inadequate moisture handling or rework stress.

Thermal range must be interpreted in the broader context of processor loading and enclosure conditions. For a device in this package class, published temperature limits define qualification boundaries, but real design success depends on junction management under the intended workload. The BGA form factor helps distribute heat into the board, so copper density under and around the package, via fields into internal planes, and local airflow assumptions all affect thermal headroom. In compact industrial boards, the limiting case is often not peak clock operation in isolation but sustained mixed activity: Ethernet traffic, display refresh, DDR access, and peripheral control running simultaneously in a warm enclosure. A board that appears comfortable on an open bench can lose substantial margin once installed in a sealed system. It is therefore wise to model the package as a board-coupled thermal element rather than assuming the processor can be evaluated independently of the PCB.

A useful engineering perspective is to treat this package as an integration enabler that repays disciplined front-end design and penalizes incremental decision-making. The 324-ball format offers enough connectivity to build sophisticated systems around a single processor, but only if memory routing, rail planning, manufacturing rules, and interface prioritization are decided as one coupled problem. When those domains are split across separate design phases, the board tends to accumulate hidden constraints that show up late as SI issues, boot instability, or assembly yield loss. When handled correctly, the package gives a strong balance between feature access and practical manufacturability, making it well suited to designs that need substantial I/O density without stepping into significantly larger application-processor platforms.

Potential Equivalent/Replacement Models for AM3354BZCZ80

Potential equivalent or replacement models for AM3354BZCZ80 should be evaluated inside the AM335x Sitara family first, because that is where the highest probability of software continuity, peripheral familiarity, and board-level reuse exists. The family includes AM3351, AM3352, AM3354, AM3356, AM3357, AM3358, and AM3359. These devices are built around the same ARM Cortex-A8 foundation and share a large part of the platform architecture: 64 KB L1 cache, 256 KB L2 cache, LCD controller support, 16-bit DDR interface, GPMC, three MMC/SD interfaces, six UARTs, 8-channel 12-bit ADC, three eHRPWM modules, three eCAP modules, three eQEP modules, RTC, and three I2C interfaces. That common base is important, but it should not be mistaken for drop-in equivalence. In the AM335x line, the real replacement risk is usually not the CPU core. It is the interaction between package pinout, industrial communication exposure, boot media options, and whether the deployed software actually uses the “optional” blocks that were ignored during the first design pass.

At the architectural level, AM3354BZCZ80 sits in a useful middle position. It offers the same core software model as the broader family while avoiding some of the cost and complexity associated with the highest-end variants. For many designs, this means replacement analysis is less about instruction-set compatibility and more about preserving timing margins, peripheral binding, and board escape routing. A practical replacement decision therefore starts with the assumption that the application image can probably be ported across the family with limited changes, then immediately tests the exceptions: clock assumptions, Ethernet topology, PRU-ICSS dependencies, USB use, graphics load, and package-specific multiplexing.

AM3352 is the most obvious downward substitute when the workload has sufficient margin. It is typically positioned as a 600 MHz-class device rather than the 800 MHz class associated with AM3354BZCZ80. On paper, that sounds like a simple 25 percent frequency reduction. In deployed systems, the impact varies sharply by workload type. If the application is dominated by interrupt-driven I/O, moderate UI updates, or control logic with long idle windows, the difference may be negligible. If the system is doing protocol conversion, JavaScript-heavy HMI rendering, encryption, or Linux userspace tasks that already run near scheduler pressure points, the lower bin can expose bottlenecks that were previously hidden. In practice, CPU replacements fail less often in average throughput and more often in worst-case latency. That is why down-binning should be validated with real transaction peaks, display refresh activity, storage access bursts, and network traffic occurring at the same time. If those combined cases remain stable, AM3352 can be a credible cost or supply-chain alternative.

AM3356 and AM3357 become relevant when the design is not purely compute-bound but depends on industrial I/O behavior, PRU-ICSS usage, or different package-level feature exposure. This is where many replacement efforts become more subtle. Within the AM335x family, documentation may suggest broad similarity, yet the exact set of enabled communication features and externally reachable pins can shift enough to change board viability. Designs that use the PRU-ICSS only for deterministic GPIO timing may tolerate these differences. Designs that rely on industrial Ethernet roles, tight protocol timing, or specific signal breakout constraints usually cannot. A common pattern is that the first prototype uses only a fraction of the PRU capability, so the chosen processor appears interchangeable. Later firmware revisions add timestamping, custom fieldbus framing, or real-time sideband control, and suddenly a “close” replacement is no longer close. For that reason, AM3356 and AM3357 should be treated as feature-adjacent options rather than automatic substitutes.

AM3358 and AM3359 are the strongest upward replacements when more headroom is needed or when AM3354BZCZ80 is difficult to source. They extend toward 1 GHz-class performance while keeping the same broad software and system architecture. That makes them attractive for designs where the existing platform is near the edge in CPU load, graphics responsiveness, or communication stack density. The practical benefit is not only raw frequency. Higher-end family members often improve system robustness simply by restoring timing margin. A platform that appears stable at 800 MHz under nominal conditions can become fragile when boot-time service load, flash wear effects, thermal drift, and network bursts align. Moving to a higher-bin device can reduce that fragility without forcing a software rewrite. Still, upward replacement should not be viewed as risk-free. More capable variants often tempt scope expansion, and once a design begins consuming the extra margin, the replacement stops being a compatibility move and becomes an architecture change disguised as a sourcing fix.

AM3351 is generally a weaker candidate when the full interface and integration profile of AM3354BZCZ80 is required. It shares the family DNA, but the feature profile is more limited in some configurations. That limitation matters most in designs that already use a broad set of peripherals or expect future firmware growth. A reduced-feature variant can appear acceptable if the current PCB only routes a subset of interfaces, yet this can create a trap for product maintenance. What looks sufficient for the current revision may eliminate room for later additions such as a second communication path, alternate boot media, or real-time co-processing. In long-life embedded products, preserving expansion latitude often has more value than achieving the narrowest possible equivalence today.

A structured replacement evaluation should move through four technical layers.

First, verify CPU and memory-performance fit. Maximum clock rate is the visible parameter, but memory subsystem behavior is often the limiting factor in Linux-based AM335x designs. DDR bandwidth, cache locality, and DMA interaction can dominate user experience and real-time response more than nominal CPU frequency. If the current system already experiences occasional UI stutter, delayed packet handling, or long filesystem operation tails, a lower-bin replacement is likely unsafe unless the software stack is also reduced.

Second, verify PRU-ICSS scope and protocol exposure. This is the most underestimated item in AM335x substitution. The PRU subsystem is often introduced as an optional accelerator, but once it enters the design, it tends to become infrastructure. It may start with simple GPIO timing, then absorb encoder capture, industrial protocol glue logic, timestamp generation, or low-jitter control loops. Replacements must therefore be checked not only for nominal PRU presence but for the exact capabilities brought out and supported in the target variant.

Third, verify package and pin multiplexing compatibility. Package code differences are not a minor procurement detail. They affect whether the required interfaces are physically routable, whether USB or Ethernet functions remain available in the chosen ball map, and whether the existing PCB can be reused at all. In this family, many replacement ideas fail at the schematic review stage because the needed peripheral exists in the silicon but not on the required pins in the selected package. This is especially important when the original board is already dense and escape routing had little slack.

Fourth, verify software assumptions beyond the obvious BSP level. The AM335x ecosystem gives a strong sense of continuity, and in many cases that is justified. Boot flow, Linux support, and peripheral driver models are broadly reusable. The friction usually appears in small assumptions embedded across the stack: device tree pinctrl settings, PRU firmware timing constants, DDR initialization parameters, Ethernet port mapping, USB role configuration, and thermal or power-management tuning. These details rarely block a proof-of-concept boot, but they often determine whether the replacement behaves like a product device rather than a lab device.

From an application perspective, the replacement choice depends on what the AM3354BZCZ80 is doing in the system.

For HMI-centric products with moderate control logic, AM3352 may be acceptable if display composition is simple and network concurrency is limited. If the interface uses heavier graphics stacks or web rendering, AM3358 or AM3359 provides safer long-term margin.

For industrial controllers or gateways using deterministic side processing, AM3356 and AM3357 deserve closer attention because the practical differentiator is not general compute but I/O behavior and protocol alignment. Here, the right replacement is the one that preserves timing structure and external connectivity, even if its CPU headline looks less impressive.

For designs that are already software-rich, field-updatable, and expected to gain features over time, AM3358 or AM3359 is often the more resilient choice. The extra headroom tends to absorb future service growth, security additions, and diagnostic overhead without destabilizing the control path.

The most reliable approach is to treat AM335x replacement as a constrained migration rather than a part-number swap. Start with the current design’s actual resource map, not the original specification sheet. Measure CPU peaks, PRU utilization, memory pressure, active interfaces, and package-bound signals. Then compare those facts against the target variant’s exposed capability set. In this family, successful substitutions usually come from respecting the non-obvious dependencies early. The devices are close enough to invite shortcut decisions, but different enough that shortcuts often reappear later as board respins, timing anomalies, or software branching costs. For AM3354BZCZ80, the best replacement is therefore not simply the nearest family member. It is the variant that preserves the system’s hidden margins while keeping future integration options open.

AM3354BZCZ80 Typical Engineering Use Cases and Selection Guidance

AM3354BZCZ80 occupies a useful middle ground between a conventional microcontroller and a larger application processor. It fits designs that need a full embedded operating system, a reasonably capable user interface, and direct control over field-side interfaces without adding a second control device. That positioning is not just a marketing distinction. It has direct architectural consequences: one processing domain can run Linux-class software for connectivity, visualization, file systems, and application logic, while tightly coupled real-time resources handle timing-sensitive external signals with much lower latency and jitter than a general-purpose OS can usually guarantee on its own.

The strongest reason to consider this device is integration balance. Many embedded systems do not fail because of insufficient peak compute. They fail at the boundaries between subsystems: display timing, network responsiveness, storage behavior, startup sequencing, and deterministic I/O handling. AM3354BZCZ80 addresses those boundaries in a compact way by combining a Cortex-A8 application core with industrial interface support, graphics and display capability, storage connectivity, and the PRU-ICSS subsystem for real-time control tasks. In practice, this reduces external glue logic, lowers board-level interconnect complexity, and simplifies software partitioning when compared with architectures that split UI, networking, and real-time control across multiple chips.

In industrial HMI panels, this device is a particularly natural fit. The Cortex-A8 can host the application framework, graphics stack, web server, logging, and configuration services, while the LCD controller and touch interface support a local operator display without requiring a separate display processor. Ethernet provides plant connectivity, and local storage interfaces support firmware images, recipes, logs, and configuration data. This consolidation matters in HMI design because display responsiveness and system determinism often compete for the same resources. A platform that keeps operator interaction, persistent storage, and communication in one processor is easier to maintain, but only if real-time external tasks do not become victims of Linux scheduling noise. That is where the device’s architecture becomes more valuable than its raw headline specifications. It allows the display-oriented software path and the time-sensitive I/O path to coexist with cleaner separation than a CPU-only design.

In automation gateways, the AM3354BZCZ80 is even more compelling. Gateways frequently sit between asynchronous, nondeterministic network layers and deterministic plant-side protocols. The ARM core can run Linux networking stacks, protocol translation software, remote management agents, and security services, while the PRU-ICSS handles industrial traffic patterns that require bounded response timing. This is one of the more practical dividing lines in embedded architecture: Linux is excellent for protocol richness, maintainability, and ecosystem support, but it is not the right place to close every timing loop. Designs that try to force all communication handling into the main OS often become difficult to validate under load, especially when network bursts, storage activity, and application updates occur simultaneously. Offloading timing-critical paths to the PRU-ICSS creates a cleaner timing model and usually makes field behavior more predictable.

In connected peripherals such as printers, transaction terminals, kiosks, service consoles, and communication adapters, the value is less about extreme performance and more about interface density. USB, Ethernet, CAN, UART, display resources, and storage connectivity allow a single processor to manage both the service interface and the device-facing logic. This is especially useful in products that evolve over time. Early product generations may need only serial communication and a simple display, while later revisions add Ethernet management, USB accessories, or CAN-based field integration. A processor with broad peripheral coverage provides room for that expansion without forcing a full platform reset. This kind of headroom often matters more than a small difference in benchmark numbers.

From a selection perspective, the first question is not clock rate. It is timing architecture. If the design must run a full embedded OS and also guarantee deterministic I/O behavior, AM3354BZCZ80 deserves serious consideration. That combination is often the tipping point. A pure microcontroller may handle the I/O well but struggle with graphics, Linux-class middleware, or modern network stacks. A larger application processor may run the software stack comfortably but require external devices or considerable software effort to achieve hard or near-hard real-time behavior at the edge. AM3354BZCZ80 is effective when the system needs both domains in one device and when the engineering team wants a more controlled boundary between them.

The second question is interface locality. If the product requires integrated display and touch, Ethernet connectivity, multiple serial channels, CAN, and storage interfaces, the device offers a strong integration profile. This reduces BOM growth and routing complexity, but more importantly, it improves fault isolation and software ownership. Systems with fewer companion ICs generally have fewer reset-domain interactions, fewer driver dependencies, and fewer startup race conditions. Those details rarely appear in top-level selection tables, yet they consume a significant share of validation time once the prototype stage begins.

The third question is software partitioning strategy. AM3354BZCZ80 is most effective when the application is intentionally divided between high-level services and low-level real-time handling. Designs that treat the PRU-ICSS as a core architectural element tend to get the most value. Designs that ignore it and push all edge timing into Linux often underuse the device and may end up with a more complex software optimization problem than expected. A practical pattern is to let Linux own communications management, UI, diagnostics, update handling, and persistent storage, while the PRU-ICSS manages strict timing, protocol edges, pulse generation, capture, and low-latency signal adaptation. That division gives each execution domain a clear role and usually leads to better long-term maintainability.

Board-level design also influences whether the device is the right fit. AM3354BZCZ80 is not a drop-in microcontroller replacement. It brings application-processor-class considerations such as DDR memory layout, power sequencing discipline, boot configuration planning, and thermal evaluation under real workloads. These are manageable, but they should be treated as first-order design tasks, not integration cleanup. In compact HMIs and gateways, signal integrity around memory and high-speed interfaces often determines whether the first hardware revision behaves like a product or a lab demonstration. The practical lesson is simple: the chip’s integration can reduce system complexity, but only if the platform design is executed with application-processor rigor.

Another key selection factor is lifecycle resilience. For procurement and platform planning, the AM335x family structure is valuable because adjacent variants share broad architectural foundations. That commonality creates redesign flexibility if requirements shift or sourcing constraints emerge. A family-based decision is often stronger than a single-device decision because it preserves migration options in performance, feature mix, and cost optimization. In long-lived industrial designs, that matters as much as current feature fit. A processor selection should not only satisfy revision A. It should leave a clean path for display changes, interface additions, software growth, or supply-side adjustments several years into deployment.

There is also a less obvious advantage in choosing a device like AM3354BZCZ80 for industrial and embedded products: it encourages cleaner system boundaries. When a processor can host UI, connectivity, storage, and deterministic interface handling in one architecture, teams are more likely to define explicit ownership between software layers, timing domains, and external interfaces. That often leads to better diagnostics, more reproducible behavior in the field, and simpler maintenance. In contrast, heavily fragmented architectures may look modular on paper but frequently accumulate hidden dependencies across buses, reset trees, and firmware revisions.

AM3354BZCZ80 is therefore best selected for systems that need a Linux-capable application environment, integrated display or networking, and deterministic field-side interaction without introducing another processor solely for real-time duties. It is especially well suited to industrial HMIs, automation gateways, and smart connected peripherals where interface breadth, timing separation, and platform longevity matter more than maximum compute throughput. When those conditions are present, the device offers a well-balanced architecture with a strong practical integration profile.

Conclusion

Texas Instruments AM3354BZCZ80 is a highly integrated member of the AM335x Sitara family built around an 800 MHz ARM Cortex-A8 core, but its real value is defined less by peak CPU frequency than by system composition. It combines general-purpose application processing, multimedia-capable user interface support, deterministic real-time control, and broad industrial I/O in a single device. That integration changes the design tradeoff at the board level. Instead of partitioning HMI, control logic, field connectivity, and peripheral management across multiple devices, this processor allows those functions to be consolidated into one coherent compute platform with fewer interconnects, lower BOM pressure, and tighter software coordination.

At the compute level, the Cortex-A8 provides enough scalar performance for Linux-based control applications, protocol stacks, gateway logic, and moderate graphics workloads. NEON SIMD acceleration extends that capability into signal-oriented tasks such as audio preprocessing, lightweight vision assistance, pixel operations, filtering, and data format conversion. In practice, this matters because many embedded systems do not fail for lack of raw compute; they fail when too many heterogeneous tasks compete for limited memory bandwidth, interrupt latency, and software attention. AM3354BZCZ80 addresses that by pairing the application core with dedicated subsystems that absorb timing-sensitive work instead of forcing everything through the main processor.

Memory architecture is a major part of that balance. The device supports external DDR memory and nonvolatile boot options that let designers tune cost, capacity, and startup behavior to the product class. This flexibility is important in industrial and connected edge systems where software stacks often grow over time. A design that begins as a compact controller may later require a richer web interface, local logging, security services, or over-the-air update support. Devices in this class benefit from memory headroom not only for current code size but for software lifecycle margin. One recurring lesson in embedded platforms is that memory decisions made for first-release efficiency often become the primary constraint in second-generation firmware.

The most technically distinctive subsystem is the PRU-ICSS, which gives the AM3354 family a strong position in industrial and timing-critical applications. The Programmable Real-Time Units operate independently of the main ARM core and are designed for deterministic, low-latency signal handling. That enables precise bit-level control for industrial Ethernet variants, motor-control-adjacent timing tasks, custom fieldbus adaptation, encoder interfacing, and specialized GPIO sequencing. The practical advantage is architectural isolation: Linux can handle networking, UI, storage, and supervisory logic while the PRU subsystem maintains deterministic interaction with external equipment. This split is often more valuable than simply increasing CPU speed, because hard real-time behavior depends on bounded latency rather than average throughput.

That separation also simplifies software partitioning when used well. Time-critical routines can be kept small, explicit, and cycle-aware inside the PRUs, while higher-level policy, diagnostics, and communications remain on the ARM side. Designs that follow this boundary tend to scale better and are easier to validate. A common failure mode in industrial embedded development is attempting to preserve determinism purely through kernel tuning and interrupt prioritization on the application processor. That can work at low complexity, but it becomes fragile once display updates, network bursts, storage activity, and maintenance services enter the same execution environment. The AM3354BZCZ80 avoids that trap by providing hardware support for functional separation.

Its integrated display and touch capabilities make it suitable for local operator interfaces without requiring an external graphics controller. This is especially relevant in compact HMI products, smart panels, handheld service terminals, and machine-front interfaces where board area, power budget, and wiring simplicity matter. The benefit is not only component reduction. A tightly integrated display path usually improves timing predictability across the UI stack and reduces interface bring-up complexity. For products with modest to mid-range graphics demands, this level of integration is often the right point on the curve: enough capability for responsive interfaces, trend plots, status visualization, and touch interaction, without the thermal and software overhead of a much larger application processor.

Connectivity is another area where the part is unusually well balanced. Dual Gigabit Ethernet support allows the processor to operate as both endpoint and bridge within networked industrial architectures. One port can face an upstream control network while the other serves a local service segment, field device chain, or protocol-separated domain. In gateway designs, this dual-port arrangement reduces the need for an external switch and simplifies traffic partitioning. USB 2.0 expands integration with service tools, removable storage, wireless modules, and peripheral accessories. CAN support anchors the device in established industrial and transportation-adjacent ecosystems, while audio and multiple serial interfaces support mixed-function products such as operator terminals, instrumentation nodes, access systems, and connected control panels.

The broad peripheral set is important not because every design uses every interface, but because embedded products frequently evolve at the edges. A serial port that begins as a debug channel later becomes a service interface. USB initially reserved for firmware loading may become a field data export path. CAN may start as an optional SKU variant and end up defining the product line. Devices with rich native I/O tolerate these changes far better than narrowly optimized processors. That kind of elasticity is often undervalued during component selection, yet it strongly influences redesign risk and schedule stability.

From a packaging and system integration perspective, the 324-ball package supports a high level of functionality in a footprint appropriate for dense embedded boards. For many designs, this package class represents a workable midpoint: enough pin count to expose meaningful memory and peripheral capability, but still manageable within mainstream multilayer PCB processes. Layout quality remains critical, especially around DDR routing, power integrity, Ethernet magnetics placement, and signal escape planning. In practice, successful AM335x board designs usually come from early floorplanning rather than late-stage routing optimization. When display, Ethernet, DDR, and high-noise industrial I/O all coexist, partitioning the board into clean functional zones pays off more than incremental schematic refinement.

Power and thermal behavior should also be considered as system-level design parameters rather than afterthoughts. A processor that combines application software, networking, display activity, and real-time I/O can show workload patterns that are bursty and difficult to estimate from average current figures alone. Ethernet traffic bursts, LCD refresh activity, and storage access can align in ways that stress regulator response and local decoupling. Designs that appear stable in nominal testing sometimes expose marginal behavior only during simultaneous interface activity. A robust implementation usually includes conservative rail design, careful sequencing validation, and realistic stress testing with concurrent workloads rather than isolated subsystem checks.

In software terms, AM3354BZCZ80 is attractive because it supports layered system design. The Linux environment on the Cortex-A8 can host UI frameworks, remote management, security services, data logging, and protocol adaptation, while the PRU side handles microsecond-scale external interactions. This creates a clean path from low-level electrical timing to high-level application logic within one processor family. For engineering teams, that continuity matters. It shortens integration loops, reduces the number of toolchains that must be maintained, and makes fault analysis more direct because fewer boundaries exist between control, communications, and interface subsystems.

The device is especially compelling in industrial control nodes, connected HMI panels, smart terminals, protocol gateways, and mixed-function edge systems that must combine supervision with deterministic I/O. In these scenarios, the AM3354BZCZ80 is not simply a general embedded MPU with extra peripherals. It behaves more like a compact embedded control platform whose subsystems are intentionally chosen to cover the most common split-domain requirements: application processing, operator interaction, industrial networking, and real-time response. That combination tends to produce simpler products, not just smaller boards.

Within the Sitara portfolio, the AM3354BZCZ80 stands out as a balanced design point. It does not chase maximum application-core performance, nor is it a narrowly specialized real-time controller. Its strength is architectural proportion. The compute core is strong enough for embedded Linux and rich control logic, the PRU-ICSS preserves determinism where it matters, and the integrated interfaces reduce the amount of external silicon required to deliver a complete industrial or edge-connected system. For designs where board space, software consolidation, interface diversity, and timing discipline all carry equal weight, that balance is often more valuable than any headline specification.
