AM1802 ARM Microprocessor Overview and Positioning

The Texas Instruments AM1802 is a low-power embedded applications processor centered on the ARM926EJ-S core and positioned for designs that need more than a microcontroller can comfortably deliver, but do not justify the cost, power profile, or software complexity of a higher-end multicore application processor. Its value is not defined by raw clock speed alone. At 300 MHz, the device targets a practical middle ground where deterministic peripheral behavior, external memory scalability, operating system support, and interface integration matter more than peak computational throughput.

This positioning is important in embedded product planning. Many systems fail component selection not because the processor is too weak, but because the platform lacks the right balance between compute capability, memory architecture, peripheral mix, software maturity, and long-term deployment stability. The AM1802 addresses that balance directly. It is best understood as a system integration device: a processor that reduces board complexity while still supporting Linux-class or RTOS-based embedded designs with networking, user interaction, storage expansion, and industrial interface requirements.

At the core of the device is the ARM926EJ-S, an ARM9-class processor with a mature software ecosystem and a well-understood integration profile. This core is not intended for modern graphics-heavy workloads or compute-intensive edge analytics. Its strength lies elsewhere. It is efficient for control-oriented applications, protocol handling, HMI coordination, data acquisition supervision, and mid-level application logic. In practice, this class of core remains useful where the workload is shaped by I/O orchestration, communication stacks, filesystem activity, and moderate UI rendering rather than by high-rate signal processing or multimedia acceleration.

The AM1802 becomes more relevant when the surrounding system architecture is examined. It integrates internal memory resources along with external memory interfaces, allowing designers to scale the memory subsystem according to product class. This is a major design advantage. Entry-level variants of a product can be built with modest memory footprints, while richer software loads, larger UI assets, or more demanding communication layers can be supported through external expansion. That flexibility often shortens platform reuse cycles across multiple SKUs. A single processor family can serve basic terminals, enhanced control units, and network-connected operator panels with limited redesign effort.

Its peripheral set is one of the strongest indicators of intended market fit. Ethernet provides direct support for networked equipment and field-connected devices. USB 2.0 OTG enables both device-side and host-side interaction, which is useful for firmware update paths, removable media, accessory attachment, or service diagnostics. Serial interfaces support communication with sensors, controllers, modems, legacy subsystems, and auxiliary processors. Audio serial capability adds support for voice prompts, simple audio streaming, or codec interfacing in products where user feedback matters. Timers, RTC, and GPIO complete the picture by enabling time-sensitive control, scheduling, event capture, and general system glue logic without heavy dependence on external support ICs.

This level of integration changes board design economics in a meaningful way. When Ethernet MAC, USB OTG, serial channels, audio interfaces, RTC support, and memory connectivity are already present in the processor, the external BOM can be reduced and PCB routing can remain more manageable. The practical benefit is not just lower cost. It also improves validation efficiency. Fewer high-pin-count companions usually mean fewer inter-device timing interactions, fewer driver ownership boundaries, and fewer points of failure during bring-up. In embedded development, these simplifications often save more schedule than they save silicon cost.

The AM1802 is especially well aligned with systems that need operating system support but must remain compact and power-conscious. The mention of robust OS support is significant. Devices in this class are often selected because they can host embedded Linux or a feature-rich RTOS while still maintaining acceptable boot behavior, stable peripheral handling, and mature driver availability. That makes the processor suitable for products requiring file systems, TCP/IP stacks, web-based configuration, remote management, UI frameworks, and firmware update infrastructure. In many deployed systems, these software capabilities determine product viability more directly than benchmark scores.

For networked embedded terminals, the AM1802 offers a practical architecture. The processor can manage the display/UI layer, communication stack, local storage interaction, and peripheral control within one integrated platform. This is useful in operator-facing terminals where responsiveness must remain consistent even when the network link is active or background logging is running. The device is not a high-end HMI engine, but it is well suited to compact interfaces built around status display, menu navigation, transaction flow, or parameter configuration. In such products, predictability and integration generally outweigh the need for advanced graphics acceleration.

In control panels and building automation nodes, the processor’s profile becomes even more compelling. These systems often need Ethernet, multiple serial channels, local timing resources, nonvolatile configuration handling, and a moderate application layer for scheduling, protocol translation, and supervisory logic. The AM1802 fits this shape well. It supports gateways between legacy serial equipment and IP networks, local controller panels with service interfaces, and edge coordination units that aggregate sensor and actuator data. A recurring design lesson in this segment is that interface density often matters more than CPU headroom. A processor with enough compute and the right I/O mix is usually more valuable than a faster part that forces several external bridge devices.

Medical, healthcare, and fitness equipment also align with the AM1802’s capabilities, particularly where the device functions as a control and connectivity processor rather than as a raw signal-processing engine. Such systems may need a local UI, network communication, USB-based data transfer, real-time clock support, and reliable coordination of sensors, storage, and service functions. The processor’s integration level helps here because certification-oriented designs generally benefit from simpler hardware partitioning. Fewer external chips can reduce interface-level uncertainty and make system behavior easier to characterize across operating conditions. In these environments, stable software behavior and controlled hardware interactions are often more valuable than architectural novelty.

For ePOS systems, the AM1802 sits in a very practical range. Point-of-sale terminals need a stable application environment, communication interfaces, storage options, USB connectivity for peripherals, network access, and enough processing power for transaction logic, local UI management, and security-related software layers. The processor supports this pattern without overbuilding the platform. In many transaction devices, long software maintenance cycles, peripheral compatibility, and deployment reliability dominate the selection criteria. Mature ARM9-class platforms continue to hold value precisely because they are predictable, well understood, and sufficient for the job.

From an engineering selection standpoint, the AM1802 should be viewed as a convergence device for mid-complexity embedded systems. It is not the right answer when the roadmap includes advanced graphics, machine vision, heavy cryptographic throughput, or significant local inference workloads. It is also not ideal if the design can be fully contained within a lower-cost microcontroller without external memory or OS support. Its strongest position is between those extremes: systems that need application-processor features, external memory growth, and broad wired connectivity, while still prioritizing low power, compact integration, and disciplined BOM control.

A useful way to evaluate the device is to start with workload composition rather than headline specifications. If the system spends most of its time coordinating interfaces, running protocol stacks, hosting moderate UI logic, logging data, and managing external peripherals, the AM1802 is often a good structural fit. If the software architecture depends on mature Linux support, Ethernet plus USB, and scalable memory, the fit becomes stronger. If the design also benefits from reducing external glue logic and maintaining a relatively simple hardware stack, the processor’s integration has direct system-level value.

One practical consideration is that devices in this class often perform best when partitioning is handled carefully. Time-critical control loops should not be mixed casually with heavier non-deterministic application tasks under a general-purpose OS without a clear scheduling strategy. The AM1802 can support both supervisory control and application services, but robust designs usually separate hard real-time functions, communication handling, and UI workloads with deliberate software boundaries. This is where the processor’s balanced nature helps: it is capable enough to consolidate functions, but still constrained enough that architecture discipline remains necessary. In many successful deployments, that constraint leads to cleaner software design rather than becoming a limitation.

Another point that deserves emphasis is lifecycle fit. For OEM and ODM programs, processor choice is rarely just a matter of present-day features. It affects software maintenance, board reuse, manufacturing stability, and field support over years. The AM1802’s appeal comes partly from being a mature, integrated, industrially relevant processor rather than a feature-maximized one. That often leads to lower platform risk. In embedded systems, the best processor is frequently the one that enables a stable product architecture with the fewest surprises in bring-up, integration, and long-term servicing.

Taken as a whole, the AM1802 is best positioned as a low-power Sitara-class single-core processor for embedded products that need a balanced mix of ARM application processing, external memory capability, network connectivity, USB integration, serial expansion, and system control peripherals in one device. It is particularly suitable for networked terminals, control interfaces, building automation equipment, healthcare and fitness devices, and ePOS platforms where moderate processing performance, strong interface coverage, and mature software support create more value than aggressive compute scaling. Its real strength lies in architectural balance. That balance is what makes it a durable choice for embedded systems that must be practical, maintainable, and integration-efficient.

AM1802 ARM926EJ-S Processing Architecture and On-Chip Memory Resources

The AM1802 is built around an ARM926EJ-S, a 32-bit RISC core positioned in the class of processors that bridge traditional microcontrollers and application-oriented embedded processors. Its value is not just the CPU itself, but the way the core, cache hierarchy, MMU, and on-chip memory are combined to support both deterministic control software and more layered software stacks. That combination makes the device relevant in designs that need more software structure than a bare-metal MCU can comfortably support, while still operating within embedded power, cost, and integration constraints.

At the execution level, the ARM926EJ-S supports both 32-bit ARM instructions and 16-bit Thumb instructions. This dual instruction-set capability is more than a compatibility feature. It provides a practical code-density versus performance tradeoff. ARM mode is typically preferred for compute-heavy paths and low-latency routines because it exposes the full instruction encoding space. Thumb mode reduces code size, which lowers external memory bandwidth demand and can improve effective instruction delivery when the memory subsystem is the bottleneck. In systems booting from slower nonvolatile memory or sharing memory bandwidth with peripherals, this distinction can materially affect startup time and steady-state responsiveness.

The core processes 32-bit, 16-bit, and 8-bit data types and uses a pipelined architecture to keep instruction execution and memory access overlapped as much as possible. In practice, pipeline efficiency depends less on the nominal pipeline depth and more on how often execution is interrupted by cache misses, branch redirection, or memory wait states. On ARM9-class devices, observed performance often varies sharply between well-localized code and scattered software frameworks. For that reason, software layout is not a secondary concern. Function placement, interrupt vector locality, and data structure alignment can have measurable impact on execution consistency.

Jazelle support extends the processor’s relevance to software environments that can benefit from Java byte-code execution assistance. While this feature is not the central reason to choose an AM1802 in most current embedded designs, it reflects the broader design intent of the core: it was built for systems expected to run richer middleware than fixed-function control firmware alone. More broadly, this indicates that the processor architecture was designed with managed execution models and higher-level runtime environments in mind, even if modern deployments often emphasize C/C++ and operating-system-based workloads instead.

A critical architectural element is the CP15 system control coprocessor. CP15 is the control plane for the ARM subsystem. It configures and manages the instruction cache, data cache, MMU, protection behavior, and other low-level execution controls. From a software architecture perspective, this is where the AM1802 starts to behave like a small application processor rather than a simple controller. Features such as cache enablement, translation table base selection, domain access control, and memory attribute programming are all routed through CP15-visible mechanisms. This gives firmware and operating systems precise control over how different address regions behave.

That control has direct system implications. External SDRAM, device registers, DMA buffers, boot ROM mappings, and tightly used internal RAM should not all be treated identically. Cacheability, bufferability, and access permissions must be assigned with intent. A common source of instability in ARM9 deployments is not CPU execution itself, but incorrect memory attribute configuration. If a peripheral register window is mapped with normal cacheable attributes, software can appear to function during simple tests and fail under interrupt load or DMA activity. Conversely, if frequently accessed frame buffers or software stacks are mapped too conservatively, the processor can lose a large fraction of its effective performance. The AM1802 gives enough control to optimize these cases, but it also requires disciplined memory-map design.

The on-chip memory resources are structured to reduce dependence on external memory during early boot, exception handling, and latency-sensitive runtime behavior. The processor integrates 16 KB of instruction cache and 16 KB of data cache. These are separate caches, allowing instruction fetches and data accesses to proceed with reduced contention compared with a unified cache design. Both caches are four-way associative, which is an important detail when estimating conflict behavior. Four-way associativity does not eliminate thrashing, but it significantly reduces the probability that a few heavily used code paths or data regions will continually evict each other under realistic embedded access patterns.

The practical effect of cache organization is often misunderstood. Cache size alone does not predict performance. Associativity, line replacement behavior, and software locality usually dominate. In control loops with compact code and stable data footprints, 16 KB caches can be surprisingly effective. In networked or file-system-heavy software with layered libraries, the same cache size may be stressed quickly, especially when instruction and data working sets expand simultaneously. In those cases, the separate I-cache and D-cache help, but software partitioning still matters. Keeping interrupt handlers compact, isolating hot code paths, and reducing unnecessary pointer chasing in frequently called routines often yields greater benefit than attempting broad algorithmic rewrites.

The write buffer is another small but meaningful feature in the memory subsystem. It allows the processor to continue execution while certain write transactions are queued rather than fully completed before forward progress resumes. This improves throughput when writing to slower memory regions, particularly external memory. However, buffered writes also introduce ordering considerations. When software interacts with peripherals, DMA engines, or shared memory structures, explicit synchronization becomes necessary at well-chosen boundaries. In practice, control register writes followed immediately by dependent operations often need careful sequencing, and software that transitions ownership of DMA descriptors must ensure visibility rules are respected. On systems in this class, many intermittent bugs that appear timing-related are actually memory-ordering or cache-maintenance problems.

The AM1802 also includes 8 KB of RAM associated with vector-table use and 64 KB of ROM, along with 128 KB of additional on-chip RAM. These internal memory blocks are especially important because they offer lower-latency storage than external memory and are available early in the boot path. The vector-related RAM is useful not only for exception vectors themselves but also for placing short, latency-critical handlers, boot trampolines, or diagnostic routines close to the exception entry flow. This can reduce interrupt response variability and simplify early initialization before the full external memory subsystem is ready.

The 128 KB on-chip RAM is often one of the most strategically valuable resources in the device. It can be used for boot code, RTOS kernels, scheduler data, protocol stacks, audio buffers, command queues, or DMA descriptors. The most effective use is usually selective rather than broad. Placing everything in internal RAM rarely scales, but placing the right things there can transform system behavior. A common pattern is to reserve internal RAM for hot code, stack space for high-priority contexts, and data structures that are frequently touched by both software and DMA. This reduces pressure on external memory, cuts latency, and simplifies cache-coherency handling in critical paths.

The MMU is what fundamentally separates this processor architecture from simpler microcontroller-class designs. The AM1802 MMU includes a unified TLB and supports standard ARM mapping granularities: 1 MB sections, 64 KB large pages, 4 KB small pages, and 1 KB tiny pages. This enables virtual-to-physical address translation, access permission enforcement, and memory-type assignment through page tables stored in main memory. For operating systems and advanced firmware frameworks, this is essential infrastructure. It allows the software stack to isolate user and kernel spaces, mark memory as executable or data-oriented in a controlled way, define device-memory regions with strongly ordered behavior, and assign cache policies that match each physical resource.

The choice of page size is not merely a configuration detail. It affects TLB pressure, page-table memory overhead, mapping flexibility, and attribute precision. Large 1 MB section mappings reduce translation overhead and are often ideal for coarse-grained SDRAM regions or static system memory. Small pages are better when fine control is needed, such as separating DMA buffers from general-purpose heap regions or applying different cache policies within the same broader address range. The engineering tradeoff is straightforward: larger mappings improve efficiency, smaller mappings improve control. In robust system designs, both are used intentionally rather than uniformly.

The unified TLB also deserves attention because it sits on the critical path between virtual addressing and actual memory access. If address translation frequently misses in the TLB, the theoretical value of cache optimization can be diluted by translation overhead. This becomes more visible when software uses many scattered regions, shared libraries, or fragmented heaps. Memory-map simplicity therefore has performance value. Keeping frequently used code and data within a compact set of mappings can improve not only cache locality but also translation locality. This is one reason embedded Linux ports on ARM9-class devices often benefit from careful kernel configuration and restrained feature growth.

For Linux-class or memory-managed embedded environments, the MMU enables capabilities that bare-metal systems typically cannot provide cleanly: process isolation, virtual memory abstractions, demand-based memory organization, and standardized OS memory protection mechanisms. Even when a design does not require a full general-purpose OS, the MMU can still be highly useful. It can protect critical regions from accidental overwrite, mark device windows as non-cacheable, and create guard regions around stacks or reserved memory. In field systems where uptime matters more than theoretical peak speed, these protection features are often worth as much as the raw performance benefits.

Software migration is eased by the AM1802’s compatibility with the broader ARM9 family. This matters at several layers. Toolchain behavior, startup models, exception handling patterns, low-level assembly conventions, and RTOS ports are generally familiar to teams experienced with ARM9-class devices. Driver frameworks and board-support packages can often be adapted rather than rebuilt conceptually from the ground up. That said, compatibility should be treated as architectural proximity, not drop-in equivalence. Cache geometry, peripheral integration, boot flow, and memory-map details always shape the real migration effort. In practice, CPU portability is usually the easy part; peripheral behavior, timing assumptions, and memory attribute correctness dominate the adaptation work.

A useful way to understand the AM1802 is to view it as a memory-system-driven processor rather than a CPU-driven memory system. On devices in this class, sustained performance rarely depends only on clock rate or instruction throughput. It depends on how effectively the software uses internal RAM, how carefully the MMU attributes are defined, how predictable cache behavior remains under mixed workloads, and how cleanly DMA and peripheral traffic are separated from cached software data. Systems that respect those constraints tend to feel substantially faster and more stable than systems with similar nominal specifications but weaker memory architecture discipline.

In practical deployment, a strong software layout strategy usually includes several recurring decisions: keep exception vectors and first-level handlers in internal memory; place hot interrupt code and frequently accessed kernel paths in low-latency RAM where possible; use MMU section mappings for broad SDRAM regions and finer page mappings only where attribute control is needed; mark peripheral registers as non-cacheable device memory from the start; treat DMA buffers as a first-class memory-planning problem rather than an afterthought; and validate cache-maintenance boundaries under stress, not only in nominal execution. These habits align closely with how the AM1802 is built and tend to produce systems that are easier to scale from simple firmware into more capable embedded software stacks.

The architecture therefore offers a balanced platform for embedded designs that need more than a flat-address-space controller but do not require a full modern application processor. The ARM926EJ-S core provides flexible instruction execution, CP15 supplies low-level control over execution and memory behavior, the cache and write-buffer structures improve throughput when used carefully, the on-chip RAM resources support low-latency and early-boot functions, and the MMU enables the structured memory model required by advanced operating systems and protected embedded applications. The real engineering value emerges when these features are used as a coordinated system rather than as isolated specifications.

AM1802 Peripheral Integration in the AM1802 for Connectivity and System Control

AM1802 peripheral integration is one of the device’s most practical design advantages. In embedded systems, processor selection is often driven less by raw compute capability than by how much of the I/O and control fabric is already on-chip. The AM1802 is clearly optimized around that reality. Its peripheral set reduces dependency on external bridge devices, shrinks routing complexity, and simplifies software ownership of system control paths. That combination matters because every off-chip controller adds not only BOM cost, but also latency, power domains, driver overhead, reset sequencing constraints, and more failure modes during bring-up.

At a system level, the value of the AM1802 is not just that it includes Ethernet, USB, serial interfaces, storage interfaces, audio transport, and GPIO. The more important point is that these peripherals cover the common control-plane and data-plane functions needed in connected embedded products. That allows a single processor to coordinate communication, local expansion, storage, user interaction, and supervisory control without relying on a fragmented companion-chip architecture. In practice, this tends to produce boards that are easier to validate and firmware stacks that are easier to partition.

The Ethernet subsystem is a good example of this integration philosophy. The AM1802 includes a 10/100 Mbps Ethernet MAC compliant with IEEE 802.3, with support for both MII and RMII and an MDIO interface for PHY management. On paper, that is a standard feature set. In implementation, it provides flexibility in board design and PHY selection. MII can be useful when interface transparency or legacy compatibility is important, while RMII reduces pin count and routing burden, which can be valuable on compact boards or designs with heavy multiplexing pressure. The presence of MDIO on-chip means the processor can directly configure link parameters, monitor PHY state, detect cable events, and participate in diagnostics without an external management controller.

Support for 10Base-T and 100Base-TX in half- and full-duplex modes makes the interface suitable for conventional industrial and commercial LAN deployment. The practical significance is not speed alone, but determinism and interoperability. For HMI panels, gateways, payment devices, and monitoring nodes, 100 Mbps is typically enough for control traffic, field data aggregation, firmware distribution, and moderate UI networking. It also aligns well with the thermal and software complexity targets of devices that do not need Gigabit Ethernet but do need a robust and maintainable wired connection.

From an engineering perspective, Ethernet integration also shifts effort toward signal integrity and software architecture rather than external interface stitching. PHY placement, clocking strategy, magnetics layout, and EMI behavior still require care, but the absence of an external Ethernet controller avoids another bus interface and another driver boundary. In many designs, this reduces bring-up time significantly. A recurring pattern is that failures during first power-on are more often tied to PHY strap settings, reset timing, or RMII clock assumptions than to the MAC itself. That makes the AM1802 easier to de-risk if schematic review and low-level initialization are handled carefully.

USB integration follows a similar pattern. The AM1802 includes one USB 2.0 OTG port with integrated PHY, supporting high-speed and full-speed client operation, and high-, full-, and low-speed host operation. This is a strong integration point because USB PHY circuitry is often one of the more annoying support blocks to externalize. Keeping it on-chip reduces component count, saves board area, and removes a class of high-speed analog integration issues that otherwise complicate layout and compliance.

The OTG capability is particularly useful in products that must switch roles depending on deployment mode. A device can operate as a USB peripheral during factory provisioning or firmware download, then act as a host in the field for removable media, service accessories, or locally attached devices. That flexibility is often more valuable than raw port count. In compact embedded products, one well-placed OTG port can cover manufacturing, field service, software maintenance, and end-user expansion with minimal hardware overhead.

The practical constraint with USB is that integration does not eliminate system-level design discipline. Power switching, VBUS detection, ESD protection, connector robustness, and software role management still define product quality. In real deployments, the most persistent issues tend to involve unstable cable environments, insufficient inrush control for host mode, or ambiguous OTG state handling during brownout and reset recovery. The AM1802 removes much of the hardware burden, but reliable USB behavior still depends on clear ownership of enumeration timing, fault handling, and power policy.

The serial interface block is broad enough to support mixed-peripheral systems without adding external expanders too early in the design. The AM1802 provides two SPI interfaces with multiple chip selects, one master/slave I2C interface, and three 16550-type UARTs with modem control, FIFO support, and oversampling options. This collection maps well to the realities of embedded control boards, where not every peripheral justifies a high-bandwidth interface and many system functions still rely on low-speed, low-complexity links.

SPI covers deterministic short-frame transactions well and is a natural fit for displays, ADCs, DACs, control registers, secure elements, and flash-like peripherals. Multiple chip selects improve direct attach capability, though board-level timing and signal loading still set practical limits. A useful design pattern is to reserve one SPI bus for timing-sensitive or bandwidth-sensitive devices and use the other for configuration-oriented peripherals. That separation reduces software contention and simplifies worst-case latency analysis.

The I2C interface serves a different role. It is less about throughput and more about efficient control-plane aggregation. PMICs, sensors, GPIO expanders, touch controllers, RTCs, EEPROMs, and monitor devices often sit naturally on I2C. Master/slave support adds flexibility in multi-processor or managed-subsystem architectures, where the AM1802 may either orchestrate attached devices or expose control access to another controller. In practice, I2C reliability depends heavily on pull-up sizing, bus capacitance, and timeout strategy. Designs that appear correct at room temperature can still become fragile under cable variation, noisy rails, or long trace stubs. The processor’s integrated controller is capable, but the bus itself remains unforgiving when physical-layer assumptions are weak.

The three UARTs are more valuable than they may first appear. UARTs often become the backbone of field diagnostics, module integration, and low-risk software recovery paths. Wireless modules, GNSS receivers, debug consoles, legacy control devices, and service interfaces frequently consume them quickly. The 16550-style behavior, FIFOs, and modem control support make these ports more than simple debug channels. They can sustain stable asynchronous links in systems where interrupt load, line noise, or mismatched clocks would otherwise create avoidable data loss. A design insight here is that spare UART capacity tends to pay for itself. Even when not required in the initial product revision, extra asynchronous channels often become critical later for diagnostics, variant support, or transitional compatibility with older subsystems.

For multimedia and synchronized serial data movement, the McASP block is one of the AM1802’s more technically significant peripherals. It includes 16 serializers, FIFO support, independent transmit and receive clocks, and compatibility with TDM, I2S, and related formats, along with DIT capability. While this is often described as an audio interface, that label is too narrow. McASP is better understood as a flexible framed-serial engine for moving time-aligned data streams between the processor and external converters, codecs, DSP-oriented devices, or digital transport endpoints.

The independent clocking domains for transmit and receive increase system design freedom. They allow adaptation to external codec timing, support for synchronized or semi-independent stream directions, and cleaner integration into systems where the processor is not the only timing master. The serializer count also enables denser channelization, which is useful not only for multichannel audio but for any application that benefits from structured TDM movement. In equipment with voice prompts, digital intercom, codec connectivity, or synchronized capture/playback paths, this peripheral removes the need for a dedicated serial-audio companion device.

In practical use, McASP integration is powerful but timing-sensitive. Successful deployment depends on precise clock-tree design, careful pin multiplexing, and a clear DMA strategy. When clock polarity, frame sync alignment, or serializer direction is configured incorrectly, failures can look like random noise or intermittent channel swap rather than obvious initialization errors. The block rewards disciplined configuration management. Once validated, however, it provides a level of streaming flexibility that is hard to match with simpler serial ports.

The card interface for MMC, SD, and SDIO extends the AM1802 beyond fixed-function control into storage-centric and expansion-oriented designs. Removable storage is useful for data logging, field updates, local content delivery, and application persistence. SDIO support adds another dimension by enabling attachment of SDIO-based peripherals rather than only memory cards. That can be important in designs where board space or standardization pressures favor card-style expansion paths.

From a system perspective, SD and MMC support often serves two roles at once: capacity expansion and operational decoupling. Logging can be isolated from internal flash wear, update media can be physically transported, and service workflows can remain independent of network availability. This is particularly valuable in industrial or semi-connected environments. The engineering challenge is less about nominal interface support and more about media behavior under uncontrolled conditions. Card quality variation, insertion timing, filesystem integrity after power loss, and connector contamination dominate real-world reliability. The AM1802 provides the hardware path, but robust deployment requires conservative mount strategy, journaling or transactional update logic, and explicit handling of removal events.

GPIO capacity on the AM1802 is extensive, with up to 9 banks of 16 pins each, subject to pin multiplexing constraints. This resource is easy to underestimate because GPIO is often treated as leftover functionality after major peripherals are assigned. In reality, GPIO is the processor’s direct interface to the nonstandard parts of a product: status inputs, reset lines, keypad matrices, chip selects, power enables, interrupt lines, mux selects, LEDs, relays, tamper inputs, and various board-specific controls. The AM1802’s banked GPIO structure and programmable interrupt or event generation modes make it suitable for supervisory and event-driven system design rather than just static pin toggling.

The key design issue is not the raw number of GPIOs, but the interaction between GPIO demand and pin multiplexing. Like many highly integrated processors, the AM1802 cannot expose every peripheral signal simultaneously. That means peripheral planning must happen early, not after the schematic is mostly complete. It is common for first-pass designs to meet interface requirements on paper but fail during detailed pin assignment because Ethernet mode selection, storage interfaces, McASP routing, LCD needs, and service ports all compete for the same pad groups. A practical approach is to treat pin multiplexing as an architectural constraint from the beginning, with explicit allocation for debug access, manufacturing hooks, and future variants. That usually prevents expensive late-stage rerouting or feature compromise.

The interrupt and event capability per GPIO bank also has system-level implications. It enables responsive handling of asynchronous events without pushing every signal through external logic. Buttons, alarms, fault lines, wake inputs, and simple edge-detected controls can be managed directly by the processor. This reduces logic glue and improves observability in software. The tradeoff is that interrupt-heavy GPIO use can create software jitter if not filtered or prioritized correctly. Debounce strategy, edge qualification, and interrupt coalescing become part of the product’s responsiveness and noise immunity story.

Viewed as a whole, the AM1802 peripheral set is not merely broad; it is balanced. The device covers the interfaces that commonly define an embedded product’s external behavior: wired networking, local USB interaction, low-speed control buses, serial diagnostics, framed streaming interfaces, removable storage, and direct digital I/O. That balance is more useful than a processor that offers one or two very advanced interfaces but leaves the rest of the system dependent on support chips. For many designs, especially those in industrial control, connected HMI, instrumentation, and serviceable field equipment, balanced integration leads to a better product than isolated headline specifications.

A useful engineering lens is to think of the AM1802 peripherals as three layers. Ethernet and USB handle external connectivity and provisioning. SPI, I2C, and UARTs handle internal subsystem coordination and service access. McASP, SD/MMC/SDIO, and GPIO handle specialized data movement, storage, and real-world control attachment. This layered view helps during both hardware partitioning and software architecture. Drivers, boot flow, interrupt routing, and power management become easier to reason about when peripherals are grouped by system role rather than by datasheet category.

The strongest practical insight is that integration only creates value when the interfaces can coexist cleanly in an actual product. On the AM1802, that coexistence is generally strong, but success depends on disciplined pin-mux planning, early clock-tree decisions, and a bring-up strategy that validates control interfaces before high-bandwidth features. Designs that start with UART console access, I2C-based power and monitoring, stable Ethernet link establishment, and conservative GPIO ownership usually scale more smoothly into USB, SD, and McASP enablement. That sequence aligns with how failures actually surface in embedded platforms: first in clocks and reset, then in pin assignment, then in protocol timing, and only later in application logic.

For embedded designs that need a single processor to bridge connectivity, local control, and moderate multimedia or storage functions, the AM1802’s peripheral integration is a decisive advantage. It lowers hardware fragmentation, supports flexible product definition, and creates room for software-centric differentiation rather than board-level workaround logic. That is often the more durable form of integration: not just more interfaces on silicon, but fewer architectural compromises across the whole system.

AM1802 External Memory Support and Data Movement Architecture

AM1802 external memory support is not just a peripheral feature set. It is a system-level design lever that directly affects boot strategy, software scale, sustained throughput, and BOM tradeoffs. The device exposes two distinct off-chip memory paths, and their separation is architecturally useful: one path is optimized for flexible attachment of lower-speed or legacy parallel devices, while the other is intended for higher-bandwidth working memory. When combined with EDMA3, the memory subsystem becomes more than storage expansion. It becomes the backbone for moving data across the device with low processor intervention.

At the lower-speed and mixed-device end, AM1802 provides EMIFA. This interface supports asynchronous memories and SDRAM, making it suitable for systems that need broad compatibility more than peak bandwidth. NOR flash can be connected in 8-bit or 16-bit modes, NAND flash also in 8-bit or 16-bit modes, and 16-bit SDRAM is supported with up to 128 MB address space. That combination is important because it allows one interface to cover several common board-level needs: nonvolatile boot storage, inexpensive mass storage, legacy memory expansion, and direct connection to custom logic or parallel peripherals.

From an implementation perspective, EMIFA is often the interface that absorbs system-specific requirements. NOR flash remains attractive in designs that need simple execute-in-place behavior, straightforward boot visibility, or deterministic random-access reads. NAND flash is more density-efficient and lowers storage cost, but it shifts complexity into software through bad-block management, ECC handling, and file-system strategy. In practice, this means EMIFA can support both minimal bootloader-centric designs and more storage-oriented embedded systems, but the software architecture must match the selected flash technology. Choosing NAND for cost and density while underestimating the maintenance burden around integrity management is a common source of schedule drag.

Its SDRAM support fills another useful niche. A 16-bit SDRAM interface with 128 MB address space is not intended to compete with DDR-class bandwidth, but it can be sufficient for moderate code execution, buffering, control-plane data, and systems where memory traffic is predictable. This matters in designs where total throughput is limited more by peripheral rates than by core compute. If the application is handling configuration-heavy industrial protocols, moderate GUI layers, or buffered acquisition rather than large multimedia pipelines, SDRAM on EMIFA may be entirely adequate and materially simpler to integrate.

EMIFA also has value beyond memory. Because it can interface to asynchronous external devices, it can be used as a bridge to FPGA-based register banks, custom ASIC-style logic, or parallel communication devices. That gives the AM1802 an integration advantage in retrofit or derivative platforms where a fully serialized, packetized, or high-speed interconnect would be unnecessary overhead. In these cases, the external device can appear almost like mapped memory, which simplifies the software model. The tradeoff is that board timing, bus turnaround, and access latency become part of the system behavior and should be treated as first-order design parameters rather than post-layout cleanup items.

For higher-performance working memory, the device integrates a dedicated DDR2/Mobile DDR controller. AM1802 supports 16-bit DDR2 SDRAM up to 256 MB address space and 16-bit Mobile DDR SDRAM up to 256 MB address space. Device limits indicate DDR2 operation up to 156 MHz and Mobile DDR up to 150 MHz. This interface is the right choice when the software stack has significant run-time memory pressure or when the application generates sustained data movement that would expose the limits of asynchronous memory. Richer RTOS deployments, Linux-class environments, large buffering requirements, image or audio pipelines, protocol stacks with deep queues, and display-oriented frame storage all benefit from this path.

The practical distinction between DDR2 and Mobile DDR is not just naming or electrical compatibility. It affects power profile, availability, layout constraints, and long-term sourcing strategy. DDR2 is often the default selection when ecosystem familiarity and broad device choice are the primary drivers. Mobile DDR can be attractive where power sensitivity matters more and memory access patterns are bursty but frequent. In either case, the memory controller gives the AM1802 enough off-chip bandwidth to support more ambitious software without forcing external glue logic or an additional host processor.

That said, adding DDR-class memory changes the board from a simple embedded design into a signal-integrity-sensitive platform. Trace matching, impedance control, power rail quality, termination strategy, and initialization sequencing all become materially more important. The controller can provide bandwidth only if the layout preserves timing margin. In development cycles, memory instability on DDR interfaces often appears first as intermittent software faults, file-system corruption, or unexplained boot failures rather than obvious hardware alarms. A disciplined bring-up flow usually pays off: validate clocks and rails first, confirm controller timing values against the actual memory device, then stress-test with patterned transfers before trusting application-level behavior.

A useful way to view the AM1802 memory architecture is to separate capacity, access latency, and sustained bandwidth rather than treating “external memory support” as a single metric. EMIFA gives broad device compatibility and straightforward attachment of boot and peripheral resources. DDR2/Mobile DDR delivers working-memory bandwidth and software scaling headroom. Good designs map functions according to access behavior. Boot code, recovery images, parameter storage, and low-rate control-plane data naturally fit the flexible side. High-churn buffers, packet payloads, media data, and heap-intensive software stacks belong on the high-bandwidth side. Once this separation is made deliberately, the rest of the system tends to simplify.

The data movement side is where the memory architecture becomes operationally effective. AM1802 integrates EDMA3 with 2 channel controllers, 3 transfer controllers, 64 independent DMA channels, and 16 QDMA channels, along with programmable transfer burst size. This is a substantial on-chip transport resource, not a minor convenience feature. It allows the system to move data between peripherals, internal memory, and external memory with far less CPU participation than a polling or interrupt-copy model would require.

The architecture matters. Channel controllers manage event handling and transfer setup, while transfer controllers execute the actual data movement. This separation supports concurrency. Multiple peripherals can generate DMA activity, and the transfer controllers can sustain movement in parallel, subject to arbitration and bus availability. In effect, EDMA3 acts as a programmable traffic engine between memory regions and I/O endpoints. The CPU shifts from being a data mover to being a policy engine: it configures descriptors, handles exceptions, and processes completed buffers rather than touching every byte in flight.

That distinction becomes valuable in throughput-bound designs. Ethernet packet reception is a good example. Without DMA, the processor would spend a measurable fraction of its cycles performing memory copies, cache maintenance handling, and buffer rotation. With EDMA3, packet payloads can be placed directly into target buffers, reducing copy overhead and improving latency consistency. The same pattern applies to audio pipelines, where repetitive stream transfers should never consume general-purpose compute if the hardware can move the samples deterministically. Storage access shows similar benefits. Moving sectors between external media interfaces and system memory is exactly the kind of regular transaction that DMA handles better than software loops.

The presence of 16 QDMA channels is particularly useful for transfers that are software-triggered but still frequent enough to justify hardware offload. QDMA is often a better fit for short control-driven moves or linked operations that are not tied directly to a peripheral event. In optimized firmware, standard DMA channels and QDMA channels should be treated as separate tools rather than interchangeable inventory. Event-driven peripherals use the former well. Software-orchestrated housekeeping and chained memory operations often fit the latter better.

Burst size programmability also deserves attention. It allows tuning the balance between transfer efficiency and bus fairness. Large bursts improve transfer efficiency and can raise effective throughput for bulk moves, especially to external memory. But if configured aggressively in a mixed-workload system, they can increase latency for other masters contending for memory access. This is one of the areas where subsystem behavior diverges from block-diagram expectations. A configuration that benchmarks well in an isolated transfer test can degrade real-time responsiveness once networking, storage, and application tasks run simultaneously. Balanced tuning usually outperforms peak tuning in deployed systems.

In systems that combine DDR memory with EDMA3, a high-value pattern emerges: external DDR serves as the bandwidth reservoir, while DMA pipelines data into and out of peripheral-facing buffers with minimal core disruption. This is the configuration that enables the AM1802 to support software stacks larger than its core frequency alone might suggest. The processor no longer scales purely by instruction throughput. It scales by how effectively the architecture avoids unnecessary data touch points. That is often the hidden divider between an embedded platform that feels constrained and one that remains responsive under load.

The same principle applies on the EMIFA side, though with different performance expectations. DMA can move data between asynchronous external memory or memory-mapped devices and internal system buffers without tying up the CPU. This is useful when interfacing to FPGA-based capture logic, external FIFOs, or slower parallel components that still generate repetitive transfer patterns. Here the gain is not extreme bandwidth. It is determinism and software simplicity. Replacing repeated programmed I/O loops with DMA-backed transactions usually tightens latency variation and reduces the number of software paths that can fail under stress.

For procurement and platform planning, the integrated DMA fabric should be evaluated as part of the device’s effective compute capacity. Systems are often overbuilt because the processor is expected to manage protocol logic, application code, and bulk data transport simultaneously. On AM1802, EDMA3 absorbs much of the transport burden. That can avoid unnecessary migration to a higher-tier processor when the true bottleneck is movement, not computation. This is one of the more practical economic advantages of the part: the architecture supports a wider performance envelope than core frequency alone would imply.

A robust design approach usually starts by classifying every major data path by rate, burstiness, latency sensitivity, and ownership. Once that is done, memory placement and DMA mapping become much more straightforward. High-rate streams go to DDR-backed circular or ping-pong buffers. Boot, calibration, and persistent assets stay on NOR or NAND through EMIFA. Slow control registers and external custom logic remain memory-mapped where software benefits from direct visibility. DMA channels are then allocated according to whether the source is event-driven or software-triggered, and burst settings are tuned under realistic multitask load rather than synthetic single-path tests.

Seen this way, AM1802’s external memory support and data movement architecture form a coherent subsystem. EMIFA provides broad attachment flexibility. DDR2/Mobile DDR provides the bandwidth headroom needed by larger software and heavier buffering. EDMA3 turns those memory resources into an active transport plane. The strongest designs use all three with clear role separation: flexible memory and device attachment on one side, high-speed working memory on the other, and DMA in the middle to keep data flowing without wasting processor cycles.

AM1802 Real-Time Control, Debug, and System Management Capabilities

Beyond CPU throughput and peripheral count, the AM1802 distinguishes itself through the support logic around the processor. In embedded control designs, that support logic often determines whether a platform behaves predictably under load, remains diagnosable in the field, and recovers cleanly from fault conditions. The AM1802 provides that foundation through a practical combination of timing resources, retention timekeeping, debug visibility, interrupt handling, power control, clock management, and memory protection.

At the timing layer, the device integrates three 64-bit general-purpose timers, each of which can be split into two 32-bit timers, plus one additional 64-bit timer that can operate either as a watchdog or as two more 32-bit general-purpose timers. This arrangement is more useful than the raw timer count first suggests. A 64-bit counter is valuable when a design needs very long rollover periods, high-resolution uptime measurement, or timestamp correlation across slow system events. The split mode is equally important because many control applications do not need a wide counter on every channel; they need several independent timing domains with different rates and priorities.

That flexibility maps directly onto common embedded timing problems. One timer can generate the operating system tick or scheduler heartbeat. Another can drive fixed-rate control loops, ADC trigger pacing, or protocol servicing deadlines. A third can be reserved for event capture, runtime measurement, or software time-base extension. The extra watchdog-capable timer then becomes a system health anchor rather than just another interval generator. In practice, that separation matters. Designs become easier to validate when periodic scheduling, performance profiling, and fault supervision are not multiplexed through the same timing resource.

The timer architecture also supports a cleaner partition between hard real-time behavior and background software activity. A predictable system usually starts with deterministic interrupts and independent timeout sources. When a communications stack, logging path, or user-facing task temporarily stretches execution latency, dedicated timers help preserve control-loop cadence and timeout integrity. This is one of the quiet advantages of having enough timer channels early in a design: less software overloading, fewer shared interrupt paths, and fewer fragile dependencies between unrelated functions.

The watchdog function deserves specific attention. In many systems, watchdogs are treated as a minimal compliance feature, but on platforms like the AM1802 they can be used as part of a broader recovery strategy. A watchdog timer should be fed only by software that reflects genuine system health, not merely by any periodic task that happens to still be running. A better implementation ties watchdog service to multiple checkpoints: task execution progress, interrupt liveliness, memory integrity checks, or communication freshness. With that approach, the watchdog becomes an active supervisor for deadlocks, scheduler stalls, and peripheral-service starvation rather than a passive reset source. The AM1802 provides the hardware basis for that pattern without consuming the primary timing resources needed elsewhere.

The integrated real-time clock extends the device’s utility in systems where time continuity matters even when the main processing domain is powered down. It supports a 32-kHz oscillator and a separate power rail, allowing the RTC to remain active independently of the main supply path. This is not just a convenience feature for displaying time. It is a system-level retention mechanism for timestamp integrity, deferred event processing, scheduled wakeup, and fault chronology.

That separation is particularly important in equipment that spends long periods in low-power or disconnected states. Metering nodes need accurate energy-event timestamps. Access-control units need retained audit trails. Medical and industrial devices often need event logs that survive service interruptions or battery transitions. Network-connected products may also rely on RTC continuity to preserve certificate validity windows, transaction ordering, and field diagnostics. In these cases, retaining time is equivalent to retaining system context. Without it, post-event analysis becomes ambiguous and service logic becomes harder to trust.

A practical implementation detail often overlooked is RTC initialization policy. On many embedded platforms, unreliable software handling around first boot, brownout recovery, or backup-domain switchover can create invalid timestamps that later contaminate logs and cloud records. The AM1802’s RTC is most effective when paired with strict software rules: detect uninitialized RTC state, mark time confidence explicitly, and avoid presenting speculative timestamps as valid system facts. That small discipline prevents a surprising number of field-debug issues.

For debug and development, the AM1802 provides JTAG along with Embedded ICE-RT, ETM, and ETB resources. This is a strong set of visibility features for an ARM9-class device, especially in projects where the most difficult failures occur before the system is fully operational. Early boot stages, SDRAM initialization, clock switching, interrupt vector setup, cache enable sequencing, and peripheral bring-up are all areas where conventional source-level debug can become unreliable or intrusive. Hardware trace support changes that dynamic by exposing actual execution flow with far less disturbance to timing-sensitive code.

The Embedded Trace Buffer includes 4KB of internal trace memory. The trace port is not pinned out externally, and trace is routed internally to the ETB instead. That limits sustained off-chip trace bandwidth, but it does not eliminate trace usefulness. In fact, for many embedded investigations, short-window trace is sufficient. Startup faults, illegal branches, abort sequences, interrupt storms, and lockup precursors often reveal themselves within a compact execution window immediately before failure. Capturing those last instructions or branch transitions can reduce debug time dramatically compared with repeatedly instrumenting the code and attempting to reproduce a timing-sensitive bug.

This becomes especially relevant in memory initialization and low-level software validation. When DDR or external memory timing is not yet stable, printf-style diagnostics may be impossible, and breakpoints can alter the very sequencing being investigated. ETM plus ETB provides a less intrusive path to observe what the core actually executed. In many board bring-up cycles, that difference is decisive. A processor that appears to “hang randomly” often turns out to be branching through an invalid vector, taking an unexpected abort, or enabling a peripheral clock too late. Trace visibility converts those from vague symptoms into concrete failure chains.

The AM1802 debug resources also support timing analysis, not just fault diagnosis. Real-time software frequently fails not because logic is incorrect, but because instruction flow under interrupt load differs from the expected model. Short trace captures can expose ISR nesting patterns, exception frequency, and scheduler behavior around critical windows. That makes the device better suited to systems where software timing margins are narrow and deterministic behavior must be demonstrated rather than assumed.

The ARM subsystem around the core adds the control infrastructure needed to make use of the silicon effectively. Interrupt control is central here. In a mixed-workload embedded design, interrupt architecture determines practical responsiveness more than headline CPU frequency. Peripheral traffic, control loops, communication stacks, and deferred maintenance tasks all compete for service time. Effective interrupt prioritization and masking policy allows the AM1802 to support both latency-sensitive work and background processing without forcing everything into a single urgency class. The key design principle is to keep interrupt handlers brief, deterministic, and ownership-focused, while moving heavier work into scheduled contexts. The hardware support is present; software structure decides whether the system remains stable under burst load.

Power and sleep control further broaden the device’s applicability. Many embedded systems no longer operate in a simple always-on mode. They move between active processing, idle waiting, retention states, and scheduled wake cycles. The value of integrated power-management support is not merely lower average consumption. It is the ability to shape energy use without losing control of system state transitions. If wake latency, clock restart sequencing, or peripheral reinitialization is poorly managed, low-power design quickly turns into intermittent behavior. On the AM1802, the presence of sleep and power-control features enables a more disciplined architecture where active domains, retention functions, and wake sources can be planned rather than improvised.

Clock generation is similarly foundational. Embedded failures are often rooted in clock-tree assumptions that were never fully validated across all modes. Peripheral baud accuracy, timer resolution, ADC pacing, interface stability, and CPU performance margins all derive from clock configuration. A platform with flexible clock generation can support a wide operating envelope, but it also demands a clear clock ownership model in software. Stable systems usually centralize clock configuration, protect it from accidental runtime changes, and verify derived rates against functional requirements. That approach is especially important during staged bring-up, where a peripheral issue may actually be a clock-domain issue in disguise.

Protection mechanisms such as the MMU and memory protection features are particularly relevant when the AM1802 is used in multitasking or mixed-criticality systems. These features do more than support rich operating systems. They provide containment. A faulty driver, misconfigured DMA path, or stack overflow should not be allowed to corrupt unrelated application state silently. With MMU-backed isolation or carefully applied protection regions, software faults become easier to detect, localize, and recover from. This increases not only security posture but also operational reliability.

In systems with both application-layer software and hardware-near service routines, that containment becomes a design accelerator. It allows the communication stack, file system, UI logic, and control functions to coexist with fewer hidden coupling paths. The result is not perfect fault immunity, but a significant reduction in catastrophic failure propagation. One of the more valuable effects is during integration: bugs surface earlier and with clearer signatures, because invalid accesses are trapped instead of silently rewriting state that fails much later.

Taken together, these capabilities position the AM1802 as more than a processing node with integrated peripherals. Its real-time timers provide temporal structure. The watchdog supports supervised recovery. The RTC preserves chronology across power loss. Hardware debug resources make low-level behavior observable. Interrupt, power, and clock controls shape deterministic system behavior. Memory protection features improve software partitioning and fault containment. For control-oriented and field-deployed designs, these are not secondary features. They are the mechanisms that convert a capable chip into a maintainable system platform.

A useful way to view the AM1802 is as a device that rewards disciplined architecture. If the timers are assigned by function instead of convenience, if the watchdog is tied to real health metrics, if the RTC is treated as trusted retained state, and if trace is used early during bring-up rather than only after failures escalate, the platform can support a much more robust software stack than its basic block diagram might imply. That is where much of its practical value lies: not in isolated features, but in how well those features support deterministic behavior, diagnosability, and controlled recovery across the full system lifecycle.

AM1802 Package Options, Voltage Conditions, and Operating Environment

AM1802 package selection, supply partitioning, and environmental limits should be treated as first-order design parameters rather than catalog details. These attributes directly shape PCB architecture, power-tree complexity, assembly yield, thermal margin, and long-term deployment reliability. In practice, many downstream integration issues can be traced back to decisions made at this level.

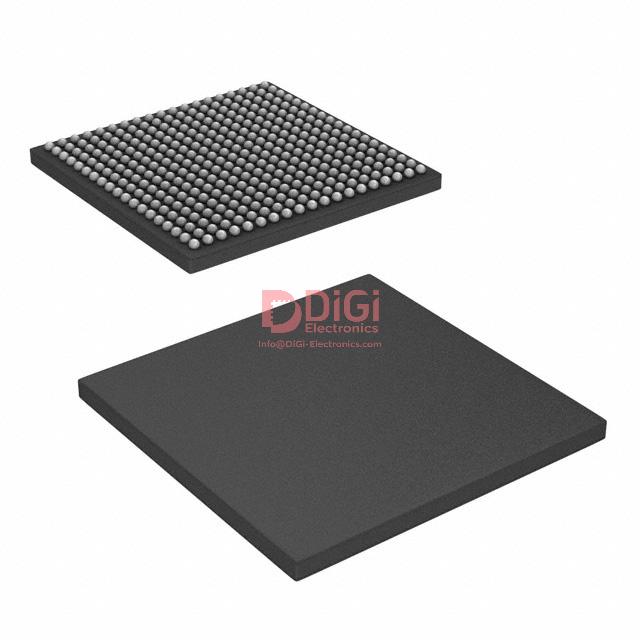

The device is available in two 361-ball NFBGA options. The AM1802ZWT uses a 16.00 mm × 16.00 mm body with 0.80 mm ball pitch. The AM1802ZCE uses a 13.00 mm × 13.00 mm body with 0.65 mm pitch. Although both packages expose the same functional silicon, they do not behave the same from a board-design perspective. The larger 0.80 mm pitch option is usually more forgiving during fan-out and routing. It provides more freedom for trace escape, via placement, solder mask definition, and manufacturing tolerance. This often reduces pressure on stack-up complexity and can improve yield in cost-sensitive production environments.

The 13.00 mm × 13.00 mm package shifts the tradeoff toward compactness. It is attractive when enclosure volume, module density, or connector placement dominates the mechanical design. That benefit comes with a routing penalty. At 0.65 mm pitch, escape routing becomes tighter, via strategy becomes more constrained, and the likelihood of requiring finer fabrication rules increases. This can affect not only PCB cost but also supplier selection, stencil design, and assembly process control. A compact package can save board area while quietly increasing overall system cost if the fabrication ecosystem is not aligned with the pitch. For many embedded platforms, the better package is not the smallest one, but the one that keeps layout, manufacturing, and rework within stable process limits.

Package choice also influences signal integrity and power distribution quality. A denser fan-out region usually forces more aggressive layer transitions and narrower routing channels, which can complicate reference-plane continuity. That matters for high-edge-rate interfaces and for core supply decoupling effectiveness. The package itself is fixed, but the quality of current return paths and the loop inductance seen by fast-switching domains is strongly board-dependent. Designs that treat package selection and stack-up planning as separate tasks often discover avoidable EMI or timing issues later in validation.

The AM1802 core operates at a nominal 1.2 V for 300 MHz operation. This low-voltage core domain reflects the usual tradeoff in embedded processors: reduced dynamic power at the silicon level, balanced against tighter regulator tolerance and stronger sensitivity to transient droop. A 1.2 V rail leaves less margin for poor decoupling, excessive plane impedance, or slow regulator response. For that reason, the core rail should be considered a high-priority power domain, with local bulk and high-frequency bypass placement driven by current-step behavior rather than by schematic neatness. Stable operation at nominal frequency depends less on average current capacity than on the rail’s ability to absorb fast load changes without violating the effective voltage window at the die.

The I/O structure supports 1.8 V and 3.3 V operation, except for USB and DDR2, which require their own dedicated electrical conditions. This mixed-voltage capability is especially useful in transitional embedded systems where modern low-power logic must coexist with established 3.3 V peripherals, sensors, control devices, or interface ASICs. It can eliminate external level shifting on selected buses, simplify bring-up, and reduce latency and failure points introduced by voltage translation components. At the same time, this flexibility should not be mistaken for a uniform I/O environment. Each interface domain still needs explicit voltage planning, sequencing awareness, and signal-level verification. Mixed-voltage systems often fail in subtle ways when one bank is configured correctly in principle but connected to peripherals with different power-up timing or clamp-diode behavior.

USB and DDR2 deserve special handling because they are not ordinary GPIO-class domains. USB introduces signaling, power, and compliance constraints tied to interface standards and board parasitics. DDR2 is even less tolerant, because timing margin depends on tightly managed impedance, topology, reference quality, and supply cleanliness. In AM1802-based designs, DDR2 should be viewed as a small high-speed subsystem rather than as a memory connection. Routing length matching, termination choices, byte-lane organization, VREF stability, and decoupling geometry all interact. If package selection pushes DDR2 escape routing into a more congested region, the resulting layout compromises can consume timing margin very quickly. This is one reason why package and memory-interface planning should be done together at the floorplanning stage.

A practical power strategy is to separate the design effort into three layers. First, define the mandatory rails and their load classes: core, general I/O, and dedicated interface rails such as USB and DDR2. Second, map each rail to its noise tolerance, sequencing sensitivity, and transient profile. Third, place regulators and decoupling based on current loop control rather than convenience. This layered approach usually exposes where a low-cost regulator is acceptable and where a tighter, faster, or cleaner source is needed. It also helps prevent a common integration mistake: allocating too much attention to nominal voltage values and too little to startup interaction, rail monotonicity, and domain-to-domain coupling.

The specified junction temperature range of -40°C to 90°C places the AM1802 in the industrial class and makes it suitable for equipment expected to operate beyond office-grade conditions. This range is relevant for control nodes in mechanical rooms, factory-edge terminals, outdoor communication panels, mobile diagnostics units, and medical electronics installed near warm internal subsystems. The important point is that junction temperature is not ambient temperature. The actual silicon temperature is the result of ambient conditions, self-heating, airflow, enclosure conductivity, neighboring heat sources, and workload profile. A design can be inside ambient expectations and still violate junction margin if the PCB copper is sparse, the enclosure traps heat, or sustained peripheral activity keeps internal power elevated.

Thermal design for a part in this class should therefore be based on system heat flow, not just on the processor data line item. In compact products, localized heating from PMICs, DDR2, display backlight drivers, or communication modules can raise the processor environment significantly. Early prototypes often look thermally safe during basic software bring-up because processor utilization is low and peripherals are idle. The real thermal picture usually emerges only after full firmware, sustained I/O traffic, and worst-case ambient conditions are applied together. A disciplined validation plan should include high-load operating states, enclosure-closed testing, and measurement points that correlate board temperature to estimated junction behavior. This tends to reveal whether the thermal margin is robust or merely nominal.

The industrial temperature rating also has implications for component selection around the AM1802. There is little value in choosing an industrial-grade processor if adjacent regulators, oscillators, DDR2 devices, connectors, or passives impose narrower operating limits. Reliability in harsh environments is often bounded by the weakest support component, not by the main processor. The most resilient designs maintain temperature consistency across the entire BOM and verify that startup, timing, and analog behavior remain valid across the same range.

From a manufacturing and supply-chain perspective, the device is RoHS compliant and REACH unaffected. These properties simplify regulatory fit for most modern product lines and reduce friction during customer qualification, especially in sectors where material declaration packages are routinely audited. The MSL 3 classification with 168-hour floor life is equally important, even though it sits outside the schematic. Moisture sensitivity has direct consequences for storage control, reel handling, line scheduling, and reflow discipline. For BGA devices, process maturity here matters because package integrity problems can remain latent until field stress exposes them.

MSL 3 means the assembly flow should account for exposure tracking once dry-pack conditions are broken. If floor-life control is loose, the risk is not just visible soldering defects. The more costly outcome is intermittent reliability degradation caused by moisture-related package stress through reflow. This becomes more relevant when using the finer-pitch option, where process variation already has less room to hide. In production settings, package selection, stencil tuning, reflow profile control, and floor-life management form a coupled process window. Treating them independently tends to increase NPI churn.

The most effective way to think about the AM1802 is as a device whose package, voltage domains, and environmental limits define the integration envelope. The package determines how easily the design can realize clean routing and manufacturable escapes. The voltage architecture determines whether the power tree remains simple or turns into a source of hidden instability. The thermal and compliance data determine whether the product can survive real deployment and pass through production without unnecessary process risk. Designs that respect these constraints early usually gain simplicity later, while designs that postpone them often pay through re-layouts, power fixes, and qualification delays.

AM1802 Application Fit and Engineering Selection Considerations

AM1802 fits a specific middle ground in embedded design. It is not a simple control MCU, and it is not a high-end application processor intended for graphics-heavy or compute-intensive workloads. Its value appears when a system needs stronger software structure, broader I/O, external memory, and network-facing capability, while still keeping power, BOM, and platform complexity under tighter control than a larger Linux-class processor would typically require. This positioning is important during selection because many design mistakes come from evaluating the device only by interface count or clock rate, instead of by the type of system architecture it enables.

At the architectural level, AM1802 is most suitable for systems where the main challenge is coordination rather than raw computation. It can manage communication stacks, external peripherals, data movement, moderate user-interface tasks, and supervisory control in a balanced way. That makes it attractive in products that sit between the physical world and a network, especially where multiple interfaces must operate together with a richer software model than a conventional bare-metal design can comfortably sustain. In practice, this class of processor tends to perform best when the workload is mixed: protocol handling, control sequencing, logging, lightweight UI, and peripheral management. It tends to be less ideal when the requirement shifts toward advanced multimedia, high-resolution display pipelines, or aggressive real-time determinism across every subsystem.

The software implications of this architecture are as important as the hardware blocks. The presence of MMU, caches, and ARM9-class memory management features allows more capable software stacks and cleaner separation of functions, but it also changes the engineering profile of the project. Bring-up is no longer only about toggling peripherals and validating clocks. It becomes a full platform exercise involving boot flow definition, memory initialization, exception handling, cache policy, interrupt structure, and a disciplined debug strategy. This is often where selection should become more honest. A processor may look attractive because it supports Ethernet, USB, and external DDR2, but if the team is not prepared for cache-aware driver behavior, bootloader staging, or memory-map discipline, schedule risk rises quickly. In embedded projects, software maturity is often the real gating resource, not the peripheral list.

For ePOS equipment, AM1802 aligns well with systems that need stable connectivity and a moderate application layer without the overhead of a more advanced processor family. Ethernet supports back-end communication. USB host or device capability helps with accessories, firmware servicing, and field connectivity. Serial peripherals remain useful for barcode engines, payment modules, printers, and maintenance interfaces. External DDR2 and flash support make it practical to handle larger software images, transaction logs, configuration storage, and UI assets. The key point is that ePOS workloads are usually interface-dense rather than compute-dense. The processor does not need to win on benchmark performance; it needs to sustain predictable interaction across several I/O paths while keeping software maintainable. In this context, AM1802 can be a strong fit when the UI is modest and the transaction logic is communication-centric.

In building automation, the device is well matched to controller and gateway roles. These systems often require protocol translation, local I/O aggregation, event scheduling, data logging, and supervisory connectivity. Ethernet, UART, I2C, SPI, timers, RTC, and GPIO form a practical mix for this class of product because they allow one processor to bridge field devices with management networks. The deeper engineering benefit is consolidation. Instead of partitioning communication, control, and logging across multiple smaller devices, AM1802 can absorb these roles into one software-defined platform. That reduces board-level fragmentation, but it also increases the importance of software partitioning and fault handling. In gateway applications especially, interface diversity creates subtle interactions. A serial fieldbus may tolerate jitter differently from Ethernet servicing. Timer-driven control loops may compete with bursty network traffic. A useful design pattern is to assign priorities based on failure impact rather than feature visibility. Systems become more robust when low-level control timing is protected first and less time-critical communication is shaped around it.

Healthcare and fitness equipment present another natural application space, particularly where the product combines sensing, local interface management, record storage, and external communication. The external memory interfaces support larger data buffers, historical storage, and richer application code. The communication set allows integration with sensors, displays, maintenance ports, and network links. This works well in equipment that must gather data continuously while also presenting user feedback and exporting information upstream. Here, the practical advantage of AM1802 is not only that it connects to many peripherals, but that it supports a more structured software environment for coordinating them. Once data logging, communications, and UI coexist in one product, simple firmware patterns usually stop scaling cleanly. A processor in this class offers enough system organization to prevent the codebase from collapsing into interrupt-driven coupling and ad hoc state handling.

Pin multiplexing is one of the most important engineering filters in AM1802 adoption, and it should be treated as an early architecture constraint rather than a late schematic detail. The documentation explicitly notes that not all peripheral pins are available simultaneously. This means the nominal peripheral set is an upper bound, not a guaranteed board-level reality. Selection should therefore begin with a complete signal ownership map, not with a marketing checklist. Ethernet, USB, external memory buses, serial interfaces, GPIO, timers, and audio-related functions can conflict in ways that are easy to underestimate during concept phase. It is common to see an initial design assume that every major block can coexist, only to discover during layout capture that one added feature consumes pins needed by another critical path. By that point, the workaround usually costs much more than an early trade study would have.

A disciplined pin-mux review should include more than simple functional enablement. It should also account for debug access, production test hooks, recovery paths, and future expansion. This is where practical board experience matters. Designs that appear complete on first pass often become fragile when no spare GPIO remains for fault indicators, strap options, reset isolation, or field diagnostics. Reserving a small amount of pin budget for non-feature functions usually pays back during validation and service. Another recurring issue is underestimating the routing consequence of external memory plus communication interfaces on the same package. Even when the mux technically works, signal grouping and layout escape can become the real limiter. A selection that seems clean at the block-diagram level can become unnecessarily expensive once PCB layer count and routing congestion are considered.

Memory architecture deserves equally careful review. AM1802 can support richer software because it works with external DDR2 and flash, but that capability changes the board and firmware problem substantially. External memory introduces timing closure, initialization sequencing, signal integrity sensitivity, and boot dependency chains. These issues are manageable, but they move the design away from the simplicity associated with single-chip MCU platforms. In practice, external DDR2 should be justified by a real system need: larger software frameworks, buffering requirements, file systems, network stacks, or data-heavy application behavior. If the software image and runtime model do not truly require that memory class, the added complexity may not return enough value. The best AM1802 designs usually make full use of its external memory capability rather than carrying it as an unused option.

Software architecture should be planned from the boot path upward. Because the processor supports a more advanced execution environment, design teams should define early how the system starts, where critical code resides, how memory is initialized, and how recovery is handled if initialization fails. A robust boot strategy typically separates immutable recovery logic from field-updatable software, and it avoids making the entire product dependent on a single fragile storage assumption. Debug readiness should also be treated as part of the platform definition. Cache behavior, MMU mapping, and peripheral initialization order can produce failure modes that look random unless traceability is built in from the beginning. Early investment in visibility—boot checkpoints, memory tests, peripheral self-checks, and clear fault signatures—usually shortens bring-up far more than late optimization work.

One useful way to think about AM1802 is as a processor that rewards system-level discipline. It can provide strong value when the application needs multiple communications channels, moderate UI capability, external memory, and a structured software stack. It becomes less attractive when the project expects MCU-like simplicity or assumes that listed peripherals automatically translate into easy product integration. The most successful selections tend to come from teams that evaluate it as a platform, not just a chip. They check pin-mux feasibility before feature commitment, define the software model before board freeze, and align memory architecture with actual runtime demands. Under those conditions, AM1802 can occupy a very efficient design point: enough processor and interface capability to consolidate embedded functions, without taking on the full cost and complexity of a larger application-processor class.

Potential Equivalent/Replacement Models for the AM1802

Based on the available documentation, the AM1802 does not have an explicitly identified drop-in replacement. The closest replacement context sits within the Texas Instruments Sitara portfolio and, more broadly, within devices built around ARM926EJ-S or similar ARM9-class cores. That is an important distinction. Similar CPU class does not imply board compatibility, software portability, or peripheral equivalence. In practice, replacement analysis for the AM1802 must be handled as a constrained system migration problem rather than a simple part substitution exercise.

The documented AM1802 package options are limited to:

AM1802ZWT, 361-ball NFBGA, 16.00 mm × 16.00 mm

AM1802ZCE, 361-ball NFBGA, 13.00 mm × 13.00 mm

These variants indicate package-level diversity inside the same device family, but they do not establish a broader replacement map. No direct pin-to-pin successor, software-equivalent alternate, or lifecycle-designated substitute is identified in the provided material. That absence is itself meaningful. When a datasheet stops at package variants and architectural family references, the engineering assumption should be that interchangeability has not been guaranteed.

A disciplined replacement search should start from the processor core, but it should not end there. The AM1802 is based on the ARM926EJ-S, and the documentation states compatibility with other ARM9 CPUs from ARM Holdings plc. At the instruction-set level, this gives a baseline for software feasibility. Existing application code, RTOS ports, boot logic, and low-level control routines may be portable with moderate effort if the candidate device preserves the same ARM9 execution model. However, this layer only addresses CPU behavior. Real migration cost is typically driven by memory subsystem behavior, peripheral register compatibility, interrupt architecture, boot modes, clocking topology, and external interface timing.

The 300 MHz performance class is another useful filter, but it should be treated as a coarse screening parameter. Matching nominal clock frequency does not ensure equivalent throughput. Effective performance depends on bus arbitration, memory latency, cache behavior, DMA capabilities, and peripheral service overhead. In embedded systems derived from parts like the AM1802, memory and I/O architecture often dominate application responsiveness more than core frequency alone. A replacement part that meets the same MHz number but implements a less compatible memory path can degrade deterministic behavior, especially in designs with concurrent Ethernet, USB, and external memory activity.

Memory support is one of the strongest screening criteria. Any realistic AM1802 replacement candidate should provide a DDR2 or Mobile DDR controller with similar electrical and timing capabilities. This is not only a BOM issue but also a software and signal-integrity issue. Board designs built around DDR interfaces usually encode tight assumptions about trace lengths, topology, training behavior, and initialization sequencing. Even when a candidate supports the same memory type, the migration effort can become substantial if refresh policies, bus widths, timing registers, or boot memory expectations differ. The same applies to asynchronous memory through an EMIFA-style interface. If the original design uses external NOR flash, FPGA registers, ASIC control space, or memory-mapped peripherals through EMIFA, then the replacement must preserve both functional access style and timing programmability. This is often the point where many nominally similar processors fail replacement evaluation.

Integrated communications also define the practical replacement boundary. The AM1802 includes a 10/100 Ethernet MAC with MII/RMII and MDIO, USB 2.0 OTG with integrated PHY, and a broad peripheral set including UART, SPI, I2C, MMC/SD, McASP, timers, RTC, and GPIO. A candidate part should not simply provide “an Ethernet port” or “USB support.” It should match the deployment architecture closely enough that the surrounding design remains stable. For Ethernet, PHY interface mode matters because PCB routing, external PHY selection, clock source strategy, and software driver assumptions are tied to MII or RMII operation. For USB OTG, the presence of an integrated PHY can remove an entire class of redesign work. If a candidate requires an external PHY, the board and power tree may need significant rework, and USB compliance behavior may shift in subtle ways.

Peripheral matching should be performed in layers. First, confirm functional presence: UART, SPI, I2C, storage, audio, timers, and GPIO. Next, confirm quantitative fit: channel count, FIFO depth, DMA mapping, interrupt routing, and clock source flexibility. Finally, confirm software impact: register model, driver reuse potential, and bootloader dependencies. Experience shows that projects often underestimate the last layer. A device can appear equivalent on a feature checklist yet still force extensive BSP refactoring because timer blocks, pin multiplexing models, or interrupt controller semantics differ. In many embedded migrations, peripheral software adaptation consumes more schedule than schematic updates.

Industrial temperature capability should remain a hard requirement if the original product is qualified for extended environments. This parameter is frequently treated as a procurement checkbox, but it reaches into reliability margins, oscillator behavior, power integrity, and enclosure thermal design. A processor replacement that only partially overlaps the operating temperature envelope can create field instability that does not appear during bench validation. This is especially relevant when high-duty-cycle Ethernet or USB operation raises local die temperature under load.

Package and PCB migration path deserve separate attention. The two AM1802 package variants show that even intra-family package changes are nontrivial. A 361-ball NFBGA in 16 mm versus 13 mm form factors can affect breakout density, via strategy, impedance control, fan-out escape layers, and assembly yield. Any external replacement candidate should therefore be evaluated not just for ball count but for ball-map compatibility, power rail locations, high-speed pin placement, and decoupling network impact. In practice, package migration often determines whether a replacement can be introduced through a controlled PCB revision or whether it effectively triggers a new board design.

A useful engineering workflow is to screen AM1802 replacements through five gates.

First, establish architectural compatibility. The candidate should ideally use ARM926EJ-S or a closely related ARM9-class core if software continuity is important. This reduces risk in toolchain behavior, low-level startup, and application portability.

Second, validate memory architecture. Confirm DDR2 or Mobile DDR support, asynchronous external memory capability comparable to EMIFA, boot source compatibility, and realistic board-level migration effort.

Third, map all critical peripherals. Ethernet, USB OTG, serial interfaces, storage interfaces, audio paths, timers, RTC, and GPIO should be compared not only by presence but by implementation details and software integration cost.

Fourth, evaluate physical migration constraints. Package size, ballout, supply rails, clocking requirements, and PCB routing implications should be treated as first-order selection criteria.

Fifth, verify lifecycle and operating conditions. Temperature grade, long-term availability, revision history, and manufacturer migration guidance must be checked before committing to validation work.

This layered method is more reliable than starting from package or clock speed alone. In designs around the AM1802, the true lock-in usually sits in external memory timing, interface multiplexing, and software initialization paths. The CPU core is only one part of the compatibility picture.

From a sourcing perspective, the absence of a manufacturer-declared successor means procurement should avoid presenting alternatives as equivalent unless engineering has completed a full fit assessment. The correct framing is “candidate for migration” rather than “replacement part.” That distinction prevents downstream errors in qualification planning, inventory strategy, and customer communication. It also aligns expectations: if no formal migration notice exists, every candidate should be assumed to require validation at hardware, firmware, and system levels.

The most defensible replacement strategy for the AM1802 is therefore to target devices that preserve the same architectural class while minimizing disruption in memory interfaces, communications blocks, and package migration. If such alignment cannot be achieved, the effort should be scoped as a platform transition. That usually leads to better design decisions, because it forces early attention to BSP reuse, PCB change magnitude, test coverage, and regulatory impact instead of allowing a weak “near-equivalent” assumption to drive the program.

Conclusion

The Texas Instruments AM1802 is best understood as a highly integrated embedded control and connectivity processor built for designs that need more than a microcontroller but do not require the complexity, power envelope, or software burden of a high-end application processor. Its ARM926EJ-S core at 300 MHz provides enough compute capacity for protocol handling, user-interface coordination, control logic, and mid-level data movement, while the surrounding subsystem integration is what gives the device its real system value. The device is not primarily about peak processing throughput. Its strength is architectural balance: moderate CPU performance, broad peripheral coverage, external memory scalability, and deterministic support hardware that reduces dependence on software-driven data movement.

At the processing layer, the ARM926EJ-S core with memory management support and internal cache enables the AM1802 to run embedded operating systems and structured software stacks with reasonable isolation and memory control. This matters in products where networking, storage, field interfaces, and control functions must coexist without collapsing into a monolithic firmware image. The MMU changes the design posture significantly. It allows Linux-class environments where middleware, protocol stacks, file systems, and update frameworks become practical, especially for connected endpoints that need maintainability over long deployment cycles. At the same time, the performance envelope remains bounded, so system architects have to treat CPU cycles as a managed resource rather than an abundant one. That usually leads to better designs: move bulk transfers into DMA, keep interrupt rates under control, avoid graphics-heavy interfaces, and treat background services as budgeted tasks rather than default additions.

The memory architecture is one of the first areas that determines whether the AM1802 is a strong fit or a source of friction. Internal RAM and cache improve responsiveness for latency-sensitive paths, but most practical systems still depend on external memory for code, file systems, frame buffers, and application data. The external memory interface gives the platform useful flexibility, yet it also introduces one of the central design tradeoffs: every decision around DDR, NAND, NOR, or removable storage affects boot strategy, software layout, reliability behavior, and board complexity. In practice, memory planning is rarely just a capacity exercise. It is a bandwidth and failure-mode exercise. Systems that combine Ethernet traffic, USB transactions, file-system writes, and periodic control tasks can expose contention quickly if the external memory subsystem is underspecified or poorly partitioned. A common pattern in robust designs is to reserve the fastest and most predictable memory paths for real-time data handling, while pushing logs, update images, and noncritical buffers into lower-priority storage regions.

The AM1802 becomes more compelling when viewed through its peripheral fabric. Integrated 10/100 Ethernet, USB 2.0 OTG, MMC/SD, SPI, I2C, UART, McASP, timers, RTC, GPIO, and EDMA3 create a platform that can bridge multiple external domains without excessive glue logic. This level of integration simplifies the board and often improves total system reliability because fewer companion devices mean fewer clocks, fewer reset dependencies, and fewer driver interaction points. Ethernet support is especially important in infrastructure-oriented products, where wired networking remains the preferred path for predictable latency, power stability, and long service life. USB 2.0 OTG extends the device into service, provisioning, removable media, and accessory roles. MMC/SD provides straightforward removable or managed storage options. SPI, I2C, and UART cover the low-to-medium speed control plane that dominates many embedded designs, while McASP enables audio or synchronized serial streaming use cases that would otherwise require external logic.

EDMA3 is one of the more strategically important blocks in this class of processor and is often undervalued during early evaluation. On paper, it looks like a convenience feature. In deployed systems, it is often the difference between a CPU-limited design and a stable architecture. When data streams move between peripherals and memory under DMA control, the processor can remain focused on protocol state, supervisory logic, and exception handling instead of spending cycles on repetitive transfers. This is particularly relevant in systems that combine network packets, serial streams, and storage I/O. Designs that ignore DMA tend to work in the lab and degrade under sustained mixed traffic. Designs that use DMA intentionally usually retain more timing margin, lower interrupt pressure, and better fault recovery behavior. In this device family, efficient use of EDMA3 is less an optimization than a baseline engineering practice.

The communication profile of the AM1802 aligns well with edge devices that act as protocol concentrators, local controllers, or smart gateways. In an ePOS terminal, for example, the processor can manage the network stack, removable media, serial peripherals, secure transaction coordination, and a modest display path without demanding a separate communication controller. In building automation, it fits well where Ethernet backhaul, local sensor expansion, RTC-based scheduling, and long-term field reliability matter more than rich graphics performance. In healthcare-adjacent equipment, it supports the common requirement mix of wired data transport, removable storage, low-speed control peripherals, and traceable timing behavior. In these classes of products, system success is usually determined less by benchmark speed and more by integration discipline, software maintainability, and predictable I/O behavior. The AM1802 maps well to that profile.

Pin multiplexing deserves more attention than it typically receives during component selection. On a device with this many interfaces, multiplexing is not a pinout detail; it is a system architecture constraint. Peripheral availability on paper does not guarantee simultaneous usability in the target design. Conflicts between storage buses, communication ports, audio interfaces, and GPIO needs can force redesigns late in the program if they are not modeled early. A practical approach is to treat pin mux closure like timing closure in FPGA work: build a matrix at the start, include manufacturing and debug signals, reserve contingency pins, and validate every proposed product variant against the same map. Teams that postpone this work often discover that a feasible schematic does not translate into a serviceable product because test access, recovery boot paths, or future feature options were consumed by optimistic pin allocation.

Software complexity is the second major gating factor. The AM1802 can support capable software environments, but integration depth brings stack interaction overhead. Ethernet, USB, storage, bootloader behavior, file systems, power sequencing, and watchdog strategy all intersect. This is where device selection can look deceptively easy in a feature checklist and become difficult in implementation. A sound evaluation should therefore estimate not only hardware fit but software convergence cost. If the product needs secure field updates, fast boot, persistent logging, removable media handling, and stable network recovery, those behaviors should be treated as first-order architecture items from day one. In systems based on processors of this class, reliability usually comes from reducing cross-subsystem surprises rather than adding late protective logic.

From a lifecycle and sourcing perspective, the AM1802 is attractive where product longevity and platform reuse are more important than chasing short-term performance density. A single-chip device with broad peripheral reach can support multiple product derivatives with controlled redesign effort. That creates leverage for procurement and platform planning because the same base hardware can be adapted across several use cases by changing peripheral population, software packages, and enclosure-level interfaces. The economic value is not only in bill-of-material reduction. It is also in reducing the number of unique failure modes and qualification paths that have to be managed across a product family.

The most effective way to evaluate the AM1802 is to treat it as a system-integration device rather than just a processor. If the application needs balanced compute, wired connectivity, external memory expansion, and broad peripheral control inside a disciplined power and cost envelope, it is a strong candidate. If the design depends on heavy graphics, large middleware stacks, or careless peripheral overlap, the device will feel constrained. The key is alignment between architecture and workload. In well-partitioned embedded systems, that alignment is often more valuable than raw CPU headroom. For that reason, the AM1802 is especially well suited to long-life embedded products where stable interfaces, manageable software scale, and integrated I/O matter more than headline performance. The final decision should therefore be driven by three hard checks: whether the memory subsystem can sustain the real traffic profile, whether pin multiplexing closes cleanly across current and future variants, and whether the software stack can be kept proportionate to the processor’s actual compute budget.
