AFE7225IRGCR

Texas Instruments AFE7225IRGCR Product Overview

Texas Instruments AFE7225IRGCR is a mixed-signal analog front end in the AFE7225/7222 family, built for full-duplex and half-duplex radio architectures that need high integration without giving up signal-chain configurability. Its core value is not simply the presence of dual transmit DACs and dual receive ADCs, but the way these blocks are combined with digital frequency translation, rate conversion, correction functions, clock distribution, and monitoring resources into a single RF data-conversion subsystem. For radio designers, that integration changes the partitioning of the entire baseband-to-IF path.

The device integrates two 12-bit transmit DAC channels and two 12-bit receive ADC channels, forming a balanced dual-path architecture suited to I/Q processing, dual-band implementations, diversity receivers, or compact multichannel radio nodes. In addition to the main signal paths, it also includes auxiliary conversion capability for bias supervision, control loops, and health monitoring. That detail matters in practical designs because many radio platforms lose board area and introduce noise risk not in the main conversion chain, but in the support circuitry around power tracking, temperature observation, gain management, and calibration feedback.

A useful way to understand the AFE7225IRGCR is to start from the internal signal flow rather than from the feature list. On the transmit side, digitally generated baseband data enters the interpolation and digital upconversion chain before reaching the DACs. This allows the system processor or FPGA to hand off lower-rate complex data while the AFE performs frequency placement and sample-rate expansion internally. That reduces interface pressure and eases timing closure in the digital host. On the receive side, the reverse happens: incoming sampled data is digitally downconverted and decimated, enabling extraction of narrower-band information from a wider sampled spectrum. This is a common and effective architecture because it shifts precision filtering and frequency translation into deterministic digital logic while keeping the external analog path simpler and more stable.

This internal layering is one of the strongest aspects of the device. In radio hardware, converter performance alone rarely determines system quality. What often decides the final result is how efficiently the design controls image rejection, carrier leakage, gain alignment, quadrature mismatch, and clock-related impairments across process, temperature, and operating mode. The AFE7225IRGCR addresses this by embedding digital correction and alignment mechanisms near the conversion stages. That proximity is important. Compensation implemented inside the front end is generally more repeatable than trying to recover performance later in the chain with loosely coupled external logic.

The dual 12-bit DAC and ADC resolution should be interpreted in system context. In many wideband radio links, especially portable and infrastructure-adjacent platforms, 12-bit conversion is a deliberate balance between dynamic range, power, latency, and integration density. Pushing to higher nominal resolution can raise power and interface complexity without delivering proportional benefit once phase noise, front-end linearity, and gain distribution are considered. In practice, a well-integrated 12-bit transceiver front end with solid digital correction often outperforms a theoretically higher-resolution but poorly partitioned discrete design.

Power architecture is another important design dimension. The device operates from 3.0 V and 1.8 V supplies, reflecting a split-domain approach common in mixed-signal radios. The higher rail supports analog performance where voltage headroom is still useful, while the lower rail serves digital logic with lower power dissipation. This arrangement helps the AFE fit portable and thermally constrained systems, but it also places responsibility on the board designer to manage domain isolation carefully. In layouts of this class, the main failures are rarely due to insufficient schematic completeness. They usually come from return-current overlap, poor decoupling frequency coverage, and clock contamination crossing analog-digital boundaries. Keeping supply impedance low over a broad spectrum and preserving clean reference distribution has a larger impact than many first-pass simulations suggest.

The clocking strategy around the AFE7225IRGCR deserves special attention because wideband transceiver quality is strongly clock-limited. Jitter, spur coupling, and deterministic digital noise can directly erode receiver sensitivity and transmitter spectral purity. Since the device integrates conversion and digital frequency-processing functions, it can reduce the number of high-speed boundaries on the board, which is beneficial. Fewer external timing interfaces often mean fewer opportunities for skew, crosstalk, and synchronization drift. Still, the remaining clock source must be treated as a first-order design object. In dense radio boards, placing the clock tree too close to switching supplies or parallel data buses can quietly degrade EVM and adjacent-channel behavior long before any obvious functional failure appears.

The inclusion of interpolation, decimation, and digital mixing gives the device strong system-level flexibility. That flexibility is useful in at least three design patterns. In portable low-power radio equipment, it enables a compact architecture where an FPGA or processor can stay focused on modem functions while the AFE handles sample-rate adaptation and frequency shifting. In point-to-point wireless infrastructure radios, it supports clean partitioning between digital baseband and the analog IF section, which simplifies reuse across multiple channel plans. In pico-cell BTS platforms, it helps consolidate transceiver resources into a smaller footprint, where board area, thermal density, and calibration overhead are all tightly constrained.

For full-duplex systems, the AFE7225IRGCR supports simultaneous transmit and receive paths in a compact implementation, which is important where isolation, latency, and synchronized channel behavior matter. In these systems, integration can be more valuable than raw converter speed because it keeps the signal path shorter and more controlled. Full-duplex radios often expose subtle interactions between transmit activity and receive sensitivity through supplies, references, and substrate coupling. Devices that internalize more of the transceiver chain usually make these interactions easier to characterize and contain. In half-duplex systems, the same integration can be used differently: to reduce idle power, simplify switching states, and maintain a common hardware platform across multiple product variants.

Another practical advantage is the auxiliary monitoring capability. In deployed radios, observability is often underestimated during component selection. Yet many field issues are traceable to thermal drift, supply movement, bias shift, or gain compression trends that were invisible during early bring-up. Auxiliary conversion channels allow the platform to close this gap by sampling local operating conditions and feeding them into calibration or supervisory routines. This is especially useful in compact outdoor or semi-sealed systems, where temperature gradients and supply stress can change quickly with transmit duty cycle.

From an implementation standpoint, the AFE7225IRGCR is best viewed as a transceiver front-end engine rather than a passive set of data converters. That framing leads to better design choices. It encourages early planning for digital filtering, NCO usage, gain distribution, calibration ownership, and clock-tree hierarchy, instead of treating those topics as integration details left for later. Designs that succeed with this class of device usually define the signal bandwidth, crest factor, spur budget, and calibration strategy before finalizing FPGA partitioning or RF gain blocks. Doing so prevents a common failure mode where the converter is technically compatible with the application, yet the total signal chain cannot meet spectral or sensitivity targets because the surrounding assumptions were never aligned.

The industrial temperature range of –40°C to 85°C makes the device suitable for equipment expected to operate outside benign indoor conditions. That specification is more meaningful when considered with gain drift, offset movement, and calibration persistence. Radio platforms that span this temperature range benefit from having compensation resources close to the conversion path, since static factory trim is rarely enough for stable long-term behavior. A front end with built-in digital correction and monitoring support is structurally better suited to temperature-aware operation than a loosely assembled discrete chain.

In component selection terms, the AFE7225IRGCR fits designs where integration efficiency, low power, and digital flexibility matter as much as converter specifications. It serves well in portable radios, compact wireless links, and small-cell infrastructure because it reduces BOM count, shortens interconnects, and centralizes key transceiver functions. The deeper reason to choose it, however, is architectural: it allows the baseband, clocking, and analog interface layers to be co-optimized within a single device boundary. That usually produces a more predictable radio than a discrete approach assembled from individually strong but loosely coordinated parts.

Texas Instruments AFE7225IRGCR Core Architecture and Signal Chain

Texas Instruments AFE7225IRGCR centers on a dual-transmit, dual-receive mixed-signal architecture built for flexible IF and direct-sampling radio chains. Its value is not just the presence of two DACs and two ADCs, but the way digital upconversion, downconversion, correction, and clocking are coupled around them. The device is best understood as a programmable signal-conditioning pipeline rather than a simple converter pair. That distinction matters in real designs, because system performance is often limited less by nominal converter resolution and more by how efficiently frequency translation, filtering, mismatch correction, and clock-domain handling are executed around the converters.

On the transmit side, each channel is based on a 12-bit DAC path supported by interpolation filters, digital mixers, and local frequency-generation resources. This allows a lower-rate baseband stream to be spectrally shaped, translated, and presented to the DAC in a form better aligned with the target reconstruction bandwidth. Interpolation is not merely a rate increase stage. It pushes image content farther away from the desired band, relaxes analog reconstruction filtering, and reduces the burden on downstream RF stages. In practice, this usually creates more layout and filter margin than the nominal data sheet description suggests, especially when the following analog chain must balance bandwidth, insertion loss, and stopband rejection within a constrained PCB area.

The transmit mixer structure combines coarse and fine tuning resources. This layered mixing approach gives the architecture two important advantages. First, large frequency placement can be handled efficiently with coarse translation. Second, residual offset and precise channel placement can be corrected with fine numerically controlled oscillator control. In engineering terms, this reduces unnecessary digital processing overhead when only small frequency adjustments are required, while still preserving enough tuning granularity for multiband or offset-IF transmit plans. It also simplifies calibration flows, because frequency positioning and quadrature correction do not need to be forced into a single compensation mechanism.

The receive side uses a 12-bit ADC signal path with decimation, digital mixing, and correction blocks integrated after the sampling front end. The key architectural feature is that the ADC path is designed to accept analog inputs from baseband to roughly 230 MHz through undersampling. This is a strong system-level capability. It allows the designer to place an IF in a region that better matches available filters, local oscillators, or front-end gain stages, instead of locking the architecture into zero-IF only. In many radio implementations, this flexibility is what resolves practical conflicts between DC offset sensitivity, LO leakage, flicker-noise exposure, and analog filter realizability.

Undersampling support is often misunderstood as a purely mathematical convenience. In reality, it changes partitioning decisions across the whole receiver. When the analog input frequency is intentionally aliased into a lower Nyquist zone, the front-end filter becomes the gatekeeper for spectral cleanliness. Wanted energy and unwanted blockers must be managed before the ADC, because the converter will faithfully fold both. The AFE7225IRGCR architecture is therefore most effective when paired with a disciplined front-end selectivity strategy. A common design error is to focus on ADC input frequency capability without budgeting the anti-alias filter transition band and blocker power. In practice, those two factors usually determine whether undersampling improves the design or merely relocates the problem.

Digital downconversion in the receive path follows a similarly layered structure. Coarse and fine mixers, together with decimation filters, convert the sampled spectrum into a lower-rate digital stream suitable for baseband processing. Decimation is functionally the inverse of interpolation in the transmit chain, but in implementation it is often even more critical. It removes out-of-band quantization products and translated noise before they contaminate lower-rate processing stages. This is especially relevant when the desired receive bandwidth is narrow relative to the sampled input spectrum. The internal filtering chain can therefore save substantial external FPGA effort, reduce interface bandwidth, and simplify deterministic latency management between the analog front end and digital modem logic.

Quadrature modulation correction, including gain, offset, and phase adjustment, is one of the more strategically important blocks in the device. QMC is often treated as a cleanup feature, but in systems using I/Q modulation and demodulation it directly affects image rejection, constellation quality, and calibration stability over process and temperature drift. Independent correction of gain mismatch, DC offset, and phase skew lets the architecture compensate nonidealities that would otherwise appear as sideband leakage or EVM degradation. In real operating conditions, even modest channel asymmetry in routing, transformer balance, or amplifier response can become visible in the spectral mask. An integrated correction engine allows those imperfections to be trimmed digitally, which is generally more repeatable than attempting to remove all imbalance in passive analog structures alone.

Half-band filters inside the chain deserve attention because they represent an efficient method for rate conversion with low computational overhead. Their sparse coefficient structure reduces implementation cost while still providing useful stopband behavior for staged interpolation and decimation. In a practical signal chain, this matters because every filter stage contributes latency, power, and passband ripple. The architecture’s use of half-band resources suggests a design optimized around common communication bandwidths where multi-stage rate conversion is preferable to one large monolithic filter. This is usually the right tradeoff. It keeps individual stages manageable and gives better control over spur placement and interface rates.

The independent numerically controlled oscillators for RX and TX paths support frequency planning without forcing a shared translation scheme. That independence is more valuable than it appears at first glance. In transceiver subsystems, transmit and receive often operate with different IFs, different calibration offsets, or different diagnostic modes. Separate NCO control allows the device to absorb these asymmetries internally. It also helps during bring-up. One path can be swept, muted, or offset for characterization without disturbing the other. This tends to reduce debug time when isolating whether a spur is coming from the clock tree, a mixer image, or an external synthesizer interaction.

Power meter resources, including RMS and peak measurement blocks, add observability directly inside the signal path. This is not merely a convenience feature. Embedded measurement points help verify digital signal amplitude, crest factor, and overload behavior without requiring all diagnostics to be inferred through external capture equipment. RMS measurements are useful for average power control and digital gain alignment. Peak measurements are important for identifying clipping exposure in modulated waveforms with high peak-to-average ratios. In practical transmitter tuning, these internal monitors can reveal whether distortion is being created by digital full-scale excursions, DAC overdrive, or later analog compression. That distinction saves time because each failure mode demands a different corrective action.

Clock divide and multiply functions are another important part of the core architecture. Mixed-signal devices succeed or fail on clock integrity. Frequency planning inside the AFE7225IRGCR is not just about generating the required rates, but about managing jitter transfer, converter timing relationships, and deterministic behavior across interpolation and decimation domains. Internal clock conditioning can simplify board-level design, but it does not remove the need for disciplined source-clock quality. In systems aiming for high SFDR or low EVM, poor reference-clock phase noise often presents itself as a converter problem even when the real limitation is upstream. A useful engineering rule is to treat clock architecture as part of the signal chain, not as a support function. This device’s integrated clock management helps, but only when the external reference network is designed with comparable rigor.

The 8-deep FIFO in the transmit path may seem minor compared with the converter and mixer resources, yet it has real system value. It provides elasticity between the upstream digital interface and the converter processing chain, helping absorb short timing variations and easing data alignment. In FPGA-connected systems, this often reduces sensitivity to interface skew and startup sequencing. During integration, small buffering resources like this can be the difference between a clean deterministic path and a design that works only under narrow timing conditions. The FIFO does not replace proper interface timing closure, but it adds resilience where practical systems usually need it most.

A useful way to view the full device is as a set of independently steerable processing islands around a converter backbone. Many of the internal functions can be enabled, bypassed, or tuned separately. This matters for power and performance optimization. Not every deployment needs every block active. A narrowband IF transmitter may rely heavily on digital mixing and interpolation while bypassing functions that serve direct-baseband operation. A receiver intended for undersampled IF acquisition may prioritize decimation and correction while leaving other resources minimally engaged. This configurable granularity is often more important than raw converter count because it lets the same hardware platform support multiple waveform plans or product variants with limited redesign.

From an application perspective, the architecture fits well in radio designs that sit between pure RF transceivers and raw GSPS converter solutions. It is particularly strong when the system requires moderate analog complexity but significant digital frequency-planning freedom. Examples include IF-sampling transmitters, diversity receivers, compact software-defined radios, and multistage wireless infrastructure paths where a clean partition between analog front end and digital modem is needed. The device is especially effective when the designer wants to shift complexity from analog mixers and filters into digitally controlled conversion stages without fully abandoning IF-based signal planning.

One practical lesson with architectures like this is that flexibility expands the solution space, but also increases the number of wrong configurations. The most reliable implementation flow starts with frequency planning, then filter placement, then clock quality analysis, and only after that moves to register-level feature enablement. If this order is reversed, the design can become register-correct but system-wrong. The AFE7225IRGCR gives enough internal control that a disciplined top-down plan is rewarded. Without that plan, image placement, alias selection, and correction settings can interact in ways that obscure the root cause of performance loss.

The strongest aspect of the AFE7225IRGCR is therefore not any single specification. It is the architectural balance between converter capability, embedded digital translation, correction depth, and operational configurability. The dual TX and dual RX paths provide the channel count. The interpolation and decimation chains provide spectral shaping. The coarse and fine mixers provide placement accuracy. QMC and monitoring resources provide maintainability. The clock and buffering blocks provide implementation stability. Taken together, these elements make the device suitable for signal chains where frequency agility, manageable analog filtering, and repeatable calibration are more valuable than a simplistic converter-only view would suggest.

Texas Instruments AFE7225IRGCR Transmit Path Capabilities

Texas Instruments AFE7225IRGCR includes a transmit path built around two 12-bit current-steering DACs, each supporting sample rates up to 250 MSPS. This capability is not just a raw speed metric. It defines the practical signal bandwidth, the flexibility of digital frequency planning, and the amount of analog simplification that can be pushed downstream. In compact radio designs, that combination is often more valuable than DAC resolution alone, because system performance is usually constrained by spectral compliance, interface cleanliness, and calibration headroom rather than nominal converter bit depth.

At the front of the TX chain, the device accepts baseband data and applies digital processing before conversion to analog current. The integrated interpolation stages, selectable at 2× or 4×, play a central role in this path. Interpolation raises the effective DAC update rate relative to the incoming sample stream, which reduces the throughput pressure on the upstream baseband processor or FPGA. More importantly, it shifts image components farther away from the desired band, making the reconstruction problem easier. In practical transmitter implementations, this often translates into less aggressive analog filtering, lower insertion loss in the output network, and more freedom when balancing stopband rejection against passband flatness.

That interpolation block also has a system-level effect that is easy to underestimate. When the digital source can run at a lower rate while the DAC still operates at a higher effective rate, clock distribution and interface timing often become more manageable. This tends to improve implementation margin on dense boards, especially where multiple high-speed domains coexist. In multi-device radio platforms, that margin can become the difference between a design that scales cleanly and one that requires repeated timing closure work.

The TX datapath extends beyond interpolation. Texas Instruments integrates inverse SINC compensation, coarse mixing, fine mixing, and quadrature modulation correction. Together, these blocks make the transmit path much closer to a small digital upconversion engine than a simple DAC pair. This is a meaningful distinction. A discrete DAC without these functions forces more correction and frequency translation into the baseband processor. By moving those operations into the converter device, the AFE7225IRGCR reduces upstream computational burden and can shorten the path between waveform generation and calibrated RF output.

Inverse SINC processing is particularly useful because DACs inherently exhibit a sin(x)/x frequency response due to zero-order hold behavior. As output frequency increases toward Nyquist, amplitude droop becomes more pronounced. Inverse SINC compensation pre-emphasizes the digital signal to counter that roll-off. The result is a flatter in-band response at the analog output, which is valuable in wideband modulation schemes where gain variation across the occupied channel directly affects EVM and spectral mask margin. In bench work, this function often reduces the amount of equalization that would otherwise need to be implemented earlier in the signal chain.

The coarse mixer with ±Fs/4 operation is an efficient mechanism for spectral translation. Mixing by a quarter of the sampling rate is attractive because it can be implemented with very low hardware complexity, typically using sign changes and I/Q swapping rather than a full multiplier structure. That makes it computationally inexpensive and deterministic. In radio architectures that generate an intermediate frequency digitally, this feature can eliminate a substantial amount of FPGA logic. It is especially effective when the target IF aligns naturally with the sampling plan, allowing the transmit chain to move a baseband waveform into a useful spectral region before analog reconstruction.

The fine mixer adds another layer of frequency agility. Where the coarse mixer provides efficient fixed-ratio shifting, the fine mixer supports more precise digital frequency placement. This is valuable when channelization, offset correction, or agile frequency planning is required. In practice, the combined use of coarse and fine mixing gives the design team two useful degrees of freedom: one for minimizing resource cost and another for tightening channel placement. That split is often helpful during system bring-up, because frequency plan changes can be absorbed digitally without forcing board-level modifications.

Quadrature modulation correction addresses one of the most persistent impairments in I/Q transmitters: amplitude imbalance and phase mismatch between signal paths. Left uncorrected, these errors generate image products and degrade modulation quality. Integrating this correction in the TX path allows impairments to be suppressed before the signal reaches the analog interface, where correction becomes more difficult and less stable. This is one of the more practical advantages of the device. Once a transmitter moves from simulation to hardware, small asymmetries in routing, transformer balance, gain stages, and bias networks almost always appear. A digital correction mechanism near the DAC boundary provides a cleaner and more repeatable way to close those errors.

The analog output structure is equally important. Each DAC channel provides differential current outputs: IOUTP_A_DAC and IOUTN_A_DAC for channel A, and IOUTP_B_DAC and IOUTN_B_DAC for channel B. A differential current-output DAC gives the downstream designer several implementation choices. It can feed a transformer-coupled interface, a differential load network, or an active stage optimized for current-input behavior. This output style is well suited to radio transmitters because it naturally supports common-mode noise rejection and helps maintain signal symmetry at the analog launch point. That symmetry matters. Any imbalance introduced immediately after the DAC tends to propagate through the rest of the chain and can reappear later as unwanted spurs, degraded ACPR, or poorer image suppression.

The DAC full-scale current is programmed through the BIASJ pin with an external resistor to ground. A 960 Ω resistor sets a full-scale output current of 20 mA, as specified in the documentation. This programmability is more than a convenience feature. It directly influences the voltage swing developed across the external load network, the linearity operating point seen by subsequent stages, and the tradeoff between output power and distortion. In transmit-chain integration, choosing the maximum current blindly is not always optimal. A lower full-scale setting can sometimes improve the behavior of the reconstruction network or preserve headroom in the next stage, especially when the downstream path already provides ample gain. Designs that target clean spectral performance usually benefit from treating DAC current as part of the linearity budget rather than as a standalone amplitude knob.

The current-output interface also affects filter design. With differential DAC outputs, the reconstruction network often serves multiple purposes at once: current-to-voltage conversion, image suppression, impedance transformation, and harmonic shaping. Because these functions are coupled, the DAC load seen by the chip should be evaluated as part of the total transmit path rather than as an isolated termination problem. A recurring issue in dense RF boards is that a theoretically correct filter response does not always produce the best transmitter performance once parasitics, transformer imbalance, and return-current paths are included. In that context, the AFE7225IRGCR’s predictable differential current outputs give a stable starting point for iterative optimization.

From an application perspective, the transmit path is well aligned with radios that need digital IF generation, moderate to wide instantaneous bandwidth, and compact implementation. Small-cell infrastructure, narrow-to-midband software-defined radios, private wireless platforms, and instrumentation transmitters are typical examples. In these systems, the integrated interpolation and mixing functions can reduce FPGA utilization, while the correction blocks improve tolerance to analog mismatch. That combination often lowers design risk more effectively than chasing incremental converter resolution, because it removes multiple error sources from the system boundary at once.

A practical pattern emerges during integration. The digital functions usually make early bring-up easier, but the final transmitter quality still depends heavily on how the DAC outputs are translated into the next analog domain. Short, symmetric routing from IOUTP/IOUTN pairs, tight control of return paths around the output network, and careful placement of the BIASJ resistor all contribute to stable behavior. If these details are neglected, the available digital correction can end up compensating for board-induced issues that should have been prevented structurally. That is rarely the best use of correction range. The strongest designs use the digital features to trim residual error, not to rescue weak analog execution.

Viewed as a whole, the AFE7225IRGCR transmit path is best understood as a mixed-signal boundary optimizer. The dual 12-bit, 250 MSPS DACs provide the conversion engine, but the real value comes from how the interpolation, inverse SINC, mixers, and quadrature correction reshape the partition between digital processing and analog RF hardware. That partition is where many transmitter designs either become elegant or become fragile. This device gives enough control on the digital side to simplify the analog side, while still preserving the analog programmability needed to fit real output networks and RF stages. For engineering teams building compact transmitters, that is the capability that matters most.

Texas Instruments AFE7225IRGCR Receive Path Capabilities

Texas Instruments AFE7225IRGCR provides a receive path built for compact radio architectures that need moderate-to-high intermediate-frequency flexibility without pushing excessive signal-processing burden into the FPGA. Its RX section integrates two 12-bit ADCs running up to 125 MSPS, then extends that conversion stage with embedded digital conditioning and downconversion resources. The result is not just a pair of data converters, but a partially self-contained receive subsystem that can accept wideband analog content, translate it digitally, and deliver a more processing-ready signal stream to the baseband domain.

At the front end, the dual ADC structure enables two synchronized receive channels. This is useful in direct I/Q sampling arrangements, dual-branch diversity receivers, and multi-channel radio designs where phase alignment across channels matters. The 12-bit resolution places the device in a practical balance zone: high enough to support respectable dynamic range and signal fidelity in infrastructure-class links, yet still compatible with manageable power and interface complexity. In many real deployments, this balance matters more than headline resolution alone, because clock quality, front-end linearity, and digital correction usually dominate actual receiver performance once the converter crosses a certain threshold.

The stated analog input capability, from baseband to roughly 230 MHz using undersampling, is one of the more important architectural features. It allows the receiver to digitize signals that are not strictly near DC, provided the sampling plan is chosen carefully and alias placement is controlled. In engineering terms, this creates freedom in analog partitioning. A designer can keep a low-IF or moderate-IF receive chain and still land the signal in the digital domain without requiring an additional analog quadrature demodulator stage. That often reduces BOM count, relaxes LO distribution complexity, and avoids some of the gain and phase mismatch problems that appear when analog I/Q splitting is done externally.

Undersampling, however, is only beneficial when treated as a system-level decision rather than a converter checkbox. The input network, anti-alias filtering, and clock phase noise all become tightly coupled. With a 125 MSPS ADC, placing a 200+ MHz signal into a usable aliased zone is straightforward mathematically, but the achievable SNR and blocker tolerance will depend strongly on the cleanliness of the sample clock and the selectivity ahead of the ADC. In practice, designs that exploit the upper part of the stated input range usually perform best when the analog filtering strategy is built around the intended Nyquist image from the start, rather than adapted late in the layout cycle.

Each receive channel uses differential analog inputs, with INP_A_ADC/INN_A_ADC for channel A and INP_B_ADC/INN_B_ADC for channel B. Differential signaling is not just a pin-level preference. It directly improves immunity to common-mode noise, reduces even-order distortion sensitivity, and better matches the internal ADC sampling structure. For RF and IF interface design, this means the preceding amplifier or transformer stage should be treated as part of the converter environment, not as a generic signal source. The quality of amplitude balance, source impedance symmetry, and routing symmetry into these pins can materially affect SFDR and channel matching.

The VCM output, nominally around 0.95 V, is a small but highly practical integration feature. It provides the intended common-mode reference for the ADC input interface, making it easier to bias AC-coupled or actively driven input networks correctly. This is especially useful when the receive path includes differential amplifiers whose output common-mode must align closely with the ADC’s sampling input range. In board-level implementation, using the converter’s own common-mode reference often avoids unnecessary tuning iterations. A mismatched common-mode target may still appear functional in bench testing, but it can quietly degrade headroom, worsen distortion near full scale, or create asymmetric clipping behavior under blocker conditions. This is one of those details that tends to determine whether a receiver merely works or remains stable across process, temperature, and signal variation.

Beyond conversion, the receive datapath includes several integrated DSP blocks: QMC correction, offset correction, gain and phase adjustment, coarse mixing with ±Fs/4 options, fine mixing, and half-band filtering tied to decimation by 2. These functions are significant because they address the exact impairments and transformations that usually accumulate around a practical radio receiver.

QMC correction is particularly relevant in quadrature signal chains. Gain mismatch and phase mismatch between I and Q paths create image leakage, degrade error vector magnitude, and weaken adjacent-channel rejection after downconversion. By integrating QMC correction, the AFE7225IRGCR allows these imperfections to be compensated digitally inside the receive device rather than fully absorbed by downstream logic. This is valuable both for direct-conversion systems and for sampled-IF systems that ultimately reconstruct complex baseband internally. The main advantage is not only resource savings. It also shortens the calibration loop, because the correction acts closer to the point where distortion enters the digital chain.

Offset adjustment addresses another recurring issue in mixed-signal receivers: DC terms generated by analog gain stages, sampling artifacts, or LO-related leakage in zero-IF-style signal plans. Even when the target waveform is not centered at DC in the analog domain, digital translation can move offsets into a more harmful location. Removing or trimming them before later baseband stages prevents downstream saturation and reduces unnecessary burden on AGC and demodulation blocks. In systems with strong near-zero-frequency content, this becomes less of a convenience and more of a prerequisite for preserving usable dynamic range.

Gain and phase adjustment extend the device’s utility in multi-path alignment and calibration-sensitive applications. These controls help normalize channel behavior without requiring every mismatch to be solved in the analog front end. That is important in compact radios where PCB density, thermal gradients, and component spread can introduce measurable skew between channels. A useful design pattern is to reserve analog design effort for preserving linearity and noise figure, then use the integrated digital correction to handle residual tracking errors. That allocation usually leads to a more robust receiver than chasing perfect analog symmetry at escalating cost.

The coarse mixer with ±Fs/4 options is a smart low-cost translation mechanism. Mixing by a quarter of the sample rate is computationally efficient because it can often be implemented with sign changes and I/Q swapping rather than full multipliers. In a receive chain, this is useful for quickly repositioning a band of interest away from a problematic spectral zone or toward baseband before finer numerically controlled translation is applied. It is a simple feature on paper, but in practice it can simplify frequency planning and reduce logic utilization when the incoming IF is intentionally chosen around a quarter-rate relationship.

Fine mixing then provides the precision needed to place the desired signal exactly where the demodulator expects it. This layered mixing structure is one of the more practical aspects of the AFE7225IRGCR receive path. Coarse translation handles the heavy repositioning efficiently, while fine mixing resolves the remaining frequency offset with much higher granularity. From a system perspective, this split is useful because it enables flexible IF selection without forcing all frequency agility into the FPGA. It also improves maintainability of the digital design, since much of the receiver frequency-plan behavior remains localized inside the analog front-end device.

The half-band filter and decimation-by-2 stage complete the transition from raw sampled data toward usable baseband-rate information. Decimation reduces output data rate, which immediately eases interface bandwidth and downstream processing load. The associated half-band filtering is equally important because decimation without adequate prefiltering would fold unwanted spectral content into the reduced-rate signal. In this architecture, filtering and rate reduction are paired as they should be. That pairing matters in systems where the FPGA is already budgeted tightly for packet processing, forward error correction, or beamforming support. Removing even one early decimation/filter stage from the external logic can have a noticeable effect on overall timing closure and power budget.

For quadrature-modulated waveforms, the combined effect of QMC, mixing, gain/phase trim, and decimation can substantially simplify digital receiver implementation. Instead of exporting high-rate raw ADC streams and reconstructing a full digital downconversion chain externally, the device can deliver a signal that is already partially aligned, translated, and bandwidth-managed. This reduction in external workload is especially relevant in point-to-point radios and small-cell equipment, where channel counts, thermal limits, and enclosure size often force aggressive partitioning decisions. In such systems, integration is valuable not simply because it saves components, but because it reduces the number of interfaces where mismatch, latency uncertainty, and clock-domain complexity can accumulate.

Point-to-point radios often operate under tight spectral masks while also facing long-link sensitivity requirements. In that environment, receive-chain quality is shaped by a combination of linearity, image suppression, and calibration stability. The AFE7225IRGCR receive path supports this by moving several calibration-sensitive functions into a device that already owns the converter timing and digital transition point. Small-cell equipment benefits in a slightly different way. There, the emphasis is often on dense integration, lower power, and reduced digital overhead across many deployed units. Internal decimation and digital downconversion help contain both data movement and logic footprint, which scales better across volume platforms.

A practical implementation detail is that the value of these integrated RX functions depends heavily on calibration strategy. Devices with internal correction blocks deliver the best results when the system architecture exposes a clean way to estimate offset, gain imbalance, and phase error under realistic signal conditions. Static factory trim is often not enough in temperature-varying outdoor radios or compact indoor platforms with uneven thermal loading. A more effective approach is to combine careful analog layout, low-jitter sampling clock design, and periodic digital recalibration. When those pieces are aligned, the receive path behaves less like a generic ADC interface and more like a controlled signal-conditioning stage.

Another important perspective is that integration does not eliminate analog discipline; it shifts where that discipline pays off. Because the AFE7225IRGCR can absorb part of the digital downconversion chain, the remaining analog tasks should focus on what cannot be repaired later: noise figure, blocker resilience, source matching, and clock purity. This is where the strongest designs usually differentiate themselves. It is rarely optimal to use integrated correction as a substitute for a weak front end. It is far more effective to use it as a refinement layer on top of a sound analog and clocking foundation.

Seen this way, the AFE7225IRGCR receive path is best understood as a bridge between RF/IF sampling and digital baseband preparation. The dual 12-bit 125 MSPS ADCs provide the acquisition point. Differential inputs and the 0.95 V VCM output support clean electrical integration. Undersampling support extends frequency-planning flexibility up to about 230 MHz input. Internal QMC, offset, gain/phase correction, coarse and fine mixing, and half-band decimation reduce the amount of custom receiver logic required downstream. For radio designs that need compact implementation without giving up meaningful receive-chain control, this combination is well judged and system-oriented.

Texas Instruments AFE7225IRGCR Digital Processing and Radio Optimization Features

Texas Instruments AFE7225IRGCR stands out not only as a high-speed analog front end, but as a radio-centric signal-conditioning device that absorbs a meaningful part of the digital correction and frequency-planning workload usually pushed into the FPGA or baseband processor. That matters because in many RF platforms, raw converter performance is only part of the design problem. The larger challenge is preserving modulation accuracy, managing image energy, keeping latency predictable, and exposing enough observability to support calibration and field operation without inflating system complexity. The AFE7225IRGCR addresses these points through an integrated set of digital processing features: interpolation and decimation, quadrature modulation correction, independent RX and TX mixers with dedicated NCOs, and embedded RMS/peak power measurement.

At the signal-path level, interpolation and decimation are more than rate-change blocks. They define how efficiently the converter can interface with the rest of the radio chain. Interpolation on transmit allows a lower-rate baseband stream to be mapped into the converter’s higher-speed domain while shaping spectral replicas and easing host-side data throughput. Decimation on receive performs the inverse role, reducing transport bandwidth while preserving the useful signal band and suppressing out-of-band energy before it reaches downstream demodulation stages. In practice, this built-in sample-rate adaptation can materially reduce FPGA fabric usage, especially in multichannel radios where every extra filter stage compounds into routing pressure, clocking difficulty, and power consumption. When these functions are located close to the converter boundary, the partition between analog, mixed-signal, and digital domains becomes cleaner and easier to validate.

Quadrature modulation correction is one of the most practically valuable features in this class of device. In ideal IQ systems, the I and Q paths have identical gain, exactly 90-degree phase separation, and zero DC offset. Real hardware never meets that condition. Small mismatches in amplitude, phase, and offset create image leakage, carrier feedthrough, and degraded error vector magnitude. These effects are not isolated impairments; they interact with PA nonlinearity, LO leakage, analog filter asymmetry, and PCB routing imbalance. As a result, even a modest uncorrected IQ error often expands into a larger system-level margin problem. Integrated QMC changes that equation by enabling correction at the point where the impairment is most naturally represented. This tends to be more efficient than trying to compensate later in a more abstract signal-processing layer, where the error is already mixed with other distortions.

In transmit chains, the benefit is usually seen first in spectral cleanliness and modulation fidelity. Better IQ balance improves image rejection and lowers residual sideband artifacts, which directly supports compliance with adjacent-channel and emission requirements. In receive chains, QMC helps preserve constellation quality and lowers demodulation sensitivity to analog mismatch. This is especially relevant in architectures that cannot justify extensive production calibration time. A recurring issue in volume radio programs is that every extra calibration dimension adds not only test time, but also storage, traceability, and long-term drift management. When the front end provides native correction capability, the calibration strategy can be simplified from a broad analog compensation exercise into a smaller set of targeted adjustments. That usually leads to better repeatability across temperature and board variation.

The independent numerically controlled oscillators on the receive and transmit paths add another layer of architectural flexibility. Separate RX and TX NCOs allow frequency translation to be tuned independently for each direction, which is valuable in systems that are not fully symmetric. Many radios look balanced on a block diagram but diverge quickly once synthesizer step size, IF placement, anti-alias constraints, duplex spacing, and blocker environment are accounted for. Independent frequency translation supports these asymmetries without forcing unnecessary compromise into the local oscillator plan. This makes the AFE7225IRGCR suitable for architectures such as low-IF transmit with direct-IF receive, offset-IF schemes intended to move spurs away from critical bands, or designs where one path must preserve a different margin against analog filter roll-off than the other.

The practical advantage of embedded NCOs is not only flexibility, but controllability. Fine frequency translation in the digital domain is deterministic, repeatable, and easier to sweep during characterization than equivalent changes made through external analog retuning. During integration, this can shorten the path to a working frequency plan because image locations, passband placement, and digital filter interactions can be explored without repeatedly changing external hardware conditions. It also helps when a design must be adapted across regional bands or product variants. Rather than redesigning the entire RF partition, the same hardware can often be repositioned within a family of operating bands through adjusted digital mixing and filtering settings, provided the analog front-end bandwidth remains adequate.

The RMS and peak power metering functions deserve more attention than they typically receive in converter selection. In a radio system, embedded power observability is not just a convenience feature. It is a control input. RMS measurement provides a stable view of average signal energy, useful for gain alignment, transmit power normalization, and receive-level monitoring. Peak measurement exposes crest behavior, transient overload risk, and compression onset that average power metrics can miss. Together, these measurements support a more informed operating strategy across both lab characterization and deployed equipment. A transmitter can use them to verify level consistency before the signal reaches a sensitive analog stage. A receiver can use them to flag overload conditions early, before clipping propagates into demodulation failure or misleading diagnostics.

This observability has a strong system-level effect because it reduces the need for separate analog monitoring paths. Extra detector circuits, couplers, and ADC channels increase component count, board area, calibration burden, and fault surface. When useful power information is already available inside the signal-processing path, control loops can often be closed with fewer external resources. That is particularly attractive in compact radios where board density and thermal headroom are already constrained. It also improves maintainability. Fault signatures such as rising gain imbalance, intermittent overload, or unexpected power drift become easier to isolate when the front end itself can report meaningful internal behavior rather than simply delivering digitized samples and leaving all interpretation to external logic.

From an engineering perspective, the strongest aspect of this feature set is how well the blocks complement each other. Interpolation and decimation manage data-rate alignment. QMC corrects a core analog imperfection in the IQ domain. Independent NCOs provide frequency-plan freedom. Power meters expose operating state. These are not isolated check-box functions. They form a coherent radio-optimization layer between the converter core and the rest of the system. That layer often determines whether the surrounding design becomes elegant or fragile. Devices that only convert signals force the rest of the platform to absorb correction, monitoring, and adaptation overhead elsewhere. Devices like the AFE7225IRGCR shift part of that burden inward, where the signal representation is still structured and correction is comparatively efficient.

A useful way to think about the AFE7225IRGCR is as a mixed-signal integration point rather than a standalone data-converter component. In early design phases, this can simplify partitioning decisions. Instead of asking how much digital compensation must be built around the front end, the better question is how much of the radio’s repeatable behavior can be anchored inside the front end itself. That shift usually produces cleaner interfaces between RF, FPGA, and control software teams. It also tends to improve scalability when channel count grows, because integrated correction and monitoring features scale more gracefully than equivalent external implementations replicated across multiple lanes.

For designs where EVM, image rejection, frequency agility, and serviceability all matter at once, the digital processing resources in the Texas Instruments AFE7225IRGCR are not peripheral advantages. They directly influence integration risk, calibration strategy, and long-term operational robustness. In many cases, that is the difference between a converter that merely fits the sampling requirements and one that materially improves the radio architecture around it.

Texas Instruments AFE7225IRGCR Clocking, Synchronization, and Duplex Operation

Texas Instruments AFE7225IRGCR integrates a clocking and synchronization framework that is more than a simple timing interface. It is the mechanism that binds converter latency, digital framing, duplex behavior, and power-state transitions into a repeatable RF signal chain. In practice, the quality of this subsystem often determines whether the device behaves like a predictable mixed-signal endpoint or like a source of intermittent alignment errors that only appear during startup, mode switching, or multi-device synchronization.

The primary timing reference enters through CLKINP and CLKINN. These pins support differential clock drive, which is typically the preferred mode when phase noise, common-mode disturbance rejection, and edge fidelity matter. A differential clock path reduces susceptibility to board-level coupling and supply-induced modulation, both of which can directly degrade converter performance and digital interface margin. In systems with aggressive RF density or fast digital edges nearby, this matters because the converter does not merely sample amplitude; it also inherits timing uncertainty. Any excess jitter on the sampling clock translates into degraded SNR, especially as input frequency rises. That relationship is fundamental, but in implementation it is often underestimated until the measured dynamic range falls short of simulation.

The device also allows flexibility in how the clock inputs are used. In single-ended 2-clock mode, CLKINP and CLKINN can be assigned separately to RX and TX timing roles. This is useful when receive and transmit paths need to track different timing domains or when system partitioning makes it easier to distribute clocks independently. That flexibility can simplify integration with heterogeneous baseband logic, but it also raises the bar for timing discipline. Once TX and RX are allowed to reference distinct clock paths, the designer must think beyond nominal frequency and consider divider reset behavior, domain crossing implications, and repeatability of phase relationships after reset or wakeup. A design can be functionally correct and still fail deterministic alignment requirements if these details are not controlled.

Clock divide and multiply functionality inside the AFE7225IRGCR extends this timing flexibility. Internally derived clocks help match external references to the sampling and interface rates required by the device without forcing excessive clock-generation complexity upstream. This is useful in radio architectures where one high-quality master reference must feed multiple devices, each with slightly different timing needs. However, using internal clock transformation is not purely a convenience feature. Divider topology, reset state, and synchronization timing all affect whether the generated clocks come up with deterministic phase. In multi-channel radios, especially where beamforming, diversity combining, or coherent transmit operation is involved, deterministic phase on every startup is often more valuable than raw frequency programmability. A clock tree that is mathematically correct but startup-variable can quietly break system-level coherence.

This is where the SYNC input becomes structurally important. SYNC resets internal clock dividers and also resets the TX data FIFO pointer. That dual action aligns both timing generation and data-path framing. In a synchronized radio, this is not just a reset pulse; it is the event that establishes a known relationship between incoming digital samples, internal converter activity, and external timing references. When multiple conversion paths must start from the same temporal origin, resetting only one layer of the chain is insufficient. Divider phase may be known while FIFO alignment is not, or the reverse. The AFE7225IRGCR addresses this by allowing both to be re-established together.

In multi-device deployments, the practical value of SYNC appears during startup sequencing and recovery from transient faults. A system may distribute a common reference clock perfectly, yet still show channel-to-channel phase inconsistency if each device begins counting dividers at a different instant or if TX framing pointers are not coherently reset. The usual symptom is not total failure. It is a subtle and repeatable-looking mismatch that shifts between power cycles, making debug slow. A clean synchronization strategy therefore treats SYNC as part of the clock architecture, not as an afterthought GPIO event. Routing, edge placement relative to the reference clock, and consistency of reset release all affect final alignment quality.

A useful engineering pattern is to define a strict sequence: stabilize the reference clock, release device reset, allow clock paths to settle, then assert SYNC in a controlled and common manner across all participating devices. This sequence reduces ambiguity in divider state and digital framing position. In dense boards, it is also worth minimizing skew on the SYNC distribution path, especially when deterministic inter-channel phase is required. The timing window may be forgiving at the logical level, but small skew differences can become visible when converters and digital front ends are expected to behave coherently across several RF paths. Many difficult bring-up issues are ultimately traced not to the RF design itself, but to an implicit assumption that a shared clock alone guarantees shared timing state.

The TX data FIFO reset behavior deserves specific attention. FIFO pointers sit at the boundary between continuous streaming logic and converter-timed data consumption. If the pointer state is not deterministic, transmit latency can vary by one or more interface cycles even when the analog path is unchanged. In burst-based systems, this can manifest as symbol timing slip or a phase offset between repeated transmissions. Resetting the FIFO through SYNC helps remove that uncertainty. The broader point is that latency determinism in mixed-signal devices is usually a chain property. It depends on clocks, resets, framing, and buffer state all being controlled together. The AFE7225IRGCR provides hooks for this, but the system designer still has to use them deliberately.

The duplex operation support is another area where the device’s control model has direct architectural consequences. The PDN pin can be programmed for several behaviors: global powerdown for deep sleep, a fast-recovery light-sleep mode, or TX/RX switching. This is a practical feature because duplex strategy is rarely just a protocol decision. It affects average power, thermal profile, state transition latency, and sometimes even calibration persistence. A deep-sleep mode is attractive when energy consumption dominates and wake events are infrequent. Light sleep is better when the radio must return to operation quickly and cannot afford the settling delay associated with reinitializing larger portions of the analog chain. Using PDN as a TX/RX switch is particularly relevant in half-duplex systems where active-path ownership alternates and the hardware must transition cleanly without carrying unnecessary power overhead.

The distinction between these modes becomes clearer when viewed through internal state retention and recovery time. Deep powerdown generally maximizes power savings by disabling more circuitry, but it often requires a longer wake sequence because bias networks, clock-related state, and data-path readiness must all re-establish. Light sleep trades some standby power for a shorter path back to valid conversion or transmission. That trade is often favorable in duty-cycled radios where the idle periods are short relative to the time it takes to fully restart the signal chain. The engineering mistake is to choose the lowest static-power mode without accounting for transition energy and latency. In burst traffic, a supposedly efficient mode can lose its advantage if repeated wakeups dominate the power budget or if each wake event forces guard intervals that reduce useful throughput.

When PDN is used for TX/RX switching, timing discipline again matters. The switch itself is simple at the pin level, but the surrounding system behavior is not. RF front-end control, digital data availability, clock continuity, and synchronization state must all be aligned so that the active path is valid at the moment the duplex transition occurs. If the baseband starts transmitting before the TX chain is fully settled, spectral regrowth or amplitude transient artifacts may appear at the burst edge. If the RX path is enabled before residual TX-related conditions have decayed, the first receive samples may be corrupted. Good implementation therefore treats duplex switching as a coordinated state machine rather than an isolated pin toggle.

In portable and battery-sensitive radios, this control flexibility supports aggressive power management. Selectively activating only the required circuitry often matters more than chasing the last increment of converter headline performance. The practical objective is usually energy per delivered bit or energy per useful sensing interval, not simply lowest instantaneous current. Fast wake capability can make a compact radio feel continuously responsive while still spending most of its life in a reduced-power state. The hidden constraint is wake determinism: the timing from PDN transition to valid data path must be characterized well enough that protocol scheduling and RF control remain reliable over temperature, process variation, and supply movement. Designs that skip this characterization often compensate with oversized timing margins, and those margins quietly erase much of the intended power benefit.

In infrastructure and higher-duty-cycle systems, the same mechanisms serve a different optimization target. Here the challenge is less about battery life and more about thermal management, efficiency under asymmetric traffic, and keeping latency predictable during burst-heavy operation. It is common for transmit activity to be uneven across time or across sectors. Being able to reduce power in inactive sections without disturbing synchronization of active ones can improve thermal balance and reduce unnecessary dissipation. This is especially relevant in compact multi-channel assemblies where local heating shifts analog performance and can indirectly affect calibration stability. Fine-grained control over sleep depth and path activation therefore becomes part of system robustness, not just a power-saving feature.

A useful design perspective is to treat clocking, synchronization, and duplex control as one coupled subsystem. They are often documented separately, but in real deployments they interact strongly. Clock generation defines phase noise and sample timing quality. Synchronization defines whether that timing is repeatable across channels and startups. Duplex control defines whether those timing relationships survive mode transitions with bounded latency. If any one of the three is handled casually, the others lose much of their value. A low-jitter reference is less useful if divider state is non-deterministic. A perfect SYNC scheme is less useful if power-state transitions disturb readiness in an uncontrolled way. The AFE7225IRGCR is most effective when these functions are designed together from the beginning of the system architecture.

For implementation, a few practices consistently pay off. Use the cleanest practical clock source and preserve its integrity through routing, termination, and isolation from noisy digital aggressors. Prefer differential clocking unless there is a clear reason not to. Define an explicit startup and resynchronization sequence and validate it over repeated power cycles rather than only in a single successful bring-up. Characterize wake latency for each PDN mode under realistic operating conditions, including temperature corners and burst timing. If multiple devices share timing, verify not only frequency lock but also deterministic phase and transmit latency alignment after every reset scenario that can occur in the field. These steps are not elaborate, but they prevent the class of problems that are hardest to diagnose later because they sit between digital correctness and analog performance.

The strength of the AFE7225IRGCR in this area is not merely that it provides clock pins, a SYNC input, and powerdown control. Its real value is that these features enable deterministic behavior in systems that would otherwise drift into startup variability, channel misalignment, or inefficient duplex transitions. That capability is increasingly important as RF platforms become more integrated, more timing-sensitive, and more constrained by both power and thermal budgets. In that context, disciplined use of the device’s clocking, synchronization, and duplex features is not secondary configuration work. It is a primary tool for making the overall radio behave predictably under real operating conditions.

Texas Instruments AFE7225IRGCR Auxiliary Conversion and Monitoring Resources

Texas Instruments AFE7225IRGCR includes more than its primary transmit and receive conversion paths. It also integrates two SPI-accessible 12-bit auxiliary DACs and a dual-input 12-bit auxiliary ADC. These resources extend the device from a signal-conversion component into a more capable mixed-signal control and observability node inside the radio chain.

The two auxiliary DAC outputs, AUXDAC_A and AUXDAC_B, provide programmable analog outputs with up to 7.5 mA source capability. At a functional level, these DACs solve a common integration problem in RF systems: many surrounding analog blocks still require slow-moving but accurate control voltages or current-driven bias references, even when the main signal path is highly digital. By embedding these outputs in the AFE7225IRGCR, the design can eliminate separate low-speed DAC devices, reduce routing overhead, and centralize control under the same serial management interface already used for the main front-end configuration.

In practice, these DACs fit naturally into bias generation, VGA or driver-stage setpoint control, external attenuator alignment, loop tuning, and threshold/reference programming for nearby analog support circuits. This is especially useful in architectures where several operating points must be trimmed during production test or adjusted dynamically across temperature and frequency bands. A local programmable DAC often becomes the simplest way to stabilize analog behavior without adding a dedicated power-management or housekeeping IC. In dense radio layouts, this also helps reduce inter-device dependency and simplifies startup sequencing because the same device that manages RF conversion can also establish key analog operating conditions.

The 7.5 mA source capability is particularly relevant. It means the auxiliary outputs are not limited to purely high-impedance reference injection. They can directly support a broader class of bias and control nodes, provided the load behavior is understood and the interface is designed within compliance limits. In real implementations, this matters because many “control-voltage” nets are less ideal than they first appear. They may include resistor ladders, compensation capacitors, transistor bias networks, or protection components that create transient loading. Having moderate drive strength at the DAC output improves robustness and reduces the need for an additional buffer in many cases. Even when buffering is still preferred, the integrated DAC remains useful because it defines the operating point with fewer external components and tighter software visibility.

The dual-input auxiliary ADC addresses the other half of the control problem: observability. RF front ends often contain several analog nodes that do not justify a dedicated data-acquisition subsystem but still need to be measured for calibration, fault handling, or environmental tracking. AUXADC_A and AUXADC_B provide an efficient path for this. Rather than treating monitoring as an external support function, the AFE7225IRGCR brings it into the same device context as gain control, converter configuration, and radio-state management. This tends to produce cleaner system partitioning, because measurement and response can be coordinated through one serial-control framework.

Typical measurement targets include power-detector outputs, supply-derived monitor nodes, thermal sensor voltages, PLL-related health indicators, PA or driver bias feedback, and various loop-control signals. These are not high-bandwidth acquisition tasks, but they are operationally important. For example, a detector voltage can confirm whether commanded transmit gain maps correctly to actual RF output. A temperature-dependent node can support compensation tables for bias drift. A supply monitor can provide early indication of rail sag under burst load conditions. A feedback voltage from an external control loop can expose whether tuning has settled where expected. The integrated auxiliary ADC is well suited to these classes of supervisory measurements.

A useful way to view the auxiliary ADC is as a calibration and protection enabler rather than only a monitor. In many radios, the main challenge is not lack of signal-path performance but the difficulty of maintaining that performance across process spread, board variation, and thermal movement. Low-speed observability at a few critical analog nodes often delivers disproportionate system value. It enables closed-loop correction schemes with minimal hardware cost. It also shortens debug cycles, because software can inspect internal and adjacent analog conditions directly instead of relying only on lab instrumentation or indirect inference from RF output behavior.

The serial accessibility of both the auxiliary DACs and ADC is an important architectural detail. It means these functions can be tied into the same register-driven initialization, calibration, and runtime management flow used elsewhere in the device. That reduces software fragmentation. During bring-up, bias points can be swept, detector responses recorded, and optimal settings stored without involving multiple control buses or separate peripheral drivers. During field operation, the host can periodically sample monitor nodes and adjust the DAC outputs to compensate slow drift. This creates a simple but effective embedded control layer around the high-speed RF conversion path.

From an engineering standpoint, the strongest value of these auxiliary resources appears when they are treated as part of a system-level control loop. A practical example is transmit chain stabilization. One auxiliary DAC can set the bias or gain-control reference for an external analog stage, while one auxiliary ADC input reads a coupled detector or feedback node. Software then applies a lightweight correction algorithm to maintain output consistency across temperature or supply movement. Another common use is board-level health supervision: the DAC establishes a threshold or tuning point, while the ADC verifies that a monitored node remains inside expected operating range. These patterns reduce the number of discrete support devices and make the radio front end more self-aware.

There is also a layout and BOM advantage that should not be underestimated. In mixed-signal RF boards, every additional housekeeping converter adds routing, noise-coupling risk, power-supply filtering requirements, and software complexity. Integrating auxiliary conversion resources inside the AFE7225IRGCR keeps slow analog control physically and logically closer to the RF interface they support. That often simplifies grounding strategy and improves maintainability, especially in compact designs where board area and interconnect discipline are both constrained.

Care is still required when assigning functions to these auxiliary channels. The auxiliary DACs are best used for low-bandwidth control and bias tasks rather than precision references for highly noise-sensitive paths unless external filtering and buffering are evaluated carefully. Likewise, the auxiliary ADC should be mapped to signals whose bandwidth, source impedance, and required accuracy match its intended monitoring role. In practice, the most reliable designs reserve these resources for supervisory functions with strong system payoff: bias trim, detector readback, temperature tracking, supply awareness, and loop verification. Using them this way avoids overextending their role while capturing most of their integration benefit.

Viewed in full, the auxiliary 12-bit DACs and dual-input 12-bit ADC significantly broaden the role of the Texas Instruments AFE7225IRGCR. They allow the device to influence external analog operating points, observe key system conditions, and participate directly in calibration and housekeeping functions. That makes the part more than a TX/RX converter pair. It becomes a compact control-and-monitoring anchor for the surrounding radio subsystem, which is often exactly what determines whether an RF design is merely functional or operationally well behaved.

Texas Instruments AFE7225IRGCR Interface Options: CMOS and LVDS

Texas Instruments positions the AFE7225IRGCR as a flexible mixed-signal front end not only because of its RF data-conversion capability, but also because of its digital interface options. The device supports parallel CMOS and serial LVDS, with documentation covering both CMOS input/output mode and LVDS input/output mode pin assignments. This is more than a packaging convenience. In practice, the interface choice directly shapes FPGA connectivity, PCB layer usage, clocking strategy, timing closure effort, and overall system margin.

At the signal level, the two interface styles solve the same transport problem in very different ways. CMOS mode moves data as single-ended parallel words. LVDS mode moves data over differential pairs with serialized transport and framing. The tradeoff is therefore not simply “easy versus robust.” It is a deeper architectural choice between wider buses with simpler endpoint logic and narrower high-speed links with stronger electrical behavior.

In CMOS mode, the transmit path accepts DACDATA[11:0] together with DAC_DCLKIN, and the receive path outputs ADCDATA[11:0] with ADC_DCLKOUT. SYNCIN is used for synchronization control. This arrangement is straightforward to understand and usually straightforward to bring up. A digital host can present or capture a 12-bit sample bus per clock edge with limited serialization overhead. For compact layouts, moderate clock rates, and well-controlled return paths, this can shorten development time because debug visibility is high. Logic analyzers, FPGA I/O monitors, and timing inspection are all simpler when each bit is physically exposed.

That simplicity has a physical cost. A 12-bit parallel path plus clock and sync consumes a meaningful number of pins and routes. Once both TX and RX paths are considered, routing density rises quickly. Bus skew becomes a first-order concern, especially when trace lengths spread across multiple layers or pass through via-heavy escape regions. The apparent simplicity of CMOS often shifts complexity into board implementation. At lower rates this is manageable. At higher rates, setup and hold margins can erode faster than expected because single-ended signaling is more exposed to simultaneous switching noise, crosstalk, reference bounce, and duty-cycle distortion.

LVDS mode addresses those weaknesses by changing the transport model. Instead of exposing a broad single-ended bus, the AFE7225IRGCR maps data onto differential pairs. The TX side uses channel-specific differential data inputs along with differential frame clock and bit clock inputs. The RX side provides differential data outputs, frame clock outputs, and bit clock outputs. A differential SYNC input is also available. The device supports one-wire and two-wire mapping, which gives designers flexibility in balancing lane rate, FPGA pin count, and serializer/deserializer resource allocation.

Differential signaling provides stronger common-mode noise rejection and lower radiated emissions than comparable single-ended buses. That matters immediately when the converter interface runs near noisy digital regions, crosses connectors, or shares space with sensitive RF and clock networks. LVDS also reduces the pin burden for high-throughput transport. In dense radio designs, that reduction often creates room for cleaner power distribution and less congested breakout routing, which can improve overall performance more than the interface change alone suggests.

The one-wire versus two-wire option is especially useful from a system partitioning perspective. One-wire mapping generally reduces lane count but pushes higher bit rate per pair, increasing pressure on signal integrity, clock quality, and FPGA deserialization timing. Two-wire mapping relaxes per-lane speed at the cost of more pairs and more pins. In many designs, the better choice depends less on the AFE itself and more on the digital companion device. If the FPGA has abundant LVDS-capable pins but limited high-speed timing margin, two-wire mapping can be the cleaner implementation. If pin count is constrained and board reach is short, one-wire mapping may be more efficient.

Clocking deserves close attention because it is where interface decisions become system decisions. In CMOS mode, the relationship between data and clock is conceptually direct, but board-induced skew can dominate timing. The designer must keep the entire bus length-matched tightly enough that all bits meet capture timing at the receiver across process, voltage, and temperature corners. In LVDS mode, the embedded framing structure and differential bit clock improve resilience, but serializer alignment, frame interpretation, and FPGA input delay calibration become central. LVDS usually buys better electrical margin while demanding more disciplined receiver configuration.

Synchronization is another area where the interface style influences behavior beyond raw transport. SYNCIN in CMOS mode is simple to route and observe, but it shares the same single-ended susceptibility as the data path. Differential SYNC in LVDS mode is more robust in electrically harsh environments and typically behaves better when deterministic alignment across channels matters. In multi-device radio architectures, that extra margin can reduce subtle startup inconsistencies that are hard to reproduce in lab conditions.

From a board-design standpoint, CMOS is often the right answer only when its assumptions remain true across the full product envelope. Very short trace lengths, quiet reference planes, modest edge rates, and a nearby baseband device make CMOS attractive. Under those conditions, the reduced protocol complexity and direct visibility can accelerate bring-up. It is common to see faster first-pass success when the converter and FPGA sit within a compact placement window and the board stackup is simple.

Once the layout grows, however, LVDS starts to dominate for practical reasons. Differential pairs tolerate real-world routing better than wide single-ended buses. They contain EMI more effectively, interact more gracefully with connectors, and preserve timing integrity over longer paths. In systems with mezzanine cards, remote processing modules, or mixed analog-digital partitioning, LVDS is often the safer choice even when CMOS appears feasible on paper. The hidden value is not only cleaner eye margins. It is reduced sensitivity to second-order layout imperfections that tend to surface late in validation.

There is also a useful engineering pattern here. CMOS usually minimizes logical complexity but maximizes physical exposure. LVDS does the opposite. That inversion is important during architecture selection. Teams sometimes choose CMOS because the interface diagram looks simpler, then spend disproportionate effort on SI cleanup, timing exceptions, and re-layout iterations. In contrast, LVDS may demand more careful FPGA interface planning up front, but it often returns that effort as better predictability during hardware integration.

For product selection engineers, the decision should therefore be anchored in system constraints rather than interface familiarity. If the digital baseband is local, the sample rate budget is moderate, the PCB is compact, and development priorities favor direct observability, CMOS remains a reasonable choice. If interface speed is higher, routing is longer, EMI compliance is tight, or the design must remain robust across multiple PCB variants, LVDS is usually the stronger fit. The AFE7225IRGCR is valuable because it leaves both paths open, allowing the same converter platform to scale across different baseband devices and board topologies without forcing an early lock-in.

A practical way to evaluate the choice is to treat the interface as part of the full signal chain rather than as a digital afterthought. Count not only pins, but also matched-length requirements, available FPGA I/O standards, clock-tree quality, rework risk, connector presence, and expected EMC margin. In several designs of this class, the interface that looked cheaper in schematic form became more expensive after accounting for stackup complexity and debug time. That pattern tends to favor LVDS as designs move from prototype density to production-grade robustness.

The AFE7225IRGCR’s support for parallel CMOS, serial LVDS, and interleaved parallel CMOS arrangements makes it adaptable to a broad set of implementation styles. That flexibility is most useful when treated as an optimization lever. CMOS aligns well with localized, lower-complexity integration. LVDS aligns with performance-oriented, higher-integrity transport. Choosing correctly means matching the electrical behavior of the interface to the physical reality of the platform, not just matching pins between devices.

Texas Instruments AFE7225IRGCR Power Rails, Package, and Thermal/Grounding Considerations

Texas Instruments AFE7225IRGCR uses a deliberately segmented power architecture. Its analog rails operate from 2.85 V to 3.6 V, while its digital domain operates at 1.8 V. Within that split, the device further separates supply entry points for the RX ADC analog section, TX DAC analog section, auxiliary analog circuitry, DAC digital logic, clock-related circuitry, and the digital interface. This is not just a pinout detail. It is a performance model implemented at package level.

In mixed-signal RF devices, supply partitioning exists to control where noise is generated, how it propagates, and where it is allowed to return. Sensitive analog blocks such as converters, clock conditioning paths, and bias networks react strongly to broadband rail disturbance, low-frequency ripple, and transient ground movement. Digital logic, by contrast, produces fast current edges and spectral content that can spread far beyond the nominal clock rate. If these domains share impedance too early, the result is rarely limited to a simple rise in noise floor. It often appears as degraded SFDR, clock-related spurs, converter linearity loss, and unstable behavior that only emerges under specific transmit or receive loading conditions.

The practical implication is that the multiple supply pins should be treated as separate current ecosystems until they reach a controlled common origin. That origin is typically the board-level power distribution network and ground system, not the local copper immediately around the package. A common design mistake is to merge rails too aggressively near the device because the nominal voltages match. Electrically, equal voltage does not mean equal noise tolerance. The RX ADC analog rail, TX DAC analog rail, and clock supply may all sit in the same voltage range, yet each sees very different dynamic current signatures and imposes different spectral cleanliness requirements. Keeping them independently filtered for as long as possible usually gives more predictable RF performance than collapsing them into one broad analog plane.

A useful way to think about the rail structure is in layers. At the first layer, the silicon partitions blocks by function. At the second layer, the package exposes those partitions as dedicated pins. At the third layer, the PCB must preserve that intent through regulator selection, filtering, placement, and return-path control. If any one of those layers is flattened into a generic “3.3 V analog” implementation, the isolation benefit designed into the component is partially lost before the system is even powered.

For the analog rails, low-noise regulation matters, but impedance profile matters just as much. A rail can measure clean on a bench supply readout and still fail under converter edge activity if the local decoupling network is not tuned across frequency. The objective is not only low DC ripple. It is low supply impedance from low frequency through the spectral region where internal switching currents are strongest. This usually requires a staged decoupling structure: bulk capacitance for low-frequency support, mid-value capacitors for intermediate energy demand, and small high-frequency capacitors placed very close to each relevant supply pin group. Placement dominates capacitor value once edge rates become fast enough. A theoretically ideal capacitor placed a few centimeters away is often less effective than a modest part placed directly across the local current loop.

The 1.8 V digital domain deserves similar discipline. It is easy to classify it as less critical because it is already noisy by nature. In practice, poor treatment of the digital rail often back-injects noise into the analog core through substrate coupling, I/O transitions, and shared return inductance. The digital interface supply and DAC digital supply should therefore be seen as controlled aggressors. They need local decoupling, short current loops, and clean return paths that do not force switching current under the most sensitive analog regions. When interface timing margins are tight, rail bounce on the digital side can also show up as deterministic jitter or data-correlated spur behavior, which can be misdiagnosed as a clocking issue.

The clocking supply is especially important. In converters and RF front-end devices, clock purity often determines whether the rest of the analog path can deliver its theoretical performance. Even when clock amplitude and nominal frequency are correct, supply contamination on the clock circuitry can translate into phase noise and aperture uncertainty. This is one of the reasons the clock-related supply pin should not be treated as a generic branch from a noisy rail. A quiet regulator, or at least a strong post-filter stage, is often justified here. In high-performance layouts, the clock supply is frequently given more isolation than other analog support rails because its errors distribute into the entire conversion process rather than remaining local.

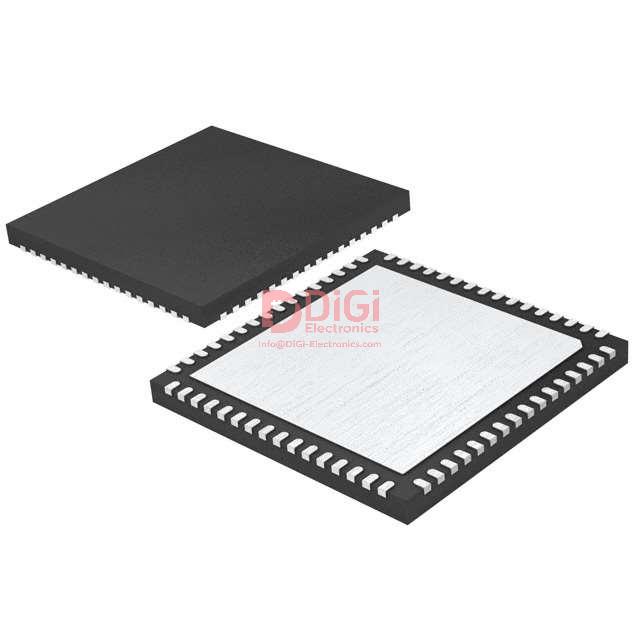

The package reinforces these electrical requirements. AFE7225IRGCR is housed in a 64-pin VQFN/QFN package measuring 9 mm × 9 mm with an exposed thermal pad. That exposed pad is not only a mechanical and thermal convenience. It is a primary electrical structure. It connects the device to the board ground pad, forming a low-impedance return reference and a heat-spreading path. If that pad is poorly attached, segmented by solder voiding, or connected to ground through an insufficient via network, both thermal and electrical behavior deteriorate.

For mixed-signal RF layouts, the exposed pad should be viewed as the center of local ground integrity. High-frequency return currents follow the path of least impedance, not merely the path of least resistance. That distinction matters. A sparse or badly distributed via pattern beneath the pad increases inductance, weakens return continuity, and raises the likelihood of domain-to-domain coupling inside and around the package footprint. TX activity can then modulate RX reference stability. Digital interface transitions can inject disturbances into converter return paths. The resulting symptoms are often intermittent and operating-point dependent, which makes them expensive to debug after fabrication.

A robust implementation usually includes a solid ground pad under the device, stitched to an uninterrupted ground plane with multiple short vias. The via pattern should balance solderability, thermal transfer, and RF return quality. Excessively large open vias can wick solder and compromise assembly. Too few vias can trap heat and raise return inductance. Filled or tented vias often improve manufacturability when density is high. The key is to build a low-inductance vertical connection from exposed pad to the main ground reference without turning the pad into a solder-process risk.

Grounding strategy around the package should also reflect current type. Analog decoupling capacitors should return directly into the nearest quiet ground region associated with the exposed pad and the underlying plane. Digital decoupling should return locally as well, but its path should be arranged so switching current does not cut across sensitive analog pin neighborhoods. This is where floorplanning matters more than schematic neatness. A clean schematic with separate net names can still produce poor isolation if the placement forces return currents to overlap beneath the device. Current loops, not net labels, determine whether the partitioning works.

Thermally, the exposed pad and ground structure affect electrical performance more than is sometimes assumed. Temperature gradients across mixed-signal devices can shift bias points, alter matching, and change dynamic performance under sustained TX load. In compact RF assemblies, a board may pass initial functional test yet show measurable drift once adjacent power amplifiers or processing devices heat the local area. A strong thermal path through the exposed pad into the ground plane reduces these gradients and improves repeatability. Better thermal grounding often produces cleaner analog behavior even before absolute junction temperature becomes a reliability concern.

In practice, rail planning for this device benefits from assigning priority by sensitivity rather than by convenience. Clock and converter-related analog rails generally deserve the quietest path. TX DAC analog supply may need additional attention if large-signal behavior is critical. RX ADC analog supply usually benefits from insulation from both transmit burst current and interface activity. Auxiliary analog supply should not be ignored, because support circuitry often influences reference stability, bias consistency, or monitoring accuracy. The digital supplies should be kept compact, well-decoupled, and prevented from using analog regions as return corridors.

There is also a broader design principle here. With parts like AFE7225IRGCR, package pins tell a story about internal coupling risks. When a vendor exposes multiple rails and requires the thermal pad to be tightly grounded, the device is effectively providing a map of where performance can be preserved or lost. Board design should follow that map with discipline. Treat each rail according to the noise it emits, the noise it can tolerate, and the path its return current will actually take. Treat the exposed pad as the electrical anchor of the component, not just the thermal one. When those choices are made early, layout becomes simpler, debug becomes shorter, and the analog performance available in the silicon is much more likely to appear at system level.

Texas Instruments AFE7225IRGCR Pin-Level Design Points That Matter in System Integration

Texas Instruments AFE7225IRGCR includes several pins whose behavior is simple at first glance but system-critical once the device is placed in a real RF signal chain. These pins do not just expose static electrical functions. They define gain reference points, bias conditions, control-state behavior, reset boundaries, and digital interface timing assumptions. In practice, most integration delays with mixed-signal front ends come from exactly these boundaries, where analog intent, digital control, and board-level implementation intersect.

The BIASJ pin is one of the most important gain-setting nodes in the device because it establishes the TX DAC full-scale current. The documented 960 Ω resistor to ground corresponds to 20 mA full scale, so this is not a passive recommendation. It is effectively part of the converter calibration framework. Changing the resistor changes the DAC output current, which directly shifts the analog drive level presented to the following reconstruction, filtering, or upconversion stages. That change propagates into gain budget, linearity margin, and output compliance planning.

From an engineering standpoint, BIASJ should be treated as a precision analog reference pin rather than a generic resistor-programmed node. Resistor tolerance, temperature coefficient, local grounding quality, and noise coupling all matter. A loose tolerance may appear acceptable in isolation, but it translates into deterministic amplitude variation between boards and temperature corners. That variation then reappears as calibration spread at system level. In high-channel-density platforms, this often becomes visible as lane-to-lane transmit power mismatch rather than an obvious converter problem. A practical way to avoid that drift is to allocate a precision resistor with controlled tempco, place it close to the pin, and return it to a quiet analog ground region. This usually costs very little but prevents downstream gain compensation from becoming unnecessarily complex.

There is also a broader architectural implication. Teams often attempt to recover output amplitude later through digital scaling, VGA adjustment, or RF gain trimming. That works only to a point. If BIASJ is not set correctly, the DAC itself operates at a different current swing, and that alters not just nominal amplitude but the analog operating envelope seen by later stages. In other words, BIASJ belongs at the foundation of transmit amplitude planning, not at the end of calibration cleanup.

The VCM pin plays an equally important role on the receive side. It provides the ADC input common-mode reference, nominally around 0.95 V, and that defines the intended bias point for the differential input interface. The value itself is not the only issue. The main point is that the ADC input network is designed to work around this common-mode operating point, so the external front end should not impose a conflicting bias condition.

This simplifies design only if the interface is constructed with discipline. When the driver, transformer network, AC-coupling structure, or anti-alias path does not settle to the expected common-mode level, the ADC can be pushed away from its linear region even while differential amplitude still appears valid on a scope. That kind of error is subtle because the waveform looks active and balanced, yet distortion, clipping asymmetry, or degraded SFDR emerges in measurement. In bring-up, this often gets misdiagnosed as clocking or digital formatting trouble when the root cause is simply incorrect input common-mode establishment.

A robust interpretation is to use VCM as the analog reference anchor for the receive interface, while ensuring it is not overloaded or contaminated by aggressive routing around it. If the front end is AC-coupled, the bias restoration path must settle cleanly to the converter’s required operating point. If the front end is DC-coupled, then the driver stage must be checked not only for voltage range but for common-mode accuracy across process and temperature. The practical lesson is that common-mode compatibility should be verified as carefully as gain and bandwidth. In high-performance converters, common-mode is not housekeeping. It is part of the signal path.

The PDN pin deserves early architectural definition because it is not a single-purpose shutdown input. It can be configured for deep sleep, light sleep, or TX/RX switching, which means the pin’s meaning depends on the intended platform behavior. This has direct implications for hardware pull states, power sequencing assumptions, firmware state machines, and even test strategy. If this decision is deferred, the same pin can be interpreted differently by schematic design, CPLD or FPGA logic, and software initialization code, creating startup ambiguity that is difficult to isolate later.

Deep sleep, light sleep, and path switching are not interchangeable at system level. They imply different wake latencies, bias retention behavior, interface readiness, and thermal profiles. A design that expects immediate path availability after a PDN transition may fail if firmware later uses a lower-power mode with slower recovery. Conversely, using the pin as a mode switch can simplify external control but only if every reset, boot, and fault-recovery sequence accounts for the alternate pin semantics. This is why PDN should be defined in the platform control specification, not just in the schematic notes.

In practice, unstable startup behavior often traces back to pins like PDN being left with “temporary” usage assumptions. A floating or weakly defined state at power-up can place the AFE into an unintended mode before SPI programming begins. Once that happens, later software writes may appear ineffective because the device is not in the expected internal state. The cleanest approach is to assign explicit default logic levels, document the selected PDN role in the hardware-software interface, and verify transitions on the bench with timing capture rather than relying only on register readback.

RESET is another pin that requires precise interpretation. It resets the SPI interface, not the entire signal chain in a broad sense. This distinction is easy to overlook because the label suggests a global recovery mechanism. In reality, designers need to separate serial communication recovery from signal-path alignment and deterministic timing control. If the issue is an SPI transaction fault, RESET may be the right tool. If the issue is data framing, sample alignment, or multi-device synchronization, the relevant mechanism is elsewhere, especially through SYNC.

That boundary matters during debug. If a system loses deterministic phase alignment or channel timing coherence, repeatedly toggling RESET may restore SPI visibility without restoring converter timing relationships. This can create false confidence because the device responds over the serial port, yet the sampled data or transmit alignment remains wrong. For systems using multiple converters, phased arrays, or coherent transceiver paths, this distinction becomes operationally critical. RESET clears communication state. SYNC establishes timing relationships. Treating them as equivalent usually extends bring-up time.

A useful design habit is to classify each control pin by recovery domain: communication domain, signal-processing domain, power-state domain, or synchronization domain. Under that lens, RESET and SYNC clearly serve different purposes. Once this model is adopted, fault handling becomes cleaner. Firmware can decide whether it needs SPI reinitialization, path resynchronization, or full power-state cycling, instead of issuing generic resets and hoping the hardware returns to a known condition.

The LVDS interface introduces another class of integration risk because the wire mapping changes between one-wire and two-wire operation, and frame-clock and bit-clock naming can be misleading if copied too quickly into schematics or FPGA constraints. This is a classic source of avoidable errors. The electrical interface may be correct, signal integrity may be acceptable, and link activity may still fail because lane ordering or edge interpretation does not match the selected mode.

The key issue is not only pin connectivity but the mapping model used by the digital receiver. One-wire and two-wire modes change serialization assumptions, so the FPGA deserializer, framing logic, and test-pattern validation method must all align with the selected operating mode. Frame and bit clock polarity conventions should also be verified against actual launch/capture timing rather than names alone. In mixed-vendor environments, signal names that look equivalent often encode opposite assumptions about active edge, clock direction, or framing reference. This is especially dangerous when reference designs are adapted without preserving the original mode context.

A disciplined implementation flow helps here. First lock the converter LVDS mode. Then derive the lane map directly from that mode. Then bind FPGA pin constraints and deserializer settings to that exact map. Finally verify with known digital patterns before introducing live RF signals. This ordering prevents a common failure pattern in which analog teams validate the front end while digital teams are still correcting swapped lanes or inverted clock assumptions. When the interface is checked early with deterministic patterns, later RF debugging becomes far more efficient.

Across all of these pins, the deeper pattern is that the AFE7225IRGCR is less sensitive to isolated component values than to interpretation errors at functional boundaries. BIASJ defines analog scale. VCM defines input operating context. PDN defines power-state meaning. RESET defines reset scope. LVDS pins define data interpretation. Each one is a boundary condition. When those boundary conditions are explicit in the design package, integration tends to be routine. When they are left implicit, the hardware may still assemble correctly, yet bring-up becomes dominated by behavior that looks inconsistent but is actually undocumented.

For that reason, the most effective review approach is pin-intent review rather than pin-connectivity review. The question is not only whether a pin is wired. The question is whether its system role is fully defined, electrically supported, and reflected in firmware and FPGA behavior. That shift in review style usually catches the issues that matter before they appear on the bench.

Texas Instruments AFE7225IRGCR Application Fit for Portable and Infrastructure Radios

Texas Instruments positions the AFE7225IRGCR for portable low-power radios, wireless infrastructure point-to-point radios, and pico-cell base-station designs. That positioning is technically coherent because these systems face the same core constraint set: limited power budget, strict spectral performance targets, compact board area, and pressure to simplify the boundary between RF, analog, and digital processing. The device fits well where the architecture benefits from a tightly integrated transmit/receive signal chain rather than a heavily discrete implementation.

At the device level, the AFE7225IRGCR is attractive because it consolidates several functions that are often spread across multiple ICs. Integrated mixers, data-conversion support functions, interpolation and decimation filtering, and digital frequency translation reduce the need for external glue logic and lower the number of high-speed interfaces crossing the board. That matters beyond simple BOM reduction. Every removed interface usually cuts clock-distribution complexity, eases timing closure, and reduces sensitivity to layout-induced coupling. In mixed-signal radio designs, integration is often less about saving components and more about shrinking the number of places where performance can degrade.

In portable low-power radios, this integration directly supports energy-aware operation. The architecture allows more signal conditioning to occur inside the front-end path, so the external processor or FPGA does not need to remain active for every filtering or frequency-shift task. Fast wakeup is especially relevant here. In duty-cycled radios, wakeup latency is often as important as steady-state current because the effective power budget is dominated by transition overhead. A front end that settles quickly enables shorter active windows and cleaner burst behavior. In practice, this tends to simplify system scheduling as well, since the baseband does not need to reserve excessive guard time for analog stabilization.

Portable designs also benefit from a less fragmented signal chain because small form factors amplify every integration mistake. When frequency translation, filtering, and channelization are distributed across several devices, clock spurs, ground return issues, and mismatch between analog and digital gain stages become harder to control. A more consolidated front end narrows those interactions. The result is not just lower power, but a more predictable radio that is easier to tune across temperature, battery-voltage variation, and manufacturing spread.

For point-to-point radios, the value proposition shifts toward bandwidth handling, IF flexibility, and implementation density. These systems often use IF-based architectures to balance selectivity, image management, and digital processing cost. The AFE7225IRGCR supports that approach by combining wideband mixed-signal capability with digital upconversion and downconversion features. Digital frequency translation is particularly useful in channel planning because it allows the designer to place signal bands more flexibly without requiring a full analog redesign. That can be important when the same hardware platform must cover multiple regulatory channel plans or regional frequency allocations.

This flexibility has a second-order benefit in infrastructure development. During bring-up, IF placement and filter response rarely land in their ideal state on the first pass. A front end with digital translation and rate-conversion headroom gives more room to absorb those early-stage mismatches. In many radio programs, that margin shortens iteration cycles because compensation can be moved into digital configuration rather than forced into a board respin. The practical advantage is not only performance optimization, but schedule protection.

In compact point-to-point equipment, physical implementation also matters. High-speed converter interfaces, local oscillator routing, and FPGA pin budgeting often become bottlenecks before pure RF performance does. A device that consolidates dual transmit and dual receive signal paths can reduce routing congestion and make clock-tree design more disciplined. That usually improves reproducibility between prototypes and production units. In dense RF boards, cleaner partitioning often translates into fewer late-stage surprises than a nominally higher-performance but more distributed architecture.

For pico-cell BTS applications, the AFE7225IRGCR aligns well with the thermal and spatial constraints of dense network nodes. Pico-cell platforms need enough radio capability to support localized capacity, but they cannot afford the power and board complexity typical of larger macro infrastructure. Dual TX and dual RX channels provide a useful balance here. They support multi-path signal handling or compact multi-channel operation without forcing the designer into a large discrete front-end assembly. Low-power operation is not just a supply issue in this class of equipment; it directly affects enclosure design, airflow assumptions, long-term reliability, and deployment flexibility.

Integrated calibration-oriented capability is also highly relevant in pico-cell systems. Small cells are often deployed in environments with broad temperature swings, limited service access, and aggressive cost targets. Any feature that helps maintain gain balance, quadrature accuracy, or repeatable alignment over time reduces operational risk. In these systems, calibration should be viewed less as a lab-only optimization step and more as an architectural requirement for sustaining field performance. A front end that supports this natively tends to scale better when the node count grows and maintenance access becomes less predictable.

The strongest engineering argument for the AFE7225IRGCR is that it reduces partition complexity at exactly the interfaces where radio systems are most fragile. The handoff between RF, analog IF, data conversion, and digital baseband is where noise budgets, latency budgets, and control sequencing intersect. Designs that look efficient on a block diagram often become difficult when these boundaries are implemented across multiple components from different process domains. Consolidation helps by localizing timing assumptions, reducing external synchronization paths, and making gain and frequency planning more deterministic.

That said, integration only delivers its full value when the architecture is chosen deliberately. A highly integrated AFE is most effective when the system team is prepared to treat clocking, reference cleanliness, and digital configuration as first-class design parameters. In field experience, front-end issues are often traced less to headline specifications than to practical details such as reference spur coupling, supply sequencing, or overly optimistic assumptions about filter placement. Devices like the AFE7225IRGCR reward disciplined system design. They simplify the topology, but they also make it more important to define frequency plans, gain distribution, and calibration flow early in the project.

From a procurement perspective, the device is compelling when the goal is to collapse several mixed-signal functions into one qualified component. This can reduce sourcing complexity, shorten validation across vendor boundaries, and improve lifecycle control for long-lived radio platforms. The more important point, however, is architectural leverage. Selecting a part like this is not merely a purchasing decision; it is a decision to move complexity inward, where behavior is more characterized and usually easier to manage than an equivalent discrete chain assembled at board level.

For design teams working on portable radios, point-to-point links, or pico-cell nodes, the AFE7225IRGCR fits best in systems that need strong mixed-signal integration without giving up channel agility or implementation efficiency. Its practical value comes from enabling a cleaner radio partition: fewer external dependencies, fewer timing and routing hazards, and a more controlled path from sampled baseband to RF-facing signal conditioning. In modern radio design, that kind of controlled integration is often the difference between a design that merely functions and one that scales cleanly into production.

Potential Equivalent/Replacement Models for Texas Instruments AFE7225IRGCR

Potential equivalent or replacement models for the Texas Instruments AFE7225IRGCR must be evaluated first at the architecture level, not at the part-number level. Based strictly on the provided documentation, the closest documented candidate is the Texas Instruments AFE7222. That conclusion is not driven by nominal similarity alone. It follows from the fact that both devices are presented within the same product family and appear to share the same integrated radio front-end philosophy: dual transmit DAC paths, dual receive ADC paths, embedded digital radio processing functions, similar interface behavior, auxiliary conversion resources, and alignment with full-duplex or half-duplex wireless infrastructure designs.

This family relationship matters because, in mixed-signal RF devices, replacement feasibility is usually constrained less by isolated converter specifications and more by the interaction between digital upconversion, digital downconversion, clocking, JESD or parallel interface assumptions, analog I/O behavior, control registers, and package-level implementation. When two parts sit in the same datasheet and are positioned under the same architecture umbrella, the probability of reuse at the board, FPGA, and software layers is materially higher than with a nominally similar converter from a different lineage.

The AFE7222 is therefore best understood as the nearest documented intra-family substitute, but not as an unconditional replacement. The decisive difference identified in the documentation is converter speed. The AFE7225IRGCR provides dual 12-bit 250-MSPS transmit DACs and dual 12-bit 125-MSPS receive ADCs. The AFE7222 scales that down to dual 12-bit 130-MSPS transmit DACs and dual 12-bit 65-MSPS receive ADCs. That reduction is large enough that the substitution question becomes a system bandwidth question rather than a pin-compatibility question.

On the transmit side, the lower DAC rate in the AFE7222 directly reduces usable waveform bandwidth and narrows the margin available for digital interpolation planning. In practical radio chains, that affects more than peak sample throughput. It changes crest-factor handling, reconstruction filter placement, image separation, and the ease of meeting adjacent-channel emission targets. A design that used the AFE7225IRGCR partly for oversampling headroom may still function with the AFE7222, but often only after retuning interpolation ratios, numerically controlled oscillator placement, and analog reconstruction assumptions. This is where substitutions that look easy on paper tend to accumulate engineering cost. The converter still works, but the surrounding signal plan no longer lands in the same place.

On the receive side, the lower ADC rate in the AFE7222 has even broader architectural implications. ADC sampling rate determines not only maximum signal bandwidth but also anti-alias filter relaxation, undersampling options, digital downconversion staging, and tolerance to LO planning compromises in superheterodyne or direct-conversion variants. When a design uses the AFE7225IRGCR’s 125-MSPS receive path for bandwidth margin rather than immediate occupied bandwidth, dropping to 65 MSPS can force a full review of channelization strategy. That often shows up in unexpected places: a previously acceptable IF may no longer fit, a decimation schedule may no longer preserve wanted guard bands, or blocker behavior may worsen because the analog filter now has to do more work before digitization.

For that reason, the AFE7222 is a practical alternative only when the original design does not fundamentally depend on the AFE7225IRGCR’s higher sample-rate envelope. If the implementation uses only a modest portion of the available bandwidth and the faster device was selected mainly for family standardization, procurement simplification, or future-proofing, the AFE7222 may be workable with limited redesign. If, however, the design relies on the higher-rate device for spectral placement freedom, interpolation and decimation flexibility, or improved undersampling margin, then the AFE7222 should be treated as a reduced-performance variant rather than a drop-in replacement.

A useful way to assess feasibility is to separate the problem into four layers.

First is physical and integration compatibility. Since both parts are documented within the same family and package context, there is a reasonable basis to expect strong overlap in layout intent, power distribution philosophy, control model, and interface conventions. This is the layer where the AFE7222 appears most attractive as a substitute. It likely minimizes board disruption compared with moving to a different product family.

Second is converter and signal-chain compatibility. This is where the substitution becomes conditional. Sample-rate changes alter Nyquist zones, digital filter operating points, usable interpolation and decimation combinations, and the available spacing between desired spectrum and unwanted images. Even when bit depth remains unchanged at 12 bits, the dynamic behavior of the end system can shift because sample rate influences both digital processing latitude and analog filtering burden.

Third is radio performance compatibility. In actual transmitter and receiver deployments, the important question is not whether the lower-rate part can pass data, but whether it can preserve the original error vector magnitude, ACLR, blocker resilience, and channel bandwidth objectives under the existing clock and filtering scheme. Lower sample rates often tighten frequency-planning options. That in turn can increase sensitivity to clock purity, LO offsets, or analog filter tolerances. Designs that were comfortably robust with the AFE7225IRGCR may become sharply tuned with the AFE7222, leaving less production margin.

Fourth is firmware and FPGA adaptation. In this class of device, a replacement inside the same family is often easiest when the digital framing and register model remain highly similar. Even then, sample-rate-dependent profiles usually require retesting of initialization scripts, filter coefficients, gain alignment, latency assumptions, and any calibration loops tied to timing or bandwidth. Experience with this type of migration shows that the hardware path is rarely the main risk. The real schedule impact usually comes from revalidating digital signal-chain assumptions that were previously implicit.

From an engineering standpoint, the strongest interpretation of the provided documentation is this: the AFE7222 is the nearest documented family-level substitute for the AFE7225IRGCR, but its suitability depends almost entirely on whether the original design’s bandwidth and sampling strategy can be compressed without degrading system objectives. Family similarity lowers integration friction. It does not erase the performance gap.

No other equivalent or replacement models are identified in the provided material. That absence is important. It means any broader substitution claim would require external comparison data covering electrical characteristics, package and pin-level compatibility, software register behavior, clocking topology, and RF performance. Without that evidence, naming additional replacements would be speculative and technically weak.

Texas Instruments AFE7225IRGCR should therefore be treated as having one documented near-family alternative, the AFE7222, with a clear limitation: the alternative is credible only for designs that can tolerate substantially lower TX and RX sampling rates while preserving the intended radio architecture and performance margins.

Conclusion

The Texas Instruments AFE7225IRGCR is a highly integrated wideband mixed-signal transceiver analog front end designed for radio platforms that require two transmit paths and two receive paths within tight power, space, and interface constraints. Its value is best understood not as a collection of isolated blocks, but as a deliberately balanced RF data-conversion platform that compresses the analog, mixed-signal, and digital-assist portions of a radio chain into a single device. In practice, that integration changes system design behavior: it reduces the number of timing boundaries, shortens sensitive analog routes, simplifies calibration strategy, and makes overall performance more repeatable across builds.

At the signal-chain level, the device combines dual 12-bit 250 MSPS transmit DACs and dual 12-bit 125 MSPS receive ADCs with interpolation, decimation, digital quadrature modulation correction, integrated mixers, auxiliary converters, and selectable CMOS or LVDS digital interfaces. This architecture is well aligned with radios that must support wideband signal generation and capture while still maintaining practical board-level implementation. The important engineering point is that these functions are not merely colocated; they are arranged to reduce the friction normally seen between baseband logic, data converters, and RF translation stages. That reduction in friction often matters more than a marginal gain in standalone converter resolution or sample rate.

On the transmit side, the dual DAC paths support direct generation of high-fidelity baseband or low-IF signals for subsequent RF upconversion. The interpolation stages are especially useful because they allow the baseband processor or FPGA to run at a lower sample rate while still delivering the spectral shaping needed at the converter output. This eases digital interface pressure and can lower FPGA resource use, which is often a hidden system cost in radio designs. In dense implementations, that tradeoff becomes significant: reducing interface toggle rate helps both power integrity and EMI behavior, especially when high-speed digital buses run close to sensitive analog sections.

The receive side follows the same integration philosophy. Dual ADC channels, paired with decimation support and internal signal-conditioning features, allow the device to absorb part of the digital front-end workload that would otherwise be pushed into external logic. In receiver design, this matters because moving filtering and rate-change operations closer to the conversion boundary usually improves architectural clarity. It also narrows the number of places where gain, offset, and quadrature errors can accumulate unchecked. Systems that have to maintain channel matching across dual receive paths benefit directly from this approach, particularly in diversity, phase-coherent, or MIMO-adjacent use cases where imbalance quickly degrades usable dynamic range.

A key enabling feature is the integrated mixer structure. By embedding frequency translation support inside the AFE, the device allows designers to choose more flexible partitioning between analog RF stages and digital baseband stages. This is useful in platforms that need to cover multiple waveform bandwidths or operate under changing frequency plans. Instead of building a rigid chain around several discrete components, the design can be tuned at the architecture level. That flexibility often shortens iteration cycles during bring-up, because frequency placement, gain distribution, and interface timing can be adjusted with fewer board changes.

Quadrature modulation correction is another feature whose importance grows in actual deployment. On paper, QMC appears to be a support function. In deployed radios, it can be a decisive factor in achieving acceptable image rejection and EVM without resorting to excessive external calibration complexity. IQ mismatch is rarely caused by a single block; it emerges from converter offsets, routing asymmetry, LO distribution, analog filtering, and thermal drift. Integrating QMC into the AFE provides a localized correction point near the signal-conversion core, where compensation is both efficient and operationally meaningful. This tends to produce more stable performance than trying to correct all impairments later in the chain.

The auxiliary converters and monitoring functions deserve more attention than they typically receive. In many radio designs, observability is what separates a functional prototype from a maintainable product. Embedded monitoring simplifies power-up validation, fault tracking, and runtime health checks. It supports a more deterministic control model, especially in systems where thermal conditions, duty cycle, or supply variation can shift analog performance. During bring-up, this kind of visibility often reduces the time spent isolating whether a failure originates in clocking, biasing, digital framing, or RF path configuration. That diagnostic compression is one of the less visible but more valuable benefits of high integration.

Interface flexibility through selectable CMOS or LVDS signaling further strengthens the device’s system-level utility. Interface choice is not only about compatibility with a host processor or FPGA. It also shapes board stack-up, signal integrity strategy, power budget, and noise coupling. LVDS is often preferred when edge rates, link robustness, and common-mode noise tolerance dominate the design constraints. CMOS can remain attractive in lower-complexity or cost-sensitive implementations where trace lengths are short and timing margins are easier to control. Having both options allows the same AFE platform to span portable radios, compact modules, and larger infrastructure boards with fewer architecture changes.

Power control and synchronization capabilities are equally central to the device’s relevance. In modern radios, synchronized startup and deterministic timing are not luxury features. They are basic requirements for coherent multichannel operation, controlled burst transmission, and predictable receive window alignment. Integrating these controls inside the AFE reduces dependence on external glue logic and lowers the chance of timing inconsistencies across channels. This becomes increasingly important as systems move from single-link operation toward more adaptive and coordinated radio behavior. A converter can have strong nominal specifications and still underperform in a real radio if synchronization is left fragmented across too many components.

From a board-level engineering perspective, the strongest advantage of the AFE7225IRGCR is the way it reduces analog exposure. Every external handoff between DAC, mixer, filter, ADC, and control circuitry adds routing complexity, parasitics, and coupling opportunities. High-integration AFEs shrink those handoffs. That directly improves layout freedom and indirectly improves repeatability. In compact radio assemblies, especially where digital logic, clock distribution, and RF stages are forced into close proximity, fewer inter-device analog transitions usually translate to fewer unexpected spurs and a more manageable debug process. This is one reason integrated RF-oriented AFEs often outperform theoretically stronger discrete implementations once real PCB constraints are applied.

The device is particularly well suited to wideband portable radios, tactical or industrial communication units, compact software-defined radio nodes, and infrastructure subsystems that need a clean balance between performance and implementation efficiency. In portable equipment, the low-power and compact integration profile helps manage thermal density and battery impact. In infrastructure designs, the same integration supports higher channel density and cleaner platform standardization across product variants. A useful pattern is to treat the part as a reusable radio core rather than a single-project component. That approach tends to improve procurement consistency, firmware reuse, validation coverage, and lifecycle planning.

For procurement and platform planning, the integration level has implications beyond bill-of-material reduction. Fewer major mixed-signal components usually mean fewer supply chain dependencies, fewer vendor qualification paths, and lower assembly risk around high-pin-count or tightly coupled analog devices. It also simplifies revision control. When transmit conversion, receive conversion, signal conditioning, monitoring, and interface adaptation are consolidated in one device, platform updates can be managed with less architectural churn. That kind of stability is often more valuable than chasing small gains from piecemeal component substitution.

One practical design lesson is that devices like the AFE7225IRGCR deliver their full value only when the surrounding architecture respects the integration. If the clock tree is noisy, if power domains are casually partitioned, or if FPGA framing is treated as an afterthought, the expected benefits narrow quickly. The part reduces many forms of complexity, but it does not eliminate the need for disciplined mixed-signal design. Clean reference distribution, careful return-path planning, tight control of interface timing, and thoughtful gain staging remain essential. In other words, integration should be used to concentrate engineering effort where it matters most, not to relax it.

The AFE7225IRGCR stands out because it aligns well with what modern radio systems actually need: wideband capability, dual-channel transmit and receive support, embedded digital assistance, manageable power consumption, and flexible system interfacing in a compact footprint. Its real strength is architectural efficiency. By merging conversion, correction, monitoring, synchronization, and interface adaptability into a single RF-focused front end, it enables radio designs that are easier to scale, easier to stabilize, and often faster to bring from concept to deployment. For systems targeting wideband operation with practical power and space limits, it is not simply a capable component; it is a strong foundation for a cleaner radio design strategy.
