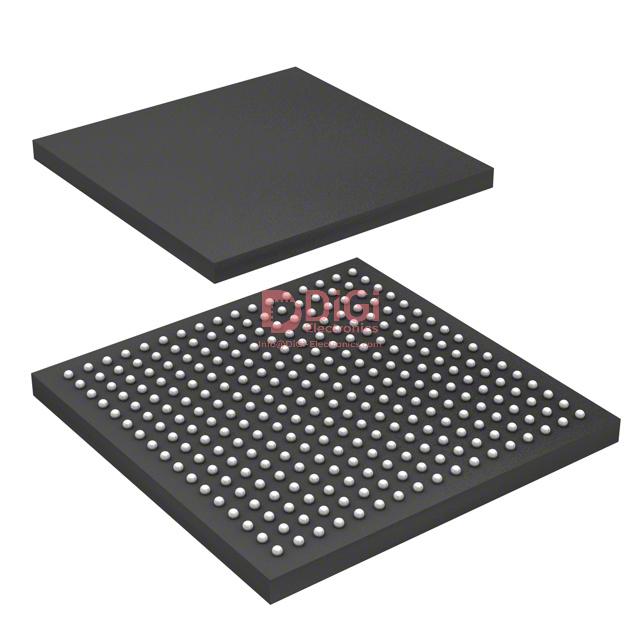

AFE5818ZBV

Texas Instruments AFE5818 Product Overview

Texas Instruments AFE5818 is a 16-channel ultrasound analog front-end built for receive chains that must capture very small echo signals without losing system-level efficiency. Its value is not just in raw specifications, but in how much of the receive signal path it collapses into one device while preserving enough programmability to fit very different imaging architectures. In practice, this matters most in systems where channel density, thermal limits, and image fidelity compete for the same design margin.

At the architectural level, the device integrates the key receive-path functions that are usually distributed across multiple analog and mixed-signal stages. Each channel includes a low-noise amplifier, voltage-controlled attenuator, programmable gain amplifier, low-pass filtering, and analog-to-digital conversion. It also includes a continuous-wave mixer path, which extends its usefulness beyond pulsed imaging into Doppler-oriented modes. This integration reduces routing complexity, interstage mismatch, and BOM size, but the more important effect is tighter control over noise accumulation across the chain. In ultrasound front ends, once the earliest stage gives away signal-to-noise ratio, later gain cannot recover it. The AFE5818 addresses this by placing low-noise amplification close to the input and surrounding it with gain-control resources that can adapt to large signal variation over depth.

The receive chain behavior is best understood as a dynamic conditioning pipeline. The low-noise amplifier establishes the initial sensitivity to weak echoes returning from deeper tissue or low-reflectivity structures. The voltage-controlled attenuator then provides time-gain-control support, which is essential because ultrasound echoes span a wide amplitude range as a function of propagation depth and attenuation path. The programmable gain amplifier refines the signal level before digitization, allowing the ADC to operate closer to its effective input range across changing echo conditions. The low-pass filter limits out-of-band content and helps manage aliasing and noise folding into the sampled band. When these functions are separated across discrete devices, interface parasitics and gain staging often become sources of avoidable performance loss. In a monolithic front end, those transitions are better managed, which usually shows up as more repeatable channel-to-channel behavior and easier calibration.

The converter section offers 14-bit resolution at up to 65 MSPS and 12-bit resolution at up to 80 MSPS. These modes are not simply speed options; they represent different optimization points for system designers. A 14-bit path is typically more aligned with applications where fine amplitude discrimination and dynamic range are central to image quality. The 12-bit higher-speed mode is useful when sampling strategy, bandwidth, or downstream processing latency has stronger priority. In real systems, effective performance is shaped as much by front-end noise, clock quality, layout discipline, and beamforming algorithms as by nominal ADC resolution. This is one reason integrated AFEs like the AFE5818 remain attractive: they narrow the number of external variables that can erode the theoretical resolution budget.

Noise performance is one of the defining characteristics of the part. Texas Instruments specifies input-referred noise down to 0.75 nV/√Hz in its optimized mode, with power dissipation around 140 mW per channel. That figure places the device in a class suitable for weak-signal receive scenarios where preserving early-stage SNR is critical. The part also supports lower-power operating points, including 91.5 mW per channel at 1.1 nV/√Hz and 40 MSPS, as well as about 80 mW per channel in CW mode. These numbers highlight an important engineering trade space: ultrasound front-end design is rarely about maximizing one metric. Lower noise improves detectability and contrast in difficult imaging conditions, but it also raises thermal load, board power density, and power-supply design pressure. In compact systems, especially portable or probe-adjacent implementations, a slightly higher noise floor can be the correct choice if it allows simpler thermal control and more stable long-duration operation.

This power-noise scalability is one of the more practical strengths of the AFE5818. In many designs, the receive path does not operate under one static condition. Imaging presets, probe type, frame rate, penetration target, and operating mode can all shift the optimal balance. A front end that allows selective movement along this curve gives the platform more flexibility than a device that is fixed at one high-performance point. That flexibility often translates into better product segmentation as well, since the same hardware can be tuned for premium image quality in one mode and more constrained power operation in another.

The continuous-wave mixer path adds another layer of relevance. Continuous-wave Doppler and related modalities place different demands on the front end than pulsed imaging. Instead of only preserving wide dynamic range for short echo captures, the chain must also support stable frequency translation and phase-sensitive extraction of flow-related information. Integrating this capability inside the same AFE simplifies multimode ultrasound designs because it avoids introducing a separate receive subsystem with its own layout, synchronization, and calibration burden. For developers working on systems that combine B-mode imaging and Doppler functionality, this integration can significantly shorten the analog design cycle.

Packaging and channel density are also central to the device’s positioning. The AFE5818 is offered in a compact 15 mm × 15 mm NFBGA package, which is highly relevant in systems scaling to many parallel receive channels. Board area is not just a mechanical concern; it directly affects trace length, crosstalk exposure, clock distribution complexity, power integrity, and thermal concentration. A dense integrated package allows more channels per unit area, but it also requires stronger discipline in PCB stack-up, decoupling placement, and escape routing. The practical benefit is greatest when the surrounding design is equally disciplined. A high-performance front end can lose measurable margin if analog inputs pass through noisy digital return paths or if reference and clock networks are treated as routine interconnects rather than precision infrastructure.

In medical ultrasound imaging, the device fits systems that need high channel count with low front-end complexity, including compact cart-based platforms and portable scanners. In nondestructive evaluation, where transducer arrays may inspect materials with highly variable acoustic responses, the low-noise chain and programmable gain behavior support better adaptation across inspection conditions. In sonar imaging, the same front-end principles apply to weak return detection and multichannel parallel acquisition. For multichannel high-speed data acquisition more broadly, the integrated conditioning-plus-conversion model is useful wherever many similar analog channels must be digitized with controlled gain and consistent timing.

A key practical consideration with a device like this is that integration reduces component count but raises the importance of system partitioning. Once the receive chain is concentrated into a single AFE, the supporting domains become the dominant performance determinants: low-jitter sampling clocks, clean reference generation, power-supply isolation, thermal spreading, and deterministic digital output capture. Designs that treat the AFE as a drop-in replacement for discrete stages often achieve functionality quickly but leave performance on the table. Better results usually come from viewing the AFE as the center of a tightly coupled signal ecosystem. That means budgeting noise from the transducer interface forward, aligning gain profiles with expected echo statistics, and validating not only peak SNR but also channel consistency over temperature and operating modes.

Another point worth emphasizing is that the AFE5818 is most effective when its programmability is used intentionally rather than generically. It is common to start with default gain and filtering assumptions, but ultrasound systems benefit from mode-specific tuning. Shallow imaging, deep penetration imaging, Doppler acquisition, and power-sensitive operation do not stress the front end in the same way. A well-tuned configuration often improves usable image performance more than a nominally better datasheet number elsewhere in the chain. This is especially true in array-based systems, where consistency across channels can matter as much as absolute performance per channel.

From an engineering perspective, the AFE5818 stands out because it addresses the real bottleneck in multichannel ultrasound receive design: maintaining weak-signal integrity while keeping the implementation compact, power-aware, and scalable. Its integrated low-noise path, flexible gain structure, dual conversion modes, and CW support make it more than a collection of blocks in one package. It is a receive-chain platform that allows the designer to trade noise, power, throughput, and board density with relatively fine control. That balance is often more valuable than headline performance alone, because successful imaging systems are built not from isolated best-case metrics, but from stable compromises that hold across probes, presets, environments, and product classes.

Texas Instruments AFE5818 Signal-Chain Architecture and Channel Integration

Texas Instruments AFE5818 is best understood as a tightly coupled 16-channel receive platform rather than a standalone data converter. Its value comes from collapsing the critical ultrasound receive path into a repeatable per-channel architecture where low-noise amplification, gain shaping, bandwidth control, digitization, and continuous-wave support are already aligned at the silicon level. That integration changes the system problem. The design task shifts away from stitching together many sensitive analog blocks and toward managing transducer interface quality, clock integrity, power cleanliness, and digital downstream processing.

Each channel is structured to preserve weak echo content while still tolerating the very large signal spread that appears across imaging depth. The LNA sets the front-end sensitivity and largely determines how much low-level information survives the first few centimeters of the receive path. In ultrasound systems, once noise is added at this stage it cannot be removed later, so the first gain block has disproportionate impact on penetration depth and contrast performance. This is why the LNA should not be viewed as a generic gain element. It is the point where transducer source impedance, input-referred noise, and overload behavior begin to define the practical ceiling of image quality.

After the initial gain stage, the VCAT provides controlled attenuation that supports time-gain compensation behavior. This is one of the more important architectural features because ultrasound echoes do not arrive with uniform amplitude. Near-field reflections can be very strong, while deeper returns may be orders of magnitude weaker due to propagation loss and tissue attenuation. A wide attenuation-control range allows the receive chain to compress this dynamic excursion before the ADC stage is stressed. In practice, this function helps avoid the usual tradeoff where gain must be reduced to protect against early overload, only to lose deep echo visibility. A well-implemented attenuation stage lets the system remain usable across shallow and deep imaging conditions without forcing excessive compromise in one region of the frame.

The PGA then rebuilds the signal to the level needed for efficient conversion. This sequence is not redundant. Placing variable attenuation and programmable gain at different points in the chain gives the designer a more useful operating envelope than a single adjustable-gain block would. It allows coarse control of signal headroom and fine control of converter drive at the same time. From an engineering perspective, this is one of the reasons integrated AFEs like AFE5818 tend to behave more predictably than discrete chains assembled from independent gain components. The gain law is not just adjustable; it is architected around real receive-path stress cases.

The LPF before digitization plays a more strategic role than simple anti-alias filtering. It defines the channel’s useful spectral window, limits out-of-band noise accumulation, and shapes the signal presented to the ADC in a way that directly affects downstream beamforming and Doppler extraction. In dense receive systems, excess bandwidth often looks harmless at first because it preserves “more signal,” but it also imports additional noise and unwanted spectral components into every channel. That penalty compounds across the array. Keeping the analog bandwidth aligned with the transducer and imaging mode usually produces cleaner data than leaving the front end unnecessarily wide.

The simultaneous-sampling ADC architecture across all 16 channels is fundamental for phase-sensitive systems. In ultrasound beamforming, the useful information is not only amplitude but precise inter-channel timing and phase coherence. If sampling edges drift across channels, the beamformer must compensate for errors that should never have existed in the first place. With simultaneous sampling, the AFE5818 maintains a consistent temporal reference across the aperture, which supports more stable focusing, cleaner aperture summation, and better Doppler sensitivity. This matters even more as array density increases, because small timing mismatches that appear negligible in isolation can accumulate into visible image blur, steering error, or spectral broadening.

A practical effect of this architecture appears during board bring-up. In discrete implementations, channel-to-channel phase mismatch often comes from many sources at once: unequal analog path lengths, component tolerances, unmatched filter behavior, and converter skew. Debug becomes slow because the error budget is distributed across the entire signal chain. With AFE5818, much of that variation is already constrained inside the device. The remaining work is typically concentrated in clocks, references, power distribution, and input routing. That is a more tractable problem, and it usually shortens the path from first hardware to usable beamformed data.

Continuous-wave support inside the same device is also significant. Ultrasound platforms rarely operate in a single acquisition mode forever. Imaging and flow measurement often coexist, and the ability to support CW processing within the same front-end family reduces architectural fragmentation. Instead of partitioning the platform into separate analog subsystems for pulsed receive and CW tasks, the design can remain more unified. That helps with BOM stability, control-software reuse, and calibration consistency across operating modes. In systems expected to scale across multiple products, this kind of reuse is often more valuable than a marginal improvement in one isolated specification.

From a layout perspective, the integration level of AFE5818 simplifies more than board area. It reduces the number of high-impedance analog interfaces that must cross the PCB, which directly lowers exposure to coupling, parasitics, and routing-induced mismatch. Shorter analog paths usually mean better repeatability. This is especially relevant near the transducer connector where many channels converge in a confined space. When discrete LNAs, gain stages, filters, and ADC drivers are spread across the board, return-current control and crosstalk containment become increasingly difficult. A highly integrated AFE does not eliminate those concerns, but it reduces the number of vulnerable boundaries where they can enter the design.

Power and clock design remain decisive. High integration can create the false impression that analog performance is now largely guaranteed by the IC. In reality, devices like AFE5818 reward disciplined infrastructure. Supply ripple that modulates the gain chain, reference contamination that leaks into the ADC, or clock jitter that erodes phase fidelity can still degrade the full system. In multichannel ultrasound hardware, the most stubborn image artifacts often come not from obvious signal-path failure but from shared support networks that inject correlated errors across many channels at once. Clean partitioning of analog and digital return paths, careful decoupling close to supply pins, and conservative clock distribution practices usually pay back more than further tweaking of downstream digital compensation.

Another important advantage of per-channel integration is calibration stability. With discrete chains, gain and phase trimming can become a recurring maintenance task because each stage contributes its own drift and tolerance spread. In a monolithic front end, channel behavior tends to track more uniformly across temperature and time. That does not remove the need for calibration, but it often reduces the amount of correction required and makes residual error more systematic. System-level correction algorithms are more effective when they are cleaning up small, repeatable offsets rather than chasing large, channel-specific analog variation.

For compact imaging products, this architecture enables denser receive electronics without forcing major compromises in channel count or performance. Portable scanners, compact cart systems, and probe-adjacent modules all benefit when analog receive resources can be concentrated into fewer devices. The reduction in footprint is not merely cosmetic. Smaller analog partitions can improve routing symmetry, lower interconnect capacitance, and ease thermal planning by keeping the receive chain more localized. In space-constrained assemblies, these second-order benefits often matter as much as the raw integration headline.

The broader engineering implication is that AFE5818 moves the optimization boundary. Instead of optimizing each receive block independently, the designer can optimize the channel as a coherent signal path and then optimize the array around synchronization, power integrity, and mechanical constraints. That is a better fit for ultrasound systems, where performance emerges from coordinated channels rather than isolated component specifications. The device’s real strength is not that it contains many functions. It is that those functions are arranged in a way that preserves phase coherence, dynamic range control, and implementation practicality at the same time.

Texas Instruments AFE5818 Receive-Path Gain Control and Noise Performance

In ultrasound receive design, gain control is not just an amplitude-management function. It directly sets the tradeoff between detectability of weak echoes, tolerance to large near-field returns, and stability of image quality across depth. The Texas Instruments AFE5818 is built around this reality. Its receive path combines a programmable low-noise amplifier, active termination, a low-noise voltage-controlled attenuator, and a programmable gain amplifier in a way that lets the designer shape both noise behavior and linear range rather than treating them as fixed device limits.

At the front of the chain, the LNA exposes three gain modes: 24 dB, 18 dB, and 12 dB. These modes are tied to different linear input ranges of 0.25 Vpp, 0.5 Vpp, and 1 Vpp, with corresponding input-referred noise of 0.63 nV/√Hz, 0.7 nV/√Hz, and 0.9 nV/√Hz. This is a useful design pattern because it makes the underlying tradeoff explicit. Higher gain improves sensitivity and lowers the effective noise floor referred to the transducer interface, but it also reduces headroom. Lower gain widens the acceptable signal swing, but the front end pays for that flexibility with higher input-referred noise.

That tradeoff matters most in the first few stages because the receive chain noise figure is dominated by the earliest active block. Once the LNA establishes gain, downstream noise is divided by that gain when referred back to the input. In practical terms, selecting the 24 dB LNA mode does more than amplify a weak signal. It protects the system from later-stage noise contributions and preserves low-level echo contrast that would otherwise disappear into the composite noise floor. For deep imaging or channels connected to less efficient transducer elements, this mode is often the natural starting point. By contrast, in channels where cable parasitics, transducer ringing, or near-field energy create larger instantaneous excursions, the 12 dB or 18 dB setting can prevent early compression and keep the receive path linear during the most demanding portions of the pulse-echo cycle.

The specified linear input ranges are equally important because ultrasound signals are rarely uniform over time. Early echoes can be unexpectedly strong, especially in shallow regions or in structures with high acoustic reflectivity, while deeper returns may fall close to the electronic noise floor. A front end that offers only maximum sensitivity tends to fail in the opposite regime through clipping or distortion. The AFE5818 avoids that one-sided optimization. It gives the designer a way to place the operating point according to expected transducer output, imaging mode, and TGC strategy. In systems with aggressive dynamic focusing and broad patient-to-patient variation, that flexibility often reduces the amount of correction needed later in the digital path.

The active termination feature adds another layer of control at the input boundary. In ultrasound AFEs, termination is not merely about matching a nominal impedance. The transducer, cable, protection network, switch matrix, and PCB parasitics form a frequency-dependent source network with real and reactive components that shift across probe types and modes. Active termination helps shape how the AFE interacts with that network. Proper tuning can improve energy transfer, reduce reflections, and stabilize the apparent input environment seen by the LNA. It can also influence ring-down behavior and the settling profile after transmit events, which matters when the system is trying to recover quickly enough to capture shallow echoes. In practice, this block is often most valuable when the analog front end must support multiple probe classes or when board constraints make passive matching alone too blunt an instrument.

After the LNA, the AFE5818 uses a VCAT with 40 dB of attenuation control. This block is more significant than a simple overload safeguard. In many receive chains, attenuation inserted after the first gain stage degrades effective noise performance at low overall gain settings because the signal is deliberately reduced before later amplification. TI highlights that the AFE5818 uses an ultra-low-noise VCAT specifically to improve low-gain SNR. That architectural choice is especially relevant in harmonic imaging and near-field imaging, where the receive chain may need to operate at reduced gain without losing fine contrast information.

Harmonic imaging places unusual demands on the analog front end. The signal of interest is weaker than the fundamental response and often sits in conditions where large residual components or clutter can coexist with subtle harmonic content. Near-field imaging creates a different but related challenge: strong immediate returns can force the gain plan downward just when spatial detail still matters. In both cases, a noisy attenuation element would undermine the reason for reducing gain in the first place. By keeping the VCAT noise contribution low, the AFE5818 makes low-gain operation more usable, not just technically available. This is a distinction that tends to matter more in system behavior than in block diagrams. A gain-control range that looks sufficient on paper can still be disappointing if image texture collapses whenever attenuation is applied. The AFE5818 appears designed to avoid that failure mode.

The VCAT also plays an important role in receive-path linearization across widely varying echo amplitudes. Ultrasound echoes can span tens of decibels over a single acquisition window, and the front end must often accommodate that spread before digital compensation fully takes over. A low-noise attenuation stage positioned between early and later gain blocks gives the gain plan more freedom. The system can preserve LNA sensitivity where it matters, then selectively reduce level before the PGA and ADC interface become stressed. This is generally a better strategy than simply lowering the first-stage gain, because it maintains stronger suppression of downstream noise while still protecting overall chain linearity.

Following attenuation, the PGA provides selectable gain of 24 dB or 30 dB. Combined with the LNA and VCAT settings, the device supports up to 54 dB total receive gain. That number is not just a headline specification. It defines how broadly the channel can be adapted to different probes, depths, and operating modes without external gain stages. More importantly, the partitioning of gain between the LNA, attenuator, and PGA gives the designer several valid gain maps rather than one rigid operating condition. This allows optimization for specific priorities: lowest possible input-referred noise, maximum large-signal tolerance, best low-gain SNR, or stable behavior across mixed imaging scenarios.

A practical way to view the gain plan is in layers. The LNA sets sensitivity and establishes the noise floor. The active termination shapes how the transducer network delivers energy into that first stage. The VCAT controls signal level while minimizing the usual SNR penalty of attenuation. The PGA restores amplitude to the level needed by downstream conversion and processing. When these layers are tuned together, the receive path behaves less like a fixed amplifier and more like a controlled dynamic-range management system. That is the more useful interpretation for modern ultrasound design, where the challenge is not simply amplifying a signal but preserving the right information under changing acoustic conditions.

Device-to-device gain matching is another feature with system-level consequences. The AFE5818 specifies typical gain matching of ±0.5 dB and maximum gain matching of ±1.1 dB. In multichannel beamforming systems, channel consistency directly affects aperture uniformity, calibration complexity, and image coherence. Even modest analog gain spread across channels can produce uneven response that must be corrected digitally, and digital correction cannot fully undo all analog mismatches once noise and saturation behavior diverge. Tighter native matching reduces that burden. It improves array consistency from power-up, shortens factory alignment effort, and helps maintain predictable beam characteristics across production lots. In dense arrays, this kind of analog uniformity often has more practical value than another incremental dB of nominal gain.

There is also a less obvious benefit to good gain matching: it simplifies the interpretation of system anomalies. When channel amplitude variation is already tightly controlled by the front end, deviations are easier to attribute to the probe, interconnect, or board assembly rather than to intrinsic AFE spread. That shortens debug cycles and makes field failures easier to isolate. In complex receive platforms, this kind of predictability is rarely advertised as a headline feature, but it often determines whether a design scales cleanly from prototype to production.

From a design perspective, the strongest aspect of the AFE5818 receive path is not any single number. It is the balance between low-noise sensitivity and configurable headroom across multiple stages. The front end recognizes a basic truth of ultrasound electronics: the best gain setting depends on when in time, at what depth, and under which imaging mode the channel is operating. AFE architectures that expose only coarse gain control tend to force uncomfortable compromises between weak-echo visibility and overload resilience. The AFE5818 instead provides enough granularity in front-end behavior to let the analog design remain aligned with the acoustic scene.

For weak-signal imaging, the 24 dB LNA mode with its 0.63 nV/√Hz input-referred noise is the obvious anchor because the first stage defines how much recoverable detail survives into the rest of the chain. For stronger input environments, the wider 0.5 Vpp and 1 Vpp linear ranges support cleaner operation with controlled noise tradeoff. The active termination helps tailor the interface to the transducer network rather than forcing a one-size-fits-all boundary condition. The low-noise 40 dB VCAT extends usable dynamic range without making low-gain imaging modes self-defeating. The PGA then completes the amplitude plan with enough gain to meet conversion requirements.

Taken together, these features make the AFE5818 well suited for receive paths that must span weak deep echoes, strong near-field returns, harmonic content, and multichannel consistency within one integrated analog front end. Its architecture reflects a disciplined gain-distribution strategy: place low noise early, preserve headroom where signals are unpredictable, and keep channel behavior uniform enough that system calibration remains manageable. That combination is usually what separates a front end that merely meets specifications from one that remains robust across real imaging conditions.

Texas Instruments AFE5818 Filtering, ADC Performance, and Digital Output Interface

Texas Instruments AFE5818 integrates its filtering, conversion, and digital output stages in a way that matches the signal-chain realities of ultrasound reception rather than treating bandwidth, resolution, and interface speed as isolated specifications. Its design is most useful when viewed as a staged optimization path: first constrain the analog spectrum, then digitize with an appropriate resolution-versus-speed profile, and finally move data off-chip with enough integrity to preserve what was gained upstream.

The filter stage is a key part of that strategy. The device includes a third-order linear-phase low-pass filter with selectable corner frequencies at 10 MHz, 15 MHz, 20 MHz, 30 MHz, 35 MHz, and 50 MHz. This is not simply a convenience feature. In ultrasound systems, analog bandwidth selection directly shapes the noise presented to the ADC, the amount of out-of-band energy entering the digital domain, and the degree to which the receive chain matches the transducer and imaging mode. A narrow enough filter suppresses irrelevant spectral content before conversion, which improves effective signal utilization and reduces the burden on downstream digital processing. A filter that is too narrow, however, can clip useful echo content, distort broadband pulse information, or reduce axial detail in modes that rely on shorter waveforms and wider spectra. The value of the selectable LPF is therefore not only flexibility but also the ability to tune the front end with intent.

The linear-phase characteristic matters as much as the selectable bandwidth. In pulse-echo systems, phase distortion is often less visible in a headline specification than amplitude response, yet it can materially affect echo fidelity. A linear-phase response preserves temporal relationships across the passband, which helps maintain waveform shape and timing consistency. That becomes important in beamforming and envelope extraction, where small distortions introduced early in the chain can spread into focusing errors, degraded contrast, or less stable channel-to-channel correlation. In practice, this means the LPF should be chosen not only by transducer center frequency but also by pulse bandwidth, harmonic content, and the amount of digital equalization expected later. A common design mistake is to select the highest available analog bandwidth “for safety,” then attempt to clean up the spectrum digitally. That usually wastes ADC dynamic range on noise and increases system sensitivity to interference.

The ADC subsystem extends this configurable philosophy. AFE5818 supports 14-bit operation up to 65 MSPS with 75 dBFS SNR, and 12-bit operation up to 80 MSPS with 72 dBFS SNR. These two modes define a practical operating envelope rather than a simple hierarchy where one mode is always superior. The 14-bit mode is better aligned with receive paths where subtle amplitude discrimination and broader dynamic visibility matter more than absolute sample rate. This often applies when weak echoes must coexist with stronger reflections and the system depends on preserving low-level structure after time-gain compensation and beamforming. The 12-bit mode shifts the balance toward higher throughput and can be attractive when the frequency plan, channel density, or reconstruction architecture benefits more from additional sampling speed than from the last increment of quantization precision.

The difference between these modes should be understood in system terms. Bit depth affects quantization granularity and the ability to retain low-level information, but usable performance depends just as strongly on front-end noise, gain staging, and the spectrum delivered to the converter. If the analog chain is noisy or over-wide in bandwidth, the extra nominal resolution of a higher-bit mode may not translate into a meaningful imaging gain. Conversely, when the receive chain is well controlled and low-noise, the 14-bit mode has more opportunity to show value in difficult echo environments. The more important insight is that ADC mode selection should follow signal statistics, not marketing instinct. In many designs, the real question is not “which mode is best,” but “where does the overall chain stop being converter-limited and start being analog-limited.”

Texas Instruments highlights that the ADC maintains strong SNR even at low chain gain, and this is a consequential point. Ultrasound receive paths operate across a very wide echo amplitude range. Near-field returns, deep tissue echoes, off-axis scatter, and highly reflective boundaries can all occupy very different signal levels within the same acquisition context. There are operating conditions where front-end gain cannot be pushed aggressively without risking overload on stronger returns or reducing linear operating margin. In those cases, converter quality becomes the backstop for preserving useful information. Good ADC SNR at low gain gives the designer more freedom to avoid overly aggressive analog amplification and rely on a cleaner distribution of gain across the chain. That usually leads to a more stable system, especially when channel matching and overload recovery matter.

This point tends to show up clearly during board bring-up. Systems that appear adequate at nominal gain often expose weaknesses when gain is reduced to accommodate stronger reflectors or wider operating conditions. If the ADC loses too much effective fidelity in that regime, weak structures disappear earlier than expected and downstream processing cannot reconstruct what never reached the digital domain with sufficient quality. AFE5818’s stronger low-gain conversion behavior helps reduce that failure mode. It also makes calibration less fragile, because the design is not forced to depend on a narrowly tuned analog gain window to maintain acceptable receive sensitivity.

The digital output stage completes the architecture with LVDS signaling at up to 1 Gbps. This remains a practical and well-balanced interface choice for mixed-signal imaging hardware. LVDS provides low-voltage differential signaling with good common-mode noise tolerance and relatively low EMI compared with larger-swing single-ended interfaces. In dense front-end boards, where analog channels, clocks, power distribution, and high-speed digital traces share limited routing area, those characteristics matter. The interface does not merely transfer bits; it protects the integrity of a converter output that may represent weak receive detail extracted at significant analog effort.

From an implementation standpoint, 1 Gbps LVDS is fast enough that layout discipline becomes part of signal integrity, not an afterthought. Pair matching, controlled impedance, clock-to-data alignment, return-path continuity, and connector quality all influence capture margin at the FPGA or processor. In compact ultrasound platforms, it is common for digital interface problems to be misdiagnosed as analog noise or ADC instability because both can manifest as image artifacts, intermittent channel corruption, or reduced consistency under temperature and cable variation. In practice, robust integration of the AFE5818 often depends on treating the LVDS interface with the same rigor as the analog front end: short differential routes where possible, clean clock distribution, careful isolation from switching supplies, and enough margin in receiver timing constraints to survive process and environmental drift.

A useful way to think about the AFE5818 is as a device that lets the designer spend performance budget where it matters most. The selectable linear-phase LPF controls what enters the conversion stage. The dual ADC modes let the system trade precision against throughput with intent rather than compromise by default. The LVDS interface moves high-rate data into the digital backend without imposing an exotic integration burden. The strength of the part is not any single number in isolation, but the way these blocks interact to support application-specific optimization.

For lower-frequency transducers or imaging modes that prioritize penetration and SNR, selecting a tighter LPF and running in 14-bit mode can produce a cleaner digital representation by limiting excess noise bandwidth and preserving weaker echoes. For higher-frequency probes or modes that demand faster sampling, broader analog bandwidth paired with 12-bit conversion can better support the required spectral content and temporal resolution. In both cases, the interface remains compatible with conventional FPGA-centric architectures, which simplifies channel scaling and backend partitioning.

The more subtle advantage is that the AFE5818 encourages disciplined co-design between analog bandwidth, ADC operating point, and data transport. That is where mixed-signal front ends usually succeed or fail. Overdesigning any one stage rarely fixes a poorly balanced chain. A narrower filter cannot compensate for an overloaded converter. More bits do not solve excess front-end noise. A clean LVDS eye does not recover information lost to poor gain planning. The device is most effective when each block is configured as part of one signal path objective: admit only the useful spectrum, digitize it under the right dynamic conditions, and transfer it off-chip without adding avoidable uncertainty.

Texas Instruments AFE5818 Continuous-Wave Doppler Path and Beamforming Support

Texas Instruments AFE5818 stands out in ultrasound front-end design because it does more than digitize echo channels. It also integrates a continuous-wave Doppler path that directly addresses one of the more difficult parts of mixed imaging and flow-measurement systems: building a stable, phase-coherent CW beamformer without a large amount of external analog circuitry. In practical architectures, this matters because CW Doppler is rarely limited by raw gain alone. It is limited by phase alignment, carrier purity, low-frequency clutter handling, and the repeatability of the summation path across channels. Moving these functions on-chip changes the system problem from analog assembly toward controlled configuration.

At the core of the AFE5818 CW implementation are a passive mixer and a low-noise summing amplifier arranged as an on-chip CWD beamforming path. This is not just a convenience feature. In continuous-wave Doppler, the receive signal is typically weak, narrowband, and highly sensitive to phase error because the useful information is encoded in frequency shift relative to the transmit carrier. Any mismatch between channels during summation degrades beam directivity, raises sidelobes, and reduces sensitivity to slow or weak flow signatures. An integrated summing path helps constrain those errors because the signal routing, device matching, and clock distribution are handled within a single silicon environment rather than across a board-level network of mixers, phase shifters, and amplifiers.

The 16 selectable phase delays provided for each analog input are especially important in this context. Texas Instruments specifies a phase resolution of λ/16, which gives the beamformer enough granularity to steer and align the receive aperture for CW Doppler tasks with useful precision. In engineering terms, λ/16 phase control is fine enough to support practical aperture alignment while keeping the implementation compact. It does not eliminate all beamforming error, but it usually places the residual quantization error below the larger error sources found in probe tolerances, acoustic path variation, and mechanical integration. That balance is often where a front end becomes genuinely usable in a real product rather than merely attractive on a datasheet.

A useful way to view this phase-delay capability is as a bridge between acoustic geometry and electrical coherence. In CW Doppler, receive beamforming is effectively a phase-management problem. The aperture must be adjusted so that signal energy from the region of interest adds coherently, while off-axis returns add less efficiently. If phase resolution is too coarse, the beam can only be approximated, and the resulting spectral measurement becomes less selective. The AFE5818 does not provide arbitrary digital beamforming in the modern software-defined sense, but it delivers an analog phase-aligned summation engine that is highly effective for systems where CW flow measurement must coexist with dense channel integration and constrained power.

The passive mixer design is another major part of the value proposition. Texas Instruments specifies low close-in phase noise of –156 dBc/Hz at 1 kHz offset from a 2.5 MHz carrier. For CW Doppler, this is not a cosmetic number. Close-in phase noise directly affects the ability to resolve small Doppler shifts near the carrier and to preserve clean spectral information in the presence of strong stationary or slowly varying components. If the LO or mixer path contributes excessive phase noise, weak velocity information is masked by skirt energy around the carrier. In practice, this often appears as a raised noise floor near the region where clinically relevant or motion-relevant signals are expected. When that happens, more gain does not solve the problem. Better carrier purity does.

This is one reason integrated CW paths often outperform nominally flexible discrete designs. A board-level CW chain may look configurable, but once it spans multiple components, traces, local clock branches, and grounding domains, phase-noise performance becomes strongly layout-dependent. Small deviations in LO routing, return current paths, and shielding strategy can change the close-in behavior enough to affect Doppler sensitivity. Devices like the AFE5818 reduce that uncertainty. The main remaining burden shifts to reference clock quality and board-level power cleanliness, both of which are easier to control than a full discrete analog beamforming chain.

The selectable 16X, 8X, 4X, and 1X CW clocks add another layer of architectural flexibility. This support allows the front end to adapt to different ultrasound timing schemes, transducer frequencies, and system partitioning strategies. In a tightly integrated scanner, these clock ratios can simplify synchronization with the broader transmit-receive timing fabric. In modular systems, they give room to optimize between clock generation complexity, phase accuracy, and distribution overhead. This is more valuable than it first appears. Clock-tree decisions in Doppler systems tend to propagate into several non-obvious areas: mixer linearity, phase error, spur placement, and even EMI behavior. A front end that tolerates multiple CW clocking approaches gives the system designer more freedom to close those tradeoffs cleanly.

Texas Instruments also specifies 12 dB suppression on third and fifth harmonics in the CW path. Harmonic suppression is often overlooked when reviewing CW specifications, but it has direct consequences for spectral cleanliness and false-signal management. In a Doppler receiver, harmonic products can fold into the measurement band or interact with clutter and nonlinearity to create components that resemble valid flow information. Even when these products do not produce obvious false peaks, they can broaden the baseline or complicate thresholding in downstream processing. Modest but controlled on-chip harmonic suppression reduces the burden on external filtering and helps keep the CW path predictable across channels and manufacturing variation.

The integrated CWD high-pass filter with rejection below 1 kHz addresses another persistent issue: low-frequency clutter. CW Doppler systems often operate in environments where strong low-frequency content arises from stationary reflectors, probe motion, structural vibration, or slow bulk motion in the acoustic field. These components can dominate the dynamic range of the receiver long before the desired Doppler signal becomes visible. A high-pass corner around this region is a practical design choice because it removes a large part of the unwanted baseline energy without requiring additional external AC-coupling networks or post-mixer clutter filters. It is not a universal setting for every use case, but for many medical and sonar-class CW applications it removes the most problematic part of the spectrum early enough to protect sensitivity downstream.

There is also a system-level benefit in how these features interact rather than how they perform in isolation. Fine phase adjustment, low-noise mixing, harmonic suppression, and low-frequency rejection together create a CW path that is easier to stabilize during integration. That integrated stability often matters more than any single headline specification. In real products, the difficult part is not achieving nominal Doppler detection on a bench setup. The difficult part is preserving that behavior across probes, temperatures, supply ripple conditions, channel count increases, and enclosure constraints. An on-chip beamforming path reduces the number of analog degrees of freedom that can drift or misalign.

For ultrasound systems that combine B-mode imaging with CW Doppler, this integration can materially improve channel density. External CW beamforming normally consumes board area, routing resources, and analog debug effort that scale poorly as channel count increases. By collapsing the summation and phase-control functions into the AFE5818, the design can reserve board complexity for the elements that still benefit from system-level optimization, such as transmit pulsing, ADC data handling, power sequencing, and probe interface design. This tends to produce a more balanced architecture. The front end is no longer a collection of discrete analog exceptions around a largely integrated receive chain.

The same logic extends to sonar-class sensing platforms, especially those requiring compact form factors or multi-channel arrays. In these systems, repeatability between channels is often more valuable than extreme configurability on any single channel. Integrated CW support improves that repeatability because phase steps, mixer behavior, and summing characteristics are implemented in a matched silicon environment. That consistency can simplify array calibration and reduce the amount of per-unit tuning required to reach acceptable beam shape and spectral performance.

One subtle but important point is that integrated beamforming does not remove the need for careful system design; it changes where care should be applied. With the AFE5818, the strongest returns typically come from clock-source quality, power-supply isolation, transducer matching, and disciplined grounding around the analog input path. Experience with Doppler-capable front ends shows that once the internal beamforming path is stable, the next limiting factors are usually external reference integrity and acoustic-domain imperfections rather than the CW chain itself. In other words, integration is most effective when the remaining board-level design is treated as a signal-integrity problem, not just a connectivity task.

Another practical consideration is calibration strategy. Since the AFE5818 provides discrete phase selections, it fits well with production flows that favor deterministic configuration over continuous analog trimming. That usually shortens bring-up time. Instead of tuning a set of external phase networks and validating their drift behavior, the design team can characterize beam patterns and Doppler response as a finite configuration space. This is easier to automate and usually produces more consistent manufacturing outcomes. The engineering advantage is less about theoretical elegance and more about reducing analog variability to something testable and repeatable.

In effect, the AFE5818’s continuous-wave Doppler path is valuable because it integrates the parts of CW reception that are hardest to keep coherent in a dense system. The passive mixer, low-noise summing amplifier, λ/16 phase-delay control, flexible CW clocks, harmonic suppression, and sub-1 kHz rejection together form a practical on-chip beamforming engine rather than a collection of unrelated support features. That distinction is important. A good CW implementation is defined by how well these blocks cooperate under real operating conditions. Texas Instruments has structured the AFE5818 so that the analog burden of CW Doppler moves closer to a controlled subsystem, which in turn makes Doppler-capable medical ultrasound and compact sonar platforms easier to scale, easier to reproduce, and less exposed to the usual weaknesses of discrete phase-sensitive analog design.

Texas Instruments AFE5818 Power Optimization, Overload Recovery, and System-Level Benefits

Texas Instruments AFE5818 combines analog performance with a power architecture that is clearly intended for platform-level optimization rather than fixed, one-point operation. That matters in ultrasound receive chains, where front-end choices directly affect sensitivity, thermal budget, battery life, enclosure design, and even software timing margins. The device is not just a low-noise analog front end; it is a configurable signal-acquisition block that lets the system operate along different efficiency and performance contours.

A useful way to evaluate the AFE5818 is to start from the receive-chain constraints it is meant to solve. In pulse-echo systems, especially ultrasound, weak echoes arrive after very large transmit-related disturbances. The front end must provide low input-referred noise for deep signal visibility, sufficient linearity for strong reflections, and rapid recovery when the receive path is stressed by overload. At the same time, the receive subsystem often dominates the thermal density of the probe-side or acquisition-side electronics. AFE5818 addresses these competing requirements by giving designers explicit control over the power-noise-sample-rate trade space.

At the highest stated operating point, the device runs at 140 mW per channel with 0.75 nV/√Hz noise and 65 MSPS. That setting targets systems where penetration depth, channel sensitivity, and temporal fidelity are the primary objectives. In practical receive chains, this mode is most attractive when the downstream beamforming or reconstruction pipeline can preserve the extra analog fidelity. If the backend dynamic range, clock quality, and layout discipline are weak, some of that analog advantage is wasted. In other words, the best mode is only best when the entire signal chain is aligned with it.

Texas Instruments also specifies lower-power operating points, including 91.5 mW per channel at 1.1 nV/√Hz and 40 MSPS, with CW mode power as low as 80 mW per channel. This scaling is more important than the raw numbers may first suggest. The reduction in per-channel dissipation compounds quickly in multi-channel systems. Across dozens or hundreds of channels, even a moderate per-channel reduction translates into meaningful savings in board temperature rise, power-supply sizing, airflow demand, and enclosure complexity. In portable platforms, it also changes battery pack sizing and runtime assumptions. In dense systems, it can ease thermal gradients that otherwise shift analog behavior across the aperture.

The engineering value of selectable operating points is that they let the front end be matched to the actual imaging mode rather than to a worst-case specification. Not every scan state requires the maximum sample rate and minimum noise floor. For shallow imaging, targeted procedures, or systems with strong signal levels, a lower-power mode may preserve clinically or operationally relevant image quality while materially improving thermal performance. That kind of mode-based optimization often creates more value than trying to force one static operating point across every use case. In practice, systems that switch intelligently between high-performance and reduced-power states tend to achieve better overall efficiency than systems designed around a permanently overprovisioned analog front end.

Noise-performance scaling should also be interpreted at the system level. Moving from 0.75 nV/√Hz to 1.1 nV/√Hz is not a simple binary downgrade. The real impact depends on transducer characteristics, TGC profile, bandwidth of interest, front-end gain distribution, and the reconstruction method used downstream. In some architectures, acoustic losses, cable effects, or later-stage quantization dominate before the difference between those two noise densities becomes the limiting factor. In others, especially when pushing deeper penetration or lower-reflectivity targets, that analog margin remains highly valuable. The key insight is that the AFE5818 allows this decision to be made deliberately instead of being locked in by hardware selection.

Overload recovery is another area where the AFE5818 has strong system implications. In pulse-echo environments, the receive path can be driven far outside its small-signal region by transmit leakage, ringing, switching artifacts, or large reflections from near interfaces. If the analog chain saturates and then recovers slowly, early post-event echo information is lost. That is often more damaging than a single clipped event because the corrupted interval may overlap with diagnostically or operationally important near-field content. A fast and consistent recovery characteristic improves the probability that valid data is available soon after the disturbance, which directly supports near-field imaging quality and timing stability.

Consistency is as important as speed here. A front end that recovers quickly but with high channel-to-channel variation creates calibration and image-uniformity problems. Repeatable recovery behavior across channels helps preserve aperture coherence and reduces the need for correction logic in the digital domain. This point is often underestimated during component selection. Recovery behavior is not just an analog protection detail; it affects beamforming integrity, artifact behavior, and system predictability under real transmit-receive timing conditions.

In practical board-level work, overload behavior is rarely caused by only one mechanism. Strong transducer ring-down, imperfect T/R switching, clamp-network parasitics, and layout-induced coupling can all contribute to recovery stress. A capable AFE helps, but the best results come when the surrounding design does not force the AFE to spend its life recovering from preventable abuse. Short high-current return paths, disciplined partitioning between transmit and receive sections, controlled input parasitics, and careful protection-device selection usually have a visible effect on post-overload settling. Experience shows that a front end with good intrinsic recovery can still look mediocre on a careless board, while a well-partitioned design often reveals the full benefit of the silicon.

The power-management features of AFE5818 also support product-family reuse. A single analog front-end platform that can operate across multiple power-performance points simplifies portfolio design. Premium cart-based systems can use the highest-performance settings to maximize image quality, while compact or battery-powered variants can shift toward lower-power modes without changing the broader receive architecture. This reduces redesign effort in clocking, control software, manufacturing flows, and qualification. It also shortens the path from one product tier to another because the same device can be tuned instead of replaced.

That reuse advantage has a second-order benefit: validation becomes more manageable. When a device family spans multiple system classes, characterization knowledge accumulates around one analog core. Engineers learn its thermal behavior, overload edge cases, supply sensitivity, and layout preferences in detail. That accumulated understanding often produces more robust systems than repeatedly introducing new AFEs for each product segment. Stability in the component base can be as valuable as nominal performance gains on paper.

From an architecture perspective, AFE5818 fits designs that treat power as a dynamic resource rather than a fixed budget line. This is increasingly relevant in imaging and inspection systems where scan modes, duty cycle, aperture size, and processing load all vary over time. A front end with selectable operating points enables coordinated optimization across the analog, digital, and power-management domains. Thermal headroom saved in the AFE can be reallocated to FPGA activity, processor burst load, or denser packaging. That kind of cross-domain trade is where system-level efficiency is actually won.

The most important interpretation of AFE5818 is that its value is not limited to low noise or low power in isolation. Its strength is controllability. The device gives designers room to shape the receive chain around real operating conditions: high-sensitivity acquisition when needed, lower dissipation when possible, and faster return to valid data after overload events. In systems where image quality, thermal design, and product segmentation all matter at once, that flexibility is often more strategically useful than chasing a single headline specification.

Texas Instruments AFE5818 Application Scenarios for Ultrasound, Nondestructive Evaluation, Sonar, and Data Acquisition

Texas Instruments AFE5818 is best understood as a highly integrated 16-channel receive analog front end built for systems that must capture weak echo signals, preserve inter-channel consistency, and hand off clean digital data to beamforming or spectral-processing stages. Its strongest fit is medical ultrasound, but the same architectural choices also map well to nondestructive evaluation, sonar, and selected multichannel acquisition platforms. The common thread across these applications is not simply “many channels.” It is the need to extract low-level information from time-varying signals under tight noise, bandwidth, and dynamic-range constraints.

At the device level, the AFE5818 combines low-noise amplification, voltage-controlled or programmable gain behavior through the time-gain control path, filtering, continuous-wave processing support, and high-resolution ADC conversion in one channel-dense receiver platform. That integration matters for more than footprint reduction. In array systems, every external interconnect, every gain stage split across boards, and every mismatch source adds error in amplitude, phase, timing, and drift. When more of the signal chain is collapsed into a single front-end device, calibration usually becomes more manageable, layout symmetry improves, and channel-to-channel tracking tends to be easier to maintain over temperature and production spread. In practice, these are often the factors that separate a design that merely functions from one that produces stable image quality or repeatable measurement data.

In medical ultrasound imaging, the AFE5818 aligns directly with the receive path requirements of phased-array and beamforming systems. Echoes returning from tissue span a large dynamic range because attenuation rises with depth and because reflectivity varies strongly across anatomical structures. The integrated time-gain control path is therefore not an optional convenience; it is a central mechanism for depth-dependent compensation. Early echoes can be strong and must avoid saturating the front end, while deeper echoes may sit close to the noise floor and require substantial gain without excessive added noise. The AFE5818 supports this operating model by allowing gain shaping across the receive window, which helps maintain usable signal amplitude before beamforming and envelope detection.

Its 16-channel density is equally important in modern probes and console-side receiver boards. High-channel-count ultrasound systems are constrained by routing complexity, power density, thermal behavior, and synchronization integrity. Using a front end with this level of integration reduces the number of discrete components and often shortens the sensitive analog routing around the receive chain. That tends to improve immunity to coupled digital noise and eases mechanical packaging. In high-end imaging consoles, this can reduce the number of front-end ICs required per connector or probe interface section. In portable systems, the value shifts slightly: integration helps conserve board area, lowers assembly complexity, and allows power-performance tradeoffs through selectable operating modes. For battery-powered or thermally limited designs, this flexibility can be decisive, especially when acoustic performance must be preserved while average power is tightly budgeted.

The CW Doppler support extends the AFE5818 beyond pulse-echo reception into velocity-sensitive measurement modes. In ultrasound, continuous-wave operation is useful where flow velocity estimation or phase-sensitive processing is required. What makes this significant is that CW paths impose different demands than pulsed imaging. The system must preserve phase fidelity and low-frequency baseband integrity after mixing, and it must do so across channels when directional information or spatial discrimination matters. Integrated support for this mode simplifies the receiver architecture and reduces the need for separate analog signal chains, which can otherwise create gain and phase alignment problems that become visible in Doppler estimation stability.

For nondestructive evaluation, the same front-end characteristics translate naturally into inspection systems using multi-element ultrasonic arrays. Materials inspection often involves detecting small discontinuities, inclusions, cracks, voids, delaminations, or bond defects buried within attenuative media. The received reflections can be weak, highly frequency-dependent, and sometimes masked by ringing or structural clutter. Here, low input-referred noise is not simply a performance metric on a datasheet; it directly affects defect detectability at depth and the confidence margin between a real echo and background variation. Flexible gain control is useful because inspection setups vary widely in path length, couplant conditions, transducer sensitivity, and target reflectivity. A front end that can be tuned to the inspection method allows the receive chain to remain usable across contact testing, immersion setups, thickness gauging, and phased-array scans without a complete hardware redesign.

The selectable low-pass filtering is especially relevant in NDE because transducer center frequencies and pulse characteristics can vary dramatically across applications. A thick composite panel, a steel weld, and a fine-resolution ceramic inspection target do not call for the same analog bandwidth. Matching the analog front-end bandwidth to the acoustic content helps suppress out-of-band noise and can improve effective dynamic range at the ADC. In real systems, this bandwidth tuning often becomes one of the most practical levers for balancing axial resolution against sensitivity. Designs that leave the front end permanently wideband sometimes look flexible on paper but pay a noise penalty that shows up immediately in deep-target detection. The AFE5818’s filtering options make it easier to move that tradeoff into a controlled design parameter.

For sonar imaging and array-based acoustic sensing, the AFE5818 offers a useful combination of simultaneous multichannel acquisition, analog conditioning, and conversion consistency. Sonar arrays depend heavily on relative channel information. Beamforming accuracy is shaped not only by absolute sensitivity but also by channel-to-channel gain match, phase coherence, and timing alignment. A front end with integrated matched channels reduces uncertainty in these areas and simplifies downstream calibration. This is especially valuable when the system must infer direction, construct spatial images, or extract target motion from subtle inter-element differences. In these use cases, channel uniformity often matters more than peak standalone performance on any single path.

The CW mixer path can also be relevant in sonar where coherent detection, Doppler extraction, or narrowband phase-sensitive measurement is required. That opens use beyond simple echo capture into regimes where motion, flow, or vibration information is embedded in phase and frequency offsets rather than only in pulse timing. One practical advantage of an architecture like this is that it supports both broad transient capture and more specialized coherent sensing without forcing the designer to stitch together unrelated front-end blocks. That generally improves repeatability and lowers the calibration burden in systems that must operate across multiple acoustic modes.

In multichannel high-speed data acquisition, the AFE5818 can serve as an integrated front end when the signal environment resembles ultrasound-class reception more than generic instrumentation. This distinction matters. The device is not a universal DAQ component in the abstract. Its architecture is optimized for dense channel count, low-noise variable-gain reception, and controlled analog bandwidth ahead of high-speed conversion. Therefore, it is best evaluated for acquisition systems where those traits are primary system drivers: sensor arrays, pulsed measurement platforms, transient capture systems with depth-dependent amplitude variation, or coherent multi-receiver instruments. In such cases, integrating gain, filtering, and conversion in one device can reduce skew sources, simplify clock and reference distribution, and shrink the analog footprint enough to make high-channel-count layouts practical.

A useful way to evaluate the AFE5818 across these application spaces is to start from the receive-chain problem it solves rather than from the market label attached to the end product. If the system needs to receive weak analog signals from many channels, apply controlled gain without corrupting timing or phase relationships, constrain bandwidth before conversion, and maintain close matching across channels, then the device is likely relevant. If the system instead demands extreme DC precision, very low sample rates, unusual input ranges, or heavy per-channel customization, a more general-purpose data acquisition chain may fit better. This is an important design filter because high integration is most valuable when the application aligns with the assumptions built into the silicon.

Board-level implementation strongly influences whether the AFE5818 delivers its theoretical performance. The analog input network, reference decoupling, clock quality, and separation between noisy digital return currents and sensitive receive paths all matter. In dense ultrasound and array-acquisition boards, one recurring issue is that nominally identical channels diverge because of asymmetrical routing around the transducer interface, gain-control lines, or ADC outputs. The resulting mismatch appears later as beamforming sidelobes, focus degradation, or unstable calibration coefficients. Keeping the analog front-end environment physically symmetric and electrically quiet usually yields more benefit than adding complexity in digital correction after the fact. Experience shows that it is often cheaper, more robust, and more thermally stable to preserve channel integrity at the layout stage than to recover it algorithmically.

Power mode selection also deserves more attention than it typically receives in early architecture work. In portable ultrasound and compact array sensors, there is a tendency to treat power reduction as a late-stage firmware exercise. In reality, analog front-end power state decisions influence noise floor, thermal gradients, and gain consistency, all of which feed directly into image and detection performance. The better approach is to define operating profiles early: full-performance modes for deep imaging or weak echo inspection, reduced-power modes for shallow scans or lower-duty-cycle operation, and transition rules that do not disturb calibration more than necessary. Devices like the AFE5818 are most effective when their configurability is tied to the use case at the system level rather than used as a generic knob after hardware bring-up.

Another point worth emphasizing is that integration changes failure modes. With discrete receive chains, designers often isolate problems stage by stage. With a dense front-end IC, problems more often appear as interactions among gain programming, bandwidth selection, clocking, and digital readout timing. That means validation should be structured around end-to-end signal conditions, not only static electrical checks. For ultrasound and NDE, swept-depth echo emulation is useful. For sonar, coherent phase tracking across channels should be exercised early. For data acquisition repurposing, overload recovery, filter settling, and cross-channel repeatability under realistic source impedance should be verified. The device is capable, but it rewards system-level characterization.

Overall, the Texas Instruments AFE5818 is most compelling in designs where receive-channel density, low-noise sensitivity, gain programmability, coherent multichannel capture, and integrated conversion must coexist in a compact front end. Medical ultrasound remains its most natural application because the device architecture maps directly onto beamformed imaging and CW Doppler workflows. Nondestructive evaluation benefits from the same low-noise and tunable-bandwidth foundation when searching for weak internal reflections. Sonar leverages its matched multichannel acquisition and coherent processing support. Selected data acquisition systems can also benefit when their measurement physics resemble array-based acoustic or transient sensing rather than conventional bench instrumentation. The strongest designs are usually the ones that treat the AFE5818 not simply as an ADC with extras, but as a receive-system building block whose real value lies in preserving signal integrity from the transducer interface to the digital domain.

Texas Instruments AFE5818 Package, Operating Conditions, and Integration Considerations

From a system-integration standpoint, the Texas Instruments AFE5818 combines a high channel count with a relatively compact 289-ball NFBGA package measuring 15 mm × 15 mm. That package density is not just a mechanical detail. It directly shapes routing topology, power distribution quality, thermal behavior, and manufacturability. For a 16-channel analog front end, this footprint is efficient enough to support dense ultrasound and other multichannel acquisition platforms, but it also raises the usual constraints associated with fine-pitch mixed-signal BGAs: escape routing becomes a stack-up problem, return-current continuity becomes more fragile, and power integrity must be resolved in layout rather than deferred to late-stage tuning.

The small package is especially valuable when the surrounding signal chain is equally dense. In practical board designs, the package size can reduce analog trace length between transducer interface, protection network, and front-end input path. That reduction matters because every millimeter of unnecessary routing adds parasitic capacitance, creates more opportunities for channel-to-channel coupling, and increases sensitivity to external interference. With devices in this class, compact placement is often less about saving area and more about preserving signal fidelity before digitization.

The AFE5818 requires multiple supply domains, which is typical for a mixed-signal front end that integrates low-noise analog circuitry, ADC functions, and digital output logic. The specified analog rails are 1.7 V to 1.9 V, 3.15 V to 3.6 V, and 5 V. The digital rails are 1.15 V to 1.25 V and 1.7 V to 1.9 V. This rail structure immediately implies that the device should not be treated as a single-load component in power planning. It behaves more like several noise-sensitive subsystems sharing one package, each with different tolerance to ripple, transient response, and coupling from adjacent rails.

The 5 V rail typically deserves the most scrutiny because it often supports analog sections whose linearity and dynamic range are vulnerable to switching residue from upstream converters. The lower-voltage analog rails are equally important because they can influence bias stability, gain consistency, and internal reference behavior. The digital rails are usually more tolerant of ripple in absolute terms, but they can inject high-frequency noise back into the package and common return paths if decoupling and current-loop control are weak. In practice, poor digital-rail containment often shows up not as digital malfunction, but as degraded analog noise floor, spurious tones, or channel non-uniformity.

For that reason, power-tree planning should start with rail interaction rather than nominal voltage generation. A common mistake is to optimize converter efficiency first and only later evaluate whether switching frequency placement, sequencing behavior, and rail impedance profiles are compatible with the analog front end. In compact systems, especially portable ones, a regulator that is electrically acceptable in isolation can still create a difficult spectral environment once placed near high-gain receive paths. The better approach is to assign each rail a noise budget, define where LC filtering or LDO post-regulation is justified, and ensure that return currents from digital domains do not share narrow impedance bottlenecks with the analog supplies.

Sequencing also merits early attention. Even when a device datasheet gives broad supply ranges, startup ordering and ramp characteristics can still affect initialization reliability, internal bias settling, and long-term stress margins. Mixed-signal devices with several rails often behave best when analog bias rails are stable before heavy digital activity begins. On real hardware, this reduces intermittent startup states that are hard to reproduce in bench testing but appear during brownout recovery, battery hot-plug, or fast power cycling. Systems that seem stable under nominal lab power can reveal edge-case instability once source impedance, temperature, and load transients vary together.

The operating temperature range of –40°C to 85°C gives the AFE5818 enough margin for portable, industrial, and embedded imaging environments where enclosure heating, ambient variation, and local regulator dissipation all interact. That range should not be read merely as a qualification number. In precision front ends, temperature changes affect offset drift, gain tracking, noise behavior, timing stability, and even board-level mechanical stress around the package. The silicon may remain fully functional across the range while performance shifts enough to matter at the application level. For this reason, thermal design should include both survivability and measurement integrity.

The package itself contributes to thermal performance through its connection density and board attachment area. In practice, local heat sources near the AFE5818, such as power converters, FPGAs, or high-speed serializers, can create thermal gradients that matter more than absolute ambient temperature. Those gradients can produce channel-to-channel mismatch or subtle baseline movement that is difficult to trace if thermal mapping was not part of validation. It is often useful to think of thermal behavior as a signal-path parameter, not just a reliability parameter. That framing usually leads to better floorplanning choices early in development.

The device is RoHS compliant and rated MSL 3 with a 168-hour floor life. These manufacturing details matter because fine-pitch BGAs are sensitive to assembly discipline. Moisture handling, baking policy, reflow profile control, and warpage management all influence solder-joint quality and long-term field reliability. In builds with low defect tolerance, it is worth treating package logistics and floor-life control as part of electrical risk reduction. Marginal assembly on dense mixed-signal parts can create intermittent faults that mimic power-integrity or signal-integrity problems, consuming significant debug time before the true cause is isolated.

Texas Instruments notes that the AFE5818 is pin-to-pin compatible with the AFE5816 family. That compatibility is strategically useful beyond simple replacement. It enables platform scaling, performance binning, and derivative designs under a shared PCB architecture. In well-structured hardware programs, pin compatibility can reduce redesign effort, but only if the original board reserves enough flexibility in power, clocking, thermal margin, and digital interface timing to support the alternate device cleanly. A nominally compatible footprint does not guarantee equivalent system behavior. If one variant shifts noise, bandwidth, or output loading characteristics, the surrounding network may still need validation. The strongest reuse strategy is therefore not just footprint reuse, but margin-aware architecture reuse.

This is especially relevant when designing common hardware for multiple product tiers. A board intended to host several AFE variants should allocate decoupling options, configurable bias components where applicable, and routing headroom for any interface differences that emerge during characterization. That small amount of upfront flexibility often prevents a pin-compatible migration from turning into a layout respin later. In mixed-signal systems, compatibility is most valuable when it extends to validation effort, not only to solderability.

As with other precision mixed-signal devices, the AFE5818 is ESD-sensitive and requires disciplined handling. The risk is not limited to catastrophic failure. Parametric degradation is often the more expensive outcome because it escapes basic continuity checks while eroding the very analog metrics the device was selected to deliver. Leakage shifts, input damage, weakened protection structures, or altered offset behavior can remain hidden until system-level noise or sensitivity testing begins. In production and lab environments alike, proper grounding, controlled transport materials, and protected probing practice should be treated as baseline process requirements rather than optional safeguards.

That point becomes more important during board bring-up. Front-end devices are often exposed to repeated cable insertion, probe contact, and partial-power test conditions. These are the moments when latent damage is introduced. A board may pass initial functional checks and still carry a reduced margin that later appears as inconsistent channel performance or temperature-dependent anomalies. In experience with dense acquisition hardware, many “mysterious analog issues” have ultimately traced back to handling discipline, grounding during debug, or supply application during unstructured bench testing rather than to the AFE itself.

From an integration perspective, the AFE5818 should be viewed less as a single IC and more as a tightly coupled analog-digital subsystem embedded in one package. That mindset changes implementation decisions. Package selection affects routing physics. Supply rails define noise architecture. Temperature limits define not only where the part can operate, but how predictably it performs there. Pin compatibility enables portfolio flexibility only when the supporting design preserves margin. ESD precautions protect not just functionality, but measurement quality. When these factors are treated as one connected design problem instead of separate checklist items, the device is much easier to integrate successfully into high-density, high-performance acquisition platforms.

Texas Instruments AFE5818 Potential Equivalent/Replacement Models

Texas Instruments AFE5818 sits in a fairly specific part of the ultrasound signal-chain space, so “equivalent” rarely means pin-to-pin replacement. In practice, the more useful question is which device preserves the same system behavior with acceptable redesign effort. That immediately shifts the comparison away from a simple parameter match and toward architecture fit: channel density, receive noise, CW Doppler support, ADC format, power per channel, and how much integration the board can realistically absorb.

Within the Texas Instruments portfolio, the nearest alternatives are other members of the ultrasound AFE58xx family. These devices are conceptually close because they combine the receive low-noise analog path, variable gain, filtering, and digitization in one device class. That matters because in ultrasound designs, the front-end is not just a collection of blocks. Its internal gain partitioning, mixer path, clocking behavior, and channel matching directly shape image dynamic range, Doppler sensitivity, thermal profile, and PCB complexity. A part that looks close on resolution or sample rate can still behave very differently once beamforming, TGC linearity, and CW operation are exercised together.

The AFE5812 is one of the strongest comparison points. It is an 8-channel ultrasound AFE with passive CW mixer and digital I/Q demodulator, specified at 0.75 nV/√Hz input-referred noise, 14- and 12-bit operation, 65 MSPS, and about 180 mW per channel in a 15 mm × 9 mm NFBGA package. Architecturally, it maps well to designs that need imaging and CW Doppler support but can tolerate a lower channel count per device. In a system originally targeting AFE5818, moving to AFE5812 usually means doubling device count to recover total channels. That sounds straightforward, but it often increases clock distribution complexity, power-plane density, thermal concentration, and synchronization effort across devices. The signal performance can remain strong, but board-level integration becomes the real cost.

The AFE5809 is another close family option. It also offers 8 channels, passive CW mixer, digital I/Q demodulator, 0.75 nV/√Hz noise, 14- and 12-bit operation, and 65 MSPS, with lower power at roughly 158 mW per channel. In many designs this makes it attractive where thermal headroom is tighter, especially in portable platforms. The key trade is not only channel count but total feature balance. Devices with similar receive noise and sample rate can still differ in implementation details that matter during tuning, such as CW signal handling, interface behavior, or gain-control convenience. For that reason, the AFE5809 is best viewed as a functionally adjacent alternative rather than a drop-in successor.

The AFE5808A belongs in the same group. It integrates 8 ultrasound receive channels with passive CW mixer, 0.75 nV/√Hz noise, 14- and 12-bit operation, and 65 MSPS at about 158 mW per channel. This class of device is generally selected when the design target still values image quality and CW support but can accept a more distributed implementation at the system level. A recurring pattern in actual platform work is that once a design splits from one 16-channel device into two 8-channel devices, the analog performance remains manageable, but routing and package escape become the dominant engineering burden. LVDS lane planning, reference decoupling, and skew containment start to consume more time than the basic analog evaluation.

Below that tier, the AFE5807 becomes relevant when the system can relax either noise or resolution. It is an 8-channel ultrasound AFE with passive CW mixer, 1.05 nV/√Hz input-referred noise, 12-bit conversion, 80 MSPS, and about 117 mW per channel. Its profile suits architectures where lower power and simpler data handling outweigh the need for the quietest receive path. The higher sample rate can help in some timing schemes, but in ultrasound receive chains, extra MSPS does not automatically compensate for elevated front-end noise or reduced converter resolution. Once weak echoes and deep imaging are involved, front-end noise usually dominates the practical limit before raw sampling speed does. That is why devices like AFE5807 fit better in cost- or power-sensitive platforms than in designs trying to preserve the same imaging margin as AFE5818.

The AFE5803 is another 8-channel option with 0.75 nV/√Hz noise, 14- and 12-bit conversion, 65 MSPS, and around 158 mW per channel. It does not carry the same CW-centered positioning as some of the adjacent family members, so its suitability depends heavily on whether the application really needs that Doppler path integration. This is an important separation point. In many early comparisons, the receive imaging path gets most of the attention because noise and resolution are easy to compare on a table. Later, the absence or limitation of the CW path becomes the reason the candidate fails. If the original design depends on simultaneous or tightly integrated imaging and CW operation, alternatives without equivalent support tend to create more downstream redesign than expected.

The AFE5805 and AFE5804 extend the family further toward lower-performance operating points. Both are 8-channel ultrasound AFEs with 12-bit conversion and 50 MSPS, typically at higher input-referred noise and lower power. These are not close replacements for AFE5818 in a performance-oriented design, but they remain valid options if the system objective has changed. For example, if the platform is moving toward shorter penetration depth, less demanding receive sensitivity, or stricter power constraints, these parts can make sense. The important perspective is that they represent a different optimization corner, not a lateral move. When the receive chain is noise-limited, saving power here often pushes compensating complexity elsewhere, such as more aggressive gain scheduling or more restrictive image-processing assumptions.

If the design no longer needs a fully integrated low-noise ultrasound front end, TI also offers devices that focus more narrowly on VGA plus digitization. The AFE5801 is an 8-channel variable-gain amplifier with octal high-speed ADC, specified at 5.5 nV/√Hz, 12 bits, 65 MSPS, and roughly 65 mW per channel. The AFE5851 scales that idea to 16 channels, with 5.5 nV/√Hz noise, 12-bit conversion, 32.5 MSPS, and about 39 mW per channel. These parts are not direct replacements for AFE5818 because their front-end noise and integration target a different class of acquisition problem. They are useful when the transducer interface, noise floor, and overall image target permit a simpler receive path. In such cases, the lower power and often simpler system partition can be attractive. Still, using them in place of a true ultrasound-oriented low-noise AFE usually changes the achievable SNR envelope enough that image quality expectations need to be recalibrated early, not after layout.

For more modular architectures, TI also provides building blocks rather than fully integrated AFEs. The VCA5807 is an 8-channel voltage-controlled amplifier for ultrasound with passive CW mixer, and the VCA8500 is an 8-channel ultra-low-power VGA with low-noise preamp. On the converter side, ADS5294, ADS5292, ADS5295, and ADS5296A cover multichannel ADC requirements across different speed and resolution points. This path is attractive when the design team wants to optimize analog front-end behavior independently from ADC selection, or when one section of the chain is constrained by availability, cost, or custom signal conditioning needs. The downside is predictable: once the AFE is decomposed, every interconnect becomes a design variable. Noise coupling, anti-alias filter placement, gain staging, ADC full-scale alignment, and clock-jitter control all become explicit responsibilities. Integrated AFEs hide a large amount of that coordination, and their real value is often underestimated until a partitioned prototype is brought up.

From a mechanism perspective, the AFE5818 stands out because it aligns several high-value properties in one place: 16-channel density, very low input-referred noise, support for both imaging and CW Doppler, compact packaging, and a system-level integration point suitable for high-end and portable ultrasound. That combination reduces board area and shortens sensitive analog routes, which in turn helps preserve channel matching and limits opportunities for interference pickup. It also simplifies timing closure across channels, a nontrivial advantage when coherent acquisition quality matters as much as raw per-channel performance.

Channel count is usually the first filter in replacement decisions, but it should not be the only one. Moving from 16 channels to 8 channels per device changes more than BOM quantity. It affects clock fanout, data-lane aggregation, thermal distribution, package escape, and fault containment. In compact probes or portable scanners, those effects can be strong enough that a theoretically lower-cost substitute becomes more expensive once board layer count and validation time are included. This is one of the less obvious but repeatable lessons in AFE selection: integration level often pays back in layout simplicity and predictable bring-up more than it does in headline component count.

CW path requirements should be treated as a second hard filter. If continuous-wave Doppler is central to the product, then passive mixer support and digital I/Q demodulation are not optional feature checkboxes. They influence architecture all the way into firmware and post-processing. Reconstructing that path externally is possible, but it changes the balance of the design and can add analog sensitivity in exactly the frequency ranges where stability and matching are hardest to preserve. Devices such as AFE5812, AFE5809, and AFE5808A remain relevant because they keep that functionality close to the receive chain.

Noise target is the third decisive axis. The difference between 0.75 nV/√Hz and 1.05 nV/√Hz looks modest in isolation, but in deep receive chains the penalty is cumulative because the front-end sits before much of the downstream processing gain. Once the target application depends on detecting weak return signals, the lower-noise family members retain a real advantage. In contrast, if the application tolerates a narrower dynamic range or operates with stronger echoes, lower-performance but lower-power devices can be entirely rational. The right answer depends less on absolute specification prestige and more on whether the front-end noise remains comfortably below the acoustic and transducer-driven limits of the system.

Sampling rate and resolution should be interpreted in context rather than as standalone indicators. A 12-bit, 80-MSPS part is not automatically better suited than a 14-bit, 65-MSPS part. In ultrasound receive systems, ENOB under actual operating conditions, front-end linearity, gain control behavior, and digital processing assumptions matter more than nominal sample-rate superiority. AFE5818-class designs typically benefit from a balanced signal chain where analog noise, converter resolution, and channel density are aligned. Once one of those is downgraded, the system usually needs compensation somewhere else.

Power per channel matters not only for battery life or thermal budget but also for image stability. Thermal gradients affect offset drift, gain consistency, and sometimes inter-channel behavior in tightly packed boards. Lower-power options such as AFE5807, AFE5801, or AFE5851 can be attractive for constrained platforms, but the reduction should be judged against the total architecture. Two lower-power 8-channel devices may still impose more layout and heat-spreading work than one denser device designed for the same use class. Power numbers on a table are useful, but total system thermal behavior is the more honest metric.

A practical selection path is therefore straightforward. If the original design relies on 16 integrated channels, low receive noise, and combined imaging plus CW support, the AFE5818 remains the reference point and most alternatives are compromises rather than replacements. If channel density can be split across devices without major board penalties, AFE5812, AFE5809, and AFE5808A are the nearest family alternatives. If power and cost dominate over lowest noise and highest resolution, AFE5807 becomes a plausible step down. If the architecture has shifted away from a full ultrasound AFE toward simpler VGA-plus-ADC acquisition, AFE5801 and AFE5851 become relevant. If the design philosophy favors modular optimization, VCA5807 or VCA8500 combined with ADS529x converters can provide a partitioned route, at the cost of substantially more analog and clocking responsibility.

The most useful way to evaluate “replacement” for AFE5818 is to rank constraints in this order: mandatory channel count, mandatory CW functionality, allowable input-referred noise, required converter resolution and speed, then board-level power and package implications. That ordering tends to expose infeasible candidates quickly. It also reflects a broader engineering reality: in ultrasound front ends, the device that best preserves system architecture is often the true equivalent, even when another part appears closer on isolated datasheet numbers.

Conclusion

The Texas Instruments AFE5818 is a highly integrated 16-channel ultrasound analog front-end built for systems that must extract low-amplitude echo information without giving up board density, power efficiency, or design control. Its value is not defined by a single headline specification. It comes from how the full receive path is assembled: low-noise input stages, programmable gain behavior, filtering, high-speed data conversion, and continuous-wave Doppler support are combined in one compact 15 mm × 15 mm device. That level of integration directly reduces analog routing complexity, lowers mismatch risk across channels, and simplifies synchronization in multi-channel beamforming architectures.

At the front of the receive chain, noise performance sets the lower bound on detectable signal quality. The AFE5818 targets this constraint with input-referred noise around 0.75 nV/√Hz, which is especially relevant in ultrasound systems where return echoes can sit very close to the noise floor after propagation loss and tissue or material attenuation. In practice, this matters most when the system must preserve contrast at depth or detect small reflectors without aggressively trading off bandwidth. A front-end with weak noise performance can still appear acceptable in nominal lab conditions, yet fail once cable parasitics, probe variation, and TGC slope are introduced. Devices in this class are therefore judged less by isolated gain numbers and more by how consistently they maintain SNR across realistic operating points.

The gain architecture is another strong part of the AFE5818 design. With up to 54 dB total signal-chain gain and a 40 dB voltage-controlled attenuation range, the device gives system designers a practical way to manage the large dynamic range common in ultrasound receive paths. Near-field echoes can be strong, while deeper returns may require substantially more amplification. A flexible gain profile helps maintain usable ADC input swing across this range without saturating early stages. From an implementation perspective, this is where integrated gain control becomes more valuable than it first appears. Discrete gain staging often introduces channel-to-channel spread, layout sensitivity, and calibration overhead. By internalizing more of that behavior, the AFE5818 supports cleaner scaling from prototype to production.

Filtering and bandwidth management are equally important because ultrasound front ends rarely operate in a purely noise-limited regime. They also operate in the presence of out-of-band energy, transducer ringing, clock-related interference, and system-level coupling from transmit events. Selectable filtering inside the AFE5818 helps shape the receive response before conversion, which improves the usefulness of the ADC dynamic range rather than simply increasing nominal resolution. This distinction is important. High-resolution conversion only delivers full value when the analog path has already suppressed energy that does not contribute to image or measurement quality. In many systems, careful analog conditioning yields more real performance than increasing downstream digital complexity.

The data conversion stage balances resolution and throughput in a way that fits a wide range of imaging modes. The AFE5818 supports 14-bit operation at 65 MSPS or 12-bit operation at 80 MSPS. This gives designers room to optimize around aperture size, imaging depth, beamforming strategy, and backend processing limits. Higher effective resolution is useful when subtle amplitude differences carry diagnostic or detection value. Higher sampling rate can be preferable when timing precision, broader signal bandwidth, or processing latency dominates the design target. The key engineering advantage is not just that both modes exist, but that the device lets the receive chain be tuned to the rest of the platform rather than forcing the platform to absorb a rigid front-end constraint.

The integrated continuous-wave Doppler path is particularly relevant in systems that need both imaging and flow or motion measurement capability. Supporting CW Doppler in the same front-end reduces the need for extra receive components and keeps timing and signal alignment under tighter control. This is often underestimated at the architecture stage. When imaging and Doppler functions are split across loosely coupled signal chains, designers can end up spending disproportionate effort on interface reconciliation, calibration, and noise isolation. Integration does not remove these challenges entirely, but it contains them within a better-defined electrical environment.

On the digital side, the LVDS interface supports reliable high-speed data transfer while remaining familiar to FPGA and imaging processor ecosystems. For dense receive platforms, the interface choice affects more than signal integrity. It also influences layer count, connector strategy, clock distribution, and EMI behavior. LVDS remains attractive because it offers a practical balance between bandwidth and implementation robustness, especially in mixed-signal boards where sensitive analog inputs coexist with fast digital edges. In compact ultrasound designs, this balance is often more useful than adopting a more aggressive interface that saves pins but increases integration risk elsewhere.

Channel density is one of the most commercially important aspects of the AFE5818. Packing 16 receive channels into a single package reduces BOM count and compresses the analog front-end footprint, which can materially improve portability, probe-adjacent electronics density, or rack-level scaling. It also simplifies power distribution and thermal planning relative to a more fragmented implementation. Dense integration does introduce its own discipline: decoupling strategy, return-current control, and thermal symmetry become more important because many high-performance channels now share the same physical device. Designs that treat the AFE5818 as just a pin-compatible analog block tend to underperform. Designs that treat it as a tightly coupled mixed-signal subsystem usually extract much better channel consistency and image stability.

For product selection and platform planning, pin-to-pin compatibility with the AFE5816 family is strategically useful. It creates a migration path across feature and cost targets without forcing a full PCB redesign. That matters in real programs where one hardware platform may need to serve multiple market tiers or evolve through several transducer configurations. Maintaining layout continuity while changing front-end capability reduces validation cycles and protects firmware and FPGA investment. In practice, family-level compatibility often delivers more long-term value than a small improvement in isolated electrical specs, because redesign effort tends to dominate component-level optimization once systems reach integration maturity.

In medical ultrasound imaging, the AFE5818 is well suited to compact and mid-to-high channel-count receivers that need strong echo sensitivity, controlled gain evolution, and streamlined backend interfacing. In industrial inspection, the same characteristics support flaw detection and thickness measurement where reflection amplitude can vary sharply with geometry, coupling, and material composition. In sonar or related acoustic sensing systems, the front-end’s combination of low noise, programmable gain, and channel density supports architectures that must resolve weak returns while operating within strict space and power budgets. Across these use cases, the common requirement is not simply amplification. It is stable extraction of useful information from signals whose quality is shaped by the environment before they ever reach the ADC.

A practical selection view is that the AFE5818 works best when the system team values analog integrity as much as digital post-processing. It is tempting to assume that modern beamforming and DSP can compensate for most front-end limitations. That assumption usually breaks down once weak-signal fidelity, channel matching, and clutter behavior become critical. A cleaner front end reduces the burden on every downstream block. It improves the quality of the data entering the digital domain, which is usually more effective than trying to recover lost signal structure afterward. In that sense, the AFE5818 is not just a component with strong specifications. It is a front-end architecture that helps preserve optionality at the system level.

For engineers evaluating alternatives, the most compelling case for the Texas Instruments AFE5818 is the balance it strikes across noise, gain flexibility, conversion capability, integration depth, and migration readiness. It is designed for platforms where weak signal fidelity must survive real implementation constraints, not just ideal schematic intent. That is why it fits so well in ultrasound imaging, industrial acoustic inspection, and sonar-class receivers: it addresses the actual bottlenecks that define front-end performance once the design leaves simulation and enters hardware.
