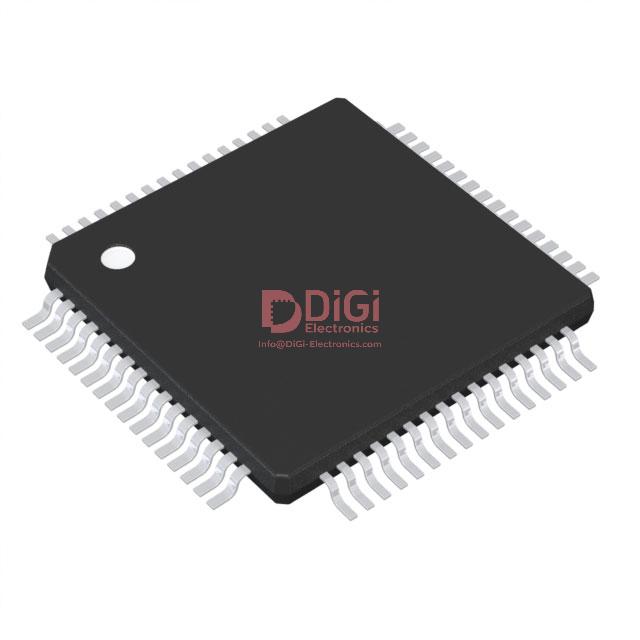

ADS8598SIPM

ADS8598S Product Overview

Texas Instruments ADS8598S is an 18-bit, 8-channel simultaneous-sampling SAR ADC built for multichannel signal acquisition where timing alignment, input robustness, and front-end integration matter as much as nominal resolution. It delivers up to 200 kSPS on every channel at the same time, while directly accepting true bipolar inputs of ±10 V or ±5 V from a single 5 V analog supply. This combination is the main reason the device stands out in industrial data acquisition: it closes the gap between high-voltage field signals and precision conversion without forcing a large amount of external conditioning circuitry.

At a system level, the ADS8598S should be understood less as a standalone converter and more as a tightly integrated acquisition subsystem. Each channel includes the analog elements that are usually scattered across the board in discrete form: input protection, scaling, filtering, drive, and conversion. That architecture is highly relevant in practical designs because multichannel measurement accuracy is often limited not by the ADC core itself, but by channel-to-channel mismatch introduced by external op amps, resistor ladders, RC networks, and protection circuits. By embedding these functions per channel, the device reduces analog path variation, simplifies matching, and makes simultaneous sampling easier to realize with predictable performance.

The simultaneous-sampling architecture is central to its value. In systems such as three-phase power monitoring, relay protection, vibration analysis, or current and voltage correlation measurements, time skew between channels directly converts into phase error. That phase error can corrupt power calculations, disturb fault localization, and degrade closed-loop control stability. With the ADS8598S, all eight channels are sampled at the same instant, which preserves waveform relationships across the channel set. In applications where phase information is more important than isolated amplitude accuracy, this matters more than a small improvement in raw sample rate or nominal resolution.

The input capability is equally important. Supporting true bipolar ranges of ±10 V and ±5 V means the device interfaces naturally with many industrial signal domains, including sensor outputs, conditioned current-shunt measurements, actuator feedback, and grid-monitoring signals. This reduces the need for level shifting around ground or midscale biasing schemes that often complicate mixed-signal layouts. In practice, removing those extra translation stages tends to improve both reliability and debugging speed. Fewer active components in the signal path usually means fewer offset sources, fewer saturation edge cases, and more predictable startup behavior.

Its integrated analog front end deserves close attention because this is where much of the board-level simplification comes from. The programmable gain stage allows the input path to be adapted to signal amplitude, improving effective use of the converter range across different sensor classes. The input clamp function helps the channel tolerate transient overvoltage events that are common in industrial wiring environments. Integrated low-pass filtering assists with noise control and anti-alias behavior, while the internal ADC driver reduces the burden of designing a high-linearity buffer stage for each channel. For an 8-channel system, replacing eight discrete precision driver chains with an integrated front end can significantly reduce BOM count, layout complexity, calibration effort, and validation time.

There is also a less obvious benefit to this integration: it makes performance more reproducible across builds. In discrete front-end designs, converter performance often depends heavily on op-amp settling, resistor tolerance, filter capacitor behavior, and PCB parasitics. Two nominally identical boards can still show measurable differences in gain error, phase response, or crosstalk. A device like the ADS8598S narrows that variability because the critical analog path is already characterized as a whole. For product teams trying to move from prototype to production without repeated analog rework, that can be more valuable than a small theoretical gain from a custom front end.

From an engineering selection perspective, the ADS8598S fits best where several constraints appear at once: multiple channels, synchronized acquisition, bipolar industrial signal ranges, and pressure to keep the analog design compact. It is especially well aligned with systems that must observe dynamic events rather than just slow process values. In power-grid monitoring and protection relays, simultaneous voltage and current capture enables accurate phase-angle measurement and event reconstruction. In multiphase motor control, synchronized sampling supports better estimation of electrical state variables and improves response consistency under transient load conditions. In industrial automation and general-purpose DAQ platforms, the device can reduce front-end design fragmentation when one board must accommodate several signal types.

The 18-bit resolution and 200 kSPS throughput place the device in a useful middle zone between precision and responsiveness. It is not intended only for low-speed instrumentation, nor is it aimed at ultra-high-speed waveform capture. Instead, it addresses the class of industrial signals where there is meaningful spectral content, strict timing relationships, and a need for more than coarse quantization. That balance is often the practical sweet spot. In many real deployments, once channel synchronization and front-end integrity are solved, 200 kSPS is sufficient to capture harmonics, switching signatures, and transient behavior with enough fidelity for control, diagnostics, or protection logic.

Temperature capability from –40°C to +125°C further supports deployment in field equipment, drive systems, substation electronics, and factory installations where thermal conditions are rarely ideal. Wide temperature support is not just a reliability line item. In analog measurement systems, temperature directly affects offset, gain, leakage, and protection behavior. Devices intended for harsh environments must maintain predictable operation when enclosure temperature rises, airflow drops, or nearby power stages heat the board unevenly. The ADS8598S is positioned for those realities, which makes it more suitable for industrial platforms than parts optimized mainly for laboratory conditions.

One practical design insight is that integrated front ends do not eliminate analog responsibility; they shift it. The main effort moves from building the signal chain to managing source impedance, grounding, input routing, and transient energy at the connector boundary. With the ADS8598S, the internal channel conditioning simplifies the converter interface, but system-level performance still depends on clean reference strategy, controlled return paths, and careful isolation planning if the measured domain is noisy or high energy. Designs that respect those fundamentals usually extract the full value of the device quickly, while designs that treat integration as a substitute for layout discipline often leave accuracy on the table.

Another useful perspective is that this device can shorten not only schematic design time but also characterization time. In multichannel systems, debugging often concentrates on subtle inconsistencies between channels: one path clips earlier, one settles slower, one shows more ripple, one reports slightly different phase. When the front end is integrated and replicated internally, those discrepancies become easier to isolate because fewer external variables remain. That tends to accelerate bring-up, especially in systems where firmware, calibration, and signal-processing algorithms depend on coherent channel behavior.

For product selection engineers, the ADS8598S is therefore best viewed as a high-integration industrial acquisition platform in ADC form. Its real value is not captured by resolution alone. The decisive combination is eight-channel simultaneous sampling, direct bipolar high-voltage input support, and per-channel integrated signal conditioning. In applications that require synchronized measurement of multiple real-world analog signals with minimal external circuitry, it offers a strong balance of precision, robustness, and implementation efficiency.

ADS8598S Core Architecture and Signal-Chain Integration

ADS8598S centers on an eight-channel simultaneous-sampling architecture in which each input has its own dedicated SAR conversion path. This is the defining architectural choice of the device. It removes the sampling uncertainty inherent in multiplexed ADC systems, where one converter is time-shared across multiple channels and each measurement is separated by aperture delay and settling time. In applications that reconstruct vector relationships rather than just scalar values, that difference is structural, not incremental. Three-phase power analysis, motor current reconstruction, vibration correlation across axes, and transient capture in protection systems all depend on preserving temporal alignment at the instant of acquisition. With ADS8598S, all channels observe the input state at the same sampling edge, so phase information is retained at the converter boundary rather than approximated later in firmware.

At the circuit level, this means the device is not simply eight ADC cores placed beside each other. It is a tightly integrated acquisition subsystem that absorbs several analog functions normally distributed across the board. Each channel combines programmable gain behavior, 1 MΩ input impedance, input clamp protection, a third-order low-pass filter, and an ADC driver ahead of the SAR core. That combination shifts the design burden away from building eight matched signal-conditioning chains from discrete parts. In practical layouts, this usually translates into fewer precision passive networks, fewer amplifier stability checks, and less channel-to-channel variation introduced by component tolerance, routing asymmetry, and driver interaction with the ADC sampling capacitor.

The integrated programmable gain path is especially important because gain selection at the converter boundary affects both dynamic range usage and front-end simplicity. In many multi-sensor systems, input amplitudes are not naturally aligned. Current shunts, PT outputs, piezo sensors, and conditioned bridge signals can differ by large ratios. Without integrated gain control, the design often compensates by tailoring each external amplifier stage, which increases validation effort and creates channel-specific analog behavior. The ADS8598S reduces that fragmentation. Gain can be managed closer to the conversion core, making it easier to normalize heterogeneous inputs while keeping the external interface more uniform. A useful design pattern is to use the board-level front end only for gross scaling and protection coordination, then rely on the device’s internal path to fine-tune signal utilization. That tends to produce a more stable system over revision cycles because fewer analog parameters are exposed to PCB and BOM variation.

The 1 MΩ input impedance also changes how the device interacts with upstream sources. High input impedance does not eliminate source-drive considerations, but it relaxes them enough to make direct connection from many conditioned sensors more realistic. Sensor outputs, transformer secondary interfaces, and resistor-divider networks often suffer when the data acquisition stage draws significant current or creates loading-dependent gain errors. Here, the high input impedance reduces that burden and preserves source behavior more faithfully. In practice, this is most noticeable when retrofitting existing measurement paths into a higher-channel-count DAQ board. A front end that was originally designed to feed one measurement node can often be interfaced with less redesign than expected, provided bandwidth and protection limits remain aligned.

Input clamp protection is another area where integration provides more value than the feature list first suggests. In discrete implementations, protection is easy to add but difficult to optimize. External clamps, series resistors, and transient suppressors can protect the converter while quietly degrading linearity, bandwidth, or settling if the network is not balanced carefully. Integrating the clamp function inside the channel reduces the distance between the vulnerable conversion node and the protection element. That shortens the uncontrolled analog segment and improves repeatability across channels. It does not remove the need for system-level overvoltage planning, especially in industrial environments with long cable runs or inductive loads, but it gives the designer a more predictable first line of defense. A robust implementation usually treats the internal clamp as the fast local protection layer and reserves external protection for high-energy events and compliance-driven fault cases.

The third-order low-pass filter embedded in each channel is a particularly efficient architectural choice because it addresses a common weak point in multiplexed or semi-integrated DAQ chains: anti-alias filtering is often applied inconsistently across channels. A low-pass network is not just a noise reduction block; it defines the spectral contract between the analog world and the digital sampling engine. When that contract differs slightly from channel to channel due to passive tolerance or layout parasitics, phase and amplitude matching begin to drift, often in ways that only appear during calibration or field correlation tests. By moving this function on-chip, the ADS8598S improves filter consistency and reduces the need for eight separate precision filter implementations. This is valuable in systems that compare channels directly rather than interpreting each one independently. Channel matching is often more important than absolute perfection on any single path, and integrated filtering tends to improve exactly that metric.

The ADC input driver inside each channel deserves equal attention. SAR converters impose dynamic loading during sampling, and external drivers must settle rapidly to the required accuracy within the acquisition window. This is one of the most common sources of underperformance in discrete high-resolution data acquisition designs. A signal chain can look correct in static simulation and still fail in real hardware because the amplifier, RC network, and ADC input capacitance do not settle as expected across process, temperature, and input amplitude. By integrating the driver stage with the converter, ADS8598S reduces the number of unknown interfaces in the acquisition path. That simplification has a direct engineering payoff: fewer edge-case stability problems, less dependency on amplifier selection minutiae, and more predictable full-scale linearity under multi-channel operation.

From a board-level integration perspective, the device changes the optimization target. Traditional multi-channel DAQ design often starts with the ADC as the centerpiece and then layers a custom analog front end around it. With ADS8598S, it is more effective to think in terms of boundary conditioning rather than full analog reconstruction. The external circuitry should focus on what the chip intentionally does not absorb: sensor-domain protection, common-mode adaptation if required, coarse attenuation, isolation boundaries, and EMC control. Once those tasks are handled, the converter can assume much of the fine-grain acquisition work internally. This usually leads to shorter analog traces, fewer interstage nodes, and a cleaner partition between noisy digital regions and sensitive analog routing. The layout becomes easier to reason about because there are fewer high-impedance intermediate nodes and fewer opportunities for crosstalk through long parallel signal paths.

That reduction in analog path length is not a cosmetic advantage. In dense industrial or instrumentation boards, every extra centimeter of analog routing is an antenna, a coupling path, and a source of mismatch. When eight channels each require external gain, filtering, protection, and drive stages, placement compromises start to dominate electrical intent. Integrated signal-chain devices reduce those compromises. The result is often not just a smaller design, but a more repeatable one. Repeatability matters more than many teams initially assume. A design that performs well on one board spin but depends heavily on component placement sensitivity or amplifier substitution is expensive to scale. Devices like ADS8598S narrow the spread between theoretical and production behavior.

The on-chip digital filter for oversampling extends the device beyond straightforward Nyquist-rate conversion and adds a second optimization axis after the analog front end. This is important because analog and digital filtering solve different parts of the same problem. The analog low-pass filter limits out-of-band energy before sampling and protects against alias folding. The digital oversampling filter, by contrast, improves in-band noise behavior when the signal bandwidth is lower than the raw sampling bandwidth. In low-to-medium bandwidth measurement systems, this lets the design trade throughput for cleaner data without redesigning the analog path. Power-quality monitoring, slowly varying process control loops, and structural sensing all benefit from this mode because the relevant information often occupies only a fraction of the converter’s baseband capacity.

A practical way to exploit this feature is to treat oversampling not merely as a datasheet noise enhancement option, but as a system-level bandwidth management tool. If the application does not require the full output data rate, oversampling can increase effective measurement stability and reduce the burden on downstream digital filtering. This often simplifies control software because fewer aggressive averaging or notch strategies are needed after capture. It also improves determinism in systems where raw code jitter would otherwise propagate into threshold detection or estimation loops. The cleaner approach is to shape the signal chain in layers: suppress spectral hazards in analog, sample simultaneously across channels, then use oversampling to refine the in-band result according to the actual information bandwidth.

One subtle but important implication of the ADS8598S architecture is that it encourages a different calibration philosophy. In discrete front ends, calibration often compensates for a wide stack of channel-specific analog errors: amplifier offset, resistor ratio drift, filter variation, and settling behavior. With more of the signal chain integrated, calibration can focus more narrowly on system-level gain and offset alignment, sensor-domain errors, and environmental drift. That reduces calibration dimensionality. Lower dimensionality tends to produce more stable field performance because fewer correction terms are interacting. In multi-channel systems, simpler calibration models are usually more robust than highly parameterized ones, especially when the operating environment changes faster than the original bench assumptions.

For phase-sensitive systems, the simultaneous-sampling architecture and integrated channel matching combine into a larger benefit: they preserve correlation quality under real operating conditions, not just in ideal stimulus tests. This distinction matters. Many systems appear accurate under steady sine-wave input but lose integrity under fast edge transitions, nonstationary loads, or asymmetrical sensor excitation. The weakness is often not converter resolution but channel timing and analog-path mismatch. ADS8598S addresses both at the architecture level. That is why it fits especially well in measurement platforms where the relationship between channels carries more value than the absolute reading of any single channel.

In effect, the device compresses the front-end design stack into a more controlled and better-matched acquisition block. That does not eliminate engineering choices; it relocates them. The highest-value work moves away from stitching together eight precision analog chains and toward defining correct input-domain boundaries, grounding strategy, fault energy handling, sampling policy, and data-rate versus noise tradeoffs. That is usually the right shift. The more the converter absorbs functions that are difficult to duplicate consistently eight times, the more effort can be spent on the parts of the system that actually differentiate performance in deployment.

ADS8598S Input Configuration and Bipolar Measurement Capability

ADS8598S input behavior is best understood by separating three interacting layers: the selectable measurement range, the channel return structure, and the way the front end behaves under non-ideal field conditions. Its practical value comes from how these layers align with real bipolar signal environments rather than from resolution alone.

A defining feature of the ADS8598S is its pin-programmable true bipolar input range. The device supports either ±10 V or ±5 V full-scale operation, selected through the RANGE pin. This matters because many industrial signals are not naturally unipolar. Current shunts, protection relays, grid-monitoring nodes, vibration pickups, and conditioned bridge outputs often cross 0 V during normal operation. In such cases, a converter that directly accepts bipolar swing avoids level-shifting networks, offset injection stages, and the calibration burden that those circuits introduce.

With RANGE = 1, each channel accepts a ±10 V signal on AIN_nP. With RANGE = 0, that range becomes ±5 V. The key point is that the converter is not merely tolerating negative voltage through protection structures; it is designed to measure a bipolar signal directly within its specified transfer function. That distinction is important in precision designs. A front end that only survives negative input is very different from one that maintains linear, predictable conversion over a negative-to-positive span.

Each input channel includes a positive input pin and a corresponding AIN_nGND pin. This often leads to an important design interpretation: AIN_nGND is not a second fully differential signal input in the usual instrumentation sense. It is a local channel return reference intended to remain near 0 V, with an allowed range of approximately –0.3 V to +0.3 V. In system terms, this gives each channel a controlled signal-return path while preserving the converter’s bipolar measurement model on AIN_nP. That arrangement is especially useful when multiple field signals arrive from different harnesses or terminal groups and must be referenced cleanly without forcing all return currents through a single noisy ground node.

This per-channel return structure can improve measurement stability in cabinets where analog returns share space with switching supplies, relay drive currents, or digital I/O transitions. In practice, conversion errors in mixed-signal systems often come less from ADC linearity limits and more from careless return routing. AIN_nGND helps contain that problem if it is treated as a Kelvin-like local reference node rather than as a casual ground tie. The device rewards disciplined layout. Short return paths, controlled impedance to the local analog ground region, and isolation from high di/dt currents tend to matter more than adding complexity elsewhere in the chain.

The ±0.3 V operating window on AIN_nGND also places a clear boundary on how the part should be used. It supports small local ground offsets, not large common-mode shifts. That means the ADS8598S is highly effective for ground-centered bipolar channels within the same equipment domain, but it is not a replacement for a high-common-mode isolated measurement front end. In systems with long remote sensor runs or floating transducers, this distinction prevents a common integration mistake. If the remote return can move significantly relative to the ADC ground, the right solution is usually isolation, differential signal conditioning, or both, rather than relying on the channel ground pin to absorb the mismatch.

The 1 MΩ input impedance is another parameter with strong system-level consequences. High input impedance reduces signal-source loading and expands the range of sensors or conditioned outputs that can connect directly to the converter. This is particularly valuable in retrofit or modular platforms where the source impedance is not tightly controlled. Many transducers, passive divider outputs, and transformer-based sensing stages can drive a 1 MΩ load comfortably, while a lower-impedance ADC front end would force the addition of an op amp buffer. Removing that buffer can save power, board area, error sources, and startup complexity.

That said, high input impedance should not be interpreted as “no front-end design required.” Source impedance still interacts with acquisition dynamics, cable capacitance, EMI filtering, and fault-protection networks. A channel may look easy to drive in DC terms and still show settling errors or bandwidth loss if a large series resistor and a heavy anti-alias capacitor are added without considering the converter’s sampling behavior. In practice, the best results usually come from moderate source impedance, a compact RC filter located close to the input pin, and symmetry between the signal path and its return. Excessively large resistor values may protect the input, but they also increase sensitivity to leakage, noise pickup, and settling time. The ADS8598S is forgiving, but not indifferent.

The specified input impedance drift of typically ±7 ppm/°C helps when estimating gain stability across temperature. In many precision systems, static impedance value is less important than whether it changes enough to disturb a divider ratio, sensor loading condition, or calibration slope. Low drift improves predictability, especially in designs where the ADC directly senses through external scaling resistors. This becomes relevant in energy and protection applications where ambient conditions swing widely and recalibration is infrequent. The same is true for the input leakage behavior, which is specified as a function of input voltage and input resistance. That allows more realistic error budgeting than a single worst-case number would. For high-value source networks, leakage is not just a datasheet footnote; it becomes part of the transfer function.

A useful way to think about the input network is that it defines both a measurement interface and a boundary condition. If the source is low impedance, the ADC mainly reflects signal quality. If the source is high impedance, the ADC and front-end parasitics become active participants in the measurement. This is where many otherwise sound designs lose accuracy. A resistive sensor divider that looks ideal in schematic form may shift several LSBs in real operation due to leakage current, board contamination, input protection current, or thermal gradients around the resistor network. The ADS8598S gives enough information to model these effects properly, and that is often the difference between a design that works on the bench and one that remains stable in production.

The overvoltage clamp capability adds another layer of practical robustness. In field-connected systems, analog inputs routinely see conditions that are outside the nominal measurement range: wiring errors, hot-plug events, inductive kick, common-mode surges coupled through cable shields, or transient mis-sequencing during startup and shutdown. Internal clamp structures do not eliminate the need for external protection, but they improve survivability and reduce the chance that a brief fault turns into permanent input damage. This is especially helpful in distributed I/O, power-quality monitoring, and renewable energy control systems where exposed connectors and long cable runs make transient energy unavoidable rather than exceptional.

The ±9 kV ESD rating on the analog input pins, specified under the human-body model, reinforces that robustness profile. It should be read as a baseline resilience metric, not as a complete field-protection strategy. HBM ratings say little about surge current from industrial cables, EFT bursts, or IEC contact discharge applied at a terminal block. In practice, robust front ends still need layered protection: series impedance to limit fault current, TVS devices sized for the environment, careful return-path design for surge energy, and enough spacing to prevent secondary breakdown across the PCB. The internal ESD strength of the ADS8598S is valuable because it increases margin, but the external protection network still defines whether a design survives repeated field abuse.

Application-wise, the ADS8598S fits best where bipolar voltage measurement is native to the signal rather than artificially created. Power-line sensing through resistor dividers, inverter feedback, motor phase monitoring, and sensor interfaces with zero-centered outputs are all good examples. In those systems, the converter’s direct bipolar support simplifies scaling and usually improves error transparency. A unipolar ADC with offset circuitry can reach similar functionality, but every extra stage adds offset drift, headroom limits, and fault paths. Simpler signal chains tend to calibrate faster and fail less ambiguously.

There is also a system architecture benefit in using a converter that measures around ground directly. When a platform must support multiple field input types, keeping the bipolar channels native reduces software compensation effort. Signal interpretation becomes more intuitive, fault thresholds are easier to define, and zero-crossing behavior remains physically meaningful. That is especially useful in control loops and event detection algorithms where the sign of the signal matters as much as its magnitude.

A practical design approach is to treat AIN_nP, AIN_nGND, source impedance, and protection components as one analog cell per channel. When this cell is repeated consistently across the board, channel matching improves and debugging becomes much easier. If one channel uses a different return path, RC constant, or protection footprint, subtle gain and phase differences appear long before they become obvious in static DC tests. Consistency is often the hidden enabler of precision in multichannel industrial converters.

The strongest aspect of the ADS8598S is not simply that it accepts ±10 V or ±5 V inputs. It is that the part combines true bipolar measurement, per-channel local return referencing, high input impedance, and useful fault tolerance in a way that reduces front-end complexity without obscuring error sources. That combination is rare enough to matter. In well-structured designs, it allows the analog engineer to spend less effort forcing the signal into an ADC-friendly shape and more effort preserving the signal’s original behavior. That is usually the more scalable path to accuracy.

ADS8598S Accuracy, Dynamic Performance, and Conversion Throughput

For multichannel precision data acquisition, the ADS8598S sits in a technically useful region where resolution, analog input range, and simultaneous throughput are balanced rather than optimized in only one direction. Its value is not just that it is an 18-bit converter, but that its DC accuracy, spectral behavior, and channel throughput align well enough to support real measurement systems without forcing major architectural compromises upstream or downstream.

The 18-bit resolution with no missing codes establishes the first layer of confidence. In practice, this means the transfer function remains monotonic across the code range, which is essential when the converter is used in closed-loop systems, calibration equipment, power analysis, or sensor interfaces where small signal changes must map predictably to digital output. Resolution alone is never a sufficient metric, but when combined with typical DNL of ±0.5 LSB and typical INL of ±2.0 LSB, the device shows that its code transitions and overall transfer linearity are controlled to a level consistent with precision industrial acquisition. DNL close to zero preserves local code uniformity, while low INL limits large-scale bowing of the transfer curve. That distinction matters. DNL affects code-to-code smoothness; INL affects whether the converter can be trusted across the full measurement span without aggressive multi-point correction.

Offset and gain behavior define the next layer, because real systems rarely operate only at room temperature or at full scale. The ADS8598S specifies typical offset error around ±0.3 mV, with maximum values up to ±1.8 mV depending on range. That is a meaningful number in systems with low-level signals riding on large common operating ranges. In field instrumentation, the more difficult issue is usually not the absolute room-temperature offset, but how that offset moves over time and temperature. Here, the specified offset drift of ±0.3 ppm/°C typical, with up to 3 ppm/°C maximum, indicates that the baseline remains comparatively stable if the analog front end and board layout are also disciplined. Gain drift of ±6 ppm/°C typical places similar emphasis on long-term span stability. For systems expected to maintain calibration over broad temperature excursions, these drift terms often matter more than the headline offset value. A converter can start close to ideal and still become expensive to support if drift forces frequent recalibration. This part avoids much of that burden when paired with a stable reference strategy and matched front-end components.

A useful way to interpret these DC specifications is to separate what can be corrected once from what must be continuously tolerated. Static gain and offset errors are often removable through system calibration. INL, drift, noise, and distortion are far less forgiving. That is why the ADS8598S is stronger than many superficially similar converters: the harder error terms are controlled well enough that calibration remains effective over time instead of only at initial test.

Its dynamic performance reinforces that positioning. At a 1 kHz input with no oversampling, the converter reaches typical SNR up to 94 dB and SINAD up to 93.9 dB on the ±10 V range, with THD around –109.2 dB and SFDR near 109 dB. Those numbers indicate more than low broadband noise. They show that the internal sampling and conversion path preserves waveform integrity with low harmonic contamination and strong suppression of non-harmonic spurs. In practical signal chains, this is the difference between a converter that merely reports amplitude and one that supports meaningful spectral interpretation. For motor diagnostics, vibration monitoring, line-quality observation, or precision stimulus-response measurements, low THD and high SFDR directly affect whether weak fault signatures remain visible beside larger fundamentals.

The ±5 V range retains similarly strong AC behavior, with typical SNR of 93.2 dB and SINAD of 93.1 dB. That consistency across ranges is important because many designs choose input range based on sensor scaling, protection margin, and fault tolerance rather than ideal converter utilization. A part that degrades sharply when range changes often complicates product variants. Here, the performance stays stable enough that range selection can remain a system-level decision instead of becoming a converter limitation.

Oversampling extends the device into a different operating mode rather than simply refining the same one. At 16× oversampling and 130 Hz input, typical SNR can reach 101.8 dB and SINAD about 101 dB. This reflects the standard trade: lower effective bandwidth for improved in-band noise performance. In applications such as grid monitoring, process control, low-frequency data logging, and precision servo feedback, that trade is usually favorable. The important point is not only that the noise floor improves, but that the improvement is available inside a converter architecture that still supports wide input ranges and multichannel acquisition. That combination reduces the need for separate low-speed precision channels and higher-speed monitoring channels in the same design.

In system terms, oversampling is most useful when the signal bandwidth is intrinsically narrow and when the analog front end is quiet enough that converter noise remains visible. If the driver amplifier, reference, grounding, or input protection network dominates the noise budget, the theoretical SNR gain from oversampling will not fully materialize. This is a common integration mistake. The converter gets evaluated in isolation, then underperforms on the assembled board because the surrounding circuitry was designed for range and robustness but not for spectral cleanliness. With the ADS8598S, careful attention to reference decoupling, analog return paths, and driver settling can make the difference between merely acceptable 18-bit behavior and genuinely high-fidelity acquisition.

Throughput is where the part becomes especially practical. The ADS8598S supports 200 kSPS maximum per channel across all eight channels with zero latency, and the acquisition time is 1 μs. That set of numbers gives the converter a distinct system role. It is fast enough to capture transients, phase relationships, and multiplexed process dynamics that low-speed precision DAQ converters would miss. At the same time, it avoids the interface complexity, power, and signal-conditioning demands that often accompany much faster converter platforms. In engineering terms, it occupies the middle ground where many industrial systems actually live: fast enough for synchronized observation and control, precise enough for measurement-grade data, and simple enough to integrate without turning the converter into the entire project.

Zero latency deserves special attention. In control and monitoring systems, latency is often more damaging than raw sample-rate limits because it distorts timing assumptions between the physical event and the reported result. A converter with no pipeline delay is easier to model, easier to synchronize, and easier to use in protection loops or event-driven capture. This becomes especially valuable when several channels must be aligned in time for phase comparison, power calculation, or cross-channel correlation. Sample throughput by itself does not guarantee usable simultaneity; low and predictable conversion delay does.

The 1 μs acquisition time also places real constraints on the front-end design. It implies that source impedance, amplifier output current, RC filtering, and clamp networks must be chosen so the input can settle adequately within the acquisition window. This is one of the most frequent causes of “mysterious” accuracy loss in precision SAR systems. The converter data sheet may show excellent INL and SNR, but if the analog source cannot settle to within a fraction of an LSB before conversion starts, those specifications become unattainable in the actual product. Short acquisition windows favor low-impedance drive and carefully damped input filtering. Excessively large series resistance or heavy anti-alias filters can quietly erode both DC and AC accuracy.

From an application perspective, the ADS8598S is well matched to systems that need simultaneous visibility across several analog nodes without sacrificing precision. Power quality analyzers, protection relays, industrial automation modules, battery test equipment, mixed-signal control systems, and embedded instrumentation are all natural fits. In these cases, the wide bipolar input ranges simplify direct interfacing to industrial signals, while the dynamic performance supports harmonic and transient analysis beyond simple scalar measurement. That dual competence is often more valuable than extreme performance in only one domain.

A broader engineering view is that converters like the ADS8598S are most effective when treated as signal-chain anchors rather than isolated components. Its specifications are strong enough that surrounding design choices become the dominant determinants of final performance. Reference stability, driver linearity, front-end protection leakage, clock quality, and PCB partitioning all start to matter at the same level as the converter itself. That is usually a good sign. It means the ADC is not the limiting block in ordinary implementations. Instead, it provides enough margin that disciplined system design can convert its data-sheet capability into repeatable product behavior.

Taken together, the ADS8598S delivers a credible mix of 18-bit linearity, low drift, strong low-frequency spectral purity, oversampling-based noise improvement, and 200 kSPS per-channel throughput with zero latency. Its real strength is not any single specification in isolation. It is the coherence of those specifications. The device is precise enough for measurement, fast enough for synchronized acquisition, and stable enough for industrial deployment, which is exactly the combination many multichannel systems need and relatively few converters provide cleanly.

ADS8598S Reference System and Voltage Supply Requirements

The ADS8598S reference architecture is one of the main factors that determines achievable accuracy, channel-to-channel consistency, and long-term stability. Its support for both internal and external reference modes is not just a convenience feature. It defines how the converter should be positioned inside a measurement chain, especially when multiple ADCs, shared analog front ends, or tightly matched control loops are involved.

The internal reference path is intended for designs that value local autonomy, reduced component count, and predictable board-level integration. With REFSEL driven high, the device enables its internal 2.5 V low-drift reference and presents it at the REFIN/REFOUT pin. At 25°C, this node is specified at 2.5 V typical, with a narrow production spread of 2.4975 V to 2.5025 V. That range is already tight enough for many industrial acquisition systems where absolute error is later corrected through system calibration. More important in sustained operation is the reference drift, specified at 7.5 ppm/°C. In practical terms, this drift directly propagates into gain variation because the ADC transfer function is anchored to the reference subsystem. If the input chain is otherwise stable, reference drift becomes one of the dominant contributors to code movement over temperature.

Inside the device, the actual ADC reference seen at REFCAPA and REFCAPB is 4.0 V typical. These pins are not general-purpose outputs. They are part of the internal reference buffer network and must be treated as sensitive analog support nodes. The requirement to short REFCAPA and REFCAPB together and decouple them to AGND with a low-ESR 10 µF ceramic capacitor is fundamental to stable conversion behavior. The capacitor forms part of the local charge reservoir used by the reference circuitry during conversion transients. If this node is routed loosely, decoupled with a poor dielectric, or connected through excessive loop inductance, the result is usually not catastrophic failure but degraded dynamic behavior: increased noise floor, small gain instability, and code spread that appears only under throughput or multi-channel activity. These are the kinds of issues that often pass a static bench test and then surface during full-rate system validation.

The REFIN/REFOUT pin also requires a 10 µF capacitor to REFGND. This is equally important because the internal reference must remain quiet not only in DC terms but also across the frequency range where the converter’s internal switching network draws charge. A common implementation mistake is to treat the reference pin like a lightly loaded DC output and place the capacitor far away or share its return path with digital currents. That usually injects enough disturbance to reduce the practical benefit of the converter’s specified reference performance. In dense layouts, the reference loop should be kept compact, with the capacitor placed as close as possible to the pin pair and returned into the analog ground domain with minimal shared impedance.

When REFSEL is low, the device switches to external reference mode through REFIN/REFOUT. The accepted input range is 2.475 V to 2.525 V, with a high input impedance of 100 MΩ and about 10 pF input capacitance. Electrically, that makes the node easy to drive in static terms, but it should not be interpreted as a casual input. External references are most useful when several converters must track one another closely, when system-level gain error must be minimized before calibration, or when a higher-grade reference source already exists elsewhere on the board. In multi-ADC designs, sharing one precision reference often improves inter-device coherence more effectively than trying to calibrate out separate internal reference tolerances after assembly.

That said, a shared reference only helps if its distribution network is engineered correctly. The reference source must remain stable under the aggregate capacitive loading of all connected converters, and its routing must avoid coupling from clock edges, digital buses, and fast input drivers. In practice, star distribution or buffered fanout tends to be more reliable than daisy chaining, especially when converters are spread across a larger PCB area. Even though the ADS8598S input impedance is high, the reference path still needs local decoupling discipline because each converter creates local dynamic demand that can modulate the shared node if isolation is poor. This is one reason a theoretically superior reference can underperform an internal one in real hardware: the source itself may be excellent, while the distribution network quietly degrades it.

Choosing between internal and external reference should therefore be based on error budgeting rather than habit. If the design contains a single ADS8598S, moderate ambient variation, and downstream calibration, the internal reference is often the cleaner and lower-risk option. It minimizes BOM complexity and removes one more sensitive analog trace from the board. If the design includes multiple synchronized converters, cross-channel ratio measurements across devices, or a requirement for tighter absolute matching over temperature and time, an external reference becomes more compelling. The key tradeoff is simple: internal reference reduces integration risk, while external reference can improve system coherence when the surrounding analog infrastructure is strong enough to preserve its quality.

The supply scheme is similarly straightforward on paper but deserves careful interpretation during implementation. AVDD operates from 4.75 V to 5.25 V, nominally 5 V, and serves the analog conversion core. DVDD spans 2.3 V to 5.25 V, which allows direct interfacing to a broad range of digital logic families. This split-supply capability is especially valuable in mixed-voltage systems. A 5 V analog rail can be preserved for input range and analog headroom, while the digital interface can be aligned with 3.3 V or even lower-voltage controller domains without external level shifting in many cases. That flexibility reduces integration friction, but it does not remove the need to manage domain separation carefully.

Analog and digital supplies should be treated as functionally distinct noise environments even when they originate from the same upstream source. The broad DVDD range is useful, but lower digital voltage should not be viewed only as a logic-compatibility feature. It can also reduce switching amplitude at the interface, which often lowers digital feedthrough into nearby analog nodes. In systems where layout density is high, selecting 3.3 V DVDD instead of 5 V can make signal integrity and EMI containment noticeably easier. The improvement is rarely dramatic in a schematic review, but it often becomes meaningful during conducted-noise and repeatability testing.

The internal regulator outputs, REGCAP1 and REGCAP2, must each be decoupled separately to AGND with 1 µF capacitors. These pins are part of the device’s internal power-conditioning structure and should not be loaded externally. Their capacitors are not generic bypass parts added for margin. They are required elements that stabilize internal regulated nodes and help isolate sensitive circuitry from supply disturbances generated elsewhere inside the converter. Omitting them, combining them, or relocating them for routing convenience can destabilize internal operating conditions in ways that are difficult to debug. A converter may still appear functional, but offset, noise, or conversion repeatability may drift outside expected behavior, particularly across temperature, startup sequencing, or burst-mode activity.

From an engineering risk perspective, the capacitor network around REFIN/REFOUT, REFCAPA, REFCAPB, REGCAP1, and REGCAP2 should be viewed as part of the silicon boundary rather than as external support circuitry. That mindset leads to better implementation choices. Use low-ESR ceramic capacitors with stable characteristics across bias and temperature. Place them with short traces and short ground returns. Keep their return currents inside the analog ground region. Avoid routing digital lines across or near these nodes. If analog and digital ground are joined at the board level, ensure the local reference and regulator decoupling currents do not share a path with high-edge-rate digital return currents.

A useful way to think about the ADS8598S is that its specified performance is achieved only when reference stability, supply cleanliness, and decoupling geometry are all preserved together. Designers often focus first on source impedance, throughput, or interface timing, which is reasonable, but converters in this class are frequently limited in real products by support-network quality rather than by core ADC limitations. The reference mode selection sets the accuracy framework. The supply partitioning sets the noise environment. The capacitor placement determines whether those two advantages survive actual switching conditions on the board.

For that reason, the best implementation strategy is usually hierarchical. First, decide whether the system needs local reference independence or shared reference coherence. Next, design the reference and regulator capacitor network as tightly coupled analog infrastructure. Then align AVDD and DVDD to the broader power architecture while preserving domain isolation. Once those layers are correct, the ADS8598S generally integrates cleanly and behaves close to its datasheet intent, with fewer surprises during thermal sweep, multi-channel activity, or full-throughput operation.

ADS8598S Digital Interface Options and Data-Read Flexibility

One of the most useful system-level features of the ADS8598S is not only its simultaneous-sampling analog front end, but the way its digital interface can be shaped around the host architecture. The device supports three readout styles: serial, full parallel, and parallel byte. That range is more than a convenience feature. It directly affects timing closure, pin budgeting, firmware complexity, FPGA resource use, and even long-term platform portability.

At a board level, interface choice often determines whether the converter behaves like a cleanly integrated subsystem or becomes a source of avoidable timing and software overhead. The ADS8598S reduces that risk by allowing the same analog design to be reused across very different digital back ends. A high-pin-count FPGA can exploit full-width data transfer for tight deterministic acquisition loops. A microcontroller-based design can switch to serial mode and preserve I/O for communication, control, or safety functions. Systems tied to older bus structures can use byte mode without forcing redesign of the host-side data path. This kind of flexibility is valuable because the analog section is usually the part designers are least willing to disturb once signal integrity and channel behavior have been validated.

The three interface modes serve distinct engineering priorities.

Serial mode is typically the best fit when routing simplicity and GPIO efficiency dominate. Instead of dedicating a wide bus to the converter, the design uses a smaller set of digital lines and shifts conversion data out under clock control. This lowers pin pressure on the host and can simplify multilayer routing, especially in dense mixed-signal layouts where parallel buses tend to consume escape channels and create more opportunities for digital coupling into sensitive analog areas. The tradeoff is throughput management. With eight channels of data to extract, serial read timing must be evaluated against the required sample rate and processing latency. In moderate-speed control and monitoring applications, that trade usually lands favorably. In tightly scheduled real-time systems, however, the serial clock budget becomes a first-order constraint rather than a secondary implementation detail.

Full parallel mode targets designs where deterministic transfer latency is more important than pin count. The data is available over a wider bus, so the host can capture results in fewer transactions and with less serialization delay. This is especially attractive in FPGA-based systems such as motor drives, grid protection nodes, and power quality analyzers, where sampling, threshold comparison, and response timing may all sit within a fixed control cycle. In those environments, wide-bus capture often simplifies downstream logic because channel data can be latched and distributed with minimal unpacking. A practical pattern is to align BUSY deassertion with a synchronous read state machine, then register the parallel word directly into channel-processing pipelines. That approach usually produces cleaner timing than recovering equivalent data from a serialized stream under a separate clock domain.

Parallel byte mode occupies an important middle ground. It preserves a bus-oriented interaction model while cutting active data width in half, which can be useful when the host cannot spare a full parallel bus but still benefits from memory-like access semantics. This mode often integrates well with legacy processors, CPLDs, and older controller boards that were built around 8-bit external data paths. It also helps when PCB layer count or connector pin allocation limits the practicality of full parallel operation. In many retrofit designs, byte mode avoids invasive changes to the host interface while keeping readout behavior more transparent than a fully serial protocol.

The multifunction pin structure is central to this adaptability. Several pins change role depending on the selected interface mode, so the device can expose different digital personalities without increasing package complexity. DB7/DOUTA and DB8/DOUTB operate as serial data outputs in serial mode. DB14/HBEN becomes the byte-selection control in parallel byte mode. DB15/BYTE_SEL is used to enable byte-interface operation. RD/SCLK functions either as a read strobe in parallel modes or as the serial clock input in serial mode. This reuse of pins is efficient, but it also means the interface mode must be treated as a board-level configuration decision rather than a minor firmware option. Pull states, trace destinations, timing assumptions, and startup behavior all need to remain consistent with the selected mode.

That point matters in implementation. Multifunction interfaces are flexible, but they reward disciplined schematics and unambiguous reset behavior. A common source of bring-up friction is not converter performance but digital ambiguity during power-up, especially when shared pins connect to programmable logic that may tristate or float before configuration completes. In practice, conservative pull-up or pull-down choices on mode-defining pins and clearly documented startup sequencing eliminate most of that risk. The device is straightforward once the mode is fixed, but it benefits from treating interface selection as part of hardware architecture, not just software configuration.

Two status outputs, BUSY and FRSTDATA, are particularly helpful in reducing host-side uncertainty. BUSY is asserted high while a conversion is in progress. This gives the controller or FPGA a direct indication of conversion activity and a reliable reference for when readback may begin. In synchronous acquisition systems, BUSY is often the cleanest signal for closing the timing loop between conversion start and data retrieval. FRSTDATA asserts high when the readback corresponds to channel 1, which is useful for framing and alignment, especially when channel sequencing must be verified in hardware rather than assumed from software state.

These signals are more important than they may appear at first glance. In multichannel systems, errors often come not from missing samples, but from subtly misaligned samples. If one channel word is shifted within the read sequence, the resulting fault can survive basic communication checks while corrupting control behavior or event analysis. FRSTDATA provides a simple hardware anchor for channel ordering, and that tends to be far more robust than relying entirely on transaction counting inside firmware. In FPGA designs, using FRSTDATA to validate state-machine alignment during readout is a small addition that can prevent long debug cycles later. In embedded processor designs, BUSY can be tied into interrupt or polling logic to avoid premature reads and to keep acquisition timing predictable under software load.

The broader engineering value of the ADS8598S interface is that it separates analog validation from host-interface evolution. That separation is often underestimated. A product may begin with an FPGA, then migrate to a lower-cost SoC. A control board may need a pin-reduced variant. A platform may require backward compatibility with an existing bus. If the converter forces a single digital style, those transitions become expensive because they disturb validated analog circuitry and board partitioning. By supporting multiple interface paths, the ADS8598S allows the digital side of the system to evolve while the sampling architecture remains stable.

There is also a less obvious benefit in verification strategy. Full parallel mode usually makes initial lab bring-up faster because visibility is high and timing is easier to probe directly with logic analyzers. Serial mode, however, can produce a cleaner production design once throughput has been proven sufficient. For that reason, some teams prototype around wider interfaces for rapid debug, then collapse to serial in cost-optimized revisions while keeping the same converter and analog routing. The ADS8598S makes that kind of migration realistic. It is not just flexible at the data-sheet level; it supports phased design decisions across product maturity.

From a system perspective, predictable read timing is often as important as converter resolution, and sometimes more important. Resolution defines potential measurement fidelity. Interface determinism defines whether that fidelity arrives at the processor in a form that can be trusted cycle after cycle. The ADS8598S addresses this well by offering multiple transfer modes, clear status signaling, and enough interface configurability to match very different host constraints. That combination makes it easier to build acquisition systems that are not only accurate on paper, but also orderly, debuggable, and robust in deployed control environments.

ADS8598S Pin-Level Functional Organization and System Control Signals

ADS8598S pin-level functional organization is best understood as a system partitioning strategy implemented at package level. The 64-pin LQFP does not simply expose ADC channels. It distributes analog acquisition, reference management, conversion orchestration, and digital extraction in a way that reduces interference paths and simplifies board-level timing control. That is the practical meaning of its pin map. The device behaves less like a generic converter and more like a compact data-acquisition front end whose package pins already imply layout intent, signal grouping, and firmware sequencing.

At the physical level, the 10.00 mm × 10.00 mm LQFP footprint provides enough perimeter to separate high-sensitivity analog nodes from switching-dominant digital pins. This matters because mixed-signal performance is often limited less by nominal converter resolution than by current return geometry, reference stability, and digital edge coupling. In this device, the pin organization reflects that reality. The analog inputs, supply pins, and grounds are not placed arbitrarily. They are arranged to keep acquisition paths localized and to support short routing between external signal-conditioning stages and the converter inputs. When reviewing schematics, this should be read as an instruction to preserve functional zoning on the PCB rather than as a mere package convenience.

The analog input structure consists of eight positive inputs, AIN_1P through AIN_8P, each paired with a corresponding return node, AIN_1GND through AIN_8GND. This pairing is significant. It indicates that each channel is treated as its own local measurement path, with an explicit return reference at the pin level. In practice, that improves flexibility when interfacing to sensors or front-end amplifiers with channel-specific ground behavior, and it helps contain ground-induced measurement error when channels do not share perfectly quiet return currents. A common mistake is to interpret the “GND” naming as a simple global ground tie and route all return pins into a noisy shared copper region. In high-channel-count systems, that approach usually degrades channel matching and crosstalk. Better results come from treating each return pin as part of its channel loop, then tying those loops into a controlled analog ground structure near the device.

AVDD and AGND distribution around the package further supports this channel-local view. Multiple supply and ground pins reduce inductive impedance and spread transient current injection across the package lead frame. That is not just a decoupling convenience. It directly affects sampling stability, internal reference behavior, and linearity under simultaneous switching conditions. Short decoupling paths, low-loop-area bypass placement, and tight analog-ground stitching near these pins usually produce more measurable benefit than aggressive post-processing of sampled data. In designs with an FPGA placed too close to the analog edge of the package, it is often the return-current overlap, not the clock frequency itself, that causes unexpected noise rise.

Conversion control is split between CONVSTA and CONVSTB, which independently trigger conversion for two channel groups. This is one of the most useful architectural features of the ADS8598S because it allows system timing to follow signal behavior rather than forcing every channel into one rigid acquisition event. Where some inputs represent phase-related signals and others are slower supervisory signals, the dual-convert structure enables selective simultaneity. Designers can synchronize channels 1 through 4 and channels 5 through 8 together or offset them as needed by the application. That flexibility is valuable in motor control, multi-axis sensing, power-quality capture, and protection systems where event timing across subsets of channels matters.

The deeper implication is that CONVSTA and CONVSTB are not just trigger inputs. They define timing domains inside the acquisition workflow. Their routing deserves the same discipline as other precision timing nets: matched delay where simultaneity matters, controlled edge quality, and minimal coupling into analog traces. In practice, if one convert line is routed across the digital region while the other remains short and clean, channel-group timing skew can become less predictable under fast edge conditions. The nominal converter specification may still be met, but system-level correlation between groups can drift enough to complicate control loops or event reconstruction.

RESET, STBY, RANGE, OS0, OS1, OS2, and REFSEL form the device’s operational control plane. These pins are often underestimated because they do not carry sample data, yet they determine the measurement envelope. RESET restores digital state determinism, which is important not only during startup but also when recovering from bus contention or partial power sequencing. In complex systems with multiple rails, asserting RESET after all supplies and clocks settle is usually safer than relying on passive startup order. STBY provides power-down control, but its real system value lies in enabling deterministic duty-cycled acquisition. If the design uses burst sampling, wake-up behavior, reference recovery, and front-end settling must be considered together. Power savings are useful only when the measurement chain re-enters valid operation predictably.

RANGE configures the bipolar input span and therefore sets the relationship between external signal conditioning and converter code space. This pin has direct consequences for gain staging, overvoltage margin, and noise utilization. An overly conservative range wastes quantization dynamic range. An aggressive range can improve resolution in theory but often increases clipping risk once sensor tolerances, amplifier offset, and transient conditions are included. In robust designs, range selection is made after evaluating worst-case field amplitude, not just nominal sensor output. That decision should be aligned with the analog front end so that the converter is neither underdriven nor used as the first line of overload protection.

The oversampling pins, OS0 through OS2, control internal oversampling behavior. From a system perspective, these pins trade throughput for noise shaping and effective resolution improvement. Their importance depends on the signal class. For slowly varying measurements such as temperature-compensated process variables or DC-link monitoring, oversampling can meaningfully improve usable precision without external filtering complexity. For fast transient capture, however, oversampling can obscure timing details if chosen without regard to event bandwidth. The key is to treat oversampling as part of the signal model, not as a blanket “accuracy enhancement” setting. In many designs, the best result comes from matching oversampling mode to the channel mission rather than applying a single setting because it appears more precise on paper.

REFSEL determines whether the device uses its internal reference or an external one. This choice is central to error budgeting. The internal reference usually simplifies routing, BOM count, and startup behavior. It is often the better option when absolute accuracy demands are moderate and layout simplicity is important. An external reference becomes valuable when system-level gain accuracy, temperature drift, or cross-device consistency are dominant requirements. But using an external reference only pays off if the surrounding layout supports it. A high-grade reference IC routed through noisy digital return paths can perform worse than the integrated option. The reference network should be treated as a precision analog subsystem with guarded routing, local decoupling, and minimal dynamic loading.

On the digital side, DB0 through DB15 provide the parallel data interface, with certain pins assuming alternate functions depending on interface configuration. This multiplexing is common in dense mixed-signal devices, but it adds a configuration management burden. Schematic capture must reflect the selected operating mode clearly, and firmware assumptions must match strap states and timing expectations. Parallel interfaces are attractive because they reduce read latency and simplify deterministic data extraction into an FPGA or high-speed MCU. The cost is pin count, bus routing density, and higher simultaneous switching noise. In compact boards, the digital bus can become the dominant aggressor unless trace breakout is planned to prevent coupling into nearby analog inputs or reference pins.

CS and RD/SCLK define the readout timing boundary between the converter and host logic. Their behavior determines whether data retrieval remains clean under high sample rates or becomes a source of intermittent framing errors. In implementations using a parallel bus, chip select should not be treated as a casual enable line. It participates in timing closure, especially when multiple devices share the bus or when FPGA I/O banks have unequal delay. Likewise, RD/SCLK must be routed and timed according to the selected interface mode, because any ambiguity at this pin affects not only data capture but also bus contention windows. A recurring integration issue is that the ADC itself is blamed for unstable output codes when the real cause is marginal read timing in the host domain.

From a PCB perspective, the pin-level organization strongly suggests a three-region strategy: analog input conditioning near the analog pins, reference and supply conditioning adjacent to the power/reference side, and digital bus breakout toward the controller side. This zoning minimizes unnecessary crossings between quiet analog and fast digital current paths. It also makes manufacturability reviews more meaningful because placement can be evaluated against functional boundaries already implied by the package. When the device is centered between a sensor connector and a digital processor, route priority should go first to input symmetry and reference cleanliness, then to bus convenience. Systems usually tolerate an extra layer transition on a data line more easily than they tolerate a contaminated analog return.

For schematic planning, the device should be budgeted as a complete DAQ node rather than as eight isolated ADC channels. That changes connector strategy, power partitioning, and processing allocation. The presence of per-channel returns, dual conversion triggers, selectable range, oversampling controls, and reference selection means the package is already exposing the hooks needed to build a measurement subsystem with timing intelligence. In isolation-sensitive designs, this matters because the digital host interface, conversion control, and analog source domains may need different partition rules. In FPGA-based systems, it matters because parallel bus width alone does not define integration cost; the control pins and timing behavior can consume a meaningful share of I/O planning and state-machine complexity.

A useful way to read the ADS8598S pinout is to see it as an encoded implementation guide. The analog pins tell where low-noise layout discipline is mandatory. The control pins tell where timing architecture must be explicit. The digital pins tell where bandwidth and bus determinism will dominate integration effort. Designs that follow that interpretation usually converge faster because the package itself already reveals the intended mixed-signal hierarchy. The stronger the board preserves that hierarchy, the closer the assembled system will come to the converter’s actual performance envelope.

ADS8598S Power Modes, Oversampling, and Operating Behavior

ADS8598S power control and conversion behavior are built around a practical tradeoff: keep the analog front end ready for deterministic sampling when timing matters, and reduce dissipation when the signal environment or control loop does not justify full-rate operation. The standby and shutdown modes, selected through the STBY input with RANGE participating as a mode-selection qualifier, reflect that intent. This is not only a low-power feature. It is a scheduling feature for the entire acquisition subsystem.

At the mechanism level, standby and shutdown should be treated as two different restart contracts. Standby preserves more internal biasing and shortens the path back to valid conversion results. Shutdown pushes power reduction further, but recovery cost increases because more of the converter must be re-established before the sampled output regains specified performance. In systems with periodic activity bursts, this distinction matters more than the static power number alone. If the wake interval is too frequent, shutdown can become inefficient because the energy and time spent re-entering active mode begin to erode the savings. Standby is often the better operating point when the inactive window is short, deterministic, and repeated.

The RANGE pin acting as a multifunction control alongside STBY deserves careful treatment in hardware and firmware. Multifunction pins reduce package complexity, but they also compress more system behavior into fewer logic states. That means the control sequence must be explicit. Glitches, undefined startup pin states, or asynchronous GPIO transitions can unintentionally place the converter in a deeper power-down state than expected. In practice, this is one of the easier ways to create intermittent acquisition failures that appear as missing data, delayed first samples, or inconsistent recovery timing. A clean design usually assigns these pins to outputs with defined reset behavior, adds pull resistors when needed, and documents the exact state machine in firmware rather than treating power mode entry as a generic GPIO toggle.

The exit timing from standby or shutdown is especially important because it determines whether the ADC can participate in managed duty cycling without corrupting control timing. The datasheet’s recovery specifications indicate that these modes are intended for normal operation, not only for emergency power removal. That distinction is useful in industrial controllers, remote instrumentation, and condition-monitoring nodes where the converter may be active only during scheduled measurement windows. A robust implementation usually aligns wake-up with a conversion frame boundary, inserts a guard interval based on worst-case recovery timing, and discards or flags the first sample if the surrounding analog chain includes slow-settling drivers, multiplexers, or reference buffers. The ADC may be ready before the rest of the signal path is fully stable.

This point becomes more important when the front-end source impedance is not negligible. Power-state transitions can disturb internal sampling conditions, reference loading, and driver settling. On paper, ADC wake-up timing may satisfy the requirement. On the bench, the first code can still be biased if the amplifier feeding the input was also idled, if anti-alias RC networks were allowed to discharge, or if the reference decoupling was optimized only for steady-state conversion. A reliable design treats the converter, reference network, and driver amplifier as a coupled restart system. That approach usually avoids the common mistake of validating wake-up timing with a low-impedance laboratory source and then seeing degraded behavior in the final sensor path.

Oversampling in the ADS8598S extends this operating flexibility from power behavior into noise-performance shaping. Through OS0, OS1, and OS2, the converter applies digital filtering to improve SNR and SINAD by trading away effective bandwidth. Conceptually, oversampling works by spreading quantization noise over a wider spectrum and then reducing in-band noise through digital averaging or filtering. The result is not free resolution in the strict sense, but it often produces a cleaner measurement channel where the signal of interest changes slowly relative to the sampling clock. For low-dynamics signals, this is often a better path than attempting to solve every noise problem in the analog domain.

The key engineering question is not whether oversampling improves noise metrics. It is whether the application can tolerate the temporal cost. Digital filtering reduces instantaneous responsiveness. Fast input changes are represented more smoothly, but also less immediately. In line-frequency monitoring, thermal measurement, bridge-sensor acquisition, and precision feedback loops with low closed-loop bandwidth, that trade is usually favorable. In fault capture, motor phase analysis, or protection logic where edge timing and short transients matter, standard conversion mode is often the safer choice. A system that mixes these use cases may benefit from switching operating modes by context rather than fixing one configuration for all conditions.

That adaptive use of oversampling is often underutilized. Many designs choose a single mode during bring-up and never revisit it. A more efficient approach is to map converter configuration to system state. During startup calibration, idle monitoring, or slow process regulation, oversampling can suppress noise and improve code stability. During event detection, transient logging, or closed-loop actuation with tighter phase constraints, the design can return to standard conversion mode for lower latency and higher effective bandwidth. This makes the ADC behave less like a static component and more like a configurable signal-processing endpoint.

Zero-latency conversion is the feature that keeps these tradeoffs usable in real-time systems. In many converter architectures, digital filters or pipeline stages insert delay between the physical input event and the reported data word. That delay may be constant, but it still complicates control law tuning, event correlation, and protection timing. The ADS8598S avoids that class of ambiguity in its primary conversion path, which aligns well with deterministic monitoring. For control and protection design, determinism is often more valuable than absolute throughput. A sample that arrives at the expected time with known phase relationship to the input is easier to trust and easier to integrate into scheduling logic.

This behavior becomes particularly valuable when multiple channels participate in the same decision cycle. In protection systems, for example, threshold detection often depends on comparing several analog quantities within a narrow timing window. If the converter introduces pipeline uncertainty or filter delay into the main path, the software or FPGA layer must compensate for it explicitly. That compensation is possible, but it increases validation effort and creates more opportunities for corner-case timing errors. A zero-latency architecture simplifies the timing model. It reduces the number of assumptions that must remain true across firmware revisions, clock changes, and synchronization updates.

There is also an architectural implication in how zero-latency behavior interacts with oversampling. These are not contradictory features, but they serve different goals. Zero latency protects the immediacy of the base conversion path. Oversampling improves in-band quality by accepting bandwidth reduction in the filtered path. The practical design decision is therefore application-driven: use the zero-latency path when immediate observability dominates, and use oversampling when signal fidelity over a narrower band matters more than instantaneous change tracking. The strongest designs recognize that these are operating modes for different measurement intents, not competing specifications on the same axis.

For industrial controllers, a useful framing is to divide operation into three layers. At the bottom layer, power modes control analog readiness and energy use. At the middle layer, oversampling controls noise-bandwidth shaping. At the top layer, zero-latency behavior preserves deterministic timing for decisions and control action. When these layers are configured together, the ADC can be matched closely to actual machine state. Full-speed standard conversion supports startup checks, fault response, and transient capture. Oversampled operation supports low-noise steady-state monitoring. Standby or shutdown reduces dissipation between active windows. This layered use generally produces a better system than optimizing only for the headline sampling rate.

One practical pattern is to define explicit operating profiles in firmware rather than manipulating individual pins and settings ad hoc. A profile might specify active standard mode for event-driven acquisition, active oversampling mode for steady-state measurement, standby for short idle gaps, and shutdown for long inactive intervals. Each profile then includes its own wake delay, sample discard policy, and synchronization point with the rest of the acquisition chain. This profile-based method tends to reduce integration errors because it turns analog timing assumptions into named, testable states.

Another subtle but important point is that lower-power operation does not automatically improve total system efficiency unless the surrounding circuitry follows the same duty cycle. If the ADC is placed in standby or shutdown while the reference, driver amplifiers, isolation devices, and digital interface remain fully active, the savings may be smaller than expected. In some cases, thermal relief still justifies the change, but the energy model should be evaluated at subsystem level. The best results usually come from coordinated power management, where the ADC mode, front-end biasing, and host processing activity are scheduled together.

Viewed this way, the ADS8598S is not just an eight-channel SAR ADC with optional low-power states and digital filtering. It is a converter designed to be orchestrated. Its value increases when power mode transitions are timed deliberately, when oversampling is tied to measurement intent, and when zero-latency behavior is preserved for the moments that drive decisions. Designs that treat these features as isolated checkboxes often leave performance on the table. Designs that treat them as a combined operating strategy usually achieve better noise behavior, cleaner timing, and more efficient system-level operation.

ADS8598S Application Fit in Industrial and Energy Systems

ADS8598S fits industrial and energy systems because its architecture aligns with the signal characteristics, timing constraints, and integration pressures common in these environments. Its value is not defined by raw resolution alone. The stronger fit comes from how simultaneous sampling, bipolar high-voltage-capable inputs, and an integrated analog front end reduce system-level compromise in real measurement chains.

In power-grid monitoring, the central requirement is not simply digitizing several analog channels. The requirement is preserving the electrical relationship between them. Phase voltage, line current, neutral behavior, and derived quantities such as real power, reactive power, harmonics, and phase angle all depend on time coherence across channels. If channels are sampled sequentially, even small inter-channel delays begin to distort fast-changing waveforms, especially during grid disturbances, switching events, or harmonic-rich operating conditions. The ADS8598S addresses this at the converter level through simultaneous sampling across eight channels. That directly supports phasor-consistent acquisition and reduces the amount of compensation needed in firmware.

This matters even more in systems that must detect abnormal conditions rather than just log steady-state behavior. A sag, swell, phase loss, or fault transient often develops across multiple lines at nearly the same instant. With simultaneous capture, the data set preserves causality more faithfully. That improves event classification and reduces ambiguity during post-fault analysis. In practice, this is often where converter choice has outsized impact: not in nominal operation, but in the first few milliseconds of a disturbance, where timing integrity determines whether the control or protection stack sees a coherent event or a blurred one.

The bipolar input capability is also well aligned with grid and energy measurement chains. Many sensed quantities are naturally bipolar after conditioning. Current transformers, shunt-based current sensors with differential amplification, Rogowski integrator outputs, and AC voltage dividers commonly produce signals centered around ground or around a reference point that maps naturally into a bipolar ADC input range. A converter that accepts bipolar inputs directly avoids extra level shifting stages, reduces offset management effort, and typically simplifies fault-margin design. That is not just a schematic convenience. Each eliminated analog stage reduces cumulative gain error, offset drift, phase shift, and settling uncertainty.

The integrated front-end functionality is equally important in energy systems because isolation, protection, scaling, and anti-aliasing already consume significant design effort. When the ADC itself incorporates more of the required input handling, the surrounding circuitry becomes easier to stabilize across temperature, production spread, and long field life. This is one of the more practical advantages of the ADS8598S. In industrial programs, reducing the number of precision analog support components often improves more than BOM cost. It shortens calibration strategy, lowers placement sensitivity, and decreases the number of error sources that must be modeled during compliance and validation.

Protection relays impose a stricter version of the same problem. They require deterministic timing, fast response, and reliable capture of both normal waveforms and abnormal transients. The 200-kSPS throughput per channel gives the ADS8598S enough temporal resolution for many relay-class monitoring and disturbance-recording tasks, especially where multiple channels must be observed in parallel rather than multiplexed. More importantly, the simultaneous architecture prevents skew from being introduced by the acquisition method itself. In relay design, timing errors are often more damaging than moderate noise errors because they corrupt directional logic, sequence component estimation, and event correlation across phases.

Dynamic performance also matters in relay paths because fault waveforms are not clean sinusoids. They can contain DC offsets, harmonics, saturation effects from current transformers, and high slew-rate transitions. A converter used in this environment must recover cleanly and maintain predictable behavior when the input chain is stressed. The ADS8598S is well suited here because its input structure and integrated analog handling reduce dependence on fragile external conditioning networks. That tends to produce a more repeatable transient response at the board level. In many industrial designs, repeatability under abnormal input conditions is a more meaningful metric than best-case bench performance.

In multiphase motor control, synchronized measurement of phase currents, DC bus voltage, and possibly temperature or vibration channels supports both control stability and machine diagnostics. Current feedback timing directly affects field-oriented control, torque estimation, and protection thresholds. If current channels are not captured together, the controller must correct for measurement skew or accept estimation error. The simultaneous sampling of ADS8598S removes that problem at the source. For three-phase systems, this enables accurate reconstruction of current vectors and cleaner observation of imbalance, saturation, and switching artifacts.

Its bipolar input support is again useful because motor current feedback frequently crosses zero and often swings symmetrically around a common-mode reference after conditioning. Direct bipolar acquisition simplifies the interface from shunt amplifiers or isolated current-sense stages. High input impedance further helps because it relaxes the loading imposed on sensor outputs and scaling networks. That can be valuable when using precision resistor ladders, passive filters, or amplifier stages that are already balancing noise, bandwidth, and thermal drift. A high-impedance ADC input does not eliminate analog design work, but it makes the transfer function easier to preserve.

A practical point in motor systems is that integrated converters often improve debug efficiency. When a control board shows instability, the issue may come from sensing latency, amplifier saturation, reference interaction, or layout-induced coupling. A more integrated ADC reduces the number of unknowns in that chain. That tends to make control-loop tuning and fault investigation more straightforward. In dense inverter designs, where power stage noise couples aggressively into low-level analog nodes, fewer external analog elements usually means fewer unintended antennas and fewer settling problems after PWM edges. This is one reason integrated data converters often outperform theoretically more flexible discrete front ends once the design moves off the simulator and into an actual cabinet.

For general industrial DAQ systems, ADS8598S offers a balanced path between channel density and analog simplicity. Many DAQ nodes must handle a mix of voltage, current, and condition-monitoring inputs under tight board-area and cost constraints. The integrated front end helps compress the signal chain, which reduces BOM size and often improves routing discipline. This is particularly valuable in multichannel systems where repeating a discrete conditioning stage eight times quickly expands area, power, and tolerance stack-up. Channel-to-channel matching also becomes easier when more of the signal path is shared at the converter architecture level rather than assembled from separate external stages.

The sourcing aspect is also significant. A converter that absorbs functions otherwise implemented by external precision amplifiers, attenuators, and protection-compatible interface stages reduces dependency on several high-performance analog parts. In current supply environments, this improves subsystem resilience. It also lowers redesign risk because fewer second-source interactions must be requalified. In industrial product lines with long service life, this kind of integration has strategic value. It narrows the set of components whose drift, obsolescence, or allocation status can force a board revision.

From an engineering standpoint, the strongest reason to select ADS8598S is that it solves a timing-and-interface problem, not merely a conversion problem. That distinction matters. In industrial and energy systems, the ADC sits at the boundary between a noisy physical process and a deterministic digital decision engine. Devices that reduce uncertainty at that boundary create disproportionate system value. Simultaneous sampling protects temporal integrity. Bipolar high-voltage-oriented input handling matches real sensor behavior. Front-end integration reduces analog fragility and implementation variance. Together, these features make ADS8598S especially well matched to grid instrumentation, relay platforms, motor drives, and compact DAQ nodes where coherent multichannel acquisition is more important than pursuing isolated peak converter specifications.

ADS8598S Layout, Decoupling, and Integration Considerations

ADS8598S layout and integration determine whether the device behaves like a precision data converter or merely a functional one. The converter integrates much of the analog front end, but that integration does not relax board-level discipline. It shifts the critical work into power distribution, reference integrity, grounding, thermal control, and input conditioning. In practice, most performance loss in this class of SAR converter comes not from the core ADC architecture, but from small board-level errors that modulate the reference, disturb charge redistribution, or corrupt return paths during conversion edges.

The supply pin guidance is therefore not procedural detail. It reflects the internal partitioning of the device. AVDD powers the analog core and must be decoupled directly to the nearest AGND pins with the shortest possible loop. The goal is not just low DC impedance. It is low high-frequency loop inductance, because the ADC draws dynamic current impulses during sampling and conversion. If the loop area between AVDD, the capacitor, and AGND is large, those impulses create local voltage movement that appears as conversion noise or channel-to-channel inconsistency. The most effective implementation places each decoupling capacitor adjacent to its corresponding supply pin pair, with direct via access into the analog ground plane when needed.

DVDD requires similar attention, but the reason is different. Digital supply current contains sharper edge content and wider spectral energy. Decoupling DVDD with AGND at pin 26 is a strong hint that the internal digital and analog domains are not isolated enough to tolerate careless return routing. This does not mean digital current should be allowed to spread through the analog ground region. It means the local decoupling path at the device must be short and controlled, while the broader ground system must prevent digital return currents from crossing the reference and analog input zones. A compact capacitor placement near DVDD, combined with disciplined routing of the digital interface away from the reference network, usually has more impact than adding excessive capacitor values.

REGCAP1 and REGCAP2 each need their own 1 µF capacitor to AGND. These pins support internal regulator functions, and they should be treated as quiet analog support nodes rather than general-purpose supply points. Sharing capacitors or routing these nodes across noisy copper defeats the internal regulation architecture. A separate capacitor per pin keeps each internal regulator loop locally stable and reduces coupling between internal bias sections. On dense layouts, a common mistake is to treat these capacitors as secondary and place them one or two centimeters away to simplify routing. That decision often shows up later as elevated noise floor, weak repeatability, or unexplained sensitivity to digital activity.

Reference treatment deserves even tighter control because the reference is effectively the measurement ruler for every conversion result. REFCAPA and REFCAPB must be shorted together and decoupled to AGND with a low-ESR 10 µF ceramic capacitor. REFIN/REFOUT must be decoupled to REFGND with a 10 µF capacitor, and REFGND should connect directly into the analog ground plane. These requirements indicate that the device’s internal reference and reference buffer network depend on local energy storage with low impedance over the conversion bandwidth. The placement here should be interpreted literally. The capacitor should sit close enough that the copper between pins and capacitor behaves as an interconnect, not as a distributed impedance element.

Reference routing should also be protected from avoidable electric and magnetic coupling. It helps to keep digital clocks, bus transitions, and fast control lines out of the reference vicinity, even on adjacent layers. When a design appears correct schematically but loses several bits of effective resolution in hardware, the reference loop is often the first place to inspect. A useful rule is to view the reference network as a low-noise analog subsystem embedded inside the ADC package and extended onto the PCB. Once viewed that way, it becomes obvious that it should not share return geometry with switching currents, indicator LEDs, isolator edges, or connector transients.

Grounding strategy should follow current flow, not naming convention alone. AGND and REFGND are both analog-related nodes, but they do not serve identical dynamic roles. REFGND is the local return for the reference path and should connect to a clean analog ground region with minimal disturbance. The analog ground plane itself should be continuous under the converter and associated analog circuitry. Splitting the plane aggressively usually creates more problems than it solves because it forces return currents to detour, increasing impedance and coupling. A more reliable approach is a continuous ground plane with functional zoning on the top layer: analog input conditioning, converter core, reference components, and digital interface arranged so that return currents naturally stay within their intended regions.

The transition from analog to digital routing should occur after the converter, not through it. Parallel bus or serial interface lines should leave the ADC in an organized bundle and move quickly away from the analog section. If they must cross other nets, a ground reference should remain intact beneath them. In mixed-signal industrial boards, digital isolation devices, DC/DC converters, and FPGA interfaces often dominate the noise environment. The converter should be physically separated from these blocks. The extra routing length on digital outputs is usually harmless compared with the damage caused by placing a switching converter too close to the reference or analog input path.

Input range interpretation is another area where implementation quality matters. The absolute maximum ratings allow analog inputs from –15 V to +15 V, but that number defines survivability, not metrology. The usable precision range is set by the selected ±10 V or ±5 V operating mode. Designing the front end around absolute maximum ratings is a category error. It may prevent catastrophic failure, but it does not preserve linearity, settling, or long-term reliability. Protection elements should therefore be chosen to remain electrically quiet and non-intrusive within the normal measurement range, while still limiting fault energy outside it.

For front-end design, protection must be considered together with source impedance and settling behavior. The ADS8598S samples through an internal switched network, so the input source must recharge internal sampling capacitance within the acquisition window. If series resistance is added for protection or filtering, the RC time constant can easily become large enough to introduce gain error or code-dependent settling artifacts, especially when channels step between widely different input levels. In field designs, this issue often appears as a subtle error only at higher throughput or only on channels following large transients. A compact RC filter near the ADC can help suppress broadband noise, but its values should be selected from settling requirements first, not from generic filtering habits.

A practical input strategy is to separate fault handling from precision filtering. Use robust protection elements at the connector or field interface, where they can absorb surge energy and overvoltage stress. Then keep the local network at the ADC light, symmetric, and predictable. This reduces the burden on the converter input while maintaining fault tolerance. It also avoids the common situation where large clamp capacitance or nonlinear protection leakage near the ADC quietly degrades low-level accuracy.

Thermal behavior deserves more attention than converter power alone might suggest. The 64-pin LQFP package has a junction-to-ambient thermal resistance of 46.0°C/W. That is manageable, but not negligible, particularly in sealed enclosures or high-ambient industrial systems approaching +125°C. Thermal design here is less about preventing immediate failure and more about preserving parametric stability. Reference drift, offset shift, and channel matching can all worsen when local board temperature rises or develops gradients. If nearby power components create localized heating, the converter may remain within absolute limits while measurement stability degrades noticeably.

Board placement can reduce this risk without adding complexity. Keep the ADC away from processors, power stages, and isolated power modules that generate concentrated heat. Provide copper area under and around the package to spread heat into the board. Avoid placing hot components on the opposite side directly beneath the ADC unless thermal analysis confirms acceptable gradients. In compact systems, it is often worth trading a slightly longer analog route for a significantly calmer thermal environment. Electrical proximity is not always the dominant optimization variable.

Mechanical and enclosure planning also interact with converter performance. In sealed systems, stagnant air raises board temperature and slows thermal recovery after load changes. That can create slow measurement drift that is difficult to distinguish from sensor error. Designs intended for wide ambient operation benefit from validating performance at thermal equilibrium, not just at room temperature or during short bench runs. A converter can meet expectations in open-air testing and still underperform once enclosed next to heat sources and subjected to full IO activity.

From an integration standpoint, the strongest designs treat the ADS8598S as three tightly coupled subsystems: the analog input interface, the reference/regulator core, and the digital extraction path. Failures usually occur when one of these is optimized in isolation. For example, a clean input amplifier stage cannot compensate for a reference capacitor placed too far away. A strong ground plane cannot save a design where digital lines run through the reference area. Likewise, excellent decoupling does not recover accuracy if the source network cannot settle in time. Precision comes from alignment across all three domains.

A useful engineering instinct is to rank nets by sensitivity rather than by function. On this device, the most sensitive nets are the reference-related pins, regulator capacitor nodes, analog inputs near the package, and their associated ground returns. These deserve the shortest routes, the quietest surroundings, and the most predictable impedance. Standard digital control lines are much less sensitive and can absorb routing compromises. Boards that apply this hierarchy early usually converge faster and need fewer corrective spins.

The key implication of the datasheet recommendations is simple: the ADS8598S achieves integration by internalizing complexity, not by eliminating it. The external component count is reduced, but the remaining external details carry higher leverage. Decoupling must be local and pin-specific. Reference routing must be compact and isolated from digital disturbance. Grounding must support actual return-current behavior. Input protection must preserve settling and linearity, not just survival. Thermal placement must protect stability, not only absolute temperature limits. When these constraints are treated as part of the converter architecture rather than as layout cleanup items, datasheet-level performance becomes realistic on the first serious board.

Potential Equivalent/Replacement Models for ADS8598S

Potential replacement evaluation for ADS8598S must start from system constraints, not from ADC catalog filtering. ADS8598S is not defined only by resolution and channel count. Its value is the combination of eight channels, simultaneous sampling, 18-bit conversion class, direct support for bipolar high-voltage inputs such as ±10 V and ±5 V, an integrated analog front end, and flexible host interfacing through serial and parallel options. Any alternative that matches only the converter core but not this integration level can introduce hidden redesign cost, timing risk, and accuracy drift at the board level.

From the provided material, the only confirmed family reference is ADS8598, and the documented device is ADS8598S from Texas Instruments. No explicit second-source, pin-compatible variant, or cross-vendor equivalent is identified in the source content. That means replacement work cannot be treated as a part-number substitution exercise. It must be handled as a functional decomposition of what ADS8598S is doing inside the signal chain and what the surrounding system currently expects from it.

A disciplined evaluation begins with the signal path itself. ADS8598S is not merely digitizing low-level sensor outputs. It is designed to accept relatively high bipolar input ranges while preserving simultaneous sampling across eight channels. That combination matters in power analysis, motor control, protection systems, and multi-axis acquisition, where phase relationships between channels are often as important as absolute accuracy. A device that multiplexes channels internally rather than sampling them simultaneously may still advertise similar throughput, but it will alter phase alignment and corrupt transient reconstruction. In practice, this is one of the most common traps in “equivalent” ADC searches: aggregate sample rate looks acceptable on paper, yet channel-to-channel timing no longer supports the original algorithm.

The next layer is conversion architecture and usable performance. An 18-bit SAR ADC class is the reference point here, but nominal resolution alone is weak as a selection metric. What matters is whether the replacement sustains comparable dynamic range, linearity, settling behavior, and noise under the actual source impedance and input bandwidth of the target design. Many candidate ADCs can claim 18-bit output formatting while failing to deliver equivalent effective resolution once the full analog chain is considered. A useful working rule is to compare system ENOB, offset behavior, gain drift, and channel matching rather than stopping at resolution headline numbers. This usually exposes whether a candidate is genuinely in the same performance class.

Input range support deserves separate attention because it is central to why ADS8598S is attractive. Support for bipolar high-voltage inputs on a single-supply implementation removes a substantial amount of front-end design burden. If a candidate ADC only accepts unipolar low-voltage inputs, then external attenuation, level shifting, protection, filtering, and driver design all move back onto the board. At that point, the replacement is no longer functionally equivalent, even if conversion performance appears close. The added circuitry changes error sources, common-mode behavior, fault tolerance, and calibration strategy. It also expands BOM count and board area, often in the very places where analog layout is already constrained.

The integrated analog front end is therefore not a convenience feature. It is part of the device’s architectural value. Comparable integrated filtering, clamp behavior, and driver-stage assumptions should be verified explicitly. Without these functions, the design team may need to rebuild anti-alias filtering, overvoltage handling, and input buffering from discrete components or companion amplifiers. Experience from similar replacement efforts shows that this is where schedules slip: the ADC is selected quickly, but the supporting analog redesign takes several board spins to stabilize gain error, crosstalk, and settling across all channels. In high-channel-count simultaneous-sampling systems, these effects rarely stay isolated to one input. They tend to appear as repetitive mismatch patterns across the entire acquisition path.

Throughput should be checked in context, not as a standalone number. A target near 200 kSPS per channel implies more than raw conversion speed. It affects source drive requirements, digital readout bandwidth, reference settling, and timing margin around simultaneous sample commands. Some alternatives reach a similar sample rate only under reduced interface modes, narrower input ranges, or relaxed accuracy conditions. Others require tighter clocking or more complex sequencing in the host FPGA or MCU. For that reason, interface timing diagrams and conversion latency should be reviewed alongside the sample-rate table. In tightly synchronized acquisition systems, a few additional clocks of latency or a different BUSY framing model can ripple into firmware, DMA configuration, and downstream data alignment logic.

Reference architecture compatibility is another practical discriminator. If the existing design depends on a specific internal or external reference arrangement, the replacement must fit the same stability and noise assumptions. Even small differences in reference input impedance, bypass requirements, or startup behavior can shift conversion repeatability. This often becomes visible first during low-frequency precision testing, where code flicker or channel-correlated drift appears even though static bench measurements initially looked acceptable. A replacement that seems electrically close may still require a different reference buffer or a revised grounding strategy to reach the original accuracy target.

Digital interface compatibility should be treated at two levels: electrical signaling and protocol behavior. Matching serial or parallel capability is necessary, but not sufficient. Pin function assignment, bus timing, output data formatting, reset behavior, and host-side initialization flow all matter. In many embedded designs, the ADC interface is tightly coupled to FPGA state machines or fixed firmware assumptions. If the candidate part changes frame length, data justification, conversion trigger sequence, or BUSY timing, the redesign can move from “minimal firmware update” to “revalidation of the entire acquisition path.” When procurement pressure is high, this distinction is often underestimated because interface labels appear familiar while operational details differ.

Package and PCB compatibility matter for a different reason: they indicate how much of the original analog integrity can be preserved. Even when footprints are similar, pinout differences in analog inputs, references, or digital outputs can force rerouting that degrades channel symmetry or introduces coupling near sensitive nodes. For a precision simultaneous-sampling ADC, layout is not secondary. Trace balance, return current control, decoupling placement, and isolation between digital edge activity and analog inputs strongly affect final performance. A nominally compatible package may still require a meaningful layout rework if the part partitions analog and digital pins differently.

Temperature capability up to +125°C should be verified only after the functional fit is established, but it should not be treated as a checkbox. High-temperature operation changes leakage, reference drift, amplifier behavior, and protection margin. Devices that meet room-temperature accuracy targets may diverge significantly across industrial or harsh-environment ranges. In applications such as inverter monitoring or distributed power control, this is especially important because elevated temperature often coincides with high common-mode noise and strong transient stress. The replacement has to maintain not just conversion operation, but predictable error behavior under those combined conditions.

A practical screening framework is to separate candidates into three classes. The first is true near-equivalent replacements: same channel density, true simultaneous sampling, comparable bipolar high-voltage input support, similar integrated front-end behavior, and interface compatibility close enough to avoid a board-level redesign. The second is functional substitutes: the ADC core may be competitive, but missing front-end integration or interface differences require analog and digital changes. The third is architectural alternatives: devices that can meet the measurement objective only if the entire signal chain is re-partitioned. The mistake is to treat all three as procurement substitutes. Only the first class behaves like a replacement in the engineering sense.

For sourcing teams, this distinction directly affects total acquisition cost. A lower unit-price ADC can be materially more expensive if it forces external drivers, protection networks, precision resistor ladders, reference buffering, firmware changes, and new compliance testing. In mixed analog-digital systems, integration level often dominates lifecycle cost more than converter price. That is especially true when the original design used ADS8598S to collapse front-end complexity into a single qualified component. In such cases, the most expensive replacement is often the one that appears cheapest in a distributor search.

A more reliable approach is to compare replacements against a structured checklist:

channel count and true simultaneous-sampling method,

18-bit SAR-class real performance, not only nominal output width,

native support for bipolar ±10 V and ±5 V or equivalent high-voltage input handling,

throughput near 200 kSPS per channel under realistic operating conditions,

integrated front-end functions including filtering, input protection, and driver assumptions,

reference scheme compatibility and associated noise requirements,

host interface compatibility at the protocol, timing, and firmware levels,

package and layout impact, including pinout-driven analog rerouting,

temperature range and error stability through the full operating envelope.

If a candidate fails on the integrated front-end point, it should be evaluated as a redesign path, not as a direct replacement. That single distinction usually determines whether qualification remains contained or expands into a full analog validation effort. In precision data acquisition, the converter is only one part of the measurement system. ADS8598S appears to have been selected because it absorbs several difficult analog functions at once. Any serious replacement analysis should preserve that perspective. Without it, the search drifts toward parts that look equivalent in a parametric table but behave very differently in an actual design.

Conclusion

The Texas Instruments ADS8598S is more accurately treated as a complete eight-channel data acquisition subsystem than as a discrete ADC. That distinction matters at the architecture level. In many industrial designs, conversion accuracy is limited less by nominal resolution and more by the analog interface wrapped around the converter. The ADS8598S addresses that constraint directly by combining simultaneous-sampling SAR conversion, an input stage designed for true bipolar ranges, high input impedance, reference support, and practical digital interfacing in a single device. The result is not merely component consolidation. It is a measurable reduction in analog design sensitivity, timing uncertainty, and calibration effort across multichannel measurement systems.

Its core value starts with synchronized acquisition. The device provides eight channels of simultaneous sampling at up to 200 kSPS per channel with 18-bit resolution, which positions it well for systems where phase alignment across channels is not optional. In protection relays, three-phase power analysis, inverter monitoring, and vibration or transient capture, sequentially multiplexed sampling often introduces channel-to-channel timing skew that later has to be corrected in firmware or simply tolerated as error. With the ADS8598S, all channels are sampled at the same instant, so current, voltage, and auxiliary feedback signals preserve their temporal relationship at the source. In practice, this simplifies signal reconstruction, improves fault-event visibility, and reduces the need for compensation algorithms that tend to become fragile when operating conditions change.

The analog front end is equally important. Native support for true bipolar ±10 V and ±5 V inputs removes a large amount of signal-conditioning overhead that would otherwise be required to shift, scale, and protect field signals before conversion. In industrial environments, many sensors, transducers, and conditioned outputs already live in bipolar voltage domains. Interfacing these signals to conventional unipolar ADCs usually forces the addition of precision op-amp stages, offset networks, and extra protection paths, each of which adds drift, noise, gain error, and board complexity. By accepting these ranges directly, the ADS8598S shortens the signal path and reduces the number of analog elements that can degrade system performance. This is one of the most practical forms of integration: not just putting blocks on the same die, but eliminating avoidable transformations between the real-world signal and the digital domain.

The specified 1 MΩ input impedance further supports this approach. High input impedance reduces loading on upstream sensors and conditioning stages, which is especially useful when signals come from resistor-divider networks, isolation amplifiers, transducer outputs, or sources with limited drive strength. This does not eliminate the need to evaluate source settling behavior and dynamic input current under real sampling conditions, but it does widen the design margin considerably. In field-oriented designs, that margin often determines whether a front end remains stable across temperature, cable variation, and component aging without repeated analog tuning.

From a conversion perspective, the 18-bit resolution should be interpreted with engineering discipline. The headline resolution is valuable, but effective system performance depends on noise floor, reference quality, grounding strategy, input-range selection, and layout execution. What makes the ADS8598S compelling is that its integrated front-end architecture allows more of that nominal resolution to remain usable at the board level. In other words, it improves the likelihood that a design will deliver consistent high-resolution measurement in deployed conditions, not just in a controlled bench setup. This is often a better selection criterion than chasing standalone ADC specifications that require a far more delicate support network to realize.

The internal reference option contributes to this system-level practicality. In many products, the reference path becomes an underestimated source of drift, noise coupling, and sourcing mistakes during board bring-up. Providing an internal reference option gives designers a cleaner starting point and can reduce external precision component count, especially in cost- and space-sensitive industrial modules. At the same time, the ability to align the converter with the broader system reference strategy remains important for higher-end metrology or tightly calibrated platforms. The real strength here is flexibility: the device supports simplified implementation when speed-to-design matters, while still leaving room for tighter accuracy management when the application justifies it.

Its digital interface options also reinforce its role as a subsystem part. In multichannel measurement platforms, data extraction is not a secondary issue. Interface choice affects FPGA timing closure, MCU interrupt loading, isolation strategy, and sustained throughput. A converter that is accurate but difficult to integrate digitally can shift complexity downstream rather than remove it. The ADS8598S avoids that trap by offering interface flexibility suited to embedded control and instrumentation environments. This makes it easier to place the part in systems ranging from microcontroller-based monitoring nodes to FPGA-centered protection and control equipment, where deterministic capture and framing matter as much as conversion fidelity.

Application fit becomes clearer when viewed from the signal chain outward. In protection relays, the device aligns naturally with simultaneous acquisition of multiple phase voltages and currents, where event timing, phase relationships, and fault signatures must be preserved precisely. In power-grid monitoring, its bipolar input capability and synchronized channels simplify the acquisition of line-side measurements that must support harmonics, waveform quality metrics, and disturbance analysis. In motor-control and drive platforms, it can capture phase currents, bus voltages, and feedback channels within one coherent timing domain, which reduces ambiguity in control-loop observation. In industrial automation, especially in mixed-signal cabinets where robustness and board density are both constrained, the integration level helps contain analog complexity without forcing major compromises in measurement breadth.

From a product selection perspective, the strongest argument for the ADS8598S is not any isolated specification. It is the way its feature set closes multiple design problems at once. It reduces front-end design burden, minimizes channel synchronization risk, limits precision analog component count, and shortens the path from field signal to usable data. That combination is often more valuable than selecting a nominally higher-performance converter that requires a larger and more fragile support circuit. In practice, designs fail cost, schedule, or reliability targets more often because of analog subsystem complexity than because of insufficient ADC datasheet performance.

For procurement and platform planning, the integration level can translate into lower total subsystem complexity and a more predictable bill of materials. Fewer external precision amplifiers, references, and scaling networks usually mean fewer tolerance interactions, fewer supply-rail dependencies, and fewer parts whose availability can destabilize production. This effect is easy to underestimate early in a project. A highly integrated acquisition device may appear more expensive at unit level, yet still lower total cost after board area, assembly, validation time, calibration effort, and sourcing resilience are included. In long-life industrial programs, that systems view tends to be the more durable one.

A practical pattern seen in multichannel industrial designs is that the debugging effort rarely concentrates inside the converter itself. It accumulates around input-range translation, channel-to-channel timing mismatch, reference routing, and protection leakage. Devices like the ADS8598S are valuable because they remove several of those recurring failure points before validation begins. That does not eliminate the need for disciplined grounding, anti-alias filtering, surge planning, and isolation-aware layout, but it narrows the uncertainty space substantially. The engineering benefit is not only cleaner schematics. It is faster convergence toward a stable measurement platform.

For systems operating in industrial and energy domains, this is the balance the ADS8598S strikes well: precision that is meaningful at board level, robustness aligned with real signal environments, and integration that simplifies architecture rather than just packaging. It is best deployed where multichannel synchronization, direct bipolar signal acquisition, and reduced analog support overhead have first-order value. In those scenarios, the device serves less as a converter choice and more as a subsystem decision that shapes the entire measurement chain.
