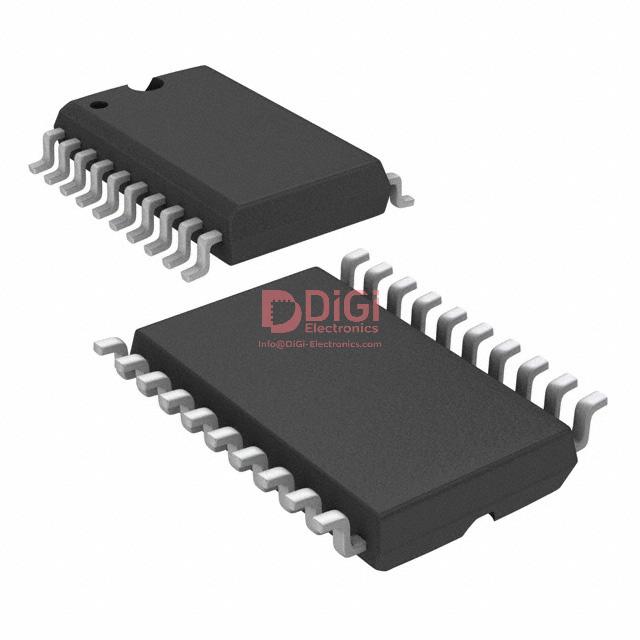

ADS8509IDWR

Texas Instruments ADS8509 Product Overview

Texas Instruments ADS8509 is a 16-bit SAR analog-to-digital converter built as a highly integrated data-acquisition element rather than a bare conversion core. Its value is not only the 250-kSPS throughput, but the way it collapses several precision signal-chain functions into one device: sample-and-hold, reference, clocking support, and a serial interface. That level of integration reduces external component count, shortens analog signal paths, and removes several common sources of error that often appear when these blocks are implemented discretely.

At the architectural level, the ADS8509 follows the standard SAR conversion model, but its practical significance comes from deterministic behavior. A SAR ADC is often preferred when the design requires solid DC precision, moderate speed, low latency, and simple digital capture. Unlike converter types optimized for very high bandwidth or noise shaping, a SAR device produces one conversion result directly from one sampled input event. That makes timing easier to reason about in industrial control loops, multiplexed measurement systems, and instrumentation channels where phase predictability matters as much as nominal resolution.

The integrated sample-and-hold is especially important in real systems. At 16-bit resolution, the converter no longer tolerates casual treatment of input settling. Even small source impedance, amplifier recovery limitations, or charge kickback from the sampling network can produce measurable code error. By embedding the sampling function and aligning it with the converter core, the ADS8509 simplifies front-end timing and makes the analog interface more manageable. In practice, this means the surrounding driver circuit can be designed with clearer targets for bandwidth, output impedance, and settling performance, instead of compensating for a loosely defined external acquisition path.

Its 250-kSPS sampling rate places it in a useful middle region of the precision-conversion market. It is fast enough for many control, monitoring, and medium-bandwidth signal-acquisition tasks, yet still aligned with applications where per-sample accuracy matters more than raw sample density. This balance is one reason such devices remain common in industrial and medical instrumentation. They can capture sensor outputs, conditioned transducer signals, or moderately dynamic waveforms without forcing the system into the complexity of high-speed converter layout, multi-rail supplies, or heavy digital post-processing.

A major design advantage is operation from a single 5-V supply while still supporting broad input-range flexibility. That combination is highly practical. In many embedded and industrial platforms, the analog section has to coexist with legacy 5-V domains, precision references, and field-interface circuitry. A converter that accepts this environment directly often reduces the need for level shifting and supply partitioning. Broader input-range options are equally valuable because they let the same ADC fit different signal-conditioning strategies, whether the source is a unipolar sensor output, a bipolar conditioned signal, or a scaled process variable. This flexibility is often more important than headline sample rate because it determines how much analog complexity must be added ahead of the converter.

The onboard reference also deserves attention. In precision ADC selection, reference quality is inseparable from converter performance. An internal reference does not automatically outperform a carefully chosen external part, but it sharply improves integration efficiency and repeatability across channels and builds. For many systems, especially where board area and design time are constrained, this is a better engineering trade than chasing theoretical peak performance with a more fragile external reference network. A useful pattern in practice is to start with the internal reference during prototyping and only move to an external precision reference if the error budget clearly demands it after system-level characterization.

The serial data interface further positions the ADS8509 as an implementation-friendly component. Serial output reduces pin count, eases routing, and fits naturally into microcontroller, DSP, or FPGA-based acquisition designs. This matters in mixed-signal layouts where wide parallel buses can inject switching noise into sensitive analog regions. A narrower digital interface often makes it easier to preserve ground integrity and partition noisy logic from the converter input network. In precision boards, those layout-side benefits can be as important as converter datasheet numbers.

From an application standpoint, the ADS8509 aligns well with industrial process control, instrumentation, data-acquisition systems, digital signal processing front ends, and medical electronics. These application classes share a common requirement set: stable DC performance, known timing, manageable interface complexity, and survivability across temperature. The specified industrial operating range of -40°C to 85°C is therefore not just a checkbox. It indicates that offset, gain behavior, and functional timing are intended to remain usable in environments where ambient variation, enclosure heating, and long operating cycles would expose weaknesses in less robust parts.

Packaging options in 20-pin SO and 28-pin SSOP provide flexibility for board-level tradeoffs. The package choice can affect routing density, thermal behavior, manufacturability, and analog cleanliness. In denser systems, SSOP may help conserve area, while SO packaging can sometimes simplify assembly and probing during development. For precision converters, package selection is rarely just mechanical. Pin spacing, routing escape strategy, and proximity of digital traces to analog nodes can materially influence observed performance, especially when the front-end source impedance is not very low.

Another practical strength is pin compatibility with the lower-speed ADS7809 and the 12-bit ADS8508/7808 family. This is valuable in product-line planning. It allows a single PCB footprint to support multiple performance tiers, enabling cost-down variants, resolution upgrades, or speed adjustments with minimal hardware disruption. That kind of migration path is often underestimated during part selection. In reality, it can significantly reduce redesign risk, especially in instrument platforms that evolve over several generations. A board can be qualified once, then adapted across market segments by selectively changing converter population and firmware scaling.

For engineers evaluating the ADS8509, the most important question is not whether 16 bits are available on paper, but whether the surrounding system can preserve meaningful 16-bit performance. That shifts attention to input driver settling, reference stability, grounding strategy, anti-alias filtering, and digital noise isolation. In many boards, the converter itself is not the limiting factor; the limiting factor is the analog environment built around it. The ADS8509 helps by integrating key functions, but it still rewards disciplined front-end design. Short reference return paths, clean analog supply decoupling, and careful separation of serial clock edges from the input network typically produce more benefit than chasing marginal component upgrades elsewhere.

A useful implementation approach is to treat the ADS8509 as the center of a compact precision measurement island. Keep the input driver, RC filter, decoupling network, and reference-related bypass components physically tight to the device. Avoid routing fast digital lines under the analog input path. If the source is multiplexed or comes from a high-impedance sensor chain, verify acquisition settling at full-scale transitions rather than relying only on static DC tests. Systems that look accurate with slow ramps can still show conversion error on step-like input changes, and SAR converters reveal that quickly.

In selection terms, the ADS8509 occupies a strong position when the design target is reliable medium-speed precision acquisition with low integration overhead. It is not a specialized extreme-speed ADC, nor is it a minimal low-cost converter stripped of support circuitry. Its appeal lies in balance: 16-bit SAR precision, practical throughput, single-supply operation, integrated support functions, industrial temperature capability, and migration compatibility within a known device family. For many embedded measurement and control systems, that balance is exactly what reduces development friction and improves first-pass success.

Texas Instruments ADS8509 Core Architecture and Functional Integration

Texas Instruments ADS8509 is built around a 16-bit charge-redistribution SAR conversion engine. That choice defines most of its system behavior. A capacitor-based SAR ADC converts by first sampling the input onto a capacitor array, then resolving the input level through a sequence of binary decisions referenced against an internal DAC structure derived from the same capacitor network. This approach is attractive because it produces deterministic conversion timing, bounded latency, and a direct relationship between input sampling and output availability. In control loops, instrumentation front ends, and multiplexed data-acquisition paths, that determinism is often more valuable than raw throughput. The absence of pipeline latency simplifies firmware timing, trigger alignment, and channel-to-channel correlation.

The internal sample-and-hold is not just a convenience block. It is central to preserving conversion accuracy in systems where the input may be moving while the converter is resolving bits. By capturing the analog voltage at the start of conversion and isolating it from later input changes, the ADS8509 maintains a stable representation of the signal during the SAR decision sequence. In practice, this matters when the source is driven by a multiplexed sensor network, a moderately high-impedance amplifier stage, or a signal with fast edge content. Without a properly timed hold function, code transitions can shift in a way that looks like random noise but is actually sampling instability. Integrated sampling reduces that risk and removes one more interface boundary that would otherwise need board-level tuning.

The 16-bit resolution places stronger demands on the analog environment than the digital interface may initially suggest. At this resolution, errors that are negligible in lower-resolution converters become visible in output codes. Input settling, reference stability, capacitor dielectric behavior, ground return integrity, and driver amplifier recovery all shape the achieved performance. A useful way to view the ADS8509 is not as an isolated ADC, but as the center of a tightly coupled analog measurement cell. The converter may be highly integrated, but the surrounding source impedance, anti-alias filtering, and reference decoupling still determine whether the last few bits are usable or merely nominal.

A key strength of the ADS8509 is functional integration around the SAR core. Internal reference support, internal clock capability, and serial data output reduce the amount of external circuitry needed to build a working acquisition channel. That reduction is not only about saving components. It also shortens critical analog paths, lowers inter-device interaction risk, and makes timing closure more predictable. In medium-complexity industrial and instrumentation designs, these advantages often have more impact than the headline converter specifications. Fewer external analog support blocks usually mean fewer tolerance stack-ups, fewer startup dependencies, and fewer field failures linked to subtle layout or sequencing issues.

Internal reference capability deserves particular attention. In many data-acquisition designs, the reference path is the quiet constraint that determines real measurement quality. Integrating this function helps by reducing routing exposure and by anchoring converter operation to a known internal behavior envelope. That said, reference integration should not be mistaken for immunity to board conditions. Reference bypass placement, digital return current isolation, and thermal gradients near the package still influence effective resolution. In dense boards, it is often the physical placement around the ADC, not the schematic alone, that determines whether the converter reaches its intended repeatability. A compact integrated architecture helps, but it does not eliminate the need for disciplined layout.

The internal clock option supports standalone operation with minimal host-side timing burden. This mode is useful when the acquisition task is relatively self-contained and when the processor prefers to receive data after conversion rather than actively manage each conversion edge. It simplifies firmware sequencing and can reduce sensitivity to clock distribution quality elsewhere in the design. In embedded systems with mixed-priority software loads, that simplicity often improves robustness. The converter behaves as a more autonomous measurement element, and timing becomes easier to validate across process and temperature corners.

External-clock data transfer mode expands that flexibility in a direction many system architects need. When a host processor, FPGA, or DSP must align multiple data streams, explicit clock control becomes valuable. It allows the readout process to be synchronized with a larger acquisition schedule, communication frame, or control-cycle boundary. This is especially relevant in systems combining ADC data with encoder feedback, PWM timing, or networked sampling events. The practical advantage is not only synchronization accuracy. It is also observability. When the host owns more of the timing, it becomes easier to diagnose edge placement, interface skew, and occasional readback anomalies during validation.

The serial output path reflects a system-level design tradeoff. Parallel interfaces can reduce transfer time, but they increase routing density, pin count, and simultaneous switching noise. A serial path is usually easier to integrate into processor-connected systems, especially where board area, connector pin budget, or isolation boundaries matter. It also tends to simplify expansion to multichannel topologies. The cost is that readout timing must be designed carefully, particularly when several converters share downstream logic. With SAR converters, the data path is often simple enough that interface reliability depends less on protocol complexity and more on disciplined edge timing and signal integrity.

The output synchronization pulse is a small feature with outsized system value. It provides a precise digital marker tied to conversion state, which helps align the ADC output with external logic or software events. In processor-based acquisition chains, this pulse can serve as a hardware anchor for interrupt generation, DMA triggering, timestamp capture, or validation during oscilloscope-based timing analysis. Features like this tend to be underappreciated until a design reaches integration testing. At that stage, a hardware-visible timing reference can remove hours of ambiguity from debugging efforts involving missed reads, off-by-one sample alignment, or uncertain conversion-complete detection.

The TAG feature and daisy-chain-related support indicate that the ADS8509 was designed with scalable acquisition systems in mind. In a single-channel evaluation setup, such features may seem secondary. In larger systems, they become structurally important. Daisy-chain capability can reduce digital I/O consumption, simplify isolation channel counts, and make converter expansion more orderly. TAG support helps preserve sample identity through the transfer path, which is valuable when multiple sources are serialized into a shared interface. In practical deployments, sample identity errors are often more disruptive than outright missing data because they can survive initial bring-up and appear only under specific scan sequences or fault conditions. Hardware-level tagging reduces that class of risk.

From an implementation perspective, the most common performance gap with SAR ADCs of this type appears at the analog input interface. A nominally compatible source may still fail to settle the converter input within the acquisition window, especially if a front-end RC filter is oversized or the driving amplifier has limited output current near code transitions. The resulting error pattern can resemble nonlinearity, thermal drift, or digital corruption, which leads troubleshooting in the wrong direction. A more reliable method is to evaluate the input network as a transient settling problem, not just a bandwidth problem. The ADS8509 benefits from a low-impedance driver across the sampling instant, short reference return paths, and a layout that prevents digital edge currents from sharing sensitive analog ground segments.

Another recurring issue is assuming that high resolution guarantees high accuracy at the system level. The converter can resolve 16 bits, but system accuracy depends on gain error, offset, reference drift, source stability, and calibration strategy. In many industrial systems, repeatability and monotonic behavior under temperature and supply variation are more valuable than absolute one-time precision. The ADS8509 fits well in such environments because SAR architecture gives predictable behavior and straightforward timing. When paired with disciplined calibration and a stable front end, it supports measurement chains that are easier to characterize and maintain over product life.

This balance between architectural simplicity and functional integration is the most important aspect of the ADS8509. It is not merely a converter with several convenience features attached. It is a measurement-oriented building block that reduces external design burden while preserving the timing transparency that makes SAR devices attractive. That combination is especially effective in processor-connected industrial modules, instrumentation subsystems, and compact acquisition nodes where board space, validation effort, and deterministic response all matter at the same time. In these contexts, the ADS8509 stands out not because it pushes an extreme specification, but because it integrates the right functions around a stable conversion core and makes system behavior easier to engineer.

Texas Instruments ADS8509 Key Performance Specifications for Design Evaluation

Texas Instruments ADS8509 is best evaluated as a precision, bipolar-input SAR ADC optimized for systems that need predictable 16-bit measurement quality more than extreme sampling speed. Its headline specifications—16-bit resolution and 250 kSPS throughput—set the first-order boundary of use. At full rate, the device completes one acquisition-plus-conversion cycle in 4 μs, which means the front-end, reference behavior, source impedance, and digital readout path must all remain stable inside that timing budget. In practice, this matters more than the nominal sample rate itself. A 250-kSPS converter only delivers its rated precision when the input signal settles to the required error band before the internal conversion phase begins.

The 16-bit resolution defines a code space of 65,536 levels across the selected input span. For the ±10 V range, one LSB is about 305 μV. That number is more useful than the resolution label alone because it translates digital output granularity into analog design constraints. Any input-referred noise, amplifier offset drift, reference noise, ground disturbance, or settling residue near a few hundred microvolts starts to interact directly with code stability. In other words, the converter is not difficult because it is 16-bit on paper; it is difficult because the surrounding signal chain must consistently behave below one-third to one-half of an LSB if stable low-noise measurement is expected.

The DC accuracy grades are an important part of device selection. The ADS8509I is specified at up to ±3 LSB INL and ±2 LSB DNL. The ADS8509IB tightens this to ±2 LSB INL and ±1 LSB DNL. The practical difference is not just better datasheet elegance. It changes confidence in absolute transfer linearity, endpoint interpolation error, and code progression behavior across the full input span. In systems such as programmable power instrumentation, actuator feedback, and industrial data acquisition, these static errors often dominate long-term measurement credibility more than AC metrics do. If the design depends on software calibration of offset and gain only, a lower INL part usually preserves residual accuracy much better because nonlinearity cannot be removed with simple two-point correction.

The no-missing-code specification also deserves careful reading. ADS8509I guarantees no missing codes to 15 bits, while ADS8509IB guarantees no missing codes to 16 bits. This has direct implications for monotonic behavior and fine-step control loops. In closed-loop systems, especially around threshold decisions or slow ramps, missing codes create behavior that is difficult to debug because the problem looks intermittent at the system level while actually being deterministic inside the transfer function. When the application is more about repeatable control authority than about spectrum purity, the stronger no-missing-code grade can be the more valuable upgrade.

Transition noise is specified at 1 LSB. This parameter is often underestimated during architecture selection because it does not look dramatic beside INL or SNR, yet it strongly affects perceived measurement stability. A converter with 1 LSB transition noise may toggle between adjacent output codes for a fixed near-threshold input. That is normal behavior, not necessarily a layout error. For slow-moving or quasi-static signals, this shows up as code flicker near decision boundaries. In practice, this is where averaging becomes useful, but only if the rest of the analog path is quieter than the converter itself. If board-level noise is already larger than one LSB, digital averaging mostly smooths symptoms rather than improving true measurement fidelity.

The AC performance indicates that the ADS8509 is not only a static measurement converter. At a 20-kHz input, the device delivers typical SINAD of 83 dB for ADS8509I and 85 dB for ADS8509IB, with SNR up to 88 dB. These numbers place it in a range suitable for mixed-domain systems where both waveform content and precision scaling matter. It is not intended as a high-speed spectral analysis ADC, but it is strong enough for moderate-bandwidth vibration channels, control-loop observability, low-frequency power waveform capture, and general-purpose signal logging where harmonic cleanliness still matters. The distinction between SNR and SINAD is especially important here. The gap between them reflects distortion contribution, and that gap becomes a useful indicator when comparing front-end choices. In many practical signal chains, the external driver amplifier degrades THD before the ADC itself becomes the dominant limit.

Spurious-free dynamic range and total harmonic distortion give additional context for dynamic use. These parameters are often treated as secondary in precision converters, but they become relevant as soon as the system must preserve small signals in the presence of large tones, or when post-processing includes FFT-based diagnostics. A converter with acceptable SNR but weak SFDR can still fail in condition-monitoring tasks because narrowband spurs are harder to filter or average out than broadband noise. The ADS8509 sits in a useful middle ground: dynamic performance is strong enough for moderate-frequency acquisition, while the architecture remains centered on deterministic, precision-oriented conversion rather than aggressive bandwidth.

The timing-related analog specifications clarify how the part behaves outside ideal steady-state conditions. A full-power bandwidth of 500 kHz indicates the input path can handle relatively fast analog transitions without immediate large-signal attenuation, but this should not be confused with a recommendation to sample near that frequency at full 16-bit fidelity. Full-power bandwidth describes amplitude handling capability, not complete dynamic accuracy under Nyquist constraints. This distinction is easy to miss and often leads to optimistic interpretation. For design evaluation, the better question is whether the entire front-end can settle and remain linear enough within the 4 μs cycle for the expected signal profile.

The 5 ns aperture delay is small enough that, for many industrial and instrumentation systems, timing uncertainty from other parts of the signal chain will dominate. Still, in synchronized multi-channel systems or phase-sensitive measurements, even nanosecond-scale sample timing deserves attention. Aperture delay by itself is less important than aperture consistency and system-level skew. If multiple ADC channels are compared across boards or modules, clock distribution and trigger determinism usually become the real limiting factors long before the ADC core timing does.

The 2 μs transient response for a full-scale step is particularly useful when estimating behavior in multiplexed or rapidly changing input environments. It implies that after a large input change, the converter requires a meaningful fraction of the total sample period to settle to rated accuracy. This has direct consequences when scanning channels with very different amplitudes or source impedances. A common field issue in multiplexed SAR systems is assuming the nominal throughput applies equally to all channel sequences. In reality, channel-to-channel crosstalk through incomplete settling can become the hidden error source. Reducing source impedance, inserting additional acquisition time, or grouping channels by signal amplitude often fixes the issue more effectively than post-calibration.

The 150 ns overvoltage recovery time is another system-relevant metric. It indicates the converter can return quickly to normal operation after input overstress events, which is valuable in industrial interfaces, motor environments, and externally connected instrumentation where transient excursions are common. Fast recovery does not remove the need for front-end protection, but it does reduce the risk of prolonged measurement corruption after an event. A robust design usually treats this parameter as part of a broader fault strategy: clamp energy must still be controlled, protection leakage must remain low relative to LSB scale, and the driver stage must recover as cleanly as the converter input itself. In many boards, the protection network, not the ADC, determines actual post-fault recovery behavior.

From a design-evaluation standpoint, the ADS8509 is most attractive when the application requires a true bipolar input range, stable 16-bit class precision, and moderate sample rate in a relatively simple SAR architecture. Its value is not only in the raw specifications, but in the balance between static linearity, usable dynamic range, and recoverable behavior under real signal disturbances. The better accuracy grade, ADS8509IB, is often worth selecting when system calibration cannot fully suppress residual transfer error or when fine monotonic behavior is essential. The lower grade can still be fully adequate in monitoring roles where absolute linearity is less critical than throughput and input span flexibility.

A useful way to think about this converter is that it rewards disciplined analog design more than heroic digital correction. Clean references, low-impedance drive, controlled input filtering, and careful grounding tend to unlock more of its real performance than algorithmic compensation alone. That is often the defining characteristic of precision SAR converters in this class: the datasheet numbers are achievable, but only when the surrounding circuitry is designed with the same level of precision as the ADC core itself.

Texas Instruments ADS8509 Input Range Flexibility and Reference Options

Texas Instruments ADS8509 provides an unusually practical combination of programmable input-range flexibility and reference configurability. That combination matters less as a datasheet feature and more as a system-level simplifier. In mixed-signal control, instrumentation, and industrial acquisition paths, the cost of an ADC is often not the converter itself but the surrounding analog adaptation: attenuators, gain stages, level shifters, protection networks, and reference distribution. The ADS8509 reduces part of that burden by allowing the input path and reference strategy to be selected to match the signal environment rather than forcing the signal chain into a single fixed full-scale model.

A key strength is the support for multiple input ranges: 4 V, 5 V, 10 V, ±3.33 V, ±5 V, and ±10 V. This range set is broad enough to cover many common field and instrumentation domains without immediately requiring an external programmable gain stage. Unipolar ranges fit sensor and process-output signals that remain above ground. Bipolar ranges fit transducers, control loops, and measurement nodes that swing around zero. In practice, this lets one converter family sit across several product variants while preserving similar digital interfaces and firmware treatment. That kind of reuse is often more valuable than a marginal improvement in raw converter specifications.

The range selection is implemented through the analog input structure using R1IN, R2IN, and R3IN. These pins are not just connection points; they define how the internal front end scales the applied signal into the converter core. The selected wiring scheme determines the allowable signal span presented to the ADC. This is important because the ADS8509 is not simply accepting an arbitrary analog voltage at one generic input node. The input network is range-aware, and correct pin usage directly affects gain accuracy, input loading behavior, and overrange tolerance. Designs that treat the range configuration as a secondary wiring detail often lose precision before conversion even starts.

The documented operating boundary that the analog input should not exceed the configured range by more than ±20% is especially significant. That number should not be read as usable measurement extension. It is a survivability and proper-operation limit, not a linear-conversion guarantee. In practical front-end design, this means the signal-conditioning stage should be centered and scaled so that normal excursions stay comfortably inside the selected full-scale range, with enough margin for offset, gain error, sensor fault conditions, and transient behavior. A robust design usually reserves headroom before reaching that ±20% envelope because field signals rarely fail in a clean or bounded way. Startup transients, cable-induced spikes, and calibration drift can all push the input harder than nominal simulations suggest.

That point becomes clearer when considering industrial interfaces. A ±10 V range may appear ideal for standard control signals, but direct connection is not always the best choice. If the source can overshoot during hot-plug events or if the line is routed across a noisy cabinet, a modest protection stage is still justified. Series resistance, clamp strategy, and RC filtering should be selected so the protection network does not introduce unacceptable settling error for the converter’s sampling action. The most common integration mistake is adding aggressive filtering for protection or noise suppression and then discovering that the source impedance is too high for accurate acquisition at the intended throughput. The better approach is to co-design range selection, source drive capability, and anti-alias/protection elements as a single input subsystem.

Reference choice is the second major lever in the ADS8509 architecture. The device supports either an internal 2.5 V reference or an external reference. The internal reference is specified from 2.48 V to 2.52 V with 8 ppm/°C drift, which is good enough for many embedded measurement systems, especially where absolute accuracy is secondary to repeatability, monotonicity, and low implementation effort. Internal reference usage reduces routing sensitivity, BOM count, and validation burden. It also localizes the reference behavior to the converter, which can simplify board-level partitioning.

The external reference option becomes more compelling when the ADC is part of a larger precision chain rather than a standalone measurement node. The specified external reference range for linearity is 2.3 V to 2.7 V, and the reference input typically draws 100 μA at 2.5 V. That current is modest, but it still matters when a shared precision reference is driving multiple devices, especially if each load has dynamic behavior or startup sequencing constraints. In high-accuracy systems, a reference tree should be treated like a signal path, not like a static DC rail. Distribution impedance, local decoupling, thermal gradients, and load transients all affect whether the theoretical reference accuracy survives on the assembled board.

The REF pin serves both as a reference input and reference output. This dual-role pin is convenient, but it also means the implementation must be unambiguous. In both internal and external reference modes, the REF node should be bypassed to ground with a 2.2-μF tantalum capacitor. The CAP pin, associated with the reference buffer, also requires a 2.2-μF tantalum capacitor to ground. These capacitors are not optional housekeeping parts. They stabilize the local reference system and support the internal buffering behavior that the conversion process depends on. Weak or poorly placed decoupling here tends to show up as subtle conversion instability, code flicker, or temperature-dependent gain variation rather than obvious failure, which makes layout discipline essential.

Placement of the REF and CAP bypass capacitors should be treated with the same priority as supply decoupling on a precision amplifier. Short return paths, low-inductance routing, and a quiet local analog ground region matter. If the capacitors are placed remotely or forced to share noisy current return paths, the converter can inherit digital switching artifacts through the reference network. In board bring-up, these issues often masquerade as random noise or missing accuracy margin. The converter itself may be functioning correctly while the reference loop is being corrupted by layout-induced impedance.

The internal reference is generally the right default when board area, design speed, and component count dominate. It is also a sensible choice when each converter channel is functionally independent and system-level correlation between channels is not critical. However, there is a less obvious tradeoff: internal references simplify local design but can complicate fleet-level calibration consistency if multiple boards must track each other tightly over time and temperature. In such cases, a shared external precision reference can provide a more coherent metrology baseline across channels, boards, or modules. This is often more valuable than the reference’s standalone initial accuracy spec because correlation frequently matters more than absolute value in real systems.

External reference use is also attractive when thermal behavior must be engineered at the system level. The ADS8509 documentation recommends external reference operation beyond the industrial range because internal reference startup may not be correct outside -40°C to 85°C. That guidance should be taken literally. Precision converters can appear operational at temperature extremes while silently violating startup assumptions, settling expectations, or gain stability targets. If deployment includes cold-start at low ambient or powered operation in elevated enclosure temperatures, the reference strategy should be qualified under the exact startup and load conditions expected in the application. A room-temperature functional test is not enough.

From an application perspective, the input-range options and reference choices are tightly coupled even though the datasheet lists them separately. Full-scale input range defines how much signal span maps into the converter code space. Reference quality determines how stable and accurate that code-space boundary remains. Choosing a wide input range without considering reference drift reduces effective measurement confidence. Choosing an excellent reference while wasting input range on an oversized span leaves resolution on the table. The strongest designs balance both so the analog signal occupies as much of the converter range as practical while the reference architecture preserves that mapping across time, temperature, and production spread.

In instrumentation-style designs, a useful pattern is to start with the real signal envelope, including fault and calibration limits, then choose the narrowest ADS8509 range that still leaves credible headroom. After that, decide whether measurement error is dominated by reference drift or by the sensor/front-end chain. If the front-end dominates, the internal reference is often fully adequate and keeps the design compact. If the error budget is already tight at the sensor and amplifier level, moving to an external reference usually produces cleaner system-level closure than trying to trim around reference variation later.

There is also a practical integration lesson in the converter’s flexibility: more options do not automatically produce a better design. The best use of the ADS8509 is not to expose all ranges and both reference modes indiscriminately, but to lock each product variant into a small, validated operating window. Fixed population options, controlled layout reuse, and repeatable analog front-end behavior usually outperform a fully generic design that attempts to remain reconfigurable in every deployment. Precision data acquisition benefits from controlled constraints.

Used well, the ADS8509’s input architecture and reference options allow the converter to align closely with the analog realities of the target system. The multiple input ranges reduce unnecessary conditioning complexity. The internal reference accelerates implementation. The external reference path enables tighter metrology control when needed. The real engineering value lies in treating these not as isolated features, but as coordinated design choices that shape the converter’s accuracy, robustness, and integration cost across the entire signal chain.

Texas Instruments ADS8509 Digital Interface, Serial Output, and Timing Behavior

Texas Instruments ADS8509 exposes a serial 16-bit output path built for direct attachment to microcontrollers, DSPs, and FPGA capture logic. The interface looks simple at first glance, but its behavior is tightly coupled to the converter’s sample, convert, and readout phases. Good integration depends less on basic SPI familiarity and more on understanding how the device sequences data availability, clock ownership, and framing.

At the architectural level, the ADS8509 separates analog conversion from digital extraction through an internal output shift register. A conversion result is first completed and latched, then shifted out serially. This matters because the serial stream does not represent an actively changing conversion word. It represents a completed, stable sample from the prior conversion boundary. In practice, this decoupling is what makes the part predictable in mixed-signal systems: the host can focus on reading a fixed 16-bit word without worrying that the serial output is being updated mid-transfer.

The serial interface supports two clocking models, selected by the EXT/INT pin. This is one of the most useful design choices in the device because it lets the same converter fit very different timing strategies. With EXT/INT low, the ADS8509 owns the readout clock and generates 16 DATACLK pulses after conversion. This internal-clock mode is often the easiest path when the host only needs valid data and does not need strict bit-level scheduling. The converter effectively delivers a self-timed burst, which reduces firmware overhead and simplifies FPGA state machines. In compact acquisition designs, this mode often shortens bring-up time because the host does not have to synthesize a compliant read clock or track exact bit spacing.

With EXT/INT high, DATACLK changes role and becomes an input. In this external-clock mode, the host fully controls the serial extraction rate. This is the better fit when the converter must align with a shared serial backplane, deterministic FPGA timing, or a DSP frame schedule. It also helps when multiple devices need to be read in a controlled order or when the readout must be delayed slightly to absorb interrupt latency or bus arbitration. The main advantage is not just flexibility. It is timing ownership. Once the host provides DATACLK, the serial stream can be placed exactly where the system budget allows, which is often more valuable than raw simplicity.

That distinction between internal and external clocking has second-order consequences. Internal-clock mode is operationally clean, but it pushes the converter’s timing into the wider system. If several peripherals compete for service, the host must be ready when the ADS8509 emits its clock burst. External-clock mode avoids that issue and gives the digital controller more freedom, but the burden shifts to signal integrity and edge discipline. Fast externally supplied clocks, especially near the upper end of the allowed range, can expose routing weakness, skew, and poor chip-select timing that would never appear in a lower-speed prototype. In board-level work, the interface often looks robust at moderate clock rates and then fails only under full-throughput testing because the read path, not the conversion path, was the real limiting factor.

The output coding is selected by SB/BTC, which chooses between straight binary and binary two’s complement. This is more than a formatting convenience. It determines how naturally the converter output maps into the rest of the signal chain. Straight binary is typically the cleaner choice for unipolar processing, lookup-table indexing, threshold comparison, and raw measurement storage. Two’s complement fits better into bipolar math pipelines, signed DSP operations, and filter stages that assume zero-centered input. Choosing the wrong format does not usually break a system, but it introduces needless transformations in firmware or logic and increases the chance of subtle scaling errors. In tightly timed data paths, removing that extra translation step is often worthwhile.

A practical integration detail is that data representation should be fixed early in system design, not deferred to software cleanup. Once capture, buffering, and algorithm blocks are built around a signed or unsigned assumption, changing it later can ripple through calibration code, fixed-point scaling, and packet definitions. The ADS8509 gives that choice at the interface boundary, which is exactly where it is most useful.

The BUSY output is the primary conversion-status handshake. It goes low when conversion begins and stays low until the conversion is complete and the result has been transferred into the output shift register. That behavior is important because it tells the host not only that the analog process is active, but also that the digital word is not yet ready for extraction. In other words, BUSY is aligned to valid-data availability, not just to the analog core timing. Firmware can poll BUSY, an FPGA can gate a read state machine from it, and interrupt-driven systems can use it as a hardware event source. In each case, BUSY reduces ambiguity around when a serial read may start safely.

For reliable designs, BUSY should be treated as a timing boundary rather than a general status flag. Reading too early can produce framing errors or stale data assumptions, especially if the host pipelines convert and read operations aggressively. A robust implementation usually defines a narrow sequence: initiate conversion, wait for BUSY to release, then clock out exactly 16 bits unless an intentional extension is being used. That discipline keeps the serial layer deterministic and makes later debugging much easier.

In external-clock mode, the SYNC output adds useful framing support. SYNC provides a synchronization pulse that helps downstream logic identify the data window. This is especially helpful in FPGA and DSP systems where several converters or serial streams must be aligned against a common processing clock. Instead of inferring the word boundary only from chip-select behavior or external state, the designer gets a converter-originated timing marker. That improves observability and can simplify deserializer logic, particularly in systems where clock and control lines traverse unequal paths.

The TAG input extends the serial stream in a simple but clever way. After the 16 conversion bits are shifted out, the ADS8509 can continue presenting the logic level present at TAG as long as CS remains low and R/C stays high in external-clock mode. On paper this looks minor, but at the system level it can be useful for identification and framing extension. In multi-device arrangements, TAG can embed a static qualifier into the tail of the read cycle without consuming another signal in the acquisition fabric. It can also act as a lightweight integrity cue when several similar data streams are multiplexed into a shared receiver. The feature is primitive compared with modern packetized interfaces, but in deterministic parallel acquisition hardware, simple often means reliable.

The timing budget supports the full 250 kSPS throughput, and the numbers are tight enough that they should be read as a complete cycle, not as isolated parameters. The converter requires 2.2 microseconds for conversion and 1.8 microseconds for acquisition, giving a total cycle time of 4 microseconds. That total defines the maximum sustained sample rate. Any controller scheme that assumes readout can be arbitrarily inserted between those phases without consequence is likely to run into margin problems. The serial interface must coexist with the analog sampling schedule, not compete with it.

Internal DATACLK runs at about 9 MHz during data transmission, which is sufficient to move the 16-bit word within the available cycle budget. In external-clock mode, the allowable clock range extends from 0.1 MHz to 26 MHz. That wide range is useful, but it should not be interpreted as a blanket recommendation to clock continuously or indiscriminately at the maximum rate. The note that continuous operation is not recommended for optimum performance is a quiet but important hint: the digital interface can influence overall converter behavior through switching activity, coupling, and timing stress. In mixed-signal devices, digital aggressiveness is rarely free.

A useful engineering approach is to treat the external serial clock as a controlled burst rather than a continuously running interface clock. Bursting the read clock only when data is needed usually reduces unnecessary switching energy, simplifies correlation between conversion events and read windows, and avoids creating extra digital noise near sensitive analog transitions. This tends to matter most when the board is dense, reference routing is imperfect, or the analog input bandwidth is high enough that small disturbances become visible in codes or FFT results.

At the application level, internal-clock mode fits well in embedded measurement nodes, low-complexity controllers, and systems where one converter is serviced by one host with minimal bus contention. External-clock mode is stronger in synchronized acquisition arrays, FPGA-centric designs, and interfaces where data must be aligned to a master timing domain. Straight binary output typically belongs in unipolar instrumentation and monitoring paths. Two’s complement is the more natural choice in signed signal-processing chains. BUSY is best used as the authoritative conversion-complete qualifier. SYNC improves framing in scheduled serial systems. TAG becomes valuable when a design needs one more bit of context but does not want one more wire.

The deeper point is that the ADS8509 digital interface is not just a transport mechanism for 16 bits. It is part of the converter’s timing contract with the host. Designs that treat it as a generic SPI peripheral usually work at low stress and then become fragile near full throughput. Designs that respect its phase relationships, clock ownership model, and framing signals are much easier to scale, validate, and maintain. In practice, the most reliable implementations are the ones that build the readout around BUSY and the sample cycle first, then fit the serial protocol on top of that timing foundation rather than the other way around.

Texas Instruments ADS8509 Power, Temperature, and Package Characteristics

Texas Instruments ADS8509 power, temperature, and package behavior reflects a design aimed at straightforward 5 V data-acquisition systems, but the practical value lies in how cleanly these parameters align with real hardware constraints. The converter uses a single-supply architecture in which both AVDD and DVDD are nominally 5 V, with an allowed range of 4.75 V to 5.25 V. A key constraint is that the digital supply must not exceed the analog supply. That detail is easy to overlook during schematic capture, yet it matters because it prevents internal junctions from being biased in unintended ways during power sequencing or transient conditions. In mixed-signal boards, this effectively means the analog rail should be established first, or both rails should rise together from the same regulated source. In many industrial controller designs, that requirement is actually beneficial because it discourages split-rail sequencing mistakes and simplifies regulator strategy.

This supply model fits naturally into legacy 5 V ecosystems, including PLC input modules, motor-control peripherals, and older MCU or DSP platforms that still expose 5 V-tolerant parallel interfaces. It also reduces the need for level translation around the converter, which is often a hidden source of timing distortion, bus skew, and unnecessary quiescent power. In practice, using one well-decoupled 5 V rail with localized analog and digital filtering often produces better overall behavior than trying to force aggressive rail separation without a strong grounding strategy. The common mistake is to assume that separate supplies automatically improve precision. For a converter in this performance class, rail cleanliness, return-current control, and reference stability usually dominate over nominal supply partitioning.

Power dissipation is moderate for a 16-bit SAR converter operating at 250 kSPS. The typical dissipation of 70 mW, with a maximum of 100 mW, is low enough for dense embedded assemblies but still high enough that thermal accumulation should not be ignored when multiple converters, references, amplifiers, and isolation devices are placed in a small area. At 5 V, 70 mW corresponds to about 14 mA average supply current, which is a useful engineering estimate when budgeting rail loading and regulator headroom. At the maximum rating, the figure rises to roughly 20 mA. Those numbers are not large in isolation, but in compact industrial cards the aggregate load from several precision signal-chain components can push local regulators into less favorable operating regions, especially at elevated ambient temperature.

The power-down mode is more strategically important than the static dissipation figures suggest. A drop to 50 μW is substantial, and the PWRD pin does more than simply reduce current. It inhibits conversions while preserving the previous result in the output shift register. That behavior enables deterministic low-duty-cycle operation without forcing downstream logic to handle undefined output data immediately after shutdown. In sampled monitoring systems where measurements are only needed every few milliseconds or seconds, this can change the entire thermal and power profile of the front end. The practical benefit is strongest when the ADC is only one part of a larger acquisition chain that also sleeps between events. If the reference buffer and input driver remain active while only the ADC is powered down, the total savings may be smaller than expected. Good low-power design therefore treats the converter, reference path, and input conditioning as one coordinated subsystem rather than optimizing the ADC in isolation.

There is also a timing tradeoff hidden inside power-down usage. Any wake-sleep strategy must account for reactivation latency, reference settling, input amplifier recovery, and digital interface re-synchronization. On paper, the micro-watt standby number looks ideal for battery-powered or thermally constrained equipment. In deployed systems, the real question is whether the analog path is stable quickly enough to preserve 16-bit accuracy on the first conversion after wake-up. Designs that ignore this often save power but lose repeatability. A more reliable pattern is to discard the first sample after re-enabling the chain, especially when the source impedance is high or the driver amplifier was biased down during standby.

Temperature characteristics show a similarly practical balance between guaranteed operation and usable margin. The ADS8509 is specified for full performance from -40°C to 85°C, which covers most industrial environments. Performance is derated outside that range, extending to -55°C and 125°C. This distinction is important. It does not mean the device stops functioning beyond 85°C; it means parameters such as offset, gain error, linearity margin, timing, or noise may no longer remain within the tighter production limits associated with the main operating grade. For systems deployed in outdoor cabinets, engine compartments, or sealed enclosures, this derated region is not merely theoretical. Internal board temperature can rise far above ambient once nearby processors, power supplies, and communication transceivers begin dissipating heat.

Thermal resistance values provide a first-order way to estimate junction rise. The SO package is specified at 46°C/W, while the SSOP package is 62°C/W. Using the typical 70 mW dissipation, the expected junction rise above local ambient is only about 3.2°C for the SO package and about 4.3°C for the SSOP package. Even at the 100 mW maximum, the rise is approximately 4.6°C and 6.2°C, respectively. These are small numbers, which indicates the ADC is unlikely to self-heat enough to create major internal drift by itself. However, this should not lead to overconfidence. In real layouts, package temperature is often driven more by neighboring components and copper heat spreading than by the converter’s own power loss. A precision ADC placed next to a hot DC/DC converter or digital processor may see a local thermal gradient that matters more than the nominal junction rise calculation. For high-accuracy measurement channels, physical placement often influences drift more than one additional digit of datasheet linearity.

The package choice between 20-pin SO and 28-pin SSOP should therefore be evaluated as an electrical and thermal layout decision, not only a procurement option. The SO package offers lower thermal resistance and is often easier to route with cleaner analog spacing, especially when board area is available and assembly robustness matters. The SSOP package saves space and can improve channel density in compact systems, but tighter lead pitch increases routing sensitivity, solder process demands, and the likelihood of digital traces crowding analog nodes. In converters of this resolution, board parasitics are rarely catastrophic, but they do shape repeatability, crosstalk susceptibility, and test yield. A layout that appears equivalent at the schematic level can produce noticeably different performance once ground return geometry, reference decoupling distance, and bus activity are considered.

From a manufacturability standpoint, the ordering detail also matters. The ADS8509IDWR identifies the industrial-temperature grade in the SO-20 tape-and-reel option. That is relevant not only for purchasing but for assembly flow, feeder compatibility, and qualification consistency across production lots. Small ordering-code differences often encode package style and shipment format, and locking those details early avoids unnecessary PCB revisions or AVL churn later.

A useful way to interpret these characteristics is to view the ADS8509 as a converter optimized for stable, 5 V precision acquisition rather than ultra-low-voltage integration. Its supply requirements, modest dissipation, and industrial temperature range make it particularly well suited to control and instrumentation platforms where reliability, simple interfacing, and predictable behavior matter more than aggressive power scaling. The most successful implementations usually do not rely on any single headline specification. They combine disciplined 5 V rail design, careful wake-up handling, conservative thermal placement, and package selection aligned with routing quality. When those decisions are made together, the device tends to deliver performance that is much closer to the datasheet intent in actual hardware.

Texas Instruments ADS8509 Pin Functions and System-Level Integration Considerations

Texas Instruments ADS8509 is built for mixed-signal systems where board-level implementation determines whether the converter performs like a precision data-acquisition component or merely a nominal 16-bit ADC. Its pinout reflects that reality. The device does not simply expose power, ground, analog input, and serial interface pins; it partitions these functions in a way that allows the surrounding system to control current return paths, reference stability, sampling integrity, and digital emission coupling. A good design uses these pins as part of a signal-integrity strategy rather than treating them as independent electrical connections.

The supply architecture is the first indicator of that intent. VANA and VDIG split the analog and digital power domains, while AGND1, AGND2, and DGND provide separate return nodes for the corresponding current classes. This is not only a convenience for schematic organization. It is a mechanism for constraining where high di/dt digital return currents flow. If digital return current is allowed to share impedance with the analog front end, code-dependent switching noise can be translated directly into reference disturbance or input error. In practice, the ADS8509 benefits from treating analog and digital supply filtering as localized energy reservoirs with a controlled point of convergence rather than as globally merged rails spread across the board. The recommended 0.1-µF ceramic plus 10-µF tantalum decoupling should be placed as a two-band network: the ceramic handles fast edge current and package lead inductance, while the larger capacitor supports lower-frequency transient demand and stabilizes the local rail under burst activity.

The grounding scheme deserves similar discipline. AGND1 and AGND2 should be viewed as analog return access points for the converter core and front-end related currents, while DGND is the return for output switching and interface activity. The most reliable layout pattern is usually a low-impedance ground region under the converter with short, direct via connections from each ground pin into that region, followed by deliberate return-current steering at the board level. The key objective is not ideological “ground separation,” but return-path predictability. Excessively splitting copper often creates longer current loops and raises impedance at exactly the frequencies that matter most. A compact analog ground region coupled to a carefully bounded digital return path tends to outperform visually dramatic split-plane layouts.

On the analog side, R1IN, R2IN, and R3IN define how the input range is implemented. These pins are not just selectable terminals; they are part of the converter’s front-end scaling network and therefore participate directly in settling behavior, source loading, and protection strategy. When selecting among supported input ranges, the surrounding network should be designed with the ADC acquisition interval in mind. The internal sample-and-hold must settle to within a small fraction of 1 LSB during the available acquisition window. That requirement usually makes source impedance more important than static accuracy alone would suggest. A front-end network that looks acceptable in DC analysis can still produce gain compression or code spread if the signal source, protection resistors, filter capacitor, and switch resistance together slow the charging path into the sampling node.

This is one of the most common failure modes in precision SAR integration. Designers often add RC filtering or surge-limiting resistance to protect the input, then discover that the converter loses linearity only at higher throughput or only after large signal steps. The issue is usually incomplete settling, not core ADC error. A practical approach is to treat any input protection and antialias filtering network as part of the sampling system. Keep resistance low enough to support settling, place the local shunt capacitor close to the ADC pins, and verify the worst-case full-scale step response rather than only small-signal bandwidth. For industrial inputs, it is often more effective to use staged protection—such as a current-limiting element combined with fast clamp behavior and a compact local charge bucket—than to rely on a single large series resistor.

REF and CAP support the reference subsystem, which is often the hidden determinant of repeatability. In a converter of this class, the reference path is not a passive voltage label. It must absorb dynamic current associated with the conversion process while remaining quiet and thermally stable. The capacitor connected at the reference-related nodes should be selected and placed with the same care as the main supply decouplers. Long traces or shared return paths in the reference loop can convert digital and analog transient current into code jitter or gain instability. One useful design habit is to think of the reference loop as a separate analog power domain with its own local AC current circulation. Once that perspective is adopted, placement decisions become much clearer: short loop area, no digital trace adjacency, and no unnecessary via transitions.

The control interface built around CS and R/C is compact, but it requires timing intent from the system designer. With CS held low, a falling edge on R/C places the internal sample-and-hold into hold mode and starts conversion. Depending on whether the device is operating with internal or external clocking, that same transaction can also initiate output of the previous conversion result. This coupling between conversion sequencing and data retrieval is efficient, but it means the host interface must be designed around a precise acquisition model. If the system uses the internal clock and reads during conversion, throughput can be optimized with minimal timing burden on the controller. If the system uses the external clock, the host gains tighter control over serial read timing, which can simplify synchronization across multiple devices or across a larger deterministic sampling framework.

That choice is more architectural than procedural. Internal-clock operation usually reduces firmware complexity and can be robust in standalone measurement channels. External-clock operation becomes attractive when several converters must align to a common timing fabric, when a programmable logic device is collecting data, or when interface activity must be phase-managed relative to noisy loads elsewhere in the system. In systems with switching power stages, motor drives, or fast communication bursts, deliberately placing read activity away from sensitive analog intervals can improve effective performance even when the datasheet timing is fully met. The converter may be tolerant electrically, but the board rarely is.

The digital interface pins DATA, DATACLK, BUSY, and SYNC are sufficient for a lean serial acquisition link. BUSY provides immediate visibility into conversion state, which is valuable in both interrupt-driven and deterministic polling architectures. DATACLK and DATA define a straightforward serial path, while SYNC supports framing and alignment. This pin set is modest, but that simplicity is useful because it limits simultaneous digital transitions near the analog section. For systems that do not need a parallel bus, the serial interface reduces routing density and makes isolation, if needed, much easier. In practice, the interface is most reliable when trace lengths are kept short, edge rates are not unnecessarily fast, and the receiving logic samples with margin rather than on a borderline timing edge. Many field issues attributed to ADC instability are actually interface integrity problems caused by aggressive FPGA or MCU drive strength settings.

The stated digital logic thresholds fit a 5-V digital environment, with logic low recognized up to 0.8 V and logic high from 2.0 V. That gives comfortable compatibility with legacy controllers and mixed-voltage industrial logic. Even so, threshold compatibility should not be confused with signal-quality immunity. Overshoot, undershoot, slow edge crossings, and reference bounce can still cause intermittent framing errors. If the digital controller sits far from the converter, line damping and controlled return routing are often worth more than brute-force drive strength. The cleaner the transition at the receiver, the less likely digital current will contaminate the converter through substrate or package coupling.

Absolute maximum ratings define the edges of survivability, not the intended operating region, but they matter greatly in field-connected designs. The ±25 V absolute maximum rating on R1IN, R2IN, and R3IN gives useful context for fault tolerance, especially where sensor wiring leaves the enclosure or shares cable bundles with inductive loads. It should not be interpreted as intrinsic fault management. Real systems still need a layered protection approach that limits both energy and duration of overstress. The most effective strategy usually combines external clamping, controlled source impedance, and attention to fault return paths. If a surge current is diverted into the wrong ground region, the converter can remain within pin voltage limits and still produce disruptive substrate or ground-bounce effects elsewhere in the board.

The 6 V absolute maximum on VANA and VDIG similarly informs power design. Supply sequencing is usually less problematic than supply cleanliness, but fault cases such as hot-plugging, regulator overshoot, or back-powering through I/O deserve explicit review. Digital inputs restricted to -0.3 V through VDIG + 0.3 V mean that interface pins should not be allowed to drive the device when its digital rail is unpowered or collapsing. This is a classic source of latent reliability problems. A series resistor, bus switch, or sequencing-aware buffer often costs less than debugging sporadic startup behavior later.

From a system-integration perspective, the strongest designs are the ones that treat the ADS8509 as an energy-sensitive switched network rather than as a static converter block. The analog input network must settle dynamically, the reference must source pulsed current quietly, the ground system must carry return current intentionally, and the digital interface must avoid injecting avoidable noise during critical analog intervals. Once those mechanisms are respected, the pinout becomes unusually efficient. It gives enough partitioning to build a quiet mixed-signal channel without excessive support circuitry, but it also leaves enough responsibility with the board designer that implementation quality directly determines real resolution.

A useful mental model is to rank design priorities in this order: reference stability, input settling, return-path control, then digital timing convenience. That order often leads to better real-world results than starting from firmware simplicity or connector placement. If the reference and sampling loop are physically compact and electrically quiet, the ADS8509 tends to deliver predictable performance across a wide range of host interfaces. If those fundamentals are compromised, no amount of timing cleanup at the serial port will recover the lost accuracy.

Texas Instruments ADS8509 Application Value in Industrial and Instrumentation Scenarios

Texas Instruments ADS8509 delivers strong practical value in industrial and instrumentation systems that need precise SAR conversion, wide input-span support, and a simpler digital interface than a full parallel-output ADC. Its relevance is not based on novelty. It comes from architectural balance. The device sits in an effective middle ground: high enough resolution for serious measurement work, fast enough for medium-speed acquisition, and simple enough to integrate into control-oriented hardware without creating routing, timing, or firmware overhead that exceeds the actual measurement need.

A key advantage of the ADS8509 is its direct compatibility with bipolar industrial signal domains. Support for ranges such as ±5 V and ±10 V is more than a convenience feature. In many control and monitoring systems, real-world analog signals are already centered around ground and swing in both directions due to bridge sensors, actuator feedback, servo error signals, legacy transducer interfaces, and conditioned field measurements. When an ADC can accept these spans directly, the front end becomes materially cleaner. External level shifting, gain staging, or artificial midscale bias generation can often be reduced or eliminated. That lowers component count, but more importantly it removes error sources that tend to accumulate at the analog boundary: offset drift, resistor ratio error, amplifier noise, output swing limitations, and recovery behavior during overload events.

This point becomes especially important in industrial process control. Control loops rarely fail because the ADC nominal resolution is too low. They fail because the measured variable is distorted before conversion, or because the acquisition path behaves inconsistently across temperature, channel switching, or fault recovery. ADS8509 helps by shortening the signal chain between the field voltage and the digital controller. In practice, every removed op amp stage usually improves predictability more than marketing-level specifications suggest. A simpler analog path is easier to calibrate, easier to protect, and easier to troubleshoot when the system is deployed in electrically noisy cabinets or long-cable environments.

Its 16-bit resolution and 250-kSPS throughput place it in a useful operating region for multiplexed data acquisition subsystems. This is not a waveform-capture converter intended for RF-class bandwidths, and it does not need to be. In embedded measurement systems, the common requirement is reliable digitization of multiple channels carrying relatively slow physical variables: pressure, temperature, current-loop monitor points, vibration envelopes after conditioning, power-rail diagnostics, and closed-loop command feedback. At 250 kSPS, the converter provides enough sampling headroom for channel sequencing, digital filtering, and oversampling strategies while still fitting comfortably within the timing budget of microcontrollers, DSPs, or FPGA-based supervisory logic.

The serial output interface is one of the most practical aspects of the device. In systems where board space, connector count, isolation channels, or processor pin budget are constrained, serial data transfer reduces implementation friction. A parallel bus may offer higher raw data extraction bandwidth, but in many instrumentation platforms it introduces more cost than benefit. It consumes I/O, increases simultaneous switching noise, complicates isolation if the converter sits on a high-side or field-referenced domain, and often forces wider timing margins across backplanes or mezzanine interconnects. By contrast, a serial interface aligns well with compact controller boards and modular DAQ architectures. This becomes even more valuable when several converters or mixed-signal peripherals must coexist on the same digital processing node.

Clocking flexibility is another detail with disproportionate system-level value. The option to use internal or external clocking supports different integration styles. Internal timing reduces dependency on controller-generated conversion clocks and can simplify standalone measurement blocks. External clocking, however, is often preferable when deterministic latency matters. In synchronized acquisition systems, shared timing allows conversion and readout events to be aligned across ADCs, DACs, digital isolators, and communication cycles. That alignment becomes important in motor control diagnostics, power analysis, phased sampling, and coordinated control loops where timestamp error can be as damaging as amplitude error. A converter that can cooperate with both independent and orchestrated timing schemes is easier to reuse across product variants.

The integrated reference and sample-and-hold are also significant from an engineering efficiency standpoint. Integration does not automatically guarantee the best absolute performance, but it does improve repeatability of implementation. In many projects, the first-order problem is not extracting the last fraction of an LSB. It is ensuring that every unit built on the line behaves consistently without analog tuning. An integrated reference reduces routing sensitivity, external reference selection mistakes, and startup interaction issues. The integrated sample-and-hold similarly helps the converter tolerate realistic signal-source behavior without requiring a highly customized acquisition driver in every case. For board-level designs where schedule, validation effort, and production robustness matter, this type of integration often saves more engineering time than a marginal specification improvement from a more fragmented solution.

In medical and laboratory instrumentation, this design balance is especially useful. These systems often prioritize repeatable acquisition behavior, compact layout, and controlled power sequencing. ADS8509 supports those needs well when the target signal bandwidth is moderate and the analog range is relatively large. Low power-down current further extends its usefulness in instruments that cycle between active measurement and standby. Portable analyzers, service tools, and intermittently active sensing modules benefit when the converter can wake predictably, sample accurately, and return to a low-power state without requiring a complex bias stabilization routine around multiple external precision components.

One practical observation from fielded measurement designs is that nominal ADC performance rarely defines the end result by itself. Source impedance, multiplexer settling, reference decoupling, grounding discipline, and transient protection usually dominate whether a 16-bit path behaves like a 16-bit path. ADS8509 rewards disciplined front-end design. If a multiplexed input network is used, settling after channel switching must be budgeted conservatively, especially when moving between large signal deltas or channels with different source impedances. On paper, the throughput may support aggressive scan rates, but stable precision usually comes from allowing the internal acquisition network and any external RC filter to settle fully before conversion. In systems that ignore this, the symptom often appears as channel-to-channel crosstalk or gain inconsistency, even though the converter itself is operating correctly.

The wide bipolar input capability also changes protection strategy in a useful way. Industrial inputs are exposed to surge events, wiring faults, and transient overvoltage conditions. If the converter already operates over larger input spans, the protection network can often be designed with less intrusive clamping around the nominal measurement region. That helps preserve linearity. Protection can then focus on fault survivability rather than constant interaction with normal signal peaks. This is a subtle but important distinction. A protection circuit that remains electrically quiet during valid operation is usually better than one that is always close to conduction.

There is, however, a clear architectural tradeoff. ADS8509 is optimized for 5 V systems and wide-range analog acquisition, not for modern low-voltage mixed-signal ecosystems centered on 1.8 V or 3.3 V digital rails. In newer deeply integrated platforms, that can appear unfashionable. In practice, it is often an advantage where industrial control hardware already carries 5 V analog and interface supplies. Designs built around PLC-style modules, instrumentation backplanes, and legacy-compatible sensor interfaces frequently care more about direct measurement of real industrial voltage spans than about minimizing supply voltage at the converter. Avoiding extra rail generation or analog range compression can offset the inconvenience of maintaining a 5 V domain. In many retrofit or long-life platforms, this is the more rational engineering choice.

Another useful perspective is that ADS8509 fits best when measurement credibility matters more than interface fashion. A modern ADC with lower-voltage operation and denser feature integration may look more attractive in a catalog, but if it requires additional analog translation to handle true bipolar field signals, the overall system can become less robust. The cleaner solution is often the one that accepts the signal in its natural range and hands off data through a manageable serial link. That approach usually scales better across temperature, manufacturing spread, and maintenance cycles.

For medium-speed DAQ, embedded control, test equipment, and industrial instrumentation, ADS8509 remains technically relevant because it solves the right class of problem directly. It provides enough resolution to support precise control and diagnostics, enough speed for practical channelized acquisition, and enough analog range to reduce front-end distortion of the real-world signal. Its value is strongest in systems that benefit from straightforward analog interfacing, deterministic conversion behavior, and 5 V compatibility. In those environments, the device is not simply adequate. It is structurally well matched to the job.

Texas Instruments ADS8509 Potential Equivalent/Replacement Models

Texas Instruments ADS8509 replacement analysis should start from the fact that “equivalent” can mean very different things in practice. In ADC selection, pin compatibility alone rarely guarantees a safe substitution. A workable replacement must preserve the signal-chain assumptions built around the original device: conversion speed, analog input span, reference architecture, timing behavior, supply domain, and the error budget expected by the rest of the system. For the ADS8509, the most credible replacement candidates mentioned in the device documentation are other Texas Instruments converters positioned either as pin-compatible alternatives or as closely related grade variants within the same family.

The clearest replacement path is the ADS7809. It is explicitly identified as pin-compatible with the ADS8509, which immediately reduces board-level redesign risk. That matters in legacy systems where PCB changes are expensive, qualification cycles are long, or fielded equipment must be maintained with minimal disruption. The main tradeoff is throughput. The ADS7809 is presented as a lower-speed alternative, so its suitability depends on whether the original design genuinely needs the ADS8509’s 250-kSPS performance. In many installed systems, nominal converter speed was selected with margin, and actual sample demand may be significantly lower. In such cases, the ADS7809 can be a practical replacement if acquisition timing, settling windows, and control-loop update rates remain within specification. The key point is that speed reduction is not just a headline parameter change; it can alter latency, multiplexing efficiency, and the usable bandwidth of the measurement path.

A second replacement tier includes the ADS8508 and ADS7808. These devices are also described as pin-compatible, but they are 12-bit converters rather than 16-bit devices. That makes them mechanical and interface-level substitutes, not performance-equivalent substitutes. Whether they can be used depends on what the original 16-bit resolution was doing in the system. If the design only needed coarse process monitoring, threshold detection, or moderate-accuracy feedback, a 12-bit device may still produce acceptable system behavior. If the converter feeds calibration routines, low-level sensor measurement, precision actuator control, or software-based linearization, the resolution drop is usually too severe to ignore. The real engineering question is not “Can the ADC be replaced?” but “How much measurement granularity was actually being consumed by the application?” In several designs, nominal converter resolution exceeds the effective resolution of the full analog chain because sensor noise, front-end amplifier drift, grounding quality, or reference instability dominate the error floor. In those cases, moving from 16-bit to 12-bit may still be unacceptable, but the decision should come from an end-to-end noise and accuracy analysis rather than from converter resolution alone.

Within the ADS8509 family, the ADS8509I and ADS8509IB represent a more controlled substitution path. The documented distinction is primarily accuracy grade. The ADS8509IB offers tighter INL, DNL, and no-missing-codes performance than the ADS8509I. This is the least disruptive type of replacement because the converter architecture, interface expectations, and core operating model remain aligned. If a system was originally designed with sufficient linearity margin, the lower grade may be usable without meaningful functional impact. Conversely, moving to the tighter grade can improve test yield or reduce calibration burden in precision applications. In practice, this kind of grade migration is often more realistic than switching to a different resolution class, especially in regulated or qualification-heavy industrial platforms. It preserves the system’s behavior while offering flexibility in sourcing.

A structured replacement review should begin with conversion architecture assumptions embedded in the original design. The ADS8509 is not just a 16-bit ADC in a package; it is part of a specific timing and analog interface contract. Resolution is the most visible parameter, but throughput is often the first constraint to break a substitution. If the host logic, DSP routine, or sampling scheduler was designed around a 250-kSPS converter, replacing it with a slower device may create hidden timing debt. This becomes more pronounced in scanned systems, where one ADC services multiple channels through an external multiplexer. A lower throughput device does not merely reduce maximum sample rate; it can reduce per-channel update frequency, extend settling requirements after channel switching, and degrade transient observability.

Input range behavior is equally critical. A candidate replacement must support the same input span and signal conditioning assumptions. Even among pin-compatible converters, differences in allowable analog input ranges can force recalibration, front-end gain changes, or reduced measurement headroom. Reference method must also be checked carefully. If the surrounding design assumes a certain reference drive, stability requirement, or full-scale mapping, an otherwise compatible ADC can introduce gain shifts or degrade repeatability. In precision systems, reference mismatch often causes more field trouble than digital timing differences because it quietly distorts measurement scaling while leaving the interface apparently functional.

Serial timing mode deserves more attention than it usually receives in replacement discussions. Engineers often treat a shared package and similar serial interface as enough evidence of compatibility. That is risky. Small changes in timing edges, conversion start behavior, data valid windows, or readback sequencing can produce intermittent faults that are difficult to diagnose, especially when the interface works under room-temperature bench conditions but fails across voltage and temperature corners. A replacement should therefore be validated against the actual controller timing margins, not just against a textual description of interface similarity. This is especially important in older platforms where FPGA or microcontroller firmware was written tightly against one device’s behavior.

Package compatibility is necessary but not sufficient. Pin-compatible devices simplify mechanical replacement, but thermal behavior, analog pin sensitivity, and decoupling expectations can still differ enough to affect performance. Industrial designs using 5-V supply rails should confirm that the candidate converter truly supports the same supply regime and not merely a similar logic interface. Temperature qualification must also be treated as a first-class requirement. A converter that appears interchangeable in a commercial environment may not hold offset, linearity, or timing the same way across industrial temperature range. In control equipment, metering platforms, and embedded acquisition modules, this distinction directly affects calibration retention and field reliability.

The accuracy-grade difference between ADS8509I and ADS8509IB illustrates a broader point about ADC replacement strategy: the safest substitution is usually the one that preserves system assumptions rather than the one that matches a single headline specification. A tighter-grade part often drops into the design cleanly because it only reduces uncertainty. A slower or lower-resolution part may be cheaper or easier to source, but it changes how the system perceives the analog world. That difference matters more than simple catalog adjacency. In many cases, the practical replacement decision should be based on which device minimizes revalidation effort, not which one looks closest in a short parametric table.

For procurement-driven substitutions, it is useful to classify candidates into three levels. First are direct family-grade alternatives such as ADS8509I versus ADS8509IB, where the functional risk is low and the main task is confirming accuracy margin. Second are pin-compatible, same-resolution relatives such as ADS7809, where functional fit depends largely on sample-rate headroom and timing tolerance. Third are pin-compatible but reduced-resolution devices such as ADS8508 and ADS7808, which should only be considered when the system-level precision requirement is clearly below the original converter capability. This layered view avoids a common sourcing mistake: treating all pin-compatible devices as equally replaceable.

A practical evaluation flow helps reduce requalification cycles. Start with hard constraints: resolution, maximum throughput, package, supply voltage, temperature range, and input span. Then verify analog behavior: reference implementation, linearity grade, no-missing-codes specification, and front-end settling assumptions. After that, check digital integration details: serial timing, conversion control method, bus loading, and firmware expectations. Finally, validate system-level outcomes: calibration constants, noise floor, control-loop stability, alarm thresholds, and production test limits. When substitutions fail, the root cause is often found in these last system-level interactions rather than in the obvious datasheet headline numbers.

For the ADS8509 specifically, the strongest replacement candidate named in the documentation is the ADS7809 when lower throughput is acceptable. The most conservative substitution path is movement between ADS8509I and ADS8509IB grades, provided the linearity and no-missing-codes requirements are understood. The ADS8508 and ADS7808 remain contingency options for cases where package and interface continuity matter more than preserving 16-bit performance, but they should be treated as application-dependent compromises rather than true equivalents. In other words, the replacement decision should be anchored in measurement integrity first, mechanical similarity second. That ordering tends to produce designs that continue to work not only on paper, but also under calibration, production variance, and long-term field conditions.

Conclusion

The Texas Instruments ADS8509 is a 16-bit SAR ADC designed for 5 V industrial and instrumentation systems that need a practical balance between precision, conversion speed, analog flexibility, and integration effort. Its value is not defined by a single headline parameter, but by how well its features align with real mixed-signal design constraints. With 250 kSPS throughput, configurable input ranges, support for either internal or external references, and a simple serial interface, it fits cleanly into data acquisition, process control, and embedded measurement platforms where deterministic behavior matters more than architectural complexity.

At the architecture level, the ADS8509 benefits from the core strengths of SAR conversion. A SAR ADC delivers fixed-latency conversion with no pipeline delay, predictable timing, and straightforward synchronization to a controller or DSP. In control loops, multiplexed acquisition chains, and event-driven measurement systems, that determinism often matters as much as nominal sample rate. The device is therefore well suited to systems that must associate each conversion result with a precisely defined sampling instant, especially when downstream firmware expects stable timing relationships without calibration-heavy digital correction.

Its analog input flexibility is one of the more important system-level advantages. Many designs fail to appreciate how much board complexity comes from signal conditioning, not from the converter itself. When an ADC supports multiple input spans and broad analog usability, it can reduce the need for excessive front-end scaling networks, level shifting stages, or gain reconfiguration hardware. That directly affects error budget, PCB area, and long-term reliability. In 5 V environments, especially those tied to legacy sensors, actuator feedback nodes, and standard industrial signal ranges, this kind of analog compatibility is often more valuable than pushing to a higher-speed or lower-voltage converter that requires more support circuitry to become usable.

Reference flexibility is equally significant. The ability to operate with an internal reference simplifies implementation and shortens design time for systems where moderate drift and absolute accuracy are acceptable within the total budget. External reference support, however, allows the ADS8509 to be inserted into more demanding precision chains where system accuracy is constrained by thermal drift, gain stability, or cross-channel consistency. In practice, this choice creates a useful design fork: fast integration with lower component count, or tighter metrological control with a higher-grade external reference and more deliberate layout discipline. That dual path makes the part more adaptable across product tiers than many converters that lock the design into a single reference strategy.

The serial output interface further reinforces its role as an integration-friendly converter. In embedded systems, interface simplicity is not merely a convenience feature; it is a risk-reduction feature. A serial ADC with deterministic data output is easier to connect to microcontrollers, DSPs, FPGAs, and isolated digital domains without introducing broad bus-routing overhead or timing ambiguity. This becomes especially useful in compact control boards and modular I/O designs, where routing density and noise containment are constant concerns. A simpler digital connection also tends to reduce firmware complexity, which is often an undercounted contributor to project cost and schedule pressure.

For product selection work, the ADS8509 is particularly compelling when the requirement set includes wide analog input span support, stable SAR timing, and clean interfacing to standard processing devices. It is not just a matter of hitting 16-bit resolution on paper. The more relevant question is whether the converter can preserve usable resolution once reference quality, front-end settling, grounding strategy, and input protection are all accounted for. The ADS8509 fits designs where those surrounding constraints are real and where a robust, balanced ADC often outperforms a theoretically faster or denser alternative that is harder to stabilize in production.

A useful way to view this device is as a system simplifier for mixed-signal designs that must remain practical across the full product lifecycle. In early prototypes, it allows rapid bring-up because the analog and digital requirements are familiar and manageable. In production hardware, it supports repeatable behavior because SAR converters generally avoid some of the latency and digital filtering behaviors that complicate validation in other ADC classes. In maintenance or platform refresh scenarios, pin-compatible related devices and package options provide room for sourcing flexibility and design continuity. That matters in procurement planning, but it also matters to engineering teams trying to preserve firmware, PCB stack-up, and test infrastructure across multiple product variants.

In actual board-level implementation, the strongest results usually come from treating the ADS8509 not as a drop-in precision block, but as a converter that rewards disciplined analog support. Reference bypassing, short return paths, low-impedance grounding near the converter, and attention to input driver settling all have visible impact on 16-bit performance. A common pattern in industrial boards is that nominal converter error is not the limiting term; dynamic settling from the amplifier stage, reference noise coupling, or digital feedthrough from nearby interface lines often dominates first. Designs that isolate the analog input path, manage charge kickback properly, and keep the reference node quiet tend to extract much more of the ADC’s real performance. In other words, this is a part that behaves best when the surrounding layout acknowledges that 16-bit resolution is an analog system property, not just a converter specification.

The ADS8509 also fits well in applications where measurement robustness is more important than feature excess. Sensor acquisition, closed-loop monitoring, power-stage telemetry, and embedded instrumentation often benefit from converters that are easy to characterize and predictable over time. There is a practical engineering advantage in using a device whose behavior can be modeled cleanly during validation and diagnosed quickly during field support. That advantage is often underestimated during selection, yet it becomes obvious once a design scales beyond a lab prototype into manufactured hardware.

Another reason the device remains attractive is that it aligns with many 5 V signal ecosystems still common in industrial equipment. While newer low-voltage ADCs may offer strong digital integration, they frequently shift complexity into the analog interface through tighter headroom, restricted input span, or increased sensitivity to driver behavior. The ADS8509 avoids much of that friction. It supports designs where the analog world is not neatly centered around modern low-voltage rails, and that makes it especially useful in retrofit-compatible systems, distributed control modules, and instrumentation products that must coexist with established signal conventions.

The most important perspective is that the ADS8509 should be evaluated as a converter that optimizes total design efficiency rather than chasing isolated benchmark numbers. Its strength lies in combining enough speed, enough precision, enough interface simplicity, and enough analog flexibility to reduce overall system compromise. For many industrial and embedded measurement designs, that balance is exactly what turns a converter from a component choice into a stable platform element. In robust 5 V mixed-signal systems, ease of integration and broad analog usability are often the factors that determine whether the final design performs reliably outside the datasheet environment, and that is where the ADS8509 is most convincing.
