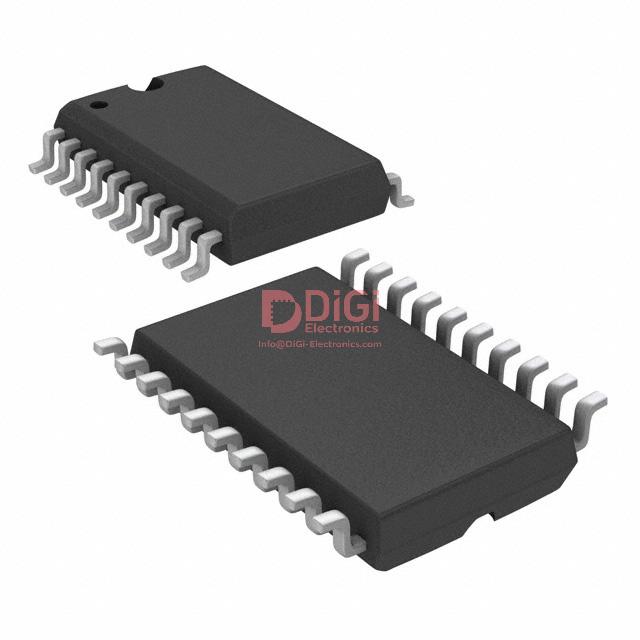

ADS8509IDW

Texas Instruments ADS8509IDW Product Overview

Texas Instruments ADS8509IDW is a 16-bit successive approximation register ADC intended for precision data acquisition in the medium-speed range. Its value is not only in resolution, but in system integration. The device combines the sampling network, internal reference, conversion clocking, and serial output interface in one converter, which reduces external design burden and removes several common error sources that appear when these functions are distributed across multiple components. With throughput up to 250 kSPS from a single 5 V supply, it fits designs that need accurate conversion, predictable timing, and low implementation complexity without introducing split analog rails or a large support circuit.

At the architectural level, the ADS8509IDW follows the SAR conversion model, which remains one of the most efficient approaches for applications that prioritize deterministic latency, good DC linearity, and moderate sample rates. In this class of converter, the sampled input is compared against a binary-weighted internal DAC during the conversion sequence, and the SAR logic resolves the result one bit at a time. This mechanism is fundamentally different from sigma-delta converters, which trade latency and bandwidth for noise shaping, or flash converters, which trade power and area for speed. For industrial and instrumentation systems that need direct, cycle-by-cycle visibility into the input signal, SAR devices such as the ADS8509IDW occupy a highly practical middle ground.

One of the more useful design characteristics of this device is the level of analog integration. The internal sample-and-hold stage simplifies front-end timing and allows the converter to capture a stable input before the SAR search begins. The internal reference reduces board-level component count and removes some of the routing sensitivity associated with external reference distribution. The on-chip clock support further helps maintain consistent conversion timing, which matters when the converter is placed near noisy digital logic or when the host processor is not well suited to generating precise conversion control signals. These integrated functions do not eliminate the need for careful analog layout, but they narrow the number of variables that must be controlled at the system level.

The 16-bit resolution deserves practical interpretation. Resolution alone does not guarantee usable precision; the more relevant question is how much of that nominal code space remains stable and repeatable in the target environment. In medium-speed industrial systems, the answer often depends on reference stability, driver settling, grounding strategy, and digital interface noise more than on the converter core itself. A device like the ADS8509IDW becomes most effective when the surrounding analog chain is designed to settle comfortably within the acquisition window and when the input source impedance is kept low enough to avoid gain error and distortion introduced by incomplete charge transfer into the sampling capacitor. In many board designs, apparent converter errors are actually front-end settling errors.

The 250 kSPS sampling rate places the device in a category that is fast enough for multiplexed sensor acquisition, control loops, power monitoring, vibration channels of limited bandwidth, and general-purpose instrumentation, while remaining slow enough to preserve a strong emphasis on accuracy and manageable digital integration. This data rate is often a sweet spot in embedded measurement systems. It supports meaningful temporal resolution without forcing the processor, isolation boundary, or downstream storage path into a high-bandwidth design. In practice, many systems that claim to need higher speed eventually operate below that rate once anti-alias filtering, computation margin, and communication overhead are included.

Single-supply 5 V operation is another important system attribute. It simplifies power architecture, especially in mixed-signal boards where the converter must coexist with microcontrollers, digital isolators, interface transceivers, and precision analog signal conditioning. Avoiding multiple converter supply rails reduces sequencing concerns and usually shortens bring-up time. It also tends to improve robustness in fielded equipment because there are fewer regulators, fewer failure points, and fewer opportunities for analog performance to shift with rail imbalance. In compact industrial nodes and medical instruments, that simplification often matters as much as the converter’s headline specifications.

From a product selection standpoint, the ADS8509IDW stands out because its feature set aligns closely with real deployment constraints rather than only bench-top performance metrics. It offers 16-bit conversion, serial output for efficient processor interfacing, operation across the industrial temperature range of -40°C to 85°C, and packaging that supports compact layouts. The 20-pin SO package used by the ADS8509IDW is a practical choice for designs that still value assembly familiarity, inspection access, and mechanical robustness. A related SSOP variant in the same family provides additional flexibility where board density is more constrained. Package selection in converters is rarely just a mechanical detail; parasitics, thermal behavior, routing escape, and assembly yield all influence long-term measurement stability.

The serial interface is especially relevant in embedded acquisition systems. Compared with wide parallel buses, serial data output reduces pin count, eases isolation, and simplifies routing across noisy boards. This becomes more important as the converter is placed farther from the controller or when galvanic isolation is required between sensing and processing domains. A serial ADC with deterministic conversion behavior is often easier to integrate into FPGA logic, SPI-oriented microcontroller firmware, or distributed measurement modules. In these environments, lower routing complexity can produce more benefit than the raw interface speed of a parallel converter.

Application fit is strongest in industrial process control, data acquisition modules, digital signal processing front ends, medical equipment, and general instrumentation. These domains share a common set of requirements: stable DC accuracy, moderate throughput, repeatable timing, tolerable power dissipation, and straightforward digital connectivity. In process control, the converter can serve pressure, flow, temperature, or current-loop measurement channels where the key requirement is confidence in each sample rather than extreme bandwidth. In instrumentation, it supports precision capture of conditioned sensor signals, bridge outputs, and calibrated analog nodes. In medical electronics, where signal integrity, repeatability, and board-level simplicity are valued, an integrated SAR ADC often reduces validation effort because fewer external precision blocks must be characterized as a complete chain.

There is also a less obvious advantage in using a converter like this in mixed-discipline designs: it enforces architectural discipline. Devices with integrated reference and timing tend to produce cleaner system partitioning because they encourage designers to separate the analog front end, conversion stage, and digital processing path more explicitly. That usually results in better testability. During validation, it becomes easier to isolate whether error originates in the sensor, amplifier, board layout, or digital post-processing because the converter itself introduces fewer external dependencies. This kind of simplification is often undervalued early in a project and appreciated later, especially when schedule pressure shifts attention from ideal specifications to debug efficiency.

For best performance, the analog input network should be treated as part of the converter, not as an independent upstream block. A low-noise driver amplifier, short return paths, local bypassing, and a reference environment protected from digital transients all contribute directly to effective accuracy. If the design uses multiplexed inputs, channel-to-channel settling should be checked under worst-case step conditions rather than only near steady-state inputs. In practical measurement boards, large code jumps between adjacent channels often reveal acquisition limitations before they reveal any converter nonlinearity. Similarly, if the serial interface edges are routed too close to the analog input or reference nodes, the resulting coupling can appear as random conversion noise even though the digital timing is fully compliant.

Texas Instruments positions the ADS8509IDW as a precision converter for systems that need a strong balance of integration, accuracy, and implementation efficiency. That positioning is technically sound. The device is not intended to win on maximum speed or extreme low-power operation. Its strength lies in reducing the gap between datasheet performance and deployed system performance. In many engineering programs, that is the more important criterion. A converter that is slightly less aggressive on paper but easier to stabilize, route, power, and validate often produces the better final instrument. The ADS8509IDW fits that pattern well, making it a practical choice for medium-speed precision acquisition where reliable results matter more than architectural complexity.

Texas Instruments ADS8509IDW Core Architecture and Conversion Principle

Texas Instruments ADS8509IDW is built around a capacitor-based successive approximation register, or SAR, conversion core. That architectural choice places the device in a class of ADCs optimized for bounded latency, strong static accuracy, and straightforward digital integration. In control loops, multiplexed data acquisition, industrial monitoring, and embedded instrumentation, those traits often matter more than the very high sample rates associated with pipeline converters. The practical value is not only the 16-bit resolution itself, but the predictability of how each conversion is acquired, resolved, and delivered to the host.

At the core of the ADS8509IDW is a switched-capacitor digital-to-analog comparison mechanism. The internal capacitor array serves two roles at once. It samples the input signal during the acquisition interval, and then acts as the internal DAC during the binary search that defines SAR operation. This dual use is one of the main reasons SAR converters remain efficient. The same charge stored during sampling becomes the basis for the conversion process, which minimizes architectural overhead and helps preserve deterministic timing.

The conversion sequence is conceptually simple but electrically precise. During the acquisition phase, the input signal charges the internal sampling network. Once the signal is captured, the converter isolates that charge and begins the approximation process. The SAR logic then steps through each bit decision, starting from the most significant bit and moving toward the least significant bit. At every step, the internal DAC generates a trial voltage, and the comparator decides whether the sampled input is above or below that trial level. The result of each comparison sets or clears one bit and constrains the next trial. After all bit decisions are completed, the 16-bit digital code represents the held input value.

For the ADS8509IDW, Texas Instruments specifies a total conversion cycle of 4 μs, divided into 1.8 μs for acquisition and 2.2 μs for conversion. This partition is more than a timing detail. It defines the operating boundary conditions of the device. The 250 kSPS throughput is only achieved when the driving circuitry can settle the input adequately within the 1.8 μs acquisition window. In precision systems, this is often where performance is won or lost. A 16-bit converter does not simply require the correct nominal input voltage; it requires that the source, input network, and any external filtering settle to within a very small error band before the hold event occurs. In practice, front-end amplifiers with good settling behavior are often more important than amplifiers chosen only by bandwidth or noise density.

The sample-and-hold stage is therefore not just a convenience block. It is what allows the converter to process time-varying analog signals without corruption during the 2.2 μs decision interval. Once the input is held, the SAR engine sees a quasi-static charge representation rather than a moving target. This is one reason SAR converters map well to systems that need precise snapshots of sensor or control signals. It also explains why input kickback, source impedance, and charge redistribution effects must be taken seriously. If the upstream source is too weak, too inductive, or filtered with poorly chosen RC values, the sampled voltage can deviate from the intended signal just before the hold event. The resulting error may appear as missing low-level detail, gain inconsistency across channels, or degraded linearity that is wrongly attributed to the ADC itself.

The integrated reference and clock-related resources are a meaningful part of the ADS8509IDW value proposition. By embedding these functions, the device reduces the number of external precision components required for a working design. This shortens design cycles and lowers risk in compact or cost-sensitive systems. It also improves repeatability across builds because fewer board-level analog nodes are left exposed to layout parasitics, noise pickup, or component tolerance spread. In many practical designs, this level of integration is enough to treat the ADC as a nearly self-contained precision measurement subsystem.

That said, the availability of internal support functions does not eliminate system-level tradeoffs. The reference path still defines a large part of absolute accuracy, temperature drift behavior, and long-term stability. If the application is a general-purpose controller, embedded measurement board, or moderate-accuracy industrial module, the integrated approach often provides an excellent balance. If the application is calibration-grade sensing, energy metering with tight drift limits, or precision servo feedback, external reference optimization may still be justified. A useful design pattern is to view the ADS8509IDW as a stable conversion core first, then decide whether the surrounding reference strategy should be convenience-oriented or accuracy-oriented based on the error budget rather than by default.

From an architectural perspective, one of the strongest aspects of this device is timing determinism. Unlike pipeline ADCs, which may introduce deeper latency and more complex alignment requirements, a SAR converter like the ADS8509IDW provides a direct and bounded relationship between sample command, acquisition interval, conversion interval, and output availability. This simplifies firmware scheduling, FPGA capture logic, and synchronization with external events. In mixed-signal systems, that predictability often has more design value than raw throughput. It reduces ambiguity during debugging and makes it easier to correlate digital decisions with analog stimuli, especially in systems that sample multiple channels sequentially or interact with actuators in closed loop.

Another practical strength of the capacitor-based SAR approach is DC linearity. Because the converter resolves a held signal through charge redistribution and binary decision steps, it is naturally well suited to applications where accurate representation of slowly varying or quasi-static inputs is required. Sensor interfaces, battery monitoring, programmable power systems, and industrial analog input modules often benefit from this behavior. The converter is less about capturing RF-like waveform detail and more about converting real-world analog levels with consistency and controlled error. In that operating space, resolution alone is never the full story. Repeatability, monotonic behavior, input settling robustness, and reference integrity usually determine whether the final system feels precise.

In board-level implementation, the most common performance limitation is not the nominal ADC specification but the interaction between the ADC input and the preceding signal chain. The switched-capacitor front end draws transient current as it samples. If the source impedance is high, or if a low-power amplifier is used without checking its settling under capacitive loading, the input can show small but significant droop or ringing. These effects often remain invisible at lower resolutions and then become immediately visible at 16 bits. A compact RC filter near the input can help suppress wideband noise and isolate amplifier instability, but its values must be chosen so that the node still settles well inside the 1.8 μs acquisition window. Good layouts place reference decoupling close to the device, keep analog return paths short and quiet, and avoid digital edge currents crossing sensitive analog regions. With converters in this class, clean implementation is not an optimization step after functionality; it is part of the conversion mechanism.

A useful way to position the ADS8509IDW in system design is as a precision snapshot engine. It captures an analog level, freezes it briefly, and resolves it with a fixed-time binary search. That model helps clarify where effort should be spent. The input network must deliver a stable charge quickly. The reference path must remain quiet and thermally stable. The digital host must read data without disturbing the analog environment. When these conditions are met, the architecture rewards the design with reliable 16-bit performance, low interface complexity, and timing behavior that is easy to integrate into deterministic acquisition systems.

The broader engineering lesson is that SAR ADC performance is highly transparent. The converter rarely hides system weaknesses behind aggressive digital correction or internal averaging. What reaches the sampling capacitor is largely what gets converted. That makes the ADS8509IDW especially effective in disciplined analog designs, where source drive, grounding, reference quality, and timing are treated as part of one conversion chain rather than separate blocks. In that sense, its architecture is not only efficient but honest, and that is often exactly what a precision acquisition design needs.

Texas Instruments ADS8509IDW Key Performance Specifications

Texas Instruments ADS8509IDW is best understood as a precision SAR ADC positioned for systems that need solid 16-bit code density without moving into high-speed converter complexity. Its core operating point is 16-bit resolution at 250 kSPS, which corresponds to a 4 μs conversion cycle. That combination is not aimed at RF or fast transient capture. It is aimed at industrial measurement chains, multiplexed data acquisition, control loops, power monitoring, and instrumentation paths where signal bandwidth is modest but conversion fidelity still matters.

At a practical level, this device sits in the useful middle ground between low-speed precision converters and very fast data acquisition ADCs. That middle ground is often where system performance is won or lost. A converter with enough throughput to support channel scanning, oversampling, or responsive control, while still preserving meaningful 16-bit granularity, tends to simplify the rest of the signal chain. The ADS8509IDW fits that role well when the analog front end is designed with equal care.

The headline specifications are straightforward, but their engineering meaning is more nuanced. Resolution is 16 bits, so the transfer function is divided into 65,536 codes. That defines nominal quantization granularity, but it does not by itself guarantee that every code is equally accurate or even present under all conditions. Throughput reaches 250 kSPS, meaning the converter can complete up to 250,000 conversions per second under rated timing conditions. The 4 μs conversion cycle gives a direct timing budget for acquisition, conversion, data readout, and any input settling constraints imposed by the source network.

The more decisive parameters in precision applications are linearity, code integrity, and noise. For the ADS8509I grade, integral nonlinearity is specified up to ±3 LSB, while the ADS8509IB grade improves that to ±2 LSB. Differential nonlinearity is specified up to ±2 LSB for ADS8509I and ±1 LSB for ADS8509IB. No missing codes are guaranteed to 15 bits for ADS8509I and to full 16 bits for ADS8509IB. Transition noise is typically 1 LSB. These values define the difference between a converter that is nominally 16-bit and one that behaves like a true precision element in a closed measurement chain.

Resolution should be separated from effective measurement trustworthiness. A 16-bit output word gives fine digital granularity, but INL determines how closely the actual transfer curve tracks the ideal straight line across the full range. In instrumentation systems, INL often becomes the dominant static accuracy term once offset and gain are calibrated out. If the application measures absolute sensor position, reference voltages, bridge outputs, or calibrated process variables, INL error directly limits how believable each code is across the span. A ±3 LSB INL spec may still be acceptable in many control and monitoring systems, but tighter transfer predictability generally favors the IB grade.

DNL is just as important, especially when monotonic behavior and local code uniformity matter. DNL describes step size deviation from one code to the next. Large DNL error creates uneven code widths, and if it exceeds certain bounds, missing codes can occur. That is why the no-missing-code guarantee is not a minor footnote. In closed-loop systems, lookup-based calibration, and histogram-sensitive measurement tasks, code continuity matters more than many selection tables suggest. A full 16-bit no-missing-code guarantee on the ADS8509IB gives stronger confidence when small analog changes must always produce consistent digital progression. The ADS8509I grade, with 15-bit no-missing-code guarantee, remains usable in many practical systems, but it introduces a boundary where nominal 16-bit output depth is not fully matched by guaranteed code completeness.

Transition noise, typically 1 LSB, sets another practical limit. This parameter reflects uncertainty at code transitions caused by internal noise. In real systems, it often shows up as code flicker when the input is held near a decision threshold. For slowly varying or DC-like signals, that flicker can dominate the short-term repeatability seen by downstream firmware. In practice, this means a converter may provide 16-bit nominal resolution, while the last bit behaves statistically rather than deterministically unless averaging or filtering is applied. This is not unusual. In fact, it is often a sign that the converter is honestly specified. The engineering question is not whether the least significant bit is noisy, but whether that noise is predictable enough to be managed.

That leads to a more useful interpretation of the ADS8509IDW: it is a precision converter whose best value emerges when the system designer treats the lower bits as part of a noise-and-linearity budget, not as guaranteed absolute truth on every single sample. In many sensor and instrumentation designs, averaging several samples can recover highly stable results if the analog input, reference, and front-end amplifier are quiet enough. However, averaging cannot fix INL. That is why the grade selection between ADS8509I and ADS8509IB should be driven primarily by transfer accuracy and code integrity requirements, not by simplistic assumptions about nominal bit count.

The 250 kSPS throughput also deserves system-level interpretation. At first glance it may seem modest, but in industrial electronics it is often more than sufficient. A pressure transmitter, temperature compensation loop, programmable power supply monitor, or motor-side auxiliary sensing path rarely needs very high analog bandwidth. What matters more is deterministic update rate, clean multiplexed acquisition, and enough oversampling margin to suppress noise. A 250 kSPS SAR ADC gives room for all three. For example, in a multi-channel measurement node, the converter can scan several channels and still leave enough sample density for digital filtering. In a control-oriented design, the 4 μs cycle is fast enough to support stable loop observation without pulling the design into FPGA-class timing complexity.

The converter’s linearity grades influence application fit in a very direct way. If the target system must preserve full 16-bit monotonic behavior for calibration tables, precision actuation feedback, or metrology-style readback, the ADS8509IB grade is the safer choice. It reduces ambiguity during production test and tends to lower the amount of digital correction needed to achieve consistent unit-to-unit behavior. If the application is more tolerant, such as general process monitoring, supervisory control, or parameter logging where small local transfer deviations are acceptable, the ADS8509I grade may be sufficient and economically justified. The key is to avoid using nominal resolution as the only selection criterion. In converter selection, guaranteed behavior is usually more valuable than theoretical code count.

One practical lesson from precision SAR designs is that converter specs only hold if the source network settles correctly before conversion. A 16-bit ADC at 250 kSPS can expose weaknesses in input driver impedance, RC filtering, and reference buffering that would remain invisible with a lower-resolution part. Even when the ADC itself meets its datasheet limits, an underdamped or slow-settling front end can create apparent INL and gain errors that are actually system artifacts. This is especially common in multiplexed architectures, where residual charge from a previous channel disturbs the next reading. In that setting, the ADS8509IDW should be paired with a front end designed for fast settling to 16-bit accuracy, not just for nominal bandwidth.

Reference quality is equally critical. At 16 bits, the ADC simply digitizes whatever reference behavior it sees. Noise, drift, and dynamic loading on the reference path translate directly into code instability and gain uncertainty. A common mistake is to focus heavily on sensor precision while assigning only a generic reference source. In practice, a mediocre reference can erase the benefit of selecting the tighter IB grade. Good decoupling, short return paths, and low-impedance reference drive usually deliver more real accuracy than aggressive firmware compensation applied later.

Another point worth emphasizing is that no-missing-code performance becomes more valuable when software assumes smooth transfer behavior. Digital linearization routines, threshold detectors, and interpolation algorithms all benefit from predictable code progression. When code continuity is weak, software tends to grow more complicated in order to patch over hardware uncertainty. That usually costs more in validation effort than the initial savings from choosing a looser accuracy grade. In designs expected to scale across product variants or long production cycles, the tighter converter grade often pays back through reduced characterization effort and fewer edge-case failures.

From an application perspective, the ADS8509IDW aligns well with industrial DAQ cards, programmable logic controller analog modules, laboratory instrumentation, weigh-scale subsystems, and embedded measurement nodes where precision is needed but signal dynamics remain moderate. It is also well suited to systems that must balance deterministic timing with manageable digital interface complexity. SAR converters in this class often outperform sigma-delta alternatives when low latency matters more than extreme low-bandwidth noise shaping. That tradeoff is sometimes overlooked. In control and protection systems, low latency is not just a convenience. It can be the parameter that determines whether measured data remains actionable.

The most important selection takeaway is this: the ADS8509IDW should be chosen not because it is labeled 16-bit, but because its combination of 250 kSPS throughput, defined linearity grades, and controlled noise behavior matches the actual error budget of the system. If the design requires stronger full-scale transfer fidelity and guaranteed full 16-bit code continuity, the ADS8509IB grade is the more appropriate option. If the system can absorb slightly looser linearity and reduced no-missing-code guarantee, the ADS8509I grade may be entirely adequate. The better choice depends less on marketing resolution and more on whether the application values raw code depth, transfer predictability, or calibration efficiency.

In precision data acquisition, that distinction is decisive. A converter that is slightly better behaved often simplifies the whole signal chain, from analog settling and reference design to firmware filtering and production test. The ADS8509 family makes that trade space visible in a useful way, and the IDW device should be evaluated with that broader system perspective in mind.

Texas Instruments ADS8509IDW Input Range Flexibility and Reference Options

Texas Instruments ADS8509IDW stands out less because of raw resolution alone and more because of how much analog-interface variability it absorbs without forcing a converter change. Its support for 4 V, 5 V, 10 V, ±3.33 V, ±5 V, and ±10 V input ranges maps directly onto the voltage domains commonly seen in industrial control, data acquisition, actuator feedback, and instrumentation. That matters at the system level. In many designs, the ADC is not selected in isolation; it is selected as part of a signal-chain strategy. A converter that can accommodate both unipolar and bipolar standards using the same core device reduces front-end fragmentation, shortens qualification cycles, and makes it easier to preserve firmware, digital interfaces, and calibration flows across several product variants.

The mechanism behind that flexibility is important. The ADS8509IDW does not treat all ranges as separate converter architectures. It uses its internal conversion structure in combination with external precision resistors to scale and translate the applied signal into the internal domain required by the SAR core. This is an efficient approach because it pushes range adaptation into a predictable resistor network rather than forcing the designer to add a more elaborate active conditioning stage for every signal type. In practice, that means one PCB architecture can often be reused with only resistor-value changes or minor front-end option population. For platform-based products, this is usually more valuable than it first appears, because every eliminated analog variant reduces tolerance analysis, inventory complexity, and board revalidation effort.

The unipolar ranges such as 4 V, 5 V, and 10 V are particularly useful when interfacing to process-control outputs, DAC feedback paths, and supply-referenced sensors. The bipolar ranges, including ±3.33 V, ±5 V, and ±10 V, are more aligned with instrumentation amplifiers, legacy analog outputs, and transducer interfaces where zero-centered measurement is required. The broader insight here is that input-range flexibility is not only about accepting different maximum voltages. It is also about preserving signal semantics. A bipolar sensor chain often carries diagnostic meaning around zero crossing, offset polarity, or directionality. Supporting that range directly at the converter simplifies scaling logic in software and reduces opportunities for sign-handling mistakes during integration.

There is also a practical analog benefit to this approach. When the ADC natively supports a required external range through a defined resistor-based interface, the signal path can remain more transparent than in designs that force all inputs through a universal active level-shifting stage. Every additional amplifier inserted purely to satisfy converter range limits brings offset, bias-current interaction, overload recovery behavior, and stability considerations. A resistor-based adaptation path is not automatically error-free, but its error terms are easier to model and usually easier to hold stable over production spread when precision components are chosen correctly.

That said, the resistor network should not be treated as a trivial accessory. In this class of ADC, the external resistors become part of the measurement transfer function. Their absolute tolerance affects gain accuracy, and their ratio stability over temperature often matters more than the headline absolute value. Low temperature coefficient parts with tight ratio matching tend to pay back quickly, especially in bipolar ranges where offset and gain interaction becomes more visible. In field designs, it is common to find that a converter initially judged “inaccurate” is actually limited by resistor drift, board contamination leakage, or poor grounding around the input network rather than by the converter core itself. The ADS8509IDW gives range flexibility, but the quality of that flexibility is still set by the surrounding passive implementation.

Reference selection is the other major lever in how the device behaves in a real system. The ADS8509IDW provides both an internal reference and support for an external reference. The internal reference is nominally 2.5 V, specified from 2.48 V to 2.52 V with no load, and drift is specified at 8 ppm/°C. For a large class of industrial applications, that is a very practical balance. It removes a dedicated precision reference IC, avoids extra routing sensitivity around a high-impedance reference node, and simplifies startup behavior because the converter’s reference environment is largely self-contained. In designs where board space, BOM count, and assembly simplicity carry real weight, the internal reference is often the most efficient choice.

The value of the internal reference becomes clearer when viewed through system error budgeting rather than through specification reading alone. Many industrial control loops do not need the ADC to be the dominant accuracy element. Sensor tolerance, excitation variation, actuator nonlinearity, and installation effects often contribute more error than a few tens of ppm of reference drift across operating temperature. In those cases, using the internal reference is not a compromise so much as a disciplined allocation of precision where it has the highest return. A minimal reference architecture also tends to reduce subtle integration failures. Fewer analog support components usually mean fewer noise coupling paths and fewer startup sequencing edge cases.

The external reference option becomes more interesting when the ADC is embedded in a measurement chain with tighter gain-tracking requirements or with calibration anchored to a known external standard. The ADS8509IDW allows an external reference voltage from 2.3 V to 2.7 V for rated linearity, with a typical external reference current drain of 100 μA at 2.5 V. This is a relatively manageable load, but it still deserves attention. The reference source must be treated as an analog signal path, not merely as a DC supply. Output noise, thermal drift, initial accuracy, long-term stability, and recovery from dynamic loading all feed directly into conversion performance. Even a very linear ADC cannot outperform a noisy or poorly decoupled reference.

A useful engineering rule is to choose the external reference only when the system can actually exploit it. If the design includes system-level calibration, operates across wide temperature excursions, or must maintain channel-to-channel gain consistency across units, then an external reference often provides measurable value. It can anchor gain against a tighter standard, align the ADC with other precision blocks in the chain, and improve repeatability during production calibration. On the other hand, adding an external reference in a system with loose sensor tolerances and no calibration infrastructure often increases design effort more than delivered accuracy. Precision components should be introduced where they close a known error term, not where they merely improve a line item in the schematic.

Startup and operating behavior also influence the reference decision more than datasheet tables sometimes suggest. Internal references typically offer a more controlled bring-up path because the ADC vendor has already characterized the internal interaction between the converter and the reference source. External references shift that responsibility outward. The reference must settle cleanly, remain stable under board-level noise injection, and reach a valid operating state within the timing assumptions of the rest of the system. In mixed-signal boards with high di/dt digital activity, reference routing quality often separates robust prototypes from marginal production units. Short routing, a clean return path, local decoupling, and isolation from switching edges are not optional details here; they are part of the converter architecture.

Input-range selection and reference strategy are also coupled in less obvious ways. A wider input range does not automatically mean a better measurement. If the actual signal occupies only a small portion of the selected range, effective use of the converter’s code space decreases and front-end noise becomes more visible relative to the signal. Conversely, selecting the tightest practical range improves code utilization and often simplifies calibration. This sounds basic, but in configurable industrial platforms there is a recurring temptation to standardize on the widest range for convenience. That usually makes the hardware more universal and the measurement less efficient. The better pattern is to exploit the ADS8509IDW’s flexibility intentionally: choose the range that matches the real signal envelope, then choose the reference strategy that matches the required gain stability.

In multi-product platforms, this device can be used as a stable conversion backbone while the surrounding resistor network and reference population define product tiering. One variant may use the internal 2.5 V reference and a standard resistor set for cost-optimized control inputs. Another may fit low-drift resistor networks and a precision external reference for instrumentation-grade measurement. The digital interface, firmware driver, and much of the validation framework can remain unchanged. That kind of modularity is often where the real design efficiency appears. The ADC is not just measuring voltage; it is enabling a controlled analog configurability model.

From a layout and implementation perspective, the key practical issues are predictable. Keep the input resistor network physically compact and thermally consistent, especially when ratio accuracy matters. Avoid routing digital lines near the reference node or near high-impedance input traces. Give the reference decoupling capacitor a short path and low-inductance return. If bipolar inputs are used in electrically noisy environments, protect the front end against overvoltage and transient stress in a way that does not inject excessive leakage or capacitance into the measurement path. In field hardware, many unexplained code shifts are eventually traced to contamination, weak grounding segmentation, or input-protection choices that looked harmless in schematic review.

The strongest design interpretation of the ADS8509IDW is that it offers controlled flexibility rather than generic flexibility. It does not remove the need for analog discipline; it rewards it. Its supported input ranges make it adaptable across standard industrial voltage domains, and its internal versus external reference options let the designer trade simplicity against precision in a clean, explicit way. Used thoughtfully, it can reduce analog redesign effort while still supporting calibrated, temperature-aware measurement chains when the application demands them. The most effective implementations are usually the ones that resist overengineering: use the internal reference when it closes the requirement cleanly, move to an external reference when the error budget justifies it, and let the input-range options serve the signal rather than forcing the signal to serve a one-size-fits-all front end.

Texas Instruments ADS8509IDW Serial Interface, Clocking, and Data Formatting

Texas Instruments ADS8509IDW uses a serial output interface designed to fit directly into SPI-oriented digital systems, but its interface logic is more flexible than a basic shift-register style ADC. Beyond simple serial readout, it provides selectable clock ownership, selectable output coding, a synchronization signal, and a TAG mechanism that is useful in chained or source-aware acquisition paths. These features are not peripheral conveniences. They directly affect timing closure, firmware complexity, and the reliability of data alignment when the converter is embedded in a larger signal-processing pipeline.

At the interface level, the device separates two concerns that are often tightly coupled in lower-end converters: conversion itself and serial extraction of the result. That separation is important in real designs. It allows the acquisition path to be optimized around analog performance while the digital readout path can be tuned around controller timing, bus loading, or isolation constraints. In practice, this reduces the number of architectural compromises that would otherwise appear when one clocking scheme is forced on the entire system.

The serial interface is SPI compatible, which means the ADS8509IDW can usually be connected to standard MCU, DSP, or FPGA serial ports without protocol translation. However, “SPI compatible” should be read in the engineering sense, not as a guarantee that every controller can use default settings. The device timing still needs to be matched against chip-select behavior, read/convert sequencing, and clock phase requirements. That is especially relevant when the same controller is also responsible for precise conversion scheduling. In many mixed-signal boards, most bring-up issues are not caused by incorrect voltage levels or protocol framing, but by subtle timing assumptions around when data becomes valid relative to CS, R/C, and DATACLK.

A key strength of the ADS8509IDW is its dual clocking model. Data transfer can be performed using either the converter’s internal data clock or an externally supplied data clock. This is more than a convenience feature. It determines where timing authority lives in the system.

In internal clock mode, selected by driving EXT/INT low, the ADC becomes the source of DATACLK. After each conversion, the device outputs 16 clock pulses and shifts out the result autonomously. This mode is often the fastest path to a stable design because the converter itself controls readout pacing. Firmware does not need to synthesize an exactly matched serial clock immediately after conversion. That reduces state-machine complexity and avoids software jitter leaking into the data extraction window. In controller-centric systems, this can make timing easier to verify because the host only needs to detect and capture a bounded burst rather than generate it.

Internal clock mode also tends to reduce interface sensitivity when the digital host is not clock-clean or when processor interrupt latency is variable. That matters in systems where the ADC sits beside communication stacks, motor-control loops, or other tasks that can momentarily disturb software timing. Letting the converter emit its own read clock often isolates the serial transfer from these disturbances. The tradeoff is that the host must accept the ADC-defined bit rate and frame timing. If downstream logic expects all data sources to be aligned to a common serial clock domain, this autonomy can become a limitation.

In external clock mode, selected by driving EXT/INT high, DATACLK becomes an input and the host provides the shift clock. This arrangement is usually preferred in systems where the ADC is one component inside a broader synchronous framework. A shared clock source can be distributed across multiple converters, serializers, DSP interfaces, or digital isolation channels, giving the designer deterministic control over edge placement and transfer latency. In FPGA-based acquisition systems, external clocking is typically the cleaner choice because it allows the incoming ADC data to be sampled directly into a known logic domain without additional clock-domain handling.

External clock mode also enables tighter coordination between conversion readout and higher-level framing. If multiple converters must be sampled and read in lockstep, host-generated DATACLK ensures every device shifts on the same edge sequence under the same controller-defined schedule. This becomes valuable in phase-sensitive measurement, simultaneous control loops, or acquisition nodes that aggregate several serial streams before packetization. In these environments, a converter that can surrender clock ownership usually integrates more cleanly than one that insists on being the timing master during readout.

The practical distinction between these two modes is often visible during board validation. Internal clock mode generally shortens first-pass bring-up because fewer digital assumptions must be proven. External clock mode generally scales better once the design grows in complexity. A useful pattern is to validate analog correctness first in internal clock mode, then migrate to external clock mode if system-level synchronization requirements justify it. That sequence tends to expose analog and timing issues separately rather than forcing both to be debugged at once.

The DATACLK pin is central to this flexibility. Its direction changes with EXT/INT selection, effectively making it either a timing source or a timing sink. When operating as an output, the ADC emits a 16-pulse burst following conversion, matching the 16-bit result width. When operating as an input, the host drives the exact number and spacing of clock edges required to shift the word out. This bidirectional role means board-level signal integrity deserves attention. The same net may behave as a driven clock in one design option and as a sampled clock input in another. Routing, termination strategy, and source placement should therefore be considered with both behaviors in mind, especially if a common PCB is expected to support multiple operating modes.

Data formatting is controlled by the SB/BTC pin, which selects straight binary or binary two’s complement output coding. This is a small interface choice with large software consequences. With SB/BTC high, the output is straight binary. That format is natural for unipolar measurement chains and for firmware that treats the converter code as an unsigned magnitude. With SB/BTC low, the output is binary two’s complement, which is better aligned with bipolar signal processing and signed arithmetic pipelines.

The deeper value of this option is that it moves representation choice to the hardware boundary. That reduces the need for software recoding, avoids sign-handling mistakes, and simplifies downstream arithmetic in fixed-point systems. In real-time control or DSP implementations, removing even one formatting step can matter. It lowers instruction count, reduces latency variance, and eliminates one common source of scaling errors. This is especially relevant when the converter output feeds filtering, offset compensation, or matrix operations where signed interpretation must remain consistent across the entire chain.

There is also a verification benefit. Straight binary is often easier to inspect during low-level interface debugging because the code progression across a unipolar sweep is visually intuitive. Two’s complement becomes more useful once the system enters algorithm-level validation, where zero crossing behavior and signed error terms matter. For that reason, teams often use straight binary during early bench characterization and switch to two’s complement once firmware and signal-processing blocks are stabilized. The device’s selectable formatting supports that workflow without hardware redesign.

The SYNC output available in external clock operation is another feature that becomes more valuable as system complexity increases. At a basic level, it provides a pulse that helps align the serial data stream with host timing boundaries. At a system level, it acts as a framing reference between the ADC and downstream digital logic. This is particularly useful when data is being captured by a DSP serial port, an FPGA deserializer, or a logic block that must distinguish exact word boundaries under externally generated clocking.

SYNC is best understood as a guard against ambiguity. Serial links fail less often because bits are lost and more often because word alignment drifts unnoticed. A dedicated synchronization indication reduces that risk. It gives the receiver a timing landmark that can be checked against expected transfer position, which simplifies both hardware capture logic and debug instrumentation. In systems with long traces, digital isolators, or multiple serial devices sharing similar timing, such explicit framing signals can significantly shorten fault isolation when data appears numerically valid but semantically shifted.

The TAG function extends the interface beyond raw conversion transport. In external clock mode, after the 16 data bits have been shifted out, the DATA output continues to reflect the TAG input while CS remains low and R/C remains high. This behavior is subtle but strategically useful. It allows a persistent identifier or marker to ride on the same serial output path after the conversion word, creating a low-cost mechanism for source attribution or chain management.

In daisy-chained or multi-device systems, identifying the origin of each word is often harder than moving the bits themselves. TAG helps solve that problem without requiring a second sideband data channel. A controller can use the post-data TAG state as a simple continuity check, device marker, or slot identifier. This is especially effective when several ADCs share a serial collection structure and the receiver needs lightweight confirmation that the chain order and addressing assumptions still hold. It is not a replacement for full protocol framing, but it is a very efficient diagnostic and identification aid.

A useful design pattern is to treat TAG as part of interface observability, not just as a functional input. During development, fixed or sequenced TAG values can make it easier to confirm that serialized words are being associated with the correct physical source. Once the product is mature, the same mechanism can remain in place as a background integrity check with almost no overhead. Features like this are often underused because they look optional on paper, yet they become valuable when debugging rare synchronization faults in complex boards.

When these interface elements are viewed together, the ADS8509IDW shows a deliberate balance between converter simplicity and system-level adaptability. Internal clocking minimizes host burden. External clocking maximizes determinism. Selectable coding aligns data representation with compute architecture. SYNC improves framing confidence. TAG adds lightweight identity awareness. None of these features alone is unusual, but their combination makes the device easier to place into architectures that range from simple MCU data logging to tightly synchronized DSP or FPGA acquisition systems.

From an engineering perspective, the most important design decision is not which feature exists, but which block should own timing and representation boundaries. If the host is weak in real-time clock generation or heavily software-driven, internal DATACLK usually leads to a more robust first implementation. If the broader system depends on deterministic phase alignment, external DATACLK and SYNC should typically be used together. If signed math dominates downstream processing, two’s complement should be selected at the converter boundary rather than corrected later in firmware. If multiple serial sources coexist, TAG should be leveraged early, before traceability becomes a validation bottleneck.

The device rewards designs that treat the serial interface as part of the acquisition architecture rather than as a mere output port. That mindset usually produces cleaner timing, simpler software, and faster debug cycles. In mixed-signal systems, those advantages are often more valuable than a marginal improvement in raw conversion specifications, because interface certainty is what ultimately determines whether good analog data arrives intact at the processing engine.

Texas Instruments ADS8509IDW Timing Characteristics and Throughput Behavior

Texas Instruments ADS8509IDW timing is built around a fixed 4 µs conversion cycle, which directly maps to its 250 kSPS throughput rating. That headline number is only meaningful when the device is viewed as a timed pipeline consisting of three coupled phases: input acquisition, SAR conversion, and output data transfer. The ADS8509IDW behaves predictably because these phases are not loosely overlapped in an ad hoc way; they are bounded by explicit control and status timing, which makes the part well suited to deterministic embedded systems where sample age, interrupt latency, and bus occupancy must all be budgeted.

With CS asserted low, a falling edge on R/C forces the internal sample-and-hold from track to hold and immediately starts a conversion. At that instant, the analog input is no longer being acquired. This distinction matters because the effective sample instant is defined by the R/C falling edge, not by BUSY or by the start of data readout. In control and measurement systems, this edge becomes the true time reference for the sampled signal. Treating BUSY as the sample event is a subtle but common timing mistake that can shift timestamp alignment in multi-channel or sensor-fusion designs.

The BUSY output provides the device’s main conversion-state handshake. It falls shortly after conversion is initiated, with a 6 ns typical delay and a 20 ns maximum delay from R/C going low. BUSY then remains low for the full conversion interval and returns high when the conversion result has been latched into the output shift register. This is a useful implementation detail: BUSY does not merely indicate that the analog decision process is active; it also marks when the digital result is stable and ready for extraction. In practice, this allows firmware or FPGA logic to use BUSY rising as a reliable read-enable qualifier rather than relying on fixed delays alone.

The core timing numbers define the device’s throughput envelope:

Convert pulse duration, minimum: 40 ns

BUSY delay from R/C low: 6 ns typical, 20 ns maximum

BUSY low pulse duration: 2.2 µs

Conversion time: 2.2 µs

Acquisition time: 1.8 µs

Cycle time: 4 µs

These values reveal the internal timing balance of the converter. The 2.2 µs conversion time and 1.8 µs acquisition time sum cleanly to the 4 µs cycle. That partition is not arbitrary. It indicates that the converter requires a meaningful reacquisition window between samples, so maximum throughput assumes the analog source can settle into the internal sampling network within that 1.8 µs interval. In other words, 250 kSPS is not only a digital timing limit; it is also an analog settling contract between the driver stage and the ADC input. If the input source has high impedance, long trace capacitance, or a slow output amplifier, the nominal cycle time may still be met while accuracy quietly degrades.

This is one of the more important practical interpretations of the timing table. Designers often read cycle time as a scheduler constraint, but for SAR converters it is equally an analog front-end constraint. A design may meet every digital setup and hold requirement and still fail at full-rate operation because the input has not fully settled before the next hold event. The issue becomes more visible at large input steps, where the sampling capacitor must be charged through the source path quickly enough to support the target resolution. In a bench setup, this often appears as code-dependent error that gets worse near major transitions or when multiplexing between channels with very different voltages.

Readout timing adds a second layer of system-level behavior. The ADS8509IDW supports both internal and external DATACLK modes. In internal DATACLK operation, the converter provides a clock with a typical cycle time of 110 ns, corresponding to about 9 MHz data shifting. This simplifies host timing because the ADC becomes the source of readout pacing. It reduces the need for tight controller-generated serial timing and is often the easier path when deterministic capture is needed with minimal firmware complexity. The tradeoff is that readout timing is then tied to the converter’s own clocking behavior, which may be less convenient when several peripherals share a common serial engine.

In external DATACLK mode, the host supplies the shift clock and gains more control over bus scheduling. The allowed external clock range is 0.1 MHz to 26 MHz, which gives substantial flexibility for matching FPGA state machines, SPI-like interfaces, or shared digital backplanes. However, the note that continuous external clock operation is not recommended for optimum performance is significant. It suggests that unnecessary digital switching near the converter can inject internal noise or disturb the analog section through substrate coupling, supply bounce, or reference path modulation. That guidance is easy to underestimate. In mixed-signal layouts, the fastest route to degraded ENOB is often not the analog front end itself but avoidable digital activity occurring during sensitive acquisition or conversion windows.

A disciplined implementation therefore tends to gate external clock activity so that high-edge-rate digital transitions occur only when data actually needs to be shifted out. This is especially relevant in compact boards where analog and digital return paths are forced to coexist over short distances. In such designs, reducing gratuitous clock toggling usually produces more benefit than chasing marginal improvements in nominal clock frequency. The device supports 26 MHz externally, but that does not mean the highest clock is the best system choice. A moderate clock that fits cleanly inside the available readout window and minimizes switching noise is often the better engineering solution.

Throughput behavior becomes more nuanced when the converter is integrated into a controller that services multiple devices. The 4 µs cycle defines the fastest legal conversion cadence for one ADC, but the host must still absorb the readout workload. If several converters share one processor or FPGA interface, aggregate bus time can become the limiting factor rather than conversion time. At 250 kSPS, every sample period is only 4 µs wide. A controller that spends too long polling BUSY, servicing interrupts, or serially shifting data from multiple ADCs can easily turn a nominally 250 kSPS-capable design into a lower effective throughput system.

A useful way to analyze this is to separate conversion bandwidth from service bandwidth. Conversion bandwidth is fixed by the ADC timing. Service bandwidth depends on how efficiently the host detects conversion completion and transfers the result. If BUSY is polled through firmware in a non-real-time environment, jitter and dead time can accumulate quickly. If BUSY is tied to a hardware interrupt or FPGA input and data shifting is triggered immediately on BUSY release, the system approaches the converter’s rated throughput much more closely. In practice, hardware-driven sequencing usually outperforms software polling once sample rates enter the low-hundreds-of-kSPS range, even when the raw data volume is not particularly large.

For periodic polling architectures, the ADS8509IDW remains easy to use because the timing is regular and bounded. A timer can issue the R/C pulse every 4 µs, while firmware either waits on BUSY or services BUSY transitions through interrupts. This mode works well when the system can tolerate modest latency and when the ADC is not competing heavily for processor time. For tighter real-time acquisition, a state-machine approach is cleaner: assert CS, pulse R/C, monitor BUSY in hardware, then begin readout immediately after BUSY returns high. This reduces uncertainty in sample-to-data latency and makes timing closure more straightforward in closed-loop systems.

Another practical point is that the minimum 40 ns convert pulse duration should not be treated as a target. Generating control pulses exactly at the limit leaves little margin for controller clock tolerance, signal integrity distortion, or level shifter delay. A slightly wider pulse is usually the safer choice, especially when traces are long or the signal passes through programmable logic. It is rarely useful to shave nanoseconds from R/C pulse width in a system whose cycle budget is measured in microseconds.

The BUSY timing also helps when multiple converters must be aligned. Since BUSY falls almost immediately after R/C and remains low through conversion, it can be used to verify that all devices entered conversion as expected. In synchronized sampling systems, this gives a convenient observability point during bring-up. If one BUSY waveform is delayed or stretched relative to others, the discrepancy often exposes board-level control skew, inconsistent CS handling, or unintended logic translation effects. This kind of visibility shortens debug time substantially compared with relying only on downstream code inspection.

The internal 2.2 µs conversion and 1.8 µs acquisition split also hints at the converter’s intended operating style: sample, convert, reacquire, repeat. It is not a free-running streamer that hides internal timing behind a deep FIFO. The host is expected to respect that rhythm. Designs that do so tend to be robust. Designs that attempt to force asynchronous bus behavior, continuous clocking, or loosely bounded service latency around the ADC often create avoidable edge cases. In mixed-signal work, stability usually comes from honoring the converter’s natural cadence rather than abstracting it away too aggressively.

From a system perspective, the most valuable characteristic of the ADS8509IDW is not simply its 250 kSPS rate, but the clarity of its timing model. The sample instant is explicit. Conversion occupancy is explicit through BUSY. Data readiness is explicit. Clocking can be internal for simplicity or external for integration flexibility. That combination allows the converter to fit cleanly into both low-complexity data acquisition nodes and more deterministic real-time control paths. The main design discipline is to treat the 4 µs cycle as a complete mixed-signal budget, not just a conversion number. Once acquisition settling, BUSY handling, readout scheduling, and digital noise control are all accounted for together, the device behaves in a very predictable and engineering-friendly way.

Texas Instruments ADS8509IDW Pin Functions, Power Rails, and Package Choices

Texas Instruments ADS8509IDW combines analog front-end control, reference management, conversion timing, and serial data output in a compact 20-pin SO package. A 28-pin SSOP variant exists within the same device family, and that option is not a cosmetic difference. In mixed-signal board design, package selection directly affects routing topology, return-current behavior, test access, and how easily the analog and digital domains can be kept quiet. When the layout area is tight, the 20-pin SO version can reduce footprint pressure, but the denser escape routing may increase coupling risk around the reference and input-range pins. The 28-pin SSOP version can offer more routing freedom, which often translates into cleaner partitioning between sensitive analog nodes and switching digital traces.

At the signal level, the ADS8509IDW is structured around a few functional groups. The R1IN, R2IN, and R3IN pins define the analog input range configuration. These pins are not just static options; they determine how the converter front end maps the input signal into the internal conversion span. In practice, this means they set the electrical contract between the sensor chain and the ADC core. If the selected range does not match the actual signal envelope, the result is either lost dynamic range or unnecessary clipping margin. Both outcomes reduce effective measurement quality, even when the converter itself is operating correctly. Range-selection pins therefore deserve the same attention as the analog input itself, particularly when one board is intended to support multiple sensor or signal-conditioning variants.

The REF pin plays a dual role. It can provide the internal reference output or accept an external reference input, depending on system configuration. That flexibility is useful, but it also creates a design decision with system-level implications. Using the internal reference simplifies the design and reduces the bill of materials. It is often the right choice when absolute accuracy requirements are moderate and the local thermal environment is stable. Driving REF from an external precision source gives tighter control over gain accuracy, drift, and channel-to-channel consistency in multi-converter systems, but only if the external reference network is quieter and more stable than the internal alternative. In many designs, the external reference is added too early in the architecture, without a clear error-budget reason. A cleaner approach is to start from the converter’s internal reference capability, quantify total system error, and only move to an external reference if drift, tolerance, or calibration burden actually demands it.

The CAP pin supports the internal reference buffer and requires local capacitance to ground. This node should be treated as a quiet analog support point, not as a general-purpose capacitor landing area. The same applies to REF bypassing. These pins influence the reference loop stability and transient recovery during conversion activity. If the capacitor is placed too far away, or if its return path shares a noisy digital current loop, the reference subsystem can modulate with clock and interface activity. That kind of problem is subtle because it may not present as complete failure. More often it appears as sporadic code flicker, degraded repeatability, or a noise floor that is worse on the assembled board than in bench evaluation.

The control and status pins define the converter’s timing model. BUSY provides conversion status and is the primary indicator that the ADC is occupied. It is one of the most useful pins during bring-up because it exposes whether the conversion sequence is completing at the expected rate. CS and R/C govern command and read/convert behavior, so they effectively bridge the host controller to the ADC state machine. These control edges should be treated as timing-critical digital signals, especially when the converter is operated near its throughput limit. Loose timing margins may still appear functional at room temperature or with short traces, then fail intermittently once temperature, supply variation, or firmware latency changes. A robust design treats BUSY, CS, and R/C as part of a deterministic timing chain rather than simple GPIO toggles.

DATA and DATACLK form the serial output path. The quality of this interface is usually judged only by whether data is readable, but the more relevant metric is whether data is readable with margin. Serial lines that run adjacent to analog inputs, reference nodes, or range-select pins can inject deterministic switching noise into the measurement path. This becomes more visible when the input signal is slow-moving or near DC, because the digital interference no longer hides under broadband sensor noise. Keeping DATACLK compact, controlling its edge rates where possible, and preventing its return path from crossing analog ground regions usually pays back more than adding post-processing filters later.

EXT/INT selects clock mode, and this choice affects more than synchronization. Internal clocking reduces interface complexity and often improves integration speed for standalone designs. External clocking is more useful when several devices must be phase-related or when the acquisition pipeline is tied to a larger timing architecture. However, distributing an external clock into a mixed-signal region introduces its own cost: every clock edge is a potential interference source. Unless the application truly benefits from deterministic clock alignment, internal clock mode is often the cleaner engineering solution because it contains switching energy within the converter and reduces the number of high-activity traces crossing the board.

SB/BTC selects the output coding format. This matters mainly at the system-integration layer, where firmware, DSP blocks, or FPGA logic interpret the converter result. Straight binary is convenient for unipolar processing chains. Two’s complement is usually the better fit when the downstream math treats signals as signed quantities. Choosing the native format that aligns with the processing pipeline avoids unnecessary bit manipulation and reduces the chance of subtle sign-handling errors during calibration, offset correction, or exception processing. This is a small configuration point, but small format mismatches often create disproportionately expensive debug cycles.

TAG and SYNC support serial synchronization behavior. Their value becomes more apparent in systems with strict framing requirements, chained data acquisition blocks, or packetized serial capture. In simple applications they may appear secondary, but in designs where timing observability matters, these pins can simplify validation and improve confidence that the sampled data stream is aligned with the intended conversion events. They are particularly useful when the ADC output is fed into programmable logic that expects explicit framing cues rather than inferred timing.

The power architecture is straightforward on paper. VANA and VDIG both operate nominally at 5 V, with a specified range of 4.75 V to 5.25 V. Texas Instruments also requires VDIG to be less than or equal to VANA. This constraint is easy to satisfy electrically, but it reflects an important internal protection and operating principle: the digital domain must not drive structures beyond what the analog domain can support. In practical terms, if separate regulators are used, sequencing and tolerance stack-up need attention. A design that assumes “both are 5 V” without checking startup ramps, regulator overshoot, and load transients can violate the rail relationship briefly, which is enough to create unpredictable startup behavior.

Current consumption is moderate, with typical digital supply current around 4 mA and analog supply current around 10 mA. These values suggest the converter is not a heavy power consumer, but that should not lead to casual rail design. Low current does not imply low sensitivity. Precision converters often care less about average current and more about local impedance, short-term rail stability, and how much digital switching noise is superimposed on the analog supply. A quiet 5 V rail with disciplined decoupling is usually more important than a regulator with impressive current capability.

The documented decoupling scheme is therefore central to device performance, not a peripheral implementation detail. VANA should be bypassed to ground with 0.1 µF ceramic and 10 µF tantalum capacitors. This combination addresses different frequency ranges: the ceramic capacitor handles fast edge-related current demand, while the larger capacitor supports lower-frequency energy storage and damps supply movement. REF requires a 2.2 µF tantalum capacitor to ground, and CAP also requires 2.2 µF tantalum to ground. These capacitor values are part of the converter’s analog operating environment. Replacing them casually, moving them away from the package, or tying them into a noisy return path often shifts the converter away from its intended behavior.

Layout execution determines whether these recommendations translate into actual performance. The shortest paths should be reserved for VANA decoupling, REF bypass, and CAP bypass. Their ground returns should connect into a low-impedance analog ground region before meeting heavier digital return currents. If the board uses a split-ground strategy, the split should not force reference or decoupling currents to detour across discontinuities. In many cases, a continuous ground plane with disciplined placement works better than an aggressive analog/digital split, because it preserves return-path continuity while still allowing functional partitioning by placement and routing. The key is not symbolic separation but controlled current flow.

Package choice interacts with all of this. On a compact board, the 20-pin SO package can be attractive because it reduces occupied area and may simplify manufacturing alignment with existing footprints. But the smaller routing envelope can push DATACLK, DATA, and control lines closer to REF, CAP, or range-select nodes. That tradeoff is acceptable only if placement discipline is high. The 28-pin SSOP version may consume more board area, yet it often gives enough pin escape freedom to lower coupling and improve capacitor placement. In designs where repeatability matters more than minimal footprint, the larger package can be the lower-risk option even when the electrical specifications are otherwise similar.

A useful way to think about the ADS8509IDW is that it is not merely a SAR converter with a serial port. It is a tightly coupled measurement subsystem in which input range selection, reference conditioning, timing control, and package geometry all influence the final code stream. The nominal specifications define what the silicon can do. The pin-level implementation determines how much of that capability reaches the application. Designs that respect the reference loop, preserve rail ordering, and keep serial switching energy away from analog support pins usually achieve stable and predictable results with little drama. Designs that treat these pins as ordinary digital or power connections often work just well enough to pass initial tests, then expose noise, drift, or timing anomalies once the system becomes fully integrated.

Texas Instruments ADS8509IDW Accuracy, Dynamic Performance, and Practical Signal Integrity Considerations

Texas Instruments ADS8509IDW should be evaluated as a complete precision acquisition element rather than as a standalone 16-bit SAR ADC. Its nominal resolution is only the starting point. In deployed hardware, the measured result is set by a chain that includes reference stability, range-scaling resistor accuracy, source impedance, driver settling, grounding strategy, digital return noise, and clock quality. The device performs well when that chain is controlled. When it is not, the gap between data-sheet expectation and board-level behavior becomes immediately visible.

At the DC level, the part offers the kind of accuracy that makes it useful in industrial instrumentation, control loops, and mixed-voltage monitoring where direct high-level input ranges reduce front-end complexity. Full-scale error is specified at ±0.5% FSR across the supported ranges, including ±10 V operation, with either the internal reference or an external reference used in conjunction with the prescribed resistor network. That specification is important because this converter does not live in the low-level, buffered-input world of many narrow-range ADCs. It is designed to accommodate practical system-level voltage ranges, and that shifts some of the accuracy burden into the supporting passive network.

The drift numbers show where tighter designs can gain real benefit. Full-scale error drift is ±7 ppm/°C with the internal reference and ±2 ppm/°C with an external reference. That difference is not academic. In systems that must hold calibration across cabinet temperature rise, outdoor thermal cycling, or self-heating from nearby power stages, reference drift often dominates after initial offset and gain have been trimmed. An external reference with low thermal drift and low noise can materially improve long-term stability, but only if the layout preserves it. A quiet reference routed through a contaminated analog ground region usually behaves like a mediocre one. The reference path should therefore be treated as a precision analog signal path, not as a utility net.

Zero-scale behavior deserves equal attention because it often determines whether low-level readings look trustworthy. Bipolar zero error is specified at ±10 mV maximum for ADS8509I and ±5 mV maximum for ADS8509IB. Unipolar zero error depends on the selected range, reaching ±5 mV on the 10 V range and ±3 mV on the 4 V and 5 V ranges. In practice, this means a system intended to resolve small deviations around zero must distinguish between converter offset, sensor offset, and ground potential error. It is common to blame the ADC when the actual issue is a few milliohms of shared return path carrying digital current. On boards with mixed relay drivers, isolated communications, or PWM power stages, that mechanism appears often enough that offset debugging should begin with current return mapping before calibration constants are adjusted.

The AC performance places the ADS8509IDW in a useful middle ground between precision measurement and moderate-bandwidth waveform capture. At a 20 kHz input, SINAD is specified at 83 dB minimum and 88 dB typical for ADS8509I, and 85 dB minimum and 88 dB typical for ADS8509IB. SNR reaches 83 dB minimum and 88 dB typical for ADS8509I, and 86 dB minimum and 88 dB typical for ADS8509IB. THD is as low as -98 dB typical, and SFDR reaches 99 dB typical. Full-power bandwidth is 500 kHz. These numbers indicate that the device retains respectable spectral cleanliness well beyond purely static or slowly varying signals.

That matters because many field signals are neither DC nor textbook sinusoidal. Current feedback loops, inverter voltage monitors, piezo drive sense channels, and biomedical front ends often contain a low-frequency quantity of interest riding on top of ripple, harmonics, or switching residue. In those conditions, converter dynamic behavior affects more than FFT plots. It affects filtering decisions, fault-detection thresholds, and confidence in reconstructed RMS or harmonic content. A converter with weak SFDR can make benign distortion look like a process anomaly. A converter with poor settling can turn multiplexed channel scans into cross-channel contamination. The ADS8509IDW is capable enough for these tasks, but the surrounding network must allow it to reach those numbers.

The interaction between input range scaling and settling is one of the most important practical mechanisms. Because the device supports wide input ranges such as ±10 V, front-end resistor ratios and source drive capability directly influence the conversion result. The prescribed resistor network is not just a formality for range selection. Its tolerance, temperature coefficient, matching, and parasitic capacitance affect gain error, drift, common-mode behavior, and acquisition settling. It is tempting to focus on absolute tolerance alone, but resistor matching over temperature is usually the more consequential parameter. A network built from individually accurate but poorly tracking resistors can drift in a way that calibration at room temperature does not remove.

Source impedance should also be kept under control. SAR ADC inputs draw charge dynamically during sampling, so even if the average input current is low, the instantaneous demand at the sampling edge can produce transient errors if the driver path is soft. Long traces, protection resistors, RC filters, and weak amplifiers all contribute to incomplete settling. This is one of the most common reasons a system measures correctly at low throughput yet loses linearity or gains distortion as sampling rate rises. A useful design approach is to treat the ADC input as a switched-capacitor load and verify that the entire path settles to within a fraction of an LSB during the acquisition window under worst-case step conditions, not merely under sine-wave steady state.

Protection design needs similar discipline. Texas Instruments notes that during normal operation the analog input should not exceed the configured range by more than about ±20%. Overvoltage recovery is specified at 150 ns after a 2× full-scale input overvoltage. That is a strong robustness indicator, especially in systems exposed to cable discharge, actuator kickback, or operator-induced transients. Still, overvoltage recovery should be read as survivability and return-to-operation behavior, not as permission to omit front-end protection. A proper protection network should limit fault energy without degrading acquisition accuracy. The tradeoff is subtle: aggressive series resistance improves survivability but worsens settling; large clamp capacitance reduces peak stress but adds memory effects; diode leakage can corrupt low-level DC measurements at elevated temperature. The best protection networks are usually the simplest ones that meet the actual fault model, not the most elaborate ones.

Clock discipline is another area where design quality determines whether data-sheet dynamic performance appears on the bench. SNR and spectral purity in SAR systems are sensitive to aperture uncertainty, especially as input frequency rises. At 20 kHz, the jitter burden is manageable, but poor clock routing can still inject enough timing noise and edge corruption to flatten measured performance. The issue is often not oscillator phase noise alone. It is digital coupling into the clock line, threshold modulation from supply bounce, or unnecessary fanout through noisy logic. A short, clean, impedance-aware clock path referenced to a stable ground region usually gives better results than an otherwise superior oscillator routed carelessly across a mixed-signal board.

Grounding and return-current management are inseparable from both DC and AC accuracy. The ADS8509IDW spans analog precision and digital interface activity, so any design that merges those domains without control will create self-induced error. The objective is not to chase idealized “separate grounds” as a rule, but to shape current paths so that digital switching currents do not flow through the analog measurement reference. A compact analog region around the converter, reference, scaling resistors, and any input buffer is usually more effective than broad ground partitioning. In practical layouts, errors often come from return bottlenecks near package pins, via sharing under the converter, and digital traces crossing sensitive analog nodes rather than from the ground plane concept itself.

Application fit is best understood by looking at signal classes rather than just specifications. In motor-control monitoring, the device can track phase voltage, bus voltage, and auxiliary analog channels with enough dynamic range to support both control and diagnostics. In power analyzers, it can capture line-frequency fundamentals while preserving visibility into lower-order harmonics and distortion components. In medical and instrumentation front ends, it can handle conditioned sensor outputs that require stable DC accuracy but still contain waveform detail that should not be smeared by poor converter linearity. Its value is strongest where direct input range support reduces analog front-end burden while still leaving enough dynamic headroom for meaningful spectral or transient analysis.

A useful design mindset is to allocate error budget by mechanism before schematic completion. Start with gain error and drift from the selected reference and resistor network. Then add offset terms, input protection leakage, driver settling error, and thermal gradients around the converter. After that, evaluate dynamic limits from source bandwidth, anti-alias filtering, and clock quality. This usually reveals that the ADC core is not the dominant problem. In many systems, passive network drift, layout-induced offset, and front-end settling consume more accuracy than converter quantization or intrinsic noise. Once that is recognized early, component choices become more rational and calibration strategy becomes simpler.

The strongest implementations of ADS8509IDW tend to share a few traits. They use an external reference when thermal stability matters. They employ matched, low-drift resistor networks for range scaling instead of assembling critical ratios from unrelated discretes. They keep the input path short and predictable, with only as much filtering and protection as the fault environment requires. They validate settling with worst-case step tests, not just static voltage checks. They route clock and digital interface lines so they do not disturb the analog core. When those disciplines are followed, the converter behaves like a genuinely precise mixed-signal component and not merely a nominal 16-bit endpoint.

Seen this way, the ADS8509IDW is less about headline resolution and more about balance. It combines wide practical input ranges, solid DC precision, and credible dynamic performance in a form that fits real control and instrumentation hardware. Its best results come from designs that respect the analog details around it. That is also where its real engineering value appears: it can simplify the front end, but it still rewards disciplined reference design, resistor selection, settling analysis, and signal-integrity control with performance that remains believable outside the data sheet.

Texas Instruments ADS8509IDW Power Consumption, Temperature Capability, and Reliability Boundaries

Texas Instruments ADS8509IDW is positioned as a precision SAR ADC for systems that need deterministic conversion behavior without the power profile of higher-speed data acquisition devices. Its power, temperature, and reliability limits are not just datasheet details; they directly shape reference design choices, duty-cycled operating modes, front-end protection strategy, and long-term field stability.

From a power standpoint, the device is efficient for its class. Typical power dissipation is 70 mW at 250 kSPS, with 100 mW specified as the maximum during active operation. That level is moderate, but in dense mixed-signal boards it is still large enough to influence local temperature rise, reference stability, and nearby analog routing if left unmanaged. In practice, the more important number is often not instantaneous power but average power across the sampling mission profile. The PWRD control provides a useful lever here. When asserted high, it inhibits conversions and drops the converter into a lower-power state while preserving the previous result in the output shift register. This detail matters because it allows firmware to suspend acquisition without losing the last valid code, which simplifies supervisory logic and reduces interface churn.

That behavior is especially valuable in intermittent sampling architectures. In low-duty-cycle instrumentation, the converter can remain active only during short measurement windows, then stay in power-down for the rest of the cycle. The gain is not limited to battery life. Lower average dissipation also reduces self-heating, and that can improve repeatability when the analog front end is sensitive to temperature drift. In burst-sampling designs, this often creates a better overall error budget than running continuously at low utilization. A practical pattern is to wake the converter, allow reference and input settling time based on the full analog chain rather than the ADC alone, perform a burst of conversions, and then re-enter power-down. The limiting factor is usually not digital wake-up latency but reference recovery and driver amplifier settling after the load profile changes.

Temperature capability requires a more careful reading than the headline range suggests. The specified operating range is -40°C to 85°C, which covers standard industrial deployments. Texas Instruments also provides derated performance guidance from -55°C to 125°C, but this is not equivalent to full guaranteed operation across that span. The main caveat is the internal reference, which may not start correctly outside the industrial range. That warning deserves to be treated as a system-level design constraint, not as a footnote. If the application must cold-start below -40°C or remain functional above 85°C, an external reference is the safer architecture. It removes one of the most temperature-sensitive internal analog functions from the uncertainty path and usually produces a more predictable startup profile during environmental extremes.

This distinction between functional survival and metrological validity is often missed. A converter may still toggle and return codes beyond its recommended operating range, but offset, gain, reference stability, and startup behavior can drift outside controlled limits. For designs that must pass environmental qualification, it is better to separate three questions: whether the ADC survives the environment, whether it starts reliably in that environment, and whether it still meets the required measurement accuracy there. Those are different boundaries, and the ADS8509IDW datasheet gives enough information to see that they should not be collapsed into a single temperature number.

The storage range of -65°C to 150°C supports common handling, transport, and non-operating exposure conditions, but storage capability should not be translated into powered-use margin. Extended storage mainly addresses mechanical and material survivability. It says little about reference startup, conversion linearity, or digital timing integrity under powered operation. In qualification reviews, that distinction helps avoid over-optimistic derating assumptions.

Absolute maximum ratings define the reliability boundary and should be treated strictly as non-operating stress limits. The analog input pins R1IN, R2IN, and R3IN can tolerate up to ±25 V as absolute maximum exposure. This is useful from a survivability perspective, especially in industrial signal chains where miswiring, transients, or sensor faults are credible events. However, those limits do not imply the converter can measure accurately or repeatedly at those levels. The right interpretation is that the input structure may survive brief stress if current and energy are controlled. In robust front ends, this usually leads to a layered protection network: source resistance to limit fault current, clamp elements selected for leakage and capacitance balance, and layout that prevents surge return currents from corrupting the analog ground domain. The ADC’s high fault tolerance is an asset, but it works best when paired with controlled impedance and energy-limited protection rather than as the primary protection element.

Supply rails deserve equally strict handling. VANA and VDIG each have a 6 V absolute maximum. Digital inputs are constrained to -0.3 V to VDIG + 0.3 V. These numbers matter most during power sequencing, hot-plug events, and interface-domain interaction. A frequent failure mechanism in mixed-voltage systems is not steady-state overvoltage but transient injection through digital pins when one domain powers up before another. If a host processor drives the ADC interface while VDIG is absent or ramping slowly, internal protection structures can be forward-biased. That can create latent reliability damage even when no immediate malfunction appears. Good interface design therefore includes either guaranteed sequencing, current-limited digital lines, or logic isolation that holds pins in a benign state until both domains are valid.

Thermal reliability is bounded by a maximum junction temperature of 165°C and internal power dissipation limited to 700 mW. In normal use, the converter operates far below that power ceiling, but the junction limit is still relevant because local board conditions can push small packages into higher temperatures than expected. Nearby power devices, minimal copper area, poor airflow, or placement near isolated DC/DC transformers can all elevate ambient conditions around the ADC. For precision converters, thermal gradients often degrade measurement integrity before they threaten absolute reliability. A stable but warm converter may still function correctly, yet reference drift, offset movement, and channel-to-channel consistency can worsen as the thermal environment becomes asymmetric. That is why board placement and heat spreading are part of precision design, not only power design.

A practical design approach is to treat the ADS8509IDW as a precision analog node with digital convenience, rather than as a digital component that happens to sample analog signals. That framing leads to better choices. Keep the reference path quiet and thermally stable. Use power-down strategically to reduce average heating. If operation may extend beyond the industrial temperature range, move to an external reference early in the design rather than trying to validate the internal one at the edge. Build input protection to manage fault current and energy, not just voltage amplitude. Guard digital pins against overdrive during sequencing. These measures cost little compared with the debug time associated with marginal startup behavior, unexplained gain shifts, or rare field returns.

For procurement and hardware review teams, the device fits well when system derating policy distinguishes recommended operating conditions from survival limits. The ADS8509IDW offers a solid balance of precision and moderate power consumption, but it rewards conservative interpretation of its boundaries. The strongest designs are the ones that use the datasheet limits as a map of internal stress mechanisms: reference startup sensitivity at temperature extremes, input structure vulnerability under fault energy, and digital pin stress during rail mismatch. Once those mechanisms are understood, the converter integrates cleanly into industrial and instrumentation platforms with predictable power, controlled thermal behavior, and a more defensible reliability margin.

Texas Instruments ADS8509IDW Application Fit in Industrial, Medical, Instrumentation, and DSP Systems

Texas Instruments ADS8509IDW fits best as a precision single-channel SAR ADC front end for systems that need predictable conversion timing, configurable input span, and straightforward extraction of 16-bit data into a controller or signal-processing path. Its value is not defined only by resolution or sample rate. It comes from the balance between analog flexibility and digital simplicity. That balance is often more important than headline speed in real embedded designs, especially where one clean measurement channel must remain stable across temperature, supply variation, and board-level noise.

At the architectural level, the ADS8509IDW serves applications that sit between low-speed metrology and high-speed waveform capture. Its 250 kSPS throughput is fast enough for control loops, precision monitoring, and many instrumentation tasks, yet slow enough to allow disciplined analog design without the complexity that accompanies pipeline or very high speed converters. This places it in a useful engineering zone: fast enough to support dynamic measurement and oversampling strategies, but still fundamentally optimized for accuracy, repeatability, and interface determinism.

A key reason the device maps well into industrial, medical, instrumentation, and DSP-linked systems is its flexible input-range model. Many deployed systems do not sense raw transducer outputs directly at the ADC pin. They work with conditioned signals that have already been amplified, level-shifted, isolated, or filtered into standardized voltage spans. The ADS8509IDW aligns well with that reality. It can be inserted after a signal-conditioning stage that presents bipolar or unipolar ranges, allowing the converter to operate as the precision boundary between the analog domain and a digital controller. In practice, this reduces the need for custom converter scaling around every sensor path and helps standardize acquisition hardware across product variants.

In industrial process control, this matters immediately. Field signals often originate from pressure, flow, temperature, position, or power-monitoring subsystems, then pass through analog conditioning before digitization. The ADC must not only resolve small changes, but preserve DC accuracy over operating temperature and over long service intervals. For these systems, offset drift, gain error behavior, reference stability, and grounding quality usually determine control credibility more than nominal resolution does. A 16-bit converter only delivers meaningful 16-bit system performance when the surrounding analog network is equally disciplined. The ADS8509IDW is attractive here because it supports accurate static measurement while keeping timing behavior easy to model in firmware and control algorithms.

Its role in data acquisition systems is equally practical. Single-channel acquisition often appears in equipment where measurements are sequential rather than massively parallel: portable test instruments, modular monitoring nodes, calibration subsystems, and maintenance analyzers. In these designs, 250 kSPS provides room for averaging, digital filtering, or burst capture without pushing the processor interface into a high-complexity regime. The serial output path is especially useful in embedded boards where pin count, isolation boundaries, or routing density must be controlled. When the converter is placed inside a multiplexed subsystem, however, the surrounding analog settling behavior becomes central. The ADC itself may be fast enough, but if a MUX, buffer amplifier, or anti-alias filter has not settled before conversion starts, effective linearity degrades quickly. This is one of the common places where apparent converter error is actually front-end settling error.

For DSP-connected designs, the device offers another practical benefit: deterministic data movement. The SYNC behavior and selectable clocking options reduce interface ambiguity when moving samples into DSPs, FPGAs, or tightly scheduled microcontroller routines. That matters in systems where the ADC is part of a known sample pipeline, such as vibration analysis, motor diagnostics, spectral estimation, or digitally corrected measurement chains. A converter that is easy to synchronize often saves more system effort than one with slightly better nominal AC figures but a more awkward digital interface. In many embedded DSP environments, the true design cost lies in timing closure, interrupt predictability, and clean sample framing. The ADS8509IDW fits those concerns well.

Medical and instrumentation systems benefit from a different aspect of the same architecture. These products often operate under tighter constraints on thermal behavior, noise floor consistency, and long-term calibration retention. The ADS8509IDW is suitable where one measurement channel must be accurate, reasonably fast, and low enough in power to avoid unnecessary thermal gradients near sensitive analog nodes. In such systems, the ADC is rarely isolated as a standalone specification item. It sits inside a chain that includes sensors, protection elements, input filtering, amplifiers, references, and digital correction routines. What makes this converter useful is that it does not impose excessive integration burden. It can support precise acquisition without forcing a large support ecosystem.

Reference strategy becomes one of the most consequential design choices in these applications. Internal reference operation is often the right answer when board area, design simplicity, and repeatable production behavior are top priorities. It reduces external component count and avoids one more sensitive analog node that could be contaminated by layout or supply noise. That simplicity has real value. Fewer precision nodes usually means fewer ways to lose accuracy in manufacturing or in field environments. On the other hand, external reference operation is often preferable when the system must align multiple measurement channels, support tighter gain calibration, or maintain long-term traceability against a controlled reference source. External reference selection also matters when the rest of the instrument already uses a centralized precision reference architecture. In those systems, using the ADC’s external reference path can improve gain coherence across the entire signal chain.

The decision should not be made from the ADC datasheet alone. It should be made from the full error budget. If offset and noise dominate the application, a premium external reference may offer little visible benefit. If gain stability across years and temperature excursions matters, then reference quality and routing discipline become much more important. A recurring pattern in precision boards is that teams overinvest in converter resolution and underinvest in reference placement, decoupling, and thermal symmetry. The resulting system still behaves like a lower-grade instrument. The ADC can only preserve what the reference and front-end allow.

Input range implementation deserves similar attention. The ADS8509IDW relies on external resistor accuracy for selected range behavior, so resistor network quality directly affects gain precision, range matching, and drift. This is not just a tolerance issue. Temperature coefficient tracking, voltage coefficient, package thermal coupling, and layout symmetry all influence final performance. In production hardware, nominal 0.1% resistors may still fail to deliver expected range accuracy if they are poorly matched thermally or routed through contaminated analog return paths. Thin-film resistor networks often outperform discrete resistor groupings because they track better over temperature, even when the individual absolute tolerance numbers look similar on paper. This is one of those details that has an outsized impact on whether the assembled system behaves like a precision instrument or merely a high-resolution sampler.

Grounding is another area where practical results diverge from schematic intent. The separation of AGND1, AGND2, and DGND invites disciplined return-current planning, but it also creates an opportunity for accidental error if those domains are connected casually. The point is not to keep grounds forever isolated. The point is to control where high-frequency digital return currents and analog charge transients meet. If the digital return path shares impedance with the reference bypass network or with the analog input return, the converter’s nominal linearity can be undermined by layout-induced modulation. Boards that perform well usually place the ADC at the boundary of analog and digital regions, keep reference and input decoupling physically close, and tie ground domains at a controlled low-impedance location. Boards that perform poorly often have perfectly correct schematics and quietly flawed return-current geometry.

Clocking and readout timing also deserve deeper consideration than they often receive. The choice between internal and external clock readout is not merely a convenience setting. It affects interface timing margin, firmware complexity, noise coupling, and system synchronization. Internal clocking can simplify host design and reduce the number of tightly timed external signals crossing the board. That is often beneficial in compact embedded systems or isolated modules. External clocking, however, can improve deterministic alignment with a broader timing framework, especially when multiple data paths must be correlated in a DSP or FPGA. The best choice depends on whether the design values local simplicity or system-level timing coherence more strongly. In mixed-signal systems, every external clock edge is both a logic event and a potential noise source. That tradeoff should be evaluated explicitly.

From an application standpoint, the device is especially well suited to measurement paths where the signal bandwidth is modest relative to the sampling rate, and where quality is extracted through stability rather than brute-force speed. Examples include industrial transmitter monitoring, programmable power supply feedback, ultrasound support instrumentation, diagnostic acquisition channels, portable calibrators, and precision servo observation loops. It also fits sensor-interface modules that need one trusted channel for reference measurement, self-test injection, or calibration feedback. In such roles, a single high-quality converter is often more valuable than several loosely controlled channels because it becomes the anchor for system correction and confidence checking.

A useful design mindset is to treat the ADS8509IDW not as a generic ADC but as a measurement subsystem component. That means budgeting settling time, source impedance, reference dynamics, grounding, and firmware timing together rather than independently. When that is done early, the converter usually integrates cleanly and reaches near-datasheet behavior. When it is dropped into a board as a late-stage replacement for “any 16-bit ADC,” the surrounding compromises tend to dominate. Precision converters are rarely limited by their core silicon in well-designed systems. They are limited by what the rest of the board asks them to tolerate.

For engineering teams evaluating fit, the central question is not simply whether the ADS8509IDW meets resolution and sample-rate requirements. The better question is whether the system benefits from its specific mix of configurable range support, moderate-speed precision sampling, and low-friction digital interfacing. Where the answer is yes, it can provide a very efficient path to robust measurement performance. Where the application instead demands extreme channel density, very high bandwidth capture, or minimal external analog tailoring, a different converter class may be more appropriate. The strength of the ADS8509IDW lies in disciplined single-channel acquisition, where accuracy, configurability, and predictable integration matter more than raw throughput.

Potential Equivalent/Replacement Models for Texas Instruments ADS8509IDW

Potential replacement paths for the Texas Instruments ADS8509IDW are best evaluated from within the same converter family first, not from broad catalog cross-references. For this device, the strongest replacement logic comes from pin compatibility, interface continuity, and transfer-function similarity rather than from nominal headline parameters alone. That matters because in SAR ADC designs, a part that appears equivalent on resolution and sample rate can still force board changes or firmware rework if its input structure, timing, or reference behavior differs.

The ADS8509IDW is a 16-bit SAR ADC positioned around 250 kSPS operation, so any credible substitute must be screened against three constraint layers. The first is physical compatibility: package, pinout, power rails, and digital signaling. The second is analog behavior: input range, source loading, reference architecture, linearity, dynamic performance, and acquisition timing. The third is system-level impact: firmware timing, calibration assumptions, noise floor, and production test limits. In practice, most replacement mistakes happen when only the first layer is checked.

Inside the documented TI ecosystem, the closest replacement direction is the ADS7809. TI identifies it as pin-compatible in a lower-speed position. This makes it the most straightforward option when the existing design has throughput margin and the priority is to preserve PCB footprint and interface behavior. That trade is often more favorable than it first appears. Many fielded systems operate well below the ADC’s maximum throughput because the real bottleneck sits in sensor settling, digital post-processing, or bus arbitration. In those cases, moving to a lower-speed pin-compatible converter can be operationally invisible if the acquisition window and conversion latency still fit the control loop or measurement schedule. The key check is not simply “maximum kSPS,” but whether the full analog front end can settle within the available sample interval after the switch.

A second replacement direction is the ADS8508 or ADS7808 family. These are 12-bit pin-compatible alternatives, useful when the mechanical footprint and interface need to remain stable but the application can tolerate lower resolution. This path is often relevant in platform designs where one PCB serves multiple product tiers. The same board can support a high-accuracy variant with a 16-bit converter and a cost-focused variant with a 12-bit device, provided the software stack and calibration flow are designed with that scalability in mind. The real engineering question here is whether the system is truly resolution-limited or actually constrained by sensor noise, reference drift, grounding quality, or front-end amplifier errors. In more than a few measurement chains, the effective number of useful bits in production is already below the nominal ADC resolution. In those cases, a 12-bit pin-compatible option can be a practical reduction without proportional loss in delivered system performance.

Within the ADS8509 family itself, grade migration may be the cleanest upgrade path. The ADS8509IB variants can be treated as higher-accuracy options relative to broader ADS8509I-grade choices. If the design requirement is tightening error budgets rather than changing architecture, this is usually the least disruptive move. Better guaranteed INL, DNL, no-missing-code behavior, or SINAD can directly improve measurement repeatability, reduce calibration burden, and tighten production limits without requiring board changes. This type of upgrade is often more valuable than moving to a nominally newer external device because it preserves the known behavior of the original signal chain. In mixed-signal designs, preserving known behavior is often worth more than chasing small improvements in one isolated datasheet metric.

For replacement analysis, resolution and sample rate should be treated as entry filters, not final criteria. A valid substitute should be matched across the following parameters:

Resolution and effective performance. A 16-bit label does not guarantee equivalent usable precision. INL, DNL, offset, gain error, transition noise, and SINAD determine whether the converter behaves comparably in real measurement conditions.

Throughput and timing model. Maximum sample rate must be checked alongside acquisition time, conversion time, serial readout timing, BUSY behavior, and any pipeline or command latency. Firmware usually depends on more than raw SPI compatibility.

Input range and analog drive requirements. The replacement must support the same input span and must not impose a significantly different source impedance requirement. SAR ADCs are sensitive to input settling, and “pin-compatible” does not always mean “driver-compatible” under all source conditions.

Reference scheme. If the design relies on an internal reference, external reference, or specific reference buffering method, any change here can affect absolute accuracy, temperature drift, and startup behavior. Reference stability often dominates total system accuracy once the ADC itself is reasonably linear.

Supply rails and logic levels. Even small changes in digital input thresholds or power sequencing can produce intermittent issues that only appear in environmental testing or at production corners.

Package and thermal range. The DW package and operating temperature envelope must remain aligned with the original application, especially in industrial platforms where enclosure heating and reference drift can interact.

One practical way to assess substitution risk is to classify the existing design into one of three operating modes. In a bandwidth-relaxed monitoring system, the ADS7809 is often the most natural candidate because lower speed is acceptable and compatibility is the main objective. In a cost-optimized or segmented product family, the ADS8508 or ADS7808 may be sufficient if lower resolution still exceeds the noise-limited performance of the total signal chain. In a precision-sensitive design where the board and firmware are already validated, staying inside the ADS8509 family and moving to a tighter grade is usually the most efficient path.

The analog front end deserves particular attention during any replacement. The ADS8509-class SAR architecture will interact with the driver amplifier, RC filter, and reference network in ways that are easy to underestimate. A replacement that appears electrically similar can still alter kickback behavior, settling margins, or code-dependent transients. On mature boards, this often shows up not as gross failure but as subtle degradation: missing low-level repeatability, extra harmonic content, or code spread that widens with temperature. For that reason, bench validation should include static DC sweeps, histogram-based noise checks, and at least one dynamic test near the application bandwidth. A quick functional readout is not enough.

Another point that tends to matter in legacy replacements is firmware assumptions around serial framing and conversion sequencing. Even within nominally compatible families, software may have hard-coded delays, BUSY polling windows, or startup ordering based on the original device. If the design is timing-tight, verify end-to-end sample cadence with the real processor and not just from a logic analyzer capture. Small timing deviations can become major issues when DMA, interrupt latency, or multiplexed sensor channels are involved.

A disciplined replacement strategy for the ADS8509IDW therefore starts with family-compatible parts from TI, ranked by the type of change the design can absorb. If lower speed is acceptable, the ADS7809 is the strongest documented pin-compatible replacement direction. If lower resolution is acceptable, the ADS8508 or ADS7808 family provides a footprint-preserving alternative. If the goal is better guaranteed precision with minimal redesign, a higher-grade ADS8509IB-family option is the most direct upgrade. Only after these paths are exhausted does it make sense to expand the search to external devices, and at that point the comparison must be done at the architecture and timing level, not just by matching “16-bit, 250 kSPS” on a parametric table.

The central engineering view is simple: for the ADS8509IDW, the best replacement is not the part with the closest marketing specification, but the one that preserves system behavior with the smallest hidden analog and firmware penalty. In converter substitutions, the cheapest board change is often the one that never has to be made.

Conclusion

The Texas Instruments ADS8509IDW is a 16-bit SAR ADC built for precision acquisition paths that need deterministic 250 kSPS throughput, low integration overhead, and practical analog flexibility from a single 5 V rail. Its value is not defined by resolution alone. It comes from how the converter compresses several system-level requirements into one device: integrated sample-and-hold behavior, support for multiple input range strategies, usable reference architecture, and a serial interface that fits cleanly into DSP-, MCU-, or FPGA-based control loops. In designs where conversion latency, repeatability, and implementation simplicity matter more than headline sampling speed, this device sits in a very efficient position.

At the architectural level, the ADS8509IDW follows the classic SAR conversion model, which remains one of the most effective approaches for medium-speed, high-accuracy acquisition. A SAR ADC is fundamentally attractive because it combines low latency with predictable timing and comparatively low power. Unlike sigma-delta converters, which often trade bandwidth and latency for very high noise shaping performance, a SAR converter gives a direct and bounded conversion process. That matters in closed-loop industrial control, multiplexed instrumentation, and protection systems, where the timing relationship between input sampling and digital availability must remain tight and analyzable. The ADS8509IDW leverages this strength well. Its integrated sample-and-hold reduces external timing complexity and helps maintain conversion consistency, especially when the upstream signal chain includes moderate source impedance or multiplexed channels.

Its 16-bit resolution is meaningful only if the surrounding analog and digital design can preserve that precision, and this is where the device’s balance becomes more important than isolated specifications. In practical systems, the real challenge is not obtaining nominal 16-bit output codes; it is preserving useful effective resolution in the presence of reference drift, driver settling limitations, ground noise, and digital feedthrough. The ADS8509IDW is attractive because it reduces several of these risks at the component level. Its integrated features lower the amount of external analog support needed, which in turn shortens the error chain. Fewer external precision elements often mean fewer places for offset accumulation, gain drift, and layout-induced instability to enter the signal path.

Input range flexibility is one of the more strategically important aspects of the device. In many acquisition systems, sensor outputs are not naturally aligned with a single ADC full-scale range. Pressure sensors, current shunts, conditioned bridge outputs, industrial voltage monitors, and medical front ends all impose different amplitude and common-mode constraints. A converter that can adapt to different input range requirements without forcing major redesign of the analog front end has much higher practical value than one with slightly better isolated performance but rigid input assumptions. The ADS8509IDW addresses this by supporting input handling schemes that make it easier to interface both unipolar and bipolar-style application needs, depending on the surrounding circuitry. This reduces the need for unnecessary gain stages and level-shifting networks, which often become the dominant source of error in precision systems.

That flexibility also changes board-level design economics. A converter that can absorb a wider variety of signal conditioning outcomes allows one PCB platform to support multiple product variants with only minor BOM changes. In field-proven architectures, this tends to be more valuable than a small improvement in benchmark AC figures, because variant control, calibration strategy, and long-term maintainability often dominate total lifecycle cost. The ADS8509IDW aligns well with that kind of scalable design thinking.

Its single 5 V supply operation is another practical advantage. Precision acquisition systems often become unnecessarily complex when analog and digital rails must be partitioned across multiple voltages simply to satisfy the ADC. A 5 V single-supply device simplifies power-tree planning, especially in industrial and instrumentation designs where 5 V is already available or easily generated. This does not eliminate the need for careful analog supply filtering, but it reduces the number of supply interactions that must be managed. In mixed-signal layouts, every additional rail creates another path for noise coupling, startup sequencing issues, and regulator-induced drift. Reducing that complexity usually improves first-pass design success.

The reference capability deserves attention because reference design is often where precision ADC systems are quietly won or lost. In a 16-bit converter, reference quality directly sets gain accuracy and strongly influences thermal stability over time. The ADS8509IDW offers a reference strategy that is practical rather than burdensome. For many systems, this allows a compact implementation with acceptable drift and noise performance without forcing a high-end external reference from the start. At the same time, designs that need tighter gain stability can still treat the ADC as part of a broader precision chain and upgrade the reference architecture around it. This kind of staged optimization is useful in engineering programs that move from proof-of-concept to production under cost pressure. It allows the same converter platform to serve early prototypes and later refined revisions with controlled redesign effort.

Clocking and interface behavior are equally important in real deployments. A precision ADC with awkward digital timing can become expensive to integrate, especially when the host processor must manage multiple data sources with strict interrupt budgets. The ADS8509IDW avoids that problem by offering straightforward serial interfacing and synchronization behavior that maps well onto DSP-centric signal acquisition. This matters in systems where conversion framing must align with PWM cycles, sensor excitation windows, or deterministic scan loops. The practical benefit is not just ease of communication. It is easier timing closure across the whole data path. When ADC sampling, digital transfer, and downstream filtering are all temporally well-defined, system validation becomes simpler and control behavior becomes easier to trust.

Its AC and DC performance balance is also worth framing correctly. Some converters are optimized so aggressively for one domain that they become less useful in mixed workload environments. The ADS8509IDW instead offers strong DC precision with sufficiently competent AC behavior for a wide class of measurement and control signals. That is often the better trade. Industrial and instrumentation systems rarely operate on pure DC or purely dynamic content. They measure slowly changing values superimposed with noise, ripple, transients, or periodic behavior. A converter in this category must preserve static accuracy while still handling realistic signal dynamics without excessive distortion or spectral contamination. The ADS8509IDW appears designed with that broader use case in mind.

In industrial control, this balance becomes especially relevant. Current sensing for motor drives, power-stage monitoring, programmable logic controller input measurement, and process instrumentation all depend on repeatable conversion under electrically noisy conditions. In these environments, converter selection is less about laboratory-best performance and more about predictable behavior after layout compromises, ground shifts, and thermal gradients are introduced. Devices like the ADS8509IDW tend to perform well because they offer enough precision margin without demanding overly fragile implementation conditions. A converter that remains stable and understandable in a factory cabinet is usually more valuable than one that only excels on an ideal evaluation board.

Instrumentation designs benefit for similar reasons. Data acquisition modules, portable calibrators, test fixtures, and embedded measurement nodes often need one ADC that can handle multiple sensor classes and interface cleanly with moderate-complexity digital hosts. The ADS8509IDW supports this by sitting in a range where firmware remains simple, analog conditioning remains manageable, and calibration effort stays reasonable. In many such systems, the highest-value design outcome is not maximum theoretical ENOB; it is achieving traceable, repeatable performance with limited tuning effort across production spread. This converter is well suited to that objective.

Medical and adjacent precision electronics also fit the device’s profile, particularly where moderate-speed acquisition and stable 16-bit conversion are more important than ultralow-power wearable constraints or very high channel density. Signal fidelity, predictable timing, and a manageable analog support network are often the real priorities in embedded medical instrumentation. The ADS8509IDW’s integration level helps here because it reduces front-end complexity and lowers the chance that interface behavior will become the bottleneck in validation. Simpler signal chains are generally easier to characterize, and characterization effort scales quickly once multiple external precision support elements are added.

From a design-for-selection perspective, the main strength of the ADS8509IDW is its balance across four practical axes: precision, speed, power, and interface adaptability. It does not force an extreme optimization decision. That is often exactly what makes a component robust in a product roadmap. Overly specialized ADCs can create hidden constraints later, such as difficult driver requirements, restrictive reference choices, or firmware timing burdens that only emerge when the rest of the system evolves. A balanced ADC provides more room for architectural changes around it. That flexibility is rarely captured by datasheet headline numbers, but it has significant engineering value.

A useful way to evaluate the device is to treat it not as a converter in isolation but as the center of a signal acquisition subsystem. In that subsystem, upstream source impedance, amplifier settling, reference noise, grounding strategy, digital return current, and calibration method all interact. The ADS8509IDW reduces subsystem risk because its integration level narrows the number of variables that must be tuned simultaneously. In practice, this often shortens bring-up time. Designs with integrated sample-and-hold and straightforward serial timing generally reach stable operation faster than architectures requiring more external timing coordination. That speed of convergence matters during prototype debug, EMC iteration, and manufacturing test development.

Implementation details still matter. To extract the intended precision, the analog drive stage should be chosen with settling behavior matched to the converter’s acquisition window rather than just nominal bandwidth. Fast op amps with poor phase margin into switched-capacitor loads often create more error than slower but better-damped alternatives. The reference node should be decoupled with attention to loop area and impedance over frequency, not just bulk capacitance value. Ground partitioning should keep digital edge currents away from the analog input return path, especially near the converter package. These are standard mixed-signal practices, but with a 16-bit SAR ADC they move from good discipline to mandatory control points. The converter’s balanced architecture helps, but it does not override poor analog hygiene.

On procurement and lifecycle considerations, the ADS8509IDW also presents a sensible profile. Package availability, industrial temperature support, and alignment with related Texas Instruments precision converter families simplify second-stage sourcing decisions and long-term platform planning. This is relevant because ADC replacement is rarely trivial once calibration constants, mechanical constraints, and digital timing assumptions are locked into a shipping design. Choosing a device within a well-supported vendor ecosystem can reduce future migration cost even if no pin-compatible substitution is ever used directly. For teams managing long product lifecycles, that ecosystem stability is often more important than incremental spec differences between otherwise similar converters.

Viewed as a complete system component, the ADS8509IDW stands out as a dependable precision conversion solution for designs that need clean 16-bit SAR performance without excessive implementation burden. Its strongest attribute is not any single feature but the way its feature set supports real engineering constraints: finite board area, moderate power budgets, mixed sensor requirements, deterministic timing, and maintainable analog design. That combination makes it a strong candidate for industrial control, instrumentation, medical electronics, and general-purpose data acquisition platforms where precision must be practical, not merely theoretical.
