ADS8422IBPFBR

ADS8422IBPFBR Product Overview and Positioning

ADS8422IBPFBR is a 16-bit, 4-MSPS SAR analog-to-digital converter positioned for signal chains that need a balanced mix of resolution, deterministic throughput, and relatively simple system integration. Within Texas Instruments’ portfolio, it fits the class of converters used when the design target is not merely high sample rate or low power in isolation, but a controlled combination of precision acquisition, fast conversion, and straightforward digital readout. Its architecture integrates a capacitor-based multi-bit SAR core, an inherent sample-and-hold stage, a high-speed parallel interface, and an internal 4.096 V reference, which reduces external design burden while preserving the timing discipline expected in measurement-oriented systems.

The practical value of this device starts with its conversion architecture. A SAR converter at 4 MSPS occupies an effective middle ground between slower precision ADCs and much faster pipeline devices. That matters because many real systems do not benefit from raw speed alone. They benefit from predictable latency, stable code transition behavior, and easier front-end settling requirements. The ADS8422IBPFBR addresses that space well. Its zero-latency behavior is especially useful in closed-loop measurement paths, trigger-based acquisition, and systems where sample-to-output determinism is more important than absolute maximum bandwidth. In these designs, removing pipeline delay simplifies timing closure in both FPGA and DSP domains and often reduces firmware complexity at the same time.

Its 16-bit resolution is not just a headline specification. At this level, layout, drive circuitry, grounding strategy, and reference integrity become first-order design variables. A converter like the ADS8422IBPFBR is best understood not as an isolated component, but as the center of a precision acquisition subsystem. The internal 4.096 V reference is helpful because it creates a known full-scale basis and can shorten the path to a stable design. However, in high-resolution work, the internal reference should still be treated as an analog performance node rather than a convenience feature. Reference bypassing, return current control, and thermal stability directly affect code spread and repeatability. In practice, many apparent ADC issues are not converter limitations at all, but reference noise, driver settling errors, or digital coupling into the analog domain.

The input structure is one of the defining reasons to choose this part. Support for fully differential pseudo-bipolar inputs makes it suitable for systems where signal integrity and common-mode noise rejection matter. Differential signaling at the ADC interface is often the difference between a design that meets 16-bit expectations on paper and one that does so on hardware. It improves immunity to external interference, helps preserve dynamic performance over routing distance, and aligns naturally with many precision amplifiers, sensor interfaces, and transformer-coupled signal paths. This is particularly relevant in instrumentation, transducer readout, and communications-adjacent systems where ground offsets and coupled noise are unavoidable. A differential input stage also gives the designer more flexibility in level shifting and conditioning without relying on single-ended compromises that can limit usable resolution.

The parallel output interface further defines the device’s positioning. In systems that must move data quickly into logic fabric, a parallel bus remains attractive despite the industry trend toward serial interfaces. At 4 MSPS and 16-bit resolution, serial transfer is possible in principle, but parallel output simplifies sustained bandwidth handling and avoids the clocking overhead and protocol framing associated with many serial ADCs. This becomes important in acquisition platforms with multiple channels, hard real-time trigger relationships, or direct FPGA capture. The trade-off is obvious: more pins, tighter bus timing management, and higher routing density. For compact designs or low-layer-count boards, that cost may be unacceptable. But where deterministic high-throughput transfer matters, the parallel interface is often a net advantage rather than a burden.

From a product-selection perspective, ADS8422IBPFBR is best suited to designs where engineers want precision data capture without inheriting the calibration and latency behavior commonly associated with more complex converter architectures. In DWDM-related measurement paths, instrumentation platforms, data acquisition systems, medical electronics, spectrum analysis equipment, transducer interfaces, and automated test equipment, the underlying requirement is usually not only accurate conversion but reliable, repeatable capture under known timing conditions. This device supports that requirement well. It is particularly strong in systems where the analog front end already operates in differential form and where the digital backend can exploit a parallel bus efficiently.

The industrial temperature range of -40°C to +85°C and the 48-pin TQFP package indicate a device intended for embedded and instrumentation-class deployment rather than purely laboratory evaluation use. The package choice is also telling. TQFP is not optimized for extreme miniaturization, but it is a practical package for routing a parallel bus, separating analog and digital regions with reasonable discipline, and supporting repeatable assembly in industrial products. In this class of converter, package practicality often matters more than package novelty. A package that enables cleaner board partitioning can contribute more to actual ENOB retention than a smaller footprint that forces compromised layout.

A useful way to position the ADS8422IBPFBR against alternatives is to examine what the system values most. If the design prioritizes minimum pin count, very low I/O complexity, or daisy-chainable digital interfaces, then a serial SAR ADC may be easier to deploy. If the design requires significantly higher sampling rates, a pipeline ADC may be more appropriate. If the system can tolerate lower throughput, slower precision converters may offer lower power or simplified anti-alias requirements. The ADS8422IBPFBR becomes the right choice when 4 MSPS is enough, 16-bit precision is necessary, parallel capture is acceptable, and timing determinism is non-negotiable. That combination is narrower than the broad ADC market, but within that range it is technically well aligned.

Another important aspect is front-end drive compatibility. SAR ADCs present a dynamic input load due to the sampling capacitor network, and this directly influences amplifier selection and RC network design. The ADS8422IBPFBR should be paired with a driver that can settle rapidly to 16-bit accuracy within the available acquisition window. This is one of the most common decision points in implementation. A front-end amplifier may appear sufficient based on bandwidth alone, yet still fail to settle cleanly after charge kickback or large input steps. Stable operation usually benefits from a carefully chosen isolation resistor and charge reservoir capacitor near the ADC input. The exact values depend on source impedance, target bandwidth, and distortion limits, but the pattern is familiar: the analog driver must be selected for settling behavior, not just small-signal gain bandwidth. Designs that respect this typically reach performance targets with far fewer revisions.

In measurement systems, the internal sample-and-hold function also simplifies external timing assumptions. It allows the signal chain to be analyzed around a defined acquisition instant rather than requiring a separate external hold network. This reduces analog complexity and improves repeatability. It also makes trigger correlation easier in systems where event timing matters, such as test equipment and synchronized sensor capture. In practice, converters with built-in acquisition discipline often integrate more cleanly into mixed-signal boards than nominally similar devices that shift more of the burden into the front end.

The internal 4.096 V reference deserves one more observation because it affects system scaling. A 4.096 V reference aligns naturally with binary-friendly code calculations and often simplifies engineering interpretation of LSB size and transfer mapping. That can be beneficial in calibration routines, threshold detection, and gain planning. More importantly, it sets a clear full-scale framework for pseudo-bipolar differential operation, which can reduce ambiguity in signal-conditioning stages. When the analog path is being budgeted for noise, gain, and headroom, a clean and explicit full-scale reference frequently shortens design iteration time.

Taken together, the ADS8422IBPFBR is not a general-purpose choice for every 16-bit acquisition problem. It is a targeted solution for systems that value deterministic SAR behavior, a wide differential input structure, integrated reference support, and direct high-speed parallel data extraction. Its strongest use case appears when the analog front end is already precision-oriented and the digital side can capitalize on immediate, zero-latency data availability. In those conditions, it offers a disciplined balance of speed, accuracy, and interface pragmatism that remains highly relevant in industrial and instrumentation-class designs.

ADS8422IBPFBR Core Architecture and Conversion Method

The ADS8422IBPFBR is built around a 16-bit, capacitor-based, multi-bit SAR core. That choice of architecture is central to its behavior. A SAR converter resolves each sample through a bounded sequence of comparisons, so conversion time is fixed and deterministic. Unlike pipeline ADCs, it does not spread one sample across multiple downstream stages or introduce conversion latency that must be tracked in firmware or FPGA logic. The output code maps directly to the most recently acquired input sample. In closed-loop control, fast protection paths, and time-correlated measurement systems, this matters more than raw sample rate alone. Deterministic latency often removes an entire class of synchronization problems.

The capacitor-based DAC inside the SAR engine also explains much of the device’s precision and interface behavior. During acquisition, the internal capacitor array samples the input signal. During conversion, that same array is reconfigured as a charge-redistribution DAC and compared against internal references while the SAR logic resolves the code. This approach keeps the signal path compact and power-efficient, but it also means the analog source must briefly drive a dynamic switched-capacitor load rather than a purely static input. In practice, the driver stage is not selected only for bandwidth or noise. It must also settle charge kickback quickly and remain linear across fast sampling transients. Many system-level errors attributed to the ADC are actually front-end settling errors caused by underestimating this interaction.

The multi-bit SAR implementation is equally important. A conventional single-bit SAR resolves one bit per comparison step, while a multi-bit approach resolves more information per cycle. This reduces the number of decision steps required inside the conversion window and helps maintain high throughput without pushing the comparator and internal DAC into unnecessarily extreme speed regions. The result is a useful balance: the converter preserves SAR advantages such as low latency, moderate power, and predictable timing, while reaching performance levels that fit demanding multi-megahertz precision acquisition. That balance is often where this class of ADC outperforms more complex architectures in real systems.

The device integrates its own sample-and-hold function, so no external hold capacitor or separate track-and-hold amplifier is normally required. This simplifies the signal chain and removes another timing-sensitive block from the board. The practical implication is not just lower component count. It also reduces uncertainty associated with matching external hold timing to conversion start edges. With the internal sampling path tightly coupled to the conversion engine, timing behavior stays more repeatable across process, temperature, and board variation. For designs that need repeatable phase alignment between analog events and digital capture, this internal integration is a meaningful advantage.

Timing parameters define how effectively the converter can be used, and here the ADS8422IBPFBR is clearly optimized for fast precision sampling. A typical conversion time of 180 ns and acquisition time of 70 ns enable throughput up to 4 MSPS. Those numbers should be read together, not independently. The conversion interval determines how long the SAR engine needs to resolve the code, while the acquisition interval defines how long the input network needs to settle to the new signal level before the next conversion begins. If the external driver, anti-alias network, or source impedance slows the settling process, the nominal throughput figure becomes theoretical. The converter can only deliver full 16-bit performance if the entire front end settles within the acquisition window to a fraction of an LSB. At this resolution, that margin is tight enough that layout parasitics, reference distribution, and amplifier phase margin become first-order design factors.

The listed aperture delay of 3 ns and aperture jitter of 7 ps RMS reinforce the device’s suitability for high-speed precision work. Aperture delay is a fixed sampling offset between the control event and the actual sampling instant. Since it is largely constant, it can usually be calibrated out or absorbed into system timing. Aperture jitter is more critical for dynamic accuracy because it converts input slew rate directly into sampling uncertainty. As input frequency rises, jitter-induced error increases even if static linearity remains excellent. A 7 ps RMS jitter figure is strong for this class of converter and supports accurate sampling of relatively fast input content, provided the clock source is equally clean. In many implementations, converter jitter is not the limiting term; clock phase noise and board-level coupling dominate first. This is why clock routing should be treated as an analog path, not just a digital timing net.

The fully differential input structure with pseudo-bipolar behavior gives the converter flexibility in modern signal chains. A differential input does more than reject common-mode noise. It allows signal energy to be encoded as a voltage difference while the common-mode level is held inside the ADC’s optimal operating region. That makes interfacing easier in systems where sensors, amplifiers, or drivers operate around a defined common-mode voltage rather than around ground. The pseudo-bipolar description reflects a practical operating model: the ADC can represent signal excursions above and below a midpoint reference in a way that resembles bipolar measurement, while still operating from a unipolar internal conversion framework. This is especially useful when the preceding signal-conditioning stage is differential and the system must preserve small AC variations riding on a controlled common-mode bias.

In real front-end design, the differential nature of the input should be used intentionally rather than treated as a checkbox feature. Best results usually come from keeping the two input paths electrically symmetric, including source impedance, RC filtering, and routing geometry. Any imbalance converts common-mode disturbances into differential error and erodes the benefit of the architecture. It is common to see excellent bench performance degrade on the final board because one side of the pair picks up slightly different parasitic capacitance or reference return current. At 16-bit resolution and multi-megahertz sampling, small asymmetries stop being small.

Zero-latency output behavior is one of the device’s strongest system-level attributes. In pipeline converters, the sample captured now appears at the digital output several clock cycles later, which requires bookkeeping in software, hardware state machines, or trigger alignment logic. The ADS8422IBPFBR avoids that complexity. The latest conversion result corresponds to the latest acquired sample. This directly benefits motor control, power conversion, actuator feedback, phase-sensitive measurement, and protection systems, where a delayed result is not just inconvenient but can destabilize timing assumptions. A deterministic, no-pipeline data path often reduces validation effort because timing is easier to observe, reason about, and guarantee under corner conditions.

Another practical point is that zero latency changes how one should think about system partitioning. When there is no hidden conversion pipeline, more of the response budget can be allocated to filtering, averaging, or digital estimation without losing traceability to the physical sample instant. That makes the converter attractive not only for raw acquisition, but also for systems that combine immediate threshold decisions with slower background analytics. The architecture supports both because it gives the digital side a clean, current sample stream rather than a delayed representation of the past.

For precision applications, the converter should be viewed as a tightly coupled analog-digital subsystem rather than a standalone ADC block. The SAR core, reference network, clock quality, input driver, and PCB return paths all directly shape effective performance. A useful design pattern is to treat the reference input with the same discipline used for a low-noise analog supply: short routing, local decoupling, controlled return current, and minimal coupling from digital edges. The internal capacitor array draws impulsive charge from the reference during bit decisions. If the reference path is soft or contaminated, code-dependent errors and dynamic nonlinearity appear long before static DC tests reveal a problem.

The same principle applies to anti-alias and input filtering. Simple RC filters are often added at the ADC input, but their values must be chosen with awareness of the switched-capacitor sampling network. Too much series resistance improves kickback isolation but degrades settling during the 70 ns acquisition interval. Too little resistance leaves the driver exposed to fast transient currents and can increase distortion or ringing. The best solutions usually come from co-designing the driver amplifier, differential RC network, and ADC timing rather than tuning each in isolation. This is one of those areas where datasheet compliance and robust field performance are not always the same thing.

From an architectural perspective, the ADS8422IBPFBR sits in a very effective region of the design space. It is fast enough to support multi-megahertz acquisition, precise enough for 16-bit measurement tasks, and simple enough in latency behavior to integrate cleanly into real-time systems. The capacitor-based multi-bit SAR engine is the reason these traits coexist. It preserves deterministic conversion semantics, avoids pipeline management overhead, and keeps power and complexity below what a comparable high-speed pipeline approach might require. In applications where timing certainty, compact analog design, and immediate data availability matter as much as nominal resolution, that combination is often the decisive advantage.

ADS8422IBPFBR Analog Input Characteristics and Reference Scheme

The ADS8422IBPFBR uses a fully differential front end, and that detail drives nearly every analog design choice around it. With a 4.096 V reference, the converter accepts a pseudo-bipolar differential input from -4.096 V to +4.096 V, giving an 8.192 V differential full-scale span. In practical terms, the ADC resolves the difference between +IN and -IN, not either pin with respect to ground. The transfer function is therefore anchored to the differential quantity, +IN minus -IN, over the range -VREF to +VREF. This architecture is not just a signal-format preference. It is the mechanism that allows the converter to retain good dynamic performance in electrically noisy systems, reject common-mode interference, and interface cleanly with differential signal chains.

The common-mode requirement is equally important. The average of the two input pins, defined as (+IN + -IN)/2, must remain near VREF/2. The device exposes this midpoint through COMMOUT as REFIN/2, typically about 2.048 V when the internal 4.096 V reference is active. This is a highly useful implementation feature because it gives the input driver a local bias target derived directly from the converter’s own reference domain. Instead of creating an independent midscale bias and then hoping it tracks the ADC, the design can center the analog path on the converter’s internal operating point. That reduces one source of offset interaction and often makes the front-end behavior more predictable over temperature and supply variation.

The specified common-mode window is VREF/2 ±0.2 V. That range is narrow enough that it should be treated as a design constraint, not as a loose recommendation. In a differential ADC, large common-mode error does not merely shift the input operating point. It can move internal sampling switches out of their optimal region, degrade linearity, and increase distortion before any obvious clipping appears in the digital output. A front-end stage may still appear to be driving the expected differential amplitude, yet the converter can already be operating in a non-ideal part of its input structure. This is one of the more common failure modes in high-resolution SAR interfaces: the differential swing gets checked, but the common-mode trajectory is not.

The 30 pF input capacitance and the 70 ns acquisition interval reveal what kind of load the ADC presents to its driver. Although the static input leakage current is only 1 nA typical and is usually negligible in low-impedance designs, the dynamic input behavior is far more significant. The ADC input is effectively a switched-capacitor network. During acquisition, the source must charge internal capacitances and settle to 16-bit accuracy within a very short time window. That means source impedance cannot be evaluated from DC parameters alone. The relevant question is whether the driver can recover from sampling transients quickly enough, while preserving low noise and low distortion.

This is where many nominally precision-capable amplifiers fail in practice. An amplifier may have excellent offset and low broadband noise, but if its output stage reacts poorly to the ADC’s charge kickback, the result will be degraded THD or code-dependent settling errors. A small series resistor and local charge reservoir at each ADC input often help isolate the amplifier from the switched-capacitor edge currents, but this network must be sized carefully. If the resistor is too large, settling error increases. If the capacitor is too small, kickback suppression is weak. If the capacitor is too large, the amplifier may see an unstable load or excessive dynamic current demand. The best solutions usually come from balancing these elements as a system rather than optimizing any one part in isolation.

A useful way to think about the input network is to separate the problem into three time scales. First, there is the instantaneous sampling event, where the ADC injects charge disturbance back into the driver. Second, there is the acquisition period, where the external network and driver must settle the input to final value. Third, there is the slower signal-band behavior, where noise, gain flatness, and distortion accumulate. A front-end that looks fine in the frequency domain can still fail in the time domain if the acquisition transient is not controlled. For this class of converter, time-domain settling is often the dominant design filter.

COMMOUT can simplify this problem when used correctly. In differential amplifier configurations, tying the amplifier output common-mode control to COMMOUT often produces cleaner symmetry at the ADC inputs. That symmetry matters because even-order distortion products rise quickly when the two input paths do not track. It also helps preserve available input range, since the outputs remain centered in the converter’s intended operating region. The bias source should still be treated carefully. COMMOUT is a reference-derived node, not a general-purpose power rail. It is best used as a bias reference into high-impedance control pins or stable bias networks, not as a node expected to source significant dynamic current into the signal path.

The reference scheme is one of the stronger integration features of the ADS8422IBPFBR. The device includes a 4.096 V internal reference and reference buffer, reducing external component count and simplifying layout. REFIN is the reference input node and should be decoupled to REFM with 0.1 µF. REFOUT provides the internal reference output and requires a 1 µF capacitor to REFM when the internal reference is used. At 25°C, the internal reference is specified from 4.088 V to 4.104 V, with a typical drift of ±6 ppm/°C. Startup time is typically 25 ms with the recommended 1 µF capacitor on REFOUT. These values are good enough for many precision acquisition systems, especially where board area, cost, and design simplicity matter as much as absolute metrology-grade performance.

Even so, the reference path deserves the same seriousness as the signal path. In a SAR ADC, the reference is not a passive scale factor. It is an active energy source for the conversion process. Any noise, impedance, or droop on the reference node directly modulates conversion accuracy. The internal buffer simplifies this significantly, but the local decoupling network and return routing still matter. REFM should be treated as a quiet analog reference return, and the capacitors on REFIN and REFOUT should be placed with very short, low-inductance connections. If those capacitors are physically remote, the reference loop becomes susceptible to switching current contamination, and the converter may lose repeatability in ways that are difficult to diagnose from static tests alone.

There is also a subtle system-level benefit to using the internal reference and COMMOUT together. Because the input common-mode target and full-scale span derive from the same reference framework, gain-related and bias-related behavior stay more correlated across operating conditions. That does not eliminate all error, but it reduces mismatches introduced by separate bias and reference generators. In tightly integrated precision systems, fewer independent analog anchors often lead to more stable real-world performance than a theoretically superior but loosely coupled architecture.

Driver selection should therefore start from the ADC’s acquisition and common-mode demands, not just from resolution or sample rate headlines. A suitable driver must maintain low output impedance across the relevant bandwidth, settle rapidly after charge kickback, remain stable with the chosen RC interface, and hold its output common-mode accurately near COMMOUT. For single-ended sources, the conversion to differential should be done in a way that preserves symmetry and does not force either ADC input too close to the common-mode limits. For already differential sources, the design task shifts toward level alignment, anti-alias filtering, and transient control at the ADC pins.

In board implementation, the cleanest results usually come from treating the ADC, its driver, and its reference network as a compact analog cell. Keep the differential input pair tightly coupled and balanced. Match series elements on both input legs. Route REFIN, REFOUT, REFM, and COMMOUT away from digital edges. Avoid sharing reference return paths with high di/dt digital currents. Place the input RC network close to the converter pins, not near the amplifier. This arrangement reduces parasitic asymmetry and limits the loop area seen by sampling transients. In high-resolution designs, these layout choices often determine whether the measured performance approaches the data sheet or remains several dB short.

The integrated reference arrangement clearly reduces BOM and shortens design time, but it should be viewed as an architectural advantage rather than merely a convenience feature. It gives the converter a coherent analog operating framework: full-scale range from the reference, input common-mode from half the reference, and local buffering to support conversion energy. When this framework is respected in the driver design and layout, the ADS8422IBPFBR is easier to stabilize and calibrate. When it is treated as a generic ADC with differential pins, avoidable errors tend to appear in gain, distortion, and settling. The central design idea is simple: reference integrity, common-mode control, and dynamic drive capability are not separate topics on this device. They form a single analog system, and the best results come from designing them together.

ADS8422IBPFBR Accuracy, Dynamic Performance, and Signal Fidelity

ADS8422IBPFBR is positioned in the class of converters that must satisfy two requirements at the same time: hold 16-bit DC precision and maintain credible AC behavior at high throughput. That combination is harder than it looks. Many ADCs can post strong static linearity or respectable dynamic numbers in isolation, but far fewer preserve both when the front end is driven near full scale and the sampling engine is running at speed. The published performance of the ADS8422IBPFBR suggests that its design intent is not merely nominal 16-bit resolution, but usable 16-bit behavior across real measurement chains.

At the static level, the device provides 16-bit resolution with no missing codes guaranteed for the ADS8422IB grade. That point matters more than the resolution headline itself. A 16-bit output format is easy to implement; monotonic and code-complete 16-bit transfer behavior is what determines whether very small analog changes can be trusted without hidden discontinuities. In precision control loops, bridge sensors, and transducer interfaces, no-missing-code behavior reduces the risk of dead bands and improves the effectiveness of digital calibration, especially when the system spends most of its time resolving small deltas rather than sweeping the full input range.

The linearity numbers reinforce that interpretation. Typical integral nonlinearity of ±2 LSB and differential nonlinearity of -1 to +1.5 LSB place the converter in a range where transfer-curve distortion remains controlled across the full scale. INL defines how far the actual transfer departs from the ideal line after offset and gain are removed. In practice, this determines whether one global calibration can clean up the ADC response or whether residual curvature will remain visible in the measurement result. DNL is equally important because it governs code-width uniformity. When code widths vary too much, low-level signals begin to acquire quantization artifacts that are not random and cannot be averaged out cleanly. In systems doing slow sensor readout and occasional waveform capture on the same channel, this distinction becomes important: DNL errors tend to show up first as inconsistent least-significant-bit behavior, while INL appears as range-dependent gain mismatch.

Offset and gain terms are also well aligned with precision instrumentation use. Typical offset error of ±0.25 mV and offset drift of ±0.2 ppm/°C indicate a front end that does not move much with temperature once calibrated. Typical gain error of ±0.05% full scale and gain drift of 2 ppm/°C, referenced to 4.096 V, support the same conclusion. What matters at system level is not only the room-temperature number, but how often recalibration must be invoked as the ambient environment changes. A converter with moderate initial error but low drift is often easier to deploy than one with slightly better initial trim and worse thermal movement. In installations where the analog path includes multiplexers, remote sensors, or long settling intervals between calibration cycles, low thermal drift usually pays back more than a small improvement in initial accuracy.

The device becomes more interesting when the discussion moves from static error to dynamic fidelity. With an 8-Vpp input, total harmonic distortion is typically -114 dB at 10 kHz and -102 dB at 100 kHz. Those values indicate that the internal sampling network, reference path, and conversion core are not injecting substantial nonlinear energy into strong sinusoidal inputs. This is a useful indicator because THD tends to expose weaknesses that static linearity tests do not always reveal. A converter can look acceptable under staircase or slow-ramp conditions and still show harmonic growth once charge redistribution, switch nonlinearity, or input-driver limitations are exercised by fast full-scale signals.

The signal-to-noise ratio of 93 dB at 10 kHz and 92 dB at 100 kHz, with SNDR of 92.5 dB and 91.5 dB respectively, shows that the noise floor remains largely controlled across that frequency span. For a 16-bit converter, these numbers translate into effective resolution that stays meaningfully close to the nominal architecture even under dynamic test conditions. This is often where device selection gets more realistic. The usable question is rarely “Is it 16-bit?” It is “How much of those 16 bits remain valid after the input amplifier, clock source, layout parasitics, and signal frequency are included?” On paper, the ADS8422IBPFBR starts from a strong enough dynamic baseline that a carefully designed signal chain can still preserve high effective resolution instead of immediately collapsing into a 13- or 14-bit system.

Spurious-free dynamic range adds another layer. Typical SFDR of 116 dB at 10 kHz and 109 dB at 100 kHz is a strong indicator that unwanted tones remain well suppressed. This matters in spectral measurements, vibration analysis, and high-resolution capture of complex waveforms where the visibility of weak components next to strong tones is often more important than broad integrated noise metrics. A converter with acceptable SNR but weak SFDR can still create false peaks or bury low-level harmonics under internally generated spurs. Here the ADS8422IBPFBR appears better suited to mixed-use platforms, where the same hardware may need to serve both precision amplitude measurement and frequency-domain inspection.

Bandwidth and input-frequency guidance need to be read carefully. The small-signal bandwidth is specified at 30 MHz, while the recommended maximum input frequency for optimized sampling performance is 2 MHz. These two figures describe different things. The 30 MHz number reflects the analog front-end bandwidth envelope, meaning the input path can still pass rapidly changing content. It does not mean the converter will deliver best distortion and noise performance all the way to that point. The 2 MHz recommendation is the more relevant design limit for preserving high-quality sampled data. This distinction is often misunderstood during part selection. Front-end bandwidth indicates responsiveness; dynamic accuracy at frequency depends on acquisition settling, switch linearity, kickback behavior, driver impedance, reference stiffness, and clock quality. Once operation approaches the edge of the optimized region, performance usually degrades quickly rather than gradually, and this device is explicitly documented that way.

That behavior has practical consequences for the analog driver. ADCs in this class do not simply “measure voltage”; they periodically demand charge from the source through a switched input network. If the source impedance is too high, or the driver amplifier is stable only under light capacitive loading, the sampled value can settle incompletely between conversion edges. The first visible symptom is usually not catastrophic failure. Instead, it appears as frequency-dependent gain error, rising THD, or a spread in code transitions that looks like excess noise. In designs using the ADS8422IBPFBR near the upper end of its throughput and input-frequency envelope, the input driver should be chosen for fast settling to 16-bit accuracy, low distortion at the intended swing, and predictable behavior with the ADC’s dynamic input capacitance. In many cases, the converter itself is not the first bottleneck; the interface between source and sampler is.

The common-mode and supply rejection metrics help explain why the device is credible in electrically noisy systems. A DC CMRR of 81 dB and PSRR of 78 dB indicate solid resilience against disturbances that ride on ground shifts, driver common-mode motion, or supply ripple. These numbers are rarely the headline specification, but they often decide whether lab performance survives integration into an industrial board. Once high-resolution converters are placed near digital processors, switching regulators, isolated interfaces, or fast I/O banks, the dominant error source is often no longer quantization or thermal noise. It becomes interference converted into signal-domain error through finite rejection paths. Good CMRR and PSRR do not remove the need for disciplined grounding and decoupling, but they make the design less fragile.

The specified 40 µV RMS noise at code 0000h under a 512-mVpp, 500-kHz common-mode test condition is another useful system-level clue. It indicates that the converter is not easily destabilized by common-mode activity during demanding edge cases near one end of the code range. This kind of test condition is closer to what appears in real hardware than idealized static noise measurements. Code-edge behavior often exposes charge injection asymmetry, reference coupling, or digital feedthrough that remains hidden in midscale-only tests. A converter that stays controlled there tends to be easier to qualify across all operating modes.

Transient behavior is also strong. A 70-ns step response and 140-ns overvoltage recovery indicate a front end that can return to valid operation quickly after abrupt input changes or fault excursions. This matters in multiplexed systems, burst acquisition instruments, and protection-heavy sensor interfaces. In many field designs, the input does not arrive as a clean, stationary sine wave. Channels switch, relays kick, sensors saturate, and clamps conduct. Recovery time often determines whether the next sample is usable without inserting long dead intervals. The ADS8422IBPFBR appears well suited to systems where throughput and robustness must coexist, provided the surrounding analog path is designed to settle at the same level of precision.

A useful way to think about this converter is that its DC and AC specifications are mutually reinforcing rather than separate marketing layers. Low drift and good linearity make calibration effective. Strong SNR, THD, and SFDR ensure that calibration is not undermined once the signal becomes dynamic. Good rejection and recovery behavior protect those gains in non-ideal electrical environments. That combination is why the device fits not only traditional precision measurement, but also hybrid platforms that must digitize both slowly varying process variables and fast waveform content without changing converter architecture.

In practice, the strongest results with ADS8422IBPFBR usually come from treating the ADC, reference network, clock, and input driver as one coupled subsystem. When that is done, the published numbers are realistic targets. When it is not, the converter can appear far worse than its datasheet suggests, especially in harmonic performance and code stability. The part itself offers enough intrinsic accuracy and dynamic range that implementation discipline becomes the deciding factor. That is usually a good sign. It means the converter is not the limiting element by default; the system designer still has room to realize a genuinely high-fidelity acquisition path.

ADS8422IBPFBR Throughput, Timing, and Zero-Latency Data Handling

The ADS8422IBPFBR is built for deterministic high-speed sampling where timing closure matters as much as nominal resolution. Its 4 MHz throughput is achieved with a 250 ns conversion-start period, which places it in a useful range for tightly scheduled acquisition systems that need predictable sample delivery without pipeline ambiguity. The CONVST input is active low and defines the beginning of each conversion cycle. To guarantee correct operation, the low pulse width must be at least 20 ns, while the high interval must be at least 100 ns. These limits are simple, but in practice they define the timing envelope for the entire sampling loop, especially when CONVST is generated by FPGA fabric or a timer block shared with other control tasks.

Internally, the timing budget is split into a 70 ns acquisition phase and a 180 ns conversion phase. This partition is important because it explains both the throughput ceiling and the sensitivity of the device to front-end drive quality. During the acquisition interval, the internal sampling network must settle to the required accuracy before conversion begins. At 16-bit resolution, this is not a trivial requirement. Even when the published acquisition time is met, signal-chain errors can still appear if the source impedance is too high, if the amplifier recovery is slow, or if charge kickback from the sampling network is not properly absorbed. In well-behaved designs, the timing numbers are only half the story; the analog source must also be engineered to settle within that 70 ns window under full-scale step conditions, not just under small-signal laboratory conditions.

One of the most valuable traits of this converter is its zero-latency architecture. The output data made available after each conversion corresponds directly to the input sampled in the immediately preceding acquisition event. There is no pipeline delay to track and no need to reorder samples in firmware or compensate for hidden cycle offsets in FPGA logic. This simplifies system design in a way that is often underestimated. In automated test equipment, phase-aligned control loops, power analysis systems, and event-driven instrumentation, zero latency removes a class of synchronization errors that otherwise surfaces as off-by-one sample bugs, trigger ambiguity, or subtle timestamp drift between analog capture and digital decision logic. In systems where the sampled result feeds a near-immediate actuation path, this direct correspondence between sample and output shortens validation time and reduces debug complexity.

The BUSY signal provides the primary hardware indication of conversion status. It goes high while conversion is active, giving external logic a clean handshake signal for data-read sequencing. If CS and RD are already low, output data becomes valid 225 ns after CONVST goes low. This mode is useful when the design favors minimum read latency and can tolerate a continuously enabled data path. In more selectively controlled interfaces, the data access timing is governed by the read controls: the delay from RD low or CS low to valid data is 17 ns, and the delay from a BYTE toggle to valid data is 20 ns. Once RD or CS returns high, the output bus enters high impedance within 12 ns. These numbers are fast enough to support compact read windows, but they also imply that board-level timing margins should be evaluated with real interconnect loading, not only with ideal logic simulations.

The 5 ns typical delay from data valid to BUSY low deserves attention because it indicates that BUSY deassertion follows very closely after valid data appears. In a tightly timed interface, this allows BUSY to function as a practical end-of-conversion marker. However, relying on a typical number without margin is risky when timing spread, clock skew, FPGA input delay, and bus flight time are included. A robust implementation usually treats BUSY low as the event that authorizes data capture, then adds a small guard band in the receiving logic if timing slack is available. That approach costs little and prevents edge-case failures across process, voltage, and temperature.

The read interface is straightforward, but its simplicity can hide system-level tradeoffs. Holding CS and RD low minimizes control overhead and can produce the earliest possible data visibility. This works well in dedicated acquisition paths where the data bus is not shared. In mixed-bus systems, however, it is often better to gate bus access explicitly with CS and RD to avoid unnecessary switching and contention risk. The 12 ns return to high impedance after RD or CS goes high is short, yet on dense digital backplanes or FPGA-connected parallel buses, even brief overlap between multiple drivers can create current spikes and ground disturbance. Designs that look correct in schematic form can still show degraded noise performance or intermittent read errors if bus ownership is not sequenced carefully.

The quiet-time requirements around CONVST are especially significant in high-resolution layouts. The last interface-signal transition during acquisition should occur at least 30 ns before the falling edge of CONVST, and the first transition after CONVST falling should be delayed by at least 10 ns. These are described as performance-driven rather than strict functional limits, and that distinction matters. The converter will often continue to operate if they are violated, but the penalty appears as degraded SNR, elevated code-edge uncertainty, or repeatable pattern noise linked to digital activity. This is a classic case where digital correctness and analog correctness diverge. A logic analyzer may show perfect transactions while the FFT reveals spurious tones or the histogram shows excess transition noise.

In practical layouts, the quiet-time constraint is less about the ADC core in isolation and more about controlling coupled energy during the aperture and early conversion interval. Fast edges on RD, CS, BYTE, or nearby logic nets can inject disturbance through package lead inductance, shared return paths, or capacitive coupling into sensitive analog nodes. The effect becomes more visible when the input signal is small, the source impedance is moderate, or the board uses imperfect reference and ground partitioning. A useful implementation pattern is to schedule all nonessential bus activity away from CONVST, keep the digital interface quiescent through the sampling edge, and treat the reference network with the same caution as the analog input path. In repeated designs, this usually produces more benefit than attempting to fix noise after layout with firmware averaging.

The acquisition and conversion timing also influence how the device should be integrated into FPGA or MCU control logic. A clean approach is to model the ADC as a deterministic finite-state element: assert CONVST low for at least 20 ns, return it high, wait for BUSY assertion and deassertion, then issue RD and CS according to the selected bus protocol. Because the converter is zero latency, sample indexing remains intuitive. Sample n on the bus is sample n at the input event. This removes the bookkeeping overhead common in pipelined converters and makes timestamp association much more reliable, especially when samples are correlated with external triggers, encoder positions, or pulse events.

Another point that deserves emphasis is that 4 MHz throughput does not automatically mean 4 MHz usable full-accuracy system performance. The converter can complete the cycle in 250 ns, but the surrounding analog driver, reference buffer, digital isolation strategy, and bus timing discipline determine whether the delivered data preserves the converter’s specification under real workload conditions. Systems that meet timing on paper but ignore settling, reference impedance, or digital return current often show gain shift under dynamic inputs or a loss of low-level linearity. The most successful designs treat throughput as a system property rather than a standalone ADC parameter.

For high-speed instrumentation loops, the device is particularly effective because it combines deterministic timing with direct data association. In test sequencing, waveform capture, servo observation, and synchronous measurement nodes, that combination simplifies downstream logic and shortens the path from conversion event to actionable data. The parallel interface requires more pins than serial alternatives, but it repays that cost when fixed-latency extraction is more important than interface compactness. In many cases, the real advantage is not only speed but confidence: when a timing problem appears elsewhere in the chain, the ADC is less likely to be the source of ambiguity because its conversion and read behavior are explicit and stable.

A disciplined design around this part usually follows a simple principle: preserve analog settling before conversion, suppress digital activity around the aperture, and read data with conservative bus timing even when the datasheet allows aggressive sequencing. That balance extracts the value of the ADS8422IBPFBR more effectively than pushing every edge to its absolute minimum. The device supports fast capture, but its strongest characteristic is controlled predictability. In precision acquisition systems, that is often the more valuable specification.

ADS8422IBPFBR Digital Interface and Bus Configuration

ADS8422IBPFBR stands out largely because its digital interface is built for throughput, deterministic timing, and straightforward system integration. Unlike serial-output SAR converters that trade pin count for transfer latency and protocol overhead, this device exposes conversion results through a parallel bus that can be matched to either a 16-bit or 8-bit host data path. That choice is not just about wiring convenience. It directly affects read-cycle design, FPGA resource mapping, MCU bus timing, and the way acquisition pipelines are scheduled at the system level.

At the core of the interface is a 16-bit conversion result delivered in two’s complement format. This encoding is especially effective in signal chains that treat the ADC output as a signed quantity from the beginning, such as motor-current sensing, vibration analysis, power monitoring, and waveform capture around a midscale reference. In those cases, the digital output can move into DSP or FPGA processing stages without the extra offset correction often required by straight binary converters. The practical advantage is small but persistent: fewer arithmetic adjustments in the front end reduce logic clutter, simplify validation, and make overflow behavior easier to inspect during debug.

The two’s complement choice also reveals something important about intended usage. The device is naturally aligned with pseudo-bipolar measurement architectures where the analog frontend shifts a bipolar signal into the ADC input range. Under that condition, negative and positive excursions map cleanly into signed codes, which improves conceptual alignment between the electrical signal and the digital representation. That alignment matters in real systems. Trigger thresholds, FFT pipelines, digital filtering, and control-loop error calculations all become more direct when zero-crossing behavior is preserved numerically rather than reconstructed in firmware later.

Bus configuration is controlled primarily through the BYTE pin. When BYTE is low, the converter operates in full 16-bit mode, and DB15 through DB0 present the entire conversion word in parallel. This is the most efficient mode for high-sample-rate systems because one read transaction retrieves one complete sample. It minimizes interface overhead, reduces bus-control complexity, and supports tighter deterministic timing. In FPGA-based acquisition platforms, this mode is usually the cleanest option because the ADC output can be latched into a 16-bit register bank in a single event, then passed downstream with minimal packing logic.

When BYTE is high, the interface shifts into 8-bit mode. In this configuration, the device supports narrower host buses by allowing the conversion word to be read over two 8-bit transactions. The lower byte is multiplexed onto the upper data pins, enabling compatibility with processors, CPLDs, or legacy backplanes that cannot dedicate a full 16-bit data path. This is a useful design escape hatch, but it is not free. Two read cycles per sample increase interface activity, consume more timing margin, and place greater emphasis on control-signal sequencing. In practice, 8-bit mode is best viewed as a system-fit feature rather than the preferred path for maximum acquisition efficiency.

That distinction becomes more important as sample rate rises. In low-to-moderate throughput systems, two 8-bit accesses may be operationally harmless. In higher-rate designs, however, the extra bus transactions can become the dominant digital bottleneck, especially when the host is also handling memory writes, interrupt service, or multiple peripheral reads. A common integration mistake is to size the analog path for the converter’s performance while underestimating digital extraction time. The converter may complete its conversion on schedule, yet the system still loses margin because the host cannot empty the bus predictably enough. Parallel ADC integration is therefore less about nominal interface width and more about sustained end-to-end data movement.

The logic-level architecture of the ADS8422IBPFBR is another strong integration feature. The digital bus supply, +VBD, can operate from 2.7 V to 5.25 V, allowing the output interface to align with a range of logic families. This removes the need for unnecessary level shifters in many mixed-voltage systems and reduces both propagation delay and signal-integrity risk. That flexibility is especially valuable in transitional platforms where an ADC must interface with older 5 V logic on one revision and a 3.3 V FPGA or processor on the next. Supporting both domains through bus-supply selection rather than board-level translation gives the design more reuse potential and usually results in a cleaner timing closure.

Still, voltage compatibility alone does not guarantee a robust interface. With fast parallel buses, the real engineering work often shifts to edge placement, read-strobe quality, and isolation between digital return currents and the analog section. Even when the logic thresholds are satisfied, long traces, poor bus termination strategy, or loosely controlled read timing can produce intermittent code errors that look like analog noise. In board bring-up, these issues often appear only at speed or only under simultaneous switching conditions. The converter itself is not usually the limiting element; the layout and timing environment around the bus are.

The main control set includes RD, CS, CONVST, BUSY, BYTE, RESET/PD1, and PD2. Together, these signals define the operational rhythm of the converter. CONVST initiates a conversion. BUSY provides the converter’s status and acts as the primary timing reference for valid data availability. RD and CS manage access to the output bus. BYTE selects bus width behavior. RESET/PD1 and PD2 support reset and power-management functions. This signal grouping is compact enough for practical integration but rich enough to give the host precise control over conversion and readout phases.

The presence of BUSY is particularly useful in deterministic acquisition systems. Rather than relying on estimated conversion timing or software delay loops, the host can synchronize data capture to the converter’s actual state. That improves robustness across temperature, process variation, and firmware timing jitter. In FPGA implementations, BUSY is often treated as the clean boundary between acquisition and data-latch domains. In MCU systems, it can be polled or routed to an interrupt-capable input, though polling usually becomes less attractive as throughput rises. A more reliable pattern is to let BUSY define the read window explicitly, then align memory transfers around that hardware event.

RD and CS deserve similar attention because their behavior influences both timing determinism and bus sharing. In a dedicated interface, CS is often held active and RD is used as the primary read strobe. In shared-bus systems, CS becomes more significant because it isolates the ADC from other devices and prevents contention. That sounds routine, but on mixed-peripheral buses the ADC often ends up sharing timing space with memory devices or other parallel converters. In those cases, careful arbitration matters more than raw ADC speed. A converter with a fast parallel output can still degrade system performance if bus ownership is not planned cleanly.

The 8-bit read option is frequently attractive in migration scenarios, especially when retrofitting higher-resolution conversion into an existing processor architecture. The subtle risk is that designers may assume narrower buses automatically simplify the design. Electrically, they may. Architecturally, they often do not. Byte sequencing, sample assembly, and coherency control add software or logic complexity that a native 16-bit path avoids. If samples are captured continuously, the system must also guarantee that both byte reads correspond to the same conversion result and are not disrupted by the next conversion cycle. This is manageable, but it should be designed intentionally rather than left to incidental firmware timing.

Power-management signals RESET/PD1 and PD2 add another layer of flexibility. In instruments that operate intermittently, these controls can reduce idle dissipation and support staged wake-up behavior. The tradeoff is recovery timing. Any power-down strategy must be evaluated not only for average power savings but also for the effect on first-sample validity, reference settling, and acquisition restart latency. In practice, aggressive power cycling is most effective in burst-measurement systems with well-defined inactive windows. In continuous monitoring applications, the overhead of repeated restart can outweigh the energy benefit and complicate calibration stability.

From a system architecture perspective, the ADS8422IBPFBR is best matched to platforms that value predictable sample extraction more than minimum pin count. That includes FPGA-based data acquisition, real-time control systems, industrial instrumentation, and embedded waveform capture where conversion latency and read timing must remain transparent. Serial ADCs can reduce routing complexity, but they often hide conversion-read interactions behind clock-domain management, framing rules, or serialization delay. The parallel interface here does the opposite. It exposes the timing clearly, which tends to simplify verification and makes failure modes easier to localize.

A useful way to evaluate this converter is to treat its interface as part of the acquisition engine, not as a downstream accessory. The analog input network, conversion trigger, BUSY timing, and bus-read mechanism form one coupled pipeline. Designs that respect that pipeline usually integrate smoothly. Designs that separate “analog design” and “digital readout” too sharply often discover late-stage timing problems, especially when moving from bench tests to full-rate operation. The strongest implementations usually reserve the 16-bit mode for performance-critical paths, use BUSY as the authoritative synchronization marker, and keep bus routing short, clean, and electrically quiet.

In that sense, the digital interface is not merely a compatibility feature. It is a design statement. The ADS8422IBPFBR assumes the surrounding system is willing to allocate pins and control lines in exchange for direct data access, low protocol overhead, and timing visibility. For systems built around those priorities, the device fits naturally and scales well. For systems constrained mainly by interconnect count, it can still operate effectively through its 8-bit mode, but the architectural cost shifts from hardware width to transaction management. The better choice depends less on nominal bus size than on whether the system is optimized for throughput, determinism, or integration economy.

ADS8422IBPFBR Power Supplies, Power Consumption, and Power-Down Control

ADS8422IBPFBR separates its power architecture into three domains: analog supply, regulator supply, and digital bus supply. This is not a cosmetic partition. It is a deliberate isolation strategy that lets the converter preserve analog accuracy while remaining adaptable to mixed-voltage digital systems. +VA powers the core analog conversion path and must remain within 4.75 V to 5.25 V. +VAREG supports the internal regulator-related circuitry and accepts a wider range, from 2.85 V to 5.25 V. +VBD sets the logic interface level for the digital bus and can operate from 2.7 V to 5.25 V. In practical board design, this arrangement reduces level-shifting pressure and gives more freedom when the ADC sits between a 5 V analog front end and a lower-voltage controller or FPGA.

The three-supply model should be understood as a performance tool, not only a compatibility feature. The analog rail determines the headroom available to the sampling and conversion circuitry, so its quality directly influences linearity, noise floor, and repeatability. The regulator rail shapes the behavior of internal bias generation and reference-related support functions. The bus rail mostly affects digital I/O switching behavior, interface power, and the amount of digital noise that can couple back into the device and surrounding planes. In dense acquisition systems, this separation often makes the difference between a converter that meets its datasheet dynamic range on the bench and one that keeps that performance after firmware activity, bus bursts, and clock edges are added.

Under normal operation, with +VA at 5 V and both PD1 and PD2 high, the analog supply current is typically 24 mA and can rise to 27 mA. The +VAREG current is typically 12 mA to 14 mA, whether that rail is driven at 3 V or 5 V. This detail is useful because it shows that regulator-domain current is set more by internal operating state than by supply voltage selection. It also implies that lowering +VAREG does not proportionally reduce current draw, though it still affects power because power scales with voltage. Digital bus current is more variable because it depends on the selected bus voltage and capacitive loading. TI gives typical values of 0.55 mA at +VBD = 3 V with 10 pF load per pin and 1.8 mA at +VBD = 5 V with 20 pF load per pin. That relationship is expected. Bus power rises with both voltage swing and switching load, so wide buses, long traces, and heavily loaded logic inputs can make the digital supply a nontrivial part of the power budget.

At 4 MHz, the device’s total typical power is about 155 mW. That number is useful as a baseline, but it should not be treated as a constant independent of system context. Actual dissipation depends on rail settings, bus activity, output loading, sample rate profile, and the chosen power-down behavior between conversions. In many converter designs, the digital interface is underestimated because its average current appears small in static tables. Once layout parasitics, repeated read cycles, and unnecessary bus toggling are included, the digital rail can become a measurable heat and noise contributor. A disciplined interface timing strategy often improves both power and signal integrity at the same time.

The power-down scheme is one of the more valuable aspects of the ADS8422IBPFBR because it supports two distinct operating styles. With PD1 = 0 and PD2 = 1, the converter enters a reduced-power state that retains a fast return path to active conversion. In this mode, +VA current drops to about 2.5 mA to 3.4 mA, +VAREG current falls to roughly 5 µA, and total power is typically about 17 mW. Wake-up to full operation is typically 5 µs. This is effectively a standby state optimized for duty-cycled acquisition, where the converter sleeps between bursts but must be ready almost immediately when the next sample window opens.

That 5 µs recovery time is short enough to support many event-driven measurement systems, especially where the analog front end remains active and only the ADC is idled. This mode tends to work well in instruments that sample in frames, motor-control observers that wake on a control interval, and portable sensing nodes that collect data in short bursts. A common implementation mistake is to focus only on converter wake-up time and ignore the settling behavior of the upstream driver, anti-alias network, or multiplexed source. If the front end changes state while the ADC is asleep, the true acquisition latency is set by the slowest analog settling path, not by the PD timing alone. In practice, leaving the analog source path biased and stable often produces better net energy efficiency than aggressively shutting down every block.

With PD1 = 0 and PD2 = 0, the device enters a much deeper power-down state. Here, +VA current is approximately 5 µA, +VAREG current is approximately 5 µA, and total power drops to about 40 µW. This mode is designed for very long idle intervals where minimum quiescent dissipation is more important than immediate availability. The tradeoff is wake-up time. Full recovery typically requires 25 ms when using a 1 µF capacitor from REFOUT to AGND, because reference-related analog outputs must restart and settle before the converter can deliver valid high-accuracy results.

This restart behavior reveals an important system-level principle: deep sleep in precision converters is usually limited by analog bias and reference stabilization, not by digital control logic. The reference network stores charge, defines internal operating points, and influences gain accuracy from the first valid conversion onward. A larger REFOUT capacitor can improve local stability and noise behavior, but it also stores more energy that must be re-established after deep shutdown. The 25 ms figure therefore should be treated as a functionally meaningful settling interval, not just a housekeeping delay. If a design enters deep power-down for only a few milliseconds at a time, the energy saved may be offset by restart overhead, missed data windows, or the need to discard early conversions while the analog path re-stabilizes.

The reserved combination PD1 = 1 and PD2 = 0 should not be used. Reserved states in mixed-signal devices are best treated as undefined internal control vectors. They may appear benign in a quick evaluation setup, but across temperature, process variation, or future lot revisions they can produce inconsistent bias conditions or partial shutdown behavior. For robust firmware and hardware design, decode logic should prevent this state from being generated, especially during reset, GPIO tri-state intervals, or sequencing transients.

From a design optimization perspective, the ADS8422IBPFBR offers more than a simple on/off power choice. It provides two distinct operating envelopes. The lighter sleep mode is best when the sampling schedule is intermittent but deterministic and restart latency must stay in the microsecond range. The deeper mode is best when idle intervals are long, battery budget dominates, or thermal limits matter more than immediate conversion readiness. The correct choice depends on duty cycle, not on peak current alone. A useful rule is to evaluate energy per acquisition cycle rather than compare static power numbers in isolation. For short idle gaps, shallow sleep usually wins because it avoids the analog restart penalty. For long idle gaps, deep sleep becomes superior once the saved quiescent energy exceeds the wake-up cost and any throughput loss.

Supply planning around this ADC also benefits from a layered approach. Start with +VA as the accuracy-critical rail. Keep it low-noise, locally decoupled, and physically separated from digital return currents. Then treat +VAREG as a sensitive support rail whose routing and bypassing influence reference-domain stability. Finally, manage +VBD with attention to edge rates, capacitive loading, and bus topology. Even when digital power is small in absolute terms, reducing unnecessary transitions on the bus often lowers crosstalk into the analog section. In tightly packed layouts, slowing interface edges where timing allows, trimming trace length, and avoiding excessive fanout can produce cleaner converter behavior than adding filtering after problems appear.

A practical power strategy often emerges only after observing the converter in its real acquisition rhythm. Bench measurements frequently show that the apparent best low-power mode changes once firmware transaction patterns, reference settling, and sensor timing are included. In one common pattern, designers select deep sleep because the static power number is attractive, then later move to the lighter standby mode after realizing that repeated reference restarts consume time margin and complicate calibration timing. In another pattern, systems with long dormant intervals and rare measurements gain substantial battery life from deep shutdown, provided the application can tolerate the tens-of-milliseconds wake interval. The device supports both patterns well, but only when the mode choice is aligned with the actual temporal structure of the measurement task.

Viewed this way, the ADS8422IBPFBR power architecture is not merely a list of current specifications. It is a configurable operating model. The separate rails define how the converter interacts with mixed-voltage systems. The current figures indicate where energy is really spent. The two power-down states let the design shift along the latency-versus-dissipation curve without changing hardware. Used carefully, this structure allows the converter to behave either like a continuously ready acquisition engine or like a deeply duty-cycled precision sensor interface, depending on what the system needs most.

ADS8422IBPFBR Package, Pin Functions, and Hardware Integration Notes

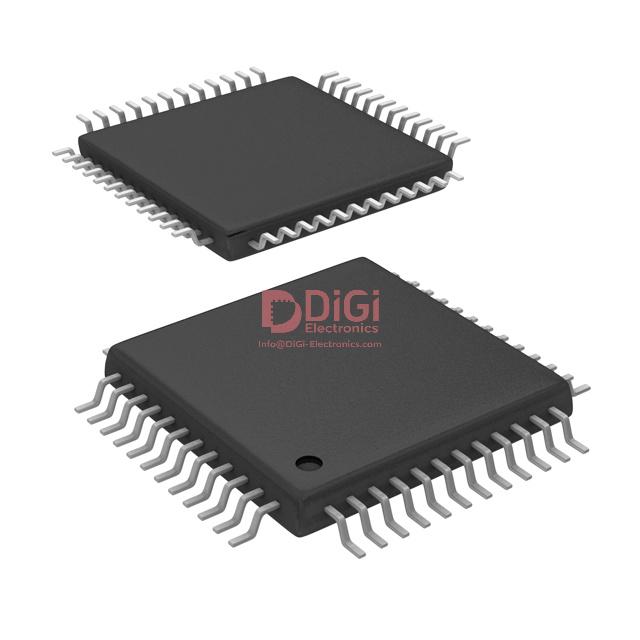

ADS8422IBPFBR is implemented in a 48-pin TQFP package, identified in the pinout information as the PFB top-view variant. In practical hardware terms, this places the device in the class of high-density surface-mount mixed-signal converters where package selection is not just a mechanical detail, but a signal-integrity constraint. The TQFP format gives enough pin count for clean partitioning of analog, reference, control, and digital bus functions, yet the leaded geometry still introduces trace parasitics, return-current discontinuities, and coupling paths that must be managed explicitly in layout. For this device, package understanding should begin with the assumption that pin function grouping is closely tied to internal converter behavior, so schematic capture and PCB floorplanning should be done together rather than sequentially.

The most critical signal path starts at +IN and -IN. These differential analog inputs feed the converter core and therefore define the front-end accuracy envelope. Any noise, source impedance mismatch, or transient injection at these pins directly degrades effective resolution. In board-level designs, the input pair should be treated as a balanced analog interface even when the driving source is not fully differential. That usually means keeping the two traces electrically similar, minimizing loop area, and avoiding digital routing across their return path. A common integration mistake is to focus only on nominal voltage range while ignoring dynamic settling behavior. In precision SAR-style acquisition paths, source resistance and external RC filtering interact with the converter input sampling network. If the source cannot settle within the acquisition interval, the result is not random noise but deterministic gain and linearity error that can be difficult to identify during bring-up.

The reference subsystem deserves equal attention because it defines the converter’s measurement scale. REFIN is the reference input, REFOUT is the reference output, and REFM is the reference ground node. These three pins should be viewed as a tightly coupled analog subsystem rather than as isolated support pins. When the internal reference is used, REFOUT must be bypassed to REFM with 1 µF. REFIN must also be bypassed to REFM with 0.1 µF. These capacitors stabilize the reference path, suppress broadband noise, and reduce modulation from internal switching events. If they are omitted, moved too far away, or referenced to the wrong ground node, the converter may still appear functional, but code flicker, drift, and degraded repeatability often emerge under load or across temperature. This is one of those areas where a board can pass initial bench checks and still fail in system-level operation.

COMMOUT provides REFIN/2 and is intended for analog common-mode biasing. This function is especially useful when interfacing to signal-conditioning stages that require a defined midpoint bias for bipolar or pseudo-differential drive. The important engineering point is that COMMOUT is not a generic auxiliary output. It is part of the converter’s analog bias ecosystem and should be loaded conservatively. If it is used to establish common-mode for an external amplifier stage, the load current and noise coupling back into the node should be reviewed carefully. In practice, lightly buffered use tends to produce more repeatable behavior than directly distributing the node across several blocks. A bias node that looks static in schematic form can become a carrier of conversion-induced disturbances if it is stretched across too much board area.

Grounding strategy is central to stable operation. AGND and BDGND are separated to support analog and digital return isolation. That separation should be respected in placement and routing, but not interpreted as permission to create floating ground islands. The goal is controlled current return, not symbolic partitioning. Analog decoupling, reference capacitors, and converter input return currents should close locally to AGND. Digital interface currents should return to BDGND. The two grounds should then be joined with a low-impedance connection at a deliberate location, typically near the converter or at the system’s mixed-signal reference point, depending on the board architecture. A recurring layout issue is connecting AGND and BDGND through long copper paths or planes with multiple stitching points, which creates unpredictable return-current distribution. The cleaner approach is usually one intentional connection and disciplined routing around it.

The supply pins reflect the same internal partitioning. +VA powers the analog section, +VAREG is associated with regulator-related circuitry, and +VBD powers the digital bus interface. These rails should not be treated as interchangeable even if they originate from the same upstream source. Each supply node supports a different internal activity profile, so local decoupling must be placed according to the pin’s function and current edge content. Analog supply decoupling should emphasize short return paths and low inductance to AGND. Digital bus supply decoupling should contain interface switching currents close to the device and reference them properly to BDGND. If all supply pins are simply tied together with remote bulk capacitance, internal coupling between bus transitions and analog conversion performance becomes more likely. The device may then show conversion artifacts correlated with read timing or bus traffic, which often gets misdiagnosed as firmware instability instead of power-distribution weakness.

CAP1 and CAP2 require strict adherence to the manufacturer guidance. These pins are internally regulated 3 V outputs and must only connect to decoupling capacitors. Texas Instruments specifies 1 µF from each pin to AGND. The wording here matters. These are not spare bias outputs and should not be used to power external logic, references, op amps, or pull-up networks. Their purpose is internal regulation support, and loading them externally can disturb converter operation in subtle ways. In mixed-signal debugging, unexplained drift, startup anomalies, or sporadic conversion faults are often traced back to “harmless” auxiliary loading of internal regulator pins. The safest interpretation is literal compliance: place the capacitors close, route directly, and leave the nodes otherwise isolated.

Reset and power-down behavior must be implemented with timing awareness. RESET/PD1 has a dual function based on pulse width. A low pulse shorter than 0.5 µs resets the ADC and aborts an ongoing conversion without entering power-down. A low pulse longer than 1.5 µs resets the ADC and also places it in power-down. PD2 independently powers down analog outputs, including REFOUT and COMMOUT, when held low longer than 1.5 µs. This means control logic must be designed to avoid ambiguous pulse widths, especially during startup, brownout, watchdog events, or FPGA I/O reconfiguration. Marginal edge timing on these pins can create states that are difficult to reproduce in the lab. A robust design usually adds deterministic reset generation and clearly bounded control pulses rather than relying on processor GPIO defaults during boot. The deeper lesson is that multifunction control pins are part of the analog system, not just digital convenience features.

Absolute maximum ratings define hard electrical boundaries, not recommended operating margins. The analog inputs must remain between -0.4 V and +VA + 0.1 V relative to AGND. Digital inputs and outputs must remain between -0.3 V and +VBD + 0.3 V relative to BDGND. These limits are particularly relevant in systems where external drivers can power up before the ADC rails are valid, or where the input chain can overshoot during hot-plug, multiplexing, or amplifier recovery. Input protection should therefore be evaluated not only for steady-state range but also for startup sequencing and transient behavior. It is often worth adding modest series resistance, clamp management, or controlled driver enable timing to prevent forward-biasing internal structures. Designs that ignore this usually fail not during nominal conversion, but during exceptional states such as power sequencing, cable insertion, or fault injection.

Thermal data is also more relevant than it first appears. The 48-pin TQFP has a specified thermal impedance of 86°C/W, and storage temperature extends from -65°C to +150°C. While the device is not normally treated as a high-power component, temperature rise still matters because precision conversion is sensitive to reference drift, offset shift, and package-induced stress variation. In tightly packed mixed-signal boards, nearby regulators, processors, or isolated power modules can create local gradients that move converter performance more than ambient temperature alone would suggest. Keeping the ADC away from obvious heat sources and maintaining copper symmetry around the package often improves repeatability without any change to the signal chain itself. That kind of improvement rarely shows up in schematic review, but it becomes obvious when comparing cold-start behavior, long-duration drift, and calibration stability across board revisions.

For hardware integration, the most effective design flow is to treat the ADS8422 as three interacting domains: the acquisition path at +IN/-IN, the reference and bias network around REFIN/REFOUT/REFM/COMMOUT, and the digital-control and bus domain around +VBD, RESET/PD1, and PD2. Most field issues come from interactions between these domains rather than from an outright violation within one of them. A clean reference can still be corrupted by digital return currents. A compliant analog input can still misconvert if source settling is poor. A stable layout can still behave erratically if reset timing crosses the short-pulse and long-pulse thresholds. The strongest implementations usually come from recognizing that precision ADC integration is less about connecting every required pin and more about preserving internal assumptions the silicon makes about noise, return paths, timing, and bias stability.

ADS8422IBPFBR Application Fit in Instrumentation, Medical, ATE, and High-Speed Data Acquisition

The ADS8422IBPFBR is not defined only by its 16-bit label or sample-rate class. Its real value appears when the converter is mapped into signal chains that need precision, deterministic timing, and a differential interface that aligns naturally with modern analog front ends. It sits in a useful region between slow precision converters and higher-speed architectures that often trade away simplicity, latency, or linearity. In practice, that makes it a strong fit for instrumentation, medical electronics, ATE platforms, and medium-bandwidth data acquisition paths where conversion fidelity must remain predictable under real board-level constraints.

A useful way to evaluate this device is to start from its conversion architecture. As a SAR ADC, the ADS8422IBPFBR provides zero-latency behavior. Each conversion result corresponds directly to the present sample, without the pipeline delay that must be tracked and compensated in many high-speed converters. That characteristic matters more than datasheets sometimes suggest. In closed measurement loops, stimulus-response systems, and tightly scheduled acquisition frames, latency is not just a numerical parameter. It directly affects controller state machines, FPGA timing, trigger alignment, and software indexing. Removing latency compensation reduces design overhead and narrows the space for subtle synchronization errors.

Its fully differential pseudo-bipolar input structure is equally important. Many precision front ends now generate differential outputs by default, especially when instrumentation amplifiers, differential drivers, or isolated analog stages are used. A converter that accepts that signal form directly avoids unnecessary translation to single-ended domains, which would otherwise add error sources, common-mode sensitivity, and extra settling burden. The ADS8422IBPFBR therefore fits naturally into systems where signal integrity is preserved by staying differential as long as possible. That is often the cleaner engineering choice, not only for noise rejection but also for layout symmetry and predictable distortion behavior.

In instrumentation systems, these characteristics translate into practical advantages for waveform capture, sensor interfacing, and precision measurement nodes. The 16-bit resolution, combined with low distortion and strong linearity, supports acquisition tasks where small changes must be resolved without sacrificing dynamic range. This is especially relevant in systems measuring bridge sensors, current shunts, piezo interfaces, position feedback, or conditioned analog outputs from precision transducers. When the preceding amplifier produces a centered differential signal, the ADS8422IBPFBR can receive it with minimal interface friction. That reduces the need for level shifting or asymmetrical filtering stages, both of which tend to complicate error analysis.

The differential input also improves robustness in electrically noisy environments. Instrumentation hardware often lives near motor drives, switching supplies, relay matrices, and long sensor cables. In these cases, differential signaling is not a refinement; it is often the difference between a converter that performs to specification and one that only does so on the bench. A balanced input path, matched RC network, and careful common-mode control allow the converter to extract real signal content while suppressing much of the interference that otherwise folds into the conversion result. Designs that ignore this usually do not fail dramatically. They fail quietly, through elevated noise floor, degraded repeatability, and unexplained code spread near sensitive operating points.

In medical instruments and transducer interfaces, the device becomes attractive for a different reason: it reduces analog housekeeping. The internal reference and COMMOUT bias support simplify common-mode management and lower the number of precision analog nodes that must be created externally. This is valuable in compact systems where board area, power, and calibration complexity are all constrained. Instead of building a separate precision common-mode bias network and validating its drift, the signal chain can be centered around the converter’s supported bias structure. That does not eliminate analog design effort, but it shifts that effort toward the more critical question: whether the sensor path and driver amplifier can settle accurately into the converter’s sample window.

That settling behavior deserves more attention than it often gets. A SAR ADC presents a dynamic load during acquisition, and the stated input capacitance is only part of the story. The driver must charge the input network quickly and repeatably, including any external RC filter capacitance added for kickback isolation or bandwidth control. On paper, many amplifiers appear fast enough. On the board, insufficient phase margin, output current limitation, or poorly chosen filter values can produce gain compression, missing codes at high input frequencies, or distortion that is mistakenly blamed on the ADC itself. A recurring pattern in precision acquisition designs is that the converter is rarely the first weak point. More often, the analog driver and its surrounding network determine whether 16-bit performance is actually achieved.

For medical and transducer-based systems, this has a direct implication. If the signal source is high impedance, multiplexed, or bandwidth-limited by sensor physics, the front end must be designed to buffer and settle the signal with margin, not merely to pass nominal amplitude. It is generally better to give up a small amount of front-end bandwidth in exchange for stable settling and repeatable dynamic behavior than to pursue an aggressive analog bandwidth target that the driver cannot sustain. In systems that value reliability over headline speed, this trade is almost always favorable.

In automated test equipment, the zero-latency SAR architecture becomes a strong system-level advantage. ATE timing is built around sequence determinism: force, wait, capture, evaluate, and branch. Pipelined ADCs can certainly be used, but they introduce bookkeeping. Every trigger, comparator result, and digital alignment event must account for conversion delay. With the ADS8422IBPFBR, the timing model is simpler. The sample just taken is the result that appears. This reduces firmware complexity, simplifies FPGA capture logic, and shortens debug cycles during timing closure. In multi-instrument test racks, where analog events, relay states, and digitizer windows must all line up exactly, the absence of pipeline latency removes one entire class of integration problem.

ATE environments also expose another practical strength: linearity that remains useful under repetitive, pattern-based acquisition. Many test systems are less concerned with continuous broadband digitization than with highly repeatable capture of known signal windows. In that context, INL, DNL, and distortion behavior often matter more than raw throughput. A converter like this can support accurate characterization of DAC outputs, analog stimulus loops, power rail transients, and servo responses without forcing the test architecture into complicated correction schemes. When the measurement chain must be reconfigured across many product variants, simple timing and stable transfer behavior save more engineering time than headline sample-rate gains.

For general high-speed data acquisition, the ADS8422IBPFBR is best described as a medium-bandwidth precision converter rather than a wideband digitizer. That distinction matters. Its dynamic performance metrics, including SNR, THD, and SFDR, indicate that it can preserve signal quality well into the hundreds-of-kilohertz input range, which is sufficient for many industrial, scientific, and embedded capture tasks. It is not intended to replace GSPS-class converters in RF sampling roles. Its strength lies in delivering cleaner precision over moderate bandwidths, where the signal chain must remain understandable and calibratable.

This positioning is often exactly what a design needs. A large number of acquisition systems do not fail because bandwidth is too low. They fail because the architecture is overly ambitious and becomes difficult to stabilize, route, or calibrate. The ADS8422IBPFBR allows a more controlled design center: enough speed to capture dynamic analog behavior, enough resolution to preserve fine signal detail, and enough architectural simplicity to keep the full path observable. That balance is frequently more valuable than chasing a faster converter whose surrounding support circuitry becomes the dominant source of uncertainty.

Board-level execution is critical to realizing that value. The analog driver must be chosen for fast settling into a switched-capacitor load, not just for gain bandwidth or low noise in isolation. The differential traces should be length-matched and routed symmetrically. The reference path must be treated as a sensitive analog subsystem, even when an internal reference is used, because local decoupling, return current behavior, and digital feedthrough still shape conversion stability. Ground strategy should prevent digital edge currents from sharing impedance with the converter’s analog return. In dense mixed-signal layouts, modest mistakes in partitioning can erase several effective bits long before any obvious functional error appears.

A practical pattern seen repeatedly is that designers tend to spend effort on nominal ADC selection and then under-budget time for input network tuning. Yet for converters in this class, the RC interface between driver and ADC often determines final ENOB more than the silicon choice itself. Small changes in series resistance, differential capacitor value, or amplifier output isolation can shift the system from underdamped and distortion-prone to stable and spectrally clean. This is one of the most leveraged tuning points in the entire signal chain. It is also why bench validation should include not only static histogram tests but also frequency sweeps, large-signal settling checks, and common-mode sensitivity evaluation.

Another important consideration is reference behavior under dynamic loading and temperature variation. Even with internal reference support, the effective conversion quality depends on how quietly and consistently that reference environment is maintained. Systems that expect laboratory-grade repeatability should validate drift, warm-up behavior, and code transition stability across real operating conditions rather than relying only on room-temperature static data. Precision acquisition is often limited by second-order interactions such as thermal gradients, amplifier bias shifts, and digital burst coupling. The converter can only preserve what the surrounding implementation delivers.

Viewed as a whole, the ADS8422IBPFBR fits applications that need deterministic precision more than extreme bandwidth. In instrumentation, it supports accurate differential signal capture with good linearity and manageable system integration. In medical and transducer interfaces, it reduces analog biasing complexity while still demanding disciplined settling design. In ATE, it simplifies timing architecture through zero-latency conversion and predictable measurement sequencing. In medium-bandwidth data acquisition, it offers a practical balance of resolution, distortion performance, and implementation control. The strongest designs around this converter are usually the ones that treat it not as an isolated component, but as the center of a tightly coupled analog-digital acquisition system where input drive, biasing, reference integrity, and layout discipline are all designed to the same precision target.

Potential Equivalent/Replacement Models for ADS8422IBPFBR

ADS8422IBPFBR sits in a Texas Instruments high-speed SAR ADC family where several adjacent devices can serve as migration candidates, but the replacement decision is rarely a simple part-number swap. In this class of converter, similarity at the family level does not automatically translate into electrical or timing equivalence at the board level. The practical task is to identify which neighboring devices preserve the same signal-chain assumptions, interface contract, and error budget.

Within the closest 16-bit range, the most relevant alternatives are ADS8402, ADS8412, and ADS8472. These devices are grouped near ADS8422 in the same family context and are the first options worth screening when the goal is to stay near the original architecture. TI also indicates that ADS8422IBPFBR has a pinout similar to ADS8412 and ADS8402. That matters more than it may appear at first glance. In converter redesign work, pin similarity reduces PCB impact, but the larger advantage is often that the surrounding analog network, reference routing, and digital capture logic may also require fewer changes. Even then, “similar pinout” should be treated as a layout convenience, not a guarantee of interchangeable operation.

A broader set of 16-bit family members also appears in the same ecosystem, including ADS8401, ADS8411, ADS8405, ADS8410, ADS8406, and ADS8413. These parts expand the option space, but they also increase the risk of mismatch. Devices in the same nominal resolution class can still differ materially in input structure, acquisition behavior, conversion timing, coding, and reference drive requirements. In high-speed SAR designs, those differences are not secondary details. They define whether the existing front end will settle correctly, whether the reference node will remain stable during dynamic loading, and whether the digital host can capture data without firmware or timing changes.

If the design can tolerate a resolution shift, TI’s neighboring families open additional directions. For higher resolution, 18-bit devices such as ADS8380, ADS8382, ADS8381, ADS8481, and ADS8482 may be considered. For lower resolution, 14-bit and 12-bit options including ADS7890, ADS7891, ADS7886, ADS7883, and ADS7881 are listed as related family members. These are not replacements in the strict sense. They are architectural branch points. Moving upward in resolution usually tightens demands on driver noise, reference cleanliness, layout discipline, and clock quality. Moving downward may ease some analog constraints, but it can also alter latency, interface format, throughput tradeoffs, or system-level calibration assumptions. A lower-resolution part that looks acceptable on paper can still degrade control-loop behavior or measurement repeatability if the original design was using the 16-bit converter close to its effective dynamic limit.

The strongest replacement candidates are the devices that preserve the pseudo-bipolar fully differential operating model. That characteristic should be treated as a primary filter, not a minor feature. Input topology defines how the external signal source interacts with the ADC’s internal sampling network. A fully differential pseudo-bipolar ADC often assumes a specific common-mode operating region and balanced source impedance. If the candidate part changes that expectation, the front-end amplifier, RC filter, and protection network may no longer behave as intended. In many real boards, replacement risk comes less from the converter core itself and more from a subtle mismatch between the ADC input behavior and the existing analog driver stage. A part can be pin-compatible and still produce worse linearity or settling because the original source network was tuned around a different sampling capacitance or acquisition window.

Throughput and timing compatibility form the next decision layer. SAR ADC substitutions fail most often when digital timing is checked only at a nominal level. Matching sample rate is not enough. The engineer needs to compare conversion start timing, BUSY behavior, data-valid timing, bus hold characteristics, read-cycle requirements, and whether the parallel interface sequencing aligns with the existing FPGA, DSP, or microcontroller logic. Timing margin that looked comfortable with the original ADS8422IBPFBR can collapse after substitution if the host was already operating near edge limits. This becomes especially relevant in mature designs where the digital interface may have been validated in production but not written with broad timing portability in mind.

Reference implementation is another decisive axis. In precision SAR converters, the reference path is effectively part of the conversion engine. Any candidate replacement must be checked for reference input voltage range, dynamic current demand, bypassing strategy, startup behavior, and sensitivity to reference source impedance. In field designs, this is one of the least appreciated sources of migration error. A converter may pass functional tests but show degraded INL, missing-code behavior, or temperature-dependent drift because the existing reference buffer was stable only for the original device’s transient loading profile. A robust replacement assessment therefore treats the reference pin as an active high-speed node, not a static DC input.

Power rails and logic compatibility should be evaluated with the same discipline. Devices from the same family often appear close enough to invite assumptions, yet supply partitioning, digital I/O thresholds, and analog-to-digital isolation expectations can vary in ways that affect both reliability and noise. If the replacement shifts digital output loading or edge behavior, it can also alter board-level EMI and feedthrough into the analog section. This becomes visible in systems with dense parallel buses, long trace runs, or reference routing that shares return paths with digital switching currents.

Package and pinout similarity remain important, but they belong later in the decision process than many selection tables suggest. Mechanical compatibility helps only after the analog and timing model has been validated. In practice, replacement work proceeds more reliably when the evaluation sequence follows signal path first, interface second, package third. That order mirrors how failures emerge on real hardware. The board can often absorb a package adaptation; it is much less forgiving of an incorrect common-mode assumption or an unrecognized read-cycle timing difference.

Guaranteed linearity grade and no-missing-codes performance should also be treated as system requirements rather than datasheet ornaments. For measurement chains tied to calibration, control thresholds, or closed-loop regulation, linearity consistency can matter more than nominal resolution. Two 16-bit converters may both satisfy basic resolution targets while producing different monotonicity margins or endpoint behavior under the actual source impedance, temperature range, and sampling pattern of the application. In applications with multiplexed inputs or burst acquisition, these differences become even more pronounced because settling and charge kickback stress the converter differently than in steady single-channel bench tests.

A practical screening framework for ADS8422IBPFBR replacement candidates should therefore include at least eight checks: input architecture and common-mode constraints, resolution and no-missing-codes grade, throughput and conversion/read timing, parallel bus and control-signal behavior, reference topology, power-supply requirements, package/pin similarity, and linearity guarantees. That list is best handled as a dependency chain rather than a flat checklist. Input architecture and timing determine whether the existing design can function. Reference and supply behavior determine whether it can function accurately. Package and pinout determine how much redesign effort is needed. Linearity grade determines whether the substituted design still meets its original purpose.

From that perspective, ADS8402 and ADS8412 usually stand out first because the family relationship and pinout similarity suggest lower migration friction than more distant members. ADS8472 may also be relevant depending on the required operating envelope. The broader 16-bit set—ADS8401, ADS8411, ADS8405, ADS8410, ADS8406, and ADS8413—should be viewed as conditional alternatives rather than immediate replacements. The 18-bit and lower-resolution branches are better interpreted as redesign options for adjacent product variants, not direct continuity parts.

The most effective replacement strategy is to classify candidates into three tiers. First are near-equivalent parts that preserve the same differential pseudo-bipolar concept and interface behavior with minimal board impact. Second are family-adjacent parts that require analog or digital revalidation but may still fit the same platform. Third are architecture-adjacent parts that can support a new revision of the product but should not be qualified under a drop-in assumption. This tiered view avoids a common mistake: treating all related family members as equally usable because they share vendor branding and approximate resolution.

Texas Instruments provides a useful migration path around ADS8422IBPFBR because the family contains several nearby devices, but exact equivalence must always be established at the individual datasheet and system-validation level. For this part, the replacement decision should start with pseudo-bipolar fully differential 16-bit candidates that retain similar package style, parallel interface behavior, and throughput. Every other option should be approached as a controlled redesign, even when the part number appears only one step away in the same product family.

Conclusion

The ADS8422IBPFBR from Texas Instruments is a 16-bit successive approximation ADC built for signal chains that need both precision and speed without the behavioral complexity often introduced by pipelined architectures. At 4 MSPS, it occupies a useful middle ground: fast enough for dynamic measurement, control-loop observation, multiplexed acquisition, and waveform capture, while still preserving the deterministic timing, zero-latency behavior, and code-to-code predictability that make SAR converters attractive in tightly engineered systems. This balance is the real reason the device remains relevant in instrumentation, medical electronics, automated test equipment, transducer interfaces, and other precision acquisition platforms.

At the architecture level, the value of this device is not just its nominal resolution or sample rate, but the way those specifications interact. A 16-bit SAR ADC with zero-latency conversion delivers immediate correspondence between an analog sample and its digital output word. That matters in systems where trigger alignment, closed-loop response, or sample correlation cannot tolerate the ambiguity of pipeline delay. In practice, this simplifies FPGA timing design, reduces firmware compensation effort, and makes event-driven acquisition more robust. In mixed-signal platforms, deterministic conversion timing often contributes more to overall system quality than a marginal improvement in headline speed.

The fully differential pseudo-bipolar input structure is another important design choice. It improves immunity to common-mode noise and allows the converter to integrate more naturally with differential drivers, precision amplifiers, and transformer-coupled front ends. In dense boards with switching regulators, digital buses, and fast clocks nearby, this differential behavior is not just a specification advantage; it is often the difference between meeting ENOB targets in the lab and missing them in the final enclosure. Differential signaling also gives more flexibility in handling industrial sensors, bridge-based transducers, and conditioned analog outputs that are centered around a controlled common-mode level rather than ground.

The internal 4.096 V reference deserves more attention than it typically receives in short-form component descriptions. A reference at this level gives a convenient transfer relationship for precision measurement systems and reduces the external component burden for designs that prioritize compactness, cost control, or faster validation cycles. More importantly, an integrated reference can improve implementation consistency across production builds, since the converter and reference characteristics are already tuned to coexist within the same device environment. That said, reference integration should not be interpreted as a universal substitute for external precision references. In higher-end systems, the real question is whether the internal reference is merely adequate or whether the complete error budget, including temperature drift, settling, and noise coupling, still benefits from an external source. The strongest designs treat the reference path as a first-class subsystem rather than an accessory.

Its parallel interface also reflects a system-oriented design philosophy. For applications that require sustained throughput with minimal protocol overhead, parallel output remains attractive despite the industry trend toward serial interfaces. It reduces readout latency, supports straightforward capture in programmable logic, and helps preserve timing determinism when multiple converters are synchronized. This is especially useful in ATE, high-speed data logging, ultrasound front ends, and industrial platforms where acquisition timing must remain transparent and easy to validate. Serial interfaces reduce pin count, but parallel interfaces often reduce uncertainty. In performance-driven systems, that trade is still valid.

From a dynamic-performance perspective, the ADS8422IBPFBR is well positioned for applications that need credible AC behavior without moving to a more complex converter family. In many real systems, the challenge is not simply measuring a static voltage accurately. The harder task is preserving spectral integrity while handling input frequencies that expose sampling clock quality, driver distortion, reference stability, and layout parasitics. A converter like this only reaches its advertised performance when the surrounding analog path is equally disciplined. Clock jitter, for example, becomes increasingly visible as input frequency rises. The converter may have strong intrinsic linearity, but poor clock phase noise will still erode SNR. Likewise, a differential input stage can support excellent distortion performance, yet a marginal driver amplifier or asymmetric routing can degrade SFDR before the ADC itself becomes the limiting factor.

This leads to an important selection insight: the ADS8422IBPFBR should be evaluated as part of a signal-chain class, not as an isolated ADC. It fits best where the rest of the design is capable of supporting 16-bit behavior at multi-megasample rates. That includes low-noise differential drivers, a clean reference strategy, carefully partitioned analog and digital return paths, and board layout that respects charge-redistribution switching currents. In this category of converter, layout quality often decides whether the design performs like a precision instrument or merely a nominal 16-bit digitizer. Short reference decoupling loops, symmetric differential routing, controlled input source impedance, and disciplined grounding are not optimization details; they are enabling conditions.

In instrumentation systems, the device is attractive because it supports accurate DC measurement while retaining enough throughput for transient capture and channel sequencing. Precision source-measure units, power analyzers, laboratory instruments, and industrial calibration systems often need this combination. They may spend most of their time measuring slow or moderate-bandwidth signals, yet still require fast response during settling observation, fault capture, or stimulus-response characterization. A zero-latency SAR ADC handles that transition naturally. There is no need to mentally remap delayed output data to earlier analog events, which simplifies both test software and hardware triggering.

In medical systems, especially in diagnostic and sensing subsystems, the combination of resolution, deterministic timing, and differential input support is equally valuable. Signal chains connected to sensors, electrodes, or precision analog conditioning stages typically operate in electrically sensitive environments with strict expectations around repeatability and noise control. Here, the ADC’s deterministic behavior helps maintain confidence in timing-sensitive reconstruction and event marking, while the differential front end improves tolerance to environmental interference and internal board noise. Designs in this space also benefit from the integrated reference because it can shorten the analog bill of materials and ease validation in compact designs where component density is already high.

Automated test equipment is another strong fit. ATE platforms reward converters that are easy to synchronize, easy to calibrate, and easy to trust across many channels. The ADS8422IBPFBR aligns well with these requirements because SAR timing is inherently transparent, and parallel readout supports predictable multi-channel acquisition architectures. In tester environments, where measurement throughput is important but so is the ability to correlate digital codes with precisely scheduled analog events, zero-latency conversion can be more valuable than raw sample-rate escalation. This is one of the cases where architectural simplicity directly improves test efficiency.

For transducer and sensor interfaces, the pseudo-bipolar differential input expands the range of front-end topologies that can be used effectively. Bridge sensors, conditioned piezoelectric outputs, shunt measurements, and isolated analog modules often generate signals that are not naturally ground-referenced in the simplest way. A converter that accepts differential inputs with controlled common-mode behavior reduces the burden on the signal-conditioning stage. It also gives more freedom to optimize for noise, gain, and protection rather than forcing the analog design into an unnecessarily constrained single-ended format.

From a sourcing and platform-planning perspective, the device gains additional value from its place within the broader Texas Instruments SAR ADC portfolio. That matters less at prototype stage and much more once a design team begins thinking in terms of lifecycle continuity, second-spin risk reduction, and scalable architecture reuse. Staying within a coherent converter family can simplify qualification, firmware reuse, front-end adaptation, and documentation maintenance. Migration paths within a vendor ecosystem are rarely perfect pin-for-pin solutions, but they often reduce redesign effort enough to matter in long-lived industrial and medical programs. In that sense, component selection is not just about present performance; it is also about preserving future design degrees of freedom.

A practical pattern seen in successful implementations is that this class of ADC performs best when the analog front end is designed with settling behavior as a primary constraint rather than an afterthought. SAR inputs draw dynamic charge during acquisition, and if the driver network, filter, or source impedance is not sized correctly, the converter may show gain error, distortion, or code instability that appears intermittent and difficult to diagnose. The issue often emerges first at higher sample rates or during large signal steps. Designs that account early for driver output current, RC filter interaction, and acquisition window requirements tend to reach specification faster and with fewer board revisions. The same is true for reference bypassing: insufficient local decoupling can subtly damage repeatability long before it creates obvious functional failure.

Another practical point is that engineers sometimes overfocus on the ADC data sheet and underfocus on the clock source. In a 4-MSPS, 16-bit system intended to preserve meaningful AC performance, clock quality is not a background detail. Low-jitter clock generation, clean routing, and isolation from digital noise can materially affect spectral results. When a prototype underperforms in SNR or exhibits unexplained spurs, the root cause is frequently upstream of the converter core. Treating the clock as an analog signal path usually produces faster resolution than repeatedly changing digital capture logic or post-processing assumptions.

The ADS8422IBPFBR is therefore best understood as a converter for disciplined mixed-signal design rather than a generic drop-in data-acquisition part. Its strengths are deterministic timing, respectable dynamic performance, integrated reference support, and natural compatibility with differential signal chains. Those attributes make it especially well suited to systems where high-resolution conversion must be delivered quickly, repeatedly, and with behavior that remains easy to model at the board and system levels. When paired with a properly settled driver, a clean reference environment, and controlled clocking, it can support designs that need both measurement-grade DC accuracy and convincing AC fidelity without sacrificing implementation clarity.
