Texas Instruments ADS8353IRTER Product Overview

Texas Instruments ADS8353IRTER is a dual-channel, simultaneous-sampling SAR ADC built for acquisition paths that cannot tolerate timing skew between channels. It delivers 16-bit resolution at up to 600 kSPS per channel, placing it in the performance range required by closed-loop industrial control, protection monitoring, and phase-sensitive measurement systems. In the ADSxx53 family, it is the highest-resolution variant, alongside the 14-bit ADS7853 and 12-bit ADS7253, which makes it the natural choice when error budget is dominated not only by speed, but by low-level signal fidelity, phase consistency, and control-loop observability.

The defining characteristic of this device is not simply that it has two ADCs in one package, but that both channels sample at the same instant. That distinction matters in systems where channel-to-channel phase information carries real meaning. In motor control, for example, simultaneous current sampling preserves the vector relationship between windings. In power monitoring, it prevents phase distortion between voltage and current measurements that would otherwise corrupt power-factor and harmonic calculations. In resolver, encoder, and position-feedback front ends, it keeps the measurement chain aligned with the physical system rather than with the acquisition timing limitations of the converter. In practice, this usually reduces the amount of compensation required in firmware and improves the stability of downstream estimation algorithms.

Architecturally, the ADS8353IRTER uses a successive-approximation conversion engine, which is often the preferred balance point between throughput, latency, power, and deterministic behavior. Unlike delta-sigma converters, which offer excellent noise shaping but introduce digital filter delay, a SAR converter produces results with very low and highly predictable latency. That property is valuable in fast control loops, fault response paths, and edge measurement systems where the delay from analog event to digital code directly affects system margin. In many embedded designs, deterministic conversion timing is more useful than raw resolution alone, and this is where simultaneous-sampling SAR devices consistently outperform alternatives.

The input structure supports both single-ended and pseudo-differential signaling, which expands the range of sensor interfaces that can be connected without excessive analog conditioning. Single-ended mode is convenient for straightforward voltage-output sensors and buffered signal nodes. Pseudo-differential mode is more useful when signal integrity is affected by local ground offsets, switching noise, or current-sense placement. This is especially relevant in inverter systems, shunt-based current measurement, and distributed industrial sensing, where the analog return path is rarely as quiet as the schematic suggests. A practical advantage of pseudo-differential inputs is that they often allow cleaner measurement in electrically noisy environments without requiring a fully differential signal chain, which helps contain cost and board complexity.

The reference architecture is another important system-level feature. Each channel can be configured with programmable reference behavior, giving the designer more freedom to align dynamic range with the signal source. This matters because ADC performance is never defined by nominal resolution alone; it is defined by how effectively the input span uses the reference span under real operating conditions. A poorly matched reference wastes codes, increases apparent quantization loss, and can make front-end noise look worse than it really is. By allowing more tailored reference usage, the ADS8353IRTER helps optimize each channel around its actual measurement function rather than forcing both channels into the same compromise. In mixed-signal systems, this often simplifies partitioning between sensing, amplification, and control domains.

The serial interface is designed to operate across a wide logic-supply range, which improves interoperability with modern processors, DSPs, FPGAs, and mixed-voltage controller platforms. This is a practical feature that is often underestimated during part selection. In many systems, the ADC itself is easy to fit electrically, but the digital interface creates level-shifting overhead, timing uncertainty, or layout penalties. A wide-range digital interface reduces that friction and makes the converter easier to deploy in legacy 5 V control hardware as well as lower-voltage programmable platforms. In dense embedded designs, avoiding unnecessary translation stages can improve both signal integrity and bring-up time.

From an application standpoint, the ADS8353IRTER fits especially well in systems where synchronized dual-channel data forms the basis of a control or protection decision. In motor drives, it can sample phase currents or current-and-voltage pairs at the same instant, improving field-oriented control accuracy and reducing estimation error during fast transients. In protection relays, simultaneous acquisition supports more reliable threshold detection and waveform comparison under fault conditions, where even small timing offsets can distort derived calculations. In power-quality instruments, synchronized channels preserve waveform relationships needed for RMS, real power, reactive power, and harmonic analysis. In optical control loops and analog servo paths, the combination of speed and deterministic latency helps maintain loop responsiveness without introducing excessive digital delay.

A useful design observation is that converters like this one often deliver their best value not when pushed to headline sample rate, but when integrated into a balanced signal chain. Front-end driver settling, reference stability, input filtering, and digital readout timing usually determine whether the system achieves true 16-bit-class behavior. For SAR ADCs, charge kickback from the sampling network and insufficient amplifier bandwidth are common causes of performance shortfall. A front-end that looks adequate in DC simulation can still underperform badly at 600 kSPS if it does not settle within the acquisition window. Small RC filters are often necessary, but they must be sized carefully; too little filtering allows switching residue into the converter, while too much filtering slows settling and introduces gain error near full throughput. The best results typically come from treating the ADC input, driver, and reference as one coupled subsystem rather than as isolated blocks.

Layout discipline also has a direct effect on achievable accuracy. In dual simultaneous-sampling designs, channel matching is influenced not only by converter specifications but by symmetry in the analog path, reference routing, return currents, and digital clock containment. Keeping the reference network low impedance and quiet, separating aggressive digital edges from the analog input region, and preserving short return paths usually produces more benefit than adding post-processing correction later. In current-sense and power-control hardware, routing choices around shunts and drivers often determine whether the converter measures the signal or the switching environment around it.

Within the ADSxx53 family, the ADS8353IRTER stands out because it addresses a common engineering tradeoff cleanly: it provides enough resolution for precision measurement while retaining the speed and low latency needed for real-time control. The 14-bit and 12-bit family members remain valid choices when throughput, noise tolerance, or cost pressure outweigh the need for finer code granularity. However, once the system begins to rely on low-drift calibration, small-signal observability, or tighter control-law tuning, the 16-bit version typically creates more headroom than its nominal resolution increase alone would suggest. Extra resolution in this class is often less about displaying more digits and more about preserving margin after analog nonidealities, offset correction, and environmental variation are accounted for.

The ADS8353IRTER is therefore best understood as a system-oriented dual SAR converter rather than a standalone data-sheet component. Its simultaneous sampling, flexible input configuration, programmable reference handling, and adaptable serial interface are all aimed at reducing the effort required to build accurate, time-aligned acquisition paths in real hardware. That combination makes it particularly effective in industrial and embedded platforms where measurement timing, control latency, and interface simplicity are all part of the same design problem.

Texas Instruments ADS8353IRTER Family Positioning and Series Comparison

Texas Instruments positions the ADS8353IRTER as the highest-resolution option within the ADSxx53 dual-channel simultaneous-sampling SAR ADC family. Its value becomes clearer when examined not as an isolated part, but as one node in a deliberately tiered product line where package, interface style, and application intent remain largely stable while resolution and throughput shift in controlled steps.

Within the ADSxx53 series, the trade space is straightforward:

ADS8353: 16-bit, 600 kSPS

ADS7853: 14-bit, 1 MSPS

ADS7253: 12-bit, 1 MSPS

These three devices are pin-compatible and target the same broad class of designs: dual-channel systems that need simultaneous sampling to preserve phase information between channels. That requirement appears in motor control, power quality monitoring, current/voltage capture, grid instrumentation, and multi-axis sensing, where channel skew directly converts into measurement error. In these cases, simultaneous sampling is not a convenience feature. It is often the condition that keeps the signal chain mathematically valid.

The practical significance of family compatibility is larger than it first appears. At the board level, pin-compatible converters allow one hardware platform to serve multiple product grades. A single PCB can support a cost-optimized version with the ADS7253, a speed-prioritized mid-tier option with the ADS7853, and a precision-oriented version with the ADS8353. This reduces redesign effort, shortens qualification cycles, and gives sourcing teams more flexibility when availability, pricing, or market segmentation changes. In well-managed platforms, that kind of optionality is often more valuable than a small improvement in one isolated electrical parameter.

The ADS8353 sits at the top of the single-ended and pseudo-differential branch because it pushes dynamic and linearity performance furthest within that interface style. Key performance figures include:

16-bit no missing codes in 32-clock mode

Integral nonlinearity: typically ±1 LSB, maximum ±2.5 LSB

SNR: up to 89 dB typical with a 5 V external reference

THD: -100 dB typical

SFDR: 105 dB typical

These numbers indicate more than nominal precision. They show where the part is intended to operate successfully. A 16-bit SAR ADC only delivers system-level benefit if the surrounding analog path is quiet, the reference is stable, the driver can settle within the acquisition window, and grounding is disciplined. In other words, the ADS8353 is not simply a higher-bit substitute for the 14-bit or 12-bit versions. It raises the performance ceiling, but it also raises the implementation standard. That is the hidden cost of moving up in resolution, and it is often underestimated early in design.

From a signal-chain perspective, the main architectural decision starts at the input type. The ADS8353 is aimed at single-ended and pseudo-differential sources. That makes it a direct fit when the upstream sensor, amplifier, or conditioned measurement node is already referenced in that manner. In these designs, adopting the ADS8353 avoids unnecessary signal translation stages. Fewer stages usually mean lower complexity, lower power, fewer stability risks, and less error accumulation. In many real layouts, the cleanest ADC path is the one that avoids converting the signal format unless there is a measurable reason to do so.

Texas Instruments also places the ADS8353 alongside the related ADSxx54 family, which provides fully differential alternatives:

ADS8354: 16-bit, fully differential

ADS7854: 14-bit, fully differential

ADS7254: 12-bit, fully differential

This branch split is important because input topology influences far more than pin definitions. It shapes driver selection, anti-aliasing strategy, common-mode management, and noise behavior across the entire analog front end. If the source chain is already fully differential, or if the environment is electrically aggressive and benefits from differential signaling discipline, the ADS8354 family can be the better architectural fit. Fully differential paths often improve immunity to coupled noise and make it easier to preserve dynamic performance across longer routes or denser mixed-signal boards. But that benefit comes with a cost in circuit complexity and driver requirements. If the system does not naturally need that structure, forcing a fully differential front end can create more design burden than performance gain.

That is where the ADS8353IRTER stands out. It occupies a useful middle ground: high-resolution simultaneous-sampling performance without requiring a fully differential signal chain. For many instrumentation and control designs, this is the most efficient balance. It provides precision that is high enough for demanding measurement tasks while keeping the analog interface closer to the shape of common real-world sources. In practice, that often reduces both schematic complexity and layout risk.

The throughput difference inside the family also deserves a more careful reading than a simple datasheet table suggests. The ADS8353 runs at 600 kSPS, while the lower-resolution ADS7853 and ADS7253 reach 1 MSPS. This is not merely a speed penalty attached to 16-bit conversion. It reflects the usual SAR tradeoff between resolution, settling accuracy, noise floor, and conversion timing. If the application is dominated by waveform fidelity, harmonic analysis, or low-amplitude signal discrimination, the ADS8353’s extra bits and stronger AC performance can produce a more useful result even at lower sample rate. If the application instead values control-loop bandwidth, transient capture density, or oversampling margin, the 14-bit or 12-bit parts may be the better engineering choice. More bits are not automatically more information if front-end noise, sensor error, or system dynamics limit effective performance before the converter does.

This family structure is especially useful during prototype phases. It is common to begin with the highest-resolution device to characterize the true signal environment, then step down if testing shows the application cannot exploit 16-bit behavior at the system level. That approach can reveal whether errors are dominated by ADC quantization, analog front-end drift, reference instability, or external interference. In several mixed-signal platforms, the converter itself is initially blamed for unstable readings, but later measurements show the dominant issue is reference routing, charge kickback interaction with a weak driver, or ground return contamination from nearby digital switching. A pin-compatible family makes that kind of diagnostic iteration far less disruptive.

Another practical point is procurement resilience. Pin-compatible families are often discussed as engineering conveniences, but their supply-chain value is just as real. When a design can absorb a controlled change in resolution without a board respin, lifecycle management improves significantly. This does not eliminate firmware validation or performance requalification, but it creates room to respond to allocation pressure or cost targets with less structural disruption. For products expected to live through multiple market cycles, that flexibility can be a deciding factor.

Viewed this way, the ADS8353IRTER is not simply “the 16-bit version” of the series. It is the precision-optimized member of a platform strategy. It serves designs where simultaneous dual-channel sampling is mandatory, where a single-ended or pseudo-differential input is the natural format, and where analog performance is strong enough to justify a 16-bit converter. If those conditions are true, it is usually the most direct and technically coherent choice in the ADSxx53 branch. If the design is speed-limited rather than resolution-limited, the ADS7853 or ADS7253 may align better. If the signal chain is fundamentally differential, the ADSxx54 family is the cleaner match.

The key selection principle is to treat converter choice as an interface decision, not just a numeric specification decision. Resolution, sample rate, and input topology should be chosen together, because they determine whether the ADC fits the signal chain cleanly or forces compensating circuitry around it. In that respect, the ADS8353IRTER is best understood as a high-accuracy, low-friction option for systems that need precise simultaneous sampling without stepping into the added complexity of a fully differential architecture.

Texas Instruments ADS8353IRTER Core Architecture and Input Concept

Texas Instruments ADS8353IRTER is built around a dual simultaneous-sampling SAR architecture, and that single architectural choice defines where the device fits best. It is not simply a two-channel converter with matched throughput. It captures both channels at the same instant, which matters whenever the system extracts phase, polarity, or vector relationships from two analog quantities. In power control, motor drives, grid monitoring, and fast protection loops, channel-to-channel timing error translates directly into computational error. A few nanoseconds of skew may look negligible in isolation, but once the sampled data is used for instantaneous power, Clarke/Park transforms, current reconstruction, or fault discrimination, that skew becomes a measurable disturbance term.

The input structure exposes two analog pairs: AINP_A/AINM_A and AINP_B/AINM_B. TI specifies operation with single-ended and pseudo-differential signaling, which gives useful freedom at the front end. This is often misunderstood. “Flexible input” does not mean the analog interface can be treated casually. It means the converter can accommodate systems where the negative input is not carrying a fully symmetric signal, but instead acts as a controlled reference node, offset node, or local sense return. That is especially useful in current-shunt measurement, phase voltage sensing, and isolated analog front ends where the signal is referenced to a conditioned local potential rather than true ground.

Pseudo-differential capability is valuable because many real systems are not cleanly single-ended and not fully differential either. They sit in the middle. The signal may be generated by a current-sense amplifier, an instrumentation amplifier, or a buffered divider network whose return path carries switching noise or small common-mode movement. In that situation, assigning the negative ADC input to a managed reference point can improve measurement integrity without the cost and complexity of a fully differential driver. This is often the practical sweet spot: enough common-mode control to suppress local disturbances, but without doubling the amplifier and routing burden.

The SAR core itself is a strong fit for closed-loop and event-driven systems because its timing is deterministic. That property is more important than it first appears. In many control designs, the objective is not only high-resolution measurement but predictable measurement-to-decision latency. A SAR ADC samples, resolves, and delivers data within a fixed and repeatable timing envelope. That makes it easier to align ADC acquisition, PWM update points, comparator windows, and software service routines. Delta-sigma converters can offer excellent noise performance, but their digital filtering and latency behavior are often less convenient when the system must react to instantaneous conditions rather than averaged ones. For overcurrent handling, torque control, grid synchronization, or relay state analysis, repeatable conversion timing usually creates more system value than aggressive noise shaping.

A useful way to view the ADS8353IRTER is as a timing component first and a resolution component second. Its simultaneous dual-channel sampling allows the analog system to preserve the true spatial or electrical relationship between two signals at the sampling instant. That is exactly what is needed in current-versus-voltage measurements for power computation, sine-versus-cosine capture in position feedback chains, or two-axis current observation in field-oriented control. If the samples are not phase-aligned, later digital compensation only partially repairs the problem, because the original signals were captured under different physical conditions. Once timing coherence is lost at the front end, downstream math becomes an approximation.

This is why the surrounding analog design deserves as much attention as the ADC data sheet itself. TI’s documentation showing input drivers and passive networks is not just a generic recommendation. It reflects how SAR inputs behave in practice. Internally, the converter presents a switched-capacitor sampling load. At the acquisition instant, charge is drawn from the source, and the source must settle to the required accuracy within the available acquisition time. If the driving circuit has excessive output impedance, limited bandwidth, poor phase margin with capacitive loading, or long parasitic routing, the voltage seen by the sampling capacitor will not fully settle. The ADC may still function, but linearity, distortion, and gain accuracy will deviate from the headline specifications.

This point often appears first as an unexplained gap between bench expectations and measured results. Static tests may look acceptable at low input frequencies, yet dynamic tests show degraded THD or code-dependent error once the input bandwidth rises. In many cases the root cause is not the converter core but the interaction between the driver amplifier, the series isolation resistor, the input capacitor, and the transient current demanded by the SAR sampling network. A front end that is “accurate” in a DC sense may still be inadequate as an ADC driver. The issue is energy delivery and settling, not just nominal transfer accuracy.

For that reason, source impedance should be treated as a design variable, not a passive consequence of the sensor network. High-value resistor dividers, long RC filters, or weak amplifier stages can quietly undermine conversion fidelity. A small RC network near the ADC input is often useful because it forms a local charge reservoir and attenuates kickback, but the component values must be chosen with the driver’s stability and settling profile in mind. If the capacitor is too small, charge buffering is weak. If it is too large, the amplifier may become marginal or slow. If the resistor is too high, settling degrades. There is no universal “safe” value set; the right choice emerges from acquisition timing, expected signal bandwidth, driver output current capability, and layout parasitics.

Reference integrity is equally critical. In a SAR converter, the reference is part of the conversion mechanism itself, not merely a scaling constant. During bit decisions, the converter repeatedly compares the sampled input against fractions of the reference. Any reference noise, droop, or transient disturbance is therefore translated directly into conversion error. In dual-channel simultaneous-sampling devices, reference dynamics become even more important because both channels can impose correlated demand on the internal conversion process. A reference network that looks quiet under static load may still perform poorly under pulsed dynamic load. Good decoupling placement, low-inductance return paths, and a reference source with sufficient transient response are basic requirements, not refinements.

Grounding and input return strategy also deserve careful interpretation when using pseudo-differential inputs. The negative input should not be viewed as a decorative pin that can be tied anywhere convenient. It defines the converter’s local measurement reference. If that node shares switching return current, digital edge current, or gate-driver contamination, the ADC will faithfully digitize that pollution as signal movement. In mixed-signal power designs, a cleaner result usually comes from defining a controlled analog reference island for the ADC input pair and ensuring the return path from the sensor or amplifier closes locally before joining noisier ground structures. This reduces loop area and prevents the measurement baseline from moving with unrelated system current.

The ADS8353IRTER is particularly attractive in systems that need simultaneous observation of coupled quantities. Current and voltage sampling for power computation is the most obvious example, but the same principle extends to less obvious cases. In resolver or encoder support circuits, orthogonal analog channels must preserve amplitude and phase relationship. In relay or breaker monitoring, two related sense signals may be used to distinguish contact motion, arc behavior, or fault polarity. In servo systems, dual-channel capture supports synchronized observation of command and feedback analogs or two sensor axes. The common pattern is not simply “two channels available,” but “two channels whose relationship matters more than either value alone.”

A practical design habit that pays off with this class of converter is to budget error by mechanism instead of by specification line item. Rather than starting with nominal INL, SNR, or throughput alone, start from the measurement objective: phase accuracy, control-loop latency, transient response, or power calculation error. Then work backward into timing skew, settling error, reference noise, amplifier distortion, and grounding-induced offset. This usually reveals that the limiting factor is upstream of the ADC core. It also prevents overspending on converter resolution while underengineering the driver or reference path.

Another useful perspective is that simultaneous-sampling SAR ADCs often simplify system architecture more than they simplify schematic count. A design may still require precision amplifiers, RC conditioning, reference buffering, and disciplined layout. The benefit appears at the control and estimation level. Sampling coherence reduces compensation effort, simplifies firmware timing assumptions, and improves repeatability across load and temperature. In demanding industrial systems, that kind of predictability is often more valuable than a marginal increase in nominal converter resolution.

When integrating the ADS8353IRTER, the strongest results usually come from treating the device as an analog-digital boundary with strict dynamic requirements. The input mode choice, the driver topology, the passive network, the reference implementation, and the return-current plan all interact with the SAR sampling process. If those pieces are aligned, the converter delivers what simultaneous-sampling SAR devices are selected for in the first place: coherent dual-channel measurement, fixed latency, and robust performance in systems where timing truth matters as much as voltage accuracy.

Texas Instruments ADS8353IRTER Conversion Performance and Accuracy

Texas Instruments ADS8353IRTER is best evaluated not by its headline 16-bit label alone, but by how consistently that nominal resolution survives real operating conditions. For selection work, the useful question is not whether the converter can output 65,536 codes, but how many of those codes remain trustworthy once offset, gain, linearity, drift, reference quality, input drive behavior, and channel matching are included in the signal chain. On that basis, the ADS8353IRTER presents a strong case for precision dual-channel acquisition, especially in systems that need simultaneous sampling and repeatable phase-aligned measurements.

The device is specified for 16-bit resolution with 16-bit no missing codes in 32-clock mode. That point deserves more attention than it often gets. “No missing codes” at full resolution means the transfer function is monotonic across the complete output range, so incremental input changes do not disappear into code gaps. In control loops, calibration systems, and threshold-based monitoring, this is more important than raw nominal resolution because stable code progression directly affects loop smoothness, fault detection margins, and digital filtering behavior. In practice, converters that advertise 16 bits but show weak code continuity often force system designers to average aggressively or loosen trip thresholds. The ADS8353IRTER avoids much of that compromise.

Its DC accuracy profile is also well balanced for a dual SAR architecture. Texas Instruments specifies integral nonlinearity of typically ±1 LSB and up to ±2.5 LSB maximum, with differential nonlinearity of typically ±0.6 LSB and up to 2 LSB maximum. These numbers indicate that the converter is not only monotonic but also reasonably predictable across the span. INL matters when measurement results are used as absolute values over a wide dynamic range, such as voltage programming, current profiling, or sensor transfer reconstruction. DNL matters more in local code behavior, where small-signal smoothness affects derivative calculations, step response interpretation, and low-level trend extraction. In many industrial designs, DNL problems surface first as unstable least-significant-bit behavior during averaging, even before INL becomes visible in end accuracy. The ADS8353IRTER’s typical DNL performance suggests cleaner statistical behavior in those situations.

Offset and gain specifications provide another layer of practical confidence. The input offset error is typically ±0.5 mV and up to ±1 mV maximum. Gain error referenced to REFIO_x is typically ±0.05% full scale and up to ±0.1% full scale maximum. These are not just datasheet housekeeping values. Offset dominates near zero-scale measurements, while gain error expands toward full scale, so together they define how much digital correction is required if the application expects reliable accuracy over the full input range. In current-shunt measurements, for example, offset determines low-current visibility and zero-current stability, while gain error determines the credibility of high-current readings. A converter can look excellent at one end and disappoint at the other if these two terms are not balanced. Here, the ADS8353IRTER shows a fairly disciplined distribution of error sources.

Where this part becomes more compelling is in channel-to-channel consistency. Offset match between ADC_A and ADC_B is typically ±0.5 mV, maximum ±1 mV. Gain error match is typically ±0.05% full scale, maximum ±0.1% full scale. In dual-channel systems, matching often matters as much as absolute accuracy because many computed quantities are derived from differences, ratios, or time-aligned comparisons rather than standalone scalar readings. Differential current sensing, motor phase observation, power factor estimation, bridge sensor acquisition, and simultaneous voltage-current sampling all benefit from channel symmetry. If one channel has a clean absolute calibration but differs from the other in offset or gain, subtraction-based calculations inherit a systematic bias that does not average out. This is a common failure mode in otherwise well-designed measurement systems. The ADS8353IRTER’s matching numbers indicate that TI optimized it not only as two ADCs in one package, but as a measurement pair.

That distinction becomes especially relevant in synchronized acquisition. With simultaneous-sampling SAR converters, one of the major system-level advantages is that both channels capture the input state at the same instant. This removes time-skew-induced phase error that can distort calculations in dynamic systems. However, simultaneous sampling only realizes its full value when timing alignment is supported by amplitude alignment. If channels sample together but differ in offset and gain, phase coherence remains intact while amplitude-derived calculations drift. The ADS8353IRTER addresses both dimensions: simultaneous capture and reasonably tight interchannel matching. For power electronics and servo systems, this is the difference between “dual-channel available” and “dual-channel usable.”

Thermal drift specifications reinforce that positioning. Input offset thermal drift is specified at 1 µV/°C, and gain error thermal drift at 1 ppm/°C. These values are well suited for industrial environments where board temperature may move significantly over time, even if ambient conditions seem moderate. Local self-heating from processors, isolated power stages, FETs, or reference circuitry frequently creates temperature gradients larger than the external environment suggests. Low drift reduces recalibration pressure and preserves transfer consistency during warm-up, enclosure soak, or load-dependent heating. In systems that run long duty cycles, thermal drift often contributes more cumulative measurement uncertainty than initial room-temperature error. A converter with modest initial specs but excellent drift can outperform a nominally tighter device in the field. The ADS8353IRTER’s drift numbers support exactly that kind of long-window stability.

The AC performance adds another dimension and moves the part beyond purely static instrumentation roles. At a 2 kHz input frequency and -0.5 dBFS level, the device delivers up to 88.7 dB typical SINAD, up to 89 dB typical SNR, THD of -100 dB typical, and SFDR of 105 dB typical, depending on reference configuration and input range. For an industrial simultaneous-sampling SAR ADC, that is a strong combination. SNR and SINAD indicate that the noise floor remains low enough to preserve meaningful dynamic detail, while THD and SFDR show that the converter does not heavily corrupt waveform purity with harmonic or spurious content. This matters when the ADC is not only reporting steady values but feeding algorithms that assume signal shape integrity, such as spectral monitoring, harmonic tracking, control-loop state estimation, or grid waveform analysis.

It is useful to interpret those AC metrics in system terms. An SNR near 89 dB means the quantized and analog noise floor is low enough to support effective dynamic measurement without excessive oversampling. THD at -100 dB suggests very good linear signal reproduction, which helps when the application extracts harmonics as indicators of machine health, switching artifacts, or distortion in power lines. SFDR at 105 dB is valuable in mixed-signal environments where spur discrimination matters, such as variable-frequency drives, inverter feedback paths, or sensor interfaces near switching regulators. In these systems, engineers often discover that the converter is not the dominant noise source until layout, driver settling, or reference decoupling is mishandled. That is often a positive sign: the ADC has enough headroom that board-level design becomes the limiting factor.

This leads to an important practical point. Precision converters of this class usually fail in implementation before they fail in specification. The ADS8353IRTER can only deliver its stated conversion performance if three support blocks are treated carefully: reference network, input driver, and grounding strategy. The reference path needs low impedance, low noise, and controlled transient behavior because SAR conversion injects dynamic charge demands. If the reference source is slow or weakly decoupled, gain stability and AC purity degrade first. The analog input driver must settle fully within the acquisition window, especially when source impedance is not negligible or when multiplexed signal conditioning introduces RC lag. Incomplete settling often appears as code-dependent gain error or unexplained harmonic growth. Grounding must keep digital return currents out of the analog sampling loop. In practice, many “ADC accuracy issues” trace back to return-path geometry rather than the converter itself.

For dual-channel applications, layout symmetry deserves special emphasis. Since this device is often selected for channel comparison or simultaneous computation, asymmetry in RC filtering, amplifier choice, trace parasitics, or reference routing can erase the advantage of the ADC’s internal channel matching. Even small differences in front-end bandwidth or source impedance can create amplitude and phase skew that is then misattributed to the converter. A disciplined approach is to mirror both channels physically and electrically as far as possible, then calibrate residual offset and gain mismatch in firmware. That combination usually produces far better differential accuracy than relying on post-processing alone.

From an application standpoint, the ADS8353IRTER fits especially well in systems where precision and temporal coherence must coexist. In current-and-voltage acquisition, it supports accurate instantaneous power computation because both channels can sample at the same time, and matching errors remain controlled enough that derived quantities stay credible. In differential current sensing, the low offset and good offset match help preserve small differential signals that would otherwise be buried by channel bias. In synchronized sensor readout, such as paired position, pressure, or vibration channels, the AC and DC balance allows both static calibration and dynamic tracking. It is also suitable for closed-loop control systems that need stable latency and waveform fidelity, where a delta-sigma converter might offer excellent noise but introduce latency or bandwidth tradeoffs that SAR architecture avoids.

A useful way to think about this part is that it sits in the practical middle ground between instrumentation-grade static precision and control-grade dynamic responsiveness. It is not merely a converter for logging slow variables, and it is not only a fast sampler for rough waveform capture. Its value comes from preserving enough linearity, matching, and noise performance that a single device can support both accurate measurement and real-time decision-making. That versatility often reduces design complexity because one ADC family can serve sensing, protection, and control paths without forcing separate architectures.

For product selection engineers, that is the real significance of the ADS8353IRTER’s conversion performance and accuracy. The specifications point to a converter that behaves predictably under calibration, remains stable over temperature, keeps dual channels aligned in both time and amplitude, and maintains solid spectral integrity for dynamic inputs. In systems where computed values matter more than raw samples, that combination is often more valuable than chasing a higher nominal bit count with weaker matching or less disciplined AC behavior.

Texas Instruments ADS8353IRTER Reference Options and Signal-Chain Flexibility

Texas Instruments ADS8353IRTER exposes an unusually flexible reference architecture for a dual SAR converter, and that flexibility is not a minor convenience feature. It directly affects input span, gain accuracy, channel matching, calibration strategy, noise behavior, and the overall partitioning of the analog signal chain. The device integrates two programmable, buffered 2.5 V internal references and also supports external reference operation through REFIO_A and REFIO_B, each paired with its own reference ground, REFGND_A and REFGND_B. This creates a reference subsystem that is effectively channel-aware rather than globally fixed.

At the architectural level, this matters because in a SAR ADC the reference is not just a bias source. It is the amplitude standard against which the sampled input is resolved during every conversion cycle. Any error on the reference path is translated almost directly into gain error, and any reference noise that is not sufficiently suppressed can appear as conversion noise or reduced dynamic performance. For that reason, the reference network should be treated as part of the measurement path, not as a supporting utility rail.

The internal buffered 2.5 V references are the most straightforward option when design simplicity, board area, and implementation speed are dominant constraints. In compact industrial I/O modules, embedded acquisition cards, and dense mixed-signal controller boards, eliminating an external precision reference reduces BOM, routing complexity, startup dependencies, and analog debug effort. It also removes one of the common weak points in first-pass designs: a nominally precise external reference implemented with poor grounding, insufficient local decoupling, or excessive digital coupling. In practice, the internal reference often produces a more robust result than a theoretically better external source that is integrated carelessly.

That said, the value of the internal option is not limited to simplification. Because the references are buffered and local to the converter, they can help stabilize behavior across a wider range of board-level conditions. This is especially useful in designs where the ADC sits close to switching logic, isolated power domains, or multiplexed sensor interfaces. In those environments, reducing the number of sensitive analog nodes that leave the package can materially improve repeatability. A shorter and more contained reference path usually means fewer opportunities for broadband pickup, ground-induced modulation, or startup sequencing anomalies.

External reference support extends the device into a different class of systems. If the design already includes a precision reference backbone shared across data converters, DACs, or sensor excitation circuits, tying the ADS8353IRTER into that architecture can improve gain consistency at system level. It can also support use cases where a larger reference voltage is required, including configurations reflected in the performance data with a 5 V external reference. The practical implication is simple: a higher reference allows a wider input span, which can better match front-end scaling and reduce the need for aggressive amplification ahead of the converter.

However, a wider span is not automatically a better span. This is one of the more common design traps. Increasing reference voltage can improve range utilization only if the sensor signal, driver stage, and noise budget justify it. If the front end cannot settle cleanly, or if the external reference introduces higher broadband noise or temperature drift, the apparent advantage disappears quickly. In real signal chains, reference quality often sets the usable floor long before the converter’s nominal resolution becomes the limiting factor. A poorly chosen 5 V reference can yield worse effective performance than the internal 2.5 V path, even though the larger range looks superior on paper.

The per-channel reference programmability is where the part becomes especially interesting. Many dual ADCs force both channels to share a single full-scale definition, which is convenient for symmetric acquisition but inefficient in mixed-sensor systems. The ADS8353IRTER allows channel A and channel B to be handled more independently. That can be used for system-level gain calibration, but the deeper value is broader: each channel can be aligned to the transfer function of its own signal path. If one input is tied to a high-gain conditioned bridge sensor and the other to a lower-gain voltage-output transducer, independent reference handling allows the full-scale mapping to be optimized separately. This improves code utilization and can reduce the calibration burden in downstream firmware.

This also creates a cleaner way to partition calibration domains. In multi-sensor industrial designs, one channel often needs traceable gain behavior across temperature while the other only needs stable relative measurement. Using separate reference strategies lets the high-accuracy channel remain tied to a low-drift precision source while the less critical channel can use the internal buffered reference for simplicity. That hybrid approach is often better than forcing both channels into the same architecture. It reduces overdesign on one path and underperformance on the other.

The separate REFGND_A and REFGND_B pins are equally important and are easy to underestimate. Reference grounding is rarely just a pin naming detail. In precision SAR layouts, the reference return path carries dynamic current components that can corrupt the local ground potential seen by the conversion core if not managed carefully. Separate reference grounds give the layout more control over current return routing and local decoupling. When channel paths are exposed to different analog environments, this separation can help contain interaction between them. The benefit is not complete isolation, but it gives the board designer an extra degree of freedom to keep channel-specific reference currents from polluting a shared analog return region.

From a signal-chain perspective, the reference choice should be made only after the input driver, source impedance, anti-alias filtering, and calibration model are defined. Engineers sometimes choose the reference first because it appears to define precision. In practice, the best choice emerges from the interaction of several mechanisms: sensor output range, gain staging, required headroom, settling constraints, thermal behavior, and the target metric that actually matters in the application, whether that is absolute accuracy, repeatability, channel matching, or dynamic range. The converter’s flexibility is most valuable when used to close those system-level tradeoffs deliberately.

A useful implementation pattern is to start with the internal reference during early hardware bring-up. This shortens the validation path and reduces uncertainty while driver behavior, timing margins, and layout quality are being verified. Once the acquisition path is stable, an external reference can be introduced selectively if system-level error analysis shows a clear benefit. This staged approach often prevents unnecessary complexity from entering the first revision. It also makes root-cause analysis easier, because the internal reference provides a cleaner baseline against which external reference benefits can be measured rather than assumed.

Another practical point is reference drive and decoupling. External references are often selected based on initial accuracy and drift alone, but SAR converters stress references dynamically. During conversion, the internal capacitor network draws transient charge from the reference path. If the reference source or its local bypass network cannot respond fast enough, the instantaneous voltage seen by the ADC shifts, and the result is degraded linearity or excess code spread. A reference that looks excellent in static datasheet tables can still underperform badly when connected to a fast SAR input structure through long traces or inadequate local capacitance. In these cases, the issue is not the reference IC in isolation but the small-signal impedance of the complete reference network across frequency.

This is where buffered internal references often outperform expectations. Their absolute specifications may not always rival a premium external metrology-grade source, but they are integrated with the converter’s internal behavior in mind. That alignment reduces implementation risk. Conversely, when an external reference is required, it should be treated as a dynamic subsystem. Placement near REFIO pins, short return paths to the corresponding REFGND pins, controlled isolation from digital switching currents, and properly selected decoupling values usually matter more than minor differences in datasheet headline accuracy between candidate reference devices.

The independent reference structure also opens a subtle but useful optimization in systems with asymmetrical thermal environments. If one channel monitors a signal path exposed to local heating, power-stage coupling, or sensor drift, while the other remains in a more stable region, separate calibration handling tied to individual references can reduce compensation complexity. Instead of correcting both channels through a common full-scale model, each path can be characterized in a way that matches its own thermal behavior. This tends to produce cleaner calibration residuals and more stable field performance, especially in equipment that sees broad ambient variation.

Viewed more broadly, the ADS8353IRTER reference scheme is not just about supporting internal versus external voltage standards. It is about allowing the ADC to adapt to the analog intent of the system. In a tightly integrated design, the internal references can minimize complexity and improve first-pass success. In a precision platform, external references can align the converter with a larger metrology architecture. In mixed-domain acquisition, independent per-channel handling enables more intelligent scaling and calibration than a shared-reference ADC usually permits. The part rewards designs that treat reference selection as a signal-chain decision rather than a checkbox, because in SAR systems the reference is inseparable from the measurement itself.

Texas Instruments ADS8353IRTER Digital Interface, Supplies, and Operating Modes

Texas Instruments ADS8353IRTER combines a high-speed dual simultaneous-sampling SAR conversion core with a digital interface that is intentionally simple at the pin level but flexible at the system level. Its serial port uses CS, SCLK, SDI, SDO_A, and SDO_B, which allows direct integration with common SPI-style peripherals while preserving independent data paths for both conversion channels. That dual-output arrangement matters in control and measurement systems where time alignment between channels is not enough by itself; deterministic extraction of each channel’s data is also required. By separating SDO_A and SDO_B, the device avoids unnecessary post-framing complexity and reduces ambiguity in host-side data handling, especially in tightly scheduled acquisition loops.

At the signaling level, CS defines transaction boundaries, SCLK provides timing, SDI carries command or configuration information, and SDO_A and SDO_B return channel-specific conversion results. This architecture is efficient because it maps cleanly onto standard controller resources without forcing unusual protocol adaptations. In practice, that lowers firmware overhead and simplifies FPGA state machines. It also improves timing closure in designs where serial capture must coexist with PWM generation, protection logic, or communications traffic. A recurring advantage in board-level implementations is that separate output streams make debug easier on a logic analyzer: channel correlation issues can be isolated quickly without first unpacking an interleaved frame structure.

The mixed-supply design is one of the stronger system-level features of the ADS8353IRTER. The analog domain operates from a nominal 5 V AVDD, while the digital domain typically runs from a 3.3 V DVDD. This partitioning is more than a convenience. It reflects a deliberate separation between conversion accuracy requirements and digital interface compatibility. The 5 V analog rail supports the converter’s input handling and dynamic performance, while the lower-voltage digital rail reduces interface power and aligns naturally with modern processing devices. In embedded platforms where analog front ends remain at higher voltage for signal range and margin reasons, but control logic has already migrated to low-voltage CMOS, this split-supply model removes the need for avoidable interface translation.

The broader DVDD compatibility range, from 1.65 V to 5.5 V, extends that advantage significantly. It allows the ADC to sit between legacy logic, mainstream 3.3 V controllers, low-power SoCs, and many FPGA I/O banks with minimal adaptation. This is particularly valuable in long-life industrial platforms, where processor generations change faster than analog subsystems. A converter that tolerates multiple digital logic levels reduces redesign risk and eases product migration. In practice, that often translates into fewer level-shifting components, lower propagation uncertainty, and cleaner signal integrity on high-speed serial lines. Those benefits are easy to underestimate early in a design, but they become important when layout density rises and timing margin starts to narrow.

Power-domain separation also improves noise management when implemented correctly. The analog rail and digital rail should not be treated as independent only in the schematic; they need deliberate routing, local decoupling, and return-path control at the PCB level. Fast SCLK edges and data transitions can inject switching noise into sensitive analog regions if the layout collapses both domains into a shared current path. A robust implementation typically keeps digital loop currents compact, places decoupling capacitors close to each supply pin group, and controls the reference and input network so that conversion repeatability is not degraded by interface activity. Experience shows that many “ADC accuracy” problems in prototypes are actually supply-return or edge-coupling problems, not limitations of the converter itself.

The serial interface is also important from a throughput-management perspective. In simultaneous-sampling applications, the useful metric is not only raw sample rate but the ability to move two coherent data streams into the host with predictable latency. The ADS8353IRTER’s pinout supports that requirement directly. For motor control, three-phase power analysis, grid monitoring, and fast protection loops, fixed timing relationships between sampled variables are often more critical than nominal resolution alone. The device’s interface structure fits these use cases because it supports repeatable frame timing and straightforward synchronization to external control cycles.

Its low-power operating modes add another layer of system optimization. Texas Instruments indicates that the family supports two low-power modes, allowing the designer to trade power consumption against required throughput. This is especially useful in systems that alternate between active measurement windows and long idle intervals. The practical value is not merely lower average power. Reduced dissipation improves thermal behavior, eases enclosure constraints, and can preserve analog stability in compact assemblies. In dense industrial modules, every increment of self-heating affects reference drift, front-end amplifier behavior, and long-term reliability. A converter that can back off power when full-rate acquisition is unnecessary contributes to overall measurement consistency, not just energy savings.

These low-power modes are most effective when paired with acquisition scheduling. In event-driven protection hardware, for example, the converter may remain in a lower-power state until a threshold crossing or synchronization marker triggers a burst of high-rate sampling. In programmable logic controllers, the ADC can align higher activity with known control-cycle windows instead of operating continuously at maximum rate. In portable or thermally constrained platforms, dynamic power scaling can be used to hold junction temperature within a tighter band, which often produces more predictable analog performance than a permanently high-speed operating mode. The useful design principle here is to treat throughput as a scheduled resource, not a fixed operating condition.

The extended operating range of -40°C to 125°C makes the ADS8353IRTER suitable for environments where temperature is both ambient-driven and internally generated. Factory automation cabinets, motor-drive assemblies, power distribution equipment, and outdoor control nodes all expose converters to a combination of external heat, converter self-heating, neighboring power stages, and airflow variation. Full specification across this range is important because industrial systems rarely fail under nominal room conditions; they fail at corners, during startup, under load transients, or in enclosure hot spots. A device specified across the full industrial span provides stronger confidence that its timing, logic thresholds, and conversion behavior will remain controlled when the rest of the system is under stress.

Temperature capability also affects interface reliability. Logic timing that appears clean on the bench can tighten noticeably at thermal extremes, especially when long traces, multiple loads, or weaker host drive strength are involved. With dual SDO outputs and a clocked serial interface, it is good practice to budget setup and hold margins against the full operating range rather than only the nominal case. The same applies to power sequencing and reset behavior in mixed-voltage systems. Designs that account for these details early tend to avoid intermittent field issues that are difficult to reproduce later.

From an application perspective, the ADS8353IRTER is well aligned with systems that require coherent dual-channel acquisition, low interface friction, and strong environmental robustness. In motor-drive control, it can capture paired analog variables such as current and voltage with tight temporal alignment. In power distribution monitoring, it supports synchronized observation of related nodes for phase and transient analysis. In industrial sensing platforms, its flexible DVDD range allows direct attachment to the chosen compute element without forcing the analog section to follow digital supply trends. That combination of simultaneous sampling, logic-level adaptability, and industrial temperature coverage is often more valuable than any single headline specification because it reduces integration effort across the entire signal chain.

A useful way to view this device is as a converter designed not only for data acquisition, but for stable insertion into real embedded architectures. The serial interface is simple enough for broad controller compatibility, the supply structure accommodates modern mixed-voltage design, and the operating modes support power-aware scheduling. When these features are combined with disciplined layout and timing design, the ADS8353IRTER becomes a strong fit for measurement and control systems where predictability matters more than isolated peak performance figures.

Texas Instruments ADS8353IRTER Pinout, Package Options, and Thermal Characteristics

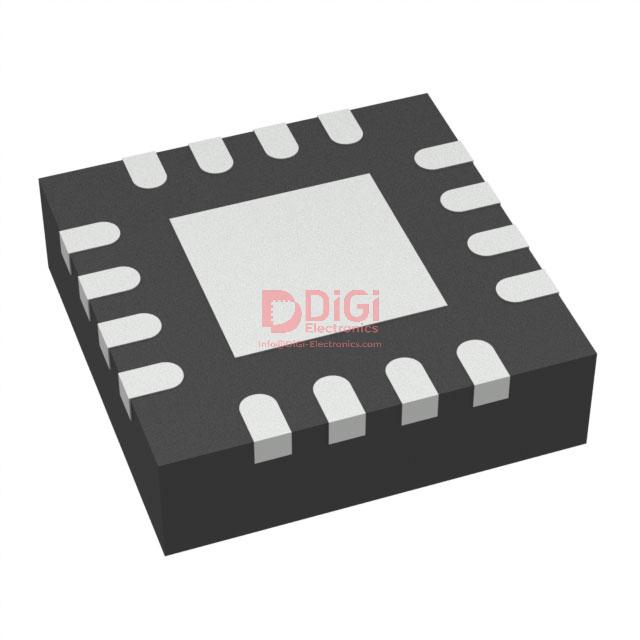

Texas Instruments ADS8353IRTER is a dual-channel, simultaneous-sampling SAR ADC offered in package variants that directly influence layout density, thermal behavior, grounding quality, and ultimately conversion integrity. The IRTER ordering suffix identifies the 16-pin WQFN package with an exposed pad, using a 3 mm × 3 mm body. A TSSOP-16 option is also available, but the WQFN version is usually the stronger choice when board area, thermal dissipation, and analog stability must be balanced in a constrained design.

From a package-selection perspective, the distinction is not cosmetic. In mixed-signal systems, package geometry affects parasitic inductance, return-current control, thermal spreading, and susceptibility to digital coupling. The WQFN form factor reduces interconnect length and tends to behave better at the board level when fast SPI activity and sensitive analog inputs share a limited footprint. The exposed pad is especially important because it provides a low-impedance mechanical and thermal anchor to the PCB. When tied correctly to ground, it improves heat transfer, lowers local thermal gradients, and helps create a cleaner electrical reference beneath the device. In practice, this often translates into more predictable offset and gain behavior across temperature, especially when the converter is placed near processors, isolated power stages, or other heat sources.

The primary signal pins are divided cleanly across analog acquisition, reference management, power delivery, and digital communication. AINP_A and AINM_A form the differential input pair for channel A, while AINP_B and AINM_B serve channel B. These pins are where source impedance, common-mode behavior, and external filtering interact most directly with SAR sampling dynamics. Because the ADS8353 uses simultaneous sampling, both channels benefit from matched front-end treatment. Even when only one channel appears performance-critical, asymmetric filtering or routing can introduce channel-to-channel phase mismatch and settling differences that become visible in time-correlated measurements.

REFIO_A and REFIO_B provide the reference input/output nodes for the two channels, and REFGND_A and REFGND_B establish their local reference grounds. This separation is more significant than it first appears. Reference pins in precision SAR converters are not passive support nodes; they are dynamic current points during conversion. Any impedance, noise injection, or poor decoupling around these pins can directly modulate linearity and repeatability. A useful design pattern is to treat each reference loop as a small, high-priority analog subsystem: short trace length, tight decoupling placement, and a return path that does not share impulsive digital current. Designs that ignore this often meet functional requirements but underperform in ENOB and repeatability once the board enters a noisy enclosure or wider temperature envelope.

AVDD and DVDD split the analog and digital supply domains. That partition allows the converter to maintain analog fidelity while still interfacing cleanly with modern logic levels. The separation should be preserved on the PCB rather than collapsed casually at the pin field. A quiet analog rail with local high-frequency bypassing near AVDD helps protect the internal sampling network and comparator stages. DVDD should be decoupled just as carefully, but with return currents managed so that serial clock edges do not contaminate the analog ground region. In compact layouts, this is often where performance is lost: not through gross schematic mistakes, but through shared via paths, poorly placed decoupling capacitors, or a digital return current that cuts underneath the analog input network.

The serial interface pins CS, SCLK, SDI, SDO_A, and SDO_B support data acquisition and device control. Their electrical behavior matters beyond protocol compliance. SCLK edge rate, trace length, and return path continuity can all influence local EMI and substrate noise. SDO_A and SDO_B provide channel-specific output data, which is useful for maintaining simultaneous-sampling throughput without adding reconstruction complexity at the controller side. In denser systems, keeping the SPI interface compact and referenced to a solid ground plane usually avoids the kind of ringing and overshoot that can couple back into the reference or input structure. A series damping resistor at the clock source is often beneficial when the ADC sits close to a fast MCU or FPGA bank with aggressive drive strength.

The dedicated digital ground pin GND and the exposed pad grounding strategy should be viewed together. Texas Instruments recommends connecting the exposed thermal pad to PCB ground, and that recommendation carries three benefits at once. First, it reduces thermal resistance from die to board. Second, it improves electrical grounding by expanding the local return plane directly below the package. Third, it increases solder joint robustness and package stability during reflow and field operation. For this class of converter, the exposed pad is best treated as part of the signal-integrity solution rather than only a thermal feature. A grounded pad stitched into an uninterrupted plane with multiple vias generally produces a more stable mixed-signal environment than a minimal connection intended only to satisfy assembly rules.

Thermal characteristics reinforce the package choice. The WQFN package is specified with a junction-to-ambient thermal resistance of 33.3°C/W, while the TSSOP package is listed at 86.9°C/W. That is a substantial difference. Even if the ADC itself is not a high-power device, the lower thermal resistance of the WQFN package reduces junction rise in enclosed or high-density assemblies. This matters because precision conversion is not only limited by nominal datasheet accuracy; it is also shaped by thermal gradients across the die, reference drift, and board-level heat coupling. In real systems, ADCs often sit near regulators, digital isolators, transceivers, or processors that create localized hot zones. Under those conditions, a package with better thermal evacuation can preserve measurement consistency in ways that are not immediately visible in a room-temperature bench setup.

A practical implication is that thermal resistance should be evaluated together with copper strategy. The quoted θJA value assumes a defined test environment, not an arbitrary final product. On a well-designed multilayer PCB with a solid ground plane and adequate via stitching under the exposed pad, the WQFN device usually performs closer to its intended thermal profile. On a sparse two-layer board with fragmented copper, actual thermal behavior can degrade significantly. That same board will also usually have weaker grounding and noisier reference behavior, so thermal and analog penalties tend to arrive together. This coupling is often overlooked. Better copper under the ADC rarely improves only temperature; it usually improves electrical stability at the same time.

The WQFN option is therefore especially attractive in dense industrial and embedded designs where board area is limited but analog performance cannot be compromised. Motor-control feedback boards, power-monitoring modules, data acquisition nodes, and isolated sensor front ends all benefit from the smaller footprint and stronger thermal-grounding characteristics. The TSSOP package still has value where hand assembly, inspection visibility, or lower layout complexity is prioritized. But in performance-sensitive layouts, the WQFN package aligns better with the converter’s architectural strengths. It supports tighter placement near input networks, shorter reference loops, and a more disciplined return-current structure.

One useful way to think about the ADS8353IRTER pinout is as four interacting domains rather than a flat list of pins. The analog input pins define acquisition accuracy. The reference pins define conversion stability. The supply pins define internal noise susceptibility. The digital interface pins define external disturbance injection. The package and exposed pad tie those domains together physically through thermal and electrical boundaries. When these domains are routed with that hierarchy in mind, the device usually behaves predictably. When they are treated as independent checklist items, subtle error sources accumulate: reference kickback, digital feedthrough, ground modulation, and thermally induced drift.

For that reason, the exposed-pad WQFN package is not just a smaller version of the TSSOP. It is a materially different implementation path at the board level. The lower thermal resistance, improved grounding opportunity, and reduced parasitics make it the more robust option for designs that must hold precision over temperature, noise, and layout constraints. In converters of this class, package selection is part of the signal chain. Ignoring that usually costs more accuracy than any nominal pin description suggests.

Texas Instruments ADS8353IRTER Application Fit in Industrial and High-Speed Measurement Designs

Texas Instruments positions the ADS8353IRTER effectively for industrial measurement paths where two analog variables must be captured at the same instant and with enough resolution to support closed-loop decisions, phase analysis, or cross-channel comparison. That positioning is not marketing shorthand. It reflects the actual value of a dual, simultaneous-sampling, 16-bit SAR ADC in systems where timing alignment is part of the measurement itself rather than a secondary parameter.

The central design advantage of the ADS8353IRTER is not simply that it provides two channels and 16-bit resolution. Its real strength is that it preserves temporal coherence between channels. In many industrial systems, this matters more than raw sample rate alone. Once two channels are sampled at different moments, even by a small offset, the resulting data no longer represents the same physical state. That mismatch can distort vector calculations, phase estimates, control-loop feedback, and fault decisions. A simultaneous-sampling architecture removes that ambiguity at the source, which is often more effective than trying to compensate for skew later in firmware.

This becomes especially important in motor-control platforms. Current sensing on multiple phases, or current-plus-voltage sampling used in field-oriented control, depends on accurate instantaneous relationships. If phase currents are acquired sequentially, switching noise, PWM edge placement, and di/dt behavior can translate directly into angle error or torque ripple. With synchronized acquisition, the control algorithm sees a cleaner snapshot of the machine state. In practice, this tends to simplify loop tuning because the observer or transform stage is no longer fighting channel-to-channel timing artifacts that look like plant behavior. That benefit is often underestimated during architecture selection and only becomes obvious during late-stage validation when current waveforms appear correct individually but produce unstable derived quantities.

In encoder and position-measurement subsystems, the same principle applies in a different form. Analog sine/cosine feedback chains require not only amplitude fidelity but also tight channel alignment. Position is derived from the relationship between two signals, not from either one in isolation. Any skew between channels can appear as angle error, especially at higher rotational speeds or when interpolation ratios increase. A 16-bit converter with simultaneous capture supports finer angular reconstruction and more stable velocity estimation, particularly when the analog front end has already been optimized for low offset and matched gain. Designs of this kind usually benefit when the ADC is treated as part of the signal-geometry chain rather than just a digitizer at the back end.

In optical networking and EDFA gain-control loops, the device fits for a different reason. These loops often depend on monitoring two related analog conditions such as photodiode-derived signals, control references, or forward and return optical power representations. Here, dynamic consistency matters as much as absolute precision. Gain-control loops become more predictable when both monitored values are acquired without timing separation, because the control law is built on a valid comparison of concurrent states. In systems with fast transient behavior or tight stability margins, this can reduce loop uncertainty and improve response shaping. The result is not merely better data quality; it is a control path that is easier to linearize and validate across process and temperature variation.

Protection relays and power-quality instruments are among the strongest fits for this architecture. These systems do not just measure amplitude. They infer condition, fault type, and disturbance severity from phase relationships, waveform symmetry, transient timing, and harmonic content. If voltage and current, or two line-related variables, are not sampled together, computed phase angle can shift enough to affect event classification. In relay design, a small phase error can propagate into directional decisions or impedance calculations. In power-quality analysis, skew can degrade harmonic correlation and transient reconstruction. Simultaneous sampling therefore improves trust in the measurement chain at a system level, not just at the ADC specification level. This is one of the cases where converter architecture directly influences protection behavior.

Three-phase power control and PLC-based distributed control hardware also align well with the ADS8353IRTER. These platforms often need moderate channel density, deterministic timing, industrial temperature support, and compact board usage. A dual ADC that can acquire matched data pairs fits naturally into modular I/O, drive control cards, and embedded measurement nodes. The compact package helps in space-constrained layouts, but the more significant point is routing discipline. Short, symmetric analog paths and well-controlled reference grounding are easier to maintain when the converter integrates the channels in one device. That usually translates into better channel matching in the real board, which can matter more than idealized standalone ADC specs.

From an engineering standpoint, the device should be viewed as a timing-defined measurement element. That framing changes how it is used. In many systems, designers first compare resolution, throughput, and interface type, then consider synchronization later. A more effective approach is to start with the physical question the system is trying to answer. If the answer depends on the relationship between two analog quantities at one instant, then simultaneous sampling is a first-order requirement. Resolution and speed still matter, but they matter after timing integrity is secured. This prioritization often leads to better architecture choices and avoids overengineering downstream correction logic.

Good application fit also depends on surrounding implementation choices. A simultaneous-sampling ADC only delivers full value when the analog front end preserves matching between channels. Input driver bandwidth, settling behavior, source impedance, anti-alias filtering, and reference distribution all shape whether the two sampled values remain truly comparable. In current-sense designs, for example, slight RC mismatch between channels can create phase shift that partially erodes the benefit of simultaneous conversion. In resolver or sine/cosine paths, gain mismatch and offset drift may dominate before ADC noise does. Experience shows that channel symmetry in the front end often deserves the same level of discipline as converter selection itself.

Layout and clocking deserve similar attention. Simultaneous sampling reduces internal channel skew, but external noise coupling can still corrupt the instant being captured. Fast digital edges near the input network, poor reference bypass placement, or shared return paths can convert a theoretically precise measurement chain into one that behaves inconsistently under load. The most robust results usually come from treating the ADC, reference, input network, and driver stage as one analog island, then managing the digital interface as a controlled boundary. This is especially important in motor drives and power electronics, where common-mode transients can be aggressive and highly repetitive.

Another practical point is that synchronized dual-channel converters often create system-level simplifications that are easy to miss in a component comparison table. They can reduce calibration burden, simplify timestamp alignment in firmware, and lower the need for interpolation or skew compensation. In protection and control systems, that usually improves determinism. In measurement instruments, it often improves traceability between raw samples and derived outputs. These secondary effects can outweigh small differences in nominal throughput or cost when the end product depends on reliable correlation between channels.

The ADS8353IRTER is therefore most compelling in designs where two analog channels form a coupled measurement problem. Motor current pairs, voltage-current phase relationships, sine-cosine position feedback, matched optical monitor signals, and dual-sensor control loops all fit this pattern. If the channels are largely independent and no meaningful information is lost by sampling them sequentially, other ADC topologies may be more efficient. But when the application depends on simultaneity, this device class solves a deeper problem than basic digitization. It preserves the timing truth of the analog domain long enough for digital processing to make correct decisions. That is the reason it fits so well in industrial and high-speed measurement designs.

Texas Instruments ADS8353IRTER Key Design and Integration Considerations

Choosing the ADS8353IRTER defines only the converter stage. Actual system performance depends on how well the surrounding analog, reference, clock, and layout domains are aligned with the device’s switched-input SAR architecture. In practice, the difference between a design that merely functions and one that consistently delivers datasheet-class behavior is usually determined outside the ADC itself.

A useful starting point is to treat the ADS8353IRTER not as an isolated precision component, but as a dynamic load embedded in a mixed-signal environment. Its dual simultaneous-sampling structure is highly capable, but it also means the front-end, reference network, and return paths must all respond correctly during fast internal charge redistribution events. If any one of these support circuits is slow, noisy, or poorly routed, the converter will still produce codes, but not necessarily accurate ones.

The input-drive network deserves the earliest attention because it directly governs settling accuracy. The ADC input is not a purely static high-impedance node. During acquisition, the internal sampling network draws transient charge from the signal source. That behavior places a real requirement on the driver amplifier and any series impedance in front of the input. The op amp must recover quickly from sampling transients, remain stable with the presented capacitive load, and settle to the required precision within the available acquisition interval. Even when DC error looks acceptable, insufficient settling often first appears as degraded THD, reduced SFDR, or code-dependent distortion at higher input frequencies.

The RC network placed ahead of the ADC should not be viewed as a generic anti-alias filter. It plays several roles at once: charge reservoir, kickback isolator, wideband noise limiter, and stability aid for the driver. Those roles are coupled. If the series resistance is made too large, the external capacitor cannot replenish the ADC sampling capacitor fast enough, and gain compression or harmonic distortion may result. If the capacitor is made too small, the ADC input kickback reaches deeper into the amplifier loop and can trigger settling tails that are difficult to detect in static tests. A practical design approach is to size the RC network around the converter’s acquisition timing and the amplifier’s closed-loop output impedance, then verify the combination with both low-frequency linearity tests and high-frequency dynamic measurements. This is one area where simulation helps, but bench validation is usually what reveals the final behavior.

Driver selection should also reflect the intended signal bandwidth and source nature. For low-bandwidth sensors, a precision amplifier with strong DC accuracy and moderate bandwidth may be appropriate, but only if its settling profile remains clean into the switched-capacitor load. For faster signals, bandwidth alone is not enough; overload recovery, phase margin with capacitive loading, and output current capability become more important than nominal gain-bandwidth figures. A recurring integration issue is choosing an amplifier that looks ideal in small-signal analysis but produces long microvolt-level settling tails after each sampling event. Those tails are often invisible in casual oscilloscope inspection yet large enough to cost multiple LSBs.

Reference design is equally central because SAR converters measure everything relative to the reference node at the moment of conversion. The ADS8353IRTER supports both internal and external references, and that choice should be made at the architecture stage rather than deferred to PCB revision cleanup. The internal 2.5 V reference reduces complexity, saves board area, and lowers the number of precision analog dependencies. It is often the best choice when the signal span already fits comfortably within that range and the system is more sensitive to integration risk than to absolute dynamic margin.

The external 5 V reference path is attractive when maximizing input range or extracting additional SNR is important. However, the external reference must be treated as an active analog rail, not as a passive voltage source. During conversion, the internal capacitive DAC draws impulsive current from the reference. If the reference source has high output impedance, poor high-frequency decoupling, or a long inductive return path, the reference node moves during the conversion cycle. That movement directly maps into gain error, noise, and distortion. In many designs, the nominal reference accuracy is not the limiting factor; the dominant problem is reference dynamic stiffness. A lower-drift reference with weak transient behavior can underperform a slightly less precise device that is buffered and decoupled correctly.

For that reason, local decoupling and reference return routing should be designed with the same care as the analog input path. Place the bypass capacitors close to the reference pins, minimize loop area, and keep the return current path compact and deterministic. If an external reference buffer is used, verify its stability with the selected decoupling network and expected transient load profile. It is often worth measuring the reference node directly under conversion activity, because a clean DC reading does not guarantee low dynamic error. Systems that appear noisy for unclear reasons often improve substantially once the reference network is tightened.

Grounding and PCB structure determine whether the quality of the analog design survives integration. The ADS8353IRTER provides separate reference-related grounds and recommends tying the exposed pad to PCB ground. That recommendation is not mechanical housekeeping; it is part of the electrical design. The exposed pad reduces thermal impedance and creates a lower-impedance ground anchor for the package. A weak or fragmented connection here can raise susceptibility to digital return injection and local ground modulation.

The broader layout objective is not simply to separate analog and digital regions, but to control where return currents flow. Analog input traces should be short, symmetric where possible, and protected from aggressive digital edge fields. Reference traces should avoid sharing impedance with clock or serial interface return paths. The serial interface itself may be low pin-count, but repeated edge activity can still corrupt the local ground reference if routed carelessly near the analog front end. A solid ground plane is usually preferable to split-ground patterns unless the return-current geometry is fully understood. Poorly conceived splits often force currents into longer paths and create larger voltage differences than the noise they were meant to prevent.

Layout symmetry matters more than it first appears because the ADS8353IRTER contains two simultaneously sampled channels intended for matched measurement. The device can deliver excellent channel-to-channel consistency internally, but board-level asymmetry can quickly dominate that advantage. Small differences in source impedance, filter corner frequency, op amp placement, parasitic capacitance, or return path inductance can create measurable mismatch between ADC_A and ADC_B. This becomes especially relevant in current sensing, phase measurement, differential reconstruction, and motor-control loops, where relative accuracy between channels is often more important than absolute single-channel accuracy. In those cases, matching the external signal paths is not an aesthetic preference; it is part of the error budget.

Throughput and operating mode planning should be treated as a system-level optimization problem. The ADS8353IRTER family supports different power and timing behaviors, which allows the converter to be aligned with actual duty cycle rather than operated continuously at peak rate by default. That flexibility is useful, but mode changes are not free. Power-down or reduced-activity strategies alter wake-up timing, thermal conditions, and sometimes the stability of the surrounding analog nodes. If the converter is used in burst sampling, the front-end amplifier, reference, and any sensor excitation network must all be ready and settled before data is trusted. Designs that look efficient on paper can lose effective accuracy if the first few samples after wake-up are corrupted by analog recovery effects.

A robust planning method is to define the measurement window backward from system control requirements. Start with required latency, phase alignment, and update rate. Then allocate time for amplifier settling, reference stabilization, ADC acquisition, conversion, digital readout, and any calibration operations. This tends to reveal whether low-power modes genuinely save energy or merely shift complexity into timing margins. In tightly timed control systems, deterministic behavior is often more valuable than minimum average current. In slower monitoring systems, aggressive duty cycling can be highly effective, provided the analog chain is characterized across the wake-sleep transitions.

Clocking strategy also deserves attention because SAR performance is sensitive not only to average clock frequency but also to timing quality and digital interference coupling. Excessive jitter is generally less damaging to lower-frequency inputs than in high-speed pipeline converters, but clock edge integrity still matters because it defines acquisition and conversion boundaries. More commonly, the issue is not intrinsic jitter but the way clock and SPI signals inject energy into nearby analog structures through shared ground impedance or capacitive coupling. Keeping digital transitions physically and electrically contained usually produces more benefit than chasing extremely low-jitter clock sources in applications where the input bandwidth is modest.

Channel matching should be evaluated as a full-path problem rather than a converter specification lookup. The ADS8353IRTER offers strong offset and gain matching between its internal channels, which is valuable for simultaneous measurements. Still, the total mismatch budget almost always includes sensor tolerance, resistor ratio error, amplifier offset drift, RC tolerance spread, thermal gradient, and layout parasitics. If those contributors are not balanced, the ADC’s internal matching becomes a small part of the total error. In precision dual-channel systems, it is often better to spend effort on matched passive networks, identical routing topology, and shared thermal conditions than to pursue incremental converter improvements alone.

A practical pattern is to classify errors into static mismatch and dynamic mismatch. Static mismatch includes gain, offset, and low-frequency drift. Dynamic mismatch includes phase shift, settling asymmetry, and bandwidth skew. Static terms can often be calibrated. Dynamic terms are harder to remove because they vary with frequency, amplitude, and operating state. For simultaneous-sampling use cases, dynamic mismatch is frequently the one that breaks system assumptions first. This is why channel matching should be verified with time-varying signals, not only with DC or slow-ramp tests.

One useful design perspective is to consider the ADC as a measurement boundary that exposes weaknesses upstream with unusual honesty. If the input driver is marginal, the converter reveals it as distortion. If the reference is soft, it appears as noise or gain instability. If the layout is careless, the measurement floor rises in ways that seem random until current return paths are examined. In other words, the ADS8353IRTER does not usually create integration problems; it makes existing ones visible. Designs improve faster when debugging follows that assumption.

For implementation, a disciplined validation sequence helps. First verify the reference network under active conversion. Then validate front-end settling with representative source amplitudes and frequencies. Next inspect channel-to-channel behavior using the same stimulus on both paths. Finally stress the digital interface and power modes while monitoring noise floor and repeatability. This order tends to isolate root causes efficiently because it moves from the converter’s core dependencies outward into system interactions.

When integrated carefully, the ADS8353IRTER can support high-accuracy simultaneous acquisition with a favorable balance of throughput, power, and layout footprint. Reaching that level depends less on nominal part selection than on treating input drive, reference integrity, grounding, timing, and channel symmetry as one coupled design problem. That is the point where datasheet capability turns into dependable system performance.

Texas Instruments ADS8353IRTER Potential Equivalent/Replacement Models

Texas Instruments ADS8353IRTER replacement selection is best approached as a controlled family migration rather than a broad cross-vendor search. For most designs, the strongest alternatives are the closely related Texas Instruments devices that preserve package compatibility, digital timing similarity, and a familiar power/reference structure. That approach reduces redesign exposure at the PCB, firmware, and production-test levels at the same time.

ADS8353IRTER is a dual, 16-bit SAR ADC positioned for applications that need good precision, compact implementation, and a straightforward interface into a mixed-signal control or measurement chain. When looking for an equivalent or fallback option, the key issue is not only nominal resolution. The more decisive factors are the input topology, achievable effective performance under the actual driver network, and the amount of board or software rework that the project can absorb.

The closest practical downgrade path inside the same architectural family is ADS7853. This device moves from 16-bit to 14-bit resolution while supporting 1 MSPS operation and maintaining pin compatibility with ADS8353IRTER. In engineering terms, ADS7853 is attractive when the design is bandwidth-limited or latency-sensitive, and when the signal chain already contains noise sources large enough that the last two bits of nominal converter resolution are not translating into stable system-level information. In those cases, keeping the same footprint and a similar interface can preserve layout reuse and shorten validation time. This is often the most efficient substitution when procurement pressure or cost reduction is the real driver and the analog error budget still closes comfortably.

ADS7253 extends that same logic one step further. It is the 12-bit, 1 MSPS member of the same single-ended and pseudo-differential family, also pin-compatible. It fits systems where measurement granularity is secondary to availability, throughput, or BOM discipline. This kind of substitution tends to work well in monitored control loops, industrial housekeeping channels, or sensor paths where front-end noise, source tolerance, and environmental drift already dominate the lower bits. In practice, if the original design never demonstrated repeatable 16-bit-level accuracy after accounting for reference drift, driver settling, grounding, and board-level coupling, a 12-bit or 14-bit family member may be far more honest to the real performance envelope than the headline specification suggests.

The situation changes with ADS8354. This part remains at 16-bit resolution, but it belongs to the related ADSxx54 family and uses a fully differential input structure. That means it is not a true drop-in replacement from the analog perspective. Pin compatibility alone is not enough if the input network, common-mode handling, and driver stage were built for single-ended or pseudo-differential operation. However, ADS8354 becomes highly relevant when the design is already moving toward a differential signal chain to improve common-mode noise rejection, reduce ground sensitivity, or match the output behavior of a differential amplifier or sensor interface. In that scenario, the device is less a replacement in the narrow sense and more an architectural upgrade that stays close to the original converter ecosystem.

ADS7854 and ADS7254 serve the same role in that fully differential branch at 14-bit and 12-bit resolution. They are useful when the system wants the benefits of differential acquisition but can relax precision requirements. This often happens in motor control, power conversion, and embedded instrumentation, where front-end robustness and predictable dynamic behavior can matter more than maximum code density. A differential ADC path can simplify noise management in electrically active environments, but only if the surrounding analog design is adjusted accordingly. Without the right driver bandwidth, reference decoupling, and common-mode control, the theoretical advantage will not appear in measured performance.

A practical replacement decision should be driven by four technical checks.

First, verify the true required resolution at system level, not just the original part number. Resolution should be mapped to usable ENOB, noise floor, sensor accuracy, and control-loop sensitivity. If the application cannot reliably exploit 16-bit performance after calibration and environmental variation are included, ADS7853 or ADS7253 may be fully sufficient.

Second, confirm the target sampling rate and acquisition behavior. Family parts may share a nominal throughput class, but the analog source must still settle within the converter sampling window. This is where substitutions often fail quietly. A lower-resolution pin-compatible ADC may appear interchangeable, yet the existing driver amplifier, RC filter, and source impedance may behave differently under changed timing or input capacitance conditions. A quick bench sweep with representative source impedance usually reveals whether the margin is real.

Third, validate input topology. This is the line between a straightforward substitution and a real redesign. ADS7853 and ADS7253 are the natural options when the existing design uses the same single-ended or pseudo-differential style. ADS8354, ADS7854, and ADS7254 should be considered only when the front end can support fully differential signaling, including proper common-mode biasing and balanced routing. In many layouts, the ADC itself is the easy part; the analog transition network is where effort accumulates.

Fourth, review the reference and calibration architecture. Even within a related family, final accuracy depends heavily on reference voltage quality, drift, startup behavior, and channel matching. A replacement part may fit electrically and mechanically, yet still shift gain error, offset behavior, or thermal characteristics enough to require firmware coefficient updates or production recalibration. This is especially important in designs that use the ADC for absolute measurement rather than relative trend monitoring.

From a risk-management perspective, the best replacement path is usually the one that changes only one major variable at a time. If the goal is supply continuity with minimal redesign, staying within the ADS8353-compatible single-ended/pseudo-differential branch is the safer move. If the goal is signal-chain improvement, then migrating to the ADSxx54 fully differential family can be justified, but it should be treated as a front-end redesign, not a simple alternate-source swap.

For engineers and sourcing teams, the practical selection logic is direct:

Choose ADS7853 or ADS7253 when footprint continuity and the existing input style must be preserved, and lower resolution is acceptable.

Choose ADS8354, ADS7854, or ADS7254 when the design is intentionally shifting to a fully differential analog front end.

The strongest insight here is that “equivalent” is rarely defined by pinout alone. In precision SAR ADC designs, the converter, reference, driver, grounding strategy, and calibration method form a single measurement subsystem. Parts from the same Texas Instruments family reduce uncertainty because they preserve much of that subsystem behavior. That is why these devices are the most credible replacement candidates for ADS8353IRTER: they do not merely resemble it in specification tables, they align with the original design intent closely enough to keep redesign risk bounded.

Conclusion

Texas Instruments ADS8353IRTER is best understood not as a generic dual ADC, but as a signal-chain component optimized for deterministic measurement. Its value comes from the combination of simultaneous sampling, 16-bit resolution, industrial operating range, and compact integration. In control and sensing architectures, those attributes matter less as isolated specifications and more as system-level enablers. When two analog variables must be captured at the same instant, timing coherence becomes part of measurement accuracy. In that context, the ADS8353IRTER addresses a class of design problems where sequential sampling ADCs often introduce avoidable phase error, estimation drift, or control-loop uncertainty.

At the architecture level, the most important feature is the dual simultaneous-sampling front end. Two channels are acquired at the same conversion instant, which preserves the true relationship between signals that change quickly or are mathematically coupled. This is especially relevant in current-voltage measurement pairs, resolver-like feedback paths, multi-axis control nodes, and power-stage monitoring. In these cases, a few microseconds of channel-to-channel skew can be more damaging than a moderate increase in noise floor, because the downstream algorithm assumes temporal alignment. That is why simultaneous sampling often improves not only raw data quality but also estimator stability, control response, and fault discrimination.

The 16-bit resolution should also be interpreted carefully. Resolution alone does not guarantee usable precision; what matters is how well the converter maintains linearity, reference stability, and front-end integrity under real operating conditions. The ADS8353IRTER is attractive because it gives enough quantization depth for fine control and precision monitoring while remaining practical to integrate into embedded hardware that must tolerate industrial temperature ranges and board-level constraints. In many systems, 16 bits is the point where calibration becomes meaningfully valuable. Below that, analog error often dominates. Above that, layout, reference design, driver settling, and grounding become much more punishing. This device sits in a productive middle ground where precision is high enough to matter and still economically achievable in mainstream embedded platforms.

Its support for both single-ended and pseudo-differential inputs adds useful flexibility at the interface boundary between sensors and the converter. Single-ended operation simplifies direct attachment to conditioned outputs from amplifiers, DAC feedback nodes, or low-complexity sensing stages. Pseudo-differential mode is often the better choice when the environment is electrically noisy, when ground offsets are non-negligible, or when signal return paths are imperfect. In practice, this is not a small convenience feature. It often determines whether the ADC can be inserted into an existing analog front end without redesigning the sensor interface. In mixed-signal boards that carry switching currents, PWM edges, or isolated power domains, pseudo-differential measurement can noticeably improve robustness by reducing the converter’s sensitivity to local ground movement.

The reference subsystem is another reason the device integrates well into varied designs. Programmable internal references reduce external component count and simplify first-pass development, especially when board area and bring-up speed matter. They are often sufficient for compact control modules, embedded acquisition nodes, and cost-sensitive industrial products. External reference compatibility, however, is what makes the part scalable into higher-accuracy designs. Once gain drift, long-term stability, and cross-channel consistency become tighter requirements, the ability to drive the converter from a carefully selected external reference becomes more important than nominal resolution. A common pattern in precision-oriented designs is to begin with the internal reference during early validation, then migrate to an external low-drift reference after the analog error budget is finalized. The ADS8353IRTER supports that transition without forcing a platform change.

Its serial interface flexibility also contributes to practical system integration. ADC performance on paper is only useful if the digital path can retrieve samples predictably and with low firmware overhead. In embedded control systems, interface simplicity reduces timing risk and shortens verification cycles. Flexible serial connectivity allows the part to fit both MCU-centric and FPGA-centric architectures, which is important because simultaneous-sampling ADCs are often deployed in systems with strict timing ownership. In MCU designs, this can simplify synchronized sampling in motor drives or power converters. In FPGA-based systems, it supports deterministic acquisition pipelines for protection logic, waveform analysis, or tightly bounded latency loops.

The strongest application fit remains in systems where synchronized dual-channel conversion changes the behavior of the full design rather than just improving a specification sheet. Motor control is a clear example. Phase current and bus voltage, or paired current channels in field-oriented control, must often be observed with consistent timing to avoid estimation error during rapid switching intervals. In these systems, sequential conversion can produce subtle distortions that appear downstream as torque ripple, less stable current regulation, or degraded low-speed behavior. Simultaneous sampling reduces that risk directly. The same principle applies in power measurement, where current and voltage need temporal alignment for accurate real-power and power-factor calculations, especially under non-sinusoidal loads or switching transients.

Protection and fault detection are another strong fit. In overcurrent, overvoltage, or short-circuit monitoring, the quality of the decision depends not only on amplitude accuracy but also on whether channels represent the same electrical moment. A dual simultaneous-sampling ADC improves confidence in threshold comparisons and event reconstruction. This becomes particularly useful when firmware or programmable logic must distinguish between genuine electrical faults and sampling artifacts caused by transient edge timing. In fast systems, cleaner correlation between channels often reduces false positives more effectively than simply tightening thresholds.

Precision industrial feedback loops also benefit in less obvious ways. In closed-loop control, measurement latency, phase coherence, and repeatability often matter more than absolute sample rate alone. The ADS8353IRTER helps preserve these properties while offering enough analog flexibility to support a range of sensor-conditioning strategies. It is well suited to pressure, flow, position, and current feedback paths where two related variables must be digitized together and then fused in control or diagnostic logic. A useful design instinct here is to treat simultaneous sampling as part of loop determinism, not merely as an ADC feature. That perspective usually leads to better partitioning between analog conditioning, conversion timing, and software filtering.

From an implementation standpoint, this device should always be evaluated as part of the full analog signal chain. That means input driver selection, source impedance control, anti-alias filtering, reference routing, decoupling, grounding, and digital return current management must be considered together. Many converter problems attributed to the ADC are actually front-end settling or reference contamination issues. For a 16-bit dual simultaneous-sampling converter, even modest asymmetry between the two input paths can erode channel matching and make synchronized sampling less valuable than expected. A disciplined layout approach usually pays off more than adding downstream digital correction. Keep the analog input paths symmetric where possible, isolate the reference network from switching noise, and ensure the driver amplifier can settle fully within the acquisition window across worst-case temperature and process variation.

A recurring practical lesson in industrial boards is that simultaneous-sampling ADCs reveal system weaknesses that slower or lower-resolution converters often hide. Ground bounce, reference ripple, amplifier recovery limitations, and clock-related interference become easier to observe once both channels are captured coherently. That is not a drawback. It is often an advantage because it exposes real coupling mechanisms early in validation. Designs that pass this level of scrutiny tend to be more robust in the field, particularly in motor drives, power stages, and mixed-signal control cabinets where electrical stress is routine.

From a portfolio and sourcing perspective, the pin-compatible family around the ADS8353IRTER adds strategic value. Related devices such as ADS7853 and ADS7253 create room for structured cost-performance scaling without forcing a PCB redesign. That flexibility is useful in platform-based product development, where one hardware design may need to support multiple performance tiers or regional cost targets. It also reduces redesign risk when procurement constraints shift. The deeper benefit is not only second-source-like resilience within a vendor family, but the ability to align converter capability with actual signal-chain requirements instead of overdesigning every variant.

The most convincing reason to select the ADS8353IRTER is that it strikes a disciplined balance. It is precise without being excessively fragile, integrated without being closed, and flexible without becoming implementation-heavy. Devices in this category are most successful when they reduce system uncertainty rather than merely increase nominal resolution. That is where this converter stands out. In high-performance embedded acquisition designs, especially those tied to control, protection, and electrical measurement, it supports a cleaner mapping from analog reality to digital decision-making. When chosen with attention to the surrounding front end and timing architecture, it becomes a robust foundation for measurement systems that need both precision and trustworthiness.
