What are the key design risks when using the ADS8320SHKQ in high-temperature industrial environments, and how can I ensure reliable operation near its 210°C limit?

The ADS8320SHKQ supports an operating temperature range up to 210°C, but sustained operation near this limit can accelerate aging of internal ESD structures and degrade long-term accuracy due to increased leakage currents and reference drift. To mitigate risk, derate the supply voltage slightly below 5V when operating above 175°C, ensure minimal thermal gradients across the PCB, and avoid rapid thermal cycling. Use a high-stability external reference with low tempco (<10 ppm/°C) since the internal reference is not available—this is critical for maintaining 16-bit precision at extreme temperatures.

Can I replace the ADS8320SHKQ with a lower-power SAR ADC like the ADS7820 in battery-powered applications without sacrificing critical performance?

While the ADS7820 offers lower power consumption, it is not a direct functional replacement for the ADS8320SHKQ due to significant differences in resolution (12-bit vs. 16-bit), sampling rate (100 kSPS vs. 200 kSPS), and input structure. The ADS8320SHKQ’s pseudo-differential input provides better noise immunity in noisy environments, which is essential for 16-bit accuracy. If power is a constraint, consider the ADS8320’s microPOWER™ sleep mode instead—it draws <1 µA during shutdown—rather than downgrading resolution, which could compromise signal fidelity in precision measurement systems.

How should I handle the external voltage reference when designing with the ADS8320SHKQ to avoid introducing noise that degrades 16-bit performance?

Since the ADS8320SHKQ requires an external reference, reference noise directly impacts effective number of bits (ENOB). Use a low-noise, high-PSRR reference such as the REF5050 (5.0V, 3 ppm/°C) with a dedicated LDO and local bypassing (10 µF ceramic + 100 nF) placed within 5 mm of the REF pin. Avoid routing digital signals near the reference trace, and use a ground plane under the reference circuit. A poorly filtered reference can introduce LSB-level errors, especially at 100 kSPS where sampling glitches couple more readily into the conversion result.

Is the ADS8320SHKQ suitable for high-impedance sensor interfaces like thermocouples or strain gauges, and what front-end circuitry is needed to maintain accuracy?

The ADS8320SHKQ has a typical input leakage current of ±1 µA, which can cause significant voltage drops across high-impedance sources (>10 kΩ), leading to measurement errors. For thermocouples or strain gauges, use a precision unity-gain buffer (e.g., OPA333) between the sensor and ADC input to lower the driving impedance. Additionally, include an anti-aliasing RC filter (e.g., 1 kΩ + 100 nF) to limit bandwidth and reduce high-frequency noise. Without buffering, source impedance interacting with the ADC’s sampling capacitor can result in incomplete settling and non-linear errors, especially at 100 kSPS.

What layout and grounding practices are critical when integrating the ADS8320SHKQ on a mixed-signal PCB to prevent digital noise from corrupting analog measurements?

To preserve 16-bit performance, isolate the ADS8320SHKQ’s analog and digital grounds at a single point near the ADC, and route the analog input and reference traces away from digital lines (SPI clock, CS, etc.). Use a solid ground plane beneath the device but avoid splitting planes under the ADC. Keep the SPI signal traces short and impedance-controlled if running at high speeds (>10 MHz). The 8-CFP package has limited pin spacing, so ensure solder mask-defined pads to prevent bridging. Poor grounding or crosstalk can manifest as code transitions or missing codes, particularly in the lower LSBs, undermining the ADC’s precision despite correct configuration.

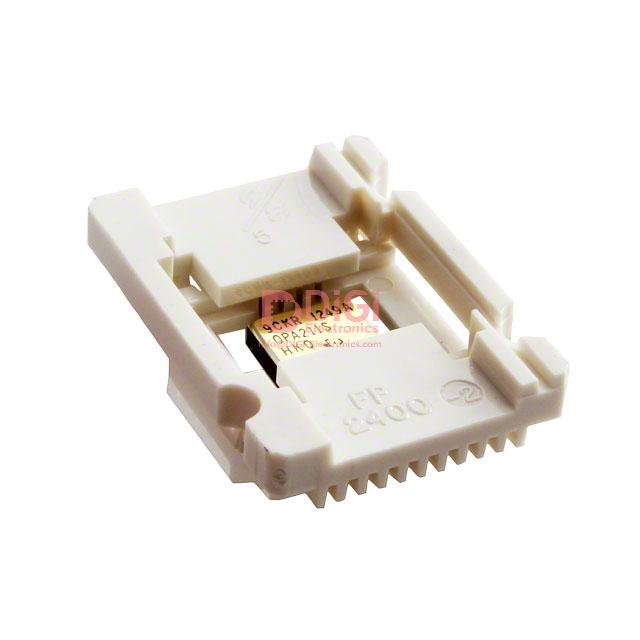

Texas Instruments ADS8320SHKQ Data Acquisition ADC

Name: Texas Instruments ADS8320SHKQ
Brand: Texas Instruments
SKU: ADS8320SHKQ
Price: 554.6590 USD
Availability: InStock
Rating: 5.0 (181 reviews)

ADS8320SHKQ product overview and what makes the Texas Instruments ADS8320 family notable

The ADS8320SHKQ is a 16-bit successive approximation register ADC from Texas Instruments, built for precision sampling where three constraints usually collide: limited power, wide supply variation, and harsh operating conditions. It sits in the ADS8320 microPOWER family and delivers up to 100 kSPS while maintaining specified analog performance from 2.7 V to 5.25 V, with functional operation extending down to 2 V. That operating envelope is already useful in low-power instrumentation, but the more important point is how the device balances precision conversion behavior with deployment practicality.

At the architectural level, the ADS8320SHKQ uses a SAR conversion engine, which is often the preferred choice when designers need deterministic latency, moderate sampling rates, and excellent energy efficiency per conversion. Unlike delta-sigma converters, which can offer strong noise shaping but introduce filtering delay and more complex settling behavior, a SAR ADC gives a direct and predictable conversion cycle. That matters in control loops, event-driven sampling, and multiplexed sensor systems where timing alignment is as important as nominal resolution. In practice, this predictability often reduces firmware complexity and simplifies channel scheduling in embedded acquisition systems.

The 16-bit resolution is a headline feature, but resolution alone does not make a converter valuable. What makes the ADS8320SHKQ notable is that this resolution is paired with micropower operation and an external reference architecture. That combination gives system designers room to optimize the signal chain instead of accepting a fixed compromise. A low-noise precision reference can be selected when absolute measurement accuracy matters, while a simpler reference scheme can be used in cost- or power-sensitive designs. This flexibility is often more important than it first appears, because the reference path sets the upper bound for usable converter performance. In many field designs, the ADC is not the first limitation; the reference source, grounding, and front-end drive network are.

The serial interface also adds to the device’s practical appeal. The synchronous serial output is compatible with SPI- and SSI-style communication, which makes integration straightforward across a wide range of controllers, DSPs, and FPGA-based acquisition platforms. This is not just a convenience feature. Standard serial interfacing lowers board risk, shortens bring-up time, and reduces the chance of custom timing errors in mixed-vendor systems. For product selection, that kind of interoperability often has as much value as a small improvement in static specifications.

A major differentiator of the ADS8320SHKQ is its harsh-environment positioning. Texas Instruments specifies the ADS8320-HT family for operation from -55°C to 210°C, placing this device far beyond normal industrial temperature classes. That rating changes the type of problems the converter can address. In standard electronics, the ADC is usually chosen around precision, speed, and interface. In high-temperature systems, long-term survivability, parametric stability, package behavior, and system-level thermal design become equally important. A converter that continues operating under these conditions can remove the need for remote sensing arrangements, complex thermal isolation, or signal transport over long analog paths. That is often a decisive system advantage, because moving raw analog signals across distance in noisy, high-temperature equipment usually creates more error than the converter itself.

This is why the ADS8320SHKQ is especially relevant in down-hole drilling and other energy-sector instrumentation. In those systems, temperature is only one stressor. Mechanical shock, vibration, supply disturbance, and sensor drift all interact. A SAR ADC with low power demand helps control local heat generation, which becomes increasingly important when ambient temperature is already extreme. Lower self-heating can preserve calibration stability and reduce thermal gradients across the analog section. In tightly packed measurement modules, that effect is not theoretical; even modest power dissipation near a reference or sensor interface can shift performance enough to matter at 16-bit resolution.

The listed application areas reflect this balance between precision and survivability. In vibration and modal analysis, the converter’s deterministic conversion behavior supports consistent time-domain capture, especially where channel timing and repeatability are important. In acoustics and dynamic strain measurement, the value lies in resolving small signal changes without imposing a heavy power burden on portable or distributed nodes. In pressure sensing, particularly in harsh process environments, the external reference option allows the measurement path to be matched to sensor sensitivity and calibration strategy. In multi-channel acquisition systems, the 100 kSPS throughput is sufficient for many medium-speed sensor networks, especially when the design goal is not peak sample rate but stable and efficient data capture across several analog inputs through external multiplexing.

One of the stronger aspects of the ADS8320 family is that it avoids over-specialization. Some converters are optimized so aggressively for a single metric that they become difficult to deploy outside narrow use cases. The ADS8320SHKQ instead combines a set of features that coexist well in real systems: useful resolution, manageable throughput, low power, reference flexibility, standard digital interfacing, and extreme-temperature support. That package is notable because these features tend to compete with one another. When they appear together in a qualified device, the ADC becomes easier to justify across long-lifecycle instrumentation platforms where redesign cost is high.

From an implementation standpoint, the device is best understood as part of an analog measurement chain rather than as an isolated converter. To realize its value, the input source must settle cleanly within the SAR acquisition window, the reference must remain quiet during bit cycling, and digital return currents must be prevented from corrupting the analog ground domain. In lower-speed lab conditions, these issues can remain hidden. In deployed systems, especially with long sensor leads or multiplexed front ends, inadequate source impedance control and poor reference decoupling usually show up first. A practical design pattern is to keep the reference path physically compact, buffer high-impedance sensors when necessary, and treat clock and chip-select timing as signal-integrity concerns rather than simple logic events. Those small decisions often determine whether a 16-bit converter behaves like a precision component or merely a nominally high-resolution one.

Another reason the device stands out is that its performance profile aligns with how many real measurement systems are engineered. Not every application needs megasample throughput or integrated signal conditioning. A large class of systems needs dependable, repeatable conversion in difficult environments with modest processing overhead. The ADS8320SHKQ fits that class well. It is less about chasing the most aggressive ADC benchmark and more about delivering a robust conversion function that remains usable when temperature, power, interface simplicity, and board-level constraints all matter at once.

Seen this way, the ADS8320SHKQ is notable not simply because it is a 16-bit ADC from Texas Instruments, but because it occupies a practical intersection of precision, efficiency, and environmental resilience. That intersection is where many sensing platforms either become maintainable products or remain fragile prototypes. For selection engineers, this makes the ADS8320 family attractive not only on datasheet metrics, but on the stronger criterion of how well the device survives contact with actual system conditions.

ADS8320SHKQ core conversion architecture, input structure, and interface fundamentals

ADS8320SHKQ is built around a charge-redistribution SAR architecture, and that choice explains most of its behavior at the pin level. Internally, the converter samples the input onto a capacitive network, then resolves the code bit by bit against the external reference. With one conversion channel and one analog input path, the device is optimized for deterministic, low-latency measurement rather than channel multiplexing. That matters in control loops, protection paths, and precision sensor interfaces where repeatable timing is often more valuable than input count.

The analog input stage is exposed as a differential pair, +IN and -IN, but the device is often used in either pseudo-differential or single-ended form. In single-ended operation, -IN is tied to the local analog ground and +IN carries the signal. In pseudo-differential operation, -IN can track a remote ground-sense node or a low-level offset reference. This is more than a wiring convenience. It allows the converter to measure the signal relative to the actual return potential seen at the sensor or front-end, which helps suppress errors caused by ground drops, shared return currents, and distributed wiring impedance. In systems with long harnesses, bridge sensors, or separated analog and power grounds, this operating mode can recover meaningful accuracy that would otherwise be lost before digitization even begins.

The usable conversion span is defined by the differential input voltage, +IN minus -IN, and that span runs from 0 V to VREF. This means the reference pin does not just set precision; it directly defines the ADC transfer range. If VREF is 2.5 V, then 0 to 2.5 V differential maps across the full 16-bit code range. If VREF is reduced, resolution in volts per code becomes finer, but headroom decreases. If VREF is increased, dynamic range expands, but each LSB becomes larger. In practice, this makes reference selection a first-order system decision, not a secondary detail. A common design mistake is to optimize the sensor signal chain while treating the reference as a generic voltage source. With SAR converters, reference quality directly shapes gain accuracy, noise floor, and code stability because the conversion process repeatedly compares the sampled input against fractions of that reference during the bit trials.

The absolute input limits add another layer that must be respected independently from the differential range. The +IN pin can extend from -0.1 V to VCC + 0.1 V, while -IN is specified from -0.1 V to 0.5 V. These limits mean the converter tolerates some small overdrive and slight undershoot, but only within tight bounds. The narrower ceiling on -IN is especially important. It signals that pseudo-differential operation is intended for small ground offsets or low-side sense shifts, not for arbitrary common-mode translation. A practical implication follows: even if the differential voltage remains within 0 to VREF, the converter can still be driven into invalid operation if -IN rises too high. This catches designs that assume “differential” automatically implies broad common-mode freedom. In this device, the differential measurement capability is real, but the allowable common-mode window is still constrained by the internal sampling structure.

The specified input capacitance of 45 pF and leakage current of 1 nA are not just static electrical data. They describe how the ADC loads the source during acquisition. Because the SAR front end samples charge onto an internal capacitor array, the signal source must replenish that charge quickly and repeatably before each conversion. If the source impedance is too high, the input may not settle to the true signal value within the acquisition interval, and the resulting conversion error will look nonlinear, temperature dependent, or data dependent rather than simply noisy. This is why slow sensors, resistive dividers with large values, or amplifier outputs with marginal phase margin often produce surprisingly poor code behavior on otherwise precise SAR ADCs. The issue is usually not resolution on paper; it is dynamic settling at the sampling instant.

A robust front end therefore treats the ADS8320SHKQ input as a switched-capacitor load rather than an ideal infinite-impedance node. Low source impedance is preferred. If filtering is needed, it is usually better to use a small series resistor and a local capacitor close to the ADC input than to rely on a large upstream resistor network alone. That local charge reservoir can absorb the sampling transient and isolate the driver amplifier from abrupt kickback currents. The tradeoff is that the RC network must still settle between samples and must not create excess droop or bandwidth loss for the target signal. In precision layouts, this small analog network often decides whether the converter performs near its datasheet limits or merely produces plausible-looking numbers.

The reference path deserves the same level of care as the signal path. Since the converter resolves 16 bits by successively comparing against scaled fractions of VREF, any noise, drift, or transient disturbance on the reference appears directly in the output code. A quiet, low-impedance reference source with tight local decoupling is generally more important than pushing for extreme op-amp bandwidth at the input. In many measurement chains, once gross settling issues are solved, residual code instability is traced back to the reference network rather than the sensor or ADC core. This is particularly visible when the measured input is static but the output still wanders with digital activity, clock edges, or supply ripple. The reference node is often the hidden coupling path.

On the digital side, the interface is intentionally simple. DCLOCK controls the serial timing and effectively determines conversion throughput. DOUT shifts out the conversion result in straight binary format, which simplifies downstream parsing in microcontrollers, DSPs, and FPGA logic. After the falling edge of CS/SHDN, the second clock pulse enables serial output. One null bit appears first, followed by 16 data bits on the next 16 clock edges. This framing is easy to implement, but timing discipline still matters. The controller must align chip-select, clock generation, and data capture exactly as required, especially in shared-SPI environments where default firmware drivers often assume byte-aligned transfers and standard command-response framing. The ADS8320SHKQ behaves more like a timing-driven data engine than a register-based peripheral.

That distinction affects integration strategy. In a microcontroller design, the cleanest implementation is often a dedicated SPI transaction length matched to the device frame, with chip-select fully controlled by firmware or a peripheral mode that allows nonstandard word sizes. In FPGA designs, the interface maps naturally to a compact state machine that asserts CS/SHDN, generates the required clocks, discards the null bit, and shifts in the 16-bit word. Since the converter has no complex command set, interface reliability depends more on edge placement, clock polarity assumptions, and deterministic sequencing than on protocol interpretation. Small mistakes here usually produce stable but wrong data, which is more dangerous than obvious communication failure.

CS/SHDN also has system-level significance because it combines frame control with power-related behavior. In acquisition systems that sample intermittently, this pin can support lower average power operation by reducing active time between conversions. That said, aggressive power cycling only helps when the analog front end, reference, and timing budget are all designed around the wake-up and reacquisition behavior. In low-duty-cycle systems, the limiting factor is often not the ADC core itself but the time needed for the reference and input node to return to a stable condition after activity resumes.

From an application standpoint, the ADS8320SHKQ fits best where a single precision channel must be acquired with predictable latency and modest interface complexity. Typical use cases include industrial transducer readout, current-shunt monitoring, servo feedback, and instrumentation nodes that need a clean 16-bit path without the overhead of multichannel sequencing. The pseudo-differential input makes it especially useful in grounded-sensor environments where return integrity is imperfect but not fully floating. It bridges the gap between pure single-ended ADCs and fully differential converters: simpler than the latter, but far more tolerant of real grounding conditions than the former.

A useful way to think about this device is to separate three design domains that are tightly coupled in operation: charge acquisition at the input, reference stability during bit decisions, and deterministic clocking during readout. If any one of these is weak, the converter will still appear functional, but measured performance will collapse gradually rather than catastrophically. That behavior is typical of good SAR ADCs and is also why they reward disciplined implementation. The core architecture is straightforward, yet it exposes board-level analog quality with very little masking. In well-executed designs, that transparency becomes an advantage: the ADS8320SHKQ delivers accurate, repeatable data with minimal protocol overhead and a measurement model that remains easy to reason about from sensor terminal to output word.

ADS8320SHKQ electrical performance and what its 16-bit precision means in practical design

ADS8320SHKQ electrical performance is best understood by separating nominal resolution from usable measurement fidelity. The device is a 16-bit SAR ADC, but practical design quality depends on how closely each code transition matches an ideal transfer function under real supply, temperature, and signal conditions. In that respect, the part is defined by a balanced set of error terms rather than by resolution alone.

A 16-bit converter divides full-scale range into 65,536 codes. That sets the theoretical quantization step, but it does not guarantee that every code is equally accurate or even present. The ADS8320SHKQ specifies no missing codes to 14 bits, which is an important qualifier. It means monotonic and continuous conversion behavior is guaranteed at a 14-bit level, while the full 16-bit output still provides finer digital granularity for averaging, calibration, and trend extraction. In practice, this is often more valuable than a nominal 16-bit claim with weak linearity control. Many systems do not need every least significant bit to be absolutely accurate at first pass; they need stable, repeatable code movement that can survive calibration and temperature drift. This device aligns well with that requirement.

Integral linearity is one of the strongest indicators of whether a converter will preserve a sensor’s transfer curve. The ADS8320SHKQ specifies typical INL at ±0.008% of full-scale range, with maximum values of ±0.032% or ±0.034% depending on temperature range. Translated into system behavior, this means the converter introduces only a small shape error across the span. That matters in pressure, strain, and vibration chains where multi-point calibration is expected to remain valid over the full input range, not only near zero or near full scale. A low INL ADC reduces the need to absorb converter nonlinearity inside sensor calibration tables, leaving more of the correction budget available for the sensor itself and the analog front end. In mixed-error systems, this is often the difference between a simple linear calibration model and a more expensive polynomial correction approach.

Gain and offset errors define how much the transfer curve is shifted and stretched relative to ideal. Gain error is specified at ±0.05% of full-scale range. Offset error is typically around ±0.5 mV to ±0.6 mV, with a maximum of ±3.8 mV. These are not just datasheet housekeeping numbers. They directly affect how quickly a design can be calibrated on the production line and how stable that calibration remains in the field. Offset error dominates low-level measurements near ground or near the lower span boundary. Gain error dominates span accuracy. In practical signal chains, both are usually straightforward to compensate with one-point or two-point calibration, provided they remain stable over temperature and time. That is where the ADS8320SHKQ becomes more useful than a generic 16-bit converter with looser drift behavior.

Temperature drift is often where nominal precision collapses into mediocre field accuracy. Here the device shows a disciplined profile. Offset drift is specified at roughly ±3 to ±4 µV/°C, and gain drift at ±0.3 ppm/°C. Those values are small enough that the ADC does not become the primary thermal error source in many sensor systems. In a bridge-based pressure design, for example, front-end amplifier offset drift, reference drift, and sensor element drift often dominate long before the converter does. That shifts design attention to the correct place. A stable ADC reduces the risk of overengineering digital compensation around a converter that is not actually the weakest block. In thermally dynamic environments, this kind of drift control also improves confidence in recalibration intervals, because code movement over temperature stays more attributable to the sensor path than to the digitizer.

Noise performance determines how much of the nominal code width can be trusted on a conversion-to-conversion basis. The ADS8320SHKQ reports about 20 µVrms noise at 2.7 V operation, about 21 µVrms at 210°C, and essentially the same 20 to 21 µVrms range at 5 V. This consistency is more important than it may first appear. A converter with strongly supply-dependent or temperature-sensitive noise forces repeated redesign of front-end gain and filtering when the same platform is used across multiple operating corners. Here, the noise floor remains predictable. That makes it easier to budget end-to-end resolution and to decide whether oversampling, input filtering, or additional analog gain is the right tool.

The practical meaning of 20 µVrms depends on the chosen full-scale range. Engineers should always convert this into input-referred noise in LSBs and then into sensor units. If the reference is 5 V, one LSB in a 16-bit system is about 76 µV. A 20 µVrms ADC noise floor is then well below 1 LSB rms, which is a healthy result for a SAR converter intended for precision acquisition. It means output codes will show some natural dithering, but not enough to erase meaningful low-level signal variation. That behavior is usually desirable. Slight code movement enables averaging to recover additional effective resolution, while excessive noise would mask low-amplitude phenomena. In vibration or slowly varying strain measurements, this balance is especially useful because it supports both transient capture and long-window averaging without forcing a radical front-end redesign.

Another practical point is that 16-bit precision should not be interpreted as “16 accurate bits in all conditions.” A better interpretation is that the converter provides a 16-bit digital framework whose real value depends on INL, offset, gain, drift, and noise acting together. In actual designs, effective measurement quality is usually set by the interaction of three domains: ADC static accuracy, front-end analog integrity, and reference stability. If any one of these is weak, the visible benefit of a 16-bit converter shrinks quickly. With the ADS8320SHKQ, the ADC itself is generally not the first block to fail the precision budget, which is a strong sign of a well-balanced part.

In sensor interface design, that translates into several practical advantages. For bridge sensors, low drift and controlled gain error help retain calibration over ambient swings. For multiplexed industrial inputs, predictable offset and noise simplify channel-to-channel correction. For isolated measurement modules, stable behavior across supply conditions reduces the burden on local regulation. In high-temperature instrumentation, the reported noise consistency near 210°C is particularly notable because many converters exhibit more dramatic degradation well before that point. That does not eliminate the need for careful board-level thermal design, but it gives the system designer a cleaner baseline.

Experience with precision SAR converters shows that the ADC datasheet often looks better than the assembled board unless three implementation details are handled early. First, the reference path must be treated as part of the conversion core, not as a secondary support circuit. Reference noise and reference impedance directly shape code stability. Second, source impedance at the ADC input must be low and well controlled, especially if the signal path includes multiplexing or RC filtering. Third, grounding and return current geometry matter more than nominal component accuracy once resolution moves into this range. The ADS8320SHKQ has the electrical performance to reward good layout discipline; it will also expose weak analog housekeeping quickly.

A useful design mindset is to treat this converter as a precision measurement element, not just as a digital output block. Its low typical INL, manageable gain and offset terms, and restrained thermal drift allow calibration effort to focus on the application physics rather than on converter correction overhead. That is where 16-bit precision becomes practical rather than cosmetic. The real benefit is not the existence of 65,536 codes. It is the ability to map those codes to physical quantities with predictable error, stable temperature behavior, and a noise floor low enough to support real signal extraction. In designs where measurement credibility matters more than marketing resolution, that distinction is decisive.

ADS8320SHKQ power consumption, sampling rate, and efficiency advantages in low-power systems

The ADS8320SHKQ stands out in low-power acquisition chains because its energy profile scales cleanly with sample rate rather than remaining fixed at a high baseline. That matters more than the headline power number alone. In many embedded measurement systems, the ADC is not a continuously loaded block. It wakes, acquires a sample, converts, transfers data, and then waits. A converter that minimizes both active conversion energy and standby leakage usually delivers better system efficiency than one optimized only for maximum throughput.

The device supports throughput up to 100 kSPS. Each conversion completes in 16 clock cycles, followed by an acquisition interval of 4.5 clock cycles. The allowable clock range is 0.02 MHz to 2.4 MHz, which gives useful flexibility when matching the converter to a host SPI clock, a low-power controller, or a duty-cycled timing source. From an implementation perspective, this timing model is simple and predictable. Conversion latency, acquisition window, and interface activity are all tightly bounded, which helps when budgeting energy per sample and when aligning ADC activity with sensor settling or amplifier wake-up behavior.

Its power numbers illustrate why the part fits low-duty-cycle systems well. At 2.7 V and 100 kSPS, typical power dissipation is 3.8 mW. At 10 kSPS, that drops to about 0.3 mW. At 5 V and 100 kSPS, typical dissipation is 8.5 mW, falling to about 0.8 mW at 10 kSPS. This is not just a favorable static specification. It reflects an architecture that lets the average energy track actual measurement demand. In practice, many sensor platforms do not need uniform full-rate conversion. They sample in bursts, often around an event, a control loop boundary, or a communication interval. In that operating style, the ADS8320SHKQ avoids wasting power between useful measurements.

A useful way to view this behavior is through energy per conversion rather than power alone. If throughput is reduced by stretching idle time while keeping conversion timing efficient, the average dissipation drops sharply. That is exactly the pattern shown here. The documentation explicitly notes that at lower sample rates the converter can remain in power-down for most of the cycle, reducing average energy consumption. For battery-powered designs, this is often the more relevant figure. Regulators, reference buffers, and digital controllers may still dominate instantaneous current during active windows, but the ADC no longer acts as a persistent drain.

The shutdown characteristic reinforces this advantage. With CS/SHDN held high, the device enters power-down and draws only a few microamps. The specified maximum shutdown current is 6 µA at 2.7 V and 5 µA at 5 V, with lower typical values also indicated. In long-sleep applications, that low leakage is often what preserves usable battery life. A converter with excellent active power but weak standby behavior can quietly erode energy budgets over weeks or months. This part avoids that trap, which is why it fits duty-cycled sensor nodes, isolated acquisition channels, and wake-on-demand instrumentation.

From a system engineering standpoint, the most meaningful advantage is not simply “low power,” but controllable power. The wide clock range from 20 kHz to 2.4 MHz allows the sampling transaction to be compressed or relaxed depending on platform priorities. A faster clock shortens active time, which can reduce total subsystem wake duration if the reference, front-end amplifier, and processor can all settle quickly enough. A slower clock may simplify timing closure or ease digital noise concerns, though it keeps analog circuitry active longer. In low-power design, shorter active windows often win, but only if the analog front end is stable during the compressed acquisition period. That tradeoff is easy to miss when looking only at ADC datasheet power tables.

The 4.5 clock-cycle acquisition time is especially relevant in real designs. It sets a hard requirement on how quickly the driving source must charge the internal sampling network. If the signal comes directly from a high-impedance sensor or a micropower amplifier with limited output drive, the nominal low ADC power can be offset by front-end errors or by the need for a stronger buffer. In that case, the system-level power optimum may not be at the maximum SPI clock. Often the best result comes from allowing slightly more acquisition margin or placing a small local reservoir capacitor at the ADC input so the driver sees a less abrupt charge demand. That kind of adjustment usually improves both accuracy and effective energy efficiency, because it avoids repeated conversions or excessive analog settling time.

Supply voltage also shapes the efficiency story. At 2.7 V, the ADS8320SHKQ dissipates substantially less power than at 5 V for the same sample rate. If the signal chain and reference strategy allow operation near the lower end of the supply range, the energy benefit is immediate. This can simplify battery sizing and reduce regulator losses upstream. At the same time, running at 5 V may still be the right choice when input range, reference headroom, or interface compatibility demands it. The important point is that the part remains efficient in both cases, but the lower-voltage operating point is usually the more attractive one for remote or thermally constrained systems.

Thermal implications are often underestimated in precision acquisition. Even a few milliwatts of localized dissipation can create small temperature gradients in compact, enclosed assemblies. Those gradients may shift reference behavior, amplifier offset, or sensor response, especially in tightly packed analog sections. Lower ADC dissipation reduces this effect at the source. In practical layouts, this gives more freedom in component placement and reduces sensitivity to airflow assumptions or enclosure thermal resistance. The gain is not dramatic in isolation, but in precision systems stability usually improves through accumulation of many small thermal wins rather than one large intervention.

For procurement and platform architecture, these characteristics translate directly into design margin. Lower active power relaxes current delivery requirements on local rails. Low shutdown current improves storage-life projections. Sample-rate-dependent dissipation gives a clearer basis for estimating mission energy under realistic duty cycles rather than worst-case continuous operation. This is particularly valuable in platforms where sensing workload changes over time. A node that samples slowly most of the day and briefly increases activity during an event can exploit the converter’s power profile much more effectively than a part whose bias current remains nearly constant.

In low-power systems, efficiency should be judged by how well a component disappears when it is not needed and how little overhead it adds when it is. The ADS8320SHKQ performs well on both fronts. Its 100 kSPS capability covers a broad range of control, monitoring, and data acquisition tasks, yet its average power can collapse to very low levels when measurement demand is sparse. That combination is usually more valuable than maximum speed alone. It allows the converter to serve as an accurate measurement element without becoming a persistent energy or thermal penalty, which is exactly what disciplined low-power system design tries to achieve.

ADS8320SHKQ supply range, reference options, and input-span flexibility in signal-chain design

The ADS8320SHKQ is attractive in mixed-signal designs because its supply strategy and reference architecture are not tightly coupled in the way many fixed-reference converters are. That separation gives real freedom at the system level. The device is specified for performance in two primary supply windows, 2.7 V to 3.3 V and 4.75 V to 5.25 V, while the broader operating range extends from 2 V to 5.25 V. In practice, that distinction matters. The wider range indicates where the device can function, but the specified windows define where key AC and DC performance is characterized with confidence. For signal-chain design, the safe assumption is simple: operate inside the characterized ranges when accuracy, repeatability, and production margin matter.

This dual-range behavior is useful when the ADC must be inserted into existing platforms. In a 3.3 V digital system, the converter can align naturally with the local rail and avoid an extra analog supply. In a 5 V instrumentation environment, it can also fit cleanly, especially when front-end amplifiers or sensors already require higher swing. That reduces rail translation overhead and can simplify level planning across the board. One practical benefit is that the ADC does not force the rest of the analog path into a single supply philosophy. It can follow the system rather than reshape it.

The more important design lever is the reference input. The ADS8320SHKQ allows an external reference from 0.5 V up to VCC, and the input span tracks that reference directly. Since the analog full-scale range is 0 V to VREF, the converter effectively lets the designer define what “full scale” means. This is a stronger form of flexibility than it first appears. It is not just a reference choice; it is a direct control over quantization economics. If the signal of interest occupies only a fraction of the available input range, leaving VREF unnecessarily high wastes codes and weakens effective resolution at the application level.

A lower reference can therefore be used as a signal-matching tool. If a conditioned bridge sensor, pressure transducer path, or low-voltage current-shunt amplifier only produces 0 V to 2.5 V, then a 2.5 V reference maps that signal to the full 16-bit code space. The converter’s nominal code width becomes smaller in volts per LSB, so measurement granularity improves without changing the ADC itself. This is often more efficient than trying to add gain late in the signal path, especially when added gain would also amplify offset, drift, and wideband noise. In many precision systems, scaling the reference to the real signal span is cleaner than stretching the signal to fit an oversized reference.

The opposite case is also straightforward. If the application truly needs a 0 V to 5 V input span, the ADS8320SHKQ can digitize it directly by setting VREF to 5 V and operating in the appropriate supply condition. That is useful in industrial interfaces, legacy sensor modules, and data-acquisition paths built around 5 V signal standards. It avoids unnecessary attenuation stages, which are rarely free from error. Every divider, buffer, or protection network inserted ahead of a 16-bit SAR converter creates another place for gain error, thermal drift, source impedance interaction, and settling problems to appear.

This reference programmability also changes how front-end partitioning should be approached. A common mistake is to treat the reference as a static support node rather than as part of the signal path. In a SAR ADC, that assumption breaks down quickly. The reference does not merely define scale; it participates dynamically in charge redistribution during conversion. Even when the input resistance is specified in the gigaohm range and DC loading appears negligible, the reference source must still be low-noise, low-impedance, and locally well-bypassed across the relevant bandwidth. High DC input resistance does not eliminate dynamic demands. It only means the steady-state load is small. In real layouts, a weak reference buffer or a long inductive path to the reference pin often degrades performance long before static loading becomes visible in calculations.

That point becomes more important as VREF is reduced. Lowering the reference improves volts-per-code resolution, but it also tightens the allowable noise budget in absolute volts. A reference ripple that looked minor at 5 V full scale becomes proportionally larger when the full-scale range is only 2.5 V or 1 V. The converter may now resolve more useful detail from the sensor, but it will also resolve more of the reference path’s imperfections. This tradeoff is often missed during early architecture selection. In practice, shrinking VREF is beneficial only when the reference source, analog grounding, and front-end noise floor are strong enough to support the tighter scale.

The same logic applies to supply behavior. Power-supply rejection is specified in LSB terms, with 3 to 5 LSB across the 2.7 V to 3.3 V supply range and 3 to 35 LSB across the 4.7 V to 5.25 V range. These numbers are a reminder that supply noise is not abstract background contamination; it converts into measurable code movement. The wider variation in the higher-voltage range suggests that supply sensitivity deserves more attention there, especially if the 5 V rail also feeds switching loads, digital output stages, or noisy sensor excitation circuitry. A precision ADC can share a rail with such blocks electrically and still fail to share it metrologically.

For that reason, supply planning should be treated as part of the converter transfer function. Local decoupling near VCC is necessary, but it is usually not sufficient by itself. The better strategy is to control the impedance profile from the regulator to the ADC, isolate fast digital return currents from analog return paths, and prevent reference and supply currents from flowing through common copper segments where they can modulate each other. In compact boards, this is less about textbook “analog versus digital ground” partitioning and more about current geometry. If conversion repeatability changes when SPI traffic, display updates, or actuator loads become active, the issue is often return-path interaction rather than nominal supply tolerance.

The input-span flexibility also affects front-end amplifier choice. Because the ADC range is unipolar from 0 to VREF, the signal-conditioning stage must land cleanly inside that window under all operating conditions, including offset drift, sensor overrange, startup transients, and fault cases. When the sensor is bipolar or centered around midscale, some combination of level shifting and gain is required. Here, selecting VREF is part of the offset strategy. A carefully chosen reference can reduce gain requirements and leave more margin for amplifier headroom, especially in single-supply front ends. That often improves robustness more than chasing maximum theoretical span usage.

In fielded systems, the most reliable implementations usually avoid using the last few percent of the span unless the error budget clearly supports it. Input drivers, reference sources, and protection structures behave less ideally near the rails. Designing for a slightly reduced practical range often yields better linearity and more predictable settling than forcing exact endpoint utilization. This is particularly relevant when the source impedance is not very low. SAR inputs draw transient charge, and if the driver cannot settle fully within the acquisition window, the nominal span flexibility becomes irrelevant because conversion error is now dominated by drive dynamics.

A useful way to think about the ADS8320SHKQ is that its supply range determines where the converter can live, while its reference range determines how effectively it can measure. The first is a compatibility parameter. The second is a performance parameter. Good designs exploit both, but they do not treat them equally. The stronger design move is usually not selecting the highest allowable supply, but selecting the reference that best matches the true signal envelope and then building the surrounding analog infrastructure to preserve that choice.

When that is done well, the converter integrates cleanly across very different signal chains. A low-voltage conditioned sensor can use a reduced reference for tighter code density. A 5 V industrial output can be digitized directly without attenuation. A precision measurement path can separate supply convenience from full-scale definition. The flexibility is real, but it pays off only when reference quality, decoupling, grounding, and input-drive settling are designed as a unified analog system rather than as independent checklist items.

ADS8320SHKQ high-temperature capability and suitability for harsh-environment applications

The ADS8320SHKQ becomes significantly more compelling when environmental survivability is treated as a first-order design constraint rather than a secondary specification. Its value is not limited to 16-bit resolution or low power operation. The more important differentiator is that it is engineered for sustained operation from -55°C to 210°C, which places it in a category far beyond the range of mainstream precision converters. In harsh-environment systems, this temperature rating is not a marketing extension of room-temperature performance. It directly affects whether signal acquisition can remain physically close to the sensor, whether the measurement chain can survive prolonged exposure, and whether the overall architecture remains practical without excessive thermal shielding or remote electronics placement.

This matters because high temperature does not merely shift a few electrical parameters. It changes the behavior of the entire signal chain. Leakage currents increase, reference stability becomes harder to preserve, timing margins narrow, package-related stress becomes more relevant, and passive component drift can begin to dominate error budgets. In many standard ADCs, these effects push performance outside documented limits well before the ambient environment reaches the extremes found in down-hole drilling, geothermal instrumentation, turbine-adjacent monitoring, or deep industrial process zones. The ADS8320SHKQ is positioned specifically for such cases, where the converter must continue operating inside a measurement subsystem exposed to both thermal stress and long service intervals.

The manufacturing controls around the device are therefore as important as the electrical specifications. Controlled baseline manufacturing, a single assembly and test site, a single fabrication site, product traceability, and extended life cycle support all reduce a class of risks that often become visible only after deployment. In long-duration industrial and energy-sector programs, the concern is not simply whether a converter works in a prototype. The real issue is whether the same part can be sourced consistently, whether process variation remains bounded across production lots, and whether redesign pressure can be avoided over the lifespan of a fielded platform. A high-temperature ADC without supply-chain discipline is only a partial solution. In this context, the ADS8320SHKQ addresses both the operating environment and the program management reality around harsh-environment electronics.

From an architectural standpoint, the main advantage is that it supports digitization near the sensing element. That design choice is often the dividing line between a robust measurement system and a fragile one. If analog signals must travel long distances from a hot zone to a cooler control section, the designer inherits several penalties at once: higher noise pickup, greater sensitivity to cable impedance and EMI, more opportunity for ground potential differences, and increased difficulty preserving low-level transducer outputs. By moving conversion closer to pressure sensors, acoustic pickups, or strain transducers, the design can reduce analog path length and transfer a more interference-resistant digital representation upstream. In harsh environments, that is often the cleanest way to protect measurement fidelity.

This is particularly relevant in down-hole systems, where thermal exposure is only one part of the stress profile. Mechanical shock, vibration, pressure cycling, and inaccessibility all combine to punish marginal component choices. In those systems, a part that merely functions at elevated temperature during a short bench evaluation is not enough. What matters is stable, documented behavior under sustained stress and over many thermal cycles. Experience across harsh-environment acquisition chains shows that weak points often emerge not from the core converter architecture, but from the interfaces around it: reference generation, input drive capability, solder joint integrity, package interaction with the board, and drift accumulation after repeated excursions. A converter qualified for extreme temperature gives the design a much stronger foundation, but it also encourages the rest of the chain to be designed to the same standard instead of relying on commercial-grade support circuitry that quietly becomes the true failure mechanism.

Another practical benefit is reduced qualification uncertainty. In extreme-temperature programs, engineers often spend considerable time eliminating unsuitable parts before real system optimization even begins. Commercial or industrial ADCs may offer attractive nominal performance, but if their behavior above 125°C or 150°C is not fully characterized and supported, they are usually screened out early. That creates a costly loop of candidate evaluation, derating analysis, custom testing, and redesign. The ADS8320SHKQ shortens that path because it enters the selection process already aligned with the environmental envelope. This does not remove the need for full system validation, but it shifts effort away from proving basic survivability and toward refining noise, calibration, power, and mechanical integration.

There is also a broader system-level implication. High-temperature-capable data conversion allows sensing architectures that would otherwise be avoided. It enables distributed measurement nodes in thermally hostile regions, more direct acquisition of low-amplitude transducer outputs, and potentially simpler harnessing between the sensing zone and the control electronics. In many cases, this leads to a cleaner partitioning of the system: analog functions remain local and short-path, while digital communication crosses the harsher interconnect boundaries. That partitioning is often more important than the ADC’s standalone specifications, because it improves the behavior of the full measurement chain under real deployment conditions.

One useful way to evaluate the ADS8320SHKQ is to treat it as a reliability-enabling component rather than just a precision component. If the project only needs nominal 16-bit conversion in a moderate industrial enclosure, many alternatives may appear comparable or cheaper. But once operation near 200°C, long maintenance intervals, and limited service access are introduced, the selection criteria change sharply. At that point, documented thermal capability, traceability, and life cycle stability become system enablers. The ADC is no longer a generic signal-processing block. It becomes part of the environmental qualification strategy.

For that reason, the ADS8320SHKQ is best understood as a device for designs where standard commercial-grade converters are disqualified at the architecture stage, not merely at the component stage. Its role is to make high-integrity digitization feasible in places where thermal stress would otherwise force compromised sensor placement, long analog runs, or repeated qualification risk. That combination of temperature range, controlled manufacturing baseline, and application alignment is what makes it genuinely suitable for harsh-environment measurement systems.

ADS8320SHKQ dynamic performance, timing behavior, and data-transfer characteristics

The ADS8320SHKQ combines respectable dynamic behavior with highly deterministic timing, which makes it more capable than a purely low-speed precision converter. Its dynamic specifications show that the device can preserve signal integrity not only for slowly varying sensor outputs, but also for moderate-bandwidth waveform capture where spectral cleanliness matters. At 2.7 V, with a 1 kHz input, the converter is specified for -86 dB THD, 84 dB SINAD, 86 dB SFDR, and 88 dB SNR. At 5 V, with a 10 kHz input, it delivers -84 dB THD, 82 dB SINAD, 84 dB SFDR, and 90 dB SNR. These numbers place it in a useful operating region for instrumentation channels that must measure both absolute level and time-varying content without moving to a more complex high-speed data-acquisition architecture.

From a signal-chain perspective, these dynamic metrics are meaningful because they reflect different failure modes. SNR indicates how much random noise is added by the conversion process relative to a full-scale sine input. THD reflects nonlinear distortion introduced by the front end and internal charge-redistribution DAC behavior. SINAD combines both noise and distortion into a single measure of usable dynamic fidelity. SFDR is especially relevant in frequency-domain measurements because it reveals the largest unwanted spur, which often determines whether a weak spectral component can be resolved in the presence of a stronger tone. In practical designs, SINAD and SFDR usually drive confidence more than nominal resolution, since a 16-bit output word has limited value if the analog path and converter dynamics cannot support equivalent effective performance.

The device’s performance profile fits applications such as vibration monitoring, low-frequency acoustic capture, control-loop observation, and condition-based sensing, provided the signal bandwidth is matched to the 100 kSPS throughput. That bandwidth limit is important. The converter can represent dynamic content well only when the anti-alias network is designed with discipline. In many systems, the ADC itself is not the primary constraint; aliasing from insufficient analog filtering causes larger measurement errors than the converter’s own noise or distortion. A simple front-end RC filter may be adequate for slowly varying sensors, but for machinery signatures or tonal content it is often worth using a more deliberate low-pass stage so the dynamic specifications remain relevant in the assembled system rather than only in the datasheet.

Its timing behavior is one of its strongest system-level advantages. Conversion requires 16 clock cycles and acquisition requires 4.5 clock cycles, with throughput up to 100 kHz and a maximum DCLOCK frequency of 2.4 MHz. This structure is easy to model and easy to schedule. There is no deep command framing, no variable conversion latency, and little ambiguity about when the analog sample is taken and when the digital word is valid. In embedded measurement systems, that simplicity reduces integration risk. Timing closure becomes a straightforward exercise in clock budgeting rather than a debugging effort around protocol corner cases.

That deterministic timing also benefits synchronized sampling arrangements. When several converters are sequenced by a shared controller, repeatable acquisition and conversion windows make channel-to-channel alignment easier to maintain. This matters in closed-loop actuation, phase-sensitive sensing, and event-correlated capture, where the value of a sample depends not only on amplitude accuracy but also on when it was taken. A converter with modest sample rate but stable timing can be more useful than a nominally faster device that introduces variable latency or firmware-driven uncertainty.

Another practical point is that the 4.5-clock acquisition interval should not be treated as merely a digital timing number. It directly interacts with source impedance and settling behavior at the analog input. If the driving source is weak, heavily filtered, or multiplexed through additional switching, the internal sampling network may not settle fully before conversion begins. The result is often mistaken for gain error, missing codes, or unexplained distortion at higher input frequencies. In practice, buffering the input or reducing source impedance usually improves real performance more than post-processing ever can. This is one of the more common differences between bench characterization and final-board behavior.

The serial data-transfer model is equally pragmatic. Output data is presented as a straight binary 16-bit word, which keeps firmware simple and predictable. A controller can clock out the result, apply reference-based scaling, and move directly into filtering, thresholding, or control computation without handling elaborate register maps or configuration state machines. This is useful in systems where software qualification effort matters as much as raw converter performance. Fewer protocol states generally mean fewer latent failure modes, simpler startup behavior, and easier traceability during validation.

Straight binary formatting also reduces ambiguity at the interface boundary. For unipolar measurement chains, the digital code maps naturally to the analog input span, which simplifies fixed-point implementations in resource-constrained controllers. This becomes valuable when the ADC is part of a deterministic real-time path. Scaling, calibration, and alarm logic can be implemented with low overhead and minimal branching. In many embedded designs, this kind of computational cleanliness is not a small convenience; it is what allows sampling, communications, and control functions to coexist on the same processor without timing violations.

A useful way to view the ADS8320SHKQ is as a converter that rewards disciplined system design. Its datasheet performance is strong enough for moderate dynamic measurement, but only when the surrounding circuitry respects settling, reference quality, clock integrity, and anti-alias filtering. The reference path, in particular, deserves attention. Since the digital code is directly proportional to the applied reference, noise or drift on that node appears immediately as conversion uncertainty. In low-noise measurement chains, improving reference bypassing and layout often yields a more visible benefit than chasing marginal firmware refinements.

For applications that bridge precision sensing and moderate waveform capture, this device occupies a practical middle ground. It avoids the overhead of more configurable data converters while still providing enough dynamic fidelity to support spectral observation, transient tracking, and synchronized acquisition tasks within its sampling envelope. The most effective implementations usually treat its simplicity as a design asset: drive the input properly, stabilize the reference, enforce clean clocking, and the converter tends to deliver behavior that is easy to predict, easy to validate, and dependable in measurement subsystems where timing and data clarity matter as much as nominal resolution.

ADS8320SHKQ package, pin functions, and implementation considerations for board-level integration

The ADS8320SHKQ uses an 8-pin ceramic surface-mount package that matches the functional simplicity of a serial SAR converter while still supporting demanding deployment conditions. Its pinout is compact: VREF, +IN, -IN, GND, CS/SHDN, DOUT, DCLOCK, and +VCC. From a board-integration perspective, this is a favorable arrangement because the signal flow is easy to read directly from the schematic and easy to preserve in layout. The package does not introduce unnecessary pin multiplexing or auxiliary control complexity, so most integration risk shifts from digital configuration to analog discipline, grounding strategy, and assembly robustness.

At the pin level, VREF is the anchor for conversion accuracy. In a SAR ADC, the digital output is fundamentally the ratio of input voltage to reference voltage. That means any noise, drift, or impedance weakness on VREF directly appears as gain error, code instability, or degraded repeatability. For this reason, VREF should be treated less like a static bias node and more like a precision analog energy source that must remain quiet during the internal charge redistribution process. A low-noise reference device, short routing, and local high-quality decoupling are usually more important than nominal reference accuracy alone. A precise reference with poor dynamic behavior often performs worse than expected once real conversion transients appear on the board.

The +IN pin is the primary analog measurement input. Because the ADS8320SHKQ is a SAR converter, the input does not behave like an ideal infinite-impedance node at all times. During acquisition, the internal sampling network draws charge from the source, and the source path must settle within the available acquisition window. This is one of the most common integration oversights. A sensor output or amplifier that looks correct in DC analysis can still underperform if its output impedance is too high or if the front-end filter is poorly dimensioned. In practice, the analog source should be evaluated for both static error and dynamic settling. Even a modest RC network at the input can become the dominant error source if the time constant is not matched to the conversion clocking scheme.

The -IN pin is especially valuable because it enables pseudo-differential measurement. This is more than a convenience feature. It allows the converter to reject part of the error introduced by ground potential differences between the ADC location and the sensor return point. In distributed sensing systems, remote transducers, long harnesses, and connector aging often create small but meaningful voltage drops in the return path. If the ADC measures +IN against local board ground while the sensor actually rides on a shifted remote ground, the error appears directly in the result. Using -IN as a remote return sense point can reduce this mechanism substantially. This is often one of the simplest ways to improve low-level measurement fidelity without adding a full instrumentation front end.

That said, pseudo-differential input should not be treated as a complete substitute for proper grounding. The -IN path still requires careful routing. It should follow the same physical return environment as the associated signal whenever possible, with minimal shared current injection from digital or power-switching paths. If routed casually, -IN can become a noise collection path rather than a clean sense reference. A useful practical approach is to think of +IN and -IN as a controlled measurement pair, even when the signal itself is not fully differential. Keeping them tightly associated through routing and connector assignment usually produces more stable results than treating -IN as a generic spare analog pin.

The GND pin defines the local reference for internal circuitry and digital output behavior. In mixed-signal layout, the main challenge is not simply “separating analog and digital ground,” but controlling where return currents flow. Since DOUT and DCLOCK switch relative to GND, poor return management can inject digital current into the same copper used to stabilize VREF or the analog input network. A compact grounding strategy is usually better than an elaborate split-ground scheme unless the current paths are fully understood. The most reliable implementations tend to place the ADC at the boundary between quiet analog routing and short digital escape routing, with a low-impedance local ground region and direct decoupling to +VCC and VREF.

CS/SHDN combines chip select and shutdown control, which helps reduce pin count but also introduces system-level timing implications. When used as chip select, it gates serial access and conversion framing. When used for shutdown, it can reduce power in duty-cycled systems. The design tradeoff is that power-state transitions and conversion timing now share a single control path. If firmware or FPGA timing is not deterministic, this dual use can create ambiguous device behavior, especially during startup, low-power bursts, or bus-sharing conditions. It is wise to define this signal explicitly in the interface timing budget rather than treating it as a generic enable. In systems with aggressive power management, validating the wake-up-to-first-valid-sample timing under worst-case temperature and supply conditions usually prevents subtle field issues.

DOUT is the serial data output and should be considered a mixed-signal boundary node. It is digital in function, but its switching edge quality and return current path still affect converter performance if the layout is compact. Routing DOUT away from +IN, -IN, and VREF is usually sufficient, but in dense layouts it also helps to avoid broadside or parallel coupling across adjacent layers. If the host controller is physically distant, adding a small series resistor near the ADC can improve edge damping and reduce ringing without compromising interface integrity. This becomes more relevant in ceramic-package assemblies used in harsher environments, where interconnect parasitics and impedance discontinuities are less forgiving than they appear in idealized schematics.

DCLOCK drives the serial timing and directly influences conversion behavior. Excessive clock edge noise, jitter, or overshoot can degrade data integrity and, in poor layouts, can also couple into analog nodes. The clock path should be short, well referenced to ground, and isolated from sensitive input traces. For many SAR ADCs, clock frequency selection is not just a throughput parameter; it also interacts with settling time, digital emissions, and the balance between conversion speed and analog quietness. A slightly slower, cleaner clock often yields better real measurement performance than pushing the maximum interface rate. That trade is frequently favorable in precision sensing systems where consistency matters more than nominal sample rate.

The +VCC pin powers the device and should be decoupled with the same seriousness as VREF, although the error mechanism is somewhat different. Supply noise can modulate internal switching thresholds, affect comparator behavior, and increase digital feedthrough. A local ceramic bypass capacitor placed close to the pin is the baseline requirement. In more demanding designs, upstream filtering or a dedicated low-noise analog supply branch can further reduce interaction with larger system loads. The key point is that supply integrity, reference integrity, and ground integrity are coupled; improving only one of them rarely delivers full benefit if the others remain weak.

At the board level, the most important implementation theme is control of current loops. The ADS8320SHKQ itself is straightforward, but its performance depends heavily on whether the layout preserves short, predictable return paths for the reference, supply decoupling, analog input sampling current, and digital interface switching. A practical placement sequence is often effective: place the ADC first, then place the reference network, then the input conditioning path, and only after that route the digital interface. This order naturally prioritizes error-sensitive paths. Designs that start from connector breakout or controller placement often end up forcing the analog network into whatever space remains, which usually shows up later as unexplained noise or code spread.

For pseudo-differential applications, one recurring integration pattern is remote sensor measurement over nontrivial cable length. In that scenario, routing the sensor signal to +IN and the sensor return to -IN can noticeably reduce offset-like errors caused by shared return currents. The improvement is often most visible during load transients elsewhere in the system, when local ground is no longer as quiet as assumed in a static test setup. This is where the ADS8320SHKQ pin architecture provides practical value beyond its minimal pin count. It gives enough analog flexibility to correct real board- and harness-level error mechanisms without expanding the converter interface or front-end complexity.

The ceramic package changes the implementation discussion in a meaningful way. It points toward environments with elevated temperature, harsher mechanical stress, or stricter reliability expectations. That shifts design attention from standard consumer-grade assembly assumptions to material compatibility, solder-joint behavior, and long-term stress management. Pad design, reflow profile suitability, coefficient-of-thermal-expansion mismatch, and thermal cycling endurance all become relevant. The package should be viewed as part of the system reliability model, not just as a mechanical shell for the die. In these applications, the converter may remain electrically stable while the interconnect system around it becomes the limiting factor, so assembly decisions can have as much impact on measurement integrity as the analog design itself.

Substrate selection also matters more in this context. High-temperature-capable components often expose weaknesses in laminate choice, via reliability, and copper balancing that would be invisible in ordinary ambient systems. If the board sees repeated thermal excursion, analog drift may come not only from the ADC or reference, but from evolving contact resistance, solder fatigue, and changing ground impedance in the signal return path. This is one reason the -IN capability is particularly useful in rugged sensing systems: it provides a degree of immunity to errors that emerge from the interconnect environment over time, not only from the initial board layout.

A disciplined implementation of the ADS8320SHKQ therefore starts with understanding the conversion mechanism, then mapping each pin to its electrical role, and finally translating that into placement, routing, and assembly choices. The device is simple at the interface level, but it rewards precision thinking. VREF defines scale integrity. +IN and -IN define measurement truth. GND and +VCC define local stability. CS/SHDN, DOUT, and DCLOCK define timing behavior and digital interference risk. When these functions are treated as an interacting system rather than isolated pins, the package integrates cleanly even in harsh or high-accuracy applications. The strongest designs are usually not the ones with the most elaborate circuitry, but the ones that respect how a compact SAR ADC moves charge, senses reference, and reacts to imperfect real-world return paths.

ADS8320SHKQ application scenarios for product selection engineers evaluating industrial and remote measurement systems

ADS8320SHKQ is best treated as a precision acquisition element for industrial and remote measurement designs that operate under simultaneous constraints: limited power budget, constrained thermal headroom, long deployment cycles, and a need for repeatable data quality. For product selection engineers, its value is not in headline resolution alone, but in how its electrical behavior aligns with systems that must continue measuring accurately when access is difficult, recalibration is expensive, and environmental conditions are well outside standard instrumentation assumptions.

At the architectural level, the device fits applications where a successive-approximation ADC is preferable to higher-throughput but more power-intensive alternatives. A SAR converter like the ADS8320SHKQ offers an efficient compromise between speed, energy, and deterministic conversion behavior. That matters in remote and industrial platforms because the measurement chain is rarely isolated. It shares supply rails with controllers, telemetry circuits, sensor excitation stages, and often protection networks. In these systems, every milliwatt saved reduces thermal rise, eases regulator stress, and simplifies long-duration operation from restricted power sources. The micropower nature of the ADS8320SHKQ is therefore not just an efficiency feature; it directly supports broader system stability.

Its 210°C high-temperature capability sharply changes the selection equation. Many precision ADCs appear acceptable at room temperature and even across standard industrial ranges, but become unusable in down-hole, turbine-adjacent, deep-well, or sealed high-density electronics where internal board temperature can far exceed ambient assumptions. In such environments, the limiting factor is often not nominal resolution but whether offset, gain behavior, interface timing, and conversion integrity remain predictable as junction temperature rises. A converter designed for extreme temperature operation reduces the need for complex thermal isolation schemes and avoids the common failure mode where the analog front end survives but digitization becomes the weakest link.

Down-hole drilling electronics are a strong fit because they combine nearly every condition that punishes general-purpose converters. Sensor signals from pressure, vibration, inclination, or formation-related measurements must be digitized in physically confined electronics with little cooling and severe reliability expectations. Here, low power translates directly into lower self-heating, which improves measurement consistency and preserves component margin. High temperature tolerance preserves operating continuity where replacement is impossible during service intervals. Just as important, SAR conversion gives deterministic sampling behavior, which is useful when sensor acquisition must be coordinated with pulse telemetry timing, motor drive noise windows, or tightly scheduled embedded control tasks.

Remote data acquisition modules represent another practical use case. These systems often sit at the edge of the network, close to transducers but far from maintenance access. Sensor conditioning stages vary widely: bridge sensors, amplified thermocouples, current shunts, charge amplifiers, and buffered low-level analog outputs all impose different full-scale ranges. The external reference capability from 0.5 V to VCC allows the converter transfer function to be aligned with the real signal span instead of forcing the analog front end to match a fixed ADC reference. This is more important than it first appears. When the reference can be chosen to match the conditioned sensor output, system designers avoid throwing away effective code range, reduce unnecessary gain staging, and often improve net error by simplifying the analog path.

That reference flexibility also helps in modular product families. A single acquisition board may need to support multiple sensor variants with only minor BOM changes. In practice, adjusting the reference strategy can be cleaner and lower risk than redesigning amplifier gain networks across several channels. It also gives product teams a controlled way to trade dynamic range against noise immunity. A lower reference can sharpen sensitivity for low-amplitude signals, while a higher reference can preserve headroom in channels exposed to overload or drift. This kind of configurability is often more valuable in the field than adding nominal ADC bits that the surrounding analog chain cannot actually preserve.

In distributed or simultaneous multi-channel systems, the serial interface and predictable timing simplify controller integration. This is not merely a convenience feature. In systems with several acquisition nodes, synchronization errors often come less from ADC conversion uncertainty and more from firmware complexity, interface contention, or uneven channel service latency. A simple SPI/SSI-style output with well-bounded timing behavior lowers integration risk and makes acquisition scheduling more deterministic. That is especially useful in controller architectures where one processor must coordinate sampling, filtering, communications, and diagnostics on a fixed cycle. Simpler interfaces usually fail more gracefully under software stress, and this is often overlooked during early component comparison.

For vibration and acoustic monitoring, the dynamic performance makes the device more than a static process-monitoring converter. Many industrial measurement chains only need slow, stable values such as temperature, pressure, or supply status. Vibration and acoustic analysis are different. They require the ADC to handle changing waveforms with enough linearity, noise performance, and timing consistency to preserve useful spectral or transient information. The ADS8320SHKQ sits in the category where moderate-speed waveform capture is realistic, provided the surrounding signal chain is designed with equal discipline. In practice, this means anti-alias filtering, source impedance control, and reference cleanliness matter just as much as the converter itself. A 16-bit ADC cannot rescue a poorly damped input path or a noisy reference rail. In real designs, the best results come when the ADC is treated as one element of a controlled signal system rather than as an isolated specification block.

Selection engineers should also weigh what the part does not try to be. It is not a commodity ADC intended for the broadest set of low-cost applications. Its advantage appears when several constraints stack together: precision, low average power, external reference control, compact digital interfacing, and extreme temperature operation. If only one of these is required, many alternatives may appear competitive. If three or more are required simultaneously, the candidate pool narrows quickly, and the ADS8320SHKQ becomes much more compelling. This is often the right way to frame the selection process: not by comparing individual parameters in isolation, but by counting how many difficult requirements are solved by the same device without adding compensating circuitry elsewhere.

This point becomes clearer when looking at procurement and lifecycle decisions. In harsh-environment systems, the acquisition component can drive qualification effort far beyond its unit price. A lower-cost ADC that needs thermal protection, additional calibration support, a tighter analog reference design, or more software compensation can easily become more expensive at the assembly, validation, and maintenance level. A specialized ADC with the right environmental envelope often reduces hidden engineering cost. That reduction is rarely visible in a simple price-per-unit comparison, but it becomes obvious during design verification and field deployment, where fewer edge-case failures and fewer analog redesign iterations translate into real schedule protection.

A practical pattern in industrial designs is that converters are frequently selected first by resolution and only later evaluated for system fit. That sequence often leads to over-specified or under-protected designs. A better approach is to start from the measurement environment: maximum board temperature, sensor output span, source impedance, allowable power dissipation, controller interface constraints, and calibration model. From there, the ADS8320SHKQ makes sense in platforms where the converter must remain predictable under stress without imposing heavy support circuitry. Its strongest role is as a stable precision endpoint in measurement chains that must keep working when service access, thermal margin, and power availability are all limited.

For product selection engineers evaluating industrial and remote measurement systems, the most defensible procurement logic is to classify the ADS8320SHKQ as a specialized precision ADC for harsh and constrained operating conditions. It is particularly well suited when the requirement set includes 16-bit class measurement fidelity, low power operation, adjustable external reference strategy, SPI/SSI-compatible data extraction, compact implementation, and high-temperature survivability. In those cases, its specification set is not just attractive on paper. It maps directly onto the failure modes and design tradeoffs that dominate real deployment environments.

Potential Equivalent/Replacement Models for ADS8320SHKQ

Potential replacement evaluation for ADS8320SHKQ should begin inside the same Texas Instruments lineage, where the most directly referenced options are ADS7816 and ADS7822. The available material identifies these devices as pin-compatible with the ADS8320-HT family, which makes them the closest first-pass candidates when a footprint-preserving substitution is required.

Pin compatibility, however, only solves the mechanical and basic interconnect layer. In ADC replacement work, true interchangeability is determined by whether the conversion behavior, interface timing, and environmental limits remain inside the tolerance envelope of the original design. For ADS8320SHKQ, this distinction is critical because the device is not simply a generic serial ADC; its value is strongly tied to operation in extreme-temperature conditions.

A useful way to assess replacement suitability is to move from package-level compatibility down into conversion mechanics.

First, resolution and output coding must match the system assumption. ADS8320SHKQ is typically selected where the digital backend, scaling constants, alarm thresholds, and calibration flow are already built around a specific conversion width and serial word structure. A nominally similar ADC can still create integration issues if it shifts null codes, output alignment, or bit ordering. In practice, this often appears as a “working” interface that still produces systematic measurement errors because firmware silently interprets the data stream using the old device model.

Second, the reference architecture and input-range behavior must be checked with equal rigor. Even when two converters share a pinout, they may differ in how the input signal maps to full-scale code, how the reference is loaded during acquisition, or how sampling capacitor dynamics interact with the driving source. This matters most in high-impedance sensor chains, multiplexed front ends, or systems with long interconnect traces. A replacement that is electrically legal on paper can still degrade settling accuracy if the analog source was tuned around the original converter’s sampling behavior. In field designs, this is one of the more common causes of subtle performance regression after a “drop-in” ADC swap.

Third, serial timing must be validated beyond simple protocol naming. Devices may all appear to use a similar SPI-style interface while differing in chip-select behavior, acquisition window definition, data-valid edge placement, or total clock count per conversion. If the existing controller firmware runs with tight margins, even a small shift in hold time or conversion latency can force firmware changes or reduce timing robustness at temperature extremes. A clean replacement path usually requires reviewing actual timing diagrams rather than relying on interface labels alone.

Power behavior should also be compared over the real operating sample rate, not just from a static supply-current line item. Many SAR ADCs exhibit operating modes where current draw scales with conversion activity, clocking pattern, and duty cycle. If ADS8320SHKQ is used in a thermally constrained assembly or a low-available-power node, these differences become system-level issues. At elevated temperature, power dissipation margins tighten further, and even modest current increases can shift local thermal conditions enough to affect nearby precision components. In harsh-environment layouts, replacement selection is often less about nominal electrical equivalence and more about preserving total energy balance.

The most important screening factor remains temperature qualification. ADS8320SHKQ stands apart because its documented advantage is support for environments up to 210°C. That capability is not an incremental specification bump; it is a different deployment class. A pin-compatible ADC that performs well at room, automotive, or even standard industrial temperature may still be unusable in a downhole, turbine-adjacent, or other extreme-temperature system. Once operation moves into this range, semiconductor behavior, package stress, leakage, drift, and long-term reliability all become first-order concerns. For that reason, replacement evaluation should begin with thermal qualification and only then proceed to electrical matching. If the candidate cannot survive the temperature envelope, all other similarities become irrelevant.

From a design review perspective, ADS7816 and ADS7822 should therefore be treated as layout-compatible reference candidates, not automatic substitutes. They are appropriate starting points when the goal is to preserve board topology or explore family-adjacent options, but they still require a structured verification flow:

Confirm conversion resolution, coding, and data framing against the existing firmware and calibration chain.

Confirm reference input requirements, analog full-scale mapping, and source-drive compatibility.

Confirm serial timing margins across the intended clock rate and controller implementation.

Confirm power dissipation under the actual sampling profile rather than under nominal bench conditions.

Confirm environmental qualification, especially maximum operating temperature and reliability derating.

In engineering terms, the replacement question is not “does it fit the socket,” but “does it preserve system behavior under the real mission profile.” For conventional temperature ranges, pin-compatible devices can sometimes satisfy that condition with limited redesign effort. For ADS8320SHKQ-class applications, the thermal requirement usually dominates the decision tree and should be treated as the gating parameter from the outset.

A practical substitution workflow is to separate the problem into three filters. Start with survivability: maximum operating temperature, package integrity, and qualification basis. Then check functional compatibility: resolution, input range, reference method, and serial timing. Finally, validate performance stability in context: offset/gain drift, source-settling behavior, and power dissipation at the actual duty cycle. This sequence avoids wasting time on detailed interface comparisons for parts that are already disqualified by environmental limits.

Viewed this way, ADS7816 and ADS7822 are meaningful alternatives only if the target application does not depend on the extreme-temperature capability that defines ADS8320SHKQ. If that capability is mandatory, the search space should remain restricted to devices explicitly qualified for the same thermal regime, even when broader pin-compatible options exist within the product family.

conclusion

The ADS8320SHKQ from Texas Instruments sits in a narrow but important class of data converters: precision SAR ADCs that remain usable when temperature, reliability constraints, and power limits rule out mainstream devices. Its combination of 16-bit resolution, 100 kSPS throughput, low power consumption, external reference support, and a simple serial interface is not just a balanced specification set. It directly addresses a recurring system problem in harsh-environment electronics: maintaining measurement fidelity when the sensing chain is exposed to temperatures that push most precision components beyond their guaranteed behavior. With a specified operating range from -55°C to 210°C, this device is not merely tolerant of extreme conditions; it is intended for architectures in which the ADC must remain close to the sensor and continue delivering deterministic conversion performance over a very wide thermal span.

At the architectural level, the value of this device comes from the SAR conversion approach itself. A 16-bit SAR ADC offers a practical middle ground between speed, power, and deterministic latency. Unlike oversampling converters that often require more digital filtering and introduce additional delay, a SAR converter produces results with predictable timing and relatively low energy per sample. That matters in closed-loop monitoring, event-driven acquisition, and distributed sensing nodes where the system must react quickly and cannot afford unnecessary thermal dissipation. In harsh-temperature systems, every milliwatt has system-level consequences, because self-heating, board stress, and packaging limits tend to accumulate rather than remain isolated at the component level.

The external reference capability is another feature that becomes more valuable as the application environment becomes more demanding. In benign designs, reference selection may feel like a secondary optimization. In high-temperature precision systems, it becomes one of the dominant error-control levers. Allowing the converter to work with an external reference gives the designer freedom to optimize full-scale range, drift behavior, and error budgeting around the sensor signal. This is especially important in pressure bridges, strain gauges, and conditioned vibration channels, where signal amplitude and temperature coefficients often vary with installation geometry, excitation scheme, and front-end topology. A fixed internal reference could simplify the bill of materials, but flexibility at the reference node usually yields better control of system accuracy once temperature, cable loss, and analog front-end drift are included in the model.

The serial interface also deserves attention beyond its apparent simplicity. In remote or ruggedized electronics, interface simplicity is not just a convenience; it is a reliability strategy. A straightforward serial ADC interface reduces pin count, eases digital isolation choices, simplifies FPGA or MCU timing closure, and lowers the probability of integration errors during board bring-up. In harsh-environment systems, the best interface is often the one that exposes the fewest opportunities for ambiguity under supply variation, EMI stress, and thermal cycling. This is one reason devices like the ADS8320SHKQ remain attractive even when newer converters offer denser feature sets. In difficult environments, transparent behavior often outperforms nominally richer integration.

From an application standpoint, the device is well aligned with pressure sensing, vibration monitoring, strain measurement, remote instrumentation, downhole electronics, turbine-adjacent measurement, and industrial energy systems. These use cases share a common pattern: analog signals are often low-level, physically meaningful, and expensive to reacquire if corrupted. The ADC is therefore not just a digitizer; it is the boundary between the analog domain and the decision layer of the system. A converter deployed in such contexts must preserve dynamic range while contributing minimal uncertainty of its own. The ADS8320SHKQ is compelling because it supports that role without imposing excessive power demand or complex digital overhead.

Pressure measurement is a particularly good fit. Many pressure sensors, especially bridge-based types, generate relatively small differential outputs that are later amplified and digitized. In elevated-temperature systems, bridge balance shifts, amplifier offset drift increases, and leakage paths become less negligible. A 16-bit SAR ADC with a stable external reference strategy helps preserve usable resolution after front-end conditioning. In practice, it is often more effective to spend design effort on reference integrity, grounding discipline, and acquisition timing than to chase a nominally higher-resolution ADC whose real system performance collapses under thermal stress. In that sense, the ADS8320SHKQ supports disciplined precision rather than marketing-level precision.

Vibration and condition monitoring present a different but equally relevant use case. Here, the key requirement is often not only static accuracy but repeatable sampling of waveform content over time. A 100 kSPS class SAR ADC is suitable for many vibration channels where bandwidth is moderate and local preprocessing may be used for envelope detection, spectral extraction, or threshold analytics. In these systems, low latency and predictable sample timing can be more valuable than extreme sampling rates. The converter’s efficiency supports multi-channel or duty-cycled measurement architectures in which power must remain constrained, especially in remote nodes or thermally burdened enclosures. In field designs, it is common to find that stable, repeatable acquisition at a moderate rate produces more useful diagnostics than an aggressive high-speed chain that is difficult to calibrate and thermally manage.

For strain measurement, the converter’s profile is again favorable. Strain channels are sensitive to reference stability, front-end noise, and low-frequency drift. Since many strain applications operate over long intervals and rely on small signal changes relative to full scale, the practical challenge is usually maintaining consistency over temperature and time rather than simply maximizing conversion speed. The ability to pair the ADC with a carefully selected reference and signal-conditioning stage gives more control over long-term behavior. This is where selection discipline matters: the ADC should be evaluated as part of the entire metrology loop, including sensor excitation, amplifier drift, anti-alias filtering, input source impedance, and digital calibration strategy. Looking at the converter in isolation often leads to the wrong decision.

From a procurement and platform planning perspective, the ADS8320SHKQ reduces compromise in systems that cannot separate precision requirements from survivability requirements. That has real design value. In many projects, the hidden cost is not the unit price of the ADC but the engineering overhead created when a part fails to cover one of the critical operating constraints. If temperature tolerance is insufficient, the team adds thermal shielding, relocation wiring, or split-domain architectures. If power is too high, additional regulation and thermal mitigation are needed. If interface complexity is high, firmware and validation scope expands. A component that solves these issues simultaneously can simplify qualification and shorten the path to a stable hardware baseline.

Selection should still be disciplined. The ADS8320SHKQ is a strong candidate when the application needs moderate throughput, real precision, low power, and verified operation across severe temperature extremes. It is less about choosing the highest-performance ADC on paper and more about choosing the converter whose failure modes and trade spaces remain manageable in the real system. If the design requires very high channel density, integrated multiplexing, very high-speed waveform capture, or advanced on-chip diagnostics, another class of converter may fit better. But if the priority is accurate digitization close to harsh-environment sensors with minimal architectural burden, this device is positioned well.

A useful selection method is to evaluate five system axes in order: thermal envelope, reference strategy, input driver behavior, sampling bandwidth, and digital integration effort. If the thermal envelope exceeds standard industrial limits, the candidate field narrows immediately and the ADS8320SHKQ becomes more attractive. If the system benefits from tailoring the measurement span through an external reference, its flexibility adds further value. If the analog front end can drive a SAR input cleanly and settle within the acquisition window, the converter can deliver its intended precision. If 100 kSPS is sufficient for the target signal content, there is little reason to absorb the penalties of a faster converter. And if firmware simplicity and interface robustness matter, the serial architecture remains an advantage rather than a limitation.

In practice, the strongest results with parts like this usually come from conservative analog design. Keep the reference path quiet and thermally stable. Verify source impedance against the SAR sampling network rather than assuming nominal compatibility. Budget for gain and offset calibration across temperature. Place the converter as close as practical to the conditioned signal source to reduce pickup and parasitic variation. In high-temperature layouts, material behavior and leakage can become part of the signal chain, so board-level details deserve the same attention as datasheet parameters. This is often where robust performance is won or lost.

For projects that need a compact ADC able to digitize accurately under extreme environmental stress while staying efficient and straightforward to integrate, the ADS8320SHKQ stands out as a technically coherent choice. Its importance is not just that it survives harsh conditions, but that it does so without forcing major concessions in precision architecture, power budget, or interface simplicity. That balance is rare, and in demanding sensing systems it tends to matter more than any single headline specification.
