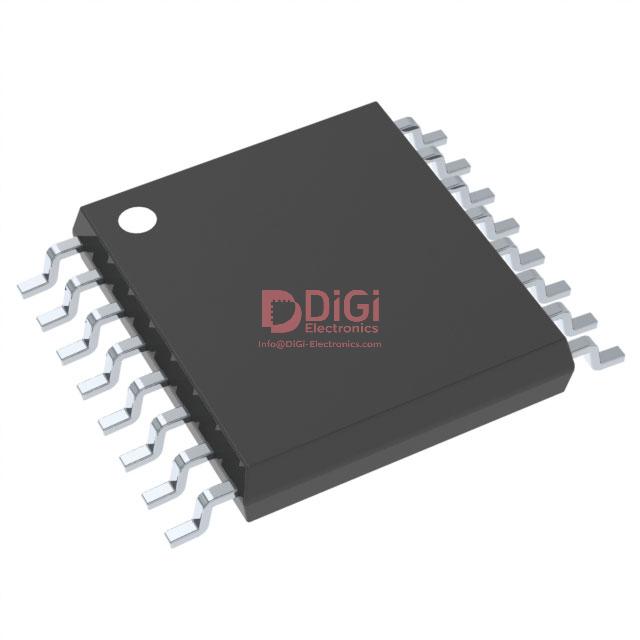

ADS7853IPW
Texas Instruments
IC ADC 14BIT SAR 16TSSOP
30286 Pcs New Original In Stock
14 Bit Analog to Digital Converter 2 Input 2 SAR 16-TSSOP
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (497 Ratings)
ADS7853IPW
Product Overview
1438948
DiGi Electronics Part Number
ADS7853IPW-DGManufacturer
Texas Instruments
ADS7853IPW
Description
IC ADC 14BIT SAR 16TSSOPInventory
30286 Pcs New Original In Stock
14 Bit Analog to Digital Converter 2 Input 2 SAR 16-TSSOP
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
ADS7853IPW Technical Specifications
Category
Data Acquisition, Analog to Digital Converters (ADC)
Packaging
Tube
Series
-
Product Status
Active
Number of Bits
14
Sampling Rate (Per Second)
1M
Number of Inputs
2
Input Type
Pseudo-Differential, Single Ended
Data Interface
SPI
Configuration
S/H-ADC
Ratio - S/H:ADC
1:1
Number of A/D Converters
2
Architecture
SAR
Reference Type
Internal
Voltage - Supply, Analog
5V
Voltage - Supply, Digital
1.65V ~ 5.5V
Features
Simultaneous Sampling
Operating Temperature
-40°C ~ 125°C
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
16-TSSOP
Mounting Type
Surface Mount
Base Product Number
ADS7853
Datasheet & Documents
Manufacturer Product Page
ADS7853IPW Specifications
HTML Datasheet
ADS7853IPW-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
TEXTISADS7853IPW
ADS7853IPW-DG
2156-ADS7853IPW
296-47691
Standard Package
90
Reviews
5.0/5.0-(Show up to 5 Ratings)
de desembre 02, 2025
친절한 고객 서비스와 빠른 배송 덕분에 다시 이용하고 싶어요.
de desembre 02, 2025
환경을 생각하는 포장재 덕분에 마음이 편했고, 배송도 약속 시간 내에 도착해서 정말 좋았어요.
de desembre 02, 2025
我很高興在這裡購物，商品的質量穩定，價格清楚透明，服務一流。
de desembre 02, 2025
Quick processing and shipping ensured I received my order in record time.
de desembre 02, 2025
Their post-sale support team is always friendly and ready to assist with technical challenges.
de desembre 02, 2025
DiGi Electronics' focus on value and support creates a positive shopping experience.
de desembre 02, 2025
Their quick shipping ensures my workflow remains uninterrupted.
de desembre 02, 2025
Always fast delivery, and the prices are some of the best I’ve found online.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
Can the ADS7853IPW be safely used in a 3.3V digital system without level shifting, and what are the risks if my microcontroller only supports 3.3V logic levels on its SPI interface?
Yes, the ADS7853IPW can interface directly with a 3.3V microcontroller because its digital supply (DVDD) accepts 1.65V to 5.5V, and its SPI inputs are tolerant up to DVDD + 0.3V. When powered with 3.3V DVDD, the device operates fully within 3.3V logic thresholds, eliminating the need for level shifters. However, if you power DVDD at 5V while your MCU runs at 3.3V, the ADC’s output signals may exceed the MCU’s absolute maximum input voltage—risking latch-up or long-term reliability degradation. To mitigate this, either power DVDD at 3.3V or use a bidirectional level translator on the SDO line. Always verify signal integrity with an oscilloscope under load to avoid marginal timing or overshoot issues.
What are the key trade-offs when replacing the ADS7853IPW with the ADS7866IPW in a high-channel-count data acquisition system, especially regarding simultaneous sampling and power consumption?
Replacing the ADS7853IPW (14-bit, dual-channel, simultaneous sampling) with the ADS7866IPW (12-bit, dual-channel, non-simultaneous sampling) introduces critical functional and performance trade-offs. The ADS7866IPW uses a multiplexed architecture, meaning its two channels are sampled sequentially, not simultaneously—introducing phase skew that invalidates time-coherent measurements in applications like motor control or vibration analysis. Additionally, while the ADS7866IPW consumes slightly less power (~1.5mW vs ~2.5mW at 1MSPS), the loss of simultaneous sampling often outweighs this benefit. If your design requires true phase-matched acquisition across channels, stick with the ADS7853IPW; otherwise, consider whether 12-bit resolution and lower cost justify the architectural compromise.
How does the internal reference of the ADS7853IPW affect measurement accuracy in temperature-varying industrial environments, and should I consider an external reference for precision applications?
The ADS7853IPW includes an internal 2.5V reference with a typical drift of 10ppm/°C, which may introduce significant error over its full operating range (-40°C to 125°C). In a 100°C temperature swing, this can cause up to 1.25mV drift—equivalent to ~8 LSBs at 14-bit resolution—impacting accuracy in precision sensor interfaces like strain gauges or RTDs. For industrial systems requiring stable measurements across temperature, we recommend using a low-drift external reference such as the REF5025 (2.5V, 3ppm/°C) connected to the REFIN pin. This improves long-term stability and reduces gain error. Note that enabling the internal reference simplifies layout but sacrifices precision; always validate thermal performance in your actual enclosure environment.
Is the ADS7853IPW suitable for battery-powered IoT edge nodes requiring ultra-low power, and how does its power-down mode compare to alternatives like the LTC2366?
The ADS7853IPW is not ideal for ultra-low-power IoT edge nodes despite its auto power-down feature between conversions. While it draws only ~1µA in shutdown, its active current (~500µA at 1MSPS) and relatively slow wake-up time make it less efficient than micropower alternatives like the LTC2366 (12-bit, 300µA at 300kSPS). For battery-powered applications sampling infrequently (e.g., once per second), the ADS7853IPW’s higher active power dominates energy use. Instead, consider duty-cycling with a lower-power ADC or using the ADS7853IPW only if you need its 14-bit resolution and 1MSPS speed. If you proceed, maximize sleep duration and minimize SPI clock frequency during communication to reduce overall system power.
What PCB layout practices are critical when designing with the ADS7853IPW to maintain 14-bit accuracy, especially regarding grounding, decoupling, and analog input routing?
To preserve 14-bit performance in the ADS7853IPW, strict layout practices are essential. Use a solid ground plane and separate analog (AGND) and digital (DGND) grounds, connecting them at a single point near the ADC’s ground pin to prevent digital return currents from modulating the analog ground. Place a 100nF ceramic capacitor directly at the AVDD pin and a 1µF bulk capacitor nearby; similarly decouple DVDD even if shared with digital logic. Route analog inputs away from digital lines (especially SCLK and SDO), use guard rings if necessary, and minimize trace length to reduce parasitic capacitance and noise coupling. Avoid vias in analog signal paths, and ensure the REFIN pin has a low-impedance path to ground with a 1µF bypass capacitor. Poor layout can easily degrade SNR by 6–10dB, negating the benefits of the SAR architecture.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
ADS7853IPW CAD Models
Texas Instruments ADS7853IPW PCB symbols & footprints
