Texas Instruments ADS7845E Product Overview

Texas Instruments ADS7845E is a purpose-built resistive touch-screen controller that combines panel excitation, signal routing, and 12-bit analog-to-digital conversion in a single mixed-signal device. Its value is not in raw ADC performance alone, but in how efficiently it closes the gap between a resistive touch panel and a digital controller. For 5-wire resistive systems, this integration removes much of the analog glue logic that would otherwise be required around a standalone converter. In compact embedded products, that architectural choice often matters more than headline resolution because it reduces board area, simplifies routing, and improves measurement repeatability by keeping the signal chain tightly controlled.

At the device level, ADS7845E integrates three functions that are usually distributed across several components: low on-resistance switch drivers for applying excitation to the touch panel, a precision 12-bit sampling ADC for coordinate acquisition, and a synchronous serial interface for low-pin-count communication with a host processor. This partitioning is well aligned with the electrical behavior of resistive touch technology. A resistive panel is not just an analog sensor; it is an actively driven structure that must be biased in different ways to derive position information. The controller therefore needs to do more than digitize a voltage. It must establish controlled drive conditions, isolate and route the relevant node, then sample at the right time with enough consistency to produce stable coordinates. ADS7845E is designed around that exact sequence.

This is the key reason it should be viewed as a dedicated interface IC rather than a general-purpose ADC. A standard converter can digitize panel voltages, but it does not inherently solve panel excitation, axis switching, source impedance variation, or low-power sequencing. ADS7845E addresses these at the silicon level. In real designs, this usually translates into fewer external analog switches, fewer precision support parts, and less firmware compensation effort. It also reduces the number of interaction points where noise, leakage, or timing mismatch can degrade touch accuracy.

The 12-bit conversion engine provides enough granularity for most interface-driven coordinate systems, especially when the display resolution and mechanical finger or stylus contact area are considered realistically. In many portable products, effective touch accuracy is limited less by nominal converter resolution than by panel linearity, overlay construction, flex tail resistance, grounding quality, and display-integrated noise sources. In that context, a well-integrated 12-bit controller is often the more robust choice than a higher-resolution generic ADC with a weaker front-end strategy. The system-level result is usually more predictable performance over temperature, panel aging, and manufacturing spread.

The low on-resistance internal switch drivers are especially important in 5-wire resistive implementations. In this panel architecture, the drive electrodes establish the voltage gradient across the resistive layer, while the sensing node must be acquired without materially disturbing that gradient. Excessive switch resistance or mismatch can introduce gain error, axis distortion, and position-dependent nonlinearity. By integrating these switches and optimizing them for touch-panel operation, ADS7845E helps preserve a cleaner transfer relationship between physical touch location and measured voltage. That tends to simplify calibration and makes endpoint behavior easier to control, which is often where weaker implementations begin to drift.

Power behavior is another strong point. The device is intended for battery-powered and portable electronics, where the touch interface may spend most of its life idle. In such systems, average power matters more than active conversion current alone. A dedicated touch controller allows the host to wake the analog section only when coordinate data is needed, rather than keeping a broader external measurement chain biased continuously. This has practical consequences in handheld instruments, portable terminals, and low-duty-cycle interface nodes. Good power architecture at the touch interface level can noticeably improve standby time, especially when multiplied across long field operation and infrequent user interaction.

The synchronous serial interface supports clean digital integration with common embedded controllers. This is a small feature on paper, but it has large design implications. Serial interfacing reduces parallel pin pressure, eases PCB escape routing, and isolates the noisy digital host from sensitive analog nodes more effectively than wider buses in constrained layouts. In mixed-signal boards, simpler interconnect often produces better results than nominally faster access methods. The ADS7845E fits well into that design discipline: keep the analog path short and controlled, then export only the digitized coordinate data to the system processor.

From an application standpoint, the part is well suited to products where touch input is functional rather than gesture-intensive. Personal digital assistants, portable measurement equipment, point-of-sale terminals, pagers, and industrial touch monitors are representative use cases. In these systems, the interface requirement is usually deterministic position capture, not multi-touch interpretation or capacitive-field analysis. Resistive technology remains attractive where stylus use, glove operation, simple UI stacks, and cost-sensitive display integration are priorities. ADS7845E supports that class of design by providing a direct and compact interface path with minimal analog overhead.

In portable instruments, one recurring issue is measurement stability when the display backlight, processor, or communication radio injects transient noise into the local ground or supply rails. A touch controller like ADS7845E benefits from careful placement near the panel connector, short routing from panel lines to the IC, and a disciplined analog ground return. Designs that treat the panel traces as ordinary GPIO lines often suffer from coordinate jitter that appears intermittent and difficult to reproduce. In practice, separating noisy digital currents from the touch acquisition path and allowing a short settling interval before conversion usually yields a much larger improvement than trying to correct instability in software after the fact.

Another practical consideration is calibration strategy. Although the controller provides accurate digitization, absolute screen mapping still depends on panel mechanics and display alignment. A two-point calibration may be sufficient for simple interfaces, but systems that require better edge accuracy often benefit from multi-point correction or at least careful endpoint characterization during product validation. The useful insight here is that controller precision and panel precision are not the same thing. A robust design treats ADS7845E as a stable measurement engine and then allocates calibration effort according to the panel’s actual error profile rather than assuming the converter alone defines final coordinate quality.

The industrial temperature range of -40°C to +85°C broadens deployment into equipment that must operate beyond office conditions. This matters because resistive panels and analog interfaces can shift with temperature, cable resistance, and enclosure stress. A controller specified across this range provides a stronger baseline for consistent operation in field terminals, warehouse devices, outdoor service tools, and embedded control panels. Thermal margin is often undervalued during schematic selection, but in deployed systems it directly affects drift behavior, startup consistency, and long-term reliability.

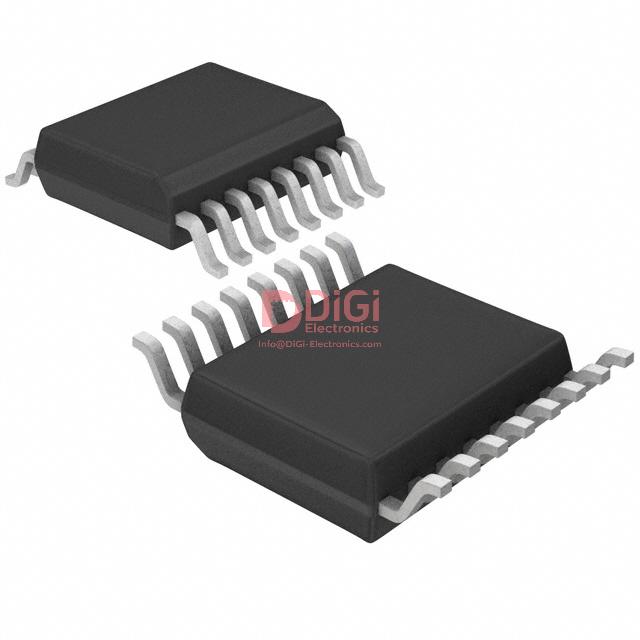

The 16-pin SSOP package supports compact surface-mount implementation and remains practical for cost-efficient manufacturing. Package choice has secondary electrical effects as well. A compact footprint helps keep analog interconnect short, which is beneficial for touch sampling integrity, and it allows straightforward placement near the display connector in dense layouts. That placement flexibility often improves more than assembly efficiency; it improves the electrical quality of the entire touch acquisition chain.

A useful way to position ADS7845E in component selection is this: it is best chosen when the design goal is a dependable resistive touch interface with low integration risk, not when the goal is maximum ADC flexibility. If the product already uses a host MCU with spare ADC channels, it may still be tempting to measure the panel directly. That approach can work, but it usually pushes analog complexity into routing, firmware timing, and calibration maintenance. ADS7845E instead concentrates the touch-specific analog behavior into a known subsystem. For many embedded products, that is the more scalable decision because it makes the interface easier to validate, easier to replicate across revisions, and less sensitive to layout variation.

In that sense, the device represents a disciplined mixed-signal engineering tradeoff. It does not attempt to be universal. It is optimized for one problem: reliable coordinate acquisition from a 5-wire resistive touch screen under real embedded constraints. That focus is exactly what gives it practical strength. By integrating panel drive, switching, conversion, and serial communication into a compact industrial-grade controller, ADS7845E provides a clean and efficient foundation for low-power touch-enabled systems where simplicity, stability, and predictable behavior matter more than feature excess.

Texas Instruments ADS7845E Core Features and Positioning

Texas Instruments ADS7845E sits in a very practical class of touch controllers: devices built to solve resistive touch acquisition with minimal power, modest pin count, and enough analog flexibility to support more than cursor positioning. Its value is not defined by one headline specification, but by how several moderately strong features combine into a useful system-level component for handheld, portable, and cost-constrained embedded designs.

At the interface level, the device targets 5-wire resistive touch screens. That immediately places it in applications where mechanical robustness, glove compatibility, and low display-stack cost matter more than the multi-touch experience associated with capacitive interfaces. In these systems, the touch controller is not simply reading coordinates. It is actively driving screen electrodes, establishing a measurement axis, sampling the resulting analog voltage, and translating that into digital position data. The ADS7845E is designed around this workflow, and its architecture reflects a balance between analog measurement fidelity and low-energy operation.

The 12-bit ratiometric conversion capability is one of the most important technical points. Ratiometric measurement means the converter references the touch-panel drive conditions during position sampling, so the output corresponds to a ratio rather than an absolute voltage. In resistive touch systems, this is the correct approach because the panel itself behaves as a variable resistor network whose measured voltage depends on drive amplitude, panel resistance, contact resistance, and supply conditions. By making the conversion ratiometric, the device suppresses a large class of supply-related errors. This improves coordinate consistency when the supply rail is not especially clean or when the platform operates from a battery whose voltage moves substantially across charge and discharge states. In practice, this often does more for usable touch accuracy than simply chasing a higher nominal ADC resolution.

The selectable 8-bit or 12-bit resolution further shows that the part was designed with system tradeoffs in mind. Not every interface cycle needs maximum precision. Menu navigation, wake-on-touch logic, and coarse hit detection often benefit more from shorter transaction time and reduced processing overhead than from full-resolution coordinates. Conversely, handwriting input, small UI elements, or calibration sequences benefit from 12-bit mode. This dual-resolution option gives firmware designers a clean way to adapt acquisition quality to operating context. A common pattern is to use lower-resolution polling in standby-oriented modes, then switch to full-resolution sampling after touch confirmation. That strategy reduces bus activity, lowers average energy, and often improves overall UI responsiveness because the controller avoids spending too much time on idle-quality data.

The operating supply range is another core reason the ADS7845E remains relevant in low-power designs. Single-supply operation from 2V to 5V, with guaranteed operation down to 2.7V and functional capability noted to 2.0V, gives it unusual flexibility across mixed product families. This is not merely a compatibility convenience. It changes how aggressively the part can be reused across battery chemistries, regulator strategies, and board revisions. In older handheld products, 3.3V logic may dominate. In newer or more energy-sensitive designs, the usable rail may sag well below that during late battery life or during transient load conditions. A touch controller that remains operational deeper into the discharge curve helps preserve interface availability when the platform is in a degraded power state. That matters because touch is often the primary wake or recovery input. Losing touch functionality before the system reaches its actual battery cutoff can create a poor failure mode.

The power figures reinforce that this device was engineered for intermittent sensing rather than continuous high-rate acquisition. A typical dissipation of 750µW at 125kHz throughput and 2.7V supply is already low enough for many portable designs, but the more decisive feature is full power-down control with sub-microwatt shutdown typicals. In real products, touch activity is sparse. The dominant energy question is therefore not active conversion current alone, but how completely the device disappears when idle and how quickly the firmware can bring it back into service. The ADS7845E fits well into duty-cycled architectures where the host wakes the converter briefly, performs a burst of coordinate or auxiliary measurements, and then returns the device to shutdown. This kind of usage often yields better battery-life impact than selecting a nominally lower-power converter that lacks effective shutdown behavior.

The serial interface also deserves attention because it simplifies board integration while reducing digital coupling into the analog path. Compared with parallel interfaces, a serial link lowers pin demand and routing complexity, both of which matter in dense portable layouts. It also makes the part easier to place close to the touch connector or analog domain while keeping the host processor elsewhere on the board. That flexibility can materially improve signal integrity. In resistive touch designs, routing and grounding discipline often influence real-world coordinate stability more than the ADC headline number. Long panel traces, display backlight switching noise, and poorly managed ground return paths can all inject jitter. A compact serial interface helps contain these issues by reducing digital traffic near the analog front end.

The auxiliary analog inputs expand the part beyond pure touch control. This is a subtle but strategically useful feature. In space-constrained systems, every external ADC channel saved can eliminate a component, simplify software abstraction, or free host resources for higher-priority sensing. Auxiliary inputs are often used for battery monitoring, thermistor reads, reference checks, or simple analog housekeeping tasks. The real value is not that the ADS7845E becomes a general-purpose data acquisition engine, but that it can absorb low-bandwidth support measurements already adjacent to the UI power domain. When used carefully, this reduces BOM pressure and helps centralize low-speed analog acquisition under one serial control model.

That said, using touch and auxiliary measurements on the same converter requires disciplined sequencing. The analog environment during panel drive is different from the environment during a battery or sensor read. Switching between these functions without allowing enough settling time can lead to subtle errors that are easy to misclassify as panel noise. In deployed systems, cleaner results usually come from grouping similar measurements, managing source impedance carefully, and discarding the first sample after a mode change if the source network is high impedance or heavily filtered. This is one of those practical details that rarely changes the part selection decision, but often determines whether the first hardware spin feels solid or erratic.

The 125kHz conversion rate should be interpreted in context. It is sufficient for responsive single-point touch acquisition, calibration routines, and low-speed analog monitoring, but it is not intended for waveform capture or high-bandwidth sensor processing. For resistive touch, that is entirely appropriate. Position data benefits more from stable sampling, median or weighted filtering, and coordinate debouncing than from raw conversion speed. In fact, overly aggressive sampling can degrade perceived interface quality if firmware reacts to contact bounce or pressure-induced panel transients too quickly. Better implementations usually sample in short bursts, reject outliers, and only report coordinates after a small consistency check. The ADS7845E supports this style of acquisition well because its throughput and low active power make burst sampling inexpensive.

From a selection-engineering perspective, the part is best understood as a system optimizer rather than a maximum-performance converter. It addresses three constraints simultaneously: resistive touch acquisition, low-voltage portability, and aggressive standby power control. That combination is often more valuable than pushing any single parameter to an extreme. In many embedded programs, the winning component is not the one with the highest resolution or fastest converter, but the one that reduces board risk, power-management complexity, and firmware branching across product variants. The ADS7845E aligns with that principle.

Its fit is especially strong in battery-powered HMI nodes, industrial handhelds, field service terminals, compact instruments, and legacy platforms where resistive touch remains the right interface technology. It also suits designs that need a controller to stay useful across a wide battery range without introducing a dedicated always-on analog subsystem. Where the design requires only intermittent touch reads and a few support analog measurements, the device can replace a more fragmented architecture with a cleaner and often cheaper implementation.

A useful way to frame the ADS7845E is that it solves the part of the interface stack that users notice only when it fails. Touch latency, coordinate drift, false activation near battery depletion, and standby battery drain all become visible immediately in shipped products. The device’s feature set addresses these failure modes in a grounded, engineering-oriented way: ratiometric conversion for coordinate stability, broad supply tolerance for graceful low-voltage behavior, serial control for easy integration, auxiliary inputs for analog consolidation, and deep shutdown for real battery-life gains. That is why its positioning remains clear. It is not a feature-showcase controller. It is a disciplined, low-power mixed-signal component built for designs where reliable touch input must coexist with strict energy and cost constraints.

Texas Instruments ADS7845E 5-Wire Resistive Touch Interface Architecture

Texas Instruments ADS7845E is not a generic ADC attached to a touch panel. It is a measurement engine designed around the electrical behavior of a 5-wire resistive touchscreen. That distinction matters, because in a 5-wire panel the controller does more than sample a voltage. It must create a controlled resistive field on the panel, switch that field between measurement phases, and then capture the resulting wiper voltage with enough consistency that coordinate extraction remains stable across panel variation, cable resistance, and supply movement.

The device integrates four panel drivers, labeled UL, UR, LL, and LR, together with a WIPER input. In a 5-wire resistive structure, the four corner connections belong to the driven resistive layer, while the flexible conductive layer acts as the probe. When the screen is pressed, the probe contacts the driven layer and picks off the local potential at the touch point. The ADS7845E is built to exploit exactly this mechanism. It energizes the panel corners in specific patterns, establishes a voltage gradient across the surface, and digitizes the potential appearing at WIPER. Because the switching network is internal, the system avoids the usual burden of adding external analog multiplexers or custom driver logic to manage panel excitation.

The operating principle is simple at a block-diagram level but subtle in implementation. To measure position, the controller does not apply a fixed voltage to a single axis in the way many 4-wire controllers do. Instead, it drives diagonal corner pairs so that the resistive sheet forms a controlled equipotential map. In one phase, the lower right corner is driven to ground and the upper left corner to VCC. In another phase, the lower left corner is driven to ground and the upper right corner to VCC. These drive states reshape the electric field over the panel. The wiper voltage then becomes a function of touch location under the active field. By combining readings from multiple drive configurations, the controller reconstructs the coordinate information.

This diagonal-drive approach is one of the more important architectural characteristics of the ADS7845E. It reflects the physics of 5-wire panels, where the bottom layer remains the reference surface and the top layer serves mainly as a movable sense contact. The controller therefore treats the panel as a distributed resistor network rather than a pair of independent orthogonal strips. That is why the panel driver arrangement is central to performance. Accuracy depends not only on ADC resolution but also on how symmetrically the voltage field is established across the panel.

The internal analog switches have low on-resistance, typically about 7Ω for the corner drivers. On paper that looks negligible, especially compared with panel resistances that are usually much higher. In practice, it is small but not always invisible. Its impact depends on the measurement mode, panel resistance distribution, source impedance seen by the ADC, and whether the conversion uses single-ended or differential reference behavior. If the excitation path and reference path are not treated consistently, switch resistance can introduce gain error or position-dependent distortion, particularly near the panel edges where the voltage gradient is already sensitive to parasitic series terms.

This is where the ADS7845E architecture shows good system-level thinking. The datasheet’s discussion of differential reference operation is not a minor implementation detail. It is a compensation strategy built into the conversion method. When the same electrical path that creates the panel voltage also participates in the ADC reference framework, part of the switch resistance error tracks out of the transfer function. In effect, the measurement becomes more ratiometric. That reduces sensitivity to absolute driver resistance, supply variation, and some classes of interconnect loss. For embedded designs running from noisy digital rails, this is often the difference between a controller that looks acceptable in the lab and one that remains stable in the final product.

Another useful way to view the ADS7845E is as a boundary device between analog field generation and digital coordinate extraction. Many integration problems in touch systems occur at that boundary. If the controller only digitizes an externally prepared signal, then board-level design must carry the burden of excitation timing, switch sequencing, settling control, and error cancellation. By moving those functions inside the IC, the ADS7845E reduces uncertainty in the most sensitive part of the signal chain. That directly improves repeatability and simplifies firmware, since software can operate at the level of measurement commands rather than low-level analog orchestration.

In compact embedded interfaces, this internalization of the measurement environment has several practical benefits. Layout becomes easier because the panel corner lines connect directly to dedicated driver pins instead of passing through a separate analog switch matrix. The analog front end has fewer exposed high-impedance nodes, which lowers susceptibility to coupled digital noise. Timing is easier to control because panel excitation and conversion are already coordinated by the converter’s internal state machine. It also reduces component count, which matters in handheld or sealed products where board area, routing layers, and long-term reliability are all constrained at once.

There is also a reliability angle that is often undervalued. Five-wire resistive panels are commonly selected for harsh operating conditions because the sensing mechanism remains functional under contamination, glove use, and surface wear patterns that can challenge capacitive interfaces. In those environments, the controller must tolerate gradual shifts in contact resistance and panel uniformity without becoming unstable. A dedicated architecture like the ADS7845E is better matched to that requirement than a generic ADC plus external switching. The reason is not only convenience. It is that the IC was designed with the panel’s non-ideal behavior in mind.

Experience with resistive touch systems shows that most coordinate noise problems are not caused by ADC resolution limits. They usually come from incomplete settling after drive-state changes, reference inconsistency, trace coupling into the wiper node, or overconfidence in nominal panel symmetry. The ADS7845E addresses part of this at the silicon level, but board design still matters. Short routing from the panel connector to UL, UR, LL, LR, and WIPER helps preserve the intended field conditions. Keeping digital edges away from WIPER reduces injected error during acquisition. Allowing sufficient settling time after each drive reconfiguration often improves coordinate stability more than increasing sample count. In many designs, a small adjustment to acquisition timing produces a visibly smoother cursor than any amount of software filtering applied afterward.

A second practical point is calibration strategy. Because a 5-wire panel and its controller form a distributed analog system, raw coordinates should be treated as field measurements, not ideal geometric positions. Simple two-point calibration may be sufficient for coarse interfaces, but edge linearity and rotational skew often improve when the mapping model accounts for real panel behavior. The ADS7845E provides a stable enough acquisition base that calibration can focus on panel mechanics rather than compensating for a poorly controlled electrical front end. That separation is valuable in production because it narrows the spread between units and reduces the amount of correction needed downstream.

From an architectural perspective, the strongest feature of the ADS7845E is that it collapses sensing, excitation, and analog switching into one coherent path. That is a better design philosophy than treating touch input as just another low-frequency analog source. Resistive touch panels are active measurement structures. They must be driven correctly before they can be read correctly. The ADS7845E embodies that principle directly through its corner drivers, WIPER sensing path, and low-resistance switching network. For dedicated 5-wire touchscreen designs, that makes it a fit not merely because it supports the interface, but because it defines the interface electrically in the way the panel expects.

Texas Instruments ADS7845E ADC Performance and Conversion Characteristics

Texas Instruments ADS7845E is built around a charge-redistribution SAR ADC, and that architectural choice explains most of its observable behavior. The converter does not behave like a high-speed streaming digitizer. It behaves like a deterministic measurement engine optimized for low-bandwidth signals, multiplexed inputs, and predictable latency. In practical designs, that matters more than the headline 12-bit resolution. The useful question is not whether it resolves 4096 codes, but how reliably it acquires a voltage through source resistance, how repeatable its transfer function remains across channels, and how much firmware effort is needed to extract stable data.

The SAR core uses an internal capacitive DAC both to sample the input and to perform the binary search during conversion. This means the sample-and-hold function is inherent to the topology rather than added as a separate front-end block. For resistive or multiplexed sources, this is a major advantage because the acquisition interval is well defined and closely tied to the converter clocking sequence. At the same time, the input is not infinitely benign. As with most capacitive-input SAR converters, the source must charge the internal sampling network to the required accuracy during the acquisition window. If the driving source impedance is too high, the conversion error appears first as code instability, gain compression near full scale, or channel-dependent offsets after MUX switching.

The stated 12-bit resolution with optional 8-bit conversion mode gives useful flexibility in embedded systems. The 12-bit path is appropriate when coordinate precision, pressure estimation, or low-rate analog measurement is the priority. The 8-bit mode is not merely a reduced-precision fallback. It can be used deliberately to shorten data handling overhead and reduce firmware processing in systems where coarse position or threshold detection is enough. That is often relevant in user-interface scanning loops, where the system benefits more from low-latency decision making than from absolute amplitude precision on every sample.

Straight binary output keeps digital integration simple. There is no sign interpretation, and full-scale mapping is straightforward in fixed-point firmware. That may look trivial, but simple output coding reduces avoidable software defects in resource-constrained controllers, especially when the ADC data path is interleaved with touch decoding, debounce logic, display refresh, and serial communication. In systems like these, clean digital semantics are often more valuable than an extra feature bit in the converter.

The linearity and accuracy specifications define the practical measurement envelope. No missing codes at 11 bits indicates monotonic behavior up to that level, which is usually enough for stable interface measurement and coordinate extraction. The specified integral linearity of ±2 LSB is consistent with a general-purpose SAR of this class. It will not support precision instrumentation without calibration, but it is good enough for positional sensing, supply monitoring, and low-frequency control loops. Offset error of ±2 LSB and gain error of ±6 LSB further suggest that absolute accuracy out of the box is modest. In many real products, this is not a weakness. Resistive touch panels, sensor dividers, and field wiring typically introduce larger uncertainties than the ADC core itself. A one-time system calibration or a lightweight two-point correction in firmware usually yields a larger improvement than replacing the converter with a nominally more accurate part.

The ±4 LSB noise figure deserves careful interpretation. For low-bandwidth interface measurements, this level of noise is often manageable because the signal itself changes slowly and can be filtered. In touch applications, a single raw sample is rarely the final answer. Median filtering, trimmed averaging, or sample voting across a short burst can suppress transient disturbances and contact noise effectively. In practice, the panel, flex routing, display EMI, and charge injection from surrounding digital activity often dominate the observed spread. The converter’s own noise becomes only one contributor in a larger error budget. This is why board-level discipline frequently delivers more improvement than algorithmic complexity. Short analog traces, a stable reference path, controlled clock edges, and sensible grounding can turn a “noisy ADC” into a very usable measurement channel.

The 70 dB power supply rejection ratio and the referenced 30 µVrms system-performance figure indicate that the device is reasonably tolerant of supply ripple, but not immune to poor rail hygiene. In mixed-signal embedded boards, the dominant coupling path is often not direct supply ripple but shared return impedance and switching current bursts from digital interfaces. When the SPI clock, display backlight driver, or MCU GPIO banks switch during acquisition, the error can look like random conversion noise even though its origin is deterministic. A useful design habit is to align sampling windows away from the noisiest digital events. That approach often improves repeatability more than increasing filter depth, because it reduces error at the source rather than averaging its symptoms.

Timing behavior is central to system-level use. The 12-clock conversion time and 3-clock acquisition time make the interface highly predictable. This is important in firmware-controlled sampling loops because throughput is not only a function of converter speed but also of software scheduling and bus efficiency. A theoretical maximum throughput of 125 kHz is adequate for low-frequency measurement, panel scanning, and oversampling, but it is far below the regime needed for waveform reconstruction or transient capture. That distinction should guide component selection early. The ADS7845E is not intended to observe signal shape in time. It is intended to return stable scalar measurements from selected channels with low control complexity.

The 500 ns multiplexer settling specification is especially relevant when the input channels have different source impedances or significantly different voltages. After switching channels, residual charge and finite source drive can shift the first reading. This effect is easy to miss in bench tests when all channels are driven from low-impedance laboratory sources, then becomes visible in the final product where one channel comes from a touch panel axis, another from a battery divider, and another from an auxiliary sensor. A common mitigation is to discard the first sample after a channel switch or to insert a controlled delay before initiating conversion. That small firmware cost often buys a disproportionate gain in consistency.

Aperture delay of 30 ns and aperture jitter of 100 ps are technically strong numbers, but their practical value depends on signal bandwidth. For slow-moving inputs such as touch coordinates or control voltages, jitter is essentially irrelevant. For higher-frequency signals, it would matter more, but this device’s throughput already places it outside serious waveform-digitization use. In other words, these timing figures confirm good internal discipline, yet the dominant application limit remains overall conversion rate and front-end settling rather than aperture uncertainty.

The specified 100 dB channel-to-channel isolation with a 2.5 Vp-p input at 50 kHz is a positive indicator for multiplexed operation. It suggests that the internal MUX and sampling network are well controlled, reducing direct feedthrough from one active channel into another. Even so, isolation on paper does not remove the need for external layout care. Crosstalk on the PCB, shared sensor routing, and common impedance in ground returns can easily dominate the intrinsic isolation of the converter. In compact interface boards, analog channels should not be routed as if they were logic nets. A clean return path and physical separation from switching lines are still worthwhile, even at these modest sampling rates.

For engineering decisions, the key point is that ADS7845E is optimized around useful determinism, not raw performance. Its specification set is well matched to touch interfaces, low-speed sensor readout, and supervisory measurements. In a resistive touch system, 12-bit nominal resolution provides enough granularity for coordinate interpolation and pressure-related measurements, while the available sampling rate supports responsive scan loops and moderate oversampling. The converter’s limits also align with the mechanics of the application. Touch surfaces do not produce clean, ideal voltages. They produce contact-dependent, pressure-sensitive, and often noisy analog values. In that context, spending design effort on robust acquisition strategy is more productive than chasing nominal converter precision.

A practical implementation usually benefits from a layered measurement strategy. At the analog level, keep the source impedance seen by the ADC under control, especially after MUX switching. At the timing level, allow proper acquisition and settling, and avoid sampling during aggressive digital activity. At the firmware level, treat raw conversions as observations rather than truth. Use short-burst sampling, reject outliers, and adapt filtering depth to motion state. When the touch point is moving quickly, prioritize latency. When it is stationary, increase averaging to improve coordinate stability. This dynamic filtering approach often feels better in the final interface than a fixed filter, because it preserves responsiveness without letting the display cursor shimmer at rest.

Another useful perspective is that the ADS7845E should be evaluated as part of a measurement chain, not as an isolated ADC. The panel resistance, reference stability, clock quality, SPI transaction timing, PCB parasitics, and firmware policy all contribute directly to the quality of the delivered coordinate or sensor value. In many systems, the converter is not the dominant source of error; it is the point where upstream design choices become visible. That is why this class of SAR ADC often rewards balanced engineering. A clean but simple front end, disciplined timing, and modest digital post-processing usually outperform a more elaborate algorithm wrapped around a noisy board.

Viewed this way, the ADS7845E occupies a very practical design space. It offers sufficient resolution, predictable timing, acceptable static accuracy, and interface-oriented throughput. It is not a universal ADC, and it does not need to be. Its value lies in how efficiently it converts slow analog states into reliable digital decisions, particularly where multiplexing, low power, and straightforward firmware integration matter more than spectral purity or sampling bandwidth.

Texas Instruments ADS7845E Reference Input and Ratiometric Measurement Method

Texas Instruments ADS7845E uses an external reference input from 1 V to VCC, and that choice sets more than the converter’s full-scale range. It defines the transfer scale, changes how static errors appear in digital codes, and alters how sensitive the system becomes to reference routing, source impedance, and dynamic charge loading. For this device, reference design is part of the measurement architecture, not a secondary power-selection detail.

At the converter level, the input span is 0 V to VREF, and one least significant bit is VREF / 4096. This simple relationship has an important consequence: reducing VREF improves nominal code resolution in volts per count, but it also magnifies any fixed absolute error when that error is expressed in LSBs. A 1.22 mV offset remains 1.22 mV whether VREF is 2.5 V or 1.0 V. What changes is the digital interpretation. At 2.5 V, 1 LSB is about 0.61 mV, so the error looks like roughly 2 LSB. At 1.0 V, 1 LSB is about 0.244 mV, so the same error expands to about 5 LSB. This is not a worsening of the analog offset itself. It is a scaling effect caused by shrinking the quantization step.

That distinction matters during specification review. A design can appear worse in code-domain error tables after lowering the reference, even when the actual analog behavior is unchanged. In practice, this often leads to incorrect conclusions during bring-up. If calibration or acceptance limits are written only in LSBs, a lower reference can make a stable design look marginal. It is usually better to evaluate offset, gain, and noise in both volts and codes, then decide which domain is relevant for the end application.

The reference pin behavior deserves equal attention. ADS7845E does not buffer the reference internally. The reference node feeds the converter capacitor DAC directly, so the source connected to VREF must tolerate switched-capacitor loading. The datasheet’s typical reference input current of 13 µA at 2.5 V and 125 kHz is only a first-order indicator. The actual current is dynamic, tied to conversion timing and code-dependent charge redistribution. That means the reference pin does not behave like a static high-impedance analog input. It behaves more like a periodically disturbed charge reservoir.

This has several design implications. First, the reference source must have low enough output impedance across the relevant frequency range, not just in DC regulation terms. Second, local bypassing at the reference pin is not optional in serious designs. The capacitor must supply fast transient charge while the upstream source restores the average level more slowly. Third, trace inductance and shared ground return paths can convert this pulsed reference current into conversion noise or gain variation. These effects become more visible when VREF is low, because the same disturbance consumes a larger fraction of full scale.

A useful engineering rule is to treat the reference path as part of the analog signal chain. If the reference source is remote, lightly decoupled, or routed through digital return current regions, the converter will faithfully digitize that weakness. Many data acquisition problems attributed to “ADC noise” are actually reference integrity problems. With SAR-class architectures and CDAC loading, this is a recurring pattern.

The ADS7845E becomes especially effective when used in its differential reference, or ratiometric, configuration for resistive touch measurement. In this mode, the same panel drive voltage that establishes the voltage gradient across the touch layer is also used as the ADC reference. The converter therefore measures a ratio:

measured code ≈ touched node voltage / panel drive voltage

Because both numerator and denominator are derived from the same excitation path, many absolute errors cancel. Supply variation, panel sheet resistance drift, and switch on-resistance effects influence both the sensed voltage and the reference in nearly the same proportion. The output code then depends primarily on touch position rather than the exact electrical values in the path.

This is the core strength of ratiometric measurement. It shifts the problem from absolute voltage accuracy to ratio stability. For a resistive touch panel, that is exactly the right abstraction. The panel is fundamentally a voltage divider whose absolute resistance can vary with temperature, age, flex history, and manufacturing spread. Attempting to force an absolute-reference measurement onto that structure usually creates avoidable error terms. Using the panel drive as the reference aligns the converter with the physics of the sensor.

The benefit is easy to see with switch resistance. In a non-ratiometric system, the on-resistance of panel-driving switches or multiplexers reduces the actual excitation voltage seen by the panel. The touch voltage changes accordingly, but a fixed external reference does not track that reduction, so the digitized position shifts. In a ratiometric setup, the ADC reference is reduced by the same mechanism. Since both scale together, the ratio remains nearly constant and position accuracy is preserved. The same cancellation applies to moderate supply droop and many panel resistance changes.

This approach is particularly valuable in portable equipment, where supply rails are noisy, temperature swings are wide, and component values move over life. In fielded systems, resistive panels rarely fail by abrupt electrical collapse. More often they drift gradually, develop localized wear, or show increased series resistance under environmental stress. A fixed-reference architecture exposes more of that drift to the measurement result. A ratiometric architecture hides much of it by construction. That design choice often delivers more long-term stability than chasing a tighter external reference part.

There are still boundaries to what ratiometric cancellation can remove. Noise injected asymmetrically into the sense path, contact resistance at the touch point, poor settling after panel reconfiguration, and leakage on high-impedance nodes can all introduce residual error. The converter cannot cancel what is not common to both the measured node and the reference. This is why timing and layout remain important. After switching panel drive axes, enough acquisition time must be allowed for the panel capacitance, routing capacitance, and ADC sampling network to settle. If conversions start too early, the result contains charge-memory artifacts that no reference strategy can correct.

In practical board work, the most reliable implementations keep the panel drive loop compact, place reference bypassing close to the ADC, and isolate digital edge currents from the touch sense return path. Filtering should be chosen with care. Heavy RC filtering on the reference can improve high-frequency noise, but if the source becomes too slow to replenish charge between conversions, code-dependent droop appears. The better solution is usually a low-impedance source plus local capacitance rather than a weak source behind a large resistor.

Another useful practice is to think in terms of error observability. If the application reads touch coordinates only, a ratiometric reference is usually the dominant strategy. If the same converter channel is reused for auxiliary measurements that require absolute voltage knowledge, the reference plan becomes more complicated. Mixing ratio-based and absolute measurements on one ADC is possible, but it demands explicit control of reference path switching, settling time, and calibration assumptions. Designs often become cleaner when the measurement classes are separated conceptually, even if they share hardware.

The deeper lesson in the ADS7845E documentation is that reference selection should follow the measurement model of the sensor. For absolute sensors, reference accuracy and drift dominate. For ratio-based sensors such as resistive touch panels, reference tracking dominates. ADS7845E supports both approaches, but it clearly rewards the designer who uses ratiometric mode where the sensor itself is ratiometric. That is not just a convenient feature. It is the measurement method that best matches the device’s internal architecture and the electrical behavior of the panel.

Seen this way, the external reference range of 1 V to VCC is not simply a flexibility note. It is an invitation to choose the correct measurement geometry. Lower VREF can refine voltage-per-code resolution, but it raises the visibility of fixed analog errors in LSB terms and increases sensitivity to reference quality. A fixed precision reference can support absolute measurements well, but for resistive touch acquisition the highest-value configuration is often the one that makes the ADC reference follow the same path as the signal itself. When the converter measures a ratio instead of an isolated voltage, the system becomes less dependent on ideal component values and more tolerant of real operating conditions. That is usually where robust embedded analog design starts.

Texas Instruments ADS7845E Serial Interface and Control Byte Operation

Texas Instruments ADS7845E uses a compact synchronous serial interface built around DCLK, CS, DIN, DOUT, and BUSY. Its signaling model is simple, but the device is more than a generic SPI peripheral. The control stream does not merely configure a later transaction. It directly steers the internal analog path while the byte is still being shifted in. That detail is the key to understanding both timing behavior and firmware design.

At the electrical level, CS gates the entire transaction. When CS goes low, the converter becomes active and the serial path is enabled. DIN is sampled on the rising edge of DCLK, and DOUT updates on the falling edge. This edge separation makes the interface tolerant of straightforward controller implementations because command data and return data are naturally phase-shifted. When CS returns high, DOUT and BUSY enter high-impedance state. In shared-bus designs, that behavior is useful because multiple peripherals can coexist on the same serial data line without additional external isolation, provided chip-select discipline is clean.

The transaction begins with an 8-clock control byte. The first bit is the start bit and must be high. This bit is not only a frame marker. It also establishes the internal sequencing of acquisition and conversion. The next three bits, A2, A1, and A0, select the input channel and associated switch topology. These bits define which analog node is connected into the sample-and-convert path. In practice, they are best treated as both a channel selector and an analog routing command, because they influence settling behavior just as much as logical function.

The MODE bit selects output resolution. In 12-bit mode, the full converter precision is used. In 8-bit mode, the transaction is shortened in practical terms because only the higher-order result is relevant, which can reduce firmware overhead in fast touch or position-sensing loops where raw noise and panel nonlinearity dominate absolute converter precision. The SER/DFR bit controls reference architecture. This is often described as a simple single-ended versus differential selection, but from a system perspective it determines how strongly the result depends on external reference routing, source impedance, and measurement topology. The last two bits, PD1 and PD0, control power-down behavior and therefore shape the tradeoff between conversion latency, energy use, and analog readiness for the next sample.

A notable feature of ADS7845E is that it starts acting on the control byte before the byte has fully arrived. Once sufficient bits have been received to determine mux selection, switch configuration, and reference path, the device enters acquisition mode immediately. This early-action behavior is efficient because it overlaps command decoding with analog settling. After three additional clock cycles, the control byte is complete and the converter transitions into conversion mode. The next 12 clocks perform the conversion itself, and a 13th clock is required to shift out the final conversion bit. Three additional clocks complete the byte framing, although DOUT stays low during those clocks and the converter ignores them.

This timing model matters because it reveals that the serial link is tightly coupled to the internal sample-and-hold process. The digital clocks are not just transporting bits; they are pacing the analog state machine. If DCLK is stretched, bursty, or jittery beyond expectation, the effect is not limited to interface throughput. It can also affect acquisition interval and therefore measurement repeatability, especially when the input source impedance is high or when the signal path includes resistive layers such as touch panels. In robust designs, clock generation should be treated as part of the measurement chain, not only as a communication function.

The DOUT timing is straightforward once the internal sequencing is understood. Data shifts out on the falling edge of DCLK, so the receiving controller normally samples on the opposite edge. Since DIN is latched on the rising edge, command transmission and result capture can occur within the same clock train. This allows full-duplex-style operation even though the useful command and result belong to different phases of the converter cycle. In implementation, this means a microcontroller SPI block can often be used with minimal adaptation, but firmware should still verify bit alignment carefully. Some controllers assume byte-oriented framing, while ADS7845E behaves more naturally as a bit-counted device with a nontrivial boundary between command, acquisition, and conversion.

BUSY provides explicit visibility into conversion activity. During conversion it signals active status, and when CS goes high it becomes high impedance. Many systems can ignore BUSY and rely purely on clock counting because the timing is deterministic. That approach works well in tightly controlled embedded loops. However, BUSY becomes valuable when firmware timing is shared with other interrupts or when serial clocks are generated by software rather than hardware SPI. In those cases, BUSY gives a direct indication that the converter has entered and exited the active conversion phase, which simplifies validation and debugging.

The control byte fields deserve attention beyond their nominal definitions because they shape overall measurement quality. Channel selection through A2:A0 does more than pick an input. It changes the internal connection state and can expose different settling paths. Measurements taken immediately after switching between widely separated source conditions may show more variation than repeated measurements on a stable channel. A practical pattern is to discard the first sample after a channel change when source impedance is moderate to high or when the panel node being measured has significant distributed resistance. That small firmware cost often improves consistency more than aggressive digital filtering.

MODE selection is often approached as a throughput versus precision switch, but the better framing is application bandwidth versus usable information. In electrically noisy environments, or in touch-coordinate systems where the sensor itself is a larger error source than the ADC, 8-bit mode can be an efficient operating point. It reduces post-processing cost and may simplify scheduling in controllers with limited cycle headroom. In contrast, 12-bit mode is more appropriate when the analog front end is well behaved, reference integrity is strong, and coordinate linearization or pressure estimation benefits from finer granularity.

SER/DFR should be chosen with board-level analog behavior in mind. Differential reference mode can improve immunity to certain supply and routing disturbances because the measurement is tied more directly to the driven panel or signal network. Single-ended operation can be simpler in systems with a clean external reference and predictable source conditions. The important engineering point is that this bit changes the measurement context, not just a converter option flag. Board layout, reference decoupling, and the resistance of the sensed network all interact with this choice.

The PD1 and PD0 bits are especially important in low-power designs. They determine which internal blocks remain active after conversion, including whether the reference and other analog sections stay biased for the next transaction. Leaving more circuitry powered reduces wake and settling delay, which helps when samples are taken in bursts. Powering down aggressively reduces average consumption, which matters in battery-operated equipment with sparse sampling. The best setting depends on sample cadence. If conversions arrive back-to-back or within short intervals, keeping the analog path partially alive often produces better energy efficiency at the system level because repeated wake-up penalties are avoided. If the interval between samples is long, full power-down usually wins.

From a firmware scheduling perspective, ADS7845E is predictable because the entire cycle can be expressed as a fixed number of clocks with well-defined analog state transitions. That predictability makes it easy to insert into timer-driven acquisition loops or DMA-backed SPI transfers. Still, the most effective implementations account for two realities: first, the first valid data bit does not align with a simple byte boundary; second, control decisions influence acquisition while the command is still in flight. For that reason, transaction builders that think in raw bit fields rather than bytes tend to be clearer and less error-prone. In practice, packing the control byte explicitly and then reading the returned 16-bit or 24-bit stream with a deterministic mask is usually more robust than trying to coerce the device into a generic 8-bit register model.

For hardware design, the interface eliminates the routing and pin count burden of a parallel ADC bus. That benefit is obvious, but the stronger advantage is architectural flexibility. DOUT high-impedance behavior when CS is high allows multiple serial peripherals to share data paths, which is valuable in compact embedded platforms. The limitation is that shared-bus success depends on signal integrity and CS timing discipline. If chip-select edges are noisy or skewed, contention may be brief but still sufficient to corrupt data. Keeping CS routing short, using defined idle levels, and avoiding marginal clock edges usually prevents those issues.

A practical integration pattern is to treat one full transaction as three phases: command injection, analog acquisition/conversion, and result extraction. Even though they occur in one continuous clock burst, thinking this way helps when debugging. If readings appear unstable, first verify control byte construction and bit order. Next examine acquisition timing, especially after channel switches or under high source impedance. Only after those are confirmed should converter linearity or software scaling be questioned. In many field cases, apparent ADC inaccuracy is actually incomplete settling caused by fast clocking into a resistive source network.

For platform planning, the serial interface makes ADS7845E broadly compatible with low-pin-count microcontrollers and DSPs. That reduces integration cost and simplifies migration across controller families. The deeper value, though, is determinism. The device exposes enough timing structure to be easy to control, yet remains simple enough to avoid heavy driver complexity. That balance is one reason such converters fit well in embedded control and touch-oriented systems: the digital protocol is light, but the analog behavior remains explicit enough for careful engineering.

Texas Instruments ADS7845E Power Supply, Current Consumption, and Shutdown Behavior

Texas Instruments positions the ADS7845E as a low-power, single-supply touch-screen controller and auxiliary ADC intended to sit comfortably on the same rail as battery-powered digital logic. Its specified operating range is 2.7V to 5.5V, while functional operation extending down to 2.0V is also noted. That range matters because it allows the device to bridge several common embedded power domains without requiring a dedicated analog rail. In practical designs, this simplifies supply planning, reduces regulator count, and avoids the leakage and sequencing issues that often appear when mixed-voltage analog support parts are added only for the user interface path.

Power behavior is best understood by separating three states: active conversion, quiescent operation between conversions, and shutdown. The ADS7845E is efficient partly because its internal analog blocks are not biased continuously at a high level. At a 12.5kHz sample rate, typical quiescent current is 280µA, with a maximum of 650µA. For a low-voltage interface IC with serial control and touch-panel drive circuitry, that is a relatively disciplined current profile. The published typical power dissipation of 1.8mW at 2.7V aligns with that operating class. The broader product description also highlights about 750µW typical at 125kHz throughput on a 2.7V supply, which at first glance may appear inconsistent until the operating conditions are interpreted carefully. These numbers reflect different activity assumptions and measurement contexts rather than a contradiction. That distinction is important when estimating battery life, because average current in a real system is usually dominated by duty cycle and command timing, not by one isolated datasheet line item.

Shutdown behavior is one of the more useful features of the ADS7845E. The device supports full power-down control, and shutdown current is typically only 3µA under the documented condition that DCLK = DIN = VCC. This detail is easy to overlook, but it is not cosmetic. Very low shutdown current generally depends on the digital pins being held in a state that avoids internal switching paths or partial bias conditions. If the serial clock or input line is allowed to float, or if the host I/O domain collapses while the converter supply remains present, measured standby current can drift far above the nominal figure. In low-power products, this is often where the real current budget is won or lost. The device itself may be capable of microamp shutdown, but the board-level implementation must preserve that condition intentionally.

From an engineering perspective, the power model of the ADS7845E is event-driven rather than purely static. Each conversion does more than digitize an input. In touch applications, the device also drives the panel, establishes the measurement axis, settles analog nodes, and clocks out the result. That means supply current depends on sampling frequency, command sequencing, source impedance, and whether the touch panel is being used in a ratiometric measurement mode. The panel is not just a passive sensor in this context; it becomes part of the analog measurement network and therefore part of the load seen by the switch drivers. As sampling frequency increases, the overhead associated with repeated panel excitation and internal switching becomes more significant than the nominal standby current.

This is why the datasheet specifically warns that power dissipation in ratiometric mode deserves careful attention. During conversion, the switch drivers are active, and the resistive touchscreen itself draws current. In low-duty-cycle systems this may be negligible, but in continuous scanning or gesture-tracking applications it becomes a first-order design term. A resistive panel with lower sheet resistance, frequent coordinate reads, and aggressive filtering can raise average power more than expected. The converter current and the panel current should be treated as a coupled system. Many first-pass power estimates understate consumption because they count only the IC supply current and ignore the energy required to bias the panel repeatedly.

A useful way to think about the device is to view it as a controlled analog front end that should be awakened only for information-bearing intervals. In a portable instrument, handheld controller, or battery-backed terminal, the host processor can keep the ADS7845E in shutdown most of the time, then bring it up only when a touch interrupt, debounce window, or scheduled scan occurs. That operating pattern produces much better energy efficiency than free-running coordinate acquisition. In practice, burst sampling is usually sufficient: wake the device, take several fast readings for stability, reject outliers caused by contact bounce or stylus pressure variation, then power down again. This approach often improves both battery life and coordinate quality, because it concentrates sampling into short windows where averaging is meaningful and avoids collecting noise during idle periods.

There is also a system-level tradeoff between responsiveness and energy that deserves explicit attention. Designers sometimes set a high polling rate to make the interface feel immediate, but once the touch panel and serial transaction overhead are included, the incremental benefit of very fast polling drops quickly. For many embedded interfaces, a moderate scan cadence during idle and a higher burst rate only after touch detection gives a better overall result. The interface remains responsive, while average current stays close to the shutdown-dominated regime. This staged acquisition strategy is often more effective than trying to optimize the converter in isolation.

Supply integrity should not be ignored simply because current numbers are small. The ADS7845E operates from low rails typically shared with digital logic, and that means conversion accuracy can be affected by local transients from processors, radios, display drivers, or backlight switching. In resistive touch systems, where the measured voltages are often derived directly from the same excitation rail, supply noise can map into coordinate noise if layout and decoupling are careless. A short return path, local bypassing near the device, and controlled digital edge activity during conversions usually produce more benefit than chasing minor firmware-level filtering refinements. In compact products, the cleanest results often come from scheduling conversions away from known high-noise events such as display refresh bursts or DC/DC switching edges.

Shutdown control also has firmware implications. To consistently achieve low standby current, the host must define pin states during all power states, including reset, sleep, and brownout transitions. It is common for a design to meet current targets on the bench during normal operation, then miss them badly in field sleep mode because the SPI pins revert to high impedance or are driven before the supply is valid. The ADS7845E is simple to power-manage, but only when the serial interface policy is explicit. Good designs treat the converter, the panel bias path, and the host GPIO configuration as one power domain from a behavioral standpoint.

The most useful interpretation of the ADS7845E power data is therefore not just that the part is low power, but that it is predictably low power when used with disciplined timing and pin control. Its 2.7V to 5.5V specified supply range, optional operation down to 2.0V, sub-milliwatt to low-milliwatt active behavior, and microamp-class shutdown make it well suited to intermittent-use interfaces. The real design advantage appears when those features are combined with duty-cycled acquisition, careful handling of ratiometric panel loading, and board-level enforcement of valid shutdown conditions. Under those conditions, the ADS7845E behaves less like a continuously active analog peripheral and more like an on-demand measurement engine, which is exactly how low-energy embedded interfaces should be built.

Texas Instruments ADS7845E Pin Functions and System Integration Considerations

The ADS7845E is a 4-wire resistive touch screen controller with an auxiliary ADC channel, implemented as a SAR converter and exposed through a compact 16-pin SSOP. Its pinout reflects two design priorities: low-power touch detection and direct electrical interfacing to the resistive panel. Understanding the device is less about memorizing pin names and more about seeing how the analog switch matrix, reference path, serial interface, and interrupt behavior interact inside a real system.

At the package level, pins 1 and 10 are both tied to VCC, and pin 6 is ground. The duplicated supply pins are not cosmetic. They reduce internal supply distribution impedance and help isolate digital switching currents from sensitive analog sections. In layout, both VCC pins should be connected with short, low-impedance traces and locally bypassed. Treating only one supply pin as “active” often works in a lab setup but tends to degrade repeatability when serial clock edges become faster or panel wiring becomes longer. A tight placement of a 0.1 µF ceramic capacitor near the device is the minimum baseline. Adding a nearby bulk capacitor such as 1 µF to 10 µF improves supply stiffness when the host and display subsystem share the same rail.

The touch-panel interface is built around UL, UR, LL, and LR. These pins connect to the four panel corners and allow the converter to alternately excite one axis while measuring the orthogonal axis through the internal sampling network. This is the core mechanism behind resistive touch acquisition. One pair of panel electrodes is driven, establishing a voltage gradient across the sheet, while the opposite axis is sensed at the contact point. The WIPER input is the panel sense node and feeds the ADC input path during coordinate measurement. In practical routing, these panel lines should be kept away from high-edge-rate digital nets such as SPI clocks, display data buses, and backlight PWM traces. The resistive panel itself is a high-impedance, noise-sensitive structure during sampling, so poor routing discipline shows up immediately as jitter, unstable least significant bits, or position-dependent errors near panel edges.

AUXIN extends the converter beyond touch sensing by exposing an auxiliary analog measurement channel. This is useful when one ADC resource must service both touch coordinates and a low-bandwidth housekeeping signal such as a battery monitor, thermistor divider, or analog feedback node. The key integration point is that AUXIN behavior is strongly coupled to the reference strategy. If VREF is externally driven, AUXIN can be used as a more predictable single-ended measurement input because the ADC transfer function is then referenced to a defined external voltage. If the system uses differential touch measurement modes, the device can operate without a driven reference in some cases, because the panel measurement becomes ratio-based and less dependent on absolute supply magnitude. That distinction matters in mixed-use systems. Touch coordinates can tolerate reference variation better than auxiliary voltage measurements can.

VREF is therefore not just another analog pin. It determines whether the converter behaves as a ratiometric touch interface, a more conventional ADC front end, or a hybrid of both. For touch-only systems powered from a reasonably clean rail, tying the conversion scale to VCC is often sufficient because the panel voltage gradient and the ADC reference track the same supply. This cancels part of the supply variation and simplifies the design. For systems that also rely on AUXIN for quantitative analog measurement, an external reference usually produces more stable and portable results, especially when the main rail carries switching noise from displays, radios, or dynamic CPU loads. A recurring integration mistake is to assume that good touch performance automatically implies good AUXIN accuracy. In practice, touch coordinates are often acceptable under conditions that would be inadequate for precision auxiliary measurement.

On the digital side, DCLK is the external serial clock and drives both interface timing and the SAR conversion sequence. Because the device is externally clocked, the host effectively controls the tradeoff between throughput, acquisition timing, and digital noise injection. Faster clocks reduce transaction time but increase edge energy and can couple noise into the analog front end if the layout is marginal. Conservative clocking often improves measurement stability more than expected, particularly when panel cables are long or share a flex assembly with display signals. CS gates serial activity and also defines conversion framing. It should be treated as a timing control signal, not merely a chip-select in the SPI sense. Clean assertion and deassertion of CS helps maintain deterministic command-to-conversion behavior.

DIN carries the serial control word that selects the measurement mode, channel path, and reference usage. DOUT shifts back conversion data. BUSY provides status visibility and can be used to avoid race conditions between command transmission and data retrieval. In firmware, the best results usually come from treating BUSY as a functional timing indicator rather than assuming a fixed software delay will always be valid. Fixed delays can appear stable during bring-up and then fail after clock changes, low-power state transitions, or board revisions with different parasitics. BUSY closes that uncertainty gap with very little software overhead.

PENIRQ is one of the more important system-level pins because it allows event-driven touch detection. The output is described as open anode and requires an external pull-up resistor in the 10 kΩ to 100 kΩ range. In system terms, this means the line cannot produce a valid high level on its own and must rely on external biasing. The resistor value sets a compromise among standby current, edge speed, and noise susceptibility. Values around 10 kΩ produce cleaner interrupt transitions in electrically noisy environments, while values closer to 100 kΩ reduce static current but make the node softer and more vulnerable to interference or leakage. If the line is routed off-board, through a flex, or near a display inverter or backlight driver, the lower end of the pull-up range is generally safer.

The deeper value of PENIRQ is architectural. It lets the host remain idle until a genuine touch event occurs, instead of repeatedly clocking the converter to discover that no contact is present. This reduces both host activity and converter-related power. In battery-powered products, that difference is not theoretical. Polling-based designs often consume more energy in firmware wakeups and serial bus activity than in the ADC itself. An interrupt-driven approach shifts the design from reactive sampling to event-based acquisition, which is almost always the better default unless the application requires continuous pressure or gesture tracking at fixed intervals.

Power and reference bypassing deserve more attention than the simple application diagram may suggest. The standard guidance of 0.1 µF local decoupling, optionally supported by 10 µF bulk capacitance, is correct but incomplete unless the capacitor placement and return path are controlled. The 0.1 µF capacitor should sit close to the supply pins with a short return to the local ground region. If VREF is driven externally, it should also receive local decoupling appropriate to the reference source and the desired bandwidth. Reference nodes should not share long, inductive routes with digital current returns. In mixed-signal boards, many measurement anomalies that appear to be software, calibration, or panel problems are actually reference contamination caused by preventable layout choices.

Ground handling is equally important. The ADS7845E sits at the boundary between a noisy digital controller and a weak analog sensor. A continuous ground plane under the device and short analog return paths usually outperform elaborate split-ground schemes in small and medium-density layouts. Over-segmentation of ground often creates more impedance and loop area, which increases rather than reduces conversion noise. The practical target is not theoretical separation but controlled current flow. Keep high di/dt digital return currents away from the reference and panel sense region.

Panel routing and sampling strategy also affect usable precision. Resistive panels have non-ideal sheet resistance, contact resistance, flex tail parasitics, and edge nonlinearity. The converter can only digitize what arrives at the input node. Coordinate stability improves when firmware discards the first sample after channel or axis switching, averages a small number of consistent readings, and applies simple outlier rejection. This is especially helpful because the internal sampling capacitor needs time to settle after the analog mux changes state. Designs that capture a single sample immediately after reconfiguration often exhibit avoidable position noise that gets misattributed to panel quality. A small settling allowance in firmware usually pays back more than aggressive digital filtering after the fact.

The reference selection rules should be matched to the actual use case rather than copied mechanically from a generic schematic. If the product only needs touch coordinates and operates from a stable single supply, tying the reference behavior to that rail is often the cleanest solution. If AUXIN must report an absolute voltage, drive VREF from a known source. If the system spends most of its time asleep and wakes only on touch, prioritize PENIRQ integrity, low-leakage routing, and predictable wake timing. If the environment is electrically noisy, reduce serial clock speed, strengthen the PENIRQ pull-up, and isolate panel traces from switching nodes before attempting complex software compensation.

One useful way to think about the ADS7845E is as three coupled subsystems rather than one ADC. The panel driver network creates the measurement stimulus. The SAR core digitizes the resulting analog state against a chosen reference. The serial and interrupt interface determines when and how often that process occurs. Most integration problems arise at the boundaries between these subsystems, not inside them individually. A design may have a correct schematic, a valid SPI transaction, and a responsive touch panel, yet still produce unstable coordinates because the reference choice, routing geometry, and acquisition timing were never aligned as one system.

In that sense, the pin functions are only the visible interface to a deeper design problem: preserving ratiometric behavior where it helps, introducing absolute reference control where it matters, and preventing digital convenience from degrading analog observability. When those tradeoffs are handled deliberately, the ADS7845E integrates cleanly and delivers reliable touch detection with enough analog flexibility to support low-bandwidth auxiliary sensing in the same device.

Texas Instruments ADS7845E Accuracy, Error Sources, and Layout Implications

Texas Instruments ADS7845E measurement accuracy is dominated less by nominal converter resolution and more by how the converter, source network, and reference path interact during the sampling interval. The datasheet gives enough information to build a practical error model. The important terms are offset error, gain error, internal analog switch resistance, reference stability, and incomplete settling caused by source impedance charging the internal sample capacitor. In most designs, the last two terms decide whether the converter behaves like a clean 12-bit device or something materially worse under real operating conditions.

At the front end, the ADS7845E presents an analog input capacitance of about 25 pF. That value is small, but its impact is not. Each conversion requires the driving source to charge this capacitor to the input voltage within the available acquisition time. Once the capacitor settles, input current effectively drops away, so the converter does not behave like a continuous resistive load. It behaves like a switched-capacitor load with short bursts of charge demand. This distinction matters because many circuits look acceptable when judged by static input leakage alone, yet show conversion error when the source cannot replenish charge fast enough during sampling.

The settling requirement can be viewed in first-order form through the source resistance and the internal sampling capacitor. If the effective source resistance is high, the RC time constant grows, and the sampled voltage at the end of acquisition falls short of the actual input. That shortfall appears directly as conversion error. In touch systems, the source path is rarely just an op amp output or a low-impedance node. It often includes panel sheet resistance, contact resistance, internal switch resistance, trace resistance, and sometimes filtering elements added for EMI or ESD robustness. These terms accumulate. A design can therefore fail not because any one resistance is large, but because several modest resistances combine with limited acquisition time to prevent full settling.

This is why acquisition timing and operating mode are tightly coupled. In resistive touch measurement, the panel itself becomes part of the analog network used to generate the coordinate voltage. The converter is not only measuring the panel voltage; through its switching structure it also participates in how that voltage is established. When pressure, touch position, temperature, and panel aging shift the resistance distribution, the source seen by the sample capacitor changes with every touch event. That makes the ADC input condition dynamic rather than fixed. Designs that look stable on the bench with a stylus at center position can degrade near panel corners or under cold conditions where resistance rises and switch behavior shifts.

Offset and gain error are the next layer. These are conventional ADC terms, but in the ADS7845E they should be interpreted in system context rather than in isolation. Offset error sets the baseline coordinate or voltage shift near zero-scale. Gain error defines end-point slope deviation. In a touch interface, offset error tends to appear as coordinate displacement, while gain error appears as span compression or expansion across the screen. If the system performs digital calibration, much of the static offset and gain contribution can be removed. What calibration cannot remove well is variation that depends on source impedance, temperature, reference disturbance, or conversion sequencing. That is where layout and operating method become more important than nominal ADC trim values.

The internal analog switch resistance deserves more attention than it usually gets. In this converter family, the analog mux and panel-drive switches are not transparent ideal elements. Their on-resistance varies with supply voltage and temperature, and the datasheet provides typical curves for exactly that reason. This resistance affects both the establishment of the panel excitation voltage and the impedance that the sample capacitor sees during acquisition. In a ratiometric touch design, some of the absolute error introduced by switch resistance cancels because both the coordinate voltage and the reference are derived from the same panel drive condition. Even then, cancellation is not perfect. Spatial asymmetry in panel resistance, routing imbalance, and temperature-dependent switch behavior can still perturb coordinate linearity, especially near the edges. In low-voltage operation, where switch resistance is usually higher, that effect becomes more visible.

Reference handling is one of the most decisive implementation details. The ADS7845E uses an unbuffered reference that feeds the CDAC directly. That architecture is efficient and well suited to ratiometric measurement, but it places a strict burden on reference routing and bypassing. Any noise, droop, or transient coupling on the reference node directly modulates the transfer function during conversion. This is not merely a slow gain drift issue. Fast digital return currents, inadequate decoupling, or trace coupling into the reference path can inject code-to-code uncertainty and broaden measurement spread even when average readings look correct. Low reference voltages tighten this requirement further because a fixed amount of noise consumes a larger fraction of full scale. A layout that seems acceptable at a higher reference may become marginal when the design is optimized for lower voltage swing.

For resistive touch systems, differential reference mode is usually the most structurally correct choice when the main objective is coordinate extraction. In that mode, the converter measures the panel voltage relative to the same excitation that defines the coordinate gradient. This makes the measurement ratiometric, so supply variation, some switch losses, and panel voltage drop terms tend to cancel. The result is not perfect immunity, but the error stack is significantly reduced compared with treating the panel coordinate as a single-ended analog voltage against an unrelated reference. In practice, this mode often delivers more repeatable coordinates than attempting to improve absolute reference precision with a cleaner standalone voltage source.

Supply behavior also matters beyond simple average current capability. The datasheet’s typical curves for supply current, reference current, offset shift, gain shift, and switch on-resistance versus temperature and supply voltage are valuable because they show where second-order effects begin to dominate. Guaranteed limits tell whether the part is in spec. Typical curves tell whether the design margin is comfortable. In outdoor or industrial equipment, for example, the coordinate spread that appears at temperature extremes often traces back less to dramatic ADC failure and more to the cumulative effect of increased switch resistance, slower source settling, and noisier local reference conditions under cold-start or brownout-like supply behavior.

The maximum sampling rate versus input resistance relationship is especially useful when evaluating elevated source impedance. It provides a practical design boundary: if the source resistance rises, either the sampling rate must fall or the conversion accuracy must be derated. This is a common hidden tradeoff in touch controllers integrated into busy embedded systems. It is tempting to poll the panel rapidly to improve user-interface responsiveness, but beyond a certain point the conversion engine is no longer observing a settled node. The result is not random noise in the usual sense. It is a deterministic settling error that varies with touch position and panel condition, making it harder to filter digitally.

Board layout is therefore part of the analog accuracy model, not an afterthought. Analog traces should be short and have low parasitic coupling. The reference path should be compact, quiet, and bypassed close to the device pins with a low-inductance loop. Touch-sense lines should be routed away from clock lines, display buses, and other high dV/dt nets. Ground return paths should prevent digital current from sharing impedance with the reference and analog input bypass network. If a split-ground strategy is used, it should be implemented with discipline; an arbitrary split often creates more return-path problems than it solves. A continuous ground plane with controlled current flow is usually more reliable than decorative partitioning.

Filtering needs restraint. It is natural to add RC filtering on panel inputs to suppress EMI and ESD-induced disturbances, but every added resistor directly increases source impedance seen during acquisition. Every capacitor changes the transient behavior of the panel node and can interact with the internal switching sequence. If filtering is necessary, it should be sized from a settling calculation rather than copied from generic ADC input examples. Small series resistance, carefully chosen shunt capacitance, and enough acquisition margin typically work better than aggressive filtering that cleans oscilloscope traces while silently degrading conversion fidelity.

A useful implementation pattern is to separate fast digital activity from the actual conversion instant. Systems that burst SPI traffic, switch backlights, or refresh displays near the sample edge often exhibit wider coordinate jitter than expected from static noise analysis. Scheduling conversions into quieter windows usually improves repeatability more effectively than adding software averaging alone. Averaging can reduce random noise, but it cannot fully recover information lost to systematic reference disturbance or incomplete settling.

Temperature behavior should be treated as a system-level phenomenon. The datasheet curves for offset shift and gain shift are relevant, but in touch applications the larger field effect often comes from the panel and switch path rather than the converter core alone. Panel resistance increases with temperature range and aging, contact quality changes with use, and mechanical stress can alter local conduction. The converter then sees a moving source impedance profile. This is one reason a design that calibrates well at room temperature may still feel less stable in edge cases. It is often better to preserve settling margin and reference cleanliness than to rely on calibration to absorb all variation.

In practical designs, the most robust approach is to think in terms of charge flow and ratiometric balance. The ADC asks for charge quickly through a nonideal switch network from a source that may itself be generated by a distributed resistive structure. If that charge arrives completely and the reference is quiet, the converter performs predictably. If either condition is weak, nominal resolution becomes misleading. Good implementations keep analog paths short, provide tight local decoupling, use differential reference mode for panel coordinates, avoid unnecessary series impedance, and allow enough acquisition time for the worst panel and temperature corner. That combination usually produces a larger accuracy improvement than chasing small improvements in static offset or gain specifications.

Texas Instruments ADS7845E Operating Range, Reliability, and Environmental Data

Texas Instruments ADS7845E is positioned as a mixed-signal component intended for designs that must remain stable across broad ambient variation without requiring unusual manufacturing controls. Its specified operating temperature range of -40°C to +85°C places it firmly in the industrial class. In practice, that matters less as a catalog label and more as an indication that conversion accuracy, logic behavior, and interface timing were characterized over conditions commonly seen in outdoor terminals, handheld instruments, battery-powered controllers, and embedded operator panels. For systems exposed to cold start conditions or sustained internal heating, this range provides useful design margin at the component level, but it should still be treated as one element of a larger thermal path that includes board copper, enclosure airflow, regulator dissipation, and nearby heat sources.

The thermal limits clarify that distinction. The maximum junction temperature is 150°C, while the storage temperature range extends from -65°C to +150°C. Junction temperature is the internal silicon temperature, not the surrounding air temperature, so it is possible for a device to exceed safe internal limits even when ambient conditions appear acceptable. That becomes relevant in compact boards where the converter sits near DC/DC stages, displays, charging circuits, or processors. A recurring issue in fielded hardware is that thermal qualification is often performed at the enclosure level while local hot spots on the PCB remain underexamined. For ADS7845E-class devices with modest power dissipation, this is usually manageable, but the safest approach is still to validate worst-case junction rise under maximum supply, maximum transaction rate, and the highest expected neighboring component temperature.

The absolute maximum ratings define the non-negotiable electrical stress boundaries. Supply voltage must remain between -0.3V and +6V relative to ground. Analog and digital inputs must remain between -0.3V and VCC + 0.3V. Maximum power dissipation is 250mW. These values are not recommended operating points and should never be used as design targets. They are survival limits associated with irreversible degradation risk once exceeded, even briefly. That distinction is important in real hardware because abnormal events rarely look like clean DC overstress. They usually appear as power sequencing mismatches, connector hot-plug transients, clamp diode conduction, overshoot from long traces, or fault injection through external touch interfaces and signal lines. Good board-level design treats absolute maximum ratings as the outer edge of fault containment, then adds margin through series resistance, input filtering, rail clamping, and controlled startup behavior.

The input range limit of VCC + 0.3V deserves particular attention in mixed-voltage systems. ADS7845E often sits beside host controllers or peripherals that may power up in a different order. If an attached digital line is driven while the converter supply is still at 0V or ramping, internal protection structures can conduct unexpectedly. The result may be latch-up risk, parasitic powering, or subtle long-term reliability damage that does not appear during initial bring-up. A simple resistor on serial lines or touch-related analog paths often prevents these conditions from becoming destructive. In low-power portable products, this also helps reduce unexplained standby current caused by back-driving through interface pins.

Power dissipation is specified at 250mW, which is relatively modest and usually not the dominant system thermal source. Even so, dissipation should be examined together with package thermal resistance and workload profile rather than as a single standalone number. In converters and interface ICs, average dissipation can look harmless while short repetitive bursts create localized heating. The more robust design method is to estimate dissipation under realistic polling rates, supply conditions, and interface activity, then compare that with the thermal environment of the assembled board. This is especially useful when the device is enclosed under displays or touch assemblies where heat spreading is limited.

From a reliability and manufacturability perspective, the environmental data is favorable. RoHS3 compliance indicates compatibility with current restricted-substance requirements in most mainstream electronics supply chains. The REACH status listed as unaffected simplifies compliance documentation because it reduces the likelihood of extra declaration work during procurement review or customer audit. These items do not guarantee product suitability by themselves, but they remove common adoption friction in regulated or export-sensitive programs. In practice, this shortens the path from component selection to approved vendor status, especially when a design uses standard assembly processes and does not require material exemptions.

The moisture sensitivity level is MSL 1, which is one of the most assembly-friendly ratings available. MSL 1 parts tolerate normal factory floor exposure without the strict bake-and-reseal controls required by more moisture-sensitive packages. That lowers handling overhead and reduces the probability of process escapes related to floor life tracking. For manufacturing teams, this is not just a convenience metric. It directly affects reel management, line scheduling, rework exposure, and inventory flexibility. Devices with MSL 1 generally fit more smoothly into mixed-build environments where components may be staged, partially consumed, and returned to stock. That said, good process discipline still matters. Long storage in uncontrolled humidity, repeated thermal cycling during rework, and inconsistent solder profiles can erode the practical benefit of a forgiving moisture rating.

The ESD caution included in the documentation should be interpreted as a real design and handling concern, not a generic legal statement. Touch-interface and analog-front-end devices are routinely exposed to cable discharge events, operator contact paths, and high-impedance nodes that are naturally vulnerable to electrostatic stress. Damage is not always catastrophic. A more difficult failure mode is latent degradation, where the device continues to operate but with reduced accuracy, increased leakage, or intermittent input behavior. Those failures are expensive because they often pass production test and emerge only after shipment. The most effective mitigation is layered: controlled handling at assembly, grounded fixtures during test, short return paths on the PCB, appropriate TVS or resistor-capacitor protection where external interfaces justify it, and careful placement that keeps sensitive traces away from noisy or discharge-prone regions.

For operating range interpretation, it is useful to separate three boundaries: functional range, survivability range, and manufacturing range. The functional range is the specified -40°C to +85°C operating window where intended electrical performance is expected. The survivability range includes storage and absolute maximum conditions, where the device may remain undamaged if limits are respected but is not required to function correctly. The manufacturing range is represented by attributes such as MSL classification, package handling robustness, and compliance status. Confusing these categories leads to avoidable mistakes. A common example is assuming that because storage extends to +150°C, the device can tolerate sustained nearby soldering heat or enclosure hot spots at similar temperatures during operation. It cannot. The electrical and physical limits serve different purposes and should be verified separately.

In system applications, ADS7845E’s environmental profile supports straightforward deployment in industrial HMI modules, battery instruments, portable medical-adjacent interfaces where regulatory material declarations matter, and controller panels installed in thermally variable spaces. Its standard package and common compliance profile reduce friction in procurement and assembly, while its industrial operating range makes it a reasonable fit for equipment expected to see warehouse cold soak, vehicle cabin heating, or unconditioned control enclosures. The real value is not that it survives extremes in isolation, but that it integrates into ordinary production and field conditions without demanding exceptional process accommodations.

A sound implementation strategy is therefore simple: design well inside the recommended electrical range, treat absolute maximum ratings as fault boundaries only, validate local thermal conditions rather than relying solely on ambient assumptions, control power sequencing and pin overvoltage exposure, and maintain disciplined ESD handling from incoming inspection through final assembly. When those basics are done properly, the ADS7845E’s published operating, reliability, and environmental data translate into predictable behavior both on the bench and in deployed hardware.

Texas Instruments ADS7845E Application Scenarios for Portable and Embedded Equipment

Texas Instruments ADS7845E fits a specific class of embedded designs: systems that need accurate 4-wire resistive touch acquisition with low interface overhead, low energy demand, and predictable implementation effort. Its value is strongest not in feature breadth, but in integration efficiency. It combines the touch-drive switching network, a 12-bit ADC, serial control, and pen-interrupt signaling in a device that maps well to portable and cost-sensitive embedded equipment. That combination reduces the amount of analog glue logic around the touch panel and gives the host processor a cleaner, more deterministic input subsystem.

At the electrical level, the ADS7845E is optimized for ratiometric measurement of resistive touch coordinates. This matters because a resistive panel is not a precision sensor in the classical sense. Its sheet resistance varies across production lots, contact resistance changes with use, and cable or connector parasitics can become non-negligible in compact assemblies. A ratiometric conversion scheme largely cancels supply-related gain errors by using the panel drive voltage as the ADC reference basis during coordinate measurement. In practice, this gives the device a more stable relationship between the physical touch point and the reported digital code, especially in systems where the analog supply is not exceptionally clean.

That operating principle is one of the reasons the device remains attractive in long-life embedded products. Resistive touch panels often age gradually rather than fail abruptly. Mechanical wear, stylus pressure patterns, and environmental contamination can all shift behavior over time. A controller that acquires coordinates in a way that is inherently tolerant of absolute resistance variation tends to preserve usable performance longer, even when the panel no longer behaves like a fresh component. This does not eliminate the need for calibration, but it reduces how aggressively the rest of the system must compensate for panel drift.

The low-power architecture is equally important in portable equipment. PENIRQ allows the main processor to remain in a low-activity state until an actual touch event occurs. In battery-powered designs, this changes the power strategy from continuous polling to event-driven wakeup. The difference is significant when the interface is idle most of the time, which is typical in handheld instruments, field tools, and compact operator terminals. The system can treat touch input as an interrupt-driven peripheral rather than a continuously serviced analog source. That simplifies firmware scheduling and usually reduces average current without sacrificing responsiveness.

In portable instruments, the ADS7845E is especially effective when the user interface must remain available while the rest of the platform conserves energy. Examples include handheld testers, portable medical support devices, small data loggers, and service tools with simple menu-driven displays. In these products, the touch path is rarely the dominant computational function, but it must remain reliable and responsive. The device supports that requirement well because it adds minimal MCU pin demand and does not force a wide parallel interface or a large analog front-end around the panel. During board bring-up, this tends to translate into fewer signal integrity surprises and a shorter path to stable firmware integration.

A practical pattern in such systems is to use PENIRQ only as the wake source, then validate the event in firmware with a short burst of filtered coordinate conversions. This avoids responding to false triggers caused by panel bounce, EMI pickup on long flex tails, or edge-contact noise during initial stylus touchdown. The raw converter performance is usually sufficient, but the best field behavior often comes from system-level handling: discard the first sample after panel excitation changes, take several readings per axis, and apply a median or trimmed average before reporting coordinates. The device gives the needed low-level capability; robust user experience comes from disciplined sampling strategy.

Point-of-sales terminals are another strong application area. These systems often operate for years in electrically noisy environments, with repeated use by many operators and wide variation in touch pressure. Here, the ADS7845E benefits from a design balance that favors dependable coordinate acquisition over unnecessary complexity. The 12-bit resolution is generally more than adequate for retail UI layouts, even after digital filtering and calibration are applied. More importantly, the architecture supports repeatable measurements under panel tolerance spread and moderate analog noise, which is often more valuable than pursuing nominally higher resolution that the panel cannot physically sustain.

In POS equipment, long cable runs between display, logic board, and power subsystems can inject switching noise into the touch interface. The serial interface helps contain this complexity. It reduces routing width, lowers connector pin pressure, and keeps the MCU-side connection simple. This matters not only for PCB layout but also for serviceability and product variant management. Designs built around compact serial peripherals are usually easier to port across multiple terminal sizes or processor families because the touch subsystem stays largely self-contained.

Compact embedded monitors and operator panels also benefit from this integration model. In these products, board area is often constrained by display mechanics rather than by digital logic density. Every eliminated signal trace and every removed external analog switch can ease stack-up pressure, improve manufacturability, and reduce coupling into sensitive analog nodes. The ADS7845E is well suited to small HMIs, industrial display modules, and appliance control panels where the touch function must be solid, inexpensive, and easy to replicate across product revisions.

The auxiliary analog input adds another layer of utility, though it should be viewed with discipline. It is not a substitute for a true multichannel data acquisition device, and using it as one usually creates timing and firmware compromises. Its best use is for a secondary low-bandwidth measurement that naturally belongs near the control plane: battery monitoring, a simple temperature-sense node, a supply rail check, or a reference voltage observation point. In designs already constrained by BOM count and package area, folding one extra measurement into the touch controller can eliminate a small standalone ADC or free a channel elsewhere in the system.

That said, good partitioning still matters. If the extra analog node is safety-relevant, highly dynamic, or requires tightly characterized accuracy across temperature and operating modes, it is usually better placed on a dedicated path. The auxiliary input is most effective when it complements the touch function rather than competes with it. This is a recurring lesson in embedded design: integration creates value when functions have compatible timing, accuracy, and availability requirements. When they do not, integration becomes hidden coupling.

From a system architecture perspective, the ADS7845E is most compelling when the design target is narrow and well defined: accurate resistive touch measurement, minimal external support circuitry, straightforward SPI-like serial communication, and aggressive power management. It is less about maximizing converter versatility and more about reducing the total cost of obtaining dependable touch coordinates. That distinction is important. In many successful embedded products, the best component is not the one with the broadest feature set, but the one that solves the exact analog-digital boundary problem with the fewest side effects.

For firmware teams, this usually means the device is easy to place behind a compact driver abstraction. The transaction model is simple, latency is manageable, and calibration can be handled cleanly in software. A common implementation is to maintain raw X/Y acquisition, pressure-related estimation if needed, calibration mapping to display coordinates, and event qualification as separate layers. Keeping these layers distinct prevents touch noise, calibration drift, and UI behavior from becoming entangled. Systems built this way are easier to tune in the lab and tend to remain more maintainable after deployment.

For hardware teams, the main engineering attention points are equally clear: keep panel routing short and symmetric where possible, control noise around the analog supply and reference-related paths, protect the interface from ESD at the connector boundary, and validate performance across real panel vendors rather than relying only on nominal electrical assumptions. Resistive touch systems can appear forgiving on the bench and then reveal edge instability once cable movement, charger noise, or display backlight switching is introduced. The ADS7845E handles its role well, but final behavior still depends heavily on layout, grounding, and sampling policy.

In this sense, the ADS7845E is best understood as a precision enabler for a focused interface problem. It is particularly well matched to personal digital assistants, portable instruments, point-of-sales terminals, pagers, and touch-screen monitors because those categories share the same core constraints: limited power budget, limited I/O budget, limited space, and a need for stable touch acquisition over long service intervals. Where a design calls for a dependable resistive touch path with modest analog expansion and low implementation friction, the device remains a technically coherent and economically efficient choice.

Potential Equivalent/Replacement Models for Texas Instruments ADS7845E

Potential replacements for the Texas Instruments ADS7845E must be evaluated as touch-interface subsystems, not as standalone ADCs. That distinction matters. The ADS7845E is not simply a 12-bit serial converter in a small package. It combines conversion logic, panel excitation, switch control, and ratiometric measurement behavior tailored to 5-wire resistive touch screens. Any credible substitute has to preserve that interaction model at the electrical, timing, and firmware levels.

The first filter is touch architecture compatibility. The ADS7845E is designed for 5-wire resistive panels and exposes the dedicated drive nodes UL, UR, LL, LR, plus the WIPER input. These signals are not incidental I/O lines. They are part of the measurement engine. The device actively drives the panel in different configurations to establish voltage gradients and then samples the wiper position against that driven surface. A generic SPI ADC, even with sufficient resolution and input range, will usually fail as a direct replacement because it lacks the internal analog switches and drive sequencing required to bias the panel correctly. External multiplexers and driver stages can be added, but once that path is chosen, the replacement is no longer equivalent in system behavior, PCB complexity, latency, or noise performance.

This is where many replacement searches go wrong. Package, resolution, and interface type are easy to compare, so they become the default selection criteria. In practice, the hard requirement is preservation of the measurement method. If the original design depends on the ADS7845E to source panel drive voltages, isolate inactive nodes, and acquire the wiper signal under controlled reference conditions, then the replacement must reproduce that analog state machine closely enough that the rest of the system does not notice the change.

Reference handling is the next critical layer. The ADS7845E supports both single-ended and differential reference operation, and that capability is tightly coupled to resistive touch accuracy. In a ratiometric measurement scheme, the panel drive and ADC reference track the same excitation path. This suppresses errors caused by supply variation, driver drop, and panel resistance spread. For resistive touch systems, this is often the difference between a stable coordinate map and one that drifts with temperature, cable resistance, or loading conditions. A candidate device that only supports a fixed single-ended reference may still produce valid conversions, but coordinate linearity and repeatability can change enough to require software compensation, recalibration tables, or tighter mechanical filtering. That added correction burden is often underestimated during second-source qualification.

There is also a subtle implementation issue here. Two devices may both claim “12-bit ADC” and “external reference,” yet behave differently in acquisition timing, input settling, switch resistance, and reference sampling topology. On a resistive panel, those differences show up as edge compression, coordinate jitter, or inconsistent readings under fast pen motion. In systems with long flex tails or high panel sheet resistance, these effects become more visible. That is why bench validation should include dynamic touch sweeps, not only static point checks.

Digital compatibility should be treated as a separate verification track, not as a secondary detail. The ADS7845E uses a defined control-byte format that encodes start, channel selection, mode selection, reference behavior, and power-down state. Devices with SPI-compatible physical signaling may still differ in command framing, null bits, conversion latency, BUSY behavior, and output alignment. A replacement may therefore be electrically functional while remaining firmware-incompatible. In some designs this is acceptable, especially if the software stack is actively maintained. In legacy or validated industrial platforms, however, even a small command protocol change can create disproportionate integration cost because it affects initialization sequences, interrupt timing, DMA handling, and filtering assumptions.

Power management behavior deserves more attention than it typically gets. The ADS7845E includes power-down control that allows low-duty-cycle sampling without keeping the full analog path active. In battery-powered or thermally constrained systems, this can materially affect standby current and self-heating. More importantly, wake-up timing and first-sample validity can vary across devices. Some controllers need an extra dummy conversion after powering internal references or reconnecting panel drivers. If firmware was written around the ADS7845E’s timing model, replacing it with a superficially similar controller can introduce intermittent first-touch errors that are difficult to reproduce and easy to misdiagnose as software debounce problems.

Industrial temperature range is another criterion that should remain in the core comparison set. Resistive touch performance is already influenced by panel resistance drift, contact resistance variation, and mechanical stack-up changes across temperature. If the controller’s own switch resistance, offset, or reference behavior also shifts differently from the original device, calibration margins can erode quickly at the corners. A replacement that matches room-temperature behavior but diverges at -40°C or +85°C is not functionally equivalent in an industrial design, even if all nominal electrical specs appear close.

For sourcing and lifecycle planning, the safest replacement pool is limited to dedicated resistive touch controllers, ideally those explicitly supporting 5-wire panels with integrated drive circuitry. Candidates should then be screened in layers.

At the function layer, verify 5-wire panel support, panel-drive topology, wiper measurement method, 8-bit and 12-bit operating modes, reference options, and power-down states.

At the electrical layer, verify supply range, allowable reference range, analog input common-mode behavior, output logic levels, switch on-resistance, acquisition time, and industrial temperature rating.

At the interface layer, verify serial clock limits, command structure, data word alignment, conversion latency, BUSY or PENIRQ signaling, and any differences in chip-select framing requirements.

At the physical layer, verify package, pinout, thermal behavior, land pattern compatibility, and whether the touch-panel pins map one-to-one without rerouting.

At the system layer, verify calibration stability, coordinate linearity, edge behavior, noise sensitivity, first-sample behavior after power-down, and long-tail behavior under cable or connector parasitics.

In practical qualification work, a short bench checklist usually reveals whether a candidate is truly close to the ADS7845E. Drive the same panel with the original and the candidate. Measure center-point repeatability, corner accuracy, edge compression, conversion-to-conversion jitter, and response after repeated sleep-wake cycles. Then repeat under low supply, high supply, and temperature extremes. If firmware changes are required, compare not only whether coordinates are returned, but how much filtering, scaling, and debounce logic must be retuned to recover the original user response. When that tuning effort starts to grow, it usually indicates the replacement is compatible only at the marketing-spec level, not at the system level.

A useful engineering rule is this: if a replacement candidate forces new analog support circuitry, significant protocol translation, or nontrivial recalibration logic, then it should be classified as a redesign path rather than a replacement path. That distinction helps procurement and design teams make better decisions early. A drop-in replacement preserves electrical behavior, command model, and touch performance with limited qualification effort. A redesign path may still be valid, especially when supply continuity is the main goal, but it should be planned with the right budget, risk margin, and validation depth.

For the ADS7845E specifically, the most credible substitutes are devices in the same dedicated resistive-touch-controller class, not generic SAR ADCs or unrelated SPI data converters. If true drop-in replacement is required, pin compatibility alone is insufficient. Command protocol, panel-drive behavior, reference topology, and measurement timing must also align closely. If any of those differ, the device may still serve as a migration candidate, but it should be treated as a controlled redesign rather than a direct equivalent.

Texas Instruments ADS7845E remains a specialized component defined by its touch-controller architecture. Replacement success depends on matching that architecture first, then confirming the ADC, interface, and package details around it. That ordering avoids a common failure mode in component substitution: selecting on visible specs while missing the internal behavior that the original system was built around.

Conclusion

The Texas Instruments ADS7845E is not just a 12-bit SAR converter with a serial interface. It is a purpose-built resistive touch acquisition front end that integrates the analog drive network, coordinate sampling path, reference options, and power management required to turn a 5-wire resistive panel into a stable input subsystem. Its value appears most clearly in embedded designs where the touch interface must remain electrically simple, power efficient, and predictable over long deployment cycles.

At the architectural level, the device combines several functions that would otherwise require discrete implementation. It includes a 12-bit successive-approximation ADC, panel driver circuitry for 5-wire resistive touch sensing, a synchronous serial interface for host communication, and operating modes that support either external or differential reference behavior. This combination matters because resistive touch measurement is not only an ADC problem. It is also a switching, excitation, settling, and error-management problem. The ADS7845E addresses these layers as a coordinated signal chain rather than as isolated blocks.

The 12-bit SAR ADC is central, but its practical usefulness depends on how the panel is driven and how the conversion is referenced. In resistive systems, raw ADC resolution alone does not guarantee usable coordinate accuracy. Panel resistance variation, contact resistance, switch path resistance, cable parasitics, and supply movement all distort the sampled voltage if the measurement method is not carefully arranged. The ADS7845E is effective because it supports ratiometric measurement behavior, where the sampled coordinate is inherently tied to the same electrical conditions used to excite the panel. That approach cancels a large class of gain-related errors before firmware filtering even begins.

Its differential reference mode is one of the most important features in real deployments. In resistive touch systems, the panel itself is part of the measurement network. If the converter reference is disconnected from the actual panel excitation path, any series resistance in switches, traces, flex cables, or connectors can translate directly into coordinate error. Differential referencing reduces this sensitivity by measuring the touch voltage against the same effective drive conditions seen by the panel. In practice, this often produces more stable coordinates than a nominally precise absolute reference would, especially in compact handheld hardware where connector resistance and layout compromises are difficult to eliminate completely. This is one of those cases where system-level accuracy depends more on reference topology than on ADC headline specifications.

The low-power design is equally important. Portable and duty-cycled embedded products rarely need continuous high-rate touch conversion. Most spend long periods waiting for user interaction, then briefly wake the measurement path, acquire several samples, and return to a low-power state. The ADS7845E fits this behavior well because it supports aggressive power-down operation with limited interface overhead. That reduces standby drain and simplifies host-side control logic. In battery-driven products, the difference between a converter that merely has low active current and one that also enters a clean low-leakage idle state is significant. Over months of intermittent use, standby behavior often matters more than conversion energy.

The serial interface keeps integration straightforward. A synchronous serial link is usually enough for microcontrollers that already manage displays, key matrices, or low-speed sensors. This avoids the board area and timing complexity of wider parallel interfaces while still allowing deterministic command sequencing. In designs with modest firmware resources, that simplicity has operational value. A touch controller should not consume disproportionate software effort, and the ADS7845E generally aligns well with that expectation.

From an engineering selection perspective, the device is best viewed as an analog front end optimized for resistive touch physics, not as a general ADC repurposed for pointing input. That distinction helps explain why it remains relevant in systems that continue to use resistive panels. General-purpose converters can often match or exceed its nominal resolution, but they typically shift the burden of panel drive timing, reference integrity, and low-power coordination back to the rest of the design. The ADS7845E keeps those functions localized, which usually leads to a more robust implementation with fewer subtle failure modes.

This becomes especially visible during bring-up and field qualification. Resistive interfaces often look simple on a schematic, yet small analog details can dominate user experience. In early prototypes, unstable coordinate readings are frequently traced not to insufficient digital filtering but to incomplete analog settling after panel excitation, poor grounding around the panel return path, or reference mismatch between drive and measurement domains. Devices like the ADS7845E reduce these risks because their intended use model already assumes those constraints. Even so, best results usually come from allowing adequate settling time after axis switching, taking multiple samples per touch event, and filtering in a way that rejects transient contact noise without making the interface feel sluggish. Median or trimmed-average methods are often more effective than plain averaging because resistive contacts tend to produce occasional outliers rather than purely random noise.

Layout and interconnect quality still matter. The controller can suppress many error sources, but it cannot fully correct for poorly routed panel lines, weak connector retention, or noisy digital return currents sharing the same path as the touch reference network. Keeping panel traces short, minimizing unnecessary series impedance, and separating noisy display switching currents from the touch acquisition path generally improves repeatability. In compact mixed-signal boards, the most useful mindset is to treat the panel, flex, connector, and controller as a single distributed analog component. Once that view is adopted, the reasons behind differential reference handling and ratiometric conversion become much clearer.

In application terms, the ADS7845E is well aligned with industrial handhelds, medical user terminals, portable instrumentation, point-of-sale equipment, and other embedded products where resistive touch remains attractive because of glove compatibility, stylus operation, environmental tolerance, or long product life. In these systems, absolute touch throughput is rarely the main requirement. Stability, low standby power, interface simplicity, and predictable behavior across temperature and aging are usually more valuable. The industrial temperature capability and standard surface-mount packaging support that kind of deployment, particularly when the design is expected to remain in production for years with minimal architectural change.

For component selection and procurement, the main advantage is not novelty but fit. The ADS7845E addresses a mature problem with a mature architecture. That is often preferable in long-lived embedded platforms, where replacing a resistive touch front end with a more generic mixed-signal solution can increase firmware complexity, analog validation effort, and support risk without delivering meaningful user benefit. In that sense, the part represents a balanced engineering choice: enough integration to solve the hard analog aspects of resistive touch measurement, enough flexibility to adapt to real board conditions, and low enough overhead to remain practical in constrained systems.
